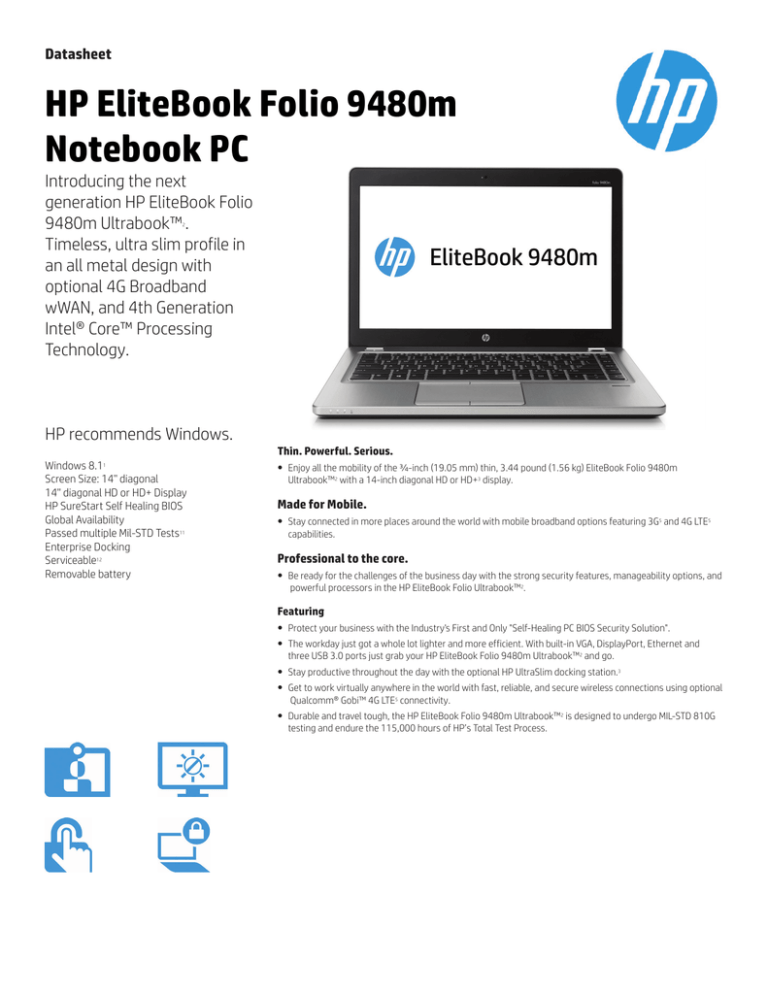

Datasheet
HP EliteBook Folio 9480m
Notebook PC
Introducing the next
generation HP EliteBook Folio
9480m Ultrabook™ .
Timeless, ultra slim profile in
an all metal design with
optional 4G Broadband
wWAN, and 4th Generation
Intel® Core™ Processing
Technology.
2
HP recommends Windows.
Windows 8.11
Screen Size: 14" diagonal
14" diagonal HD or HD+ Display
HP SureStart Self Healing BIOS
Global Availability
Passed multiple Mil-STD Tests11
Enterprise Docking
Serviceable12
Removable battery
Thin. Powerful. Serious.
● Enjoy all the mobility of the ¾-inch (19.05 mm) thin, 3.44 pound (1.56 kg) EliteBook Folio 9480m
Ultrabook™2 with a 14-inch diagonal HD or HD+3 display.
Made for Mobile.
● Stay connected in more places around the world with mobile broadband options featuring 3G5 and 4G LTE5
capabilities.
Professional to the core.
● Be ready for the challenges of the business day with the strong security features, manageability options, and
powerful processors in the HP EliteBook Folio Ultrabook™2.
Featuring
● Protect your business with the Industry's First and Only "Self-Healing PC BIOS Security Solution".
● The workday just got a whole lot lighter and more efficient. With built-in VGA, DisplayPort, Ethernet and
three USB 3.0 ports just grab your HP EliteBook Folio 9480m Ultrabook™2 and go.
● Stay productive throughout the day with the optional HP UltraSlim docking station.3
● Get to work virtually anywhere in the world with fast, reliable, and secure wireless connections using optional
Qualcomm® Gobi™ 4G LTE5 connectivity.
● Durable and travel tough, the HP EliteBook Folio 9480m Ultrabook™2 is designed to undergo MIL-STD 810G
testing and endure the 115,000 hours of HP’s Total Test Process.
Datasheet | HP EliteBook Folio 9480m Notebook PC
HP recommends Windows.
HP EliteBook Folio 9480m Notebook PC Specifications Table
Available Operating System
Windows 8.1 Pro 64 1
Windows 8.1 64 1
Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64) 1,2
FreeDOS 2.0
Available Processors
Intel® Core™ i7-4650U with Intel HD Graphics 5000 (1.7 GHz, 4 MB cache, 2 cores); Intel® Core™ i7-4600U with Intel HD Graphics 4400 (2.1 GHz,
4 MB cache, 2 cores); Intel® Core™ i5-4310U with Intel HD Graphics 4400 (2 GHz, Up to 3 GHz with Intel Turbo Boost Technology, 3 MB cache, 2
cores); Intel® Core™ i5-4210U with Intel HD Graphics 4400 (1.7 GHz, up to 2.7 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores) 3
Chipset
Chipset is integrated with processor
Maximum Memory
16 GB 1600 MHz DDR3L SDRAM 4
Memory Slots
2 SODIMM
Internal Storage
up to 500 GB SATA (7200 rpm) 5
128 GB up to 240 GB SATA SSD 5
up to 256 GB SATA SE SSD 5
Flash Cache
32 GB MLC M.2
Display
14" diagonal HD anti-glare LED-backlit (1366 x 768); 14" diagonal HD+ anti-glare LED-backlit (1600 x 900) 8
Available Graphics
Integrated: Intel HD Graphics 4400; Intel HD Graphics 5000
Audio
HD Audio with DTS Studio Sound; Integrated dual-microphone array on models equipped with optional webcam; 2 integrated stereo speakers;
Stereo headphone line out; Stereo microphone in
Wireless Technologies
Intel 802.11a/b/g/n and Bluetooth® 4.0 Combo; Intel 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.0 Combo; HP hs3110 HSPA+ Mobile Broadband;
HP lt4211 LTE/EV-DO/HSPA+ Qualcomm® Gobi™ 4G Mobile Broadband 6,7
Communications
Intel I218-LM GbE (10/100/1000 NIC)
Expansion Slots
1 multi-format digital media reader
(Supports SD, SDHC, SDXC)
Ports and Connectors
2 USB 3.0; 1 USB 3.0 (charging/powered port); 1 headphone/microphone combo; 1 AC power; 1 docking connector; 1 slice battery connector; 1
RJ-45; 1 DisplayPort 1.2a with MST support; 1 VGA
Input Device
Full-sized, spill resistant backlit keyboard; Glass touchpad (with chemically etched surface) with on/off button, supports 2-way scroll with legend,
taps and gestures enabled by default, two-finger scrolling, two finger zoom (pinch)
Camera
720p HD webcam (select models) 8
Available Software
Foxit PhantomPDF Express; HP Support Assistant; HP Software Setup; HP SoftPaq Download Manager; HP ePrint Driver; HP 3D Driveguard (for
hard drive only); Intel WiDi Software; CyberLink Power2Go; CyberLink PowerDVD; Absolute Persistence; HP File Sanitizer; HP Client Security;
Microsoft Security Essentials 10,11,12,13,14,15,16,17
Security Management
Security lock slot; TPM 1.2 Embedded Security Chip; Fingerprint reader; Integrated smart card reader (active); HP ProtectTools; Full Volume
Encryption; HP SureStart 18
Power
45 W Smart AC adapter; 45 W Smart AC adapter 2-prong (Japan only); 65 W Smart EM AC adapter (PRC (China), India only) HP Long Life 4-cell, 52
WHr Li-ion; HP Long Life Slice 6-cell, 60 WHr Li-ion (secondary, optional); 4-cell, 44 WHr Li-ion; 4-cell, 40 WHr Long Life Li-ion
Dimensions
13.3 x 9.09 x 0.75 in
33.8 x 23.1 x 1.89 cm
Weight
Starting at 3.56 lb
Starting at 1.61 kg
(Weight will vary by configuration.)
Environmental
Low halogen 9
Energy Efficiency Compliance
ENERGY STAR® qualified configurations available
Expansion Solutions
E271i Elite 27" Display
S230tm Elite Touch Monitor
Warranty
Limited 3 year, 1 year and 90 day warranty options available, depending on country, 1 year limited warranty on primary battery. Optional HP Care
Pack Services are extended service contracts which go beyond your standard warranties.
HP recommends Windows.
Datasheet | HP EliteBook Folio 9480m Notebook PC
HP EliteBook Folio 9480m Notebook PC
Accessories and services (not included)
HP 2013 UltraSlim Docking
Station
Quickly and easily expand your display, network, and device connectivity to customize an always-ready
workspace with the HP 2013 UltraSlim Docking Station, a simple one-click, slide-in side dock for select
ultraslim HP EliteBook Notebook PCs.
Product number: D9Y32AA
HP Ultraslim Keyed Cable Lock
Designed to fit industry standard lock slot on most HP notebooks
Product number: H4D73AA
HP External USB DVDRW Drive
Connect the HP External USB DVD/RW to any available USB port on your PC1 to get immediate read/write
access to your optical media.
Product number: F2B56AA
HP BA06 Long Life Battery
The HP BA06 Long Life Battery is a slice battery that slides onto the bottom of the HP EliteBook Folio 9470m
Notebook PC to help you be productive longer than using the primary battery alone.
Product number: H4Q48AA
HP DisplayPort to HDMI 1.4
Adapter
Make the most of the available ports on your HP Business Notebook by converting its DisplayPort output to
HDMI for quick and easy connection to a range of multimedia devices.
Product number: F3W43AA
HP 65W Slim AC Adapter
Be productive with the HP Slim 65W Combo Adapter, which can power your HP Business Notebook or
Ultrabook™.
Product number: H6Y82AA
HP EliteDisplay E271i 27-inch
IPS LED Backlit Monitor
(ENERGY STAR)
A huge screen, customizable comfort, and wide-angle IPS.
IPS goes mainstream with the HP EliteDisplay E271i 27-inch IPS LED Backlit Monitor, a business-class
combination of an extra-large screen, extra-wide viewing angles, and extraordinary comfort.
Product number: D7Z72AA
HP EliteDisplay S230tm
23-inch Touch Monitor
(ENERGY STAR)
Make the most of your business PC’s Windows 8 environment with a fully reclining, multi-touch IPS display that
puts productivity at your fingertips and keeps you comfortable throughout the day. Enjoy vibrant Full
HD1images on the extra-large 23-inch diagonal screen.
Product number: E4S03AA
HP recommends Windows.
Datasheet | HP EliteBook Folio 9480m Notebook PC
Messaging Footnotes
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See
http://www.microsoft.com.
2 Not all configurations will qualify as Ultrabooks™.
3 Sold separately or as an optional feature.
4 HP Mobile Connect services are optional, require a compatible CDMA or HSPA mobile broadband module and prepaid service purchase. Find coverage and availability for your service area at
http://www.hp.com/go/mobileconnect.
5 3G and 4G LTE WWAN is an optional feature, requires factory configuration and is not available on all products, in all regions and requires separately purchased service contract. Check with service provider for coverage and
availability. Connection speeds will vary due to location, environment, network conditions, and other factors.
6 Requires Windows.
7 Requires Windows Operating System.
8 LANDesk software is sold separately. Managed devices must be connected to the management server. Requires active LANdesk maintenance service. Wipe functionality performs a "Windows 8 Reset" and requires Windows 8.
Lock performs a Windows "Lock Computer.”
9 Some functionality of this technology, such as Intel® Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances"
applications for Intel vPro technology is dependent on 3rd party software providers. Windows required.
10 Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance
will vary depending on your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
11 MIL STD 810G testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions.
12 Memory and storage upgrades after factory configuration are only available through an HP Authorized Service Provider or for participants in HP’s Self Maintainer program http://www.hp.com/partners/Smprogram
1
Technical Specifications Footnotes
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See
http://www.microsoft.com for details.
2 This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 8.1 Pro software. You may only use one version of the Windows software at a time. Switching between
versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
3 Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance will
vary depending on your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
4 Maximum memory capacities assume Windows 64-bit operating systems. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.
5 For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB (for Windows 8) is reserved for system recovery software.
6 Wireless is an optional add- on feature and requires wireless access point and Internet service is required and is not included. Availability of public wireless access points limited.
7 Mobile Broadband is an optional feature and requires factory configuration. Use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary
due to location, environment, network conditions, and other factors. 4G LTE not available on all products, and in all regions.
8 HD content required to view HD images.
9 External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
10 ePrint requires an Internet connection to HP web-enabled printer. HP ePrint account registration required. For a list of eligible printers, supported documents and image types, and for complete details, see wwwhp.com/eprint
11 File Sanitizer is for the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial setup required. Web history deleted only in Internet Explorer and Firefox browsers and must be
user enabled.
12 HP 3D Drive Guard requires Windows.
13 HP Support Assistant: internet access required.
14 Microsoft Security Essentials on Windows 7 only. Internet access required.
15 WiDi: Intel® Wireless Display requires a separate Wireless Display receiver with a USB port and an HDTV or monitor with HDMI input.
16 HP Client Security requires Windows.
17 BIOS Absolute Persistence module is shipped turned off, and will be activated when customers purchase and activate a subscription. Service may be limited. Check with Absolute for availability outside the U.S. The optional
subscription service of Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. If Data Delete is utilized,
the Recovery Guarantee payment is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either create a PIN or purchase one or more RSA SecurID tokens from
Absolute Software.
18 HP ProtectTools requires Windows.
1
Learn more at
hp.com
Sign up for updates
hp.com/go/getupdated
© Copyright 2014. Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for
HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Intel, Core and Celeron are trademarks of Intel Corporation in
the U.S. and other countries. ENERGY STAR is a registered mark owned by the U.S. government. Qualcomm and Gobi are trademarks of Qualcomm
Incorporated, registered in the United States and other countries. Trademarks of Qualcomm Incorporated are used with permission. All other trademarks are
the property of their respective owners.
, May 2014
