Q-See QCN8012B Datasheet

Q-See QCN8012B Datasheet

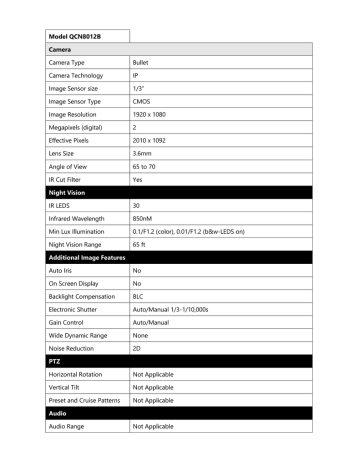

Model QCN8012B
Camera
Camera Type
Bullet
Camera Technology
IP
Image Sensor size
1/3”
Image Sensor Type
CMOS
Image Resolution
1920 x 1080
Megapixels (digital)
2
Effective Pixels
2010 x 1092
Lens Size
3.6mm
Angle of View
65 to 70
IR Cut Filter
Yes
Night Vision
IR LEDS
30
Infrared Wavelength
850nM
Min Lux Illumination
0.1/F1.2 (color), 0.01/F1.2 (b&w-LEDS on)
Night Vision Range
65 ft
Additional Image Features
Auto Iris
No
On Screen Display
No
Backlight Compensation
BLC
Electronic Shutter
Auto/Manual 1/3-1/10,000s
Gain Control
Auto/Manual
Wide Dynamic Range
None
Noise Reduction
2D
PTZ
Horizontal Rotation
Not Applicable
Vertical Tilt
Not Applicable
Preset and Cruise Patterns
Not Applicable
Audio
Audio Range
Not Applicable
Audio Microphone
Not Applicable
Connectivity
Connector Types
RJ45 POE ONVIF Profile S
Other Connections
2.1mm power
Wireless
No
Remote Monitoring
Use as Standalone
Yes
Compatible Mobile Devices
Iphone, ipad, android, Windows Phone 7.5/8
Compatible Systems
NVRs
Power
Power Supply
12V 500mA
Power Consumption
<4W (LEDs ON)
Physical
Weatherproof
Yes
IP Rating
IP66
Body Construction
Metal
Mounting Hardware
Screws
Weight
17.5 oz
Dimensions (WxDxH)
2.5 x 3.25 x 2.75 in (w/o bracket, 6.25 with bracket extended
Operating Temperature
-22° to 140°F
