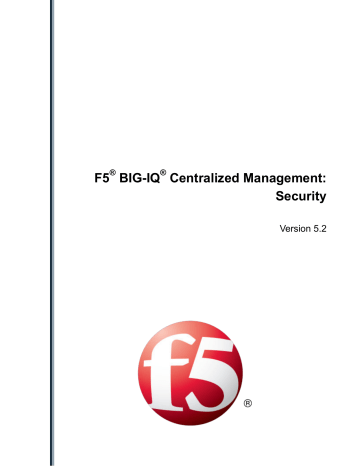

F5

®

BIG-IQ

®

Centralized Management:

Security

Version 5.2

Table of Contents

Table of Contents

Overview: BIG-IQ Centralized Management Security..............................................................9

Understanding Network Security and firewall management.............................................. 9

Understanding Shared Security......................................................................................... 9

Understanding Web Application Security and application management..........................10

About browser resolution................................................................................................. 10

About BIG-IQ Centralized Management configuration sets............................................. 10

About managing BIG-IP devices...................................................................................... 11

Managing Network Security Objects.......................................................................................13

About common objects in Network Security.................................................................... 13

Adding objects.......................................................................................................13

Viewing and editing objects...................................................................................14

Adding objects to firewall contexts and rules.........................................................14

Renaming objects..................................................................................................14

Cloning objects......................................................................................................15

Removing objects..................................................................................................15

Filtering content in firewall policies........................................................................15

About address lists...........................................................................................................17

Adding address types to address lists...................................................................18

Removing entries from address lists..................................................................... 18

Address list properties and addresses.................................................................. 18

About port lists................................................................................................................. 19

Adding port types to port lists................................................................................19

Removing entries from port lists............................................................................20

Port list properties and ports................................................................................. 20

About rule schedules....................................................................................................... 20

Rule schedule properties...................................................................................... 20

Managing Firewall Contexts.................................................................................................... 23

About managing firewall contexts.....................................................................................23

About BIG-IP system firewall contexts............................................................................. 23

About global firewalls............................................................................................ 24

About route domain firewalls................................................................................. 24

About virtual server firewalls................................................................................. 24

About self IP firewalls............................................................................................ 25

About management IP firewalls.............................................................................25

About firewall policy types................................................................................................25

Firewall properties................................................................................................. 25

Adding an enforced firewall policy....................................................................................27

Adding a staged firewall policy.........................................................................................27

Managing Rules and Rule Lists...............................................................................................29

About rules and rule lists..................................................................................................29

Creating rules...................................................................................................................30

Reordering rules in rule lists............................................................................................ 30

Removing rules................................................................................................................ 31

Creating and adding rule lists.......................................................................................... 31

Editing rule lists................................................................................................................ 32

3

Table of Contents

Clearing fields in rules......................................................................................................33

Cloning rule lists...............................................................................................................33

Removing rule lists...........................................................................................................34

Rule properties.................................................................................................................34

Managing Service, Timer, and Port Misuse Policies..............................................................39

About service, timer, and port misuse policies.................................................................39

Create a timer policy........................................................................................................ 39

Clone a timer policy..........................................................................................................40

Delete a timer policy.........................................................................................................40

Create a port misuse policy............................................................................................. 40

Clone a port misuse policy...............................................................................................41

Delete a port misuse policy..............................................................................................42

Create a service policy.....................................................................................................42

Clone a service policy...................................................................................................... 42

Deploy a service policy.................................................................................................... 43

Delete a service policy..................................................................................................... 43

Apply a service policy to a firewall context....................................................................... 43

Apply a service policy to a firewall rule............................................................................ 44

Managing NAT Policies and Translations............................................................................... 45

About NAT policies and translations.................................................................................45

Create a NAT policy......................................................................................................... 45

NAT rule properties.......................................................................................................... 45

Cloning a NAT policy........................................................................................................ 47

Deleting a NAT policy....................................................................................................... 47

Creating NAT source translations.....................................................................................48

Cloning NAT source translations...................................................................................... 50

Deleting NAT source translations..................................................................................... 51

Creating NAT destination translations.............................................................................. 51

Cloning NAT destination translations............................................................................... 52

Deleting NAT destination translations.............................................................................. 52

Managing FQDN Resolvers......................................................................................................53

About FQDN resolvers..................................................................................................... 53

Configuring FQDN resolvers............................................................................................ 53

Managing Notification Rules....................................................................................................55

About notification rules.....................................................................................................55

Adding and scheduling notification rules..........................................................................55

Editing notification rules................................................................................................... 57

Deleting notification rules................................................................................................. 57

Managing Change Verifications.............................................................................................. 59

About change verifications............................................................................................... 59

Adding change verifications............................................................................................. 59

Viewing change verification properties............................................................................ 60

Change verification properties......................................................................................... 60

Managing External Logging Devices...................................................................................... 63

About external logging devices........................................................................................ 63

Add external logging devices........................................................................................... 63

4

Table of Contents

Modify external logging devices....................................................................................... 64

Remove external logging devices.................................................................................... 65

Request authentication token for external logging devices.............................................. 65

Delete authentication token for external logging devices................................................. 66

Access external logging devices...................................................................................... 66

Monitoring Firewall Rules........................................................................................................ 67

About firewall rule monitoring...........................................................................................67

Monitoring firewall rule statistics and hit counts............................................................... 67

Monitoring firewall rule compilation statistics................................................................... 68

Managing Firewall Rule Reports............................................................................................. 69

About firewall rule reports................................................................................................ 69

Creating firewall rule reports............................................................................................ 69

Deleting firewall rule reports............................................................................................ 70

Managing Firewall Policies...................................................................................................... 71

About firewall policies.......................................................................................................71

Creating firewall policies........................................................................................71

Managing firewall policies..................................................................................... 72

Cloning firewall policies......................................................................................... 73

Reordering rules in firewall policies.......................................................................74

Deleting firewall policies........................................................................................ 74

Managing Virtual Servers in Shared Security........................................................................ 77

About virtual servers........................................................................................................ 77

Edit virtual servers........................................................................................................... 77

Managing DoS Profiles in Shared Security............................................................................ 79

About DoS profiles........................................................................................................... 79

Create DoS profiles..........................................................................................................79

Configure for application security.......................................................................... 80

Configure for protocol DNS................................................................................... 84

Configure for protocol SIP..................................................................................... 84

Configure for network security...............................................................................85

Edit DoS profiles.............................................................................................................. 86

Managing Device DoS Configurations in Shared Security................................................... 87

About device DoS configurations..................................................................................... 87

Edit device DoS configurations........................................................................................ 87

Managing Bot Signature Categories in Shared Security...................................................... 89

About bot signature categories........................................................................................ 89

Create bot signature categories....................................................................................... 89

Managing Bot Signatures in Shared Security........................................................................ 91

About bot signatures........................................................................................................ 91

Create bot signatures.......................................................................................................91

Managing Network Whitelists in Shared Security................................................................. 93

5

Table of Contents

About network whitelists.................................................................................................. 93

Create network whitelist................................................................................................... 93

Managing Logging Profiles in Shared Security..................................................................... 95

About logging profiles...................................................................................................... 95

Create logging profiles..................................................................................................... 95

Configure for Application Security logging............................................................ 96

Configure for Protocol Security logging.................................................................99

Configure for Network Firewall logging................................................................101

Configure for Network Address Translation logging............................................ 104

Configure for DoS Protection logging..................................................................105

Editing logging profiles................................................................................................... 105

Deleting logging profiles.................................................................................................106

Managing SSH Profiles in Shared Security.......................................................................... 107

About SSH profiles.........................................................................................................107

Create SSH profiles....................................................................................................... 107

Configure SSH proxy permissions...................................................................... 107

Configure SSH authentication keys.....................................................................108

Delete SSH profiles........................................................................................................109

Managing Application Security Policies in Web Application Security.............................. 111

About application security policies in Web Application Security ................................... 111

Overview of layered policies and inheritance................................................................. 113

Edit application security policies ................................................................................... 114

Edit general property settings............................................................................. 114

Edit inheritance settings...................................................................................... 118

Edit child policy overview settings....................................................................... 119

Edit blocking settings...........................................................................................119

Edit policy building process settings....................................................................131

Edit Ajax response page settings........................................................................ 133

Edit XML response page settings........................................................................134

Edit login response page settings....................................................................... 134

Edit default response page settings.................................................................... 135

Edit Data Guard settings..................................................................................... 136

Add or edit HTTP header settings....................................................................... 137

Add methods....................................................................................................... 137

Edit host name settings....................................................................................... 138

Edit cookie settings............................................................................................. 138

Edit header character set settings.......................................................................139

Edit IP addresses list settings............................................................................. 139

Edit IP address intelligence settings....................................................................140

Edit HTTP URL settings...................................................................................... 140

Add or edit WebSocket URL settings.................................................................. 141

Edit URL character set settings...........................................................................142

Add file types settings......................................................................................... 142

Edit or add JSON content profile settings........................................................... 143

Edit or add XML content profile settings..............................................................144

Edit or add plain text content profile settings.......................................................144

Edit character set JSON settings........................................................................ 145

Edit character set plain text settings....................................................................145

Edit character set XML settings...........................................................................146

Add or edit parameter settings............................................................................ 146

Add or edit extraction settings............................................................................. 148

6

Table of Contents

Edit character set parameter name settings........................................................149

Edit character set parameter value settings........................................................ 150

Configure attack signatures.................................................................................150

View and modify attack signatures...................................................................... 151

Edit geolocation enforcement settings................................................................ 151

Adding security policies ................................................................................................ 151

Import application security policies ............................................................................... 152

Export application security policies ............................................................................... 153

Removing security policies.............................................................................................153

Managing Signature Files...................................................................................................... 155

About signature files in Web Application Security..........................................................155

Viewing signature file properties.................................................................................... 155

Signature file properties................................................................................................. 155

Updating and pushing signature files ............................................................................ 156

Managing Custom Attack Signatures and Signature Sets..................................................157

About custom attack signatures..................................................................................... 157

Creating custom attack signatures.................................................................................157

About signature staging................................................................................................. 159

About custom attack signature sets............................................................................... 159

Add custom attack signature sets.................................................................................. 159

Edit custom attack signature sets.................................................................................. 161

Signatures advanced filter properties............................................................................ 163

Assign custom attack signature sets..............................................................................166

Managing Virtual Servers in Web Application Security...................................................... 167

About virtual servers in the policy editor........................................................................ 167

Displaying virtual server properties and managing policies........................................... 167

Viewing Event Logs in Web Application Security................................................................169

About event log viewing................................................................................................. 169

Viewing event log details................................................................................................169

Using common filters......................................................................................................169

Filtering (basic).............................................................................................................. 170

Filtering (advanced)....................................................................................................... 170

Filtering by entering query parameters.......................................................................... 171

Security Deployment Best Practices.................................................................................... 175

Verifying firewall rules have compiled on all BIG-IP devices.......................................... 175

Reviewing deployment process states to diagnose problems........................................175

Device deployment states................................................................................... 175

Legal Notices.......................................................................................................................... 179

Legal notices.................................................................................................................. 179

7

Table of Contents

8

Overview: BIG-IQ Centralized Management Security

Understanding Network Security and firewall management

Network Security is a platform designed for the central management of security firewalls for multiple

BIG-IP

®

systems, where firewall administrators have installed and provisioned the BIG-IP Advanced

Firewall Manager

(AFM

) module.

Network Security system provides:

• Device discovery with import of firewalls referenced by discovered devices

• Management of shared objects (address lists, port lists, rule lists, policies, and schedules)

• L3/L4 firewall policy support, including staged and enforced policies

• Firewall audit log used to record every firewall policy change and event

• Role-based access control

• Deployment of configurations from snapshots, and the ability to preview differences between snapshots

• Multi-user editing through a locking mechanism

• Monitoring of rules

• Reports on security

Managing a firewall configuration includes discovering, importing, editing, and deploying changes to the firewall configuration, as well as consolidation of shared firewall objects (policies, rule lists, rules, address lists, port lists, and schedules). Network Security provides a centralized management platform so you can perform all these tasks from a single location. Rather than log in to each device to manage the security policy locally, it is more expedient to use one interface to manage many devices. Not only does this simplify logistics, but you can maintain a common set of firewall configuration objects and deploy a common set of policies, rule lists, and other shared objects to multiple, similar devices from a central interface.

Bringing a device under central management means that its configuration is stored in the Network

Security database, which is the authoritative source for all firewall configuration entities. This database is also known as the working configuration or working-configuration set.

Once a device is under central management, do not make changes locally (on the BIG-IP device) unless there is an exceptional need. If changes are made locally for any reason, reimport the device to reconcile those changes with the Network Security working configuration set. Unless local changes are reconciled, the deployment process overwrites any local changes.

In addition, Network Security is aware of functionality that exists in one BIG-IP system version but not in another. This means, for example, that it prohibits using policies on BIG-IP devices that do not have the software version required to support them.

Understanding Shared Security

BIG-IQ

®

Centralized Management Security contains several groups of capabilities. The Shared Security group contains objects that can be used with Network Security objects and with Web Application

Security objects.

Overview: BIG-IQ Centralized Management Security

Understanding Web Application Security and application management

Web Application Security enables enterprise-wide management and configuration of multiple BIG-IP

® devices from a central management platform. You can centrally manage BIG-IP devices and security policies, and import policies from files on those devices.

For each device that it discovers, the BIG-IQ

®

Centralized Management system creates a logical container to hold all security policies that are not related to any virtual server on the device. This logical container is called the inactive virtual server, and is only used to track policies that are not directly attached to other virtual servers on that device. Policies attached to the inactive virtual server that are distributed are not enforced.

In order for you to deploy a policy to a BIG-IP device, the policy must be attached to one of the device's virtual servers, or to the inactive virtual server. You can deploy policies to a device that already has the policy by overwriting it. If the policy does not yet exist on the device, you can either deploy it as a new policy attached to an available virtual server, or deploy it as a policy attached to the inactive virtual server

(which will deploy the policy to the BIG-IP device without attaching it to a virtual server).

From this central management platform, you can perform the following actions:

• Import Application Security Manager

(ASM) policies from files.

• Import ASM

policies from discovered devices.

• Distribute policies to BIG-IP devices.

• Export policies, including an option to export policy files in XML format.

• Manage configuration snapshots.

• Edit policy settings. Refer to the table in About security policies in Web Application Security for the supported settings.

• Manage and distribute custom signature sets.

• Manage and distribute custom signatures.

• Distribute signature files to BIG-IP devices.

About browser resolution

F5

®

recommends a minimum screen resolution of 1280 x 1024 to properly display and use the screens efficiently.

It is possible to shrink the browser screen so that system interface elements (screens, scroll bars, icons) no longer appear in the visible screen. Should this occur, use the browser's zoom-out function to shrink the screens and controls.

About BIG-IQ Centralized Management configuration sets

The BIG-IQ

®

Centralized Management system uses the following terminology to refer to configuration sets for a centrally-managed BIG-IP

®

device:

Current configuration set

The configuration of the BIG-IP device as discovered by BIG-IQ Centralized Management. The

current configuration is updated during a re-discover and re-import, and before calculating differences during the deployment process.

10

F5 BIG-IQ Centralized Management: Security

Working configuration set

The configuration as maintained by BIG-IQ Centralized Management. The working configuration is the configuration that is edited on BIG-IQ Centralized Management and deployed back to BIG-IP devices.

The working configuration is created when the administrator first manages the BIG-IP device from the BIG-IQ Centralized Management system. The working configuration is updated when a device is re-imported or re-discovered.

If conflicts are observed during a re-discover and re-import, the object in conflict is only updated in the working configuration when the Use BIG-IP resolution conflict option is used.

About managing BIG-IP devices

Once you have placed a BIG-IP

®

device under management by the BIG-IQ

®

system by discovering and importing that device configuration, you should avoid directly changing the BIG-IP device configuration.

All changes to the BIG-IP device configuration should be made using the BIG-IQ system to avoid errors.

During the deployment process, the BIG-IQ system imports the current configuration of the targeted

BIG-IP devices. Subsequent changes made directly on the BIG-IP device which add new objects to the configuration will be labeled as being not imported and those objects will not be removed during the next deployment. These objects will continue to be labeled as not imported, until you reimport the configuration using the Device Management BIG-IP Devices screen.

To avoid this situation, when you directly modify a BIG-IP device, you must re-discover and re-import the BIG-IP device from the BIG-IQ system to reconcile the configuration differences.

11

Overview: BIG-IQ Centralized Management Security

12

Managing Network Security Objects

About common objects in Network Security

In Network Security, the common objects that you can view and manage include:

Firewall Contexts

Category of object to which a rule applies. In this case, category refers to objects such as Global,

Route Domain, Self IP, Virtual Server, or Management. Within each context, rules can be viewed and reorganized separately. It is possible to have multiple layers of firewalls on a single BIG-IP ® device.

These layers constitute the firewall hierarchy. Within the firewall hierarchy, rules progress from

Global, to Route Domain, and then to either Virtual Server or Self IP.

Firewall policies

Set of rules and/or rule lists that specify traffic-handling actions and define the parameters for filtering network traffic. You can assign rule lists or a policy to a firewall. Firewall policies facilitate the assigning of a common collection of rules consistently across multiple firewalls.

Rule lists

Containers for rules; rules are run in the order they appear in their assigned rule list. A rule list can contain thousands of ordered rules, but cannot be nested inside another rule list.

Address lists

Collections of IPv4 or IPv6 addresses, address ranges, nested address lists, geolocations and subnets.

These collections are saved on a server and used by policies, rule lists, and rules to allow or deny access to specific IP addresses in IP packets. Firewall rules compare all addresses or address ranges in a given address list to either the source or the destination IP address, depending on how the list is applied. Firewall rules can also compare all geolocations in a given address list to either the source or the destination location, depending on how the list is applied. If there is a match, the rule takes an action, such as accepting or dropping the packet.

Port lists

Collections of ports and port ranges. These collections are saved on a server and used by policies, rule lists, and rules to allow or deny access to specific IP addresses in IP packets. As with address lists, firewall rules compare all ports and port ranges in a given port list to either the source or the destination port, depending on how the list is applied. If there is a match, the rule takes an action, such as accepting or dropping the packet.

Rule schedules

Rule schedules are assigned to firewall rules, rule lists, and policies to control when rules, rule lists, and firewall policies are active on the firewall. You can hover over schedule names to see the name displayed in a tooltip. This feature is useful if the schedule name is longer than the screen.

Adding objects

You add firewall policy objects using the policy editor.

Note: Address lists and port lists are containers and must contain at least one entry. You cannot create an empty list; you cannot remove an entry from a list if it is the only entry.

Managing Network Security Objects

1. Click the type of object you want to add in the navigation list to the left, then click Create at the top of the object pane on the right.

2. In the opened screen, populate the property fields as required.

• All fields that are outlined in gold are required.

• The Partition field is outlined in gold, and although it is pre-populated with

Common

, it is an editable field.

• You can press Tab to advance from field to field.

3. When you are finished, click Save to save your changes, or click Save & Close to save and close the current window.

Viewing and editing objects

You use the BIG-IQ

®

Network Security policy editor to select firewall policy objects for deeper inspection or edit.

Note: Address lists and port lists are containers, and must contain at least one entry. You cannot create an empty list; you cannot remove an entry in a list if it is the only entry.

1. Navigate to the object you want to edit.

2. Click the name of the object that you want to edit.

3. Edit the properties and other areas as required.

You can use the keyboard Tab to advance from field to field.

4. When you are finished, click Save to save your edits, or click Save & Close to save and release the lock.

Adding objects to firewall contexts and rules

BIG-IQ

®

Network Security enables you to add objects to firewall contexts and rules (used in rule lists and firewall policies).

1. Navigate to the context, rule list or firewall policy to which you want to add an object.

• If you are editing a firewall context, click the name of the context to add to, click the name of the enforced firewall policy to add to on the Properties tab, and select Rule & Rule Lists so that the rules for enforced policies are visible.

• If you are editing a rule list, click the name of the rule list to add to, and select Rules so that the rules are visible.

• If you are editing a firewall policy, click the name of the policy to add to, and select Rule & Rule

Lists so that the rules are visible.

2. Click on an existing rule, click Create Rule to create a new rule, or click Add Rule List to add a rule list as needed.

3. In the toolbox at the bottom, select the type of object you want to add from the drop down list. The objects matching that type are listed.

4. Drag the object you want onto the indicated area.

5. When you are finished, click Save to save your edits, or click Save & Close to save and release the lock.

Renaming objects

BIG-IQ

®

Network Security does not support renaming an object.

As an alternative to renaming an object, you can create a new object and replace the original object where it is in use.

14

F5 BIG-IQ Centralized Management: Security

1. Create the new object. Consider cloning the object as the fastest and most reliable way to create a new object with the same content as the original but with a new name.

2. Locate every instance of the original object by hovering over the object, right-clicking, and selecting

Filter 'related to'.

A count is added to the objects in the navigation list on the left, indicating the number of times the object is used in each object.

3. Navigate to each instance where the original object is in use, and replace it with a reference to the newly-created object.

4. Remove the original object.

Clear the filter by clicking the X to the right of the filter text in the field at the top of the navigation list under the filter entry box.

Note: You cannot remove an object that is still in use.

Cloning objects

BIG-IQ

®

Network Security enables you to clone objects to create a copy of that object that is slightly different from the original. You may have an object that serves as a template. You can clone that object, edit it, and then use it in different ways.

1. Navigate to the type of object you want to clone.

2. Click the checkbox to the left of object that you want to clone.

3. Click Clone.

The system displays a copy of the object with the original object's name with -CLONE appended to the name and a blank Description field.

4. In the opened screen, populate the property fields as required.

• All fields that are outlined in gold are required.

• The Partition field is outlined in gold, and although it is pre-populated with

Common

, it is an editable field.

• You can press Tab to advance from field to field.

5. When you are finished, click Save to save your changes, or click Save & Close to save and close the current window.

The cloned object is added to the existing list in the appropriate section.

Removing objects

From the BIG-IQ

®

Network Security policy editor, you can remove shared objects.

1. Navigate to the type of object you want to remove.

2. Click the checkbox to the left of object that you want to remove and click Delete.

A popup information screen opens.

3. Respond to the popup screen prompt:

• If the object is being used by another object, policy, rule, or rule list, you cannot remove it; click

Cancel to not perform the removal.

• If the object can be removed, click Delete to confirm the removal.

Filtering content in firewall policies

There are several filter fields you can use to select the data displayed for firewall objects. The filter text you enter is used to perform a search of the underlying object's representation in storage (in JSON), which includes not only the name and other displayed data, but also metadata for the object, such as

15

Managing Network Security Objects

timestamps. Make the text you enter in the filter field specific enough to uniquely identify the one or more objects you want to display.

1. Go to Configuration > SECURITY > Network Security.

2. Edit one of the firewall policy objects, such as the firewall policy.

3. In the appropriate filter text field, type the text you want to filter on, and press Enter.

Option Description

Filter field at top right of screen

Use the filter field at the right top of the screen to search only the displayed objects for a match to the filter. You select filter options by clicking the arrow to the left of the filter field, and then selecting an option from each option group. The bottom option group in the list controls whether the filter text must be a partial match or an exact match.

Contains indicates that the filter text matches any object that contains it. This is the default. When searching for times or dates, such as those in a schedule, a partial time, such as September, may be specified.

Exact indicates that the filter text matches any object that exactly matches it. This match is not case-sensitive. When searching for times or dates, such as those in a schedule, the complete time and date must be specified.

Filter field in Toolbox at bottom

The top options group in the list control which objects are filtered. Not all options are displayed on all screens; if none of these options are displayed (IP Address, Name or Port), the default is All.

All indicates that all objects should be filtered using the filter text.

IP Address indicates that only IP address objects should be filtered using the filter text. A complete IPV4 or IPV6 address must be entered as the filter text.

• When used with the Contains option, the filter text is matched by an IPV4 or

IPV6 address that is the same as the filter text, or an IPV4 address range or subnet that includes the filter text. IPV6 addresses can not be found within a range or subnet.

• When used with the Exact option, the filter text is matched by an IPV4 or

IPV6 address that is the same as the filter text only.

Name indicates that only object names should be filtered using the filter text.

Port indicates that only port objects should be filtered using the filter text. A complete port number must be entered as the filter text.

• When used with the Contains option, the filter text is matched by a port number that is the same as the filter text, or a port number range that includes the filter text.

• When used with the Exact option, the filter text is matched by a port number that is the same as the filter text only.

If the navigation list is displayed, a count of the matching objects appears to the right of each object type in the navigation list.

To remove the filter, click the X to the right of the filter expression area near the filter field.

Use the filter field in the upper right of the toolbox (displayed at the bottom of the page when active) to search the shared objects list in the toolbox and display only those that have a full or partial match to the filter. To remove the filter, click the X to the right of the filter expression area near the filter field.

When specifying a date in a filter, only these date and time formats are supported:

16

F5 BIG-IQ Centralized Management: Security

• Sep 1, 2015 2:05:04 PM

• Sep 1, 2015 2:05:04 AM

• Sep 1, 2015 14:05:04

• Sep 1, 2015 2:05

• Sep 1, 2015

• Sep 1 2015

• Sep 1

• September 1

• 2015-09-01T14:05:04

• 2015-09-01T14:05

• 2015-09-01 2015-09

• 2015

You clear filter fields by clicking the X to the right of the filter field.

Objects are filtered on the text entered and a count for each appears to the right of each object type.

Note: Filter matches are only displayed for an object and its containing object. For example, when a filter matches a rule name in a rule list within a policy, only the rule and rule list will be shown as matching, but the policy will not.

About address lists

Address lists are collections of IPv4 or IPv6 addresses, address ranges, nested address lists, geolocations and subnets saved on a server and available for use in firewall rules, rule lists and firewall policies

Firewall rules refer to address lists to allow or deny access to specific IP addresses in IP packets. Firewall rules compare all addresses from the list to either the source or the destination IP address (in IP packets), depending on how the list is applied. Firewall rules can also compare all geolocations in a given address list to either the source or the destination location, depending on how the list is applied. If there is a match, the rule takes an action, such as accepting or dropping the packet.

You can see the content of an address list by hovering over its name in the policy editor. If an address list is nested, the tooltip displayed by the hovering will only show the first-level contents. To view address list names that are longer than the display field, hover over the name to see the full name displayed in the tooltip.

Note: Before nesting an address list inside an address list, check to be sure this option is supported on each BIG-IP

®

device where you intend to deploy the address list.

Address lists are containers and must contain at least one entry. You cannot create an empty address list; you cannot remove an entry in an address list if it is the only one.

You can add geolocation awareness to address lists, which enables you to specify source or destination IP addresses by geographic location. Thus, you can specify firewall behavior for traffic to/from entire geographic regions by defining rules based on where the source or destination system is, rather than on its IP address (source or destination). BIG-IQ

®

Network Security supports specifying geolocation in rules and address lists. The geolocation is validated when the rule or address list is saved.

Note: If you use a geolocation spec that is valid on the BIG-IQ Network Security system, but not supported on a particular BIG-IP

®

device because the device has a different geolocation database, it causes a deployment failure for that device. Importing a BIG-IP device with an invalid geolocation spec causes a discovery failure for that device.

17

Managing Network Security Objects

Adding address types to address lists

BIG-IQ

®

Network Security enables you to add addresses, address ranges, nested address lists, or geolocation to an existing address list.

1. Navigate to the Address Lists area. Policy Editor > Address Lists

2. Click the name of the address list that you want to edit.

3. Click the Addresses tab and then click the + icon to the right of an address.

A new row is added to the list of addresses under that row.

4. From the list under the Type column, select Address, Address Range, Address List, Domain Name or Country/Region.

• If you select Address List, in the Addresses field type the first letter of an existing address list. A list of existing address lists appears from which you can select an address.

• If you select Address, in the Addresses field supply the address.

• If you select Address Range, in the Addresses field supply the beginning range address in the top field and the ending range address in the bottom field.

• If you select Domain Name, in the Addresses field supply the domain name.

• If you select Country/Region, in the Addresses field select a country from the top list and optionally a region in that country from the bottom list.

5. When you are finished, click Save to save your edits, or click Save & Close to save and release the lock.

Removing entries from address lists

BIG-IQ

®

Network Security allows you to remove entries from address lists.

1. Navigate to the Address Lists area. Policy Editor > Address Lists

2. Click the name of the address list that you want to edit.

3. Click the X icon to the right of the address list entry to remove.

The entry is highlighted in red and marked to be deleted. The entry will be deleted when you click

Save or Save & Close.

4. When you are finished, click Save to save your edits, or click Save & Close to save and release the lock.

Address list properties and addresses

Property

Name

Description

Partition

Type

Description

Unique, user-provided name for the address list. The text field accepts up to and including 255 characters, including the partition name.

Optional description of the address list.

Field pre-populated with

Common

(the default). This field is editable when creating or cloning address lists.

After locking the address list for editing, select one of the following:

Address. Then, type the address in the Addresses field. You can also enter an address range in this field by typing a range in the format: n.n.n.n-n.n.n.n

.

Address Range. The Addresses field becomes two fields separated by "to." Type the beginning address and ending addresses in these fields as appropriate.

18

F5 BIG-IQ Centralized Management: Security

Property

Addresses

Description

Description

Address List. When you type the first letter of a saved list, the Addresses field populates with a picker list that displays saved address lists. You then select from the list.

Country/Region. From the first Addresses list, select a country. Once you select a country, the second list automatically updates with all available regions for that country. Optionally, select a region from the second list. The wildcard, Unknown, is supported. Note that geolocation is not supported on the management IP context.

IPv4 or IPv6 address, address range, or nested address list. There are many ways an

IPv4 or IPv6 address or address range can be constructed. The following methods and examples are not meant to be exhaustive.

• IPv4 format:

a

.

b

.

c

.

d

[/

prefix

]. For example:

60.63.10.10

.

• IPv6 format:

a

:

b

:

c

:

d

:

e

:

f

:

g

:

h

[/

prefix

]. For example:

2001:db7:3f4a:

9dd:ca90:ff00:42:8329

.

• IPv6 abbreviated form is supported. You can shorten IPv6 addresses as defined in

RFC 4291.

• You can specify subnets using forward slash (/) notation; for example:

60.63.10.0/24

. Example IPv6 subnet:

2001:db8:a::/64

.

• You can append a route domain to an address using the format %RouteDomainID/

Mask. For example:

12.2.0.0%44/16

.

Optional text field used to describe the address, address range, or nested address list.

About port lists

Port lists are collections of ports, port ranges, or port lists or nested port lists saved on a server and available for use in firewall rules, rule lists, and firewall policies.

Firewall rules refer to port lists to allow or deny access to specific ports in IP packets. They compare a packet's source port and/or destination port with the ports in a port list. If there is a match, the rule takes an action, such as accepting or dropping the packet. Port lists are containers and must contain at least one entry. You cannot create an empty port list; you cannot remove an entry in a port list if it is the only one.

You can see the content of a port list by hovering over its name in the policy editor. If a port list is nested, the tooltip displayed will only show the first-level contents. To view port list names that are longer than the display field, hover over the name to see the full name displayed in the tooltip.

Note: Before nesting a port list inside a port list, check to be sure this option is supported on the BIG-IP

® device where you intend to deploy the port list.

Adding port types to port lists

BIG-IQ

®

Network Security enables you to add ports, port ranges, or nested port lists to an existing port list.

1. Navigate to the Port Lists area. Policy Editor > Port Lists

2. Click the name of the port list that you want to edit.

3. Click the + icon to the right of a port.

A new row is added to the Ports table under that row.

4. From the Type list, select Port, Port Range, or Port List.

19

Managing Network Security Objects

If you select Port List, and type the first letter of an existing port list in the Ports field, a list of existing port lists appears from which you can select a port list from the list.

5. When you are finished, click Save to save your edits, or click Save & Close to save and release the lock.

Removing entries from port lists

BIG-IQ

®

Network Security enables you to remove entries from port lists.

1. Click the name of the port list from which you want to remove an entry. Policy Editor > Port Lists

2. Click the name of the port list from which to remove the entry.

3. Click the X icon to the right of the port list entry to remove.

The entry is highlighted in red and marked to be deleted. The entry will be deleted when you click

Save or Save & Close.

4. When you are finished, click Save to save your edits, or click Save & Close to save and release the lock.

Port list properties and ports

Property

Name

Description

Partition

Type

Ports

Description

Description

Unique name used to identify the port list.

Optional description for the port list.

Field pre-populated with

Common

(the default). This field is editable when creating or cloning port lists.

Select one of the following:

Port. Then, enter the port in the Ports field. You can also enter a port range in this field by entering a range in the format: n-n. Valid port numbers are 1-65535.

Port range. The Ports field becomes two fields separated by "to." Type the beginning port and ending port in these fields as appropriate.

Port list. When you type the first letter of a saved list, the Ports field is populated with a picker list that displays saved port lists. You then select from the list.

Port, port range, or port list. Valid port numbers are 1-65535.

Optional text field used to describe the port, port range, or nested port list.

About rule schedules

The Rule Schedules screen displays the defined rule schedules. By default, all rules, rule lists, and policies run continuously. Rule schedules are continuously active if created without any scheduling specifics (such as the hour that the rule schedule starts).

You apply a rule schedule to a rule to make that rule active only when needed.

Rule schedule properties

This table lists and describes the properties required when configuring firewall rule schedules.

20

F5 BIG-IQ Centralized Management: Security

Property

Name

Description

Partition

Date Range

Time Span

Day

Description

Specifies a unique, user-provided name for the rule schedule.

Specifies an optional description for the rule schedule.

Displays informational, read-only name of the partition associated with the rule schedule.

Specifies the date and time when the rule can be active. Select one of the options:

Indefinite

Specifies that the rule schedule start immediately and run indefinitely. The rule schedule remains active until you change the date range or delete the rule schedule. This is the default.

Until...

Specifies that the rule schedule start immediately and run until a specified end date. The rule schedule is immediately activated and not disabled until the end date and time is reached. Click in the field to choose an end date from a popup calendar. You can specify an end time in the same popup screen.

After...

Specifies that the rule schedule start after the specified date and run indefinitely. The rule schedule is activated starting on the selected date and runs until you change the start date or delete the rule schedule. Click in the field to choose a start date from a popup calendar. You can specify a start time in the same popup.

Between...

Specifies that the rule schedule start on the specified date and run until the specified end date. Click in the fields to choose the start and end dates from a popup calendar. You can specify start and end times in the same popup.

Note: Using the system interface and popup screens to specify the start and end dates and times is the preferred method. However, if you do specify dates manually, use the format: MMM DD,YYYY for the date.

Specifies the time, within the time defined by the Date Range, that the rule schedule can be active.

All Day specifies that the rule schedule runs all day. This is the default.

Between... specifies that the rule schedule starts at the specified time and runs until the specified end time. Click in the fields to choose the start and end times.

Specifies the days the rule schedule is active. Select check boxes for all days that apply. You must select at least one day per week.

21

Managing Network Security Objects

22

Managing Firewall Contexts

About managing firewall contexts

In BIG-IQ

®

Network Security, a firewall context is a BIG-IP

®

network object to which a firewall policy can be attached. In BIG-IQ Network Security, these network objects are called Global (global), Route

Domain (rd), Virtual Server (vip), Self IP (sip), or Management (mgmt).

Firewall contexts provide policy-based access control to and from address and port pairs, inside and outside the network. Using a combination of contexts, a firewall can apply rules in a number of different ways, including at a global level, per virtual server, per route domain, and even for the management port or a self IP address.

Firewall properties include the firewall name, an (optional) description, its partition, its type, and its parent device on the partition in which it resides. Note that an administrative partition is a part of the

BIG-IP configuration that is accessible only to a particular group of administrators. The default partition for all BIG-IP configurations,

/Common

, is accessible to all administrators. A sufficiently-privileged administrator can make additional partitions on the BIG-IP device. Each partition corresponds to a folder

(with the same name) to hold its configuration objects.

You can use the Policy Editor to view and configure enforced policies or rules whose actions (accept, accept decisively, drop, reject) are in force. You are restricted to a single, enforced policy on any specific firewall. You can edit all other firewall shared objects only from within the object's screen.

Note: Firewall policies can be enforced in one firewall context and staged in another.

Considerations when restoring snapshots of BIG-IP devices containing firewall inline rules

If you restore a snapshot of a version 11.5.1 or earlier BIG-IP device that contains inline firewall rules onto a BIG-IP version 11.5.2 or later or BIG-IP version 11.6 or later device, the inline rules are improperly restored to the later version. The inline rules are improperly restored because these later BIG-

IP device versions do not support the inline firewall rules that were part of the version 11.5.1 or earlier

BIG-IP device snapshot.

When you upgrade a version 11.5.1 or earlier BIG-IP device, the BIG-IP device automatically moves any inline rules into a system-defined policy. The restoration of the version 11.5.1 or earlier snapshot incorrectly writes inline rules back to the configuration of the later version of the BIG-IP device.

To restore a snapshot of a version 11.5.1or earlier BIG-IP device onto a later version BIG-IP device, you must again reimport the upgraded devices after restoring the snapshot. This updates the BIG-IQ system to contain the current policy based firewall configurations and removes the inline rules that were added to the configuration by the restoration of the snapshot for those 11.5.2 or later or 11.6.0 or later devices.

About BIG-IP system firewall contexts

A firewall context is the category of object to which a rule applies. In this case, category refers to Global,

Route Domain, Virtual Server, Self IP, or Management. Rules can be viewed and reorganized separately within each context.

Managing Firewall Contexts

It is possible to have multiple layers of firewalls on a single BIG-IP

®

device. These layers constitute the firewall hierarchy. Within the firewall hierarchy, rules progress from Global, to Route Domain, and then to either Virtual Server or Self IP.

If a packet matches a firewall rule within a given context, that action is applied to the packet, and the packet then moves to the next context for further processing. If the packet is accepted, it travels on to the next context. If the packet is accepted decisively, it goes directly to its destination. If the packet is dropped or rejected, all processing stops for that packet; it travels no further.

On each firewall, you can have rules, rule lists, or policies that are enforced or staged. Rules, rule lists, or policies are processed in order within their context and within the context hierarchy.

Rules for the Management interface are processed separately and not as part of the context hierarchy.

About global firewalls

A global firewall is an IP packet filter that resides on a global firewall on a BIG-IP

®

device. Except for packets traveling to the management firewall, it is the first firewall that an IP packet encounters. Any packet reaching a BIG-IP device must pass through the global firewall first.

When you create firewall rules or policies, you can select one of several contexts. Global is one of the contexts you can select. Rules for each context form their own list, and are processed both in the context hierarchy and in the order within each context list.

About route domain firewalls

A route domain firewall is an IP packet filter that resides on a route domain firewall on a BIG-IP

®

device.

A route domain is a BIG-IP system object that represents a particular network configuration. After creating a route domain, you can associate various BIG-IP system objects with the domain: unique

VLANs, routing table entries such as a default gateway and static routes, self IP addresses, virtual servers, pool members, and firewalls.

When a route domain firewall is configured to apply to one route domain, it means that any IP packet that passes through the route domain is assessed and possibly filtered out by the configured firewall.

When you create firewall rules or policies, you can select one of several contexts. Route domain is one of the contexts you can select. Rules for each context form their own list and are processed both in the context hierarchy and in the order within each context list.

Route domain rules apply to a specific route domain configured on the server. Route domain rules are checked after global rules. Even if you have not configured a route domain, you can apply route domain rules to

Route Domain 0

, which is effectively the same as the global rule context.

Route domain rules are collected in the Route Domain context. Route domain rules apply to a specific route domain defined on the server. Route domain rules are checked after global rules.

About virtual server firewalls

A virtual server firewall is an IP packet filter configured on the virtual server and, therefore, designated for client-side traffic. Any IP packet that passes through the virtual server IP address is assessed and possibly filtered out by this firewall.

When you create firewall rules or policies, you can select one of several contexts, including virtual server. Rules for each context form their own list and are processed both in the context hierarchy and in the order within each context list.

Virtual server rules apply to the selected virtual server only. Virtual server rules are checked after route domain rules.

24

F5 BIG-IQ Centralized Management: Security

About self IP firewalls

A self IP firewall is an IP packet filter configured on the self IP address, a firewall designated for serverside traffic. Any IP packet that passes through the self IP is assessed and possibly filtered out by this firewall.

A self IP address is an IP address on a BIG-IP

®

system that is associated with a VLAN and used to access hosts in that VLAN. By virtue of its netmask, a self IP address represents an address space; that is, a range of IP addresses spanning the hosts in the VLAN, rather than a single host address.

A static self IP address is an IP address that is assigned to the system and does not migrate between BIG-

IP systems. By default, the self IP addresses created with the Configuration utility are static self IP addresses. One self IP address must be defined for each VLAN.

When you create firewall rules or policies, you can select one of several contexts, including self IP. Rules for each context form their own list and are processed both in the context hierarchy and in the order within each context list.

The self IP context collects firewall rules that apply to the self IP address on the BIG-IP device. Self IP rules are checked after route domain rules.

About management IP firewalls

A management IP firewall is an IP packet filter configured on the management IP address and, therefore, designated to examine management traffic. Any IP packet that passes through the management IP address is assessed and possibly filtered out by this firewall.

The network software compares IP packets to the criteria specified in management firewall rules. If a packet matches the criteria, then the system takes the action specified by the rule. If a packet does not match a rule, then the software compares the packet against the next rule. If a packet does not match any rule, the packet is accepted.

Management IP firewalls collect firewall rules that apply to the management port on the BIG-IP

®

device.

Management port firewalls are outside the firewall context hierarchy and management port rules are checked independently of other rules.

Note: Policies and rule lists are not permitted on management IP firewalls. In addition, the management

IP firewall context does not support the use of iRules

®

or geolocation in rules.

About firewall policy types

In BIG-IQ

®

Network Security, you can add the following firewall policy types:

Enforced

An enforced firewall policy modifies network traffic based on a set of firewall rules.

Staged

A staged firewall policy allows you to evaluate the effect a policy has on traffic without actually modifying the traffic based on the firewall rules.

Firewall properties

The properties of a firewall context are shown when you select a context type from the list on the left, such as Global or Virtual Server. Some fields are for information purposes only and cannot be edited. Not all columns are shown for each context.

25

Managing Firewall Contexts

Property

Name

Partition

Firewall Type

IP Address

Description

Route Domain ID

Device

Enforced Policy

Staged Policy

Service Policy

NAT Policy

26

Description

Name as shown in the system interface: global for the global firewall; management-ip

for the management IP firewall;

0

for route domain; the IP address for self-ip; and the firewall name for a virtual server.

Usually,

Common

. An administrative partition is a part of the BIG-IP ® configuration that is accessible only to a particular group of administrators. The default partition for all BIG-IP configurations,

Common

, is accessible to all administrators. A sufficiently-privileged administrator can make additional partitions on the BIG-IP device. Each partition corresponds to a folder (with the same name, for instance,

/Common

) to hold its configuration objects.

One of the following: global (global); routedomain (rd); virtual server (vip); self-ip (self-ip); or management-ip (mgmt).

For Virtual server (VIP), self IP, and Management firewall types only; this is an informational, readonly field displaying the IP address retrieved (if available) during DMA.

Optional description for the firewall.

Used for Route Domain firewall types only; displays a number that identifies the route domain.

Name of the BIG-IP ® device where the firewall resides.

Name of the enforced policy assigned to the firewall context. An enforced firewall policy modifies network traffic based on a set of firewall rules. This property is not used for the

Management firewall type.

Name of the staged policy assigned to the firewall context. A staged firewall policy allows you to evaluate the effect a policy has on traffic without actually modifying the traffic based on the firewall rules. This property is not used for the

Management firewall type.

Name of the service policy assigned to the firewall context. This property is not used for the

Management firewall type.

Name of the NAT policy assigned to the firewall context.

F5 BIG-IQ Centralized Management: Security

Adding an enforced firewall policy

You can view and configure firewall policies or rules to force or refine actions (accept, accept decisively, drop, reject) using the Enforced settings. You are restricted to a single, enforced firewall policy on any specific firewall context.

Note: Policies can be enforced in one firewall context and staged in another.

1. Log in to BIG-IQ

®

Network Security.

2. Click Policy Editor.

3. Click Contexts in the list on the left to expand the contents and click one of the context types.

4. Click the name of the context to edit. The context properties are displayed.

5. Click Add Enforced Firewall Policy in the Enforced Firewall Policy row and in the resulting popup, click the policy to use and click Add. Alternatively, drag-and-drop a policy from those listed in the

Policy Editor toolbox at the bottom of the page to the Enforced Firewall Policy row.

Adding an enforced policy results in the removal of all existing rules.

6. Click the name of the enforced policy to display the policy properties.

7. Click Create Rule to add a rule by editing the fields in the template.

You can also add rules by right-clicking in the last rule in the table and selecting Add rule before or

Add rule after. If you right-click after the bottom row in the Rules table, you can select the option

Add rule. You can then reorder rules by dragging and dropping them until they are in the correct order for execution. You can also reorder rules by right-clicking in the row and selecting among the ordering options.

8. Add a rule list by clicking Add Rule List.

9. In the popup screen that opens, select the name of the rule list that you want to add and then click

Add.

10. Click Save to save changes.

To clear a lock without saving changes, click the Unlock link.

11. When finished, click Save & Close to save your edits, clear the lock, and exit.

Adding a staged firewall policy

You can stage firewall policies using the Staged settings. Actions (accept, accept decisively, drop, reject) have no effect on network traffic. Rather, they are logged. This gives you the ability to stage a firewall policy first and examine the logs to determine how the firewall policy has affected traffic. Then, you can determine the timing for turning the firewall policy from staged to enforced.

Rule and rule lists are not allowed on staged firewall policies.

Note: A firewall policy can be staged in one context and enforced in another.

1. Log in to BIG-IQ

®

Network Security.

2. Click Policy Editor.

3. Click Contexts in the list on the left to expand the contents and click one of the context types.

4. Click the name of the context to edit. The context properties are displayed.

27

Managing Firewall Contexts

5. Click Add Staged Firewall Policy in the Staged Firewall Policy row and in the resulting popup, click the policy to use and click Add. Alternatively, drag-and-drop a policy from those listed in the Policy

Editor toolbox at the bottom of the page to the Staged Firewall Policy row.

Adding an enforced policy results in the removal of all existing rules and rule lists.

6. Click Save to save changes.

To clear a lock without saving changes, click the Unlock link.

7. When finished, click Save & Close to save your edits, clear the lock, and exit.

28

Managing Rules and Rule Lists

About rules and rule lists

Rule lists are containers for rules, which are run in the order they appear in their assigned rule list. A rule list can contain thousands of ordered rules, but cannot be nested inside another rule list. You can reorder rules in a given rule list at any time.

With BIG-IQ

®

Network Security, you can manage rules and rule lists from the Rule Lists option (Policy

Editor > Rule Lists). You can also create rules and add rule lists from the Contexts and the Policies options. You can import and manage rules (and/or rule lists) from BIG-IP

®

devices. Furthermore, you can define rules and rule lists within BIG-IQ Network Security, and then deploy back to the BIG-IP device.

You can define a list of rules for a specific firewall and/or refer to one or more shared rule lists by name from other firewalls.

Network firewalls use rules and rule lists to specify traffic-handling actions. The network software compares IP packets to the criteria specified in rules. If a packet matches the criteria, then the system takes the action specified by the rule. If a packet does not match any rule from the list, the software accepts the packet or passes it to the next rule or rule list. For example, the system compares the packet to self IP rules if the packet is destined for a network associated with a self IP address that has firewall rules defined.

A packet must pass all tests to match successfully. For example, to match against a source subnet and several destination ports, a packet must originate from the given subnet and also have one of the specified destination ports.

Rules and rule lists can be applied to all firewall types, such as:

• Global

• Route domain

• Virtual server

• Self IP

• Management IP (rules only, no iRule or geolocation support)

Enabling, disabling and scheduling rules and rule lists

Once a rule or a rule list is created, you can set the state of that rule or rule list to enable it, disable it, or schedule when it is enabled. By default, a rule or rule list is enabled. Settings on a rule list take precedence over those on a rule. For example, if a rule has a state of enabled, but is contained within a rule list that has a state of disabled, the rule used in that rule list will be disabled. The process differs for setting the state of a rule and setting the state of a rule list.

• To set the state for a rule, edit the rule and choose enabled, disabled or scheduled in the State column.

• To set the state for a rule list, edit the rule list, and right click the rule list name and select Edit Rule

List Reference. The state can now be set by choosing enabled, disabled or scheduled in the State column.

Filtering rule lists

To filter the system interface to display only those objects related to a selected rule list, hover over the rule list name, right-click and then click Filter 'related to'. The interface is filtered and a count appears to the right of each object type. The frame to the right provides its own filter field where you can enter text and click on the filter icon to constrain the display to those items that match the filter.

Managing Rules and Rule Lists

Creating rules

To support a context or policy, you can create specific rules, gather those rules in a rule list, and assign the rule list to the context or policy.

1. Log in to BIG-IQ

®

Network Security.

2. Click Policy Editor.

3. Select the object to which you want to add the rule:

Option Description

Rule list In the left pane, click Rule Lists to display the rule lists, then select the rule list to have the rule added.

Context In the left pane, click Contexts to display the contexts, then select the context to have the rule added.

Policy

In the left pane, click Policies to display the firewall policies, then select the policy to have the rule added.

4. Add the rule to the object:

Option Description

Rule list In the right pane, click Create Rule.

Context In the right pane, click the name of the context staged or enforced policy to which you want to add the rule, then click Create Rule.

Policy

In the right pane, click Create Rule.

A new row appears in the table of rules. The row contains a rule template, including defaults, for the new rule.

5. Complete the fields as appropriate.

You can also add rules by right-clicking in the Rules table, or by right-clicking any row in the Rules table and choosing Add Rule before or Add Rule after.

6. Click Save to save your changes.

7. When you are finished, click Save & Close to save your edits, clear the lock, and exit the panel.

Reordering rules in rule lists

You can optimize your network security firewall policy by reordering rules in rule lists.

1. Log in to BIG-IQ

®

Network Security.

2. Click Policy Editor.

3. Click Rule Lists in the left pane and click the specific rule list you want to edit in the right pane.

4. Click the Rules tab to ensure it is selected.

5. Drag-and-drop the rules until they are in the correct order.

If the list of rules expands beyond the editing frame, drag-and-drop will not work. Instead, copy the rule by right-clicking and selecting Copy Rule. Then, navigate to the new location for the rule, rightclick, and select Paste Before or Paste After as appropriate. After the copy, delete the rule that you copied. You delete rules by right-clicking on a rule and selecting Delete Rule.

Alternatively, you can reorder rules using the Cut Rule option. Right-click on the rule and select Cut

Rule to select the rule for reordering, then move your cursor to the new position in the rule list, and

30

F5 BIG-IQ Centralized Management: Security

select Paste Before or Paste After as appropriate. The rule is removed from the original position when it is pasted in the new position in the rule list, but not before.

6. When you are finished, click Save & Close to save your edits, clear the lock, and exit the panel.

Removing rules

You can remove specific rules from rule lists, firewalls, or policies, to fine tune security policies.

Note: You can remove a rule even if it is the only rule in the rule list.

1. You remove a rule based on the object that you remove it from:

Option Description

From a rule list

From a firewall context

In the left pane, expand Rules Lists and click the name of the rule list containing the rule that you want to delete. This opens the Rule List frame that provides access to Properties and Rules options.

In the left pane, expand Contexts, click the name of the context containing the rule that you want to delete.This opens the Properties frame which contains the

Enforced Policy row and the Staged Policy row, either of which may contain a policy. Click the policy name containing the rule to delete and then click Rules &

Rule Lists.

From a policy In the left pane, expand Policies, click the name of the policy containing the rule that you want to delete. The Policy frame opens and provides access to Properties and Rules & Rule Lists options. Select Rules & Rule Lists.

2. Hover over the row containing the rule, and right-click.

3. Select Delete rule and, if prompted, confirm the deletion.

4. Click Save to save your changes.

Creating and adding rule lists

To support a specific firewall or policy, you can create a rule list and then assign it to the firewall context or policy.

1. Click Policy Editor.

2. Click Rule Lists in the navigation pane on the left.

3. In the Rule Lists pane on the right, click Create.

4. Click Properties and complete the properties fields as required.

Option Description

Name

Unique name. The field is read-only field unless creating or cloning the rule list.

Description Optional description.

Partition

Although pre-populated with

Common

(default), you can set the partition name by typing a unique name for the partition.

Note: The partition with that name must already exist on the BIG-IP device. No whitespace is allowed in the partition name.

The firewall partition itself is not editable.

5. Click Rules and create or add rules to the rule list.

31

Managing Rules and Rule Lists

6. Click Save to save your changes or Save & Close to save your changed and exit the screen.

7. Select the object in the Policy Editor to which you want to add the rule list:

Option Description

Context Select Contexts in the navigation frame on the left, and then click the specific firewall context to have a rule list added.

Policy

Select Policies in the navigation frame on the left, and then click the specific firewall policy to have a rule list added.

8. Add the rule list to the selected object:

Option Description

Context Click the enforced or staged policy to which the rule list should be added, then click Add

Rule List, select from the rule lists in the popup dialog, and click Select.

Policy

Click Rules & Rule Lists, then click Add Rule List , then select from the rule lists in the popup dialog, and click Select.

You can add rules by right-clicking in the Rules table, or by right-clicking any row in the Rules table and choosing add rule before or add rule after.

9. When you are finished, click Save or Save & Close, as appropriate.

Editing rule lists

You can edit the content of rule lists from Policy Editor Rule Lists, including the order of rules in rule lists.

1. Log in to BIG-IQ

®

Network Security.

2. Click Policy Editor.

3. Click Rule Lists in the left pane and click the specific rule list you want to edit in the right pane.

4. Click Properties.

Option Description

Name

Informational, read-only field set when creating or cloning the rule list.

Description

Optional description.

Partition

Informational, read-only field set when creating or cloning the rule list.

5. Click Rules, and click the name of the rule you want to edit.

6. Complete the fields as appropriate.

You can also add rules by right-clicking in the Rules table, or by right-clicking any row in the Rules table and choosing Add Rule before or Add Rule after.

7. Complete fields as appropriate.

To reorder rules, simply drag-and-drop the rules until they are in the correct order. If the list of rules expands beyond the editing frame, drag-and-drop will not work. Instead, copy the rule by rightclicking and selecting Copy Rule. Then, navigate to the new location for the rule, right-click, and select Paste Before or Paste After as appropriate. After the copy, delete the rule that you copied.

8. Click Save to save your changes.

Changes made to the rule list are reflected the next time the Contexts or Policies screen is refreshed.

32

F5 BIG-IQ Centralized Management: Security

Clearing fields in rules

You can clear the text from fields in rules to fine tune them and, in turn, rule lists and security policies.

1. Log in to BIG-IQ

®

Network Security.

2. Click Policy Editor.

3. Expand Rule Lists and click the name of a rule list that you want to edit.

4. Click the Rules tab to ensure it is selected.

5. Click the name of the rule containing the fields whose contents you want to remove.

6. Not all fields can be cleared, but you can remove the contents of these fields as follows:

Option Description

Address (source or destination)

Port (source or destination)

Click the X to the right of the field.

Click the X to the right of the field.

VLAN iRule

Click the X to the right of the field.

Click the X to the right of the field.

Description

Click the X to the right of the field.

7. Click Save to save your changes.

8. When you are finished, click Save & Close to save your edits, clear the lock, and exit the panel.

Cloning rule lists

Cloning enables you to create and customize rule lists to address unique aspects of your network firewall environment. When you clone a rule list, you create an exact copy of the rule list, which you can then edit to address any special considerations.

Note: Users with the roles of Network_Security_View or Network_Security_Deploy cannot clone policies.

1. Log in to BIG-IQ

®

Network Security.

2. Click Policy Editor.

3. Click Rule Lists to display the rule list you want to clone, and then click the checkbox to the left of that rule list.

4. Click Clone.

5. Click Properties and complete the properties fields as required.

Option Description

Name

Unique name. The field is read-only field unless creating or cloning the rule list.

Description Optional description.

Partition

Although pre-populated with

Common

(default), you can set the partition name by typing a unique name for the partition.

Note: The partition with that name must already exist on the BIG-IP device. No whitespace is allowed in the partition name.

The firewall partition itself is not editable.

6. Click Rules, edit the rules as required to configure the clone.

33

Managing Rules and Rule Lists

You can also click Create Rule to add a new rule.

7. When you are finished, click Save.

If you click Cancel, the rule list is not cloned.

The cloned rule list is added alphabetically under Rule Lists. In a high-availability configuration, the cloned rule list is replicated on the standby system as soon as it is cloned.

Removing rule lists

You can remove rule lists from firewalls or policies to fine tune security policies.

1. Log in to BIG-IQ

®

Network Security.

2. Click Policy Editor.

3. Click Rule Lists to display the rule list you want to remove, and then click the checkbox to the left of that rule list.

4. At the top of the screen, click Delete.

5. If it is safe to remove the rule list, a confirmation dialog box opens; click Delete to confirm.

If the rule list is in use, you cannot complete the removal. A popup screen opens informing you that you cannot remove the rule list because it is in use. Click Close to acknowledge this message, and then click Cancel in the Delete Rule Lists popup screen. To see where a rule list is used, right click on the rule list name and select Filter 'related to'. A search is performed and any object using the rule list will have a non-zero number appear next to it in the navigation pane on the left. To clear the search, click the x icon to the right of the search string.

Rule properties

This table lists and describes the properties required when you are configuring network firewall rules.

Property

Name

Address

(Source)

Description

Unique, user-provided name for the rule. If the name is a rule list name, it is preceded by: referenceTo_ when moved to a firewall or policy. For example: referenceTo_sys_self_allow_all

.

There are many ways to construct an IPv4 or IPv6 address, address range, or address list. The following methods and examples are not meant to be exhaustive.

• IPv4 format:

a

.

b

.

c

.

d

[/

prefix

]. For example:

60.63.10.10

• IPv6 format:

a

:

b

:

c

:

d

:

e

:

f

:

g

:

h

[/

prefix

]. For example:

2001:db7:3f4a:

9dd:ca90:ff00:42:8329

• You can specify subnets using forward slash (/) notation; for example:

60.63.10.0/24

. An example of an IPv6 subnet is as follows:

2001:db8:a::/64

.

• You can append a route domain to an address using the format

%RouteDomainID/Mask. For example,

12.2.0.0%44/16

.

From the list, select:

Address. Enter the address in the Addresses field. You can also type an address range in the Addresses field using the format: n.n.n.n-n.n.n.n. For example:

1.1.1.1-2.2.2.2

.

Address range. Type the beginning address in the first Addresses field and the ending address in the second Addresses field.

34

F5 BIG-IQ Centralized Management: Security

Property

Port

VLAN

Address

(Destination)

Description

Address list. In the Addresses field, type text to display stored address lists. You can select any of the address lists displayed.

Country/Region. From the first Addresses list, select a country. Once you select a country, the second list automatically updates with all available regions for that country. Optionally, select a region from the second list. The wildcard, Unknown, is supported. Note that geolocation is not supported on the management IP context.

Options are provided to add additional addresses, address ranges, address lists, or countries/regions (+) and to delete addresses, address ranges, address lists, or countries/regions (X). When you are finished, click Save or Add.

Ports, port ranges, or port lists. From the list, select:

Port. Type the port in the Ports field. You can also enter a port range in the port field by typing a range in the format: n-n. For example:

43-44

.

Port range. Type the beginning port in the first Ports field and the ending port in the second Ports field.

Port list. In the Ports field, type text to display stored port lists. You can select any of the port lists displayed.

Options are provided to add additional ports, port ranges, or port lists (+) and to delete ports, port ranges, or port lists (X). When you are finished, click Save or Add.

Name of the VLAN physically present on the device (Internal, External, or Any). If you specify a VLAN in a rule without also specifying the VLAN's partition, the deployment task will fail when you attempt to deploy that rule to a firewall. Use the format partition/VLAN

or

/partition/VLAN

. For example:

Common/external or

/Common/external

. When you are finished, click Save or Add.

There are many ways to construct an IPv4 or IPv6 address, address range, or address list. The following methods and examples are not meant to be exhaustive.

• IPv4 format:

a

.

b

.

c

.

d

[/

prefix

]. For example:

60.63.10.10

• IPv6 format:

a

:

b

:

c

:

d

:

e

:

f

:

g

:

h

[/

prefix

]. For example:

2001:db7:3f4a:

9dd:ca90:ff00:42:8329

• You can specify subnets using forward slash (/) notation; for example:

60.63.10.0/24

. An example of an IPv6 subnet is as follows:

2001:db8:a::/64

.

• You can append a route domain to an address using the format

%RouteDomainID/Mask. For example,

12.2.0.0%44/16

.

From the list, select:

Address. Type the address in the Addresses field. You can also enter an address range in the Addresses field using the format: n.n.n.n-n.n.n.n. For example:

1.1.1.1-2.2.2.2

.

Address range. Type the beginning address in the first Addresses field, and the ending address in the second Addresses field.

Address list. In the Addresses field, type text to display stored address lists. You can select any of the address lists displayed.

Country/Region. From the first Addresses list, select a country. Once you select a country, the second list automatically updates with all available regions for that country. Optionally, select a region from the second list. The wildcard, Unknown, is supported. Note that geolocation is not supported on the management IP context.

35

Managing Rules and Rule Lists

Property

Port

Action iRule

Description

Protocol

Description

Options are provided to add additional addresses, address ranges, address lists, or countries/regions (+) and to delete addresses, address ranges, address lists, or countries/regions (X). When you are finished, click Save or Add.

Ports, port ranges, or port lists. From the list, select:

Port. Type the port in the Ports field. You can also enter a port range in the port field by typing a range in the format: n-n. For example: 43-44.

Port range. Type the beginning port in the first Ports field and the ending port in the second Ports field.

Port list. In the Ports field, type text to display stored port lists. You can select any of the port lists displayed.

Options are provided to add additional ports, port ranges, or port lists (+) and to delete ports, port ranges, or port lists (X). When you are finished, click Save or Add.

Click in the column and select one of the following:

Accept. Allows packets with the specified source, destination, and protocol to pass through the firewall. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present.

Accept decisively. Allows packets with the specified source, destination, and protocol to pass through the firewall, and does not require any further processing by any of the further firewalls. Packets that match the rule, and are accepted, traverse the system as if the firewall is not present. If the Rule List is applied to a virtual server, management IP, or self IP firewall rule, then Accept Decisively is equivalent to Accept.

Drop. Drops packets with the specified source, destination, and protocol.

Dropping a packet is a silent action with no notification to the source or destination systems. Dropping the packet causes the connection to be retried until the retry threshold is reached.

Reject. Rejects packets with the specified source, destination, and protocol.

When a packet is rejected the firewall sends a destination unreachable message to the sender.

When you are finished, click Save or Add.

Click in the column and enter the iRule name, including partition. For example:

/

Common/_sys_AXX_Support_OA_BasicAuth

. You can also set sampling rates on iRules ® by supplying a number in the Sampling Rate field. iRules ® use syntax based on the industry-standard Tools Command Language (Tcl). For complete and detailed information on iRules syntax, see the F5 Networks DevCentral web site, http:// devcentral.f5.com

. Note that iRules must conform to standard Tcl grammar rules. For more information on Tcl syntax, see http:// tmml.sourceforge.net/doc/tcl/index.html

. Note that iRules are not supported on the management IP context.

Optional description for the current rule. To add a description, click in the column, type text, and click Save or Add.

IP protocol to compare against the packet. Select the appropriate protocol from the list and click Save or Add. If you select ICMP, IPv6-ICMP, or Other, a popup dialog box opens where you can specify Type and Code combinations. The default type is Any and the default code is Any.

36

F5 BIG-IQ Centralized Management: Security

Property

State

Log

Description

Note: The type and code combinations are too numerous to document here. For details, consult the F5 Networks DevCentral site, http://devcentral.f5.com

or the documentation for the specific BIG-IP

®

platform.

Click in the column and select an option from the list to specify whether the rule is enabled, disabled, or scheduled. The field is updated. Click Save or Add when you are ready to save your changes. If you select scheduled from the list, the Select

Schedule list is displayed in the screen. Select a schedule and click OK. If you have assigned a schedule, then a gear icon appears to the right of the State setting in the

State column. To make changes to the State setting, click the gear icon to open the

Select Schedule popup screen. If you have no pre-defined schedules, you cannot assign the scheduled state to the rule.

Click in the column and select an option from the list to specify whether or not the firewall software should write a log entry for any packets that match this rule. From the list, select true (log an entry) or false (do not log an entry). When your are finished, click Save or Add. For you to set or edit this setting, the discovered device must be at version 11.3 HF6 or later. The setting is not editable earlier than version

11.3 HF6. When a new rule is added to a firewall through the BIG-IQ ® Network

Security system interface, editing is enabled for the Log setting even for devices with versions earlier than 11.3 HF6.

37

Managing Rules and Rule Lists

38

Managing Service, Timer, and Port Misuse Policies

About service, timer, and port misuse policies

A service policy allows you to associate network idle timers (timer policies) or port misuse policies on firewall contexts and rules.

You can discover a service policy on a BIG-IP

®

device version 12.0, or later. Or you can create one on a

BIG-IQ

®

Centralized Management system, and then deploy it to a BIG-IP device version 12.0, or later.

A service policy can contain timer policies, or port misuse policies, or both. You create service policies, timer policies, and port misuse policies separately, and then you add the timer policies or port misuse policies to the service policies.

• You use a timer policy, also known as a firewall idle timer, to configure timer rules that can be associated with firewall contexts and rules. You can discover a timer policy on a BIG-IP device version 12.0, or later, or create one on a BIG-IQ Centralized Management system, and then deploy it to a BIG-IP device version 12.0, or later.

• A port misuse policy allows you to configure a firewall context or rule to detect and drop network connections that are not using a required application or service for a given port. With a port misuse policy, you can configure ports to allow services, and drop all traffic that does not match the specified service type. You can configure port and service associations without regard for customary port and service pairings. You can discover a port misuse policy on a BIG-IP device version 12.1, or later, or create one on a BIG-IQ Centralized Management system, and then deploy it to a BIG-IP device version 12.1, or later.

Create a timer policy

You create a timer policy containing timer rules to add to a service policy.

1. Navigate to the Timer Policies screen: Click Configuration > SECURITY > Network Security >

Timer Policies.

2. Click Create.

The New Timer Policy screen opens.

3. In the Name field, type a name for the timer policy.

4. In the Description field, type an optional description for the timer policy.

5. If needed, change the default

Common

partition in the Partition field.

6. To add timer rules, click the Rules on the left, and click Create Rule.

A new rule is displayed with default name and values.

7. Click the edit icon to the left of the new rule to enable editing for the rule fields.

8. In the Name field, you may specify a more meaningful name than the default.

9. From the Protocol list, select the protocol to be used.

If you select all-other, the rule will apply to all protocols not specified in another timer rule in the policy.

10. From the Destination Ports list, specify the one or more ports to use, if necessary. The default is to use any port.

Managing Service, Timer, and Port Misuse Policies

• Select Port to specify an individual port: type the port in the field provided, and then click Add.

You can enter multiple individual ports, one at a time.

Enter 0 as the port value to specify all other ports that have not been specified using Port or Port

Range.

• Select Port Range to specify a range of ports: type the beginning port in the first field, and the ending port of the range in the second field provided, and then click Add. You can enter multiple ports ranges, one at a time.

• Select All Other to specify all other ports that have not been specified using Port or Port Range.

11. From the Idle Timeout list, select the timeout option for the selected protocol.

• Select Specify to specify the timeout for this protocol, in seconds. Type the number of seconds in the field provided.

• Select Immediate to immediately apply this timeout to the protocol.

• Select Indefinite to specify that this protocol never times out.

• Select Unspecified to specify no timeout for the protocol. When this is selected, the system uses the default timeout for the protocol.

12. Save your changes.

The timer policy is now configured.

You now need to add the timer policy to a service policy.

Clone a timer policy

Using the clone function, you can make a copy of a timer policy, and then modify it.

1. Navigate to the Timer Policies screen: click Configuration > SECURITY > Network Security >

Timer Policies.

2. Select the check box to the left of any timer policy you want to clone.

3. Click Clone.

The system displays the New Timer Policy screen with the cloned policy displayed.

Delete a timer policy

You can delete obsolete timer policies that are no longer used by a service policy to avoid clutter in the user interface.

1. Navigate to the Timer Policies screen: click Configuration > SECURITY > Network Security >

Timer Policies.

2. Select the check box to the left of any timer policy that you want to remove.

3. Click Delete.

4. Confirm that you want to remove the timer policy by clicking Delete in the confirmation dialog box.

The system removes the selected timer policies.

Create a port misuse policy

You create a port misuse policy containing port misuse rules to add to a service policy.

1. Go to the Port Misuse Policies screen: Click Configuration > SECURITY > Network Security >

Port Misuse Policies.

40

F5 BIG-IQ Centralized Management: Security

2. Click Create.

The New Port Misuse Policy screen opens.

3. Type a name and an optional description for the port misuse policy.

4. If needed, change the default

Common

partition in the Partition field.

5. In the Default Actions row, select the default actions to occur when port misuse is detected. You can select none, one, or both options.

• Select Drop on Service Mismatch to set a policy default that drops packets when the service does not match the port, as defined in the policy rules.

• Select Log on Service Mismatch to set a policy default that logs service and port mismatches.

6. To add port misuse rules, on the left, click Rules, and then click Create Rule.

The screen displays a new port misuse rule with default name and values.

7. Click the edit icon to the left of the name of the new rule to enable editing for the rule fields.

8. In the Name field, you may specify a more meaningful name than the default.

9. In the Port field, select a port for the port matching rule.

You can select from a list of commonly used ports, or select Other and specify a port number. The default port number is automatically supplied for the common ports.

10. In the IP Protocol field, select the IP protocol for the port matching rule.

11. In the Service field, select the service to use.

This setting configures the association between the service and port number. Packets on this port that do not match the specified service type are dropped, if Drop on Service Mismatch is applied to this rule.

You can specify a service on any port; you are not limited to customary port and service pairings. You can configure any service on any port as a rule in a port misuse policy.

12. In the Drop on Service Mismatch list, select the drop behavior.

• Select Yes to drop packets when the service does not match the port.

• Select No to allow packets when the service does not match the port.

• Select Use Policy Default to use the default action for packet drops, when the service does not match the port.

13. In the Log on Service Mismatch list, select the behavior for logging packet drops.

• Select Yes to log dropped packets when the service does not match the port.

• Select No to not log packet drops when the service does not match the port.

• Select Use Policy Default to use the default action for logging packet drops, when the service does not match the port.

14. Save your changes.

You have configured the port misuse policy.

You now can add the port misuse policy to a service policy.

Clone a port misuse policy

Using the clone option, you can make a copy of a port misuse policy that you can modify.

1. Navigate to the Port Misuse Policies screen: click Configuration > SECURITY > Network

Security > Port Misuse Policies.

2. Select the check box to the left of any port misuse policy you want to clone.

3. Click Clone.

The system displays the New Port Misuse Policy screen with the cloned policy displayed.

41

Managing Service, Timer, and Port Misuse Policies

Delete a port misuse policy

You can delete obsolete port misuse policies that are no longer used by a service policy to avoid clutter in the user interface.

1. Navigate to the Port Misuse Policies screen: click Configuration > SECURITY > Network

Security > Port Misuse Policies.

2. Select the check box to the left of any port misuse policy that you want to remove.

3. Click Delete.

4. Confirm that you want to remove the port misuse policy by clicking Delete in the confirmation dialog box.

The system removes the selected port misuse policy.

Create a service policy

You create a service policy to contain timer policies that can be applied to firewall contexts. Service policies can also be added to a rule in a rule list or a rule on a security policy.

1. Go to the Service Policies screen: Click Configuration > SECURITY > Network Security >

Service Policies.

2. Click Create.

The New Service Policy screen opens.

3. In the Name field type a name for the service policy.

4. If needed, change the default

Common

partition in the Partition field.

5. In the Description field, type an optional description for the service policy.

6. If needed, select a timer policy from those listed in the Timer Policy list.

If no timer policy is listed, create one and then assign it to the service policy.

7. If needed, select a port misuse policy from those listed in the Port Misuse Policy list.

If no port misuse policy is listed, create one and then assign it to the service policy.

8. In the Pin Policy to Device(s) setting, select the BIG-IP devices to be pinned to this policy, if needed.

Pinning a BIG-IP device to a policy enables the policy to be deployed even if it is not associated with a firewall context for that device. You select the BIG-IP device to use by moving it from the

Available list to the Selected list using the arrow buttons. You can filter the list of available BIG-IP devices using the filter field at the top of the Available list. Moving a BIG-IP device that is part of a cluster to the Selected list will cause the other member of the cluster to move to that list as well.

If you have a self IP context with a static (non-floating) IP address, you may be required to assign the device depending on you cluster deployment settings. For example, this property must be set for a peer BIG-IP device that is part of a DSC cluster managed by the BIG-IQ Centralized Management system. You may be directed to set this property as a result of an evaluation critical error.

9. Save your changes.

You have defined the service policy. You can now assign it to a firewall context. You can also add it to a rule in a rule list, or a rule on a security policy.

Clone a service policy

Using the clone option, you can make a copy of a service policy to modify..

42

F5 BIG-IQ Centralized Management: Security

1. Go to the Service Policies screen: Click Configuration > SECURITY > Network Security >

Service Policies.

2. Select the check box to the left of any service policy you want to clone.

3. Click Clone.

The system displays the New Service Policy screen with the cloned policy displayed.

Deploy a service policy

You can do a partial deployment of only a service policy instead of an entire configuration.

1. Go to the Service Policies screen: Click Configuration > SECURITY > Network Security >

Service Policies.

2. Select the check box to the left of any service policy you want to deploy.

3. Click Deploy.

The system displays the New Deployment - Network Security screen with the selected service policy on it. You can now continue the deployment process.

Delete a service policy

You should delete service policies that are no longer used, to simplify your view.

1. Go to the Service Policies screen: Click Configuration > SECURITY > Network Security >

Service Policies.

2. Select the check box to the left of any service policy you want to remove.

3. Click Delete.

4. Confirm that you want to remove the service policy by clicking Delete in the confirmation dialog box.

The system removes the selected service policies.

Apply a service policy to a firewall context

You apply a service policy to a firewall context to use a timer or port misuse policy with that context.

1. Navigate to the Contexts screen: Click Configuration > SECURITY > Network Security >

Contexts.

2. Click the name of the context to open it for editing.

3. Add the service policy to the Service Policy row: a) Click Add Service Policy.

b) From the popup screen select the service policy to add.

c) Click Select.

You can also add a service policy by selecting Service Policies in the Shared Objects list, and then dragging one of the displayed service policies and dropping it onto the Service Policy row. To remove a service policy, click the X to the right of the service policy name in the Service Policy row.

4. Save your changes.

The service policy is now associated with the context.

43

Managing Service, Timer, and Port Misuse Policies

Apply a service policy to a firewall rule

You apply a service policy to a firewall rule to apply timer policies or port misuse policies to traffic that is matched by the firewall rule. The rule can be associated with a rule list or with a firewall security policy.

1. Display the list of rules from a rule list or from a firewall security policy.

Option Description

If the rule is in a rule list: Navigate to the Rule Lists screen: click Configuration >

SECURITY > Network Security > Rule Lists. Click the name of the rule list containing the rule. The screen lists the rules.

If the rule is associated with a policy:

Navigate to the Firewall Policies screen: click Configuration >

SECURITY > Network Security > Firewall Policies. Click the name of the policy containing the rule. The screen lists the rules.

2. To make it editable, click the edit icon to the left of the name of the rule to which you want to add the service policy.

3. Add the service policy to the rule.

Option Description

Add the service policy by typing.

Add the service policy by drag and drop.

Type the name of the service policy in the Service Policy column for the rule. The system completes name of the service policy once you begin typing the name.

In the Shared Objects area, select Service Policies, and then drag the service policy from that list and drop it into the Service Policy column for the rule.

4. Save your changes.

The service policy is added to the rule.

44

Managing NAT Policies and Translations

About NAT policies and translations

You can use network translation address (NAT) policies to translate network addresses. These NAT policies contain rules that contain NAT source translations and NAT destination translations.

You associate a NAT policy with a firewall context by adding it to the NAT Policy property of the firewall context.

You can discover a NAT policy on a BIG-IP

®

device version 12.1 or later, or create one on a BIG-IQ

®

Centralized Management system, and then deploy it to a BIG-IP device version 12.1 or later.

Create a NAT policy

You create a NAT policy to contain rules that contain NAT source translations and NAT destination translations.

1. Go to the NAT Policies screen: Click Configuration > SECURITY > Network Security > Network

Address Translation > NAT Policies.

2. Click Create.

The New NAT Policy screen opens with the Properties displayed.

3. Type a name for the NAT policy in the Name field.

4. Type an optional description for the NAT policy in the Description field.

5. If needed, change the default

Common

partition in the Partition field.

6. On the left, click Rules and then click Create Rule.

A new row appears in the table of rules. The row contains a rule template, including defaults, for the new rule.

7. Click the edit icon to the left of the rule name to edit the default rule properties.

8. Complete the rule fields as appropriate.

You can also add rules by right-clicking in the Rules table, or by right-clicking any row in the Rules table and choosing one of the options available.

9. Save your changes.

The NAT policy is now defined and can be assigned to a firewall context.

NAT rule properties

This table lists and describes the properties required when configuring NAT policy rules. These rules are similar to rules used in firewall policies, but have a different set of properties.

Property

Name

Address

(Source)

Description

Unique, user-provided name for the rule.

Source address or addresses. Select the type of source address from the list:

Address. Type a single address in the Address field and then click + to the right of the address field to add it.

Managing NAT Policies and Translations

Property Description

Address List. In the Address field, type the name of the address list.

Alternatively, from the Shared Resources list at the bottom, you can select

Address Lists to list those available, and then drag and drop it into the Address field.

Address Range. Type the beginning address in the first Address Range field and the ending address in the second Address Range field. Then click + to the right of the address field to add it.

When you are finished, click Save or Save & Close.

Port (Source) Source port or ports. Select the type of port from the list:

Port. Type the port in the Port field.

Port Range. Type the beginning port in the first Port field and the ending port in the second Port field. Then click + to the right of the address field to add it.

Port List. In the Port field, type the name of the port list. Alternatively, from the

Shared Resources list at the bottom, you can select Port Lists to list those available and then drag and drop it into the Port field.

When you are finished, click Save or Save & Close.

VLAN (Source) Name of the VLAN physically present on the device (Internal, External, or Any). If you specify a VLAN in a rule without also specifying the VLAN's partition, the deployment task will fail when you attempt to deploy that rule to a firewall. Use the format partition/VLAN

or

/partition/VLAN

. For example:

Common/external or

/Common/external

. When you are finished, click Save or Save & Close.

Address

(Destination)

Port

(Destination)

Description

Protocol

Select the type of destination address from the list:

Address. Type a single address in the Address field and then click + to the right of the address field to add it.

Address List. In the Address field, type the name of the address list.

Alternatively, from the Shared Resources list at the bottom, you can select

Address Lists to list those available and then drag and drop it into the Address field.

Address Range. Type the beginning address in the first Address Range field and the ending address in the second Address Range field.

When you are finished, click Save or Save & Close.

Destination port or ports. Select the type of port from the list:

Port. Type the port in the Port field.

Port Range. Type the beginning port in the first Port field and the ending port in the second Port field.

Port List. In the Port field, type the name of the port list. Alternatively, from the

Shared Resources list at the bottom, you can select Port Lists to list those available and then drag and drop it into the Port field.

When you are finished, click Save or Save & Close.

Optional description for the current rule. To add a description, click in the column, type text, and click Save or Add.

IP protocol to compare against the packet. Select the appropriate protocol from the list and click Save or Save & Close. The default type is Any and the default code is

Any.

46

F5 BIG-IQ Centralized Management: Security

Property

State

Translated

Source

Translated

Destination

Log Profile

Description

Note: The type and code combinations are too numerous to document here. For details, consult the F5 Networks DevCentral site, http://devcentral.f5.com

, or the documentation for the specific BIG-IP

®

platform.

Select whether the rule is enabled or disabled. The field is updated. Click Save or

Save & Close to save your changes.

Type the name of a NAT Source Translation in the field. Alternatively, from the

Shared Resources list at the bottom, you can select NAT Source Translations to list those available and then drag and drop it into the Translated Source field.

Enter the name of a NAT Destination Translations in the field. Alternatively, from the

Shared Resources list at the bottom, you can select NAT Destination Translations to list those available and then drag and drop it into the Translated Destination field.

Type the name of a logging profile in the field. This logging profile must already be defined using Logging Profiles in Shared Security, and should be pinned to the BIG-

IP device using the Logging Profile Available Devices option.

Cloning a NAT policy

Cloning enables you to create a copy of the NAT policy, which you can then edit to address any special considerations.

1. Log in to the BIG-IQ

® system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left click NAT Policies.

4. Select the NAT policy to clone by selecting the check box for it, and then clicking Clone.

A copy of that NAT policy is created with the same name, but with -CLONE appended to the name.

5. Change the NAT policy as needed.

6. Click Save to save the NAT policy, or click Save & Close to save the NAT policy and return to the

NAT Policies page.

The NAT policy is now defined and can be assigned to a firewall context.

Deleting a NAT policy

You delete NAT policies that are no longer used.

1. Log in to the BIG-IQ

®

system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click NAT Policies.

4. Select the one or more NAT policies to be removed by selecting the check box for the appropriate

NAT policy.

5. Click Delete.

6. Confirm that you want to remove the NAT policy by clicking Delete in the confirmation dialog box.

The selected NAT policies are removed.

47

Managing NAT Policies and Translations

Creating NAT source translations

Create NAT source translations to use within a NAT policy rule.

1. Log in to the BIG-IQ

®

system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click NAT Source Translations.

4. Click Create.

The NAT Source Translations - New Item screen opens.

5. Type a name for the NAT source translations in the Name field.

6. In the Description field, type an optional description for the NAT source translations.

7. If needed, change the default

Common

partition in the Partition field.

8. From the Type list, select the type of address translation to use. The type of address translation you select determines what additional properties are available.

• Select Static NAT for static network address translation.

• Select Static PAT for static network port and address translation.

• Select Dynamic PAT for dynamic network port and address translation.

9. If you selected Static NAT for the value of the Type list, supply values for the following settings.

Property Description

Addresses

ICMP Echo

Add one or more addresses or address ranges by entering them and then clicking the + button.

Remove them by clicking the X button next to the address or address range.

Select whether ICMP echoes are available.

• Select enabled to enable ICMP echoes.

• Select disabled to disable ICMP echoes.

Egress Interfaces

Select whether the source address is translated for egressing network traffic, and on what interfaces, such as the

/Common/http-tunnel interface.

• Select Disabled on to disable source address translation for the specified interfaces, and then select the check box for the interfaces to be disabled.

• Select Enabled on to enable source address translation for the specified interfaces and then select the check box for the interfaces to be enabled.

10. If you selected Static PAT for the value of the Type list, fill in the following settings.

Property Description

Addresses

Add one or more addresses or address ranges by typing them and then clicking the + button.

Remove them by clicking the X button next to the address or address range.

48

F5 BIG-IQ Centralized Management: Security

Property

Ports

ICMP Echo

Egress Interfaces

Description

Add one or more ports or port ranges by typing them and then clicking the + button. Remove them by clicking the X button next to the port or port range.

Select whether ICMP echoes are available.

• Select enabled to enable ICMP echoes.

• Select disabled to disable ICMP echoes.

Select whether egress interfaces are available.

• Select Disabled on to disable egress filtering interfaces.

• Select Enabled on to disable egress filtering interfaces.

11. If you selected Dynamic PAT for the value of the Type list, supply values for the following settings.

Property Description

Addresses

Ports

ICMP Echo

Add one or more addresses or address ranges by typing them and then clicking the + button.

Remove them by clicking the X button next to the address or address range.

Add one or more ports or port ranges by typing them and then clicking the + button. Remove them by clicking the X button next to the port or port range.

Select whether ICMP echoes are available.

• Select enabled to enable ICMP echoes.

• Select disabled to disable ICMP echoes.

PAT Mode

Select the port address translation mode. The mode you select determines what additional properties are available.

• Select NAPT (default)

• Select Deterministic

• Select Port Block Allocation

Inbound Mode

Mapping

Select the inbound mode.

• Select None to disable inbound mode.

• Select Endpoint Independent Filtering to use endpoint independent filtering.

This property is available for all PAT modes.

Select the mapping to use. For all mappings, the default timeout value is 300 seconds, and can be modified. The range is 0 to 31536000 seconds.

• Select None to disable inbound mode.

• Select Endpoint Independent Mapping to use endpoint independent filtering.

49

Managing NAT Policies and Translations

Property

Client Connection Limit

Hairpin mode

Backup Addresses

Port Block Allocation

Egress Interfaces

Description

• Select Address Pooling Paired to use paired address pooling.

This property is available for all PAT modes.

Enter a number as the maximum number of client connections allowed. The default is 0, which indicates no connection limit. This property is available for all PAT modes.

Select the hairpin mode.

• Select enabled to enable hairpin mode.

• Select disabled to not enable hairpin mode.

This property is available for all PAT modes.

Add one or more backup IP addresses by typing them and then clicking the + button. Remove them by clicking the X button next to the address

This property is available when the deterministic

PAT mode is set.

Select numeric values for one or more of the following fields; the default is to not have a value set:

Block Idle Timeout. The range is 30

31536000 seconds.

Block Life Time. The range is 0 to 31536000 seconds.

Block Size. Must be 1 or greater, and less than or equal to the number of ports in the port range.

Client Block Limit. Must be 1 or greater.

Zombie Timeout. Must be 0 to 31536000 seconds.

This property is available when the port block allocation PAT mode is set.

Select whether egress interfaces are available.

• Select Disabled on to disable egress filtering interfaces.

• Select Enabled on to disable egress filtering interfaces.

12. Click Save to save the NAT source translations, or click Save & Close to save the NAT source translations and return to the NAT Source Translations page.

The NAT source translations are now defined and can be assigned to a rule used by a NAT policy.

Cloning NAT source translations

Cloning enables you to create an exact copy of the NAT source translations, which you can then edit.

1. Log in to the BIG-IQ

®

system with your user name and password.

50

F5 BIG-IQ Centralized Management: Security

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click NAT Source Translations.

4. Select the NAT source translations to clone by selecting the check box, and then clicking Clone.

A copy of the NAT source translations is created with the same name, but with -CLONE appended to the name.

5. Change the NAT source translations as needed.

6. Click Save to save the NAT source translations, or click Save & Close to save the NAT source translations and return to the NAT Source Translations page.

The cloned NAT source translations can now be assigned to a rule in a NAT policy.

Deleting NAT source translations

You delete NAT source translations that are no longer used.

1. Log in to the BIG-IQ

®

system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click NAT Source Translations.

4. Select check box for one or more NAT source translations to remove.

5. Click Delete.

6. Confirm that you want to remove the NAT source translations by clicking Delete in the confirmation dialog box.

The selected NAT source translations are removed.

Creating NAT destination translations

You create NAT source translations to use within a NAT policy rule.

1. Log in to the BIG-IQ

®

system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click NAT Destination Translations.

4. Click Create.

The NAT Destination Translations - New Item screen opens.

5. Type a name for the NAT destination translations in the Name field.

6. In the Description field, type an optional description for the NAT destination translations.

7. If needed, in the Partition field change the default

Common

partition.

8. From the Type list, select the type of address translation to use. The type of address translation you select determines what additional properties are available.

• Select Static NAT for static network address translation.

• Select Static PAT for static network port and address translation.

9. If you selected Static NAT or Static PAT for the Type setting, supply values for the Addresses setting.

• Add one or more addresses or address ranges by typing them in, and then clicking the + button.

• Remove the address or address range by clicking the X button next to it.

10. If you selected Static PAT from the Type list, supply values for the Ports setting.

• Add one or more ports or port ranges by typing them in and then clicking the + button.

• Remove the port or port range by clicking the X button next to it.

51

Managing NAT Policies and Translations

11. Click Save to save the NAT destination translations, or click Save & Close to save the NAT destination translations and return to the NAT Destination Translations page.

The NAT destination translations are now defined and can be assigned to a rule used by a NAT policy.

Cloning NAT destination translations

With cloning, you create an exact copy of the NAT source translations, which you can then edit.

1. Log in to the BIG-IQ

®

system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click NAT Destination Translations.

4. Select the check box for the NAT destination translations to clone and then click Clone.

The system creates a copy of the NAT destination translations with the same name, but with -CLONE appended to the name.

5. Change the NAT source translations as needed.

6. Click Save to save the NAT destination translations, or click Save & Close to save the NAT destination translations and return to the NAT Destination Translations page.

The cloned NAT destination translations can now be assigned to a rule in a NAT policy.

Deleting NAT destination translations

You delete NAT destination translations that are no longer used.

1. Log in to the BIG-IQ

®

system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click NAT Destination Translations.

4. Select one or more NAT destination translations to remove by selecting the check box for the appropriate NAT destination translations.

5. Click Delete.

6. Confirm that you want to remove the NAT destination translations by clicking Delete in the confirmation dialog box.

The system removes the selected NAT destination translations.

52

Managing FQDN Resolvers

About FQDN resolvers

FQDN is an acronym for a fully qualified domain name. The FQDN resolver in the Network Security

Policy Editor works with the ADC DNS resolver to allow you to use fully qualified domain names where you would otherwise only be able to enter IP addresses.

You configure an FQDN resolver by clicking the device name of the FQDN resolver on the FQDN

Resolvers page.

You access the DNS resolver by selecting ADC from the BIG-IQ menu, and then clicking DNS

Resolvers on the left.

The BIG-IQ

®

system can discover FQDN support on a BIG-IP

® device version 12.0 or later, or created on a BIG-IQ system using the Network Security Policy Editor and then deployed to a BIG-IP device version 12.0 or later.

Configuring FQDN resolvers

You configure FQDN resolvers for use in your environment, including associating them with a DNS resolver.

1. Log in to the BIG-IQ

®

system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click FQDN Resolvers.

A list of the FQDN resolvers displays, one listed for each discovered BIG-IP

®

device.

4. Click the name of the BIG-IP device with an FQDN resolver to configure.

The FQDN Resolvers - global-fqdn-policy screen opens for that BIG-IP device. Note that the device, name, and partition used by the FQDN resolver cannot be changed.

5. If needed, change the minimum refresh interval value in the Min Refresh Interval field.

By default, the value of the Min Refresh Interval field is 60 minutes. The interval is given as the number of minutes, expressed as an integer from 10 to 46080, inclusive.

6. Select a DNS resolver from those listed in the DNS Resolver field.

If no DNS resolver is listed, create one and then select it from the DNS Resolver field. You create

DNS resolvers separately by selecting ADC from the BIG-IQ menu and then DNS Resolvers. You can have different DNS resolvers for different BIG-IP devices, unless those BIG-IP devices are clustered, in which case the DNS resolver should be the same.

7. Click Save to save the FQDN resolver changes, or click Save & Close to save the FQDN resolver changes and return to the FQDN Resolvers screen.

The FQDN resolver is now defined and can be used to resolve fully qualified domain names on the BIG-

IP device.

Managing FQDN Resolvers

54

Managing Notification Rules

About notification rules

Notification rules are accessed from within the Policy Editor and are used to notify users when a policy

(firewall policy or NAT policy) is changed or when a percentage of the maximum supported configuration objects is reached. The notifications are configured using notification rules and are delivered through email, such an email is referred to as a notification email. Notification rules can be useful for administrators who wish to be notified when policies are changed, or who wish to notify others of such changes. Notifications can also be sent based on shared resources used by policies.

About Notification Email

There are two kinds of notification email that can be sent using notification rules:

• If a Policy Notify rule type is selected, the notification email lists what specified policies have changed, possibly including any changed shared resources.

• If a Limit Notify rule type is selected, the notification email lists what specified limits have been reached. The limits can include device limits, object limits or both.

• The limit for a device is determined by the license for that device. The email contains the number of devices and the percentage of devices used, based on the maximum number of devices.

• The limit for objects is a total number of objects for all devices being managed by the BIG-IQ system. Shared objects, such as virtual servers, only count as a single object even if they are used multiple times. The email contains the number of objects for all devices being managed and the percentage of objects used, based on the maximum number of objects.

Adding and scheduling notification rules

Use the Notification Rules screen of the Policy Editor to add and schedule a new notification rule.

Creating notification rules

1. Select Notification Rules from the navigation list to display the Notification Rules screen.

2. Click Create and the Notification Rules - New Item screen is displayed.

3. On the Properties tab, specify the appropriate values for the following fields.

Property Description

Name

Description

Email Comment

Specify the content of the email for this notification

Format

Select the format of the notification to be either Plain Text or CSV.

Rule Type

Specify a name for the notification. This is required.

Specify a description for the notification

Select the type of notification rule to use.

Policy Notify indicates that the notification is triggered when the policy has changed. You specify the policy on the Policy Notify tab.

Limit Notify indicates that the notification is triggered when a limit has been reached. You specify the limit on the Limit Notify tab.

Managing Notification Rules

Property Description

Email Recipients Specify information about one or more email recipients.

• In the Name field, specify a name for the recipient.

• In the Email Address field, specify the email address of the recipient.

To add another recipient, click the ( + ) plus sign and supply the Name and

Email Address fields for that recipient.

To remove a recipient, click the (X) to the right of the email recipient.

4. If you specified the Rule Type as Policy Notify, specify the appropriate values for the following fields on the Policy Notify tab.

Field

Available Firewall

Policies

Notify on

Dependent

Objects

Available NAT

Policies

Notify on

Dependent

Objects

Description

Select the firewall policy the rule should monitor and notify you when it changes, then click Add . The selected policy is added to the list of firewall policies below the Available Firewall Policies field.

Determines whether or not dependent objects, such as shared resources, are also monitored by the rule. By default this option is selected, indicating that shared resources should also be monitored.

Select the NAT policy the rule should monitor and notify you when it changes, then click Add. The selected NAT policy is added to the list of policies below the Available NAT Policies field.

Determines whether or not dependent objects, such as shared resources, are also monitored by the rule. By default this option is selected, indicating that shared resources should also be monitored.

You can also add firewall policies or NAT policies by dragging them from the Shared Resources area and dropping them on to the Drop Firewall Policies here to add to the list area or dropping them on the Drop NAT Policies here to add to the list area.

To delete a policy from the list, click the X to the right of the Notify on Dependent Objects option.

5. If you specified the Rule Type as Limit Notify, specify the appropriate values for the following fields on the Limit Notify tab.

Field

Device Limit

Notification

Device Limit

Thresholds

Description

Select this check box to be notified when the BIG-IQ system reaches a specified limit.

Specify the device limit thresholds at which a notification email is sent. A device limit is a percentage of the number of BIG-IP devices your BIG-IQ system is managing. You can set up to three limits that are each a percentage of the limit amount by modifying the percentage amount in each of the three device limit threshold fields. For example, if your BIG-IQ system is licensed to handle 10 BIG-IP devices, you would go over the threshold of 49% when 5

BIG-IP devices were being managed.

Select this check box to be notified when a specified object limit is exceeded.

Object Limit

Notification

Object Limit

Thresholds

Specify the object limit thresholds at which a notification email is sent. You can set up to three limits that are each a percentage of the limit amount by modifying the percentage amount in each of the three object limit threshold fields.

56

F5 BIG-IQ Centralized Management: Security

Field Description

As more operations occur with more BIG-IP devices, the number of objects in use by the BIG-IQ system grows. The maximum number of objects supported varies depending on the BIG-IP device configuration.

6. Click Save to save the information you have entered and to verify it is syntactically correct.

7. When finished, click Save & Close to save changes, release the lock, and exit the screen.

Scheduling notification rules

Once a notification rule has been created it can be scheduled. To schedule a notification rule, click the check box to the left of the rule to select it, and then click Edit Schedule. The Notification Rules

Evaluation Interval dialog is displayed. In this dialog, specify the interval at which the schedule should run.

Editing notification rules

From the Notification Rules screen in the Policy Editor, you can edit notification rules.

1. Click the name of the notification rule to edit that rule and display the editing screen.

2. The rule is locked for editing.

3. Change the property and field values that you need to modify.

4. Click Save to save changes.

5. When finished, click Save & Close to save changes, release the lock, and exit the screen.

Deleting notification rules

From the Notification Rules screen in the Policy Editor, you can remove notification rules.

1. Select the rule to be removed by clicking the check box to the left of the rule.

2. Click Delete.

57

Managing Notification Rules

58

Managing Change Verifications

About change verifications

Use change verifications to ensure that the changes you have made to a firewall security policy in BIG-

IQ

®

Network Security are compatible with the specified BIG-IP

®

devices before attempting to deploy those changes.

In some environments, the person who edits the firewall policy is not the same person as the one who deploys that policy. The person who edits the firewall policy can use the change verifications feature to make sure their changes to the firewall are compatible with the BIG-IP devices before someone else deploys those policy changes.

Firewall policy changes can be verified against either the working configuration or a configuration snapshot. In either case, the entire configuration is verified, not just the latest changes to that configuration. If the working configuration is used, make sure that while the verification is processing, other users are not changing the working configuration by changing address lists, rule lists and so on.

You create, view, and delete change verifications in the Policy Editor by selecting Change Verifications from the navigation list on the left. This displays the list of change verifications, including these details:

• The name of the change verification.

• The status of the change verification.

• When the change verification was created.

• What BIG-IQ system user created the change verification.

• What non-critical and critical errors were encountered during the change verification. If the number of errors is not zero, the number of errors are links that you can click for more detailed error information.

To view the properties of a change verification, click the change verification name.

To create a new change verification, click Create.

To delete one more change verifications, select the check box to the left of one or more change verifications and click Delete.

To filter which change verifications are displayed, use the Policy Editor filter fields.

Adding change verifications

You add change verifications in the BIG-IQ

®

Network Security Policy Editor to ensure that the changes you have made to a firewall security policy are compatible with the specified BIG-IP

®

devices before attempting to deploy those changes.

1. Log in to BIG-IQ Network Security with an account with the appropriate role assigned to it.

Valid roles for adding change verifications are: Administrator, Security_Manager,

Network_Security_Deploy, Network_Security_Edit, Network_Security_Manager, and

Network_Security_View.

2. From the main BIG-IQ list, select Security, then click Network Security > Policy Editor.

3. From the Policy Editor navigation list, select Change Verifications to display the Change

Verifications screen.

4. Click Create.

Managing Change Verifications

The Change Verifications - New Item screen opens.

5. In the Name field type a name for the change verification.

6. In the Description field type a description of the change verification.

7. Specify a source for the change verification.

• Select Working Config to use the current working configuration as the source. Be sure that the working configuration does not change while the change verification process is occurring. There could be unexpected results in the verification if other users are editing and changing any part of the current configuration, including address lists, rule lists and so on.

• Select Snapshot to use a specified snapshot as the source. Click Select Snapshot to display the list of available snapshots, click the name of the snapshot to use, and then click Select. The selected snapshot is displayed.

8. From Available Devices, select one or more devices to verify the source against.

• Choose devices by selecting the check box to the left of each device to use for verification.

• Choose a group of devices by selecting the check box to the left of View by groups to display devices organized by group, and then selecting the check box to the left of the group name to choose all devices in that group for verification.

9. Click Verify.

The selected source is verified against each selected device and the change verification is shown in a list with the results. If there are errors in the verification, the number of errors are shown as links that can be clicked for more detail.

Viewing change verification properties

You view change verifications in the BIG-IQ

®

Network Security Policy Editor to ensure that the changes you have made to a firewall security policy are compatible with the specified BIG-IP

®

devices before attempting to deploy those changes.

1. Log in to BIG-IQ Network Security with an account with the appropriate role assigned to it.

Valid roles for viewing change verifications are: Administrator, Security_Manager,

Network_Security_Deploy, Network_Security_Edit, Network_Security_Manager, and

Network_Security_View.

2. From the main BIG-IQ list, select Security, then click Network Security > Policy Editor.

3. From the Policy Editor navigation list, select Change Verifications to display the list of change verifications on the Change Verifications screen.

4. Click the name of a change verification to view the properties, the device used, and the number of errors.

5. Click Cancel to exit the Change Verifications properties screen.

If there are errors in the change verification, the number of errors are shown as links that you can click for more detail on the error.

Change verification properties

This table lists the properties of a change verification and any associated devices.

Table 1: Change verification properties

Property

Name

Description

Name of the change verification.

60

F5 BIG-IQ Centralized Management: Security

Property

Description

Description

Optional description of the change verification.

User

The BIG-IQ ® system user who performed the change verification.

Snapshot Name

The name of the snapshot used. If the working configuration was used instead of a snapshot, this field is blank.

Task Status

Start Time

End Time

The status of the change verification task.

When the change verification process started.

When the change verification process completed.

Table 2: Change verification device properties

Property

Device

Verification

Errors

Critical Errors

Status

Description

Name of the BIG-IQ device.

The number of non-critical verification errors. If this number is greater than zero, it is a link which can be clicked to get more details on the errors.

The number of critical errors. If this number is greater than zero, it is a link which can be clicked to get more details on the errors.

The status of the change verification.

61

Managing Change Verifications

62

Managing External Logging Devices

About external logging devices

You can use external logging devices to collect log files from BIG-IP

®

devices for viewing from a web interface launched from the F5

®

BIG-IQ

®

Centralized Management system. Currently, only the SevOne

Performance Log Appliance (SevOne PLA) is supported. As part of supporting external logging devices, the BIG-IQ Centralized Management system pushes (transfers) BIG-IP device management IP- and self

IP address information to the external logging device.

You need to add an external logging device to the management system before you can use it. You add, modify, or remove external logging devices from the management system by selecting System

Management > BIG-IQ LOGGING > External Logging Devices.

Once you have added the external logging device, you need to set up authentication with the device so that you can then launch the user interface to manage the device. You perform these tasks by selecting

Network Security > Monitoring > External Logging Devices.

Add external logging devices

You can add an external logging device to the F5

®

BIG-IQ

®

Centralized Management system to collect log files from BIG-IP devices. Currently only the SevOne Performance Log Appliance (SevOne PLA) is supported.

1. Log in to the BIG-IQ Centralized Management system with your user name and password.

2. At the top left of the screen, select System Management from the BIG-IQ menu.

3. In the list on the left, click BIG-IQ LOGGING and then click External Logging Devices.

4. Click Add.

The Add External Logging Device screen opens.

5. Type a name and an optional description for the external logging device.

6. Type the connection information for the SevOne PLA device.

a) Specify the IP address of the external logging device in the IP Address field. If the external logging device is also a query server, select the Use as query server check box to the right of the

IP Address field. Query servers are members of the SevOne PLA logging device cluster that process user queries.

b) In the User Name field, specify the user name of the account used to securely access the SevOne

PLA device.

c) In thePassword field, specify the password for the selected account .

d) Once the connection information is complete, click Test to verify that the connection information can be used to access the SevOne PLA device. If the test is successful, a green check mark and the text Connection Established are shown in the Test Connection row.

7. Type the query server information for the device.

a) Add the first query server IP address in the IP Address field.

b) Add additional query servers by clicking the + to the right of the description and then supplying an IP address for each in the created IP Addressfields.

c) Remove query servers by clicking the X to the right of the query server to remove.

8. Optionally, select the Enabled check box in the Status setting to allow scheduling for data pushes from the BIG-IQ Centralized Management system to the SevOne PLA device, and to enable editing for the other fields in this area.

Managing External Logging Devices

• To have the data pushed every day,for the Push Frequency setting, select Daily.

• To push the data once a month, in the Push Frequency setting, select Monthly, and then select the day of the month.

• To push the data each week, in the Push Frequency setting, select Weekly and then select one or more days of the week.

9. Specify when to begin, and optionally end, the scheduled data push.

Select the date and time using the calendar tool, or type the date, hour, and minute to use. By default,

No End Date is selected and must be cleared to specify an end time.

10. Click Push Now in the Last Push Date setting to manually push the data to the external logging device.

11. Click Add to save your changes.

After you successfully add your changes, the screen shows the Last Push Date setting. You can use the Push Now button in that row to manually push data to the external logging device.

The external logging device is added to the BIG-IQ Centralized Management system.

You can now configure authentication with the external logging device so that you can manage logs using the SevOne PLA user interface.

Modify external logging devices

You can modify settings for external logging devices used with the F5

®

BIG-IQ

Management system when the computing environment changes.

®

Centralized

1. Log in to the BIG-IQ Centralized Management system with your user name and password.

2. At the top left of the screen, select System Management from the BIG-IQ menu.

3. In the list on the left, expand BIG-IQ LOGGING and then click External Logging Devices.

4. Click the name of the external logging device to modify.

The External Logging Device (

device-name

) screen opens.

5. Modify the description for the external logging device, as needed.

6. Modify the connection information for the SevOne PLA device, as needed.

a) Specify the IP address of the external logging device in the IP Address field. If the external logging device is also a query server, select the Use as query server check box to the right of the

IP Address field. Query servers are members of the SevOne PLA logging device cluster that process user queries.

b) Specify the user name of the account used to securely access the SevOne PLA device in the User

Name field.

c) Specify the password for the selected account in thePassword field.

d) Click Test once the connection information is complete to verify that the connection information can be used to access the SevOne PLA device. If the test is successful, a green check mark and the text Connection Established are shown in the Test Connection setting.

7. Modify the query server information for the device, as needed.

a) Add the first query server IP address in the IP Address field.

b) Add additional query servers by clicking the + to the right of the description and then supplying an IP address for each in the created IP Addressfields.

c) Remove query servers by clicking the X to the right of the query server to be removed.

8. Optionally, select the Enabled check box in the Status setting to allow data pushes from the BIG-IQ

Centralized Management system to the SevOne PLA device to be scheduled and to enable the other fields in this area for editing.

• Select Daily in the Push Frequency setting to have the data pushed every day.

64

F5 BIG-IQ Centralized Management: Security

• Select Monthly in the Push Frequency setting and then select the day of the month to push the data once a month.

• Select Weekly in the Push Frequency setting and then select one or more days of the week to push the data each week.

9. Specify when to begin, and optionally end, the scheduled data push.

Select the date and time using the calendar tool, or type the date, hour, and minute to use. By default,

No End Date is selected and must be cleared to specify an end time.

10. Click Save to save your changes.

You can use the Push Now button in the Last Push Date setting to manually push the data to the external logging device.

The external logging device is updated in the BIG-IQ Centralized Management system.

Depending on the changes you made, you may need to configure authentication with the external logging device so that you can manage logs using the SevOne PLA user interface.

Remove external logging devices

You can remove external logging devices from the F5

®

BIG-IQ those devices are no longer needed.

®

Centralized Management system when

1. Log in to the BIG-IQ Centralized Management system with your user name and password.

2. At the top left of the screen, select System Management from the BIG-IQ menu.

3. In the list on the left, click BIG-IQ LOGGING and then click External Logging Devices.

4. Click the check box to the left of the name of the external logging device to remove.

5. Click Remove.

A dialog box opens, asking you to confirm that you want to remove the device.

6. Click Delete in the dialog box.

The device is removed and is no longer seen in the list of devices.

Request authentication token for external logging devices

You must add the external logging device to theF5

®

BIG-IQ you can request an authentication token for it.

®

Centralized Management system before

You request an authentication token for the external logging device so you can access the web interface to the external logging device and the BIG-IP

®

device logs stored there.

1. Log in to the BIG-IQ Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. From the menu at the top click Monitoring, and then on the left click External Logging Devices.

4. Request an authentication token by clicking the link displayed in the Auth token column for the appropriate external logging device.

• If you do not have an authentication token to access the SevOne PLA, you request it by clicking

Request Auth Token.

• If you want to replace an existing authentication token, you request a new one by clicking

Manage Auth Token.

The Manage SevOne PLA Authentication Token dialog box opens.

5. Type the user name and password for an account with privileges to use the web interface to the

SevOne PLA device.

65

Managing External Logging Devices

6. Click Request Token.

A new authentication token is sent from the SevOne PLA device, and the new token string is displayed.

7. Click Save to save the token and close the dialog box.

The authentication token is created and is used when you launch the SevOne PLA user interface.

Delete authentication token for external logging devices

You must have an authentication token before you can delete it.

You delete authentication tokens with an external logging device when then are no longer needed or should be replaced.

1. Log in to the F5

®

BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. From the menu at the top click Monitoring, and then on the left click External Logging Devices.

4. Click the check box to the left of the external logging device that should have the authentication token removed.

5. Click Delete Auth Token.

You no longer have an authentication token for the external logging device. You will need to request a new authentication token to communicate with the external logging device user interface.

Access external logging devices

You must add the external logging device to the F5

®

BIG-IQ

®

Centralized Management system before you can access it. You must also have authenticated your account with the external logging device.

You access and launch the web interface to the external logging device to access the BIG-IP

®

device logs stored there.

1. Log in to the BIG-IQ Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. At the top click Monitoring, and then on the left click External Logging Devices.

4. In the External Device column, click Launch for the appropriate external logging device.

The SevOne PLA user interface opens.

You can now use SevOne PLA to review the BIG-IP device logs.

66

Monitoring Firewall Rules

About firewall rule monitoring

In BIG-IQ

Network Security, you can monitor:

• Firewall rule statistics, such as the number of times inbound network traffic matches a firewall rule on a BIG-IP

™ device (also referred to as a firewall rule hit count) as well as the rule overlap status.

• Firewall rule compilation statistics for a set of rules associated with a firewall context on a BIG-IP device.

You access this firewall rule monitoring by selecting Network Security from the BIG-IQ menu and then clicking Monitoring.

You can generate reports about firewall rules by selecting Network Security from the BIG-IQ menu and then clicking Policy Editor, and then selecting Firewall Rule Reports.

Monitoring firewall rule statistics and hit counts

You can monitor firewall rule statistics and hit counts on one or more BIG-IP

Security monitoring.

devices using Network

Note: Firewall rule statistics are collected for the rules in the enforced policy associated with a firewall, but not the rules in a staged policy.

Note: If a virtual server, route domain or self IP is created using the BIG-IQ

system, firewall statistics cannot be collected until the changes are deployed to the device and reimported.

1. Log in to the BIG-IQ system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Monitoring.

4. Click Firewall Rule Statistics.

The Firewall Rule Statistics screen opens and displays a list of firewall contexts, including their name, partition, type, and on what BIG-IP device they occur.

5. Click the name of the firewall context to monitor.

6. The Firewall Rule Statistics page for that firewall context displays.

The following information is listed in the named columns for each firewall rule on the BIG-IP device:

• Rule Name specifies the name of the rule used in the policy. If not listed, the rule is not running.

• Rule List Name specifies the name of the rule list if the rule is in a rule list.

• Rule specifies the name of the rule within a rule list. If the rule is not in a rule list, this field is blank.

• Overlap Status specifies whether the rule overlaps with another rule.

• Hit Count specifies the number of times the rule has been matched.

• Last Hit Time specifies when the rule was last matched.

Monitoring Firewall Rules

Monitoring firewall rule compilation statistics

You can monitor rule compilation statistics on one or more BIG-IP

devices using Network Security monitoring. This information is similar to what is displayed when using the tmsh show security firewall container-stat

command.

Note: If a firewall context references a policy that is both staged and enforced, there will be two entries in the compilation statistics: one for the enforced policy and one for the staged policy.

1. Log in to the BIG-IQ system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Monitoring.

4. Click Firewall Compilation Statistics.

The Firewall Compilation Statistics screen opens and displays the list of BIG-IP devices managed by the BIG-IQ system, including their network name, IP address, and BIG-IP device version.

5. Click the name of the BIG-IP device to monitor.

6. The Firewall Compilation Statistics page for that BIG-IP device displays.

Depending on the version of the BIG-IP device, the following information, or a subset of this information, may be listed in the named columns for the one or more firewall rules within the specified firewall context on the BIG-IP device:

Context Name specifies the context name associated with the one or more rules, such as

/

Common/global-firewall-rules

.

Context Type specifies the firewall context type associated with the one or more rules, such as global or self IP.

Policy Name specifies the name of the policy associated with the one or more rules.

Policy Type specifies type of policy associated with the one or more rules, such as enforced or staged.

Rule CountSpecifies the number of rules compiled for this BIG-IP device context, such as 30.

This count includes rules in rule lists as well as rules that are not in rule lists.

Compile Duration specifies the amount of time required to compile the rules, expressed as hours:minutes:seconds

.

Overlap Check Duration specifies the amount of time required to check overlapping rules, expressed as hours:minutes:seconds

.

Size specifies the size of the compiled rules in bytes.

Max Memory specifies the maximum amount of memory consumed by the rules in bytes.

Activation Time specifies when the rules are activated and available for use.

68

Managing Firewall Rule Reports

About firewall rule reports

You can generate different types of firewall rule reports for selected BIG-IP

®

devices in either CSV or

HTML format. These reports capture information similar to that gathered using the firewall rule monitoring. The types of reports you can generate include:

• Stale Rule Report. Creates a report on firewall rules that are not being used on the BIG-IP device.

• Overlap Status Stats Report. Creates a report on firewall rules that are overlapping on the BIG-IP device.

• Compilation Status Report. Creates a report on the compilation of firewall rules on the BIG-IP device.

Creating firewall rule reports

You create firewall rule reports to capture statistics about firewall rules in a report format.

1. Navigate to the Firewall Rule Reports screen: Click Monitoring > REPORTS > Security >

Network Security > Firewall Rule Reports.

2. Click Create.

The New Firewall Rule Report screen opens.

3. Type a name for the report in the Name field.

4. Type an optional description for the report in the Description field.

5. Select a report type from those listed in the Report Type field.

You can generate these types of reports::

• Stale Rule Report

• Overlap Status Stats Report

• Compilation Status Stats Report

If the Stale Rule Report report type is selected, the screen displays the Stale Rule Criteria property, otherwise that property is not displayed.

6. If you select Stale Rule Report, you can refine the report using the options listed in the Stale Rule

Criteria setting:

• To specify that the report should include only rules with a hit count less than the number specified, select Rules with count less than and specify a number in the provided field.

• To specify that the report should include only rules that have not been hit since the date specified, select Rules that haven't been hit since and specify a date in the provided field.

7. From the Available Devices setting, select the BIG-IP devices or device group to use for the report:

• Select Group and select a group of BIG-IP devices from the list.

• Select Device and select individual BIG-IP devices by moving them from the Available list to the

Selected list.

8. Save the report:

• Select Save to save the report. The system displays the Firewall Rule Reports page for that one report, and generates the report data.

• Select Save & Close to save the report. The system displays the Firewall Rule Reports page that lists all reports, and generates the report data.

Managing Firewall Rule Reports

9. Select the format for the report:

• Select CSV Report to have the report formatted as a CSV file.

• Select HTML Report to have the report formatted as an HTML file. The HTML file is displayed in the Web browser when complete.

You can save or print these reports.

Deleting firewall rule reports

You can delete firewall rule reports that are no longer needed.

1. Go to the Firewall Rule Reports screen: Click Monitoring > REPORTS > Security > Network

Security > Firewall Rule Reports.

2. Select one or more reports to delete, and click Delete.

The reports are deleted from the list on the Firewall Rule Reports screen.

70

Managing Firewall Policies

About firewall policies

A firewall policy is a set of rules, or rule lists, or both. BIG-IP

®

network firewalls use policies to specify traffic-handling actions and to define the parameters for filtering network traffic. You can assign rule lists, or a policy to a firewall. Policies facilitate the assigning of a common collection of rules consistently across multiple firewalls.

Note: When you are managing clustered BIG-IP devices in the BIG-IQ

®

Centralized Management system, avoid assigning a firewall policy to a cluster member that is a non-floating self IP. Doing so may cause unexpected results when performing partial deployments and other actions.

The network software compares IP packets to the criteria specified in policies. If a packet matches the criteria, then the system takes the action specified by the policy. If a packet does not match any rule in the policy, the software accepts the packet or passes it to the next policy, rule, or rule list.

In Network Security, the Policies list displays the policies available for assignment to firewalls.

You can configure firewall policies as enforced or staged:

• An enforced policy refers to a policy whose actions are executed. Actions include: accept, accept decisively, drop, and reject.

You are restricted to assigning a single, enforced policy on any specific firewall.

• A staged policy refers to a policy that is evaluated but policy actions are not enforced. All activity is logged.

You are restricted to assigning a single, staged policy on any specific firewall. You can have rule lists assigned to a firewall (in the enforced area) and have a configured staged policy on that firewall. You cannot have rule lists in the staged area.

You can stage a firewall policy first and then examine logs to determine how the policy has affected traffic. Then you can determine the timing for turning the policy from staged to enforced.

Firewall policies can contain any combination of rules and rule lists. Policies cannot contain other policies. You can re-order rules within a policy.

Note: The Network Security system is aware of functionality implemented in one BIG-IP software version but not in another. In terms of firewall policies, this means that you are prohibited from dropping a policy onto a firewall on a BIG-IP device that does not have the software version required to support it.

Filtering policies

To filter the system interface to display only those objects related to a selected policy, hover over the policy name, right-click and then click Filter 'related to'. The interface is filtered and a count appears to the right of each object type. The frame to the right provides its own filter field where you can enter text and click on the filter icon to constrain the display to those items that match the filter.

Creating firewall policies

To fine tune your network firewalls, you can configure policies and assign them to firewalls using the

Firewall Policies screen Rules & Rule Lists settings.

Managing Firewall Policies

1. Click Policy Editor.

2. On the left, click Firewall Policies and click Create to open the Firewall Policies - New Item screen.

3. Click Properties and complete the properties fields as required.

All boxes outlined in gold are required fields.

Option

Name

Description

User-provided name for the policy. This field is editable when creating or cloning a policy, and read-only when editing a policy.

Description

Optional description for the policy.

Partition

Although it is pre-populated with

Common

(default), you can set the partition when creating or cloning policies by typing a unique partition name.

Note: The partition with that name must already exist on the BIG-IP device.

Available

Devices

No whitespace is allowed in the partition name. No editing of the partition is allowed.

Select the BIG-IP device to use, if your firewall policy is referenced by a self-IP context with a static (non-floating) IP address. If your firewall policy is not referenced by a static self-IP context, this property should not be set.

You may be directed to set this property as a result of an evaluation critical error issued after performing a configuration evaluation prior to deployment. This property must be set for the peer BIG-IP device that is part of a DSC cluster managed by the BIG-IQ system.

You select the BIG-IP device to use by moving it from the Available list to the

Selected list using the arrow buttons. You can filter the list of available BIG-IP devices using the filter field at the top of the Available list. Moving a BIG-IP device that is part of a cluster to the Selected list will cause the other member of the cluster to move to that list as well.

4. Click Rules & Rule Lists, and then click either:

Create Rule to create rules.

Add Rule List to add rule lists.

5. Click Save to save the firewall policy, or click Save & Close to save the firewall policy and return to the Firewall Policies screen.

A new firewall policy is added.

Managing firewall policies

To fine tune your network firewalls, you can edit policies, create or edit rules, and add rule lists. You can also reorder rules in firewall policies. You cannot edit rule lists or reorder rules within rule lists.

1. Click Policy Editor.

2. On the left, click Firewall Policies to see the list of firewall policies.

3. Click the name of the firewall policy to edit.

4. Click Properties and review or change the properties fields as needed.

All boxes outlined in gold are required fields.

Option

Name

Description

User-provided name for the policy. This field is editable when creating or cloning a policy, and read-only when editing a policy.

72

F5 BIG-IQ Centralized Management: Security

Option

Description

Partition

Description

Optional description for the policy.

Although it is pre-populated with

Common

(default), you can set the partition when creating or cloning policies by typing a unique partition name.

Note: The partition with that name must already exist on the BIG-IP device.

Pin Policy to

Device(s)

No whitespace is allowed in the partition name. No editing of the partition is allowed.

Select the BIG-IP devices to be pinned to this policy, if needed. Pinning a BIG-IP device to a policy enables the policy to be deployed even if it is not associated with a firewall context for that device. If you have a self IP context with a static (nonfloating) IP address, you may be required to assign the device depending on you cluster deployment settings. For example, this property must be set for a peer BIG-

IP device that is part of a DSC cluster managed by the BIG-IQ system. You may be directed to set this property as a result of an evaluation critical error.

You select the BIG-IP device to use by moving it from the Available list to the

Selected list using the arrow buttons. You can filter the list of available BIG-IP devices using the filter field at the top of the Available list. Moving a BIG-IP device that is part of a cluster to the Selected list will cause the other member of the cluster to move to that list as well.

5. Click Rules & Rule Lists, and edit the existing rule list or click either:

Create Rule to add rules.

Add Rule List to add rule lists.

6. Click Save to save your changes.

7. When you are finished, click Save & Close to save your edits, and return to the Firewall Policies screen.

The edited firewall policy appears on the Firewall Policies screen.

Cloning firewall policies

Cloning creates an exact copy with a different name. It enables you to quickly and easily create firewall policies tailored to address any unique aspects of your network firewall environment. When you clone a firewall policy, you create an exact copy of the policy which you can then edit to address any special considerations.

Users with the roles of Network_Security_View or Network_Security_Deploy cannot clone policies.

1. Click Policy Editor.

2. On the left, click Firewall Policies to see the list of firewall policies.

3. Select a firewall policy in the list using the check box on the left and click Clone to copy and modify an existing firewall policy.

4. Click Properties and complete the properties fields as required.

All boxes outlined in gold are required fields.

Option

Name

Description

User-provided name for the policy. This field is editable when creating or cloning a policy, and read-only when editing a policy.

Description

Optional description for the policy.

73

Managing Firewall Policies

Option

Partition

Description

Although it is pre-populated with

Common

(default), you can set the partition when creating or cloning policies by typing a unique partition name.

Note: The partition with that name must already exist on the BIG-IP device.

Available

Devices

No whitespace is allowed in the partition name. No editing of the partition is allowed.

Select the BIG-IP device to use, if your firewall policy is referenced by a self-IP context with a static (non-floating) IP address. If your firewall policy is not referenced by a static self-IP context, this property should not be set.

You may be directed to set this property as a result of an evaluation critical error issued after performing a configuration evaluation prior to deployment. This property must be set for the peer BIG-IP device that is part of a DSC cluster managed by the BIG-IQ system.

You select the BIG-IP device to use by moving it from the Available list to the

Selected list using the arrow buttons. You can filter the list of available BIG-IP devices using the filter field at the top of the Available list. Moving a BIG-IP device that is part of a cluster to the Selected list will cause the other member of the cluster to move to that list as well.

5. Click Rules & Rule Lists, and then click either:

Create Rule to create rules.

Add Rule List to add rule lists.

6. Click Save to save the firewall policy, or click Save & Close to save the firewall policy and return to the Firewall Policies page.

The cloned policy appears in the Firewall Policies screen. In an HA configuration, the cloned policy appears on the standby BIG-IQ

®

system as soon as it is saved.

Reordering rules in firewall policies

Using the Firewall Policies screen, you can reorder rules in firewall policies to optimize your network firewall policies. You cannot edit rule lists or reorder rules inside rule lists.

1. Click Policy Editor.

2. On the left, click Firewall Policies to see the list of firewall policies.

3. Click the name of the firewall policy to edit.

4. Click Rules & Rule Lists.

5. To reorder rule lists or rules, simply drag-and-drop them until they are in the correct order.

You can also right-click a rule name and select among the ordering options.

6. Click Save to save your changes.

7. When you are finished, click Save & Close to save your edits, and return to the Firewall Policies screen.

Deleting firewall policies

You can remove obsolete firewall policies to keep network firewalls up-to-date.

If a firewall policy is in use, you cannot remove it.

To see where a firewall policy is used, right click the firewall policy name and click Filter 'related to' .

The BIG-IQ system displays a count of where the policy is used in the list to the left.

74

F5 BIG-IQ Centralized Management: Security

1. Click Policy Editor.

2. On the left, click Firewall Policies to see the list of firewall policies.

3. Select the firewall policy to be deleted using the check box to the left of the firewall policy.

4. Click Delete and then confirm the permanent removal in the popup dialog box.

The policy is deleted and no longer occurs in the list of firewall policies.

75

Managing Firewall Policies

76

Managing Virtual Servers in Shared Security

About virtual servers

On BIG-IP

®

devices, virtual servers can have security objects, such as DoS profiles, SSH profiles, or log profiles, attached to them.

The BIG-IQ

®

Centralized Management system can successfully discover only BIG-IP devices that are using supported profile types. If the system attempts to discover a BIG-IP device that is using an unsupported type of profile:

• You might see an invalid profile error during discovery.

• The BIG-IQ Centralized Management system does not successfully discover the BIG-IP device.

You create virtual servers using the ADC service and then use them from within Shared Security. Select

ADC from the BIG-IQ menu and click Virtual Servers to create a virtual server.

Edit virtual servers

The virtual server must exist before you can edit it.

You can modify virtual servers within Shared Security to manage the DoS profiles, SSH profiles, and log profiles that might be part of a virtual server.

1. Click Configuration > SECURITY > Shared Security > Virtual Servers.

2. On the Virtual Servers screen, click the name of the virtual server to edit.

3. On the Virtual Servers -

virtual server name

screen, select the profile to use with the virtual server. Note that no other properties can be changed.

Property Description

DoS Profile

SSH Profile

Select the DoS profile to use. You define DoS profiles using the Shared

Security DoS Profiles screen.

Select the SSH profile to use. You define SSH profiles using the Shared

Security SSH Profiles screen.

Log Profiles

Select one or more log profiles to use. You define log profiles using the

Shared Security Logging Profiles screen.

4. Click Save & Close to save changes and return to the Virtual Servers screen.

The virtual server is updated with your changes. You make other changes to the virtual server outside of

Network Security using the following screen: Configuration > LOCAL TRAFFIC > Virtual Servers.

Managing Virtual Servers in Shared Security

78

Managing DoS Profiles in Shared Security

About DoS profiles

A denial-of-service attack (DoS attack) makes a victim's resource unavailable to its intended users, or obstructs the communication media between the intended users and the victimized site so that they can no longer communicate adequately. Perpetrators of DoS attacks typically target sites or services, such as banks, credit card payment gateways, and e-commerce web sites.

Using Shared Security, you can configure profiles to help prevent network, SIP, and DNS DoS and DDoS attacks, and to detect and protect against DoS (Denial of Service) attacks aimed at the resources that are used for serving the application (the web server, web framework, and the application logic).

Create DoS profiles

You can create a DoS profile and configure the circumstances under which the system considers traffic to be a DoS attack, and how the system handles a DoS attack.

1. Click Configuration > SECURITY > Shared Security > DoS Profiles.

2. In the DoS Profiles screen, click Create.

3. In the New DoS Profile screen, add and set the properties as appropriate.

Property Description

Name

Description

Partition

Required. Specify a unique name for the DoS profile.

Specify an optional description for the DoS profile.

Required. Specify the partition to which the DoS profile belongs. You can replace the default

Common

partition when creating DoS profiles by typing a unique name for a new partition.

Note: The partition with that name must already exist on the BIG-IP

®

device.

No whitespace is allowed in the partition name.

Source IP

Address

Whitelist

Specifies the configuration of the Source IP address white list. This property is not used with the Application Security protection type, and cannot be modified by the BIG-IQ Centralized Management system.

4. Select a DoS protection type from the list on the left.

Option Description

Application

Security

Click Application Security > Properties, then select the Application

Securitycheck box, Enabled.

When enabled, this protects your web application against DoS attacks. Your virtual server must include an HTTP profile to use this feature. Supply or modify any necessary property values.

Protocol DNS

Click Protocol DNS, then select the Protocol DNS Protection check box,

Enabled.

Managing DoS Profiles in Shared Security

Option Description

Protocol SIP

When enabled, this protects your DNS server against DoS attacks. Note that your virtual server must include a DNS profile to work with this feature. Supply or modify any necessary property values.

Click Protocol SIP, then select the Protocol SIP Protectioncheck box, Enabled.

When enabled, this protects against SIP DoS attacks. Note that your virtual server must include a SIP profile to work with this feature.

Click Network, then select the Network Protection check box, Enabled.

Network

When enabled, this protects your server against network DoS attacks. Supply or modify any necessary property values.

5. When you are finished, click Save to save the DoS profile, or click Save & Close to save the DoS profile and return to the DoS Profiles screen.

The new DoS profile is added to the list of profiles.

Configure for application security

Your virtual server must include an HTTP profile to use this feature.

You can configure the conditions under which the system determines your application is under a DoS attack, and how the system reacts to a suspected attack.

1. Click Configuration > SECURITY > Shared Security > DoS Profiles.

2. In the DoS Profiles screen, click the profile name to configure.

3. Click Application Security on the left to expand the list.

4. Click Properties to display the General Settings screen. Configure the application general settings as described.

Property Description

Application

Security

IP Address

Whitelist

Select Enabled to use application security protection and display additional properties.

Specifies IP addresses that the system considers legitimate and does not examine when performing DoS prevention.

• To add an IP address to the whitelist, type it in the IP Address/Prefix field, and click Add.

• To delete an IP address from the whitelist, select an IP address in the IP

Address/Prefix field, and click Delete.

Geolocations

Specifies that you want to override the DoS profile's Geolocation Detection

Criteria threshold settings by selecting countries from which to allow or block traffic during a DoS attack.

• To allow traffic from a country, select the country and move it to the

Geolocation Whitelist.

• To block traffic from a country, select the country and move it to the

Geolocation Blacklist.

Trigger iRule

Enable this setting if you have an iRule that manages DoS events in a customized manner.

5. Click Proactive Bot Defense to use the Proactive Bot Defense screen to configure those settings.

80

F5 BIG-IQ Centralized Management: Security

Property

Operation

Mode

Block requests from suspicious browsers

Description

Specifies the conditions under which the system detects and blocks bots. Select

Off, During Attacks, or Always. If Off is selected, no other settings are displayed on this tab.

Strengthens the bot defense by blocking suspicious browsers. By default, the system completely blocks highly suspicious browsers and uses CAPTCHA challenges for moderately suspicious browsers.

• Select the Block Suspicious Browsers check box to enable blocking of suspicious browsers.

• Select the CAPTCHA Challenge check box to enable issuing a challenge.

Click CAPTCHA Response Settings to open a popup screen where you can select the responses to use.

Note: The exact format of a response body differs depending on the version of the BIG-IP

®

device. Test and verify that any custom response you create works with the installed BIG-IP version.

• For the First Response Type, select Default to use the default response, or select Custom to create your own first response body by entering it into the

First Response Body area. The following is an example first response body:

This question is for testing whether you are a human visitor and to prevent automated spam submission.

<br>

%DOSL7.captcha.image% %DOSL7.captcha.change%

<br>

<b>What code is in the image?</b>

%DOSL7.captcha.solution%

<br>

%DOSL7.captcha.submit%

<br>

<br>

Your support ID is: %DOSL7.captcha.support_id%

• For the Failure Response Type, select Default to use the default response, or select Custom to create your own failure response body by entering it into the Failure Response Body area. The following is an example failure response body:

You have entered an invalid answer for the question. Please, try again.

<br>

%DOSL7.captcha.image% %DOSL7.captcha.change%

<br>

<b>What code is in the image?</b>

%DOSL7.captcha.solution%

<br>

%DOSL7.captcha.submit%

<br>

<br>

Your support ID is: %DOSL7.captcha.support_id%

Grace Period Specifies time in seconds for the system to validate that browsers are not bots.

During this period, the system does not block requests that were not validated.

Modify the number or click Reset to Default to reset the value.

Cross-Domain

Requests

You can add additional security by allowing only configured domains to reference resources of the site. From the list, select an option. You can also configure domains after selecting one of the Cross-Domain Requests options.

81

Managing DoS Profiles in Shared Security

Property

URL

Whitelist

Description

Specifies URLs that are not blocked by Proactive Bot Defense. Requests may still be blocked by the TPS-based / Stress-based attack mitigation. Add URLs to the whitelist by typing a URL in the text box and clicking Add. Remove a URL by selecting it and clicking Remove.

6. Click Bot Signatures to use the Bot Signatures screen to configure those settings.

Property Description

Bot Signature

Check

Select Enabled to display settings. You cannot disable the Bot Signature Check property while Proactive Bot Detection, TPS-based Detection with By Device

ID selected, or Stress-based Detection with By Device ID selected, is enabled.

To disable the Bot Signature Check property, you must first disable the previously listed properties. Alternatively, rather than disabling all bot signature checking by disabling Bot Signature Check, you can disable categories of bot signatures individually.

These two category lists are handled similarly.

Malicious

Categories and

Benign

Categories

Bot Signatures

List

For either category, select None, Report, or Block. That setting is then applied to all the listed items in the category. The categories can also be individually changed to another value. If you change them individually, the value for the

Malicious Categories or Benign Categories changes to Custom Configuration.

A user cannot set all categories to None and keep Proactive Bot Defense enabled.

Specifies bot signatures that are available and disabled. Use the arrow buttons to move bot signatures between the Available Signatures and the Disabled

Signatures lists.

7. Click TPS-based Detection to configure settings for the detection of DoS attacks based on a high volume of incoming traffic.

Property Description

Operation Mode

Specifies how the system reacts when it detects an attack, and can be Off,

Transparent, or Blocking. If set to Off, no other properties are shown.

By Source IP

Specifies the criteria that determine when the system treats the IP address as an attacker, and the mitigation method to be used for the attacking IP address.

By Device ID

By Geolocation

Specifies the criteria that determine when the system treats the device ID as an attacker, and the mitigation method to be used for the attacking device.

Specifies the criteria that determine when the system treats the geolocation as an attacker, and the mitigation method to be used for the attacking geolocation.

The settings exclude blacklisted and whitelisted geolocations.

By URL

Site Wide

Specifies the criteria that determine when the system treats the URL as an attacker, and the mitigation method to be used for the attacking URL.

Specifies the criteria that determine when the system determines an entire website is under attack, and the mitigation method to be used.

Prevention

Duration

Specifies the time spent in each mitigation step before moving (escalating or de-escalating) to the next mitigation step.

8. Click Stress-based Detection to configure settings for the detection of DoS attacks based on server stress.

82

F5 BIG-IQ Centralized Management: Security

Property

By Source IP

Description

Operation Mode

Specifies how the system reacts when it detects a stress-based attack, and can be Off, Transparent or Blocking. If set to Off, no other properties are shown.

Specifies the criteria that determine when the system treats the IP address as an attacker, and the mitigation method to be used for the attacking IP address.

By Device ID

By Geolocation

Specifies the criteria that determine when the system treats the device ID as an attacker, and the mitigation method to be used for the attacking device.

Specifies the criteria that determine when the system treats the geolocation as an attacker, and the mitigation method to be used for the attacking geolocation.

The settings exclude blacklisted and whitelisted geolocations.

By URL

Site Wide

Specifies the criteria that determine when the system treats the URL as an attacker, and the mitigation method to be used for the attacking URL.

Specifies the criteria that determine when the system determines an entire website is under attack, and the mitigation method to be used.

Behavioral

Prevention

Duration

Specifies the mitigation behavior. When enabled, the selected level of mitigation is used.

Specifies the time spent in each mitigation step before moving (escalating or de-escalating) to the next mitigation step.

9. Click Heavy URL Protection to configure settings for protecting heavy URLs during DoS attacks.

Heavy URLs are those which have a potential to cause stress on the server, even with a low TPS count.

Property Description

Heavy URL

Protection

Automatic

Detection

Heavy URLs

Specifies whether to enable heavy URL protection during DoS attacks. Select

Enabled to show options. If set to Disabled, no other properties are shown.

Select Enabled to automatically detect heavy URLs of the application, in addition to the URLs entered manually.

You can configure a list of heavy URLs to protect in addition to the automatically detected ones. Type a URL in the text box, and click Add.

Optionally, enter a threshold value.

Ignored URLs

You can configure a list of URLs which are excluded from automatic detection as heavy URLs. The system supports wildcards. Type a URL in the text box, and click Add.

Latency

Threshold

If Automatic Detection is enabled, set the Latency Threshold setting to be the number of milliseconds for the system to use as the threshold for automatically detecting heavy URLs. The default value is

1000

milliseconds. Click Reset to

default to reset the value to 1000.

10. Click Record Traffic to configure settings for the recording of traffic (by performing a TCP dump) when a DoS attack is underway, to diagnose the attack vectors and attackers, observe whether and how it was mitigated, and draw conclusions for changing the DoS profile configuration. You can record traffic and collect the TCP dump files into the QuickView file so that F5 support can use it for solving customer cases. The files have a pcap

extension and are located in the following path on the

BIG-IP device:

/shared/dosl7/tcpdumps

.

Property Description

Record Traffic

During Attacks

Controls whether traffic recording is used. The default is disabled and causes other properties to be hidden. Note that the system records SSL

83

Managing DoS Profiles in Shared Security

Property

Maximum TCP

Dump Duration

Maximum TCP

Dump Size

Description

traffic encrypted. Select Enabled to specify that the system record traffic when a DoS attack is underway.

Displays the maximum time, in seconds, for one dump cycle. Legal values are between 1 and 300. The default is 30 seconds.

Displays the maximum size, in MB, for a dump cycle. Legal values are between 1 and 50. The default is 10 MB.

TCP Dump

Repetition

Specifies whether the system performs one dump, or multiple dumps, for each DoS attack.

11. Save your work.

The settings are incorporated into the DoS profile.

Configure for protocol DNS

You can configure the conditions under which the system determines that your DNS server is under a

DoS attack.

1. Click Configuration > SECURITY > Shared Security > DoS Profiles.

2. In the DoS Profiles screen, click the profile name you want to configure.

3. Click Protocol DNS on the left to display the Properties screen.

4. On the Properties screen, select the Enabled check box for Protocol DNS Protection.

5. To enable Protocol Errors Attack Detection, select the Enabled check box.

6. Specify the adjustable settings as necessary for your configuration.

The system saves settings as you enter them.

Setting

Rate increased by

Description

Specifies that the system considers traffic to be an attack if the rate of requests increases above this number. By default, the system calculates this number every hour, and updates it every minute. The default is 500 percent.

Rate threshold

Specifies the number of packets per second that must be exceeded to indicate to the system that there is an attack. The default is 250,000 packets per second.

Rate limit

Specifies the limit in packets per second. The default is 2,500,000 packets per second.

7. Review the Known Attack Types list at the bottom of the screen that shows commonly known DNS query types that you want the system to detect in packets.

8. Enable and customize attack types individually: a) Click the name of the attack type to open the properties screen for it.

b) Enable the Detection Status and specify the properties for the attack type detection.

Refer to the BIG-IP documentation, BIG-IP

®

Systems: DoS Protection and Protocol Firewall

Implementations, for information on each attack type.

9. Save your work.

The settings are incorporated into the DoS profile.

Configure for protocol SIP

Your virtual server must include a SIP profile to work with this feature.

84

F5 BIG-IQ Centralized Management: Security

You can configure the conditions under which the system determines that your server, running SIP

(Session Initiation Protocol), is under a DoS attack.

1. Click Configuration > SECURITY > Shared Security > DoS Profiles.

2. In the DoS Profiles screen, click the profile name you want to configure.

3. On the left, click Protocol SIP to display the protocol SIP Properties screen.

4. On the Properties screen, select the Enabled check box for Protocol SIP Protection.

Additional properties are displayed on the screen.

5. To enable Protocol Errors Attack Detection, select the Enabled check box.

6. Specify the adjustable settings as necessary for your configuration.

The system saves settings as you enter them.

Setting

Rate increased by

Description

Specifies that the system considers traffic to be an attack if the rate of requests increases greater than this number. The system calculates this number, by default, every hour and updates it every minute. The default setting is 500 percent.

Rate threshold

Specifies the number of packets per second that must be exceeded in order to indicate to the system that there is an attack. The default setting is 250,000 packets per second.

Rate limit

Specifies the limit in packets per second. The default setting is 2,500,000 packets per second.

7. Review the Known Attack Types list at the bottom of the screen that shows commonly known SIP method types that you want the system to detect in packets.

8. Enable and customize attack types individually: a) Click the name of the attack type to open the properties screen for it.

b) Enable the Detection Status and specify the properties for the attack type detection.

Refer to the BIG-IP documentation, BIG-IP Systems: DoS Protection and Protocol Firewall

Implementations for information on each attack type.

The settings are incorporated into the profile.

Configure for network security

You can configure the conditions under which the system determines that your server is under a network

DoS attack.

1. Click Configuration > SECURITY > Shared Security > DoS Profiles.

2. In the DoS Profiles screen, click the profile name you want to configure.

3. Click Network on the left to display the Properties screen.

4. On the Properties screen, select the check box for Network Protection.

The screen displays a list of commonly-known network attack types that the system can detect.

5. Enable and customize attack types individually: a) Click the name of the attack type to open the properties screen for it.

b) Enable the Detection Status and specify the properties for the attack type detection.

Refer to the BIG-IP documentation, BIG-IP Systems: DoS Protection and Protocol Firewall

Implementations for information on each attack type.

The settings are incorporated into the profile.

85

Managing DoS Profiles in Shared Security

Edit DoS profiles

You can edit DoS profiles to fine tune what the system considers to be a DoS attack, and how the system handles a DoS attack.

1. Click Configuration > SECURITY > Shared Security > DoS Profiles.

2. In the DoS Profiles screen, click the name of the profile to modify.

This locks the profile for editing and opens the properties screen.

For details, consult these topics:

• Configure for application security

• Configure for protocol DNS

• Configure for protocol SIP

• Configure for network security

3. Make edits as needed for your configuration.

The system saves edits as you make them.

Changes to the DoS profile are saved.

86

Managing Device DoS Configurations in Shared Security

About device DoS configurations

You use the Device DoS Configurations screen to manage the device DoS configuration on the BIG-IP

® devices.

To review or edit a device DoS configuration, click the name of the BIG-IP device.

Edit device DoS configurations

You can view and edit device DoS configuration properties using the Device DoS Configuration

Properties screen.

1. Click Configuration > SECURITY > Shared Security > Device DoS Configurations.

2. In the Device DoS Configurations screen, click the name of the device configuration to view or edit.

3. From the Log Publisher list, select whether to use a log publisher, and if so, which one. Select None to use no log publisher

4. Below the Log Publisher list, there might be a threshold field, depending on the version of BIG-IP device you are managing.

• If you are managing a BIG-IP device version earlier than v 12.1, there is no threshold field.

• If you are managing a BIG-IP device version 12.1.x, you can use the Auto Threshold Sensitivity field to select a sensitivity value between 1 - 100.

• If you are managing a BIG-IP device version 13.0.x or later, you can use the Threshold

Sensitivity field to select the sensitivity: Low, Medium, or High.

5. In the Category area, click the triangle to the left of a category to expand the category, and view or modify attack types within the category.

6. In the Attack Type list, click the name of an attack type to modify its properties. Note that some properties are read-only.

7. When you are finished modifying an attack type, click OK to save your changes to that attack type.

8. When you are finished modifying all attack types for the BIG-IP device, save your changes.

The changes to the device DoS configuration are saved.

Managing Device DoS Configurations in Shared Security

88

Managing Bot Signature Categories in Shared Security

About bot signature categories

You use bot signature categories to create additional categories for bot signatures.

The Bot Signature Categories screen displays the defined categories. Click the name of a bot signature category to display the properties, and modify them if needed.

To see the properties displayed in a lower pane, select the check box to the left of a bot signature category.

In the Related Items area, you can click Show to see items related to the bot signature category.

Create bot signature categories

You use bot signature categories to label groups of bot signatures. You can create and modify only those bot signature categories that are user-defined.

1. Click Configuration > SECURITY > Shared Security > Bot Signature Categories.

2. Click Create.

The New Bot Signature Category screen opens.

3. Type a Category Name for the bot signature category, and use the Partition setting default of

Common

.

4. From the Category Type list, select the appropriate type for the bot signature category, either

Malicious or Benign.

5. Leave User-defined selected.

6. Save any changes.

The changes to the bot signature categories are saved.

Managing Bot Signature Categories in Shared Security

90

Managing Bot Signatures in Shared Security

About bot signatures

You use bot signatures to identify web robots by looking for specific patterns in the headers of incoming

HTTP requests. This screen displays the defined bot signatures.

You can create, modify, and delete only those bot signatures that are user-defined .

• To display the properties and modify them, if needed, click the name of a bot signature.

• To create a new user-defined bot signature, click Create.

• To delete a bot signature, select the check box to the left of the user-defined bot signature and click

Delete.

• To see the properties displayed in a lower pane, select the check box to the left of a bot signature. In the Related Items area, you can click Show to see items related to this bot signature.

Create bot signatures

You use bot signatures to identify web robots by looking for specific patterns in the headers of incoming

HTTP requests. Refer to the BIG-IP

®

Application Security Manager

(ASM) documentation on attack and bot signatures for more information.

1. Click Configuration > SECURITY > Shared Security > Bot Signatures.

2. Click Create.

3. In the Name field, type a name for the bot signature.

4. In the Partition setting, the

Common

partition is listed and cannot be changed.

5. In the Domains setting, you can add or delete domains.

• To add a domain, in the Domain Name field, type the name and click Add.

• To delete a domain, select a domain from the list and click Delete.

6. From the Category list, select the appropriate category for the bot signature.

7. In the Rule setting, create a rule for the bot signature using either simple or advanced editing.

• Select Simple Edit Mode to create a rule by supplying what content the user agent and the URL should match.

• From the User-agent list, select the type of match, and then type the string to be matched in the user agent.

• From the URL list, select the type of match, and then type the string to be matched in the

URL.

• Select the Advanced Edit Mode to create more complex rules, such as those containing multiple search strings or a conditional text match. You type the rule expression using

Snort

control syntax.

Snort

control syntax is explained fully in the BIG-IP Application Security Manager documentation.

8. From the Risk list, select the risk level associated with the bot signature.

9. You see that User-defined is selected for any new or modified bot signature defined by the user.

10. You see that the References setting is read-only and set to N/A.

11. Save any changes.

The changes to the bot signatures are saved.

Managing Bot Signatures in Shared Security

92

Managing Network Whitelists in Shared Security

About network whitelists

You use network whitelists to define network addresses that are allowed to bypass the checks in a DoS profile. The Network White Lists screen displays the managed BIG-IP

®

devices that might have network whitelists defined. Click the name of a BIG-IP device to display the network whitelists that are defined.

A maximum of 8 network white lists are allowed for each BIG-IP device

Create network whitelist

You create network whitelists to bypass checks in a DoS profile.

1. Click Configuration > SECURITY > Shared Security > Network White Lists.

2. Click the name of the BIG-IP device on which to create the network white list.

3. Click Create to add a network white list.

4. Type a Name for the network white list, and an optional Description that will be useful in your environment.

5. In the Protocol list, leave the default value, Any, or select the appropriate network protocol.

6. In the Source area Address setting, leave the default value, Any, or select Specify and provide the address in the provided field.

You can specify IPv4 or IPv6 addresses in CIDR notation as the address. You can specify a source address or destination address, but not both in the same white list entry.

7. In the VLAN list, leave the default value, Any, select the appropriate VLAN, or select Other and provide a VLAN tag number.

8. In the Destination area Address setting, leave the default value, Any, or select Specify and provide the address in the provided field.

You can specify IPv4 or IPv6 addresses in CIDR notation as the address. You can specify a source address or destination address but not both in the same white list entry.

9. In the Port setting, leave the default value, Any, or select the appropriate port.

The default port number value is provided for each port type.

10. When you are finished, click OK.

11. Save your changes.

The network white list is updated.

Managing Network Whitelists in Shared Security

94

Managing Logging Profiles in Shared Security

About logging profiles

The Logging Profiles screen lists both default logging profiles that cannot be modified, and other logging profiles that can be modified. The default logging profiles are:

Log all requests

,

Log illegal

® requests

, global-network

, and local-dos

. Default logging profiles are imported from the BIG-IP device, and only top-level information about them can be viewed on the Logging Profiles screen, such as the logging profile name, description, partition, and devices.

A logging profile records requests to the virtual server. A logging profile determines where events are logged, and which items (such as which parts of requests, or which type of errors) are logged. Events can be logged either locally by the system and viewed in the Event Logs screens, or remotely by the client’s server. The system forwards the log messages to the client’s server using the Syslog service.

The logging profile can be associated with multiple virtual servers from multiple devices. Multiple logging profiles can be associated with a virtual server, but the multiple logging profiles cannot have an overlap subset configured. For example, two logging profiles with application security configured and enabled cannot be associated with the same virtual server. The application security and protocol security cannot be configured on the same logging profile or associated with the same virtual server. BIG-IQ

®

Centralized Management supports importing logging profiles with spaces in the name. An imported logging profile with spaces in the name can be modified on the BIG-IQ system and deployed back to a

BIG-IP device. However, BIG-IQ does not support creating logging profiles with spaces in the name.

The logging publisher cannot be created or modified by the BIG-IQ Centralized Management system.

The logging publisher specified by the BIG-IQ logging profile should be the same as that configured on the BIG-IP device.

Create logging profiles

You create logging profiles to configure the kind of information that is logged for each object that supports logging.

1. Click Configuration > SECURITY > Shared Security > Logging Profiles.

2. Click Create on the Logging Profiles screen.

The New Logging Profile screen opens with the Properties tab displayed.

3. In the Name field, type a name for the logging profile.

4. In the Description field, type an optional description for the logging profile.

5. If needed, change the default

Common

partition in the Partition field.

The partition with that name must already exist on the BIG-IP

® device. No whitespace is allowed in the partition name. Only users with access to a partition can view the objects (such as the logging profile) that it contains. If the logging profile resides in the

Common

partition, all users can access it.

6. In the Available Devices field, select the BIG-IP devices to be pinned to this logging profile, if needed.

Pinning a BIG-IP device to a logging profile enables the logging profile to be deployed even if it is not associated with a firewall context for that device.

Managing Logging Profiles in Shared Security

Note: When performing a partial deployment of a firewall object, you must pin the logging profile to have it deployed as well.

You select the BIG-IP device to use by moving it from the Available list to the Selected list using the

Move buttons. When a logging profile is imported from a BIG-IP device, it is automatically placed in the Selected list. You can filter the list of available BIG-IP devices using the Filter field at the top of the Available list. Moving a BIG-IP device that is part of a cluster to the Selected list causes the other member of the cluster to move to that list as well.

7. Enable each logging type that you want to use by selecting the Enabled check box in the appropriate row.

• Enable Application Security to specify that the system logs traffic to the web application. You cannot enable both Application Security and Protocol Security.

• Enable Protocol Securityto specify that the system logs any dropped, malformed, and/or rejected requests sent through the given protocol.

• Enable Network Firewall to specify that the system logs ACL rule matches, TCP events, and/or

TCP/IP errors sent to the network firewall.

• Enable Network Address Translation to specify which Network Address Translation (NAT) events the system logs, and where those events are logged.

• Enable DoS Protection to specify that the system logs detected DoS attacks, and where DoS events are logged.

A configuration tab is added for each enabled logging type.

8. Click the configuration tab to configure the logging type.

9. When finished, save your changes.

The logging profile is saved.

You must configure each enabled logging type before you can use it.

Configure for Application Security logging

You need to configure application security logging profiles after you have enabled them. This configuration determines the kind of information that is logged.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click Logging

Profiles.

4. Click the name of the logging profile to configure on the Logging Profiles screen.

The Logging Profiles -

logging-profile-name

screen opens with the Properties tab displayed.

5. Click the Application Security tab.

The Application Security configuration tab is displayed.

6. Supply the Application Security Configuration settings.

Property When enabled:

Specifies that the system stores all traffic in the system.

Local

Storage

Guarantee

Local

Logging

Response

Logging

Specifies that the system logs all requests, even though this might slow your web application. When cleared (disabled), specifies that the system logs the requests as long as it does not slow your web application. The default is disabled. In either case, the system does not drop requests.

Specifies whether the system logs HTTP responses.

96

F5 BIG-IQ Centralized Management: Security

Property

Remote

Storage

When enabled:

Off: The system does not log responses. This is the default.

For Illegal Requests Only: The system logs responses to illegal requests.

For All Requests: The system logs all responses if the Request Type setting in the Storage Filter area is set to All Requests.

Specifies that the system stores all traffic on a remote logging server. Provides additional remote storage options:

Logging Format: Specifies the logging format for the remote storage:

• Select Comma-Separated Values to store traffic on a remote logging server like syslog. Messages are in syslog CSV format.

• Select Key-Value Pairs to store traffic on a third party reporting server (for example, Splunk) using a pre-configured storage format. Key value pairs are used in the log messages.

• Select Common Event Format (ArcSight) if your network uses ArcSight servers. Log messages are in Common Event Format (CEF).

• Select BIG-IQ if you are using a BIG-IQ system as your logging server and you are using a BIG-IP device version 12.0 or later that has enabled the option to use a BIG-IQ system as a logging server.

The logging format you select determines what other options are displayed.

Protocol: Specifies the protocol that the remote storage server uses.

Server Addresses: Specifies one or more remote servers, reporting servers,

ArcSight servers or BIG-IQ systems on which to log traffic. Type the values for the IP Address and Port, and click Add for each server.

Note: The default value for Port is 514 for all types of remote storage other than

BIG-IQ. If BIG-IQ is selected for the Remote Storage Type, the default port value is 8514.

Facility: Specifies the facility category of the logged traffic. The possible values are LOG_LOCAL0 through LOG_LOCAL7.

Note: If you have more than one security policy, you can use the same remote logging server for both applications, and use the facility filter to sort the data for each.

Storage Format: Specifies how the log displays information and which traffic items the server logs, and in what order it logs them:

1. To determine how the log appears: select Field-List to display the items in the Selected list in CSV format with a delimiter you specify; select User-

Defined to display the items in the Selected list in addition to any free text you type in the Selected list.

2. To specify which items appear in the log and in what order, move items from the Available list into the Selected list.

Maximum Query String Size: Specifies how much of a request the server logs.

• Select Any to log the entire request.

• Select Length and type the maximum number of bytes to log to limit the number of bytes that are logged per request. The value you specify for

Length must be less than the value specified for Maximum Entry Length.

Maximum Entry Length: Specifies how much of the entry length the server logs. The default length is 1K for remote servers that support UDP, and 2K for

97

Managing Logging Profiles in Shared Security

Property When enabled:

remote servers that support TCP and TCP-RFC3195. You can change the default maximum entry length for remote servers that support TCP.

Report Detected Anomalies: Select Enabled if you want the system to send a report string to the remote system log when a brute force attack or web scraping attack starts and ends.

7. Supply the Application Security Storage Filter settings.

Property When enabled:

Logic

Operation

Specifies whether requests must meet one or all criteria in the Storage Filter area for the system, or server, to log the requests.

OR: Specifies that requests must meet at least one of the criterion in the Storage

Filter settings in order for the system, or server, to log the requests. This is the default.

AND: Specifies that requests must meet all of the criteria in the Storage Filter settings in order for the system, or server, to log the requests.

Request

Type

Protocols

Specifies which kind of requests the system, or server, logs.

Illegal requests only: Specifies that the system, or server, logs only illegal requests. This is the default.

Illegal requests, and requests that include staged attack signatures: Specifies that the system, or server, logs illegal requests, and logs requests that include attack signatures in staging (even though the system considers those requests legal).

All requests: Specifies that the system, or server, logs all requests.

Specifies whether request logging occurs for all protocols or only for selected protocols.

All: Specifies that the system, or server, logs requests for all protocols. This is the default.

Only: Specifies that the system, or server, logs requests for only the specified protocol. HTTP and HTTPS are available for all supported BIG-IP device versions. WS and WSS are available only with BIG-IP devices version 12.1 or later. You can select more than one protocol for BIG-IP devices version 12.1 or later.

Response

Status Codes

Specifies whether request logging occurs for all response status codes or only for selected response status codes. This setting applies only to requests that are not blocked by the system.

All: Specifies that the system, or server, logs all requests that generate all response status codes. This is the default.

Only: Specifies that the system, or server, logs only requests that generate specific response status codes. When selected, displays additional options where you specify the type of response status code to log. Unused status codes are in the Available list, selected status codes are in the Selected list.

HTTP

Methods

Specifies whether request logging occurs for all HTTP methods or only for selected

HTTP methods.

All: Specifies that the system, or server, logs requests for all HTTP methods.

This is the default.

98

F5 BIG-IQ Centralized Management: Security

Property When enabled:

Request

Containing

String

Only: Specifies that the system, or server, logs requests for the specified HTTP method. When selected, displays options where you specify the type of HTTP method to log.

Specifies whether the request logging is dependent on a specific string.

All: Specifies that the system logs all requests, regardless of string. This is the default.

Search In: Specifies that the system logs only requests containing a specific string in a particular part of the request.

• Select the part of the request to search from the list (Request, URI, Query

String, Post Data, or Headers).

• Type the string to search for in the request in the field to the right. The search is case-sensitive.

8. When finished, save your changes.

The Application Security configuration settings are saved.

Configure for Protocol Security logging

You need to configure protocol security logging profiles after you have enabled them. This configuration determines the kind of information that is logged.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click Logging

Profiles.

4. Click the name of the logging profile to configure on the Logging Profiles screen.

The Logging Profiles -

logging-profile-name

screen opens with the Properties tab displayed.

5. Click the Protocol Security tab.

The Protocol Security configuration tab is displayed.

6. Select the log publisher to use for the HTTP, FTP and SMTP protocols in the Publisher property in the HTTP, FTP, and SMTP Security area, or accept the default of None.

This value specifies where the system sends log messages.

7. Supply the Protocol Security DNS Security settings to configure where the system logs any dropped, malformed, rejected, and malicious DNS requests.

Property When enabled:

Publisher

Specifies the name of the log publisher used for logging DNS security events.

Select a log publisher from the list, or accept the default of None.

Specifies that the system logs dropped DNS requests.

Log Dropped

Requests

Log Filtered

Dropped Requests

Specifies that the system logs filtered dropped DNS requests.

Log Malformed

Requests

Log Rejected

Requests

Specifies that the system logs malformed DNS requests.

Specifies that the system logs rejected DNS requests.

99

Managing Logging Profiles in Shared Security

Property

Log Malicious

Requests

When enabled:

Specifies that the system logs malicious DNS requests.

Storage Format

Specifies the format type for log messages. You can set the following options:

None Specifies that the system uses the default format type to log the messages to a Remote Syslog server. This is the default setting.

Field-List Specifies that the system uses a set of fields, set in a specific order, to log messages. When this is selected, specify the field list as follows.

• Specify the delimiter string in the Delimiter field. The default delimiter is the comma character (,).

Note: You may not use the

$

character because it reserved for internal usage.

• Select the fields to use. Unused fields are in the Available list, selected fields are in the Selected list.

User-Defined Specifies that the format the system uses to log messages is in the form of a user-defined string. Select the items for the server to log.

Unused items are in the Available list, selected items are in the Selected list.

8. Supply the Protocol Security SIP Security settings to configure where the system logs any dropped and malformed malicious SIP requests, global and request failures, redirected responses, and server errors.

Property When enabled:

Publisher

Log Dropped

Requests

Specifies the name of the log publisher used for logging SIP protocol security events. Select a log publisher configured in your system.

Specifies that the system logs dropped requests.

Log Global Failures Specifies that the system logs global failures.

Log Malformed

Requests

Specifies that the system logs malformed requests.

Specifies that the system logs redirection responses.

Log Redirection

Responses Requests

Log Request

Failures

Specifies that the system logs request failures.

Log Server Errors

Specifies that the system logs server errors.

Log Server Errors

Specifies that the system logs server errors.

Storage Format

Specifies the format type for log messages. You can configure the following options:

None Specifies that the system uses the default format type to log the messages to a Remote Syslog server. This is the default setting.

Field-List Specifies that the system uses a set of fields, set in a specific order, to log messages. When Field-List is selected, specify the field list as follows.

100

F5 BIG-IQ Centralized Management: Security

Property When enabled:

• Specify the delimiter string in the Delimiter field. The default delimiter is the comma character (,).

Note: You may not use the

$

character because it reserved for internal usage.

• Select the fields to use. Unused fields are in the Available list, selected fields are in the Selected list.

User-Defined Specifies that the format the system uses to log messages is in the form of a user-defined string. Select the items for the server to log. Unused items are in the Available list, selected items are in the

Selected list.

9. When finished, save your changes.

The Protocol Security configuration settings are saved.

Configure for Network Firewall logging

You need to configure network firewall logging profiles after you have enabled them. This configuration determines the kind of information that is logged.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click Logging

Profiles.

4. Click the name of the logging profile to configure on the Logging Profiles screen.

The Logging Profiles -

logging-profile-name

screen opens with the Properties tab displayed.

5. Click the Network Firewall tab.

The Network Firewall configuration tab is displayed.

6. Supply the Network Firewall settings to configure which network firewall events the system logs, and where they are logged.

Property When enabled:

Publisher

Aggregate

Rate Limit

Log Rule

Matches

Specifies the name of the log publisher used for logging Network events. Select a log publisher configured in your system.

Defines a rate limit for all combined network firewall log messages per second.

Beyond this rate limit, log messages are not logged. You can select a Rate Limit value of Indefinite, which sets the rate limit to the maximum of 4294967295, or you can select Specify to specify a lower rate limit as an integer between 0 and

4294967295.

Specifies that the system logs packets that match the ACL rules.

Accept Specifies that the system logs packets that match ACL rules configured with action = Accept

.

Drop Specifies that the system logs packets that match ACL rules configured with action = Drop

.

Reject Specifies, that the system logs packets that match ACL rules configured with action = Reject

.

When specifying the Rate Limit for all network firewall log messages of one of the match types:

101

Managing Logging Profiles in Shared Security

Property When enabled:

• A value of Indefinite sets the rate limit to the maximum of 4294967295, and a value of Specify allows you to specify a lower rate limit as an integer between

0 and 4294967295.

• If the rate limit is exceeded, log messages of the matched action type are not logged until the threshold drops below the specified rate.

Log IP Errors Specifies that the system logs IP error packets. When enabled, you can specify a rate limit for all network firewall log messages of this type. If this rate limit is exceeded, log messages of this type are not logged until the threshold drops below the specified rate. You can select a Rate Limit value of Indefinite, which means the rate limit is set to the maximum of 4294967295, or you can select Specify and specify an integer between 0 and 4294967295 that represents the number of messages per second.

Log TCP

Errors

Specifies that the system logs TCP error packets. If this rate limit is exceeded, log messages of this type are not logged until the threshold drops below the specified rate. You can select a Rate Limit value of Indefinite which means the rate limit is set to the maximum of 4294967295, or you can select Specify and specify an integer between 0 and 4294967295 that represents the number of messages per second.

Log TCP

Events

Specifies that the system logs TCP events (open and close of TCP sessions). If this rate limit is exceeded, log messages of this type are not logged until the threshold drops below the specified rate. You can select a Rate Limit value of Indefinite which means the rate limit is set to the maximum of 4294967295, or you can select

Specify and specify an integer between 0 and 4294967295 that represents the number of messages per second.

Specifies that translation values are logged if and when a network firewall event is logged.

Log

Translation

Fields

Always Log

Region

Storage

Format

Specifies that the geographic location should be logged when a geolocation event causes a network firewall event.

Specifies the format type for log messages. You can configure the following options:

None Specifies that the system uses the default format type to log the messages to a Remote Syslog server. This is the default setting.

Field-List Specifies that the system uses a set of fields, set in a specific order, to log messages.

When Field-List is selected, specify the field list as follows.

• Specify the delimiter string in the Delimiter field. The default delimiter is the comma character (,).

Note: You may not use the

$

character because it reserved for internal usage.

• Select the fields to use. Unused fields are in the Available list, selected fields are in the Selected list.

User-Defined Specifies that the format the system uses to log messages is in the form of a user-defined string. Select the items for the server to log.

7. Supply the Network Firewall IP Intelligence settings to configure where IP intelligence events are logged.

102

F5 BIG-IQ Centralized Management: Security

If the IP intelligence feature is enabled and licensed, you can configure the system to log source IP addresses that match an IP intelligence blacklist or whitelist category, as determined by the database of preconfigured categories, or as determined from an IP intelligence feed list.

Property

Publisher

When enabled:

Specifies the name of the log publisher used for logging IP address intelligence events. Select a log publisher configured in your system.

Aggregate Rate

Limit

Log Translation

Fields

Publisher

Log Timer

Events

Defines a rate limit for all combined IP intelligence log messages per second.

Beyond this rate limit, log messages are not logged until the threshold drops below the specified rate. You can select a rate limit value of Indefinite which means the rate limit is set to the maximum of 4294967295, or you can select

Specify and specify an integer between 0 and 4294967295 that represents the number of messages per second.

Specifies that translation values are logged if and when a network firewall event is logged.

8. Supply the Network Firewall Traffic Statistics settings to configure logging of traffic statistics.

Property When enabled:

Specifies the name of the log publisher used for logging traffic statistics. Select a log publisher configured in your system.

Specifies:

Active Flows - Logs the number of active flows each second.

Reaped Flows - Logs the number of reaped flows, or connections that are not established because of system resource usage levels.

Missed Flows - Logs the number of packets that were dropped because of a flow table miss. A flow table miss occurs when a TCP non-SYN packet does not match an existing flow.

SYN Cookie (Per Session Challenge) - Logs the number of SYN cookie challenges generated each second.

SYN Cookie (White-listed Clients) - Logs the number of whitelisted SYN cookie clients each second.

9. Supply the Network Firewall Port Misuse settings to configure logging of port misuse policies.

Property When enabled:

Publisher

Aggregate

Rate Limit

Specifies the name of the log publisher used for logging port misuse policies.

Select a log publisher configured in your system.

Defines a rate limit for all port misuse policy log messages per second. Beyond this rate limit, log messages are not logged until the threshold drops below the specified rate. You can select a rate limit value of Indefinite which means the rate limit is set to the maximum of 4294967295, or you can select Specify and specify an integer between 0 and 4294967295 that represents the number of messages per second.

10. Supply the Network Firewall SSH Proxy settings to configure logging of SSH proxy use.

Property When enabled:

Publisher

Specifies the name of the log publisher used for logging SSH proxies. Select a log publisher configured in your system.

Allowed Channel Action

Disallowed Channel Action

Non SSH Traffic

Logs allowed channel action events.

Logs disallowed channel action events.

Logs non SSH traffic events.

103

Managing Logging Profiles in Shared Security

Property

SSH Timeout

When enabled:

Logs SSH timeout events.

Successful Client Side Auth

Logs successful client side authentication events.

Successful Server Side Auth

Logs successful server side authentication events.

Unsuccessful Client Side Auth Logs unsuccessful client side authentication events.

Unsuccessful Server Side Auth Logs unsuccessful server side authentication events.

11. When finished, save your changes.

The Network Firewall configuration settings are saved.

Configure for Network Address Translation logging

You need to configure network address translation (NAT) logging profiles after you have enabled them.

This configuration determines the kind of information that is logged.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click Logging

Profiles.

4. Click the name of the logging profile to configure on the Logging Profiles screen.

The Logging Profiles -

logging-profile-name

screen opens with the Properties tab displayed.

5. Click the Network Address Translation tab.

The Network Address Translation configuration tab is displayed.

6. Supply the Network Address Translation settings to configure which NAT events the system logs, and where they are logged.

Property When enabled:

LNS Legacy

Mode

Start Outbound

Session

Specifies that events be logged in Carrier Grade Network Address Translation

(CGNAT) LSN format for backward compatibility. If not enabled, the newer HSL logging format is used, which is the default.

Specifies logging for the start of an outbound translation session, when the outbound flow is created.

End Outbound

Session

Start Inbound

Session

End Inbound

Session

Select Backup Allocation Only to log the translation event if the translation occurred due to backup addresses being configured in a NAT Source Translations object. You create NAT Source Translations backup addresses by modifying NAT

Source Translations properties within the Network Security policy editor.

Specifies logging for the end of an outbound translation session, when the outbound flow is deleted. Select Backup Allocation Only to log the translation event if the translation occurred due to backup addresses being configured in a

NAT Source Translations object.

Specifies logging for the start of an incoming connection to a translated address.

Select Backup Allocation Only to log the translation event if the translation occurred due to backup addresses being configured in a NAT Source Translations object.

Specifies logging for the end of an incoming connection to a translated address.

Select Backup Allocation Only to log the translation event if the translation occurred due to backup addresses being configured in a NAT Source Translations object.

104

F5 BIG-IQ Centralized Management: Security

Property

Quota

Exceeded

Errors

When enabled:

Specifies logging when a client exceeds the allocated resource limit.

Publisher

Specifies logging when errors are encountered while attempting translation for clients.

Specifies the name of the log publisher used for logging NAT events. Select a log publisher configured in your system.

7. When finished, save your changes.

The Network Address Translation configuration settings are saved.

Configure for DoS Protection logging

You need to configure DoS protection logging profiles after you have enabled them. This configuration determines the kind of information that is logged.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click Logging

Profiles.

4. Click the name of the logging profile to configure on the Logging Profiles screen.

The Logging Profiles -

logging-profile-name

screen opens with the Properties tab displayed.

5. Click the DoS Protection tab.

The DoS Protection configuration tab is displayed.

6. Supply the DoS Application Protection settings to configure where DoS application protection events are logged.

• Enable Local Publisher to specify that the system logs DoS events to the local database.

• Select a value for Remote Publisher to specify the name of the log publisher used for logging events. Select a log publisher configured in your system.

7. Supply the DNS DoS Protection setting to configure where DNS DoS protection events are logged.

Select a value for Publisher to specify the name of the log publisher used for logging events. Select a log publisher configured in your system.

8. Supply the SIP DoS Protection setting to configure where SIP DoS protection events are logged.

Select a value for Publisher to specify the name of the log publisher used for logging events. Select a log publisher configured in your system.

9. Supply the Network DoS Protection setting to configure where Network DoS protection events are logged. Select a value for Publisher to specify the name of the log publisher used for logging events.

Select a log publisher configured in your system.

10. When finished, save your changes.

The DoS Protection configuration settings are saved.

Editing logging profiles

Use the Logging Profiles screen to edit logging profiles.

1. Click the name of the logging profile on the Logging Profiles screen. The Logging Profiles - logging profile name screen displays, where logging profile name is the name of the logging profile you are editing.

105

Managing Logging Profiles in Shared Security

2. In the Logging Profiles - logging profile name screen, review and add or modify the properties as appropriate. The logging profile properties are described in Creating logging profiles in this section.

3. When finished, save your changes in one of two ways:

• Click Save to save the logging profile.

• Click Save & Close to save the logging profile and return to the Logging Profiles screen.

Deleting logging profiles

Use the Logging Profiles screen to delete logging profiles.

1. Select the name of the logging profile on the Logging Profiles screen.

2. Click Delete.

The logging profile is removed from the list of defined logging profiles.

106

Managing SSH Profiles in Shared Security

About SSH profiles

You can configure SSH profiles to manage SSH connections. Once the SSH profile is created, you assign it to a virtual server. You enable logging for SSH proxies using logging profiles.

You use the BIG-IQ

®

Centralized Management system to manage SSH profiles for BIG-IP

®

devices running version 12.1.1 HF1, or later. For additional details about SSH proxy security, refer to the BIG-IP documentation.

Create SSH profiles

You create SSH proxy profiles to manage user access through SSH connections. This includes selecting what commands are available to users within an SSH connection.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click SSH Profiles.

4. Click Create.

The SSH Profiles - New Item screen opens with the Properties tab displayed.

5. In the Name field, type a name for the SSH profile.

6. In the Description field, type an optional description for the SSH profile.

7. If needed, change the default

Common

partition in the Partition field.

The partition with that name must already exist on the BIG-IP device. No whitespace is allowed in the partition name.

8. In the Timeout field, if the default value of 0 is not appropriate, type how long, in seconds, before the connection times out.

9. Click Save & Close to save the SSH profile and return to the SSH Profiles screen.

The SSH profile has been created.

You add SSH proxy permissions and authentication keys to the SSH profile, as needed, to make it complete. Once complete, you can add the SSH profile to an appropriate virtual server.

Configure SSH proxy permissions

You must create an SSH profile before you can configure the permissions for that profile.

You use the SSH Proxy Permissions tab to configure rules for SSH proxy permissions for the SSH profile. These rules specify what channel actions are allowed for all users and for selected users. A single

SSH connection may contain multiple channels and actions, such as Shell, SCP Up, and others.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click SSH Profiles.

4. Click the name of the SSH profile on which you want to configure permissions.

5. Click the SSH Proxy Permissions tab, and click Create Rule.

Managing SSH Profiles in Shared Security

Each SSH profile has the rule DEFAULT ACTIONS defined which initially allows all listed permissions for all users with no logging enabled. You can modify the permission and logging options for the DEFAULT ACTIONS rule. Review the DEFAULT ACTIONS rule before you create a new rule for specific users.

A new row appears in the table of rules. The row contains a rule template, including defaults, for the new rule.

6. Click the name of the rule to edit the default rule properties.

7. In the Name field, type a more meaningful name for the rule.

8. Create the list of SSH user accounts handled by the rule, by adding and removing those accounts from the Users column.

• Add a new SSH user account to the list by typing the account name in the empty Users field, and then clicking + to the right of that field.

• Delete an existing SSH user account from the list by clicking X to the right of the user account.

9. Review and, if needed, modify each SSH channel action. You can set each of the SSH channel actions listed in the table columns (such as Shell, or Sub System) to one of these options:

Allow permits the session to be set up for the SSH channel action. This is the default.

Disallow denies an SSH channel action, and sends a command not accepted message. Note that many SSH clients disconnect when this occurs.

Terminate ends an SSH connection by sending a reset message when a channel action is received.

10. To enable logging for any action, select the Log check box below the SSH channel action.

11. Review your settings, and click Save.

The SSH proxy permissions are defined for the SSH profile.

If not already defined, you can now configure the authentication keys to complete the SSH profile.

Configure SSH authentication keys

You must create an SSH profile before you can configure the authentication keys for that profile.

You use the Key Management tab to configure authentication key information for the SSH profile, such as proxy client authentication, proxy server authentication, and real server authentication.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click SSH Profiles.

4. Click the name of the SSH profile on which you want to configure authentication keys.

5. Click the Key Management tab and click Add.

A popup screen opens where you supply authentication key information.

6. In the Name field, type a name for the authentication information.

7. Supply the public, and if needed, private keys for the authentication types to be used in the fields provided.

Proxy client authentication and Proxy server authentication require both a public and a private key.

Real server authentication requires only a public key. Refer to the BIG-IP

®

AFM documentation on how to generate and use these keys.

8. Click Add to add the new authentication information and close the popup screen.

9. Review your settings, and click Save.

The authentication keys are defined for the SSH profile.

If not already defined, you can now configure the SSH proxy permissions to complete the SSH profile.

108

F5 BIG-IQ Centralized Management: Security

Delete SSH profiles

An SSH profile must be unused by any virtual server before you can delete it.

You can delete obsolete SSH profiles that are no longer used to avoid clutter in the user interface.

1. Log in to the BIG-IQ

®

Centralized Management system with your user name and password.

2. At the top left of the screen, select Network Security from the BIG-IQ menu.

3. Click Shared Security from the top menu bar, and then from the list on the left, click SSH Profiles.

The SSH Profiles screen opens.

4. Select the check box to the left of the SSH profile to delete.

5. Click Delete.

The delete confirmation dialog box opens.

6. Click Delete to confirm that you want to delete the SSH profile.

If the SSH profile is in use by a virtual server, you cannot delete it.

If the SSH profile is not in use, it is deleted.

109

Managing SSH Profiles in Shared Security

110

Managing Application Security Policies in Web

Application Security

About application security policies in Web Application Security

Web Application Security imports BIG-IP

®

Application Security Manager

(ASM) application security policies from discovered BIG-IP devices, and lists them on the Web Application Security policy editor

Policies screen. Each security policy is assigned a unique identifier that it carries across the enterprise.

This ensures that each policy is shown only once in the Policies screen, no matter how many devices it is attached to. In the Web Application Security repository, policies are in XML format.

About subcollections in policies

Subcollections are groups of like objects related to the Web Application Security policy. Not all subcollections are visible in the Web Application Security policy editor. Other subcollections can be imported and deployed without being displayed. Generally, you can import subcollections from a BIG-IP device and then deploy them without editing. Note that you cannot manage wildcard ordering for subcollections using the BIG-IQ

®

Centralized Management user interface.

Following is a list of the supported versions of the BIG-IQ Centralized Management system and the BIG-

IP device for each subcollection. Refer to the release notes for BIG-IQ Centralized Management for detailed information on BIG-IP device and BIG-IQ Centralized Management system support, such as the minimum TMOS version supported for this release.

Subcollection Comments Discovery and

Deployment

Support

Edit Support using BIG-IQ

GUI

Yes Yes

Minimum

BIG-IP

Device

Version

Support

Any Policy and properties

Character Sets Yes Yes Any The BIG-IQ Centralized

Management user interface can be used to edit parameter names and parameter values.

Data Guard

File Types

IP Address

Exceptions

Parameters

Extractions

Response Pages

Signatures

Signature Sets and attack signature configuration

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Any

Any

Any

Any

11.6.0

Any

Any

Any Filter-based and manual sets are supported.

Managing Application Security Policies in Web Application Security

Subcollection

Blocking settings violations

Blocking settings evasions

Blocking settings http protocol compliance

Blocking settings web services securities

Yes

Yes

Yes

Yes

Policy Builder Yes

Allowed methods Yes

Headers

Cookies

Yes

Yes

Yes

Yes

Host names

Geolocation enforcement

IP Intelligence

Redirection protection

Sensitive parameters

Yes

Yes

Yes

Discovery and

Deployment

Support

Edit Support using BIG-IQ

GUI

Yes

Minimum

BIG-IP

Device

Version

Support

Any

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

No

Partial

Any

Any

Any

Any

Any

Any

Any

Any

11.6.0

11.6.0

11.6.0

Any

Comments

No support for user defined violations.

GUI support for managing sensitive parameter settings is available on the Parameters

Properties screen.

Web scraping

CSRF protection

JSON Content

Profiles

XML Content

Profiles

Yes

Yes

Yes

Yes

GWT Content

Profiles

Plain Text Content

Profiles

Yes

Yes

URLs Yes

Websocket URLs Yes

Login Pages Yes

Login Enforcement Yes

No

No

Yes

Yes

No

Yes

Yes

Yes

No

No

12.0.0

11.6.0

11.6.0

11.6.0

11.6.0

12.1.0

Any

12.1.0

11.6.0

11.6.0

112

F5 BIG-IQ Centralized Management: Security

Subcollection

Brute Force Attack

Preventions

Session Tracking

Configuration

Yes

Discovery and

Deployment

Support

Edit Support using BIG-IQ

GUI

Yes No

Minimum

BIG-IP

Device

Version

Support

11.6.0

No 11.6.0

Layered Policy Yes

Inheritance Settings Yes

Yes

Yes

13.0.0

13.0.0

Comments

Only configuration is supported, there is no support for online tracking data.

Overview of layered policies and inheritance

You can use Web Application Security to create and manage two layers of security policies: parent policies and child policies. This feature is new with BIG-IP

®

version 13.0 and BIG-IQ

®

Centralized

Management version 5.2. Parent policies include mandatory policy elements, and child policies inherit those attributes from the parent. When the parent policy is updated, the associated child policies are automatically updated.

With parent policies you can:

• Create and maintain common elements and settings.

• Impose mandatory elements on child policies.

• Push a change to multiple child policies.

You can specify which parts of the security policy must be inherited, which are optional, and which are not inherited. This allows you to keep child policies synchronized with the changes in the global mandatory policies and still allow the child policies to address their own unique requirements.

You establish the parent and child policy relationship as follows:

1. Identify the current policy as a parent policy.

On the General Properties screen for the policy, set the Policy Type to Parent Policy. Navigate to

Configuration > SECURITY > Web Application Security > Policies, then click the policy to edit, and click POLICY PROPERTIES > General Properties

2. Set a policy to be the child policy of the parent policy.

On the Inheritance Settings screen for the policy, select the parent policy for a child policy by selecting the parent policy name in the Parent Policy setting. Navigate to Configuration >

SECURITY > Web Application Security > Policies, then click the policy to become a child policy and click POLICY PROPERTIES > Inheritance Settings.

3. Click Save to save this policy as a child policy and display the inheritance properties.

4. Continue to use the Inheritance Settings screen to accept or decline what is to be inherited from the parent policy.

By default, the Parent Policy field is set to None, and there is no layered policy use (no child or parent policies).

Refer to the BIG-IP Application Security Manager: Getting Started guide for additional information on using parent and child layered policies.

113

Managing Application Security Policies in Web Application Security

Edit application security policies

You modify application security policies to customize how they protect your web application server.

Application security policies can be created in Web Application Security. But more often, they are created on BIG-IP

®

devices and come into the Web Application Security configuration when you discover the devices.

1. Navigate to the Policies screen: click Configuration > SECURITY > Web Application Security >

Policies.

2. Click the name of a policy you want to edit.

The policy is placed under administrative lock. Policy objects that you can view or edit are listed on the left.

3. Edit the properties of each policy object as needed.

Consult the documentation for each policy object to edit it individually.

4. Click Save to save the modifications to each object and unlock the policy.

Changes to the policy object are saved in the working configuration of the BIG-IQ

®

Centralized

Management system. Assuming the policy is assigned to a virtual server, the next deployment sends the new configuration to one or more BIG-IP devices.

Edit general property settings

Application security policies are often created on BIG-IP

®

devices and come into the BIG-IQ

®

Web

Application Security configuration when you discover the devices. You can view and modify the properties of individual application security policies.

1. Go to the General Properties screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the name of the policy to modify, and then on the left click General Properties.

3. Edit the properties as appropriate.

4. Save your changes to the general properties of the policy.

The system saves changes in the working configuration of the BIG-IQ Centralized Management system.

General property settings

These properties are the general configuration options and settings that determine the overall behavior and functionality of the security policy.

Property

Name

Partition

Description

Description

Unique name of the security policy. You can set the Name only when you create the policy.

Partition to which the security policy belongs.

Only users with access to a partition can view the objects that it contains. If the policy resides in the

Common

partition, all users can access it.

Optional description of the security policy. Type in any helpful details about the policy.

Note: This field is limited to 255 characters.

Full Path

Full path to the security policy.

114

Property

Policy Type

Parent Policy

Application Language

Security Policy is case sensitive

Learning Mode

Enforcement Mode

F5 BIG-IQ Centralized Management: Security

Description

Indicates the type of policy.

Security Policy specifies a policy that does not use inheritance, or that uses inheritance and is a child policy.

Parent Policy specifies a policy that uses inheritance, and is a parent policy.

Specifies the parent policy associated with this policy, if any.

• Select None to indicate that there is no parent policy.

• Select the appropriate parent policy from the list if there is a parent policy.

A language encoding for the web application, which determines how the security policy processes the character sets. The default language encoding determines the default character sets for

URLs, parameter names, and parameter values.

If enabled, the security policy treats file types,

URLs, and parameters as case-sensitive. When this setting is disabled (not checked), the system stores these policy elements in lowercase in the policy configuration.

Select one of the options to indicate how the policy learns:

Automatic: The system examines traffic, makes suggestions, and enforces most suggestions after sufficient traffic over a period of time from various users make it reasonable to add them. A few suggestions must be enforced manually.

Manual: The system examines traffic and makes suggestions on what to add to the security policy. You manually examine the changes and accept, delete, or ignore the suggestions.

Disabled: The system does not do any learning for the security policy, and makes no suggestions.

Specifies how the system processes a request that triggers a security policy violation.

Transparent specifies that when the system receives a request that violates a policy parameter, the system logs the violation event, but does not block the request.

Blocking specifies that when the system receives a request that violates a policy parameter, the system logs the violation event,

115

Managing Application Security Policies in Web Application Security

Property

Enforcement Readiness Period

Mask Credit Card Numbers in Request Log

Maximum HTTP Header Length

Maximum Cookie Header Length

Allowed Response Status Code

Dynamic Session ID in URL

Description

blocks the request, and responds to the request by sending the Blocking Response page and

Support ID information to the client.

Indicates the number of days in the period. The default is 7 days.

Both security policy entities and attack signatures remain in staging mode before the system suggests you enforce them. The system does not enforce policy entities and attack signatures in staging.

Staging allows you to test the policy entities and the attack signatures for false positives without enforcing them.

When enabled, they system masks credit card numbers in the request log. If disabled (cleared), credit card numbers are not masked.

Specifies the maximum length of an HTTP header name and value that the system processes. The default setting is 8192 bytes. The system calculates and enforces the HTTP header length based on the sum of the length of the HTTP header name and value. To specify a value for length, type a different value in the field. To specify that any length is acceptable, clear the field. An empty field

(a value of any) indicates that there are no restrictions on the HTTP header length up to 8192 bytes.

Specifies the maximum length of a cookie header name and value that the system processes. The default setting is 8192 bytes. The system calculates and enforces a cookie header length based on the sum of the length of the cookie header name and value. To specify a value for length, type a different value in the field. To specify that any length is acceptable, clear the field. An empty field

(a value of any) indicates that there are no restrictions on the cookie header length up to 8192 bytes.

Specifies which requests the security policy permits, based on the HTTP response status codes they return. Click the gear icon to add or delete response codes.

Specifies how the security policy processes URLs that use dynamic sessions. Click the gear icon to change the setting or create a custom pattern.

Disabled: The policy does not enforce dynamic sessions in URLs.

Default pattern: The policy uses the default regular expression for recognizing dynamic sessions in URLs. The default pattern is (\/sap\

116

Property

Trigger ASM iRule Events

Trust XFF Header

Handle Path Parameters

F5 BIG-IQ Centralized Management: Security

Description

([^)]+\)). Note that you cannot edit the default regular expression.

Custom pattern: Specifies a user-defined regular expression that the security policy uses to recognize dynamic sessions in URLs. Type an appropriate regular expression in the Value field, and a description in the Description field.

When enabled, specifies that Web Application

Security activates ASM ™ iRule events. Specifies, when disabled, that Web Application Security does not activate ASM iRule events. The default setting is disabled. Leave this option disabled if you either have not written any ASM iRules ® or have written iRules that are not ASM iRules. iRule events that are not ASM are triggered by the Local Traffic

Manager ™ . Enable this option if you have written iRules that process ASM iRule events, and assigned them to a specific virtual server.

When set to No (the default), specifies that the system does not have confidence in an XFF (X-

Forwarded-For) header in the request. Leave this option disabled if you think the HTTP header may be spoofed, or crafted, by a malicious client. With this setting disabled, if Web Application Security is deployed behind an internal proxy, the system uses the internal proxy’s IP address instead of the client’s IP address. If Web Application Security is deployed behind an internal or other trusted proxy, you can click the gear icon to change the setting and specify that the system has confidence in an

XFF header in the request.

Select the Trust XFF Headers check box and add a required custom header (use a-z, A-Z, no whitespace allowed). The system then uses the IP address that initiated the connection to the proxy instead of the internal proxy’s IP address.

Specifies how the system handles path parameters that are attached to path segments in URIs.

As parameter: The system normalizes and enforces path parameters. For each path parameter, the system removes it from URLs as part of the normalization process, finds a corresponding parameter in the security policy

(first at the matching URL level, and if not found, then at the global level), and enforces it according to its attributes like any other parameters.

117

Managing Application Security Policies in Web Application Security

Property Description

As URL: The system does not normalize nor enforce path parameters. Path parameters are considered an integral part of the URL.

Ignore: The system removes path parameters from URLs as part of the normalization process, but does not enforce them.

Note: The maximum number of path parameters collected in one URI path is 10. All the rest of the parameters (from the eleventh on, counting from left to right) are ignored as parameters, but are still stripped off the URI as part of the normalization process.

Note: Path parameters are extracted from requests, but not extracted in responses.

Edit inheritance settings

You use the Inheritance Settings screen to change the properties that are part of a policy by editing the inheritance settings of a child or parent policy. .

1. Navigate to the Inheritance Settings screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the appropriate policy name to display the policy properties screen.

3. Click Inheritance Settings.

4. Review or modify the inheritance settings.

The contents of this screen differ depending on whether the policy is a parent policy, a child policy, or neither.

5. If the current policy is neither a parent policy nor a child policy, the Parent Policy list is set to None, and no other properties are shown on the screen.

6. If the current policy is a child policy or will be a child policy, do the following.

a) From the Parent Policy list, review or select a parent policy. By default, the setting is None.

b) Review the list of properties that are displayed, and where needed, select Accept or Decline.

c) Optionally, you can add comments about the inheritance settings by clicking the comment icon in the Comments column and then typing text in the space provided.

7. If the current policy is a parent policy, do the following.

• In the Inheritance column, review or change the inheritance settings for each property in each property row.

• If the property must be inherited by a child policy, click Mandatory.

• If the property is optional for a child policy, click Optional.

• If the property is not available to the child policy, click None.

• The Accepted, Declined, Unread, and Comments columns show the number of child policies for each category for that property. Optionally, you can click the number to display additional information on the Child Policy Overview screen.

8. Click Save to save your changes.

The inheritance settings for the policy are updated.

118

F5 BIG-IQ Centralized Management: Security

Edit child policy overview settings

You can edit the inheritance settings for child policies associated with a parent policy. A parent policy can be associated with multiple child policies.

1. Navigate to the Child Policy Overview screen: click Configuration > SECURITY > Web

Application Security > Policies.

2. Click the name of the policy you want to review, and click Child Policy Overview.

3. Review the inheritance settings for child policies associated with the parent policy.

• Click All to view all properties that could be inherited by a child policy.

• Click Declined to view only the properties that a child policy declined to inherit.

4. Expand each policy section in the list to review the inheritance status (declined or accepted) for each child policy.

5. Indicate whether you have reviewed declined inheritance properties. In the Policy Section row for a child policy property:

• Click Mark as Read to indicate that you have reviewed a declined property for a child policy.

• Click Mark as Unread to indicate that you have not reviewed a declined property for a child policy.

• Click Mark All as Read to indicate that you have reviewed all declined properties within that heading.

• To enter a comment, click the comment icon in the row. To remove all comments in a section, click Clear All in the heading row for a policy section.

6. Click Save to save your changes.

The child policy overview is updated.

Edit blocking settings

You can view and edit the application security policy blocking settings to specify how the system responds (learn, alarm, or block) to a request that contains each type of illegal request. You edit the blocking settings for each policy object individually.

1. Go to the Blocking Settings screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the name of a policy, and from the list on the left select Blocking Settings.

3. Click the arrows to open or close each category and display specific violation types available to configure for that category.

4. Edit the settings to meet your requirements.

5. When you are finished, click Save to save the modifications.

This updates the blocking settings in the application security policy.

Blocking settings properties

You configure the blocking settings of the security policy to specify how the system responds to a request that contains each type of illegal request.

Blocking Setting

Enforcement Mode

Description

Select whether blocking is active or inactive for the security policy.

119

Managing Application Security Policies in Web Application Security

Blocking Setting

Learning Mode

Learning Speed

All Violations

Description

Transparent. Specifies that blocking is disabled for the security policy. This disables blocking for all options on the screen, and the

Block check boxes are unavailable.

Blocking. Specifies that blocking is enabled for the security policy, and you can enable or disable blocking for individual violations.

Select how learning is, or is not, performed.

Automatic has the system examine traffic, make suggestions, and enforce most suggestions after sufficient traffic over a period of time from various users make it reasonable to add them. A few suggestions must be enforced manually.

Manual has the system examine traffic and make suggestions on what to add to the security policy.

Disabled has the system do no learning for the security policy, and make no suggestions.

Select the speed the Policy Builder uses for learning.

Fast specifies that the Policy Builder learns traffic from a small number of requests, sessions, and IP addresses. Therefore, there is a high chance that the Policy Builder will add false entities to the security policy.

Medium specifies that the Policy Builder learns traffic from a medium amount of requests, sessions, and IP addresses. There is a medium chance that the Policy Builder will add false entities to the security policy.

Slow specifies that the Policy Builder learns traffic from a large number of requests, sessions, and IP addresses. Therefore, there is a low chance that the Policy Builder will add false entities to the security policy.

Custom specifies that the Policy Builder is using custom settings in the policy. The

Custom option is selected automatically when you customize settings in the policy.

Select the Learn, Alarm or Block check boxes in this row to have those selections apply to all the violations in this group. You can select or clear these check boxes in the violation rows to change the behavior for individual violations, or groups of violations.

Learn specifies that when a request triggers this violation, the system learns the request.

120

Blocking Setting

Policy General Features

HTTP protocol compliance failed

F5 BIG-IQ Centralized Management: Security

Description

Alarm specifies that if a request triggers this violation, the system records the request.

Block specifies that if this violation occurs, the system takes these actions:

• Records the request.

• Blocks the request that triggered the violation.

• Returns the blocking response page to the client who sent the request.

Expand this setting to see the contained violations.

Click the information icon next to each violation for more information about it.

Expand this setting to see the sub-violations, and click the information icons for more information.

Either select the Enable or Learn check box at the top of the section to select all HTTP protocol compliance failed sub-violations at once, or select the Enable or Learn check box to the left of each sub-violation to specify that the system enforces the sub-violation. When the check box is cleared, the system does not enforce this sub-violation.

This category contains the following subviolations.

Bad HTTP version. When checked (enabled), the system inspects requests to see whether they request information from a client using a legal HTTP protocol version number (0.9 or higher). The default setting is enabled

Bad host header value. When checked

(enabled), the system inspects requests to see whether they contain a non RFC compliant header value. The default value is enabled.

Bad multipart parameters parsing. When checked (enabled), the system examines requests to see whether the content-disposition header field matches the format.

name=“param_key”;\r\n. The default setting is enabled.

Bad multipart/form-data request parsing.

When checked (enabled), the system examines requests to see whether the content-disposition header field contains the required parameters, name=“param_key”. The default setting is enabled.

Body in GET or HEAD requests. When checked (enabled), the system examines requests that use the GET or HEAD methods to see whether the requests contain data in their bodies, which is considered illegal. The default setting is disabled.

121

Managing Application Security Policies in Web Application Security

Blocking Setting Description

CRLF characters before request start. When checked (enabled), the system examines requests to see whether they begin with the characters CRLF, which is not permitted. The default setting is enabled.

Check maximum number of headers. When checked (enabled), the system compares the number of headers in the requests against the maximum number you specify here. Type a number in the field to specify how many headers are allowed. The default setting is enabled with a maximum of 20 headers unless the policy is based on an Application-Ready security policy template. In this case, the default value depends on which template you are using.

Check maximum number of parameters.

When checked (enabled), the system compares the number of parameters in the request against the maximum number you specify here. A request that contains more parameters than allowed by the policy should be considered a possible attack on the server. Type a number in the field to specify how many parameters are allowed. The default value is enabled set to a maximum of 500 parameters.

Chunked request with Content-Length

header. When checked (enabled), the system examines chunked requests for a content-length header, which is not permitted. The default setting is enabled.

Content length should be a positive number.

When checked (enabled), the system examines requests to see whether their content length value is greater than zero, which is required.

The default setting is enabled.

Header name with no header value. When checked (enabled), the system checks requests for valueless header names, which are considered illegal. The default setting is enabled.

High ASCII characters in headers. When checked (enabled), the system inspects request headers for ASCII characters greater than 127, which are not permitted. The default setting is disabled.

Host header contains IP address. When checked (enabled), the system verifies that the request’s host header value is not an IP address.

The default setting is disabled.

Multiple host headers. When checked

(enabled), the system examines requests to

122

Blocking Setting

Attack Signatures

Evasion technique detected

F5 BIG-IQ Centralized Management: Security

Description

ensure that they contain only a single Host header. The default value is enabled.

No Host header in HTTP/1.1 request. When checked (enabled), the system examines requests sent by a client using HTTP version

1.1 to see whether they contain a host header, which is required. The default setting is enabled.

Null in request. When checked (enabled), the system inspects requests to see whether they contain a Null character, which is not allowed.

The default setting is enabled.

POST request with Content-Length 0. When checked (enabled), the system examines POST method requests for no content-length header, and for a content length of 0. The default setting is disabled.

Several Content-Length headers. When checked (enabled), the system examines each request to see whether it has more than one content-length header, which is considered illegal. The default setting is enabled.

Unparseable request content. When checked

(enabled), the system examines requests for content that the system cannot parse, which is not permitted. The default setting is enabled.

The system examines HTTP messages for known attacks by comparing them against known attack patterns. Click the Edit Settings link to edit the properties of that signature set.

Expand this setting to see the evasion technique sub-violations and click information icons for more information.

Either select the Enable or Learn check box at the top of the section to select all sub-violations at once, or select the Enable or Learn check box to the left of each sub-violation to specify that the system enforces the sub-violation. When the check box is cleared, the system does not enforce this sub-violation. This category contains the following sub-violations.

%u decoding. Indicates that the system performs %u decoding (%UXXXX where X is a hexadecimal digit). For example, the system turns a%u002fb to a/b. The system performs this action on URI and parameter input.

Apache whitespace. Indicates that the system discovers the bytes 0x09, 0x0b, or 0x0c (a non-

RFC standard of using tab for a space delimiter). The violation applies to URI input.

123

Managing Application Security Policies in Web Application Security

Blocking Setting

File Types

Description

However, for this violation, the system does not change the input.

Bad unescape. Indicates that the system discovers illegal URL-encoding. For example, if the two bytes after % are not hexadecimal characters, or if the four bytes after %u are not a hexadecimal characters. This violation applies to URI and parameter input. However, for this violation, the system does not change the input.

Bare byte decoding. Indicates that the system discovers characters higher than ASCII-127.

This violation applies to URI input. However, for this violation, the system does not change the input.

Directory traversals. Indicates that the system clears self references and performs directory traversals so that attackers cannot try to access restricted Web server files residing outside of the Web server’s root directory. For example, the system turns a/b/../c to a/c and a/./b to a/b.

The system performs this action on URI input.

IIS Unicode codepoints. Indicates that, when

XXXX is greater than 0x00FF, the system decodes %u according to an ANSI Latin 1

(Windows 1252) code page mapping. For example, the system turns a%u2044b to a/b.

The system performs this action on URI and parameter input.

IIS backslashes. Indicates that the system turns backslashes (\) into slashes (/). The system performs this action on URI input.

Multiple decoding . Indicates that the system performs multiple decoding. Use the decoding passes drop-down control to specify the number (up to 5) of decoding passes. For example, the system can turn a%252fb to a/b

(since %252f becomes %2f after one pass, and / after the second pass). The system performs this action on URI and parameter input. Select a number to specify how many decoding passes the system performs, and the level at which the system responds with the appropriate Alarm or Block action. For example, if you set this to 3, the system performs two decoding passes, and when it performs the third decoding pass, it takes the action specified by the Learn/Alarm/Block settings of the Evasion technique detected category.

Expand this setting to see the file type subviolations, and click information icons for more

124

Blocking Setting

URLs

F5 BIG-IQ Centralized Management: Security

Description

information. When enabled, the system checks that the requested file type is configured as a valid file type or not configured as an invalid file type. This category contains the following sub-violations.

Illegal query string length. The incoming request contains a query string whose length exceeds the acceptable length specified in the policy.

Illegal POST data length. The incoming request contains POST data whose length exceeds the acceptable length specified in the policy.

Illegal request length. The incoming request length exceeds the acceptable length specified in the policy per the requested file type.

Illegal file type. The incoming request references file types not found in the policy.

Illegal URL length. The incoming request includes a URL whose length exceeds the acceptable length specified in the policy.

In the Learn New File Types setting, select under which circumstances the Policy Builder adds, or suggests you add, explicit file types to the security policy. As you select the setting, additional information about the setting is displayed below it.

In the Maximum Learned File Types setting, type the maximum number. The default value changes based on the value of the Learn New File

Types setting.

Expand this area to see the URL sub-violations and click the information icons for more information on each.

• In the Learn New HTTP URLs setting, select under which circumstances the Policy Builder adds, or suggests you add, HTTP URLs to the security policy. As you select the setting, additional information about the setting is displayed below it.

• In the Maximum Learned HTTP URLs setting, type the maximum number. The default value changes based on the value of the Learn

New HTTP URLs setting.

• In the Learn New WebSocket URLs setting, select under which circumstances the Policy

Builder adds, or suggests you add, WebSocket

URLs to the security policy. As you select the setting, additional information about the setting is displayed below it.

• In the Maximum Learned WebSocket

URLssetting, type the maximum number,

125

Managing Application Security Policies in Web Application Security

Blocking Setting

Parameters

Description

• In the Classify Request Content of Learned

HTTP URLs setting, use the Enabled check box to specify whether it should be enabled.

When enabled, if the Policy Builder detects legitimate XML or JSON data to URLs configured in the security policy, the Policy

Builder adds XML or JSON profiles to the security policy and configures their attributes according to the data it detects.

• In the Classify Client Message Payload

Format of Learned WebSocket URLs setting, use the Enabled check box to specify whether it should be enabled. When enabled, if the

Policy Builder detects legitimate plain text or

JSON data to WebSocket URLs configured in the security policy, the Policy Builder adds

Plain Text or JSON profiles to the security policy and configures their attributes according to the data it detects.

• In the Learn Allowed Methods on HTTP

URLs setting, use the Enabled check box to specify whether it should be enabled. When enabled, if the Policy Builder detects a method used in a request that is not in the security policy’s list of generic methods, the Policy

Builder adds the new method to the security policy and associates it to the specific requested URL.

• In the Collapse many common HTTP URLs

into one wildcard HTTP URL setting, use the

Enabled check box to specify whether it should be enabled. When enabled, the system collapses many common explicit URLs into one wildcard URL with a common prefix and suffix. The Policy Builder collapse only URLs in the same directory (with the same prefix path), and if they have the same file extension.

You can also type the number of occurrences and the depth.

• In the File types for which wildcard HTTP

URLs will be configured setting, select which file types to add or delete.

Expand this area to see the parameter subviolations and click the information icons for more information on each.

• In the Learn New Parameters setting, select under which circumstances the Policy Builder adds, or suggests you add, explicit parameters to the security policy. As you select the setting, additional information about the setting is displayed below it.

126

Blocking Setting

Sessions and Logins

Cookies

F5 BIG-IQ Centralized Management: Security

Description

• In the Maximum Learned Parameters setting, type the maximum number of parameters that the security policy allows.

• In the Parameter Level setting, select how the

Policy Builder determines on which level to add, or suggest you add, parameters to the security policy. Select Global or URL, and review the information displayed about each.

• In the Collapse many common Parameters

into one wildcard Parameter setting, select the check box to specify that the system collapses many common parameters into one wildcard parameter. In the field, type how many explicit parameters the Policy Builder must detect (the number of occurrences) before collapsing them to one wildcard parameter.

• In the Classify Value Content of Learned

Parameters setting, when enabled, specifies that if the Policy Builder detects legitimate

XML or JSON data to parameters configured in the security policy, the Policy Builder adds

XML or JSON profiles to the security policy and configures their attributes according to the data it detects.

• In the Learn Integer Parameters setting, specifies, when enabled, that the Policy Builder learns integer parameters.

• In the Learn Dynamic Parameters setting, you specify the conditions under which the

Policy Builder adds dynamic parameters to the security policy.

Expand this area to see the session and login subviolations, and click the information icons for more information on each violation.

In the Detect login pages setting, select the

Enabled check box to have the Policy Builder detect login pages by examining traffic to the web application.

Expand this area to see the cookie sub-violations and click the information icons for more information on each violation.

• In the Learn New Cookies setting, select the circumstances the Policy Builder adds, or suggests you add, explicit cookies to the security policy. As you select the setting, additional information about the setting is displayed below it.

• In the Maximum Learned Cookies setting, type the largest number of cookies that the policy allows.

127

Managing Application Security Policies in Web Application Security

Blocking Setting

Content Profiles

Web Services Security Failure

Description

• In the Learn and enforce new unmodified

cookies setting, specify, when the Enabled check box is selected, that the system enforces new cookies as long as they were not modified by the client. This option only appears if the

Learn New Cookies option is set to Selective and the * wildcard cookie is of type Allowed.

• In the Collapse many common Cookies into

one wildcard Cookie setting, you specify, when the Enabled check box is selected, that the system collapses many common cookies into one wildcard cookie. Type in the box how many explicit cookies the Policy Builder must detect (the number of occurrences) before collapsing them to one wildcard cookie.

Expand this area to see the content profile subviolations, and click the information icons for more information on each violation.

In the Collapse many common Content Profiles

into one wildcard Content profile setting, you specify, when the Enabled check box is selected, that the system collapses many common content profiles into one wildcard content profile. Type in the field how many explicit content profiles the

Policy Builder must detect (the number of occurrences) before collapsing them to one wildcard content profile.

Expand this area to see the web services security failure sub-violations.

At the top of the list of sub-violations, select either the Enable or Learn check box to select all subviolations at once, or select the Enable or Learn check box to the left of each sub-violation to specify that individual sub-violation.

Certificate Error. When checked (enabled), the system learns, logs, or blocks responses when the client certificate extracted from the document is invalid. The default setting is enabled. Possible causes include the following instances.

• The client certificate structure is invalid, and cannot be parsed.

• The client certificate is not found in the keystore.

Certificate Expired. When checked (enabled), the system learns, logs, or blocks responses when the client certificate extracted from the document has expired. The default setting is

128

Blocking Setting

F5 BIG-IQ Centralized Management: Security

Description

enabled. Possible causes include the following instances.

• The client certificate structure is invalid and cannot be parsed.

• The client certificate is not found in the key-store.

Note: The system does not perform this check if the Save Expired/Untrusted Certificate option is enabled when you add the certificate to the system’s certificate pool.

Decryption Error. When checked (enabled), the system learns, logs, or blocks requests when an encrypted section in the request could not be decrypted. The default setting is enabled. Possible causes include the following instances.

• The message could not be decrypted since no key information was found.

• The encryption algorithm is not supported.

Encryption Error. When checked (enabled), the system learns, logs, or blocks responses when the system cannot encrypt a section requested by the user. For example, the message cannot be encrypted if no key information was detected in the request. The default setting is enabled.

Expired Timestamp. When checked

(enabled), the system learns, logs, or blocks requests when the timestamp has expired. The default setting is enabled.

Internal Error. When checked (enabled), the system learns, logs, or blocks requests and/or responses when the system’s web services security offload engine confronts an unexpected scenario. For example, if a resource fails to allocate. The default setting is enabled.

Invalid Timestamp. When checked (enabled), the system learns, logs, or blocks requests when the timestamp is not formatted according to the specifications. The default setting is enabled.

Malformed Error. When checked (enabled), the system learns, logs, or blocks requests and/or responses when the system’s web services security offload engine confronts a malformed document. For example, if the document contains characters that are illegal according to the W3C XML 1.0

recommendation. The default setting is enabled.

129

Managing Application Security Policies in Web Application Security

Blocking Setting

CSRF Protection

IP Addresses / Geolocations

Headers

Description

Missing Timestamp. When checked (enabled), the system learns, logs, or blocks requests when the timestamp is missing from the document. The default setting is enabled.

Signing Error. When checked (enabled), the system learns, logs, or blocks responses when the underlying crypto library failed to digitally sign the document, or the response contains an unknown or unsupported algorithm. The default setting is enabled.

Timestamp expiration is too far in the

future. When checked (enabled), the system learns, logs, or blocks requests when the timestamp lifetime is greater than configured.

The default setting is enabled.

UnSigned Timestamp. When checked

(enabled), the system learns, logs, or blocks requests when the timestamp is not digitally signed. The default setting is enabled.

Verification Error. When checked (enabled), the system learns, logs, or blocks requests when the underlying crypto library failed to perform digital signature verification, or there is information missing in the payload. The default setting is enabled.

Expand this area to see the cross-site request forgery (CSRF) protection sub-violations. Cross-

site request forgery (CSRF) is an attack that forces a user to execute unwanted actions on a web application in which the user is currently authenticated. When this setting is enabled, the system protects the web application against CSRF attacks. This category contains the following violations.

CSRF authentication expired. The incoming request may be a Cross-Site Request Forgery

(CSRF) attack. The request may come from a clicked link, embedded malicious HTML, or

JavaScript in another application, and may involve transmission of unauthorized commands through an authenticated user.

CSRF attack detected. The incoming request includes an expired cross-site request forgery

(CSRF) session cookie.

Expand this area to see the IP address and

Geolocation sub-violations, and click the information icons for more information on each violation.

Expand this area to see the header sub-violations and click the information icons for more information on each violation.

130

F5 BIG-IQ Centralized Management: Security

Blocking Setting

Redirection Protection

Bot Detection

Data Guard

WebSocket protocol compliance

Antivirus Protection

Description

In the Learn Host Names setting, Select the

Enabled check box to specify that the Policy

Builder suggests you add host names that have not yet been added to the policy.

Expand this area to see the redirection protection sub-violations, and click the information icons for more information on each violation.

In the Learn New Redirection Domains setting, select under which circumstances the Policy

Builder adds, or suggests you add, explicit redirection domains to the policy. As you select the setting, additional information about the setting is displayed below it.

In the Maximum Learned Redirection Domains setting, type the largest number of redirection domains that the policy allows.

Expand this area to see the WebSocket subviolations. The Bot Detection category contains the Web scraping detected violation, which detects when the web client, or user agent, does not demonstrate human behavior.

Expand this area to see the Data Guard subviolations. The Data Guard category specifies which information the system considers sensitive, including credit card numbers, U.S. Social

Security numbers, custom patterns, and file content. This category contains the Data Guard.

Information leakage detected violation.

Expand this area to see the WebSocket protocol compliance sub-violations, and click the information icons for additional information about each violation.

Expand this area to see the antivirus protection sub-violations, and click the information icons for additional information about each violation.

Edit policy building process settings

You can view and edit the building process settings for the application security policy to specify how

Web Application Security builds policies.

1. Go to the Blocking Settings screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the name of a policy and from the list on the left, select Blocking Settings.

3. Scroll to near the bottom of the Blocking Settings properties screen, expand the Policy Building

Process area, and specify settings as needed.

4. In the Trust IP Addresses setting, you specify IP addresses that the Policy Builder considers safe.

• Select All IP Addresses to indicate that all IP addresses are safe.

131

Managing Application Security Policies in Web Application Security

• Select Address List to indicate that all IP addresses in the displayed list are safe. Click Edit IP

Addresses to add IP addresses to this list.

5. In the Loosen Policy setting, you specify the number of sources that the system must detect during a specified time period, in order for the Policy Builder to accept and learn a policy change from traffic.

For example, when the Policy Builder detects the same file type, URL, parameter, or cookie from enough different user sessions and IP addresses over time, then it adds the entity to the security policy. You can configure values for both untrusted traffic and for trusted traffic.

6. In the Tighten Policy (stabilize) setting, you specify the number of requests and the amount of time that must pass for the Policy Builder to stabilize the policy element.

Stabilizing the policy element may mean tightening it by deleting wildcard entities, removing entities from staging mode, and enforcing violations that did not occur, depending on the element.

7. In the Minimize false positives (Track Site Changes) setting, you specify whether, after stabilizing the policy, the Policy Builder remains enabled, and if enabled, how it handles trusted and untrusted traffic to minimize false positives.

• Select Enable to specify that after the Policy Builder stabilizes the policy, the Policy Builder remains enabled, and may still make changes to the policy by loosening it, usually as a result of changes to the web application. Specifies, when cleared (disabled), that after the Policy Builder stabilizes the policy, it disables itself and makes no more changes to the policy, even if it detects that changes were made to the web application.

• Select From Trusted and Untrusted Traffic to specify that the Policy Builder loosens the policy based on traffic from trusted and not trusted sources. This setting is only available when Enable is selected.

• Select Only from Trusted Traffic to specify that the Policy Builder loosens the policy based on traffic from trusted sources. Click IP Address Exceptions to define a trusted IP addresses. This setting is only available when Enable is selected.

You configure values for trusted and untrusted traffic separately.

8. In the Options setting, you can establish options that determine what type of entities the Policy

Builder adds to the policy.

• When enabled, Learn from responses specifies that the Policy Builder adds elements found in responses to the policy, when either of the following circumstances is true:

• The Policy Builder trusts the request IP address (because the request IP address appears in the

Trusted IP Addresses list).

• The Policy Builder does not trust the request IP address (because the request IP address does not appear in the Trusted IP Addresses list), but the request is legal and fully enforced. Legal means that the request does not trigger any violations, suggestions to learn explicit entities, and staging suggestions. Fully enforced means that the system is not currently determining whether

URLs and parameters found in the request are to be parsed as JSON or XML and should be assigned to content profiles.

If the Policy Builder learns from responses, it uses the trusted traffic thresholds configured on this screen. This does not include learning from violations in responses. In that case, the thresholds are determined by whether the client IP address is trusted or untrusted.

Specifies, when Learn from responses is cleared (disabled), that the Policy Builder never adds elements found in responses to the policy. Violations occurring in responses are learned according to the learn flag of each violation and do not depend on this setting.

Note: This setting applies only to what can be learned from the response content such as occurrences of URLs and parameters. It does not apply to learning from violations that occur in responses, such as Data Guard leakage. Learning from these violations is determined by the

Learn flag of the respective violation.

132

F5 BIG-IQ Centralized Management: Security

• Select Full Policy Inspection to specify that the Policy Builder learns all policy elements.

Specifies, when cleared (disabled), that you are limiting the amount of entities the Policy Builder learns.

Note: Do not disable this check box unless F5 Support advises it.

• In the HTTP Response Status Codes used to learn traffic setting, you can specify that the

Policy Builder extracts information from traffic based on transactions that return specific HTTP response status codes. In the field type the response code that must be returned in order for the

Policy Builder to extract information from that traffic.

Click Add to add the response status code to the response status codes list. You may enter either a specific response code number from 0 to 599, or a generic code, for example,

4xx

. The response status codes list displays the response codes allowed by the Policy Builder and in the policy.

Click the X to the left of the response code to remove the selected response status code from the response status codes list and to make it disallowed by the Policy Builder.

9. When you are finished, click Save to save the modifications.

The policy building process settings are updated in the application security policy.

Edit Ajax response page settings

You use the Ajax Response Page screen to view and edit the settings for the Ajax response page, which is one of several response pages. Response page settings specify the content of the response that the system sends to the user when the security policy blocks a client request.

1. Go to the Ajax Response Page screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click a policy name, and then click RESPONSE PAGES > Ajax.

3. In the AJAX Blocking setting, click the Enabled check box to view and edit settings.

When this is checked (enabled), the system injects JavaScript code into responses.

Important: You must enable this check box to configure an ASM Ajax response page which is returned when the system detects an Ajax request that does not comply with the security policy.

4. From the Default Response Page Action list, select an action. Your selection determines the settings.

Option Description

Popup

Message

Custom

Response

The screen displays a sample pop up message which you can edit. Click Preview

On to preview the response.

The screen displays the default response page which you can edit to create a custom response. Alternatively, you can upload the response.

• You click Choose File to select the file containing the response, and then click

Upload to insert it.

• Click Preview On to preview the response.

• If you want to return to the original default response text, click Paste Default

Response Body.

Redirect URL The system redirects the user to a specific web page instead of displaying a response page. You must enter a URL for the redirect.

5. In the Login Page Response Action list, select an action.

Your selection determines the settings. The actions are the same as those for the Default Response

Page Action list.

6. When you are finished, save your changes.

133

Managing Application Security Policies in Web Application Security

The response page settings are updated.

Edit XML response page settings

You use the XML Response Page screen to view and edit the settings for the XML response page, which is one of several response pages. Response page settings specify the content of the response that the system sends to the user when the security policy blocks a client request.

1. Go to the XML Response Page screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click a policy name, and then click RESPONSE PAGES > XML.

3. Select a Response Type from the list. Your selection determines the additional settings.

Option Description

Custom

Response

The screen displays the default response header and response body which you can edit to create a custom response. Alternatively, for the response body, you can upload a response.

• Click Choose File to select the file containing the response body, and then click

Upload to insert it.

• Click Preview On to preview the response.

• If you want to return to the original default response text for the header or the body, click Paste Default Response Header or Paste Default Response Body.

Soap Fault

The system blocks a SOAP request due to an XML-related violation.

The system displays the system-supplied response written in the SOAP fault message structure. You cannot edit this text.

Click Preview On to preview the response.

4. When you are finished, save your changes.

The response page settings are updated.

Edit login response page settings

You use the Login Pages Response Page screen to view and edit the settings for the login page response page, which is one of several response pages. Response page settings specify the content of the response that the system sends to the user when the security policy blocks a client request.

1. Go to the Login Pages Response Page screen: click Configuration > SECURITY > Web

Application Security > Policies.

2. Click a policy name, and then click RESPONSE PAGES > Login Page.

3. Select a Response Type from the list. Your selection determines the additional settings.

Option Description

Default

Response

Custom

Response

The screen displays the default response header and response body. The system sends the response body to the client as shown. You cannot edit these fields. Click

Preview On to preview the response.

The screen displays the default response header and response body which you can edit to create a custom response. Alternatively, for the response body, you can upload a response.

• Click Choose File to select the file containing the response body, and then click

Upload to insert it.

• Click Preview On to preview the response.

134

F5 BIG-IQ Centralized Management: Security

Option Description

• If you want to return to the original default response text for the header or the body, click Paste Default Response Header or Paste Default Response Body.

Redirect

URL

The system redirects the user to a specific web page instead of displaying a response page. You must enter a URL in the Redirect URL field.

Soap Fault

The system blocks a SOAP request due to an XML-related violation.

The system displays the system-supplied response written in the SOAP fault message structure. You cannot edit this text.

Click Preview On to preview the response.

4. When you are finished, save your changes.

The response page settings are updated.

Edit default response page settings

You use the Default Response Pages screen to view and edit the settings for the default response page, which is one of several response pages. Response page settings specify the content of the response that the system sends to the user when the security policy blocks a client request.

1. Go to the Default Response Page screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click a policy name, and then click RESPONSE PAGES > Default.

3. Select a Response Type from the list. Your selection determines the additional settings.

Option Description

Default

Response

Custom

Response

The screen displays the default response header and response body. The system sends the response body to the client as shown. You cannot edit these fields. Click

Preview On to preview the response.

The screen displays the default response header and response body which you can edit to create a custom response. Alternatively, for the response body, you can upload a response.

• Click Choose File to select the file containing the response body, and then click

Upload to insert it.

• Click Preview On to preview the response.

• If you want to return to the original default response text for the header or the body, click Paste Default Response Header or Paste Default Response Body.

Redirect

URL

The system redirects the user to a specific web page instead of displaying a response page. You must enter a URL in the Redirect URL field.

Soap Fault

The system blocks a SOAP request due to an XML-related violation.

The system displays the system-supplied response written in the SOAP fault message structure. You cannot edit this text.

Click Preview On to preview the response.

4. When you are finished, save your changes.

The response page settings are updated.

135

Managing Application Security Policies in Web Application Security

Edit Data Guard settings

You can view and edit Data Guard settings to specify which information the system considers sensitive, including credit card numbers, U.S. Social Security numbers, custom patterns, and file content.

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click a policy name, and on the left click Data Guard.

3. In the Data Guard setting, select Enabled so that you can modify the other settings.

When this setting is disabled, the system sends the response, including the sensitive information, to the user.

4. Modify the settings as needed to specify how the system treats sensitive data:

Option Description

Protect credit card numbers

Protect U.S.

security card numbers

Specifies that the system considers credit card numbers as sensitive data. The system returns asterisks to the client instead of the sensitive data.

When selected, the system considers U.S. security card numbers as sensitive data.

Mask sensitive data

When selected, the system masks sensitive data returned by the web server by returning asterisk ( * ) characters to the client instead of the sensitive data.

Custom Patterns

When selected, specifies that the system recognizes customized patterns as sensitive data.

In the field, type a pattern that you want the system to consider as sensitive data, and click Add. Use PCRE regular expression syntax for the pattern, for example,

999-[/d][/d]-[/d][/d][/d][/d]

. To delete a selected pattern, click X.

Exception

Patterns

File Content

Detection

Enforcement

Mode

When selected, the system recognize exception patterns as not being sensitive data.

In the field, type a pattern that you want the system to consider as an exception to sensitive data, and click Add. Use PCRE regular expression syntax for the pattern, for example,

999-[/d][/d]-[/d][/d][/d][/d]

. To delete a selected pattern, click X.

When this is selected, you specify the possible types of content the system could consider as sensitive data. The system checks responses for the selected file content, and if it finds it, that content is not returned,

Specify whether the listed URLs should be enforced or ignored by Data Guard.

• Select Enforce URLs in List to have Data Guard protect these URLs even if they are not in the policy.

• Select Ignore URLs in List to have Data Guard protect all URLS except those in this list.

Add a URL to the list by typing it in the field and clicking Add.

Note: When adding URLs, you can type either explicit (

/index.html

) or wildcard (

*xyz.html

) URLs.

5. When you are finished, save your work.

The policy is updated to use the new Data Guard settings.

136

F5 BIG-IQ Centralized Management: Security

Add or edit HTTP header settings

In the application security policy, you can specify a list of HTTP request headers that other web applications hosted in different domains can use when requesting this URL.

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click the policy name, and then on the left, click HEADERS > HTTP Headers.

3. Select whether to add a new HTTP header or view or modify an existing HTTP header.

• Click Add to add a new header.

• Click the name of the header to view or modify the properties.

Only HTTP headers that are displayed in blue can be modified or viewed.

4. Provide or modify the header settings as appropriate.

Name. When adding a new header, select the name of the HTTP header from the list. When modifying a header, the name cannot be changed.

Type. Specifies explicit or wildcard. The only wildcard header in the system is the default pure wildcard header (*).

Mandatory. If enabled, requires this header to appear in requests.

Check Signatures. If this is enabled, the system performs attack signature checks on this header.

Base64 Decoding. When enabled, specifies that the security policy checks the parameter’s value for Base64 encoding, and decodes the value. The default is disabled.

Normalization. Specifies whether the system normalizes headers. Select the options for which type of normalization the system should perform on headers. There is a performance trade-off when using normalization, so use it only when needed.

Percent Decoding: Specifies, when enabled, that the system performs the following actions on header content:

%XX

and

%uXX

, bad unescaping, Apache whitespace, IIS Unicode codepoints, and plus to space.

URL Normalization and Percent Decoding: Specifies, when enabled, that the system performs the these actions on header content: multiple slashes, directory traversal, backslash replacement, and path parameter removal, and all Percent Decoding checks.

HTML Normalization: Specifies, when enabled, that the system performs the following actions on header content: removes all non-printables, whitespaces and the “+” character, skips comments, decodes HTML entities, performs hex decoding, decimal decoding, 0xXX decoding, style sheet escaping, and removes backslashes.

Evasion Techniques Violations. Specifies, when enabled, that the system logs and/or suggests learning suggestions for evasion violations detected during the normalization process if there are problems during the normalization of the specific header. The default is disabled.

Overridden Security Policy Settings. If used, select the signature override from the list and then enable or disable it by clicking Enabled or Disabled.

5. When you are finished, click Save.

The system updates the policy to use the new settings.

Add methods

In the application security policy, you can specify methods that other web applications may use when requesting a URL from another domain. All security policies accept standard HTTP methods by default.

If your web application uses HTTP methods other than the default allowed methods (GET, HEAD, and

POST), you can add them to the security policy.

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click the policy name, and then click HEADERS > Methods.

137

Managing Application Security Policies in Web Application Security

3. Click Add to add a method.

4. From the Method list, select a method.

5. When you are finished, click Save.

The new method is added to the list on the Methods screen. The method appears in blue, meaning that you can edit it. The check box to the left indicates that you can also delete it.

The system updates the policy to use the new methods.

Edit host name settings

You can review, add, and delete host names from the policy using the Host Names screen. This list of host names is used by several features of the application security policy.

1. Navigate to the Host Names screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Then click the name of the appropriate policy, and on the left click HEADERS > Host Names.

3. Review the list of host names.

If no host names are listed, you can add them by clicking the Add.

4. To modify a host name, click the name of the host name.

The Host Name properties screen opens.

5. Review the Host Name.

6. To allow users to be redirected to a sub-domain of this host name, select the Include Sub-domains check box.

7. To set the policy to transparent mode and forward all responses, select the check box for Policy is

always transparent for this host.

8. Click Save to save your changes.

The host name settings for the policy are updated.

Edit cookie settings

You can review, add, and remove cookies from a policy, and re-order cookie wildcards using the Cookies screen. You use the same process to modify or add a cookie. The only difference is that when you modify a cookie, the Cookie Name properties already exist and you cannot change them.

1. Navigate to the Cookies screen: click Configuration > SECURITY > Web Application Security >

Policies.

2. Click the name of the appropriate policy, and on the left click HEADERS > Cookies.

3. Click Add to add a new cookie, or click a cookie name to modify an existing cookie.

Some properties can only be entered when adding a cookie, and not modified on an existing cookie.

4. Specify or review the Cookie Name, and select whether it is Explicit or is a Wildcard expression.

You can only specify a cookie name when adding a new cookie.

5. Specify the Cookie Type. as either, or

• Select Allowed to indicate the client may change the cookie.

• Select Enforced to indicate that the cookie cannot be changed by the client.

Allowed provides additional options.

6. Select the settings for the cookie.

• For Perform Staging, select the Enabled check box to indicate that the cookie is placed in staging.

138

F5 BIG-IQ Centralized Management: Security

• For Insert HTTP only attribute select the check box to insert the attribute in the domain cookie response header.

• For Insert Secure attribute, select the check box to insert the attribute into the domain cookie response header.

• For Base64 Decoding, select the check box to enable decoding of Base64 strings. This setting is displayed only if the Cookie Type is set to Allowed.

• For Attack Signatures Check, select the check box to verify attack signatures and display attack signature override settings. This setting is displayed only if the Cookie Type is set to Allowed.

• For Attack Signature Overrides, select a signature from the list, and then click Enabled or

Disabled to indicate whether each signature should be overridden.

7. Click Save to save your changes.

The cookie settings for the policy are updated.

Edit header character set settings

You can configure the security policy to allow or disallow certain characters in the value field of an

HTTP header and in uncommon header names.

1. Navigate to the Character Set screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the name of the appropriate policy, expand HEADERS and click Character Set.

3. Review the list of characters, and for each, determine whether it should be allowed.

You can use the View options to select which group of characters are displayed.

• To allow characters in a header, select the check box in the Allowed column of the table row .

• For characters that should not be allowed in a header, clear the check box in the Allowed column of the table row.

4. Click Save to save your changes.

Edit IP addresses list settings

You can view and edit configured IP address exceptions and characteristics.

1. Navigate to the IP Address screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Select a policy name, expand IP ADDRESSES, and select IP Addresses List.

3. Click Add.

4. Type an IP Address that you want the system to trust.

To add a route domain, type

%n

after the IP address where

n

is the route domain identification number.

5. Type a Netmask.

If you omit the netmask value, the system uses a default value of

255.255.255.255

.

6. Select whichever of the following options should be enabled.

• Select the Policy Builder Trusted IP check box to specify that the Policy Builder considers traffic from this IP address to be legitimate. The Policy Builder automatically adds to the security policy data logged from traffic sent from this IP address.

• Select the Ignore in Anomaly Detection and do not Collect Device ID check box to specify that the system considers traffic from this IP address to be safe. The security policy does not take this

IP address into account when performing brute force prevention and web scraping detection.

• Select the Ignore in Learning Suggestion check box to specify that the system not generate learning suggestions from traffic sent from this IP address.

139

Managing Application Security Policies in Web Application Security

• Select the Never log traffic from this IP Address check box to specify that the system not log requests or responses sent from this IP address, even if the security policy is configured to log all traffic.

• Select the Ignore IP Address Intelligence check box to specify that the system considers traffic from this IP address to be safe even if it matches an IP address in the IP Address Intelligence database.

7. In the Block this IP Address setting, select one of the blocking options.

• Select Policy Default to use the policy blocking settings.

• Select Never Block This IP to not block this IP address.

• Select Always Block This IP to block this IP address.

If Always Block This IP is selected, many of the options become invalid and are removed from the screen.

8. Type a brief description for the IP address.

9. When you are finished, click Save to save the modifications and unlock the policy.

The IP Address settings are updated to use the new configured IP address exceptions, and any changes made are put into effect in the working configuration of the BIG-IQ

®

Centralized Management system.

Edit IP address intelligence settings

You can review and modify IP address intelligence settings. An IP intelligence database is a list of IP addresses with questionable reputations. Refer to the ASM documentation or online help for more information on IP address intelligence.

1. Navigate to the IP Address screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Select a policy name, expand IP ADDRESSES, and select IP Address Intelligence.

3. Select the IP Address Intelligence Enabled check box.

Other properties display; you can review the descriptions of the properties for additional information.

4. For the IP Address White List setting, type the IP address and subnet mask for each IP address that should be whitelisted, and click Add after each addition.

5. In the IP Address Intelligence Categories area, specify the categories that you want to alarm or block.

• Select the Alarm check box to specify that whenever a request is sent from a source IP address that matches the category, the system logs the IP Intelligence data.

• Select the Block check box to specify that the system stops requests sent from a source IP address that matches the category.

Note: In order for the system to block requests, the security policy must be in Blocking mode.

6. Click Save when you are done.

The IP address intelligence settings are updated.

Edit HTTP URL settings

You can view, add, modify, and remove HTTP URLs that are either allowed or disallowed in an application security policy. Allowed URLs are URLs that the security policy accepts in traffic to the web application being protected. Disallowed URLs are URLs that the security policy denies.

1. Navigate to the HTTP screen: click Configuration > SECURITY > Web Application Security >

Policies.

140

F5 BIG-IQ Centralized Management: Security

2. Click the name of the appropriate policy, on the left expand URLs, and click HTTP. Add, delete, or reorder the HTTP URLs that are allowed or disallowed.

3. To add an allowed or disallowed HTTP URL to a policy, click Add in the appropriate area of the screen to open the Add Url screen, and then supply the needed properties.

The Add Url screen displays the properties, which differ between allowed URLs and disallowed

URLs.

a) For disallowed HTTP URLs, select whether the protocol is HTTP or HTTPS, and specify the URL name.

b) For allowed HTTP URLs, supply the following properties.

• In the Properties area, supply or modify the overall properties for the HTTP URL.

• In the Attack Signatures area, supply or modify the attack signature properties for the HTTP

URL.

• In the Header-Based Content Profiles area, supply or modify the header-based content profile properties for the HTTP URL.

• In the HTML5 Cross-Domain Request Enforcement area, supply or modify the HTML5 crossdomain request enforcement properties for the HTTP URL.

• In the Methods Enforcement area, supply or modify the method enforcement properties for the

HTTP URL.

c) Save your work.

4. To review or edit the properties of a URL, in either the Allowed URLs or Disallowed URLs column, click the URL to open the Properties screen where you can review or edit the properties.

Change the properties as described in the previous step for adding a URL.

5. To change the processing order of allowed URLS with the wildcard type, click Re-order wildcards.

This opens the Wildcard Order screen, where you can move the wildcard entries in the list to change their sequence. When complete, save your work.

6. To delete an allowed or disallowed HTTP URL from the policy, select the check box in the row of the

HTTP URL and click Delete in the appropriate portion of the screen.

Add or edit WebSocket URL settings

You can view, add, modify, and remove WebSocket URLs that are either allowed or disallowed in an application security policy. Allowed URLs are URLs that the security policy accepts in traffic to the web application being protected. Disallowed URLs are URLs that the security policy denies.

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click the name of the appropriate policy, then on the left expand URLs and click WebSocket.

The WebSocket URLs screen opens where you can add, or edit, WebSocket URLs.

3. To edit the properties of a WebSocket URL, click the URL in either the Allowed WebSocket URLs or Disallowed WebSocket URLs column.

The WebSocket URL properties screen opens. Change the properties as described in the details for adding a URL of that type.

4. To add a WebSocket URL to a policy, determine whether it is an allowed or disallowed WebSocket

URL.

• To add an allowed WebSocket URL, click Add in the upper portion of the screen. This opens the

Add Allowed WebSocket Url screen, and where you can supply the needed properties.

• To add a disallowed WebSocket URL, click Add in the lower portion of the screen. This opens the

Add Disallowed WebSocket Url screen, and where you can supply the needed properties.

5. For disallowed WebSocket URLs, supply the needed properties.

a) Select whether the protocol is WS or WSS.

b) Specify the URL name.

141

Managing Application Security Policies in Web Application Security

6. For allowed WebSocket URLs, supply the needed properties.

• In the Properties area, supply or modify the overall properties for the WebSocket URL.

• In the Message Handling area, supply or modify the message handling properties for the

WebSocket URL.

• For wildcard URLs, expand the Meta Characters area to select how meta characters are handled.

• For the Check Signatures on this URL setting, select the Enabled check box.

• For the Check characters on this URL setting, select the meta characters from the list and then click Allow or Disallow as needed.

• In the HTML5 Cross-Domain Request Enforcement area, supply or modify the HTML5 crossdomain request enforcement properties for the WebSocket URL.

7. Save your work.

Edit URL character set settings

You can view and edit how the security policy responds to each character contained in a URL.

1. Navigate to the Character Sets URL screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the name of the appropriate policy, on the left expand URLs, and click Character Sets.

3. Review the list of characters, and for each, determine whether it should be allowed.

You can use the View options to select which group of characters are displayed.

• To allow characters in a URL, select the check box in the Allowed column of the table row.

• For characters that should not be allowed in a URL, clear the check box in the Allowed column of the table row.

4. Click Save to save your changes.

Add file types settings

You can add and configure settings for file types that are allowed (or disallowed) in traffic to the web application being protected. These settings determine how the security policy reacts to requests referring to files with these extensions.

1. Go to the File Types screen: Click Configuration > SECURITY > Web Application Security >

Policies.

2. Click the name of the policy to change, and on the left, click File Types.

3. On the File Types screen, click Add in either the Allowed File Types area at the top of the screen, or in the Disallowed File Types area at the bottom of the screen.

• Use the Allowed File Types area to add file types that the security policy considers legal, and to view information about each file type.

• Use the Disallowed File Types area to add file types that the security policy considers illegal, and to exclude file types that are included in allowed wildcard file types.

The screen displays fields applicable to your selection.

4. If you selected Add for the Disallowed File Types, skip to step 5. If you selected Add for the

Allowed File Types, fill in these settings.

a) For File type, select a type option and type a name.

Explicit: Specifies that the system displays only explicit file types.

Wildcard: Specifies that the system displays only wildcard file types.

No-ext: Specifies that the web application has a URL with no file type. The system automatically gives this file type the name no_ext.

142

F5 BIG-IQ Centralized Management: Security

b) For Perform Staging, select the Enabled check box to have the system perform staging.

c) For URL Length, type the maximum acceptable length, in bytes, of a URL containing this file type.

d) For Request Length, type the maximum acceptable length, in bytes, of the request containing this file type.

e) For Query String Length, type the maximum acceptable length, in bytes, for the query string portion of a URL that contains this file type.

f) For POST Data Length, type the maximum acceptable length, in bytes, for the POST data of an

HTTP request that contains the file type.

g) For Apply Response Signature Staging, select the check box to apply response signature staging.

5. If you selected Add for Disallowed File Types, fill in the name.

6. When you are finished, click Save to save your work.

The file types settings are updated to use the new settings, and any changes you made are put into effect in the working configuration of the BIG-IQ

®

Centralized Management system.

Edit or add JSON content profile settings

You use JSON content profile properties to define what the application security policy enforces and considers legal when it detects traffic that contains JSON data.

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click the name of the policy you want to modify, then on the left expand CONTENT PROFILES, and click JSON Profiles.

3. Click the name of the JSON profile to modify, or click Add to create a new one.

4. Review the existing name, or type a Profile Name for the new profile.

5. Revise or type an optional Description for the profile.

6. In the Maximum Total Length Of JSON Data field, type or revise the longest length, in bytes, allowed by the security policy of the request payload, or parameter value, where the JSON data was found.

To have no length restriction, you can leave this field blank.

7. In the Maximum Value Length field, type or revise the maximum acceptable length, in bytes, of the longest JSON element value in the document allowed by the security policy.

To have no length restriction, you can leave this field blank.

8. For Maximum Structure Depth, type or revise the greatest nesting depth found in the JSON structure allowed by the security policy.

To have no depth restriction, you can leave this field blank.

9. In the Maximum Array Length field, type or revise the largest number of elements allowed for arrays.

To have no array length restriction, you can leave this field blank.

10. For Tolerate JSON Parsing Warnings, specify whether to enable response signature staging.

• Select the Enabled check box to specify that the system does not report when the security enforcer encounters warnings while parsing JSON content.

• Clear the check box to specify that the security policy reports when the security enforcer encounters warnings while parsing JSON content.

11. For Parse Parameters, specify whether to enable parameter parsing.

• To enable parsing, select the Enabled check box.

• When this setting is disabled, the system displays more main areas (such as Attack Signature

Overrides, Meta Characters, and Sensitive Data Configuration) with additional properties for review and modification.

143

Managing Application Security Policies in Web Application Security

12. Expand the Attack Signatures Overrides area to select any signature overrides. (This area is displayed only when Parse Parameters is disabled.)

• For the Attack Signatures Check setting, select the Enabled check box.

• For the Attack Signatures Overrides setting, select the signature from the list and then click

Enabled or Disabled as needed for that signature.

13. Expand the Meta Characters area to select how meta characters are handled. (This area is displayed only when Parse Parameters is disabled.)

• For the Check Characters setting, select the Enabled check box.

• For the Overrides setting, select the meta characters from the list and then click Allowed or

Disallowed as needed.

14. Expand the Sensitive Data Configuration area to select how sensitive data is handled. (This area is displayed only when Parse Parameters is disabled.) a) In the Sensitive Data setting, type an element name within the JSON data whose values the system should consider sensitive.

b) Click Add to add the element name to the sensitive data list.

15. Click Save to save your changes.

Edit or add XML content profile settings

You use XML content profile properties to define what the application security policy enforces and considers legal when it detects traffic that contains XML data.

1. Navigate to the XML Profiles screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the name of the policy you want to work with, then, on the left, expand CONTENT

PROFILES, and click XML Profiles.

3. Click the name of the XML profile to modify, or click Add to create a new one.

4. Review the existing name or type a Profile Name for the new profile.

5. Review, revise, or type an optional Description for the profile.

6. For the Use XML Blocking Response Page property, select the type of response page to send when the security policy blocks a client request that contains URL XML content that does not comply with the settings of this XML profile.

• To have the system send an XML response page, select the Enabled check box.

• To have the system send the default response page, do not select the Enabled check box.

7. To configure the validation and defense settings of an XML profile, expand the XML Firewall

Configuration area and modify those settings as needed.

8. To configure the system to perform attack signature checks on the XML profile, expand the Attack

Signatures area and modify those settings as needed.

9. To change the security policy settings for specific meta characters in XML values on the XML profile, expand the Meta Characters area and modify those settings as needed.

10. Expand the Sensitive Data Configuration area to program the system to mask sensitive data that appears in an XML document, as shown in the BIG-IP device configuration interface and internal

Application Security logs.

11. Click Save to save your changes.

Edit or add plain text content profile settings

You use plain text content profile properties to define what the application security policy enforces and considers legal when it detects traffic that contains plain text data.

144

F5 BIG-IQ Centralized Management: Security

1. Navigate to the Plain Text Profiles screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the name of the policy you want to modify, at the left, expand CONTENT PROFILES, and click Plain Text Profiles.

3. Click the name of the plain text profile to modify, or click Add to create a new one.

4. Review the existing, or type a Profile Name for the new profile.

5. Review, revise, or type an optional Description for the profile.

6. In the Maximum Total Length field, type the longest length, in bytes, allowed by the security policy.

You can leave this field blank to have no length restriction.

7. In the Maximum Line Length field, type the longest line length, in bytes, allowed by the security policy.

You can leave this field blank to have no length restriction.

8. If you want the system to perform percent decoding, select the Perform Percent Decoding Enabled check box.

9. To configure attack signature overrides, expand Attack Signatures Overrides and supply the needed values.

a) In the Attack Signatures Check setting, select the Enabled check box.

b) In the Attack Signatures Overrides setting, select one or more attack signatures to override.

c) For each attack signature, select whether the override is enabled or disabled.

10. To change the security policy settings for specific meta characters in values on the plain text profile, expand Meta Characters and supply the needed values.

a) In the Check Characters setting, select the Enabled check box.

b) In the Overrides setting, select one or more meta characters to override.

c) For each meta character, select whether the override is allowed or disallowed.

11. Click Save to save your changes.

Edit character set JSON settings

You can configure the security policy to allow or disallow certain characters if they appear in JSON values.

1. Navigate to the JSON screen: click Configuration > SECURITY > Web Application Security >

Policies.

2. Click the name of the policy you want to work with, and on the left expand CONTENT PROFILES and CHARACTER SETS, then click JSON.

3. Review the list of characters, and for each, determine whether it should be allowed or not.

• To allow characters, select the check box in the Allowed column of the table row.

• For characters that should not be allowed, clear the check box in the Allowed column of the table row.

Use the View options to select which characters are displayed.

• Click All Characters to display all characters.

• Click Allowed to display only characters that are marked as allowed.

• Click Disallowed to display only characters that are not allowed.

4. Click Save to save your changes.

Edit character set plain text settings

You can configure the security policy to allow or disallow certain characters if they appear in plain text values.

145

Managing Application Security Policies in Web Application Security

1. Navigate to the Plain Text screen: click Configuration > SECURITY > Web Application

Security > Policies.

2. Click the name of the appropriate policy, and on the left expand CONTENT PROFILES and

CHARACTER SETS, then click Plain Text.

3. Review the list of characters, and for each, determine whether it should be allowed or not.

• To allow characters, select the check box in the Allowed column of the table row.

• For characters that should not be allowed, clear the check box in the Allowed column of the table row.

Use the View options to select which characters are displayed.

• Click All Characters to display all characters.

• Click Allowed to display only characters that are marked as allowed.

• Click Disallowed to display only characters that are not allowed.

4. Click Save to save your changes.

Edit character set XML settings

You can configure the security policy to allow or disallow certain characters if they appear in XML values.

1. Navigate to the XML screen: click Configuration > SECURITY > Web Application Security >

Policies.

2. Click the name of the appropriate policy, and on the left expand CONTENT PROFILES and

CHARACTER SETS, then click XML.

3. Review the list of characters, and for each, determine whether it should be allowed or not.

• To allow characters, select the check box in the Allowed column of the table row .

• For characters that should not be allowed, clear the check box in the Allowed column of the table row.

Use the View options to select which characters are displayed.

• Click All Characters to display all characters.

• Click Allowed to display only characters that are marked as allowed.

• Click Disallowed to display only characters that are not allowed.

4. Click Save to save your changes.

Add or edit parameter settings

You can add or edit settings for parameters that the security policy permits in requests, such as the parameter type and whether the parameter is allowed to contain an empty value. The default parameter is displayed for all policies, and can be edited: * (asterisk).

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click a policy name, and on the left, click PARAMETERS > Parameters.

3. You can add a new, or edit an existing, parameter.

• To add a new parameter, click Add,

• To edit an existing parameter, click the parameter name.

The properties screen opens for the new or existing parameter.

4. For a new parameter, for the Name setting, select the type, and then type a name for the new parameter.

146

F5 BIG-IQ Centralized Management: Security

• Select explicit if this is a regular named parameter.

• Select wildcard if any parameter name that matches the wildcard expression is permitted by the security policy. (For example, typing the wildcard * specifies that the security policy allows every parameter.) The syntax for wildcard entities is based on shell-style wildcard characters.

• Select no name if this parameter does not have a name. The system automatically names the parameter no name and it behaves the same as an explicit parameter.

The name setting cannot be changed once the parameter is created.

5. For Level, select the level of parameters to be displayed.

• Select global to display global parameters not associated with flows or URLs.

• Select url to display parameters associated with flows or URLs, select HTTP or HTTPS as the protocol, and then select the URL.

If the security policy is configured to differentiate between HTTP and HTTPS URLs, then you can additionally filter URL parameters by the HTTP and HTTPS protocols.

6. To enable or allow any of these settings, click the Enabled check box for the setting:

• Select Perform Staging to display the staging status on this parameter.

• Select Allow Empty Value to allow empty values.

• Select Allow Repeated Occurrences to allow repeated occurrences.

• Select Sensitive Parameter to, in a validated request, protect sensitive user input, such as a password or a credit card number. The contents of sensitive parameters are not visible in logs or in the user interface.

7. Select the Value type for the parameter. The value type selected might display additional fields. You cannot change the value type after it is created.

• Select dynamic-content for parameters whose data is dynamic.

• Select ignore for parameters whose values the system does not check.

• Select json for JSON parameters fetched from the server that are not editable.

• Select static-content for parameters whose data is static. In the Parameter Static values area displayed at the bottom of the page, supply a value in the Add New Value setting, and click Add.

Add or subtract values as needed.

• Select user-input for parameters whose data is provided by user-input. Use the Data type setting to provided additional information about the user input.

• Select xml for XML parameters fetched from the server that are not editable. In the XML Profile area displayed at the bottom of the page, select an XML profile.

8. For the Data type setting, select the data type to use for the user input.

• Select email to specify that the data must be text in email format only. In the Data type attributes area, specify a value for the Maximum Length setting in bytes.

• Select alpha-numeric to specify that the data can be any text consisting of letters, digits, and the underscore character.

• In the Data type attributes area, specify a value for the Maximum Length setting in bytes, and select whether to enable regular expressions or Base64 encoding. When the Regular Exp setting is enabled, it specifies that the parameter value includes the specified parameter pattern.

This is a positive regular expression that defines what is legal.

• In the Value Meta Character area, select the Enabled check box and then select which meta character to allow or disallow as a value.

• In the Attack Signatures area, select the Enabled check box and then select which attack signature overrides to enable or disable.

• Select integer to specify that the data must be whole numbers only (no decimals). In the Data

type attributes area, specify values for the Minimum Value , Maximum Value, and Maximum

Length settings.

147

Managing Application Security Policies in Web Application Security

• Select decimal to specify that the data is numbers only and can include decimals. In the Data type

attributes area, specify values for the Minimum Value , Maximum Value, and Maximum

Length settings.

• Select phone to specify that the data can be text in telephone number format only. In the Data

type attributes area, specify a value for the Maximum Length setting.

• Select file upload to specify there is no text limit for the data (length checks only). In the Data

type attributes area, specify a value for the Maximum Length setting, and select whether to disallow file uploading or enable Base64 encoding.

9. When you are finished, save your work.

The application security policy is updated to use the new settings.

Add or edit extraction settings

You use extraction settings to manage how the system extracts dynamic values for dynamic parameters from the responses returned by the web application server. An extraction is a subcollection that isolates a parameter from an object. Other subcollections (such as parameters) reference extractions by name (not by URL).

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click the name of the policy and then on the left, click PARAMETERS > Extractions.

3. You can add a new or edit an existing extraction.

• To add a new extraction, click Add.

• To edit an existing extraction, click the extraction name.

The properties screen opens for the new or existing extraction.

4. For a new extraction, specify the Name of the dynamic parameter for which the system extracts values from responses.

• For a named parameter, select New and type the name in the field.

• For the

UNNAMED

parameter, select no name.

The name setting cannot be changed once the extraction is created.

5. In the Extracted Items Configuration area, specify the items from which the system should extract the values for dynamic parameters.

Option Description

Extract

From

File Types. Specifies, when checked (enabled), that the system extracts the values of dynamic parameters from responses to requests for file types that exist in the security policy. To add a file type to be extracted, select an file type from the list, and click Add.

URLs. Specifies, when checked (enabled), that the system extracts the values of dynamic parameters from responses to requests for the listed URLs. To specify the

URLs from which the system extracts dynamic parameter values, select either

HTTP or HTTPS from the list, type the URL in the adjacent field, and click Add.

If you enter a URL that does not yet exist in the security policy, the URL is added to the security policy.

RegEx. Specifies, when checked (enabled), that the system extracts the values of dynamic parameters from responses to requests that match the listed pattern

(regular expression). Type the regular expression in the field.

Extract

From All

Items

Specifies when selected (enabled), that the system extracts the values of the dynamic parameters from all URLs found in the web application. Specifies when cleared

148

F5 BIG-IQ Centralized Management: Security

Option Description

(disabled), that the system extracts the values of the dynamic parameters from limited items found in the web application.

6. In the Extracted Method Configuration area, specify the methods by which the system extracts the values for dynamic parameters.

Option Description

Search in

Links

Search Entire

Form

Search

Within Form

Specifies, when checked (enabled), that the system searches for dynamic parameter values within links that appear in the response body.

Specifies, when checked (enabled), that the system searches for dynamic parameter values in the entire form found on a web page.

Specifies, when checked (enabled), that the system searches for dynamic parameter values in a specific location within forms found on a web page that contains the dynamic parameter. You must provide all of this information:

Form Index. Type the HTML index of the form that contains the dynamic parameter.

Parameter Index. Type the HTML index of the input parameter within the form that contains it.

Search

Within XML

Search

Response

Body

Specifies, when checked (enabled), that the system searches for dynamic parameter values within the URL’s XML. Type the XPath specification in the XPath field.

Specifies, when checked (enabled), that the system searches for dynamic parameter values in the body of the response. Use the additional options to further refine the search. You can specify one or more of the following options, but you must specify the RegEx value if you enable this setting.

Number of Occurrences.

All specifies a search for all incidences of the parameter values in the body of the request.

Number specifies that the search is restricted to the number you type in the box.

Prefix specifies that the system extracts values only if they are preceded by the

HTML segment you type in the box.

Match Regular Expression Value specifies that the system extract must match the parameter pattern (regular expression) you type in the box. The default is .

+?.

Suffix specifies that the system extracts values only if they are followed by the

HTML segment that you type in the box.

7. When you are finished, save your work.

The application security policy is updated to use the new settings.

Edit character set parameter name settings

You use character set parameter name settings in the security policy to allow or disallow certain characters in parameter names.

1. Go to the Policies screen: Click Configuration > SECURITY > Web Application Security >

Policies.

2. Continue to the parameter name screen: Click the name of the policy and then, on the left, click

PARAMETERS > CHARACTER SETS > Parameter Name.

149

Managing Application Security Policies in Web Application Security

3. Review the list of characters, and for each, determine whether it should be allowed or not.

• Select the Allowed check box for characters that should be allowed.

• Clear the Allowed check box for characters that should not be allowed.

Use the View options to select which characters are displayed.

• Click All Characters to display all characters.

• Click Allowed to display only characters that are marked as allowed.

• Click Disallowed to display only characters that are not allowed.

4. Click Save to save your changes.

The system updates the security policy to use the new character set parameter name settings.

Edit character set parameter value settings

You use character set parameter value settings in the security policy to determine whether the security policy allows those values in a request.

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click the name of the policy and then, on the left, click PARAMETERS > CHARACTER SETS >

Parameter Value.

3. Review the list of characters, and for each, determine whether it should be allowed or not.

• Select the Allowed check box for characters that should be allowed.

• Clear the Allowed check box for characters that should not be allowed.

Use the View options to select which characters are displayed.

• Click All Characters to display all characters.

• Click Allowed to display only characters that are marked as allowed.

• Click Disallowed to display only characters that are not allowed.

4. Click Save to save your changes.

The system updates the security policy to use the new character set parameter value settings.

Configure attack signatures

Attack signatures are rules or patterns that identify attacks or classes of attacks on a web application and its components. You can configure aspects of attack signatures to specify whether the signatures should be put into staging before being enforced, and whether or not to apply signatures to responses.

1. Go to the Policies screen: Click Configuration > SECURITY > Web Application Security >

Policies.

2. Continue to the Attack Signatures Configuration screen: Click the name of a policy, and on the left click Attack Signatures Configuration .

3. Revise the settings as needed.

• To enable staging of signatures, select the Signature Staging Enabled check box.

• To place updated signatures in staging, select the Place updated signatures in staging Enabled check box. New signatures are always placed in staging, regardless of this setting.

• For Attack Signature Set Assignment, select one or more signature sets from the list to be assigned to the policy, and then select the appropriate options for that signature set.

• Select or clear the Learn, Alarm, and Block options for each signature set.

150

F5 BIG-IQ Centralized Management: Security

• Select Learn to have the security policy learn all requests that match enabled signatures in the signature set.

• Select Alarm to have the security policy logs the request data if a request matches a signature in the signature set.

• Select Block, to have the security policy block all requests that match a signature included in the signature set.

• From the Actions list, select, if needed, whether to enable or enforce signatures in the signature set.

• For Apply Response Signatures, select a file type, if needed. The default wildcard character indicates all file types.

4. When you are finished, save your work.

The system updates the application security policy attack signatures settings.

View and modify attack signatures

You can view the list of attack signatures that belong to signature sets assigned to the policy, and specify whether they are enabled or in staging.

1. Click Configuration > SECURITY > Web Application Security > Policies.

2. Click the name of a policy, and on the left click Attack Signatures.

3. To restrict the number of signatures displayed, use the filter field at the upper right of the screen.

You can select both basic and advanced filter options by clicking the arrow to the left of the field.

4. To specify whether or not the attack signature is enabled, select the check box in the Enabled column of the table for that row.

5. To have an attack signature placed in staging, select the check box in the In Staging column of the table for that row.

6. When you are finished, save your work.

The system updates any modified attack signature settings.

Edit geolocation enforcement settings

You use geolocation enforcement to select which geolocations the policy does not allow.

1. Navigate to the Geolocation Enforcement screen: click Configuration > SECURITY > Web

Application Security > Policies.

2. Click the name of the appropriate policy, and on the left, click Geolocation Enforcement.

3. Select a geolocation that is not allowed by the policy from the Disallowed Geolocations list.

Once you have selected the geolocation, it is listed below the drop-down list.

4. You remove a selected geolocation from the list by clicking the X to the left of the geolocation name.

5. Click Save to save your changes.

The system updates the list of geolocations that the policy does not allow.

Adding security policies

You can use BIG-IQ

®

Web Application Security to add new application security policies for possible later deployment.

1. Navigate to Web Application Security > Policy Editor.

Policies are listed on the Policies screen.

151

Managing Application Security Policies in Web Application Security

2. In the Policies screen, click Add to display a screen for creating a new policy.

The newly-created policy contains only the editable configuration (the configuration deployed to the

BIG-IP

®

device). It acquires the configuration default values from it.

3. Specify the following information about the new Web Application Security policy: a) Type the Name (required) of the security policy.

b) Specify the Partition (required) to which the security policy belongs.

Only users with access to a partition can view the objects that it contains. If the security policy resides in the

Common

partition, all users can access it.

c) For Application Language, select the language encoding (required) for the web application, which determines how the security policy processes the character sets.

The default language encoding determines the default character sets for URLs, parameter names, and parameter values.

d) For Enforcement Mode, specify whether blocking is active or inactive for the security policy.

You can enable or disable blocking for individual violations in the subsequent tables of settings and properties. If transparent appears, blocking is disabled for the security policy. This disables blocking for all options, and the check boxes to enable blocking are unavailable.

4. When you are finished editing the properties, click Save.

This makes the remaining policy objects available for editing.

5. In the Policy objects list on the left, click the next object to edit, and then click the Edit button.

For the Attack Signatures List object only, click the Attack Signatures List object, then in the

Name column, click the signature name you want to edit, then click Edit.

6. Click Save to save the modifications to each policy object before moving to another one.

7. Click Save when you are finished editing.

The newly-created policy is added to the list of application security policies, and the new policy object exists in the working configuration of the BIG-IQ system. At this point, you can add it to any virtual server object in Web Application Security.

Import application security policies

Before you import a security policy from another system, make sure that the attack signatures and userdefined signatures are the same on both systems. You also need access to the exported policy file.

You can use Web Application Security to import security policies that were previously exported from another BIG-IP

®

Application Security Manager

(ASM) system.

1. Navigate to the Policies screen: click Configuration > SECURITY > Web Application Security >

Policies.

2. On the Policies screen, click the Import button.

3. On the Import Policy screen, select the security policy file by clicking Choose File , and navigating to the file location.

You can also drag and drop a file to the Drop Policy File Here field.

4. Select a policy name for the imported policy if you like.

5. Click Import.

After you have imported the policy, the system lists it in the Policies screen. The uploaded policy will have the same name as the XML file, unless you provided a policy name.

If you replaced an existing policy, the imported security policy completely overwrites the existing security policy. Also, the imported policy is then associated with the virtual server and local traffic policy that was previously associated with the policy you replaced. The replaced policy is automatically archived with the inactive security policies.

152

F5 BIG-IQ Centralized Management: Security

Export application security policies

You can use Web Application Security to export security policies. You can use the exported security policy as backup, or you can import it onto another system.

1. Navigate to the Policies screen: click Configuration > SECURITY > Web Application Security >

Policies.

2. Select the check box to the left of the security policy you want to export.

The Export button becomes active.

3. Click the Export button to show a list, and select the BIG-IP version to use when exporting this security policy.

The policy is exported.

You can use the exported security policy as a backup, or you can import it onto another system. Note that the exported security policy includes any user-defined signature sets that are in the policy, but not the user-defined signatures themselves.

Removing security policies

BIG-IQ

®

Web Application Security provides a way to remove ASM

™ the BIG-IQ database.

application security policies from

1. Log in to BIG-IQ Security with Administrator, Security Manager, or Web Application Security

Manager credentials.

2. Navigate to the Policies screen: click Web Application Security > Policy Editor.

3. Select the check box to the left of the security policy you want to remove.

The Remove button becomes active.

4. Click the Remove button.

5. In the Remove Policies dialog box, confirm the removal by clicking Remove.

The application security policy is removed from the BIG-IQ system, and can be managed locally.

153

Managing Application Security Policies in Web Application Security

154

Managing Signature Files

About signature files in Web Application Security

Through Web Application Security, you can view and manage signature files and signature file updates centrally for multiple BIG-IP

®

devices. For each signature file, the system displays the file name, the file version, the version of BIG-IP with which it is compatible, and its source.

You can also update certain signature file settings.

By managing signature files from the BIG-IQ

®

Centralized Management platform, the administrator can spend less time on signature updates, and can view the signatures update information in a single central location.

The BIG-IP system includes an attack signature pool and a bot signature pool. These pools include the system-supplied attack signatures and bot signatures, which are shipped with the BIG-IP Application

Security Manager, and any user-defined signatures.

Web Application Security fetches all new and relevant signature files from an external server, which may use a proxy. You can configure a proxy from the BIG-IQ Centralized Management system (System >

PROXIES). The BIG-IQ Centralized Management system can then push the signature files to the relevant BIG-IP device or devices. It displays the signature version for each device.

Viewing signature file properties

An application security policy exported from BIG-IP

®

Application Security Manager

includes any attack signature sets that are in use by the policy, but not the actual signatures. Therefore, it is good practice to make sure that the attack signatures (both system-supplied and user-defined) are the same on the two systems. Use the BIG-IQ

®

Web Application Security Signature Files screen to view signature file properties.

1. Log in with Administrator, Security Manager, or Web App Security Manager credentials.

2. Navigate to the Signature Files screen: click Web Application Security > Signature Files.

3. In the Signatures file screen, click a specific signature file to view properties.

4. When you are finished, click Cancel.

Signature file properties

Signature file properties are read-only and displayed for informational purposes only.

Property Description

Name

Name of the signature file. Example: ASM-

SignatureFile_20150917_152714.im123456789

Version of the signature file. Example: 1445276000000

Version

Compatibility

Version running on the BIG-IP ® device with which the signature file is compatible.

Example: BIG-IP 11.5.3

Source

F5 Networks. Example: F5

Managing Signature Files

Updating and pushing signature files

You can use the BIG-IQ

® and push them to BIG-IP

®

Web Application Security Signature files screen to update the signature files

devices.

1. Log in with Administrator, Security Manager, or Web App Security Manager credentials.

2. Navigate to the Signature Files screen: click Web Application Security > Signature Files > Update

Process/Push Status.

3. In Update Process/Push Status, edit the settings as needed.

a) From the Interval list, select how often the update should run.

b) This field is pre-populated with the current date and time. To change, type a starting date and time in the format: dd/mm/yyyy, hh:mm:ss AM (or PM). Example: 2/11/2016,

9:00:00 AM. Or, click in the field to bring up a calendar, select a date, and use the Hr and Min controls to select the hour and minute. You can also select Now, Clear, and Done.

c) Select the Run Manual Sync check box to have the system synchronize the configuration with the standby device when a signature file is pushed to the primary BIG-IP device.

Note that some fields are display only:

Last update: Specifies the last time the file was updated, and whether the update was done manually or automatically; for instance, Tue Oct 27 2015 10:40:27. (Triggered by scheduler).

Next update: Specifies the time of the next scheduled file update; for instance, Tue Oct 27

2015 10:40:27.

Last run status: Specifies the status of the last file update. Possible statuses include: Passed,

Failed.

4. When you are finished, click Save.

You can click Cancel to close the screen without saving your changes.

Signatures are updated.

5. In the Current running task area, edit the settings as needed.

a) Run now: To update the signature files and push them to the server, click the Update & push button.

When the task has run to completion, the status displays as Completed. Ensure that the Auto

update enabled check box on the Devices properties screen is checked, or updated files will not be pushed.

b) Select the Run Manual Sync check box, and when a signature file is pushed to the primary BIG-

IP device,the system synchronizes the configuration with the standby device.

Note that the Current status setting specifies the status of the current file update. Possible statuses include: Passed, Failed.

6. When you are finished, click Save.

You can click Cancel to close the screen without saving your changes.

Signatures are updated.

If a signature file is pushed to a clustered system, the configuration of the nodes is synchronized. The

ASM

configuration is deployed to the active device and then synchronized with the standby device.

156

Managing Custom Attack Signatures and Signature Sets

About custom attack signatures

Attack signatures are rules or patterns that identify attacks on a web application. When Application

Security Manager

®

(ASM) receives a client request (or a server response), the system compares the request or response against the attack signatures associated with the security policy. If a matching pattern is detected, ASM

triggers an attack-signature-detected violation, and either alarms or blocks the request, based on the enforcement mode of the security policy.

An ideal security policy includes only the attack signatures needed to defend the application. If too many are included, you waste resources on keeping up with signatures that you do not need. On the other hand, if you do not include enough, you might let an attack compromise your application without knowing it. If you are in doubt about a certain signature set, it is a good idea to include it in the policy rather than to omit it.

There are system-supplied signatures and custom (user-defined) signatures.

System-supplied signatures enforce policies for best-known attacks. F5 Networks provides:

• Over 2,500 signatures to guard against many different types of attacks and protect networking elements such as operating systems, web servers, databases, frameworks, and applications.

• Signatures that include rules of attack that are F5 intellectual property.

• Signatures that you can view but not edit or remove. Also, you cannot view the rules governing these signatures.

• Periodic updates.

To learn more about system-supplied attack signatures, consult the BIG-IP

®

system documentation.

Custom (user-defined) signatures are created by your organization for specific purposes in your environment. These signatures:

• Are added to the attack signatures pool where F5 Networks stores them along with the systemsupplied signatures.

• Must adhere to a specific rule syntax (like system-supplied signatures).

• Can be combined with system-supplied signatures or system-supplied sets to create custom signature sets.

• Are never updated by F5 Networks, but are carried forward as-is when the system is updated to a new software version.

In BIG-IQ

®

Web Application Security, you can obtain system-supplied or custom attack signatures through the device discovery process. These signatures are automatically deployed to all policies when the system performs a deployment.

Creating custom attack signatures

Custom (user-defined) attack signatures can handle security policy enforcement unique to your networking environment, emergency situations, or analysis of specific activity on the network. If your organization needs a custom attack signature, you can use the BIG-IQ

®

Web Application Security Policy

Editor to create one. You can then assign the new signature to system-supplied or custom attack signature sets.

1. Log in with Administrator, Security Manager, or Web App Security Manager credentials.

Managing Custom Attack Signatures and Signature Sets

2. Navigate to the Policy Editor screen: click Web Application Security > Policy Editor.

3. On the left, click Attack Signatures.

The Attack Signatures screen opens and lists all signatures available to the BIG-IQ system. The system lists the system-supplied (factory) signatures in static black text, and lists any custom signatures in blue text. Blue indicates a hyperlink. System-supplied signatures are locked as indicated by a green padlock icon.

Note that you can click anywhere in a row to display the Signature Properties tab and the

Documentation tab for the signature.

4. At the right of the screen, click Add and use the Attack Signatures - New Item screen to supply the required information.

The screen displays a blank template for signature properties.

5. On the Signature properties tab, fill in fields and select options to define the new custom signature: a) In the Name field, type a unique name.

If you attempt to create a custom signature with the same name as a system-supplied signature, you will receive an error message and the system will not create the signature.

b) In the Description field, type an (optional) description.

c) From the Signature Type list, select what the signature should examine:

Request. Use this signature to examine requests only.

Response. Use this signature to examine responses only.

d) For Attack Type, select the threat classification.

e) Select the Systems that you want protected by the signature: use the Move button to shift your choices from the Available list to the Enabled list.

f) For the Rule setting, type a rule, according to the syntax guidelines, to specify the content of the signature.

The rule is the heart of the attack signature. All attack signatures must adhere to the F5 attack signature syntax. Refer to the BIG-IP

®

system documentation on signature options and signature syntax for details.

g) For Accuracy, select the level that you want for the signature.

The accuracy level indicates the ability of the attack signature to identify the attack, including susceptibility to false-positive alarms. Higher accuracy results in fewer false positives.

h) For Risk, select the level of potential damage this attack might cause, if it were successful.

Low indicates the attack may assist the user in gathering knowledge to perpetrate further attacks, but does not cause direct damage or reveal highly sensitive data.

Medium indicates the attack may reveal sensitive data, or cause moderate damage.

High indicates the attack may cause a full system compromise, denial of service, and the like.

i) The User-defined field specifies whether the screen displays signatures based on who created them. Currently, it defaults to Yes, indicating that the signature was created by a user. You cannot change the setting.

6. When you are finished, click Save to save the new custom attack signature.

Clicking Save and Close prompts the system to return to the Attack Signatures screen.

Custom signatures appear in blue and are hyperlinks to an edit screen. Click anywhere on the row except the link to display Signature Properties at the bottom of the screen.

The system places the new custom attack signature into the attack signature pool, and adds it to the signature sets for the systems you specified. The custom signature is put in staging for all policies that have this signature in their assigned signature sets. It is a good idea to make sure that the system added the new signature to the appropriate security policies.

158

F5 BIG-IQ Centralized Management: Security

About signature staging

When you first activate a security policy, the system places the attack signatures into staging (if staging is enabled for the policy). Staging means that the system applies the attack signatures to the web application traffic, but does not apply the blocking policy action to requests that trigger those attack signatures. The default staging period is seven days.

Whenever you add or change signatures in assigned sets, those signatures are also placed in staging. You also have the option of placing updated signatures in staging.

Placing new and updated attack signatures in staging helps to reduce the number of violations triggered by false-positive matches. When signatures match attack patterns during the staging period, the system generates learning suggestions. If you see that an attack signature violation has occurred, you can view and evaluate these attack signatures. After evaluation, if the signature is a false-positive, you can disable the signature, and the system no longer applies that signature to traffic for the corresponding web application. Alternately, if the detected signature match is legitimate, you can enable the corresponding attack signature.

Note: Enabling the signature removes it from staging, and puts the blocking policy into effect.

About custom attack signature sets

An Attack signature set is a group of attack signatures. Rather than applying individual attack signatures to a security policy, you can apply one or more attack signature sets. The Application Security Manager

™ ships with several system-supplied signature sets.

Each security policy has its own attack signature set assignments. By default, a generic signature set is assigned to new security policies. You can assign additional signature sets to the security policy. Sets are named logically so you can tell which ones to choose. Additionally, you can combine custom attack signatures with system-supplied signatures or system-supplied sets to create custom signature sets.

An ideal security policy includes only the attack signature sets needed to defend the application. If too many are included, you waste resources on keeping up with signatures that you do not need. On the other hand, if you do not include enough, you might let an attack compromise your application without knowing it. If you are in doubt about a certain signature set, it is a good idea to include it in the policy rather than to omit it.

In Web Application Security, you can obtain system-supplied or custom attack signature sets through the device discovery process. You can assign these sets to security policies. Then, you can deploy those policies to BIG-IP

®

devices.

Add custom attack signature sets

You can use the Web Application Security policy editor to add custom (user-defined) attack signature sets. Like system-supplied signature sets, custom signature sets contain signatures from the signature pool. Once you create a custom signature set, you can apply it to the security policy to protect web applications against known attacks.

1. Log in with Administrator, Security Manager, or Web App Security Manager credentials.

2. At the top left of the screen, select Web Application Security from the BIG-IQ menu.

The Web Application Security Policy Editor screen opens.

159

Managing Custom Attack Signatures and Signature Sets

3. On the left, click SIGNATURE SETS.

The default, system-supplied signature sets are displayed on the Signature Sets screen, along with any user-defined sets. By default, the system lists signature sets in alphabetical order by name.

4. Click Add and use the Signature Sets - New Item screen to supply the required information.

5. On the Properties tab, type a unique name for the signature set.

6. From the Type list, select how to create the signature set.

• Select Filter-based to create a signature set by using a filter only.

• Select Manual to manually assign signatures to a signature set.

Selecting Manual causes the Signatures Filter tab to be hidden, since it will not be used, and changes the fields displayed on the Signatures tab.

You can create or edit a signature set by configuring a filter to select from the signature pool signatures that meet specific criteria. Using a filter enables you to focus on the criteria that define the signatures you are interested in. When you update the signatures database, the system also updates any signature sets affected by the update.

7. For Default Blocking Actions, select the blocking actions you want the system to enforce for the set when you associate it with a new security policy.

The Learn, Alarm, and Block actions take effect only when you assign this set to a new security policy. If this set is already assigned to an existing security policy, these settings have no effect.

8. If you want the system to automatically include this set in any newly-created security policies, enable the Assign to Policy by Default setting.

9. Click the Signatures Filter tab, and select the filter options to narrow the scope of the signatures to include in the new signature set. This tab is only displayed when the signature set type is set to Filter-

based.

a) Select a Signature Type to include the type of signatures the system displays.

All traffic is the default.

Request only. Signatures that are configured to inspect the client request.

Response only. Signatures that are configured to inspect the server response.

b) From the Attack Type list, specify the threat classifications for which to include signatures in the set.

• Select All for signatures with all Attack Type values, which is the default.

• Select an attack type for signatures configured to protect against that specific attack type.

c) From the Systems lists, specify the systems (for example web applications, web server databases, and application frameworks) that you want protected by the set.

d) From the Accuracy list, select the accuracy association.

All specifies signatures that match all accuracy levels, which is the default.

Equals specifies signatures whose accuracy levels exactly match the accuracy level you set.

Greater Than/Equal To specifies signatures whose accuracy levels are more precise than, or the same as, the accuracy level you set.

Less Than/Equal To specifies signatures whose accuracy levels are less precise than, or the same as, the accuracy level you set.

e) From the resulting list, select the accuracy level.

Low indicates a high likelihood of false positives.

Medium indicates some likelihood of false positives.

High indicates a low likelihood of false positives.

f) From the Risk list, select the risk association.

All specifies signatures that protect against attacks of all risk levels, which is the default.

160

F5 BIG-IQ Centralized Management: Security

Equals specifies signatures whose risk levels exactly match the risk level you set.

Greater Than/Equal To specifies signatures whose risk levels are higher than, or the same as, the risk level you set.

Less Than/Equal To specifies signatures whose risk levels are lower than, or the same as, the risk level you set.

g) From the resulting list, select the risk level; the level of potential damage for attacks protected by the signatures in the set.

Low indicates the attack may assist the user in gathering knowledge to perpetrate further attacks, but does not cause direct damage or reveal highly sensitive data.

Medium indicates the attack may reveal sensitive data, or cause moderate damage.

High indicates the attack may cause a full system compromise, denial of service, and the like.

h) For User-defined, specify whether to include signatures based on who created them: the user

(Yes), the system (No), or both (All).

i) For Update Date, specify whether to include all signatures in the set based on the date the signature was changed (All), only signatures added before the date the signature was changed

(Before), or only signatures added after the signature was changed (After).

If specifying Before or After, use the calendar icon to specify a date.

10. Click the Signatures tab.

The Signatures tab appears differently depending on whether the signature set is user-defined (also called custom) or system-supplied (also called a factory signature set), and if user-defined, then whether Type on the Properties tab is set to Filter-based or Manual.

• If the signature set is system-supplied, the Signatures tab lists the signatures selected for the signature set.

• If the signature set is user-defined and Type is set to Filter-based, the Signatures tab lists the signatures selected using the criteria set by the Signature Filters tab. The list content changes dynamically based on changes to the Signature Filters tab.

• If the signature set is user-defined and Type is set to Manual, the Signatures tab lists a selectable list of signatures. If you want to view only a subset of the signatures, click Signatures Advanced

Filter at the top of the Signatures tab to filter the signatures shown.

11. In the Included Policies tab, view the policies (if any) that enforce this signature set.

Each security policy enforces one or more signature sets. The decision about which signature sets to include occurs when creating a security policy. You can assign additional signature sets to the security policy.

12. When you are finished, click Save to save the new custom attack signature set.

Clicking Save and Close prompts the system to return to the Signature Sets screen and display the new set.

Sets are listed in alphabetical order; custom sets appear in blue.

The new signature set is added to the list of signature sets that are available on the system, and is available to be applied when creating new security policies. If, in the future, you no longer need a custom signature set, you can delete it. Note that when you delete a custom signature set, you are deleting the set; you are not deleting the signatures that made up the set.

Edit custom attack signature sets

You can use the Web Application Security policy editor to edit custom attack signature sets. Once you edit a custom signature set, you can apply it to the security policy to protect your web applications in ways that are unique to your needs.

1. Log in with Administrator, Security Manager, or Web App Security Manager credentials.

161

Managing Custom Attack Signatures and Signature Sets

2. At the top left of the screen, select Web Application Security from the BIG-IQ menu.

The Web Application Security Policy Editor screen opens.

3. On the left, click Signature Sets.

The system displays the default, system-supplied signature sets, along with any user-defined sets. By default, the system lists signature sets in alphabetical order by name.

4. Click the name of the signature set that you want to change and use the Signature Sets screen to modify the settings.

5. On the Properties tab, revise the settings for this custom attack signature set, as needed.

Note that Name and Category are not editable fields.

6. From the Type list, you can modify how to create the signature set.

• Select Filter-based to create a signature set by using a filter only.

• Select Manual to manually assign signatures to a signature set.

Selecting Manual causes the Signatures Filter tab to be hidden since it will not be used, and changes the fields displayed on the Signatures tab.

You can create or edit a signature set by configuring a filter to select from the signature pool signatures that meet specific criteria. Using a filter enables you to focus on the criteria that define the signatures you are interested in. When you update the signatures database, the system also updates any signature sets affected by the update.

7. For Default Blocking Actions, select the blocking actions you want the system to enforce for the set when you associate it with a new security policy.

The Learn, Alarm, and Block actions take effect only when you assign this set to a new security policy. If this set is already assigned to an existing security policy, these settings have no effect.

8. If you want the system to automatically include this set in any newly-created security policies, enable the Assign to Policy by Default setting.

9. Click the Signatures Filter tab, and select the filter options to narrow the scope of the signatures to include in the new signature set.

This tab is only displayed when the signature set type is set to Filter-based.

a) Select a Signature Type to include the type of signatures the system displays.

All traffic is the default.

Requests only. Include signatures that are configured to inspect the client request.

Responses only. Include signatures that are configured to inspect the server response.

b) From the Attack Type list, specify the threat classifications for which to include signatures in the set.

• Select All for signatures with all Attack Type values, which is the default.

• Select an attack type for signatures configured to protect against that specific attack type.

c) From the Systems lists, specify the systems (for example web applications, web server databases, and application frameworks) that you want protected by the set.

d) From the Accuracy list, select the accuracy association.

All specifies signatures that match all accuracy levels, which is the default.

Equals specifies signatures whose accuracy levels exactly match the accuracy level you set.

Greater Than/Equal To specifies signatures whose accuracy levels are more precise than, or the same as, the accuracy level you set.

Less Than/Equal To specifies signatures whose accuracy levels are less precise than, or the same as, the accuracy level you set.

e) From the resulting list, select the accuracy level.

Low indicates a high likelihood of false positives.

162

F5 BIG-IQ Centralized Management: Security

Medium indicates some likelihood of false positives.

High indicates a low likelihood of false positives.

f) From the Risk list, select the risk association.

All specifies signatures that protect against attacks of all risk levels, which is the default.

Equals specifies signatures whose risk levels exactly match the risk level you set.

Greater Than/Equal To specifies signatures whose risk levels are higher than, or the same as, the risk level you set.

Less Than/Equal To specifies signatures whose risk levels are lower than, or the same as, the risk level you set.

g) From the resulting list, select the risk level; the level of potential damage for attacks protected by the signatures in the set.

Low indicates the attack may assist the user in gathering knowledge to perpetrate further attacks, but does not cause direct damage or reveal highly sensitive data.

Medium indicates the attack may reveal sensitive data, or cause moderate damage.

High indicates the attack may cause a full system compromise, denial of service, and the like.

h) For User-defined, specify whether to include signatures based on who created them: the user

(Yes), the system (No), or both (All).

i) For Update Date, specify whether to include all signatures in the set based on the date the signature was changed (All), only signatures added before the date the signature was changed

(Before), or only signatures added after the signature was changed (After).

If specifying Before or After, use the calendar icon to specify a date.

10. Click the Signatures tab.

The Signatures tab appears differently depending on whether the signature set is user-defined (also called custom) or system-supplied (also called a factory signature set), and if user-defined, then whether Type on the Properties tab is set to Filter-based or Manual.

• If the signature set is system-supplied, the Signatures tab lists the signatures selected for the signature set.

• If the signature set is user-defined and Type is set to Filter-based, the Signatures tab lists the signatures selected using the criteria set by the Signature Filters tab. The list content changes dynamically based on changes to the Signature Filters tab.

• If the signature set is user-defined and Type is set to Manual, the Signatures tab lists a selectable list of signatures. If you want to view only a subset of the signatures, click Signatures Advanced

Filter at the top of the Signatures tab to filter the signatures shown.

11. Click the Included Policies tab, and view the policies (if any) that enforce this signature set.

Each security policy enforces one or more signature sets. The decision about which signature sets to include occurs when creating a security policy. You can assign additional signature sets to the security policy.

12. When you are finished, click Save to save the new custom attack signature set.

Clicking Save and Close prompts the system to return to the Signature Sets screen and display the new set.

The system lists sets in alphabetical order, custom sets appear in blue

The edited signature set is available for application when creating new security policies. If, in the future, you no longer need a custom signature set, you can delete it. Note that when you delete a custom signature set, you are deleting the set; you are not deleting the signatures that made up the set.

Signatures advanced filter properties

The Signatures Advanced Filter option and properties are only available on the Signatures tab when the signature set type is manual.

163

Managing Custom Attack Signatures and Signature Sets

Signatures

Advanced Filter

Property

Signature Type

Description

Specifies what type of signatures to include in the signature set.

• Select All to include both requests and responses.

• Select Request to include only requests.

• Select Response to include only responses.

Signature Scope

Specifies whether the system displays all signatures, or only those that do, or do not, apply to parameters, cookies, XML documents, JSON data, GWT data, headers, URI content, and request or response content.

• Select All to include all signatures, which is the default.

• Select Parameter to specify whether the system displays signatures that apply to alpha-numeric user-input parameters. Then select No or Yes.

No specifies only signatures that do not apply to parameters.

Yes specifies only signatures that apply to parameters.

• Select Cookie to specify whether the system displays signatures that apply to allowed cookies. Then select No or Yes.

No specifies only signatures that do not apply to allowed cookies.

Yes specifies only signatures that apply to allowed cookies.

• Select XML to specify whether the system displays signatures that apply to

XML documents. XML documents may appear as the values of XML parameters defined in the security policy, or as the body of requests to URLs to be parsed as XML, as defined in the security policy. Then select No or Yes.

No specifies only signatures that do not apply to XML documents.

Yes specifies only signatures that apply to XML documents.

• Select JSON to specify whether the system displays signatures that apply to

JSON data. JSON data may appear as the values of JSON parameters defined in the security policy, or as the body of requests to URLs to be parsed as

JSON, as defined in the security policy. Then select No or Yes.

No specifies only signatures that do not apply to JSON data.

Yes specifies only signatures that apply to JSON data.

• Select GWT to specify whether the system displays signatures that apply to

GWT data. GWT data may appear as the body of requests to URLs to be parsed as GWT, as defined in the security policy. Then select No or Yes.

No specifies only signatures that do not apply to GWT data.

Yes specifies only signatures that apply to GWT data.

• Select Header to specify whether the system displays signatures that apply to headers. Then select No or Yes.

No specifies only signatures that do not apply to headers.

Yes specifies only signatures that apply to headers.

• Select URI to specify whether the system displays signatures that apply to

URI content. Then select No or Yes.

No specifies only signatures that do not apply to URI content.

Yes specifies only signatures that apply to URI content.

• Select Request Content to specify whether the system displays signatures that apply to the entire request content. Then select No or Yes.

164

F5 BIG-IQ Centralized Management: Security

Signatures

Advanced Filter

Property

Description

Attack Type

Systems

Accuracy

Risk

User-defined

Update Date

No specifies only signatures that do not apply to the entire request content.

Yes specifies only signatures that apply to the entire request content.

• Select Response Content to specify whether the system displays signatures that apply to the entire response content. Then select No or Yes.

No specifies only signatures that do not apply to the entire response content.

Yes specifies only signatures that apply to the entire response content.

Specifies which attack type should be included in the set. Select All to include all attack types.

Specifies the systems (for example web applications, web server databases, and application frameworks) that you want protected by the set.

Specifies the accuracy level of the signature. Higher accuracy results in fewer false positives.

• Select All to specify that all signatures should be included, regardless of accuracy level.

• Select Equals to specify signatures with a single accuracy level, then select the accuracy level to be Low, Medium, or High.

• Select Greater Than/Equal To to specify that the accuracy level of the signatures should be greater than or equal to the specified accuracy level, then select the level to be Low, Medium, or High.

• Select Less Than/Equal To to specify that the accuracy level of the signatures should be less than or equal to the specified accuracy level, then select the level to be Low, Medium, or High.

Specifies the level of potential damage that the signature protects against.

• Select All to specify that all signatures should be included, regardless of risk level.

• Select Equals to specify a single risk level, then select the risk level to be

Low, Medium, or High.

• Select Greater Than/Equal To to specify that the risk level should be greater than or equal to the specified risk level, then select the level to be Low,

Medium, or High.

• Select Less Than/Equal To to specify that the risk level should be less than or equal to the specified risk level, then select the level to be Low, Medium, or

High.

Specifies whether to include attack signatures based on who created them.

• Select All to specify that all signatures should be included, including those defined by the system and by users.

• Select Yes to specify that only user-defined signatures should be included.

• Select No to specify that only system-defined signatures should be included.

Specifies whether to include signatures in the set based on when the signature was last updated or added.

• Select All to include all signatures, regardless of when they were last updated.

165

Managing Custom Attack Signatures and Signature Sets

Signatures

Advanced Filter

Property

Description

Signatures

• Select Before to include all signatures updated before a specified date, and then select the date using the displayed Select Date button.

• Select After to include all signatures updated after a specified date, and then select the date using the displayed Select Date button.

Specifies the signatures that should be included in the signature set. The available signatures list displayed changes based on the Signatures Advanced Filter settings. You can use the Filter field above the Available list to search for particular signatures. Add signatures to the signature list by moving them from the

Available list to the Selected list.

Assign custom attack signature sets

You use the Web Application Security policy editor to assign a custom attack signature set to a policy.

Each security policy enforces one or more attack signature sets. You can assign additional attack signature sets to the security policy.

1. Log in with Administrator, Security Manager, or Web App Security Manager credentials.

2. Navigate to the Policy Editor screen: click Web Application Security > Policy Editor, select a policy name, and from the Policy objects list, select Attack Signatures Configuration.

3. Click Edit.

The policy is placed under administrative lock and fields become editable.

4. From the Attack Signature Set Assignment list, select attack signature sets to assign to the policy.

Any newly-created custom signature sets appear in the list.

5. When you are finished, click Save to save the new assignment and unlock the policy.

The system assigns the signature sets to the security policy, and the blocking policy applies to all of the signatures in the signature set. Any changes made subsequently are put into effect in the working configuration of the BIG-IQ Centralized Management system.

166

Managing Virtual Servers in Web Application Security

About virtual servers in the policy editor

BIG-IQ

®

Web Application Security displays virtual servers in the policy editor for each discovered BIG-

IP

®

device, and enables you to view the properties for these virtual servers and manage the policies attached to them.

For each device discovered, the BIG-IQ system creates an extra virtual server to hold all security policies not related to any virtual server in the discovered device.

Displaying virtual server properties and managing policies

With BIG-IQ

®

Web Application Security, you can view virtual server properties and manage policies attached to the virtual server.

1. Log in to the BIG-IQ

®

system with your user name and password.

2. At the top left of the screen, select Web Application Security from the BIG-IQ menu.

3. Click Policy Editor, and then from the list on the left, click Virtual Servers.

A list of the virtual servers displays.

4. Click the name of the virtual server to view properties or to manage the policy attached to it.

Property Description

Name

Full Path

IP Address

Device

Attached Policy

Name of the virtual server.

Full path, including partition, to the virtual server on the BIG-IP

®

device.

Self IP address of the BIG-IP device.

Fully qualified domain name of the BIG-IP device.

Lists any attached policy.

To attach a policy, click Add Policy.

Alternatively, drag-and-drop a policy from those listed in the Policy Editor toolbox at the bottom of the page to the Attached Policy row.

To delete a policy from the virtual server, click the X to the right of the policy.

5. Click Save to save the virtual server changes, or click Save & Close to save the virtual server changes and return to the Virtual Servers screen.

Managing Virtual Servers in Web Application Security

168

Viewing Event Logs in Web Application Security

About event log viewing

You can view Web Application Security event logs to obtain useful insights regarding activity on applications and servers. The BIG-IQ

®

Centralized Management platform enables a single view of all filters and log entries (and details for each entry) from multiple BIG-IP

®

devices.

The event log interface consists of two filter fields and three screens:

• Filter fields:

• Selected devices filter. This filter appears below the Event Logs header. You can use it to select one or more devices for event viewing.

• Filter field. Appears to the right of the selected devices field. You can use it to type text to rapidly narrow the search scope. You can also save filters that you use often.

• Screens:

• Devices. At the far left, use this to select a group of requests, policies, saved filters, or preconfigured tags. The object you select determines the set of items that appears in the next screen.

• Log items. Use this to browse log items, or select one and view log item details.

• Details. Displays details of the item selected in the Log items screen.

Viewing event log details

You can view request and response details for a single log item.

1. Click Monitoring > EVENTS > Web Application Security > Events.

2. Click a single event log.

The Details screen displays a variety of information about the event.

3. On the Details screen, click Request to view request details.

Details include:

• Raw HTTP[S] request

• General request details

• Geolocation

• Policy details

• List of related tags

4. Click Response to view response details.

Using common filters

You can update common filters for requests and security policies.

1. Click Monitoring > EVENTS > Web Application Security > Events.

2. To update log items according to a selected filter (such as Requests or Policies), click any item under

Requests or Policies.

The system updates log items according to the selected filter.

Viewing Event Logs in Web Application Security

Filtering (basic)

You can use the filter to refine your searches through the event logs, including searches through logs from multiple BIG-IP

®

devices.

1. Click Monitoring > EVENTS > Web Application Security > Events.

2. In the Filter field, click the triangle to the right of the field.

The Search filter popup screen opens to the basic view, which is the default.

3. Complete the fields.

Setting Description

Request type Type a request type or select from the list All requests or Illegal requests (log responses for illegal requests only).

Support ID

Type the complete support ID (unique ID given for a transaction), or select the Last

4 digits check box and type the last 4 digits of the support ID.

Violation

Use this list to select the policy violation that detects attacks, such as Attack

Signature Detection or Illegal Cookie Length. You can select a violation type from the list or you can select none of the violations (indicating that any violation type matches).

Attack type

Use this list to select the type of service attacks (such as Denial of Service or HTTP

Parser Attack) that you want to see. Select nothing (indicating that any attack type matches), or select a specific attack type.

Time Period In the From and To fields, type a date and time in the format:

2015-12-01T15:15:29-05:00

. Or click the calendar icon and select dates.

Policies

In the field, type a policy name, or click in the field and, from the list, select a policy.

4. Click the Search bar.

The results of the filtering process appear in the Log Items list.

5. When you have configured a search that you will use repeatedly or frequently, click Save the current

filter, type a filter name, and click Save.

The saved filter appears in the left panel under Saved filter.

Filtering (advanced)

You can use the filter's advanced setting to refine your searches.

You can type a query in the filter box in the format method:'value' protocol:'value' severity:'value'

. For example: method:'GET' protocol:'HTTPS' severity:'error'

.

Or, you can open the filter and use the method described in the following section.

1. Click Monitoring > EVENTS > Web Application Security > Events.

2. Open the Filter field.

The Search filter popup screen opens to the basic view, which is the default.

3. Click Advanced.

4. Complete the fields.

Setting Description

Method

From the list, select a method.

170

F5 BIG-IQ Centralized Management: Security

Setting Description

Protocols From the list, select HTTP or HTTPS, depending on the security requirements.

Severity

From the list, select Informational, Critical, or Error.

5. Click the search bar.

The results of the filtering process appear in the Log Items list.

6. When you have configured a search that you will use repeatedly or frequently, click Save the current

filter, type a filter name, and click Save.

The saved filter appears in the left panel under Saved filter.

Filtering by entering query parameters

You can use the Filter field to enter a query in ODATA format: key1:'value' key2:'value' (key3:'value' OR key4:'value')

.

For example: policy_name:'/Common/policy1'

The BIG-IQ

®

Centralized Management system supports both AND and OR constructs.

• OR. Use this operator to log the data that meets one or more of the criteria.

• AND. Use this operator to log the data that meets all of the criteria.

1. Click Monitoring > EVENTS > Web Application Security > Events.

2. In the Filter field, type a query in ODATA format.

3. Type a key from the following list:

Key Description attack_type

Name of identified attack (string). For example:

Non-browser client

.

date_time dest_ip dest_port

Current date and time. For example:

2016-09-19 13:52:29

Requested service IP address, generally, the virtual server IP address. For example:

192.168.5.11

.

Destination port of this transaction (non-negative integer). For example:

80

.

geo_location headers http_class_name ip_address_intelligence ip_client management_ip_address method policy_apply_date

Country/city location information, based on the source IP address. For example:

USA/NY

.

List of request headers found in request logs. For example:

Host: myhost.com; Connection: close

.

Alias of policy name. For example:

/Common/topaz4-web4

.

List of IP intelligence categories found for an IP category such as proxy, phishing and so on. For example:

Scanners

.

Client source (attacker) IP address. For example:

192.168.5.10

.

BIG-IP

®

management IP address.

HTTP method requested by the client. For example:

GET

.

Last apply policy operation date and time.

171

Viewing Event Logs in Web Application Security

Key policy_name protocol query_string request

Description

Name of the active security policy. For example:

ACME security policy

.

Transport protocol (string). For example:

HTTP

.

URI query string. For example:

/

.

Request string sent by the client. For example:

GET / HTTP/

1.0\r\nUser-Agent: Wget/1.12 (linux-gnu)\r

\nAccept: */*\r\nHost: 10.4.1.200\r\nConnection:

Keep-Alive\r\n\r\n

.

request_status response_code route_domain session_id severity sig_ids sig_names

Action applied to the client request. For example:

Blocked

.

The HTTP response code returned by the back-end server

(application). This information is relevant only for requests that are not blocked. For example:

200

.

Route domain number (non-negative integer). For example:

0

.

ID number (hexadeicmal number) assigned to the request to allow the system administrator to track requests by session. For example: a9141b68ac7b4958

.

Severity category to which the event belongs. For example:

Error

.

Signature ID number (positive non-zero integer). For example:

200021069

.

Signature name(s). For example:

Automated client access

%22wget%22

.

src_port sub_violations support_id

Client protocol source port of this transaction (non-negative integer). For example:

52974

.

Comma-separated list of sub-violation strings. for example:

Bad

HTTP version, Null in request

.

Internally-generated integer to assist with client access support.

For example:

18205860747014045721

.

BIG-IP system FQDN (unit host name).

URI requested by the client (string). For example:

/

.

unit_hostname uri username violations

User name for the client session. For example: admin

.

Comma-separated list of the violations that occurred during enforcement of the request or response. For example:

Attack signature detected

.

virus_name

Virus name (string). For example:

Melissa

.

x_forwarded_for_header_value Value of the XFF HTTP header (string). For example:

192.168.5.10

4. Type an operator from the following list:

Operator Description eq ne

Equal

Not equal

172

F5 BIG-IQ Centralized Management: Security

le gt

Operator lt

Description

Less than

Less than or equal to

Greater than

ge

Greater than or equal to

5. Type a value in any of the following formats:

• 'value'. For example: policy_name:'/Common/policy1'

• '*alue'. For example: policy_name:'*Common/policy1'

• 'alu*'. For example: policy_name:'Common/policy*'

• '*ue*'. For example: policy_name:'policy*'

6. Press Enter or click the search icon to start the search.

The system updates log items according to the typed query, and results appear in the Log Items list.

173

Viewing Event Logs in Web Application Security

174

Security Deployment Best Practices

Verifying firewall rules have compiled on all BIG-IP devices

Once a firewall deployment has completed successfully, Check Rule Compilation is enabled on the

View Deployment screen.

Use Check Rule Compilation to verify that your firewall rules are active on the BIG-IP devices to which you deployed those rules.

1. On the Deployments screen, click the name of the deployment that contains the firewall rules you want to verify.

The View Deployment screen for that deployment displays.

2. On the View Deployment screen, click Check Rule Compilation to determine if rules have been compiled on all the BIG-IP devices in the firewall deployment.

The rule compilation status and last activation time for each BIG-IP device included in the deployment are listed in a popup.

3. Verify that the last activation time for each BIG-IP device is after the end time of the BIG-IQ deployment task to ensure that firewall rules have been compiled on each BIG-IP devices. You can repeat this step multiple times.

Review the following considerations when using Check Rule Compilation:

• Be aware of any time differences, due to time zones and so on, between the BIG-IQ system and the BIG-IP device.

• BIG-IP device versions earlier than 11.5.1 HF4 do not support the compilation statistics used by this feature and will display the message, Compilation stats not provided for this version of BIG-IP.

• If the Check Rule Compilation feature is used with an older deployment, where the state of the

BIG-IP device has changed since the deployment, the status returned will include all active firewall rule changes on the BIG-IP device since the deployment.

• If the Check Rule Compilation feature returns the message Local Last Activation Time or the message No stats found on device, then the state of the BIG-IP device has changed since the deployment, and compilation statistics have been reset. This can be caused by a reboot of the BIG-IP device.

Reviewing deployment process states to diagnose problems

When a firewall security policy or a web application security policy is deployed, that policy goes through several deployment states. Reviewing these states may be useful in understanding what occurred during deployment in order to diagnose a problem. Note that not all states may appear in the log, since what states are displayed depends on how the deployment was processed.

Review the restjavad.n.log

file to view deployment states for either a firewall security policy or a web application security policy.

Device deployment states

This table displays states that can occur during the deployment process, and a brief description of each state.

Security Deployment Best Practices

Table 3: Deployment States

State

CHECK_LICENSE

CHECK_OTHER_RUNNING_TAS

KS

Description

Licenses for BIG-IQ systems are checked to be valid.

Verifies that no tasks are running that could cause errors during deployment. Tasks that could cause errors include:

• Other BIG-IQ Security deployment tasks running at the same time as this deployment, even if they are from different modules.

• Tasks to declare management authority over a BIG-IP device.

• Tasks that rescind management authority of a BIG-IP device.

GET_DEVICES

CHECK_DEVICE_AVAILABILI

TY

LOOKUP_CLUSTERS

Finds all devices managed by the BIG-IQ Security system.

Determines whether the devices to be deployed are available.

REFRESH_CURRENT_CONFIG_

SOAP

Determines if any devices included in the deployment are part of a cluster, and if so, verifies that both devices in the cluster are configured with the same sync mode and sync failover group on the BIG-IP device.

Using the SOAP API, refreshes the current configuration for all devices included in the deployment. This process adds any new configuration items from the BIG-IP device to the current configuration.

REFRESH_CURRENT_CONFIG_

REST

Using the REST API, refreshes the current configuration for all devices included in deployment. This process adds any new configuration items from the BIG-IP device to the current configuration.

CREATE_SNAPSHOT

CREATE_DIFFERENCE

Creates a snapshot of the working configuration.

Generates the differences between the snapshot taken and the current configuration.

VERIFY_CONFIG

GET_CHILD_DEPLOY_DEVICE

S

Verifies that devices to be deployed do not have configuration problems that could lead to deployment errors.

Finds all devices managed by Shared Security objects. These devices are considered to be child deployments of a parent firewall security or web application security deployment.

START_CHILD_DEPLOY

WAIT_FOR_CHILD_DEPLOY

Starts the deployment of devices managed by Shared Security objects.

Waits for deployment of devices managed by Shared Security objects to complete.

Cleans up processing artifacts from the previous evaluation.

CLEANUP_PREVIOUS_EVALUA

TE

DISTRIBUTE_DSC_CLUSTERS Distributes changes to devices identified as being in a cluster by the LOOKUP_CLUSTERS process and that are configured to use the BIG-IP Device Service Clustering (DSC) to keep the BIG-IP devices synchronized.

DISTRIBUTE_CONFIG

Distributes configuration changes to the specified devices.

176

F5 BIG-IQ Centralized Management: Security

State Description

DISTRIBUTE_CONFIG_SOAP Using the SOAP API, distributes configuration changes to the specified devices.

DISTRIBUTE_CONFIG_REST Using the REST API, distributes configuration changes to the specified devices.

FOLDBACK_DEPLOYED_ADDIT

IONS

Inserts any newly-added objects directly into the current configuration to that the BIG-IQ system will already know about those objects on the next refresh of the current configuration.

DONE Indicates the deployment process has completed.

177

Security Deployment Best Practices

178

Legal Notices

Legal notices

Publication Date

This document was published on May 1, 2017.

Publication Number

MAN-0520-06

Copyright

Copyright

©

2017, F5 Networks, Inc. All rights reserved.

F5 Networks, Inc. (F5) believes the information it furnishes to be accurate and reliable. However, F5 assumes no responsibility for the use of this information, nor any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent, copyright, or other intellectual property right of F5 except as specifically described by applicable user licenses. F5 reserves the right to change specifications at any time without notice.

Trademarks

For a current list of F5 trademarks and service marks, see

http://www.f5.com/about/guidelines-policies/ trademarks

.

All other product and company names herein may be trademarks of their respective owners.

Patents

This product may be protected by one or more patents indicated at:

https://f5.com/about-us/policies/ patents

.

Export Regulation Notice

This product may include cryptographic software. Under the Export Administration Act, the United

States government may consider it a criminal offense to export this product from the United States.

RF Interference Warning

This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

FCC Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This unit generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user, at his own expense, will be required to take whatever measures may be required to correct the interference.

Legal Notices

Any modifications to this device, unless expressly approved by the manufacturer, can void the user's authority to operate this equipment under part 15 of the FCC rules.

Canadian Regulatory Compliance

This Class A digital apparatus complies with Canadian ICES-003.

Standards Compliance

This product conforms to the IEC, European Union, ANSI/UL and Canadian CSA standards applicable to

Information Technology products at the time of manufacture.

180

Index

A

address lists about

17

adding

13

adding addresses

18

adding to firewalls and rules

14

and properties

18

editing

14

removing entries

18

address types

adding to address lists

18

addresses

adding to address lists

18

and address list properties

18

removing from address lists

18

advanced filtering for event log

170

Ajax response page editing settings

133

allowed HTTP URLs modifying

140

allowed WebSocket URLs modifying

141

application security

configuring for

80

application security policies adding with BIG-IQ ASM

151

adding with BIG-IQ Web Application Security

151

exporting with Web Application Security

153

importing with Web Application Security

152

removing

153

application security policies properties

description

114

application security policy about inheritance

113

about layered policies

113

adding methods

137

editing header settings

137

application security policy properties

displaying

114

editing

114

attack signature sets about custom

159

assigning custom

166

assigning to security policies

166

attack signature sets (custom)

adding

159

editing

161

attack signatures

configuring

150

viewing

151

attack signatures (custom) creating

157

authentication keys configuring for SSH profiles

108

authentication token

deleting

66

authentication token (continued) requesting

65

B

basic filtering for event log

170

behavior analysis enabling

85

BIG-IP device management about

11

blocking settings

description

119

editing

119

for application security policies

119

bot signature categories about

89

creating

89

bot signatures about

91

creating

91

Bot Signatures configuring for application security

80

browser resolution about

10

C

change verifications about

59

adding

59

properties

60

viewing properties

60

character set editing

145

,

146

for JSON

145

for plain text

145

for XML

146

character set parameter name settings editing

149

character set parameter value settings editing

150

character sets editing

139

,

142

character sets in headers editing

139

character sets in URLs editing

142

check rule compilation

175

child policies about inheritance

113

child policy overview settings editing

119

cloning process for objects

15

common filters using for event logs

169

configuration sets

Index

181

Index

configuration sets (continued) terminology

10

content profile settings adding XML

144

content profiles adding plain text

144

editing

144

editing JSON

143

for XML

144

contexts

firewall

23

for firewalls, about

23

cookie settings editing

138

current configuration about

10

custom attack signature sets about

159

adding

159

assigning to security policies

166

editing

161

custom attack signatures about

157

creating

157

custom signatures about staging

159

define

157

D

Data Guard settings editing

136

default response page editing settings

135

deleting application security policies

153

deployment

deploying service policy

43

state

175

states during

175

device DoS

about configurtions

87

device DoS configuration editing

87

disallowed HTTP URLs modifying

140

disallowed WebSocket URLs modifying

141

DoS attack

defined

79

DoS profiles

adding

79

editing

86

enabling protection types

79

overview

79

E

enforced firewall policies

71

enforced firewall policy

adding

27

enforcement settings

editing for geolocation

151

182

event log filtering using advanced functions

170

using basic functions

170

event logs

about viewing

169

using common filters

169

viewing details

169

event logs filtering

and query parameters

171

using ODATA query parameters

171

exporting application security policies

with Web Application Security

153

external logging devices about

63

accessing

66

adding

63

deleting authentication token

66

launching user interface

66

modifying

64

removing

65

requesting authentication token

65

extraction settings

adding

148

editing

148

F

features

for Network Security

9

Web Application Security

10

file types settings

adding

142

editing

142

filter

using

15

Filter field

and advanced options

170

and basic options

170

firewall contexts

23

firewall context

applying a service policy

43

firewall contexts about

23

Firewall Contexts and properties

25

firewall idle timer definition

39

firewall policies about

71

adding rules

30

cloning

73

creating

71

creating by cloning

73

deleting

74

editing

72

enforced

71

managing

72

removing rule lists

34

removing rules

31

reordering rules

74

staged

71

firewall policy

types of

25

firewall policy (BIG-IQ Network Security)

adding enforced

27

adding staged

27

firewall properties

listed

25

firewall rule about reports

69

applying a service policy

44

creating reports

69

deleting reports

70

firewall rule hit count

67

firewall rule reports about

69

creating

69

deleting

70

firewall rules

monitoring

67

,

68

firewalls adding rules

30

removing rule lists

34

removing rules

31

FQDN resolver about

53

configuring

53

fully qualified domain name definition

53

G

General Settings tab configuring for application security

80

geolocation

adding to address lists

18

geolocation enforcement settings editing

151

global firewalls about

24

H

header character sets editing

139

header settings editing

137

Heavy URL Protection configuring for application security

80

host name settings editing

138

HTTP header settings editing

137

HTTP methods

adding

137

HTTP URL settings editing

140

I

inactive virtual server

Web Application Security

10

inheritance settings inheritance settings (continued) editing

118

IP address intelligence settings editing

140

IP addresses list settings editing

139

J

JSON

editing character set settings

145

JSON character set editing

145

JSON content profile settings editing

143

L

layered policies about inheritance

113

logging profiles configuring for application security

96

configuring for DoS protection

105

configuring for network address translation

104

configuring for network firewall

101

configuring for protocol security

99

creating

95

editing

105

,

106

overview

95

login response page editing settings

134

M

management IP firewalls about

25

methods

adding

137

monitoring

firewall rules

67

,

68

N

NAT destination translation about

45

NAT destination translations cloning

52

creating

51

deleting

52

NAT policy cloning

47

creating

45

definition

45

deleting

47

NAT rules properties

listed

45

NAT source translation about

45

NAT source translations cloning

50

creating

48

Index

183

Index

NAT source translations (continued)

deleting

51

nested address lists about

17

network security

configuring for

85

Network Security about

9

Network Security objects about

13

network whitelist creating

93

network whitelists about

93

notification email

55

notification rules

adding

55

deleting

57

scheduling

55

notifications rules editing

57

O

objects about

13

adding

13

adding to firewalls and rules

14

cloning

15

duplicating

15

editing

14

renaming

14

obsolete policies

deleting service policy

43

ODATA

filtering event logs

171

P

parameter settings

adding

146

editing

146

parent policies about inheritance

113

plain text

editing character set settings

145

editing content profile settings

144

plain text character set editing

145

policies, See firewall policies

policy cloning a service policy

42

creating a NAT policy

45

creating a timer policy

39

deleting a timer policy

40

policy building settings editing

131

policy duplication

cloning a port misuse policy

41

cloning a timer policy

40

Policy Editor objects

removing

15

184

policy, firewall

types of

25

port list properties

20

port lists about

19

adding

13

adding ports

19

adding to firewalls and rules

14

editing

14

removing entries

20

port misuse policy about

39

cloning

41

creating

40

definition

39

ports

deleting

42

adding to port lists

19

Proactive Bot Defense configuring for application security

80

profile

DoS

79

profiles

about SSH

107

creating for SSH

107

deleting for SSH

109

properties for application security policies

114

for NAT rules

45

for rule lists

34

for rule schedules

20

for rules

34

for signature files

155

of address lists

17

,

18

of firewall policies

71

of port lists

20

of rule lists

29

viewing for signature files

155

protocol DNS

configuring for

84

protocol SIP

configuring for

84

proxy permissions configuring for SSH profiles

107

R

removing application security policies

153

reordering rules

in firewall policies

74

reports

creating for firewall rules

69

deleting for firewall rules

70

for firewall rules

69

request details

viewing for events

169

resolution for browser

10

response details

viewing for events

169

response page settings editing for Ajax

133

response page settings (continued) editing for login

134

editing for XML

134

editing the default

135

route domain firewalls about

24

rule lists about

29

adding

31

and properties

29

and properties for

34

cloning

33

editing

32

editing rules

32

removing

34

removing rules

31

reordering rules

30

rule schedule properties

20

rule schedules about

20

rules about

29

adding rule lists

31

adding to rule lists, firewalls, firewall policies

30

and cloning rule lists

33

clearing fields

33

creating

30

deleting

31

deleting fields

33

editing in rule lists

32

removing

31

removing fields

33

reordering

30

rules properties

listed

34

S

schedules

adding

13

editing

14

Search filter for event logs

170

for Event Logs

170

security policies about layered

113

security policies, application

importing with Web Application Security

152

self IP firewalls about

25

sensitive information

editing Data Guard settings for

136

service policies about

39

service policy

applying to firewall context

43

applying to firewall rule

44

cloning

42

creating

42

definition

39

deleting

43

deploying

43

sets about custom attack signature

159

sets (custom attack signature)

adding

159

editing

161

settings

adding file types

142

SevOne PLA logging device about

63

accessing

66

adding

63

deleting authentication token

66

launching user interface

66

modifying

64

removing

65

requesting authentication token

65

Shared Security about

9

signature file properties

listed

155

viewing

155

signature files about

155

in Web Application Security

155

synchronizing

156

updating and pushing

156

signature sets

about custom attack

159

signature staging about

159

signatures about staging

159

signatures advanced filter properties

described

163

SSH profiles configuring authentication keys

108

configuring proxy permissions

107

creating

107

deleting

109

overview

107

staged firewall policies

71

staged firewall policy state

adding

27

deployment

175

Stress-based Detection configuring for application security

80

system interface and filtering

15

system-supplied signatures define

157

T

timer policies about

39

timer policy cloning

40

creating

39

definition

39

deleting

40

TPS-based Detection

Index

185

Index

TPS-based Detection (continued) configuring for application security

80

U

update and push process

for signature files

156

URL character sets editing

142

URL settings

editing for WebSocket

141

user-defined attack signature sets

adding

159

editing

161

user-defined attack signatures creating

157

V

VIP firewalls, See virtual server firewalls

virtual server firewalls about

24

virtual server properties

displaying

167

virtual servers about

167

and Web Application Security

167

displaying properties

167

editing

77

overview

77

W

Web Application Security about

10

Web Application Security policies about

111

WebSocket URL settings editing

141

working configuration about

10

defined

9

X

XML

adding content profile settings

144

editing character set settings

146

XML character set editing

146

XML content profile settings

adding

144

XML response page editing settings

134

186
