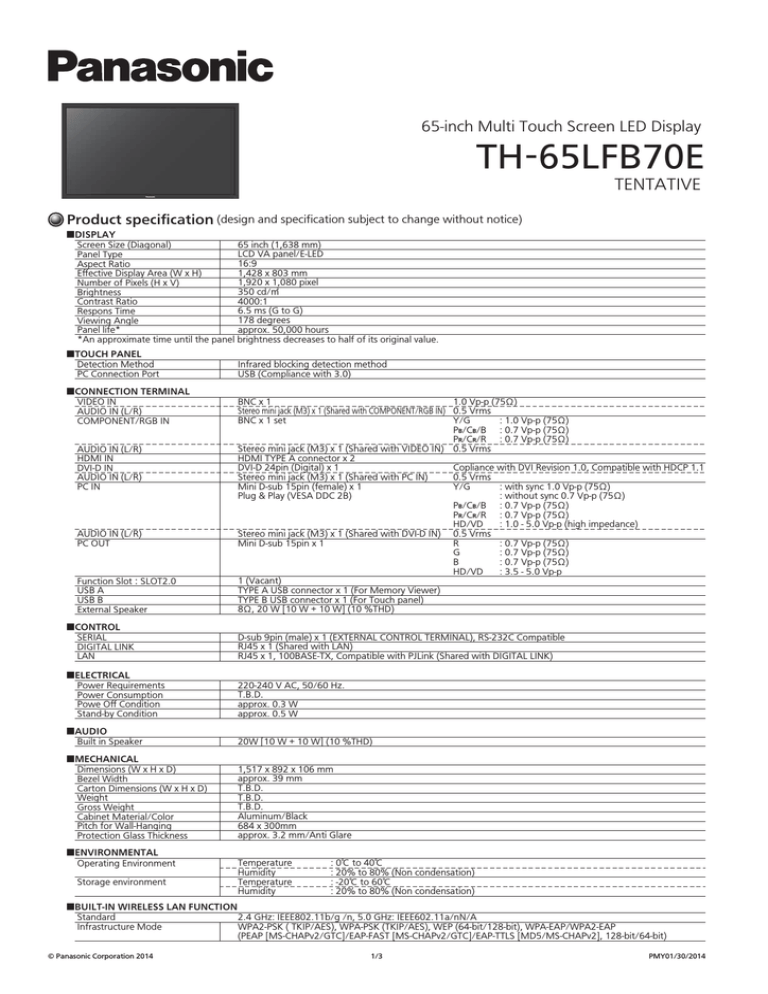

65-inch Multi Touch Screen LED Display
TH-65LFB70E
TENTATIVE
Product specification (design and specification subject to change without notice)
■DISPLAY
Screen Size (Diagonal)
Panel Type
Aspect Ratio
Effective Display Area (W x H)
Number of Pixels (H x V)
Brightness
Contrast Ratio
Respons Time
Viewing Angle
Panel life*
*An approximate time until the panel
65 inch (1,638 mm)
LCD VA panel/E-LED
16:9
1,428 x 803 mm
1,920 x 1,080 pixel
350 cd/㎡
4000:1
6.5 ms (G to G)
178 degrees
approx. 50,000 hours
brightness decreases to half of its original value.
■TOUCH PANEL
Detection Method
PC Connection Port
Infrared blocking detection method
USB (Compliance with 3.0)
■CONNECTION TERMINAL
VIDEO IN
AUDIO IN (L/R)
COMPONENT/RGB IN
AUDIO IN (L/R)
HDMI IN
DVI-D IN
AUDIO IN (L/R)
PC IN
AUDIO IN (L/R)
PC OUT
Function Slot:SLOT2.0
USB A
USB B
External Speaker
1.0 Vp-p (75Ω)
BNC x 1 Stereo mini jack (M3) x 1 (Shared with COMPONENT/RGB IN) 0.5 Vrms
BNC x 1 set
Y/G
: 1.0 Vp-p (75Ω)
: 0.7 Vp-p (75Ω)
PB/CB/B
: 0.7 Vp-p (75Ω)
PR/CR/R
Stereo mini jack (M3) x 1 (Shared with VIDEO IN) 0.5 Vrms
HDMI TYPE A connector x 2
DVI-D 24pin (Digital) x 1
Copliance with DVI Revision 1.0, Compatible with HDCP 1.1
Stereo mini jack (M3) x 1 (Shared with PC IN)
0.5 Vrms
Mini D-sub 15pin (female) x 1
Y/G
: with sync 1.0 Vp-p (75Ω)
Plug & Play (VESA DDC 2B)
: without sync 0.7 Vp-p (75Ω)
: 0.7 Vp-p (75Ω)
PB/CB/B
: 0.7 Vp-p (75Ω)
PR/CR/R
HD/VD
: 1.0 - 5.0 Vp-p (high impedance)
Stereo mini jack (M3) x 1 (Shared with DVI-D IN) 0.5 Vrms
R
: 0.7 Vp-p (75Ω)
Mini D-sub 15pin x 1
G
: 0.7 Vp-p (75Ω)
B
: 0.7 Vp-p (75Ω)
HD/VD
: 3.5 - 5.0 Vp-p
1 (Vacant)
TYPE A USB connector x 1 (For Memory Viewer)
TYPE B USB connector x 1 (For Touch panel)
8Ω, 20 W [10 W + 10 W] (10 %THD)
■CONTROL
SERIAL
DIGITAL LINK
LAN
D-sub 9pin (male) x 1 (EXTERNAL CONTROL TERMINAL), RS-232C Compatible
RJ45 x 1 (Shared with LAN)
RJ45 x 1, 100BASE-TX, Compatible with PJLink (Shared with DIGITAL LINK)
■ELECTRICAL
Power Requirements
Power Consumption
Powe Off Condition
Stand-by Condition
220-240 V AC, 50/60 Hz.
T.B.D.
approx. 0.3 W
approx. 0.5 W
■AUDIO
Built in Speaker
20W [10 W + 10 W] (10 %THD)
■MECHANICAL
Dimensions (W x H x D)
Bezel Width
Carton Dimensions (W x H x D)
Weight
Gross Weight
Cabinet Material/Color
Pitch for Wall-Hanging
Protection Glass Thickness
1,517 x 892 x 106 mm
approx. 39 mm
T.B.D.
T.B.D.
T.B.D.
Aluminum/Black
684 x 300mm
approx. 3.2 mm/Anti Glare
■ENVIRONMENTAL
Operating Environment
Storage environment
Temperature
Humidity
Temperature
Humidity
:
:
:
:
0℃ to 40℃
20% to 80% (Non condensation)
-20℃ to 60℃
20% to 80% (Non condensation)
■BUILT-IN WIRELESS LAN FUNCTION
2.4 GHz: IEEE802.11b/g /n, 5.0 GHz: IEEE602.11a/nN/A
Standard
WPA2-PSK ( TKIP/AES), WPA-PSK (TKIP/AES), WEP (64-bit/128-bit), WPA-EAP/WPA2-EAP
Infrastructure Mode
(PEAP [MS-CHAPv2/GTC]/EAP-FAST [MS-CHAPv2/GTC]/EAP-TTLS [MD5/MS-CHAPv2], 128-bit/64-bit)
© Panasonic Corporation 2014
1/3
PMY01/30/2014
TH-65LFB70E
65-inch Multi Touch Screen LED Display
MAIN FEATURE
INCLUDED ACCESSORIES
Easy Whiteboard Functions
Memory Viewer
Wireless Connections
DIGITAL LINK
Secondary Display
Picture in Picture
Digital Zoom
1:1Pixel Mode
Auto Set Up
Power Management
Power Management (PC/DVI-D)
Input Lock
Button/Input lock
Remote-control User Level
No Signal Power Off
Orientation
Input Search
Yes
Moving Image : mov, avi, mp4, mpg,
mpeg, wmv
Still Picture
: jpg, bmp
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Landscape
Yes
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS
RADIATION REGULATIONS
- Power supply cord (2 m) - Remote Control Transmitter
- Batteries for the Remote Control Transmitter (R6 (UM) Size x 2)
- Software CD-ROM (Whiteboard software/Wireless Manager
software/Operating Instruction) x 1 - USB Cable (2 m) x 1
- Pen x 2 - Eraser x 1 - Pen Stand x 1 - Operating Instruction book
OPTIONAL ACCESSORIES
Mobile Stand
Wall-Hanging bracket (Vertical/Angled)
Pedestal
Dual Video Terminal Board
DVI-D Terminal Board
Dual HDMI Terminal Board
HD-SDI Terminal Board
HD-SDI Terminal Board with Audio
Dual Link HD-SDI Terminal Board
Plug-in PC
Digital Link Interface Box
Easy Wireless Stick
EN60065, IEC60065, GOST
EN55022 Class-B, EN55024,
EN61000-3-2, EN61000-3-3
DIMENSIONS
Cautions: This drawing is not a scale
106
300
82.9
329.7
212.9
224.7
168.2
809
892
(Effective Display Area)
1434
(Effective Display Area)
213
Units : mm
684
59.2
550
243.3
1517
37.5
TY-ST65PB2
TY-WK65PR20
TY-ST65P20
TY-FB9BD
TY-FB11DD
TY-FB10HMD
TY-FB9HD
TY-FB10HD
TY-FB11DHD
PLUGTHA54
ET-YFB100G
ET-UW100E
110
273
193
428.1
CONNECTION TERMINAL
SIDE
BACK
© Panasonic Corporation 2014
2/3
PMY01/30/2014
TH-65LFB70E
65-inch Multi Touch Screen LED Display
Applicable Input Signals
* Mark: Applicable input signal
Signal name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
Horizontal frequency
(kHz)
525 (480) / 60i
525 (480) / 60p
625 (575) / 50i
625 (576) / 50i
625 (575) / 50p
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60p
1,125 (1,080) / 60i
1,125 (1,080) / 50p
1,125 (1,080) / 50i
1,125 (1,080) / 24sF
1,125 (1,080) / 30p
1,125 (1,080) / 25p
1,125 (1,080) / 24p
1,250 (1,080) / 50i
2,048 × 1,080 / 24sF *7
2,048 × 1,080 / 24p *7
640 × 400 @70 Hz
640 × 480 @60 Hz
640 × 480 @72 Hz
640 × 480 @75 Hz
640 × 480 @85 Hz
800 × 600 @56 Hz
800 × 600 @60 Hz
800 × 600 @72 Hz
800 × 600 @75 Hz
800 × 600 @85 Hz
852 × 480 @60 Hz
1,024 × 768 @50 Hz
1,024 × 768 @60 Hz
1,024 × 768 @70 Hz
1,024 × 768 @75 Hz
1,024 × 768 @85 Hz
1,066 × 600 @60 Hz
1,152 × 864 @60 Hz
1,152 × 864 @75 Hz
1,280 × 768 @60 Hz
1,280 × 800 @60 Hz (1)
1,280 × 800 @60 Hz (2)
1,280 × 960 @60 Hz
1,280 × 960 @85 Hz
1,280 × 1,024 @60 Hz
1,280 × 1,024 @75 Hz
1,280 × 1,024 @85 Hz
1,366 × 768 @50 Hz
1,366 × 768 @60 Hz
1,400 × 1,050 @60 Hz
1,440 × 900 @60 Hz (1)
1,440 × 900 @60 Hz (2)
1,600 × 1,200 @60 Hz
1,600 × 1,200 @65 Hz
1,920 × 1,080 @60 Hz
1,920 × 1,200 @60 Hz
1: Based on SMPTE 274M standard.
3: Based on SMPTE 295M standard.
15.73
31.47
15.63
15.63
31.25
31.25
45.00
37.50
67.50
33.75
56.26
28.13
27.00
33.75
28.13
27.00
31.25
27.00
27.00
31.46
31.47
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
31.47
39.55
48.36
56.48
60.02
68.68
37.64
53.70
67.50
47.70
49.31
49.70
60.00
85.94
63.98
79.98
91.15
39.55
48.36
65.22
55.47
55.93
75.00
81.25
67.50
74.04
35.00
49.72
68.68
Vertical frequency
(Hz)
59.94
59.94
50.00
50.00
50.00
50.00
60.00
50.00
60.00
60.00
50.00
50.00
48.00
30.00
25.00
24.00
50.00
48.00
24.00
70.07
59.94
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
59.94
50.00
60.00
70.07
75.03
85.00
59.94
60.00
75.00
60.00
59.91
59.81
60.00
85.00
60.02
75.03
85.02
50.00
60.00
60.00
59.90
59.89
60.00
65.00
60.00
59.95
66.67
74.54
75.06
COMPONEN T / RGB IN
/ PC IN
(Dot clock (MHz))
* (13.5)
* (27.0) *5
* (13.5)
DVI-D IN
(Dot clock
(MHz))
HDMI
* (27.0)
* (27.0)
*
*
* (27.0)
*
* (27.0)
* (74.25)
* (74.25)
* (148.5)
* (74.25)
* (148.5)
* (74.25)
*
*
*
*
*
*
*
* (74.25)
* (74.25)
* (74.25)
*
* (25.18)
*
* (40.0)
*
* (34.24)
* (51.89)
* (65.0)
*
*
*
* (53.0)
* (81.62)
*
*
* (71.0)
* (83.5)
*
*
* (108.0)
*
* (69.92)
* (87.44)
* (122.61)
* (88.75)
* (106.5)
* (162.0)
*
*
*
*
*
*
* (148.5)
* (154.0)
*
*
* (27.0)
* (74.25)
* (74.25)
* (148.5) *1
* (74.25) *1
* (148.5) *1
* (74.25) *1
* (74.25) *2
* (74.25) *1
* (74.25) *1
* (74.25) *1
* (74.25) *3
* (25.17)
* (25.18) *6
* (31.5)
* (31.5)
* (36.0)
* (36.0)
* (40.0)
* (50.0)
* (49.5)
* (56.25)
* (33.54) *6
* (65.0)
* (75.0)
* (78.75)
* (94.5)
* (53.0)
* (108.0)
* (80.14)
* (71.0)
* (83.5)
* (108.0)
* (148.5)
* (108.0)
* (135.0)
* (157.5)
* (86.71)
* (88.75)
* (106.5)
* (162.0)
* (175.5)
* (148.5) *4
* (30.24)
* (57.28)
* (100.0)
2: Based on SMPTE RP211 standard.
4: The input signal is recognized as 1,125 (1,080) / 60p.
5: When selected the RGB format and 525p signal input to the PC IN terminal, it is recognized as VGA 60Hz signal.
6: When inputted VGA 60Hz format signal from the other than PC IN terminal, it is recognized as 525p signal.
7: Based on SMPTE 292M and 372M standards. These signals can be received when the Dual Link HD-SDI Terminal Board
(TY-FB11DHD) is installed.
Note: Signals without above specification may not be displayed properly.
© Panasonic Corporation 2014
3/3
PMY01/30/2014
