Philips CE135BT/19 Datasheet

Philips CE135BT/19 Datasheet

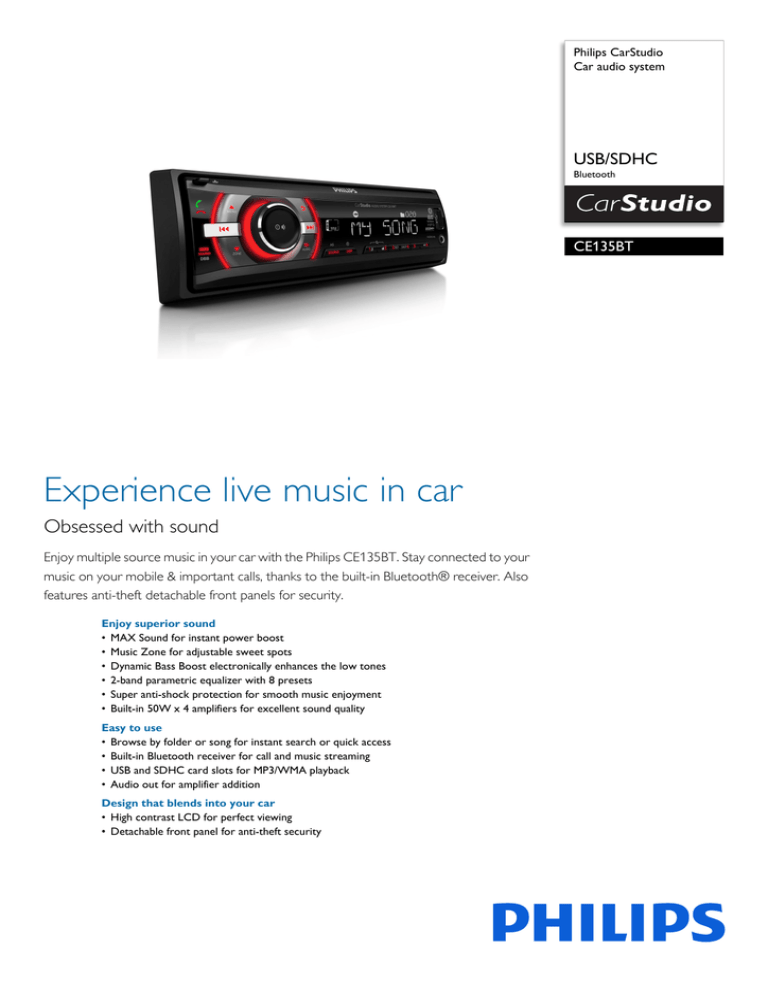

Philips CarStudio
Car audio system
Experience live music in car
Obsessed with sound
Enjoy multiple source music in your car with the Philips CE135BT. Stay connected to your
music on your mobile & important calls, thanks to the built-in Bluetooth® receiver. Also
features anti-theft detachable front panels for security.
Enjoy superior sound
• MAX Sound for instant power boost
• Music Zone for adjustable sweet spots
• Dynamic Bass Boost electronically enhances the low tones
• 2-band parametric equalizer with 8 presets
• Super anti-shock protection for smooth music enjoyment
• Built-in 50W x 4 amplifiers for excellent sound quality
Easy to use
• Browse by folder or song for instant search or quick access
• Built-in Bluetooth receiver for call and music streaming
• USB and SDHC card slots for MP3/WMA playback
• Audio out for amplifier addition
Design that blends into your car
• High contrast LCD for perfect viewing
• Detachable front panel for anti-theft security
Car audio system
USB/SDHC Bluetooth
Music Zone
Browse by folder or song
volume beyond original maximum levels
without distortion. The end result is a
noticeable amplifying of both sound spectrum
and volume and a potent audio boost that will
add mileage to any music.
USB and SDHC card slots
Philips' innovative Music Zone technology lets
the driver and the passengers enjoy their music
with more vivid spatial effect, just as the artist
intended it to be heard. Users can easily switch
the music listening zones from the driver to
the passengers and back again to get the best
sonic focus in the car. A dedicated zone
control button provides three pre-defined
settings - Left, Right and Front (and All) - so
you can best match your listening needs easily
and dynamically alone or with your passengers.
This function allows you to find a track or
album much faster by letting you browse
through songs and folders, which are the usual
contents of USB/SDHC devices. With the
dedicated folder/song button, only three
simple steps are needed to make a search –
press folder/song, rotate the volume knob and
push to select. This simple process lets you
search through your music quickly and easily,
letting you to focus on your driving.
Thanks to the complete file transferability, you
can easily enjoy the convenience and fun of
accessing more digital music via the built-in
USB and SDHC card slots.
MAX Sound
Built-in Bluetooth receiver
MAX Sound technology produces an instant
boost in bass and treble, maximizing volume
performance and instantly creating the most
impressive listening experience with just the
touch of a button. Its sophisticated electronic
circuitry calibrates existing sound and volume
settings, instantly boosting bass, treble and
The Bluetooth hands-free feature lets you use
your mobile phone safely while driving and you
don't have to miss any important calls. With
the built-in Bluetooth® receiver, you can also
conveniently stream your music files from your
phone to your car entertainment system.
DBB Dynamic Bass Boost
Activate the Dynamic Bass Boost (DBB), and
the low-end bass frequencies are electronically
enhanced to achieve consistent sound
reproduction, especially when the speaker
volume is set at a low level. You hear
impressive bass at all times.
Car audio system
USB/SDHC Bluetooth
• Type: High contrast B/W LCD
• Key illumination: Red
Playback media
USB flash drive
SD/SDHC card
MP3 Link: for portable MP3 music playback
Bluetooth streaming music
Audio Playback
Compression format: MP3, WMA
ID3 Tag support: Song title, artist, album
MP3 bit rates: 32-320kbps and variable bit rate
USB / SDHC Modes: Fast Backward/Fast Forward,
Play/Pause, Previous/Next, Repeat, Shuffle
Tuner Bands: AM, FM Stereo
Auto digital tuning
Tuner Enhancements: Auto search and store
No. of preset stations: 18(FM), 12(AM)
RDS: Station Name, Program Type, News &
Traffic, Auto-frequency
• Equalizer: 2-bands
• Equalizer settings: Classic, Jazz, Pop, Rock, Flat,
Optimal, Techno, User defined
• Sound Enhancement: MAX Sound, Dynamic Bass
Boost, Music zone
• Output power (MAX): 50Wx4 channels
• Output power (RMS): 22Wx4 channels (4 ohms,
10% T.H.D.)
Microphone: Built-in microphone
Preamp output: 1 pair Rear RCA (L/R)
Bluetooth profiles: A2DP, AVRCP, Handsfree
Bluetooth version: 2.0+EDR
• Front panel: Detachable
• Remote control: Not included
• User Manual: English, Spanish
• Quick start guide: English, Spanish
• Power supply: 12V DC
• USB quick charge: 5V, 1A (max)
• Chassis: 1 Din
• Product Dimensions (w/ panel): 188 x 58 x 120 mm
(W x H x D)
• Product Dimensions (w/o panel): 188 x 58 x 95
mm (W x H x D)
Issue date 2014-10-26
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 2.0.4
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 001 16942
EAN: 48 95185 60172 4
