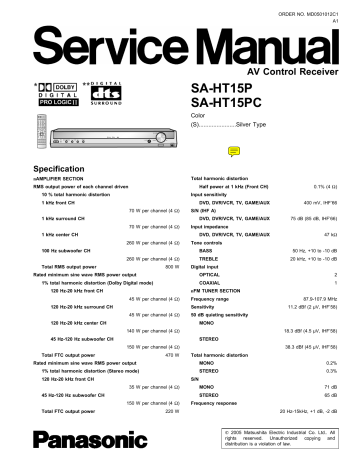

Specification nAMPLIFIER SECTION

RMS output power of each channel driven

10 % total harmonic distortion

1 kHz front CH

70 W per channel (4 Ω)

1 kHz surround CH

70 W per channel (4 Ω)

1 kHz center CH

260 W per channel (4

Ω)

100 Hz subwoofer CH

Total RMS output power

Rated minimum sine wave RMS power output

1% total harmonic distortion (Dolby Digital mode)

120 Hz-20 kHz front CH

260 W per channel (4

Ω)

800 W

45 W per channel (4 Ω)

120 Hz-20 kHz surround CH

45 W per channel (4 Ω)

120 Hz-20 kHz center CH

140 W per channel (4 Ω)

45 Hz-120 Hz subwoofer CH

Total FTC output power

150 W per channel (4

Ω)

470 W

Rated minimum sine wave RMS power output

1% total harmonic distortion (Stereo mode)

120 Hz-20 kHz front CH

35 W per channel (4 Ω)

45 Hz-120 Hz subwoofer CH

Total FTC output power

150 W per channel (4 Ω)

220 W

ORDER NO. MD0501012C1

A1

AV Control Receiver

SA-HT15P

SA-HT15PC

Color

(S).......................Silver Type

© 2005 Matsushita Electric Industrial Co. Ltd.. All rights reserved.

Unauthorized copying and distribution is a violation of law.

SA-HT15P / SA-HT15PC

Image rejection at 98 MHz

Stereo separation

1 kHz

Antenna terminal nAM TUNER SECTION

Frequency range

Sensitivity

Selectivity nGENERAL

Power supply

Power consumption

75

40 dB

40 dB

Ω (unbalanced)

530-1710 kHz

450 µV/m

20 dB

AC 120 V, 60 Hz

(Main unit)

(Subwoofer)

25 W

250 W

Dimensions (W × H × D) (Main unit)

430 × 63 × 260 mm

(16-15/16” x 2-15/32” x 10-1/4”)

Mass (Main unit)

1.8 kg (4.0 lb.)

Power consumption in standby mode: nSYSTEM

System: SC-HT15 (P)

1 W

Main unit: SA-HT15 (P)

Satellite Speaker: SB-HT15 (P)

Active Subwoofer: SB-WA15 (PP)

System: SC-HT15 (PC)

Main unit: SA-HT15 (PC)

Satellite Speaker: SB-HT15 (P)

Active Subwoofer: SB-WA15 (PP)

Speaker: SB-HT15 (P)

Front speakers: SB-FS15 (P) x 2

Surround speakers: SB-FS880 (EG) x 2

Center speaker: SB-PC15 (P) x 1

Notes:

Mass and dimensions are approximate.

analyzer.

For main unit

Marking sign is located on bottom of the unit.

* Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of

Dolby Laboratories.

** Manufactured under license from Digital Theater System.

“DTS” and “DTS Digital Surround” are trademarks of Digital Theater

System.

CONTENTS

Page

1 Use of Active Subwoofer

2 Before Repair and Adjustment (Using Active Subwoofer Unit)

4

3 Safety Precautions

4

4

4

4

4 Handling the Lead Solder

5 About the Protection Circuitry

6 Accessories

7 Operation Procedures

8 Remote Control

9 Assembling and Disassembling

6

7

8

5

5

9

10

10

10

10 Service Position

10.1. Checking the Digital Module P.C.B. (Side A)

12

13

13

14

14

11

11

11

12

Page

10.2. Checking the Main P.C.B., Panel P.C.B., Function P.C.B.,

Volume P.C.B. & Digital Module P.C.B. (Side B) 14

11 Self Diagnosis Display Function

11.1. Automatically Displayed Error Codes

15

15

11.2. Error Code Display Details

11.3. Activating Self Diagnosis Function (Doctor Mode)

15

15

11.4. Activating Self Diagnosis Function (Service Mode) 16

11.5. The Shutdown And Short Circuit Protection Detection 17

11.6. Returning to Normal Display

12 Block Diagram

13 Schematic Diagram

18

19

24

13.1. (A) DSP Circuit

13.2. (B) Main Circuit

13.3. (C) Panel Circuit

13.4. (D) Volume Circuit & (E) Funtion Circuit

14 Printed Circuit Board Diagram

14.1. (A) DSP P.C.B. (Side A & B)

14.2. (B) Main P.C.B.

14.3. (C) Panel P.C.B., (D) Volume P.C.B. & (E) Function

37

37

39

25

28

35

36

P.C.B.

15 Wiring Connection Diagram

16 Type Illustration of ICs, Transistors and Diodes

17 Terminal Function of IC

17.1. IC900 (C2CBHG000166): Microprocessor

41

43

44

45

45

2

18 Parts Location and Replacement Parts List

18.1. Cabinet Parts Location

18.2. Electrical Parts List

46

47

50

18.3. Packing Materials & Accessories Parts List

18.4. Packaging

SA-HT15P / SA-HT15PC

56

57

3

SA-HT15P / SA-HT15PC

1 Use of Active Subwoofer

1.1. Checking Player when Active Subwoofer is Used

1. This unit uses the active subwoofer to supply the power of the component, and the active subwoofer should be connected to the component to check operational conditions of the component.

2 Before Repair and Adjustment (Using Active Subwoofer

Unit)

Disconnect AC power, discharge Power Supply Capacitors C750 & C1706 through a 10 Ω, 1W resistor to ground.

DO NOT SHORT-CIRCUIT DIRECTLY (with a screwdriver blade, for instance), as this may destroy solid state devices.

After repairs are completed, restore power gradually using a variac, to avoid overcurrent.

Current consumption at AC 120V, 60Hz in NO SIGNAL mode should be ~700 mA .

3 Safety Precautions

3.1. GENERAL GUIDELINES

1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit.

2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.

3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.

3.1.1. LEAKAGE CURRENT COLD CHECK

1. Unplug the AC cord and connect a jumper between the two prongs on the plug.

2. Measure the resistance value, with an ohmmeter, between the jumpered AC plug and each exposed metallic cabinet part on the equipment such as screwheads, connectors, control shafts, etc. When the exposed metallic part has a return path to the chassis, the reading should be between 1M Ω and 5.2Ω.

When the exposed metal does not have a return path to the chassis, the reading must be .

4

SA-HT15P / SA-HT15PC

Fig. 1

3.1.2. LEAKAGE CURRENT HOT CHECK (See Figure 1.)

1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.

2. Connect a 1.5k

Ω, 10 watts resistor, in parallel with a 0.15µF capacitors, between each exposed metallic part on the set and a good earth ground such as a water pipe, as shown in Figure 1.

3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity, to measure the potential across the resistor.

4. Check each exposed metallic part, and measure the voltage at each point.

5. Reverse the AC plug in the AC outlet and repeat each of the above measurements.

6. The potential at any point should not exceed 0.75 volts RMS. A leakage current tester (Simpson Model 229 or equivalent) may be used to make the hot checks, leakage current must not exceed 1/2 milliamp. In case a measurement is outside of the limits specified, there is a possibility of a shock hazard, and the equipment should be repaired and rechecked before it is returned to the customer.

4 Handling the Lead Solder

4.1. About lead free solder (PbF)

Distinction of PbF P.C.B. :

P.C.B.s (manufactured) using lead free solder will have a PbF stamp on the P.C.B.

Caution:

· Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher.

Please use a high temperature soldering iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F

(370 ± 10°C).

· Pb free solder will tend to splash when heated too high (about 1100°F/600°C).

· When soldering or unsoldering, please completely remove all of the solder on the pins or solder area, and be sure to heat the soldering points with the Pb free solder until it melts enough.

5

SA-HT15P / SA-HT15PC

5 About the Protection Circuitry

The protection circuitry may have operated if either of the following conditions is noticed:

*No sound is heard when the power is supplied.

*Sound stops during a performance.

The functions of this circuitry is to prevent circuitry damage, for example, the positive and negative speaker connection wires are

“shorted”, or if speaker systems with an impedance less than the indicated rated impedance of this unit are used.

If this occurs, follow the procedure outlined below:

1. Press the STANDBY /ON button, switch to STANDBY mode.

2. Determine the cause of the problem and correct it.

3. Press the STANDBY /ON button once again, supply the power.

Note:

When the protection circuitry functions, the unit will not operate unless the STANDBY /ON button is first switched STANDBY and then ON again.

6

6 Accessories

AC power cord

System cable

FM indoor antenna

AM loop antenna

Remote control

SA-HT15P / SA-HT15PC

7

SA-HT15P / SA-HT15PC

7 Operation Procedures

8

8 Remote Control

SA-HT15P / SA-HT15PC

9

SA-HT15P / SA-HT15PC

9 Assembling and Disassembling

9.1. Disassembly flow chart

The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing.

To assemble the unit, reverse the steps shown in the chart as below.

9.2. P.C.B. Positions

10

SA-HT15P / SA-HT15PC

9.3. Disassembly of Top Cabinet

Step 1: Remove 2 screws.

Step 2 : Remove 5 screws at rear panel.

Step 3 : Open and lift up the top cabinet in the direction of arrow shown.

9.4. Disassembly of Rear Panel

· Follow the (Step 1) - (Step 3) of item 9.3 - Disassembly of Top Cabinet

Step 1 : Remove 7 screws, pull rear panel forward in the arrow shown.

9.5. Disassembly of Front Panel

· Follow the (Step 1) - (Step 3) of item 9.3 - Disassembly of Top Cabinet

Step 1 : Remove the volume knob.

Step 2 : Remove 1 screw securing the grounding at Main

P.C.B..

Step 3 : Detach wire connectors (CN103, CN104A, CN104B,

CN100A & CN100B).

Step 4 : Release claws & catches and push the front panel forward as arrow shown.

11

SA-HT15P / SA-HT15PC

NOTE: When assembling the front panel unit, alight the 2

catches properly.

9.6. Disassembly of Panel P.C.B.

· Follow the (Step 1) - (Step 3) of item 9.3 - Disassembly of Top Cabinet

· Follow the (Step 1) - (Step 4) of item 9.5 - Disassembly of Front Panel

Step 1 : Remove 5 screws at Panel P.C.B..

9.7. Disassembly of Function P.C.B. & Volume P.C.B.

· Follow the (Step 1) - (Step 3) of item 9.3 - Disassembly of Top Cabinet

· Follow the (Step 1) - (Step 4) of item 9.5 - Disassembly of Front Panel

· Follow the (Step 1) of item 9.6 - Disassembly of Panel P.C.B.

Step 1 : Remove 5 screws at Function P.C.B. and 4 screws at

Volume P.C.B..

12

SA-HT15P / SA-HT15PC

9.8. Disassembly of Digital Module P.C.B.

· Follow the (Step 1) - (Step 3) of item 9.3 - Disassembly of Top Cabinet

Step 1 : Remove 3 screws at rear panel.

Step 2 : Remove 2 screws at Digital Module P.C.B..

Step 3 : Disconnect 4 connectors (CN904B, CN906, CN405 &

CN403B) at Digital Module P.C.B..

9.9. Disassembly of Main P.C.B.

· Follow the (Step 1) - (Step 3) of item 9.3 - Disassembly of Top Cabinet

Step 1 : Remove 4 screws at rear panel.

CN104A, CN103, CN904A & CN403A) at Main P.C.B. & 2 connectors (CN906 & CN405) at Digital Module P.C.B..

Step 2 : Remove 5 screws at Main P.C.B..

Step 3 : Disconnect connectors (CN100B, CN100A, CN104B,

13

SA-HT15P / SA-HT15PC

10 Service Position

Note:

Checking of all Major P.C.B. (Main P.C.B., Digital Module P.C.B., Volume P.C.B., Panel P.C.B. & Function P.C.B.) can be carried out using below procedures.

For the disassembling procedure, see Section 9.

10.1. Checking the Digital Module P.C.B. (Side A)

1. Remove Top Cabinet.

2. Remove Rear Panel.

10.2. Checking the Main P.C.B., Panel P.C.B., Function P.C.B., Volume

P.C.B. & Digital Module P.C.B. (Side B)

1. Remove Top Cabinet.

2. Remove Rear Panel.

3. Disassembly of Front Panel.

4. Disassembly of Panel P.C.B., Function P.C.B., Volume P.C.B., Main P.C.B. & Digital Module P.C.B..

5. Flip the PCBs over (see as shown in picture below).

14

SA-HT15P / SA-HT15PC

11 Self Diagnosis Display Function

This unit is equipped with the self diagnosis display function, which alarms faulty operation with error code. Use this function during servicing.

11.1. Automatically Displayed Error Codes

An error code automatically appears on the display (FXX) when faulty operation is detected. Refer to Fig. 11.1. For error codes, refer to Section 11.2.

11.2. Error Code Display Details

Refer to the following table for error codes.

FL Display

OVERLOAD

FAN LOCK

F70

F76

<Fig.11.1>

Symptom

Speaker short, amplifier failure.

Humidity protection activated.

The fan stops suddenly.

Communication error between sub micro processor and its peripheral LSI

When the power is turned on, the unit power autimatically turns off, the power cannot be turned on.

Cause and Remedy

Speaker short and failure in power amplifier, pre-amplifier circuits. Check for faulty parts and replace with new parts if necessary.

Failure in fan or fan control circuits. Check for faulty parts and replace with new parts if necessary.

Failure sub-micro processor and its peripherals LSI. Check for faulty aprts and replace with new parts if necessary.

Failure in the power circuit system of the unit. This may happen when the direct current electricity is supplied to speaker terminals. Check for the above and replace with new parts if necessary.

11.3. Activating Self Diagnosis Function (Doctor Mode)

This mode can be used during servicing.

1. With the following operation, the processing of this mode begins.

· Press and hold down the “INPUT SELECTOR” button and the “HARMONIC BASS” button, and then press the “POWER” button at the same time.

* At this time, initialize all setting and set the following frequency to tuner. FL display will display “_DOCTOR_” for 3 seconds.

E1: 99.7 MHz, E2/3: 93.40 MHz, JAPAN: 87.8 MHz

* The display is always blinked with 1Hz cycle to indicate that DOCTOR MODE is activated.

2. Normal function for all buttons on the unit.

15

SA-HT15P / SA-HT15PC

3. Doctor mode function at some remote control codes as table below.

Remote Control

CH 1

CH 2

CH 3

CH 4

CH 5

CH 6

CH 7

CH 8

CH 9

CH 0

CH UP

CH DOWN

SUBWOOFER

MUTING

INPUT MODE

SLEEP

TONE/BAL

LEVEL

EFFECT

STEREO

PL2

TEST

-/L

+/R

DIMMER

Selector

TUNER

TUNER

TUNER

Test Mode Function and settings

Sound Mode Other setting

STEREO

STEREO

STEREO

Frequency : FM min. *1)

Frequency : FM max.

FM 98.3 MHz.

Vol/Tone

-48dB/0dB

-48dB/0dB

-18dB/0dB

TUNER

TUNER

TUNER

TUNER

STEREO

STEREO

STEREO

STEREO

Frequency : AM min.

Frequency : AM max.

AM 765 kHz (9kHz/step)

AM 770 kHz (10kHz/step)

-48dB/0dB

-48dB/0dB

-18dB/0dB

-18dB/0dB

If the input selector is TUNER, auto tuning function is started to upward on current frequency.

If the input selector is TUNER, auto tuning function is started to downward on current frequency.

All indicators of FL are displayed. All LED are off.

Note: After this setting, only “POWER” button or “CHECKER COMMAND” code by the remote control can be entered.

Check Main uP software Version.

Display [SUM_****]; **** is checksum. If no ROM correction, display [NO_EPROM].

VCR (Analog) ----18dB/0dB

DVD 6 CH

GAME/ AUX

TV

DVD

DVR/VCR

DVD

TV

DVR/VCR

No change

----

STEREO

STEREO

STEREO

STEREO

STEREO

STEREO

STEREO

SURROUND

-

Analog

Analog

Analog

Analog

Digital (COAX)

Digital (OPT 1)

Digital (OPT 2)

Scan the test noise output channel with

500ms intervals.

GAME/ AUX

GAME/ AUX

STEREO

STEREO

Balance is set to leftmost.

Balance is set to rightmost.

If the input selector is TUNER in E2 mode, Display mode (PS/PTY) is changed.

-18dB/0dB

-18dB/0dB

-18dB/0dB

-18dB/0dB

-18dB/0dB

-48dB/0dB

-48dB/0dB

-48dB/0dB

-18dB/0dB

-18dB/0dB

-18dB/0dB

* By the model setting, when there is not a function, ignore it. (ex. INPUT MODE in HT15 mode)

* Auto decode mode cannot activate in Doctor Mode.

*1) Memorize this frequency once in CH1 to 7 and recall it.

4. After enter the remote control code “DIRECT (TUNING)”, the message “OK” will appear for 0.2s second when each button is press one by one.

5. Press “POWER” button on main unit or remote control to exit this mode.

11.4. Activating Self Diagnosis Function (Service Mode)

This mode is used for purpose of servicing.

1. With the following operation, the processing of this mode begins.

· Press and hold down the “HARMONIC BASS” button and the “TUNING DOWN” button, and then press the “POWER” button at the same time.

* At this time, initialize all setting and set the following frequency to Tuner. FL display will display “SERVICE” for 3 seconds.

2. To confirm the uP software Version: Press “TUNING DOWN” button on main unit, “MS085 **” is displayed.

16

SA-HT15P / SA-HT15PC

3. When TUNE UP is pressed, display “SUM ****”, “****” is the check sum of ROM for ROM correction.

IF there is not ROM, “NO EPROM” is displayed.

4. Press “POWER” button on main unit or remote control to exit this mode.

11.5. The Shutdown And Short Circuit Protection Detection

It detects S_DET and DC_DET input port for malfunction.

1. S_DET Function (SHORT DETECTION)

It is to detect a short in the Power Supply. The detection of S_DET starts after 700ms after POWER ON.

After that, it is always detected for any malfunction.

Upon detection, the FLD display “F76” and the system is POWER OFF by setting POWER_RELAY port to OFF.

2. DC_DET Function

DC_DET (pin 94) on micon is used to detect FAN LOCK. During POWER ON, it will be ignored until ALL_MUTE is released.

Upon detection, FLD display “FAN LOCK” and MUTE_ALL will be set to ON. If any button is pressed, it is made to scroll error message “SWITCH OFF POWER”. After Power Off and On,this condition is reset, and DC_DET will resume detection of error.

It also sets MUTE_SW to ON, to switch OFF the power amplifier.

3. FREQUENCY LIMITER

Due to surround speaker change from 6.5 cm to 8 cm. We have to limited certain output level to certain FOR FRONT L/R channel and SURROUND L/R cut off frequency in order to avoid speaker noise.

4 ports are used for this purpose. 2 ports are used for front L/R channel, 2 ports for surround L/R channel.

Front Left/ Right Freq limiter (Port Name: FRONT_fc1[pin49], FRONT_fc2[pin50])

Surround Left/ Right Freq limiter (Port Name: SURR_fc1[pin47], SURR_fc2[pin48])

For FRONT L/R

For SURROUND L/R

17

SA-HT15P / SA-HT15PC

11.6. Returning to Normal Display

Press the POWER button on the unit to exit the function. The power is turned off.

18

12 Block Diagram

TUNER PACK

TV

JK401

GAME/AUX

IN

JK403 DVD IN

JK402

DVR / VCR

IN

DVR / VCR

OUT

IC409

C1BB00000919

VOLUME SELECTOR IC

L_IN2(R)

20(21)

SL_IN2(R)

23(22)

C_IN2

24

4(5)

TU_L(R)

72(73)

76(77)

80(1)

68(69)

58(59)

TV_L(R)

CD_L(R)

DVD_L(R)

DVD/VCR_L(R)

RECL1(R)

SW_IN

25

LATCH

29

DATA

28

CLOCK

27

L_VIN

55

L_SELOUT

56

R_VIN

46

R_SELOUT

45

L_OUT(R)

54(47)

C_OUT

36

SW_OUT

35

SL_OUT(R)

41(42)

33

SW_SELOUT

34

SW_VM

BALANCE L/-(R)

15(18)

BALANCE L/+(R)

14(17)

5

6

3

2

IC408

C0ABBB000297

OP-AMP

1

7

Q702

MUTING

SWITCH

Q701

MUTING

SWITCH

5

6

3

2

IC407

C0ABBB000297

OP-AMP

1

7

FILTER

Q704

MUTING

SWITCH

B

Q703

MUTING

SWITCH

B

5

6

3

2

IC406

C0ABBB000297

OP-AMP

1

7

FILTER

SA-HT15P / SA-HT15PC

19

SA-HT15P / SA-HT15PC

JK1301

DIGITAL IN

TV

(OPTICAL 1)

DIGITAL

IN

JK1302

DIGITAL IN

DVR

(OPTICAL 2)

JK1303

COAXIAL IN

DVD

B

Q1001

SWITCH

11

INT

8

CDOUT

12

RST

10

CS

42

RXP7

46

RXP3

49

RX0

16(13)

AINL-(R)

15(14)

AINL+(R)

59

OMCK

IC1101

C0FBZK000009

CODEC IC

AOUTA(B)1+

AOUTA(B)1-

36(35)

37(34)

AOUTA(B)2+

AOUTA(B)2-

32(31)

33(30)

2 61 3 60

7

9 1 64 63

54 55

AOUTA3+

AOUTA3-

28

29

AOUTB3+

AOUTB3-

27

26

VA

24

VD

4,6,51

3(5)

2(6)

IC1201

C0ABBB000297

OP-AMP

1(7)

3(5)

2(6)

IC1202

C0ABBB000297

OP-AMP

1(7)

5

6

3

2

IC1203

C0ABBB000297

OP-AMP

1

7

B

Q1702

SWITCH

B

1

IC1701

C0CBAAG00004

REGULATOR

Q1703

SWITCH

3

B

Q1701

REGULATOR

7

5

IC1003

C0JBAB000633

LOGIC

INVERTER

1,2,3

X1001

6

8

IC1001

C2HBZZ000015

AC3/DTS

9 12 5 2

IC1004

C0JBAZ002160

LOGIC

8 11 6 3

4 36 18 7 6 8~11,14~17

B

IC1005

C0JBAZ002161

LOGIC

9 12

19 20

11

8

INT49

CDOUT49

B

27 CMPOAT

28 CMPCLK

29 CMPREQ

COMPRESSED

DATA INPUT

INTERFACE

SPDIF RECEIVER

25 SCLKN1

26 LRCLKN1

22

SDATAN1

30 CLKIN

31 CLKSEL

DIGITAL

AUDIO INPUT

INTERFACE

PLL CLOCK MANAGER

PARALLEL OR SERIAL HOST INTERFACE

FRAMER

SHIFTER

INPUT

BUFFER

CONTROLLER

RAM

INPUT

BUFFER

24-bit

DSP PROCESSING

RAM

PROGRAM

MEMORY

RAM

DATA

MEMORY

ROM

PROGRAM

MEMORY

RAM

DATA

MEMORY

STC

RAM

OUTPUT

BUFFER

32

B

34

B

35 33

MCLK 44

SCLK 43

LRCLK 42

AUDATA0 41

AUDATA1 40

AUDATA2 39

MCLK

SCLK

LRCLK

AU0

AU1

AU2

20

SW_OUT2

C_OUT2

L_OUT2(R)

SL(R)

SA-HT15P / SA-HT15PC

5

6

3

2

IC402

C0ABBB000297

OP-AMP

1

7

6(2)

5(3)

IC403

C0ABBB000297

OP AMP

7(1)

6(2)

5(3)

IC401

C0ABBB000297

OP AMP

7(1)

6(2)

5(3)

IC404

C0ABBB000297

OP AMP

7(1)

Q411 (Q412)

MUTING

SWITCH

Q410

REGULATOR

6

IC903

C3EBEC000044

EEPROM IC

(NOT SUPPLIED)

5

Q409 (Q408)

MUTING

SWITCH

Q423

MUTING

SWITCH

Q424

MUTING

SWITCH

26 31 32 33 34 35 74 29 24 25 30 7 6 5 77 75 78 76 39 40

IC900

C2CBHG000166

MICROPROCESSOR

13

CF901

15

27 21

21

SA-HT15P / SA-HT15PC

B

Q420

MUTING

SWITCH

B

Q421

MUTING

SWITCH

B

Q422

MUTING

SWITCH

Q401

MUTING

SWITCH

Q402

MUTING

SWITCH

Q405

(Q406)

MUTING

SWITCH

JK405

ACTIVE SUBWOOFER

17

SUBWOOFER

15

CENTER

DVDAC1

3

SUBAC2

23

DVDAC2

1

SUBAC1

25

7(11)

FRONTL(R)

FL1

FL2

22

24

Q404 (Q407)

MUTING

SWITCH

PCONT

19

SYNC

21

MUTE_H

5

DCDET

2

12(14)

SURR_L(R)

TO

FL DISPLAY

HP100

HEADPHONE

RCH

D101

Q101

LED

DRIVE

B

B

Q901

RESET

SWITCH

5

6

3

2

IC901

C0ABBB000297

OP-AMP

1

7

5

6

3

2

IC902

C0ABBB000297

OP-AMP

1

7

22 55 12 94 28 20 51 84 85 83

19 53 54

Z100

REMOTE SENSOR

VR100

JOG VOL

IC900

C2CBHG000166

MICROPROCESSOR

B

Q100

LED

DRIVE

56

B

Q105

LED

DRIVE

60

B

Q106

LED

DRIVE

59

B

Q107

LED

DRIVE

58

B

Q104

LED

DRIVE

61

22

SA-HT15P / SA-HT15PC

FROM ACTIVE

SUBWOOFER

FP752

B

B

D762

Q753

REGULATOR

D763

B

B

Q754

REGULATOR

Q751

DETECT

SWITCH

B

24~49

26~51

5 6 7 8

FL100

FL DISPLAY

13

Q102

FL

DRIVE

Q103

FL

DRIVE

4

IC100

C0HBB0000039

FL DRIVER

4~12

1~3, 59~64

12 13

Q757

CURRENT

STABILIZER

SWITCH

Q758

REGULATOR

Q759

CURRENT

LIMITING

SWITCH

Q756

REGULATOR

Q755

REGULATOR

D758

D753~D756

D752

FP751

Q752

REGULATOR

B

67 68 69 70 95

IC900

C2CBHG000166

MICROPROCESSOR

81, 82 80

S101~S105

KEY SW

S100

POWER SW

SIGNAL LINES

: MAIN SIGNAL LINE

: AUXILLARY SIGNAL LINE

( ) Indicates the Pin No. of Right Channel.

: FM /AM SIGNAL LINE

: VIDEO SIGNAL LINE

NOTE : Signal Lines are applicable to the Left Channel only.

E751

D750

23

SA-HT15P / SA-HT15PC

13 Schematic Diagram

(All schematic diagrams may be modified at any time with the development of the new technology)

Note:

S100

S101

S102

S103

S104

S105

VR100

: POWER switch

: MEMORY switch

: TUNE UP switch

: INPUT SELECTOR switch

: TUNE DOWN switch

: H. BASS switch

: JOG VOLUME switch

· The voltage value and waveforms are the reference voltage of this unit measured by DC electronic voltmeter (high impedance) and oscilloscope on the basis of chassis.

Accordingly, there may arise some error in voltage values and waveforms depending upon the internal impedance of the tester or the measuring unit.

· Importance safety notice :

Components identified by mark have special characteristics important for safety. Furthermore, special parts which have purposes of fire-retardant (resistors), highquality sound (capacitors), low-noise (resistors), etc. are used. When replacing any of components, be sure to use only manufacturer´s specified parts shown in the parts list.

Caution !

IC, LSI and VLSI are sensitive to static electricity.

Secondary trouble can be prevented by taking care during repair.

· Cover the parts boxes made of plastics with aluminium foil.

· Put a conductive mat on the work table.

· Ground the soldering iron.

· Do not touch the pins of IC, LSI or VLSI with fingers directly.

24

SA-HT15P / SA-HT15PC

13.1. (A) DSP Circuit

SCHEMATIC DIAGRAM - 1

DSP CIRCUIT

: +B SIGNAL LINE

: MAIN SIGNAL LINE

C1005

50V1

C1006

0.1

C1001

50V1

R1014 10K

R1013 10K

R1012 10K

R1011 10K

R1009 10K

R1008 10K

R1007 10K

R1006 10K

7

8

9

SCCLK

DATA7

10

11

DATA6

DATA5

DATA4

12

13

14

15

VD2

DGND2

DATA3

DATA2

16

17

DATA1

DATA0

R1005 3.3K

6 5 4 3 2 1 44 43 42 41 40

IC1001

C2HBZZ000015

AC3/DTS IC

AUDATA2

DC

DD

RESET

AGND

VA

FILT1

FILT2

CLKSEL

CLKIN

CMPREQ

31

30

29

35

34

33

32

39

38

37

36

R1015

4.7K

R1017

4.7K

C1020

0.1

R1021

1K

C1018

1000P

C1013

0.1

C1009

470P

C1008

50V2.2

C1011

6.3V100

R1010

10K

C1012

0.1

R1016

33K

R1025

0

C1010

0.01

IC1004

C0JBAZ002160

LOGIC IC

14 VCC

13 4G

12 4A

11 4Y

10

3G

9 3A

8

3Y

1G 1

1A 2

1Y 3

2G 4

2A 5

2Y 6

GND 7

C1015

100P

R1019

1K

CDIN

CDINV

C1016 100P

R1020

1K

CCLK

CCLKV

C1002

0.1

18 19 20 21 22 23 24 25 26 27 28

C1019

1000P

R1022

1K

RST49

C1003

6.3V100

LRCLK

SDOUT

SCLK

C1004

50V1

C1007

0.1

R1001

3.3K

R1002

3.3K

L1001

G1C2R2K00008

L1004

G1C2R2K00008

DIGITAL IN TV

(OPTICAL 1)

VCC 1

GND 2

OUTPUT 3

JK1301

DIGITAL IN DVR

(OPTICAL 2)

VCC 1

GND

2

OUTPUT 3

JK1302

COAXIAL IN DVD

JK1303

C1301

0.01

C1302

0.1

L1302

VLQ0855M1R0T

C1308

6.3V100

C1309

0.01

RX2 DSP_OFF

+5VA

C1303

0.01

Q1001

8

C1304

0.1

RX1

7

C1024

6.3V100

C1022

0.1

6

5

IC1003

C0JBAB000633

LOGIC INVERTER IC

R1028

33

C1027

100P

R1018

33

L1301

RLQZ150M-0

R1301

75

C1306

0.1

C1305

0.1

C1307

0.1

C1310 0.1

R1303

10

R1302

10

C1311

0.1

RX0

Q1001

B1GDCFJN0001

SWITCH

R1023

1M

1

C1023

22P

X1001

H0J122200002

2 3 4

R1024

1K

C1025

22P

L1002

G1C2R2K00008

L1003

G1C2R2K00008

C1021

0.1

C1026

0.1

L1102

G1C2R2K00008

Z1101

J0JKB0000020

R1029

1K

C1102

0.1

+2.5V

+5VD

INT49

R1026

100K

IC1005

C0JBAZ002161

LOGIC IC

14

VCC

13 4G

12 4A

11 4Y

10 3G

9 3A

8 3Y

1G

1

1A 2

1Y

3

2G 4

2A 5

2Y 6

GND 7

R1027

100K

R1030

1K

CDOUT49

OMCK

C1017

100P

25

SA-HT15P / SA-HT15PC

SCHEMATIC DIAGRAM - 2

DSP CIRCUIT

: +B SIGNAL LINE

: MAIN SIGNAL LINE

C1106

6800P

C1108

1000P

R1106

3.3K

+5VA

L1103

G1C2R2K00008

RX2

RX1

C1110

16V10

C1111

0.1

C1124

16V10

C1126 0.01

C1121

0.1

48 47 46 45 44 43

42

41 40 39 38

37

36 35 34

33

RX0

SDOUT

MCLK

OMCK

LRCLK

SCLK

AU2

AU1

R1101

0

AU0

L1101

G1C2R2K00008

+5VD

C1103

0.1

C1101

16V10

C1105

16V10

49 RXPO

50

51

52

TXR

VD

DGND

53

54

55

VLS

SAI_SDOUT

RMCK

56

57

CX_SDOUT

ADCIN2

58

59

60

61

ADCIN1

OMCK

SAI_LRCLK

SAI_SCCLK

62

63

CX_SDIN4

CX_SDIN3

64 CX_SDIN2

C1104

0.1

IC1101

C0FBZK000009

CODEC IC

AOUTA2+ 32

AOUTB2+

AOUTB2-

AOUTA3-

31

30

AOUTA3+

AOUTB3+

AOUTB3-

29

28

27

26

AGND

VA

25

24

AOUTA4-

AOUTA4+

AOUTB4+

23

22

21

AOUTB4-

REFGND

FILT+

20

19

18

VQ 17

C1120

0.1

C1123

50V4.7

1 2 3 4 5 6 7 8 9 10

11 12 13

14 15 16

C1107

0.1

C1117

2700P

C1118

2700P

C1127 560P

R1114 1.2K

C1128 560P

R1115 1.2K

C1130 560P

R1117 1.2K

C1129 560P

R1116 1.2K

C1119

0.1

R1123

3.3K

R1122

2.7K

C1131

16V100

R1124 3.3K

R1125

2.7K

C1122

6.3V100

IC1701

C0CBAAG00004

REGULATOR IC

C1701

16V22

C1702

390P

3

OUT

IC1701

VEE

1

GND

2

C1703

16V10

Q1702

B1BACG000023

SWITCH

Q1701

KTC3199GRTA

REGULATOR

R1703

4.7

R1701

150

C1704

0.01

C1705

16V100

D1701

MAZ80620ML

C1132

16V100

R1704

4.7

Q1703

B1BACG000023

SWITCH

C1706

10V3300

R1702

2.7K

26

SA-HT15P / SA-HT15PC

SCHEMATIC DIAGRAM - 3

DSP CIRCUIT

R1201

5.6K

R1207

1.5K

C1202

5600P

R1222

1K

R1213

1.5K

C1213

16V22

C1201

1800P

C1216

1200P

R1231

5.6K

R1232

2.7K

C1228 390P

C1231

16V10

R1237

47K

4 3 2 1

IC1201

C1237

0.01

IC1201

C0ABBB000297

OP-AMP IC

R1208

1.5K

R1202

5.6K

C1207

5600P

R1203

5.6K

R1209

1.5K

C1204

5600P

R1216

1.5K

R1223

1K

R1214

1.5K

C1214

16V22

C1217

16V22

R1219

1K

C1222

1200P

5

R1225 2.7K

6

C1208

1800P

C1225 390P

7 8

R1226

5.6K

R1233

5.6K

C1238

0.01

C1232

16V10

C1233

16V10

C1203

1800P

R1234

2.7K

C1229 390P

C1218

1200P

4 3 2 1

C1239

0.01

IC1202

R1238

47K

R1239

47K

C1245

25V47

IC1202

C0ABBB000297

OP-AMP IC

R1210

1.5K

R1204

5.6K

R1205

5.6K

C1209

5600P

R1217

1.5K

C1219

16V22

R1211

1.5K

C1206

5600P

R1224

1K

R1215

1.5K

C1215

16V22

R1220

1K

5 6 7 8

C1210

1800P

C1223

1200P

R1227

2.7K

C1226 390P

R1228

5.6K

R1235

5.6K

C1240

0.01

C1234

16V10

C1235

16V10

C1205

1800P

R1236

2.7K

C1230 390P

C1220

1200P

4 3 2 1

C1246

25V47

R1240

47K

R1241

47K

C1241

0.01

IC1203

IC1203

C0ABBB000297

OP-AMP IC

R1212

1.5K

R1206

5.6K

C1211

5600P

R1218

1.5K

C1221

16V22

R1221

1K

5 6

C1212

1800P

C1224

1200P

R1229

2.7K

C1227 390P

R1230

5.6K

7 8

C1242

0.01

C1236

16V10

R1242

47K

: +B SIGNAL LINE

: -B SIGNAL LINE

-7.5V

+7.5V

: MAIN SIGNAL LINE

C1125

100P

C1243

100P

C1412

100P

+7.5V

-7.5V

LIN+

LIN-

RIN+

RIN-

+7.5V

INT42

CS42

INT49

CDOUT42

DSP_OFF

RST42

CDOUT49

CDIN

CCLK

CS49

RST49

-7.5V

R1119

1.5K

R1410 0

R1408 0

R1402 0

R1407 0

R1411 0

R1409 0

R1401 0

R1406 0

R1405 0

R1404 0

R1403 0

R1118

1.5K

R1120 1.5K

R1121 1.5K

LIN+

LIN-

AGND

MUTEC

SWOUT

COUT

AGND

SLOUT

AGND

SROUT

AGND

ROUT

AGND

LOUT

RIN+

RIN-

6

7

8

9

10

11

1

2

3

4

5

12

13

14

15

16

CN403B

TO

MAIN

CIRCUIT

(CN403A) ON

SCHEMATIC

DIAGRAM-5

INT42

CS42

INT49

CDOUT42

DSP_OFF

RST42

CDOUT49

CDIN

CCLK

CS49

FINT49

RST49

DGND

FCS49

DGND

5

6

7

8

3

4

1

2

9

10

11

12

13

14

15

16

17

18

CN904B

TO

MAIN

CIRCUIT

(CN904A) ON

SCHEMATIC

DIAGRAM-10

-7.5V

DGND

DGND

+7.5V

4

3

2

1

CN906

TO

MAIN

CIRCUIT

(JW906) ON

SCHEMATIC

DIAGRAM-8

1

2

3

TO

MAIN

CIRCUIT

(JW405) ON

CN405

SCHEMATIC

DIAGRAM-5

27

SA-HT15P / SA-HT15PC

13.2. (B) Main Circuit

SCHEMATIC DIAGRAM - 4

MAIN CIRCUIT

: +B SIGNAL LINE

: -B SIGNAL LINE

TO

TUNER

PACK

(ENG06811QF)

CP201

2

1

6

5

4

3

10

9

8

7

TUNER_GND

+9.0V

W57 0

TUNER_RCH

TUNER_LCH

TUNER_SD

TUNER_CLK

TUNER_GND

C201

0.01

C204

0.01

R201 1K

R202 1K

C202

3300P

R203

47K

R204

47K

C203

3300P

TUNER9V

TUNER_R

TUNER_ST

TUNER_L

TUNER_SD

TUNER_DT

TUNER_CLK

: MAIN SIGNAL LINE

: FM/AM SIGNAL LINE

: AUXILLARY SIGNAL LINE

W72

0

W74

0

HAR_OUT

HAR_IN

L CH

GAME/AUX

IN

R CH

DVR/VCR

L CH

TV

R CH

JK401

L CH

OUT

R CH

L CH

IN

R CH

JK402

L CH

DVD/DVD 6CH

R CH

C405

100P

C408

100P

C407

100P

C410

100P

C409

100P

C404

100P

C403

100P

C406

100P

C402

100P

C401

100P

R402

1K

C420

100P

R401

1K

C419

100P

R404

1K

C422

100P

R403

1K

R406

1K

C421

100P

C424

100P

R405

1K

C423

100P

R408

1K

C426

100P

R407

1K

R410

1K

C425

100P

C428

100P

R409

1K

C427

100P

CD_L

CD_R

TV_L

TV_R

RECL1

RECR1

VCR_L

VCR_R

DVD_L

DVD_R

+7.5V

5V

VOL_LATCH

VOL_DAT

VOL_CLK

SWOUT

C538

33P

C537

33P

C539

33P

R-

R+

L-

L+

COUT

SLOUT

SROUT

ROUT

LOUT

W59

0

TUNER_R

TUNER_L

DVD_R

C444 50V2.2

C445 50V2.2

C446 50V2.2

C530

0.1

JK403

28

SA-HT15P / SA-HT15PC

SCHEMATIC DIAGRAM - 5

MAIN CIRCUIT

W42

0

C455

16V100

C457

0.1

C458

16V100

C460

0.1

24

23

5

4

3

22

21

20

19

18

17

16

15

14

R_IN2

L_IN2

GND

BALANCE R/-

BALANCE R/+

GND (DSP)

BALANCE L/-

13

12

11

10

9

8

7

6

BALANCE L/+

GND

NC

NC

DVD_SL

DVD_SR

DVD_SW

DVD_C

GND

TU_R

TU_L

2

1

C_IN2

SL_IN2

SR_IN2

TAPE_R

TAPE_L

DVD_R

: +B SIGNAL LINE

: -B SIGNAL LINE

R501

47K

C535

50V10

R502

47K

C534

0.33

25 26 27 28 29 30 31 32 33 34 35 36 37 38

39

40

IC409

C1BB00000919

SELECTOR VOLUME IC

SL_OUT

SR_OUT

SR_VM

SR_SELOUT

R_SELOUT

R_VIN

R_OUT

TRE_R

BASS_R2

BASS_R1

BASS_L1

BASS_L2

49

50

TRE_L

L_OUT

L_VIN

L_SELOUT

GND

RECL1

RECR1

NC

NC

(SCART_OUT)RECL3

(SCART_OUT)RECR3

55

56

57

58

59

60

61

62

63

GND 64

51

52

53

54

45

46

47

48

41

42

43

44

R428

18K

R429

6.8K

C550

1000P

: AUXILLARY SIGNAL LINE

: MAIN SIGNAL LINE : FM/AM SIGNAL LINE

+7.5V

Q410

B1ABDC000011

REGULATOR

C507

100P

R453

220K

R504

10K

C511

50V1

R506

1.8K

R505

56K

W51

0

W55

0

W53

0

W58

0

W56

0

R430

2.7K

SUBWOOFER

C502

1

4 3

C508

3300P

C540

0.15

2 1

C541

0.15

-7.5V

W38

0

IC402

C0ABBB000297

OP AMP IC

W39

0

5 6

C463

33P

7

C435

100P

R437

68K

8

C519

0.01

C434

16V10

R435

1K

R432

1K

+7.5V

W76 0

W77 0

W40 0

W81 0

CENTER

SL

SR

C474 50V10

C475 50V10

C476 50V4.7

R503 47K

R487 47K

C477 50V4.7

C478

50V10

R488

47K

W65

0

R445

4.7K

L_OUT

R_OUT

C479

50V10

C480

50V4.7

W3 0

R928

120K

R929

120K

R489

47K

R444

4.7K

W70

0

R447

39K

C487

0.01

C488

100P

C489

47P

-7.5V

4 3 2 1

IC401

C0ABBB000297

OP AMP IC

80

79

78

77 76

75

74 73 72 71 70 69

68 67

66

65

C472

16V100

C470

0.1

5

C485

100P

6

C486

47P

7

R446

39K

8

+7.5V

JW405

1 2 3

TO DSP CIRCUIT

(CN405) ON SCHEMATIC

DIAGRAM-3

W60

0

R486

220K

R485

220K

C527

16V10

C528

16V10

C526

16V10

W62

0

R484

220K

R483

220K

C525

16V10

CN403A

16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

TO DSP CIRCUIT

(CN403B) ON SCHEMATIC

DIAGRAM-3

29

SA-HT15P / SA-HT15PC

SCHEMATIC DIAGRAM - 6

MAIN CIRCUIT

: +B SIGNAL LINE

: -B SIGNAL LINE

: MAIN SIGNAL LINE

-7.5V

R720

18K

R719

7.5K

R701

12K

R702

1K

R703

220K

C709

0.022

1

2

W67

0

3

4

IC406

C0ABBB000297

OP AMP IC

8

7

6

5

C703

50V10

R708

1K

C702

50V10

R707

100K

R712

10K

Q701, Q702

B1ABDC000011

MUTING SWITCH

Q702

R711

100K

R714

1K

C704

0.1

Q701

R713

1K

Q412

B1ABDC000011

MUTING SWITCH

R733

1.5K

R709

33K

R717

680K

R715

8.2K

R716

8.2K

R718

680K

W80

0

Q412

R465

470

Q411

B1ABDC000011

MUTING SWITCH

R460

22

R461

22

R462

22

R464

22

R463

470

W37

0

C521

1000P

C520

1000P

R469

150

R470

150

R466

150

R468

150

R474

47K

MUTE_ALL

SYS6V

5V

Q424

B1GDCFJJ0008

MUTING SWITCH

W66

0

R477

390K

C524

0.1

W64

0

Q423

B1GDCFJJ0008

MUTING SWITCH

HP_MUTE

HAR_LEVEL

HAR_MUTE

+7.5V

R472

680K

W36

0

-7.5V

R482

10

HP_R

R724

5.6K

C701

50V4.7

R704

100K

R705

10K

R730

56K

R480

22K

R496

22K

-7.5V

C707

50V0.47

D701

B0ACCK000005

R706

100K

Q703, Q704

B1GDCFJJ0008

MUTING SWITCH

R710

8.2K

Q704

Q703

1

2

3

4

IC407

C0ABBB000297

OP AMP IC

8

7

6

C710

220P

R721

10K

C706

50V0.47

5

R725

10K

W52

0

R726

10K

R734

4.7K

R481

10

Q408

Q409

Q408, Q409

B1ABDC000011

MUTING SWITCH

R473

47K

HP_L

R732

100K

C712

0.068

R727

10K

CON4075

+7.5V

-7.5V

C708

50V0.33

R729

10K

R728

39K

C711

0.047

1

2

3

W63

0

4

R740

8.2K

IC408

C0ABBB000297

OP AMP IC

8

7

6

5

R741

0

R735

100K

R742

47K

R743

0

C705

0.1

W54

0

30

SA-HT15P / SA-HT15PC

SCHEMATIC DIAGRAM - 7

MAIN CIRCUIT

: +B SIGNAL LINE

: -B SIGNAL LINE

-7.5V

5V

SURR_R

-7.5V

SR

+7.5V

FRONTR

-7.5V

R_OUT

R420

1K

R431

1K

R451

1K

W78

0

R457

1K

C437

1200P

C512

16V10

R449

5.6K

C532

0.33

R454

56K

W35

0

C509

33P

C510

100P

C503

1

1

2

3

4

IC404

C0ABBB000297

OP AMP IC

8

7

6

5

C433

33P

C465

100P

W34

0

R433

1K

R458

1K

C513

16V10

R436

56K

R448

5.6K

C533

0.33

C436

1200P

C522

16V10

W33

0

C548

1000P

R510

2.7K

W31

0

R442

8.2K

C536

0.15

R456

68K

W48

0

C516

47P

C517

100P

C506

0.01

1

2

3

4

IC403

C0ABBB000297

OP AMP IC

8

7

C514

47P

6

5

C515

100P

W47

0

W32

0

R455

68K

R443

8.2K

C549

1000P

C531

0.15

R511

2.7K

C518

16V10

R459

1K

W79

0

Q405

B1ABDC000011

MUTING SWITCH

FRONTL

R438

1K

SL

R419

1K

FRONTL

Q406

B1ABDC000011

MUTING SWITCH

FRONTR

R439

1K

Q401

B1ABDC000011

MUTING SWITCH

SUBWOOFER

CENTER

Q407

B1ABDC000011

MUTING SWITCH

R422

1K

SURR_R

Q402

B1ABDC000011

MUTING SWITCH

Q404

B1ABDC000011

MUTING SWITCH

R440

1K

R421

1K

SURR_L

R441

1K

L_OUT

R508

3.3K

C543

0.15

W43

0

W44

0

R507

3.3K

C542

0.15

Q421

B1GDCFJJ0008

MUTING SWITCH

Q422

B1GDCFJJ0008

MUTING SWITCH

R425

680K

R475

680K

R426

8.2K

C473

0.1

Q420

B1GDCFJJ0008

MUTING SWITCH

R471

8.2K

C523

0.1

31

SA-HT15P / SA-HT15PC

SCHEMATIC DIAGRAM - 8

MAIN CIRCUIT

TO DSP CIRCUIT (CN906) ON

SCHEMATIC DIAGRAM-3

JW906

1 2 3 4

: +B SIGNAL LINE

: -B SIGNAL LINE

C774

0.1

E751

SNE1004-2

SUB+B

D762

B0ECKM000016

D750

B0FBAM000010

1 2 3 4

D902

B0ACCE000003

VCC1

D902

5V

TUNER9V

+7.5V

-7.5V

Q754

B1BACG000023

REGULATOR

C922

16V100

Q758

B1ABCF000131

REGULATOR

Q759

KRA110STA

CURRENT LIMITING SWITCH

R761

330

C766

25V33

R757

470

R758

100

C771

0.01

D767

B0BC8R100004

C773

16V47

D765, D768

B0ACCK000005

D758

B0ACCK000005

D765

C772

16V100

C770

16V470

D768

D764

B0ADCJ000020

C757

16V100

Q753

B1AAKD000009

REGULATOR

C758

0.01

C769

50V4.7

R755

150

D757

MAZ80560ML

Q758

R759

820

R751

15K

R752

39K

C765

0.01

R765

10K

D763

B0ECKM000016

Q757

B1BCCG000021

CURRENT STABILIZER SWITCH

Q756

B1BACG000023

REGULATOR

S_DET

Q751

KRC111STA

DETECT SWITCH

C764

0.01

R763

470

Q755

2SB1548PQAU

REGULATOR

C759

0.01

C762

16V100

C755

25V33

R760

1K

R762

4.7

R764

1.8K

D761

MAZ80910ML

R766

1.2K

Q759

R771 1

R770 1

R769 1

R768 1

R767 1

R756

4.7

D759

MAZ80820ML

C750

25V4700

D766

MAZ80820ML

C763

16V100

C768

63V100

-VP

Q752

KTA12710YTA

REGULATOR

D756 D755

D751~D756

B0EAKM000117

D754 D753 D752

C756

50V100

C754

16V1000

FP751

2A

C753

0.01

R754

4.7K

C761

63V100

C760

50V100

C767

16V1000

D751

R753

150

C752

50V100

D760

MAZ82200ML

C931

0.01

R936

10K

R933

10K

W23

0

R949

47K

IC903

C3EBEC000044

EEPROM IC (NOT SUPPLIED)

R930

4.7K

8

VCC

7 WP

6 SCL

5 SDA

A0 1

A1 2

A2 3

VSS 4

FP752

4A

C751

0.1

32

SA-HT15P / SA-HT15PC

SCHEMATIC DIAGRAM - 9

MAIN CIRCUIT

: +B SIGNAL LINE

: -B SIGNAL LINE

R948 47K

R947 47K

R940 10K

R910 10K

R918

10K

C958

1000P

C957

1000P

C959

1000P

C960

1000P

SPEC1

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51

SPEC1

SPEC2

SPEC3

DCDET

S_DET

VREF

SYS6V

D903

C915

6.3V100

R914 10K

R913 10K

R904 10K

R905 10K

C916

0.01

R997

10K

C908

0.01

R902

33K

R911 10K

R915 10K

R917 1K

R909 1K

R916

33K

81 KEY1

84

85

86

87

82

83

KEY2

SPEC1_100HZ

SPEC2_1KHZ

SPEC3_10KHZ

INIT2

INIT1

88

89

90

91

92

93

94

95

IN_OUT

NC

NC

VIDEOA

VIDEOB

VIDEOC

DC_DET

96

97

S_DET

AVSS

DIVIDER (SND)

98

VREF

99

100

AVCC

NC

VCC1

D901

B0ACCE000003

D903

B0ACCK000005

NC

FRONT_FC2

NC

SURR_FC2

VREF

50

49

48

47

NC

NC

46

45

44

NC

NC

HAR_LEVEL

HAR_MUTE

43

42

NC

41

40

39

NC

RDS_CLK

RDS_DT

CS49300_RESET

CS49300_CS

CS49300_CCLK

38

37

36

35

34

33

CS49300_CDOUT

CS49300_CDIN

32

31

R912

10K

W61 0

W49 0

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30

W24

0

W25

0

C901

6.3V1000

C904

6.3V1000

C902

0.1

R906

27K

IC900

C2CBHG000166

MICROPROCESSOR

W45

0

VREF

C935

50V1

R941

47K

C905

50V1

D904

B0ACCK000005

Q901

B1GACFJN0007

RESET SWITCH

W19

0

C903

0.01

W46

0

CF901

H2A1005A0005

IN OUT

GND

C981

68P

C982

68P

R934

10K

R935

10K

R908

100K

C917

0.01

VREF

DSP_OFF

FINT49

VREF

-7.5V

HAR_LEVEL

HAR_MUTE

FCS49

RST49

CS49

CCLK49

CDOUT49

CDIN49

SPEC3

SPEC2

W20

0

33

SA-HT15P / SA-HT15PC

SCHEMATIC DIAGRAM - 10

MAIN CIRCUIT

R944

15K

C928

16V10

D921

B0ACCK000005

D924

MAZ80560ML

W29

0

: +B SIGNAL LINE

: -B SIGNAL LINE

R945

22K

C929

16V10

R921

22

D922

B0ACCK000005

D925

MAZ80560ML

W28

0

W30

0

C921

16V100

R994

75

R991

15K

R937

10K

C933

0.1

R938

15K

1

2

3

4

IC901

C0ABBB000297

OP AMP IC

8

7

6

R922

270K

5

R946

15K

C930

16V10

D923

B0ACCK000005

D926

MAZ80560ML

R924

1k

C925

0.1

R995

75

R992

15K

R920

330

R925

15K

1

2

3

4

IC902

C0ABBB000297

OP AMP IC

8

7

6

R943

3.9K

C924

0.1

5

R926

1K

C923

0.1

R993

75

W26

0

W27

0

: MAIN SIGNAL LINE

+7.5V

CON9016

+7.5V

5V

-VP

FL1

FL2

KEY2

FL_DT

FL_CLK

FL_CS

FL_RESET

HARMONIC_LED

D0

PL11

DTS

KEY2

FL_DT

FL_CLK

FL_CS

FL_RESET

HARMONIC_LED

D0

PL11

DTS

POWERGND

5V

-VP

FL1

FL2

6

7

1

2

4

5

1

2

3

5

6

7

3

4

CN104A

CN104B

TO

PANEL

CIRCUIT

(JW104A) ON

SCHEMATIC

DIAGRAM-11

TO

PANEL

CIRCUIT

(JW104B) ON

SCHEMATIC

DIAGRAM-11

SUBAC1

DCDET

SUBAC2

SYS6V

SWPOWER

FRONTL

SUB+B

FRONTR

SURR_L

SURR_R

CENTER

SUBWOOFER

PCONT(PWR_RELAY)

AC_SYNC

FL1

SUBAC2

FL2

SUBAC1

W1

0

DVDAC2

DCDET

DVDAC1

SYS6V

MUTE_H

DGND

FRONTL

SUB+B

OUTPUT GND

OUTPUT GND

FRONTR

SURR_L

4

5

6

7

8

9

10

11

1

2

3

GUARD GND

SURR_R

CENTER

GUARD GND

SUBWOOFER

GUARD_GND

PCONT

MUTE_A

SYNC

FL1

SUBAC2

FL2

SUBAC1

15

16

17

18

12

13

14

19

20

21

22

23

24

25

JK405

TO ACTIVE

SUBWOOFER

UNIT

SB-WA15PP-S

VOL_LED

REMOTE

ENCB

ENCA

VREF

TUNER9V

HP_SW

HP_R

HP_L

VOL_LED

REMOTE

ENCB

ENCA

VREF

TUNER9V

DGND

HP_SW

HP_R

HP_GND

HP_L

CN100A

3

4

5

6

1

2

7

1

2

3

4

CN100B

TO

VOLUME

CIRCUIT

(JW100) ON

SCHEMATIC

DIAGRAM-12

KEY1

KEY2

VREF

POWER_SAVE

PCONT(PWR_RELAY)

W73

0

KEY1

KEY2

VREF

POWER_SAVE

PCONT(PWR_RELAY)

DGND

INT42

CS42

INT49

CDOUT42

DSP_OFF

RST42

CDOUT49

CDIN49

CCLK49

CS49

FINT49

RST49

FCS49

W22 0

W21 0

1

2

3

4

5

6

TO

FUNCTION

CIRCUIT

(JW103) ON

SCHEMATIC

DIAGRAM-12

CN103

INT42

CS42

INT49

CDOUT42

DSP_OFF

RST42

CDOUT49

CDIN

CCLK

4

5

6

7

8

9

10

11

1

2

3

CS49

FINT49

RST49

DGND

FCS49

DGND

15

16

17

18

12

13

14

CN904A

TO

DSP CIRCUIT

(CN904B) ON

SCHEMATIC

DIAGRAM-3

34

SA-HT15P / SA-HT15PC

13.3. (C) Panel Circuit

SCHEMATIC DIAGRAM - 11

PANEL CIRCUIT

: -B SIGNAL LINE

: +B SIGNAL LINE

FL100

A2BB00000142

1 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54

C116 330P

C115 330P

C114 330P

C113 330P

C112 330P

C111 330P

C110 330P

C109 330P

C108 330P

C107 330P

Q102

B1GDCFJJ0008

FL DRIVE

Q103

B1GBCFJJ0007

FL DRIVE

R106

100K

JW104A

TO

MAIN CIRCUIT

(CN104A) ON

SCHEMATIC

DIAGRAM-10

TO

MAIN CIRCUIT

(CN104B) ON

SCHEMATIC

DIAGRAM-10

JW104B

5

6

3

4

1

2

7

1

2

5

6

3

4

7

KEY2

FL_DT

FL_CLK

FL_CS

FL_RESET

HARMONIC LED

D0

PL11

DTS

POWER_GND

5V

-VP

FL1

FL2

S105

H.BASS

5V

-VP

Q102

Q103

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

DIG7

DIG8

DIG9

DIG10

R107 1K

R108 1K

R109 1K

R110 1K

9

10

R111 15K

11

12

13

6

7

8

1

2

3

4

5

14

15

16

DIG03

DIG02

DIG01

DIG00

RESET

CS

SCK

SDATA

P1

P0

VCC1

XOUT

XIN

VSS

SEG35

SEG34

IC100

C0HBB0000039

FL DISPLAY

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

C127

50V10

C124

50V22

C123

50V22

R112

100

R113

100

D107

MAZ80560ML

C125

50V22

C128

50V10

C126

50V22

C129

50V22

C130

0.1

SEG3

SEG4

SEG5

SEG6

SEG7

SEG8

SEG9

SEG10

SEG11

SEG12

SEG13

SEG14

SEG15

SEG16

SEG17

SEG18

37

36

35

40

39

38

34

33

48

47

46

45

44

43

42

41

P4

P5

P6

P7

P8

P9

P10

P11

P12

P13

P14

P15

P16

P17

P18

P19

Q104 Q105 Q106 Q107

Q104~Q107

B1GBCFJJ0007

LED DRIVE

R131

150

R132

150

R133

150

R134

150

35

SA-HT15P / SA-HT15PC

13.4. (D) Volume Circuit & (E) Funtion Circuit

SCHEMATIC DIAGRAM - 12

VOLUME CIRCUIT

: MAIN SIGNAL LINE

: +B SIGNAL LINE

TO

MAIN CIRCUIT

(CN100A/B) ON

SCHEMATIC

DIAGRAM-10

JW100

3

4

5

1

2

6

7

8

9

10

11

VOL_LED

REMOTE

ENCA

ENCB

VREF

TUNER9V

DGND

HP_SW

HP_R

HP_GND

HP_L

Z100

B3RAB0000049

REMOTE SENSOR

O

1

VDD

2

G

3

C100

0.01

Q100

B1GBCFJJ0007

LED DRIVE

C104 1000P

R100

22

L101 J0JBC0000019

L102 J0JBC0000019

L100 J0JBC0000019

VR100

EVEJ1D42124B

JOG VOL

COM

1

B

2

C102

100P

C101

100P

A

3

C105

0.047

C106

0.047

JW101

C103

100P

1

7

6

3

2

5

4

HP100

HEADPHONE

FUNCTION CIRCUIT

TO

MAIN CIRCUIT

(CN103) ON

SCHEMATIC

DIAGRAM-10

JW103

1

2

3

4

5

6

KEY1

KEY2

VREF

POWER_SAVE

PCONT(PWR_RELAY)

DGND

Q101

B1GDCFJJ0008

LED DRIVE

R103

2.2K

R101

2.2K

S100

POWER

S101

MEMORY

R102

3.3K

S102

TUNE

UP

S103

INPUT

SELECTOR

S104

TUNE

DOWN

D101

B0ACCK000005

Q101

R104

8.2K

R105

270

D102

B3AAA0000383

36

14 Printed Circuit Board Diagram

14.1. (A) DSP P.C.B. (Side A & B)

A B C D

1

2

3

4

5

6

7

8

E F

A

DSP P.C.B (REPV0060A-T)

R1406

R1405

R1403

R1404

R1401

R1402

C1238

1

IC1201

4

C1237

5

8

C1202

C1207

C1240

1 8

IC1202

4 5

C1239

C1204

C1209

C1242

1

8

IC1203

4 5

C1241

C1206

C1211

1

R1409

2

IC1701

3

R1022

C1019

R1021

C1018

L1003

C1016

R1020

8 7

14

IC1004

1

8

14

C1020

R1019

IC1005

C1015

7

1

C1021

C1125

R1106

C1111

33

48

32

C1119

IC1101

R1118

R1115

R1117

R1116

C1129

17

C1117

C1118

16

R1110

R1112

R1111

R1113

L1101

C1107

1

C1104

49

C1103

R1101

64

X1001

Q1001

E

C

B

C1025

R1024

4

5

1

R1010

C1009

IC1003

8

R1028

R1016

R1025

R1017

R1015

29

39

28

40

C1301

C1302

C1102

L1102

C1304

C1007

IC1001

18

17

44 1 6

C1006 R1005 R1004

7

C1309

R1006

R1007

R1008

R1009

R1011

R1012

R1013

R1014

C1310

R1303

PbF

(SIDE A)

9

G

SA-HT15P / SA-HT15PC

37

SA-HT15P / SA-HT15PC

A

1

B C D

A

DSP P.C.B (REPV0060A-T)

2

3

4

5

6

C1231

C1213

C1233

C1214

C1235

C1215

E

C1232

C1217

C1234

C1219

C1236

C1221

C1246

C1245

CN403B

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CN906

1

2

3

4

CN904B

17 15 13 11 9 7 5 3 1

18 16 14 12 10 8 6 4 2

Q1701

B

Q1702

B

C

E

E

C

R1703

R1704

Q1703

B

C

E

CN405

1

2

3

Z1101

C1701

C1011

C1008

C1004

C1132

F

7

8

9

C1101

JK1301

1 2 3

JK1302

1 2 3

DIGITAL IN TV

(OPTICAL 1)

DIGITAL IN DVR

(OPTICAL 2)

(SIDE B)

C1105

C1024

JK1303

2

1

3

4

L1301

2

3 1

COAXIAL IN

DVD

C1308

C1005

PbF

G

38

SA-HT15P / SA-HT15PC

14.2. (B) Main P.C.B.

A B

1

2

3

4

5

6

7

8

9

C D E F

B

MAIN P.C.B (REPV0059A-M)

W75

R940

W360

CN100B

4 3 2 1

CN100A

7 6 5 4 3 2 1

D756

D755

D754

D753

R762

C761

C760

C752

Q752

B

C

E

C774

E751

C750

C767

R755

R759

D752

D751

C756

D750

43~ 2~ 1+

C768

C751

C766

R766

B

C

C765

E

Q758

R765

D762

B

C

E

Q759

B

Q757

C

E

C754

R758

C771

B

C

R757

W433

B

Q755

C E

E

Q754

C755

E

Q753

B C

B

Q756

C764

R764

D759

C E

W370

W351

W629

W630

W827

W628

W612

W607

W606

JK405

1

2

3

4

5 7 9 11 15 17 19 21 23 25

6 8 10 12 13 14 16 18 20 22 24

W343

W344

W369

W349

W350

W434

W352

W353

W354

W355

W123

W122

Q751

B E

C

CA

D764

CA

A

W45

CN104B

7 6 5 4 3 2 1

CN104A

7 6 5 4 3

R912

R919

50

W119

W120

W46

W118

5 8

IC903

4 1

W20

C931

R949

W23

31

W338

W339

30

W613

W627

W332

W342

W334

R907

R935

R934

C917

R941

R908

R984

C982

CF901

3 2 1

R901

B

Q901

C E

R906

R982

R983

C902

C904

C901

W205

5

6

3

4

7

8

CP201

TO TUNER

PACK P.C.B

1

Q401

B

2

E

C

W56

9

10

B E

C

Q407

B E B

C

E B

C

R458

C

R431

C

R459

Q404 Q405Q406

E B E

R451

C518

Q408

R482

B E

Q424

B E

R477

C

C B E

C

Q412

E

Q423

B

C513 C

C

R481

R466

R468

R473

Q409

B E

Q411

B E

R463

R460

R461

C

R446

C486

5 8

IC401

W80

4

C489

1

R447

R469 R462

R470 R464

C522

Q702

B

Q701

E B E

R712

R735

R707

R709 R710

W38

C463

C512

Q704

B E

Q703

B E

C C

R716

5 8

5 8

C434

C

W143

C

W52

IC406

IC402

R203

C202

W376

R743

C706

5

R742

W54

8

IC408

5

IC407

4

8

4 1

4

R705

1

R703

C709

R704

C701

R702

R730

R701

R724

C507 C508

R453

B

C511

E

C

Q410

W112

W145

1

C707

W63

4 1

C708

R729

W110

W53

W111

5

R455

C514

R443

C549

8

IC403

4

5

1

8

IC404

W43

R448

R436 C436

C433

4

C534

1

C509

R454

R449

C437

R504

C541

R505

C543

R508

R442 C536

B E

R471

Q420

R475

C

Q422

B E B E

C C

Q421

R426

R425

W134

5 6 2 3 5 6 2

C408

3

5

C409 C410

6 2

JK401

4 1 4

C530

1

JK402

4

GAME/

AUX IN

TV IN

DVR/VCR

OUT

DVR/VCR

IN

DVD IN

W320

W319

W318

3

1

JK403

C535

1

80

39

SA-HT15P / SA-HT15PC

H I J K L M

CN104B

7 6 5 4 3 2 1

CN104A

7 6 5 4 3 2 1

R912

R919

50

W801

51

5 8

IC903

4 1

W20

C931

R949

W23

31

30

IC900

W304

W305

80

81

R907

R935

R934

C917

R941

R908

R984

C982

CF901

3 2 1

C902

C904

R901

B

Q901

C E

R906

C901

R982

R983

1

W365

W366

W367

100

R909

R917

R911

C908

W422

R902

R997

D903

D901

W73

R493

C916

W102

CN103

6

R918

5

2

1

4

3

5

C923

R943

8

IC902

W29

4 1

R925

C925

W26

R993

R994

R995

W803

W380

5

R928

R929

8

IC901

4

R938

1

R991

C933

R937

W28

CN904A

18

16

17

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

W362

W347

JW906

2

1

4

3

C527

R485

C525

R483

W59

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

CN403A

R484

W62

5

R455

C514

R443

C549

8

IC403 W43

4 1

C543

R508

R442 C536

5

R436

R448

C436

C433

8

IC404

4

C534

1

C509

R454

R449

C437

R504

C541

R505

W320

C535

W79

W78

W76

W602

W603

W604

W818

W819

W820

W821

24

C539

C537

C538

25

W319

W318

IC409

1

80

65 64

40

41

C462

R503

W372

W371

JW405

3

2

1

PbF

5

C409 C410

6 2

4

3

1

JK403

DVD IN

40

SA-HT15P / SA-HT15PC

14.3. (C) Panel P.C.B., (D) Volume P.C.B. & (E) Function P.C.B.

A B C D E F

1

C

PANEL P.C.B (REPV0059A-M)

2

3

FL100

C126

C125

Q104

E B

C

52 49

D103

45

S105

H.BASS

40 35 30 25 24

C124

13 10

C123

5 4 1

R134

D106

4

5

D

VOLUME P.C.B (REPV0059A-M)

VOLUME

VR100

6

7

8

11 10 9 8 7 6 5 4

C104

C106 L102

W71

3 2 1

JW100

HP100

7

6

1

2

3

4

5 C103

PHONES

W139

W140

C

Q100

B E

W340

W333

C100

1 2 3

JW101

3

2

1

Z100

PbF

SENSOR

9

41

SA-HT15P / SA-HT15PC

H I J K L M

4 1

R134

D106

Q107

E B

R133

C

Q106

E B

C

D105

D104

Q105

E B

C

48

49

Q102

E B

C

Q103

E B

C

33 32

IC100

64 1

17

16

C129

C128

C121

W200

C127

PbF

JW104A/B

W435

W388

W389

W390

6

7

4

5

1

2

3

1

4

5

2

3

6

7

E

FUNCTION P.C.B (REPV0059A-M)

S101

MEMORY

1 2

JW103

3 4 5 6

S102

TUNE UP

S104

TUNE DOWN

R103

S103

INPUT

SELECTOR

R105

Q101

E

C

B

D101

R104

D102

PbF

S100

POWER

42

SA-HT15P / SA-HT15PC

15 Wiring Connection Diagram

DIGITAL IN TV

(OPTICAL 1)

DIGITAL IN DVR

(OPTICAL 2)

COAXIAL IN

DVD

SOLDER SIDE

JK1301 JK1302

JK1303

CN904A

17 . . . . . . . . . 1

18 . . . . . . . . . 2

JW906

4 . . . . 1

CN403A

15 . . . . . . 1

16 . . . . . . 2

CN103

6 . . . . . . 1

A DSP P.C.B.

(SIDE B)

CN403B

2. . . . . . . . .

1. . . . . . . . .

16

15

4

1

CN906

CN904B

18 . . . . . . . . . . 2

17 . . . . . . . . . . 1

3

1

CN405

CN104A

1. . . . . . .

7

1. . . . . . .

7

CN104B

B MAIN P.C.B.

JW405

1 . . 3

PbF

SOLDER SIDE

PbF

JK403

DVD IN

JK402

DVR/VCR

IN

DVR/VCR

OUT

TV IN

JK401

GAME/

AUX IN

1 . . . . . . . . 6

JW103

SOLDER SIDE

E FUNTION P.C.B.

PbF

VOLUME

SOLDER SIDE

VR100

PbF

CN100A

1. . . . . . .

7

1

4

CN100B

CP201

TO TUNER PACK

JK405

TO

ACTIVE

SUBWOOFER

UNIT

11 . . . . . . . . . . . . . . . . . . . . . . . . . . 1

JW100

Z100

HP100

PHONES

D VOLUME P.C.B.

SENSOR

FL100

C PANEL P.C.B.

SOLDER SIDE

JW104A/B

1. . . . . . . . .

7

1. . . . . . . . .

PbF

7

43

SA-HT15P / SA-HT15PC

16 Type Illustration of IC´s, Transistors and Diodes

C0FBZK000009 (64p)

C0HBB0000039 (64p)

C2CBHG000166 (64p)

C2HBZZ000015 (44p)

C0CBAAG00004 (3p)

C0JBAZ002160 (14p)

C0JBAZ002161 (14p)

C0ABBB000297 (8p)

KTC3199GRTA

1

1

2SB1548PQAU

B

C

E

B1BACG000023

B1BCCG000021

B1GDCFJN0001

B1ABDC000011

B1GBCFJJ0007

C

B

E

B0BC8R100004

MAZ80560ML

Cathode

Ca

Anode

B

C

E

B0ADCJ000020

Anode

Cathode

Cathode

B0ACCE000003

MAZ80620ML

MAZ82200ML

MAZ80910ML

Anode

A

KRA110STA

KRC111STA

B1ABCF000131

C

B

E

MAZ80820ML

Cathode

Ca

B1AAKD000009

KTA12710YTA

B1GACFJN0007

B1GDCFJJ0008

3

B0ACCK000005

Cathode

Anode

A

B3AAA0000383

B3ACA0000261

Ca

E

C

B

2

1

B0EAKM000117

Ca

Cathode

A

Anode

B0FBAM000010

B0ECKM000016

Cathode

Ca

A

Anode

+ ~

~ -

44

SA-HT15P / SA-HT15PC

17 Terminal Function of IC

17.1. IC900 (C2CBHG000166):

Microprocessor

Pin No.

1-4

7

8

5

6

9

10

11

12

32

33

34

35

36

37

38

39

40

41-45

46

56

57

58

59

28

29

30

31

25

26

27

13

14

15

16

17

18

19

20

21

22

23

24

50

51

52

53

54

47

48

49

55

Terminal Name

NC

VOL_CLK

VOL_DT

VOL_LT

BYTE

CNVss

XCIN

XCOUT

RESET

XOUT

VSS

XIN

VCC1

NMI

FINT49

REMOTE

AC_SYNC

MUTE_ALL

MUTE_S/C

NC

TUNER_ST

TUNER_SD

DSP_OFF

MUTE_HP

SW_POWER

TUNER_CLK

TUNER_DT

CS49300_CDIN

CS49300_CDOUT

CS49300_CCLK

CS49300_CS

CS49300_RESET

RDS_DT

RDS_CLK

NC

HAR_MUTE

HAR_LEVEL

NC

VREF

SURR_FC2

NC

FRONT_FC2

NC

PWR RELAY

NC

ENCA

ENCB

HP_SW

VOL_LED

NC

DTS

PLII

I/O Function

No connection

O Volume + Selector control

O Volume + Selector control

O Volume + Selector control

GND

CNVss

I/O Sub Clock Input (32.768

kHz)

I/O Sub Clock Input (32.768

kHz)

C Reset input pin for active

“L”

O Clock Output [10.00 MHz]

GND

I/O Clock input [10.00 MHz]

Power source [5V]

Power source [5V]

No Connection

I Remote Control signal input

I Power Failure Detection

O MUTE all Channel

O MUTE Surround Channel

No Connection

I NEW TUNER STEREO

Detect

I NEW TUNER SD Detect

O Switch Off DSP Power

O Head phone MUTE

O Amplifier Power Shut Down

I/O NEW TUNER (12C Clock)

I/O NEW TUNER (12C Data)

O DSP/CODEC serial Data

IN (uP--> DSP/ CODEC)

I DSP serial DATA OUT

(DSP--> uP)

O DSP/ CODEC Clock

O DSP Chip Select

O DSP RESET

I RDS IC Control: DATA

I RDS IC Control: Clock

No Connection

O Activate Harmonic Bass

Function

O Harmonic Bass Level

Adjust

No connection

Reference power supply

[5V]

No Connection

No Connection

No Connection

No Connection

O Power Relay Control

No Connection

I Volume Encoder Input A

I Volume Encoder Input B

I Detect

Connection

Headphone

O Volume Encoder LED

No Connection

O DTS Decode LED

O Pro Logic II Decode LED

45

Pin No.

60

61

62

63

64

65-66

67

68

69

70

71-73

74

75

76

77

83

84

85

86

78

79

80

81

82

87

88

89

90

91

92

93

94

95

96

97

98

99

100

Terminal Name

D0

HARMONIC_LED

VCC2

NC

Vss

NC

FL_RESET

FL_CS

FL_CLK

FL_DT

NC

CS49300_INTREQ

CS42516_INT

CS42516_CS

CS42516_CDOUT

CS42516_RESET

NC

POWER_save

Key1

Key2

SPEC1_100MHZ

SPEC2_1KHZ

SPEC3_10KHZ

INIT2

INIT1

IN_Out

NC

NC

VIDEO_A

VIDEO_B

VIDEO_C

DC_DET

S_DET

AVss

DIVIDER (SND)

VREF

Avcc

NC

I/O Function

O Dolby Digital Decode LED

O Harmonic Bass LED

Power sourde [5V]

No Connection

GND

No Connection

O FLD Dr RESET

O FLD Dr CS

O FLD Dr serial clock

O FLD Dr serial data

No Connection

I DSP Interrupt Request

I CODEC Interrupt Request

O CODEC Chip Select

I CODEC Data OUT

O CODEC RESET

No Connection

I Power Key Detection

I Key Input 1

I Key Input 2

I Spectrum 100Hz Level

I Spectrum 1kHz Level

I Spectrum 10kHz Level

I INITIAL SETTING 2

I INITIAL SETTING 1

O INITIAL

OUTPUT

SETTING

No Connection

No Connection

O VIDEO Selector control

O VIDEO Selector control

O VIDEO Selector control

I Fan Lock detection

Short I Power

Detection supply

AVss

C Filter Setting

Reference power supply of the A/D converter [5V]

Power source [5V]

No Connection

SA-HT15P / SA-HT15PC

18 Parts Location and Replacement Parts List

Notes:

· Important safety notice:

Components identified by mark have special characteristics important for safety.

Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise

(resistors), etc are used.

When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list.

· The parenthesized indications in the Remarks columns specify the areas or colour. (Refer to the cover page for area or colour)

Parts without these indications can be used for all areas.

· Capacitor values are in microfarads (µF) unless specified otherwise, P= Pico-farads (pF), F= Farads.

· Resistance values are in ohms, unless specified otherwise, 1K=1,000 (OHM).

· The marking (RTL) indicates that the Retention Time is limited for this items. After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of a availability is dependent on the type of assembly, and in accordance with the laws governing part and product retention. After the end of this period, the assembly will no longer be available.

· [M] Indicates in the Remarks columns indicates parts supplied by PAVCSG.

· Reference for O/I book languages are as follows:

Ar :

Cf :

Cz :

Da :

Pe :

Arabic

Canadian French

Czech

Danish

Persian

Du :

En :

Fr :

Ge :

Ur:

Dutch

English

French

German

Ukraine

It :

Ko :

Po :

Ru :

Italian

Korean

Polish

Russian

Sp :

Sw :

Co :

Cn :

Spanish

Swedish

Traditional Chinese

Simplified Chinese

46

18.1. Cabinet Parts Location

18.1.1. Cabinet

SA-HT15P / SA-HT15PC

47

SA-HT15P / SA-HT15PC

48

SA-HT15P / SA-HT15PC

3

4

5

6

1

2

7

8

9

10

11

12

13

14

15

18.1.2. Cabinet Parts List

Ref. No.

Part No.

Part Name & Description

CABINET AND CHASSIS

Remarks

ENG06811QF

REEV0083

REEV0084

RGKV0122-S

RGKV0123-W

RGLV0055-Q

TUNER PACK

16P FFC

18P FFC

VOLUME RING

H.BASS BUTTON RING

ILLUMINATION RING

RGLV0056-Q

RGLV0057-Q

LED LIGHT GUIDE

STANDBY LIGHT GUIDE

RGLV0058-Q H. BASS LIGHT GUIDE

RFKJAHT15PCS BOTTOM CHASSIS ASS’Y

RGPV0070-S

RGRV0039A-A

RGUV0127-S

RGUV0128-S

RGWV0037-S

FRONT PANEL

REAR PANEL

FUNCTION BUTTON

H.BASS BUTTON

VOLUME KNOB

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

24

25

26

27

28

29

30

31

19

20

21

22

23

Ref. No.

16

Part No.

RHD26045-L

17

18

Part Name & Description

SCREW

RHD30007-1SJ SCREW

RHD30070 EARTH TERMINAL

RHD30119-K

RKAV0027-K

RKAV0028-K

RKMV0051-S

RKQV0001

SCREW

LEG RUBBER

LEG CUSHION

TOP CABINET

PCB SPACER

RKWV0051-R

RKWV0052-S

RMNV0060-K

RMYV0048

XTB3+8JFJ

XYA3+FJ12FJ

XYB3+F8FJ

XYN3+F8FJ

FL WINDOW

REMOTE SENSOR WINDOW

FL HOLDER

POWER HEAT SINK

SCREW

SCREW

SCREW

SCREW

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

49

SA-HT15P / SA-HT15PC

18.2. Electrical Parts List

Ref. No.

Part No.

Part Name & Description

PRINTED CIRCUIT BOARD

Remarks

REPV0060A-T

REPV0059A-M

REPV0059A-M

REPV0059A-M

REPV0059A-M

DSP P.C.B. (SIDE A & B)

MAIN P.C.B.

PANEL P.C.B.

VOLUME P.C.B.

FUNCTION P.C.B.

[M] (RTL)

[M] (RTL)

[M] (RTL)

[M] (RTL)

[M] (RTL)

Q410

Q411

Q412

Q420

Q421

Q422

Q423

Q402

Q404

Q405

Q406

Q407

Q408

Q409

Q100

Q101

Q102

Q103

Q104

Q105

Q106

Q107

Q401

Q753

Q754

Q755

Q756

Q757

Q758

Q759

Q901

Q424

Q701

Q702

Q703

Q704

Q751

Q752

INTEGRATED CIRCUITS

IC100

IC401

IC402

IC403

IC404

IC406

IC407

IC408

IC409

IC900

IC901

IC902

IC1001

IC1003

IC1004

IC1005

IC1101

IC1201

IC1202

IC1203

IC1701

C0HBB0000039 IC FL DISPLAY

C0ABBB000297 IC OP AMP

C0ABBB000297 IC OP AMP

C0ABBB000297 IC OP AMP

C0ABBB000297 IC OP AMP

C0ABBB000297 IC OP AMP

C0ABBB000297 IC OP AMP

C0ABBB000297 IC OP AMP

C1BB00000919 IC SELECTOR VOLUME

C2CBHG000166 IC MICROPROCESSOR

C0ABBB000297 IC OP AMP

C0ABBB000297 IC OP AMP

C2HBZZ000015 IC AC3/DTS

C0JBAB000633 IC LOGIC INVERTER

C0JBAZ002160 IC LOGIC

C0JBAZ002161 IC LOGIC

C0FBZK000009 IC CODEC

C0ABBB000297 IC OP-AMP

C0ABBB000297 IC OP-AMP

C0ABBB000297 IC OP-AMP

C0CBAAG00004 IC REGULATOR

TRANSISTORS

B1GBCFJJ0007 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

B1GBCFJJ0007 TRANSISTOR

B1GBCFJJ0007 TRANSISTOR

B1GBCFJJ0007 TRANSISTOR

B1GBCFJJ0007 TRANSISTOR

B1GBCFJJ0007 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1ABDC000011 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

B1GDCFJJ0008 TRANSISTOR

KRC111STA TRANSISTOR

KTA12710YTA TRANSISTOR

B1AAKD000009 TRANSISTOR

B1BACG000023 TRANSISTOR

2SB1548PQAU TRANSISTOR

B1BACG000023 TRANSISTOR

B1BCCG000021 TRANSISTOR

B1ABCF000131 TRANSISTOR

KRA110STA TRANSISTOR

B1GACFJN0007 TRANSISTOR

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

50

D764

D765

D766

D767

D768

D901

D902

D757

D758

D759

D760

D761

D762

D763

D903

D904

D921

D922

D923

D924

D925

D926

D1701

D101

D102

D103

D104

D105

D106

D107

D701

D750

D751

D752

D753

D754

D755

D756

Ref. No.

Q1001

Part No.

Part Name & Description

B1GDCFJN0001 TRANSISTOR

Q1701

Q1702

Q1703

KTC3199GRTA

B1BACG000023

B1BACG000023

TRANSISTOR

TRANSISTOR

TRANSISTOR

Remarks

[M]

[M]

[M]

[M]

DIODES

B0ACCK000005 DIODE

B3AAA0000383 DIODE

B3ACA0000261 DIODE

B3ACA0000261 DIODE

B3ACA0000261 DIODE

B3ACA0000261 DIODE

MAZ80560ML DIODE

B0ACCK000005 DIODE

B0FBAM000010 DIODE

B0EAKM000117 DIODE

B0EAKM000117 DIODE

B0EAKM000117 DIODE

B0EAKM000117 DIODE

B0EAKM000117 DIODE

B0EAKM000117 DIODE

MAZ80560ML DIODE

B0ACCK000005 DIODE

MAZ80820ML

MAZ82200ML

DIODE

DIODE

MAZ80910ML DIODE

B0ECKM000016 DIODE

B0ECKM000016 DIODE

B0ADCJ000020 DIODE

B0ACCK000005 DIODE

MAZ80820ML DIODE

B0BC8R100004 DIODE

B0ACCK000005 DIODE

B0ACCE000003 DIODE

B0ACCE000003 DIODE

B0ACCK000005 DIODE

B0ACCK000005 DIODE

B0ACCK000005 DIODE

B0ACCK000005 DIODE

B0ACCK000005 DIODE

MAZ80560ML DIODE

MAZ80560ML DIODE

MAZ80560ML

MAZ80620ML

DIODE

DIODE

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

VR100

S100

S101

S102

S103

S104

S105

VARIABLE RESISTOR

EVEJ1D42124B JOG VOLUME

EVQ21405RJ

EVQ21405RJ

EVQ21405RJ

EVQ21405RJ

EVQ21405RJ

EVQ21405RJ

SWITCHES

SW POWER

SW MEMORY

SW TUNE UP

SW INPUT SELECTOR

SW TUNE DOWN

SW H. BASS

CONNECTORS

CN100A

CN100B

CN103

CN104A

CN104B

CN403A

CN403B

CN405

CN904A

CN904B

CN906

K1MP07A00002 7P CONNECTOR

K1MP04A00007 4P CONNECTOR

K1MP06A00012 6P TAPING CONNECTOR

K1MP07A00006 7P TAPING CONNECTOR

K1MP07A00006 7P TAPING CONNECTOR

K1MN16A00073 16P FFC CONNECTOR

K1MN16A00073 16P FFC CONNECTOR

K1MP03A00012 3P CONNECTOR

K1MN18A00046 18P CONNECTOR

K1MN18A00046 18P CONNECTOR

K1MP04A00007 4P CONNECTOR

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Ref. No.

CP201

Part No.

Part Name & Description

K1KA10AA0031 10P CONNECTOR

Remarks

[M]

L100

L101

L102

L1001

L1002

L1003

L1004

L1101

L1102

L1103

L1301

L1302

COILS & TRANSFORMERS

J0JBC0000019 CHIP INDUCTOR

J0JBC0000019 CHIP INDUCTOR

J0JBC0000019 CHIP INDUCTOR

G1C2R2K00008 CHIP INDUCTOR

G1C2R2K00008 CHIP INDUCTOR

G1C2R2K00008 CHIP INDUCTOR

G1C2R2K00008 CHIP INDUCTOR

G1C2R2K00008 CHIP INDUCTOR

G1C2R2K00008 CHIP INDUCTOR

G1C2R2K00008 CHIP INDUCTOR

RLQZ150M-0 CHOKE COIL

VLQ0855M1R0T CHIP INDUCTOR

COMPONENT COMBINATIONS

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Z100

Z1101

[M]

[M]

CF901

X1001

B3RAB0000049 REMOTE SENSOR

J0JKB0000020 EMI BEAD CORE

CERAMIC FILTERS

H2A100500006 10MHZ RESONATOR

OSCILLATORS

H0J122200002 CYRSTAL

DISPLAY TUBE

[M]

[M]

[M]

W1

W3

W19

W20

W21

W22

W23

FL100

JW100

JW101

JW103

JW104

JW405

JW906

A2BB00000142 FL DISPLAY

FUSE PROTECTORS

K5G202A00025 FUSE PROTECTOR

K5G402A00025 FUSE PROTECTOR

FP751

FP752

JACKS

JK401

JK402

JK403

JK405

JK1301

JK1302

JK1303

K4BK04H00013 JK 4P RCA

K4BK04H00025 JK 4P RCA

K2HA203B0017 JK 2P RCA

K1FB125B0097 JK 25PS

B3RAB0000048 JK OPTICAL

B3RAB0000048 JK OPTICAL

K4BK01H00010 JK COAX INPUT

HP100 K2HC103A0023 H/P JACK

EARTH TERMINAL

E751 SNE1004-2 EARTH TERMINAL

WIRES

RWJ1811120SQ 11P WIRE

REZV0001 EARTH WIRE

RWJ1806160SQ 6P (PWR TO DIG)

RWJ1814200SQ 14P WIRE

RWJ1803180SQ JUMPER WIRE

RWJ1804130SQ 4P WIRE

CHIP JUMPERS

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

51

R107

R108

R109

R110

R111

R112

R113

R131

R132

R100

R101

R102

R103

R104

R105

R106

W71

W72

W73

W74

W75

W76

W77

W62

W63

W64

W65

W66

W67

W70

W78

W79

W80

W81

W55

W56

W57

W58

W59

W60

W61

W48

W49

W50

W51

W52

W53

W54

W40

W42

W43

W44

W45

W46

W47

W33

W34

W35

W36

W37

W38

W39

Ref. No.

W24

Part No.

Part Name & Description

ERJ3GEY0R00V CHIP JUMPER

W25

W26

ERJ3GEY0R00V

ERJ3GEY0R00V

CHIP JUMPER

CHIP JUMPER

W27

W28

W29

W30

W31

W32

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

ERJ3GEY0R00V CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

CHIP JUMPER

SA-HT15P / SA-HT15PC

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

RESISTORS

D0GB220JA007 22 1/16W

D0GB222JA041 2.2K 1/16W

D0GB332JA007 3.3K 1/16W

D0GB222JA041 2.2K 1/16W

ERJ3GEYJ822V 8.2K 1/16W

D0GB271JA007 270 1/16W

D0GB104JA007 100K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

D0GB153JA007 15K 1/16W

D0GB101JA007 100 1/16W

D0GB101JA007 100 1/16W

D0GB151JA007 150 1/16W

D0GB151JA007 150 1/16W

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

SA-HT15P / SA-HT15PC

R468

R469

R470

R471

R472

R473

R474

R460

R461

R462

R463

R464

R465

R466

R475

R477

R480

R481

R482

R483

R484

R485

R486

R453

R454

R455

R456

R457

R458

R459

R444

R445

R446

R447

R448

R449

R451

R437

R438

R439

R440

R441

R442

R443

R429

R430

R431

R432

R433

R435

R436

R419

R420

R421

R422

R425

R426

R428

R404

R405

R406

R407

R408

R409

R410

Ref. No.

R133

Part No.

Part Name & Description

D0GB151JA007 150 1/16W

R134

R201

D0GB151JA007

ERJ3GEYJ102V

150 1/16W

1K 1/16W

R202

R203

R204

R401

R402

R403

ERJ3GEYJ102V

D0GB473JA041

D0GB473JA041

1K 1/16W

47K 1/16W

47K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V

ERJ3GEYJ102V

ERJ3GEYJ102V

ERJ3GEYJ102V

ERJ3GEYJ102V

ERJ3GEYJ102V

ERJ3GEYJ102V

1K 1/16W

1K 1/16W

1K 1/16W

1K 1/16W

1K 1/16W

1K 1/16W

1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ684V 680K 1/16W

ERJ3GEYJ822V 8.2K 1/16W

D0GB183JA007 18K 1/16W

ERJ3GEYJ682V

D0GB272JA041

ERJ3GEYJ102V

ERJ3GEYJ102V

ERJ3GEYJ102V

ERJ3GEYJ102V

D0GB563JA007

6.8K 1/16W

2.7K 1/16W

1K 1/16W

1K 1/16W

1K 1/16W

1K 1/16W

56K 1/16W

D0GB683JA007 68K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ822V 8.2K 1/16W

ERJ3GEYJ822V 8.2K 1/16W

D0GB472JA041 4.7K 1/16W

D0GB472JA041 4.7K 1/16W

D0GB393JA041 39K 1/16W

D0GB393JA041 39K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB562JA007 5.6K 1/16W

ERJ3GEYJ102V 1K 1/16W

D0GB224JA007 220K 1/16W

D0GB563JA007 56K 1/16W

D0GB683JA007 68K 1/16W

D0GB683JA007 68K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

D0GB220JA007 22 1/16W

D0GB220JA007 22 1/16W

D0GB220JA007 22 1/16W

D0GB471JA041 470 1/16W

D0GB220JA007 22 1/16W

D0GB471JA041 470 1/16W

D0GB151JA007 150 1/16W

D0GB151JA007 150 1/16W

D0GB151JA007 150 1/16W

D0GB151JA007 150 1/16W

ERJ3GEYJ822V 8.2K 1/16W

ERJ3GEYJ684V 680K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

ERJ3GEYJ684V 680K 1/16W

ERJ3GEYJ394V 390K 1/16W

D0GB223JA041 22K 1/16W

D0GB100JA007 10 1/16W

D0GB100JA007 10 1/16W

D0GB224JA007 220K 1/16W

D0GB224JA007 220K 1/16W

D0GB224JA007 220K 1/16W

D0GB224JA007 220K 1/16W

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

52

R756

R757

R758

R759

R760

R761

R762

R742

R743

R751

R752

R753

R754

R755

R763

R764

R765

R766

R767

R768

R769

R770

R771

R730

R732

R733

R734

R735

R740

R741

R721

R724

R725

R726

R727

R728

R729

R714

R715

R716

R717

R718

R719

R720

R707

R708

R709

R710

R711

R712

R713

R511

R701

R702

R703

R704

R705

R706

R503

R504

R505

R506

R507

R508

R510

Ref. No.

R487

Part No.

Part Name & Description

D0GB473JA041 47K 1/16W

R488

R489

D0GB473JA041

D0GB473JA041

47K 1/16W

47K 1/16W

R491

R492

R493

R496

R501

R502

ERJ3GEYJ103V

ERJ3GEYJ103V

ERJ3GEYJ103V

10K 1/16W

10K 1/16W

10K 1/16W

D0GB223JA041 22K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041

ERJ3GEYJ103V

D0GB563JA007

D0GB182JA007

D0GB332JA007

D0GB332JA007

D0GB272JA041

47K 1/16W

10K 1/16W

56K 1/16W

1.8K 1/16W

3.3K 1/16W

3.3K 1/16W

2.7K 1/16W

D0GB272JA041 2.7K 1/16W

D0GB123JA007 12K 1/16W

ERJ3GEYJ102V 1K 1/16W

D0GB224JA007 220K 1/16W

D0GB104JA007 100K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB104JA007 100K 1/16W

D0GB104JA007

ERJ3GEYJ102V

D0GB333JA007

ERJ3GEYJ822V

D0GB104JA007

ERJ3GEYJ103V

ERJ3GEYJ102V

100K 1/16W

1K 1/16W

33K 1/16W

8.2K 1/16W

100K 1/16W

10K 1/16W

1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ822V 8.2K 1/16W

ERJ3GEYJ822V 8.2K 1/16W

ERJ3GEYJ684V 680K 1/16W

ERJ3GEYJ684V 680K 1/16W

ERJ3GEYJ752V 7.5K 1/16W

D0GB183JA007 18K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB562JA007 5.6K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB393JA041 39K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB563JA007 56K 1/16W

D0GB104JA007 100K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB472JA041 4.7K 1/16W

D0GB104JA007 100K 1/16W

ERJ3GEYJ822V 8.2K 1/16W

ERJ3GEY0R00V 0 1/16W

D0GB473JA041 47K 1/16W

ERJ3GEY0R00V 0 1/16W

D0GB153JA007 15K 1/16W

D0GB393JA041 39K 1/16W

D0GB151JA007 150 1/16W

D0GB472JA041 4.7K 1/16W

D0GB151JA007 150 1/16W

ERD2FCVJ4R7T 4.7 1/4W

D0GB471JA041 470 1/16W

D0GB101JA007 100 1/16W

D0GB821JA007 820 1/16W

ERJ3GEYJ102V 1K 1/16W

D0GB331JA007 330 1/16W

ERD2FCVJ4R7T 4.7 1/4W

D0GB471JA041 470 1/16W

D0GB182JA007 1.8K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ122V 1.2K 1/16W

D0GB1R0JA007 1 1/16W

D0GB1R0JA007 1 1/16W

D0GB1R0JA007 1 1/16W

D0GB1R0JA007 1 1/16W

D0GB1R0JA007 1 1/16W

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

R993

R994

R995

R997

R1001

R1002

R1003

R1004

R1005

R1006

R1007

R1008

R1009

R1010

R1011

R1012

R1013

R1014

R1015

R1016

R1017

R1018

R1019

R955

R956

R982

R983

R984

R991

R992

R945

R946

R947

R948

R949

R953

R954

R936

R937

R938

R940

R941

R943

R944

R926

R928

R929

R930

R933

R934

R935

R918

R919

R920

R921

R922

R924

R925

R911

R912

R913

R914

R915

R916

R917

Ref. No.

R901

Part No.

Part Name & Description

ERJ3GEYJ681V 680 1/16W

R902

R904

D0GB333JA007

ERJ3GEYJ103V

33K 1/16W

10K 1/16W

R905

R906

R907

R908

R909

R910

ERJ3GEYJ103V

D0GB273JA007

D0GB472JA041

10K 1/16W

27K 1/16W

4.7K 1/16W

D0GB104JA007 100K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V

ERJ3GEYJ103V

ERJ3GEYJ103V

ERJ3GEYJ103V

ERJ3GEYJ103V

D0GB333JA007

ERJ3GEYJ102V

10K 1/16W

10K 1/16W

10K 1/16W

10K 1/16W

10K 1/16W

33K 1/16W

1K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ102V 1K 1/16W

D0GB331JA007 330 1/16W

D0GB220JA007 22 1/16W

D0GB274JA007 270K 1/16W

ERJ3GEYJ102V 1K 1/16W

D0GB153JA007 15K 1/16W

ERJ3GEYJ102V

D0GB124JA007

D0GB124JA007

D0GB472JA041

ERJ3GEYJ103V

ERJ3GEYJ103V

ERJ3GEYJ103V

1K 1/16W

120K 1/16W

120K 1/16W

4.7K 1/16W

10K 1/16W

10K 1/16W

10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB153JA007 15K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB473JA041 47K 1/16W

D0GB392JA041 3.9K 1/16W

D0GB153JA007 15K 1/16W

D0GB223JA041 22K 1/16W

D0GB153JA007 15K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB153JA007 15K 1/16W

D0GB153JA007 15K 1/16W

ERJ3GEYJ750V 75 1/16W

ERJ3GEYJ750V 75 1/16W

ERJ3GEYJ750V 75 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB332JA007 3.3K 1/16W

D0GB332JA007 3.3K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB332JA007 3.3K 1/16W

D0GB332JA007 3.3K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

ERJ3GEYJ103V 10K 1/16W

D0GB472JA041 4.7K 1/16W

D0GB333JA007 33K 1/16W

D0GB472JA041 4.7K 1/16W

D0GB330JA007 33 1/16W

ERJ3GEYJ102V 1K 1/16W

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

53

R1221

R1222

R1223

R1224

R1225

R1226

R1227

R1228

R1229

R1230

R1231

R1232

R1233

R1234

R1235

R1236

R1237

R1238

R1239

R1240

R1241

R1242

R1301

R1207

R1208

R1209

R1210

R1211

R1212

R1213

R1214

R1215

R1216

R1217

R1218

R1219

R1220

R1118

R1119

R1120

R1121

R1122

R1123

R1124

R1125

R1201

R1202

R1203

R1204

R1205

R1206

R1029

R1030

R1101

R1106

R1108

R1109

R1110

R1111

R1112

R1113

R1114

R1115

R1116

R1117

Ref. No.

R1020

Part No.

Part Name & Description

ERJ3GEYJ102V 1K 1/16W

R1021

R1022

ERJ3GEYJ102V

ERJ3GEYJ102V

1K 1/16W

1K 1/16W

R1023

R1024

R1025

R1026

R1027

R1028

D0GB105JA007

ERJ3GEYJ102V

ERJ3GEY0R00V

1M 1/16W

1K 1/16W

0 1/16W

D0GB104JA007 100K 1/16W

D0GB104JA007 100K 1/16W

D0GB330JA007 33 1/16W

ERJ3GEYJ102V

ERJ3GEYJ102V

ERJ3GEY0R00V

D0GB332JA007

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

1K 1/16W

1K 1/16W

0 1/16W

3.3K 1/16W

0 1/16W

0 1/16W

0 1/16W

D0GB104JA007 100K 1/16W

ERJ3GEY0R00V 0 1/16W

ERJ3GEY0R00V 0 1/16W

ERJ3GEYJ122V 1.2K 1/16W

ERJ3GEYJ122V 1.2K 1/16W

ERJ3GEYJ122V 1.2K 1/16W

ERJ3GEYJ122V 1.2K 1/16W

D0GB152JA007

D0GB152JA007

D0GB152JA007

D0GB152JA007

D0GB272JA041

D0GB332JA007

D0GB332JA007

1.5K 1/16W

1.5K 1/16W

1.5K 1/16W

1.5K 1/16W

2.7K 1/16W

3.3K 1/16W

3.3K 1/16W

D0GB272JA041 2.7K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

D0GB152JA007 1.5K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

ERJ3GEYJ102V 1K 1/16W

D0GB272JA041 2.7K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB272JA041 2.7K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB272JA041 2.7K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB272JA041 2.7K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB272JA041 2.7K 1/16W

D0GB562JA007 5.6K 1/16W

D0GB272JA041 2.7K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

D0GB473JA041 47K 1/16W

ERJ3GEYJ750V 75 1/16W

SA-HT15P / SA-HT15PC

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

C409

C410

C419

C420

C421

C422

C423

C424

C425

C402

C403

C404

C405

C406

C407

C408

C130

C131

C201

C202

C203

C204

C401

C123

C124

C125

C126

C127

C128

C129

C116

C117

C118

C119

C120

C121

C122

C109

C110

C111

C112

C113

C114

C115

C100

C101

C102

C103

C104

C105

C106

C107

C108

SA-HT15P / SA-HT15PC

Ref. No.

R1302

Part No.

Part Name & Description

D0GB100JA007 10 1/16W

R1303

R1401

D0GB100JA007

ERJ3GEY0R00V

10 1/16W

0 1/16W

R1402

R1403

R1404

R1405

R1406

R1407

R1408

R1409

R1410

R1411

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

ERJ3GEY0R00V

0 1/16W

0 1/16W

0 1/16W

ERJ3GEY0R00V 0 1/16W

ERJ3GEY0R00V 0 1/16W

ERJ3GEY0R00V 0 1/16W

0 1/16W

0 1/16W

0 1/16W

0 1/16W

R1412

R1701

R1702

R1703

R1704

ERJ3GEY0R00V 0 1/16W

D0GB151JA007 150 1/16W

D0GB272JA041 2.7K 1/16W

ERDS1FVJ4R7T 4.7 1/2W

ERDS1FVJ4R7T 4.7 1/2W

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

CAPACITORS

F1H1H103A219 0.01 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H102A219 1000P 50V

ECJ1VB1H473K 0.047 50V

ECJ1VB1H473K 0.047 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H331A013 330P 50V

F1H1H102A219 1000P 50V

F1H1H102A219 1000P 50V

F1H1H102A219 1000P 50V

F1H1H102A219 1000P 50V

ECA0JAM471XB 470 6.3V

F1H1C104A008 0.1 16V

ECA1HAK220XB 22 50V

ECA1HAK220XB 22 50V

ECA1HAK220XB 22 50V

ECA1HAK220XB 22 50V

ECA1HAK100XB 10 50V

ECA1HAK100XB 10 50V

ECA1HAK220XB 22 50V

F1H1C104A008 0.1 16V

F1H1H820A230 82P 50V

F1H1E103A029 0.01 25V

F1H1H332A013 3300P 50V

F1H1H332A013 3300P 50V

F1H1E103A029 0.01 25V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

54

C516

C517

C518

C519

C520

C521

C522

C509

C510

C511

C512

C513

C514

C515

C523

C524

C525

C526

C527

C528

C530

C531

C532

C488

C489

C502

C503

C506

C507

C508

C479

C480

C481

C482

C485

C486

C487

C472

C473

C474

C475

C476

C477

C478

C463

C464

C465

C466

C468

C470

C471

C454

C455

C456

C457

C458

C460

C462

C445

C446

C447

C450

C451

C452

C453

Ref. No.

C426

Part No.

Part Name & Description

F1H1H101A230 100P 50V

C427

C428

F1H1H101A230

F1H1H101A230

100P 50V

100P 50V

C433

C434

C435

C436

C437

C444

ECJ1VC1H330J

ECA1CAK100XB

F1H1H101A230

33P 50V

10 16V

100P 50V

ECJ1VB1H122K 1200P 50V

ECJ1VB1H122K 1200P 50V

ECA1HAK2R2XB 2.2 50V

ECA1HAK2R2XB

ECA1HAK2R2XB

ECA1HAK2R2XB

ECA1HAK2R2XB

ECA1HAK2R2XB

ECA1HAK2R2XB

ECA1HAK2R2XB

2.2 50V

2.2 50V

2.2 50V

2.2 50V

2.2 50V

2.2 50V

2.2 50V

ECA1HAK2R2XB 2.2 50V

ECA1CAK101XB 100 16V

ECA1HAK2R2XB 2.2 50V

F1H1C104A008 0.1 16V

ECA1CAK101XB 100 16V

F1H1C104A008 0.1 16V

ECA1HAK010XB 1 50V

ECJ1VC1H330J

ECA1HAK4R7XB

F1H1H101A230

ECA1HAK100XB

ECA1HAK4R7XB

F1H1C104A008

ECA1HAK4R7XB

33P 50V

4.7 50V

100P 50V

10 50V

4.7 50V

0.1 16V

4.7 50V

ECA1CAK101XB 100 16V

F1H1C104A008 0.1 16V

ECA1HAK100XB 10 50V

ECA1HAK100XB 10 50V

ECA1HAK4R7XB 4.7 50V

ECA1HAK4R7XB 4.7 50V

ECA1HAK100XB 10 50V

ECA1HAK100XB 10 50V

ECA1HAK4R7XB 4.7 50V

ECA1HAK4R7XB 4.7 50V

ECA1HAK4R7XB 4.7 50V

F1H1H101A230 100P 50V

F1H1H470A230 47P 50V

F1H1E103A029 0.01 25V

F1H1H101A230 100P 50V

F1H1H470A230 47P 50V

F1H1A105A025 1 10V

F1H1A105A025 1 10V

F1H1E103A029 0.01 25V

F1H1H101A230 100P 50V

F1H1H332A013 3300P 50V

ECJ1VC1H330J 33P 50V

F1H1H101A230 100P 50V

ECA1HAK010XB 1 50V

ECA1CAK100XB 10 16V

ECA1CAK100XB 10 16V

F1H1H470A230 47P 50V

F1H1H101A230 100P 50V

F1H1H470A230 47P 50V

F1H1H101A230 100P 50V

ECA1CAK100XB 10 16V

F1H1E103A029 0.01 25V

F1H1H102A219 1000P 50V

F1H1H102A219 1000P 50V

ECA1CAK100XB 10 16V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

ECA1CAK100XB 10 16V

ECA1CAK100XB 10 16V

ECA1CAK100XB 10 16V

ECA1CAK100XB 10 16V

F1H1C104A008 0.1 16V

F1H1A154A001 0.15 10V

F1H1A334A036 0.33 10V

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

C916

C917

C921

C922

C923

C924

C925

C901

C902

C903

C904

C905

C908

C915

C928

C929

C930

C931

C933

C935

C957

C958

C959

C768

C769

C770

C771

C772

C773

C774

C761

C762

C763

C764

C765

C766

C767

C754

C755

C756

C757

C758

C759

C760

C710

C711

C712

C750

C751

C752

C753

C703

C704

C705

C706

C707

C708

C709

C542

C543

C548

C549

C550

C701

C702

Ref. No.

C533

Part No.

Part Name & Description

F1H1A334A036 0.33 10V

C534

C535

F1H1A334A036

ECA1HAK100XB

0.33 10V

10 50V

C536

C537

C538

C539

C540

C541

F1H1A154A001

ECJ1VC1H330J

ECJ1VC1H330J

0.15 10V

33P 50V

33P 50V

ECJ1VC1H330J 33P 50V

F1H1A154A001 0.15 10V

F1H1A154A001 0.15 10V

F1H1A154A001

F1H1A154A001

F1H1H102A219

F1H1H102A219

F1H1H102A219

ECA1HAK4R7XB

ECA1HAK100XB

0.15 10V

0.15 10V

1000P 50V

1000P 50V

1000P 50V

4.7 50V

10 50V

ECA1HAK100XB 10 50V

F1H1H104A783 0.1 50V

F1H1H104A783 0.1 50V

ECA1HAKR47XB 0.47 50V

ECA1HAKR47XB 0.47 50V

ECA1HAKR33XB 0.33 50V

ECJ1VB1H223K 0.022 50V

ECJ1VC1H221J

ECJ1VB1H473K

ECJ1VB1C683K

ECA1EAM472XE

ECQE2104KF3

ECA1HAM101XB

F1H1H103A219

ECA1JM101B

ECA1JM101B

220P 50V

0.047 50V

0.068 16V

4700 25V

0.1 250V

100 50V

0.01 50V

ECA1CAM102XB 1000 16V

ECA1EAK330XB 33 25V

ECA1HAM101XB 100 50V

ECA1CAK101XB 100 16V

F1H1E103A029 0.01 25V

F1H1E103A029 0.01 25V

ECA1HAM101XB 100 50V

100 63V

ECA1CAK101XB 100 16V

ECA1CAK101XB 100 16V

F1H1E103A029 0.01 25V

F1H1E103A029 0.01 25V

ECA1EAK330XB 33 25V

ECA1CAM102XB 1000 16V

100 63V

ECEA1HKN4R7B 4.7 50V

ECA1CAM471XB 470 16V

F1H1H103A219 0.01 50V

ECA1CAK101XB 100 16V

ECA1CAK470XB 47 16V

F1H1C104A008 0.1 16V

ECA0JAM102XB 1000 6.3V

F1H1C104A008 0.1 16V

F1H1E103A029 0.01 25V

ECA0JAM102XB 1000 6.3V

ECA1HAK010XB 1 50V

F1H1E103A029 0.01 25V

ECA0JAK101XB 100 6.3V

F1H1H103A219 0.01 50V

F1H1H103A219 0.01 50V

ECA1CAK101XB 100 16V

ECA1CAK101XB 100 16V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

ECA1CAK100XB 10 16V

ECA1CAK100XB 10 16V

ECA1CAK100XB 10 16V

F1H1H103A219 0.01 50V

F1H1C104A008 0.1 16V

ECA1HAK010XB 1 50V

F1H1H102A219 1000P 50V

F1H1H102A219 1000P 50V

F1H1H102A219 1000P 50V

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

55

C1129

C1130

C1131

C1132

C1201

C1202

C1203

C1204

C1205

C1206

C1207

C1208

C1209

C1210

C1211

C1212

C1213

C1214

C1215

C1216

C1217

C1218

C1219

C1110

C1111

C1117

C1118

C1119

C1120

C1121

C1122

C1123

C1124

C1125

C1126

C1127

C1128

C1022

C1023

C1024

C1025

C1026

C1027

C1101

C1102

C1103

C1104

C1105

C1106

C1107

C1108

C1007

C1008

C1009

C1010

C1011

C1012

C1013

C1015

C1016

C1017

C1018

C1019

C1020

C1021

Ref. No.

C960

Part No.

Part Name & Description

F1H1H102A219 1000P 50V

C981

C982

ECJ1VC1H680J

ECJ1VC1H680J

68P 50V

68P 50V

C1001

C1002

C1003

C1004

C1005

C1006

ECA1HAK010XB

F1H1C104A008

ECA0JAK101XB

1 50V

0.1 16V

100 6.3V

ECA1HAK010XB 1 50V

ECA1HAK010XB 1 50V

F1H1C104A008 0.1 16V

F1H1C104A008

ECA1HAK2R2XB

F1H1H471A219

F1H1H103A219

ECA0JAK101XB

F1H1C104A008

F1H1C104A008

0.1 16V

2.2 50V

470P 50V

0.01 50V

100 6.3V

0.1 16V

0.1 16V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H101A230 100P 50V

F1H1H102A219 1000P 50V

F1H1H102A219 1000P 50V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

F1H1C104A008

F1H1H220A230

ECA0JAK101XB

F1H1H220A230

F1H1C104A008

F1H1H101A230

ECA1CAK100XB

0.1 16V

22P 50V

100 6.3V

22P 50V

0.1 16V

100P 50V

10 16V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

ECA1CAK100XB 10 16V

ECJ1VB1H682K 6800P 50V

F1H1C104A008 0.1 16V

ECJ1VC1H102J 1000P 50V

ECA1CAK100XB 10 16V

F1H1C104A008 0.1 16V

F1H1H272A013 2700P 50V

F1H1H272A013 2700P 50V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

ECA1CAK101XB 100 16V

ECA1HAK4R7XB 4.7 50V

ECA1CAK100XB 10 16V

F1H1H101A230 100P 50V

F1H1H103A219 0.01 50V

ECJ1VB1H561K 560P 50V

ECJ1VB1H561K 560P 50V

ECJ1VB1H561K 560P 50V

ECJ1VB1H561K 560P 50V

ECA1CAK101XB 100 16V

ECA1CAK101XB 100 16V

ECJ1VB1H182K 1800P 50V

ECJ1VB1H562K 5600P 50V

ECJ1VB1H182K 1800P 50V

ECJ1VB1H562K 5600P 50V

ECJ1VB1H182K 1800P 50V

ECJ1VB1H562K 5600P 50V

ECJ1VB1H562K 5600P 50V

ECJ1VB1H182K 1800P 50V

ECJ1VB1H562K 5600P 50V

ECJ1VB1H182K 1800P 50V

ECJ1VB1H562K 5600P 50V

ECJ1VB1H182K 1800P 50V

ECA1CAK220XB 22 16V

ECA1CAK220XB 22 16V

ECA1CAK220XB 22 16V

ECJ1VB1H122K 1200P 50V

ECA1CAK220XB 22 16V

ECJ1VB1H122K 1200P 50V

ECA1CAK220XB 22 16V

SA-HT15P / SA-HT15PC

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

SA-HT15P / SA-HT15PC

C1229

C1230

C1231

C1232

C1233

C1234

C1235

C1236

C1237

C1238

C1239

C1240

C1241

Ref. No.

C1220

Part No.

Part Name & Description

ECJ1VB1H122K 1200P 50V

C1221

C1222

ECA1CAK220XB

ECJ1VB1H122K

22 16V

1200P 50V

C1223

C1224

C1225

C1226

C1227

C1228

ECJ1VB1H122K

ECJ1VB1H122K

F1H1H391A013

1200P 50V

1200P 50V

390P 50V

F1H1H391A013 390P 50V

F1H1H391A013 390P 50V

F1H1H391A013 390P 50V

F1H1H391A013

F1H1H391A013

ECA1CAK100XB

ECA1CAK100XB

ECA1CAK100XB

ECA1CAK100XB

ECA1CAK100XB

ECA1CAK100XB

F1H1H103A219

F1H1H103A219

F1H1H103A219

F1H1H103A219

F1H1H103A219

390P 50V

390P 50V

10 16V

10 16V

10 16V

10 16V

10 16V

10 16V

0.01 50V

0.01 50V

0.01 50V

0.01 50V

0.01 50V

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

C1306

C1307

C1308

C1309

C1310

C1311

C1412

C1701

C1702

C1703

C1704

C1705

C1706

Ref. No.

C1242

Part No.

Part Name & Description

F1H1H103A219 0.01 50V

C1243

C1245

F1H1H101A230

ECA1EAK470XB

100P 50V

47 25V

C1246

C1301

C1302

C1303

C1304

C1305

ECA1EAK470XB

F1H1H103A219

F1H1H104A783

47 25V

0.01 50V

0.1 50V

F1H1H103A219 0.01 50V

F1H1H104A783 0.1 50V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

ECA0JAK101XB 100 6.3V

F1H1H103A219 0.01 50V

F1H1C104A008 0.1 16V

F1H1C104A008 0.1 16V

F1H1H101A230

ECA1CAK220XB

F1H1H391A013

ECA1CAK100XB

F1H1H103A219

ECA1CAK101XB

ECA1AM332E

100P 50V

22 16V

390P 50V

10 16V

0.01 50V

100 16V

3300 10V

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

Remarks

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

[M]

18.3. Packing Materials & Accessories Parts List

Ref.

No.

Part No.

Part Name & Description Remarks

PACKING MATERIALS

P1

P1

P2

P3

P4

[M]P

[M]PC

[M]

[M]

[M]

A1

A1-1

A2

A3

A3

A4

A5

A6

A7

RPGV0188

RPGV0189

RPNV0194

RPHV0001-1

RPGV0192

OUTER PACKING CASE

OUTER PACKING CASE

POLYFOAM

MIRAMAT SHEET

INNER PACKING CASE

ACCESSORIES

EUR7722KH0

UR76EC3103A

REMOTE CONTROL

R/C BATTERY COVER

K2CB2CB00006 AC CORD

RQT7949-P

RQT7950-C

O/I BOOK (En)

O/I BOOK (Cf)

RSA0007-L FM ANTENNA WIRE

K1HA25HA0001 SYSTEM CABLE

N1DAAAA00002 AM LOOP ANTENNA

RQCA1029 SP LABEL SHEET

[M]

[M]

[M]

[M]

[M]PC

[M]

[M]

[M]

[M]

56

18.4. Packaging

SA-HT15P / SA-HT15PC

57

SA-HT15P / SA-HT15PC

58 PRT0501D/S/J/E/A/M

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

4

4.9

0

24

5.0

0

4

-7.8

0.4

4

-7.8

0.4

64

0

0

44

0

0

4

-7.8

0.4

4

0

0

4

0

0

4

0

0

44

1.1

0

24

0

0

4

0

0

5

2.8

0.2

5

2.8

0.2

5

2.8

0.2

5

2.5

0

25

1.2

0

5

0

0

5

1.2

0

5

1.2

0

5

0.6

0

25

0

0

45

0

0

41

0.9

0

1

1.2

0

1

2.5

0

21

2.5

0

21

0

0

1

0

0

1

0

0

1

0

0

2

0.6

0

2

1.2

0

2

1.2

0

22

0

0

1

2.8

0.2

1

2.8

0.2

41

5.0

0

61

1.2

0

1

2.8

0.2

2

2.8

0.2

3

2.8

0.2

1

5.0

0

E

2.5

0

2

0

0

Q1001

C

2.4

0.1

3

2.5

0

B

0

0

2

2.8

0.2

2

2.8

0.2

42

0

0

62

0

0

3

2.8

0.2

3

2.8

0.2

43

0

0

63

0.7

0

3

0.3

0

3

5.0

0

3

1.2

0

23

0

0

42

1.2

0

2

1.2

0

2

0

0

22

0.9

0

43

1.2

0

3

1.2

0

3

0.9

0

23

2.5

0

E

5.6

0

6

0.3

0

26

1.2

0

6

2.8

0.2

6

2.8

0.2

6

2.8

0.2

7

2.8

0.2

7

2.8

0.2

7

2.8

0.2

Q1701

C

7.3

0.5

B

6.3

0.5

6

0

0

6

5.0

0

6

-

0

6

0.3

0

26

0

0.2

46

0

0

7

0.3

0

27

1.0

0

7

0

0

7

0.6

0

7

0

0

7

1.2

0

27

2.8

0.2

47

0

0

8

7.3

0.4

8

7.3

0.4

8

7.3

0.4

8

0

0

8

5.0

0

8

2.4

0

8

2.5

0

28

2.8

0.2

48

0

0

8

2.5

0

28

1.2

0

DSP P.C.B.

IC1001

9

2.5

0

29

1.3

0

10

2.5

11

2.5

0

IC1001

0

30

1.2

31

0

0

IC1001

0

12

2.5

0

32

2.0

-0.2

IC1003

9

0.6

0

29

2.8

0.2

9

5.3

0

9

2.5

0

49

2.5

0

IC1004

10

0

11

2.5

0

IC1005

0

10

0

11

5.0

0

IC1101

0

10

3.9

11

5.0

0

IC1101

0

30

2.8

31

2.8

0.2

0.2

IC1101

50

0

51

5.0

0

IC1101

0

IC1201

IC1202

IC1203

IC1701

E

5.0

0

Q1702

C

6.9

0.5

B

5.6

0

13

2.7

0

33

2.8

0

13

0

0

13

0

0

53

2.5

0

12

5.3

0

32

2.8

0.2

12

5.2

0

12

2.5

0

52

0

0

13

0

0

33

1.3

0

14

2.5

0

34

2.5

0

E

5.0

0

Q1703

C

6.2

0.5

B

5.6

0

14

2.7

0

34

2.8

0

14

2.5

0

14

5.0

0

54

0.9

0

15

2.7

0

35

2.8

0.1

55

1.1

0

15

2.5

0

35

0

0

16

2.5

0

36

2.5

0

16

2.7

0

36

2.8

0.1

56

0.9

0

17

2.8

0

37

2.8

0

57

0

0

17

2.5

0

37

2.5

0

18

2.5

0

38

2.5

0

18

4.7

0.2

38

5.0

0

58

0

0

19

0

0

39

0

0

59

1.2

0

19

2.5

0

39

0.7

0

20

2.5

0

40

0

0

20

0

0

40

0

0

60

1.2

0

1

0

0

1

0

0

21

0

0

1

0

0

1

0

0

1

0

0

41

0

0

61

0

0

1

0

0

1

0

0

1

0

0

1

0

0

1

0

0

21

4.9

0

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

2

0

0

2

0

0

22

0

0

2

0

0

2

0

0

2

0

0

42

0

0

62

0

0

2

0

0

2

0

0

2

0

0

2

4.3

0

2

5.1

0

22

0

0

5

0

0

5

0

0

25

0

0

5

0

0

45

0

0

5

0

0

5

0

0

5

0

0

5

0

0

5

0

0

5

0

0

4

-7.8

0.4

4

-7.8

0.4

24

0

0

4

0

0

4

-7.8

0.4

4

-7.8

0.4

64

0

0

44

0

0

4

-7.8

0.4

4

-7.8

0.4

4

0

0

4

-7.8

0.4

4

5.1

0

24

0

0

5

0

0

3

0

0

3

0

0

23

0

0

3

0

0

3

0

0

3

0

0

43

0

0

63

0

0

3

0

0

3

0

0

3

0

0

3

0

0

23

0

0

3

0

0

6

0

0

7

4.9

0

8

0

0

MAIN P.C.B.

IC321

9

0

0

10

0

0

IC321

11

0

0

12

0

0

7

0

0

7

0

0

27

0

0

7

0

0

47

0

0

7

0

0

7

0

0

7

0

0

7

0

0

7

0

0

7

0

0

6

0

0

6

0

0

26

0

0

6

0

0

46

0

0

6

0

0

6

0

0

6

0

0

6

0

0

6

0

0

6

4.8

0

8

7.6

0.3

8

7.6

0.3

28

0

0

8

0

0

8

7.6

0.3

8

7.6

0.3

48

0

0

8

7.6

0.3

8

7.6

0.3

8

-5.0

0.1

8

7.6

0.3

29

0

0

9

0

0

49

0

0

9

0

0

10

0

0

IC351

11

-0.1

IC401

IC402

IC403

IC404

IC406

IC407

IC408

0

12

0

0

10

IC409

11

0

0

0

0

30

IC409

31

5.0

7.6

0.2

IC409

0.3

50

0

0

IC409

51

0

0

12

0

0

32

0

0

52

0

0

13

0

0

14

0

0

15

0

0

16

-5.0

0.1

17

0

0

18

-5.0

0

19

0

0

13

0

0

14

5.0

0

15

0

0

16

4.9

0

20

0

0

13

0

0

33

0

0

53

0

0

14

0

0

34

0

0

54

0

0

15

0

0

35

0

0

55

0

0

16

0

0

36

0

0

56

0

0

17

0

0

37

0

0

57

0

0

18

0

0

38

0

0

58

0

0

19

0

0

39

0

0

59

0

0

20

0

0

40

0

0

60

0

0

81

5.4

5.4

1

-0.2

0

41

0

0

61

0

0

1

0

0

21

5.2

0

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

STANDBY

2

0

0

22

0

0

42

0

0

62

5.2

5.2

82

5.4

5.4

2

-0.1

0

3

0

0

23

0

0

43

0

0

63

0

0

83

0

0

3

-0.1

0

4

0

0

24

5.4

0

44

0

0

64

0

0

84

0

0

4

-7.6

0.4

1

0

0

2

0

0

3

0

0

1

5.4

2

5.4

3

0

5.4

E

-5.6

-0.1

E

0

0

E

-0.7

0.4

5.4

Q351

C

-7.4

0.1

Q405

C

0

0

Q410

C

7.6

0.3

Q420

C

0

B

-5.0

0.1

B

-7.3

0.4

B

-0.1

0

E

4.9

0.2

E

0

0

-7.3

0.4

Q701

C

0

0

Q752

B

5.2

0

B

0.7

0.4

E C B

-21.8

-35.8

-22.3

-21.4

-21.8

-21.8

E

Q757

C B

16.4

0.5

9.4

0.1

Q1701

15.8

0.3

E

5.6

0

C

7.3

0.5

B

6.3

0.5

4

-7.6

0.4

5

0

0

6

0

0

7

0

0

4

0

0

5

5.4

5.4

E

0

0

E

7.3

0

E

0

0

E

4.9

0.2

E

0

0

E

4.9

0.2

E

8.8

0

E

5.0

0

6

5.4

4.9

0.4

Q702

C

0

0

Q753

C

5.5

0.5

Q758

C

5.4

Q352

C

5.5

0.3

Q406

C

0

0

Q413

C

0

0

Q421

C

15.8

0.4

Q1702

C

6.9

0.5

7

0

0

B

4.9

0.3

B

-7.3

0.4

B

0

0

B

5.2

0

B

0.7

0.4

B

8.6

0.5

B

9.3

0.5

B

5.6

0

5

0

0

85

0

0

45

0

0

65

0

0

25

5.4

0

5

0

0

6

0

0

86

0

0

46

0

0

66

0

0

26

0

0

6

0

0

87

0

0

7

-0.1

0

47

0

0

67

5.2

0

27

0

0

7

0

0

8

0

0

28

0

0

48

0

0

68

3.6

0

88

0

0

9

0

0

29

5.4

5.4

49

0

0

69

4.4

0

89

0

0

8

7.3

0.4

IC902

8

7.6

0.3

IC903

8

0

5.4

E

0

0

E

0

0

E

0

0

E

5.0

0.2

E

4.9

0.2

E

7.3

0.5

E

15.8

0.4

E

5.0

0

C

0

0

Q422

C

4.9

0.4

Q703

C

4.9

0.4

Q754

C

9.3

0.1

Q759

C

16.5

0.5

Q1703

C

6.2

0.5

Q401

C

0

0

Q407

C

0

0

Q415

B

-7.3

0.4

B

0.7

0.4

B

0

0

B

0

0

B

0

0

B

8.0

0.1

B

16.4

0.5

B

5.6

0

10

0

IC900

11

0

0

IC900

0

30

5.4

31

0.5

5.4

IC900

0

50

0

51

5.1

0

IC900

0

70

3.1

0

IC900

71

0

0

90

0

0

IC901

91

0

0

52

1.4

0

72

0

0

12

5.2

5.2

32

5.0

0

92

5.2

0

13

-

2.6

33

0.6

0

53

5.4

0

73

0

0

93

5.2

0

E

0

0

S

0

0

E

0

0

E

6.1

6.0

E

4.9

0.2

E C

-7.7

-12.4

0.3

E

0

Q901

C

0

0

5.2

5.3

C

0

0

Q423

C

6.0

6.0

Q704

C

4.9

0.4

Q755

Q402

C

0

0

Q408

D

0

0

Q418

B

-8.3

0

B

0

0

B

0

0

B

0

0

B

0

0

B

0.7

0.4

G

0.7

0.8

54

5.4

0

74

5.0

0

14

0

0

34

5.2

0

94

5.4

4.6

55

0

0

75

5.0

0

15

-

2.4

35

5.2

0

95

5.4

0.6

56

5.2

0

76

3.8

0

16

5.2

5.3

36

0

0

96

0

0

17

5.4

1.3

37

0

0

57

1.3

0

77

0

0

97

0

0

58

0

0

78

5.2

0

18

5.4

5.3

38

0

0

98

5.4

0

1

0

0

E

0

0

E

7.5

0.3

E

2.5

0

E

0

0

E

0

0

E

6.1

6.0

Q404

2

0

0

Q409

C

0

0

Q419

C

0

0

Q424

C

6.0

6.0

Q751

C

5.4

0.6

Q756

C

16.0

0.5

Q1001

C

2.4

0.1

3

0.7

0.4

B

0.7

0.8

B

0

0

B

5.2

0

B

-3.5

0.4

B

8.1

0.5

B

0

0

60

0

0

80

5.4

5.4

20

3.2

3.5

40

0

0

100

0

0

59

0

0

79

0

0

19

5.4

5.3

39

0

0

99

5.2

5.3

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

Ref No.

MODE

CD PLAY

STANDBY

PANEL P.C.B.

IC100

1

-19.3

-21.1

41

-16.9

-21.1

2

-19.3

-21.1

42

-19.3

-21.1

3

-19.3

-21.1

43

-21.7

-21.1

4

-19.3

-21.1

44

-21.7

-21.1

5

4.8

0

45

-21.7

-21.1

6

3.7

0

46

-21.7

-21.1

7

4.4

0

47

-19.3

-21.1

8

3.1

0

48

-16.9

-21.1

9

0

0

49

-19.3

-21.1

10

0

11

5.0

0

IC100

0.2

50

-16.9

-21.1

IC100

51

-16.9

-21.1

12

2.2

0

13

2.1

0

14

0

0

15

-14.6

-21.1

16

-21.7

-21.1

17

-21.7

-21.1

18

-21.7

-21.1

19

-21.7

-21.1

20

-21.7

-21.1

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-16.9

-19.3

-16.9

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

IC100

52

5.0

0.2

53 54 55 56 57 58 59 60

-21.7

-21.7

-21.7

-21.7

-21.7

-21.7

-19.3

-19.3

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

-21.1

61 62 63 64

-19.3

-19.3

-19.3

-19.3

-21.1

-21.1

-21.1

-21.1

Q102

E

4.9

0.2

E

0

0

C

-19.1

-21.2

Q107

C

4.9

0.2

B

2.5

0.2

B

0

0

E

-21.8

-21.4

Q103

C

2.5

0

B

-19.4

-21.3

1

0

0

Q104

2

4.9

0.2

3

0

0

E

0

0

Q105

C

4.9

0.2

B

0

0

1

0

0

Q106

2

4.9

0.2

3

0

0

VOLUME P.C.B.

E

5.2

0

Q100

C

9.4

0.1

B

5.2

0

FUNCTION P.C.B.

E

5.5

5.4

Q101

C

0

0

B

5.5

5.4

CN104A PIN 2

CD PLAY

5.28Vp-p (10msec.div)

CN104 PIN 3

CD PLAY

5.20Vp-p (10msec.div)

CN104A PIN 4

CD PLAY

5.28Vp-p (10msec.div)

CN104B PIN 6

CD PLAY

8.00Vp-p (10msec.div)

CN104B PIN 7

CD PLAY

7.72Vp-p (10msec.div)

CN904A PIN 2

CD PLAY

5.44Vp-p (10msec.div)

CN904A PIN 4

CD PLAY

5.28Vp-p (10msec.div)

CN904A PIN 8

CD PLAY

1.71Vp-p (10msec.div)

CN904A PIN 9

CD PLAY

6.16Vp-p (10msec.div)

CN904A PIN 10

CD PLAY

3.02Vp-p (10msec.div)

CN904A PIN 11

CD PLAY

6.88Vp-p (10msec.div)

CN904A PIN 12

CD PLAY

1.72Vp-p (10msec.div)

CN904A PIN 14

CD PLAY

728mVp-p (10msec.div)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
