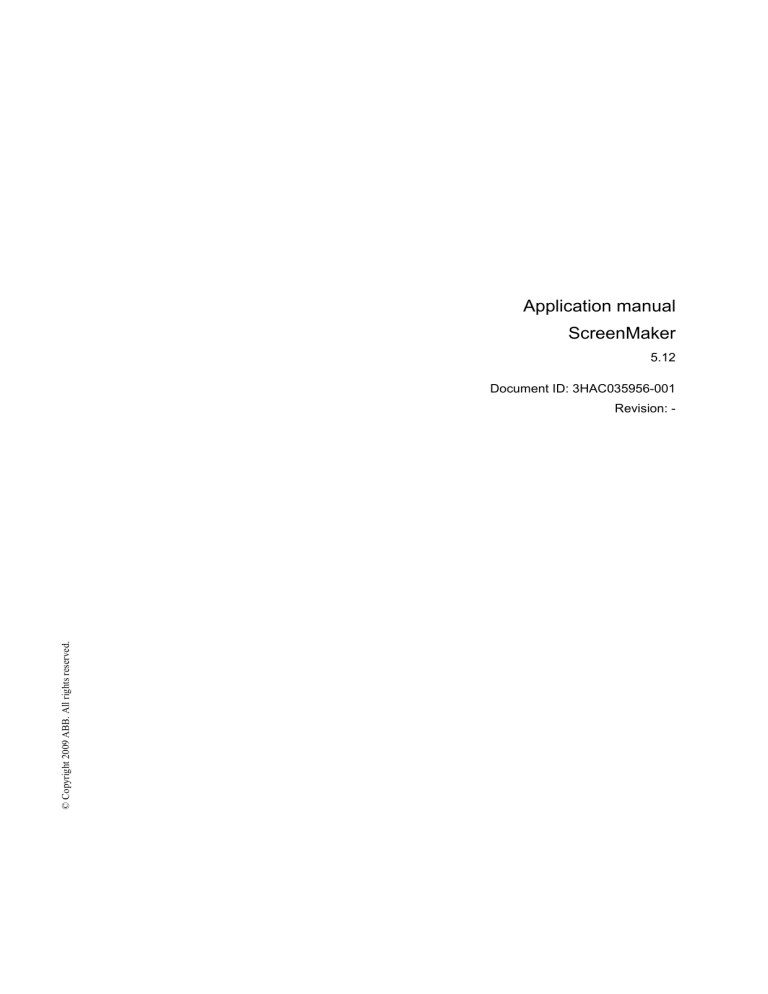

Application manual ScreenMaker
Application manual
ScreenMaker
5.12
Document ID: 3HAC035956-001
© Copyright 2009 ABB. All rights reserved.
Revision: -
The information in this manual is subject to change without notice and should not be
construed as a commitment by ABB. ABB assumes no responsibility for any errors that
may appear in this manual.
Except as may be expressly stated anywhere in this manual, nothing herein shall be
construed as any kind of guarantee or warranty by ABB for losses, damages to persons
or property, fitness for a specific purpose or the like.
In no event shall ABB be liable for incidental or consequential damages arising from
use of this manual and products described herein.
This manual and parts thereof must not be reproduced or copied without ABB's written
permission, and contents thereof must not be imparted to a third party nor be used for
any unauthorized purpose. Contravention will be prosecuted.
Copyright 2009 ABB All rights reserved.
ABB AB
Robotics Products
721 68 Västerås
Sweden
© Copyright 2009 ABB. All rights reserved.
Additional copies of this manual may be obtained from ABB at its then current charge.
Table of Contents
Manual overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1 Introduction
7
1.1 Introduction to ScreenMaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.2 Installing ScreenMaker. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.3 Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1.4 Development environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 Managing ScreenMaker projects
25
2.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2.2 Managing ScreenMaker projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
2.3 Application variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.4 Form designer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.5 Data binding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
2.6 Screen navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3 Tutorial
45
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.2 Prerequistes for designing FlexArc Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
3.3 Designing the screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3.4 Building and deploying the project . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
4 Frequently asked questions
55
4.1 Frequently asked questions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
63
© Copyright 2009 ABB. All rights reserved.
Index
3HAC035956-001 Revision: -
3
© Copyright 2009 ABB. All rights reserved.
Table of Contents
4
3HAC035956-001 Revision: -
Manual overview
Manual overview
About this manual
This manual describes how to create FlexPendant Graphical User Interfaces (GUIs) using
ScreenMaker.
Usage
ScreenMaker is designed for simplicity of use, and its functionality is basic and intuitive. This
manual describes the background of GUI development, followed by descriptions of the
menus and commands, and followed by a tutorial.
Who should read this manual?
This manual is intended for ScreenMaker users, for example:
•
Robot programmers
•
PLC programmers
•
Robot System integrators
Prerequisites
The reader should have a basic knowledge of:
•
RobotStudio
•
RAPID
•
Working on Windows platform
•
GUI development
Organization of chapters
The manual is organized in the following chapters:
© Copyright 2009 ABB. All rights reserved.
Chapter
Contents
1.
Describes the ScreenMaker development tool, as well as GUI and
FlexPendant concepts.
2.
Describes how to manage projects in ScreenMaker and the various menus
and commands used in the application.
3.
Serves as an example and takes you through the steps involved in designing
the GUI screens.
4.
Contains a list of frequently asked questions.
References
Reference
Document ID
Operating manual - RobotStudio
3HAC032104-001
Operating manual - IRC5 with FlexPendant
3HAC16590-1
Revisions
Revision Description
3HAC035956-001 Revision: -
First edition. Released with RobotWare 5.12.02.
5
© Copyright 2009 ABB. All rights reserved.
Manual overview
6
3HAC035956-001 Revision: -
1 Introduction
1.1. Introduction to ScreenMaker
1 Introduction
1.1. Introduction to ScreenMaker
What is ScreenMaker?
ScreenMaker is a tool in RobotStudio for developing custom screens. It is used to create
customized FlexPendant GUIs without the need to learn Visual Studio development
environment and .NET programming.
Why ScreenMaker?
A customized operator interface on the factory floor is the key to a simple robotic system. A
well-designed custom operator interface presents the right amount of information at the right
time and in the right format to the user, as such the training time and downtime (due to
operating errors) are minimal. However, customized user interfaces are expensive and very
time-consuming to develop. Currently, an understanding of some object-oriented
programming languages (such as C, C++; VB and C#) and development framework (.NET,
Visual Studio) are required to develop screens. Since, this is a requirement for IT
professionals and not for the robotics industry whose workforce is generally accustomed to
simple programming languages such as BASIC and RAPID; ScreenMaker is used.
© Copyright 2009 ABB. All rights reserved.
GUI concepts
xx080000226
A GUI makes it easier for people to work with industrial robots by presenting a visual front
to the internal workings of a robotic system. For FlexPendant GUI applications, the graphical
interface consists of a number of screens, each occupying the user window area (the blue box
Continues on next page
3HAC035956-001 Revision: -
7
1 Introduction
1.1. Introduction to ScreenMaker
Continued
in the figure above) of the FlexPendant touch screen. A FlexPendant screen is then composed
of a number of smaller graphical components in a design layout. Typical controls (sometimes
referred as widgets or graphic components) include buttons, menus, images, and text fields.
A user interacts with a GUI application by:
•
Clicking a button
•
Selecting from a menu
•
Typing a text in a text box
•
Scrolling
An action such as clicking a button is called an event. Whenever an action is performed, an
event is sent to the GUI application. The exact content of an event is solely dependent on the
graphic component itself. Different components trigger different types of events. The GUI
application responds to the events in the order generated by the user. This is called eventdriven programming, since the main flow of a GUI application is dictated by events rather
than being sequential from start to finish. Due to the unpredictability of the user’s actions, one
major task in developing a robust GUI application is to ensure that it works correctly no
matter what the user does. Of course, a GUI application can, and actually does, ignore events
that are irrelevant.
The event handler holds sets of actions to be executed after an event occurs. Similar to trap
routines in the RAPID program, the event handler allows the implementation of applicationspecific logic, such as running a RAPID program, opening a gripper, processing logic or
calculating.
•
the view part: layout and configuration of controls
•
the process part: event handlers that respond to events
© Copyright 2009 ABB. All rights reserved.
In summary, from a developer’s point of view, A GUI consists of at least two parts:
xx0800000227
Modern GUI development environments often provide a form designer, a WYSIWYG tool to
allow the user to select, position and configure the widgets. As for event handlers, typically
the developer must use a special programming language recommended by the development
environment.
Continues on next page
8
3HAC035956-001 Revision: -
1 Introduction
1.1. Introduction to ScreenMaker
Continued
FlexPendant concepts
xx0800000228
Running Windows CE, the ABB FlexPendant has limited CPU power and memory compared
to a PC. A custom GUI application must therefore be placed in the designated folders on the
controller hard drive before being loaded. Once loaded, it can be found in the ABB menu as
seen in the figure above. Clicking the menu item will launch the GUI application.
© Copyright 2009 ABB. All rights reserved.
As the robot controller is the one actually controlling the robot and its peripheral equipment
by executing a RAPID program, a GUI application needs to communicate with the RAPID
program server in order to read and write RAPID variables and set or reset I/O signals.
It is essential for RAPID programmers to understand that there are two different softwares
controlling a work cell: an event-driven GUI application running on the FlexPendant, and a
sequential RAPID program running in the controller. These reside on different CPUs and use
different operating systems, so communication and coordination are important and must be
carefully designed.
3HAC035956-001 Revision: -
9
1 Introduction
1.2. Installing ScreenMaker
1.2. Installing ScreenMaker
Overview
This section describes installing ScreenMaker application on your computer. It is an add-in
in RobotStudio and is launched from the RobotStudio application.
System requirements
The following are the system requirements to be met:
Software requirements
•
•
•
RobotStudio 5.12 or later with Premium license activated
Microsoft .NET Compact Framework 2.0
Robot Application Builder (RAB) 5.12 or later
Hardware requirements
For more information on the recommended hardware, see
RobotStudio Release Notes.
Operating system
For more information on the supported Operating Systems, see
RobotStudio Release Notes.
Prerequisites
To install and use ScreenMaker, the following requirements have to be met.
Before ...
you must ...
installing ScreenMaker
ensure that the following applications are installed:
• RobotStudio with Premium license
testing on VC/RC
See Testing on Virtual controller/Real controller on page 11.
Installing ScreenMaker
Use this procedure to install ScreenMaker:
NOTE!
You should have administrator privileges on the PC before installing ScreenMaker.
1. Double-click SetupScreenMaker.exe.
© Copyright 2009 ABB. All rights reserved.
The InstallShield Wizard window appears.
en0900000453
2. Click Next and follow the instructions to complete the installation.
Continues on next page
10
3HAC035956-001 Revision: -
1 Introduction
1.2. Installing ScreenMaker
Continued
Testing on Virtual controller/Real controller
RobotWare FlexPendant Interface option is required for ScreenMaker applications.
NOTE: RobotWare PC Interface option is required only when using ScreenMaker for Robots
on a LAN (to get the data from the controller, bind, and deploy). If there is no PC Interface
option, service port can be used to design and deploy screens.
PC Interface option is needed
en0900000723
PC Interface option is not needed
© Copyright 2009 ABB. All rights reserved.
en0900000724
3HAC035956-001 Revision: -
11
1 Introduction
1.3. Terminology
1.3. Terminology
About terms and acronyms
Some terms used in this manual are product specific and crucial for understanding. Moreover,
acronyms, words formed from initial letters, are sometimes used instead of long terms. To
avoid confusion, important terminology are clarified below.
Definitions
Description
IRC5
ABB’s robot controller.
FlexPendant
ABB’s hand held device, used with the IRC5 robot controller. It
is developed with Microsoft’s technology for embedded
systems, Windows CE and .NET Compact Framework.
Robot Application Builder
ABB software tool, which enables the development of custom
operator interfaces for IRC5. Often referred to as RAB.
Microsoft .NET Compact
Framework
Version of Microsoft's .NET framework providing the run-time
environment for applications running on embedded devices,
such as the FlexPendant. It includes a class library, which is
almost a subset of the rich .NET framework for the desktop.
C++,VisualBasic and C#
Programming languages
Acronym
Description
GUI
Graphical User Interface
OS
Operating System
RAB
Robot Application Builder
I/Os
Input /Output signals
WYSIWYG
What You See Is What You Get
© Copyright 2009 ABB. All rights reserved.
Term
12
3HAC035956-001 Revision: -
1 Introduction
1.4. Development environment
1.4. Development environment
Overview
This section presents an overview of the ScreenMaker development environment.
© Copyright 2009 ABB. All rights reserved.
en0900000584
Parts
Description
1
Ribbon
Displays group of icons organized in a logical sequence of
functions. See Ribbon on page 14.
2
Project explorer
Shows the active screen project and lists the screens that
are defined in the project. For more information, see
Managing ScreenMaker projects on page 26.
3
Design surface
Layout to design the screen with the available controls. For
more information, see Form designer on page 35.
4
Output window
Displays information about the events that occur during
ScreenMaker development.
5
ToolBox
Displays a list of available controls. For more information.
see ToolBox on page 15.
6
Properties window
Contains the available properties and events of the
selected control(s). The value of the properties can either
be a fixed value or a link to an IRC5 data or an Application
Variable. For more information, see Properties window on
page 17.
7
Arrange
Displays icons for resizing and positioning controls on the
design surface. See Arrange on page 14.
Continues on next page
3HAC035956-001 Revision: -
13
1 Introduction
1.4. Development environment
Continued
Ribbon
The ScreenMaker ribbon tab contains a group of icons organized in a logical sequence of
functions that facilitates the user in managing SscreenMaker projects.
en0900000452
The Ribbon is categorized into the following groups:
Group
Description
Project
Facilitates the user to manage ScreenMaker project. See
Managing ScreenMaker projects on page 26.
Add
Facilitates the user to add screen and application variables. See
Managing screens on page 29 and Managing application
variables on page 34.
Build
Facilitates the user to build a project. See Building a project on
page 33.
Controller
Facilitates the user to connect and deploy to the controller. See
Connecting to controller on page 32 and Deploying to controller
on page 33.
Arrange
Facilitates the user to resize and position the controls on the
design surface. See Arrange on page 14.
Close
Facilitates the user to close a project.
Help
Facilitates the user to open the ScreenMaker help.
Arrange
This toolbar displays icons for resizing and positioning controls on the design surface.
© Copyright 2009 ABB. All rights reserved.
NOTE: The icons are enabled once you select a control or group of controls on the design
surface.
en0900000592
Continues on next page
14
3HAC035956-001 Revision: -
1 Introduction
1.4. Development environment
Continued
ToolBox
ToolBox acts a container for holding all the available controls that can be placed on a screen.
en0900000407
© Copyright 2009 ABB. All rights reserved.
The following table displays the GUI controls that can be dragged on to the design surface.
Control
Description
ActionTrigger
Allows to run a list of actions when either a signal or rapid data
changes
BarGraph
Represents an analog value in a bar
Button
Represents a control that can be clicked.
Provides a simple way to trigger an event, and is commonly
used to execute commands. It is labeled either with text or an
image.
CheckBox
Allows multiple selections from a number of options. They are
displayed as a square box with white space (for unselected) or
as a tick mark (for selected).
ComboBox
Represents a control that enables to select items from a list
Combination of a drop-down list and a textbox. It allows you to
either type a value directly into the control or choose from the
list of existing options.
CommandBar
Provides a menu system for a ScreenForm
ControllerModeStatus
Displays the mode of the Controller (Auto - Manual)
DataEditor
Represents a text box control that can be used to edit the data.
Graph
Represents a control that plots data with lines or bars.
GroupBox
Represents a Windows control that displays a frame around a
group of controls with an optional caption.
Is a container used to group a set of graphic components. It
usually has a title at the top.
Continues on next page
3HAC035956-001 Revision: -
15
1 Introduction
1.4. Development environment
Continued
Control
Description
LED
Displays a two states value, like a Digital Signal.
ListBox
Represents a control to display a list of items.
Allows the user to select one or more items from a list contained
within a static, multiple line text box.
NumEditor
Represents a text box control that can be used to edit a number.
When the user clicks it, a Numpad is opened.
NumericUpDown
Represents a spin box that displays numeric values.
Panel
Used to group collection of controls.
PictureBox
Represents a picture box control that displays images.
RadioButton
Allows to select only one of a predefined set of options.
RapidExecutionStatus
Displays the execution status of the Controller Rapid Domain
(Running - Auto)
RunRoutineButton
Represents a Windows button control that calls a RapidRoutine
when clicked
Switch
Displays and lets change a two states value, like a Digital
Output Signal.
TabControl
Manages a set of tab pages.
TpsLabel
Very commonly used widget that displays text, a label is usually
static, that is, it has nointeractivity. A label generally identifies a
nearby text box or other graphic component.
NOTE!
© Copyright 2009 ABB. All rights reserved.
For more information on using these controls and their properties, see the section Building
the user interface on page 18 and the chapter Using the FlexPendant SDK of the Application
manual - Robot Application Builder.
Continues on next page
16
3HAC035956-001 Revision: -
1 Introduction
1.4. Development environment
Continued
Properties window
A control is characterized by its properties and events. Properties describe the appearance and
behavior of the component, while events describe the ways in which a control notifies its
internal state change to others. By changing the value of a property, the controls have a
different look and feel, or exhibit different behavior.
en0900000408
© Copyright 2009 ABB. All rights reserved.
Element
Description
1
Graphical component name panel Displays the selected component, and lists the
available components of the on the active
design screen.
2
Properties window toolbar
en0900000409
1.
2.
3.
4.
Organizes table panel in categories
Organizes table panel alphabetically
Displays Properties in table panel
Displays Events in table panel
3
Table panel
Displays all the properties or events in twocolumns. The first column shows the property
or event name, the second shows the value of
the property or name of the event handler.
4
Information panel
Display information about a property or event.
Continues on next page
3HAC035956-001 Revision: -
17
1 Introduction
1.4. Development environment
Continued
Editing the property value
You can edit the property value of a control from the Properties window in three ways:
1
By typing the numerics, strings and text.
For example, Location, Size, Name etc.
2
By selecting the predefined values from the
list. For example, BackColor, Font etc.
3
By entering the values in the dialog box.
For example, Enabled, States, BaseValue
etc.
en0900000631
en0900000633
Building the user interface
This section describes building the GUIs using the following controls from the ToolBox.
ActionTrigger
An action trigger initiates an event, such as making a hidden object visible when an action is
performed using a control. It allows to run a list of actions when the property value changes.
The property value can be bound to a signal, rapid data, or application variable.
ActionTrigger control can also be used to invoke the application from RAPID.
Use this procedure to add an ActionTrigger control::
Action
1
Drag an ActionTrigger control from the ToolBox on to the design surface.
Continues on next page
18
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
en0900000632
1 Introduction
1.4. Development environment
Continued
Action
2
You can modify the name, set the default value and configure data binding value for
a ActionTrigger control.
• To set the values of a property, see Properties window on page 17.
• You can set the trigger event for an ActionTrigger to any of the event handler
created either from a control or from an Events Manager option. To set up the
events, see Setup Events on page 35.
• To configure the data binding values, see Configuring data binding on page
38.
• To set the application variables, see Managing application variables on page
34.
© Copyright 2009 ABB. All rights reserved.
en0900000629
en0900000630
NOTE: An action is not triggered when the screen is launched for the first time, but is
triggered when there is a difference in the binded value at any point of time. This functionality
is supported only in RobotWare 5.12.02.
Example: Consider a signal being binded to the value property. The value of the signal
changes at runtime on performing a specific action. The event handler configured for
ActionTrigger control gets triggered based on this value change.
Continues on next page
3HAC035956-001 Revision: -
19
1 Introduction
1.4. Development environment
Continued
TpsLabel
TpsLabel is a standard Windows label that displays a descriptive text.
Step
Action
1
Drag a TpsLabel control from the ToolBox on to the design surface.
2
You can set the values, setup events, configure data binding values and set the
application values for a TpsLabel control.
• To set the values of a property, see Properties window on page 17.
• To set up the events, see Setup Events on page 35.
• To configure the data binding values, see Configuring data binding on page
38.
• To set the application variables, see Managing application variables on page
34.
3
You can set the option Allow Multiple States to true and change the property.
1. Click AllowMultipleStates. The Status Editor dialog box appears.
2. Click the check-box Allow Multi-States, select the properties to change from
Properties For States and click OK.
en0900000499
NOTE: Button, PictureBox, and TpsLabel controls also support AllowMultipleStates
option.
Panel
Panel is used to group a collection of controls.
Use this procedure to add a Panel control:
Step
Action
1
Drag a Panel control from the ToolBox on to the design surface.
2
You can add a group of controls to a panel.
Continues on next page
20
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
Use this procedure to add a TpsLabel control:
1 Introduction
1.4. Development environment
Continued
Step
Action
3
You can modify the name, set the default value and binding value for a Panel control.
• To set the values of a property, see Properties window on page 17.
• To set up the events, see Setup Events on page 35.
• To configure the data binding values, see Configuring data binding on page
38.
• To set the application variables, see Managing application variables on page
34.
NOTE: Currently only EventHandler, CancelEventHandlers, and MouseEventArgs are
supported.
ControllerModeStatus
ControllerModeStatus displays the mode of the controller (Auto - Manual).
Use this procedure to add a ControllerModeStatus control:
Action
1
Drag a ControllerModeStatus control from the ToolBox on to the design surface.
2
You can set the values, setup events, configure data binding values, and set the
application variables for a ControllerModeStatus control.
• To set the values of a property, see Properties window on page 17.
• To set up the events, see Setup Events on page 35.
• To configure the data binding values, see Configuring data binding on page
38.
• To set the application variables, see Managing application variables on page
34.
3
You can select the image to be displayed when the controller is in Auto mode and in
Manual mode.
• Click AutoImage in the Properties window and browse to select the image to
be displayed in Auto mode.
• Click ManualImage in the Properties window and browse to select the image
to be displayed in Manual mode.
© Copyright 2009 ABB. All rights reserved.
Step
en0900000536
Continues on next page
3HAC035956-001 Revision: -
21
1 Introduction
1.4. Development environment
Continued
RapidExecutionStatus
RapidExecutionStatus displays the execution status of the Controller Rapid Domain
(Running - Auto). This control is used
Step
Action
1
Drag a RapidExecutionStatus control from the ToolBox on to the design surface.
2
You can set the values, setup events, configure data binding values, and set the
application values for a RapidExecutionStatus control.
• To set the values of a property, see Properties window on page 17.
• To set up the events, see Setup Events on page 35.
• To configure the data binding values, see Configuring data binding on page
38.
• To set the application variables, see Managing application variables on page
34.
3
You can select the image to be displayed when the Program is running and is
stopped.
• Click RunningImage in the Properties window and browse to select the
image to be displayed when the Program is running.
• Click StoppedImage in the Properties window and browse to select the
image to be displayed when the Program is stopped.
en0900000537
RunRoutineButton
RunRoutineButton represents a Windows button that calls a RapidRoutine when clicked.
Use this procedure to add a RunRoutineButton control:
Step
Action
1
Drag a RunRoutineButton control from the ToolBox on to the design surface.
Continues on next page
22
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
Use this procedure to add a RapidExecutionStatus control:
1 Introduction
1.4. Development environment
Continued
Step
Action
2
You can set the values, setup events, configure data binding values, and set the
application values for a RapidExecutionStatus control.
• To set the values of a property, see Properties window on page 17.
• To set up the events, see Setup Events on page 35.
• To configure the data binding values, see Configuring data binding on page
38.
• To set the application variables, see Managing application variables on page
34.
3
You can perform the following RunRoutineButton tasks from the SmartTag:
• Define Actions before calling Routine
• Select Routine to call
• Define Actions after calling Routine
en0900000538
You can perform the following RunRoutineButton tasks from the Properties
window.
• RoutineToCall - RAPID Routine will be called
• AllowInAuto - Indicates if the routine could be called in the Auto mode
• TextAlign - Indicates the alignment of text
NOTE:
• You cannot bind RunRoutineButton to built-in Service routines as only the
user defined procedures without arguments are bindable.
• Set the PP to task before performing action through RunRoutineButton.
© Copyright 2009 ABB. All rights reserved.
4
en0900000545
3HAC035956-001 Revision: -
23
1 Introduction
© Copyright 2009 ABB. All rights reserved.
1.4. Development environment
24
3HAC035956-001 Revision: -
2 Managing ScreenMaker projects
2.1. Overview
2 Managing ScreenMaker projects
2.1. Overview
Overview
© Copyright 2009 ABB. All rights reserved.
This chapter describes how to manage projects in ScreenMaker. A complete cycle includes
creating, saving, building, connecting, and deploying a ScreenMaker project.
3HAC035956-001 Revision: -
25
2 Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
Overview
You can manage a project (create, delete, load, or save) either from ScreenMaker ribbon or
Context menu.
en0900000452
ScreenMaker Ribbon
en0900000395
© Copyright 2009 ABB. All rights reserved.
Context menu
Continues on next page
26
3HAC035956-001 Revision: -
2 Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
Continued
Creating a new project
Use this procedure to create a new project:
1. Click New from the ScreenMaker ribbon or right-click Project context menu and select
New Project.
The New ScreenMaker Project dialog box appears.
en0900000561
2. Enter a new project name and specify a location for the new project.
A default screen MainScreen (main) is added in the tree view.
By default, the new project is saved on C:\My Documents\My ScreenMaker Projects.
© Copyright 2009 ABB. All rights reserved.
3. Click OK.
Continues on next page
3HAC035956-001 Revision: -
27
2 Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
Continued
Loading a project
Use this procedure to load an existing project:
1. Click Open from the ScreenMaker ribbon or right-click Project context menu and select
Open Project.
The Open Screen Project file dialog box appears.
en0900000562
2. Browse to the location of the project file to be loaded and click Open.
NOTE!
You can also load an existing project using a quick access method.
1. Click Recent from the ScreenMaker ribbon or right-click Project context menu and
select Recent Projects.
© Copyright 2009 ABB. All rights reserved.
2. Select the project file from the list of most recently opened projects.
Continues on next page
28
3HAC035956-001 Revision: -
2 Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
Continued
Saving a project
To save a project, follow this step:
•
Click Save from the ScreenMaker ribbon or right-click Project context menu and
select Save.
To save the existing project with a new name, follow this step:
•
Click SaveAs from the ScreenMaker ribbon or right-click Project context menu and
select Save As.
NOTE!
Project files are saved with the extension .smk.
Closing a project
To close a project, follow this step:
•
Click Close Project from the ScreenMaker ribbon or right-click Project context menu
and select Close.
Managing screens
This section describes adding, renaming, deleting, and editing a screen.
Creating a screen
1. Click Screen from the ScreenMaker ribbon or right-click Project context menu and
select Add Screen.The New Screen dialog box appears.
2. Enter the name of the new screen in Name text box.
© Copyright 2009 ABB. All rights reserved.
3. Click OK.
en0900000563
Deleting a screen
1. From the Project tree view, select the screen to be deleted.
2. Right-click and select Delete.
Continues on next page
3HAC035956-001 Revision: -
29
2 Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
Continued
Renaming a screen
1. From the Project tree view, select the screen to be renamed.
2. Right-click and select Rename. The Rename of Screen dialog box appears.
3. Enter the new name in the text box and click OK.
en0900000564
Editing a screen
For information on editing a screen, see Editing a screen on page 35.
Changing the Main screen
You have the option to change the main screen in the project to active.
1. From the Project tree view, select the screen to be changed.
© Copyright 2009 ABB. All rights reserved.
2. Right-click and select Set as Main Screen.
en0900000546
Continues on next page
30
3HAC035956-001 Revision: -
2 Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
Continued
Modifying Project properties
Project properties define the properties of the ScreenMaker project, including how the GUI
is loaded and displayed in the FlexPendant.
Use this procedure to modify the project properties:
1. Right-click Project context menu and select Properties.
The Project Properties dialog box appears.
en0900000394
2. In the Display tab under Texts, enter the text in Caption of the Application to edit the
caption.
The updated caption appears in the ABB menu on the right side.
© Copyright 2009 ABB. All rights reserved.
3. In the Display tab under Images, browse and select the images of ABB Menu and Taskbar
in the respective boxes.
NOTE!
By default, User default image and User Menu image checkboxes are enabled and the
default image tpu-Operator32.gif is selected.
Continues on next page
3HAC035956-001 Revision: -
31
2 Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
Continued
Connecting to controller
Use this procedure to establish the connection with a controller:
1. From the ScreenMaker ribbon, click Connect.
The Select a Robot Controller dialog box appears.
en0900000581
2. Click Refresh to find a list of all the available controllers.
NOTE!
•
By default, the currently connected controller is highlighted and has a small icon
before the row as an indicator.
3. Select the controller to be connected from the list and click Connect.
© Copyright 2009 ABB. All rights reserved.
The connection status is displayed in the Project tree view.
en0900000618
Continues on next page
32
3HAC035956-001 Revision: -
2 Managing ScreenMaker projects
2.2. Managing ScreenMaker projects
Continued
Building a project
The result from building the ScreenMaker project is a set of files including DLL file and
images. The ScreenMaker project can be compiled into binary format (.dll) that can be
deployed on a FlexPendant.
Use this procedure to build a project:
1. From the ScreenMaker ribbon, click Build and select Build.
The result is displayed in the output window.
en0900000404
Deploying to controller
Use this procedure to deploy a ScreenMaker project on a real controller or virtual controller:
1. Connect to the controller you want to deploy. See Connecting to controller on page 32.
2. From the ScreenMaker ribbon, click Deploy.
The Download dialog box appears displaying the progress of download. It disappears
once the download is successful.
The TpsViewxxxxxx.dll file is downloaded.
3. Restart the controller.
NOTE!
If a real controller is used, you can reboot the FlexPendant by moving its joystick three
times to the right, once to the left, and once towards you.
•
If a virtual controller is used, you can reboot the FlexPendant by closing the virtual
FlexPendant window.
© Copyright 2009 ABB. All rights reserved.
•
3HAC035956-001 Revision: -
33
2 Managing ScreenMaker projects
2.3. Application variables
2.3. Application variables
Overview
Application variables, also called temporary variables are created for a ScreenMaker project.
During runtime, they reside in the FlexPendant memory. It is used for data sharing and
performance improvement. It is similar to a RAPID variable and has a RAPID data type.
Managing application variables
To create, delete, and rename an application variable, follow these steps:
1. In the Project context menu, right-click and select Application Variables. The
Project Application Variables dialog box appears.
2. Click Add and define the name, type and value of the new variable.
3. Select the variable, click Delete to delete a variable.
4. Select the variable, click Rename, enter the new name and click OK to rename a
variable.
5. Click Close.
en0900000402
For information on application variable data binding, see Application variable data binding
on page 42.
34
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
NOTE!
2 Managing ScreenMaker projects
2.4. Form designer
2.4. Form designer
Overview
The Form designer is a tool to edit or design a screen. It allows you to design the screen with
the required controls and the design surface resembles a FlexPendant screen.
Editing a screen
To edit a screen, follow these steps:
1. Drag a control from the toolbox and drop it on the design surface.
The Properties window displays all the properties of the control.
2. Select the control and resize or reposition for configuration.
NOTE!
You can either select a single control or multiple controls:
•
Single control : Left-click the control on the design surface or select the control from
the list in the Properties window.
•
Multiple controls: Left-click on the design surface, drag the mouse and create a
window selecting all the controls.
3. Click the smart tag on the upper right corner of the control to perform the basic tasks of
configuration. See Configuring data binding on page 38.
NOTE!
You can perform additional configuration by editing the attributes in the of the Properties
window. See Properties window on page 17.
© Copyright 2009 ABB. All rights reserved.
Setup Events
Event handler is a set of actions to be executed after an event occurs. To set up an event,
follow these steps:
1. Select the control for which the event handler is to be defined.
2. Open the Events Panel dialog box in any one of the following ways:
•
Double-click the control.
•
Right-click the control, select Events Manager, click Add, enter the name, and click
OK and close.
•
Click smart tag and select the task from the list.
•
In the Properties window, click Events icon and select the desired event from the list.
3. Click Add Action to add an action from a predefined list of actions.
Continues on next page
3HAC035956-001 Revision: -
35
2 Managing ScreenMaker projects
2.4. Form designer
Continued
The following table lists the set of predefined actions:
Screen
•
•
Open Screen
Close Screen
en0900000554
Signals
•
•
•
•
•
•
Set a Digital Signal
Invert a Digital Signal
Pulse a Digital Signal
Read a Signal
Write a Signal
Reset a Digital Signal
RapidData
•
•
© Copyright 2009 ABB. All rights reserved.
en0900000555
Read a Rapid Data
Write a Rapid Data
en0900000553
Continues on next page
36
3HAC035956-001 Revision: -
2 Managing ScreenMaker projects
2.4. Form designer
Continued
Advanced
•
•
•
Call another Action list
Call .NET method
Call Cuctom Action
en0900000552
4. Select the action from the left window and perform the following:
•
Click Delete to delete the action.
•
Click Move Up or Move Down to change the order of execution of actions.
© Copyright 2009 ABB. All rights reserved.
5. Click OK.
3HAC035956-001 Revision: -
37
2 Managing ScreenMaker projects
2.5. Data binding
2.5. Data binding
Overview
Data binding is the mechanism that links a GUI property with an external data source such
that whenever the data source is updated the GUI property will be updated automatically and
vice verse. Databinding has the following three aspects:
•
A unidirectional connection means that an update of the data source is reflected by the
GUI, or vice versa; a bidirectional connection means that updates to either are
reflected by the other.
•
A temporal connection can be suspended and resumed at any time.
•
A convertable connection negotiates between the different data types or formats
between the data source and the GUI property.
A screen has to be linked with data to be useful. There are two ways of linking the data with
the GUI properties:
•
Controller object data binding
•
Application variable data binding
Configuring data binding
Data binding can be configured in the following two ways:
Using smart tag
Smart tags perform basic configuration tasks like binding default GUI property with
controller data. Controls either display or edit information have a value to represent the
information. Smart tag binds the value to the controller object.
On the design surface, select the control and click the smart tag. The tasks menu
appears.
en0900000398
Using Binding menu
1. On the design surface, select the control.
2. In the Properties window, locate the row from the table for binding the value.
3. Select the attribute and click the list to display the Binding menu.
Continues on next page
38
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
•
2 Managing ScreenMaker projects
2.5. Data binding
Continued
en0900000399
Menu
Description
Remove actual binding
Removes the existing data binding
Bind to a Controller object
Select available data in the controller for binding.
Bind to an Application variable
Select available data in project temporary data store for
binding.
Configuring data binding for different controls
Almost all the controls defined in the toolbox (except ComboBox and ListBox) have the
following two options for binding values:
•
Bind to a Controller Object
•
Bind to an Application Variable
© Copyright 2009 ABB. All rights reserved.
Binding to an array can be done to the following controls:
•
DataEditor
•
ComboBox
•
ListBox
Continues on next page
3HAC035956-001 Revision: -
39
2 Managing ScreenMaker projects
2.5. Data binding
Continued
Control
Description
DataEditor
The default index value is 1. DataEditor is designed in such a way
that the default value of the Rapid array starts with 1 and not 0.
en0900000641
© Copyright 2009 ABB. All rights reserved.
ComboBox and ListBox The default index value is -1. You can enter the appropriate index
value but cannot bind to a controller object or an application
variable.
en0900000642
Continues on next page
40
3HAC035956-001 Revision: -
2 Managing ScreenMaker projects
2.5. Data binding
Continued
Controller object data binding
Controller object data binding lets you to select the data in the controller for binding.
Use this procedure to set up a binding with controller object:
1. Select Bind to a Controller Object either using smart tag or binding menu.
The Controller Object Binding dialog box appears.
en0900000400
2. In the Type of object group, select either Rapid data or Signal data.
3. If you select Rapid data, from the Scope group, select a task and module from the list.
4. If you select Signal data, the Scope group is disabled.
© Copyright 2009 ABB. All rights reserved.
5. In the See list, select the desired data.
Continues on next page
3HAC035956-001 Revision: -
41
2 Managing ScreenMaker projects
2.5. Data binding
Continued
Application variable data binding
Application variables are used for data binding in the same way as controller data. See
Controller object data binding on page 41.
Use this procedure to set up a binding with application variables:
1. Select Bind to an Application Variable either using smart tag or binding menu.
The Application Variables Bind Form dialog box appears.
en0900000403
2. Select an application variable and the field to connect.
3. Click Setup Variables to manage the variables.
The Project Application Variables dialog box appears. See Managing application
variables on page 34.
© Copyright 2009 ABB. All rights reserved.
4. Click OK.
42
3HAC035956-001 Revision: -
2 Managing ScreenMaker projects
2.6. Screen navigation
2.6. Screen navigation
Overview
Screen navigation in ScreenMaker follows a tree structure.
Consider the following example,
•
To open screen A1, you first have to open Screen A
•
To navigate from screen A1 to screen B1, you first have to close screen A1 and then
Screen A and navigate from Main Screen through Screen B to screen B1.
•
Similarly, to navigate from screen B1 to screen C1, you first have to close screen B1
and Screen B and then navigate from Main Screen through Screen C to screen C1.
© Copyright 2009 ABB. All rights reserved.
en0900000645
3HAC035956-001 Revision: -
43
2 Managing ScreenMaker projects
© Copyright 2009 ABB. All rights reserved.
2.6. Screen navigation
44
3HAC035956-001 Revision: -
3 Tutorial
3.1. Overview
3 Tutorial
3.1. Overview
About this chapter
This chapter is designed as a tutorial to take you through the steps involved in designing a
FlexArc Operator Panel, a simple arc-welding cell, whose robots perform three different jobs.
The operator panel will display the following graphic elements:
•
Controller Status, including the controller mode and the RAPID execution status
•
Part Status, including the number of produced parts, the average cycle time per part,
and a reset button
•
Robot jobs and locations, including Produce (for welding parts), Bull’s Eye (for
calibration) and Service (for servicing the welding gun)
•
Start and Stop buttons
Workflow
1. Create a station with a system, define the project and create application variables. For
more information, see Prerequistes for designing FlexArc Operator Panel on page 46.
2. Define the controls/graphic elements on the screen. For more information, see
Designing the screen on page 48.
3. Build and Deploy the project. For more information, see Building and deploying the
project on page 54.
The following table shows the workflow involved in designing a FlexArc Operator panel:
Prerequistes for designing For creating a station with a system, defining your project, and
FlexArc Operator Panel on creating your application variables.
page 46
Designing the screen on
page 48
For defining the graphics of your screen.
© Copyright 2009 ABB. All rights reserved.
Building and deploying the For building and deploying the GUI.
project on page 54
3HAC035956-001 Revision: -
45
3 Tutorial
3.2. Prerequistes for designing FlexArc Operator Panel
3.2. Prerequistes for designing FlexArc Operator Panel
Procedure
Use this procedure to create a station with a system, define the project, and create the
application variables involved in designing a FlexArc Operator Panel:
1. Create a system for the FlexArc Operator Panel.
For more information about creating a system, see Creating a system from layout, in
Operating manual - RobotStudio.
2. Create a station in RobotStudio with the system created in the previous step.
For more information about creating a station, see New Station, in Operating manual RobotStudio.
3. In RobotStudio, click ScreenMaker to launch the ScreenMaker application.
For information about ScreenMaker GUI, see Development environment on page 13.
4. From the ScreenMaker ribbon, create a new project and name it as FlexArcGUI, and save
it in the default location.
The new tab MainScreen is added to the Design Surface.
For more information about creating and managing projects, see Managing ScreenMaker
projects on page 26.
5. In the context menu, build and deploy the project by connecting to the controller.
The result is displayed in the output window.
For more information about building and deploying projects, see Managing screens on
page 29.
Name
Type
Value
MyResetValue
num
0
JobProduce
num
1
JobIdle
num
0
JobBulls
num
2
JobService
num
3
For more information about application variables, see Managing application variables on
page 34.
7. Create MainModule.mod for the task T_ROB1.
8. Create RAPID variables with the following data:
Name
Type
Value
partsReady
num
PERS
16
cycleTime
num
PERS
5.01645
JobIdle
num
CONST
0
JobProduce
num
CONST
1
JobBulls
num
CONST
2
Continues on next page
46
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
6. In the context menu, create application variables and configure them with the data in the
following table:
3 Tutorial
3.2. Prerequistes for designing FlexArc Operator Panel
Continued
Type
JobService
num
Value
CONST
3
© Copyright 2009 ABB. All rights reserved.
Name
3HAC035956-001 Revision: -
47
3 Tutorial
3.3. Designing the screen
3.3. Designing the screen
Overview
A major effort in the GUI project development is designing screens. The Form designer in the
ScreenMaker allows you to drag controls from the toolbox to the design surface. Using the
Properties window, you can resize, position, label, color, and configure the controls.
For information on the form designer, see Form designer on page 35.
For information on the toolbox, see ToolBox on page 15.
For information on the property window, see Properties window on page 17.
Designing FlexArc Operator Panel screen
The FlexArc Operator Panel screen is designed using the following controls in the ToolBox:
•
GroupBox. For more information, see GroupBox on page 48.
•
Status Icons. For more information, see Status icon on page 49.
•
Label and Number editor. For more information, see Label and Number Editor on
page 49.
•
Picture box. For more information, see PictureBox on page 50.
•
Button. For more information, see Button on page 51.
GroupBox
Property
Value
Location
14,45
Size
150,100
Title
Controller Status
BackColor
LightGray
2. Drag another GroupBox control from the General category on to the design surface and
set the following values in the Properties window.
Property
Value
Location
14,170
Size
150,204
Title
Part Status
Continues on next page
48
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
1. Drag a GroupBox control from the General category on to the design surface and set the
following values in the Properties window.
3 Tutorial
3.3. Designing the screen
Continued
Status icon
1. Drag a ControllerModeStatus control from the Controller Data category on to the
Controller Status groupbox and set the following values in the Properties window:
Property
Value
Location
19,40
Size
44,44
2. Drag a RapidExecutionStatus control from the ControllerData category on to the
Controller Status groupbox and set the following values in the Properties window:
Property
Value
Location
80,40
Size
44,44
Label and Number Editor
1. Drag a Label control from the General category on to the Part Status groupbox and set
the following values in the Properties window:
Property
Value
Location
16,30
Size
131,20
Title
Parts Produced
BackColor
LightGray
Font
TpsFont10
© Copyright 2009 ABB. All rights reserved.
2. Drag a NumEditor from the ControllerData category on to the Parts Status: groupbox
and set the following values in the Properties window:
Property
Value
Location
16,56
Size
116,23
Value
Bind to a Controller object
For example, RAPID num datatype.
Continues on next page
3HAC035956-001 Revision: -
49
3 Tutorial
3.3. Designing the screen
Continued
3. Drag another Label control from the General category on to the Part Status groupbox and
set the following values in the Properties window:
Property
Value
Location
16,89
Size
131,20
Text
Cycle time/part
BackColor
LightGray
Font
TpsFont10
4. Drag another NumEditor control from the General category on to the Part Status
groupbox and set the following values in the Properties window:
Property
Value
Location
16,115
Size
116,23
Value
Bind to a Controller object
For example, RAPID num datatype.
PictureBox
NOTE!
It is not mandatory to use only the images (.gif ) mentioned in the tabel below (for example,
RobotAtBullseye.GIF, FlexArcCell.GIF...). You can use any image (.gif ) of your choice. The
images (.gif) mentioned below are only examples.
Property
Value
Location
177,28
Size
284,359
SizeMode
StretchImage
2. Drag a second PictureBox control from the General category on to the design surface
and set the following values in the Properties window.
Property
Value
Location
369,31
Size
48,48
SizeMode
StretchImage
Visible
Link to DI_RobotAtBullseye
Continues on next page
50
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
1. Drag a PictureBox control from the General category on to the design surface and set the
following values in the Properties window:
3 Tutorial
3.3. Designing the screen
Continued
3. Drag a third PictureBox control from the General category on to the design surface and
set the following values in the Properties window:
Property
Value
Location
237,31
Size
48,48
SizeMode
StretchImage
Visible
Link to DI_RobotAtHome
4. Drag a fourth PictureBox control from the General category on to the design surface and
set the following values in the Properties window:
Property
Value
Location
369,31
Size
48,48
SizeMode
StretchImage
Visible
Link to DI_RobotAtService
Button
1. Drag a Button control from the General category on to the Part Status group box. In the
properties window, set the following values:
Property
Value
Location
33,154
Size
85,34
Text
Reset
© Copyright 2009 ABB. All rights reserved.
Define the following for the Reset button in the Part Status group:
1. Double-click the button or click the Smart tag and select Define Actions when
clicked to open the Events Panel dialog box.
2. Click Add Action and point to Rapid Data, and then select Write Rapid Data. The
Action Parameters dialog box appears.
3. In the Action Parameters dialog box, define the following values and click OK.
Rapid Data to Write
Value to Write
T_ROB1.MainModule.partsReady
MyResetValue.Value
T_ROB1.MainModule.cycleTime
MyResetValue.Value
2. Drag a second Button control from the General category on to the design surface and set
the following values in Properties window:
Property
Value
Location
486,66
Size
116,105
Continues on next page
3HAC035956-001 Revision: -
51
3 Tutorial
3.3. Designing the screen
Continued
Property
Value
Text
Start
Font
TpsFont20b
BackColor
LimeGreen
Enabled
Link to DI_RobotAtHome
Perform the following actions on the Start button:
1. Double-click the button or click the Smart tag and select Define Actions when
clicked to open the Events Panel dialog box.
2. Click Add Action and point to Rapid Data, and then select Write Rapid Data. The
Action Parameters dialog box appears.
3. In the Action Parameters dialog box, define the following values and click OK.
Rapid Data to Write
Value to Write
T_ROB1.MainModule.JobProduce
JobProduce
3. Drag a third Button control from the General category on to the design surface and set
the following values in the Properties window:
Property
Value
Location
486,226
Size
116,105
Text
Stop
Font
TpsFont20b
BackColor
LimeGreen
Enabled
Link to DI_PRODUCE
Perform the following actions on the Stop button:
2. Click Add Action and point to Rapid Data, and then select Write Rapid Data. The
Action Parameters dialog box appears.
3. In the Action Parameters dialog box, define the following values and click OK.
Rapid Data to Write
Value to Write
T_ROB1.MainModule.JobIdle
JobIdle
4. Drag a a fourth Button control from the General category on to the design surface and
set the following values in the Properties window:
Property
Value
Location
274,246
Size
111,47
Text
BullsEye
Font
TpsFont14b
BackColor
LimeGreen
Continues on next page
52
3HAC035956-001 Revision: -
© Copyright 2009 ABB. All rights reserved.
1. Double-click the button or click the Smart tag and select Define Actions when
clicked to open the Events Panel dialog box.
3 Tutorial
3.3. Designing the screen
Continued
Property
Value
Enabled
Link to DI_RobotAtHome
Perform the following actions on the BullsEye button:
1. Double-click the button or click the Smart tag and select Define Actions when
clicked to open the Events Panel dialog box.
2. Click Add Action and point to Rapid Data, and then select Write Rapid Data. The
Action Parameters dialog box appears.
3. In the Action Parameters dialog box, define the following values and click OK.
Rapid Data to Write
Value to Write
T_ROB1.MainModule.JobBulls
JobBulls
5. Drag a fifth Button control from the General category on to the design surface and set
the following values in the Properties window:
Property
Value
Location
274,324
Size
111,47
Text
Service
Font
TpsFont14b
BackColor
LimeGreen
Enabled
Link to DI_RobotAtHome
Perform the following actions on the Service button:
1. Double-click the button or click the Smart tag and select Define Actions when
clicked to open the Events Panel dialog box.
2. Click Add Action and point to Rapid Data, and then select Write Rapid Data. The
Action Parameters dialog box appears.
© Copyright 2009 ABB. All rights reserved.
3. In the Action Parameters dialog box, define the following values and click OK.
Rapid Data to Write
Value to Write
T_ROB1.MainModule.JobService
JobService
3HAC035956-001 Revision: -
53
3 Tutorial
3.4. Building and deploying the project
3.4. Building and deploying the project
Procedure
1. From the ScreenMaker ribbon, click Build.
For more information on building the project, see Building a project on page 33.
2. From the ScreenMaker ribbon, click Deploy.
For more information on deploying the project, see Deploying to controller on page 33.
3. In RobotStudio, press Ctrl+F5 to launch the Virtual Flexpendant and click FlexArc
Operator Panel to open the GUI.
NOTE!
© Copyright 2009 ABB. All rights reserved.
Ensure that you start the RAPID execution and switch the controller into Auto mode.
54
3HAC035956-001 Revision: -
4 Frequently asked questions
4.1. Frequently asked questions
4 Frequently asked questions
4.1. Frequently asked questions
How to deploy manually to a Virtual Controller
If for any reason you wish to manually by-pass the Deploy button in RobotStudio and the
virtual controller, the following information describes what files are to be moved.
Actions
Location of output files
The files that contain the FlexPendant application from ScreenMaker are found (for example)
in the bin directory under the My ScreenMaker Projects located in the My documents
directory of the user.
For example, My Documents\My ScreenMaker Projects\SCM_Example\bin where
SCM_Example is the example ScreenMaker project.
The files in the bin directory are to be copied to a location where the Virtual FlexPendant can
read them during the start of the FlexPendant.
Location where the Virtual FlexPendant reads the files
The recommended location for manually copying the ScreenMaker output files is the location
of the virtual controller system.
If the system is created manually from System Builder, it is located in the My Documents
directory.
For example, My Documents\IRB4400_60_SCM_Example\HOME where
IRB4400_60_SCM_Example is the example controller system.
© Copyright 2009 ABB. All rights reserved.
If the system is created by a Pack-and-Go and then restored, it is located in the
RobotStudio\Systems folder.
For example,
MyDocuments\RobotStudio\Systems\IRB4400_60_SCM_Example\HOME where
IRB4400_60_SCM_Example is the example controller system.
Copy files
Copy the files from the ScreenMaker output to the Home directory of the virtual controller
system.
Restart the Virtual FlexPendant and the new application will be loaded.
Continues on next page
3HAC035956-001 Revision: -
55
4 Frequently asked questions
4.1. Frequently asked questions
Continued
How to change the application name and image on the FlexPendant
When a ScreenMaker project is created the first time, the caption on the FlexPendant and
image is set by default. You will want to change this.
Actions
Right-click Project and select Properties.
en0900000666
© Copyright 2009 ABB. All rights reserved.
The Project Properties dialog box appears showing how the project appears on the
FlexPendant.
en0900000667
Continues on next page
56
3HAC035956-001 Revision: -
4 Frequently asked questions
4.1. Frequently asked questions
Continued
Picture object and changing images due to I/O
The typical user objective is to have an image that changes when an I/O signal changes, this
is common for a digital input to affect the state on the FlexPendant.
Actions
This is accomplished by adding an image and allowing the image to have multiple states.
Set AllowMultipleState to TRUE and set the Image state.
en0900000668
© Copyright 2009 ABB. All rights reserved.
Create two states and add images for each state:
en0900000669
Continues on next page
3HAC035956-001 Revision: -
57
4 Frequently asked questions
4.1. Frequently asked questions
Continued
The Value property is extremely important. If binding to a digital input then there are two
states for the input, 0 and 1. Set the Value property to the value of the bound variable. 0 and
1 for digital input. It is also possible to bind to RAPID variables and have multiple states and
values for the values in the RAPID variable.
Set the SelectedStateValue property to bind to a controller object:
en0900000670
Using CommandBar and the menu items
Using CommandBars allow buttons to appear at the bottom of the screen in a controlled and
organized order.
en0900000671
© Copyright 2009 ABB. All rights reserved.
In the preceding graphic, the CommandBar has three menu items Gate, Conveyor, and
Motor. The objective is to have events trigger when these are clicked.
Continues on next page
58
3HAC035956-001 Revision: -
4 Frequently asked questions
4.1. Frequently asked questions
Continued
Actions
First create the CommandBar and add the menu items (either by editing the menu items
property or by clicking the small arrow on the upper right of the active CommandBar) and
add the menu items.
en0900000672
© Copyright 2009 ABB. All rights reserved.
To add events to the menu items, go to the Properties dialog and select the menu item from
the drop down list.
en0900000673
Continues on next page
3HAC035956-001 Revision: -
59
4 Frequently asked questions
4.1. Frequently asked questions
Continued
Select Gate menu item. The following dialog appears.
en0900000674
en0900000409
1. In the preceding graphic, select 4 to add an event when the menu item is clicked.
2. Click the drop-down list to select the event. The events are added automatically
© Copyright 2009 ABB. All rights reserved.
For more information on various ways of opening the Events Panel dialog box, see Setup
Events on page 35.
en0900000675
Continues on next page
60
3HAC035956-001 Revision: -
4 Frequently asked questions
4.1. Frequently asked questions
Continued
en0900000676
CommandBar menu items do not appear
© Copyright 2009 ABB. All rights reserved.
When adding CommandBar menu items, ensure that the Text property is filled, if not nothing
will appear on the CommandBar.
en0900000677
Continues on next page
3HAC035956-001 Revision: -
61
4 Frequently asked questions
4.1. Frequently asked questions
Continued
How to get radio buttons to show state when entering
The objective is to have two radio buttons that controls one digital output. When the screen
is loaded, the buttons should show the current state of the output.
Actions
Create a group or a panel and place the two radio buttons on the group or panel.
For button1, set the property default value to True and bind the property to the value of the
controller digital output signal.
For button1, do not do any changes.
When the screen is loaded, the state of the two radio buttons is established correctly.
Binding to arrays and using the index correctly
While a RAPID index starts with 1 (1 selects the first element), the ComboBox index starts
with 0 (0 selects the first index). You should be aware of this when using ComboBoxes.
How to reboot the FlexPendant after re-deploying
If a real controller is used, you can reboot your FlexPendant by holding the FlexPendant
joystick and performing the following sequence:
© Copyright 2009 ABB. All rights reserved.
Move the joystick three times to the right, once to the left and once down.
62
3HAC035956-001 Revision: -
Index
A
Application Variables 34
create,delete, rename application variables 34
FlexPendant memory 34
RAPID variable 34
C
NumericUpDown 16
Panel 16
PictureBox 16
RapidExecutionStatus 16
RunRoutineButton 16
TabControl 16
TpsLabel 16
Configure data binding 38
Using Binding menu 38
Using Smart tag 38
Connecting a controller 32
D
Data Binding 38
Application variable data binding 42
Controller object data binding 41
Design surface 13
Development Environment 13
L
LED 16
M
Manage ScreenMaker Project 26
Close project 29
Create project 27
Load project 28
Save project 29
Manage Screens 29
Create screen 29
Delete screen 29
Edit screen 30
Rename screen 30
Managing ScreenMaker Projects
Build project 33
Modify project properties 31
© Copyright 2009 ABB. All rights reserved.
P
Properties Window
Event Help panel 17
Graphical Component Name panel 17
Properties window toolbar 17
Table panel 17
S
Screen navigation 43
switch 16
T
ToolBox
ActionTrigger 15
BarGraph 15
CheckBox 15
ComboBox 15
CommandBar 15
ControllerModeStatus 15
DataEditor 15
Graph 15
GroupBox 15
ListBox 16
NumEditor 16
3HAC035956-001 Revision: -
63
© Copyright 2009 ABB. All rights reserved.
Index
64
3HAC035956-001 Revision: -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
