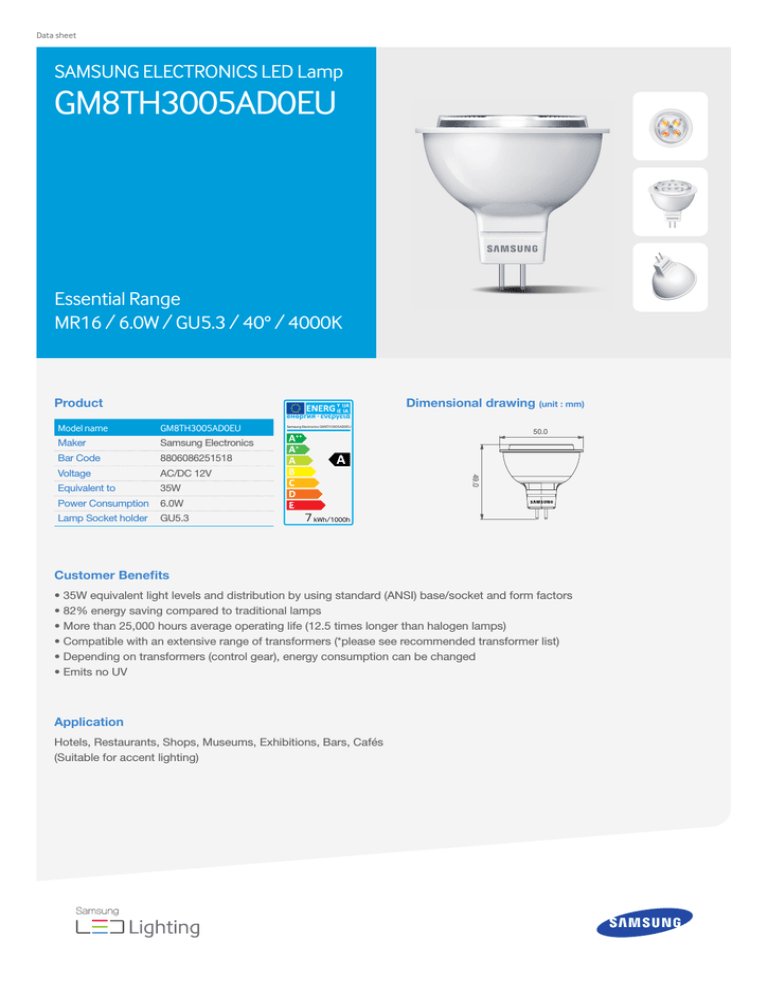

Data sheet
SAMSUNG ELECTRONICS LED Lamp
GM8TH3005AD0EU
Essential Range
MR16 / 6.0W / GU5.3 / 40° / 4000K
Product
Dimensional drawing (unit : mm)
GM8TH3005AD0EU
Maker
Samsung Electronics
Bar Code
8806086251518
Voltage
AC/DC 12V
Equivalent to
35W
Power Consumption
6.0W
Lamp Socket holder
GU5.3
Samsung Electronics GM8TH3005AD0EU
50.0
49.0
Model name
7 kWh/1000h
Customer Benefits
• 35W equivalent light levels and distribution by using standard (ANSI) base/socket and form factors
• 82% energy saving compared to traditional lamps
• More than 25,000 hours average operating life (12.5 times longer than halogen lamps)
• Compatible with an extensive range of transformers (*please see recommended transformer list)
• Depending on transformers (control gear), energy consumption can be changed
• Emits no UV
Application
Hotels, Restaurants, Shops, Museums, Exhibitions, Bars, Cafés
(Suitable for accent lighting)
SAMSUNG ELECTRONICS LED Lamp
GM8TH3005AD0EU
Specifications
Lighting Data
Model name
GM8TH3005AD0EU
Nominal useful luminous flux (lm)
Rated useful luminous flux (lm)
Nominal luminous flux (lm)
Lamp efficacy (lm/W)
Luminous intensity (cd)
Frequency (Hz)
Input current (mA)
Nominal power consumption (W)
Rated power consumption (W)
Lumen Maintenance Factor
Warm-up time (60%)
Starting time (s)
On/Off cycles
Nominal beam angle (°)
Rated beam angle (°)
Operating temperature (°C)
Nominal lamp life time (hrs)
Rated lamp life time (hrs)
Color description
Color temperature (K)
CRI (Ra)
Color consistency (ANSI)
Dimmable
Weight (g)
Energy efficiency index
Energy consumption (kWh/1000h)
Certification
365
(0~180)
1400
365
380
63
660
50/60
680
6.0
6.0
L70
Instant full light
0.1
50,000
40
40
-20~+40
25,000
25,000
Neutral White
4000
80
≤ MacAdam 6-step
No
54
A
7
CE, CB
(90~270)
1000
600
200
(uni : cd)
90°
1m
660 lx
2m
165 lx
3m
73 lx
90°
60°
60°
30°
30°
0°
Relative Spectral Power [Arb.]
Light Distribution
Illuminance (lx)
1.0
0.8
0.6
0.4
0.2
0.0
200
300
400
500
600
700
800
Wavelength [nm]
Spectral Power Distribution
Packaging Details
• Single Box (1pc) : 70mm×55mm×91mm / 85g
• Middle Box (6pc/box) : 180mm×81mm×192mm / 602g
• Outer Carton (24pc/box) : 357mm×192mm×203mm / 2,610g
※ Specifications are subject to change without notice
Transformer Compatibility
NO Manufacture and Part Number
Power rating (W)
Operating voltage (V)
Frequency (Hz)
1
OSRAM/ET-Z 60 220-240V
20~60
220~240
50/60
2
OSRAM/HALOTRONIC HTM 70/ 230-240V
20~70
230~240
50/60
3
OSRAM/ET-PARROT 105 220-240V
35~105
220~240
50/60
4
PHILIPS Primaline 70 230-240V
20~70
230~240
50/60
5
PHILIPS Primaline 105 230-240V
50~105
230~240
50/60
6
HATCH/ RS 12-80BF-277 277V 50/60Hz
80
277
50/60
7
ABB 50-230/12 KXG
35~105
220~240
50/60
8
Philips ET-S 60 220-240
60
220~240
50/60
9
Conrad 574223 10-60W 50-60Hz
10~60
220~240
50/60
10
Philips ET-E 50
50
220~240
50/60
11
Philips ET-S60 220-240 20-60W
20~60
220~240
50/60
12
Philips Certaline 60W 20~60W
20~60
220~240
50/60
13
TCI MW70LED 1-50WLED
1~50
230~240
50/60
14
OSRAM ET-REDBACK 60VA/230-240
20~60
230~240
50
