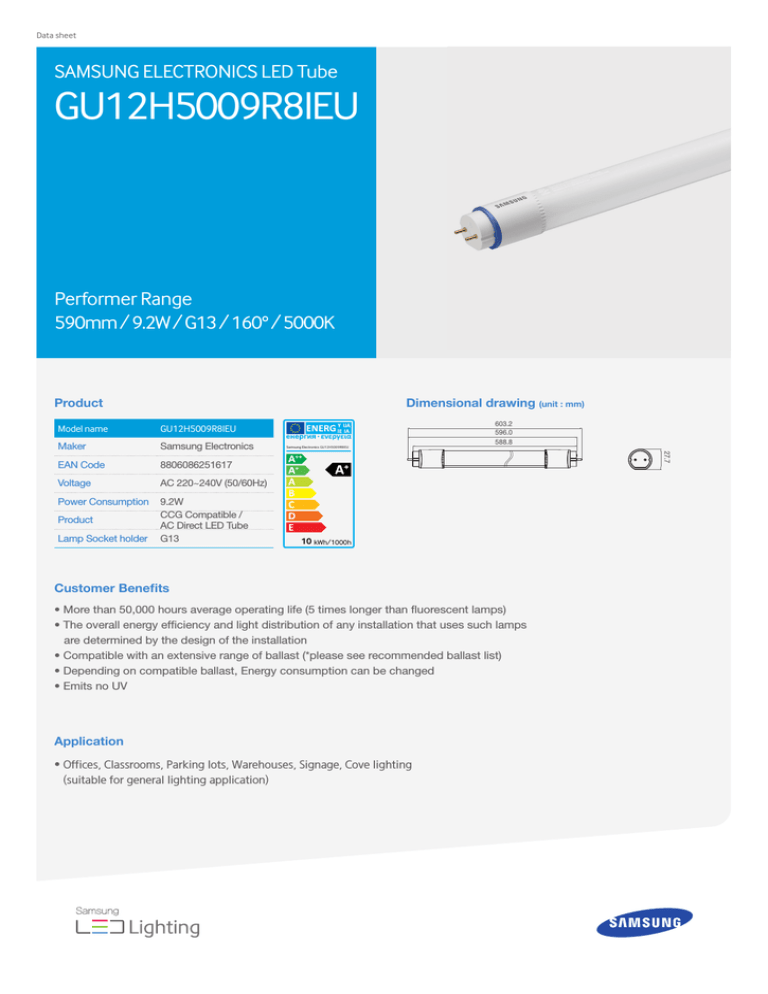

Data sheet
SAMSUNG ELECTRONICS LED Tube
GU12H5009R8IEU
Performer Range
590mm / 9.2W / G13 / 160° / 5000K
Product
Dimensional drawing (unit : mm)
GU12H5009R8IEU
Maker
Samsung Electronics
EAN Code
8806086251617
Voltage
AC 220~240V (50/60Hz)
Power Consumption
9.2W
CCG Compatible /
AC Direct LED Tube
G13
Product
Lamp Socket holder
Samsung Electronics GU12H5009R8IEU
603.2
596.0
588.8
27.7
Model name
10 kWh/1000h
Customer Benefits
• More than 50,000 hours average operating life (5 times longer than fluorescent lamps)
• The overall energy efficiency and light distribution of any installation that uses such lamps
are determined by the design of the installation
• Compatible with an extensive range of ballast (*please see recommended ballast list)
• Depending on compatible ballast, Energy consumption can be changed
• Emits no UV
Application
• Offices, Classrooms, Parking lots, Warehouses, Signage, Cove lighting
(suitable for general lighting application)
SAMSUNG ELECTRONICS LED Tube
GU12H5009R8IEU
Specifications
Lighting Data
Model name
GU12H5009R8IEU
Nominal luminous flux (lm)
1,100
Rated luminous flux (lm)
1,100
Frequency (Hz)
50/60
Input current (mA)
42
Nominal power consumption (W)
9.2
(0~180)
(90~270)
280 240 200 160 120 80
(uni : cd)
90°
1m
263 lx
2m
65 lx
3m
29 lx
90°
60°
60°
30°
30°
Rated power consumption (W)
9.2
Power factor
> 0.9
THD (%)
≤ 20
Lumen Maintenance Factor
L70
Warm-up time
Instant full light
Starting time (s)
0.1
On/Off cycles
50,000
Nominal beam angle (°)
> 160
Rated beam angle (°)
> 160
Operating temperature (°C)
-20~+50
Nominal lamp life time (hrs)
50,000
Rated lamp life time (hrs)
50,000
Color description
Cool White
Color temperature (K)
5000
• Single Box (1pc) : 699mm x 34mm x 34mm / 172g
CRI (Ra)
> 80
• Outer carton (20pc/box) : 704mm x 185mm x 152mm / 3.9kg
Diameter (mm)
Φ 27.7
Overall length (mm)
590
Weight (g)
120
Energy Efficiency Index
A+
Energy consumption (kWh/1000h)
10
Certification
CE
0°
Light Distribution
Packaging Details
※ Specifications are subject to change without notice
※ Energy consumption is calculated based on AC direct type
Ballast Compatibility
Model
Maker
Model Name
ABB
18-059 CF55
Vossloh & Schwabe
Performer 600mm
Illuminance (lx)
LN18.220
LN18.507
TRIDONIC
EC 18 LC111K
ABB
VVG 18-059 CF28
Helvar
L18A-K
※For CCG(magnetic ballast) type, Conventional Starter has to be changed with L-Tube Starter
