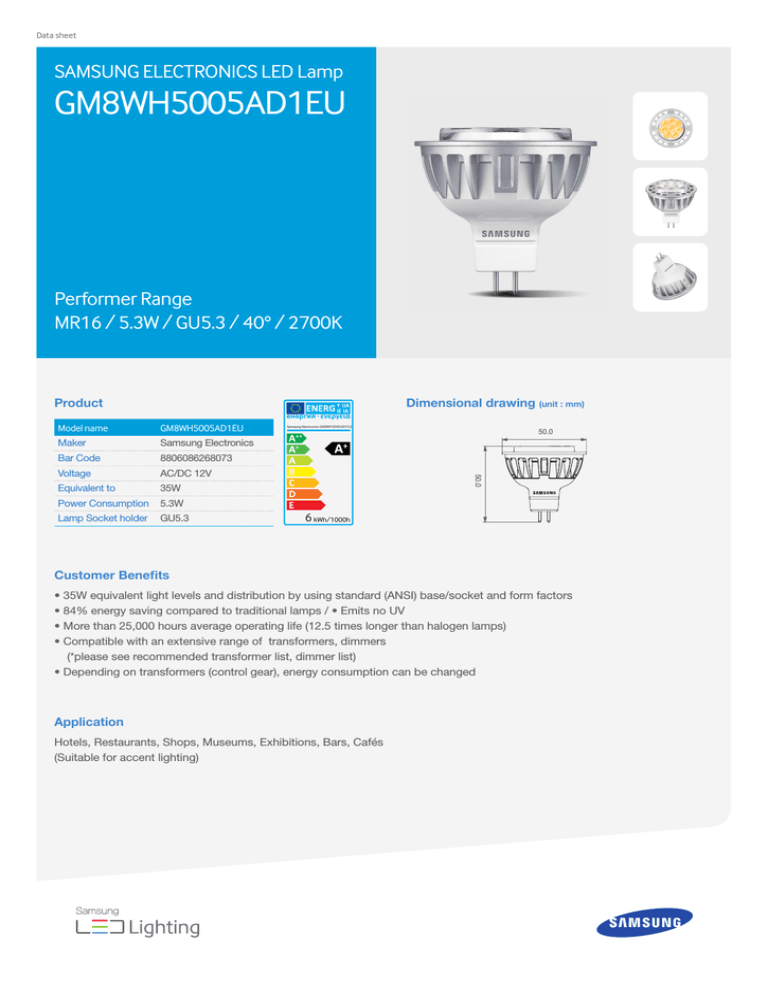

Data sheet
SAMSUNG ELECTRONICS LED Lamp
GM8WH5005AD1EU
Performer Range
MR16 / 5.3W / GU5.3 / 40° / 2700K
Product
Dimensional drawing (unit : mm)
GM8WH5005AD1EU
Maker
Samsung Electronics
Bar Code
8806086268073
Voltage
AC/DC 12V
Equivalent to
35W
Power Consumption
5.3W
Lamp Socket holder
GU5.3
Samsung Electronics GM8WH5005AD1EU
50.0
50.0
Model name
6 kWh/1000h
Customer Benefits
• 35W equivalent light levels and distribution by using standard (ANSI) base/socket and form factors
• 84% energy saving compared to traditional lamps / • Emits no UV
• More than 25,000 hours average operating life (12.5 times longer than halogen lamps)
• Compatible with an extensive range of transformers, dimmers
(*please see recommended transformer list, dimmer list)
• Depending on transformers (control gear), energy consumption can be changed
Application
Hotels, Restaurants, Shops, Museums, Exhibitions, Bars, Cafés
(Suitable for accent lighting)
SAMSUNG ELECTRONICS LED Lamp
GM8WH5005AD1EU
Specifications
Lighting Data
Model name
GM8WH5005AD1EU
Nominal useful luminous flux (lm)
Rated useful luminous flux (lm)
Nominal luminous flux (lm)
Lamp efficacy (lm/W)
Luminous intensity (cd)
Frequency (Hz)
Input current (mA)
Nominal power consumption (W)
Rated power consumption (W)
Lumen Maintenance Factor
Warm-up time (60%)
Starting time (s)
On/Off cycles
Nominal beam angle (°)
Rated beam angle (°)
Operating temperature (°C)
Nominal lamp life time (hrs)
Rated lamp life time (hrs)
Color description
Color temperature (K)
CRI (Ra)
Color consistency (ANSI)
Dimmable
Weight (g)
Energy efficiency index
Energy consumption (kWh/1000h)
Certification
350
(0~180)
800
350
350
66
730
50/60
485
5.3
5.3
L70
Instant full light
0.2
50,000
40
40
-20~+40
25,000
25,000
Warm White
2700
80
≤ MacAdam 6-step
Yes
55
A+
6
CE, CB
600
400
200
(uni : cd)
90°
1m
730 lx
2m
182 lx
3m
81 lx
90°
60°
60°
30°
30°
0°
Relative Spectral power [Arb.]
Light Distribution
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
200
300
400
500
600
Illuminance (lx)
700
800
Wavelength [nm]
Spectral Power Distribution
Packaging Details
• Single Box (1pc) : 52mm×52mm×64mm / 65g
• Middle Box (10pc/box) : 275mm×111mm×70mm / 750g
• Outer Carton (40pc/box) : 239mm×286mm×164mm / 3,500g
※ Specifications are subject to change without notice
Dimmer / Transformer Compatibility
Transformer
No.
1
2
3
4
5
6
Dimmer
7
8
9
10
11
12
13
Manufacturer
PRODX
BERKER
PEHA
JUNG
JUNG
Schneider electric
BUSCH-JAEGER
BUSCH-JAEGER
GIRA
ELKO
ELKO
Schneider electric
Schneider electric
Models
PEK-6
2873
434
266GDE
225NVDE
WDE002349
2247U
6513U-102
0307/00
315GLE
400GLI
SBD315RC
SBD630RC
Power
60-600W
20~500W
60~400W
60~600W
20~500W
40~400W
500W
40~420W
60~400W
20~315W
40~400VA
20-315VA
20~630W
No.
Manufacturer
Models
Power
Region
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
EU
1
OSRAM
ET-Z 60
20-60W
EU
Good
Good
Working
Good
Good
Good
Good
Working
Good
Good
Good
NC
NC
2
OSRAM
HTM70
20-70W
EU
Good
Good
Working
Working
Good
Working
Good
Working
Good
Good
Good
Good
Good
3
PHILIPS
ET-E 50
20-60W
EU
Good
Good
NC
Working
Good
Working
Good
Good
Good
NC
Working
NC
Good
4
OSRAM
ET-REDBACK
20-60W
EU
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
Good
5
OSRAM
6
TCI
ET-PARROT 105 MW70LED
35-105W
1-50W
EU
EU
Good
Good
Good
Good
Working
Good
Good
Good
Good
Good
Working
NC
Working
Good
Good
Working
Good
Good
Good
NC
Good
NC
Good
NC
Good
NC
Note 1. Dimming Performance : Good(Dimming Coverage without flicker : 75%↑), Working(41~74%), Poor(40%↓), N/C(Not Compatible)
2. This result can only be used as reference. The result may vary according to actual field conditions.
7
CONARD
574223
10-60W
EU
Good
Good
NC
Good
Good
Good
Good
Working
Good
Good
Good
Good
Good
8
POSSUM
TRIDONIC
60VA
EU
NC
Good
Working
Working
Good
Working
Good
Working
Good
Good
Working
Good
Good
