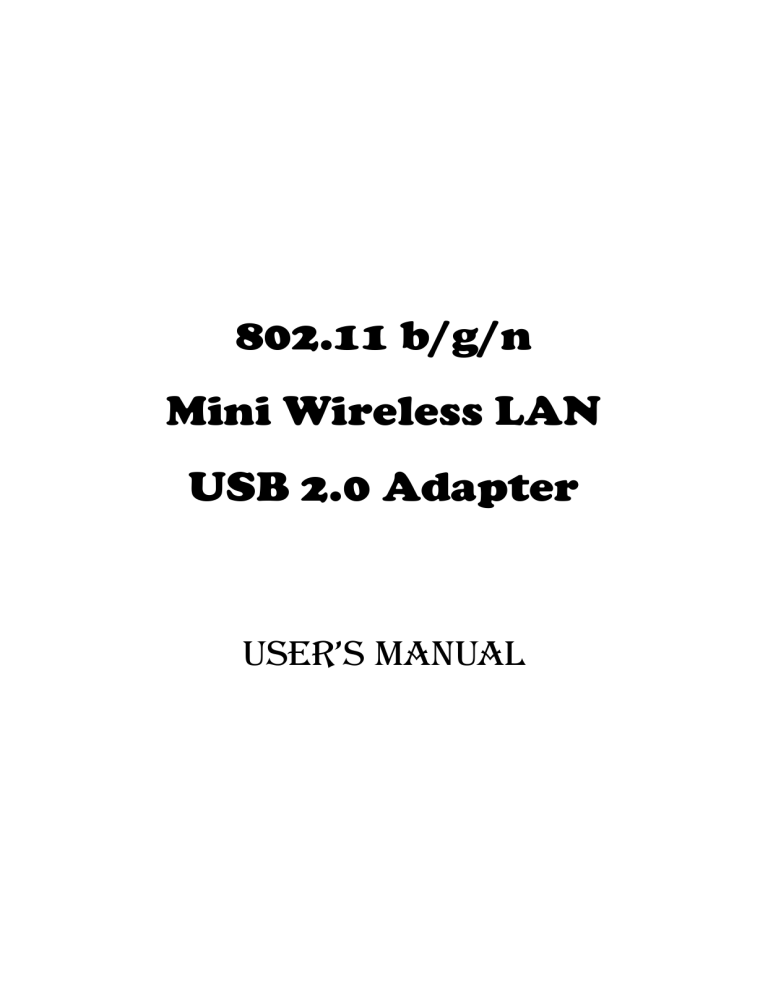

WUG2650 MNL

802.11 b/g/n

Mini Wireless LAN

USB 2.0 Adapter

User’s Manual

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z

Reorient or relocate the receiving antenna. z

Increase the separation between the equipment and receiver. z

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Country Code Statement

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.

To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that do not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

CAUTION:

Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Federal Communication Commission (FCC) Radiation Exposure Statement

This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE

C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. This equipment should be installed and operated with minimum distance 2.5cm between the radiator & your body.

CE Statement:

Hereby, AboCom, declares that this device is in compliance with the essential requirement and other relevant provisions of the R&TTE Driective 1999/5/EC.

Table of Contents

CHAPTER 1: INTRODUCTION ..................................................... 1

F

EATURES

..............................................................................................1

CHAPTER 2: INSTALLATION....................................................... 2

FOR WINDOWS 2000/XP ......................................................... 2

I

NSTALL THE

S

OFTWARE

..........................................................................2

I

NSTALL THE

H

ARDWARE

.........................................................................4

FOR WINDOWS VISTA............................................................. 6

I

NSTALL THE

S

OFTWARE

..........................................................................6

I

NSTALL THE

H

ARDWARE

.........................................................................8

V

ERIFICATION

.........................................................................................5

NETWORK CONNECTION ....................................................... 9

IP A

DDRESS

...........................................................................................9

CHAPTER 3: UTILITY CONFIGURATION .................................... 9

FOR WINDOWS 2000/XP ....................................................... 10

S

TATION

M

ODE

..................................................................................... 11

Profile ............................................................................................................................... 11

Network............................................................................................................................ 17

Link Status....................................................................................................................... 19

Advanced......................................................................................................................... 21

Statistics........................................................................................................................... 22

WMM / QoS..................................................................................................................... 23

WPS ................................................................................................................................. 24

Radio On/Off ................................................................................................................... 27

About ................................................................................................................................ 28

U

TILITY

M

ENU

L

IST

............................................................................... 28

S

OFT

AP

MODE

..................................................................................... 29

Config ............................................................................................................................... 29

Access Control................................................................................................................ 31

MAC Table....................................................................................................................... 32

Event Log......................................................................................................................... 33

Statistics........................................................................................................................... 34

About ................................................................................................................................ 35

FOR WINDOWS VISTA........................................................... 36

S

TATION

M

ODE

..................................................................................... 37

Profile ............................................................................................................................... 37

Network............................................................................................................................ 42

Link Status....................................................................................................................... 45

Advanced......................................................................................................................... 46

Statistics........................................................................................................................... 47

WMM / QoS..................................................................................................................... 49

WPS ................................................................................................................................. 50

Radio On/Off ................................................................................................................... 53

About ................................................................................................................................ 53

U

TILITY

M

ENU

L

IST

............................................................................... 54

S

OFT

AP

MODE

..................................................................................... 55

Config ............................................................................................................................... 55

Access Control................................................................................................................ 57

MAC Table....................................................................................................................... 58

Event Log......................................................................................................................... 59

Statistics........................................................................................................................... 60

About ................................................................................................................................ 61

CHAPTER 4: UNINSTALLATION ............................................... 62

FOR WINDOWS 2000/XP ....................................................... 62

FOR WINDOWS VISTA .......................................................... 64

Chapter 1:

Introduction

The Wireless LAN USB Adapter is an IEEE802.11b/g/n USB adapter that connects your notebook to a wireless local area network. The Wireless LAN USB Adapter fully complies with IEEE 802.11n draft

3.0 and IEEE 802.11 b/g standards, delivers reliable, cost-effective, feature rich wireless connectivity at high throughput from an extended distance.

The Wireless LAN USB Adapter is a very small adapter that can connect notebook, handheld or desktop computer equipped with USB interface for wireless network applications. It allows you to take full advantage of your notebook’s mobility with access to real-time information and online services anytime and anywhere.

Features

¾

1T1R Mode with 150Mbps PHY Rate for both.

¾

Complies with IEEE 802.11n draft 3.0 and IEEE 802.11 b/g standards.

¾

Supports WEP 64/128 bits, WPA, WPA2.

¾

Supports WMM and WMM-PS.

¾

Supports WPS configuration.

¾

Supports USB 2.0/1.1 interface.

¾

Portable and mini-size design.

¾

Compatible with Microsoft Windows 2000, XP, and Vista operating systems.

-

1 -

Chapter 2:

Installation

For Windows 2000/XP

Install the Software

Note:

Do not insert the Wireless LAN USB Adapter into the computer until the

InstallShield Wizard finished installing.

1. Exit all Windows programs. Insert the included Installation CD into the computer. The CD-ROM will run automatically.

2. When the License Agreement screen appears, please read the contents and select “I accept the

terms of the license agreement “ then click Next to continue.

-

2 -

3. Select the check box to choose a Configuration Tool from the listed two choices. z Configuration Tool: Choose to use the configuration utility. z Microsoft Zero Configuration Tool: Choose to use Windows XP’s built-in Zero

Configuration Utility (ZCU).

Click Next to continue.

5. When prompt to the following message, please click Install to begin the installation.

-

3 -

6. When the following screen appears, click Finish to complete the software installation.

Install the Hardware

Note:

Insert the Wireless LAN USB Adapter when finished software installation.

Insert the Wireless LAN USB Adapter into the USB Port of the computer. The system will automatically detect the new hardware.

-

4 -

Verification

To verify if the device is active in the computer. Go to Start > Setting > Control Panel > System

> Hardware > Device Manager. Expand the Network Adapters category. If the 802.11n/b/g

Mini Wireless LAN USB2.0 Adapter is listed here, it means that the device is properly installed and enabled.

-

5 -

For Windows Vista

Install the Software

Note:

Do not insert the Wireless LAN USB Adapter into the computer until the

InstallShield Wizard finished installing.

1. Exit all Windows programs. Insert the included Installation CD into the computer. The CD-ROM will run automatically.

2. When the License Agreement screen appears, please read the contents and select “I accept the

terms of the license agreement “ then click Next to continue.

-

6 -

3. When prompt to the following message, please click Install to begin the installation.

4. When the following screen appears, click Finish to complete the software installation.

-

7 -

Install the Hardware

Note:

Insert the Wireless LAN USB Adapter when finished software installation.

Insert the Wireless LAN USB Adapter into the USB Port of the computer. The system will automatically detect the new hardware.

Verification

To verify if the device is active in the computer. Go to Start > Setting > Control Panel > System

> Hardware > Device Manager. Expand the Network Adapters category. If the 802.11n/b/g

Mini Wireless LAN USB2.0 Adapter is listed here, it means that the device is properly installed and enabled.

-

8 -

Network Connection

IP Address

Note:

When assigning IP address(es) to computers on the network, remember to have IP address for each computer set on the same subnet mask. If the Broadband Router has been enabled DHCP server function, it won’t be necessary to assign static IP address for PC.

1. To configure a dynamic IP address (i.e. if the broadband Router is enabled the DHCP server), check the Obtain an IP address automatically option.

2. To configure a fixed IP address (if DHCP server is not enabled in Broadband Router, or when PC needs to be assigned a static IP address), check the Use the following IP address option. Then, enter an IP address into the empty field; for example, enter 192.168.1.1 in the IP address field,

255.255.255.0 for the Subnet Mask, and 192.168.1.254 for the default gateway.

-

9 -

Chapter 3: Utility

Configuration

For Windows 2000/XP

After the Wireless LAN USB Adapter has been successfully installed, users can use the included

Configuration Utility to set the preference.

Go to StartJ (All) ProgramJ Intelligent WirelessJ Intelligent Wireless Utility.

Users can also open the Configuration Utility by double clicking or right clicking the icon in the tray to select Launch Config Utility.

-

10 -

Station Mode

IMPORTANT NOTICE:

Under screen resolution 800 x 600 pixels, if users click the triangle button at the right down corner of the utility windows to expand the station linking information that will NOT be displayed completely.

Profile

Profile can let users book keeping the favorite wireless setting among home, office, and other public hot-spot. Users may save multiple profiles, and activate the correct one at preference. The Profile manager enables users to Add, Edit, Delete, and Activate profiles.

Click this button to show the information of Status Section.

Click this button to hide the information of Status Section.

Profile Tab

Profile Name

SSID

Network Type

Authentication

Here shows a distinctive name of profile in this column. The default is

PROF# (#1, #2, #3....)

The SSID is the unique name shared among all wireless access points in the wireless network.

Shows the network type of the device, including Infrastructure and

Ad-hoc.

Shows the authentication mode.

-

11 -

Encryption

Use 802.1x

Tx Power

Shows the encryption type.

Whether or not use 802.1x feature.

Transmit power, the amount of power used by a radio transceiver to send the signal out.

Shows the selected channel that is currently in use.

Channel

Power Save Mode

RTS Threshold

Shows the RTS Threshold of the device.

Fragment Threshold

Shows the Fragment Threshold of the device.

Add

Choose from CAM (Constantly Awake Mode) or PSM (Power Saving

Mode.)

Click to add a profile from the drop-down screen.

System Configuration tab:

Profile Name: Users can enter profile name, or use default name defined by system. The default is PROF# (#1, #2, #3....).

SSID: The SSID is the unique name shared among all wireless access points in the wireless network. The name must be identical for all devices and wireless access points attempting to connect to the same network.

Users can use pull-down menu to select from available access points.

Network Type: There are two types, Infrastructure and Ad-hoc modes.

Under Ad-hoc mode users can also choose the preamble type, the available preamble type includes Auto and Long. In addition to that, the channel field will be available for setup in Ad-hoc mode.

• The Infrastructure is intended for the connection between wireless network cards and an access point. With the Wireless LAN USB

Adapter, users can connect wireless LAN to a wired global network via an access point.

-

12 -

• The Ad-hoc lets users set a small wireless workgroup easily and quickly. Equipped with the Wireless LAN USB Adapter, users can share files and printers between each PC and laptop.

Tx Power: Transmit power, the amount of power used by a radio transceiver to send the signal out. Select the Tx power percentage from the pull-down list including Auto, 100%, 75%, 50%, 25%, 10% and

Lowest.

Preamble: This function will show up when Ad-hoc network type be selected. A preamble is a signal used in wireless environment to synchronize the transmitting timing including Synchronization and Start frame delimiter. Select from the pull-down menu to change the Preamble type into Auto or Long.

Power Save Mode:

CAM (Constantly Awake Mode): When this mode is selected, the power supply will be normally provided even when there is no throughput. (Default power save mode is CAM.)

PSM (Power Saving Mode): When this mode is selected, this device will stay in power saving mode even when there is high volume of throughput.

RTS Threshold: Users can adjust the RTS threshold number by sliding the bar or key in the value directly. (The default value is 2347.) RTS/CTS

Threshold is a mechanism implemented to prevent the “Hidden Node” problem. If the “Hidden Node” problem is an issue, users have to specify the packet size. The RTS/CTS mechanism will be activated if the data size

exceeds the values that have been set.

This value should remain at its default setting of 2347. Should users encounter inconsistent data flow, only minor modifications of this value are recommended.

Fragment Threshold: Users can adjust the Fragment threshold number by sliding the bar or key in the value directly. (The default value is 2346.)

The mechanism of Fragmentation Threshold is used to improve the efficiency when high traffic flows along in the wireless network. If the

Wireless LAN USB Adapter often transmits large files in wireless network, users can enter new Fragment Threshold value to split the packet. The value can be set from 256 to 2346.

Authentication and Security tab:

Authentication Type: There are several types of authentication modes including Open, Shared, Leap, WPA, WPA-PSK, WPA2 and

WPA2-PSK.

Open: If the access point or wireless router is using "Open” authentication, then the Wireless LAN USB Adapter will need to be set to the same authentication type.

-

13 -

Shared: Shared key is when both the sender and the recipient share a secret key.

LEAP: Light Extensible Authentication Protocol. It is an EAP authentication type used primarily in Cisco Aironet WLANs. It encrypts data transmissions using dynamically generated WEP keys, and supports mutual authentication (only with CCX mode enabled.)

WPA/ WPA-PSK/ WPA2/ WPA2-PSK: WPA or WPA-PSK authentications offer two encryption methods, TKIP and AES. For

WPA-PSK, select the type of algorithm TKIP or AES and then enter a

WPA Shared Key of 8-64 characters in the WPA Pre-shared Key field.

Encryption Type: For Open and Shared authentication mode, the selection of encryption type are None and WEP. For WPA, WPA2,

WPA-PSK and WPA2-PSK authentication mode, the encryption type supports both TKIP and AES.

WPA Pre-shared Key: This is the shared secret key between AP and

STA. For WPA-PSK and WPA2-PSK authentication mode, this field must be filled with character longer than 8 and less than 64 lengths.

WEP Key: Only valid when using WEP encryption algorithm. The key must match with the AP’s key. There are four formats to enter the keys.

ASCII (64 bits): 5 ASCII characters (case sensitivity).

ASCII (128 bits): 13 ASCII characters (case sensitivity).

Hexadecimal (64 bits): 10 Hex characters (0~9, a~f).

Hexadecimal (128 bits): 26 Hex characters (0~9, a~f).

Show Password: Check this box to show the passwords that have been entered.

802.1x Setting: When users use radius server to authenticate client certificate for WPA authentication mode (WPA authentication do not support EAP Method- MD5-Challenge).

802.1x tab:

-

14 -

EAP Method:

PEAP: Protect Extensible Authentication Protocol. PEAP transport securely authentication data by using tunnelling between PEAP clients and an authentication server. PEAP can authenticate wireless

LAN clients using only server-side certificates, thus simplifying the implementation and administration of a secure wireless LAN.

TLS / Smart Card: Transport Layer Security. Provides for certificate-based and mutual authentication of the client and the network. It relies on client-side and server-side certificates to perform authentication and can be used to dynamically generate user-based and session-based WEP keys to secure subsequent communications between the WLAN client and the access point.

TTLS: Tunnelled Transport Layer Security. This security method provides for certificate-based, mutual authentication of the client and network through an encrypted channel. Unlike EAP-TLS, EAP-TTLS requires only server-side certificates.

EAP-FAST: Flexible Authentication via Secure Tunnelling. It was developed by Cisco. Instead of using a certificate, mutual authentication is achieved by means of a PAC (Protected Access

Credential) which can be managed dynamically by the authentication server. The PAC can be provisioned (distributed one time) to the client either manually or automatically. Manual provisioning is delivery to the client via disk or a secured network distribution method. Automatic provisioning is an in-band, over the air, distribution. For tunnel authentication, only support "Generic Token

Card" authentication now.

MD5-Challenge: Message Digest Challenge. Challenge is an EAP authentication type that provides base-level EAP support. It provides for only one-way authentication - there is no mutual authentication of wireless client and the network. (Only Open and Shared authentication mode can use this function.)

Tunnel Authentication:

Protocol: Tunnel protocol, List information including

EAP-MSCHAP v2, EAP-TLS/ Smart Card, and Generic Token

Card.

Tunnel Identity: Identity for tunnel.

Tunnel Password: Password for tunnel.

Session Resumption: Reconnect the signal while broken up, to reduce the packet and improve the transmitting speed. Users can click the box to enable or disable this function.

ID\PASSWORD tab:

-

15 -

ID/ PASSWORD: Identity and password for server.

Authentication ID / Password: Identity, password and domain name for server. Only "EAP-FAST" EAP method and "LEAP" authentication can key in domain name. Domain name can be keyed in blank space.

Tunnel ID / Password: Identity and Password for server.

Show Password: Check this box to show the passwords that have been entered.

OK: Click to save settings and exit this page.

Cancel: Click to call off the settings and exit.

Client Certification tab:

Use Client certificate: Choose to enable server authentication.

OK: Click to save settings and exit this page.

Cancel: Click to call off the settings and exit.

Server Certification tab:

Use certificate chain: Choose use server that issuer of certificates.

Allow intimidate certificates: It must be in the server certificate chain between the server certificate and the server specified in the certificate issuer must be field.

Server name: Enter an authentication sever.

Server name must match: Click to enable or disable this function.

Domain name must end in specified name: Click to enable or disable this function.

OK: Click to save settings and exit this page.

Cancel: Click call off the settings and exit.

-

16 -

Delete

Edit

Activate

Network

Click to delete an existing profile.

Click to edit a profile.

Click to make a connection between devices.

The Network page displays the information of surrounding APs from last scan result. The tab lists the information including SSID, Network type, Channel, Wireless mode, Security-Enabled and Signal.

Network Tab

Sorted by

Show dBm

SSID

Network Type

Channel

Wireless mode

Encryption

Signal

Rescan

Indicate that AP list are sorted by SSID, Channel or Signal.

Check the box to show the dBm of the AP list.

Shows the name of BSS network.

Network type in use, Infrastructure for BSS, Ad-Hoc for IBSS network.

Shows the currently used channel.

AP support wireless mode. It may support 802.11b, 802.11g or 802.11n wireless mode.

Shows the encryption type currently in use. Valid value includes WEP,

TKIP, AES, Not Use and WPS.

Shows the receiving signal strength of specified network.

Click to search and refresh the access point list.

-

17 -

Add to Profile

Connect

Select an item (SSID) on the list and then click to add it into the profile list.

Select an item (SSID) on the list and then click to make a connection.

Access Point (AP) Information

Double click on the intended AP to see AP's detail information that divides into four parts. They are

General, WPS, CCX and 802.11n information. The introduction is as following:

General

WPS

General information contain AP's SSID, MAC address, Authentication Type,

Encryption Type, Channel, Network Type, Beacon Interval, Signal Strength and Supported Rates.

Close: Click this button to exit the information screen.

WPS information contains Authentication Type, Encryption Type, Config

Methods, Device Password ID, Selected Registrar, State, Version, AP Setup

Locked, UUID-E and RF Bands.

Authentication Type: There are four types of authentication modes supported by RaConfig. They are Open, Shared, WPA-PSK, WPA securities,

WPA2-PSK and WPA2.

Encryption Type: For Open and Shared authentication mode, the selection of encryption type are None and WEP. For WPA, WPA2, WPA-PSK and

WPA2-PSK authentication mode, the encryption type supports both TKIP and

AES.

Config Methods: Correspond to the methods the AP supports as an Enrollee for adding external Registrars.

Device Password ID: Indicate the method or identifies the specific password that the selected Registrar intends to use.

-

18 -

CCX

Selected Registrar: Indicate if the user has recently activated a Registrar to add an Enrollee. The values are "TRUE" and "FALSE"

State: The current configuration state on AP. The values are

"Unconfigured" and "Configured.”

Version: WPS specified version.

AP Setup Locked: Indicate if AP has entered a setup locked state.

UUID-E: The universally unique identifier (UUID) element generated by the

Enrollee. There is a value. It is 16 bytes.

RF Bands: Indicate all RF bands available on the AP. A dual-band AP must provide it. The values are "2.4GHz.”

Close: Click this button to exit the information screen.

802.11n

CCX information contains CCKM, Cmic and Ckip information.

Close: Click this button to exit the information screen.

Link Status

This tab will show up if the selected access point supports 11n mode. Here shows the connected access point 802.11n related information.

Click the triangle button at the right down corner of the windows to expand the link status. The link status page displays the detail information of current connection.

Click this button to show the information of Status Section.

Click this button to hide the information of Status Section.

-

19 -

Link Status Tab

Status

Shows the current connected AP SSID and MAC address. If there is no connection existing, it will show Disconnected.

Extra Info

Shows the link status and TX power percentage.

Channel

Authentication

Encryption

Shows the current channel in use.

Authentication mode used within the network, including Unknown,

Open, Shared, Leap, WPA-PSK, WPA2-PSK, WPA and WPA2.

Shows the encryption type currently in use. Valid value includes WEP,

TKIP, AES, and Not Use.

Network Type

IP Address

Sub Mask

Default Gateway

Link Quality

Network type in use, Infrastructure for BSS, Ad-Hoc for IBSS network.

Shows the IP address information.

Shows the Subnet Mask information.

Shows the default gateway information.

Shows the connection quality based on signal strength and TX/RX packet error rate.

-

20 -

Signal Strength 1

Noise Strength

Transmit

Receive

Link Speed

Throughput

Advanced

Shows the receiving signal strength, users can choose to display as percentage or dBm format.

Shows the noise signal strength in the wireless environment.

Shows the current Link Speed and Throughput of the transmit rate.

Shows the current Link Speed and Throughput of receive rate.

Shows the current transmitting rate and receiving rate.

Shows the transmitting and receiving speed of data.

This Advanced page provides advanced and detailed settings for the wireless network.

Advanced Tab

Wireless mode

Enable TX Burst

Here supports 2.4G (included 802.11b/g/n) wireless mode.

Check to enable this function. This function enables the Wireless LAN USB

Adapter to deliver better throughput during a period of time, it only takes effect when connecting with the AP that supports this function.

Enable TCP Window

Size

Check to increase the transmission quality. The large TCP window size the better performance.

Fast Roaming at dBm

Check to set the roaming interval, fast to roaming, setup by transmits power.

(Default setting is -70dBm.)

Show Authentication

Status Dialog

When connected AP with authentication, choose whether show

"Authentication Status Dialog" or not. Authentication Status Dialog displays the process about 802.1x authentications.

-

21 -

Enable CCX

(Cisco Compatible extensions)

Apply

Check to enable the CCX function.

• Turn on CCKM.

• Enable Radio Measurements: Check to enable the Radio measurement function.

• Non-Serving Measurements limit: Users can set channel measurement every 0~2000 milliseconds. (Default is set to 250 milliseconds.)

Click to apply above settings.

Statistics

The Statistics screen displays the statistics on the current network settings.

Transmit

Frames Transmitted

Successfully

Shows information of packets successfully sent.

Frames Retransmitted

Successfully

Frames Fail To Receive

ACK After All Retries

Shows information of packets successfully sent with one or more reties.

Shows information of packets failed transmit after hitting retry limit.

RTS Frames Successfully

Receive CTS

Reset Counter

Shows information of packets successfully receive CTS after sending

RTS.

RTS Frames Fail To Receive

CTS

Shows information of packets failed to receive CTS after sending

RTS.

Click this button to reset counters to zero.

-

22 -

Receive Statistics

Frames Received Successfully Shows information of packets received successfully.

Frames Received With CRC

Error

Shows information of packets received with CRC error.

Frames Dropped Due To

Out-of-Resource

Shows information of packets dropped due to resource issue.

Duplicate Frames Received

Shows information of packets received more than twice.

Reset Counter

Click this button to reset counters to zero.

WMM/ QoS

The WMM page shows the Wi-Fi Multi-Media power save function and Direct Link Setup (DLS) that ensure the wireless network linking quality.

-

23 -

WMM/QoS Tab

WMM Enable

Check the box to enable Wi-Fi Multi-Media function that is meant to improve audio, video and voice applications transmitted over Wi-Fi.

WMM- Power Save

Enable

Select a power save mode that preferred. z

AC_BK (Access Category Background) z

AC_BE (Access Category Best Effort) z

AC_VI (Access Category Video) z

AC_VO (Access Category Voice)

Direct Link Setup

Enable

Check the box to enable Direct Link Setup (DLS). This function will be enabled under the connection with AP which must support the DLS function.

Direct Link Setup allows direct STA-to-STA frame transfer within a BSS

(B asic Service Set

). This is designed for consumer use, where STA-to-STA transfer is more commonly used.

MAC Address

Timeout Value

Apply

Tear Down

The setting of DLS( Direct Link Setup) indicates as follow :

Fill in the blanks of Direct Link with MAC Address of target STA, and the

STA must conform to two conditions: z

Connecting with the same AP that supports DLS feature. z

DLS enabled.

Timeout Value represents that it disconnect automatically after few seconds.

The value is integer that must be between 0~65535. It represents that it always connects if the value is zero. (Default setting of Timeout Value is 60 seconds.)

Click this button to apply the settings.

Select a direct link STA MAC address, then click "Tear Down" button to disconnect the STA.

WPS

The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. The STA as an Enrollee or external Registrar supports the configuration setup using PIN (Personal Identification Number) configuration method or PBC (Push

Button Configuration) method through an internal or external Registrar.

-

24 -

WPS Tab

WPS AP List

Rescan

Information

Display the information of surrounding APs with WPS IE from last scan result. List information included SSID, BSSID, Channel, ID (Device

Password ID), Security-Enabled.

Issue a rescan command to wireless NIC to update information on surrounding wireless network.

Display the information about WPS IE on the selected network. List information included Authentication Type, Encryption Type, Config

Methods, Device Password ID, Selected Registrar, State, Version, AP Setup

Locked, UUID-E and RF Bands.

PIN Code

Config Mode

Detail

8-digit numbers. It is required to enter PIN Code into Registrar when using

PIN method. When STA is Enrollee, users can use "Renew" button to re-generate new PIN Code.

Select from the pull-down menu to decide the station role-playing as an

Enrollee or an external Registrar.

Click the Detail button to show the information about Security and Key in the credential.

-

25 -

Connect

Rotate

Disconnect

If selected the AP that listed in the WPS Profile List field, users can click the

Detail button to see more AP information.

SSID: Shows the connected AP network name.

BSSID: The MAC address of the connected AP. Fixed and cannot be changed.

Authentication Type: The authentication type support Open, WPA-PSK and WPA2-PSK.

Encryption Type: For Open authentication mode, the selection of encryption type are NONE and WEP. For WPA-PSK and WPA2-PSK authentication mode, the encryption type supports both TKIP and AES.

Key Length: Only valid when using Open authentication mode and WEP encryption. There are key lengths 5, 10, 13 and 26.

Key Index: Only valid when using Open authentication mode and WEP encryption. There are 1~4 key index.

Key Material: The key material can be used to ensure the security of the wireless network. Fill in the appropriate value or phrase in Key Material field.

Show Password: Check this box to show the passwords that have been entered.

OK: Click to save and apply the new settings.

Cancel: Click to leave and discard the settings.

Command to connect to the selected network inside credentials. The active selected credential is as like as the active selected Profile.

Command to rotate to connect to the next network inside credentials.

Stop WPS action and disconnect this active link. And then select the last profile at the Profile Page. If there is an empty profile page, the driver will select any non-security AP.

-

26 -

Export Profile

Delete

Export all credentials to Profile.

Delete an existing credential. And then select the next credential if exist. If there is an empty credential, the driver will select any non-security AP.

PIN

Registrar: Add the AP’s PIN code into the PIN code column, and press the device PIN button. It will connect with the AP in two minutes and get IP address.

Enrollee: Input the device’s PIN code into the PIN code column of AP. Start

AP WPS process and click device PIN button. Then, the device will connect to AP in two minutes and get IP address.

PBC

Start to add to AP using PBC (Push Button Configuration) method. Click this button to connect the AP which supported WPS function within two minutes. Meanwhile, the AP should also click the PBC button simultaneously.

Note:

After the users click PIN or PBC, please do not rescan within two minutes of the connection. If users want to stop this setup within the interval, restart PIN/PBC or click "Disconnect" to stop WPS action.

WPS Associate IE

Send the association request with WPS IE during WPS setup. It is optional for STA.

WPS Probe IE

Send the probe request with WPS IE during WPS setup. It is optional for

STA.

Auto

Progress Bar

Status Bar

Check this box the device will connect the AP automatically.

Display rate of progress from Start to Connected status.

Display currently WPS Status.

Radio On/Off

Click this Radio On/Off button to turn ON or OFF radio function.

This icon shows radio on, click to turn it off.

This icon shows radio off, click to turn it on.

-

27 -

About

This page displays the information of the Wireless LAN USB Adapter including, Config Version/ Date,

Driver Version/ Date, EEPROM Version, Firmware Version and Phy_Address.

Utility Menu List

To access the utility menu list, please right click the utility icon on the task bar. z

Launch Config Utility: Select to open the utility screen. z

Use Zero Configuration as Configuration Utility: Select to use the Window XP built-in utility (Zero configuration utility). z

Switch to AP Mode: Select to make the Wireless LAN USB Adapter act as a wireless AP. z

Exit: Select to close the utility program.

-

28 -

Soft AP mode

Config

Config

SSID

Channel

Wireless Mode

Use Mac Address

Security Setting

AP name of user type. Users also can click Use Mac Address button to display it.

Manually force the AP using the channel. (The system default is CH 1.)

Here supports 2.4G (included 802.11b/g/n) wireless mode. (The system default is 2.4G.)

Click this button to replace SSID by MAC address.

Authentication mode and encryption algorithm used within the AP. (The system default is no authentication and encryption.)

-

29 -

Authentication Type: There are several types of authentication modes including Open, Shared, WPA-PSK, WPA2-PSK, and WPA-PSK/

WPA2-PSK. (System authentication type default is Open.)

Encryption Type: For Open and Shared authentication mode, the selections of encryption type are Not Use and WEP. For WPA-PSK,

WPA2-PSK, and WPA-PSK/ WPA2-PSK authentication mode, the encryption type supports both TKIP and AES. (System authentication type default is Not Use.)

WPA Pre-shared Key: This is the shared secret between AP and STA.

For WPA-PSK and WPA2-PSK and WPA-PSK/ WPA2-PSK authentication mode, this field must be filled with character longer than 8 and less than 64 lengths.

Group Re-key Interval: Only valid when using WPA-PSK, WPA2-PSK, and WPA-PSK/ WPA2-PSK authentication mode to renew key. Users can set to change by seconds or packets. (Default is 600 seconds.)

WEP Key: Only valid when using WEP encryption algorithm. The key must match with the AP’s key. There are four formats to enter the keys.

ASCII (64 bits): 5 ASCII characters (case sensitivity).

ASCII (128 bits): 13 ASCII characters (case sensitivity).

Hexadecimal (64 bits): 10 Hex characters (0~9, a~f).

Hexadecimal (128 bits): 26 Hex characters (0~9, a~f).

Show Password: Check this box to show the passwords that have been entered.

Beacon (ms)

TX Power

The time between two beacons. (The system default is 100 ms.)

Manually force the AP transmits power from the pull-down list 100%,

75%, 50%, 25% and lowest. (The system default is 100%)

Idle time(60-3600)(s)

It represents that the AP will idle after few seconds. The time must be set between 60~3600 seconds. (Default value of idle time is 300 seconds.)

-

30 -

No forwarding among wireless clients

Hide SSID

Allow BW 40MHz

Tx BURST

No beacon among wireless client, clients can share information each other. (The system default is no forwarding.)

Default

Apply

Access Control

Do not display AP name. (System default is disabled.)

Click to disable this function. (System default is enabled.)

This function enables the adapter to deliver better throughput, enable this function the link speed will up to 300Mbps, disable this function the link speed will up to 150Mbps only.

Note: This function depends on the capability of device. Here supports link speed up to 150Mbps only, DO NOT support link speed up to 300Mbps.

This function enables the adapter to deliver better throughput during a period, it only takes effect when connecting with the AP that supports this function. (Default setting is enabled.)

Use the system default value.

Click to apply the above settings.

-

31 -

Access Control

Access Policy

MAC Address

Access List

Add

Delete

Remove All

Apply

User chooses whether AP start the function or not. (System default is

Disable.) z Disable: Do not use this access control function. z Allow All: Only the MAC address listed in the Access List can connect with this soft AP. z Reject All: Only the MAC address listed in the Access List can NOT connect with this soft AP.

Manually force the MAC address using the function. Enter the MAC address in the column and click Add button, then the MAC address will be listed in the Access List pool.

Display all MAC Address that have been set.

Add the MAC address that users would like to set.

Delete the Mac address that has been set.

Remove all Mac address in the Access List.

Apply the above changes.

MAC Table

-

32 -

MAC Table

MAC Address

AID

The station MAC address of current connection.

Raise value by current connection.

Power Saving Mode

The station of current connect whether it have to support.

Status

The status of current connection.

Event Log

Event Log

Event Time

(yy/mm/dd-hh:mm:ss)

Records the event time.

Message

Records all the event messages.

-

33 -

Statistics

Transmit Statistics

Frames Transmitted Successfully

Shows information of packets successfully sent.

Frames Fail To Receive ACK After

All Retries

Shows information of packets failed transmit after hitting retry limit.

RTS Frames Successfully Receive

CTS

Shows information of packets successfully receive CTS after sending RTS.

RTS Frames Fail To Receive CTS

Shows information of packets failed to receive CTS after sending RTS.

Frames Transmitted Successfully

After Retry

Shows information of packets successfully sent with one or more reties.

Receive Statistics

Frames Received Successfully

Shows information of packets received successfully.

Frames Received With CRC Error Shows information of packets received with CRC error.

Frames Dropped Due To

Out-of-Resource

Shows information of packets dropped due to resource issue.

-

34 -

Duplicate Frames Received

Reset Counter

About

The number of duplicate packets received.

Reset counters to zero.

This page displays the Wireless LAN USB Adapter and driver version information.

-

35 -

For Windows Vista

After the Wireless LAN USB Adapter has been successfully installed, users can use the included

Configuration Utility to set the preference.

Go to StartJ (All) ProgramJ Intelligent WirelessJ Intelligent Wireless Utility.

Open the Configuration Utility by double clicking or right clicking the icon in the tray to select

Launch Config Utility.

-

36 -

Station Mode

Profile

Profile can book keeping the favorite wireless setting among home, office, and other public hot-spot.

Users may save multiple profiles, and activate the correct one at preference. The Profile manager enables users to Add, Edit, Delete, and Activate profiles.

Click this button to show the information of Status Section.

Click this button to hide the information of Status Section.

Profile Tab

Profile Name

SSID

Network Type

Authentication

Encryption

Use 802.1x

Tx Power

Channel

Users may enter a distinctive name of profile in this column. The default is PROF# (#1, #2, #3....)

The SSID is the unique name shared among all wireless access points in the wireless network.

Shows the network type of the device, including Infrastructure and

Ad-hoc.

Shows the authentication mode.

Shows the encryption type.

Whether use 802.1x feature or not.

Transmit power, the amount of power used by a radio transceiver to send the signal out.

Shows the selected channel that is currently in use.

-

37 -

Power Save Mode

RTS Threshold

Shows the RTS Threshold of the device.

Fragment Threshold

Shows the Fragment Threshold of the device.

Add

Choose from CAM (Constantly Awake Mode) or PSM (Power Saving

Mode.)

Click to add a profile from the drop-down screen.

System Configuration tab:

Profile Name: Users can enter profile name, or use default name defined by system. The default is PROF# (#1, #2, #3....).

SSID: The SSID is the unique name shared among all wireless access points in the wireless network. The name must be identical for all devices and wireless access points attempting to connect to the same network. Users can use pull-down menu to select from available access points.

Network Type: There are two types, Infrastructure and Ad hoc modes.

• The Infrastructure is intended for the connection between wireless network cards and an access point. With the Wireless LAN USB

Adapter, users can connect wireless LAN to a wired global network via an access point.

• The Ad hoc lets users set a small wireless workgroup easily and quickly. Equipped with the Wireless LAN USB Adapter, users can share files and printers between each PC and laptop.

Tx Power: Transmit power, the amount of power used by a radio transceiver to send the signal out. Select the Tx power percentage from the pull-down list including Auto, 100%, 75%, 50%, 25%, 10% and

Lowest.

Preamble: This function will show up when Ad-hoc network type be selected. A preamble is a signal used in wireless environment to synchronize the transmitting timing including Synchronization and Start

-

38 -

frame delimiter. Select from the pull-down menu to change the Preamble type into Auto or Long.

Power Save Mode:

CAM (Constantly Awake Mode): When this mode is selected, the power supply will be normally provided even when there is no throughput. (Default power save mode is CAM.)

PSM (Power Saving Mode): When this mode is selected, this device will stay in power saving mode even when there is high volume of throughput.

RTS Threshold: Users can adjust the RTS threshold number by sliding the bar or key in the value directly. (The default value is 2347.) RTS/CTS

Threshold is a mechanism implemented to prevent the “Hidden Node” problem. If the “Hidden Node” problem is an issue, users have to specify the packet size. The RTS/CTS mechanism will be activated if the data size

exceeds the value that have been set. This value should remain at its default setting of 2347. Should users encounter inconsistent data flow, only minor modifications of this value are recommended.

Fragment Threshold: Users can adjust the Fragment threshold number by sliding the bar or key in the value directly. (The default value is 2346.)

The mechanism of Fragmentation Threshold is used to improve the efficiency when high traffic flows along in the wireless network. If the

Wireless LAN USB Adapter often transmits large files in wireless network, users can enter new Fragment Threshold value to split the packet. The value can be set from 256 to 2346.

Authentication and Encryption tab:

Authentication Type: There are six type of authentication modes including Open, Shared, WPA, WPA-PSK, WPA2 and WPA2-PSK.

Open: If the access point or wireless router is using "Open” authentication, then the Wireless LAN USB Adapter will need to be set to the same authentication type.

Shared: Shared key is when both the sender and the recipient share a secret key.

-

39 -

WPA/ WPA-PSK/ WPA2/ WPA2-PSK: WPA-PSK offers two encryption methods, TKIP and AES. Select the type of algorithm,

TKIP or AES and then enter a WPA Shared Key of 8-63 characters in the WPA Pre-shared Key field.

Encryption Type: For Open and Shared authentication mode, the selection of encryption type are None and WEP. For WPA, WPA2,

WPA-PSK and WPA2-PSK authentication mode, the encryption type supports both TKIP and AES.

WPA Pre-shared Key: This blank is the shared secret key between AP and STA. For WPA-PSK and WPA2-PSK authentication mode, this field must be filled with character longer than 8 and less than 64 lengths.

WEP Key: Only valid when using WEP encryption algorithm. The key must match with the AP’s key. There are four formats to enter the keys.

ASCII (64 bits): 5 ASCII characters (case sensitivity).

ASCII (128 bits): 13 ASCII characters (case sensitivity).

Hexadecimal (64 bits): 10 Hex characters (0~9, a~f).

Hexadecimal (128 bits): 26 Hex characters (0~9, a~f).

Show Password: Check this box to show the passwords that have been entered.

802.1x Setting: When users use radius server to authenticate client certificate for WPA authentication mode.

802.1x tab:

EAP Method:

PEAP: Protect Extensible Authentication Protocol. PEAP transport securely authentication data by using tunnelling between PEAP clients and an authentication server. PEAP can authenticate wireless

LAN clients using only server-side certificates, thus simplifying the implementation and administration of a secure wireless LAN.

TLS / Smart Card: Transport Layer Security. Provides for

-

40 -

certificate-based and mutual authentication of the client and the network. It relies on client-side and server-side certificates to perform authentication and can be used to dynamically generate user-based and session-based WEP keys to secure subsequent communications between the WLAN client and the access point.

Tunnel Authentication:

Protocol: Tunnel protocol, List information including

EAP-MSCHAP v2 and EAP-TLS/ Smart Card.

Tunnel Identity: Identity for tunnel.

Tunnel Password: Password for tunnel.

Session Resumption: Reconnect the signal while broken up, to reduce the packet and improve the transmitting speed. Users can click the box to enable or disable this function.

ID\PASSWORD tab:

ID/ PASSWORD: Identity and password for server.

Authentication ID / Password: Identity, password and domain name for server. Only "EAP-FAST" and "LEAP" authentication can key in domain name. Domain name can be keyed in blank space.

Tunnel ID / Password: Identity and Password for server.

Show Password: Check this box to show the passwords that have been entered.

OK: Click to save settings and exit this page.

Cancel: Click to call off the settings and exit.

Client Certification tab:

Users can select Use a certificate on this computer, a client certificate for server authentication. Or users can select Use my smart card to enable the Client Certification function.

-

41 -

OK: Click to save settings and exit this page.

Cancel: Click to call off the settings and exit.

Server Certification tab:

Delete

Edit

Activate

Network

Use certificate chain: Choose use server that issuer of certificates.

Server name: Enter an authentication sever name.

OK: Click to save settings and exit this page.

Cancel: Click call off the settings and exit.

Click to delete an existing profile.

Click to edit a profile.

Click to make a connection between devices.

The Network page displays the information of surrounding APs from last scan result. The tab lists the information including SSID, Network type, Channel, Wireless mode, Security-Enabled and Signal.

-

42 -

Network Tab

Sorted by

Show dBm

SSID

Network Type

Channel

Wireless mode

Encryption

Signal

Rescan

Add to Profile

Indicate that AP list are sorted by SSID, Channel or Signal.

Check the box to show the dBm of the AP list.

Shows the name of BSS network.

Network type in use, Infrastructure for BSS, Ad-Hoc for IBSS network.

Shows the currently used channel.

AP support wireless mode. It may support 802.11b or 802.11g or 802.11n wireless mode.

Shows the encryption type currently in use. Valid value includes WEP, TKIP,

AES, and Not Use.

Shows the receiving signal strength of specified network.

Click to refresh the AP list.

Select an item on the list and then click to add it into the profile list.

Access Point (AP) Information

Double click on the intended AP to see AP's detail information that divides into four parts. They are

General, WPS, CCX and 802.11n information. The introduction is as following:

General

General information contain AP's SSID, MAC address, Authentication Type,

Encryption Type, Channel, Network Type, Beacon Interval, Signal Strength and

Supported Rates.

Close: Click this button to exit the information screen.

-

43 -

WPS

CCX

WPS information contains Authentication Type, Encryption Type, Config

Methods, Device Password ID, Selected Registrar, State, Version, AP Setup

Locked, UUID-E and RF Bands.

Authentication Type: There are four types of authentication modes supported by

RaConfig. They are Open, Shared, WPA-PSK, WPA securities, WPA2-PSK and

WPA2.

Encryption Type: For open and shared authentication mode, the selection of encryption type are None and WEP. For WPA, WPA2, WPA-PSK and

WPA2-PSK authentication mode, the encryption type supports both TKIP and

AES.

Config Methods: Correspond to the methods the AP supports as an Enrollee for adding external Registrars.

Device Password ID: Indicate the method or identifies the specific password that the selected Registrar intends to use.

Selected Registrar: Indicate if the user has recently activated a Registrar to add an

Enrollee. The values are "TRUE" and "FALSE".

State: The current configuration state on AP. The values are "Unconfigured" and

"Configured".

Version: WPS specified version.

AP Setup Locked: Indicate if AP has entered a setup locked state.

UUID-E: The universally unique identifier (UUID) element generated by the

Enrollee. There is a value. It is 16 bytes.

RF Bands: Indicate all RF bands available on the AP. A dual-band AP must provide it. The values are "2.4GHz".

Close: Click this button to exit the information screen.

CCX information contains CCKM, Cmic and Ckip information.

Close: Click this button to exit the information screen.

-

44 -

802.11n

This tab will show up if the selected access point supports 11n mode. Here shows the connected access point 802.11n related information.

Link Status

Click the triangle button at the right down corner of the windows to expand the link status. The link status page displays the detail information of current connection.

Click this button to show the information of Status Section.

Click this button to hide the information of Status Section.

-

45 -

Link Status Tab

Status

Extra Info

Channel

Authentication

Encryption

Network Type

IP Address

Sub Mask

Default Gateway

Link Quality

Signal Strength 1

Noise Strength

Transmit

Receive

Link Speed

Throughput

Shows the current connected AP SSID and MAC address. If there is no connection existing, it will show Disconnected.

Shows the link status and Tx power percentage.

Shows the current channel in use.

Authentication mode used within the network, including Unknown, Open,

Shared, WPA-PSK, WPA2-PSK, WPA and WPA2.

Shows the encryption type currently in use. Valid value includes WEP,

TKIP, AES, and Not Use.

Network type in use, Infrastructure for BSS, Ad-Hoc for IBSS network.

Shows the IP address information.

Shows the Subnet Mask information.

Shows the default gateway information.

Shows the connection quality based on signal strength and TX/RX packet error rate.

Shows the Receiving signal strength, users can choose to display as percentage or dBm format.

Shows the noise signal strength in the wireless environment.

Shows the current Link Speed and Throughput of the transmit rate.

Shows the current Link Speed and Throughput of receive rate.

Shows the current transmitting rate and receiving rate.

Shows the transmitting and receiving speed of data.

Advanced

This Advanced page provides advanced and detailed settings for the wireless network.

-

46 -

Advanced Tab

Wireless mode

Enable TX Burst

Apply

Here supports 2.4G (included 802.11b/g/n) wireless mode.

Enable TCP Window

Size

Check to increase the transmission quality. The large TCP window size the better performance.

Fast Roaming at

Check to enable this function. This function enables the Wireless LAN USB

Adapter to deliver better throughput during a period of time, it only takes effect when connecting with the AP that supports this function.

Check to set the roaming interval, fast to roaming, setup by transmits power.

Click to apply above settings.

Statistics

The Statistics screen displays the statistics on the current network settings.

-

47 -

Transmit Statistics Tab

Frames Transmitted

Successfully

Frames Retransmitted

Successfully

Shows information of packets successfully sent.

Shows information of packets successfully sent with one or more reties.

Frames Fail To Receive ACK

After All Retries

Shows information of packets failed transmit after hitting retry limit.

RTS Frames Successfully

Receive CTS

Shows information of packets successfully receive CTS after sending RTS frame.

RTS Frames Fail To Receive

CTS

Shows information of packets failed to receive CTS after sending

RTS.

Reset Counter

Click this button to reset counters to zero.

Receive Statistics Tab

Frames Received Successfully Shows information of packets received successfully.

Frames Received With CRC

Error

Shows information of packets received with CRC error.

Frames Dropped Due To

Out-of-Resource

Shows information of packets dropped due to resource issue.

Duplicate Frames Received

Shows information of packets received more than twice.

Reset Counter

Click this button to reset counters to zero.

-

48 -

WMM/ QoS

The WMM page shows the Wi-Fi Multi-Media power save function and Direct Link Setup that ensure the wireless network linking quality.

WMM/QoS Tab

WMM Enable

Check the box to enable Wi-Fi Multi-Media function that is meant to improve audio, video and voice applications transmitted over Wi-Fi.

WMM- Power Save

Enable

Select a power save mode that preferred. z

AC_BK (Access Category Background) z

AC_BE (Access Category Best Effort) z

AC_VI (Access Category Video) z

AC_VO (Access Category Voice)

Direct Link Setup

Enable

MAC Address

Check the box to enable Direct Link Setup (DLS). This function will be enabled under the connection with AP which must support the DLS function.

Direct Link Setup allows direct STA-to-STA frame transfer within a BSS

(B asic Service Set

). This is designed for consumer use, where STA-to-STA transfer is more commonly used.

The setting of DLS( Direct Link Setup) indicates as follow :

Fill in the blanks of Direct Link with MAC Address of target STA, and the

STA must conform to two conditions: z

Connecting with the same AP that supports DLS feature. z

DLS enabled.

Timeout Value

Timeout Value represents that it disconnect automatically after few seconds.

The value is integer that must be between 0~65535. It represents that it always connects if the value is zero. (Default value of Timeout Value is 60 seconds.)

Click this button to apply the settings.

Apply

Tear Down

Select a direct link STA, then click "Tear Down" button to disconnect the STA.

-

49 -

WPS

The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. The STA as an Enrollee or external Registrar supports the configuration setup using PIN (Personal Identification Number) configuration method or PBC (Push

Button Configuration) method through an internal or external Registrar.

WPS Tab

WPS AP List

Rescan

Information

Display the information of surrounding APs with WPS IE from last scan result. List information included SSID, BSSID, Channel, ID (Device

Password ID), Security-Enabled.

Issue a rescan command to wireless NIC to update information on surrounding wireless network.

Display the information about WPS IE on the selected network. List information included Authentication Type, Encryption Type, Config

Methods, Device Password ID, Selected Registrar, State, Version, AP Setup

Locked, UUID-E and RF Bands.

PIN Code

8-digit numbers. It is required to enter PIN Code into Registrar when using

PIN method. When STA is Enrollee, users can use "Renew" button to re-generate new PIN Code.

-

50 -

Config Mode

Detail

Select from the pull-down menu to decide the station role-playing as an

Enrollee or an external Registrar.

Click the Detail button to show the information about Security and Key in the credential.

Connect

If selected the AP that listed in the WPS Profile List field, click the Detail button to see more AP information.

SSID: Shows the connected AP network name.

BSSID: The MAC address of the connected AP. Fixed and cannot be changed.

Authentication Type: The authentication type support Open, WPA-PSK and

WPA2-PSK.

Encryption Type: For Open authentication mode, the selection of encryption type are NONE and WEP. For WPA-PSK and WPA2-PSK authentication mode, the encryption type supports both TKIP and AES.

Key Length: Only valid when using Open authentication mode and WEP encryption. There are key lengths 5, 10, 13 and 26.

Key Index: Only valid when using Open authentication mode and WEP encryption. There are 1~4 key index.

Key Material: The key material can be used to ensure the security of the wireless network. Fill in the appropriate value or phrase in Key Material field.

Show Password: Check this box to show the passwords that have been entered.

OK: Click to save and apply the new settings.

Cancel: Click to leave and discard the settings.

Command to connect to the selected network inside credentials. The active selected credential is as like as the active selected Profile.

-

51 -

Rotate

Disconnect

Export Profile

Delete

Command to rotate to connect to the next network inside credentials.

Stop WPS action and disconnect this active link. And then select the last profile at the Profile Page. If there is an empty profile page, the driver will select any non-security AP.

Export all credentials to Profile.

Delete an existing credential. And then select the next credential if exist. If there is an empty credential, the driver will select any non-security AP.

PIN

Registrar: Add the AP’s PIN code into the PIN code column, and press the device PIN button. It will connect with the AP in two minutes and get IP address.

Enrollee: Input the device’s PIN code into the PIN code column of AP. Start

AP WPS process and click device PIN button. Then, the device will connect to AP in two minutes and get IP address.

PBC

Start to add to AP using PBC (Push Button Configuration) method. Click this button to connect the AP which supported WPS function within two minutes.

Meanwhile, the AP should also click the PBC button simultaneously.

Note:

After the users click PIN or PBC, please do not rescan within two minutes of the connection. If users want to stop this setup within the interval, restart PIN/PBC or click "Disconnect" to stop WPS action.

WPS Associate IE

Send the association request with WPS IE during WPS setup. It is optional for STA.

WPS Probe IE

Send the probe request with WPS IE during WPS setup. It is optional for

STA.

Progress Bar

Status Bar

Display rate of progress from Start to Connected status.

Display currently WPS Status.

-

52 -

Radio On/Off

Click this button to turn on or off radio function.

This icon shows radio on, click to turn it off.

This icon shows radio off, click to turn it on.

About

This page displays the information of the Wireless LAN USB Adapter including, RaConfig Version/

Date, Driver Version/ Date, EEPROM Version and Phy_Address.

-

53 -

Utility Menu List

To access Windows Vista utility menu list, please right click the utility icon on the task bar. z

Launch Config Utility: Select to open the utility screen. z

Switch to AP Mode: Select to make the Wireless LAN USB Adapter act as a wireless AP. z

Exit: Select to close the utility program.

-

54 -

Soft AP mode

Config

Config

SSID

Channel

Wireless Mode

Use Mac Address

Security Setting

AP name of user type. Users also can click Use Mac Address button to display it.

Manually force the AP using the channel. (The system default is CH 1.)

Here supports 2.4G (included 802.11b/g/n) wireless mode.

Click this button to replace SSID by MAC address.

Authentication mode and encryption algorithm used within the AP. (The system default is no authentication and encryption.)

-

55 -

Beacon (ms)

TX Power

Authentication Type: There are several types of authentication modes including Open, Shared, WPA-PSK, WPA2-PSK, and WPA-PSK/

WPA2-PSK. (System authentication type default is Open.)

Encryption Type: For Open and Shared authentication mode, the selections of encryption type are Not Use and WEP. For WPA-PSK,

WPA2-PSK, and WPA-PSK/ WPA2-PSK authentication mode, the encryption type supports both TKIP and AES. (System authentication type default is Not Use.)

WPA Pre-shared Key: This is the shared secret between AP and STA.

For WPA-PSK and WPA2-PSK and WPA-PSK/ WPA2-PSK authentication mode, this field must be filled with character longer than 8 and less than 64 lengths.

Group Re-key Interval: Only valid when using WPA-PSK, WPA2-PSK, and WPA-PSK/ WPA2-PSK authentication mode to renew key. Users can set to change by seconds or packets. (Default is 600 seconds.)

WEP Key: Only valid when using WEP encryption algorithm. The key must match with the AP’s key. There are four formats to enter the keys.

ASCII (64 bits): 5 ASCII characters (case sensitivity).

ASCII (128 bits): 13 ASCII characters (case sensitivity).

Hexadecimal (64 bits): 10 Hex characters (0~9, a~f).

Hexadecimal (128 bits): 26 Hex characters (0~9, a~f).

Show Password: Check this box to show the passwords that have been entered.

The time between two beacons. (The system default is 100 ms.)

Manually force the AP transmits power from the pull down list 100%,

75%, 50%, 25% and Lowest. (The system default is 100%.)

Idle time(60-3600)(s)

It represents that the AP will idle after few seconds. The time must be set between 60~3600 seconds. (Default value of idle time is 300 seconds.)

-

56 -

No forwarding among wireless clients

Hide SSID

Allow BW 40MHz

No beacon among wireless client, clients can share information each other. (The system default is no forwarding.)

Default

Apply

Access Control

Do not display AP name. (System default no hide.)

Click to disable this function. (System default is enabled.)

This function enables the adapter to deliver better throughput, enable this function the link speed will up to 300Mbps, disable this function the link speed will up to 150Mbps only.

Note: This function depends on the capability of device. Here supports link speed up to 150Mbps only, DO NOT support link speed up to 300Mbps.

Use the system default value.

Click to apply the above settings.

-

57 -

Access Control

Access Policy

MAC Address

Access List

Add

Delete

Remove All

Apply

User chooses whether AP start the function or not. (System default is

Disable.) z Disable: Do not use this access control function. z Allow All: Only the MAC address listed in the Access List can connect with this soft AP. z Reject All: Only the MAC address listed in the Access List can NOT connect with this soft AP.

Manually force the Mac address using the function. Enter the MAC address in the column and click Add button, then the MAC address will be listed in the Access List pool.

Display all MAC Address that users have set.

Add the MAC address that users would like to set.

Delete the MAC address that users have set.

Remove all MAC address in the Access List.

Apply the above changes.

MAC Table

-

58 -

MAC Table

MAC Address

AID

The station MAC address of current connection.

Raise value by current connection.

Power Saving Mode

The station of current connect whether it have to support.

Status

The status of current connection.

Event Log

Event Log

Event Time

(yy/mm/dd-hh:mm:ss)

Records the event time.

Message

Records all the event messages.

-

59 -

Statistics

Transmit Statistics

Frames Transmitted Successfully

Shows information of packets successfully sent.

Frames Fail To Receive ACK After

All Retries

Shows information of packets failed transmit after hitting retry limit.

RTS Frames Successfully Receive

CTS

Shows information of packets successfully receive CTS after sending RTS.

RTS Frames Fail To Receive CTS

Shows information of packets failed to receive CTS after sending RTS.

Frames Transmitted Successfully

After Retry

Shows information of packets successfully sent with one or more reties.

Receive Statistics

Frames Received Successfully

Shows information of packets received successfully.

Frames Received With CRC Error Shows information of packets received with CRC error.

Frames Dropped Due To

Out-of-Resource

Shows information of packets dropped due to resource issue.

-

60 -

Duplicate Frames Received

Reset Counter

The number of duplicate packets received.

Reset counters to zero.

About

This page displays the Wireless LAN USB Adapter and driver version information.

-

61 -

Chapter 4:

UNINSTALLATION

For Windows 2000/XP

To uninstall the utility and driver, please refer to below steps. (When uninstalling the utility, the driver will be uninstalled as well.)

1. Go to Start ÆAll Programs ÆIntelligent Wireless Æ Uninstall –Intelligent.

-

62 -

2. Click Yes to complete remove the selected application and all of its features.

3. Then click Finish to complete the uninstallation.

-

63 -

For Windows Vista

To uninstall the utility and driver, please refer to below steps. (When uninstalling the utility, the driver will be uninstalled as well.)

1. Go to Start Æ Programs ÆIntelligent Wireless Æ Uninstall –Intelligent.

-

64 -

2. Click Yes to complete remove the selected application and all of its features.

Caution:

Under Vista 64-bit operation system, when process uninstallation the following screen will show up and request to insert Wireless LAN USB

Adapter to complete the uninstallation.

3. Finally, click Finish to complete the uninstallation.

-

65 -

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
