HP ZBook 15 G2 Mobile Workstation

HP ZBook 15 G2 Mobile Workstation

QuickSpecs

Overview

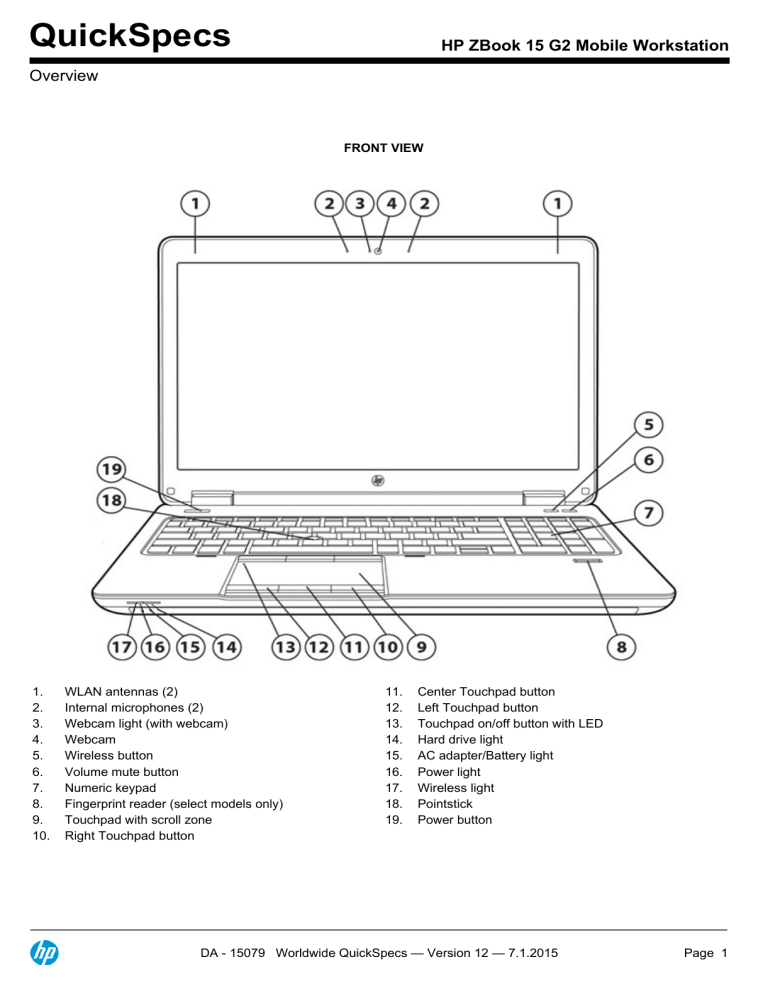

FRONT VIEW

HP ZBook 15 G2 Mobile Workstation

1.

WLAN antennas (2)

2.

Internal microphones (2)

3.

Webcam light (with webcam)

4.

Webcam

5.

Wireless button

6.

Volume mute button

7.

Numeric keypad

8.

Fingerprint reader (select models only)

9.

Touchpad with scroll zone

10.

Right Touchpad button

11.

Center Touchpad button

12.

Left Touchpad button

13.

Touchpad on/off button with LED

14.

Hard drive light

15.

AC adapter/Battery light

16.

Power light

17.

Wireless light

18.

Pointstick

19.

Power button

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 1

QuickSpecs

Overview

HP ZBook 15 G2 Mobile Workstation

1.

Security cable slot

2.

USB 2.0 port

3.

Thunderbolt™ 2 port

4.

DisplayPort

5.

USB 3.0 charging port

6.

Smart card reader

7.

ExpressCard port

8.

Memory card reader

9.

Audio-out (headphone) jack/Audio in (microphone) jack

10.

USB 3.0 port

11.

Optical drive (select models only)

12.

External monitor port

13.

USB 3.0 port

14.

Power connector

15.

RJ-45 (network) jack/lights (2)

At A Glance

Windows 8.1 versions, Windows 7 versions, Ubuntu Linux, or FreeDOS

Thin and light form factor and industrial design. Durable HP Duracase with magnesium-reinforced chassis, HP

DuraFinish with brushed aluminum on top cover and smooth aluminum around top, right, and left sides chassis with hematite /graphite color, HP DisplaySafe frame, latch-less design with precision aluminum-alloy hinges, backlight keyboard in full aluminum deck, chemically strengthened glass touchpad, and updated system functions indicators

Passed the military standard Mil-Std-810G testing for drop, vibration, shock, high temperature, low temperature, temperature shock, dust, altitude, and humidity

Workstation-caliber NVIDIA® Quadro® discrete graphics: NVIDIA Quadro K610M (1GB GDDR5), NVIDIA Quadro

K1100M (2GB GDDR5), AMD FirePro™ M5100 (2GB GDDR5), NVIDIA Quadro K2100M (2GB GDDR5); NVIDIA

Optimus or AMD Enduro™ technology enabled for improved battery life.

ISV certified to provide fast and reliable performance with workstation applications, including manipulation of 3D textures

Choice of 4th generation Intel® Core™ i7 and i5 processors

Intel Core i7 with vPro and Core i5 with vPro technology (optional) ****

Intel Smart Response Technology support for higher system performance with a hard drive

HP Performance Advisor for optimal configuration, compatibility and performance

Up to four SODIMMs on configurations with quad-core processor, for system memory up to 32 GB

Supports multi-display, including up to four without a docking station (both with and without hybrid graphics enabled), up to four with HP Advanced Docking Station (sold separately) without hybrid graphics enabled and up to five with HP

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 2

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Overview

Advanced Docking Station (sold separately) and hybrid graphics enabled

New Thunderbolt 2 port for high speed data/video/audio transfer support

Thunderbolt 2 port can be connected to monitors supporting DisplayPort 1.2 to achieve HBR2 and MST functionality.

DTS Studio Sound HD audio optimized for high fidelity audio with immersive surround sound with deep, rich bass and crystal clear dialog without distortion at high volume

Choice of battery solutions: 8-cell (83 WHr) or 8-cell (75 WHr) HP Long Life Battery, combined with optional external batteries for extended life.

2 discrete buttons with LED indicator for convenient one touch access - Wireless On/Off, Volume Mute

Widescreen 15.6-inch diagonal anti-glare LED-backlit display:

HD (1920x1080) eDP with standard viewing angle, FHD (1920x1080) eDP with PSR (Panel Self Refresh) with ultrawide viewing angle, QHD+ (3200x1800) eDP with ultrawide viewing angle

Upgrade Bay for optional second hard drive or weight saver

Flexible wireless connectivity options:

Intel Dual Band Wireless-N 7260 802.11 a/b/g/n (2x2) WiFi ; Intel Dual Band Wireless-AC 7260 802.11

a/b/g/n/ac (2x2) WiFi and Bluetooth 4.0 combo; Intel Dual Band Wireless-AN 7260 802.11 a/b/g/n (2x2) WiFi and Bluetooth 4.0 combo

Optional integrated wireless 3G or 4G (LTE) mobile broadband module support

Choice of tool free capable, user-removable hard drive up to 1 TB with HP 3D DriveGuard protection, or SATA 6 Gb/s 128/180/240/256/512*** GB Solid State Drive, 256 GB Z Turbo Drive (PCIe SSD)

Security features including HP Client Security Manager, managed via single console

Low halogen

HP BIOS technology, including HP Sure Start to identify and recover from known and unknown BIOS attacks.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 3

QuickSpecs

Features

HP ZBook 15 G2 Mobile Workstation

OPERATING SYSTEM

Preinstalled

Windows 8.1 Pro 64*

Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro)**

Windows 7 Professional 64**

Ubuntu Linux***

FreeDOS

Supported

Windows 8.1 Enterprise 64*

Windows 7 Enterprise 64**

Certified

* Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See http://www.microsoft.com for details.

** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8

Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

*** Not available with WWAN

PROCESSOR*

4 th

Generation Intel® Core™ i7-4910MQ (2.9 GHz, 1600MHz, 8 MB L3 cache, 4 cores, 47W)*

Up to 3.90 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i7-4810MQ (2.8 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W)*

Up to 3.80 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i7-4710MQ (2.5 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W) (no vPro support)*

Up to 3.50 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i7-4610M (3.00 GHz, 1600MHz, 4 MB L3 Cache, 2 cores, 37W)

Up to 3.70 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i5-4340M (2.90 GHz, 1600MHz, 3 MB L3 Cache, 2 cores, 37W)

Up to 3.60 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i5-4310M (2.70 GHz, 1600MHz, 3 MB L3 Cache, 2 cores, 4 threads, 37W)

Up to 3.40 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i5-4210M (3.20 GHz, 1600MHz, 3 MB L3 Cache, 4 threads, 37W)

Up to 3.20 GHz with Intel Turbo Boost Technology

* Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance will vary depending on your hardware and software configurations. Intel’s numbering is not a measurement of higher performance. Some vPro functionality, such as Intel® Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependent on 3rd party software providers. Microsoft Windows required.

CHIPSET

Mobile Intel® QM87

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 4

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Features

INTEL® CORE™ I5 WITH VPRO/CORE™ I7 WITH VPRO TECHNOLOGY CAPABLE

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select processors, a qualified Intel Centrino® WLAN module and a preinstalled Windows operating system. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active

Management Technology 9.0 (iAMT) offers built-in manageability and proactive security for networked mobile workstations, even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the network, isolate infected systems, and update mobile workstations regardless of their power state.

*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct

(non-VPN) corporate network connection which is either cable or wireless LAN.

NOTE: Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel Active Management technology and Intel Virtualization technology, requires additional third- party software in order to run. Availability of future "virtual appliances" applications for Intel Core i5 with vPro/Core i7 with vPro technology is dependent on thirdparty software providers. Compatibility with future "virtual appliances" is yet to be determined.

GRAPHICS

NVIDIA Quadro K610M with 1 GB dedicated GDDR5 video memory

Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable

NVIDIA Quadro K1100M with 2 GB dedicated GDDR5 video memory

Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable

AMD FirePro™ M5100 with 2 GB dedicated GDDR5 video memory

Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable

NVIDIA Quadro K2100M with 2 GB dedicated GDDR5 video memory

Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable

NOTE: NVIDIA Quadro mobile professional graphics support up to five independent displays when using an HP

Advanced Docking station (sold separately). AMD FirePro™ professional graphics support up to five independent displays when using an HP Advanced Docking station (sold separately).

NVIDIA Optimus Technology and AMD Enduro™ Technology supported

NOTE 1: Configurations with the QHD+ panel are not available with this feature.

Multi-Display Support

Without Docking Station:

HP ZBook 15 without the use of a Docking Station supports up to a maximum of four independent displays. These four displays are the internal panel plus three external displays connected to the VGA, the DisplayPort (DP), and the

Thunderbolt™ Port connectors.

With Docking Station*:

The Advanced Docking Station has VGA and four digital display output connectors (two DVI and two DP). Of those four digital display connectors, only two may be used at a time (two DVI, two DP or one DP and one DVI). When used together with the HP ZBook 15, a maximum of five independent displays are supported. These five displays are the internal panel plus four external displays connected to three display outputs connectors from the standard or Advanced

Docking Station*, and the Thunderbolt™ connector from the ZBook.

DP 1.2 “daisy-chain” feature:

On HP ZBook 15, the maximum number of independent displays is increased to six with the use of DP1.2 “daisy-chain” feature. This requires Hybrid Graphics to be enabled, one monitor connected to the dock VGA, and at least one daisy chain connection on (A) System DP, (B) Docking Station DP 1, (C) Docking Station DP 2.

* Advanced docking station sold separately.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 5

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Features

DISPLAY

Internal

15.6" diagonal LED-backlit FHD SVA eDP anti-glare (1920 x 1080)

15.6" diagonal LED-backlit FHD UWVA IPS eDP anti-glare + Panel Self Refresh (PSR) (1920 x 1080)

15.6" diagonal LED-backlit QHD+ UWVA IPS eDP anti-glare (3200 x 1800)

External

Up to 32-bit per pixel color depth

Thunderbolt™ 2*

Supported as part of the daisy chain connected with Intel approved thunderbolt cables. For additional information, please visit https://thunderbolttechnology.net/ .

Thunderbolt™ Features

Legacy : DP 1.1a, DVI-A/D, HDMI and VGA displays attached to the end of the thunderbolt daisy chain via Intel certified dongles

DP 1.2 redrive: DisplayPort monitors capable of supporting DP 1.2 may be directly attached to the Thunderbolt port to achieve HBR2 and MST functionality.

DP display with miniDP connector may be attached directly to TB (Thunderbolt) port.

DP display with standard DP connector and other legacy displays (HDMI, DVI, VGA) may be attached to TB with the use of a dongle.

DP1.2 MST feature ("daisy-chain" feature) is supported through TB port.

* Thunderbolt™ 2 is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with

Windows. To determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products .

DisplayPort w/MST (Multi-stream Transport)

Supports resolutions up to QFHD 3840 x 2160, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors,

24/30-bit color depth at 120 Hz.

DisplayPort Feature

Multi-stream Transport (MST): Multi-stream Transport is a DP 1.2 feature that allows daisy chaining of DP 1.2

monitors (requires built in support of DP 1.2 MST in monitor), or the use of DP 1.2 hubs with MST to achieve 4 active displays without a docking station.

VGA

Port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz

DVI-D (single link)

Video signal available through DVI port in optional HP Docking Station (sold separately), as well as through DisplayPort to DVI-D; DisplayPort to DVI-D (dual link); and DisplayPort to HDMI adapters.

Supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking

NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 6

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Features

STORAGE AND DRIVES

Primary Storage Bay

Hard Drives*

500/750 GB, 1 TB 7200 rpm SMART SATA II

500 GB 7200 rpm SMART SATA II Self Encrypting Drive

500 GB 5400 rpm SMART SATA II Self Encrypting Drive FIPS 140-2 compliant

Solid State Drive*

128/180/240/256/512 GB SATA 6 Gb/sec

256/512 GB SATA 6 Gb/sec Secure Encrypted Drive (SED) Opal 2

HP 3D DriveGuard (Windows only)

The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.

Z Turbo Drive Storage Slot (M.2)

128 GB up to 512 GB HP Z Turbo Drive (PCIe SSD)

*

NOTE: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for

Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery software.

DRIVE CONTROLLERS

Primary drive and upgrade bay: SATA-3 or SATA-2 for HDD and SATA-3 for SSD

Z Turbo Drive:

RAID:

PCIe SSD

0 and 1 supported

OPTICAL DRIVES

Fixed 9.5 mm SATA optical drive

Blu-ray R/RE DVD+/-RW SuperMulti DL Drive*,**

Blu-ray ROM DVD+/-RW SuperMulti DL Drive *,**

DVD+/-RW SuperMulti DL Drive**

*With Blu-Ray, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may require a DVI or HDMI digital connection and your display may require HDCP support. HD-DVD movies cannot be played.

**Double Layer discs can store more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many existing single-layer DVD drives and players The DVD-RAM cannot read or write to

2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media.

Second hard drive

750 GB 7200 rpm SMART SATA II Hard Drive

512 GB SATA 6 Gb/sec Solid Sate Drive

256 GB SATA 6 Gb/sec Self Encrypting Drive

RAID 0 and 1 supported

Weight saver

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 7

QuickSpecs

Features

HP ZBook 15 G2 Mobile Workstation

MEMORY

Standard

DDR3L 1.35V SDRAM (1600MT/s)

Two SODIMM slots (Dual-core processor) or four SODIMM slots (Quad-core processor) supporting dual-channel memory

2 GB, 4 GB, and 8 GB SODIMMs

Maximum

Upgradeable to 16384 MB with optional 8192 MB SODIMMs in both slots (Dual-core processor)

Upgradeable to 32768 MB with optional 8192 MB SODIMMs in all 4 slots (Quad-core processor)

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE:

Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.

Maximum memory capacities assume Windows 64-bit operating systems or Linux.

NETWORKING/COMMUNICATIONS

Wireless

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Optional broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth® is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

Mobile Broadband options

HP hs3110 HSPA+ Mobile Module

HP lt4112 LTE/HSPA+ Qualcomm® Gobi™ 4G Module

HP lt4211 LTE/EV-DO/HSPA+ Gobi 4G Module

All 802.11 integrated wireless LAN options

Intel Dual Band Wireless-NB 7260 802.11 a/b/g/n (2x2) WiFi

Intel Dual Band Wireless-AC 7260 802.11 a/b/g/n/ac (2x2) WiFi and Bluetooth 4.0 combo

Intel Dual Band Wireless-AN 7260 802.11 a/b/g/n (2x2) WiFi and Bluetooth 4.0 combo

Communications

Integrated Integrated Intel® I217-LM Gigabit** Network Connection (vPro configurations)

NOTE: WWAN not available with QHD+ displays.

* Broadband wireless is an optional feature and requires separately purchased service contract. Check with your local vendor for coverage area and availability in your area. Connection and speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products, in all regions.

** The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

*** Integrated Intel® Wi-Di feature is available on select configurations only and requires separately purchased projector, tv or computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the projector, tv or computer monitor via a standard HDMI cable, also sold separately.

****802.11 requires access point and internet service. Availability of public wireless access points limited.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 8

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Features

AUDIO/MULTIMEDIA

Audio

DTS Studio Sound HD audio (Windows OS only)

Integrated stereo speakers

Integrated microphone (dual-microphone array when equipped with optional webcam)

Button for volume mute; function keys for volume up and down

Combo mic-in / stereo headphone-out jack

Webcam

Optional 720p HD webcam

HD format (widescreen)

Supports videoconferencing and still image capture

High quality fixed focus lens

Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps

M-JPEG compression supports higher frame rates for video capture and videoconferencing

Improved low light sensitivity

Improved dynamic range

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

Keyboard

Optional backlit keyboard with Function key control to toggle backlit brightness setting - off/full/half brightness

The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, function keys, and 19.05 x 19.05 mm key pitch (center-to-center spacing). U.S. and International key layouts are available. Other features include hot keys for instant access to power conservation and brightness.

Pointing Devices

Touchpad with On/Off button, two-way scroll, gestures, three pick buttons

Pointstick with three additional pointstick buttons

Image sensor touchpad for enhanced performance and improved precision on scroll and gesture

Buttons and Function Keys

Separate launch buttons provide easy access to the following features: wireless on/off, volume mute. Function keys provide control of the following features: standby mode, external display, volume down, volume up, HP Power Assistant

(Windows 7 only), and display brightness.

SOFTWARE AND SECURITY

Preinstalled Software with Windows Operating System

Windows 8

Security

HP Device Access Manager with Just In Time

Authentication

DigitalPersona Fingerprint Driver

HP Drive Encryption

1

HP File Sanitizer

2

Windows 7

Security

HP Device Access Manager with Just In Time

Authentication

HP Drive Encryption

HP File Sanitizer

HP Client Security Manager

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 9

QuickSpecs

Features

HP Client Security Manager

HP SpareKey

Microsoft Defender

Validity Fingerprint Driver

HP ZBook 15 G2 Mobile Workstation

HP SpareKey

Microsoft Security Essentials

Validity Fingerprint Driver

BIOS Features

Absolute Persistence Module

3

HP Sure Start

HP Automatic Drive Lock

4

HP BIOS Protection

HP Disk Sanitizer (Not for SSD)

5

HP DriveLock

6

HP SpareKey

Hybrid Boot

Master Boot Record Security

Measured Boot

Power On Authentication

Pre-Boot Security

Secure Boot

Secure Erase (SSD & HDD)

7

BIOS Update via Network

MultiMedia

Cyberlink Power2Go

Cyberlink PowerDVD

HP Value Add

Getting Started with Windows 8

HP 3D DriveGuard

8

HP ePrint Driver

9

HP Hotkey Support

HP Manageability

HP PageLift App

10

HP Support Assistant

Box 50GB Offer

11

Foxit PhantomPDF Express for HP

Skype

Microsoft Products

Buy Office

Additional Software Available from the Web

HP SoftPaq Download Manager

HP Software System Manager

BIOS Features

Absolute Persistence Module

HP Sure Start

HP Automatic Drive Lock

HP BIOS Protection

HP Disk Sanitizer (Not for SSD)

HP DriveLock

HP SpareKey

Hybrid Boot

Master Boot Record Security

Measured Boot

Power On Authentication

Pre-Boot Security

Secure Erase (SSD & HDD)

BIOS Update via Network

MultiMedia

Cyberlink Power2Go

Cyberlink PowerDVD

Cyberlink YouCam BE

HP Value Add

HP 3D DriveGuard

HP ePrint Driver

HP Hotkey Support

HP Manageability

HP PageLift

HP Recovery Manager

HP Support Assistant

HP Recovery Disc Creator (HPRDC)

Box 50GB

Foxit PhantomPDF Express for HP

Skype

Microsoft Products

Buy Office

Workstation ISV Certifications

See the latest list of certifications at: http://www.hp.com/united-tates/campaigns/workstations/partnerships.html

HP Remote Graphics Software

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 10

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Features

The remote desktop solution for serious workstation users and their most demanding applications.

Download at: www.hp.com/go/RGS

HP Performance Advisor

HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best performance. HP Performance Advisor will guide your system setup allowing a "custom" configuration that best matches the workstation to user requirements.

Download at: www.hp.com/go/performanceadvisor

HP Recovery Manager

Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to

36 GB (for Windows 7) of system and up to 36 GB (for Windows 8) disk is reserved for system recovery software.

Security

See Software section above.

Other Standard Security Features

Integrated Smart Card Reader

HP Spare Key (requires initial user setup)

One-Step Logon

Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2 Embedded Security Chip

Security lock slot

Support for Intel AT

12

Optional Security Features

HP Fingerprint Sensor (optional)

Computrace * with GPS Tracking - Subscription based security solution providing the ability to track, initiate physical recovery, conduct asset management, and perform remote data delete by utilizing GPS technology. GPS functionality requires HP Mobile Broadband Module.

* The Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription.

Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S.

1

HP Drive Encryption requires Windows. Data is protected prior to login. Turning the PC off or into hibernate logs out of Drive Encryption and prevents data access.

2

File Sanitizer requires Windows. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support

Solid State Drives (SSDs). Initial setup required. Web history deleted only in Internet Explorer and Firefox browsers and must be user enabled. With Windows 8.1, user must turn off Enhanced Protection Mode in IE11 for shred on browser close feature.

3

BIOS Absolute Persistence module is shipped turned off, and will be activated when customers purchase and activate a subscription. Service may be limited. Check with Absolute for availability outside the U.S. The optional subscription service of Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. If Data Delete is utilized, the Recovery

Guarantee payment is null and void. In order to use the Data Delete service, customers must first sign a Pre-

Authorization Agreement and either create a PIN or purchase one or more RSA SecurID tokens from Absolute

Software.

4

HP Automatic DriveLock will work on another HP Business PC when the BIOS passwords are the same. Requires user set up.

5

For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs).

6

HP DriveLock does not support Self Encrypting HDs (SEDs) if the encryption PIN is enabled.

7

HP Secure Erase is for the methods outlined in the National Institute of Standards and Technology Special Publication

800-88.

8

HP 3D DriveGuard requires Windows.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 11

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Features

9

HP ePrint requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/businessmobileprinting

10

HP PageLift requires Windows 7 or higher.

11

Box offer requires Box registration. Offer available to new Box users only. Offer subject to change without notice. Box app requires Windows 8 or 8.1.

12

Intel AT security requires a separately purchased Absolute Computrace service subscription and must be activated and configured. Check with Absolute for availability in your country. Intel and HP assume no liability for lost or stolen data and/or systems or any other damages resulting therefrom. See http://www.intel.com/technology/anti-theft/

HP CENTRAL MANAGEMENT

HP offers a variety of scalable hardware, software, and BIOS-based security features to help you defend your organization against viruses and other threats. These integrated security features safeguard what matters to you the most - your data, device and identity. Now, be confident your fleet of devices is protected in multiple layers of HP Client

Security protection.

HP BIOS Protection keeps you up and running with enhanced protection against virus attacks and other threats. And if the BIOS is accidently compromised, the auto recovery feature automatically restores it to its fully functional state.

HP Sure Start detects and negates a BIOS attack with automatic recovery of the BIOS even when the installation is accidentally compromised (i.e. power outage). When HP Sure Start heals the BIOS an event log is generated that an IT administrator can retrieve so the business is aware of a BIOS attack. Golden copy of BIOS is stored in protected nonvolatile memory providing redundant, hardware-based protection against a new generation of attacks. This helps to future-proof your technology and business.

An optional fingerprint reader and integrated Smart Card Reader help keep your identity secure. The security cable slot helps keep your notebook physically secure.

HP Drive Encryption+ with TPM enhanced security protects your data on your hard drive from unauthorized access.

Authentication is required before Windows will even start.

Or you can even permanently destroy data on your hard drive in preparation for your system disposal or redeployment with Secure Erase.

This hardware-based solution encrypts and decrypts data as it is written or read from the hard drive and is supported by

HP Drive Encryption+. You get faster encryption performance than that of software- based encryption solutions.

+ Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of

Drive Encryption and prevents data access.

HP provides a separate management solution, targeted at the enterprise and the SMB:

Digital Persona Pro Workgroup: Designed for the small business customer. Provides features similar to the Active

Directory version, but for workgroups. Workgroup activation is built into HP ProtectTools, and activation of up to 5 seats is completely free.

For more information on Central Management for HP ProtectTools, refer to: http://www.hp.com/products/security

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 12

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Features

POWER

Power Supply

External HP 150W Slim Smart AC adapter

(167.0 x 82.0 x 25.4mm)

External HP 200W Slim Smart AC adapter

(172 x 96 x 25.4mm)

Power cord included is 6-foot (1.8 meter).

Total length including external AC adapter is 12 feet (3.66 meter).

HP Fast Charge*

Primary Battery

HP 8-cell Lithium-Ion Battery (83 WHr)

HP Long Life 8-cell Lithium-Ion Battery (75 WHr) **

Secondary Battery

HP BB09 Ultra Extended Life Notebook Battery (9-cell/100 WHr)

HP ST09 Extended Life Notebook Battery (9-cell/73 WHr)

Battery Life

Battery life up to 11 hours and 15 minutes***

System Standby Time****

In sleep mode 1 week

* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the HP ST09 Extended Life Notebook Battery or HP BB09 Ultra Extended Life Notebook Battery.

** Available with 3-year warranty only

*** Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless functionality and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See MobileMark07 battery benchmark http://www.bapco.com/products/mobilemark2007 for additional details.

**** Standby life will vary depending on various factors including battery, Memory, CPU, EC and LAN chip. The maximum capacity of the battery will naturally decrease with time and usage.

Power Conservation

NVIDIA Optimus or AMD Enduro™ technology

Hibernation

Standby

ACPI compliance

ENVIRONMENTAL

US ENERGY STAR ®

IT ECO declaration

EPEAT®

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 13

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Features

WEIGHTS & DIMENSIONS

Weight

Starting at 6.13 lb (2.78 kg) with Z Turbo Drive and weight saver (no optical drive)

Starting at 6.45 lb (2.93 kg) with hard drive and DVD-R/W drive

Dimensions (w x d x h)

1.2 in (at front)/1.4 in (at rear) x 15.0 in x 10.1 in

30.5 mm (at front)/35.5 mm (at rear) x 381.5 mm x 257.0 mm

NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and components. Weight includes 8-cell battery, hard drive, 1 GB memory, and no optical drive. Weight varies by configuration and components.

PORTS/SLOTS

Ports

VGA – One

DisplayPort v1.2– One

Thunderbolt™ 2* – One

Stereo microphone in / headphone-out combo jack – One

Power Connector – One

Secondary Battery Connector – One

Docking Connector – One

RJ-45 (Ethernet) – One

USB 3.0 – Two

USB 3.0 Charging Port – One

USB 2.0 – One

Security lock slot – One

Digital Media Slots

ExpressCard/54 slot – One (Supports ExpressCard/54)

SD UHS-II Flash Media slot – One (Supports next generation SD (Secure Digital), backward compatible to SDHC,

SDXC,

Integrated Smart Card Reader (Compatible with ISO 7816 compliant Smart Cards PC/SC interface support; FIPS 201 compliant)

* Thunderbolt™ 2 is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with

Windows. To determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products

SERVICE AND SUPPORT

HP Services offers 3-year and 1-year limited warranty options depending on country.

On-site service and extended coverage is also available. HP Care Pack Services are optional extended service contracts that go beyond the standard limited warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool . Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack .

NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 14

QuickSpecs

Technical Specifications

HP ZBook 15 G2 Mobile Workstation

SYSTEM UNIT

Stand-Alone Power

Requirements (AC

Power)

Temperature

Planned Industry

Standard

Certifications

Nominal Operating

Voltage

Average Operating

Power

19.5 V

NVIDIA Graphics

Max Operating Power < 150 W or

< 200 W

Operating

32° to 95° F (0° to 35° C) (not writing optical)

41° to 95° F (5° to 35° C) (writing optical)

Relative Humidity

Shock

Non-operating

Operating

Non-operating

Operating

Random Vibration

Non-operating

Operating

Non-operating

Altitude (unpressurized) Operating

Non-operating

UL

CSA

FCC Compliance

ENERGY STAR®

-4° to 140° F (-20° to 60° C)

10% to 90%, non-condensing

Windows 7 (64-bit)

16.8 W

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

40 G, 2 ms, half-sine

200 G, 2 ms, half-sine

0.75 grms

1.50 grms

-50 to 10,000 ft (-15.24 to 3,048 m)

-50 to 40,000 ft (-15.24 to 12,192 m)

Yes

Yes

Yes

Select models*

EPEAT®

ICES

Australia /

NZ A-Tick Compliance

CCC

Japan VCCI

Compliance

KC

BSMI

< 150 W or

< 200 W

Planned

Planned

Planned

Planned

Planned

Planned

CE Marking

Compliance

MIL STD 810G

Planned

Passed ***

* Configurations of the HP ZBook 15 that are ENERGY STAR qualified are identified as HP ZBook 15 G2 ENERGY STAR on HP websites and on www.energystar.gov.

** EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net

for registration status by country.

*** MIL STD 810G testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions.

For accessibility information on HP products, please visit: http://www.hp.com/accessibility .

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 15

Technical Specifications

QuickSpecs

DISPLAY

15.6" diagonal LEDbacklit FHD UWVA eDP anti-glare + Panel Self

Refresh (PSR)

(1920 x 1080)

Active Area (W x H)

Dimensions (W x H)

Weight

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

15.6" diagonal LEDbacklit FHD SVA eDP anti-glare (1920 x 1080)

Active Area (W x H)

Dimensions (W x H)

Weight

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

15.6" diagonal LEDbacklit QHD+ UWVA eDP anti-glare (3200 x

1800)

Active Area (W x H)

Dimensions (W x H)

Weight

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

STORAGE AND DRIVES

HP ZBook 15 G2 Mobile Workstation

13.54 x 7.59 in (34.4 x 19.4 cm)

15.6 in (39.6 cm)

420 g (max)

Anti-glare

600:1 (typical)

60 Hz

300 nit typical

Format

Configuration

LED

142

UWVA 85/85/85/85

1920 x 1080 (FHD)

RGB Stripe

13.54 x 7.59 in (34.4 x 19.4 cm)

15.6 in (39.6 cm)

380 g (max)

Anti-glare

400:1 (typical)

60 Hz

300 nit typical

Format

Configuration

LED

142

SVA 45/45/25/35

1920 x 1080 (FHD)

RGB Stripe

13.60 x 7.59 in (34.56 x 19.44 cm)

15.6 in (39.65 cm)

360 g (max)

Anti-glare

600:1 (typical)

60 Hz

300 nit typical

Format

Configuration

LED

235

UWVA 85/85/85/85

3200 x 1800 (+)

RGB Stripe

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 16

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

Internal Storage

1 TB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

0.25 lbs. (115g)

1 TB

0.37 in (9.5 mm)

Width

Interface

Transfer Rate

2.75 in (69.85 mm)

ATA-8, SATA 3.0,

Seek Time

(typical reads, including settling)

Cache

Rotational Speed

Synchronous

(maximum)

Single Track

Average

Maximum

600 MB/s

2 ms

13 ms

15 ms

Logical Blocks

1,953,525,168

Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]

Features

750 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

32 MB

7200 rpm

ATA Security, S.M.A.R.T., NCQ, Ultra DMA

0.25 lbs. (115g)

750 GB

Height

Width

Interface

Transfer Rate

0.37 in (9.5 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Synchronous

(maximum)

600 MB/s (Drive Capability)

Seek Time

(typical reads, including settling)

Single Track

Average

Maximum

Up to 32 MB

1.5 ms ~ 2 ms

11 ms ~ 13 ms

15 ms ~ 21 ms

Cache

Rotational Speed

Logical Blocks

7200 rpm

1,465,149,168

Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]

Features

ATA Security, NCQ, S.M.A.R.T., Ultra DMA

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 17

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

500 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

0.20 lbs. (92 g) ~ 0.25 lbs (115 g)

500 GB

0.28 in (7 mm)/0.38 in (9.7 mm)

Width

Interface

Transfer Rate

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Seek Time

(typical reads, including settling)

Cache

Rotational Speed

Features

500 GB 5400 rpm SATA

FIPS* Hard Drive

Drive Weight

Capacity

Height

Synchronous

(maximum)

Single Track

Average

Maximum

Up To 32 MB

7200 rpm

600 MB/s (Drive Capability)

1.5 ms ~ 2 ms

11 ms ~ 13 ms

18 ms ~ 22 ms

Logical Blocks

976,773,168

Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]

ATA Security, NCQ, S.M.A.R.T., Ultra DMA

0.21 lbs. (95 g)

500 GB

0.28 in (7 mm)

Width

Interface

Transfer Rate

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Seek Time

(typical reads, including settling)

Cache

Rotational Speed

Synchronous

(maximum)

Single Track

Average

Maximum

16 MB

5400 rpm

600 MB/s (Drive Capability)

1.5 ms

12 ms

22ms

Logical Blocks

976,773,168

Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]

Features

ATA Security; TCG Opal 2.x, FIPS, S.M.A.R.T., NCQ, Ultra DMA

* FIPS-certified, hardware-based AES-256 encryption image.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 18

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

500 GB 7200 rpm

SMART SATA II Self

Encrypting Drive

Drive Weight

Capacity

Height

0.21 lbs. (95 g)

500 GB

0.28 in (7 mm)

Width

Interface

Transfer Rate

2.75 in (69.85 mm)

ATA-8, SATA 2.6

Seek Time

(typical reads, including settling)

Cache

Rotational Speed

Synchronous

(maximum)

Single Track

Average

Maximum

32 MB

7200 rpm

300 MB/s (Drive Capability)

1 ms

13 ms

18 ms

Logical Blocks

976,773,168

Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]

Features

ATA Security; TCG OPAL v1.00, S.M.A.R.T., NCQ, Ultra DMA

SATA 6 Gb/s 512 GB,

2.5-inch Solid State

Drive

Drive Weight

Capacity

NAND Type

Height

Width

Interface

Performance

0.17 lb. (78 g)

512 GB

MLC

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Maximum Sequential

Read

Maximum Sequential Write

Logical Blocks

SATA 6 Gb/s 240 GB, 2.5inch Solid State Drive

Drive Weight

460 MB/s

1,000,215,216

0.17 lb. (78g)

260 MB/s

Operating Temperature32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

Capacity

NAND Type

240 GB

MLC

Height

Width

Interface

Performance

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Maximum Sequential

Read

Maximum Sequential Write

Logical Blocks

Operating Temperature

Features

Up to 540 MB/s

468,862,128

Up to 490 MB/s

32° to 158° F (0° to 70° C) [ambient temp]

ATA Security; DIPM; TRIM; DEVSLP

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 19

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

SATA 6 Gb/s 180 GB,

2.5-inch Solid State

Drive

Drive Weight

Capacity

NAND Type

Height

Width

Interface

Performance

0.17 lb. (78g)

180 GB

MLC

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Maximum Sequential Maximum Sequential Write

Read

Logical Blocks

Up to 540 MB/s

351,651,888

Up to 490 MB/s

Operating Temperature 32° to 158° F (0° to 70° C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

SATA 6 Gb/s 128 GB,

2.5-inch Solid State

Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.17 lb. (78 g)

128 GB

0.28 in (7 mm)

2.75 in (69.85 mm)

ATA-8, SATA 3.0

Maximum Sequential Maximum Sequential Write

Read

Up to 550 MB/s Up to 350 MB/s

Logical Blocks

250,069,680

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

Z Turbo Drive 128 GB, M.2

PCIe Solid State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

Features

Z Turbo Drive 256 GB, Drive Weight

M.2 PCIe Solid State Drive

Capacity

0.02 lb. (10 g)

128 GB

0.24 in (6.1 mm)

0.87 in (22.1 mm)

ATA-8, PCIe 2.0

Maximum Sequential Read

0.02 lb. (10 g)

256 GB

Maximum Sequential Write

730 MB/s 620 MB/s

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

ATA Security; DIPM; TRIM; DEVSLP

Height

Width

Interface

Performance

0.24 in (6.1 mm)

0.87 in (22.1 mm)

ATA-8, PCIe 2.0

Maximum Sequential Read

Endurance (Total Bytes

Written):

1.08GB/s

146 TB

Maximum Sequential Write

800 MB/s

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 20

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

Z Turbo Drive 512 GB,

M.2 PCIe Solid State

Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

0.02 lb. (10 g)

512 GB

0.24 in (6.1 mm)

0.87 in (22.1 mm)

ATA-8, PCIe 2.0

Maximum Sequential Read Maximum Sequential Write

1.17GB/s 930 MB/s

Endurance (Total Bytes

Written):

292 TB

Operating Temperature 32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

*For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery software.

Optical Drives

DVD+/-RW SuperMulti

DL Drive

Access Times

Random <140ms CD (typical)

< 160 ms DVD (typical)

Max Data Transfer Rate24X CD-ROM

8X DVD

24X CD-R

24X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD-RW

6X - DVD+R Dual Layer

6X - DVD-R Dual Layer

5X DVD-RAM

Transfer Mode

Interface

UDMA Mode 5

Gen 1 SATA

Supported Media (read) CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,

CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-

EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,

DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-

RAM

Supported Media (write)CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,

DVD+R DL, DVD-R DL

8.5 GB

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

8.5 GB

Tray Loading

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 21

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

Blu-ray ROM DVD+/-RW

SuperMulti DL Drive

Access Times

Random <190 ms CD-ROM (typical)

< 180ms DVD-ROM (typical)

<230 ms BD-ROM (typical)

Max Data Transfer Rate24X CD-ROM

8X DVD-ROM

24X CD-R

16X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD-RW

4X - DVD+R Dual Layer

4X - DVD-R Dual Layer

5X DVD-RAM

6X BD-ROM

Transfer Mode

Interface

UDMA Mode 5

Gen 1 SATA

Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,

CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-

EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,

DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVD-

RAM, BD-ROM, BD-R, BD-RE

Supported Media (write)CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL,

DVD-RW, DVD-RAM

50.0 GB

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

8.5GB

Tray Loading

Blu-ray R/RE DVD+/-

RW SuperMulti DL

Drive

Access Times

Random <165 ms CD-ROM (typical)

<185 ms DVD-ROM (typical)

<205 ms BD-ROM (typical)

Max Data Transfer Rate24X CD-ROM

8X DVD-ROM

24X CD-R

16X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD+R Dual Layer

Transfer Mode

6X DVD-R Dual Layer

5X DVD-RAM

6X BD-ROM

6X BD-R

2X BD-RE

UDMA Mode 5

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 22

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

Interface

Gen 1 SATA

Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,

CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-

EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,

DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVD-

RAM, BD-ROM, BD-R, BD-RE

Supported Media (write)CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL,

DVD-RW, DVD-RAM, BD-R, BD-RE

50.0 GB

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

50.0 GB

Tray Loading

SECURITY

HP Fingerprint Sensor Mobile Voltage

Operation

3.0V-3.6V Single Supply

Operating Temperature14° - 167°F (-10° - 75°C)

36mA

Current consumption image

Low latency wait for finger

950 uA

Capture rate

ESD Resistance

Detection Matrix

3000 lines/sec

IEC 6100-4-2 4B (+/-15KV)

200*1 (plus another secondary line); 508 dpi, sensor area 12*3 mm

NETWORKING/COMMUNICATIONS

Intel® I217-LM Gigabit

Network Connection

Ethernet Features

Power

Management

Performance

Features

10 Mbit/s operation (10BASE-T; IEEE 802.3; IEEE 802.3 clauses 13-

14)

100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses

21-30)

1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023.

Clauses 40)

IEEE 802.3u Auto-Negotiation (Automatic Speed Selection)

Full Duplex Operation at all Speeds, Half Duplex operation at 10 and

100 Mbit/s

IEEE 802.1p QoS (Quality of Service) Support

IEEE 802.1q VLAN support

IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)

IEEE 802.3az EEE(Energy Efficient Ethernet)

IEEE 802.1as/1588 conformance

Jumbo Frame 9K

Auto MDI/MDIX Crossover cable detection

ACPI compliant - multiple power modes

Energy Detect Low Power Mode(Green Ethernet)

TCP/IP/UDP Checksum Offload (configurable)

Protocol Offload( ARP & NS)

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 23

QuickSpecs

Technical Specifications

HP ZBook 15 G2 Mobile Workstation

Manageability

Interface

Large send offload and Giant send offload

Receiving Side Scaling

MACSec Offload (802.3ae)

Intel vPro iSCSI Boot

Wake-on-LAN from standby and hibernation (Magic Packet and

Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)

PXE 2.1 Remote Boot

Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB

(802.3x, clause 30))

Comprehensive diagnostic and configuration software suite

Virtual Cable Doctor for Ethernet cable status

PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.

NOTE: Intel® I217-LM Gigabit interface is not PCIe compliant. It operates at half of PCIe specification V1.1 (2.5GT/S) speed.

Intel Ethernet Network Connection I217-LM

NIC Device Driver

Name

HP hs3110 HSPA+

Mobile Module*

Technology/Operating

HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 700 (Band 17) MHz

bands

E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz

Wireless protocol standards

GPS

GPS bands

1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz

Maximum data rates DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)

HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)

GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

Maximum output power

WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and

MSC1 - MSC9

Standalone, A-GPS

Maximum power consumption

Form Factor

Weight

HSPA+: 23.5 dBm

E-GPRS 1900/1800: 26.5 dBM

E-GPRS 900/850: 27.5 dBM

GPRS 1900/1800: 29.5 dBm

GPRS 900/850: 32.5 dBm

HSPA+: 1,100 mA (peak); 800 mA (average)

E-GPRS: 2,800 mA (peak); 700 mA (average)

M.2, 3042-S3 Key B

6g

Dimensions

(Length x Width x

Thickness)

1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)

* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available on all products or in all countries.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 24

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

HP lt4112 LTE/HSPA+

Qualcomm® Gobi™ 4G

Module *

Technology/Operating

LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 2600 (Band 7),

bands

900 (Band 8), 800 MHz (Band 20, DD800) MHz

HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 900 (Band 8) MHz

E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz

Wireless protocol standards

GPS

3GPP Release 8 LTE Specification

WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 -

MSC9

Standalone, A-GPS

GPS bands

1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz

Maximum data rates LTE: 100 Mbps (Download), 50 Mbps (Upload)

DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)

HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)

GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

Maximum output power

Maximum power consumption

LTE: 23 dBm

HSPA+: 23.5 dBm

E-GPRS 1900/1800: 26.5 dBM

E-GPRS 900/850: 27.5 dBM

GPRS 1900/1800: 29.5 dBm

GPRS 900/850: 32.5 dBm

LTE: 1,200 mA (peak); 900 mA (average)

HSPA+: 1,100 mA (peak); 800 mA (average)

E-GPRS: 2,800 mA (peak); 700 mA (average)

Form Factor

Weight

M.2, 3042-S3 Key B

6 g

Dimensions

(Length x Width x

Thickness)

1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)

* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors.

4G LTE not available on all products or in all countries.

HP lt4211 LTE/EV-

DO/HSPA+ Gobi 4G

Module

Technology/Operating bands

Wireless protocol standards

GPS

GPS bands

Maximum data rates

LTE: 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 700 (Band 13 upper

SMH), 700 (Band 17 lower SMH), 1900 MHz (Band 25, extended PCS) MHz

HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 900

(Band 8) MHz

E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8) MHz

EV-DO: 800 (BC0), 1900 (BC1) MHz

3GPP Release 8 LTE Specification

WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 -

MSC9

EVDO Release 0 and Release A

Standalone, A-GPS

1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz

LTE: 100 Mbps (Download), 50 Mbps (Upload)

DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)

HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)

GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 25

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

CDMA 1x: DL 153.6 kbps/UL 153.6 kbps

EVDO Rev.A: DL 3.1 Mbps/UL 1.8 Mbps

Maximum output power LTE: 23 dBm

HSPA+: 23.5 dBm

E-GPRS 1900/1800: 26.5 dBM

E-GPRS 900/850: 27.5 dBM

GPRS 1900/1800: 29.5 dBm

GPRS 900/850: 32.5 dBm

CDMA/EVDO: 24dBm

Maximum power consumption

LTE: 1,200 mA (peak); 900 mA (average)

HSPA+: 1,100 mA (peak); 800 mA (average)

E-GPRS: 2,800 mA (peak); 700 mA (average)

EVDO: 1000mA (peak); 720mA (average)

Form Factor

Weight

M.2, 3042-S3 Key B

6 g

Dimensions

(Length x Width x

Thickness)

1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)

* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, and other factors.

4G LTE not available on all products or in all countries.

Intel® Dual Band

Wireless-NB 7260

802.11 a/b/g/n (2x2) WiFi

Adapter*

Wireless LAN

Standards

Interoperability

Frequency Band

Data Rates

Modulation

Security

1

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Wi-Fi certified

802.11b/g/n

2.402 - 2.482 GHz

802.11a/n

4.9 - 4.95 GHz (Japan)

5.15 - 5.25 GHz

5.25 - 5.35 GHz

5.47 - 5.725 GHz

5.825 - 5.850 GHz

2.402 - 2.482 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

Direct Sequence Spread Spectrum

BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

AES-CCMP: 128 bit in hardware

802.1x authentication

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 26

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX

Lite

WAPI

Network Architecture

Models

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Roaming

Output Power

2

IEEE 802.11 compliant roaming between access points

2.4G: +13.5dBm minimum

5G: +12dBm minimum

Maximum output power must be able to achieve modular regulatory certification with notebooks that have antennas >20cm from the user and peak gain of +3dBi at 2.4GHz and +4dBi at

5GHz

Power Consumption

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 250 mW (WLAN Associated)

Idle mode: 100 mW (WLAN unassociated)

Radio disabled: 75 mW

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

3

802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm (11 Mbps)

802.11a/g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -

85 dBm (18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm

(48 Mbps), -74 dBm (54 Mbps)

802.11n:-69 dBm (72.2 Mbps), -66 dBm (300 Mbps)

Antenna type

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

PCI-Express Half-MiniCard

Form Factor

Dimensions

Weight

Humidity

Altitude

0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)

3.1g

Operating Voltage

3.3v +/- 9%

Temperature

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Activity

LED Off - Radio OFF; Solid LED On - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

Bluetooth Specification

Bluetooth

Specification

V4.0 High Speed, V2.1+EDR, backwards compatible with V1.1, 1.2 and

2.0

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 27

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

Number of Available

Channels

79 (1 MHz) available channels

Data Rates and

Throughput

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Transmit Power

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

-6 dBm to 4 dBm (Bluetooth Class II)

Receiver Sensitivity Better than -80 dBM at 0.1 % raw bit error rate

Power Consumption Peak (Tx) 330 mW

Peak (Rx) 230 mW

Sleep <17 mW

Antenna

Range

Internally integrated within module

Up to 33 ft (10 m)

Electrical Interface

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

Bluetooth Software

Supported

Broadcom Bluetooth for Windows

Microsoft Windows Bluetooth Software

Link Topology

Security

Power Management Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

Certifications

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

Bluetooth Profiles

Supported

UL, CSA, and CE Mark

Generic Access Profile (GAP)

Service Discovery Application Profile (SDAP)

Serial Port Profile (SPP)

Dial_Up Networking Profile (DUN)

Generic Object Exchange Profile (GOEP)

Object Push Profile (OPP)

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

Personal Area Networking Profile (PAN)

Human Interface Device Profile (HID)

Generic Audio/Video Distribution Profile (GAVDP)

Advanced Audio/Video Distribution Profile (A2DP)

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

Hands Free Profile (HFP)

Basic Printing Profile (BPP)

VDP (Video Distribution Profile)

AVRCP (Audio Video Remote Control Profile)

* Wireless access point and internet service required. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 28

QuickSpecs

Technical Specifications

HP ZBook 15 G2 Mobile Workstation

Intel® Dual Band

Wireless-AC 7260 802.11

a/b/g/n/ac (2x2) WiFi +

Bluetooth 4.0 Combo

Adaptor

*

Wireless LAN Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

Interoperability

Frequency Band

Wi-Fi certified

Cisco Compatible Extensions Program compliant with Microsoft Windows 7,

Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN )

802.11b/g/n 2.402 - 2.482 GHz

Antenna Structure

Data Rates

Modulation

802.11a/n 4.9 - 4.95 GHz (Japan)

5.15 - 5.25 GHz

5.25 - 5.35 GHz

5.47 - 5.725 GHz

5.825 - 5.850 GHz

2 transmit; 2 receive (2x2)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: card will support rates for NSS=1 and NSS=2 for RX and TX for 20 and

40 MHz channels. Short and long guard interval shall be supported.

802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Direct Sequence Spread Spectrum

CCK, BPSK, QPSK, 16-QAM, 64-QAM

Security

1

Sub-channels

Network Architecture

Models

Roaming

Output Power

2

Power Consumption

Power Management

Receiver Sensitivity

4

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

AES-CCMP: 128 bit in hardware

802.1x authentication

WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX Lite

WAPI

Multinational support with frequency bands and channels compliant to local regulations.

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between band Access Points

2.4G: +13.5dBm minimum

5G: +12dBm minimum

Transmit: 2.0 Watts

Receive: 1.6 Watts

Idle mode

3

: 250 mW (WLAN Associated)

Idle mode: 100 mW (WLAN unassociated)

Radio off: 75 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm (18

Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74 dBm

(54 Mbps)

802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm

(11 Mbps)

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 29

QuickSpecs

Technical Specifications

HP ZBook 15 G2 Mobile Workstation

802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm (18

Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74 dBm

(54 Mbps)

Antenna Connections

Form Factor

Dimensions

802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)

2 U.FL type connectors (output impedance of 50 ± 2 ohms)

PCI-Express Half-MiniCard

0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)

Weight

Operating Voltage

Temperature

Humidity

3.1g

3.3v +/- 9%

Operating

Non-operating

Operating

Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Altitude

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Off - Radio OFF; Solid LED On - Radio ON

LED Activity

1.

2.

3.

4.

5.

Check latest software/driver release for updates on supported security features.

Maximum output power may vary by country according to local regulations.

In Power Save Polling mode and on battery power.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.

HP Integrated Module with Bluetooth 4.0+EDR

Wireless Technology

Bluetooth Specification

Dimensions

Frequency Band

Number of Available

Channels

Data Rates and Throughput 3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

-1.5 dBm to 4 dBm (Bluetooth Class II)

Transmit Power

Receiver Sensitivity

Power Consumption

Better than -20 dBM at 0.1 % raw bit error rate

Peak (Tx) 264 mW

Peak (Rx) 231 mW

Sleep <1 mW

Antenna

Range

Electrical Interface

Bluetooth Software

Supported

4.0+EDR Compliant

1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm))

2402 to 2480 MHz

79 (1 MHz) available channels

Internally integrated within module

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

Broadcom Bluetooth for Windows

Microsoft Windows Bluetooth Software

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 30

QuickSpecs

Technical Specifications

Link Topology

Security

Power Management

Certifications

Bluetooth Profiles

Supported

HP ZBook 15 G2 Mobile Workstation

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP)

1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP)

1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

1,2

Personal Area Networking Profile (PAN)

1,2

Human Interface Device Profile (HID)

1,2

FAX Profile (FAX)

Basic Imaging Profile (BIP)

2

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

1. Indicates the profile is supported by Microsoft Windows XP

SP2

2. Indicates the profile is part of Windows Vista

* Wireless access point and internet service required. Availability of public wireless access points limited.

AUDIO/MULTIMEDIA

AUDIO/MULTIMEDIA - DTS SOUND+

Hardware Implementation

Function Key

Volume Controls

Realtek ALC3228

Volume up, volume down, and mute

Full Duplex

Microphone In

Yes

Stereo

Headphone/Line Out

Stereo

Integrated Microphone Yes, dual digital microphone array when equipped with optional webcam

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 31

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

Audio Output Quality Frequency Response

20 Hz - 20 kHz

Signal to Noise Ratio

>85 dB

Total Harmonic

Distortion

0.01%

Noise Floor

Play/Record Sampling

Rate(s)

-110 dB

8 kHz - 48kHz

DAC

ADC

Internal Stereo SpeakerPower Rating

Impedance

16, 20 or 24-bit

16 or 20-bit

2 Watts

4 ohms

POWER

HP 200W Slim Smart

AC Adapter

Dimensions

Weight

Input

6.77 x 3.80 x 1.0 in (172 x 96 x 25.4 mm)

1.65 lb (748 g)

100 to 240 VAC

Input Efficiency 87% min at 115 VAC

Input frequency range 47 to 63 Hz

Input AC current

Output power

2.9 A at 90 VAC, 1.45 A at 180 VAC

200W

Output

Connector

DC output

Hold-up time

19.5V

5 msec at 115 VAC input

Output current limit <16A, Over voltage protection- 29V max automatic shutdown

3 pin/grounded, mates with interchangeable cords

32° to 104° F (0° to 40° C) Environmental Design Operating temperature

Non-operating (storage) temperature

-4° to 149° F (-20° to 65° C)

EMI and Safety

Certifications

Altitude

Humidity

0 to 10,000 ft (0 to 3,048 m)

20% to 80%

Storage Humidity 10% to 90%

CE Mark- full compliance with LVD and EMC directives; Worldwide safety standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency approvals- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC

Class B, CISPR22 Class B, CCIB, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 32

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

HP 150W Slim Smart

AC adapter

Dimensions

Weight

Input

6.59 x 3.23 x 1.0 in (167.5 x 82 x 25.4 mm)

1.25 lb (565 g)

100 to 240 VAC

Input Efficiency 87% min at 115 VAC

Input frequency range 47 to 63 Hz

Input AC current

Output power

<2.7 A at 90 VAC

150W

Output

Connector

DC output

Hold-up time

19.50V +5.0%/-5.0%

5 msec at 115 VAC input

Output current limit <15A, Over voltage protection- 29V max automatic shutdown

3 pin/grounded, mates with interchangeable cords

41° to 95° F (5° to 35° C) Environmental Design Operating temperature

Non-operating (storage) temperature

-4° to 185° F (-20° to 85° C)

EMI and Safety

Certifications

Altitude

Humidity

0 to 10,000 ft (0 to 3,048 m)

10% to 95%

Storage Humidity 10% to 95%

Worldwide safety and EMC approvals including CE, UL, CSA or cUL,

GS, Australian Electric Permit, C-tick, NOM, CCC, KC, GOST, SABS, S mark, BSMI, ISC, PSE, PSB and SII.

HP 8-cell Lithium-Ion

Battery (83 WHr)

Dimensions (H x W x L) 0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)

Weight (max) 0.99lb (0.442 kg)

Cells/Type

Energy

Lithium-Ion

Voltage 14.8V

Temperature

Amp-hour capacity

Watt-hour capacity

5.6Ah

83Wh

Operating (Charging) 32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 122° F(-10° to 50° C)

-4° to 122° F (-20° to 50° C)

2.5 hours

Battery Re-Charge

Time

Non-operating

System in OFF or

Standby Mode

System ON

No

Fuel Gauge LED

Warranty

1 year

Compatible with optional Travel Battery

Yes

3 to 5 hours

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 33

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

HP Long Life 8-cell

Lithium-Ion Battery (75

WHr)

Dimensions (H x W x L) 0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)

Weight (max)

Cells/Type

0.99lb (0.442 kg)

8-cell; Lithium-Ion

Energy

Temperature

Voltage

Amp-hour capacity

Watt-hour capacity

Operating (Charging)

14.4V

5.1Ah

75Wh

32° to 113° F (0° to 45° C)

Battery Re-Charge

Time

Operating (Discharging) 14° to 140° F (-10° to 60° C)

Non-operating -4° to 140° F (-20° to 60° C)

2.5 hours System in OFF or

Standby Mode

System ON 3 to 5 hours

Fuel Gauge LED

Warranty*

No

3 year

Compatible with optional Travel Battery

Yes

* 3-year platform warranty is required for a 3-year Long Life Battery warranty.

Optional HP BB09 Ultra

Extended Life

Notebook Battery

(secondary battery)

Dimensions (H x W x L) 1.2 x 5.9 x 11.4 in (3x15x29cm)

Weight (max)

Cells/Type

Energy

1.5lb, (.682kg)

Lithium-Ion

Voltage

11.25V

Temperature

Amp-hour capacity

Watt-hour capacity

8.85Ah

100Wh

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating

(Discharging)

14° to 122° F(-10° to 50° C)

-4° to 122° F (-20° to 50° C)

3.5 to 5 hours

Battery Re-Charge

Time

Non-operating

System in OFF or

Standby Mode

System ON

Yes

Fuel Gauge LED

Warranty

1 year

Compatible with optional Travel Battery

No

4 to 7 hours

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 34

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

Optional HP ST09

Extended Life

Notebook Battery

("Travel Battery")

(secondary battery)

ENVIRONMENTAL

US ENERGY STAR ®

IT ECO declaration

EPEAT®

COUNTRY OF ORIGIN

China

Environmental

Data

Eco-Label

Certifications & declarations

Dimensions (H x W x L) 1.2 x 6.1 x 12 in (3x15.5x30.5cm)

Weight (max)

Cells/Type

Energy

1.2lb, (.550kg)

Lithium-Ion Polymer

Voltage

Amp-hour capacity

11.1V

6.6Ah

Temperature

Battery Re-Charge

Time

Watt-hour capacity

73Wh

Operating (Charging)

32° to 113° F (0° to 45° C)

14° to 122° F(-10° to 50° C)

Operating

(Discharging)

Non-operating

-4° to 122° F (-20° to 50° C)

3.5 to 5 hours

System in OFF or

Standby Mode

System ON

4 to 7 hours

Fuel Gauge LED

Warranty

Yes

1 year

Compatible with optional Travel Battery

Yes

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

IT ECO declaration

System

Configuration

Energy

Consumption

(in accordance with

US ENERGY STAR® test method)

Normal Operation

(Short idle)

Normal Operation

(Long idle)

Sleep

Off

US ENERGY STAR®

EPEAT <Gold> registered in the United States. See http://www.epeat.net for registration status in your country.

The configuration used for the Energy Consumption and Declared Noise Emissions data for the

Notebook model is based on a “Typically Configured Notebook”.

115VAC, 60Hz

15.44 W

7.64 W

1.11 W

0.33 W

230VAC, 50Hz

15.11 W

7.00 W

1.34 W

0.56 W

100VAC, 60Hz

15.46 W

6.71 W

1.09 W

0.32 W

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 35

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

NOTE:

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz

53 BTU/hr 52 BTU/hr 53 BTU/hr

Heat Dissipation*

Normal Operation

(Short idle)

Normal Operation

(Long idle)

26 BTU/hr 24 BTU/hr 23 BTU/hr

Sleep

Off

4 BTU/hr

1 BTU/hr

5 BTU/hr

2 BTU/hr

4 BTU/hr

1 BTU/hr

Declared Noise

Emissions

(in accordance with

ISO 7779 and ISO

9296)

Typically Configured –

Idle

Fixed Disk – Random writes

*NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Sound Power

(L

WAd

, bels)

Sound Pressure

(L pAm

, decibels)

3.1

3.0

24

24

Longevity and

Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:

4 USB ports

1 Thunderbolt 2 port

1 ExpressCard/54 slot

1 Smart card reader

2 SODIMM memory slots (Dual-core processor)

4 SODIMM memory slots (Quad-core processor)

Optional expansion base docking station

Batteries

Spare parts are available throughout the warranty period and or for up to “5” years after the end of production.

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the1ppm by weight

Cadmium greater than 20ppm by weight

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 36

QuickSpecs

Technical Specifications

HP ZBook 15 G2 Mobile Workstation

Battery size: CR2032 (coin cell)

Battery type: Lithium

Battery size: 6-cell high capacity Lithium-Ion battery (optional 8 cell available)

Battery type:

Additional

Information

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2011/65/EC.

This HP product is designed to comply with the Waste Electrical and Electronic Equipment

(WEEE) Directive – 2002/96/EC.

This product is in compliance with California Proposition 65 (State of California; Safe

Drinking Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the <Gold> level, see www.epeat.net

Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and

ISO1043.

This product contains 2.9% post-consumer recycled plastic (by wt.)

This product is 95.3% recycle-able when properly disposed of at end of life.

Packaging Materials External:

Material Usage

PAPER/Corrugated 490 g

Internal:

PLASTIC/EPE (Expanded Polyethylene) 42 g

PLASTIC/Polyethylene low density

The plastic packaging material contains at least 0% recycled content.

19.5 g

The corrugated paper packaging materials contains at least 76% recycled content.

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf

):

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

Cadmium

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel – finishes must not be used on the external surface designed to be frequently handled or carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 37

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Technical Specifications

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in packaging materials.

Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life

Management and

Recycling

Hewlett-Packard

Corporate

Environmental

Information

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

For more information about HP’s commitment to the environment:

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/

PC_GBU_Product_Design_ISO_14K_Certificate.pdf

and http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 38

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Options and Accessories (sold separately and availability may vary by country)

Type

Memory

Cases

Docking

Input/Output

Power Adapters

Adapters

Description

HP 4 GB DDR3L-1600 1.35V SODIMM

HP 8 GB DDR3L-1600 1.35V SODIMM

HP Business Top Load Case (fits up to 15.6")

HP Business Backpack (fits up to 17.3")

HP Essential Top Load Case (up to 15.6")

HP Professional Leather Case (up to 17.3")

HP Business 4 Wheel Roller Case (fits up to 17.3")

HP Adjustable Dual Monitor Stand

HP Adjustable Display Stand

HP Dual Hinge II Notebook Stand

HP Display and Notebook II Stand

HP 230W Docking Station

HP 230W Advanced Docking Station

HP 3005pr USB 3.0 Port Replicator

HP 3001pr USB 3 Port Replicator

HP Universal Port Replicator

Comfort Grip Mouse

HP Stylish USB KB/Mouse

HP Slim Bluetooth Keyboard

HP 3-Button Laser Mouse

HP USB Essential Keyboard and Mouse

HP Ultra Mobile Wireless Mouse

HP Wireless Keyboard and Mouse

HP X4000 Bluetooth Mouse

USB Graphics Adapter

HP Slim Bluetooth Mouse

HP USB Smart Card Reader

HP 90W Slim AC Adapter

HP 150W Smart AC Adapter (slim)

HP 90W Slim Combo Adapter w/USB Adapter

90W Smart AC/Auto/Air Combo Adapter

90W Smart Auto/Truck Adapter

90W Slim Adapter

HP Smart 230W AC Adapter

HP 230W Slim Adapter

HP 65W Smart AC Adapter

HP 90W Smart AC Adapter

HP 65W Slim AC Adapter

HP Wireless display adapter

Part #

H6Y75AA#xxx

H6Y77AA#xxx

H5M92AA

H5M90AA

H2W17AA#xxx

H4J94AA

H5M93AA

AW664AA#xxx

AW663AA#xxx

E8F99AA

E8G00AA

A7E34AA#xxx

A7E38AA#xxx

H1L08AA

F3S42AA

E6D70AA#xxx

H2L63AA

H4B80AA#xxx

H4Q44AA#xxx

H4B81AA#xxx

H6L29AA#xxx

H6F25AA#xxx

G1K29AA#xxx

H3T50AA#xxx

NL571AT

F3J92AA#xxx

F6V67AA

H6Y83AA#xxx

AL192AA#xxx

H6Y84AA#xxx

AJ652AA#xxx

ED493AA

BT796AA#XXX

AT895AA#xxx

H1D36AA#xxx

H6Y89AA#xxx

H6Y90AA#xxx

H6Y82AA#xxx

J1V25AA#xxx

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 39

QuickSpecs

HP ZBook 15 G2 Mobile Workstation

Options and Accessories (sold separately and availability may vary by country)

Storage – External

Storage

USB dual output graphics adapter

DisplayPort to DVI Adapter

DisplayPort to VGA Adapter

DisplayPort to HDMI Adapter

Adapter, USB Graphics – dual output (Monitor Accy)

HP 2013 MWS Upgrade Bay DVD

C5U89AA

F7W96AA

F7W97AA

F3W43AA

C5U89AA/AT

G1Y57AA

HP 2013 MWS Upgrade Bay 750GB HDD

HP External USB Optical Drive

HP 500GB 7200rpm HDD*

HP 750GB 7200rpm HDD*

G1Y56AA

F2B56AA

F3B97AA

H2P67AA

HP 128GB Solid State Drive*

HP 180GB Solid State Drive*

F4P50AA

H4T75AA

HP 512GB Solid State Drive*

HP MWS HDD/SDD Bracket Only

* If you are not replacing an existing drive in your system, separate HP MWS HDD/SDD Bracket

(J2D73AA) required for installation of this drive.

J2V75AA

J2D73AA

Batteries

HP ST09 Extended Life Notebook Battery

HP BB09 Ultra Extended Life Notebook Battery

HP AR08XL Notebook Battery

Health and Education HP 20-Notebook Managed Charging Cart

HP 20-Notebook Charging Cart

Security

Wireless

HP 30-Notebook Managed Charging Cart

HP 30-Notebook Charging Cart

HP Docking Station Cable Lock

HP UltraSlim Keyed Cable Lock

HP hs3110 HSPA+ W 8.1 WWAN

HP lt4211 LTE/EV-DO/HSPA+ WWAN

HP lt4112 LTE/HSPA+ W8.1 WWAN

QK639AA

QK640AA

E7U26AA

QL489AA#xxx

QL488AA#xxx

QL490AA#xxx

H4F31AA#xxx

AU656AA#xxx

H4D73AA

J8F05AA

J8F06AA

J8F07AA

NOTE: External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 40

QuickSpecs

Summary of Changes

Date of change:

August 25, 2014

Sept 15, 2014

October 31, 2014

Version History:

v1

From v1 to v2

From v2 to v3

November 24, 2014 From v3 to v4

December 8, 2014 From v4 to v5

December 16, 2014 From v5 to v6

January 22, 2015 From v6 to v7

February 5, 2015 From 7 to v8

March 1, 2015 From v8 to v9

April 1, 2015

May 1, 2015

June 1, 2015

From v9 to v10

From v10 to v11

From v11 to v12

HP ZBook 15 G2 Mobile Workstation

Added

Removed

Changed

Changed

Added

Removed

Changed

Changed

Added

Changed

Added

Changed

Added

Changed

Changed

Added

Changed

Description of change:

General styles and specifications

DreamColor references, Win 8.1 Remote Graphics note

Product naming from AMD FirePro™ W5170M to AMD FirePro™

M5100

Mil-Std-810G test passed messaging and note.

Storage-External note from Options and Accessories section

FCC and UL from Planned Industry Standard

Certifications, System Unit

Ordering to Industry Standard Certifications, System Unit section.

General styling of headers and sections in the document

WWAN display support in Networking Communications sections

Notes styles throughout the document.

Intel i5-4310M, 512 GB SSD opal 2, 128 GB Z Turbo Drive,

Environmental Data

Preinstalled and Suported OS, Audio hardware implementation,

Realtek ALC3228

Optimus and Enduro Technology support note, Card Reader

FIPS compliance

Memory nomenclature, Battery life

Optimus support reorder

Z Turbo Drive 256 and 512

Important legal disclosures at a glance section, Environmental,

Longevity and Upgrading subsection

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 41

QuickSpecs

title

HP ZBook 15 G2 Mobile Workstation

Copyright © 2015 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel®, Core®, Celeron and Thunderbolt are registered trademarks or trademarks of Intel® Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of its proprietor, used by Hewlett-Packard Company under license.

Adobe is a trademark of Adobe Systems Incorporated. Qualcomm® and Gobi® are trademarks of Qualcomm, Inc. ENERGY

STAR® is a registered mark of the U.S. government. Microsoft and Windows are registered trademarks of the Microsoft

Group of companies.

DA - 15079 Worldwide QuickSpecs — Version 12 — 7.1.2015

Page 42

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
