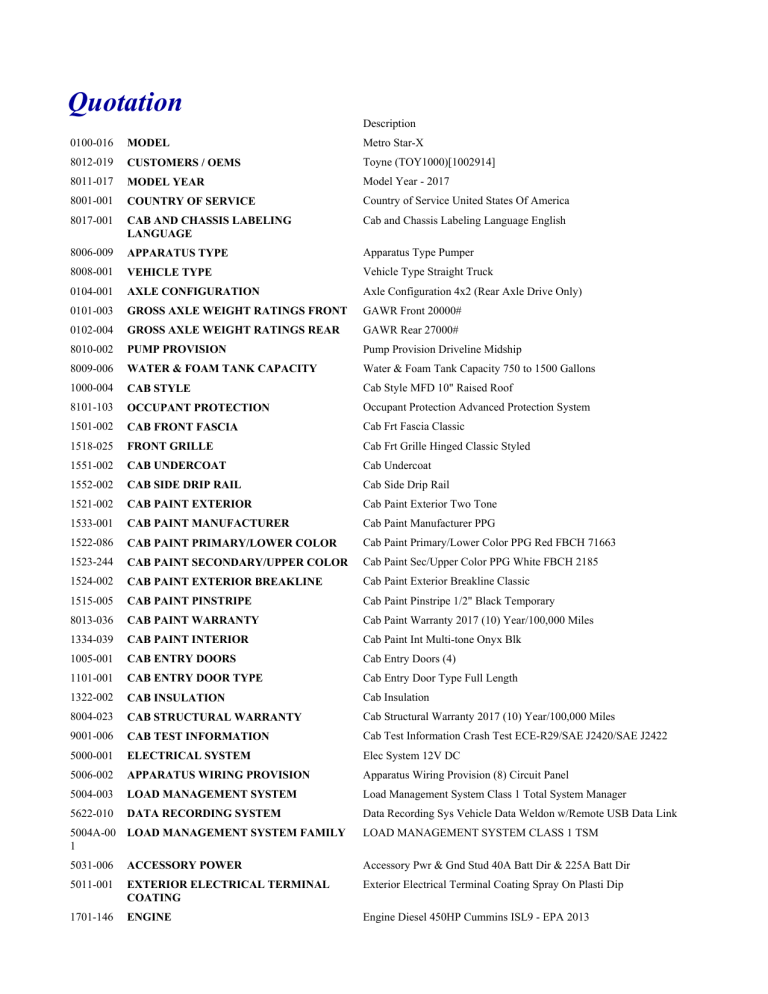

Quotation
Description
0100-016
MODEL
Metro Star-X
8012-019
CUSTOMERS / OEMS
Toyne (TOY1000)[1002914]
8011-017
MODEL YEAR
Model Year - 2017
8001-001
COUNTRY OF SERVICE
Country of Service United States Of America
8017-001
CAB AND CHASSIS LABELING
LANGUAGE
Cab and Chassis Labeling Language English
8006-009
APPARATUS TYPE
Apparatus Type Pumper
8008-001
VEHICLE TYPE
Vehicle Type Straight Truck
0104-001
AXLE CONFIGURATION
Axle Configuration 4x2 (Rear Axle Drive Only)
0101-003
GROSS AXLE WEIGHT RATINGS FRONT
GAWR Front 20000#
0102-004
GROSS AXLE WEIGHT RATINGS REAR
GAWR Rear 27000#
8010-002
PUMP PROVISION
Pump Provision Driveline Midship
8009-006
WATER & FOAM TANK CAPACITY
Water & Foam Tank Capacity 750 to 1500 Gallons
1000-004
CAB STYLE
Cab Style MFD 10" Raised Roof
8101-103
OCCUPANT PROTECTION
Occupant Protection Advanced Protection System
1501-002
CAB FRONT FASCIA
Cab Frt Fascia Classic
1518-025
FRONT GRILLE
Cab Frt Grille Hinged Classic Styled
1551-002
CAB UNDERCOAT
Cab Undercoat
1552-002
CAB SIDE DRIP RAIL
Cab Side Drip Rail
1521-002
CAB PAINT EXTERIOR
Cab Paint Exterior Two Tone
1533-001
CAB PAINT MANUFACTURER
Cab Paint Manufacturer PPG
1522-086
CAB PAINT PRIMARY/LOWER COLOR
Cab Paint Primary/Lower Color PPG Red FBCH 71663
1523-244
CAB PAINT SECONDARY/UPPER COLOR
Cab Paint Sec/Upper Color PPG White FBCH 2185
1524-002
CAB PAINT EXTERIOR BREAKLINE
Cab Paint Exterior Breakline Classic
1515-005
CAB PAINT PINSTRIPE
Cab Paint Pinstripe 1/2" Black Temporary
8013-036
CAB PAINT WARRANTY
Cab Paint Warranty 2017 (10) Year/100,000 Miles
1334-039
CAB PAINT INTERIOR
Cab Paint Int Multi-tone Onyx Blk
1005-001
CAB ENTRY DOORS
Cab Entry Doors (4)
1101-001
CAB ENTRY DOOR TYPE
Cab Entry Door Type Full Length
1322-002
CAB INSULATION
Cab Insulation
8004-023
CAB STRUCTURAL WARRANTY
Cab Structural Warranty 2017 (10) Year/100,000 Miles
9001-006
CAB TEST INFORMATION
Cab Test Information Crash Test ECE-R29/SAE J2420/SAE J2422
5000-001
ELECTRICAL SYSTEM
Elec System 12V DC
5006-002
APPARATUS WIRING PROVISION
Apparatus Wiring Provision (8) Circuit Panel
5004-003
LOAD MANAGEMENT SYSTEM
Load Management System Class 1 Total System Manager
5622-010
DATA RECORDING SYSTEM
Data Recording Sys Vehicle Data Weldon w/Remote USB Data Link
5004A-00 LOAD MANAGEMENT SYSTEM FAMILY
1
LOAD MANAGEMENT SYSTEM CLASS 1 TSM
5031-006
ACCESSORY POWER
Accessory Pwr & Gnd Stud 40A Batt Dir & 225A Batt Dir
5011-001
EXTERIOR ELECTRICAL TERMINAL
COATING
Exterior Electrical Terminal Coating Spray On Plasti Dip
1701-146
ENGINE
Engine Diesel 450HP Cummins ISL9 - EPA 2013
1329-001
CAB ENGINE TUNNEL
Cab Engine Tunnel Small/Medium
1731-002
DIESEL PARTICULATE FILTER
CONTROLS
DPF Ctrl Regeneration Sw & Inhibit Sw
1718-002
ENGINE PROGRAMMING HIGH IDLE
SPEED
Engine Programming High Idle Speed 1250 RPM
1719-004
ENGINE HIGH IDLE CONTROL
Engine High Idle Ctrl Manual and Automatic
1710-001
ENGINE PROGRAMMING ROAD SPEED
GOVERNOR
Engine Programming Road Speed Governor Enabled
1713-010
AUXILIARY ENGINE BRAKE
Aux Engine Brake Compression Brake w/VG Turbo
1708-002
AUXILIARY ENGINE BRAKE CONTROL
Aux Engine Brake Ctrl On/Off Sw Pnl
1720-003
ELECTRONIC ENGINE OIL LEVEL
INDICATOR
Elec Engine Oil Level Indicator
1715-001
FLUID FILLS
Fluid Fills Fwd For Med Displacement Cap
8002-001
ENGINE WARRANTY
Engine Warranty Cummins (5) Year/100,000 Miles
1707-010
REMOTE THROTTLE HARNESS
Rmt Throttle Harness PSG Fire Rsrch Pump Boss Side Mnt
1721-001
ENGINE PROGRAMMING REMOTE
THROTTLE
Engine Program Rmt Throttle Off
1727-001
ENGINE PROGRAMMING IDLE SPEED
Engine Programming Idle Speed 700 RPM
2704-010
ENGINE FAN DRIVE
Engine Fan Drive Clutch Engaged in A/C Mode
2701-010
ENGINE COOLING SYSTEM
Engine Cooling Sys Serial Flow Medium
2711-005
ENGINE COOLING SYSTEM
PROTECTION
Engine Cooling System Protection Light Duty Skid Plate Paint Frame
Color
2708-001
ENGINE COOLANT
Engine Coolant Extended Life
2706-003
ELECTRONIC COOLANT LEVEL
INDICATOR
Elec Low Coolant Level Indicator
2705-002
ENGINE PUMP HEAT EXCHANGER
Engine Pump Heat Exchanger
2709-004
COOLANT HOSES
Coolant Hoses Silicone Heater & Radiator w/Cab Int Rubber Hoses
2801-009
ENGINE AIR INTAKE
Engine Air Intake Filtration and Restriction w/SS Housing &
Replaceable Element
2802-003
AIR INTAKE PROTECTION
Air Intake Protection Light Duty Skid Plate Painted Frame Color
2901-030
ENGINE EXHAUST SYSTEM
Eng Exhaust Sys Under Frm RH Fwd Outboard w/DPF/SCR Inline
2907-003
DIESEL EXHAUST FLUID TANK
Diesel Exhaust Fluid Tank LH 6 Gal Fill Thru Rr Step
2902-010
ENGINE EXHAUST ACCESSORIES
Engine Exh Acc Exh Temp Mitigation
2906-002
ENGINE EXHAUST WRAP
Engine Exhaust Wrap
1801-015
TRANSMISSION
Transmission Allison 3000 EVS
1806-004
TRANSMISSION MODE PROGRAMMING
Transmission Mode Programming 6th Startup/6th Mode
1811-004
TRANSMISSION FEATURE
PROGRAMMING
Transmission Feature Programming Allison Gen V-E I/O Package
198/Pumper
1815-002
ELECTRONIC TRANSMISSION OIL
LEVEL INDICATOR
Elec Transmission Oil Level Indicator
1807-005
TRANSMISSION SHIFT SELECTOR
Transmission GEN V-E Shift Sel Key Pad/Push Button
1814-002
TRANSMISSION PRE-SELECT WITH
AUXILIARY BRAKE
2nd Gear Pre-Select
1808-007
TRANSMISSION COOLING SYSTEM
Transmission Cooling System
8005-001
TRANSMISSION WARRANTY
Transmission Warranty Allison (5) Year
2005-009
PTO LOCATION
PTO Location 8:00/4:00
3001-001
DRIVELINE
Driveline Spicer 1710 HD
3005-002
MIDSHIP PUMP / GEARBOX
Midship Pump Jackshaft Only
3008-085
MIDSHIP PUMP / GEARBOX MODEL
Midship Pump/Gearbox Model Waterous CSUC20
3048-008
MIDSHIP PUMP GEARBOX DROP
Midship Pump Gearbox Drop Waterous "D"
3009-007
MIDSHIP PUMP RATIO
Midship Pump Ratio 2.27:1
3010-0900 MIDSHIP PUMP LOCATION C/L SUCTION Midship Pump Location C/L Suction to C/L Rear Axle 90.0"
TO C/L REAR AXLE
3109-021
FUEL FILTER/WATER SEPARATOR
Fuel Filter/Wtr Separator Fleetguard FS1003 w/Lt & Alarm
3111-001
FUEL LINES
Fuel Lines Nylon
3103-008
ELECTRIC FUEL PRIMER
Electric Fuel Primer Engine Sply Electric Lift Pump
3101-101
FUEL TANK
Fuel Tank 50 Gallon
3130-001
FUEL TANK MATERIAL AND FINISH
Fuel Tank Material Steel & Finish Painted Frame Color
3131-001
FUEL TANK STRAP MATERIAL
Fuel Tank Strap Material Steel
3102-007
FUEL TANK FILL PORT
Fuel Tank Fill Port LH Rwd/RH Mid
3115-001
FUEL TANK DRAIN PLUG
Fuel Tank Drain Plug
2401-003
FRONT AXLE
Frt Axle Meritor MFS 20000# Beam
8059-013
FRONT AXLE WARRANTY
Front Axle Warranty Meritor 2017
2405-001
FRONT WHEEL BEARING LUBRICATION
Frt Wheel Bearing Lube Oil
2502-002
FRONT SHOCK ABSORBERS
Frt Shock Absorbers Bilstein
2501-006
FRONT SUSPENSION
Frt Suspension 9 Leaf 20000-21500#
2601-006
STEERING COLUMN/WHEEL
Steering Column/Wheel Tilt/Telescopic 18" 4 Spoke
2609-002
ELECTRONIC POWER STEERING FLUID
LEVEL INDICATOR
Elec Power Steering Fluid Level Indicator
2603-001
POWER STEERING PUMP
Power Steering Pump TRW
2606-009
FRONT AXLE CRAMP ANGLE
Front Axle Cramp Angle 48L/44R Degrees
2610-003
POWER STEERING GEAR
Power Steering Gear TRW TAS 65 w/Assist
2608-001
CHASSIS ALIGNMENT
Chassis Alignment
3401-003
REAR AXLE
Rear Axle 27000# Meritor RS-25-160
3403-001
REAR AXLE DIFFERENTIAL
LUBRICATION
Rear Axle Differential Lubrication Oil
8061-010
REAR AXLE WARRANTY
Rear Axle Warranty Meritor 2017
3411-001
REAR WHEEL BEARING LUBRICATION
Rear Wheel Bearing Lubrication Oil
3408-008
VEHICLE TOP SPEED
Vehicle Top Speed 68 MPH
3501-032
REAR SUSPENSION
Rear Susp Reyco 79KB Spring 21000-31500# Conventional
3601-038
FRONT TIRE
Frt Tire 315/80R 22.5 Goodyear G289 WHA
3602-061
REAR TIRE
Rear Tire 12R 22.5 Goodyear G182 RSD
3413-563
REAR AXLE RATIO
Rear Axle Ratio 5.63
3614-012
TIRE PRESSURE INDICATOR
Tire Pressure Ind Frt & Rr Dial Voucher
3701-036
FRONT WHEEL
Frt Wheel Alcoa LvL One 22.5 x 9.00 Alum
3703-027
REAR WHEEL
Rr Whl Alcoa LvL One 22.5 x 8.25 Alum
3205-001
BRAKE SYSTEM
Brake System ABS Sgl Axle
3206-001
FRONT BRAKES
Frt Brakes S-Cam Drum 16.5" x 6"
3207-005
REAR BRAKES
Rr Brakes S-Cam Drum 16.5" x 7" Cast Iron Shoe
3208-001
PARK BRAKE
Prk Brake Rr Wheels Only
3204-002
PARK BRAKE CONTROL
Prk Brake Ctrl Ctr Tunnel Mnt
3213-001
FRONT BRAKE SLACK ADJUSTERS
Frt Brake Slack Adjusters Meritor
3214-001
REAR BRAKE SLACK ADJUSTERS
Rr Brake Slack Adjusters Meritor
3202-005
AIR DRYER
Air Dryer Wabco System Saver 1200 Bhd LH Batt Box
3215-001
FRONT BRAKE CHAMBERS
Frt Brake Chambers MGM Type 30
3210-015
REAR BRAKE CHAMBERS
Rr Brake Chambers TSE 30/36 Long Stroke
3320-001
AIR COMPRESSOR
Air Compressor Wabco SS318 18.7 CFM
3339-004
AIR GOVERNOR
Air Governor Mnt on Air Dryer Bracket
3303-001
MOISTURE EJECTORS
Moisture Ejectors Manual
3307-001
AIR SUPPLY LINES
Air Sply Lines Nylon
3334-003
AIR TANK SPACERS
Air Tank Spacers Inboard 3.0"
2103-1740 WHEELBASE
Wheelbase 174.0"
2106-0470 REAR OVERHANG
Rear Overhang 47.0"
2101-002
FRAME
Frame Double Channel 35.00" Width
8007-019
FRAME WARRANTY
Frame Warranty Lifetime 2017
2110-101
FRAME PAINT
Frame Paint Powder Coat Black
2201-001
FRONT BUMPER
Frt Bumper Stainless Steel Flat
2202-006
FRONT BUMPER EXTENSION LENGTH
Frt Bumper Extension Length 24"
2215-002
FRONT BUMPER SUCTION PROVISION
Frt Bumper Suction Provision 5.0" RH Vertical Outboard
2208-007
FRONT BUMPER APRON
Frt Bumper Apron For 24" Extension
2211-002
FRONT BUMPER COMPARTMENT
CENTER
Frt Bumper Cmpt Ctr
5501-020
AIR HORN
Air Horn (2) 21" Round Hadley E-Tone
2216-004
AIR HORN LOCATION
Air Horn Location (2) Frt Bmpr Face LH
2232-002
AIR HORN RESERVOIR
Air Horn Reservoir (1) 1200 Cu In
5504-067
ELECTRONIC SIREN SPEAKER
Elect Siren Speaker 100W Whelen SP123BMC
2217-005
ELECTRONIC SIREN SPEAKER
LOCATION
Elec Siren Speaker Location Frt Bmpr Face RH OB
2203-002
FRONT BUMPER TOW HOOKS
Frt Bumper Tow Hooks Painted Below Fwd
2301-001
CAB TILT SYSTEM
Cab Tilt System
2305-001
CAB TILT CONTROL RECEPTACLE
Cab Tilt Ctrl Receptacle Temp
1401-009
CAB WINDSHIELD
Cab Windshield
1402-005
GLASS FRONT DOOR
Glass Frt Dr Roll Down/XDuty Regulator
1407-001
GLASS TINT FRONT DOOR
Glass Tint Frt Dr Automotive Green
1419-012
GLASS REAR DOOR RIGHT HAND
Glass Rr Dr RH Roll Down/XDuty Regulator
1430-001
GLASS TINT REAR DOOR RIGHT HAND
Glass Tint Rr Door RH Automotive Green
1412-013
GLASS REAR DOOR LEFT HAND
Glass Rr Dr LH Roll Down/XDuty Regulator
1431-001
GLASS TINT REAR DOOR LEFT HAND
Glass Tint Rr Door LH Automotive Green
1410-003
GLASS SIDE MID RIGHT HAND
Glass Side Mid RH Fxd 16"W x 26"H
1432-001
GLASS TINT SIDE MID RIGHT HAND
Glass Tint Side Mid RH Automotive Green
1409-003
GLASS SIDE MID LEFT HAND
Glass Side Mid LH Fxd 16"W x 26"H
1433-001
GLASS TINT SIDE MID LEFT HAND
Glass Tint Side Mid LH Automotive Green
1614-101
CLIMATE CONTROL
Climate Ctrl Htr Defroster Frt Ovrhd/Htr A/C Tunnel Mnt
1632-002
CLIMATE CONTROL DRAIN
Climate Control Drain Gravity
1617-101
CLIMATE CONTROL ACTIVATION
Climate Ctrl Actv Device Mnt Ovrhd/Device Mnt Tunnel
1603-003
A/C CONDENSER LOCATION
A/C Condenser Location Roof Mnt Fwd Ctr
1601-001
A/C COMPRESSOR
A/C Compressor Large Capacity
1608-003
CAB CIRCULATION FANS FRONT
Cab Circulation Fans Frt (2) Inboard
1530-001
UNDER CAB INSULATION
Under Cab Insulation Engine Tunnel
1327-001
INTERIOR TRIM FLOOR
Interior Trim Floor
1302-001
INTERIOR TRIM
Interior Trim Vinyl
1368-002
REAR WALL INTERIOR TRIM
Rear Wall Interior Trim Vinyl
1306-001
HEADER TRIM
Header Trim ABS
1305-001
TRIM CENTER DASH
Trim Center Dash ABS
1339-101
TRIM LEFT HAND DASH
Trim LH Dash ABS
1321-001
TRIM RIGHT HAND DASH
Trim RH Dash ABS Glove Cmpt/MDT Prov
1307-002
ENGINE TUNNEL TRIM
Eng Tnl Trim Flr Mat
5040-007
POWER POINT DASH MOUNT
Pwr Pnt Dash Mnt Mstr Sw (2)
1303-017
STEP TRIM
Step Trim Grip Strut Lwr Flex-Tred Mid
1379-003
UNDER CAB ACCESS DOOR
Under Cab Access Door Rear Step LH Painted
1102-013
INTERIOR DOOR TRIM
Interior Door Trim Painted
1323-001
DOOR TRIM CUSTOMER NAMEPLATE
Door Trim Customer Nameplate
1105-001
CAB DOOR TRIM REFLECTIVE
Cab Dr Trim Reflective Vert Stripe/6" Chevron w/Logo
1308-001
INTERIOR GRAB HANDLE "A" PILLAR
Interior Grab Handle 'A' Pillar 11" Molded
1332-008
INTERIOR GRAB HANDLE FRONT DOOR
Interior Grab Handle Frt Door Horiz 9"
1345-002
INTERIOR GRAB HANDLE REAR DOOR
Int Grab Handle Rr Dr Alum Window Span 30" Black Powder Coat
1301-003
INTERIOR SOFT TRIM COLOR
Interior Soft Trim Color Gray
1337-001
INTERIOR TRIM SUNVISOR
Interior Trim Sunvisor Vinyl
1318-003
INTERIOR ABS TRIM COLOR
Interior ABS Trim Color Gray
1304-001
INTERIOR FLOOR MAT COLOR
Interior Floor Mat Color Gray
1335-018
CAB PAINT INTERIOR DOOR TRIM
Cab Paint Int Dr Trim Multi-tone Onyx Black
1344-002
DASH PANEL GROUP
Dash Pnl Group 3-Pnl
1312-005
SWITCHES CENTER PANEL
Switches Ctr Pnl 12 Upr
1313-014
SWITCHES LEFT PANEL
Switches Left Pnl 8 Upper w/Headlight/Dimmer/Wiper
1314-001
SWITCHES RIGHT PANEL
Switches Right Pnl 0
1225-018
SEAT BELT WARNING
Seat Belt Warn Indv Seat Loc & LED Display w/VDR Weldon
1237-001
SEAT MATERIAL
Seat Material Ballistic
1243-001
SEAT COLOR
Seat Color Gray/Red Seat Belts
1249-126
SEAT BACK LOGO
Seat Back Logo Toyne
1201-006
SEAT DRIVER
Seat Driver Bostrom Firefighter 4-Way Air Non-ABTS
1213-015
SEAT BACK DRIVER
Seat Back Driver Non-SCBA Non-ABTS
1219-001
SEAT MOUNTING DRIVER
Seat Mounting Driver
8102-103
OCCUPANT PROTECTION DRIVER
Occupant Protection Driver Advanced Protection System
1202-005
SEAT OFFICER
Seat Officer Bostrom Firefighter 2-Way Manual ABTS
1214-030
SEAT BACK OFFICER
Seat Back Officer SCBA Bostrom SecureAll w/Quick-Adjust
1220-002
SEAT MOUNTING OFFICER
Seat Mounting Officer
8103-103
OCCUPANT PROTECTION OFFICER
Occupant Protection Officer Advanced Protection System
1273-001
SEAT BELT ORIENTATION CREW
Seat Belt Orientation Crew Outboard Shoulder To Inboard Hip
1263-001
SEAT REAR FACING OUTER LOCATION
Seat RFO Location (2) R/L
1203-009
SEAT CREW REAR FACING OUTER
Seat Crew RFO Bostrom Firefighter Fixed
1215-027
SEAT BACK REAR FACING OUTER
Seat Back RFO SCBA Bostrom SecureAll w/Quick-Adjust
1221-002
SEAT MOUNTING REAR FACING OUTER
Seat Mounting Rear Facing Outer
8104-103
OCCUPANT PROTECTION RFO
Occupant Protection RFO Advanced Protection System
1266-001
SEAT FORWARD FACING CENTER
LOCATION
Seat FFC Location (2) Ctr
1206-012
SEAT CREW FORWARD FACING CENTER Seat Crew FFC Bostrom Firefighter Flip-Up
1218-031
SEAT BACK FORWARD FACING CENTER
Seat Back FFC SCBA Bostrom SecureAll w/Quick-Adjust
8107-102
OCCUPANT PROTECTION FFC
Occupant Protection FFC Advanced Protection System
1269-101
SEAT FRAME FORWARD FACING
Seat Frm Fwd Fcg Dual
1281-101
SEAT FRAME FORWARD FACING
STORAGE ACCESS
Seat Frm Fwd Fcg Strg Acc Dr (2) R/L Sd
1224-002
SEAT MOUNTING FORWARD FACING
CENTER
Seat Mounting Forward Facing Center
1311-101
CAB FRONT UNDERSEAT STORAGE
ACCESS DOOR
Cab Frt Undrst Strg Acc Dr
1355-023
SEAT COMPARTMENT DOOR FINISH
Seat Compartment Door Finish Multi-tone Onyx Black
1511-003
WINDSHIELD WIPER SYSTEM
Windshield Wiper System Single Motor
1534-002
ELECTRONIC WINDSHIELD FLUID
LEVEL INDICATOR
Electronic Windshield Fluid Level Indicator
1103-002
CAB DOOR HARDWARE
Cab Door Hardware Black
1111-001
DOOR LOCKS
Door Locks Manual
1503-002
GRAB HANDLES
Grab Handles SS 18"
1504-013
REARVIEW MIRRORS
Mirror Aerodynamic Retrac 613275 Rmt Htd
1529-002
REARVIEW MIRROR HEAT SWITCH
Rearview Mirror Heat Sw Pnl
1513-002
CAB FENDER
Cab Fender Alum
1526-021
CAB EXTERIOR FRONT & SIDE
EMBLEMS
Cab Ext Frt & Side Emblems Spartan w/APS
5109-001
IGNITION
Ign Mstr Sw w/Keyless Start
5101-021
BATTERY
Batt (6) Group 31 Harris
5106-003
BATTERY TRAY
Batt Tray (2) R/L Steel
5107-007
BATTERY BOX COVER
Batt Box Cover (2) Steel w/Black Handles
5102-001
BATTERY CABLE
Batt Cables
5108-002
BATTERY JUMPER STUD
Batt Jumper Stud Frt LH Lwr Step
5104-001
ALTERNATOR
Alternator Leece-Neville 270A
5202-024
BATTERY CONDITIONER
Batt Cond Kussmaul 1200 P/P LH RFO Seat Position
5203-002
BATTERY CONDITIONER DISPLAY
Batt Cond Display LH Mid Glass
3314-005
AUXILIARY AIR COMPRESSOR
Aux Air Cmp Kussmaul 12V Bhd Drv Seat
5204-054
ELECTRICAL INLET
Elec Inlet 120V 20A
5209-002
ELECTRICAL INLET LOCATION
Elec Inlet Location LH Cab Side Mid
5210-004
ELECTRICAL INLET CONNECTION
Elec Inlet Conn to Batt Conditioner
5206-002
ELECTRICAL INLET COLOR
Elec Inlet Color Yellow
5301-100
HEADLIGHTS
Headlights 4 Headlamps Halogen
5303-004
FRONT TURN SIGNALS
Frt Turn Signals Whelen 600 LED
5337-001
HEADLIGHT LOCATION
Headlights Below Frt Warn Lts
5336-003
SIDE TURN/MARKER LIGHTS
Side Turn/Marker Lts LED
5302-003
MARKER & ICC LIGHTS
Marker & ICC Lts Face Mnt LED
5350-050
HEADLIGHT AND MARKER LIGHT
ACTIVATION
Hdlt & Mrkr Lt Actv Rkr Sw/DRL
5308-004
GROUND LIGHTS
Ground Lts LED Resp Dr & Rkr Sw
5309-003
LOWER CAB STEP LIGHTS
Lwr Cab Step Lts LED
5382-002
INTERMEDIATE STEP LIGHTS
Intermediate Step Lts LED
5312-003
ENGINE COMPARTMENT LIGHT
Engine Cmpt Work Lt LED (1)
5306-065
SIDE SCENE LIGHTS
Side Scene Lts Whelen 900 12V Super 24 LED Clear Gradient
5318-006
SIDE SCENE LIGHT LOCATION
Side Scene Lt Loc Upper Mid Fwd 10" Roof Position
5316-003
SIDE SCENE ACTIVATION
Side Scene Actv Indv Sw
5305-166
INTERIOR OVERHEAD LIGHTS
Interior Overhead Lts Weldon LED w/Front Map Lts
5406-076
DO NOT MOVE APPARATUS LIGHT
Do Not Move App Lt Flashing Red Whelen Ion LED w/Alarm
5422-001
MASTER WARNING SWITCH
Mstr Warn Sw Pnl
5401-002
INBOARD FRONT WARNING LIGHTS
Inboard Frt Warn Lts Whelen 600 LED Chrm Bezel
5413-002
INBOARD FRONT WARNING LIGHTS
COLOR
Inboard Frt Warn Lts Color Red
5423-007
FRONT WARNING SWITCH
Frt Warn Sw Pnl
5404-002
INTERSECTION WARNING LIGHTS
Intersection Warn Lts Whelen 600 Super LED
5419-002
INTERSECTION WARNING LIGHTS
COLOR
Int Warn Lts Color Red
5420-002
INTERSECTION WARNING LIGHTS
LOCATION
Intersection Warn Lts Location Bumper Tail Rwd
5402-002
SIDE WARNING LIGHTS
Side Warn Lts Whelen 600 Super LED
5418-002
SIDE WARNING LIGHTS COLOR
Side Warn Lts Color Red
5412-002
SIDE WARNING LIGHTS LOCATION
Side Warn Lts Location Lwr Mid
5424-004
SIDE AND INTERSECTION WARNING
SWITCH
Side & Intersection Warn Sw On w/Mstr Warn
5510-004
SIREN CONTROL HEAD
Siren Ctrl Head Whelen 295HFS2
5514-002
HORN BUTTON SELECTOR SWITCH
Horn Btn Sel Sw Elec Horn/Air Horn
5512-003
AIR HORN ACTIVATION
Air Horn Actv Strg Whl/RH Ft Sw
5505-002
BACK-UP ALARM
Back-Up Alarm Ecco 575
5601-041
INSTRUMENTATION
Instrumentation Standard
5624-001
BACKLIGHTING COLOR
Backlighting Color Red
5701-003
RADIO
Radio Panasonic WB/AM/FM/CD Ovrhd LH
5707-002
AM/FM ANTENNA
AM/FM Antenna LH Fwd Cab Roof
5020-001
PANEL LAYOUT
Panel Layout
8814-002
CAB EXTERIOR PROTECTION
Cab Exterior Protection Front
8806-001
FIRE EXTINGUISHER
Fire Extinguisher Ship Loose
8810-001
DOOR KEYS
Door Keys for Manual Locks (4)
8811-003
DIAGNOSTIC SOFTWARE OCCUPANT
PROTECTION
Diagnostic Software Occupant Protection Advanced Protection System
8003-140
WARRANTY
Warranty Cab and Chassis 2017 (2) Year
8030-006
CHASSIS OPERATION MANUAL
Chassis Operation Manual Digital Copy (2)
8031-024
ENGINE & TRANSMISSION OPERATION
MANUAL
Eng & Trans Operation Man Eng Hard Copy/Trans Digital/Eng Owner
Digital
8805-006
CAB/CHASSIS AS BUILT WIRING
DIAGRAMS
Cab/Chassis As Built Wiring Diagrams Digital Copy
8039-001
SALES TERMS
Sales Terms
9005-002
DRIVELINE LAYOUT CONFIRMATION
Driveline Layout Confirmation Required
2124-002
EFCM/REAR CROSSMEMBERS
End of Frame Cross Member
Panel Visual Layout
5020-001 Panel Layout
Weight Distribution
Calculated Apparatus Weight
Calculated Apparatus Z-CG
Calculated Apparatus Y-CG
18,511 lbs.
37.47 in.
0.95 in.
Note:
The Y-CG value above is calculated from the top of the frame.
Apparatus refers to total combined value for cab and chassis and OEM inputs.
Frame Dimensions
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
