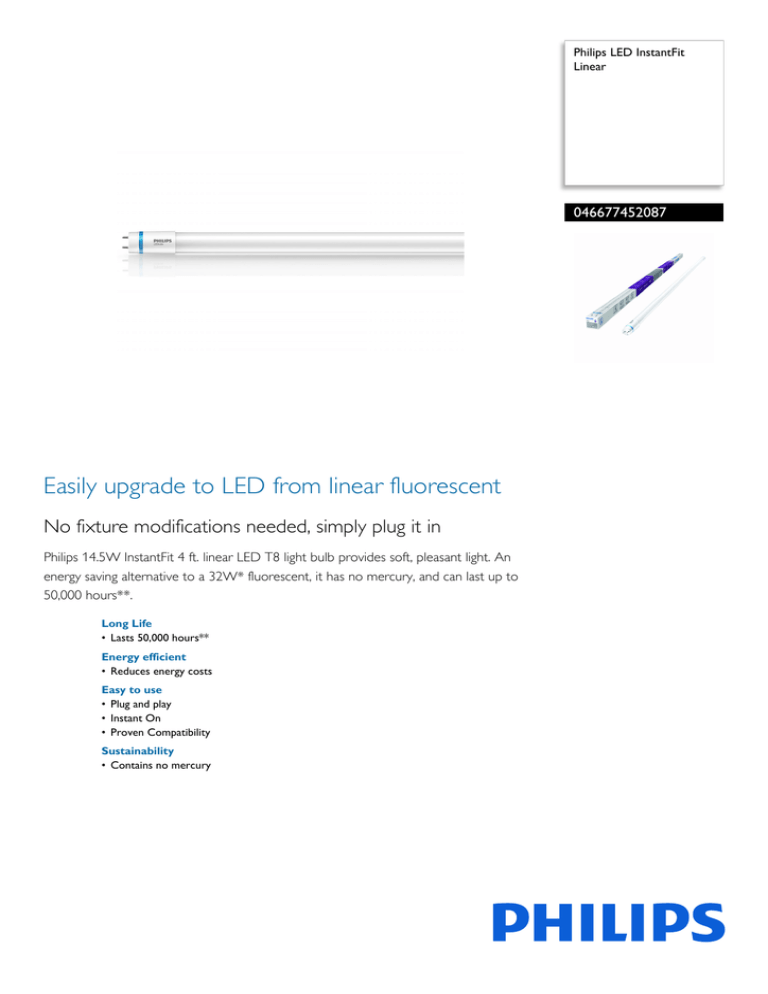

Philips 046677452087 Datasheet

Philips 046677452087 Datasheet
Philips LED InstantFit
Easily upgrade to LED from linear fluorescent
No fixture modifications needed, simply plug it in
Philips 14.5W InstantFit 4 ft. linear LED T8 light bulb provides soft, pleasant light. An
energy saving alternative to a 32W* fluorescent, it has no mercury, and can last up to
50,000 hours**.
Long Life
• Lasts 50,000 hours**
Energy efficient
• Reduces energy costs
Easy to use
• Plug and play
• Instant On
• Proven Compatibility
• Contains no mercury
Bulb characteristics
Light characteristics
• Shape: Linear
• Dimmable: No
• Voltage: 120 V
• Color rendering index (CRI): 82
• Color temperature: 5000 K
• Lumens: 1600
Bulb dimensions
Power consumption
• Height: 1 inch
• Width: 48 inch
• Wattage: 14.5 W
• Wattage equivalent: 32 W
Lasts 50,000 hours**
Long life reduces the hassle of replacing bulbs often.
Reduces energy costs
This bulbs saves up to 55%*** in energy costs over
the life of the bulb when you replace a 32W
fluorescent bulb with this 14.5W LED T8 light bulb.
Contains no mercury
Rugged and durable glass-free alternative that
contains no mercury
• Average Life Hours: 50000 H
• Average Life Years: 45.7
Instant On
Just by turning the switch, your room is at full
brightness. No slow starting or waiting.
Plug and play
Simple and quick do-it-yourself project with no
wiring required and no need to replace your existing
Proven Compatibility
Features a unique, patented driver tested to ensure
ballast compatibility.
Issue date 2014-09-12
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.0.1
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 1092 900 02842
* In Bare Batten application, this 14.5W 1600 lumens, 5000K LED T8
provides equivalent foot candles (useful light) as a 32W, 2800
lumens, 5000K fluorescent T8. Actual light output may vary due to
fixture and/or application.
* *Tested to B50 L70 requirement. For systems using normal to low
ballast factors (0.88 or less), InstantFit lamps are rated for 50,000
hours. For systems using a high ballast factor (greater than 0.88),
InstantFit products are rated for 40,000 hours. (3 hours/day, 7 days
a week average usage)
* **Saves 55% in energy costs when comparing this 14.5 Watt, 1600
lumens, 50,000 hour life LED T8 at a ballast factor of 0.88 to a 32
Watt, 2800 lumens, 30,000 hour 800 series long life fluorescent T8
at a ballast factor of 1.0 over the same period. Actual energy savings
may vary by the specific lamp.
* ***Compatible with Instant Start ballasts only. Please visit for most current compatibility listing.
