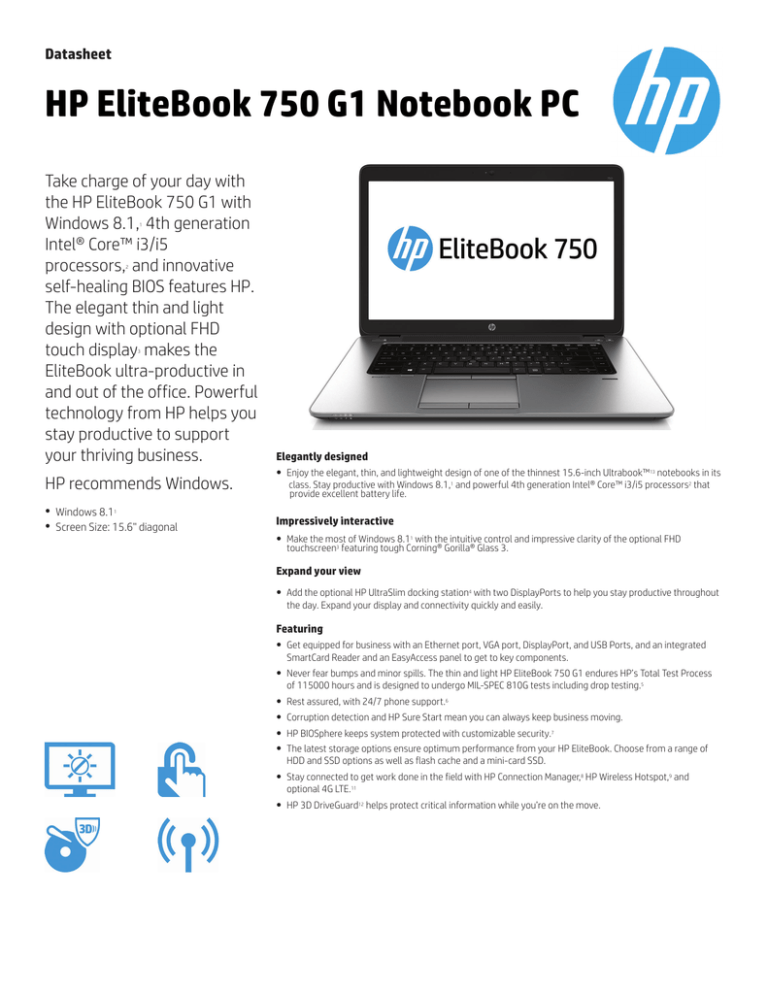

Datasheet
HP EliteBook 750 G1 Notebook PC
Take charge of your day with
the HP EliteBook 750 G1 with
Windows 8.1, 4th generation
Intel® Core™ i3/i5
processors, and innovative
self-healing BIOS features HP.
The elegant thin and light
design with optional FHD
touch display makes the
EliteBook ultra-productive in
and out of the office. Powerful
technology from HP helps you
stay productive to support
your thriving business.
1
2
3
HP recommends Windows.
●
●
Windows 8.11
Screen Size: 15.6" diagonal
Elegantly designed
● Enjoy the elegant, thin, and lightweight design of one of the thinnest 15.6-inch Ultrabook™13 notebooks in its
class. Stay productive with Windows 8.1,1 and powerful 4th generation Intel® Core™ i3/i5 processors2 that
provide excellent battery life.
Impressively interactive
● Make the most of Windows 8.11 with the intuitive control and impressive clarity of the optional FHD
touchscreen3 featuring tough Corning® Gorilla® Glass 3.
Expand your view
● Add the optional HP UltraSlim docking station4 with two DisplayPorts to help you stay productive throughout
the day. Expand your display and connectivity quickly and easily.
Featuring
● Get equipped for business with an Ethernet port, VGA port, DisplayPort, and USB Ports, and an integrated
SmartCard Reader and an EasyAccess panel to get to key components.
● Never fear bumps and minor spills. The thin and light HP EliteBook 750 G1 endures HP’s Total Test Process
of 115000 hours and is designed to undergo MIL-SPEC 810G tests including drop testing.5
● Rest assured, with 24/7 phone support.6
● Corruption detection and HP Sure Start mean you can always keep business moving.
● HP BIOSphere keeps system protected with customizable security.7
● The latest storage options ensure optimum performance from your HP EliteBook. Choose from a range of
HDD and SSD options as well as flash cache and a mini-card SSD.
● Stay connected to get work done in the field with HP Connection Manager,8 HP Wireless Hotspot,9 and
optional 4G LTE.11
● HP 3D DriveGuard12 helps protect critical information while you’re on the move.
Datasheet | HP EliteBook 750 G1 Notebook PC
HP recommends Windows.
HP EliteBook 750 G1 Notebook PC Specifications Table
Available Operating System
Windows 8.1 Pro 64 1 ; Windows 8.1 64 1
Windows 7 Professional 32 (available through downgrade rights from Windows 8.1 Pro 64) 2
Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64) 2
Windows 7 Professional 32 1 ; Windows 7 Professional 64 1
FreeDOS
Available Processors
Intel® Core™ i5-4210U with Intel HD Graphics 4400 (1.7 GHz, up to 2.7 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores); Intel® Core™
i3-4030U with Intel HD Graphics 4400 (1.9 GHz, 3 MB cache, 2 cores) 3
Chipset
Chipset is integrated with processor
Maximum Memory
16 GB 1600 MHz DDR3L SDRAM 4
Memory Slots
2 SODIMM
Internal Storage
up to 500 GB SATA (7200 rpm) 5
128 GB up to 240 GB SATA SSD 5
up to 256 GB SATA SE SSD 5
Flash Cache
32 GB M.2 (optional)
Display
15.6" diagonal HD SVA anti-glare flat LED-backlit (1366 x 768); 15.6" diagonal FHD SVA anti-glare slim LED-backlit (1920 x 1080); 15.6" diagonal
FHD SVA anti-glare slim LED-backlit touch screen (1920 x 1080) 8
Available Graphics
Integrated: Intel HD Graphics 4400
Audio
HD audio with DTS Studio Sound; Integrated dual-microphone array; 2 integrated stereo speakers
Wireless Technologies
HP lt4111 LTE/HSPA+/EDVO Qualcomm® Gobi™ 4G Mobile Broadband; HP lt4112 LTE/HSPA+ Qualcomm® Gobi™ 4G Mobile Broadband; HP
hs3110 HSPA+ Mobile Broadband; Broadcom 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo; Intel Dual Band Wireless-AC 7260 802.11ac WiDi
(2x2) and Bluetooth® 4.0 Combo; Intel Dual Band Wireless-N 7260AN 802.11a/b/g/n WiDi (2x2) and Bluetooth® 4.0 Combo; Intel Dual Band
Wireless-N 7260NB 802.11a/b/g/n WiDi (2x2) 6,7
(Integrated Intel WiDi feature is available on select configurations only.)
Communications
Intel I218-LM GbE (10/100/1000 NIC)
Expansion Slots
1 media card reader
(supports SD, SDHC, SDXC)
Ports and Connectors
3 USB 3.0; 1 USB 3.0 charging; 1 DisplayPort 1.2; 1 VGA; 1 combo stereo headphone/mic jack; 1 AC power; 1 RJ-45; 1 docking connector; 1
integrated SmartCard Reader
Input Device
Spill-resistant keyboard with drain, HP DuraKeys; Backlit keyboard (optional); Touchpad with on/off button, two-way scroll, gestures, two pick
buttons; Pointstick with two additional pointstick buttons
Camera
720p HD webcam (select models) 8
Available Software
HP 3D Driveguard; HP Connection Manager (models with Windows 7); HP Wireless Hotspot; HP PageLift; HP Recovery Manager; HP Support
Assistant; HP ePrint; CyberLink Power DVD; CyberLink YouCam BE (models with Windows 7); Foxit PhantomPDF Express for HP; Buy Office
9,10,11,12,13,14
Security Management
HP Client Security Suite includes: HP Credential Manager, HP Password Manager, HP File Sanitizer and HP Device Access Manager with Just in Time
Authentication; HP BIOSphere with HP Sure Start; HP Drive Encryption; HP Secure Erase; Microsoft Security Essentials (models with Windows 7);
Microsoft Defender (models with Windows 8); HP SpareKey; TPM 1.2 Embedded Security Chip; Security lock slot; HP Fingerprint reader (optional)
15,16,17,18,19,20
Power
45 W Smart AC adapter; 65 W Smart AC adapter HP Long Life 3-cell, 24 WHr Li-ion; HP Long Life 3-cell, 50 WHr Li-ion Up to 15 hours with SSD
(3-cell, 50 WHr)
Dimensions
14.78 x 9.98 x 0.84 in
37.55 x 25.36 x 2.14 cm
Weight
Starting at 4.15 lb
Starting at 1.88 kg
(Weight will vary by configuration.)
Environmental
Low halogen 21
Energy Efficiency Compliance
Expansion Solutions
ENERGY STAR® qualified configurations available
Warranty
HP Services offers 1 year limited warranty or 3-year limited warranty depending on country; Extended protection is available with optional HP
Care Services; 1-year limited warranty on primary battery; 3-year limited warranty on HP Long Life Battery (only available with 3-year platform
limited warranty). On-site service and optional HP Care Services are available to extend service contracts beyond the standard limited warranty.
To choose the right level of service for your HP product, use the HP Care Services Lookup Tool at: www.hp.com/go/lookuptool. Additional HP Care
Services information by product is available at: www.hp.com/go/cpc.Certain restrictions and exclusions apply. Consult the HP Customer Support
Center for details
2013 UltraSlim Docking Station
Datasheet | HP EliteBook 750 G1 Notebook PC
HP recommends Windows.
HP EliteBook 750 G1 Notebook PC
Accessories and services (not included)
HP Docking Station Cable Lock
The HP Docking Station Cable Lock is dramatically simpler to use than previous locks and delivers enhanced
security. The HP Docking Station Cable Lock gives you two locking options: lock the docking station only (which
also prevents access to the advanced docking stations drive bay) or lock both the docking station and the
notebook.
Product number: AU656AA
HP Adjustable Dual Display
Stand
The HP Adjustable Dual Display Stand allows you to use two displays to maximize your productivity and
optimize efficiency. Either or both displays can be rotated to landscape or portrait orientation, and the stand is
depth-, height- , tilt-, and angle-adjustable so you can view both screens at eye-level as well as slightly facing
each other, letting you track multiple applications and information sources at the same time. Integrated base
rollers let you rotate the stand so you can more easily share your work.
Product number: AW664AA
HP 2013 UltraSlim Docking
Station
Quickly and easily expand your display, network, and device connectivity to customize an always-ready
workspace with the HP 2013 UltraSlim Docking Station, a simple one-click, slide-in side dock for select
ultraslim HP EliteBook Notebook PCs.
Product number: D9Y32AA
HP External USB DVDRW Drive
Connect the HP External USB DVD/RW to any available USB port on your PC to get immediate read/write
access to your optical media.
Product number: F2B56AA
HP Business Slim Top Load
Case
Help protect your Ultrabook™ (up to 14.1 diagonal inches; .75” thick) in and out of the office with the
dual-compartment interior that includes a soft lining and high-density foam.
Product number: H5M91AA
HP Ultra Mobile Wireless
Mouse
Low-profile, long-life, and designed for comfort.
Here’s the long-life wireless mouse that’s so compact you can toss it in your carrying case without bulking out
its profile , so power-smart it keeps up with your work day, and so comfortable you‘ll look for reasons to use it.
Product number: H6F25AA
HP recommends Windows.
Datasheet | HP EliteBook 750 G1 Notebook PC
Messaging Footnotes
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See
http://www.microsoft.com.
2 Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance will
vary depending on your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
3 Touch panel sold as an optional feature and has chemically-strengthened Gorilla glass top cover.
4 Sold separately or as an optional feature.
5 MIL-STD testing is pending and is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test
conditions.
6 Elite support only available in the US and Canada in English.
7 HP BIOSphere features may vary depending on the PC platform & configuration.
8 HP Connection Manager available on Windows 7 only.
9 The wireless hotspot application requires an active internet connection and separately purchased data plan. While HP Wireless Hotspot is active, on-device applications will continue to work and will use the same data plan as
the wireless hotspot. Wireless hotspot data usage may incur additional charges. Check with your service provider for plan details. Requires Windows 8.1 or HP Connection Manager for Windows 7.
10 HP Mobile Connect service requires a compatible CDMA or HSPA mobile broadband module and prepaid service purchase. Find coverage and availability for your service area at hp.com/go/mobileconnect.
1
Technical Specifications Footnotes
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See
http://www.microsoft.com.
2 This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 8.1 Pro software. You may only use one version of the Windows software at a time. Switching between
versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
3 Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance will
vary depending on your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
4 Maximum memory capacities assume Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.
5 For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB (for Windows 8) is reserved for system recovery software.
6 802.11 wireless is an optional add- on feature and requires wireless access point and Internet service is required and is not included. Availability of public wireless access points limited.
7 4G LTE module is optional and requires separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network
conditions, and other factors. 4G LTE not available on all products, in all regions.
8 HD content required to view HD images.
9 HP 3D Drive Guard requires Windows.
10 The HP Wireless Hotspot application requires an active internet connection and separately purchased data plan. While HP wireless hotspot is active, on-device applications will continue to work and will use the same data plan
as the wireless hotspot. Wireless hotspot data usage may incur additional charges. Check with your service provider for plan details. Requires Windows 8.1 or HP Connection Manager for Windows 7.
11 HP Mobile Connect is available in select EMEA countries and requires a compatible CDMA or HSPA mobile broadband module and prepaid service purchase. Find coverage and availability for your service area at
www.hp.com/go/mobileconnect.
12 HP PageLift requires Windows 8.
13 HP Support Assistant: internet access required
14 ePrint requires an Internet connection to HP web-enabled printer. HP ePrint account registration required. For a list of eligible printers, supported documents and image types, and for complete details, see wwwhp.com/eprint
15 HP Client Security requires Windows
16 File Sanitizer is for the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs). Initial setup required. Web history deleted only in Internet Explorer and Firefox browsers and must be
user enabled. With Windows 8.1, user must turn off Enhanced Protection Mode in IE11 for shred on browser close feature.
17 HP Drive Encryption requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of Drive Encryption and prevents data access.
18 Microsoft Security Essentials and Microsoft Defender require internet access.
19 Secure Erase is for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88.
20 Password Manager requires Explorer or Chrome. Some websites and applications may not be supported. User may need to enable or allow the add-on / extension in the internet browser.
21 External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
1
Learn more at
hp.com
Sign up for updates
hp.com/go/getupdated
© Copyright 2014. Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for
HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Intel and Core are trademarks of Intel Corporation in the U.S.
and other countries. Qualcomm and Gobi are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Trademarks of
Qualcomm Incorporated are used with permission. ENERGY STAR is a registered mark owned by the U.S. government. All other trademarks are the property
of their respective owners.
c04376182, September 2014
