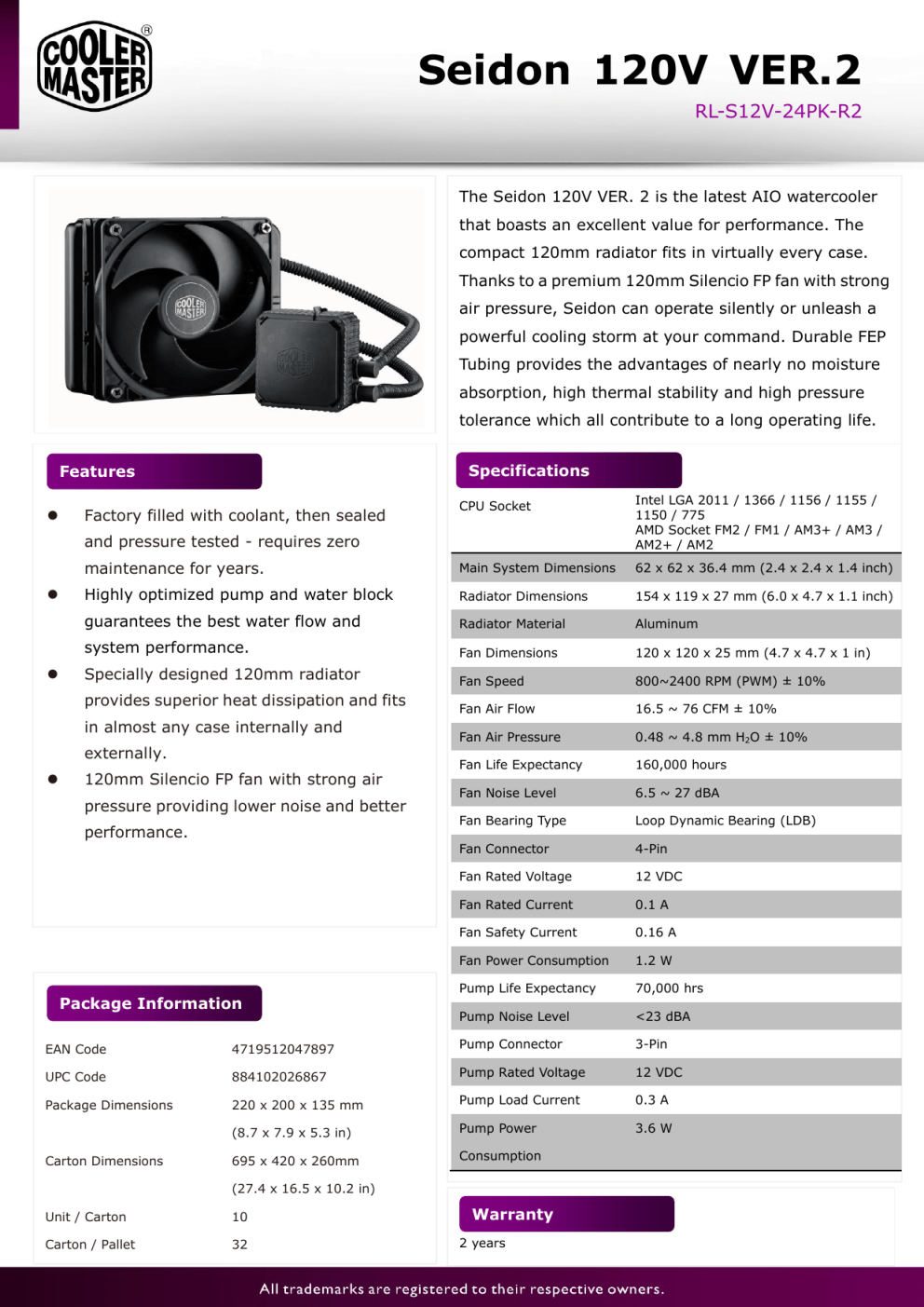

Cooler Master Seidon 120V VER.2 Datasheet

Seidon 120V VER.2
RL-S12V-24PK-R2
The Seidon 120V VER. 2 is the latest AIO watercooler
that boasts an excellent value for performance. The
compact 120mm radiator fits in virtually every case.
Thanks to a premium 120mm Silencio FP fan with strong
air pressure, Seidon can operate silently or unleash a
powerful cooling storm at your command. Durable FEP
Tubing provides the advantages of nearly no moisture
absorption, high thermal stability and high pressure
tolerance which all contribute to a long operating life.
Specifications
Features

Factory filled with coolant, then sealed
CPU Socket
and pressure tested - requires zero


maintenance for years.
Main System Dimensions
62 x 62 x 36.4 mm (2.4 x 2.4 x 1.4 inch)
Highly optimized pump and water block
Radiator Dimensions
154 x 119 x 27 mm (6.0 x 4.7 x 1.1 inch)
guarantees the best water flow and
Radiator Material
Aluminum
system performance.
Fan Dimensions
120 x 120 x 25 mm (4.7 x 4.7 x 1 in)
Specially designed 120mm radiator
Fan Speed
800~2400 RPM (PWM) ± 10%
Fan Air Flow
16.5 ~ 76 CFM ± 10%
Fan Air Pressure
0.48 ~ 4.8 mm H2O ± 10%
Fan Life Expectancy
160,000 hours
Fan Noise Level
6.5 ~ 27 dBA
Fan Bearing Type
Loop Dynamic Bearing (LDB)
Fan Connector
4-Pin
Fan Rated Voltage
12 VDC
Fan Rated Current
0.1 A
Fan Safety Current
0.16 A
Fan Power Consumption
1.2 W
Pump Life Expectancy
70,000 hrs
Pump Noise Level
<23 dBA
provides superior heat dissipation and fits
in almost any case internally and
externally.

Intel LGA 2011 / 1366 / 1156 / 1155 /
1150 / 775
AMD Socket FM2 / FM1 / AM3+ / AM3 /
AM2+ / AM2
120mm Silencio FP fan with strong air
pressure providing lower noise and better
performance.
Package Information
EAN Code
4719512047897
Pump Connector
3-Pin
UPC Code
884102026867
Pump Rated Voltage
12 VDC
Package Dimensions
220 x 200 x 135 mm
Pump Load Current
0.3 A
(8.7 x 7.9 x 5.3 in)
Pump Power
3.6 W
695 x 420 x 260mm
Consumption
Carton Dimensions
(27.4 x 16.5 x 10.2 in)
Unit / Carton
10
Carton / Pallet
32
Warranty
2 years
Appendix
Photo taken: July. 24, 2014
120mm Silencio FP fan with high air
FEP tubing with low evaporation
pressure
Maintenance Free Watercooler
UltraFine Micro Channel
Blue LED Indicator
Universal Mounting System
