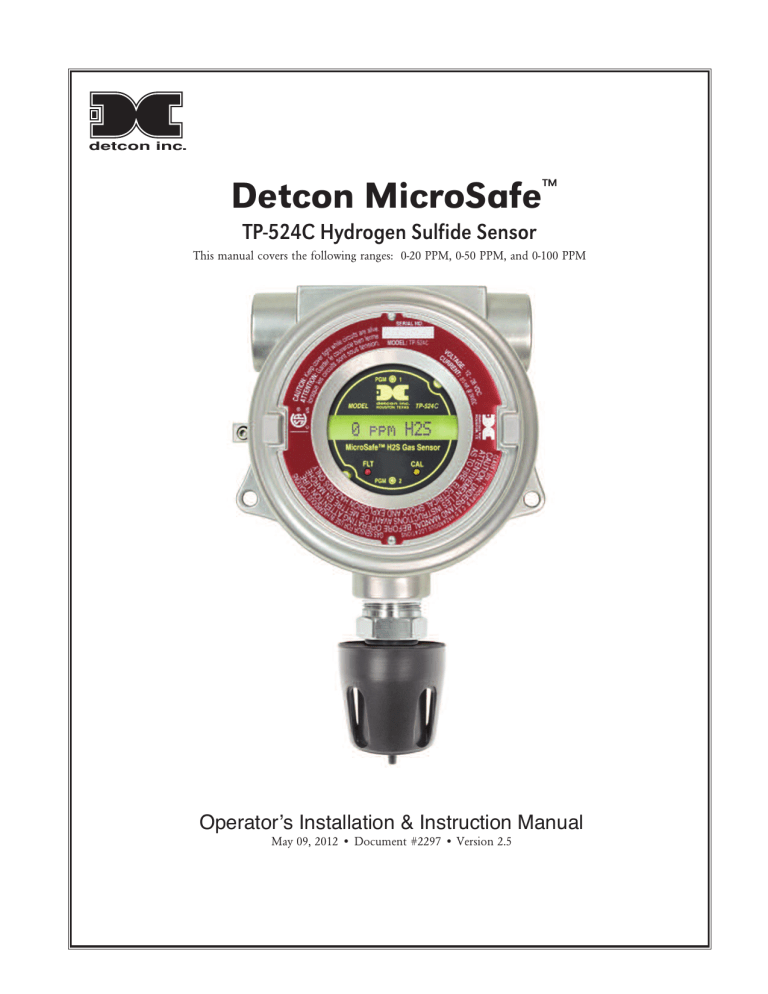

TP-524C Solid State MOS H2S Manual
detcon inc.
Detcon MicroSafe™
TP-524C Hydrogen Sulfide Sensor
This manual covers the following ranges: 0-20 PPM, 0-50 PPM, and 0-100 PPM
Operator’s Installation & Instruction Manual
May 09, 2012 • Document #2297 • Version 2.5
Table of Contents
3.0 Description
3.1 Principle of Operation
3.2 Application
3.3 Specifications
3.4 Operating Software
3.5 Installation
3.6 Start-up
3.7 Calibration
3.8 Status of Programming: Software Version, Calibration Level, Heater Voltage, Range, and Sensor Life
3.9 Program Features
3.10 Display Contrast Adjust
3.11 Trouble Shooting Guide
3.12 Spare Parts List
3.13 Warranty
3.14 Service Policy
3.15 Software Flow Chart
3.16 Revision Log
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.2
3.0 DESCRIPTION
Detcon MicroSafe™ Model TP-524C, hydrogen sulfide sensors are non-intrusive “Smart” sensors designed to detect
and monitor H2S in air. Ranges of detection are 0-20 ppm, 0-50 ppm, and 0-100 ppm. One of the primary features
of the sensor is its method of automatic calibration which guides the user through each step via instructions displayed on the backlit LCD. The sensor features LED indicators for FAULT and CAL status and is equipped with a
standard analog 4-20 mA output. The microprocessor supervised electronics are packaged as a plug-in module that
mates to a standard connector board. Both are housed in an explosion proof condulet that includes a glass lens. A
16 character alpha/numeric indicator is used to display sensor readings as well as the sensor’s menu driven features
via a hand-held programming magnet.
3.0.1 Sensor Technology
The sensor technology is a patented solid state metal oxide semiconductor. The sensor consists of two thin films; a
temperature sensitive heater film, and an hydrogen sulfide sensitive sensor film. Both films are deposited on a silicon microchip by vacuum deposition. The heater film elevates the operating temperature of the sensor film to a
level where a good sensitivity and response to hydrogen sulfide is achieved. The sensor film is a proprietary metal
oxide that shows a dynamic response to hydrogen sulfide gas. Range of sensitivity is from part per billion to % by
volume. The rugged sensor is capable of maintaining its operating characteristics for periods of up to 7-10 years in
most industrial environments and as such, is supported by a 10-year conditional warranty.
Construction of
Semiconductor Sensor
Heater
Film
Sensor
Film
Silicon
Microchip
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.3
3.0.2 Microprocessor Control Circuit
The control circuit is microprocessor based and is packaged as a plug-in field replaceable module, facilitating easy
replacement and minimum down time. Circuit functions include a basic sensor pre-amplifier, sensor temperature
control, on-board power supplies, microprocessor, back lit alpha numeric display, fault and calibration status LED
indicators, magnetic programming switches, and a linear 4-20 mA DC output.
Program Switch #1
CONTRAST
PGM
Display Contrast Adjust
MODEL
Plug-in Microprocessor Control Circuit
1
detcon inc.
HOUSTON, TEXAS
TP-524C
Menu Driven Display
MicroSafe™ H2S Gas Sensor
FLT
CAL
PGM
2
Fault & Cal LEDs
Program Switch #2
3.0.3 Base Connector Board
Base Connector Board
4-20 mA Output
VDC Power In
mA
BLU
YEL
BLK
WHT
Sensor
The base connector board is mounted in the explosion proof enclosure and includes: the mating connector for the
control circuit, reverse input and secondary transient suppression, input filter, and lugless terminals for field wiring.
3.0.4 Explosion Proof Enclosure
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.4
The sensors are packaged in a cast metal explosion-proof enclosure. The enclosure is fitted with a threaded cover
that has a glass lens window. Magnetic program switches located behind the transmitter module face plate are activated through the lens window via a hand-held magnetic programming tool allowing non-intrusive operator interface with the sensor. Calibration can be accomplished without removing the cover or declassifying the area.
Electrical classification is Class I; Groups B, C, D; Division 1 (explosion proof).
3.1 PRINCIPLE OF OPERATION
Display
Pre-Amp
Functional
Block
Diagram
Sensor
Element
Temperature
Compensation
Microprocessor
Cal & Fault
LEDs
Analog 4-20 mA Out
I/O Circuit
Protection
4-20mA
Power In
Transmitter
Power Supply
Method of detection is by diffusion/adsorption. Air and gas diffuse through a sintered stainless steel filter and contact
the heated surface of the metal oxide sensor film. As hydrogen sulfide gas molecules react with oxygen ions on the
film, there is a decrease in electrical resistance proportional to the gas concentration. The heater film elevates the temperature of the sensor film creating convection and promoting a quick response to changing gas concentrations.
Electronically, the heater film is used to maintain a constant temperature of the sensor film enhancing stability and
repeatability. The sensor response is reversible and results in continuous monitoring of ambient air conditions.
3.2 APPLICATION
Model TP-524C MicroSafe™ sensors are designed to detect and monitor hydrogen sulfide gas in ambient air in the
range of 0-100 parts per million. The sensor can also be programmed to operate in the range 0-20 ppm or 0-50 ppm.
Minimum sensitivity and scale resolution is 1 ppm. Operating temperature range is --40° F. to +175° F. While the sensor is capable of operating outside these temperatures, performance specifications are verified within the limit.
3.2.1 Sensor Placement/Mounting
Sensor location should be reviewed by facility engineering and safety personnel. Area leak sources and perimeter
mounting are typically used to determine number and location of sensors. Hydrogen sulfide gas is slightly heavier
than air (approximately 1.18); therefore, the sensors are generally located 2 - 4 feet above grade.
3.2.2 Interference
Gas
Methane
Ethane
Hexane
Propane
Butane
Carbon Monoxide
Carbon Dioxide
Carbon Disulfide
Methanol
Isopropanol
Ammonia
Diesel Fuel
Dimethyl Sulfide
Ethylene
Freon 12
Hydrogen
Methyl Mercaptan
Sulfur Dioxide
Toluene
Ethanol
Data
PPM
25,000 = 0
5,000 = 0
5,000 = 0
5,000 = 0
5,000 = 0
800 = 0
5,000 = 0
14 = 0
200 = 0
200 = 0
500 = 0
1000 = 0
4.4 = 0
200 = 0
1000 = 0
5% = 0
16 = 6
300 = 0
32 = 0
200 = 0
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.5
3.3 SPECIFICATIONS
Method of Detection
Solid state metal oxide diffusion/adsorption
Electrical Classification
CSA-NRTL (US OSHA) approved Class I; Groups B, C, D; Div. 1.
Response Time
T50 < 30 seconds, T80 < 60 seconds
Clearing Time
T80 < 30 seconds
Repeatability
± 10% of reading or ± 2 ppm (greater of)
Range
0-20 ppm, 0-50 ppm, or 0-100 ppm
Operating Temperature
-40° to +175° F (-40°C to +75°C)
Accuracy
± 10% of reading or ± 2 ppm (greater of)
Sensor Warranty
10 year conditional
Power Consumption
Normal operation = 68 mA (<1.7 watt); Full alarm = 85 mA (2 watts)
Output
Linear 4-20 mA DC
Input Voltage
12-28 VDC
3.4 OPERATING SOFTWARE
Operating software is menu listed with operator interface via the two magnetic program switches located under the
face plate. The two switches are referred to as “PGM 1” and “PGM 2”. The menu list consists of 3 items which
include sub-menus as indicated below. (Note: see the last page of this manual for a complete software flow chart.)
01. Normal Operation
a) Current Status
02. Calibration Mode
a) Span
03. Program Menu
a) View Program Status
b) Set Calibration Level
c) Set Heater Level
d) Set Range
e) Utility Menu
3.4.1 Normal Operation
In normal operation, the display reflects the current status of the sensor and gas concentration and appears as:
“0 PPM H2S”. The mA current output corresponds to the monitoring level and range of detection = 4-20 mA.
3.4.2 Calibration Mode
Calibration mode allows for sensor span adjustments. Unless otherwise specified, span adjustment is performed at
10 ppm H2S in air for the range 0-20 ppm, and 25 ppm H2S in air for the ranges 0-50 ppm and 0-100 ppm.
“AUTO SPAN”
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.6
3.4.3 Program Mode
The program mode provides a program status menu (View Program Status) to check operational parameters. It also
allows for the adjustment of the calibration gas level setting, the heater voltage level, range, and linearity correction.
3.4.3.1 Program Status
The program status scrolls through a menu that displays:
* The gas type, range of detection and software version number. The menu item appears as: “H2S 0-100 V#.#”
* The calibration gas level setting. The menu item appears as: “CalLevel @ ##PPM”
* The sensor heater voltage setting. The menu item appears as: “HEATER @ #.##VDC”
* The range of detection setting. The menu item appears as: “RANGE @ 0-###PPM”
* The estimated remaining sensor life. The menu item appears as: “SENSOR LIFE 100%”
* The raw resistance of the sensor film. The menu item appears as “RESISTANCE = XX” (in ohms)
3.4.3.2 Set Cal Level Adjustment
The Calibration level is adjustable from 10% to 50% of full-scale range. The menu item appears as: “CalLevel @ ##PPM”
3.4.3.3 Set Heater Level Adjustment
The Heater Level is adjustable from 4.40 to 5.40 vdc (normally 5.25). The menu item appears as: “Heater @ #.## vdc”
3.4.3.4 Set Range
The full-scale range is adjustable between 0-20 ppm, 0-50 ppm and 0-100 ppm The item appears as: “Range @ 0-### ppm”
3.4.3.5 Utility Menu
“Set X Value” is an adjustment for linearization (factory setting only!)
“Set Filter Mode” is a selection of filtering modes (factory setting only!)
3.5 INSTALLATION
Optimum performance of ambient air/gas sensor devices is directly relative to proper location and installation practice.
3.5.1 Field Wiring Table (4-20 mA output)
Detcon Model TP-524C solid state H2S sensor assemblies require three conductor connection between power supplies and host electronic controllers. Wiring designators are + (DC), – (DC) , and mA (sensor signal). Maximum
single conductor resistance between sensor and controller is 10 ohms. Maximum wire size for termination in the
sensor assembly terminal board is 14 gauge.
AWG Meters Feet
20
240
800
18
360
1200
16
600
2000
14
900
3000
Note 1: This wiring table is based on stranded tinned copper wire and is designed to serve as a reference only.
Note 2: Shielded cable may be required in installations where cable trays or conduit runs include high voltage
lines or other sources of induced interference.
Note 3: The supply of power must be from an isolating source with over-current protection as follows:
AWG
22
20
18
Over-current Protection
3A
5A
7A
AWG
16
14
12
Over-current Protection
10A
20A
25A
3.5.2 Sensor Location
Selection of sensor location is critical to the overall safe performance of the product. Five factors play an important
role in selection of sensor locations:
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.7
(1)
(2)
(3)
(4)
(5)
Density of the gas to be detected
Most probable leak sources within the industrial process
Ventilation or prevailing wind conditions
Personnel exposure
Maintenance access
Density - Placement of sensors relative to the density of the target gas is such that sensors for the detection of
heavier than air gases should be located within 4 feet of grade as these heavy gases will tend to settle in low lying
areas. For gases lighter than air, sensor placement should be 4-8 feet above grade in open areas or in pitched areas
of enclosed spaces.
Leak Sources - Most probable leak sources within an industrial process include flanges, valves, and tubing connections of the sealed type where seals may either fail or wear. Other leak sources are best determined by facility engineers with experience in similar processes.
Ventilation - Normal ventilation or prevailing wind conditions can dictate efficient location of gas sensors in a
manner where the migration of gas clouds is quickly detected.
Personnel Exposure - The undetected migration of gas clouds should not be allowed to approach concentrated personnel areas such as control rooms, maintenance or warehouse buildings. A more general and applicable thought
toward selecting sensor location is combining leak source and perimeter protection in the best possible configuration.
Maintenance Access
Consideration should be given to easy access by maintenance personnel as well as the consequences of close proximity to contaminants that may foul the sensor prematurely.
Figure #1
Plug any unused ports.
“T”
Drain
EYS
Seal
Fitting
4 3/4"
5 1/4"
3/4" NPT
Figure #2
5 1/2"
7"
Cover
Set
Screw
Grounding Lug
1/4" Dia.
Mounting Holes
2 1/8"
Rain
Shield
2"
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.8
Note: In all installations, the sensor element in SS housing points down relative to grade (Fig. 1). Improper sensor
orientation may result in false reading and permanent sensor damage.
3.5.3 Local Electrical Codes
Sensor and transmitter assemblies should be installed in accordance with all local electrical codes. Use appropriate
conduit seals. Drains & breathers are recommended. The sensor assemblies are CSA-NRTL approved for Class I;
Groups B, C, D; Div. 1 environments.
Note: An appropriate conduit seal must be located within 18" of the sensor assembly. Crouse Hinds type EYS2,
EYD2 or equivalent are suitable for this purpose.
3.5.5 Installation Procedure
a) Remove the junction box cover and un-plug the control circuit by grasping the two thumb screws and pulling outward.
b) Securely mount the sensor junction box in accordance with recommended practice and proper orientation (see fig. 1 & 2).
c) Observing correct polarity, terminate 3 conductor field wiring to the sensor base connector board in accordance
with the detail shown in Figure 3.
d) Replace the plug-in transmitter circuit and replace the junction box cover.
Base Connector Board
Figure #3
4-20 mA Output
mA
VDC Power In
BLU
YEL
BLK
WHT
Sensor
3.5.6 Remote Mounting Applications
Some sensor mounting applications require that the gas sensor head be remotely mounted away from the sensor
transmitter. This is usually true in instances where the gas sensor head must be mounted in a location that is difficult to access. Such a location creates problems for maintenance and calibration activities. Detcon provides the TP524C sensor in a remote-mount configuration in which the sensor (Model TP-524C-RS) and the transmitter (Model
TP-524C-RT) are provided in their own condulet housing and are interfaced together with a four conductor cable.
Reference figure 4 for wiring diagram.
Remote Sensor
TP-524C-RS
Plug unused port
with 3/4 NPT plug.
BLU
YEL
BLK
WHT
1234
WHT
BLK
YEL
BLU
Figure #4
Remote Transmitter
TP-524C-RT
Measure Heater V oltage
From White (1) to Black (2)
Target voltage is 5.25v ±.05v
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.9
Remote Mounting Configuration - Heater Voltage Adjustment
When a sensor is remote mounted, consideration must be given to the lengths of cable used and how it affects the
sensor heater voltage. Differing lengths of cables will have varying amounts of resistance which will shift the sensor
heater voltage. Because of this, the heater voltage will need to be adjusted after initial power up. Replacement of the
sensor will also require readjusting the heater voltage. See section 3.6.2 for instructions.
3.6 START UP
Upon completion of all mechanical mounting and termination of all field wiring, apply system power and observe
the following normal conditions:
a) TP-524C “Fault” LED is off.
b) A temporary upscale reading may occur as the sensor heats up. This upscale reading will clear to “0”
ppm within 1-2 minutes of turn-on, assuming there is no gas in the area of the sensor.
Important Note:
A desiccant cap is attached to the sensor housing during storage and shipping. This prevents H20 from contacting
the sensor film while it is off power, and thus helps to retain the stability of the factory span calibration. Remove
the desiccant cap 5~10 minutes after applying power to the sensor, then install the weatherproof splashguard accessory supplied with your sensor.
Store the desiccant caps in a sealed container (i.e., zip-lock bag) for future use. It is advised (but not mandatory) to
use the desiccant caps during long periods without power.
Note 1: If the display contrast needs adjustment, refer to section 3.10.
Note 2: If the sensor has been installed using the remote mounting configuration as described in section 3.5.6, the
sensor heater voltage must be adjusted after initial power up. If this is the case, first adjust the heater voltage as
described in section 3.6.2, then proceed with the initial operation tests below (section 3.6.1).
Note 3: The 4~20mA output signal will be held at 4mA for the first two minutes after power up.
3.6.1 Initial Operational Tests
Initial Operational Tests
After a warm up period (at least 15 minutes) has been allowed for, the sensor should be checked to verify sensitivity
to H2S gas.
Material Requirements
* Detcon PN 6038 Threaded Calibration Adapter
* Span Gas 25 ppm H2S in air at a controlled flow rate between 200 and 500 ml/min(or 10 ppm for 0-20 ppm
range - see section 3.6.4 for more information on ranges). NOTE: Do not use H2S and nitrogen gas mixtures.
* Detcon PN 985-241100-321 In-Line Humidifying Tube
a) Connect the humidifying tube between the cal gas cylinder and the sensor housing. The humidifying tube will
introduce ambient air relative humidity into the Cal Gas as it passes through the tube.
b) Attach the calibration adapter to the threaded sensor housing. Apply a the test gas at a controlled flow rate of
200 to 500 ml/m (200ml/min is the recommended flow). Observe that the LCD display increases to a level of
10-25 ppm or higher (or 5-10 ppm for 0-20 ppm range).
c) Remove the test gas and observe that the LCD display decreases to “0 PPM H2S”.
Initial operational tests are complete. Detcon H2S gas sensors are pre-calibrated prior to shipment and will, in most
cases, not require significant adjustment on start up. However, it is recommended that a complete calibration test
and adjustment be performed 16 to 24 hours after power-up. Refer to calibration instructions in later text.
3.6.2 Remote Mount Heater Voltage Setup
If the sensor has been installed using the remote mounting configuration as described in section 3.5.6, the sensor
heater voltage must be adjusted after initial power up. Replacement of the sensor will also require readjusting the
heater voltage. Follow the steps below to set the sensor heater voltage.
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.10
Material Requirements
* Detcon PN 3270 MicroSafe™ Programming Magnet
* Digital volt/ohm meter.
Note: Refer to section 3.6.3 for programming magnet operating instructions.
a) Declassify the area around the sensor.
b) Remove the junction box cover from the remote sensor enclosure (see figure 4).
c) Using the digital volt/ohm meter, measure the bridge voltage at the remote sensor connector board from the
“White” terminal to the “Black” terminal as shown in figure 4. Target voltage is 5.25 volts.
d) At the transmitter, enter the programming menu by holding the programming magnet stationary over “PGM 2”
for 15 seconds until the display reads “VIEW PROG STATUS”, then withdraw the magnet.
e) Next, scroll to the “SET HEATER VOLTS” listing and then hold the programming magnet over “PGM 1”
for 3 seconds. The menu item appears as “HEATER @ #.## VDC”.
f) Use the programming magnet to make an adjustment to “PGM 1” to increase or “PGM 2” to decrease the voltage. Set this voltage so that the voltage measured at the remote sensor connector board is 5.25 VDC. This is the
correct voltage for an ambient temperature of 25°C at the remote sensor connector board. If ambient temperature is not 25°C reference the table in section 3.6.5 for the proper voltage setting.
g) Exit to the programming menu by holding the programming magnet over “PGM1” for 3 seconds, or automatically return to the programming menu in 30 seconds.
h) Exit back to normal operation by holding the programming magnet over “PGM 2” for 3 seconds, or automatically return to normal operation in 30 seconds.
i) Replace the junction box cover on the remote sensor enclosure.
Heater voltage adjustment is complete.
3.6.3 Programming Magnet Operating Instructions
Operator interface to MicroSafe™ gas detection products is via magnetic switches located behind the transmitter
Figure #5
face plate. DO NOT remove the glass lens cover to calibrate or change programming parameters. Two switches
labeled “PGM 1” and “PGM 2” allow for complete calibration and programming without removing the enclosure
cover, thereby eliminating the need for area de-classification or the use of hot permits.
A magnetic programming tool (see figure 5) is used to operate the switches. Switch action is defined as momentary
contact, 3 second hold, and 15 second hold. In momentary contact use, the programming magnet is waved over a
Program Switch #1
CONTRAST
PGM
Display Contrast Adjust
MODEL
Plug-in Microprocessor Control Circuit
1
detcon inc.
HOUSTON, TEXAS
TP-524C
Menu Driven Display
Figure #6
MicroSafe™ H2S Gas Sensor
FLT
CAL
PGM
2
Fault & Cal LEDs
Program Switch #2
switch location. In 3 second hold, the programming magnet is held in place over a switch location for 3 or more
seconds. In 15 second hold, the programming magnet is held in place over a switch location for 15 or more sec-
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.11
onds. Three and fifteen second hold is used to enter or exit calibration and program menus while momentary contact is used to make adjustments. The location of “PGM 1” and “PGM 2” are shown in figure 6.
NOTE: If, after entering the calibration or program menus, there is no interaction with the menu items for more
than 30 seconds, the sensor will return to its normal operating condition.
3.6.4 Setting Range
Detcon Model TP-524C can be programmed to operate in one of three ranges of detection: 0-20 ppm, 0-50 ppm, or
0-100 ppm. To determine the current range setting follow the instructions given in section 3.8.
To change the range of detection follow the instructions below:
a) First, enter the programming menu by holding the programming magnet stationary over “PGM 2” for 15 seconds until the display reads “VIEW PROG STATUS”, then withdraw the magnet. At this point you can
scroll through the programming menu by momentarily waving the programming magnet over “PGM 1” or
“PGM 2”. The menu options are: View Program Status, Set Cal Level, Set Heater Volts, Set Range, and Linearize
Sensor.
b) Next, scroll to the “SET RANGE” listing and then hold the programming magnet over “PGM 1” for 3 seconds. The menu appears as “Range @ 0-### ppm” listing.
c) Use the programming magnet to make an adjustment to “PGM 1” to increase or “PGM 2” to decrease the reading to the desired range.
d) Exit to the programming menu by holding the programming magnet over “PGM1” for 3 seconds, or automatically return to the programming menu in 30 seconds.
e) Exit back to normal operation by holding the programming magnet over “PGM 2” for 3 seconds, or automatically return to normal operation in 30 seconds.
NOTE: When switching between ranges, remember to readjust your Cal Level setting if necessary (see section 3.7.2).
3.6.5 Setting Heater Voltage
The Detcon TP524C H2S sensor is factory set for the correct heater voltage and should be ready to install without
further adjustment being required. The correct heater voltage for the sensor is 5.25 VDC when set at 25°C room
temperature. It is not normally necessary to adjust this heater voltage unless 1) the sensor is going to be used in
the remote mount format or 2) the sensor is being swapped out with a new replacement sensor.
If the user needs to adjust the heater voltage due to the above-mentioned conditions, it is necessary to make the
adjustment based on the current ambient temperature condition. Refer to the table below for guidance on proper
heater voltage set-point:
Ambient Temp
25°C
35°C
45°C
55°C
15°C
5°C
-5°C
-15°C
-25°C
-40°C
Heater Voltage Set-point
5.25 VDC
5.18 VDC
5.10 VDC
5.00 VDC
5.32 VDC
5.39 VDC
5.45 VDC
5.50 VDC
5.55 VDC
5.60 VDC
3.6.6 Utility Menu
The Utility Menu is used for factory authorized adjustments related to linearization and filter mode. It should not
be used by the end-user in the field.
The “Set X Value” menu is used for adjustments of the linearization coefficient. This is a factory authorized adjustment. The default setting is “6.0”.
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.12
The “Select Filter” menu is used for adjusting the filter mode , of which, there are three modes. The correct and
default setting is “2”. This is a factory authorized adjustment.
3.7 CALIBRATION
NOTE: Before calibration, verify the range setting as described in section 3.6.4.
Material Requirements
* Detcon PN 3270 MicroSafe™ Programming Magnet
* Detcon PN 6038 Threaded Calibration Adapter
* Span gas containing the H2S gas in air. Nitrogen mixtures are not acceptable. H2S gas concentration is recommended at 25 ppm (which is the factory default for ranges 0-50 ppm and 0-100 ppm) or 10 ppm (which is the
factory default for the range 0-20 ppm) at a controlled flow rate of 200 to 500 ml/min. Other concentrations
can be used as long as they fall within allowable levels. See section 3.7.2 for details.
* Detcon PN 985-241100-321 In-Line Humidifying Tube.
NOTE: Span gas bottles contain 0% humidity and this ultra-low humidity condition will cause inaccurate readings
when used to calibrate a sensor. To prevent this error, Detcon prescribes the use of an In-Line Humidifying Tube,
which adds the relative humidity to the span gas. The humidifying tube is not necessary when using a gas generating calibration device that consists of pumped ambient air and an H2S generating source.
3.7.2 Calibration Procedure - Span
CAUTION: Verification of the correct calibration gas level setting and calibration span gas concentration is
required before “span” calibration. These two numbers must be equal.
Calibration consists of entering the calibration function and following the menu-displayed instructions. The display
will ask for the application of span gas in a specific concentration. This concentration is equal to the calibration gas
level setting. The factory default setting for span gas concentration is 10 ppm for the range 0-20 ppm and 25 ppm
for the ranges 0-50 ppm and 0-100 ppm. If a span gas containing the prescribed default concentration is not available, other concentrations may be used as long as they fall within 10% and 50% of full-scale range. However, any
alternate span gas concentration value must be programmed via the calibration gas level menu before proceeding
with span calibration. Follow the instructions below for span calibration.
a) Verify the current calibration gas level setting as indicated by the programming status menu. To do this, follow
the instructions in section 3.8 and make note of the setting found in listing number 2. The item appears as
“CalLevel @ xxPPM”.
b) If the calibration gas level setting is equal to your calibration span gas concentration, proceed to item “f”. If
not, adjust the calibration gas level setting so that it is equal to your calibration span gas concentration, as
instructed in items “c” through “e”.
c) Enter the programming menu by holding the programming magnet stationary over “PGM 2” for 15 seconds
until the display reads “VIEW PROG STATUS”, then withdraw the magnet. At this point you can scroll
through the programming menu by momentarily waving the programming magnet over “PGM 1” or “PGM 2”.
The menu options are: View Program Status, Set Cal Level, Set Heater Level, Set Range, and Linearize Sensor.
d) From the programming menu scroll to the calibration level listing. The menu item appears as: “SET CAL
LEVEL”. Enter the menu by holding the programming magnet stationary over “PGM 1” for 3 seconds until
the display reads “CalLevel @ ##PPM”, then withdraw the magnet. Use the programming magnet to make
an adjustment to “PGM 1” to increase or “PGM 2” to decrease the display reading until the reading is equal to
the desired calibration span gas concentration. Exit to the programming menu by holding the programming
magnet over “PGM1” for 3 seconds.
e) Exit back to normal operation by holding the programming magnet over “PGM 2” for 3 seconds, or automatically return to normal operation in 30 seconds.
f) Enter the calibration span menu by holding the programming magnet stationary over “PGM 1” for 3 seconds
The display will read “1-SPAN 2-EXIT” Hold PGM 1 for 3 seconds to proceed with a span or hold PGM 2
for 3 seconds to exit back to normal operation mode. After choosing span you may, within 1 minute, abort the
span procedure by a 3 second hold on PGM 2.
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.13
g) Apply the calibration test gas with the humidifying tube installed at a flow rate of 200 to 500 milliliters per
minute (200ml/min is the recommended flow). The display will read “AUTO SPAN xxPPM”. The “xx” part of
the reading will change in single-digit increments as the sensor responds to the test gas. During the first 2 minutes of gas application, the sensor must satisfy a minimum resistance change which represents an “in range” sensor response (see NOTE 2 below). Then the “Auto Span” cycle is programmed for 2.5 full minutes of exposure at
which point an auto-adjustment is triggered. If, for example, automatic calibration is set for 25 ppm and the sensor response after 2.5 minutes is 17 ppm, the auto span function adjusts the reading to 25 ppm. After this adjustment, stability is verified for a period of 30 seconds. If less than 3 ppm of change occurs within the 30 second
time, then auto span is completed and the display reads “REMOVE GAS”. Remove the gas sample and observe
that the display clears to a reading of 0 ppm in less than 2 to 3 minutes.
If instability is greater than or equal to 3 ppm, auto span makes another adjustment and an additional 30 second
period is allowed for final stabilization. This continues for up to a maximum of 5 minutes total.
NOTE 1: If the sensor does not stabilize within 5 minutes during AutoSpan, the sensor will enter into “Stability
Fault”, and alternate between “STABILITY FAULT” and sensor’s current reading.
NOTE 2: If the sensor does not clear to <10% of range in <5 minutes after completing a span calibration, the
sensor will enter into a calibration fault mode which will cause the display to alternate between “ZERO
FAULT” and the sensor’s current reading.
NOTE 3: If the sensor fails the minimum signal change criteria, then a “RANGE FAULT” message will be displayed alternately with the sensor’s current reading.
NOTE 4: When a “zero fault”, “stability fault”, or “range fault” occurs, the 4-20 mA signal reports a 0 mA value
to indicate there is a Fault condition that needs to be corrected.
3.7.3 Additional Notes
1. Upon entering the calibration menu, the 4-20 mA signal drops to 2 mA and is held at this level until the program returns to normal operation.
2. If during calibration the sensor circuitry is unable to attain the proper span adjustment, the sensor will enter into
one of the calibration fault modes which will activate the fault LED, output a 0 mA signal, and cause the display to
alternate between the sensor’s current status reading and the calibration fault screen which appears as either:
“STABILITY FAULT, ZERO FAULT, or RANGE FAULT”. If this occurs you must attempt to recalibrate by
entering the calibration menu as described in section 3.7.2-f. If the sensor fails again, defer to technical trouble
shooting.
3.7.4 Calibration Frequency
In most applications, monthly to quarterly calibration intervals will assure reliable detection. However, industrial
environments differ. Upon initial installation and commissioning, close frequency tests should be performed, weekly
to monthly. Test results should be recorded and reviewed to determine a suitable calibration interval.
3.8 STATUS OF PROGRAMMING, CALIBRATION LEVEL, HEATER LEVEL, RANGE, AND SENSOR LIFE
The programming menu has a “View Program Status” listing that allows the operator to view the present gas, range,
and software version number of the program, as well as the calibration gas level setting, heater level, range of detection, and estimated remaining sensor life. The programming menu functions also allow the programming of the calibration gas level setting (see section 3.7.2), the sensor heater level (see section 3.6.2), the range of detection (see section 3.6.4), and the utility menu for factory adjustments (see section 3.6.6).
The following procedure is used to view the programming status of the sensor:
a) First, enter the programming menu by holding the programming magnet stationary over “PGM 2” for 15 seconds until the display reads “VIEW PROG STATUS”, then withdraw the magnet. At this point you can scroll
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.14
through the programming menu by momentarily waving the programming magnet over “PGM 1” or “PGM 2”.
The menu options are: View Program Status, Set Cal Level, Set Heater Volts, Set Range, and Linearize Sensor.
b) Next, scroll to the “VIEW PROG STATUS” listing and then hold the programming magnet over “PGM 1”
for 3 seconds. The menu will then automatically scroll, at five second intervals, through the following information before returning back to the “VIEW PROG STATUS” listing.
1 - The gas type, range of detection and software version number. The menu item appears as: “H2S 0-100 V2.14H”
2 - Calibration gas level setting. The menu item appears as: “CalLevel @ xxPPM”
3 - The sensor heater voltage setting. The menu item appears as: “HEATER @ #.##VDC”
4 - The range of detection setting. The menu item appears as: “RANGE @ 0-###PPM”
5 - The estimated remaining sensor life. The menu item appears as: “SENSOR LIFE 100%”
6 - The current raw resistance from the sensor. The item appears as: “RESISTANCE XXXXX” (in ohms)
c) Exit back to normal operations by holding the programming magnet over “PGM 2” for 3 seconds, or automatically return to normal operation in 30 seconds.
3.9 PROGRAM FEATURES
Detcon MicroSafe™ H2S gas sensors incorporate a comprehensive program to accommodate easy operator interface and Fail-Safe operation. Program features are detailed in this section. Each sensor is factory tested, programmed, and calibrated prior to shipment.
Over Range
When the sensor detects gas greater than its full scale range (20, 50, or 100 ppm), it will cause the display to flash
“20/50/100 PPM H2S” on and off. The 4-20 mA signal will report a 20 mA output.
Zero Fault
If the sensor does not clear to <10% of range in <5 minutes after completing a span calibration, the sensor will
enter into a calibration fault mode which will cause the display to alternate between “ZERO FAULT” and the sensors current reading. The Fault LED will light and the 4-20 mA signal will report 0 mA until the Fault is cleared by
performing a successful span calibration.
Stability Fault
If the sensor does not stabilize within 5 minutes during AutoSpan, the sensor will enter into “STABILITY FAULT”,
and alternate between “Stability Fault” and sensor’s current reading. The Fault LED will light and the 4-20 mA signal will report 0 mA until the Fault is cleared by performing a successful span calibration.
Range Fault
If the sensor fails the minimum signal change criteria, then a “RANGE FAULT” message will be displayed alternately with the sensor’s current reading. The Fault LED will light and the 4-20 mA signal will report 0 mA until the
Fault is cleared by performing a successful span calibration.
Sensor Fault
If the sensor film should fail and become electrically open, the display will indicate: “SENSOR FAULT”.
Open Heater Fault
If the sensor heater should fail and become electrically open, the display will indicate: “HEATER FAULT”.
System Fault
If the detector has an irrecoverable calculation error, the display will indicate: “SYSTEM FAULT”.
Memory Fault
If new data points cannot successfully be stored to memory the display will indicate: “MEMORY FAULT”.
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.15
Fail-Safe/Fault Supervision
Model TP-524C MicroSafe™ sensors are programmed for Fail-Safe operation. Any of the following fault conditions
will illuminate the fault LED, and cause the display to read its corresponding fault condition: “RANGE FAULT”,
“STABILITY FAULT”, “ZERO FAULT”, “HEATER FAULT”, or “SYSTEM FAULT”. A “Heater Fault”,
“System Fault”, “Zero Fault”, and “Range Fault” will also cause the mA output to drop to zero (0) mA until the
condition is corrected.
Sensor Life
The sensor life feature is a reference based on signal output from the sensor cell. When a sensor life of 25% or less
remains, the sensor cell should be replaced within a reasonable maintenance schedule.
3.10 DISPLAY CONTRAST ADJUST
Model TP-524C MicroSafe™ sensors feature a 16 character backlit liquid crystal display. Like most LCDs, character
contrast can be affected by viewing angle and temperature. Temperature compensation circuitry included in the
MicroSafe™ design will compensate for this characteristic, however temperature extremes may still cause a shift in
the contrast. Display contrast can be adjusted by the user if necessary. However, changing the contrast requires that
the sensor housing be opened, thus declassification of the area is required.
To adjust the display contrast, remove the enclosure cover and use a jewelers screwdriver to turn the contrast adjust screw
located beneath the metallic face plate. The adjustment location is marked “CONTRAST”. See figure 6 for location.
3.11 TROUBLE SHOOTING GUIDE
SENSOR FAULTS
Open Heater
Verify resistance between black and white wires using ohm-meter with the sensor unplugged and at room temperature. Heater Film’s normal reading range should be 75-95 ohms. Failure would be an open circuit.
Open Sensor
Verify resistance between blue and yellow wires using ohm-meter with the sensor unplugged and at room temperature. Sensor Film’s normal reading range should be 5-100 k-ohms. For sensors with an “X” in the serial number, the
normal reading range should be 75 k-ohms to 2 meg-ohms. Failure would be open circuit.
SPAN CALIBRATION FAULTS – (Range, Stability, Zero)
To remove the span calibration fault, you must repeat the calibration process successfully.
Range Fault
1. Check Heater Voltage Setting (should be 5.25 V).
2. Use humidifier with Distilled Water or inline humidifying tube.
3. Check validity of cal gas using H2S pull tube or other means (must be H2S in air background).
4. Check for obstructions through s/s sinter element (including being wet).
5. Check sensor lot # and report to Detcon.
Zero Fault
Must recover to <10% of range before calibration cycle is complete and returns to normal operation. Use bottled
air if necessary.
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.16
Poor calibration Repeatability
1. Check for adequate Sensor Life.
2. Check Heater Voltage Setting (should be 5.25 V).
3. Use humidifier filled with Distilled Water or inline humidifying tube.
4. Check validity of cal gas (must be H2S in air background).
5. Check for obstructions through s/s sinter element (including being wet).
6. Check sensor lot # and report to Detcon.
7. Check area for presence of reducing gases such as Cl2 and ozone which may cause low readings.
Unstable output/ Sudden spiking
Unstable power supply, Inadequate grounding, Inadequate RFI protection.
1. Verify Power source.
2. Contact Detcon to optimize shielding and grounding.
3. Add RFI protection accessory.
Nuisance Alarms
1. Check condulet for accumulated water and abnormal corrosion.
If Nuisance alarms happening at night suspect condensation in condulet.
2. Add/Replace Detcon Condensation Prevention Packet P/N 960-202200-000
Memory or Error reports
1. Reinitialize Sensor - Unplug transmitter, replug transmitter then swipe magnet over PGM 1 in the first 3 seconds.
This will clear the processor and recover from error state. Remember to put in all customer settings for range, and
cal gas level after re-initialization.
Non readable display
1. If blue background, install sunshade to reduce temperature.
2. If poor contrast, adjust contrast pot accordingly.
Nothing Displayed – Transmitter not Responding
1. Verify condulet has no accumulated water or abnormal corrosion.
2. Verify required DC power is applied to correct terminals.
3. Swap with a known-good transmitter to determine if transmitter is faulty.
Bad 4-20 mA output or RS485 Output
1. Check that wiring is connected to correct terminal outputs.
Swap with a known-good transmitter to determine if transmitter is faulty.
3.12 SPARE PARTS LIST
600-610000-000
943-000006-038
399-800000-000
925-015400-100
500-005065-007
327-000000-000
897-850901-010
960-202200-000
985-241100-321
943-020000-000
942-010112-010
942-010112-025
942-010112-050
943-090005-502
Sensor splash guard
Threaded Calibration Adapter
H2S sensor in stainless steel housing
TP-524C Plug-in control circuit
Connector board
Programming Magnet
3 port enclosure with glass lid
Condensation prevention packet (replace annually).
In-Line Humidifying Tube
Span Gas Kit: Includes calibration adapter, In-Line Humidifying Tube, 200 ml/m span
gas regulator, and carrying case. Does not include span gas.
Span gas bottle containing 58 liters 10ppm H2S in air (operating range dependent).
Span gas bottle containing 58 liters 25ppm H2S in air (operating range dependent).
Span gas bottle containing 58 liters 50ppm H2S in air (operating range dependent).
200 ml/m regulator for span gas bottle
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.17
Figure #8
Programming Magnet
Enclosure glass lens cover
Plug-in control circuit
Rain Shield
Spash Guard
Calibration Adapter
Connector Board
Enclosure less cover
H2S Sensor in Housing
Condensation
Prevention Packet
(replace annually)
3.13 WARRANTY
Detcon, Inc., as manufacturer, warrants each hydrogen sulfide sensor element (PN 399-800000-000), for a ten year
period under the conditions described as follows: The warranty period begins on the date of shipment to the original purchaser, and follows the schedule below. The sensor element is warranted to be free from defects in material
and workmanship. Should any sensor fail to perform in accordance with published specifications within the warranty period, return the defective part to Detcon, Inc., 4055 Technology Forest Blvd, Suite 100, The Woodlands, Texas
77381, for necessary repairs or replacement.
First year
2nd-5th years
6th year
7th year
8th year
9th year
10th year
Warranty voided
Non-warranty
No Charge
$25.00 handling charge
$60.00 handling charge
$96.00 handling charge
$120.00 handling charge
$150.00 handling charge
$176.00 handling charge
$200.00 charge
$295.00 charge
Terms & Conditions
* The original serial number must be legible on each sensor element base.
* Shipping point is FOB the Detcon factory.
* Net payment is due within 30 days of invoice.
* Detcon, Inc. reserves the right to refund the original purchase price in lieu of sensor replacement.
3.14 SERVICE POLICY
Detcon, Inc., as manufacturer, warrants under intended normal use each new MicroSafe™ plug-in control circuit to
be free from defects in material and workmanship for a period of two years from the date of shipment to the original purchaser. Detcon, Inc., further provides for a five year fixed fee service policy wherein any failed transmitter
shall be repaired or replaced as is deemed necessary by Detcon, Inc., for a fixed fee of $65.00. The fixed fee service
policy shall affect any factory repair for the period following the two year warranty and shall end five years after
expiration of the warranty. All warranties and service policies are FOB the Detcon facility located in The
Woodlands, Texas.
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.18
3.15 SOFTWARE FLOW CHART
AUTO SPAN
PGM1 (3)
NORMAL
OPERATION
PGM2 (30)
VIEW PROG STATUS
SET CAL LEVEL
SET HEATER VOLTS
SET RANGE
UTILITY MENU
PGM1 (3) PGM2 (M)
PGM1 (3) PGM2 (M)
PGM1 (3) PGM2 (M)
PGM1 (3) PGM2 (M)
PGM1 (10) PGM2 (3)
PGM2 (3)
PGM2 (3)
PGM2 (3)
PGM2 (3)
GAS RANGE V#.#
CalLevel @ ##PPM
INC
CAL LEVEL @ ##PPM
PGM1 (M) PGM2 (M)
HEATER @ ##VDC
DEC
INC
PGM1 (3)
PGM1 (M) PGM2 (M)
PGM1 (3)
RANGE @ 0-###PPM
DEC
INC
PGM1 (M) PGM2 (M)
PGM2 (3)
PGM2 (3)
DEC
X = #.#
INC
SENSOR LIFE ##%
SET FILTER
PGM1 (3) PGM2 (M)
PGM1 (3)
HEATER @ #.##VDC
RANGE @ 0-###PPM
SET X VALUE
PGM1 (3) PGM2 (M)
LEGEND
PGM1 - program switch location #1
PGM2 - program switch location #2
(M) - momentary pass of magnet
(3) - 3 second hold of magnet
(30) - 30 second hold of magnet
INC - increase
DEC - decrease
# - numeric value
PGM1 (M) PGM2 (M)
DEC
PGM1 (3)
FILTER = #
INC
PGM1 (M) PGM2 (M)
PGM1 (3)
3.16 REVISION LOG
Revision
Date
Changes Made
2.4
02/01/2010
Previous revision
BM
2.5
05/09/2012
Change to Interference table (Methyl Mercaptan), updated spare parts, revised
shipping addresss, added revision log
BM
www.detcon.com • [email protected]
Detcon Model TP-524C Hydrogen Sulfide Sensor PG.19
Approval
DEC
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
