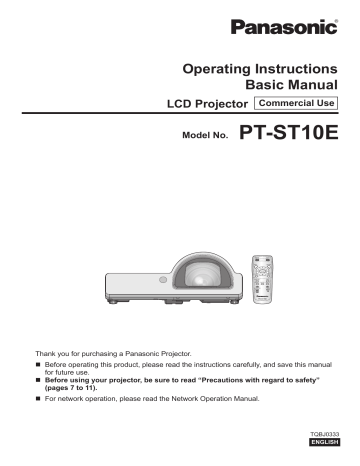

Operating Instructions
Basic Manual
LCD Projector
Model No.
Commercial Use
PT-ST10E
AUTO
SETUP
MENU
RETURN
ENTER
FREEZE
COMPUTER
AV
MUTE
VIDEO
DEFAULT FUNCTION
INDEX- WIN.
DIGITAL ZOOM
VOLUME
Thank you for purchasing a Panasonic Projector.
„„ Before operating this product, please read the instructions carefully, and save this manual
for future use.
„„ Before using your projector, be sure to read “Precautions with regard to safety”
(pages 7 to 11).
„„ For network operation, please read the Network Operation Manual.
TQBJ0333
ENGLISH
Essential information
Essential information
Important Safety Notice
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating information that you might require. We hope it will
help you to get the most out of your new product, and that you will be pleased with your Panasonic LCD projector.
The serial number of your product may be found on its bottom. You should note it in the space provided below and
retain this booklet in case service is required.
Model number: PT-ST10E
Serial number:
WARNING:
THIS APPARATUS MUST BE EARTHED.
WARNING:
To prevent damage which may result in fire or shock hazard, do not expose this appliance to
rain or moisture.
Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO7779.
2  ENGLISH
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives 2002/96/
EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
Information on Disposal in other Countries outside the European Union
These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
Environment care information for users in China
This symbol is only valid in China.
ENGLISH  3
Essential information
Important Safety Notice (continued)
Essential information
Important Safety Notice (continued)
WARNING:
1. Remove the plug from the wall outlet when this unit is not in use for a prolonged period of time.
2. To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified
service personnel.
3. Do not remove the earthing pin on the power plug. This apparatus is equipped with a three prong earthingtype power plug. This plug will only fit an earthing-type wall outlet. This is a safety feature. If you are unable to
insert the plug into the wall outlet, contact an electrician. Do not defeat the purpose of the earthing plug.
CAUTION:
To assure continued compliance, follow the attached installation instructions, which includes using
the provided power cord and shielded interface cables when connecting to computer or peripheral
device. Any unauthorized changes or modifications to this equipment will void the user’s authority
to operate.
Pursuant to at the directive 2004/108/EC, article 9(2)
Pursuant to at the directive 2005/32/EC amended by 2008/28/EC, article 14
Panasonic Testing Center
Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, F.R. Germany
4  ENGLISH
TABLE OF CONTENTS
Essential information
Important Safety Notice................................ 2
Precautions with regard to safety................ 7
Preparation
Start-up display........................................... 12
Details of your projector............................. 13
Getting started
Set up your projector.................................. 16
Connections................................................. 18
Basic operations
Turn the projector ON or OFF..................... 20
Project an image.......................................... 24
Remote control operation........................... 25
Settings
Menu operation............................................ 28
PICTURE MENU........................................ 30
POSITION MENU...................................... 32
LANGUAGE MENU................................... 35
DISPLAY OPTION MENU......................... 35
PROJECTOR SETUP MENU.................... 38
SECURITY MENU..................................... 42
NETWORK MENU..................................... 44
Maintenance
LAMP and TEMP indicators........................ 45
Care and replacement................................. 46
References
Troubleshooting.......................................... 50
Dimensions.................................................. 51
Trademark acknowledgements.................. 51
Technical information................................. 52
Specifications.............................................. 55
Ceiling mount bracket safeguards............ 57
INSTALLING THE SAFETY CABLE......... 57
Index.............................................................59
ENGLISH  5
Projection on a large screen in a limited space
Since the short-focus lens is employed, images can be thrown on a
screen of the same size from a distance less than 1/2 of the ordinary
projector. ( page 16)
60 inch: Approx. 1.7 m (PT-LB2E)
60 inch: Approx. 0.6 m (PT-ST10E)
This projector can be installed to Electronic Whiteboard
“elite Panaboard” and they can be used as one
unit. Some parts sold separately are necessary for
installation. For details, please contact your dealer.
Lengthened lamp replacement cycle
The lamp replacement cycle is longer than the former model. ( page 47)
Approx. 3 000 hours (PT-LB90NTE)
Approx. 5 000 hours (PT-ST10E)
(LAMP POWER: In “ECO”)
User logo display function
You can project your company’s logo when projection starts. ( page 36)
6  ENGLISH
WARNING
POWER
The wall outlet or the circuit breaker shall be
installed near the equipment and shall be easily
accessible when problems occur. If the followings
problems occur, cut off the power supply
immediately.
Continued use of the projector in these conditions will
result in fire or electric shock.
• If foreign objects or water get inside the projector, cut
off the power supply.
• If the projector is dropped or the cabinet is broken, cut
off the power supply.
• If you notice smoke, strange smells or noise coming
from the projector, cut off the power supply.
Please contact an Authorized Service Center for
repairs, and do not attempt to repair the projector
yourself.
During a thunderstorm, do not touch the projector
or the cable.
Electric shocks can result.
Do not do anything that might damage the power
cord or the power plug.
If the power cord is used while damaged, electric
shocks, short-circuits or fire will result.
• Do not damage the power cord, make any
modifications to it, place it near any hot objects, bend
it excessively, twist it, pull it, place heavy objects on
top of it or wrap it into a bundle.
Ask an Authorized Service Center to carry out any
repairs to the power cord that might be necessary.
Insert the power plug securely into the wall outlet.
If the plug is not inserted correctly, electric shocks or
overheating will result.
• Do not use anything other than the provided power
cord.
• Do not use the provided power cord for other
electrical equipment.
• Do not use plugs which are damaged or wall outlets
which are coming loose from the wall.
Clean the power plug regularly to prevent it from
becoming covered in dust.
Failure to observe this will cause a fire.
• If dust builds up on the power plug, the resulting
humidity can damage the insulation.
• If not using the projector for an extended period of
time, pull the power plug out from the wall outlet.
Pull the power plug out from the wall outlet and wipe it
with a dry cloth regularly.
Do not handle the power plug with wet hands.
Failure to observe this will result in electric shocks.
ON USE/INSTALLATION
Do not place liquid containers on top of the
projector.
If water spills onto the projector or gets inside it, fire or
electric shocks will result.
If any water gets inside the projector, contact an
Authorized Service Center.
Do not place the projector on soft materials such as
carpets or sponge mats.
Doing so will cause the projector to overheat, which
can cause burns, fire or damage to the projector.
Do not set up the projector in humid or dusty places
or in places where the projector may come into
contact with oily smoke or steam, ex. a bathroom.
Using the projector under such conditions will result
in fire, electric shocks or components deterioration.
Components deterioration (such as ceiling mount
brackets) may cause the projector which is mounted on
the ceiling to fall down.
Do not install this projector in a place which is
not strong enough to take the full weight of the
projector or on top of a surface which is sloped or
unstable.
Failure to observe this will cause projector to fall down
or tip over the projector, and severe injury or damage
could result.
Do not place another projector or other heavy
objects on top of the projector.
Failure to observe this will cause the projector to
become unbalanced and fall, which could result in
damage or injury. The projector will be damaged or
deformed.
Installation work (such as ceiling suspension)
should only be carried out by a qualified technician.
If installation is not carried out and secured correctly it
can cause injury or accidents, such as electric shocks.
• Do not use anything other than an Authorized ceiling
mount bracket.
Do not cover the air inlet port or the air outlet port.
Doing so will cause the projector to overheat, which can
cause fire or damage to the projector.
• Do not place the projector in narrow, badly ventilated
places such as closets or bookshelves.
• Do not place the projector on cloth or papers, as
these materials could be drawn into the air inlet port.
Do not place your hands or other objects close to
the air outlet port.
Doing so will cause burns or damage your hands or
other objects.
• Heated air comes out of the air outlet port. Do not
place your hands or face, or objects which cannot
withstand heat close to this port.
Do not overload the wall outlet.
If the power supply is overloaded (ex., by using too
many adapters), overheating may occur and fire will
result.
ENGLISH  7
Essential information
Precautions with regard to safety
Essential information
Precautions with regard to safety (continued)
Do not look and place your skin into the lights
emitted from the lens while the projector is being
used.
Doing so can cause burns or loss of sight.
• Strong light is emitted from the projector’s lens. Do
not look or place your hands directly into this light.
• Be especially careful not to let young children look
into the lens. In addition, turn off the power and
disconnect the power plug when you are away from
the projector.
Do not insert any foreign objects into the projector.
Doing so will cause fire or electric shocks.
• Do not insert any metal objects or flammable objects
into the projector or drop them onto the projector.
Never attempt to remodel or disassemble the
projector.
High voltages can cause fire or electric shocks.
For any inspection, adjustment and repair work, please
contact an Authorized Service Center.
Do not project an image with the supplied lens
cover attached.
Doing so can cause fire.
ACCESSORIES
Do not use or handle the batteries improperly, and
refer to the following.
Failure to observe this will cause burns, batteries to
leak, overheat, explode or catch fire.
• Do not use unspecified batteries.
• Use manganese batteries but not rechargeable
batteries.
• Do not dissemble dry cell batteries.
• Do not heat the batteries or place them into water or
fire.
• Do not allow the + and – terminals of the batteries
to come into contact with metallic objects such as
necklaces or hairpins.
• Do not store batteries together with metallic objects.
• Store the batteries in a plastic bag and keep them
away from metallic objects.
• Make sure the polarities (+ and -) are correct when
inserting the batteries.
• Do not use a new battery together with an old battery
or mix different types of batteries.
• Do not use batteries with the outer cover peeling
away or removed.
• Remove the empty batteries from the remote control
at once.
• Insulate the battery using tape or something similar
before disposal.
Do not allow children to reach the attached screws
or AAA/R03 batteries.
• The battery can cause personal injury if swallowed.
• If swallowed, seek medical advice immediately.
8  ENGLISH
If the battery fluid leaks, do not touch it with
bare hands, and take the following measures if
necessary.
• Battery fluid on your skin or clothing could result in
skin inflammation or injury.
Rinse with clean water and seek medical advice
immediately.
• Battery fluid coming in contact with your eyes could
result in loss of sight.
In this case, do not rub your eyes. Rinse with clean
water and seek medical advice immediately.
Do not disassemble the lamp unit.
If the lamp breaks, it could cause injury.
Lamp replacement
The lamp has high internal pressure. If improperly
handled, an explosion and severe injury or accidents
will result.
• Replacement of the lamp should be carried out by a
qualified technician.
• The lamp can easily explode if struck against hard
objects or dropped.
• Before replacing the lamp, be sure to disconnect the
power plug from the wall outlet.
Electric shocks or explosions can result if this is not
done.
• When replacing the lamp, allow it to cool for at least
one hour before handling it otherwise it can cause
burns.
Do not allow infants or pets to touch the remote
control unit.
• Keep the remote control unit out of the reach of
infants and pets after using it.
CAUTION
POWER
When disconnecting the power cord, be sure to
hold the power plug and power connector.
If the power cord itself is pulled, the lead will become
damaged, and fire, short-circuits or serious electric
shocks will result.
When not using the projector for an extended
period of time, disconnect the power plug from
the wall outlet and remove the batteries from the
remote control.
Disconnect the power plug from the wall outlet
before carrying out any cleaning.
Electric shocks can result if this is not done.
ON USE/INSTALLATION
Do not put your weight on this projector.
You could fall or the projector could break, and injury
will result.
• Be especially careful not to let young children stand or
sit on the projector.
Do not place the projector in extremely hot
locations.
Doing so will cause the outer casing or internal
components to deteriorate, or result in fire.
• Take particular care in locations exposed to direct
sunlight or near stoves.
Always disconnect all cables before moving the
projector.
Moving the projector with cables still attached can
damage the cables, which will cause fire or electric
shocks to occur.
ACCESSORIES
Do not use the old lamp unit.
If used it could cause lamp explosion.
If the lamp has broken, ventilate the room
immediately. Do not touch or bring your face close
to the broken pieces.
Failure to observe this will cause the user to absorb
the gas which was released when the lamp broke and
which contains nearly the same amount of mercury as
fluorescent lamps, and the broken pieces will cause
injury.
If you believe that you have absorbed the gas or that
the gas has got into your eyes or mouth, seek medical
advice immediately.
Ask your dealer about replacing the lamp unit and
check the inside of the projector.
CAUTIONS WHEN TRANSPORTING
When transporting the projector, the leg adjusters must
be housed and do not hold them.
When transporting, keep the projector with the lens
cover on it.
• Please take care to keep them away from vibration
and impacts, both the projector and the lens are
precision-made and easily susceptible to damage.
CAUTIONS WHEN INSTALLING
DO NOT USE UNDER THE FOLLOWING
CONDITIONS.
• Do not set up the projector outdoors.
The projector is designed for indoor use only.
• Avoid setting up in places which are subject to
vibration or shocks.
If the projector is installed in a place where vibrations
are transmitted or mounted in a car or a vessel,
vibrations or impacts will result in damage to the
internal parts, causing failure. Install the product in a
place free from vibrations and impacts.
• Avoid setting up in places which are subject to
sudden temperature changes, such as near an air
conditioner or lighting equipment.
Failure to observe this will result in malfunctions or
the lamp life will be shortened.
See “TEMP INDICATOR” on page 45.
• Avoid setting up in places which are near highvoltage power lines or near motors.
The product will be exposed to interference if it is
installed in the vicinity of high-voltage electrical power
lines or power sources.
• Do not install the projector at elevations higher
than 2 700 m (8 858 ft) above sea level.
If using this projector at high elevations 1 400 2 700 m (4 593 - 8 858 ft) above sea level, set the
HIGH ALTITUDE MODE to ON.
If using this projector at elevations lower than 1 400 m
(4 593 ft) above sea level, set the HIGH ALTITUDE
MODE to OFF.
Failure to observe this will result in malfunctions
or the lamp life or life of other components will be
shortened.
BE SURE TO ASK A SPECIALIZED
TECHNICIAN WHEN INSTALLING THE
PRODUCT TO A CEILING.
If the product is to be installed hanging from the ceiling,
purchase an optional hanging attachment (Model No.
ET-PKB2). Please call a specialized technician or
contact an Authorized Service Center for installation.
LENS FOCUS
Do not adjust the lens focus in the initial period after
switching the projector on. The high clarity projector
lens is thermally affected by the light from the light
source, making the focus unstable in the period just
after switching on. Please allow a warm-up time of at
least 30 minutes before adjusting the lens focus.
ENGLISH  9
Essential information
Precautions with regard to safety (continued)
Essential information
Precautions with regard to safety (continued)
Cautions on use
IN ORDER TO GET THE PICTURE QUALITY
Draw curtains or blinds over windows and turn off any
lights near the screen to prevent outside light or light
from indoor lamps from shining onto the screen.
Depending on where the projector is used, air exhaust
vents or the warm air from air conditioning can cause a
shimmering effect on the screen. For this reason, take
care not to shield the air exhaust vents and consider the
direction of the air flowing from air conditioning.
DO NOT TOUCH THE SURFACE OF THE
PROJECTOR LENS WITH YOUR BARE HAND.
If the surface of the lens becomes dirty from fingerprints
or anything else, this will be magnified and projected
onto the screen. Please put the standard lens cover on
the projector when you do not use it.
DO NOT MOVE THE PROJECTOR WHILE
IT IS OPERATING OR SUBJECT IT TO
VIBRATION OR IMPACT.
The service life of its internal components will be
shortened.
THE PROJECTOR HAS A HIGH
PRESSURE MERCURY LAMP THAT IS
CHARACTERIZED AS FOLLOWS:
• The brightness of the lamp will decrease over time.
• The lamp may explode or shorten the lamp life by
shocks or chipping damage.
• In rare cases, it may burst shortly after the first use.
• The possibility of its bursting increases when the lamp
is used beyond the replacement time.
• If the lamp bursts, gas inside the lamp is released in
the form of smoke.
• The life of a mercury lamp varies according to the
individual difference or conditions of use.
• In particular, turning the power on and off frequently
and/or repeatedly as well as continuous use for
10 hours will greatly affect the life cycle. Provide a
lamp for replacement in advance.
CONNECTION TO EXTERNAL DEVICE
When connecting the projector to a computer or
external device, use the power cord supplied with the
corresponding device and a commercially available
shielded interface cable.
10  ENGLISH
OPTICAL COMPONENTS
It may be necessary to replace the optical components
such as Liquid crystal panels and Polarizing plates
in less than 1 year if using the projector in a high
temperature environment or in a very dusty, oily smoke
or tobacco smoke environment. For more details,
please contact your dealer.
LIQUID CRYSTAL PANEL
The Liquid crystal panels are precision-made. Note that
in rare cases, pixels of high precision could be missing
or always lit, but this is not a malfunction.
Do not project the same image for long periods of
time, as this may remain as an afterimage on the liquid
crystal panel. Display the white screen test pattern for
more than an hour to remove it. See “TEST PATTERN”
on page 41.
SECURITY
Take safety measures against
following incidents.
• Personal information being leaked via this product.
• Unauthorized operation of this product by a malicious
third party.
• Interfering or stopping of this product by a malicious
third party.
Security instruction
• The connecting network must be secured by firewall
or others.
• Change your password regularly.
• Do not use a password that is simple to guess.
• Panasonic and its affiliate companies would never
directly inquire about your password.
• Do not share your password with the general public.
• Set a password, and place restrictions on the users
who can log in.
CLEANING AND MAINTENANCE
ASK AN AUTHORIZED SERVICE
CENTER TO CLEAN THE INSIDE OF THE
PROJECTOR AT LEAST ONCE A YEAR.
DISPOSAL
When discarding this product, please contact your local
authorities or dealer and ask for the correct method of
disposal.
If dust is left to build up inside the projector without
being cleaned out, it can result in fire or problems
with operation. It is a good idea to clean the inside of
the projector before the season when humid weather
arrives.
Ask your nearest Authorized Service Center to clean the
projector when required.
Please discuss with the Authorized Service Center
regarding cleaning costs.
SUPPLIED ACCESSORIES
Make sure that the following accessories are provided with your projector.
Remote control (×1)
(N2QAYA000011)
Power cord (×1)
(K2CM3YY00016)
RGB signal cable (×1) 1.8 m (5' 10")
(K1HY15YY0009)
Power cord secure lock (×1)
(TTRA0185)
AAA/R03 batteries for Remote
control (×2)
Lens cover (×1) (TKKL5503)
(Attached to the projector by
default.)
CD-ROM (×1)
(TXFQB02VKN8)
AUTO
SETUP
MENU
RETURN
ENTER
AV
MUTE
FREEZE
COMPUTER
VIDEO
DEFAULT FUNCTION
INDEX- WIN.
DIGITAL ZOOM
VOLUME
Safety cable (1 set)
(TTRA0141)
Attachment screw (x1)
Safety cable (x1)
NOTE:
•
•
•
•
The protectors for the enclosed products, such as a plug cover or foam cartons, must be handled appropriately.
Contact an Authorized Service Center for any lost accessories.
Keep the accessories away from children.
The model Nos. of the accessories and parts sold separately are subject to change without notice.
ENGLISH  11
Essential information
Precautions with regard to safety (continued)
Preparation
Start-up display
The LANGUAGE and INITIAL SETTING menu will be displayed when the projector is turned on for the first time or
after it has been initialized. ( page 41)
Navigate the DISPLAY OPTION menu to set the menus in accordance to its application and environment settings.
NOTE:
Preparation
• When the projector is turned on for the first time, you may be required to adjust the “focus ring” ( page 13) on the top of the
projector body to make the menu screen clearer.
For details, see POSITION THE IMAGE. ( page 24)
INITIAL SETTING
LANGUAGE
1
To select the desired language.
INITIAL SETTING
1
To select the desired menu.
 INSTALLATION
 HIGH ALTITUDE MODE
2
To change the settings in the
menu.
INITIAL SETTING
FRONT/DESK
INSTALLATION
HIGH ALTITUDE MODE
OFF
SWITCH TO HIGH ALTITUDE MODE “ON” IF OVER 1400m(4593Ft).
RETURN
PLEASE SELECT LANGUAGE.
SELECT
ENTER
SELECT
ENTER
2
ENTER
INSTALLATION ( page 17, 39)
To proceed to INITIAL SETTING
menu.
FRONT/
DESK
Put it on a desk or floor and project
from the front
FRONT/
CEILING
Mount it on the ceiling with a ceiling
mount bracket (sold separately) and
project from the front
REAR/
DESK
Put it on a desk or floor and project
from the rear (a translucent screen is
required)
REAR/
CEILING
Mount it on the ceiling with a ceiling
mount bracket (sold separately) and
project from the rear (a translucent
screen is required)
HIGH ALTITUDE MODE ( page 9, 39)
OFF
ON
3
NOTE:
Use in normal environment
(below 1 400 m (4 593 ft) above sea
level)
Use at high altitude
(at 1 400 - 2 700 m (4 593 - 8 858 ft)
above sea level)
ENTER
• To return to LANGUAGE menu, press [RETURN] in
INITIAL SETTING menu.
12  ENGLISH
Details of your projector
PROJECTOR’S MAIN UNIT
Top and front view
Preparation
⑥
①
②
⑦
③
④
⑧
⑤
① Control Panel / Indicators
⑤ Remote control signal receptor
② Air outlet port
Hot air comes out from this opening.
⑥ Focus ring – To adjust the focus. ( page 24)
⑦ Leg adjuster button ( page 24)
③ Speaker
⑧ Projection lens
④ Leg adjuster button ( page 24)
NOTE:
•
•
•
•
Do not cover the air outlet port.
Putting a finger in the projector can cause injury.
Do not place your hands or other objects close to the air outlet port as this may cause damage or injury.
Do not place your hands or face, or objects which cannot withstand heat near the air outlet port. Hot air comes out
from this port.
Control Panel / Indicators
⑨
①
INPUT
SELECT
STANDBY (R)
ON (G)
②
③
④
⑤
① Indicate the power supply’s status.
( page 21)
② Indicate the lamp unit’s status.
( page 45)
③ Indicate the temperature’s status.
( page 45)
④ Ambient Luminance sensor (ALS).
⑤ Display the Main menu.
⑧
ENTER
R
LAMP
TEMP
MENU
EN
FUNCTION
CTTI
⑦
⑥
⑥ Navigate through the menus.
Confirm selection.
⑦ Create shortcut assigned to certain selected
function. ( page 27, 40)
⑧ Switch the input connections.
( page 24)
⑨ Switch between standby mode and projection
mode. ( page 22)
ENGLISH  13
Details of your projector (continued)
Rear and bottom view
①
⑨
②
⑧
Preparation
③
⑦
④
⑥
⑤
① Terminals
⑥ Air intake port
② Air filter compartment ( page 46)
⑦ Burglar hook port
Attach a commercial burglar prevention cable.
③ Air intake port
④ AC IN
Connect the power cord to supply electric power to
the projector. ( page 20)
⑧ Lamp unit compartment ( page 48)
⑨ Remote control signal receptor
⑤ Leg adjuster
To adjust the projection angle. ( page 24)
NOTE:
• Do not connect any power cable other than the attached one.
• Do not cover the ventilation openings of the air intake port.
Terminals
①
②
③
④
S-VIDEO
IN
LAN
SERIAL
AUDIO OUT
COMPUTER 1 IN
1
VIDEO IN
COMPUTER 2 IN
2
AUDIO IN
⑦
⑥
⑤
① Connect to a network cable.
(See “Network Operation Manual”.)
⑤ Connect to a VIDEO signal cable.
( page 18)
② Connect to a computer to control the projector’s
operation.
( page 19, 53)
⑥ Connect audio cables for inputting audio signal.
( page 18,41)
③ Connect to a computer or YPBPR signal cable.
( page 19)
④ Connect to an S-VIDEO signal cable.
( page 18)
14  ENGLISH
⑦ Connect an audio cable for audio signal output
to the connected equipment. If it is connected to
this terminal, no sound comes out of the built-in
speaker.
( page 18)
Details of your projector (continued)
PROJECTOR’S REMOTE CONTROL
Top and rear view
Press the tab and lift up the
cover.
Remote control
signal emitters
Insert the batteries according to the
polarity diagram indicated inside or
remove.
Remove the batteries in the reverse
order to setting.
Use only manganese batteries.
Front view
AUTO
SETUP
①
②
MENU
③
④
⑤
⑥
⑫
RETURN
FREEZE
COMPUTER
DEFAULT FUNCTION
AV
MUTE
③ Navigate through the menus with [] and
confirm the selection with [ENTER]. ( page 28)
⑤ Switch the required input signal button to select.
( page 25)
⑪
⑥ Reset some of the settings to the factory default
settings. ( page 26)
⑦ Control the zoom size. ( page 27)
VIDEO
INDEX- WIN.
② Display the Main menu. ( page 29)
④ Capture the projected image as a frozen picture.
( page 25)
ENTER
DIGITAL ZOOM
⑦
① POWER
Switch between standby mode and projection
mode. ( page 22, 23)
⑩
⑨
VOLUME
⑧
⑧ Control speaker volume. ( page 26)
⑨ Create shortcut assigned to certain selected
function. ( page 27, 40)
⑩ Display frozen image while the display of
subsequent images continues. ( page 26)
⑪ Turn off the projection temporarily. ( page 25)
⑫ Detect the input signal.
Adjust the settings of SHIFT, DOT CLOCK
and CLOCK PHASE in the POSITION menu
automatically for COMPUTER signals. ( page 25)
NOTE:
•
•
•
•
•
Do not drop the remote control.
Avoid contact with liquids or moisture.
Do not attempt to modify or disassemble the remote control.
Do not let strong light shine onto the signal receptor which will cause a malfunction.
The remote control operates within the range of 7 m (23' 0"), approximately ±30 ° vertically and horizontally from the projector
avoiding any obstacles.
• The operating range may differ due to the screen material and may not be effective with a translucent screen.
ENGLISH  15
Preparation
Installing/removing batteries
Getting started
Set up your projector
SCREEN SIZE AND THROW DISTANCE
You can calculate and define the throw distance as follows.
69.2 mm
L
SW
Screen
H
SH
SD
SH
Projected image
Screen
L
SW
(All measurements below are approximate and may differ slightly from the actual measurements.)
Projection size
Screen diagonal (SD)
For 4:3 aspect ratio
For 16:9 aspect ratio
Throw distance (L) Settable height (H) Throw distance (L) Settable height (H)
Getting started
1.52 m (60")
0.60 m (2' 0")
0.05 m (0' 2")
0.66 m (2' 2")
0.17 m (0' 7")
1.78 m (70")
0.71 m (2' 4")
0.05 m (0' 2")
0.78 m (2' 7")
0.20 m (0' 8")
2.03 m (80")
0.82 m (2' 8")
0.06 m (0' 2")
0.90 m (2' 11")
0.23 m (0' 9")
2.29 m (90")
0.92 m (3' 0")
0.07 m (0' 3")
1.01 m (3' 4")
0.26 m (0' 10")
2.54 m (100")
1.03 m (3' 4")
0.08 m (0' 3")
1.13 m (3' 8")
0.29 m (0' 11")
2.79 m (110")
1.14 m (3' 9")
0.08 m (0' 3")
—
—
You can calculate detailed screen dimensions from the “Screen diagonal”. The unit of all the calculation results is
m. (The results below differ slightly from the actual measurements.)
If the projection size is SD,
For 4:3 aspect ratio
For 16:9 aspect ratio
Screen height (SH)
= SD (") × 0.0152
= SD (") × 0.0125
Screen width (SW)
= SD (") × 0.0203
= SD (") × 0.0221
Throw distance (L)
= 0.0107 × SD (") - 0.0389
= 0.0117 × SD (") - 0.0395
NOTE:
• For best projection image quality, install a screen where sunlight or room lightings do
not shine directly onto the screen. Close window shades or curtains to block the light
and turn off the lightings.
+30 °
• Do not use the projector at a raised or horizontally tilted position. It may cause the
projector to malfunction.
-30 °
However, you can tilt the projector’s body approximately ±30 ° vertically and ±10 °
horizontally.
Over tilting may result in shortening the component’s life.
• Do not cover the air outlet port and air intake ports or place anything within 50 cm (20") near them as this may cause damage
or injury.
16  ENGLISH
Set up your projector (continued)
PROJECTION METHOD
See “INSTALLATION” on page 39 to select the projection method.
Menu
Method
Menu
Method
INSTALLATION
FRONT/DESK
INSTALLATION
FRONT/CEILING
„„Put it on a desk or floor and project from the rear
(Use translucent screen)
„„Mount it on the ceiling and project from the rear
(Use translucent screen)
Menu
Method
Menu
Method
INSTALLATION
REAR/DESK
INSTALLATION
REAR/CEILING
NOTE:
• Use the optional ceiling mount bracket (ET-PKB2) when mounting the projector on the ceiling.
• You can adjust the projection angle in the vertical direction by adjusting the leg adjuster button. ( page 24)
ENGLISH  17
Getting started
„„Put it on a desk or floor and project from the front „„Mount it on the ceiling and project from the front
Connections
Preparations
• Read and follow the operating instructions of each peripheral device and turn the peripheral devices off prior to
making any connections.
• Prepare the selected peripheral devices with the connection cables that correspond to the projector’s terminals.
• All peripheral devices and cables used for the connections are sold separately unless indicated otherwise.
• If the input signal is affected by signal jitter, the projected image may have poor image quality and timebase
correction is effective.
• Confirm the types of video signals, see “LIST OF COMPATIBLE SIGNALS”. ( page 52)
Example: AV equipment
Audio system
Getting started
S-VIDEO
O
IN
LAN
SERIAL
To audio input
AUDIO OUT
COMPUTER 1 IN
1
VIDEO IN
COMPUTER 2 IN
2
AUDIO IN
To video output or
audio output
DVD player
Video player
or
NOTE:
To S-VIDEO
output
• Switch the audio connection manually for more than one AV equipment connections.
18  ENGLISH
Connections (continued)
Example: Computers
Computer
(Controlling a projector)
Computer
Audio system
LAN
SERIAL
AUDIO OUT
AUDIO
Getting started
S-VIDEO
O
IN
COMPUTER 1 IN
1
VIDEO IN
2
AUDIO IN
COMPUTER 2 IN
Computer
(Controlling a projector)
Computer
NOTE:
• For the network connection between the projector and computers, see “Network Operation Manual” in the CD-ROM provided.
• Only the RGB signal cable (1 piece) is attached. If any other cables are necessary, purchase them from the market.
ENGLISH  19
Basic operations
Turn the projector ON or OFF
Power cord
Fix the provided “power cord secure lock” to the power cord on the projector to prevent the cord from
coming off.
For details, see “Precautions with regard to safety”. ( pages 7 to 11)
Install the “power cord secure lock”
Detach the “power cord secure lock”
1 Push the connector all the way into the AC
1 Unplug the power plug from the wall outlet.
IN terminal ensuring that the shape of the
connector matches that of the terminal.
2 Depress the latch and slide off the lock.
Latch
2 Align the side of the “power cord secure lock”
with the side of the “Rail guide” of the AC IN
terminal and slide it in.
3 Slide up the “power cord secure lock” and
remove it.
Rail guide
Basic operations
3 Latch to the latch catcher and press until it
clicks.
Rail guide
4 Hold the connector firmly and detach it from the
AC IN terminal.
Direct power on function
Latch
4 Connect the power plug to a wall outlet.
If the power cord is connected to a wall outlet with
INITIAL START UP (PROJECTOR SETUP menu)
is set to ON, projection will start even when the
control panel is disabled. ( page 39)
Direct power off function
You can switch off the electric power supply any
time by unplugging the power plug from the wall
outlet.
The internal cooling fan keeps operating using
the internal power supply and automatically stops
when cooled.
NOTE:
• Do not put the projector into the bags with the POWER
indicator lit.
20  ENGLISH
Turn the projector ON or OFF (continued)
POWER INDICATOR
INPUT
SELECT
STANDBY (R)
ON (G)
ENTER
POWER indicator
 shows status of the projector’s power
When the TEMP indicator flashes, the POWER indicator
lights red and you cannot turn the projector on.
LAMP
TEMP
MENU
POWER
indicatorFUNCTION
POWER indicator status
Indicator status
Status
Lit
Red
Green
No power is supplied and the internal cooling fan is not operating.
The power is turned off (when STANDBY MODE is set to ECO).
If [POWER] button is pressed, projection starts.
Flashing
The power is turned off (when STANDBY MODE is set to
NORMAL).
If [POWER] button is pressed, projection starts.
Flashing
The power is on and preparing for projection.
Lit
The projector is projecting.
Lit
No power supply and the power is preparing for being turned off.
It is turned off (The projection is set in STANDBY MODE) after a
while.
Orange
Flashing
The power is switched on again while cooling the lamp and
recovering to the projection mode. Recovery may take a while.
NOTE:
• When the power is turned off, the internal fan cools the lamp using internal power supply.
• The power is turned on again while cooling the lamp and recovers to the projection mode. Recovery may take a while.
• While the power is turned off (when STANDBY MODE is set to ECO, the POWER indicator is lit red), power of about 0.4 W is
consumed.
ENGLISH  21
Basic operations
No illumination or flashing
Turn the projector ON or OFF (continued)
Before switching on the projector, remove the lens cap.
How to install and remove lens cap
1 Match the lens cap with the lens from underside.
2 Push in the front part
of the claw until it clicks.
3 To remove, pull the claw
in the opposite direction to
installation.
1.
TURN THE PROJECTOR ON
STANDBY (R)
ON (G)
POWER indicator
AUTO
SETUP
2)
MENU
RETURN
ENTER
FREEZE
AV
MUTE
Basic operations
Before switching on the projector, make sure the mains lead and all the other devices are connected correctly.
( page 18)
1 Connect the power cord. ( page 20)
After a while the “power indicator” lights or
flashes in red.
2 Press the POWER button.
• POWER indicator flashes green several times
before it lights up and the STARTUP LOGO is
displayed. See STARTUP LOGO in DISPLAY
OPTION menu. ( page 36)
22  ENGLISH
NOTE:
• Confirm that CONTROL PANEL (when operating with
the projector body) or REMOTE CONTROLLER (when
operating with the remote control) under CONTROL
DEVICE SETUP in the SECURITY menu is set to ENABLE.
( page 44)
When setting the SECURITY menu, you will be asked to
input the password. ( page 42)
• When starting up the projector, some small rattling or
tinkling sound may be heard. These are normal and will not
affect the performance of the projector.
• When the internal cooling fan is operating, some operational
sound may be heard. The loudness of the operational
sound depends on the external temperature.
• If INITIAL START UP (PROJECTOR SETUP menu) is set
to ON, the projector starts projecting when the power cord is
connected to a wall outlet. ( page 39)
• If the projector is turned on again while the internal cooling
fan is still operating by the internal power supply, the display
may flicker due to the specifications of the lamp. These are
normal and will not affect the performance of the projector.
Turn the projector ON or OFF (continued)
TURN THE PROJECTOR OFF
STANDBY (R)
ON (G)
POWER indicator
AUTO
SETUP
1) 2)
MENU
RETURN
ENTER
FREEZE
AV
MUTE
When operating the projector, check the status of the POWER indicator. ( page 21)
A confirmation screen will be displayed – the
screen will go off and return to projection if there
is no operation for approximately 10 seconds.
2 Press the button again.
The lamp goes off and the projection stops.
• The cooling fan continues its rotation and
POWER indicator lights orange. Wait until the POWER indicator turns red.
• If STANDBY MODE is set to NORMAL, the
POWER indicator flashes red. ( page 39)
3 After the POWER indicator lights or flashes
in red, disconnect the power plug from the
socket. ( page 20)
• For urgency, you may disconnect the power
plug immediately since the DIRECT POWER
OFF function is installed.
NOTE:
• Confirm that CONTROL PANEL (when operating with
the projector body) or REMOTE CONTROLLER (when
operating with the remote control) under CONTROL
DEVICE SETUP in the SECURITY menu is set to ENABLE.
( page 44)
• Power can be turned off by pressing [POWER] for
at least 0.5 seconds.
ENGLISH  23
Basic operations
1 Press the POWER button.
Project an image
Preparations
• Confirm the connections of the peripheral devices
( page 18, 19) and power cord ( page 20).
• Switch on the power ( page 22) to start projecting.
• Select the input signal and adjust the image.
• Press the leg adjuster button and adjust
the vertical projection angle. Then, adjust the
projected image to the center of the screen.
SELECT THE INPUT SIGNAL
1 Switch on the connected devices.
When playing a connected DVD player, if SIGNAL
SEARCH (DISPLAY OPTION menu) is set to
ON, the input signal is detected and projected
automatically when the projector is switched on.
( page 37)
Leg adjuster
• Set the INPUT GUIDE (DISPLAY OPTION 
ON-SCREEN DISPLAY menu) to DETAILED. If
the projector cannot detect any input signal, the
“Computer connection guide” will be displayed.
( page 35)
2 Select an input signal.
The image selected with any of the [INPUT
SELECT] button is projected.
2 Adjust the projection focus.
• Turn the focus ring to adjust the projected image.
NOTE:
Basic operations
Focus ring
(FOCUS)
• Change the settings in the PICTURE menu according to the
connected device for example DVD, video tape, etc., to be
played. ( page 30)
• Confirm the aspect ratio of the screen and image.
Select the optimum aspect ratio. ( page 33)
POSITION THE IMAGE
When setting up the projector for the first time or
setting up at a new place, you must perform the
following operations.
1 Adjust the vertical angle of the projector.
• Place the projector at the right angle from the
screen.
24  ENGLISH
NOTE:
• If keystone distortion occurs, see KEYSTONE.
( page 32)
• If the focus is adjusted, the shape (distortion) of the
projected image changes. Adjust while checking the
balance between the general focus of the projected image
and shape (distortion).
Remote control operation
AV
MUTE
FREEZE
COMPUTER
VIDEO
DEFAULT FUNCTION
INDEX- WIN.
DIGITAL ZOOM
VOLUME
CAPTURE AN IMAGE
You can freeze the projected image and temporarily
stop the sound, regardless of the playing condition of
the connected device.
FREEZE
Press the button again to cancel it.
The image is distorted momentarily
when the projection is stopped and
restarted.
Stop the projection
temporarily
You can temporarily stop the projection and the sound
from the projector.
AV
MUTE
You can confirm the selected input terminal (from the
graphical input terminal guide on the upper right of the
screen), if INPUT GUIDE (DISPLAY OPTION 
ON-SCREEN DISPLAY menu) is set to DETAILED.
( page 35)
You can change the input with [].
It may take some time to change the image after the
input signal is switched.
NOTE:
• Input a compatible signal shown in the “LIST OF
COMPATIBLE SIGNALS”. ( page 52)
• For the input terminals, see “Connections”. ( page 18)
• The input guide automatically disappears when it is left
idle.
Press [INPUT SELECT] on the control panel to switch the
input in the following order. ( page 13)
COMPUTER1
COMPUTER2
VIDEO
S-VIDEO
SET UP THE IMAGE POSITION
AUTOMATICALLY
The projector automatically adjusts the SHIFT, DOT
CLOCK and CLOCK PHASE when an RGB signal is
input.
AUTO
SETUP
Press the button again to cancel it.
SWITCH THE INPUT SIGNAL
You can switch the input signal to be projected.
COMPUTER
COMPUTER
The options below are displayed
each time you press this button.
COMPUTER1
Signal input to COMPUTER1 IN
terminal
COMPUTER2
Signal input to COMPUTER2 IN
terminal
VIDEO
VIDEO
S-VIDEO
VIDEO
The options below are displayed each
time you press this button.
Screen
Projected image
NOTE:
• The SIGNAL SEARCH will be in operation when it is set to
ON. ( page 37)
• If the dot clock frequency is higher than 162 MHz, DOT
CLOCK and CLOCK PHASE can not be adjusted
automatically. ( page 32, 33)
• If the projected signal or image is too dark or blurred around
the edge, AUTO SETUP may stop the process before
completing the adjustment or adjust abnormally. Project a
much clearer or lighter image and try again.
Signal input to S-VIDEO IN terminal
Signal input to VIDEO IN terminal
ENGLISH  25
Basic operations
AUTO
SETUP
Remote control operation (continued)
RESET TO FACTORY DEFAULT
SETTINGS
INDEX-WINDOW display
To capture a new By default, the frozen
image and change image is displayed on the
the size in 3 ways. left and the subsequent
image is displayed on
the right.
You can reset most of the customized settings to the
factory default settings.
DEFAULT
To switch the
position.
For details, see “Reset to factory default settings”.
( page 28)
CONTROL SPEAKER VOLUME
Frozen Continuing
image image
Frozen Continuing
image image
Frozen Continuing
image image
Continuing Frozen
image image
You can control the volume of the built-in speakers
and output audio sound.
VOLUME
+ : increases the volume
- : decreases the volume
PROJECT AN IMAGE USING
INDEX-WINDOW
Basic operations
You can split a projected image into 2 windows using
INDEX-WINDOW. One frozen image is stored in
memory and displayed on the left side of the screen.
Projection continues for the other image on the right
side.
INDEX- WIN.
Projected
Press [RETURN] to escape.
26  ENGLISH
Frozen Continuing
image image
Frozen Continuing
image image
NOTE:
• The aspect ratio of the image is changed and becomes
vertically elongated.
• If you change the window size, the aspect ratio of the image
is changed. ( page 33)
• While in INDEX-WINDOW mode, press [ENTER] to
capture a new image and the frozen image’s window will be
updated.
• When capturing a quick moving picture, repeat several
times to get a stable picture.
Remote control operation (continued)
NOTE:
ENLARGE THE IMAGE
You can enlarge the projected image to the center
position by emphasizing within the range of 1× to 2×.
DIGITAL ZOOM
• When the COMPUTER signal is input, if FRAME LOCK in
the POSITION menu is OFF,
 enlargement range is 1× to 3×.
• When the COMPUTER signal is input, if FRAME LOCK in
the POSITION menu is ON,
 enlargement range is 1× to 2×.
• When another signal is input, the enlargement range is from
1× to 2× by 0.1.
• DIGITAL ZOOM mode is canceled when the input signal is
changed.
• During DIGITAL ZOOM mode, [AUTO SETUP], [FREEZE],
[DEFAULT], [INDEX-WINDOW] and [FUNCTION] (except
when AV MUTE is assigned) buttons are not available.
• The image is distorted momentarily when the image is
zoomed.
USE AN ASSIGNED FUNCTION
You can select a useful function from the list and assign
it to [FUNCTION] button as a shortcut.
Press [RETURN] or [MENU] to escape.
[DIGITAL ZOOM] button operation
MENU
Press “+”
(STANDARD)
FUNCTION
(MAXIMUM)
Press “” to shift the center point.
To display the onscreen menu (main
menu, sub-menu or
detailed menu).
For the menu
operation, see
“OPERATE THE
MENU”. ( page 28)
Press and hold for
at least 3 seconds.
When not using the [FUNCTION] button
1
Select DISABLE in FUNCTION BUTTON
(PROJECTOR SETUP menu).
2 Press [ENTER].
(Operation during
zoom mode)
3 Select OK.
4 Press [ENTER].
NOTE:
• For details, see FUNCTION BUTTON in PROJECTOR
SETUP menu. ( page 40)
ENGLISH  27
Basic operations
+ button: zooms in
- button: zooms out
Press “-”
FUNCTION
Settings
Menu operation
Reset to factory default settings
OPERATE THE MENU
During sub-menu screen display:
The items of the sub-menu currently
displayed are reset to the factory default
settings.
Depending on the selected input signals, some
items and functions may not be adjusted or
available. Some can be adjusted without any
signals.
DEFAULT
1
During called up item screen display:
Only the item adjusted currently is reset to the factory
default setting.
MENU
PICTURE MODE
POSITION
CONTRAST
LANGUAGE
BRIGHTNESS
DISPLAY OPTION
COLOR
PROJECTOR SETUP
TINT
SECURITY
SHARPNESS
NETWORK
STANDARD
COLOR TEMPERATURE
SELECT
RETURN
ENTER
FUNCTION
TV-SYSTEM
OFF
AUTO
KEYSTONE
POSITION
SHIFT
LANGUAGE
OVER SCAN
DISPLAY OPTION
ASPECT
NOTE:
• You cannot reset all the settings at one time to the factory
default settings.
• For resetting all the settings, see INITIALIZE ALL
(PROJECTOR SETUP menu). ( page 41)
• Not all menu items can be reset by pressing [DEFAULT].
Adjust each menu item manually.
2 Select the main menu item.
KEYSTONE
DEFAULT
AUTO
DAYLIGHT VIEW
NOISE REDUCTION
PROJECTOR SETUP
SECURITY
Current setting
NETWORK
SELECT
RETURN
ENTER
FUNCTION
3 Select the sub-menu item.
ENTER
Default setting
KEYSTONE
POSITION
SHIFT
LANGUAGE
OVER SCAN
DISPLAY OPTION
ASPECT
ON-SCREEN MENU
You can access other functions from operating this
menu by referring to “OPERATE THE MENU”.
( see left)
PROJECTOR SETUP
SECURITY
NETWORK
SELECT
DEFAULT
RETURN
Settings
4
The ON-SCREEN MENU displayed
consists of the main menu and sub-menu.
MENU
ENTER
FUNCTION
OR
ENTER
Press ▲▼ buttons to scroll to the required
ENTER
sub-menu item and press ◄► buttons
or the
ENTER button to adjust.
KEYSTONE
KEYSTONE
Main menu Sub-menu
PICTURE MODE
POSITION
CONTRAST
LANGUAGE
BRIGHTNESS
DISPLAY OPTION
COLOR
PROJECTOR SETUP
TINT
SECURITY
SHARPNESS
NETWORK
COLOR TEMPERATURE
DAYLIGHT VIEW
The selected menu is called up while other menu
item disappears from the screen.
SELECT
NOTE:
• Press [MENU] or [RETURN] to return to the previous menu.
Press repeatedly to exit from the menu mode and return to
the projection.
• Called up item will disappear after 5 seconds without any
operation and return to the menu mode.
• For the sub-menu items, see “SUB MENU” in the
ON-SCREEN MENU ( page 29).
28  ENGLISH
RETURN
NOISE REDUCTION
TV-SYSTEM
STANDARD
DEFAULT
AUTO
OFF
AUTO
ENTER
FUNCTION
Operating guidance Current settings
Menu operation (continued)
RGB (Still image) is input.
MAIN MENU
MENU
Sub-menu item
Main menu
Default
Page
DYNAMIC
30
CONTRAST
0
30
BRIGHTNESS
0
30
SHARPNESS
0
31
WHITE BALANCE RED*1
0
31
WHITE BALANCE GREEN*1
0
31
WHITE BALANCE BLUE
0
31
DEFAULT
31
DAYLIGHT VIEW
AUTO
31
RGB/YPBPR*
AUTO
32
PICTURE MODE
Sub-menu
ENTER
POSITION
*1
COLOR TEMPERATURE
LANGUAGE
DISPLAY OPTION
2
* Input signal is RGB.
*2 Input signal is RGB (VGA60).
1
PROJECTOR SETUP
NOTE:
SECURITY
• The factory default values vary depending on the PICTURE
MODE setting.
NETWORK
SUB MENU
Sub-menu item
Select the required sub-menu item and press ENTER to
display the detailed menu.
S-VIDEO/VIDEO/RGB (Moving image)*1/YPBPR signal
is input.
Default
Page
STANDARD
30
CONTRAST
0
30
BRIGHTNESS
0
30
COLOR
0
31
TINT
0
31
SHARPNESS
0
31
DEFAULT
31
AUTO
31
OFF
31
TV-SYSTEM*2
AUTO
31
RGB/YPBPR*3
AUTO
32
PICTURE MODE
COLOR TEMPERATURE
DAYLIGHT VIEW
NOISE REDUCTION*2
*1 RGB moving images can be projected only when the
following signals:
480i, 576i, 480p, 576p, 1 080/60i,
1 080/50i, 1 080/60p, 1 080/50p, 720/60p, 720/50p
*2 Input signal is S-VIDEO/VIDEO.
*3 Input signal is RGB/YPBPR.
Page
OFF
32
0
32
0
32
KEYSTONE
SHIFT*
PICTURE menu
Sub-menu item
REALTIME KEYSTONE
Default
1
DOT CLOCK*
0
32
CLOCK PHASE*1
0
33
OVER SCAN*
0
33
16:9
33
OFF
34
1
1
ASPECT
FRAME LOCK*
1
*1 The setting is activated or deactivated depending on
the input signal and the specific setting.
LANGUAGE menu
For details, see “LANGUAGE MENU”. (page 35)
DISPLAY OPTION menu
Sub-menu item
Default
Page
ON-SCREEN DISPLAY
—
35
STARTUP LOGO
ON
36
AUTO
37
AUTO SETUP
SIGNAL SEARCH
ON
37
BACK COLOR
BLUE
37
1
WIDE MODE*
AUTO
38
SXGA MODE*
SXGA
38
—
38
1
OTHER FUNCTIONS
* The setting is activated or deactivated depending on
the input signal and the specific setting.
1
ENGLISH  29
Settings
POSITION menu
Menu operation (continued)
PICTURE MENU
PROJECTOR SETUP menu
Sub-menu item
Default
Page
—
38
DISABLE
39
LAST MEMORY
39
FRONT/DESK
39
HIGH ALTITUDE MODE
OFF
39
STANDBY MODE
ECO
39
NORMAL
39
—
40
DEFAULT
40
STATUS
40
AUDIO SETTING
—
40
TEST PATTERN
—
41
INITIALIZE ALL
—
41
STATUS
NO SIGNAL SHUT-OFF
INITIAL START UP
INSTALLATION
LAMP POWER
LAMP RUNTIME
EMULATE
FUNCTION BUTTON
SECURITY menu
Sub-menu item
Default
Page
OFF
42
—
42
TEXT DISPLAY
OFF
42
TEXT CHANGE
—
42
OFF
43
MENU LOCK PASSWORD
—
43
CONTROL DEVICE SETUP
—
44
PASSWORD
PASSWORD CHANGE
MENU LOCK
Settings
NETWORK menu
Default
WIRED LAN
—
NAME CHANGE
—
NETWORK CONTROL
ON
STATUS
—
INITIALIZE
—
NOTE:
• Sub-menu items and the factory default settings vary
according to the selected input signal.
30  ENGLISH
MENU
MENU
RETURN
Control panel
RETURN
INPUT
SELECT
ENTER
FREEZE
FREEZE
COMPUTER
STANDBY (R)
ON (G)
ENTER
AV
MUTE
VIDEO
COMPUTER
AV
MUTE
INPUT
SELECT
STANDBY (R)
ON (G)
ENTER
LAMP
LAMP
TEMP
MENUTEMP
ENTER
FUNCTION
MENU
FUNCTION
VIDEO
DEFAULT FUNCTION
WIN.
DEFAULT
INDEX-FUNCTION
INDEX- WIN.
Set the selected item with [].
▌▌PICTURE
MODE
You can optimize the projected image depending on the
projection’s environment.
Change
Change setting
setting
Change
Change setting
setting
STANDARD
Setting for general image
DYNAMIC
Setting for brightness and
sharpness
BLACKBOARD
Setting for when projecting on a
blackboard
WHITE BOARD
Setting for when projecting on a
white board
NATURAL
Reproducing the original color of
the image
NOTE:
• It may take a while until the selected mode is stabilized.
▌▌CONTRAST
For details of items, see “Network Operation Manual”.
Sub-menu item
Remote control
You can adjust the contrast of the projected image.
Change
Lower
setting
Change
Higher
setting
▌▌BRIGHTNESS
You can adjust the brightness of the projected image.
Change
Darker
setting
Change
Brighter
setting
Menu operation (continued)
▌▌DAYLIGHT
▌▌COLOR
You can adjust the color saturation of the projected
image. (For S-VIDEO/VIDEO/RGB (Moving image)/
YPBPR input signal only)
Change
Lighter
setting
You can keep the projected image bright and vivid even
in well-lit rooms where the ambient light sources cannot
be controlled.
Change
Change setting
setting
Change
Darker
setting
AUTO
▌▌TINT
You can adjust the skin tone of the projected image.
(For S-VIDEO/VIDEO/RGB (Moving image)/YPBPR
input signal only)
Change
More reddish
setting
Change
More greenish
setting
▌▌SHARPNESS
You can adjust the sharpness of the projected image.
Change
Less sharp
setting
VIEW
Change
Change setting
setting
Automatic adjustment
ON
Active
OFF
Deactive
NOTE:
• Do not cover the Ambient Luminance Sensor(ALS) of the
projector, otherwise the AUTO mode may not function
properly.
• AUTO is not available when INSTALLATION in
PROJECTOR SETUP menu is set to REAR/DESK or
REAR/CEILING.
▌▌NOISE
REDUCTION
You can switch the automatic noise reduction system
on/off. (For S-VIDEO/VIDEO input signal only)
Change
More sharp
setting
Change
Change setting
setting
NOTE:
Change
Change setting
setting
• The adjustable range depends on the input signal.
BALANCE
You can adjust the white balance in 3-color
temperature. (For RGB (Still image) input signal only)
Change
-1
setting
Change
+1
setting
Advanced menu item
▌▌COLOR
Default
WHITE BALANCE
RED
0
WHITE BALANCE
GREEN
0
WHITE BALANCE
BLUE
0
TEMPERATURE
DEFAULT
Balanced white
HIGH
More bluish
LOW
More reddish
No noise reduction
ON
Automatic noise reduction
NOTE:
• If NOISE REDUCTION is set active when the selected input
signal has less noise, the image may look different from the
true image. If so, set to OFF.
▌▌TV-SYSTEM
Switch the setting manually to match the video data.
(For S-VIDEO/VIDEO input signal only)
Change
Change setting
setting
AUTO
You can adjust the white balance of the projected
image.
Change
Change setting
setting
OFF
Change
Change setting
setting
SECAM
Change
Change setting
setting
NTSC
PAL-N
NTSC4.43
PAL-M
PAL
NOTE:
• AUTO mode is selected by default.
• When the projector is not working properly in AUTO mode,
change the setting according to each TV system type.
• AUTO setting will automatically select the compatible
signal from NTSC/NTSC 4.43/PAL/PAL60/PAL-M/PAL-N/
SECAM.
ENGLISH  31
Settings
▌▌WHITE
Menu operation (continued)
▌▌RGB/YPBPR
▌▌KEYSTONE
(For RGB/YPBPR input signal only)
Select the signals to be input to the COMPUTER 1 IN
and COMPUTER 2 IN terminals.
Change
Change setting
setting
Change
Change setting
setting
AUTO
Automatic adjustment
RGB
For RGB signals
YPBPR
If you need to correct the angle of the projection even
when the REALTIME KEYSTONE is activated, you can
correct the keystone manually.
Operation
ENTER
For YPBPR signals
ENTER
NOTE:
• AUTO mode is selected by default.
• Select RGB or YPBPR according to the input signal if the
image is not normally projected during AUTO mode.
The function only becomes effective when certain signals
are input:
(VGA60, 480i, 576i, 480p, 576p, 1 080/60i, 1 080/50i,
1 080/60p,1 080/50p, 720/60p, 720/50p)
POSITION MENU
Remote control
MENU
RETURN
MENU
Control panel
ENTER
SHIFT
COMPUTER
STANDBY (R)
ON (G)
ENTER
AV
MUTE
FREEZE
VIDEO
COMPUTER
DEFAULT FUNCTION
WIN.
INDEX-FUNCTION
DEFAULT
AV
MUTE
INPUT
SELECT
STANDBY (R)
ON (G)
ENTER
LAMP
LAMP
TEMP
MENUTEMP
FUNCTION
MENU
ENTER
FUNCTION
VIDEO
INDEX- WIN.
Settings
Set the selected item with [].
▌▌REALTIME
If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled
surface; the keystone will be automatically corrected.
Change
Change setting
setting
OFF
Deactive
ON
Active
H
0
V
0
Press [] to move the image
horizontally.
Press [] to move the image
vertically.
• This function can be adjusted by pressing the 
buttons directly.
CLOCK
If there are interference patterns on the projected image
(referred as moire or noise), minimize it by pressing
[] to adjust the clock frequency. (For RGB (Still
image) input signal only)
Change
Change setting
setting
• If the detected inclination of the projector is within 5
degrees upward/downward from the level, the KEYSTONE
correction is not carried out automatically even if the
REALTIME KEYSTONE is ON.
• If you need to correct the keystone, you can correct the
distortion manually by adjusting the KEYSTONE.
32  ENGLISH
Horizontal (H):
Vertical (V):
NOTE:
▌▌DOT
KEYSTONE
NOTE:
▌▌SHIFT
RETURN
INPUT
SELECT
FREEZE
NOTE:
• You can correct the distortion ±10 ° from the plane.
• For a better image quality, install the projector to minimize
distortion.
• The result of the keystone correction will affect the aspect
ratio and the size of the image.
• The image is distorted momentarily when the keystone is
corrected.
NOTE:
• DOT CLOCK needs to be adjusted before adjusting the
CLOCK PHASE.
Menu operation (continued)
▌▌CLOCK
4:3
PHASE
If you require further adjustment for the same reason as
the DOT CLOCK adjustment, you can further adjust the
timing of the clock. (For RGB/YPBPR input signal only)
Press ◄► buttons to adjust.
Standard input signal*1  projection is 4:3 aspect ratio.
Input signal: XGA
NOTE:
• If the projecting signal’s dot clock frequency is higher than
162 MHz, adjusting DOT CLOCK or CLOCK PHASE may
not make any difference. Refer to “LIST OF COMPATIBLE
SIGNALS”. ( page 52)
▌▌OVER
SCAN
Use this function when characters or pictures are
cropped near the periphery of the projected image.
(For S-VIDEO/VIDEO/RGB (Moving image)/YPBPR
input signal only)
Change
Zoom out
setting
Change
Zoom in
setting
Image:
16:9
Standard input signal*1  projection is 16:9 aspect
ratio.
Wide input signal*2  projection is the current aspect
ratio.
Input signal: 1 080/60i
Setting range: 0 to +3
▌▌ASPECT
You can manually switch to the desired aspect ratio.
Selectable options vary according to input signal.
AUTO
Change
Change setting
setting
4:3
THROUGH
S4:3
HV FIT
Panel:
H FIT
16:9
Standard input signal*1  projection without changing
the aspect ratio uses all the panel pixels in the
horizontal direction to crop the top and bottom of the
image.
H FIT
Input signal: SXGA
Settings
Change
Change setting
setting
Image:
V FIT
NOTE:
• AUTO mode is displayed only when NTSC/480i signal is
input.
• THROUGH mode is displayed only for certain signals.
• For the wide signal*2, the aspect ratio option cycles through
16:9 ↔ V FIT ↔ HV FIT.
AUTO (For NTSC/480i input signal only)
The signal which contains an identifying signal will be
detected and will automatically project the image in the
most optimal aspect setting.
Image:
*1 A standard signal has an aspect ratio of 4:3 or
5:4.
*2 A wide signal has an aspect ratio of 16:10, 16:9 or
15:9.
ENGLISH  33
Menu operation (continued)
V FIT
THROUGH
Wide input signal*2  projection without changing the
aspect ratio uses all the panel pixels in the vertical
direction to crop the right and left of the image.
The image will be projected without any size
adjustment.
This function can be set when the input signal is smaller
than the number of the LCD panel pixels (1024 x 768).
Input signal: 1 080/60i
Input signal: NTSC
Image:
Image:
NOTE:
HV FIT
The image is projected all over the panel pixels
(screen). The input signal is projected at the aspect
ratio of the panel screen.
Input signal: 1 080/60i
• When a 4:3 image is projected to 16:9 screen, the image
may be distorted or some portions may be cropped. Select
an aspect ratio (4:3) which retains the creator’s intended
image.
• The order of ASPECT types is defined not only by the input
method but also by the input signals.
• If you project an enlarged or distorted copyrighted image
using the ASPECT function for commercial use in a public
place, you might infringe the copyright of the creator which
is protected by the copyright law.
▌▌FRAME
Image:
LOCK
If the projected image is bad, you can activate FRAME
LOCK for synchronization. (For RGB input signal only)
S4:3
Standard input signal*1  the input signal will be sized
down 75% and projected. S4:3 mode is effective when
projecting 4:3 image onto a 16:9 screen.
Input signal: XGA
Settings
Image:
Panel:
Panel:
Screen:
*1 A standard signal has an aspect ratio of 4:3 or
5:4.
*2 A wide signal has an aspect ratio of 16:10, 16:9 or
15:9.
34  ENGLISH
Change
Change setting
setting
ON
Active
OFF
Deactive
Change
Change setting
setting
Menu operation (continued)
LANGUAGE MENU
DISPLAY OPTION MENU
Select the required language.
Remote control
Control panel
Remote control
MENU
MENU
MENU
RETURN
FREEZE
FREEZE
ENTER
AV
MUTE
STANDBY (R)
ON (G)
AV
MUTE
LAMP
TEMP
COMPUTER
VIDEO
COMPUTER
DEFAULT FUNCTION
WIN.
INDEXFUNCTION
DEFAULT
RETURN
RETURN
RETURN
INPUT
SELECT
ENTER
MENU
Control panel
VIDEO
STANDBY (R)
ON (G)
INPUT
SELECT
INPUT
SELECT
FREEZE
ENTER
FUNCTION
MENU
FREEZE
ENTER
AV
MUTE
STANDBY (R)
ON (G)
STANDBY (R)
ON (G)
LAMP
LAMP
TEMP
TEMP
MENU
AV
MUTE
ENTER
LAMP
MENU
TEMP
ENTER
FUNCTION
COMPUTER
COMPUTER
VIDEO
ENTER
FUNCTION
MENU
INPUT
SELECT
ENTER
FUNCTION
VIDEO
FUNCTION
DEFAULT
DEFAULT FUNCTION
WIN.
INDEX-
INDEX- WIN.
INDEX- WIN.
Set the selected item with [].
POSITION
LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
SECURITY
NETWORK
▌▌ON-SCREEN
You can set the on-screen display.
Change
Change setting
setting
Change
Change setting
setting
RETURN
ENTER
FUNCTION
INPUT GUIDE
Set the display method of the input terminal name
currently selected in the upper right corner of the
screen.
POSITION
LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
SECURITY
NETWORK
DETAILED
RETURN
ENTER
OFF
The set language is highlighted.
SIMPLE
Display the input method using
graphic.
The INPUT GUIDE will go off if
there is no operation after
10 seconds.
Turn off the guide.
Display the input method using
text.
The INPUT GUIDE will go off if
there is no operation after
5 seconds.
ENGLISH  35
Settings
SELECT
SELECT
DISPLAY
Menu operation (continued)
Computer connection guide
You can switch the output signals from COMPUTER1/
COMPUTER2 terminal by pressing the following
computer command keys.
Manufacturer
Image output
selection
command
Panasonic
NEC
SAMSUNG
HP
acer
SHARP
TOSHIBA
+
+
+
Manufacturer
Image output
selection
command
lenovo
LG
SONY
+
DELL
EPSON
+
FUJITSU
+
Apple
NOTE:
• The command keys depend on the manufacturers.
For detailed information, please refer to the instructions
provided with the computers.
• If you want to turn off the computer connection guide, select
SIMPLE or OFF.
OSD DESIGN
You can change the background of the on-screen menu
(OSD).
TYPE1
Semi transparent black
TYPE2
Solid blue
TYPE3
Semi transparent dark blue
Settings
WARNING MESSAGE
You can choose to or not to display the warning
messages.
ON
Warning messages will be
displayed
OFF
No display
NOTE:
• When the WARNING MESSAGE is set to OFF, use the
projector with utmost care as most of the warning messages
will not be displayed.
36  ENGLISH
▌▌STARTUP
LOGO
You can set the Panasonic logo, your own image
or Pre-set letters to be displayed at the start of the
projection.
Change
Change setting
setting
ON
Change
Change setting
setting
Display “Panasonic” logo
TEXT
Display the original text
USER
Display the image registered by the
user
OFF
NOTE:
No display
• If TEXT is selected, the input letters are displayed at the
start of the projection. You can display 2 lines of original text
which contains up to 40 characters each.
• If USER is selected, the image transferred by the Logo
Transfer Software is displayed at the start of the projection.
(You can install the Logo Transfer Software from the
provided CD-ROM.)
• STARTUP LOGO will be displayed for 30 seconds.
Menu operation (continued)
▌▌AUTO
1 Press [] to select TEXT and then press
[ENTER].
2 Press [] to select the desired line and then
press [ENTER].
You can input and edit the text for the first line in
TEXT1 and the text for the second line in TEXT2.
SETUP
AUTO mode is selected by default.
If you do not need to perform automatic correction,
select “BUTTON”.
Change
Change setting
setting
STARTUP LOGO
TEXT1
When the projector detects
COMPUTER signal, SHIFT, DOT
CLOCK and CLOCK PHASE in the
POSITION menu is automatically set.
AUTO
TEXT2
OK
CANCEL
SELECT
RETURN
ENTER
3 Press [] to select the desired character
and then press [ENTER].
To delete all the input characters, move the cursor
to ALL DELETE and then press [ENTER].
To delete a character, press [DEFAULT] or move
the cursor to select the character then press
[DEFAULT].
TEXT CHANGE
ALL DELETE
SPACE
OK
SELECT
DELETE
CANCEL
RETURN
ENTER
4 Select OK and then press [ENTER] to set the
input text in the box.
5 Select OK again and then press [ENTER].
Select CANCEL or press [MENU/RETURN] to
return to the previous menu without any setting.
Change
Change setting
setting
BUTTON
▌▌SIGNAL
Only when [AUTO SETUP] is pressed,
SHIFT, DOT CLOCK and CLOCK
PHASE in POSITION menu will be
automatically set for COMPUTER
signals. ( page 25)
SEARCH
You can turn off the auto signal detection.
Change
Change setting
setting
Change
Change setting
setting
ON
Detects the input signal from the
terminals and projects the image
OFF
Deactive
NOTE:
• SIGNAL SEARCH is not available during any input signal
projection.
▌▌BACK
COLOR
You can choose BLUE or BLACK screen for the
projector when it is idle.
Change
Change setting
setting
BLUE
Display blue screen
BLACK
Display black screen
Change
Change setting
setting
ENGLISH  37
Settings
Editing the original text
Menu operation (continued)
▌▌WIDE
INDEX-WINDOW
MODE
Set this mode when projecting wide signals (16:9,
16:10, 15:9).
Change
Change setting
setting
AUTO
Change
Change setting
setting
For 4:3 signals
ON
For WIDE signals
[] button: zoom in
[] button: zoom out
DIGITAL ZOOM
▌▌SXGA MODE
Set this mode when an SXGA signal is input and the
projected image is trimmed.
Change
Change setting
setting
SXGA+
DIGITAL ZOOM
Automatic setting
OFF
SXGA
For details, see “INDEX-WINDOW display”.
( page 26)
Change
Change setting
setting
For normal projection
1.5
Press [ENTER] to select the enlargement.
Press [MENU] to escape.
The image is distorted momentarily when the image is
zoomed.
PROJECTOR SETUP MENU
Remote control
MENU
MENU
RETURN
For projection when image is cropped
INPUT
SELECT
ENTER
▌▌OTHER
RETURN
Control panel
FUNCTIONS
You can perform some of the remote control button
operations from the sub-menu.
FREEZE
FREEZE
COMPUTER
STANDBY (R)
ON (G)
ENTER
AV
MUTE
VIDEO
COMPUTER
DEFAULT FUNCTION
WIN.
INDEXFUNCTION
DEFAULT
AV
MUTE
STANDBY (R)
ON (G)
LAMP
LAMP
TEMP
MENU
TEMP
FUNCTION
MENU
ENTER
FUNCTION
VIDEO
INDEX- WIN.
AUTO SETUP
Set the selected item with [].
For details, see “SET UP THE IMAGE POSITION
AUTOMATICALLY”. ( page 25)
▌▌STATUS
Settings
FREEZE
ENTER
INPUT
SELECT
You can check the projector’s status.
You can capture the projected image as a still picture.
While the image is frozen, the audio sound through the
projector will stop.
Press [RETURN] to escape.
The image is distorted momentarily when the projection
is stopped and restarted.
SIGNAL
AV MUTE
PROJECTOR  Display the projector’s current usage
time
LAMP  Display the lamp’s current usage time
You can temporarily stop projection and audio sound
when the projector is left idle.
Press [MENU] to escape.
38  ENGLISH
NAME  Name of input signal
FREQUENCY  Scanning frequency of input signal
RUNTIME
Menu operation (continued)
▌▌HIGH ALTITUDE
SIGNAL SHUT-OFF
If no image signal is input for the time set using the
timer, the projector will automatically enter into standby
mode.
Change
Change setting
setting
DISABLE
15 – 60
MIN.
▌▌INITIAL
Change
Change setting
setting
NO SIGNAL SHUT-OFF is disabled
Timer can be set at a 5-minute intervals
START UP
You can set the starting method when the power plug is
connected to wall outlet.
Change
Change setting
setting
Change
Change setting
setting
LAST
MEMORY
Projector starts from the last image
before the power plug was disconnected
STANDBY
Projector starts in the standby mode
ON
Projector starts immediately
▌▌INSTALLATION
When installing the projector, select the projection
method according to the projector’s position.
( page 17)
Change
Change setting
setting
MODE
If you use the projector at high elevation, the HIGH
ALTITUDE MODE setting need to be ON to set the fan
speed to high.
Change
Change setting
setting
Change
Change setting
setting
OFF
Use in normal environment
(below 1 400 m (4 593 ft) above sea
level)
ON
Use at high altitude
(at 1 400 m – 2 700 m (4 593 - 8 858 ft)
above sea level)
NOTE:
• The loudness of fan noise depends on the HIGH
ALTITUDE MODE setting.
▌▌STANDBY
MODE
You can change the standby mode setting.
Change
Change setting
setting
Change
Change setting
setting
ECO
The standby power is reduced to 0.4 W
to save power
NORMAL
The power of the projector can be
turned ON and the audio output can be
set active by controlling the computer
connected via wired LAN in standby
mode
Change
Change setting
setting
▌▌LAMP
POWER
You can adjust the power of the lamp to save electricity,
prolong the lamp life and reduce the noise.
Change
Change setting
setting
Change
Change setting
setting
NORMAL
When higher luminance is required
ECO
When lower luminance is sufficient
NOTE:
• This function is disabled when no input signal is detected.
• ECO setting is recommended when higher luminance is not
required such as in a small room.
ENGLISH  39
Settings
▌▌NO
Menu operation (continued)
▌▌LAMP
▌▌FUNCTION
RUNTIME
You can check how long the lamp has been used.
NOTE:
• LAMP RUNTIME is important for lamp replacement timing.
See “REPLACE THE LAMP UNIT”. ( page 47)
• Check the lamp unit replacement time. ( page 47)
• If the lamp runtime has reached 3 800 hours, the red and
gray marks appear alternately to notify you of the lamp
replacement time.
• The lamp life varies depending on the usage condition
(number of power-on times, etc.).
▌▌EMULATE
When the projector is controlled by a computer through
serial input terminal, you can change the setting to use
the former projector control commands.
1
ENTER
2
To select the required setting.
BUTTON
You can select a useful function from the list and assign
it to [FUNCTION] button as a short-cut.
MENU
FUNCTION
To display the on-screen
menu (main menu, submenu or detailed menu).
For the menu operation,
see “OPERATE THE
MENU”.
( page 28)
Press and hold for
at least 3 seconds.
When not using the [FUNCTION] button ( page 27)
NOTE:
• The text and button color will change once the setting has
completed.
▌▌AUDIO
SETTING
You can perform detailed setting for Audio.
3
VOLUME
ENTER
• DEFAULT
Settings
D3500
D4000
D/W5K series
D/W/Z6K series
L730
L780
L735
L785
F/W series
NOTE:
ST10 Series
LB2 Series
LB1 Series
LB75 Series
LB78 Series
LB80 Series
LB90 Series
D3500
D4000
D5500 Series
DW5000 Series
D5600 Series
DW5100 Series
D5700 Series
D5000 Series
D6000 Series
DW6300 Series
DZ6700 Series
DZ6710 Series
L520 Series
L720 Series
L730 Series
L750 Series
L780 Series
L735 Series
L785 Series
F100 Series
FW100 Series
F200 Series
F300 Series
FW300 Series
• Some commands are not available. For details, please
contact your dealer.
40  ENGLISH
You can adjust the volume of the built-in speakers and
audio output sound.
Change
-1
setting
Change
+1
setting
BALANCE
You can adjust to listen to the sound played equally
from both right and left external stereo speakers, or
adjust the balance so that more sound plays from either
the left or right side.
Change
Left
setting
Change
Right
setting
Menu operation (continued)
IN STANDBY MODE
▌▌TEST
You can turn ON or OFF the audio output in standby
mode.
Change
Change setting
setting
Deactive
ON
Active
ENTER
To display the test pattern.

Change
Change pattern
setting
NOTE:
• When STANDBY MODE is set to ECO, the audio output
cannot be activated in the standby mode, even if ON is
selected.
Change
Change pattern
setting
Press [MENU] or [RETURN] to return to the
PROJECTOR SETUP menu, or press repeatedly to
escape the menu mode.
NOTE:
You can select the AUDIO IN 1 or AUDIO IN 2 terminal
to connect the audio output of the devices connected to
COMPUTER 1 IN or COMPUTER 2 IN.
Change
Change setting
setting
AUDIO IN SELECT
COMPUTER1 IN
Select AUDIO IN 1 or
AUDIO IN 2 terminal
COMPUTER2 IN
Select AUDIO IN 1 or
AUDIO IN 2 terminal
• The initial screen is an all white pattern. Only when TEST
PATTERN is assigned to the [FUNCTION] button, the lattice
pattern will be displayed as the initial screen.
▌▌INITIALIZE ALL
You can reset all of the customized settings in MENU to
the factory default.
• If the [ENTER] is pressed in the INITIALIZE ALL
menu, “INITIALIZE ALL” will be displayed. Select
OK and press [ENTER], “NOW INITIALIZING... ” is
displayed followed by “POWER OFF” display.
Select OK and turn the power off according to the
instruction. (All other buttons are deactivated.)
• The LANGUAGE and INITIAL SETTING menu
screen will be displayed when the power is
connected. ( page 12)
NOTE:
• The usage time of the projector, lamp runtime and the
NETWORK settings will not be initialized.
• When PASSWORD in SECURITY menu is activated,
ensure to enter the correct password when initializing.
• After INITIALIZE ALL operation is completed, the password
is reset to the factory default setting and PASSWORD
setting is turned OFF.
ENGLISH  41
Settings
AUDIO IN SELECT
Change
Change setting
setting
You can use the 7 different test patterns to adjust the
focus of the image.
Change
Change setting
setting
OFF
PATTERN
Menu operation (continued)
▌▌PASSWORD
SECURITY MENU
CHANGE
You can change the password.
Remote control
MENU
MENU
RETURN
Control panel
RETURN
INPUT
SELECT
FREEZE
COMPUTER
ENTER
ENTER
FREEZE
AV
MUTE
VIDEO
COMPUTER
DEFAULT FUNCTION
WIN.
INDEXFUNCTION
DEFAULT
1
STANDBY (R)
ON (G)
AV
MUTE
STANDBY (R)
ON (G)
LAMP
LAMP
TEMP
MENU
TEMP
ENTER
FUNCTION
MENU
INPUT
SELECT
ENTER
FUNCTION
VIDEO
To change the password.
(Up to 8 button operations can be set.)
2
ENTER
3
ENTER
Input the password again and press
the button.
INDEX- WIN.
NOTE:
Set the selected item with [].
When you use SECURITY menu for the first time, you
will be asked to perform the password operation. Input
the initial password by pressing [] in
this order and then press [ENTER].
NOTE:
• If you have changed the password, input the new password
and press [ENTER].
• The entered password operations will appear as asterisks in
the box.
• If the password input second does not match with the
password input first, an error message is displayed. In this
case, input the correct password again.
▌▌TEXT
You can set your original text to display regularly at the
bottom of the projected image during projection.
Change
Change setting
setting
▌▌PASSWORD
You can activate the security system and the password
operation will be asked to perform when projection
mode starts.
Change
Change setting
setting
OFF
Deactive
ON
Active
Settings
NOTE:
Change
Change setting
setting
• PASSWORD is set to OFF by default and when initialized.
• Change your password regularly. Do not use a simple
password that is easy to decode.
• Unless you perform the correct password operation, all of
the control buttons will be disabled except the [POWER]
button.
42  ENGLISH
DISPLAY
Change
Change setting
setting
OFF
Deactive
ON
Active
▌▌TEXT
CHANGE
You can enter your original text to be displayed when
TEXT DISPLAY is turned ON.
1
ENTER
To select
the characters
(You can input up to 22 characters.)
To delete all the entered characters, move the
cursor to ALL DELETE and press [ENTER].
Menu operation (continued)
To delete a character, press [DEFAULT] or move the
cursor to the required character then press [DEFAULT].
▌▌MENU
You can set a MENU LOCK PASSWORD.
1
TEXT CHANGE
ALL DELETE
SELECT
DELETE
ENTER
To select
the characters
(You can input up to 16 characters.)
To delete all the entered characters, move the
cursor to ALL DELETE and press [ENTER].
To delete a character, press [DEFAULT] or move
the cursor to the required character then press
[DEFAULT].
SPACE
OK
LOCK PASSWORD
CANCEL
RETURN
ENTER
MENU LOCK PASSWORD
2
ENTER
ALL DELETE
To select
OK
Select CANCEL or press [MENU/RETURN] to
return to the previous menu without setting.
SPACE
OK
LOCK
Press [MENU] to display the menu. You can lock or
unlock the menu operation.
Change
Change setting
setting
Change
Change setting
setting
OFF
Unlock the menu operation
ON
Lock the menu operation
NOTE:
• Once MENU LOCK is set to ON, you cannot use the
[MENU] button unless you input the correct password.
• The MENU LOCK is set to OFF by default and when
initialized.
DELETE
2
CANCEL
RETURN
ENTER
ENTER
To select
OK
Select CANCEL or press [MENU/RETURN] to
return to the previous menu without setting.
NOTE:
• When using the projector for the first time or after
INITIALIZE ALL operation is activated, the initial password
is set to AAAA.
• Change your password regularly. Do not use a simple
password that is easy to decode.
• To reset the password to the initial password, see MENU
LOCK PASSWORD. ( page 54)
ENGLISH  43
Settings
▌▌MENU
SELECT
Menu operation (continued)
▌▌CONTROL
DEVICE SETUP
NETWORK MENU
You can enable/disable the button operations of the
control panel and remote control.
Remote control
Change
Change setting
setting
Change
Change setting
setting
CONTROL PANEL
ENABLE
Enable the button operations
DISABLE
Disable the button operations
REMOTE CONTROLLER
ENABLE
Enable the button operations
DISABLE
Disable the button operations
NOTE:
Settings
• If DISABLE is selected and [ENTER] is pressed, the
confirmation screen appears. Select OK and press
[ENTER].
• If any button is pressed after CONTROL PANEL is set
to DISABLE, the password screen appears. Input the
password which is set in the SECURITY menu. (If no
operation is done, the password screen disappears in 10
seconds.)
• If you set both CONTROL PANEL and REMOTE
CONTROLLER to DISABLE, all buttons' operations of
the control panel and remote control are disabled and you
cannot turn off the power.
How to clear DISABLE:
During the standby mode or projection, press and
hold [ENTER] and [MENU] for at least 2 seconds, and
CONTROL PANEL is set to ENABLE.
Change the setting of REMOTE CONTROLLER with the
control panel.
MENU
MENU
RETURN
Control panel
RETURN
INPUT
SELECT
ENTER
FREEZE
COMPUTER
FREEZE
STANDBY (R)
ON (G)
ENTER
AV
MUTE
VIDEO
COMPUTER
DEFAULT FUNCTION
WIN.
INDEXFUNCTION
DEFAULT
AV
MUTE
STANDBY (R)
ON (G)
LAMP
LAMP
TEMP
MENUTEMP
ENTER
FUNCTION
MENU
INPUT
SELECT
ENTER
FUNCTION
VIDEO
INDEX- WIN.
Set the selected item with [].
NOTE:
• These items are set for network connection with a
computer. For details of the PJ Link and network, see
“Network Operation Manual”.
WIRED LAN
You can set up a wired LAN.
NAME CHANGE
You can change the name of the projector.
NETWORK CONTROL
When controlling the projector with a computer on the
network, you must turn this function ON.
STATUS
You can display the status of the network setting.
INITIALIZE
You can reset the settings of the network to the factory
default settings.
NOTE:
• If PASSWORD (SECURITY menu) is activated, when the
network setting is initialized, you will be required to input the
password.
44  ENGLISH
Maintenance
LAMP and TEMP indicators
The LAMP and/or TEMP indicators will light up to indicate that the projector has some problems.
NOTE:
• Make sure to turn off the power (see “TURN THE PROJECTOR OFF” on page 23) and confirm the power supply status with
the POWER indicator. ( page 21)
INPUT
SELECT
STANDBY (R)
ON (G)
ENTER
LAMP indicator
LAMP
TEMP
TEMP indicator
MENU
FUNCTION
Manage the problem as follows:
LAMP INDICATOR
Indicator
•Illuminating red
•Flashing red
Problem
LAMP RUNTIME has
reached 3 800 hours.
LAMP circuit failure, abnormal function or the lamp unit is damaged.
Cause
Remedy
Lamp unit will run out soon The projector is
and needs to be replaced. turned on again too
soon.
LAMP circuit failure,
abnormal function.
Lamp unit is damaged.
See “REPLACE THE
LAMP UNIT”. ( page 47)
Turn the projector off
( page 23) and
contact an Authorized
Service Center.
See “REPLACE THE
LAMP UNIT”.
( page 47)
Let the lamp unit
cool down and turn
on the projector after
90 seconds.
NOTE:
• If the LAMP indicator still lights or flashes after the above remedy, contact an Authorized Service Center.
TEMP INDICATOR
•Illuminating red while projecting and the alert will be displayed.
•Flashing red and power is turned off.
Problem
The temperature inside and/or outside the projector is abnormally high.
•The projection may become darker than usual.
•The internal fan’s operational noise may be louder than usual.
Cause
The air outlet port and The room temperature The filter is excessively
air intake ports are
is too high.
dirty and the ventilation
covered.
is poor.
Remedy
Remove object(s)
from the air outlet port
and air intake ports
or clear around the
projector.
Reinstall the projector
in temperature
controlled place.
( page 56)
Clean the filter in a
proper method.
( page 46)
The projector is located
at 1 400 - 2 700 m
(4 593 - 8 858 ft).
Turn on the projector*1
and set the HIGH
ALTITUDE MODE to
ON. ( page 39)
*1 The projector will operate for 2 minutes with OFF set at high elevation.
NOTE:
• Perform the above remedy; disconnect the power plug, and then supply the power again. If the TEMP indicator still lights or
flashes after the above remedy, contact an Authorized Service Center.
• If temperature in the projector rises, the fan speed increases and the sound becomes louder.
ENGLISH  45
Maintenance
Indicator
Care and replacement
Preparations
Before cleaning, be sure to turn off the power and disconnect the power plug from the wall outlet.
( page 20, 23)
CLEANING THE PROJECTOR
Cabinet
Wipe off dirt and dust gently with a soft cloth.
• If it is difficult to remove the dirt, wipe the projector with a damp cloth. Dry off the projector with dry cloth.
• Do not use petroleum benzine, thinner, any alcoholic solvent, kitchen detergents or chemical cloths. Failure to
observe these may result in altered or damaged surfaces of the projector.
Projector lens
Make sure no dirt or dust remains on the surface of the projector lens glass. It will be enlarged and projected onto
the screen.
Wipe off dirt and dust gently with a lint-free cloth. Do not wipe the projector lens with a cloth which has collected
dust.
NOTE:
• Clean the projector lens with special care.
Air filter
If the air filter is excessively dirty, the internal temperature of the projector increases, the TEMP indicator lights, and
the power is turned off.
If the power is turned off, the TEMP indicator flashes.
Clean the air filter regularly every 100 hours of usage.
1 Remove the air filter.
While pressing the tab of the air filter, pull the air filter
open slowly.
Tab
2 Clean the air filter.
Vacuum dirt and dust from the air filter.
Air filter
Maintenance
3 Install the air filter.
Install in the reverse order to 1).
NOTE:
• Do not use the projector without attaching the air filter. Otherwise, it will suck in dirt and dust which can cause malfunction.
• The TEMP indicator may flash because of clogging within 100 hours, depending on the using environment. In that case, clean
the air filter at shorter intervals.
46  ENGLISH
Care and Replacement (continued)
REPLACE THE LAMP UNIT
Air filter
The air filter should be replaced when cleaning is ineffective and when replacing the lamp unit. A replacement air
filter is provided with a replacement lamp unit (ET-LAB2). Contact an Authorized Service Center for the air filter
(TXFKN01VKN5).
Lamp unit
The lamp unit, ET-LAB2 is consumable and you must replace it regularly. It is recommended that a qualified
technician carry the lamp unit replacement. Consult with an Authorized Service Center.
Note on lamp unit replacement
• Handle the lamp unit with special care as the lamp is made of glass.
Dropping or giving it a shock may cause it to burst or damaged.
• If you wish to discard the used lamp, please contact your local
authorities or dealer and ask for the correct method of disposal.
• Prepare a Phillips-head screwdriver.
• When replacing the lamp unit, be sure to hold it by the handle.
• Hold the lamp unit horizontally to prevent broken pieces from scattering.
When the projector is mounted in the ceiling, do not work
directly under the projector or put your face close to the projector.
Pull out the lamp vertically.
NOTE:
• Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.
• Do not attempt replacement of an unauthorized lamp unit.
• The model Nos. of the accessories and the parts sold separately are subject to change without notice.
Lamp unit replacement time
When the lamp has expired, the brightness may decrease over time. 4 000 hours of use is a rough guide
of the replacing time and that might be shortened due to usage conditions, specifications of the lamp unit
or environmental conditions. You can check the duration of usage time by checking LAMP RUNTIME in the
PROJECTOR SETUP menu. Do not use a lamp unit over 5 000 hours. Failure to observe this may result in
explosion of the lamp.
ON-SCREEN DISPLAY
LAMP indicator
3 800 hours
5 000 hours
Display “REPLACE LAMP” at the upper left of the screen for
30 seconds. If any button is pressed within 30 seconds, the
message disappears.
Display “REPLACE LAMP” at the upper left of the screen,
and it will stay until you respond. The power is turned off
automatically in 10 minutes.
Illuminates red, even in the
standby mode.
NOTE:
• The guide time, 4 000 hours, is a rough estimate based on certain conditions and is not a guaranteed time.
ENGLISH  47
Maintenance
REPLACE LAMP
Care and Replacement (continued)
Lamp replacement procedure
• When the projector is mounted in the ceiling, do not work directly under the projector or put your face close to the
projector.
• Be sure to install the lamp unit and attach the lamp unit cover securely. If they are not securely installed, it may
cause the protection circuit to operate and the power cannot be turned on.
1 Disconnect the power plug from the wall outlet
according to “TURN THE PROJECTOR OFF”
( page 23), wait for at least 1 hour and check
the bottom if the lamp unit has cooled.
4 Press in the lamp unit until it clicks and make
sure the unit is installed securely. Tighten the
2 lamp unit screws securely with a Phillipshead screwdriver.
During insertion, particularly press the
portion
securely.
2 Use a Phillips-head screwdriver to loosen the
1 lamp unit cover screw on the back of the
projector until the screw loosen and remove
the lamp unit cover.
Lamp unit cover screw
S-VIDEO
IN
Lamp unit cover
Lamp unit screws
AUDIO OUT
COMPUTER 1 IN
1
VIDEO IN
2
AUDIO IN
COMPUTER 2 IN
Rear side
5 Attach the lamp unit cover and tighten the
1 lamp unit cover screw securely with a
Phillips-head screwdriver.
6 Connect the power cord to a wall outlet.
7 Press [POWER] to begin projection.
NOTE:
Lamp unit cover
Top side
3 Use a Phillips-head screwdriver to loosen the
2 lamp unit screws. Pull the used lamp unit
gently from the projector.
• If INITIAL START UP in the PROJECTOR SETUP menu
is set to ON, the projector starts projecting when the power
cord is connected to a wall outlet. ( page 39)
8
MENU
Maintenance
To display the main
menu.
Lamp unit screws
Handles
48  ENGLISH
To scroll to the
PROJECTOR SETUP
menu.
Care and Replacement (continued)
9
NOTE:
• If any button other than the [POWER] is pressed, the
LAMP RUNTIME screen disappears and the lamp
runtime is not reset. (Repeat from step 8 again).
ENTER
To select the
PROJECTOR SETUP
menu.
ENTER
Press and hold for
approximately
3 seconds.
11
After the lamp goes off,
projection stops and the
[POWER] button on the main
unit lit red. Disconnect the power
plug.
The lamp runtime has been
reset to “0”.
LAMP RUNTIME
LAMP RUNTIME RESET.
OK
PRESS
BUTTON
CANCEL PRESS ANY OTHER BUTTON
Maintenance
10
To select LAMP
RUNTIME.
ENGLISH  49
References
Troubleshooting
Confirm the following problem and cause.
If the suggested solutions do not solve the problem, contact an Authorized Service Center.
Problem
Cause
Page
References
Power does not turn
on.
zz The power cord may not be connected securely.
zz No electric supply at the wall outlet.
zz The circuit breakers have tripped.
zz TEMP or LAMP indicator is lit or flashes.
zz The lamp unit cover has not been securely installed.
zz CONTROL PANEL in the PROJECTOR SETUP menu is invalidated.
No picture appears.
zz The lens cover is not removed.
zz The input terminal may not be connected properly.
zz The input selection setting may not be correct.
zz The BRIGHTNESS adjustment setting may be at the minimum setting.
zz The signal input source may not be operating properly.
zz The AV MUTE function may be in use.
The picture is fuzzy.
zz The lens focus may not have been set correctly.
zz The projector may not be at the correct distance from the screen.
zz The lens may be dirty.
zz The projector may be tilted too much.
24
16
46
24
Color is pale or
grayish.
zz COLOR or TINT adjustment may be incorrect.
zz The input source which is connected to the projector may not be
adjusted correctly.
31
—
No sound can be
heard from the internal
speaker.
zz The audio signal may not be connected properly.
zz The volume adjustment may be at the lowest possible setting.
zz A cable may be connected to the AUDIO OUT terminal.
The remote control
does not operate.
zz The batteries may be weak.
zz The batteries may not have been inserted correctly.
zz The remote control signal receptor on the projector may be obstructed.
zz The remote control unit may be out of the operation range.
zz REMOTE CONTROLLER in the PROJECTOR SETUP menu is
invalidated.
zz The remote control is under a strong light such as fluorescent.
—
15
15
15
44
The control buttons of
the projector do not
operate.
zz CONTROL PANEL in the PROJECTOR SETUP menu is invalidated.
(If you have a loss of the remote control while the CONTROL PANEL
is invalidated, press and hold [MENU] for 2 seconds by pressing
[ENTER].)
44
The picture does not
display correctly.
zz The signal format (TV-SYSTEM, RGB/YPBPR) may not have been set
correctly.
zz There may be a problem with the VCR or other signal source.
zz A signal which is not compatible with the projector is being input.
31, 32
Picture from a
computer does not
appear.
zz The RGB signal cable is too long. (Limit to 10 m (32' 10").)
zz The external video output from a laptop computer may not be correct.
(You may be able to change the external output settings by pressing
the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method
varies depending on the type of computer; refer to the documentation
provided with your computer for further details.)
—
36
zz EMULATE in the PROJECTOR SETUP menu is not set correctly.
(If you fail to select your product series, ask your dealer for repair.)
40
The projector cannot
be controlled through
serial terminal.
50  ENGLISH
20
—
—
45
48
44
—
18, 19
24
30
—
25
18, 19
26, 40
14
15
—
52
Dimensions
307.3 (12 - 3/32")
Unit:mm
327 (12 - 7/8")
124.2 (2 - 7/8")
69 (2 - 23/32")
11(7/16")
51.3 (2 - 1/32")
69.2 (2 - 23/32")
214.5 (8 - 7/16")
Trademark acknowledgements
• VGA and XGA are trademarks of International Business Machines Corporation.
• S-VGA is a registered trademark of the Video Electronics Standards Association.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.
• The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh
Company, Ltd.
References
All other trademarks are the property of the various trademark owners.
ENGLISH  51
Technical information
LIST OF COMPATIBLE SIGNALS
This projector can project the following image signals.
Mode
NTSC/NTSC4.43/
PAL-M/PAL60
PAL/PAL-N/SECAM
525i (480i)
625i (576i)
525p (480p)
625p (576p)
1 125 (1 080)/60i
1 125 (1 080)/50i
1 125 (1 080)/60p
1 125 (1 080)/50p
750 (720)/60p
750 (720)/50p
VESA
VGA
SVGA
MAC
XGA
MXGA
MAC
MSXGA
SXGA
SXGA60+
UXGA
WIDE750 (720)
WXGA768
WXGA800
References
WXGA+
WSXGA+
WUXGA
Display resolution Scanning frequency
(dots)*1
H (kHz)
V (Hz)
Dot clock
frequency
(MHz)
quality*2
720 × 480i
15.7
59.9
—
A
720 × 576i
720 × 480i
720 × 576i
720 × 483
720 × 576
1 920 × 1 080i
1 920 × 1 080i
1 920 x 1 080p
1 920 x 1 080p
1 280 × 720
1 280 × 720
640 × 400
640 × 400
640 × 480
640 × 480
640 × 480
640 × 480
640 × 480
800 × 600
800 × 600
800 × 600
800 × 600
800 × 600
832 × 624
1 024 × 768
1 024 × 768
1 024 × 768
1 024 × 768
1 024 × 768
1 152 × 864
1 152 × 864
1 152 × 864
1 152 × 870
1 280 × 960
1 280 × 1 024
1 280 × 1 024
1 280 × 1 024
1 400 × 1 050
1 400 × 1 050
1 600 × 1 200
1 280 × 720
1 280 × 720
1 280 × 768
1 280 × 768
1 280 × 800
1 280 × 800
1 280 × 800
1 440 × 900
1 680 × 1 050
1 920 × 1 200
15.6
15.7
15.6
31.5
31.3
33.8
28.1
67.5
56.3
45
37.5
31.5
37.9
31.5
35
37.9
37.5
43.3
35.2
37.9
48.1
46.9
53.7
49.7
39.6
48.4
56.5
60
68.7
64
67.5
77.1
68.7
60
64
80
91.1
64
65.1
75
44.8
37.1
39.6
47.8
41.3
49.1
49.7
55.9
65.3
74.6
50
59.9
50
59.9
50
60
50
60.0
50.0
60
50
70.1
85.1
59.9
66.7
72.8
75
85
56.3
60.3
72.2
75
85.1
74.6
50.1
60
70.1
75
85
71.2
74.9
85
75.1
60
60
75
85
60
59.9
60
59.9
49.8
49.9
59.9
50
60.2
59.8
59.9
60
59.9
—
13.5
13.5
27
27
74.3
74.3
148.5
148.5
74.3
74.3
25.2
31.5
25.2
30.2
31.5
31.5
36
36
40
50
49.5
56.3
57.3
51.9
65
75
78.8
94.5
94.2
108
119.7
100
108
108
135
157.5
108
122.4
162
74.5
60.5
65.3
79.5
68
69.1
83.5
106.5
146.3
193.3
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
AA
AA
AA
AA
AA
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
*1 The “i” appearing after the resolution indicates an interlaced signal.
*2 The following symbols are used to indicate picture quality.
AA: Maximum picture quality can be obtained.
A : Signals are converted by the image processing circuit before picture is projected.
B : Some loss of data occurs to make projection easier.
*3 The signals marked with circles (O) can be applied by plug-and-play device.
52  ENGLISH
PnP
availability*3
Terminals
VIDEO/S-VIDEO
RGB/YPBPR
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
RGB
O
O
O
O
O
O
O
O
O
O
Technical Information (continued)
SERIAL TERMINAL
The serial connector which is on the connector panel of the projector conforms to the RS-232C interface
specifications. The projector can be controlled by a personal computer which is connected to this connector.
Connection
Computer
D-Sub 9-pin (male)
S-VIDEO
IN
SERIAL
LAN
Serial
terminal
(female)
AUDIO OUT
COMPUTER 1 IN
1
VIDEO IN
2
AUDIO IN
COMPUTER 2 IN
Pin assignments and signal names
Pin No.
Signal name
①
⑥
⑨
NC
②
TXD
Transmitted data
③
RXD
Received data
④
NC
⑤
①
GND
⑥
⑤
Contents
Earth
NC
⑦
RTS
⑧
CTS
⑨
Connected internally
NC
Communication settings
Signal level
RS-232C
Character length
8 bits
Sync.method
Asynchronous
Stop bit
1 bit
Baud rate
9 600 bps
X parameter
None
Parity
None
S parameter
None
Basic format
STX
Command
Start byte
(02 h)
:
Parameter
1 byte
3 bytes
1 bytes - 4 bytes
ETX
End
(03 h)
The data streaming from the computer will start with
STX, and proceed to Command, Parameter and end
with ETX.
You can add the required parameter.
ENGLISH  53
References
NOTE:
• The projector cannot receive any command for 10 seconds after the lamp is switched on. Wait for 10 seconds before sending
the command.
• For multiple commands, check the projector if the response has been sent for one command before sending the next
command.
• When a command which does not require parameters to be sent, the colon (:) is not required.
• If an incorrect command is sent from the personal computer, an ER401 command will be sent from the projector to the
personal computer.
Technical Information (continued)
Cable specifications
(When connected to a personal computer)
PC
(DTE)
Projector
Control commands
The following commands are used for control of the projector with a computer. (Operation commands)
Command
Control contents
Remarks
PON
Power on
POF
Power off
• The PON command is ignored during lamp ON control.
• If a PON command is received while the cooling fan is operating after the lamp has switched off,
the lamp is not turned back on again straight away in order to protect the lamp.
AVL
Volume
Parameter:
000 - 063 (Adjustment value 0 - 63)
IIS
Input
Parameter:
VID = VIDEO
SVD = S-VIDEO
RG2 = COMPUTER 2 IN
Q$S
Lamp condition
query
OSH
AV mute
Call back:
0 = Standby
RG1 = COMPUTER 1 IN
1 = Lamp on control active
2 = Lamp on
3 = Lamp off control active
Turn off the projection and sound temporarily.
Send the command to switch between off and on. ( page 25)
Do not send the command consecutively.
0 = Off
1 = On
NOTE:
• If STANDBY MODE is set to ECO, only PON and Q$S command can be used in the standby mode.
MENU LOCK PASSWORD
To reset the password to the default setting AAAA, perform the following when the MENU LOCK PASSWORD
request screen is displayed.
1)Press and hold the <AUTO SETUP> button of the remote control or the <INPUT SELECT> button of the
control panel and the▲button of the control panel together for at least 2 seconds.
2)Press and hold▼button for at least 2 seconds.
PASSWORD HAS BEEN INITIALIZED. is displayed on the MENU LOCK PASSWORD request screen.
References
54  ENGLISH
Specifications
Power supply
AC 100 - 240 V
Power consumption
300 W
During standby (when fan is stopped):
0.4 W (STANDBY MODE: ECO)
15 W *1 (STANDBY MODE: NORMAL)
Current
50 Hz/60 Hz
3.5 A - 1.2 A
LCD panel
Panel size (diagonal)
0.63 type (16.00 mm)
Aspect ratio
4:3
Display method
3 transparent LCD panels (RGB)
Drive method
Active matrix method
Pixels
786 432 (1 024 × 768) × 3 panels
Fixed focus/Manual focus
F 1.80, f 6.74 mm
Lens
Lamp
UHM lamp (220 W)
Luminosity *
Scanning
frequency *3
(for RGB signal)
Horizontal scanning
frequency
15 kHz - 91 kHz
Vertical scanning
frequency
50 Hz - 85 Hz
Dot clock frequency
Less than 170 MHz
COMPONENT (YPBPR) signals
525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/60p,
750 (720)/50p, 1 125 (1 080)/60i, 1 125 (1 080)/50i, 1 125(1 080)/60p,
1 125(1 080)/50p
Color system
7 (NTSC/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)
Projection size
60" - 110" (1 524 mm - 2 794 mm)
Optical axis
10:-0.5 fixed
Throw distance
0.60 m - 1.14 m (2' 0" - 3' 9")
Screen aspect ratio
4:3
Installation
FRONT/DESK, FRONT/CEILING, REAR/DESK, REAR/CEILING
(Menu selection method)
Speaker
1 piece 4 cm × 2 cm (1 5/8" × 3/4")
Max. useable volume output
1.0 W (Monaural)
S-VIDEO IN
Single - line, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω
VIDEO IN
Single - line, RCA pin jack
1.0 V [p-p], 75 Ω
COMPUTER IN
Dual - line, D-Sub HD 15-pin (female)
zzRGB input
R.G.B.:
0.7 V [p-p], 75 Ω
G-SYNC:
1.0 V [p-p], 75 Ω
HD, VD/SYNC: TTL high impedance, automatic positive/negative
polarity compatible
zzYPBPR/YCBCR input
Y: 1.0 V [p-p] (include sync), 75 Ω
PB/CB, PR/CR: 0.7 V [p-p], 75 Ω
AUDIO IN
Dual - line, 0.5 V [rms], M3 jack (Stereo MINI)
AUDIO OUT
Single - line, M3 jack (Stereo MINI)
Monitor output/stereo compatible
0 V [rms] - 2.0 V [rms] (variable)
SERIAL
Single - line, D-Sub 9-pin RS-232C compatible
LAN (RJ-45)
Single - line, 10Base-T/100Base-TX
Terminals
*1 When “IN STANDBY MODE” in AUDIO SETTING menu is ON: 18 W.
*2 Measurement, measuring conditions and method of notation all comply with ISO21118 international standards.
*3 See “LIST OF COMPATIBLE SIGNALS” on page 52 for available signals.
ENGLISH  55
References
2 800 lm
2
Specifications (continued)
Cabinet
Moulded plastic (PC+ABS)
Dimensions
zzWidth: 327 mm (12 7/8")
zzHeight: 124 mm (4 7/8")
zzLength:307 mm (12 3/32")
(not including surface projection parts)
Weight
Approx. 3.1 kg (6.8 lbs.) *4 (Excluding lens cap)
Operating environment
zzTemperature: 0 °C - 40 °C (32 °F - 104 °F)
When the HIGH ALTITUDE MODE ( page 39) is set to
ON: 0 °C - 35 °C (32 °F - 95 °F)
zzHumidity:
20 % - 80 % (no condensation)
Certifications
EN60950-1, EN55022, EN61000-3-2, EN61000-3-3, EN55024
Remote control
Options *5
Power supply
3 V DC (AAA/R03 battery × 2)
Operating range
Approx. 7 m (23' 0") (when operated directly in front of signal receptor)
Weight
Approx. 64 g (2.3 ozs.) (including batteries)
Dimensions
zzWidth: 45.6 mm (1 25/32")
zzLength:115 mm (4 17/32")
zzHeight: 21.4 mm (27/32") (not including surface projection parts)
Ceiling bracket
ET-PKB2
Air Filter Unit
ET-KFB2
* Average value. Each product has an individual variability in weight.
*5 The model Nos. of the accessories and parts sold separately are subject to change without notice.
4
References
56  ENGLISH
Ceiling mount bracket safeguards
When installing the ceiling mount bracket to the projector, install the accessory Drop-prevention bracket (Safety
cables) to the projector.
(The projector will still be safe if they are not used, however they will help prevent the possibility of accidents
caused by the projector falling down if the screws happen to become loose.)
Model No. of ceiling mount bracket: ET-PKB2
Installation work of the ceiling mount bracket should only be carried by a
qualified technician according to the following procedure.
zz Panasonic takes no responsibility for any losses or damage occurring as a result of using a ceiling mount bracket
not manufactured by Panasonic, or if damage to the projector occurs as a result of an inappropriate location
used for installing the ceiling mount bracket, even if the projector’s warranty period has not yet expired.
zz Use a torque screwdriver or similar tool to tighten the screws. Do not use tools such as electric screwdrivers or
impact screwdrivers.
zz An unused ceiling mount bracket should be removed promptly by qualified technician.
zz Do not use the screw holes of the front leg adjusters for the projector installation.
zz Do not attach the safety cable to the burglar hook port and suspend the projector on it.
zz For how to install wire ropes to the ceiling, see the installation manual for the ceiling mount bracket.
zz The part numbers of accessories and separately sold components are subject to change without notice.
INSTALLING THE SAFETY CABLE
1 Install the ceiling mount bracket according to the installation instructions.
M4 × 0.7
9 mm
Torque: 1.25 ± 0.2 N.m
2 Loop the security cable around the ceiling mount bracket with less slack.
Lace the cable of the end with a latch through the loop on the other end of the cable.
References
Pass through
the ring
ENGLISH  57
Ceiling mount bracket safeguards (continued)
3 Attach the latch on to the projector with a provided screw.
Torque: 1.25 ± 0.2 N.m
References
58  ENGLISH
Index
A
K
S
ASPECT............................................. 33
AUDIO SETTING................................ 40
AUTO SETUP..................................... 37
AV MUTE............................................ 25
KEYSTONE........................................ 32
SCREEN SIZE AND THROW
DISTANCE...................................... 16
SECURITY......................................... 10
SECURITY MENU.............................. 42
SELECT THE INPUT SIGNAL............ 24
SERIAL TERMINAL............................ 53
SHARPNESS..................................... 31
SHIFT................................................. 32
SIGNAL SEARCH.............................. 37
Specifications..................................... 55
STANDBY MODE............................... 39
STARTUP LOGO................................ 36
STATUS.............................................. 38
SUB MENU......................................... 29
SUPPLIED ACCESSORIES............... 11
SXGA MODE...................................... 38
BACK COLOR.................................... 37
BRIGHTNESS.................................... 30
C
CAUTIONS ON USE.......................... 10
CAUTIONS WHEN INSTALLING......... 9
CAUTIONS WHEN TRANSPORTING.... 9
CLEANING AND MAINTENANCE...... 11
CLEANING THE PROJECTOR.......... 46
CLOCK PHASE.................................. 33
COLOR............................................... 31
COLOR TEMPERATURE................... 31
COMPUTER....................................... 25
Connections....................................... 18
CONTRAST........................................ 30
CONTROL DEVICE SETUP............... 44
D
DAYLIGHT VIEW................................ 31
DEFAULT............................................ 26
Dimensions......................................... 51
DISPLAY OPTION MENU.................. 35
DISPOSAL.......................................... 11
DOT CLOCK....................................... 32
E
EMULATE........................................... 40
ENLARGE THE IMAGE...................... 27
F
FRAME LOCK.................................... 34
FREEZE............................................. 25
FUNCTION BUTTON................... 27, 40
H
HIGH ALTITUDE MODE..................... 39
I
Important Safety Notice........................ 2
INDEX-WINDOW................................ 26
INITIALIZE ALL................................... 41
INITIAL SETTING............................... 12
INITIAL START UP............................. 39
INSTALLATION.................................. 39
LAMP INDICATOR............................. 45
LAMP POWER................................... 39
LAMP RUNTIME................................ 40
LANGUAGE MENU............................ 35
LANGUAGE....................................... 12
LIST OF COMPATIBLE SIGNALS...... 52
M
MAIN MENU....................................... 29
MENU LOCK...................................... 43
MENU LOCK PASSWORD.......... 43, 54
N
NETWORK MENU.............................. 44
NOISE REDUCTION.......................... 31
NO SIGNAL SHUT-OFF..................... 39
O
ON-SCREEN DISPLAY...................... 35
ON-SCREEN MENU.......................... 28
OPERATE THE MENU....................... 28
OTHER FUNCTIONS......................... 38
OVER SCAN...................................... 33
P
PASSWORD....................................... 42
PASSWORD CHANGE...................... 42
PICTURE MENU................................ 30
PICTURE MODE................................ 30
POSITION MENU............................... 32
POSITION THE IMAGE...................... 24
POWER CORD.................................. 20
POWER indicator status..................... 21
PROJECTION METHOD.................... 17
PROJECTOR SETUP MENU............. 38
PROJECTOR’S MAIN UNIT............... 13
PROJECTOR’S REMOTE
CONTROL...................................... 15
T
TABLE OF CONTENTS........................ 5
TEMP INDICATOR............................. 45
TEST PATTERN................................. 41
TEXT CHANGE.................................. 42
TEXT DISPLAY.................................. 42
TINT.................................................... 31
Troubleshooting.................................. 50
TURN THE PROJECTOR OFF.......... 23
TURN THE PROJECTOR ON............ 22
TV-SYSTEM....................................... 31
V
VOLUME............................................ 26
W
WHITE BALANCE.............................. 31
WIDE MODE...................................... 38
R
REALTIME KEYSTONE..................... 32
Remote control operation................... 25
REPLACE THE LAMP UNIT.............. 47
RGB/YPBPR........................................ 32
References
B
L
ENGLISH  59
EEE Yönetmeliğine Uygundur.
EEE Complies with Directive of Turkey.
F0610-0
TQBJ0333
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
