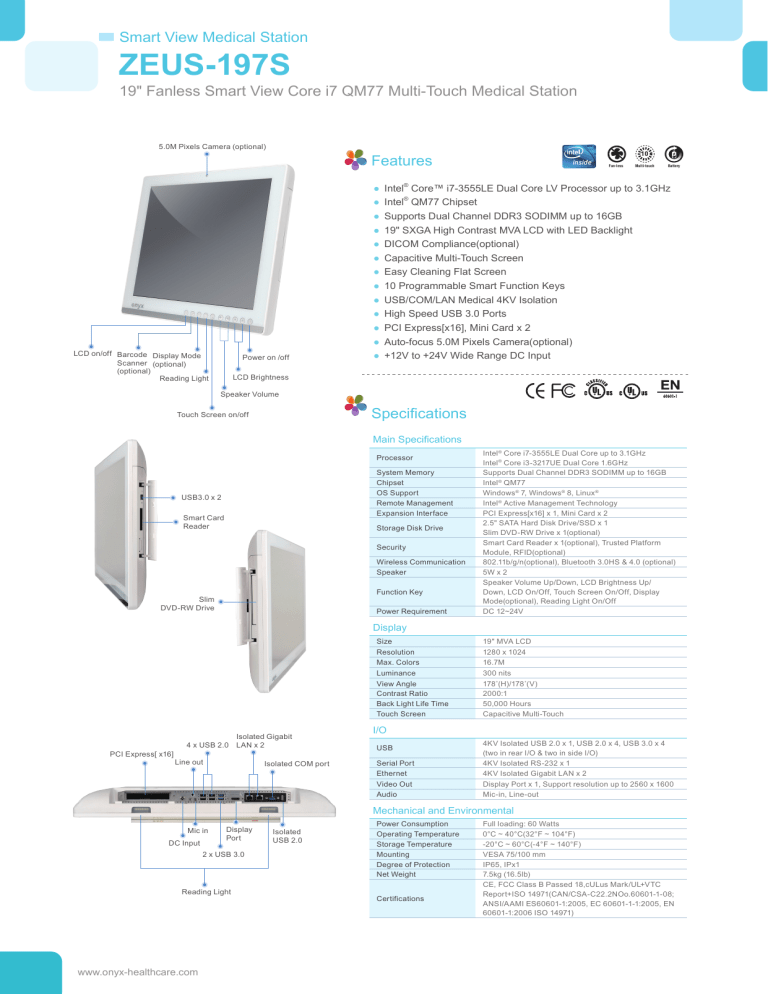

ZEUS-197S
Smart View Medical Station
ZEUS-197S 19" Fanless Smart View Core i7 QM77 Multi-Touch Medical Station
5.0M Pixels Camera (optional)
10
Features
LCD on/off Barcode Display Mode
Scanner (optional)
(optional)
Reading Light
Power on /off
Fan-less
Multi-touch
Battery
●● Intel® Core™ i7-3555LE Dual Core LV Processor up to 3.1GHz
●● Intel® QM77 Chipset
●● Supports Dual Channel DDR3 SODIMM up to 16GB
●● 19" SXGA High Contrast MVA LCD with LED Backlight
●● DICOM Compliance(optional)
●● Capacitive Multi-Touch Screen
●● Easy Cleaning Flat Screen
●● 10 Programmable Smart Function Keys
●● USB/COM/LAN Medical 4KV Isolation
●● High Speed USB 3.0 Ports
●● PCI Express[x16], Mini Card x 2
●● Auto-focus 5.0M Pixels Camera(optional)
●● +12V to +24V Wide Range DC Input
LCD Brightness
Speaker Volume
Specifications
Touch Screen on/off
Main Specifications
Processor
System Memory
Chipset
OS Support
Remote Management
Expansion Interface
USB3.0 x 2
Smart Card
Reader
Storage Disk Drive
Security
Wireless Communication
Speaker
Function Key
Slim
DVD-RW Drive
Power Requirement
Intel ® Core i7-3555LE Dual Core up to 3.1GHz
Intel ® Core i3-3217UE Dual Core 1.6GHz
Supports Dual Channel DDR3 SODIMM up to 16GB
Intel ® QM77
Windows ® 7, Windows ® 8, Linux ®
Intel ® Active Management Technology
PCI Express[x16] x 1, Mini Card x 2
2.5" SATA Hard Disk Drive/SSD x 1
Slim DVD-RW Drive x 1(optional)
Smart Card Reader x 1(optional), Trusted Platform
Module, RFID(optional)
802.11b/g/n(optional), Bluetooth 3.0HS & 4.0 (optional)
5W x 2
Speaker Volume Up/Down, LCD Brightness Up/
Down, LCD On/Off, Touch Screen On/Off, Display
Mode(optional), Reading Light On/Off
DC 12~24V
Display
PCI Express[ x16]
Isolated Gigabit
4 x USB 2.0 LAN x 2
Line out
Isolated COM port
Size
Resolution
Max. Colors
19" MVA LCD
1280 x 1024
16.7M
Luminance
300 nits
View Angle
Contrast Ratio
Back Light Life Time
Touch Screen
178˚(H)/178˚(V)
2000:1
50,000 Hours
Capacitive Multi-Touch
I/O
Serial Port
4KV Isolated USB 2.0 x 1, USB 2.0 x 4, USB 3.0 x 4
(two in rear I/O & two in side I/O)
4KV Isolated RS-232 x 1
Ethernet
4KV Isolated Gigabit LAN x 2
Video Out
Audio
Display Port x 1, Support resolution up to 2560 x 1600
Mic-in, Line-out
USB
Mechanical and Environmental
Mic in
DC Input
Display
Port
2 x USB 3.0
Reading Light
www.onyx-healthcare.com
Isolated
USB 2.0
Power Consumption
Operating Temperature
Storage Temperature
Mounting
Degree of Protection
Net Weight
Certifications
Full loading: 60 Watts
0°C ~ 40°C(32°F ~ 104°F)
-20°C ~ 60°C(-4°F ~ 140°F)
VESA 75/100 mm
IP65, IPx1
7.5kg (16.5lb)
CE, FCC Class B Passed 18,cULus Mark/UL+VTC
Report+ISO 14971(CAN/CSA-C22.2NOo.60601-1-08;
ANSI/AAMI ES60601-1:2005, EC 60601-1-1:2005, EN
60601-1:2006 ISO 14971)
66
450
66
USB 3.0
388
100
75
Smart Card
Mic
In
USB
USB
159
144
SD Card
DC-IN Line
Out
USB 3.0
Display Port
Ordering Information
»» ZEUS-197ST-A1-1010
Medical Station.i7-3555LE.19" MVA 300nits LCD.DC 12~24V.PCT.4GB RAM
»» ZEUS-197ST-A2-1010
Medical Station.i7-3555LE.19" MVA 300nits LCD.DICOM.DC 12~24V.PCT.4GB RAM
»» ZEUS-197ST-A3-1010
Medical Station.i3-3217UE.19" MVA 300nits LCD.DC 12~24V.PCT.4GB RAM
»» ZEUS-197ST-A4-1010
Medical Station.i3-3217UE.19" MVA 300nits LCD.DICOM.DC 12~24V.PCT.4GB RAM
Optional Accessories
»»1757213000
»»TF-OPM-H01S
Medical Power Adapter, 130W, 24V
Desktop Stand with VESA 75/100, 265-330mm Height
»»OPM-C02W-A2
»»OPM-V00T-A0
Mini Card WLAN Kit, IEEE 802.11 a/b/g/n
Color calibrator for DICOM Calibration
»»OPM-C03W-A2
»»OPM-S01R-A1
Mini Card WLAN Kit, IEEE 802.11b/g/n + Bluetooth 3.0HS & 4.0
»»OPM-T003-A1
Slim Slot-in DVD-RW Drive
»»OPM-T004-A1
5M Pixels Auto-Focus Camera
RFID Reader
»»OPM-S01B-A1
1D Barcode Scanner
»»OPM-S01B-A2
2D Barcode Scanner
»»OPM-T006-A1
Smart Card Reader Kit
*Note: All specifications are subject to change without notice.
Smart View Medical Station >> ZEUS-197S / 19" Fanless Smart View Core i7 QM77 Multi-Touch Medical Station
Dimension / Unit: mm
