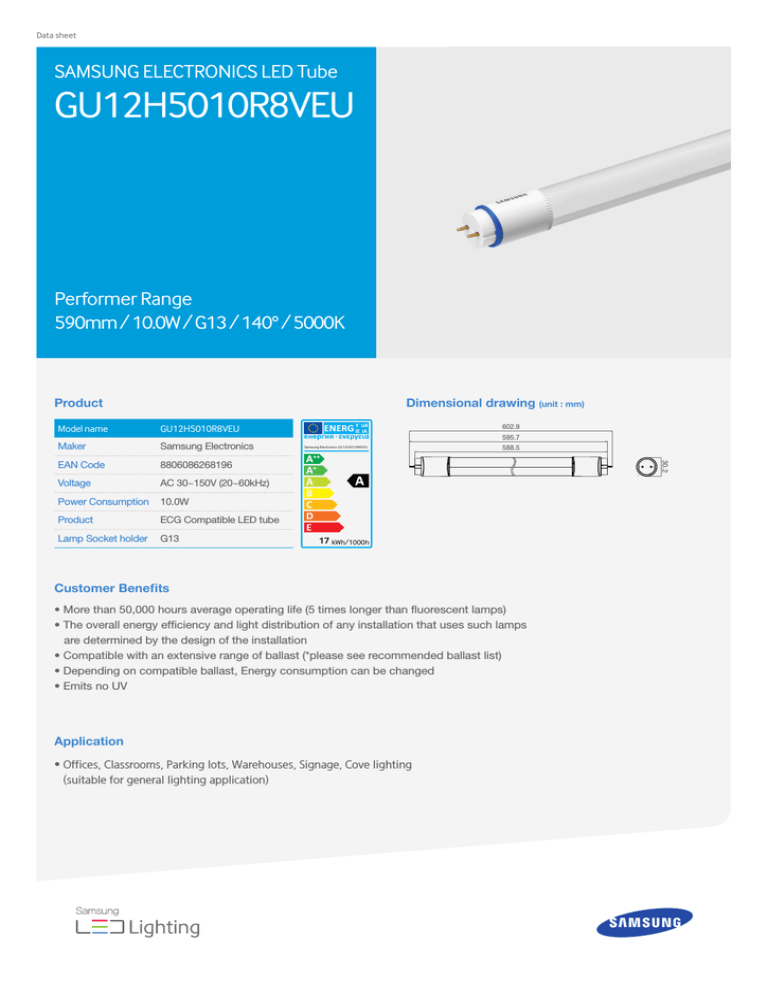

Data sheet
SAMSUNG ELECTRONICS LED Tube
GU12H5010R8VEU
Performer Range
590mm / 10.0W / G13 / 140° / 5000K
Product
Dimensional drawing (unit : mm)
GU12H5010R8VEU
Maker
Samsung Electronics
EAN Code
8806086268196
Voltage
AC 30~150V (20~60kHz)
Power Consumption
10.0W
Product
ECG Compatible LED tube
Lamp Socket holder
G13
602.9
595.7
Samsung Electronics GU12H5010R8VEU
588.5
30.2
Model name
17 kWh/1000h
Customer Benefits
• More than 50,000 hours average operating life (5 times longer than fluorescent lamps)
• The overall energy efficiency and light distribution of any installation that uses such lamps
are determined by the design of the installation
• Compatible with an extensive range of ballast (*please see recommended ballast list)
• Depending on compatible ballast, Energy consumption can be changed
• Emits no UV
Application
• Offices, Classrooms, Parking lots, Warehouses, Signage, Cove lighting
(suitable for general lighting application)
SAMSUNG ELECTRONICS LED Tube
GU12H5010R8VEU
Specifications
Model name
Nominal luminous flux (lm)
Rated luminous flux (lm)
Frequency (kHz)
Input current (mA)
Nominal power consumption (W)
Rated power consumption (W)
Power factor
THD (%)
Lumen Maintenance Factor
Warm-up time
Starting time (s)
On/Off cycles
Nominal beam angle (°)
Rated beam angle (°)
Operating temperature (°C)
Nominal lamp life time (hrs)
Rated lamp life time (hrs)
Color description
Color temperature (K)
CRI (Ra)
Diameter (mm)
Overall length (mm)
Weight (g)
Energy Efficiency Index
Energy consumption (kWh/1000h)
Certification
Lighting Data
GU12H5010R8VEU
1,100
1,100
20~60
300
10.0
10.0
> 0.9
≤ 20
L70
Instant full light
< 0.5
50,000
< 140
< 140
-20~+50
50,000
50,000
Cool White
5000
> 80
Φ 30.2
590
150
A
17
CE
(0~180)
(90~270)
280 240 200 160 120 80
(uni : cd)
90°
60°
60°
30°
Philips
Vossloh & Schwabe
Performer 590mm
Osram
ABB
Tridonic
2m
77 lx
3m
34 lx
0°
Light Distribution
Illuminance (lx)
Packaging Details
• Single Box (1pc) : 616mm x 34mm x 34mm / 199g
• Outer Carton (20pc/box) : 621mm x 185mm x 152mm / 4.4kg
Ballast Compatibility
Maker
311 lx
30°
※ Specifications are subject to change without notice
Model
1m
90°
Model Name
HF-P 118 TLD
HF-P 218 TLD
HF-P 3/418 TLD
HF-P 118 HF2
ELXc 418.215
ELXc 418.204
218.526(1ch)
218.526(2ch)
QT-FIT 118
QTP 118
QT-ECO 118
QT-FIT8 2X18
QTP8 2X18
QT-FIT8 3X18,4X18
QTP8 3X18,4X18
EVG 2X18 CF
118 T8 PRO LP
118 TCL PRO
PC 1X18-24 Basic sl
PC 2X18 T8 Pro lp
