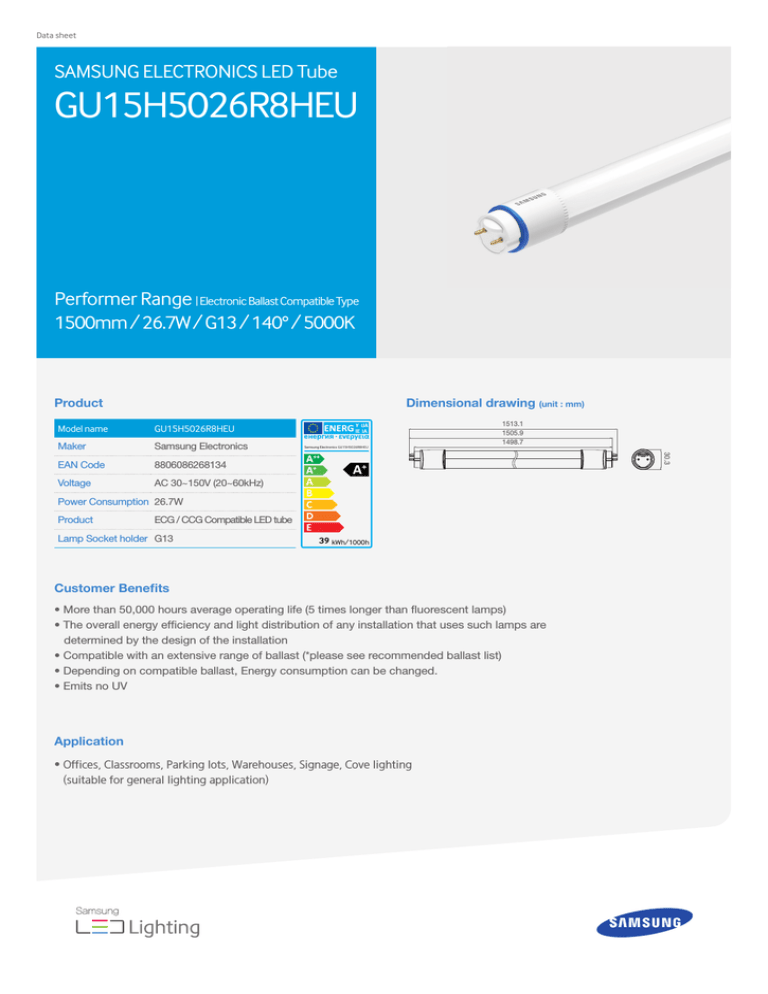

Data sheet
SAMSUNG ELECTRONICS LED Tube
GU15H5026R8HEU
Performer Range | Electronic Ballast Compatible Type
1500mm / 26.7W / G13 / 140° / 5000K
Product
Dimensional drawing (unit : mm)
GU15H5026R8HEU
Maker
Samsung Electronics
EAN Code
8806086268134
Voltage
AC 30~150V (20~60kHz)
Samsung Electronics GU15H5026R8HEU
1513.1
1505.9
1498.7
30.3
Model name
Power Consumption 26.7W
Product
ECG / CCG Compatible LED tube
Lamp Socket holder G13
39 kWh/1000h
Customer Benefits
• More than 50,000 hours average operating life (5 times longer than fluorescent lamps)
• The overall energy efficiency and light distribution of any installation that uses such lamps are determined by the design of the installation
• Compatible with an extensive range of ballast (*please see recommended ballast list)
• Depending on compatible ballast, Energy consumption can be changed.
• Emits no UV
Application
• Offices, Classrooms, Parking lots, Warehouses, Signage, Cove lighting
(suitable for general lighting application)
SAMSUNG ELECTRONICS LED Tube
GU15H5026R8HEU
Specifications
Lighting Data
Model name
GU15H5026R8HEU
Nominal luminous flux (lm)
Rated luminous flux (lm)
Frequency (kHz)
Input current (mA)
Nominal power consumption (W)
Rated power consumption (W)
Power factor
THD (%)
Lumen Maintenance Factor
Warm-up time
Starting time (s)
On/Off cycles
Nominal beam angle (°)
Rated beam angle (°)
Operating temperature (°C)
Nominal lamp life time (hrs)
Rated lamp life time (hrs)
Color description
Color temperature (K)
CRI (Ra)
Diameter (mm)
Overall length (mm)
Weight (g)
Energy Efficiency Index
Energy consumption (kWh/1000h)
Certification
3,200
(0~180)
3,200
20~60
800
26.7
26.7
> 0.9
≤ 20
L70
Instant full light
< 0.5
50,000
140
140
-20~+50
50,000
50,000
Cool White
5000
> 80
Φ 30.3
1,500
430
A+
39
CE
※ Specifications are subject to change without notice
(90~270)
1000 900 700 500 300
(uni : cd)
90°
60°
60°
30°
Maker
Vossloh & Schwabe
Performer 1500mm (ECG)
Osram
ABB
Tridonic
2m
242 lx
3m
107 lx
0°
Light Distribution
Illuminance (lx)
Packaging Details
• Single Box (1pc) : 1,608mm x 34mm x 34mm / 558g
• Outer Carton (20pc/box) : 1,613mm x 185mm x 152mm / 12.2kg
Model Name
HF-P 170 TLD
Philips
971 lx
30°
Ballast Compatibility
Model
1m
90°
HF-P 2X58 TLD
HF-P 270 TLD
ELXe 158.201
ELXe 158.209
ELXe 258.203
ELXe 258.222(1ch)
ELXe 258.222(2ch)
ELXe 170.205
ELXe 270.206
QTP 158
QT-FIT8 1X58-70
QT-FIT8 2X58
QTP 2X58
EVG 2x58 CF
PC 1/55 DD PRO sc
PC 1/55 TCL PRO
158 T8 PRO
PC 2X58 T8 Pro sl
PC 2/70 T8 Pro
Data sheet
SAMSUNG ELECTRONICS LED Tube
GU15H5026R8HEU
Performer Range | Conventional Ballast Compatible Type
1500mm / 26.7W / G13 / 140° / 5000K
Product
Dimensional drawing (unit : mm)
GU15H5026R8HEU
Maker
Samsung Electronics
EAN Code
8806086268134
Voltage
AC 220~240V (50/60Hz)
Samsung Electronics GU15H5026R8HEU
1513.1
1505.9
1498.7
30.3
Model name
Power Consumption 26.7W
Product
ECG / CCG Compatible LED tube
Lamp Socket holder G13
35 kWh/1000h
Customer Benefits
• More than 50,000 hours average operating life (5 times longer than fluorescent lamps)
• The overall energy efficiency and light distribution of any installation that uses such lamps are determined by the design of the installation
• Compatible with an extensive range of ballast (*please see recommended ballast list)
• Depending on compatible ballast, Energy consumption can be changed.
• Emits no UV
Application
• Offices, Classrooms, Parking lots, Warehouses, Signage, Cove lighting
(suitable for general lighting application)
SAMSUNG ELECTRONICS LED Tube
GU15H5026R8HEU
Specifications
Lighting Data
Model name
GU15H5026R8HEU
Nominal luminous flux (lm)
3,200
Rated luminous flux (lm)
3,200
Frequency (Hz)
50/60
Input current (mA)
200
Nominal power consumption (W)
26.7
(0~180)
(90~270)
1000 900 700 500 300
(uni : cd)
90°
1m
971 lx
2m
242 lx
3m
107 lx
90°
60°
60°
30°
30°
Rated power consumption (W)
26.7
Power factor
> 0.9
THD (%)
≤ 20
Lumen Maintenance Factor
L70
Warm-up time
Instant full light
Starting time (s)
< 0.5
On/Off cycles
50,000
Nominal beam angle (°)
140
Rated beam angle (°)
140
Operating temperature (°C)
-20~+50
Nominal lamp life time (hrs)
50,000
Rated lamp life time (hrs)
50,000
Color description
Cool White
Color temperature (K)
5000
• Single Box (1pc) : 1,608mm x 34mm x 34mm / 558g
CRI (Ra)
> 80
• Outer Carton (20pc/box) : 1,613mm x 185mm x 152mm / 12.2kg
Diameter (mm)
Φ 30.3
Overall length (mm)
1,500
Weight (g)
430
Energy Efficiency Index
A+
Energy consumption (kWh/1000h)
35
Certification
CE
0°
Light Distribution
Packaging Details
※ Specifications are subject to change without notice
Ballast Compatibility
Model
Maker
Model Name
LN58.722
Performer 1500mm (CCG)
Illuminance (lx)
Vossloh & Schwabe
LN58.192
LN58.116
Helvar
L58 A-T
