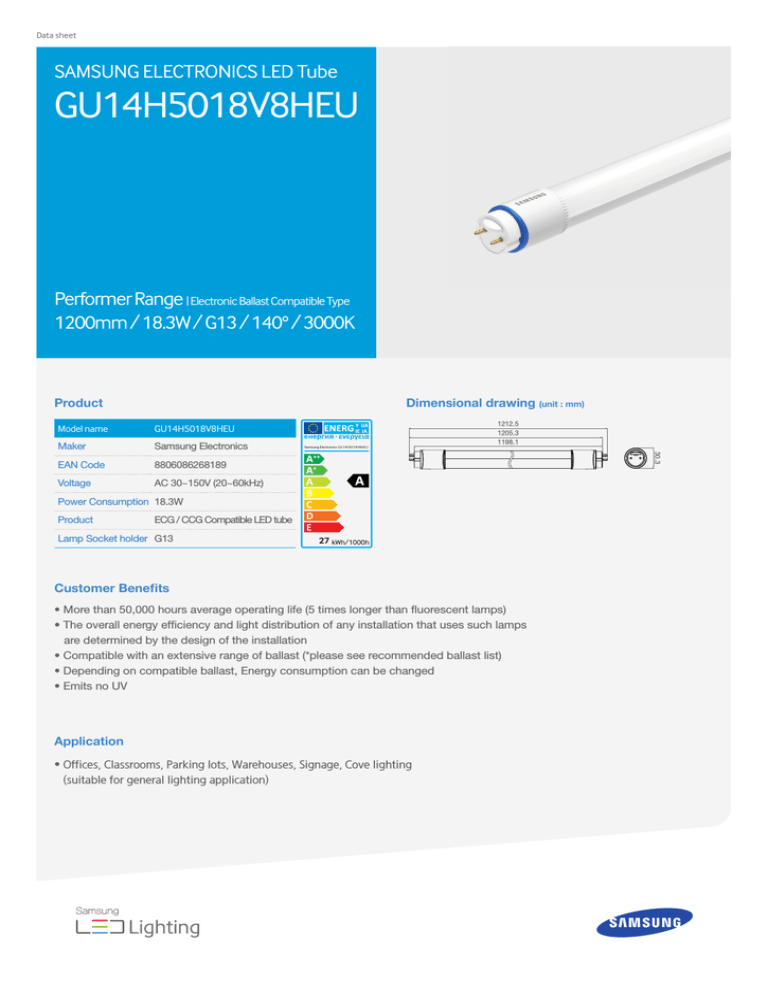

Data sheet
SAMSUNG ELECTRONICS LED Tube
GU14H5018V8HEU
Performer Range | Electronic Ballast Compatible Type
1200mm / 18.3W / G13 / 140° / 3000K
Product
Dimensional drawing (unit : mm)
GU14H5018V8HEU
Maker
Samsung Electronics
EAN Code
8806086268189
Voltage
AC 30~150V (20~60kHz)
Samsung Electronics GU14H5018V8HEU
1212.5
1205.3
1198.1
30.3
Model name
Power Consumption 18.3W
Product
ECG / CCG Compatible LED tube
Lamp Socket holder G13
27 kWh/1000h
Customer Benefits
• More than 50,000 hours average operating life (5 times longer than fluorescent lamps)
• The overall energy efficiency and light distribution of any installation that uses such lamps
are determined by the design of the installation
• Compatible with an extensive range of ballast (*please see recommended ballast list)
• Depending on compatible ballast, Energy consumption can be changed
• Emits no UV
Application
• Offices, Classrooms, Parking lots, Warehouses, Signage, Cove lighting
(suitable for general lighting application)
SAMSUNG ELECTRONICS LED Tube
GU14H5018V8HEU
Specifications
Model name
Nominal luminous flux (lm)
Rated luminous flux (lm)
Frequency (kHz)
Input current (mA)
Nominal power consumption (W)
Rated power consumption (W)
Power factor
THD (%)
Lumen Maintenance Factor
Warm-up time
Starting time (s)
On/Off cycles
Nominal beam angle (°)
Rated beam angle (°)
Operating temperature (°C)
Nominal lamp life time (hrs)
Rated lamp life time (hrs)
Color description
Color temperature (K)
CRI (Ra)
Diameter (mm)
Overall length (mm)
Weight (g)
Energy Efficiency Index
Energy consumption (kWh/1000h)
Certification
Lighting Data
GU14H5018V8HEU
2,100
2,100
20~60
500
18.3
18.3
> 0.9
≤ 20
L70
Instant full light
< 0.5
50,000
140
140
-20~+50
50,000
50,000
Warm White
3000
> 80
Φ 30.3
1,200
360
A
27
CE
※ Specifications are subject to change without notice
(0~180)
700 600
(90~270)
400
200
(uni : cd)
90°
60°
60°
30°
Maker
Philips
Vossloh & Schwabe
Performer 1200mm (ECG)
Osram
ABB
Tridonic
BAG
635 lx
2m
158 lx
3m
69 lx
30°
0°
Light Distribution
Illuminance (lx)
Packaging Details
• Single Box (1pc) : 1,308mm x 34mm x 34mm / 449g
• Outer Carton (20pc/box) : 1,313mm x 185mm x 152mm / 10.1kg
Ballast Compatibility
Model
1m
90°
Model Name
HF-B 136 TLD
HF-R 136 TLD
HF B 236 TLD Basic2
HF-P 236 TLD IDC
EB-P 236 TLD
ELXe 136.200
ELXe 136.207
ELXe 336.214
ELXe 236.208
ELXe 236.202
ELXe 238.527(1ch)
ELXe 238.527(2ch)
QTP8 136
QT FIT8 2X36
QTP 2X36
QTP8 2X36
QT FIT8 1X36
EVG 136 CF
PC 1/30 T8 PRO
PC 1/36 T8 PRO LP
PC 1/36 TCL PRO
PC 1/40 TCL PRO
PC 236 T8 Pro sl
PC 3/36 T8 Pro
PC 2/30 T8 Pro
BCS36.1FX-11
Data sheet
SAMSUNG ELECTRONICS LED Tube
GU14H5018V8HEU
Performer Range | Conventional Ballast Compatible Type
1200mm / 18.3W / G13 / 140° / 3000K
Product
Dimensional drawing (unit : mm)
GU14H5018V8HEU
Maker
Samsung Electronics
EAN Code
8806086268189
Voltage
AC 220~240V (50/60Hz)
Samsung Electronics GU14H5018V8HEU
1212.5
1205.3
1198.1
30.3
Model name
Power Consumption 18.3W
Product
ECG / CCG Compatible LED tube
Lamp Socket holder G13
24 kWh/1000h
Customer Benefits
• More than 50,000 hours average operating life (5 times longer than fluorescent lamps)
• The overall energy efficiency and light distribution of any installation that uses such lamps
are determined by the design of the installation
• Compatible with an extensive range of ballast (*please see recommended ballast list)
• Depending on compatible ballast, Energy consumption can be changed
• Emits no UV
Application
• Offices, Classrooms, Parking lots, Warehouses, Signage, Cove lighting
(suitable for general lighting application)
SAMSUNG ELECTRONICS LED Tube
GU14H5018V8HEU
Specifications
Lighting Data
Model name
GU14H5018V8HEU
Nominal luminous flux (lm)
2,100
Rated luminous flux (lm)
2,100
Frequency (Hz)
50/60
Input current (mA)
150
Nominal power consumption (W)
18.3
Rated power consumption (W)
18.3
Power factor
> 0.9
THD (%)
≤ 20
Lumen Maintenance Factor
L70
Warm-up time
Instant full light
Starting time (s)
< 0.5
On/Off cycles
50,000
Nominal beam angle (°)
140
Rated beam angle (°)
140
Operating temperature (°C)
-20~+50
Nominal lamp life time (hrs)
50,000
Rated lamp life time (hrs)
50,000
Color description
Warm White
Color temperature (K)
3000
CRI (Ra)
> 80
• Single Box (1pc) : 1,308mm x 34mm x 34mm / 449g
Diameter (mm)
Φ 30.3
• Outer Carton (20pc/box) : 1,313mm x 185mm x 152mm / 10.1kg
Overall length (mm)
1,200
Weight (g)
360
Energy Efficiency Index
A+
Energy consumption (kWh/1000h)
24
Certification
CE
(0~180)
700 600
(90~270)
400
200
(uni : cd)
90°
60°
60°
30°
635 lx
2m
158 lx
3m
69 lx
30°
0°
Light Distribution
Illuminance (lx)
Packaging Details
※ Specifications are subject to change without notice
Ballast Compatibility
Model
1m
90°
Maker
Model Name
LN36.201
Vossloh & Schwabe
L36.342
LN36.221
Helvar
Performer 1200mm (CCG)
ABB
L36A-T
L36 A-K
VVG 36 120 CF 30
36-120 CF-55
TRIDONIC
EC36-1 C501K
KNOBEL
36-NG301
SIEMENS
LZ 363
