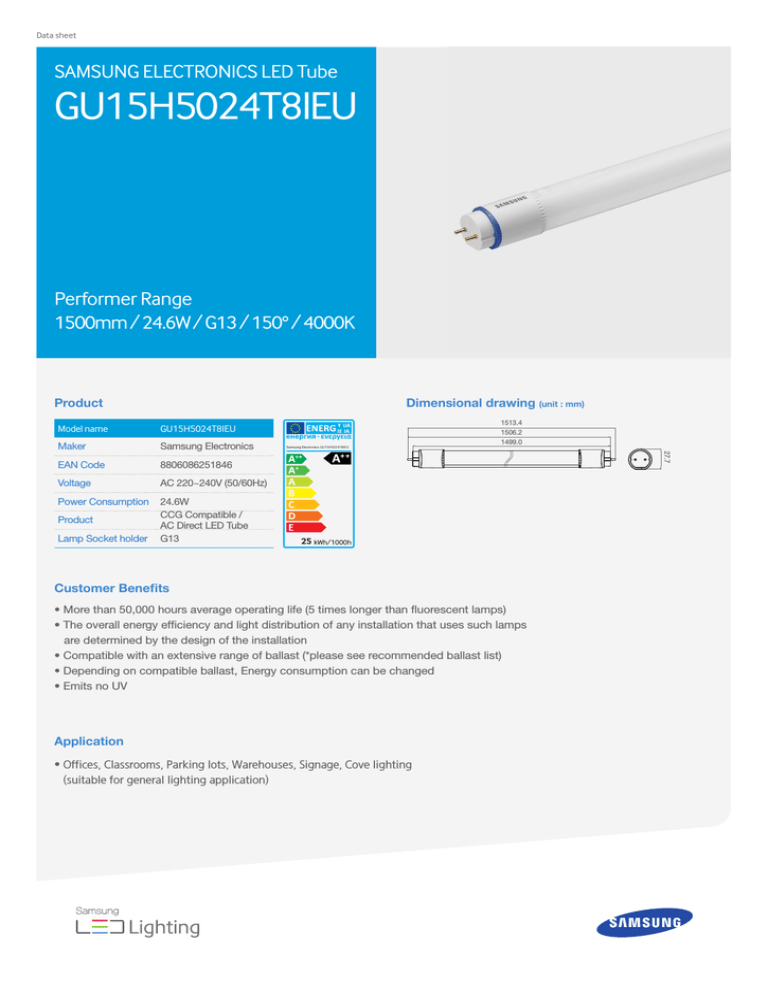

Data sheet
SAMSUNG ELECTRONICS LED Tube
GU15H5024T8IEU
Performer Range
1500mm / 24.6W / G13 / 150° / 4000K
Product
Dimensional drawing (unit : mm)
GU15H5024T8IEU
Maker
Samsung Electronics
EAN Code
8806086251846
Voltage
AC 220~240V (50/60Hz)
Power Consumption
24.6W
CCG Compatible /
AC Direct LED Tube
G13
Product
Lamp Socket holder
Samsung Electronics GU15H5024T8IEU
1513.4
1506.2
1499.0
27.7
Model name
25 kWh/1000h
Customer Benefits
• More than 50,000 hours average operating life (5 times longer than fluorescent lamps)
• The overall energy efficiency and light distribution of any installation that uses such lamps
are determined by the design of the installation
• Compatible with an extensive range of ballast (*please see recommended ballast list)
• Depending on compatible ballast, Energy consumption can be changed
• Emits no UV
Application
• Offices, Classrooms, Parking lots, Warehouses, Signage, Cove lighting
(suitable for general lighting application)
SAMSUNG ELECTRONICS LED Tube
GU15H5024T8IEU
Specifications
Lighting Data
Model name
GU15H5024T8IEU
Nominal luminous flux (lm)
3,100
Rated luminous flux (lm)
3,100
Frequency (Hz)
50/60
Input current (mA)
113
Nominal power consumption (W)
24.6
(0~180)
900 700
(90~270)
500
300
(uni : cd)
90°
1m
802 lx
2m
200 lx
3m
89 lx
90°
60°
60°
30°
30°
Rated power consumption (W)
24.6
Power factor
> 0.9
THD (%)
≤ 20
Lumen Maintenance Factor
L70
Warm-up time
Instant full light
Starting time (s)
0.1
On/Off cycles
50,000
Nominal beam angle (°)
> 150
Rated beam angle (°)
> 150
Operating temperature (°C)
-20~+50
Nominal lamp life time (hrs)
50,000
Rated lamp life time (hrs)
50,000
Color description
Neutral White
Color temperature (K)
4000
• Single Box (1pc) : 1608mm x 34mm x 34mm / 513g
CRI (Ra)
> 80
• Outer carton (20pc/box) : 1613mm x 185mm x 152mm / 11.3kg
Diameter (mm)
Φ 27.7
Overall length (mm)
1,500
Weight (g)
390
Energy Efficiency Index
A++
Energy consumption (kWh/1000h)
25
Certification
CE, RCM
0°
Light Distribution
Packaging Details
※ Specifications are subject to change without notice
※ Energy consumption is calculated based on AC direct type
Ballast Compatibility
Model
Performer 1500mm
Illuminance (lx)
Maker
Model Name
Helvar
L58A-T230
TRIDONIC
EC58 C502K
Vossloh & Schwabe
L58I.116
※For CCG(magnetic ballast) type, Conventional Starter has to be changed with L-Tube Starter
