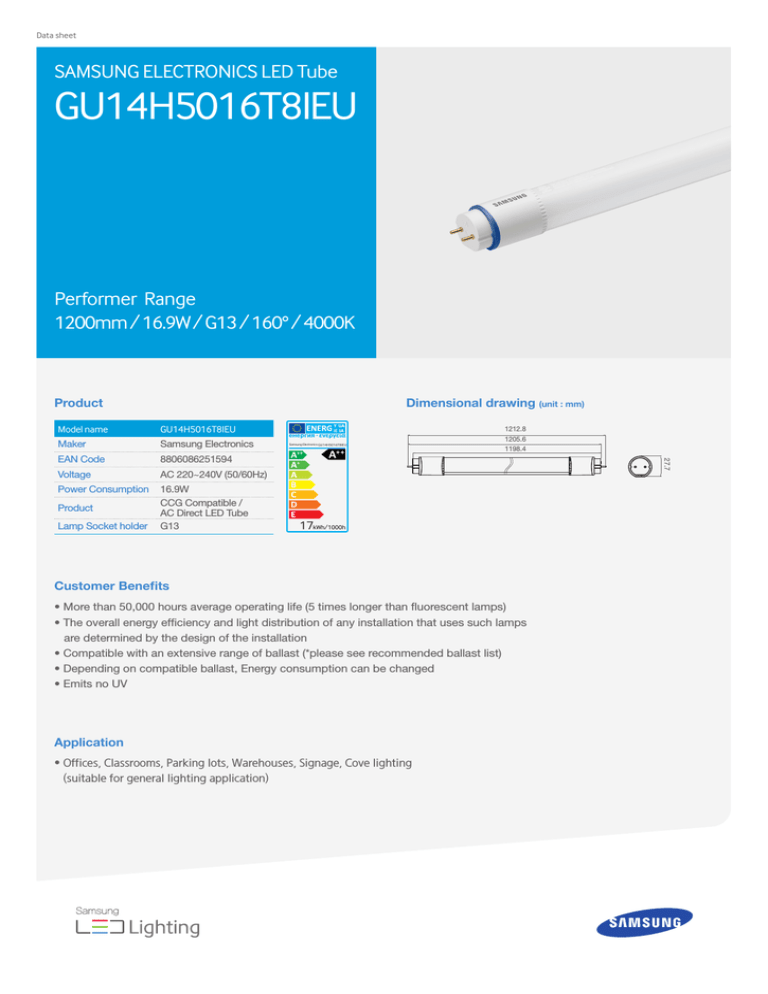

Data sheet
SAMSUNG ELECTRONICS LED Tube
GU14H5016T8IEU
Performer Range
1200mm / 16.9W / G13 / 160° / 4000K
Product
Dimensional drawing (unit : mm)
GU14H5016T8IEU
Maker
Samsung Electronics
EAN Code
8806086251594
Voltage
AC 220~240V (50/60Hz)
Power Consumption
16.9W
CCG Compatible /
AC Direct LED Tube
G13
Product
Lamp Socket holder
1212.8
Samsung Electronics GU14H5016T8IEU
1205.6
1198.4
27.7
Model name
17kWh/1000h
Customer Benefits
• More than 50,000 hours average operating life (5 times longer than fluorescent lamps)
• The overall energy efficiency and light distribution of any installation that uses such lamps
are determined by the design of the installation
• Compatible with an extensive range of ballast (*please see recommended ballast list)
• Depending on compatible ballast, Energy consumption can be changed
• Emits no UV
Application
• Offices, Classrooms, Parking lots, Warehouses, Signage, Cove lighting
(suitable for general lighting application)
SAMSUNG ELECTRONICS LED Tube
GU14H5016T8IEU
Specifications
Lighting Data
Model name
GU14H5016T8IEU
Nominal luminous flux (lm)
2,150
Rated luminous flux (lm)
2,150
Frequency (Hz)
50/60
Input current (mA)
82
Nominal power consumption (W)
16.9
(0~180)
(90~270)
600 500 400 300 200
(uni : cd)
90°
90°
60°
1m
518 lx
2m
129 lx
3m
57 lx
60°
30°
30°
Rated power consumption (W)
16.9
Power factor
> 0.9
THD (%)
≤ 20
Lumen Maintenance Factor
L70
Warm-up time
Instant full light
Starting time (s)
0.1
On/Off cycles
50,000
Nominal beam angle (°)
> 160
Rated beam angle (°)
> 160
Operating temperature (°C)
-20~+50
Nominal lamp life time (hrs)
50,000
Rated lamp life time (hrs)
50,000
Color description
Neutral White
Color temperature (K)
4000
• Single Box (1pc) : 1308mm x 34mm x 34mm / 287g
CRI (Ra)
> 80
• Outer carton (20pc/box) : 1313mm x 185mm x 152mm / 6.6kg
Diameter (mm)
Φ 27.7
Overall length (mm)
1,200
Weight (g)
200
Energy Efficiency Index
A++
Energy consumption (kWh/1000h)
17
Certification
CE, SIRIM, RCM
0°
Light Distribution
Packaging Details
※ Specifications are subject to change without notice
※ Energy consumption is calculated based on AC direct type
Ballast Compatibility
Model
Maker
Model Name
L36TL4
Helvar
L36A-K
L36A-T
Performer 1200mm
Illuminance (lx)
KNOBEL
36-NG301
Simens
VVG 5LZ 363
Vossloh & Schwabe
L36l.342
ABB
TRIDONIC
※For CCG(magnetic ballast) type, Conventional Starter has to be changed with L-Tube Starter
VVG 36-120 CF30
36-120 CF55
EC 36/40 C302K
EC 36-1 C501K
