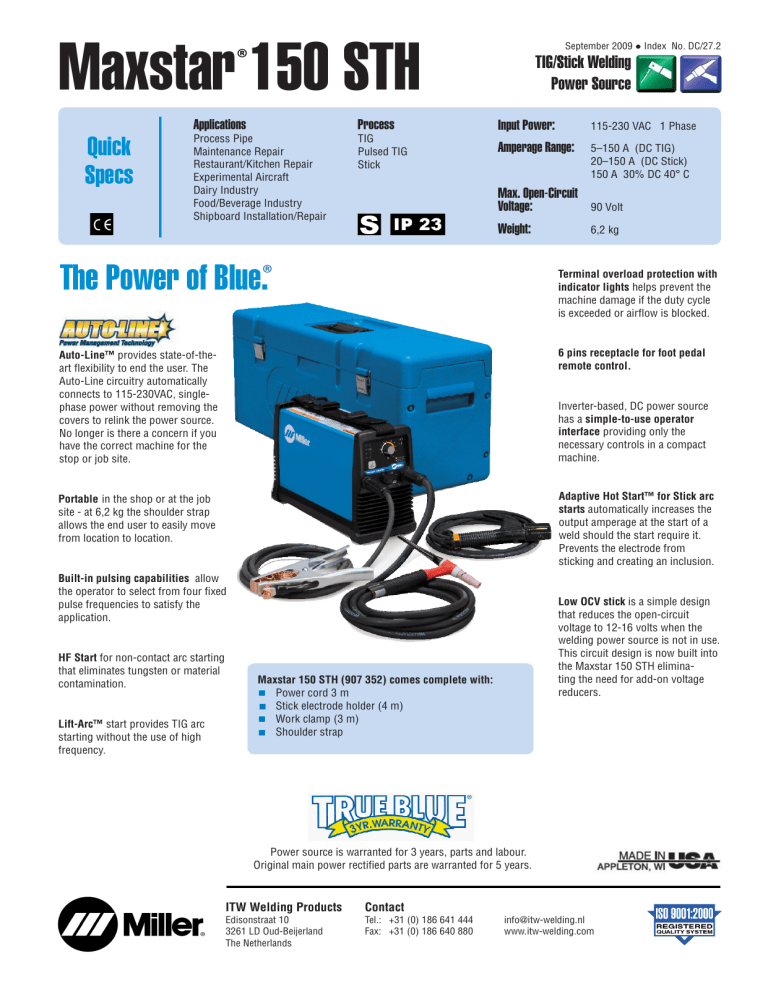

Maxstar 150 STH

Maxstar 150 STH
Maxstar 150 STH
September 2009 ● Index No. DC/27.2
®
Quick
Specs
Applications
TIG/Stick Welding
Power Source
Process
Process Pipe
Maintenance Repair
Restaurant/Kitchen Repair
Experimental Aircraft
Dairy Industry
Food/Beverage Industry
Shipboard Installation/Repair
Input Power:
TIG
Pulsed TIG
Stick
115-230 VAC 1 Phase
Amperage Range:
5–150 A (DC TIG)
20–150 A (DC Stick)
150 A 30% DC 40° C
Max. Open-Circuit
Voltage: 90 Volt
Weight:
6,2 kg
The Power of Blue.®
Terminal overload protection with
indicator lights helps prevent the
machine damage if the duty cycle
is exceeded or airflow is blocked.
Auto-Line™ provides state-of-theart flexibility to end the user. The
Auto-Line circuitry automatically
connects to 115-230VAC, singlephase power without removing the
covers to relink the power source.
No longer is there a concern if you
have the correct machine for the
stop or job site.
6 pins receptacle for foot pedal
remote control.
Portable in the shop or at the job
site - at 6,2 kg the shoulder strap
allows the end user to easily move
from location to location.
Adaptive Hot Start™ for Stick arc
starts automatically increases the
output amperage at the start of a
weld should the start require it.
Prevents the electrode from
sticking and creating an inclusion.
Inverter-based, DC power source
has a simple-to-use operator
interface providing only the
necessary controls in a compact
machine.
Built-in pulsing capabilities allow
the operator to select from four fixed
pulse frequencies to satisfy the
application.
HF Start for non-contact arc starting
that eliminates tungsten or material
contamination.
Lift-Arc™ start provides TIG arc
starting without the use of high
frequency.
Low OCV stick is a simple design
that reduces the open-circuit
voltage to 12-16 volts when the
welding power source is not in use.
This circuit design is now built into
the Maxstar 150 STH eliminating the need for add-on voltage
reducers.
Maxstar 150 STH (907 352) comes complete with:
Power cord 3 m
Stick electrode holder (4 m)
Work clamp (3 m)
Shoulder strap
Power source is warranted for 3 years, parts and labour.
Original main power rectified parts are warranted for 5 years.
ITW Welding Products
Edisonstraat 10 3261 LD Oud-Beijerland
The Netherlands
Contact
Tel.: +31 (0) 186 641 444
Fax: +31 (0) 186 640 880
[email protected]
www.itw-welding.com
Specifications
Input Power Rated Welding Output
Welding
Amperage
Range
Max. Open-Circuit
Voltage
Amps Input at KVA
Rated Output at Duty
Cycle
KW
Dimensions
230 VAC
Stick
100 A at 24 VDC, 100 %
Duty Cycle
150 A at 26 VDC, 30 %
Duty Cycle
20 - 150 A
90 VDC (12 - 15 V)*
13,1 A
21,6 A
3,0
4,9
2,8
4,7
H: 229 mm 6,2 kg
W: 140 mm
D: 337 mm
230 VAC
TIG
100 A at 14 VDC, 100 %
Duty Cycle
150 A at 16 VDC, 30 %
Duty Cycle
5 – 150 A
90 VDC (12 - 15 V)*
8,3 A
14,2 A
2,0
3,2
1,9
3,1
* Sense voltage for Stick and Lift-Arc TIG
Ordering Information
Power Source
Stock No.
Description
Maxstar 150 STH
907 352
TIG Inverter, incl. power cord and work clamp
SR9/4/STH
Air-cooled torch 125 A DC, 60% Duty cycle, 0.5 - 2.4 mm, 4 m
SR9/8/STH
Air-cooled torch 125 A DC, 60% Duty cycle, 0.5 - 2.4 mm, 8 m
SR17/4/STH
Air-cooled torch 150 A DC, 60% Duty cycle, 0.5 - 3.2 mm, 4 m
Accessories
TIG - Torches
SR17/8/STH
Air-cooled torch 150 A DC, 60% Duty cycle, 0.5 - 3.2 mm, 8 m
X-Case
300 184
Carrying case for Maxstar 150
Gas hose
907 100 0SL
Length 2 m connections on both sides 3/8 R
RFCS-6M
195 183
Remote foot control, length 4 m
195 504
Remote foot control, length 6 m
373 700 00
Elga Optimator gas saving regulator with flow meter
371 050 00
Elga Tigex with flow meter
Gasregulator
Weight
