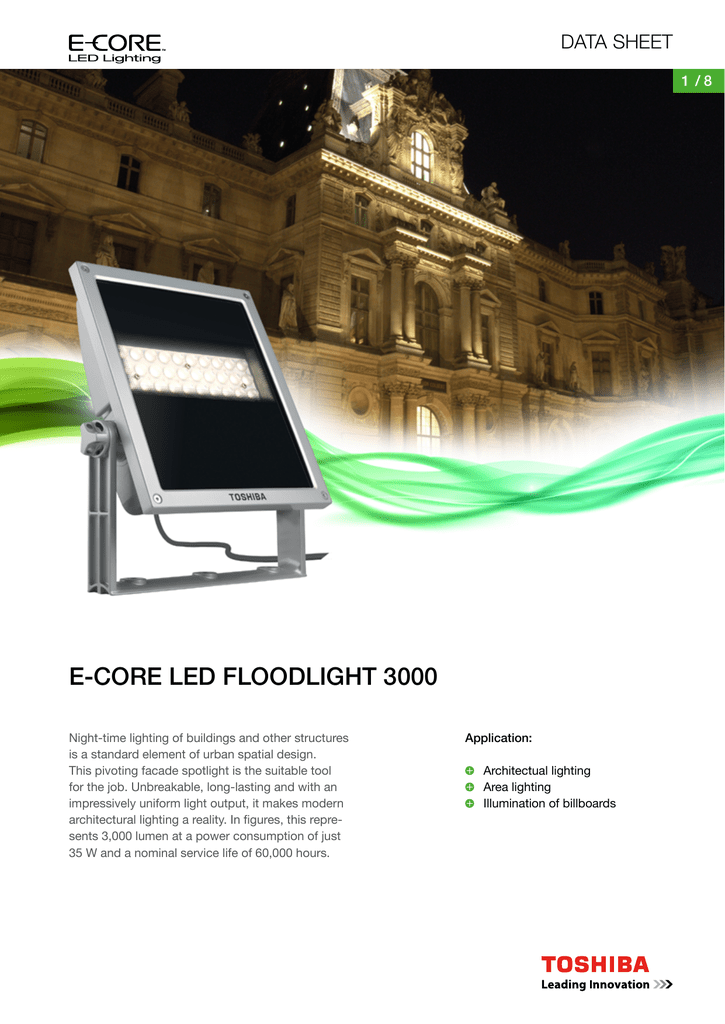

E-CORE LED FLOODLIGHT 3000
Night-time lighting of buildings and other structures
is a standard element of urban spatial design.
This pivoting facade spotlight is the suitable tool
for the job. Unbreakable, long-lasting and with an
impressively uniform light output, it makes modern
architectural lighting a reality. In figures, this represents 3,000 lumen at a power consumption of just
35 W and a nominal service life of 60,000 hours.
Application:
Architectual lighting
Area lighting
Illumination of billboards
E-CORE LED FLOODLIGHT 3000
2 /8
Product details
Excellent light quality
High range of adjustability
Extremly robust design
17
220V
I
240V
IP
65
IK
07
60000 h
Temperature range: -20°C to +35°C
Constant lumen output (CLO), switchable
ENEC
850
°C
Optical parameters
MODEL NAME
E-CORE LED FLOODLIGHT 3000 / NARROW - 11°
Product code
Luminous flux with CLO ON
Luminous flux with CLO OFF
Efficacy with CLO ON
Efficacy with CLO OFF
Colour description
Colour temperature
Colour rendering index
LEDEUF00019I30N
2,015 lm
2,620 lm
67.2 lm/W
65.5 lm/W
Warm white
3000 K
Ra ≥ 80
LEDEUF00019I40N
2,015 lm
2,620 lm
67.2 lm/W
65.5 lm/W
Neutral white
4000 K
Ra ≥ 80
MODEL NAME
E-CORE LED FLOODLIGHT 3000 / MIDDLE - 25°
Product code
Luminous flux with CLO ON
Luminous flux with CLO OFF
Efficacy with CLO ON
Efficacy with CLO OFF
Colour description
Colour temperature
Colour rendering index
LEDEUF00020I30N
1,860 lm
2,420 lm
62.0 lm/W
60.5 lm/W
Warm white
3000 K
Ra ≥ 80
MODEL NAME
E-CORE LED FLOODLIGHT 3000 / WIDE - 43°
Product code
Luminous flux with CLO ON
Luminous flux with CLO OFF
Efficacy with CLO ON
Efficacy with CLO OFF
Colour description
Colour temperature
Colour rendering index
LEDEUF00021I30N
1,845 lm
2,400 lm
61.5 lm/W
60.0 lm/W
Warm white
3000 K
Ra ≥ 80
LEDEUF00020I40N
1,860 lm
2,420 lm
62.0 lm/W
60.5 lm/W
Neutral white
4000 K
Ra ≥ 80
LEDEUF00021I40N
1,845 lm
2,400 lm
61.5 lm/W
60.0 lm/W
Neutral white
4000 K
Ra ≥ 80
MODEL NAME
E-CORE LED FLOODLIGHT 3000 / ASYMMETRY - 58° x 127°
Product code
Luminous flux with CLO ON
Luminous flux with CLO OFF
Efficacy with CLO ON
Efficacy with CLO OFF
Colour description
Colour temperature
Colour rendering index
LEDEUF00022I30N
1,775 lm
2,310 lm
59.2 lm/W
57.8 lm/W
Warm white
3000 K
Ra ≥ 80
LEDEUF00022I40N
1,775 lm
2,310 lm
59.2 lm/W
57.8 lm/W
Neutral white
4000 K
Ra ≥ 80
LEDEUF00019I50N
2,880 lm
3,740 lm
96.0 lm/W
93.5 lm/W
Neutral white
5000 K
Ra ≥ 80
LEDEUF00020I50N
2,655 lm
3,450 lm
88.5 lm/W
86.3 lm/W
Neutral white
5000 K
Ra ≥ 80
LEDEUF00021I50N
2,640 lm
3,430 lm
88.0 lm/W
85.8 lm/W
Neutral white
5000 K
Ra ≥ 80
LEDEUF00022I50N
2,540 lm
3,300 lm
84.7 lm/W
82.5 lm/W
Neutral white
5000 K
Ra ≥ 80
E-CORE LED FLOODLIGHT 3000
3 /8
Projekt 1
Projekt 1
15.07.2013
15.07.2013
Optical parameters
Bearbeiter(in)
Telefon
Fax
e-Mail
Bearbeiter(in)
Telefon
Fax
e-Mail
TOSHIBA LEDEUF00019I30 E-CORE LED FLOODLIGHT 3000 / Kegeldiagramm
TOSHIBA LEDEUF00019I30 E-CORE LED FLOODLIGHT 3000 / LVK (Polar)
POLAR CANDELA DISTRIBUTION
ILLUMINANCE
Leuchte: TOSHIBA LEDEUF00019I30 E-CORE LED FLOODLIGHT 3000
Lampen: 1 x LED
LEDEUF00019I40N – NARROW / 4000 K
Leuchte: TOSHIBA LEDEUF00019I30 E-CORE LED FLOODLIGHT 3000
Lampen: 1 x LED
105°
105°
90°
90°
75°
75°
0.10
E(0°)
E(C0)
5.7°
111782
56625
1.0
0.20
E(0°)
E(C0)
5.7°
27945
14156
1.5
0.30
E(0°)
E(C0)
5.7°
12420
6292
2.0
0.40
E(0°)
E(C0)
5.7°
6986
3539
0.50
E(0°)
E(C0)
5.7°
4471
2265
5.7°
3105
1573
4000
60°
60°
6000
8000
45°
45°
10000
12000
2.5
Projekt 1
Projekt 1
15.07.2013
15.07.2013
30°
15°
0°
Bearbeiter(in)
Telefon
Fax
e-Mail
15°
3.0
30°
η 101%
=101%
cd/klm
cd/klm
TOSHIBA
LEDEUF00020I30
E-CORE LED FLOODLIGHT 3000 /
C0 -C0
C180
C90 - C270 C90 - C270
- C180
LVK (Polar)
Bearbeiter(in)
Telefon
Fax
e-Mail
0.60
Abstand[m]
[m]
Distance
Kegeldurchmesser
[m]
Cone Diameter [m]
E(0°)
E(C0)
Beleuchtungsstärke
[lx]
Illuminance [lx]
TOSHIBA
LEDEUF00020I30
C0 - C180 (Halbstreuwinkel:
11.4°) E-CORE LED FLOODLIGHT 3000 / Kegeldiagramm
C0 - C180 (Half-value Angle: 11.4°)
Leuchte: TOSHIBA LEDEUF00020I30 E-CORE LED FLOODLIGHT 3000
Lampen: 1 x LED
Leuchte: TOSHIBA LEDEUF00020I30 E-CORE LED FLOODLIGHT 3000
Lampen: 1 x LED
LEDEUF00020I40N – MIDDLE / 4000 K
0.5
105°
105°
90°
90°
75°
75°
0.5
0.22
E(0°)
E(C0)
12.3°
26380
12393
1.0
0.44
E(0°)
E(C0)
12.3°
6595
3098
1.5
0.65
E(0°)
E(C0)
12.3°
2931
1377
2.0
0.87
E(0°)
E(C0)
12.3°
1649
775
1.09
E(0°)
E(C0)
12.3°
1055
496
Seite 2
60°
60°
2000
45°
45°
3000
2.5
Projekt 1
4000
Projekt 1
15.07.2013
15.07.2013
30°
15°
0°
Bearbeiter(in)
Telefon
Fax
e-Mail
15°
3.0
30°

η 101%
=101%
C0 -C0
C180
C90 - C270 C90 - C270
TOSHIBA
LEDEUF00021I30
E-CORE LED FLOODLIGHT 3000 / LVK (Polar)
- C180
cd/klm
cd/klm
Seite 3
Bearbeiter(in)
Telefon
Fax
e-Mail
1.31
E(0°)
E(C0)
12.3°
733
344
Abstand[m]
[m]
Distance
Kegeldurchmesser
[m]
Beleuchtungsstärke
[lx]
Cone Diameter [m]
Illuminance [lx]
C0 - C180 (Halbstreuwinkel:
24.6°) E-CORE LED FLOODLIGHT 3000 / Kegeldiagramm
TOSHIBA
LEDEUF00021I30
C0 - C180
(Half-value Angle: 24.6°)
Leuchte: TOSHIBA LEDEUF00021I30 E-CORE LED FLOODLIGHT 3000
Lampen: 1 x LED
Leuchte: TOSHIBA LEDEUF00021I30 E-CORE LED FLOODLIGHT 3000
Lampen: 1 x LED
105°
105°
90°
90°
75°
75°
0.5
0.39
E(0°)
E(C0)
21.4°
9214
3733
1.0
0.78
E(0°)
E(C0)
21.4°
2304
933
1.5
1.18
E(0°)
E(C0)
21.4°
1024
415
2.0
1.57
E(0°)
E(C0)
21.4°
576
233
2.5
1.96
E(0°)
E(C0)
21.4°
369
149
E(0°)
E(C0)
21.4°
256
104
Seite 2
LEDEUF00021I40N – WIDE / 4000 K
Seite 3
60°
60°
600
45°
45°
900
30°
15°
cd/klm
cd/klm
C0 -C0
C180
- C180
0°
C90 - C270 C90 - C270
15°
3.0
30°
2.35
Abstand[m]
[m]
Distance
Kegeldurchmesser
[m]
Cone Diameter [m]
C0 - C180 (Halbstreuwinkel: 42.8°)

η 100%
= 100%
Beleuchtungsstärke
[lx]
Illuminance [lx]
C0 - C180 (Half-value Angle: 42.8°)
Seite 2
Seite 3
E-CORE LED FLOODLIGHT 3000
4 /8
Projekt 1
Projekt 1
15.07.2013
15.07.2013
Optical parameters
Bearbeiter(in)
Telefon
Fax
e-Mail
Bearbeiter(in)
Telefon
Fax
e-Mail
TOSHIBA LEDEUF00022I30 E-CORE LED FLOODLIGHT 3000 / Kegeldiagramm
TOSHIBA LEDEUF00022I30 E-CORE LED FLOODLIGHT 3000 / LVK (Polar)
POLAR CANDELA DISTRIBUTION
ILLUMINANCE
Leuchte: TOSHIBA LEDEUF00022I30 E-CORE LED FLOODLIGHT 3000
Lampen: 1 x LED
LEDEUF00022I40N – ASYMMETRY / 4000 K
Leuchte: TOSHIBA LEDEUF00022I30 E-CORE LED FLOODLIGHT 3000
Lampen: 1 x LED
105°
105°
90°
90°
75°
75°
60°
0.5
2.01
0.56
E(0°)
E(C90)
E(C0)
63.5°
29.1°
3176
210
1060
1.0
4.01
1.11
E(0°)
E(C90)
E(C0)
63.5°
29.1°
794
52
265
1.5
6.02
1.67
E(0°)
E(C90)
E(C0)
63.5°
29.1°
353
23
118
2.0
8.02
2.23
E(0°)
E(C90)
E(C0)
63.5°
29.1°
199
13
66
2.5
10.03
2.78
E(0°)
E(C90)
E(C0)
63.5°
29.1°
127
8
42
3.0
12.03
3.34
E(0°)
E(C90)
E(C0)
63.5°
29.1°
88
6
29
60°
400
45°
45°
600
800
30°
15°
cd/klm
cd/klm
C0 -C0
C180
- C180
0°
15°
30°
Abstand [m]
[m]
Kegeldurchmesser
[m]
Distance
Cone Diameter [m]
C0 - C180 (Halbstreuwinkel: 58.2°)
C0 - C180 (Half-value Angle: 58.2°)
C90 - C270 (Halbstreuwinkel: 127.0°)
η 100%
=100%
C90 - C270 C90 - C270
C90 - C270 (Half-value Angle: 127.0°)
Seite 2
WITH CONSTANT LUMEN OUTPUT
Seite 3
Lumen output (lm)
(Constant over lifetime)
Narrow -11°
Middle -25°
Wide -43°
Asymmetry -58° x 127°
Beleuchtungsstärke
[lx]
Illuminance
[lx]
System wattage (W)
3000K/4000K5000K
2,015 lm
2,880 lm
1,860 lm
2,655 lm
1,845 lm
2,640 lm
1,775 lm
2,540 lm
End of Life = 40 W
Average = 35 W
Initial
= 30 W
t (h)
0
30,000 h
60,000 h
WITHOUT CONSTANT LUMEN OUTPUT
Lumen output (lm)
Narrow -11°
Middle -25°
Wide -43°
Asymmetry -58° x 127°
System wattage (W)
(Constant over lifetime)
3000K/4000K5000K
2,620 lm
3,740 lm
2,420 lm
3,450 lm
2,400 lm
3,430 lm
2,310 lm
3,300 lm
Rated wattage = 40 W
t (h)
0
60,000 h
CLO – Constant Light output Technology increases the wattage of product over time to overcome Lumen Maintenance drop. As a result the
rated wattage stated is the wattage at end of life at 60,000 hours. For energy calculations, please use average wattage over life.
E-CORE LED FLOODLIGHT 3000
5 /8
Switch off and on of CLO feature
How to switch off constant lumen output function
Warning!
No energy saving if the CLO is switched off
Life time is counted even when the CLO is switched off. When the CLO is switched on again, the
life time during switched off phase will be automatically added.
1. Repeat the four on/off cycles for the given time.
Switch on/off
100%
1
2
3
4
5sec
5sec
5sec
0%
ON
OFF
15sec
5sec
5sec
5sec
time
5sec
2. Check if the CLO is switched off correctly as follows:
Switch on (5th time) light fades in gragually for 5sec light out for 1sec
If no light fade-in is seen, please repeat No.1 and then check No.2.
100%
Light output
CLO switched off correctly
0%
Light fades
in for 5sec
Light out
for 1sec
How to switch on constant lumen output function again after switched off
1. Repeat the four on/off cycles for the given time.
Switch on/off
1
2
3
10sec
10sec
100%
0%
ON
OFF
15sec
5sec
5sec
2. Check if the CLO is switched on correctly as follows:
Switch on (5th time) on 1sec, off 1sec x 3 times
If no on/off is seen, please repeat No.1 and then check No.2.
Switch on/off
100%
CLO switched on correctly
0%
ON
OFF
1sec 1sec 1sec 1sec 1sec
1sec 1sec 1sec 1sec 1sec
time
E-CORE LED FLOODLIGHT 3000
6 /8
Electrical parameters
MODEL NAME
E-CORE LED FLOODLIGHT 3000
Average wattage with CLO ON
Rated wattage with CLO OFF
Rated voltage
Frequency
Rated input current
Power factor
Electrical class
Connection
Dimming / CLO
Lifetime
35 W
40 W
220-240 V
50 / 60 Hz
182 mA
> 0.9
Class II
Cable 1.2 m, 2 x 1.0 mm2
No / Yes
60,000 hours
Mechanical parameters
MODEL NAME
E-CORE LED FLOODLIGHT 3000
Body
Finishing
Lighting outlet
Type of installation
IP/IK rating
LED module
Approval mark
Ambient temperature Ta
Net weight
Die cast aluminium
Silver
1
Surface mounting
IP65 / IK07
Non-replaceable – Integrated
CE / ENEC
-20 °C – +35 °C
3,400 g
Accessories
MODEL NAME
GRASS MOUNTING SPIKE
Product code
Finishing
LEDEUFX0004
White
MODEL NAME
WALL MOUNTING ARM
Product code
Finishing
LEDEUFX0002
White
88 mm
445 mm
LEDEUFX0005
Silver
600 mm
300 mm
LEDEUFX0003
Silver
E-CORE LED FLOODLIGHT 3000
7 /8
Drawings
(288 mm)
268 mm
323±5 mm
240 mm
13
0°
39 mm
14
0°
14
0°
0°
14
Celling mounted
0°
13
0°
13
Horizontal mounted
Ø 12 mm
90 mm
0°
14
Movable angle
13
0°
142±3 mm
259 mm
Wall mounted (downwards)
Wall mounted (upwards)
E-CORE LED FLOODLIGHT 3000
8 /8
Logistic data
PRODUCT CODE
EAN CODE
DESCRIPTION
SIZE OF PACKAGING (L x H x W)
GROSS WEIGHT
LEDEUF00019I30N
4974550488761
E-CORE LED FLOODLIGHT 3000
3000 K / Narrow
340 x 310 x 105 mm
4,520 g
LEDEUF00019I40N
4974550488778
E-CORE LED FLOODLIGHT 3000
4000 K / Narrow
340 x 310 x 105 mm
4,520 g
LEDEUF00019I50N
4974550488785
E-CORE LED FLOODLIGHT 3000
5000 K / Narrow
340 x 310 x 105 mm
4,520 g
LEDEUF00020I30N
4974550488792
E-CORE LED FLOODLIGHT 3000
3000 K / Medium
340 x 310 x 105 mm
4,520 g
LEDEUF00020I40N
4974550488808
E-CORE LED FLOODLIGHT 3000
4000 K / Medium
340 x 310 x 105 mm
4,520 g
LEDEUF00020I50N
4974550488815
E-CORE LED FLOODLIGHT 3000
5000 K / Medium
340 x 310 x 105 mm
4,520 g
LEDEUF00021I30N
4974550488822
E-CORE LED FLOODLIGHT 3000
3000 K / Wide
340 x 310 x 105 mm
4,520 g
LEDEUF00021I40N
4974550488839
E-CORE LED FLOODLIGHT 3000
4000 K / Wide
340 x 310 x 105 mm
4,520 g
LEDEUF00021I50N
4974550488846
E-CORE LED FLOODLIGHT 3000
5000 K / Wide
340 x 310 x 105 mm
4,520 g
LEDEUF00022I30N
4974550488853
E-CORE LED FLOODLIGHT 3000
3000 K / Asymmetric
340 x 310 x 105 mm
4,520 g
LEDEUF00022I40N
4974550488860
E-CORE LED FLOODLIGHT 3000
4000 K / Asymmetric
340 x 310 x 105 mm
4,520 g
LEDEUF00022I50N
4974550488877
E-CORE LED FLOODLIGHT 3000
5000 K / Asymmetric
340 x 310 x 105 mm
4,520 g
LEDEUFX0004
LEDEUFX0005
LEDEUFX0002
LEDEUFX0003
4974550453929
4974550453936
4974550453905
4974550453912
Grass mounting spike - White
Grass mounting spike - Silver
Wall mounting arm - White
Wall mounting arm - Silver
Order separately
Order separately
Order separately
Order separately
09/2014
www.toshiba.eu/lighting
Product specifications and configurations, and availability of products are subject
to change. Variations in product design and product features are subject to change.
Colours may vary from illustration. Errors and omissions excepted.
© Copyright 2014 Picture credits: Toshiba, Fotolia.com

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
