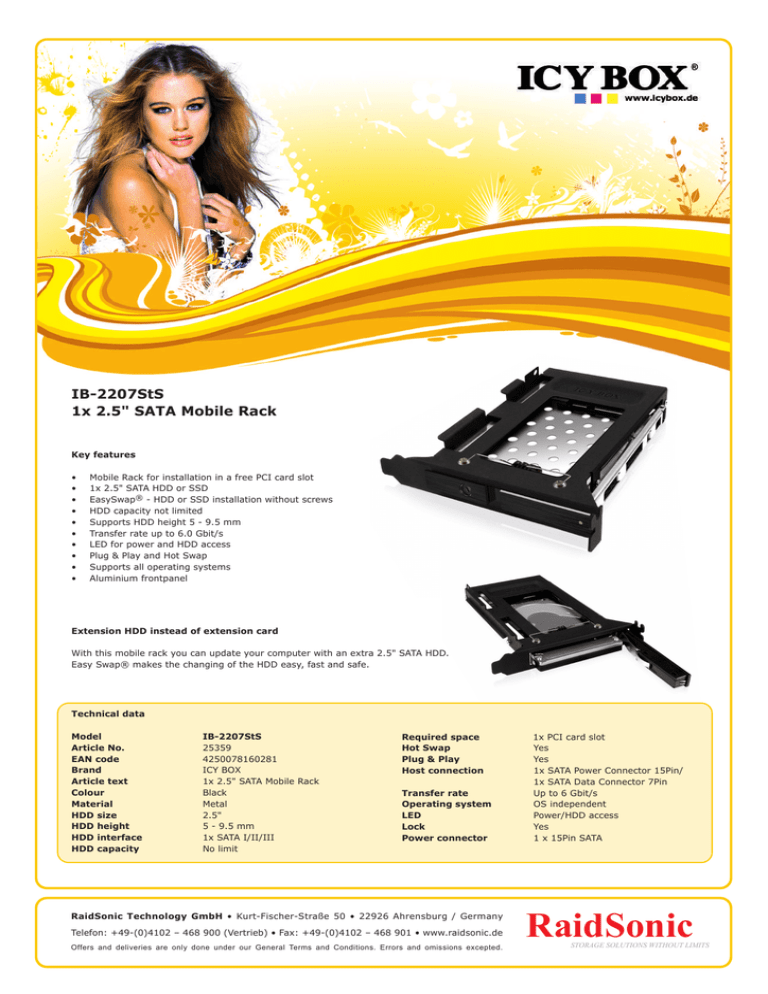

RaidSonic IB-2207STS Datasheet

RaidSonic IB-2207STS Datasheet
IB-2207StS
1x 2.5" SATA Mobile Rack
Key features
•
•
•
•
•
•
•
•
•
•
Mobile Rack for installation in a free PCI card slot
1x 2.5" SATA HDD or SSD
EasySwap® - HDD or SSD installation without screws
HDD capacity not limited
Supports HDD height 5 - 9.5 mm
Transfer rate up to 6.0 Gbit/s
LED for power and HDD access
Plug & Play and Hot Swap
Supports all operating systems
Aluminium frontpanel
Extension HDD instead of extension card
With this mobile rack you can update your computer with an extra 2.5" SATA HDD.
Easy Swap® makes the changing of the HDD easy, fast and safe.
Technical data
Model
Article No.
EAN code
Brand
Article text
Colour
Material
HDD size
HDD height
HDD interface
HDD capacity
IB-2207StS
25359
4250078160281
ICY BOX
1x 2.5" SATA Mobile Rack
Black
Metal
2.5"
5 - 9.5 mm
1x SATA I/II/III
No limit
Required space
Hot Swap
Plug & Play
Host connection
Transfer rate
Operating system
LED
Lock
Power connector
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
1x PCI card slot
Yes
Yes
1x SATA Power Connector 15Pin/
1x SATA Data Connector 7Pin
Up to 6 Gbit/s
OS independent
Power/HDD access
Yes
1 x 15Pin SATA
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
Front view
Rear view
SATA power
connector 15Pin
Frontpanel
release
Keylock
LED power/access
SATA data
connector 7Pin
LED connector 4Pin
Packing content: 1x IB-2207StS, 1x SATA cable, 1x LED cable, 1x screws, 1x key, 1x manual
Logistical data
Packing unit:
40 pcs./carton
Total weight:
11.1 kg/carton
Gross weight (incl. packing): 0.26 kg
Net weight:
0.16 kg
Dimension / carton:
Dimension (incl. packing):
Dimension from article:
Country of origin:
340x340x295 mm
135x160x30 mm
145x120x25 mm
China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Import tax:
84733080
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
