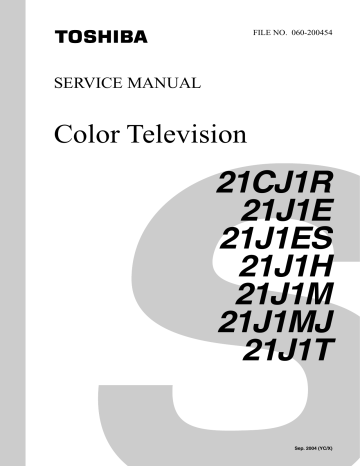

FILE NO. 060-200454

SERVICE MANUAL

Color Television

21CJ1R

21J1E

21J1ES

21J1H

21J1M

21J1MJ

21J1T

Sep. 2004 (YC/X)

TABLE OF CONTENTS

CHAPTER 1

GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS ........................................................................................................................................ 3

SET-UP ADJUSTMENT ............................................................................................................................................ 4

SERVICE MODE ...................................................................................................................................................... 6

DESIGN MODE ........................................................................................................................................................ 9

ELECTRICAL ADJUSTMENTS .............................................................................................................................. 10

CIRCUIT CHECK .................................................................................................................................................... 12

CHAPTER 2

SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .............................................................................................................................. 13

LOCATION OF CONTROLS ................................................................................................................................... 14

PROGRAMMING CHANNEL MEMORY ................................................................................................................. 15

CHASSIS AND CABINET REPLACEMENT PARTS LIST ...................................................................................... 17

PC BOARDS BOTTOM VIEW ................................................................................................................................. 2 5

TERMINAL VIEW OF TRANSISTORS ................................................................................................................... 30

CIRCUIT BLOCK DIAGRAM .................................................................................................................................. 32

SPECIFICATIONS .............................................................................................................................................. END

APPENDIX:

CIRCUIT DIAGRAM

- 2 -

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a (C) V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

Refer to table-1 for high voltage (A), (B) & AC voltage (C).

(See SETTING & ADJUSTING DATA on page 13)

2. The only source of X-RAY RADIATION in this TV receiver is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

3. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service record. It is important to use an accurate and reliable high voltage meter.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; nonmetallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

- 3 -

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

SET-UP ADJUSTMENT

■ The following adjustments should be made when a complete realignment is required or a new picture tube is installed.

Perform the adjustments in order as follows :

1. Color Purity

2. Convergence

3. White Balance

Note: The PURITY/CONVERGENCE MAGNET assembly and rubber wedges need mechanical positioning.

Refer to figure 1.

Mounting position of the purity magnet assembly should fit to same position as old one because slightly difference to the position depend on a kind of tube.

* There are no adjustment of purity and convergence in some picture tube (Unified with purity magnet)

COLOR PURITY ADJUSTMENT

NOTE : Before attempting any purity adjustments, the receiver should be operated for at least fifteen minutes.

1. Demagnetize the picture tube and cabinet using a degaussing coil.

2. Set the brightness and contrast to maximum.

3. Use a green raster from among the built-in test signals.

4. Loosen the clamp screw holding the yoke and slide the yoke backward or forward to provide vertical green belt

(zone) in the picture screen.

5. Remove the Rubber Wedges.

6. Rotate and spread the tabs of the purity magnet (See figure 2.) around the neck of the picture tube until the green belt is in the center of the screen. At the same time, enter the raster vertically.

7. Slowly move the yoke forward or backward until a uniform green screen is obtained. Tighten the clamp screw of the yoke temporarily.

8. Check the purity of the red and blue raster.

TEMPORARY

MOUNTING

DEFLECTION

YOKE

29.1mm(28", 29")

25mm(25")

19mm(19", 20", 21")

14mm(13", 14")

RUBBER WEDGE

DEFLECTION

YOKE

ADHESIVE

GLASS CLOTH

TAPES

PURITY/

CONVERGENCE

MAGNET ASS'Y

Figure 1.

- 4 -

CONVERGENCE ADJUSTMENTS

NOTE: Before attempting any convergence adjustments, the receiver should be operated for at least fifteen minutes.

CENTER CONVERGENCE ADJUSTMENT

1. Use the cross-dot pattern from among the built-in test signals.

2. Set the brightness and contrast for well defined pattern.

3. Adjust two tabs of the 4-Pole Magnets to change the angle between them (See figure 2.) and superimpose red and blue vertical lines in the center area of the picture screen.

4. Turn the both tabs at the same time keeping the angle constant to superimpose red and blue horizontal lines at the center of the screen.

5. Adjust two tabs of 6-Pole Magnets to superimpose red/ blue line and green one. Adjusting the angle affects the vertical lines and rotating both magnets affects the horizontal lines.

6. Repeat adjustments 3, 4, 5 keeping in mind red, green and blue movement, because 4-Pole Magnets and 6-Pole

Magnets have mutual interaction and make dot movement complex.

6-POLE

MAGNETS

4-POLE

MAGNETS

ADJUST THE ANGLE

(VERTICAL LINES)

CIRCUMFERENCE CONVERGENCE ADJUSTMENT

1. Loosen the clamping screw of deflection yoke slightly to allow the yoke to tilt.

2. Temporarily put a wedge as shown in figure 1. (Do not remove cover paper on adhesive part of the wedge.)

3. Tilt front of the deflection yoke up or down to obtain better convergence in circumference. (See figure 3.) Push the mounted wedge into the space between picture tube and the yoke to fix the yoke temporarily.

4. Put other wedge into bottom space and remove the cover paper to stick.

5. Tilt front of the yoke right or left to obtain better convergence in circumference. (See figure 3.)

6. Keep the yoke position and put another wedge in either upper space. Remove cover paper and stick the wedge on picture tube to fix the yoke.

7. Detach the temporarily mounted wedge and put it in another upper space. Stick it on picture tube to fix the yoke.

8. After fixing three wedges, recheck overall convergence.

Tighten the screw firmly to fix the yoke and check the yoke is firm.

9. Stick three adhesive tapes on wedges as shown in figure

1.

FIXED

ROTATE TWO TABS

AT THE SAME TIME

(HORIZONTAL LINES)

PURITY

MAGNETS

CONVERGENCE MAGNET ASSEMBLY

BLU RED

Figure 2.

ADJUSTMENT OF MAGNETS

RED/BLU GRN

BLU

RED

RED/BLU

GRN

4-POLE MAGNETS MOVEMENT 6-POLE MAGNETS MOVEMENT

Center Convergence by Convergence Magnets

BGR

B

G

R

RGB

R

G

B

B

G

R

RGB

INCLINE THE YOKE UP (OR DOWN)

BGR

R

G

B

INCLINE THE YOKE RIGHT (OR LEFT)

Circumference Convergence by DEF Yoke

Figure 3. Dot Movement Pattern

- 5 -

1. ENTERING TO SERVICE MODE

1) Press o button once on

Remote Control.

SERVICE MODE

2) Press o button again to keep pressing.

3) While pressing the o button, press MENU button on TV set.

Item

Data

S

(Service mode display)

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode Adjustment mode

S

Press

Press

Item

Data

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

A single horizontal line ON/OFF:

Test signal selection :

Selection of the adjustment items :

Change of the data value :

Adjustment menu mode ON/OFF :

Initialization of the memory (QA02) :

Reset the count of operating protect circuit to “00”:

“RCUT” selection :

“GCUT” selection :

“BCUT” selection :

“CNTX” (or “SCNT”) selection :

“COLC” selection :

“TNTC” selection :

Test audio signal ON/OFF (1kHz) :

Self diagnostic display ON/OFF :

- / - - button (on Remote) or a button (on TV) a button (on Remote)

Channel s/t (on TV or Remote)

Volume

; +/– (on TV or Remote)

MENU button (on TV)

CALL + Channel button on TV ( s)

CALL + Channel button on TV ( t)

1 button

2 button

3 button

4 button

5 button

6 button

8 button

9 button

Color thickness correction note: Displayed differently as shown below, depending on the setting of the receiving color system.

COLP (PAL)

COLC (NTSC)

COLS (SECAM)

CAUTION : Never try to perform initialization unless you have changed the memory IC.

- 6 -

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.

( t button for reverse order)

Refer to table-2 for preset data of adjustment mode.

(See SETTING & ADJUSTING DATA on page 13)

5. ADJUSTING THE DATA

1) Pressing of VOLUME

; +/– button will change the value of data in the range from 00H to FFH. The variable range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

INITIALIZATION OF MEMORY DATA OF QA02

After replacing QA02, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the CALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above.

Perform “Auto search Memory” on the owner’s manual.

CAUTION: Never attempt to initialize the data unless QA02 has been replaced.

7. TEST SIGNAL SELECTION

1) Every pressing of a button on the Remote Control changes the built-in test patterns on screen as described below in SERVICE MODE.

Signal off NTSC signals (14 patterns)

PAL signals (14 patterns)

Picture Signals

• Red raster

• Green raster

• Blue raster

• All Black

• All White

• Black & White

• Black cross-bar

• White cross-bar

• Black cross-bar on green raster

• Black cross-hatch

• White cross-hatch

• Black cross-dot

• White cross-dot

• H signal (white)

• H signal (black)

*

The signals marked with are not usable to display in the Test signal for some model.

- 7 -

8. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode.

The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

Indicated color of mode now selected : Green and Red

Indicated color of other modes : White

<SELF CHECK>

2 3 * * * * * *

POWER : 00

BUS LINE : OK

BUS CONT : OK

BLOCK : UV V1

Green : Normal

Red : The microprocessor operates to provide judgement of no video signal. The red color is still indicated though the signal is input, failure may exist in input signal line including Q100.

Part number of microprocessor(Q100)

Operation number of protecting circuit ----“00” is normal.

When indication is other than “00”, overcurrent apts to flow, and circuit parts may possibly be damaged.

BUS LINE CHECK ----“OK” is normal.

“SDA1-GND” ------------- SDA-GND short circuit.

“SCL1-GND” -------------- SCL-GND short circuit.

“SCL1-SDA1” ------------- SCL-SDA short circuit.

BUS CONT ----“OK” is normal.

When indication shows “Q NG”, the device with the number may possibly be damaged.

BLOCK

UV : TV reception mode

V1 : VIDEO input mode ( 1)

- 8 -

DESIGN MODE

1. ENTERING TO DESIGN MODE

1) Select the Service mode.

2) While pressing o (or CALL) button on

Remote and press MENU button on TV.

3) Press MENU button on TV.

S D

Press

Press

ITEM

DATA

(Design mode) (Adjustment mode)

When QA02 is initialized, items “OPT0” and “OPT1” of DESIGN MODE are set to the data of the representative model of this chassis family.

Therefore, because ON-SCREEN specification remains in the state of the representative of model. This model is required to reset the data of items “OPT0” and “OPT1”.

2. SELECTING THE ADJUSTING ITEMS

Every pressing of CHANNEL t button in the design mode changes the adjustment items in the order of table-3.

( s button for reverse order)

Refer to table-3 for data of design mode.

(See SETTING & ADJUSTING DATA on page 13)

3. ADJUSTING THE DATA

Pressing of VOLUME s or t button will change the value of data.

- 9 -

ELECTRICAL ADJUSTMENTS

ITEM

FOCUS VR ADJ

SUB-BRIGHTNESS

(BRTC)

Note: Constrict the picture height until the vertical retrace line appears adjusting the item

HIT (HEIGHT).

HORIZONTAL POSITION

ADJUSTMENT (HPOS)

VERTICAL POSITION

ADJUSTMENT (VPOS)

ADJUSTMENT PROCEDURE

1. Enter the service mode, then select any register item.

2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern appears on the screen.

3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture screen.

1. Set CONTRAST to minimum, and

BRIGHTNESS to center by adjusting user controls.

2. Set the TV in service mode to get white cross-bar of inside pattern.

3. Select BRTC (brightness correction), and adjust the

; – /+ button to reduce the value so that white portion of inside pattern slightly light.

4. Adjust

; – /+ button to increase the data value of BRTC, and set it just before the difference between the belt of vertical retrace and the border of black portion of inside pattern is visible.

After that, return vertical height and contrast.

1. Set the TV in service mode, and get black or white cross-bar signal with

VIDEO button on remote hand unit.

2. Select either HPOS (Horizontal picture phase) or VPOS (Vertical picture phase) with CHANNEL s, t buttons, and adjust horizontal or vertical picture position in the center of screen with VOLUME

; – /+ buttons.

Belt of vertical retrace

VERTICAL AMPLITUDE

ADJUSTMENT (HIT)

1. Set the TV in service mode, and get black or white cross-hatch signal with VIDEO button on remote hand unit.

2. Select HIT (Vertical amplitude) with

CHANNEL s, t buttons, and adjust vertical amplitude with VOLUME

; – /+ buttons so that vertical amplitude lacks a little.

3. Adjust vertical amplitude with VOL-

UME

; – /+ buttons so that the first bar on cross-hatch signal touches edge of screen.

The first

- 10 -

ITEM

WHITE BALANCE

ADJUSTMENT

CUTOFF ADJUSTMENT

(RCUT)

(GCUT)

(BCUT)

DRIVE ADJUSTMENT

(GDRV)

(BDRV)

ADJUSTMENT PROCEDURE

1. Set Contrast to 40, and brightness to +20 by picture control.

2. Set the TV in service mode, and get the inside W/B adjusting signal with VIDEO button.

3. Select RCUT, GCUT and BCUT with CHANNEL s, t buttons, to set individual values to Initial reference data, and to set GDRV and BDRV to Initial reference data with VOLUME

; – /+ buttons.

4. Press -/- - button on the remote control and rotate Screen VR to get one slight horizontal line on screen.

Note: Every pressing of -/- - button provides Horizontal line picture and Normal picture alternately.

5. Press -/- - button to release horizontal line picture, and select the two other colors which did not light in the above step with CHANNEL s, t buttons. Then tap VOL-

UME

; – /+ buttons so that three colors slightly light in the same level.

X To correct white balance in light area, select GDRV and BDRV with CHANNEL s, t buttons to adjust.

X To correct white balance in dark area, perform fine adjustment of RCUT, GCUT and BCUT.

Light area check

(to show white)

Dark area check

(to show black)

NOTE: It is released built-in test pattern by changing the adjustment item for some model.

In this case, select the adjustment item with channel s t buttons first and then select the built-in test pattern with

-/- - button.

- 11 -

CIRCUIT CHECK

HIGH VOLTAGE CHECK

CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below.

1. Connect an accurate high voltage meter to the second anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CONTRAST controls to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B).

(See SETTING & ADJUSTING DATA on page 13)

4. Vary the BRIGHTNESS control to both extremes to be sure the high voltage does not exceed the limit under any conditions.

- 12 -

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

21 "

HIGH VOLTAGE AT ZERO BEAM:

(A)

2 7 .

8 kV

MAX HIGH VOLTAGE:

(B)

2 9 kV

AC VOLTAGE

(C)

- 240 V

Table-1

SERVICE MODE

ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE:

Item

RCUT

GCUT

BCUT

GDRV

BDRV

BRTC

COLC

TNTC

COLP

COLS

SCNT

HPOS

VPOS

HIT

VLIN

SRY

SBY

RAGC

Adjustment

R CUTOFF (B/W)

G CUTOFF (B/W)

B CUTOFF (B/W)

G DRIVE

B DRIVE

SUB BRIGHT CEN

SUB COLOR CEN NTSC

SUB TINT CEN

SUB COLOR CEN PAL

SUB COLOR CEN SECAM

SUB CONTRAST

50Hz H-POSITION

V-POSITION

HEIGHT

V-LINEARITY

SECAM R-Y

SECAM-B-Y

RF AGC

Table-2

Reference data

20H

20H

20H

40H

40H

40H

30H

45H

09H

30H

08H

0DH

04H

1EH

0AH

08H

08H

2AH

DESIGN MODE

ADJUSTING ITEMS AND DATAS IN THE DESIGN MODE:

Item

OPT0

OPT1

Name of adjustment

OPTION 0

OPTION 1

Preset Data

75H

15H

Table-3

Data

21"

Data

0B H

Remarks

- 13 -

Front

LOCATION OF CONTROLS(Representative: 21J1E)

Remote

0

5

4

6

j i h gf e d b c a

9

3

8

1

7

2

Names of Parts

TV Set a

Main power b c on/off

Infrared sensor

Power indicator d t c s

Channel e t;s select

Volume down/up f a

TV/VIDEO select g MENU Menu open h l

Headphone jack i AUDIO Audio input terminal j VIDEO Video input terminal

Remote Controller

1

2 f

Power on/standby

0~9 Direct select

3

CH s/t Channel up/down,

Item select

4

; –/+ Volume up/down,

Menu select, Level adjust

5

-/--

Digit select

6

MENU Menu open

7 o

Sound mute

8

Picture control

9 a

TV/VIDEO select

0

CALL On-screen on/off

-

RGYB

Game select

Red/Green/Yellow/Blue

Note:

The shaded buttons are not available for your TV. If you press the button,

”MODE NOT AVAILABLE” will appear on the screen.

- 14 -

PROGRAMMING CHANNEL MEMORY

• For easy Channel selection, the chosen Position should have the same number as Channel stored there. For this operation, you may use the “SEARCH” and “SKIP” functions.

Example : Presetting Channel 12 to Position 12

Use this function when:

• You cannot find the channel you want using “Selecting the channel” on page 9.

• The color or sound is strange.

Technical Term

Channel: The number or abbreviation of the broadcast station frequency in each country (Channel 5,

Channel 8, Arts Central, Channel U etc.)

Position: The number on your TV given to stored channels (0~199). It is displayed on the upper right of the screen.

Auto search memory (ASM)

All the channels that can be received are preset automatically.

1 Select the starting position for ASM. Press

(0~9) or CH s/t.

2 Set the correct broadcast system for your region. Press MENU and

; –/+ to call up the

“SET UP” menu

D7

. Set “COLOR” to

“AUTO” and set “SOUND” according to the table above using CH s/t and ; –/+.

3 Press MENU and

; –/+ to call up the

“TUNING” menu

D8

. Select “ASM”, then press

; + to start the search. When the TV screen returns to the start position, the procedure is complete.

Manual Search and Changing the assigned position

For easy Channel selection, the chosen

Position should have the same number as

Channel stored there. For this operation, you may use the “SEARCH” and “SKIP” functions.

Example : Presetting Channel 12 to Position 12

Method 1 - Manual Search

1 Select Position 12.

Press CH s/t repeatedly until 12 is displayed.

Or, press -/-- twice to display “--” on the screen then press the “1” and “2” buttons in this order.

2 Press MENU and

; –/+ to call up the

“TUNING” menu D8 . Press CH s/t and select “SEARCH”. Press

; –/+ to search. Pressing “-” searches for channels at lower frequencies while pressing

“+” searches for channels at higher frequencies.

3 When Channel 12 is found, press CH s/t to select “MEMORY”. Press “+” to complete the presetting.

Method 2 - Store Position

1 Select Channel 12.

Press (0~9) or CH s/t to find the position preset for Channel 12.

2 When Channel 12 is selected, press

MENU and

; –/+ to call up the “TUNING” menu D8 . Press CH s/t and select

“POSITION”. Press

; –/+ and set

“POSITION” to P012. Pressing “-” and “+” respectively decreases and increases the position number.

3 When Position 12 is found, press CH s/t to select “MEMORY”. Press “+” to complete the presetting.

- 15 -

• Under some reception conditions, fine tuning may be necessary to improve the picture quality. In such cases, adjust the manual fine tuning (MFT).

• If the signal frequency is unstable due to environmental conditions, use auto fine tuning.

Skip Function

If you set “SKIP ON” for unnecessary position numbers, these will be skipped when selecting channels using CH s/t.

Example : Skipping Channel 13

1 Select Position 13 using the same method for selecting Position 12 (above).

2 Press MENU and

; –/+ to call up the

“SET UP” menu

D7

. Press CH s/t and select “SKIP”. Press

; –/+ to switch the “SKIP” setting from “OFF” to “ON”.

This completes the setting for skipping

Note:

Position 13.

• When “SKIP” is ON, the Position number is prefixed by “*”.

Example: *13. To confirm this, select Position

13 using the -/-- and 0~9 buttons.

• If you want to restore a skipped position number, select it using the -/-- and 0~9 buttons then switch the “SKIP” setting to

“OFF” as in step 2 above.

Manual fine tuning (MFT)

Under some reception conditions, fine tuning may be necessary to improve the picture quality. In such cases, adjust the manual fine tuning (MFT).

1 Press MENU and

; –/+ to call up the

“TUNING” menu D8 .

2 Press CH s/t and select “MFT”. Press ; –/+ to start fine tuning. Pressing “-” fine tunes to a lower frequency while pressing “+” fine tunes to a higher frequency.

Auto fine tuning (AFT)

If the signal frequency is unstable due to environmental conditions, use auto fine tuning.

1 Press MENU and

; –/+ to call up the

“TUNING” menu D8 .

2 Press CH s/t and select “AFT”. Press ; –/+ to switch it to “ON”. This completes the setting.

Notes:

• When you operate MFT, AFT is switched

OFF automatically. If you switch on AFT after fine tuning with MFT, MFT may be cancelled.

• AFT may be set independently for each

Position.

- 16 -

CHASSIS AND CABINET REPLACEMENT PARTS LIST

WARNING

: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRE-

CAUTION" AND "PRODUCT SAFETY NOTICE" ON PAGE 3 OF THIS MANUAL.

CAUTION

: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

The part number must be used when ordering parts, in order to assist in processing, be sure to include the

Model number and Description.

The PC board assembly with

*

mark is no longer available after the end of the production.

Model : 21CJ1R/21J1E/21J1ES/21J1H/21J1M/21J1MJ/21J1T

Capacitors ............. CD : Ceramic Disk

Resistors ............... CF : Carbon Film

PF : Plastic Film

CC : Carbon Composition

EL : Electrolytic

MF : Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor

(All CD and PF capacitors are

±

5%, 50V and all resistors,

±

5%, 1/6W unless otherwise noted.)

Location

No.

Parts No. Description

#1 : [21CJ1R]

#2 : [21J1E]

#3 : [21J1ES]

#4 : [21J1H]

#5 : [21J1M]

#6 : [21J1MJ]

#7 : [21J1T]

CAPACITORS

C101 #1 24763101 ELECTROLYTIC, 16V 100UF M

C102 24763221 ELECTROLYTIC, 16V 220UF M

C103 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

#2 24109103 CERAMIC CHIP, 50V B 0.01UF K

C104 #1 24105470 CERAMIC CHIP, 50V CH 47PF J

#2 24105470 CERAMIC CHIP, 50V CH 47PF J

C105 #1 24105220 CERAMIC CHIP, 50V CH 22PF J

C106 24796479 ELECTROLYTIC, 35V 4.7UF M

C107 #1 24105220 CERAMIC CHIP, 50V CH 22PF J

C108 24503049 PLASTIC FILM, 63V 0.47UF J

C109 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C110 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

C111 #7 24105470 CERAMIC CHIP, 50V CH 47PF J

C112 #7 24105470 CERAMIC CHIP, 50V CH 47PF J

C130

C131

C132

C133

C135

C136

C137

C141

C113

C114

24109102 CERAMIC CHIP, 50V B 1000PF K

24109102 CERAMIC CHIP, 50V B 1000PF K

C116 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

C118 24109102 CERAMIC CHIP, 50V B 1000PF K

C120

C121

C123

C129

24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

24109103 CERAMIC CHIP, 50V B 0.01UF K

24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

24109102 CERAMIC CHIP, 50V B 1000PF K

24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

24814103 CERAMIC CHIP, 50V F 0.01UF Z

24100104 CERAMIC CHIP, 25V F 0.1UF Z

24105101 CERAMIC CHIP, 50V CH 100PF J

24109222 CERAMIC CHIP, 50V B 2200PF K

24206228 ELECTROLYTIC, 50V 0.22UF M 7L 3A CE04WS

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24105101 CERAMIC CHIP, 50V CH 100PF J

C150 #1 24814103 CERAMIC CHIP, 50V F 0.01UF Z

#2 24814103 CERAMIC CHIP, 50V F 0.01UF Z

#3 24814103 CERAMIC CHIP, 50V F 0.01UF Z

#4 24814103 CERAMIC CHIP, 50V F 0.01UF Z

C166

#5 24814103 CERAMIC CHIP, 50V F 0.01UF Z

#6 24814103 CERAMIC CHIP, 50V F 0.01UF Z

24109103 CERAMIC CHIP, 50V B 0.01UF K

Location

No.

Parts No. Description

C167 24763101 ELECTROLYTIC, 16V 100UF M

C170 24109103 CERAMIC CHIP, 50V B 0.01UF K

C171 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#6 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C172 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#6 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C173 #1 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#2 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#3 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#4 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#5 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

#6 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C174 #2 24105330 CERAMIC CHIP, 50V CH 33PF J

#3 24105330 CERAMIC CHIP, 50V CH 33PF J

#4 24105330 CERAMIC CHIP, 50V CH 33PF J

#5 24105330 CERAMIC CHIP, 50V CH 33PF J

#6 24105330 CERAMIC CHIP, 50V CH 33PF J

#7 24105330 CERAMIC CHIP, 50V CH 33PF J

C175 #2 24105330 CERAMIC CHIP, 50V CH 33PF J

#3 24105330 CERAMIC CHIP, 50V CH 33PF J

#4 24105330 CERAMIC CHIP, 50V CH 33PF J

#5 24105330 CERAMIC CHIP, 50V CH 33PF J

#6 24105330 CERAMIC CHIP, 50V CH 33PF J

C222

C223

C224

C226

C227

C231

C232

C176

#7 24105330 CERAMIC CHIP, 50V CH 33PF J

24105330 CERAMIC CHIP, 50V CH 33PF J

C179 #7 24109103 CERAMIC CHIP, 50V B 0.01UF K

C180 #7 24109103 CERAMIC CHIP, 50V B 0.01UF K

C189

C192

C216

C221

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

24105330 CERAMIC CHIP, 50V CH 33PF J

24105330 CERAMIC CHIP, 50V CH 33PF J

24105330 CERAMIC CHIP, 50V CH 33PF J

24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

24591104 PLASTIC FILM, 50V 0.1UF J

24591104 PLASTIC FILM, 50V 0.1UF J

24232103 CERAMIC DISC, 50V F 0.01UF Z

24232103 CERAMIC DISC, 50V F 0.01UF Z

– 17 –

Location

No.

Parts No. Description

C317

C320

C410

C417

C420

C421

C431

C432

C305

C306

C307

C308

C312

C313

C314

C315

24617915 ELECTROLYTIC, 50V 1UF K 3A LI

24763102 ELECTROLYTIC, 16V 1000UF M

24693473 PLASTIC FILM, 100V 0.047UF J

24765101 ELECTROLYITC, 35V 100UF M

24765102 ELECTROLYTIC CE04G 35V 1000UF M

24082280 PLASTIC FILM, 100V 0.22UF J

24212152 CERAMIC DISC, 50V B 1500PF K

24503049 PLASTIC FILM, 63V 0.47UF J

24214471 CERAMIC DISC, 500V B 470PF K

24765101 ELECTROLYITC, 35V 100UF M

24693472 PLASTIC FILM, 100V 4700PF J

24214102 CERAMIC DISC, 500V B 1000PF K

24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

24763470 ELECTROLYTIC, 16V 47UF

24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

C433

C434

C435

C436

C437

C440

C442

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24763102 ELECTROLYTIC, 16V 1000UF M

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24109822 CERAMIC CHIP, 50V B 8200PF K

24503224 PLASTIC FILM CF92 T 1500VH 6000PF H

24082970 PLASTIC FILM CF92 T 250V R43UF J

#1 24082694 PLASTIC FILM, 250V 0.33UF J

#2 24082694 PLASTIC FILM, 250V 0.33UF J

#3 24082990 PLASTIC FILM, 250V 0.33UF J

#4 24082990 PLASTIC FILM, 250V 0.33UF J

#5 24082990 PLASTIC FILM, 250V 0.33UF J

C444

C445

C446

C448

C449

C463

C467

C484

C485

C502

C517

C523

C526

C528

#6 24082990 PLASTIC FILM, 250V 0.33UF J

#7 24082990 PLASTIC FILM, 250V 0.33UF J

24503213 PLASTIC FILM CF92 T 1500VH 1500PF H

24693104 PLASTIC FILM, 100V 0.1UF J

24679100 ELECTROLYTIC, 250V 10UF M 3A

24073118 ELECTROLYTIC, 160V 33UF M

24794471 ELECTROLYTIC, 16V 470UF M

24109152 CERAMIC CHIP, 50V B 1500PF K

24095879 PLASTIC FILM, 630V 0.022UF H

24591104 PLASTIC FILM, 50V 0.1UF J

24591104 PLASTIC FILM, 50V 0.1UF J

24591103 PLASTIC FILM, 50V 0.01UF J

24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

24109102 CERAMIC CHIP, 50V B 1000PF K

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

C565 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

C566 #1 24763471 ELECTROLYTIC, 16V 470UF M

C873

C874

C875

C876

C877

C878

C801

C805

C806

C810

C813

C814

C861

C864

C567

C610

C612

C613

C615

C631

C632

C633

24109103 CERAMIC CHIP, 50V B 0.01UF K

24795100 ELECTROLYTIC, 25V 10UF M

24797220 ELECTROLYTIC, 50V 22UF M

24591104 PLASTIC FILM, 50V 0.1UF J

24763101 ELECTROLYTIC, 16V 100UF M

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24591682 PLASTIC FILM, 50V 6800PF J

24591393 PLASTIC FILM, 50V 0.039UF J

C634

C660

C661

C665

24591103 PLASTIC FILM, 50V 0.01UF J

24206478 ELECTROLYTIC, 50V 0.47UF M 7L 3A

24591104 PLASTIC FILM, 50V 0.1UF J

24073060 ELECTROLYTIC, 25V 4700UF M 3A

C667

C668

24591104 PLASTIC FILM, 50V 0.1UF J

24764471 ELECTROLYTIC, 25V 470UF M

C669 24766100 ELECTROLYTIC, 50V 10UF M

C673 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

24503507 PLASTIC FILM, AC275V 0.22UF K

24092281 CERAMIC DISC, AC250V E 4700PF

24092281 CERAMIC DISC, AC250V E 4700PF

24086059 ELECTROLYTIC, 400V 270UF M 3D

24092555 CERAMIC DISC, AC250V E 1000PF M

24092555 CERAMIC DISC, AC250V E 1000PF M

24214471 CERAMIC DISC, 500V B 470PF K

24797221 ELECTROLYTIC, 50V 220UF M

24092341 CERAMIC DISC, 2KV R 470PF K

24591104 PLASTIC FILM, 50V 0.1UF J

24109681 CERAMIC CHIP, 50V B 680PF K

24109102 CERAMIC CHIP, 50V B 1000PF K

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24092341 CERAMIC DISC, 2KV R 470PF K

Location

No.

Parts No. Description

CA42

CA45

CA51

CA52

CA53

CA54

CA55

CA58

C912

C913

C971

CA01

CA02

CA03

CA04

CA30

C896

C897

C899

C902

C904

C905

C907

C910

C879

C880

C884

C885

C886

C887

C889

C893

24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

24100103 CERAMIC CHIP, 50V F 0.01UF Z

24640018 ELECTROLYTIC, 160V 220UF

24214471 CERAMIC DISC, 500V B 470PF K

24214471 CERAMIC DISC, 500V B 470PF K

24764471 ELECTROLYTIC, 25V 470UF M

24764102 ELECTROLYTIC 04G, 25V 1000UF M

24092341 CERAMIC DISC, 2KV R 470PF K

24092553 CERAMIC DISC, AC250V B 470PF K

24092557 CERAMIC DISC, AC250V E 2200PF M

24503045 PLASTIC FILM, 63V 0.22UF J

24092345 CERAMIC DISC, 2KV 1000PF K

24109471 CERAMIC CHIP, 50V B 470PF K

24109471 CERAMIC CHIP, 50V B 470PF K

24109561 CERAMIC CHIP, 50V B 560PF K

24766478 ELECTROLYTIC, 50V 0.47UF M

24763471 ELECTROLYTIC, 16V 470UF M

24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

24232103 CERAMIC DISC, 50V F 0.01UF Z

24105101 CERAMIC CHIP, 50V CH 100PF J

24105220 CERAMIC CHIP, 50V CH 22PF J

24105220 CERAMIC CHIP, 50V CH 22PF J

24105270 CERAMIC CHIP, 50V CH 27PF J

24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

24109103 CERAMIC CHIP, 50V B 0.01UF K

24109272 CERAMIC CHIP, 50V B 2700PF K

24109152 CERAMIC CHIP, 50V B 1500PF K

24105181 CERAMIC CHIP, 50V CH 180PF J

24766330 ELECTROLYTIC, 50V 33UF M

24206010 ELECTROLYTIC, 50V 1.0UF M 7L 3A

24105101 CERAMIC CHIP, 50V CH 100PF J

CA60

CB01

24206479 ELECTROLYTIC, 50V 4.7UF M 7L 3A

24203470 ELECTROLYTIC, 16V 47UF M 7L 3A

CC01 24109103 CERAMIC CHIP, 50V B 0.01UF K

CC02 #1 24109103 CERAMIC CHIP, 50V B 0.01UF K

CC08 #1 24105330 CERAMIC CHIP, 50V CH 33PF J

CS01 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

CS02 24203100 ELECTORLYTIC, 16V 10UF M 7L 3A

CS04 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

CS05 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

CS07 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

CS15 #1 24109102 CERAMIC CHIP, 50V B 1000PF K

CV10 24762471 ELECTROLYTIC, 04G 10V 470UF M

CV11 24203220 ELECTROLYTIC, 16V 22UF M 7L 3A

Z101 #1 23303188 CERAMIC TRAP, TCF1113

#2 23303188 CERAMIC TRAP, TCF1113

#3 23303188 CERAMIC TRAP, TCF1113

#4 23303188 CERAMIC TRAP, TCF1113

#5 23303188 CERAMIC TRAP, TCF1113

#6 23303188 CERAMIC TRAP, TCF1113

Z102 #1 23303191 CERAMIC TRAP, TCF1116

#2 23303191 CERAMIC TRAP, TCF1116

#3 23303191 CERAMIC TRAP, TCF1116

#4 23303191 CERAMIC TRAP, TCF1116

#5 23303191 CERAMIC TRAP, TCF1116

#6 23303191 CERAMIC TRAP, TCF1116

Z103 #7 23303188 CERAMIC TRAP, TCF1113

ZC01 #1 23303166 CERAMIC TRAP, 39.5MHZ TCF1107

#2 23303166 CERAMIC TRAP, 39.5MHZ TCF1107

ZC02 #1 23303224 CERAMIC TRAP, TCF1120AM

#2 23303224 CERAMIC TRAP, TCF1120AM

RESISTORS

R101

R102

24011563 CHIP, METAL FILM, 1/20W 56K OHM J

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

R103 #7 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

R104 #7 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

R105 #1 24011331 CHIP, METAL FILM, 1/20W 330 OHM J

#2 24011331 CHIP, METAL FILM, 1/20W 330 OHM J

R106

#3 24011121 CHIP, METAL FILM, 1/20W 120 OHM J

#4 24011121 CHIP, METAL FILM, 1/20W 120 OHM J

#5 24011121 CHIP, METAL FILM, 1/20W 120 OHM J

#6 24011121 CHIP, METAL FILM, 1/20W 120 OHM J

#7 24011121 CHIP, METAL FILM, 1/20W 120 OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

– 18 –

Location

No.

Parts No. Description

R107 #1 24011330 CHIP, 1/20W 33 OHM J

#2 24011330 CHIP, 1/20W 33 OHM J

R108 #1 24011272 CHIP, 1/20W 2.7K OHM J

#2 24011272 CHIP, 1/20W 2.7K OHM J

#3 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J

#4 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J

#5 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J

#6 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J

R109

#7 24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J

24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

R110 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#3 24011681 CHIP, METAL FILM, 1/20W 680 OHM J

#4 24011681 CHIP, METAL FILM, 1/20W 680 OHM J

#5 24011681 CHIP, METAL FILM, 1/20W 680 OHM J

#6 24011681 CHIP, METAL FILM, 1/20W 680 OHM J

#7 24011681 CHIP, METAL FILM, 1/20W 680 OHM J

R111 #1 24011360 METAL FILM CHIP 1/20W 36 J

#2 24011360 METAL FILM CHIP 1/20W 36 J

#3 24011330 CHIP, 1/20W 33 OHM J

#4 24011330 CHIP, 1/20W 33 OHM J

#5 24011330 CHIP, 1/20W 33 OHM J

#6 24011330 CHIP, 1/20W 33 OHM J

#7 24011330 CHIP, 1/20W 33 OHM J

R112 #1 24000445 CHIP JUMPER, 1608TYPE

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

#4 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

#5 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

#6 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

#7 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

R113 #1 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#2 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#3 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#4 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#5 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#6 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

R114 #1 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#5 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#6 24011472 CHIP, 1/20W 4.7K OHM J

R116 #1 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

#2 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

#3 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

#4 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

#5 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

#6 24011682 CHIP, METAL FILM, 1/20W 6.8K OHM J

R117 #1 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#2 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#3 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#4 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#5 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

#6 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

R118 #3 24011821 CHIP, 1/20W 820 OHM J

#4 24011821 CHIP, 1/20W 820 OHM J

#5 24011821 CHIP, 1/20W 820 OHM J

#6 24011821 CHIP, 1/20W 820 OHM J

#7 24011821 CHIP, 1/20W 820 OHM J

R120 #2 24011684 CHIP, METAL FILM, 1/20W 680K OHM J

#3 24011684 CHIP, METAL FILM, 1/20W 680K OHM J

#4 24011684 CHIP, METAL FILM, 1/20W 680K OHM J

#5 24011684 CHIP, METAL FILM, 1/20W 680K OHM J

R121

R122

#6 24011684 CHIP, 1/20W 680K OHM J

#7 24011684 CHIP, METAL FILM, 1/20W 680K OHM J

24011221 CHIP, METAL FILM, 1/20W 220 OHM J

24000445 CHIP JUMPER, 1608TYPE

R124 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

R125 #7 24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

R126 #7 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

R127 #7 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

R128 #7 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

R129 #7 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

R130 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

– 19 –

Location

No.

Parts No. Description

R301

R305

R306

R307

R312

R313

R316

R317

R333

R336

R410

R411

R131 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

R132 #1 24011271 CHIP, 1/20W 270 OHM J

#2 24011271 CHIP, 1/20W 270 OHM J

#3 24011271 CHIP, 1/20W 270 OHM J

#4 24011271 CHIP, 1/20W 270 OHM J

#5 24011271 CHIP, 1/20W 270 OHM J

#6 24011271 CHIP, 1/20W 270 OHM J

R133 #1 24011271 CHIP, 1/20W 270 OHM J

#2 24011271 CHIP, 1/20W 270 OHM J

#3 24011271 CHIP, 1/20W 270 OHM J

#4 24011271 CHIP, 1/20W 270 OHM J

#5 24011271 CHIP, 1/20W 270 OHM J

#6 24011271 CHIP, 1/20W 270 OHM J

R134 #1 24011561 CHIP, 1/20W 560 OHM J

#2 24011561 CHIP, 1/20W 560 OHM J

#3 24011561 CHIP, 1/20W 560 OHM J

R139

R140

R141

R142

R143

R144

R145

R146

#4 24011561 CHIP, 1/20W 560 OHM J

#5 24011561 CHIP, 1/20W 560 OHM J

#6 24011561 CHIP, 1/20W 560 OHM J

#7 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

R135

R136

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011513 CHIP, METAL FILM, 1/20W 51K OHM J

R137 #7 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

R138 #7 24011221 CHIP, METAL FILM, 1/20W 220 OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011333 CHIP, METAL FILM, 1/20W 33K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011303 CHIP, METAL FILM, 1/20W 30K OHM J

24011224 CHIP, METAL FILM, 1/20W 220K OHM J

R192

R194

R196

R217

R227

R228

R229

R230

R177

R178

R179

R180

R181

R182

R190

R191

R168

R169

R171

R172

R173

R174

R175

R176

R147

R148

24011152 CHIP, METAL FILM, 1/20W 1.5K OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

R149 #1 24011684 CHIP, METAL FILM, 1/20W 680K OHM J

R150 24000445 CHIP JUMPER, 1608TYPE

R156

R158

R166

R167

24553153 OXIDE METAL FILM, 1W 15K OHM J

24011122 CHIP, METAL FILM, 1/20W 1.2K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011162 CHIP, METAL FILM, 1/20W 1.6K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011223 CHIP, 1/20W 22K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011223 CHIP, 1/20W 22K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011473 CHIP, METAL FILM, 1/20W 47K OHM J

24011223 CHIP, 1/20W 22K OHM J

24011162 CHIP, METAL FILM, 1/20W 1.6K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011330 CHIP, 1/20W 33 OHM J

24011330 CHIP, 1/20W 33 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24366223 CARBON FILM, 1/6W 22K OHM J

24011470 CHIP, METAL FILM, 1/20W 47 OHM J

24011470 CHIP, METAL FILM, 1/20W 47 OHM J

24011470 CHIP, METAL FILM, 1/20W 47 OHM J

24366163 CARBON FILM, 1/6W 16K OHM J

24323109 OXIDE METAL FILM, 2W 1 OHM J

24366623 CARBON FILM, 1/6W 62K OHM J

24366103 CARBON FILM, 1/6W 10K OHM J

24552122 OXIDE METAL FILM, 1/2W 1.2K OHM J

24366473 CARBON FILM, 1/6W 47K OHM J

24011392 CHIP, 1/20W 3.9K OHM J

24011392 CHIP, 1/20W 3.9K OHM J

24547829 FUSIBLE, 1W 8.2 OHM J

24383331 OXIDE METAL FILM, 2W 330 OHM J

24011181 CHIP, METAL FILM, 1/20W 180 OHM J

24011561 CHIP, 1/20W 560 OHM J

Location

No.

Parts No. Description

R920

R921

R922

R925

R928

R929

R931

R936

R901

R902

R903

R904

R905

R914

R915

R917

R875

R876

R877

R878

R880

R881

R885

R899

R816

R817

R840

R860

R861

R864

R873

R874

R663

R664

R665

R801

R808

R810

R814

R815

R607

R611

R612

R622

R630

R631

R632

R662

R435

R437

R441

R447

R448

R479

R491

R603

R412

R416

R421

R430

R431

R432

R433

R434

24366560 CARBON FILM, 1/6W 56 OHM J

24019323 OXIDE METAL FILM, 5W 1.8K OHM J

24011391 CHIP, 1/20W 390 OHM J

24366103 CARBON FILM, 1/6W 10K OHM J

24531120 FUSIBLE, 1/2W 12 OHM J

24366202 CARBON FILM, 1/6W 2K OHM J

24011182 CHIP, METAL FILM, 1/20W 1.8K OHM J

24552271 OXIDE METAL FILM, 1/2W 270 OHM J

24011822 CHIP, METAL FILM, 1/20W 8.2K OHM J

24366682 CARBON FILM, 1/6W 6.8K OHM J

24532102 FUSIBLE, 1W 1K OHM J

24553472 OXIDE METAL FILM, 1W 4.7K OHM J

24321228 OXIDE METAL FILM, 1/2W 0.22 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011393 CHIP, 1/20W 39K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011104 CHIP, METAL FILM, 1/20W 100K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

24011822 CHIP, METAL FILM, 1/20W 8.2K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24552221 OXIDE METAL FILM, 1/2W 220 OHM J

24552221 OXIDE METAL FILM, 1/2W 220 OHM J

24366339 CARBON FILM, 1/6W 3.3 OHM J

24011224 CHIP, METAL FILM, 1/20W 220K OHM J

24009954 METAL FILN, 1/2W 2.2M OHM J

24019476 THERMISTOR, POSITIVE, AC290V 18 OHM M

24568229 CERAMIC COVERED, 7W 2.2 OHM J

24383123 OXIDE METAL FILM, 2W 12K J

24383123 OXIDE METAL FILM, 2W 12K J

24366471 CARBON FILM, 1/6W 470 OHM J

24366331 CARBON FILM, 1/6W 330 OHM J

24366362 CARBON FILM, 1/6W 3.6K OHM J

24383104 OXIDE METAL FILM, 2W 100K OHM J

24011683 CHIP, METAL FILM, 1/20W 68K OHM J

24310479 OXIDE METAL FILM, 1/2W 4.7 OHM J

24011562 CHIP, METAL FILM, 1/20W 5.6K OHM J

24322398 OXIDE METAL FILM, 1W 0.39 OHM J

24322398 OXIDE METAL FILM, 1W 0.39 OHM J

24011221 CHIP, METAL FILM, 1/20W 220 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24366824 CARBON FILM, 1/6W 820K OHM J

24366562 CARBON FILM, 1/6W 5.6K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24546228 FUSIBLE, 1/2W 0.22 OHM J

24004718 METAL GLAZE 1/2W 8R2M J

24552122 OXIDE METAL FILM, 1/2W 1.2K OHM J

24552122 OXIDE METAL FILM, 1/2W 1.2K OHM J

24552122 OXIDE METAL FILM, 1/2W 1.2K OHM J

24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

24011150 CHIP, METAL FILM, 1/2OW 15 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24000880 FUSIBLE, 1W 5.1 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24366229 CARBON FILM, 1/6W 2.2 OHM J

24011272 CHIP, 1/20W 2.7K OHM J

R937

R938

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24552560 OXIDE METAL FILM, 1/2W 56 OHM J

R960 24383183 OXIDE METAL FILM, 2W 18K OHM J

R961 #1 24554183 OXIDE METAL FILM, 2W 18K OHM J

#2 24383183 OXIDE METAL FILM, 2W 18K OHM J

#3 24383183 OXIDE METAL FILM, 2W 18K OHM J

#4 24383183 OXIDE METAL FILM, 2W 18K OHM J

#5 24383183 OXIDE METAL FILM, 2W 18K OHM J

R963

R972

#6 24383183 OXIDE METAL FILM, 2W 18K OHM J

#7 24383183 OXIDE METAL FILM, 2W 18K OHM J

24383183 OXIDE METAL FILM, 2W 18K OHM J

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

Location

No.

Parts No. Description

RA07

RA35

RA36

RA37

RA41

RA42

RA43

RA51

R974

R977

RA01

RA02

RA03

RA04

RA05

RA06

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011681 CHIP, METAL FILM, 1/20W 680 OHM J

24011331 CHIP, METAL FILM, 1/20W 330 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011223 CHIP, 1/20W 22K OHM J

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011102 CHIP, METAL FILM, 1/20W 1K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011223 CHIP, 1/20W 22K OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24011222 CHIP, METAL FILM, 1/20W 2.2K OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

24011392 CHIP, 1/20W 3.9K OHM J

RA52

RA53

RA54

RA55

RA56

RA57

RA60

RA61

24011392 CHIP, 1/20W 3.9K OHM J

24011123 CHIP, METAL FILM, 1/20W 12K OHM J

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011683 CHIP, METAL FILM, 1/20W 68K OHM J

24011564 CHIP, METAL FILM, 1/20W 560K OHM J

24011681 CHIP, METAL FILM, 1/20W 680 OHM J

24011362 CHIP, 1/20W 3.6K OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

RA62

RA63

RA71

RA72

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

24367163 CARBON FILM, 1/6W 16K OHM G

24367113 CARBON FILM, 1/2W 11K OHM J

RA73

RA74

24367562 CARBON FILM, 1/6W 5.6K OHM G

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

RA75 #1 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#2 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#3 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#4 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#5 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

#6 24011103 CHIP, METAL FILM, 1/20W 10K OHM J

RA76 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

RA77 #1 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#5 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#6 24011472 CHIP, 1/20W 4.7K OHM J

24367114 CARBON FILM, 1/6W 110K OHM G RA78

RA79

RA89

RB01

RB09

RB30

RB31

24367303 CARBON FILM, 1/6W 30K OHM G

24000445 CHIP JUMPER, 1608TYPE

24011271 CHIP, 1/20W 270 OHM J

24011470 CHIP, METAL FILM, 1/20W 47 OHM J

24011103 CHIP, METAL FILM, 1/20W 10K OHM J

24011332 CHIP, METAL FILM, 1/20W 3.3K OHM J

RC02 #1 24011101 CHIP, METAL FILM, 1/20W 100 OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE

#6 24000445 CHIP JUMPER, 1608TYPE

RS02

RS04

RS06

RV02

RV11

RV12

RV13

G101

G218

G902

G903

G941

G942

G943

GD433

#7 24000445 CHIP JUMPER, 1608TYPE

24011471 CHIP, METAL FILM, 1/20W 470 OHM J

24011223 CHIP, 1/20W 22K OHM J

24000445 CHIP JUMPER, 1608TYPE

24011750 CHIP, METAL FILM, 1/20W 75 OHM J

24011750 CHIP, METAL FILM, 1/20W 75 OHM J

24011181 CHIP, METAL FILM, 1/20W 180 OHM J

24011101 CHIP, METAL FILM, 1/20W 100 OHM J

24000445 CHIP JUMPER, 1608TYPE

24366332 CARBON FILM, 1/6W 3.3K OHM J

24000824 CHIP JUMPER, 2125TYPE

24000824 CHIP JUMPER, 2125TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000824 CHIP JUMPER, 2125TYPE

GJ01 #2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#5 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

– 20 –

Location

No.

Parts No. Description

#6 24011472 CHIP, 1/20W 4.7K OHM J

#7 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

GJ02 #2 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#3 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#4 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#5 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

#6 24011472 CHIP, 1/20W 4.7K OHM J

#7 24011472 CHIP, METAL FILM, 1/20W 4.7K OHM J

GJ03 24000445 CHIP JUMPER, 1608TYPE

GJ05 #7 24000445 CHIP JUMPER, 1608TYPE

GJ06 #1 24000445 CHIP JUMPER, 1608TYPE

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE

#6 24000445 CHIP JUMPER, 1608TYPE

GJ08 #7 24000445 CHIP JUMPER, 1608TYPE

GJ09 #7 24000445 CHIP JUMPER, 1608TYPE

GJ10 #1 24000445 CHIP JUMPER, 1608TYPE

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE

#6 24000445 CHIP JUMPER, 1608TYPE

GJ11 24000445 CHIP JUMPER, 1608TYPE

GJ12 #1 24000445 CHIP JUMPER, 1608TYPE

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE

#6 24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE GJ15

GJ16

GJ20

GJ21

GJ23

GJ25

GJ27

GJ30

GJ100

GL431

GL525

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

GR01 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE

#6 24000445 CHIP JUMPER, 1608TYPE

#7 24000445 CHIP JUMPER, 1608TYPE

GR02 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE

#6 24000445 CHIP JUMPER, 1608TYPE

#7 24000445 CHIP JUMPER, 1608TYPE

GR03 #1 24011102 CHIP, METAL FILM, 1/20W 1K OHM J

#2 24000445 CHIP JUMPER, 1608TYPE

#3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

GR160

GR303

JP203

JR001

JR002

JR003

JR004

JR005

#5 24000445 CHIP JUMPER, 1608TYPE

#6 24000445 CHIP JUMPER, 1608TYPE

#7 24000445 CHIP JUMPER, 1608TYPE

GR106 #3 24000445 CHIP JUMPER, 1608TYPE

#4 24000445 CHIP JUMPER, 1608TYPE

#5 24000445 CHIP JUMPER, 1608TYPE

#6 24000445 CHIP JUMPER, 1608TYPE

#7 24000445 CHIP JUMPER, 1608TYPE

24011470 CHIP, METAL FILM, 1/20W 47 OHM J

24321109 OXIDE METAL FILM, 1/2W 1 OHM J

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

24000576 JUMPER CHIP, 3216TYPE

24000824 CHIP JUMPER, 2125TYPE

24000576 JUMPER CHIP, 3216TYPE

24000576 JUMPER CHIP, 3216TYPE

– 21 –

Location

No.

JR007

JR008

JR009

JR010

JR011

Parts No. Description

24000445 CHIP JUMPER, 1608TYPE

24000576 JUMPER CHIP, 3216TYPE

24000824 CHIP JUMPER, 2125TYPE

24000445 CHIP JUMPER, 1608TYPE

24000445 CHIP JUMPER, 1608TYPE

COILS & TRANSFORMERS

L101 #1 23289929 COIL, PEAKING COIL 82MMH TRF4820AU

L102 #1 23238562 COIL, PEAKING, TRF4109AJ

#2 23238562 COIL, PEAKING, TRF4109AJ

L103 #1 23238503 COIL, PEAKING, TRF4129AJ

#2 23238503 COIL, PEAKING, TRF4129AJ

#3 23238558 COIL, PEAKING, TRF4R47AJ

#4 23238558 COIL, PEAKING, TRF4R47AJ

#5 23238558 COIL, PEAKING, TRF4R47AJ

#6 23238558 COIL, PEAKING, TRF4R47AJ

#7 23238558 COIL, PEAKING, TRF4R47AJ

L104 #1 23238506 COIL, PEAKING, TRF4229AJ

L105 #1 23238506 COIL, PEAKING, TRF4229AJ

L106 #1 23238713 COIL, PEAKING, TRF4120AJ

#2 23238713 COIL, PEAKING, TRF4120AJ

#3 23238713 COIL, PEAKING, TRF4120AJ

#4 23238713 COIL, PEAKING, TRF4120AJ

#5 23238713 COIL, PEAKING, TRF4120AJ

#6 23238713 COIL, PEAKING, TRF4120AJ

L107 #1 23238713 COIL, PEAKING, TRF4120AJ

#2 23238713 COIL, PEAKING, TRF4120AJ

#3 23238713 COIL, PEAKING, TRF4120AJ

#4 23238713 COIL, PEAKING, TRF4120AJ

#5 23238713 COIL, PEAKING, TRF4120AJ

#6 23238713 COIL, PEAKING, TRF4120AJ

L108 #1 23238709 COIL, PEAKING, TRF4270AJ

#2 23238709 COIL, PEAKING, TRF4270AJ

#3 23238709 COIL, PEAKING, TRF4270AJ

#4 23238709 COIL, PEAKING, TRF4270AJ

#5 23238709 COIL, PEAKING, TRF4270AJ

#6 23238709 COIL, PEAKING, TRF4270AJ

#7 23238715 COIL, PEAKING, TRF4829AJ

L109 #7 23289919 COIL, PEAKING, TRF4120AU

L162 23289928 COIL, PEAKING, TRF4680AU

L301

L441

L462

23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

23233115 COIL, LINEARITY, TLN2112AA

23231054 COIL, DEFLECTION YOKE, TDY621UA

23231387 DEFLECTION YOKE, 20V FS TDY-821BA

L462A

L462B

L462C

L514

23997351 CONV.HOSEIHEN YH TC-0

23199314 COMPENSATOR, DEFLECTION YOKE

23993623 COMPENSATOR, TC-L

23289919 COIL, PEAKING, TRF4120AU

L661 #1 23261959 COIL, CHOKE, TRF9240

L864 23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

L883

L884

23103279 FILTER, FERRITE CHOKE 3.5X5X2 TEM2014AO

23248230 COIL, CHOKE, TLN3142AC

L901

LA03

23200534 COIL, DEGAUSSING, TSB2301AH

23103279 FILTER, FERRITE CHOKE 3.5X5X2 TEM2014AO

LA04 #1 23103279 FILTER, FERRITE CHOKE 3.5X5X2 TEM2014AO

LA05 23289918 COIL, PEAKING, TRF4100AU

LC01 #1 23238513 COIL, PEAKING, TRF4R22AJ

#2 23238513 COIL, PEAKING, TRF4R22AJ

LC04 #1 23289918 COIL, PEAKING, TRF4100AU

LZ02 #1 23261959 COIL, CHOKE, TRF9240

T401

T461

T801

T862

23224391 TRANSFORMER, DRIVE, TLN1104AH

23236807 TRANSFORMER, FLY-BACK TFB4125JH

23211761 COIL, LINE FILTER, TRF3148BF

23217635 TRANSFORMER, TPW3532AM

G102 #1 23103279 FILTER, FERRITE CHOKE 3.5X5X2 TEM2014AO

G104 #1 23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

G110 #1 23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

G402 23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

GL511 23289918 COIL, PEAKING, TRF4100AU

GL512 #1 23103279 FILTER, FERRITE CHOKE 3.5X5X2 TEM2014AO

GL881 #1 23248234 COIL, CHOKE, TLN3481AC

GL882 #1 23248234 COIL, CHOKE, TLN3481AC

GL888 23103279 FILTER, FERRITE CHOKE 3.5X5X2 TEM2014AO

GL890 #1 23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

GL891 #1 23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

GL892 #1 23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

Location

No.

Parts No. Description

GL893 #1 23103249 FERRITE BEAD CORE, TEM2011AO, 3.5X4.5

GL896 #1 23248234 COIL, CHOKE, TLN3481AC

GL897 #1 23248234 COIL, CHOKE, TLN3481AC

Z103 #1 23303271 FILTER, TRAP 4.5MHZ, TCF1138AM

#2 23303271 FILTER, TRAP 4.5MHZ, TCF1138AM

#3 23303271 FILTER, TRAP 4.5MHZ, TCF1138AM

#4 23303271 FILTER, TRAP 4.5MHZ, TCF1138AM

#5 23303271 FILTER, TRAP 4.5MHZ, TCF1138AM

#6 23303271 FILTER, TRAP 4.5MHZ, TCF1138AM

Z104 #7 23303268 FILTER, TCF1135AM

Z106 #7 23303353 FILTER, FIL CFILT 5.74MHZ EFCS5R74YS5A

Z130 #1 23303230 FILTER, 38MHZ MULTI F816KPL

#2 23303230 FILTER, 38MHZ MULTI F816KPL

#3 23303230 FILTER, 38MHZ MULTI F816KPL

#4 23303230 FILTER, 38MHZ MULTI F816KPL

#5 23303230 FILTER, 38MHZ MULTI F816KPL

#6 23303230 FILTER, 38MHZ MULTI F816KPL

#7 23303176 SAW FILTER, 38MHZ PIF SIF INTER OFWK2964M

SEMICONDUCTORS

Q100 #1 23085072 IC, A8801CPCNG5HE5

#2 23085071 IC, A8801CPCNG5HF5

#3 23085071 IC, A8801CPCNG5HF5

#4 23085071 IC, A8801CPCNG5HF5

#5 23085072 IC, A8801CPCNG5HE5

#6 23085072 IC, A8801CPCNG5HE5

Q101

Q103

Q104

#7 23085071 IC, A8801CPCNG5HF5

23114611 TRANSISTOR, 2SC3357

23205006 TRANSISTOR, KTC4075Y

23205006 TRANSISTOR, KTC4075Y

Q108

Q109

70200984 IC, A/V SW 3IN1X1 SOP-8C MM1113XF

23205081 TRANSISTOR, 2SA1980-Y

Q111 #7 23205005 TRANSISTOR, KTA2014Y

Q112 23205006 TRANSISTOR, KTC4075Y

Q113 #7 23205006 TRANSISTOR, KTC4075Y

Q114 #7 23205085 TRANSISTOR, 2SC5343-YL

Q115

Q116

23205006 TRANSISTOR, KTC4075Y

23205005 TRANSISTOR, KTA2014Y

Q130 #1 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

#2 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

#3 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

#4 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

Q196

Q301

Q402

Q404

#5 23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

#6 23205204 TRANSISTOR, KTC2875B-RTK

23205085 TRANSISTOR, 2SC5343-YL

23009352 IC, AN5522

23114755 TRANSISTOR, 2SC2482FA-1

23314969 TRANSISTOR, 2SD2499(FA)

23314375 TRANSISTOR, ON4409

23314141 TRANSISTOR, 2SC3852 Q421

Q422

Q430

Q431

Q610

Q612

Q613

Q801

Q819

Q840

Q862

Q880

Q901

Q903

Q905

Q907

Q908

QA02

QA51

QA52

QA53

QA60

QB30

QB31

QB43

23009843 IC, REGULATOR +5V 4% S7805PI

23314980 TRANSISTOR, 2SD2549 P

23205209 TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

23904650 IC, TDA1013B

23205005 TRANSISTOR, KTA2014Y

23205204 TRANSISTOR, NPN VEBO=25V KTC2875B-RTK

23009243 IC, POW SW.REG.IC VDS=650V,PO= STR-W5753A

23205006 TRANSISTOR, KTC4075Y

23205263 TRANSISTOR, KTC3209Y

23906937 IC, PHOTO COUPLER, ON3171-R

23205209 TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

23205203 TRANSISTOR, KTC3207

23205203 TRANSISTOR, KTC3207

23205203 TRANSISTOR, KTC3207

23205005 TRANSISTOR, KTA2014Y

23205202 TRANSISTOR, 2SC5344Y

23009646 IC, AT24C08A-10PI-2.7

23205006 TRANSISTOR, KTC4075Y

23205005 TRANSISTOR, KTA2014Y

23205005 TRANSISTOR, KTA2014Y

23205006 TRANSISTOR, KTC4075Y

23205006 TRANSISTOR, KTC4075Y

70129444 IC, PST994D

23205209 TRANSISTOR, NPN R1=2.2K R2=47K SRC1205S (SOT-23)

QB60 23205006 TRANSISTOR, KTC4075Y

QB61 #1 23205006 TRANSISTOR, KTC4075Y

Location

No.

Parts No. Description

D874

D876

D877

D880

D883

D885

D887

D901

D802

D803

D804

D818

D840

D861

D864

D873

D432

D440

D441

D444

D472

D612

D622

D801

D224

D301

D302

D303

D406

D408

D421

D431

#2 23205006 TRANSISTOR, KTC4075Y

#3 23205006 TRANSISTOR, KTC4075Y

#4 23205006 TRANSISTOR, KTC4075Y

#5 23205006 TRANSISTOR, KTC4075Y

QV10

#6 23205006 TRANSISTOR, KTC4075Y

23205081 TRANSISTOR, 2SA1980-Y

QV13 23000359 IC, MM1111XF

D101 #1 23316411 DIODE, ZENER, HZT33-12

#2 23316411 DIODE, ZENER, HZT33-12

#3 23316411 DIODE, ZENER, HZT33-12

#4 23316411 DIODE, ZENER, HZT33-12

#5 23316411 DIODE, ZENER, HZT33-12

#6 23357327 DIODE, ZENER, DZ33 BS D

#7 23316411 DIODE, ZENER, HZT33-12

D150 #1 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#2 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#3 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#4 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#5 23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

#6 23357447 DIODE, KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357372 DIODE, EU2JGF-41U2

23357372 DIODE, EU2JGF-41U2

23316794 DIODE, SC570A

23357372 DIODE, EU2JGF-41U2

23357372 DIODE, EU2JGF-41U2

23357285 DIODE, ZENER, DZ10 BS B

23357285 DIODE, ZENER, DZ10 BS B

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23316254 DIODE, ERC06-15

23357283 DIODE, DZ9.1 BS C

23357364 DIODE, RU4JGF- M2

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23316796 DIODE, VRRM=600V IF=1A DO-41 ERB12-06E

23316796 DIODE, VRRM=600V IF=1A DO-41 ERB12-06E

23316796 DIODE, VRRM=600V IF=1A DO-41 ERB12-06E

23316796 DIODE, VRRM=600V IF=1A DO-41 ERB12-06E

23357295 DIODE, ZENER, DZ13 BS C

23357267 DIODE, DZ5.6 BS B

23357300 DIODE, ZV=15.33-15.96 DZ16 BS B

23357164 DIODE, D1NL20U

23357450 DIODE, 1SS133

23357450 DIODE, 1SS133

23357267 DIODE, DZ5.6 BS B

23357252 DIODE, ZV=3.32-3.53 DZ3.3 BS B

23357294 DIODE, ZV=12.59-13.16 DZ13 BS B

D904

D905

D906

DB01

DB30

KB01

23357372 DIODE, EU2JGF-41U2

23357372 DIODE, EU2JGF-41U2

23357164 DIODE, D1NL20U

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23358571 DIODE, LED, BT-H254N-31-SH

23357447 DIODE, SWITCH SILICON KDS160-RTK/USC

23009490 IC, REMOCON RECEIVER, PIC-TB19

MISCELLANEOUS

B405

F470

23451788 HOLDER, POWER CORD, 1450TE

23144645 FUSE, CARTRIDGE 5X20 250V 0.63A

F470A

F801

F801A

N724

23165469 FUSE HOLDER, 5.2 DFH-001

23144652 FUSE, CARTRIDGE 5X20 250V 3.15A

23165469 FUSE HOLDER, 5.2 DFH-001

23965900 TAPE, GLASS-CLOTH, W/ADHESIVE W=18 T=0.18

N725

N728

23969946 TAPE

23960101 SILICONE RUBBER, TSE-382 RTV

P661 23023116 PLUG, HEAD PHONE JACK 3.5MM PJ3-14-7

P801 #1 23372052 POWER CORD, 250V2.5A

#2 23372159 POWER CORD, CEE 250V 2.5A SILV 201

#3 23372159 POWER CORD, CEE 250V 2.5A SILV 201

#4 23372168 POWER CORD, UK-HK VO 6A F13A

#5 23372160 POWER CORD, SSA 127V15A 250V6A CMC-02

#6 23372160 POWER CORD, SSA 127V15A 250V6A CMC-02

#7 23372199 POWER CORD, THAI

– 22 –

Location

No.

Parts No. Description

S801

SA01

SA02

SA03

SA04

SA05

SA06

V901A

P802

P910

PV01

PV02

Q301B

Q422B

Q610B

Q801B

23368249 POWER CORD, 2P 11.88MM VH-JST

23164725 CONNECTOR, PLUG 2P

23023198 JACK, 4P (NO SW) DAV4-31B01110S01

23023219 JACK, PIN JACK 2P(2SW)

70391355 SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN

70391355 SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN

70391355 SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN

70391355 SCREW, BIND HEAD TAP-TITE B, BITTB 3X8 SZN

23344481 SWITCH, POWER, AAPY2211

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23344443 SWITCH, TACTING SWITCH TSV TYP TSVB-1

23903177 SOCKET, CRT ISMM08S-E ICE

V901M

W661

23102462 MAGNET, CONVERGENCE, 22.5 NORMAL, MAG1104

23351225 SPEAKER, 50X90 4OHM 5W FOSTER SPK-1445AF

XA01 23153571 CRYSTAL, 8.000 MHZ

Y108 #5 23725049 CONNECTOR, AC ADAPTER NC3528

#6 23725049 CONNECTOR, AC ADAPTER NC3528

Y126 #2 23124089 ANTENNA, ROD ANTENNA 700MM 2-52245 CA

#5 23124089 ANTENNA, ROD ANTENNA 700MM 2-52245 CA

#6 23124089 ANTENNA, ROD ANTENNA 700MM 2-52245 CA

PC BOARD ASSEMBLIES

* U902A #1 23762696 PC BD ASSY, PD1918-1 MAIN TSP2004042108

* #2 23762694 PC BD ASSY, PD1917-1 MAIN TSP2004042106

* #3 23762830 PC BOARD ASSY, PD1917A-1 MAIN TSP2004052519

* #4 23762832 PC BOARD ASSY, PD1917B-1 MAIN TSP2004052521

* #5 23762836 PC BOARD ASSY, PD1917D-1 MAIN TSP2004052525

* #6 23762836 PC BOARD ASSY, PD1917D-1 MAIN TSP2004052525

* #7 23762834 PC BOARD ASSY, PD1917C-1 MAIN TSP2004052523

* U902B #1 23762697 PC BD ASSY, PD1918-2 CRT TSP2004042109

* #2 23762695 PC BD ASSY, PD1917-2 CRT TSP2004042107

* #3 23762831 PC BOARD ASSY, PD1917A-2 CRT TSP2004052520

* #4 23762833 PC BOARD ASSY, PD1917B-2 CRT TSP2004052522

* #5 23762837 PC BOARD ASSY, PD1917D-2 CRT TSP2004052526

* #6 23762837 PC BOARD ASSY, PD1917D-2 CRT TSP2004052526

* #7 23762835 PC BOARD ASSY, PD1917C-2 CRT TSP2004052524

PICTURE TUBE

V901 23324121 PICTURE TUBE, A51MAK095X

23312761 PICTURE TUBE, A51JSW90X(G)

23312804 PICTURE TUBE, 54SX503Y22-DC21, 20VITCLH2.72LV20

TUNER

H001 #1 23321450 TUNER, ASIA HYPER FS D-J, ENV59DA7G3

#2 23321494 TUNER, LG ASIA HYPER FS 5V TAEM-G102D

#2 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#2 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#3 23321494 TUNER, LG ASIA HYPER FS 5V TAEM-G102D

#3 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#3 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#4 23321494 TUNER, LG ASIA HYPER FS 5V TAEM-G102D

#4 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#4 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#5 23321494 TUNER, LG ASIA HYPER FS 5V TAEM-G102D

#5 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#5 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#6 23321494 TUNER, LG ASIA HYPER FS 5V TAEM-G102D

#6 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#6 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

#7 23321494 TUNER, LG ASIA HYPER FS 5V TAEM-G102D

#7 23321473 TUNER, ASIA MLT IICPLL SANYO ECA33LXC

#7 23321452 TUNER, ASIA MLT IICPLL SAMSUNG ECA33LXB

ACCESSORIES

A701 #1 23067873 CARTON, BOX

#2 23067872 CARTON, BOX

A702A

#3 23067872 CARTON, BOX

#4 23067872 CARTON, BOX

#5 23067872 CARTON, BOX

#6 23067872 CARTON, BOX

#7 23067872 CARTON, BOX

23946819 CARTON, BOX

Location

No.

Parts No. Description

A702B

K902

23946820 PACKING, BOTTOM

23306459 REMOCON HAND UNIT, CT-90119

Y101A #1 23566444 OWNERS MANUAL, EN/RU

#2 23566440 OWNERS MANUAL, ENG

#3 23566440 OWNERS MANUAL, ENG

#4 23566440 OWNERS MANUAL, ENG

#5 23566445 OWNERS MANUAL, EN/AR/PE

#6 23566445 OWNERS MANUAL, EN/AR/PE

#7 23566443 OWNERS MANUAL, ENG/THAI

Y101B #2 23566441 OWNERS MANUAL, INDO

Y120

#4 23566442 OWNERS MANUAL, CT

23943846 BAG, POLY

Y121 #2 23943846 BAG, POLY

CABINET PARTS

A201 23532853 COVER, FRONT ASSY

A263

A264

23445841 BUTTON, POWER

23445842 BUTTON, CONTROL KEY(6X)

A401

AT03

23530407 COVER, BACK COVER TSP2002021903

23588765 REMOCON PART, BATTERY COVER, CT-90119

E505 #6 23845564 CLAMPER

E912 23848729 WEDGE, YOKE HOLDING, 3 REQUIRED

– 23 –

MEMO

– 24 –

MAIN BOARD PD1917-1 (21J1E) (U902A)

MAIN BOARD PD1917A-1 (21J1ES) (U902A)

MAIN BOARD PD1917B-1 (21J1H) (U902A)

MAIN BOARD PD1917C-1 (21J1T) (U902A)

MAIN BOARD PD1917D-1 (21J1M/21J1MJ) (U902A)

BOTTOM (FOIL) SIDE

PV01

JR004

JR004

H001

R102

R102

GJ02

GJ02

GJ01

GJ01

+

R315

R317

R317

+

Q301A

C309

CC02

CC02

G110

+

TP15

RV11

RV11

RV12

RV12

CS03

QS01

QS01

GR02

GR02

RS03

RS05

RS03

+

+

CS02

E

C

B

C316

+

C308

D304

L104

Q301

L105

+

C566

C187

C187

C188

+

+

L514

+

R149

C528

R149

P494

C102

+

SL1

+

B102

R107

D150

R105

C108

C104

C104

Q101

QB60

C179

C179

Q108

QB60

R111

C170

R111

C170

R112

R112

R192

ZC02

RA76

R137

R129

R138

R129

R138

R137

R128

E

GJ10

ZC01

R110

R110

R125

C180 C111

C111

C112

C

B

Q111

+

+

GJ09

+

C174

GJ09

Q111

Q116

R190

Q116

Q112

R158

R158

JR007

Q112

GJ101

R147

R147

TP12

C173

Z102

RA75

GJ08

CC08

B C

R132

Q109

E

R134

R134

C177

C177

C178

C176

C176

GJ11

C105

R133

R131

R131

Q113

L171

RA75

QB61

QB61

RA77

R181

R181

R180

RA74

R174

R173

R174

R173

C502

C123

C133

+

GJ12

C523

GJ12

C133

33

+

35

JR008

Z130

L112

D150

GJ06 GJ06

JR008

40

GJ04

GJ04

+

JR005

R117

GJ05 R117

GJ05

JR005

GL525

C136

+

C517

+

45

D221

C567

C114

C221

M501A

21 22 23

D222 D223

24

D221 D222 D223

56

RA06

60

CA58

RA06

64

Q120

GJ100

R122

R170

C166

RA05

RA05

R170

+

Q100

R120

QA60

QA60

R121

GJ27

DA13

DA13

RA62

R175 R176

R175 R176

R177

R177

5

4

R167 R167

DA14

DA11

8

DA11

DA12

1

CA45

CA45

+

LV01

CV23

RA89

+

LA01

+

CA68

LA02

32

25

C567

C114

20 15 10

RA60

RA63

RA60

RA63

C132

1

QA02

RA56

RA37

+

QA51

1

CA53

QA52

5

QA52

10

BT01

15

B

+

20

C484

RT32

RT47

RT33

RT34

RT46

+

Q422

C483

GND

C485

RT27

RT28

8 RT2

QT01

QT09

RT40

LT02

RT01

RT01 RT02

RT02

45 40 30

27

LT01

CT09

+

LT03

CT04

JR009

C E

CT06

B

52

CT05

CT01

+

CT07

CT09

XT01

RT03

RV03

RT49

CT11

RT49

QT06

+

QV23

QV23

RT04

RT04

RT05

RT05

JR002

LT04

RT13

RT13

LT06

2 RV2

CV21

RV22

CV21

RV21

6 RV2

RV26

CV27 RT09

RT09

CV26

QT14

QT13

2

+

CT10

QT02

RT3

RT47

RT33

RT34

RT46

+

RV25 CV25

CT13

LT05

LT09

LT08

LT07

QT11

RT16

RT16

QB21

RB22

1

RT18

RT2

LT15

RT21

+

CT20

CT20

RB27

CB21

CB18

QB21

RB20

RB20

RB27

CB21

CB18

OUT

26

IN

GL512

+

GJ15

R491

R194

R135

B

+

QA53

RA43

RA43

CA54

+

RA55 RA55

D421

D431

R479

D310

R217 R217

C433

D224

C433

+

+

+

C189

+

D224 C192

GJ16

RV02

+

C232

GJ16 +

C435

R434

+

XA01A

+

C120

R143

L115 JR010

JR010

C

E

Q431

Q431

+

C420

C471

R421

GD433

+

C421

C665

+

C667

4

C304

L301

R301

D303

C313

+

+

C320

G218

+

C312

C449

+

R227

D441

R430

C445

11

12

13

14

R305

C446

+

C410

C305

R306

+

C306

+

+

P570

R447

R313

R336

R310

R441

R442

R474

R470

Q819

D470

Q819

1

4

D818

R817

D880

R814

R815

R881

R881

D883

C893

L883

11

Q880

QB30

QB30

QB43

R437

D885

RB30

RB31

RB30

RB31

R885

DB30

DB30

1 2 3

QB31

D840

D887

+

C886

+

C898

17

2

3

E

C

B

R840

GR884

C899

C889

+

C814

C806

D802

C805

C813

D801

GL884

GL882

3

R880

R864

T461

1

2

2

8

D804

C444

G402

Q404

T401

C417

R411

E B

R410

Q402

C

+

Q801A

Q801

C878

C873

C882

D803

T801

C810

+

C463

C463

D874

GD875

+

R861

R861

D861

D877

D876

R876

R876

D873 R860

R874

C883

GL893

P497

MCL-437F

23547706

R875

5

Q610

+

+

R632

R632

R607

+

GJ22

GJ22

C612

+

Q613

R631 R631

GJ20

R603

C669 R630

R630

R612

GJ30

+

R612

GJ30

+

CS01

CV11

GJ31

+

GJ31

R663

4

5

QV13

8

1 +

RS06

RS06

CS06 CS06

CV12

CV12

R621

Q621

R621

Q621

R662

C613

L661

P910

+

C668

LZ02

S801

CAUTION LIVE AREA

4

3

2

1

BLU

P802

BRN

+

CB01

CA01

CS07

P661

PV02

JP203

– 25 – – 26 –

MAIN BOARD PD1918-1 (21CJ1R) (U902A)

BOTTOM (FOIL) SIDE

PV01

JR004

JR004

H001

R102

R102

GJ02

GJ02

GJ01

GJ01

+

R315

R317

R317

D304

C316

+

C308

+

Q301A

C309

L104

Q301

CC02

CC02

G110

+

TP15

RV11

RV11

RV12

RV12

CS03

QS01

QS01

RS03

RS05

RS03

GR02

GR02

+

+

CS02

E

C

B

L105

+

C566

C187

+

L514

+

R149

C528

R149

P494

C187

C188

+

C102

+

SL1

C502

C123

C133

+

GJ12

GJ12

C523

C133

33

+

35

JR008

Z130

L112

D150

GJ06 GJ06

JR008

40

GJ04

GJ04

+

JR005

GJ05

R117

R117

GJ05

JR005

GL525

C136

+

C517

+

45

D221

C567

C114

C221

M501A

21 22 23

D222 D223

24

56

Q100

R121

R120

D221 D222 D223

RA06 60

CA58

QA60

RA06

QA60

64

Q120

32

+

B102

R107

D150

R105

C108

C104

C104

25

C567

C114

Q101

QB60

C179

Q108

C179

QB60

R111

C170

R111

C170

R112 R112

ZC02

RA76

R192

R137

R129

R138

R129

R138

R137

R128

E

GJ10

ZC01 R110 R110

R125

C180 C111

C111

C112

C

B

Q111

+

C138

+

R190

Q111

Q116

Q116

R158

R158

JR007

GJ101

Q112

R147

R147

TP12

+

GJ09

+

C174

GJ09

C173

Q112

Z102

Q113

CC08

L171

B

C105

RA75

GJ08

RA75

QB61

QB61

RA77

R181

R181

R180

C

C177

C177

C178

Q109

R132

R134

R134

C176

C176

GJ11

E

R133

R131

R131

R174

R173

R174

R173

RA74

20 15 10

RA60

RA63

RA60

RA63

C132

1

GJ100

R122

GJ100

R122

R170

C166

RA05

RA05

R170

+

RA62

GJ27

DA13

DA13

R167 R167

R175

R175 R176

R176

R177

R177

5

4

DA14

DA11

DA11

DA12

8

1

QA02

CA45

CA45

LV01

+

CV23

1

5 10

BT01

15

B

20 26

RT27

RT28

8 RT2

QT01

LT02

RT01

RT01 RT02

RT02

45 40

RT40

30

27

LT01

CT09

52

CT05

+

CT07

CT09

+

LT03

CT04

JR009

C E

CT06

B

CT01

XT01

RT03

RV03

RT49

CT11

RT49

QT06

+

QV23

QV23

RT04

RT04

RT05

RT05

JR002

LT04

RT13

RT13

LT06

2 RV2

CV21

RV21

6 RV2

RV22

CV21

RV26

CV27

RT09

RT09

CV26

QT14

QT13

2

+

CT10

QT02

RT3

RT47

RT33

RT34

RT46

+

RV25 CV25

CT13

LT05

LT09

LT08

LT07

QT11

1

QT09

RT18

RT2

LT15

RT21

+

CT20

CT20

RT16

RT16

QB21

RB22

RB27

CB21

CB18

QB21

RB20

RB20

RB27

CB21

CB18

RA89

+

LA01

+

CA68

RA56

RA37

+

LA02

QA51

CA53

QA52 QA52

+

C484

RT32

RT47

RT33

RT34

RT46

OUT

+

Q422

IN

C483

GND

C485

GL512

D310

+

R217 R217

C433

D224

C433

+

+

+

C189

+

D224 C192

GJ16

RV02

+

C232

GJ16 +

C435

GJ15

R434

R491

R194

R135

+

XA01A

+

C120

R143

L115

JR010

JR010

E

B

C

+

QA53

RA43

RA43

CA54

+

RA55 RA55

Q431

Q431

D421

D431

R479

+

C420

C471

R421

GD433

+

C421

C665

+

C667

4

C304

L301

R301

D303

C313

+

+

C320

+

C312

G218

C449

+

R227

D441

R430

C445

C410

11

12

13

14

R305

C446

+

C305

R306

+

C306

+

+

P570

R447

R313

R336

R310

R441

R442

R474

R470

D470

Q819

Q819

1

4

D818

R817

D880

R814

R815

R881

R881

D883

C893

L883

11

Q880

QB30

QB30

DB30

QB43

R437

D885

RB30

RB31

RB30

RB31

R885

DB30

1 2 3

QB31

D840

D887

+

C886

+

C898

17

2

3

E

C

B

R840

C899

GR884

C889

+

C814

C813

C806

D802

C805

D801

GL884

GL882

3

R880

R864

T461

1

2

2

8

D804

C444

T401 +

C417

R411

Q801A

C878

C873

D803

G402

C882

Q404

Q402

C

E B

R410

Q801

T801

C810

+

C463

C463

D874

GD875

+

R861

R861

D861

D877

D876

R876

R876

D873 R860

R874

C883

GL893

P497

MCL-437F

23547707

R875

5

Q610

+

+

R632

R632

R607

+ GJ22

GJ22

C612

Q613

+

R631 R631

GJ20

R603

C669

R630

R630

R612

GJ30

+

R612

GJ30

+

CS01

CV11

GJ31

+

GJ31

R663

5

4

QV13

1

+

RS06

RS06

CS06 CS06

CV12

8

CV12

R621

Q621

R621

Q621

R662

C613

L661

P910

+

C668

LZ02

S801

CAUTION LIVE AREA

4

3

2

1

BLU

P802

BRN

+

CB01

CA01

CS07

PV02

P661

JP203

– 27 – – 28 –

CRT-D BOARD PD1917-2 (21J1E) (U902B)

CRT-D BOARD PD1917A-2 (21J1ES) (U902B)

CRT-D BOARD PD1917B-2 (21J1H) (U902B)

CRT-D BOARD PD1917C-2 (21J1T) (U902B)

CRT-D BOARD PD1917D-2 (21J1M/21J1MJ) (U902B)

BOTTOM (FOIL) SIDE

24

23

22

21

20

+

B

Q901

C E B

Q903

C E

MCL-437F

R914

R914

R917

R921

R917

R921

G904

D904

G905

G904

D904

G905

R925

R925

G2

C971

TP-47G

V901A

23547706

G941

G941

R974

TP-46G

+

C902

R961

R901

Q907

Q907

D905

G942

D905

G942

R972

R972

D901

D901

R936

R936

+

C905

C912

R904

R904

+

E C

Q908

B

R

96

0

C931

C931

R931

JR001

JR001

R905

R937

C907

R937

C907

G943

R963

R903

R920

30

31

14

13

12

11

32

TP-47B

Q905

P900

P493

D906

E C B R928

CRT-D BOARD PD1918-2 (21CJ1R) (U902B)

BOTTOM (FOIL) SIDE

24

23

22

21

20

+

B

Q901

C E B

Q903

C E

MCL-437F

D904

R914

R914

R917

R921

R917

R921

G904

G905

G904

D904

G905

R925

R925

G2

C971

TP-47G

V901A

23547706

G941

G941

R974

TP-46G

+

R

9

6

1

R901

C902

Q907

Q907

D905

D905

G942

G942

R972

D901

R972

D901

R936

R936

+

C905

C912

R904

E

R904

+

C

Q908

B

R

96

0

R931

JR001

JR001

R905

R937

C907

R937

C907

G943

R963

R903

R920

30

31

14

13

12

11

32

TP-47B

Q905

P900

P493

D906

E C B R928

– 29 –

1 2SD2253

(old)

2SC5243

E

C

B

TERMINAL VIEW OF TRANSISTORS

2

2SC3852

2SD1763A

2SC1569

2SC4544

2SA1788

2SA1306

2SA1186A

E

C

B

3 2SC752GTM

2SC2482

2SC2655

2SC4721P

4 2SC752

2SA562TM

2SA1015

2SC1815

2SC2878

2SC1740S

2SC2120

2SA9335

B

CE

B

CE

5 2SA1788

E

C

B

6

RN2203

RN2201

RN2004

RN1203

RN1204

RN2204

RN1205

RN1202

RN1201

E

C B

7

2SD1554

2SD2253

2SD1556

2SC5143

2SD2553

E

C

B

8

ON4409

E

C

B

- 30 -

SCHEMATIC DIAGRAM

MODEL : 21CJ1R/21J1E/21J1ES/21J1H/21J1M/21J1MJ/21J1T

WARNING

: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION

: The international hazard symbols " " in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance carbon resistor, unless otherwise noted as the following marks.

1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt

1RF = Fuse resistor of 1 watt

K =

±

10% G =

±

2% F =

±

1%

10W = Cement of 10 watt

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in F, and the values more than 1 in pF.

All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor Mylar capacitor

3. The parts indicated with " " have special characteristics, and should be replaced with identical parts only.

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all controls at normal, line voltage at 220 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary

±

20% except H.V.

SCHEMATIC DIAGRAM STRUCTURE:

MAIN / CRT DRIVE Circuit .............................................................................................................. 1/2

POWER Circuit .................................................................................................................................. 2/2

– 31 –

- 32 -

Rated voltage

MODEL

Power consumption

(at ~ 220V 50Hz)

Dimensions

(Width x Depth x Height)

Mass

Picture Tube

Television system

(Aerial input)

Color system

Sound output

Terminals

Channel coverage

Special RF signal

21CJ1R

SPECIFICATIONS

21J1E 21J1H

~ 110 - 240V 50/60Hz

21J1M

78W

21J1MJ 21J1T

494.9(W) X 473.6(D) X 473.0(H) mm

20 kg

Type 21 (533.4mm) Overall picture tube measured diagonally

(508.0mm) Viewable picture tube measured diagonally

90

° deflection

System Channel UHF CATV

PAL B/G

PAL I

PAL D/K

SECAM B/G

CCIR

UK

CHINA

CCIR

VHF

2 - 12

––

1 -12

2 - 12

21 - 69

21 - 69

13 - 57

21 - 69

X~Z+2, S1~S41

––

Z-1~ Z-38

X~Z+2, S1~S41

SECAM D/K

NTSC M

NTSC M

OIRT

US

JAPAN

1 -12

2 -13

1 -12

21 - 69

14 - 69

13 - 62

X1~X19

A-6~A-1, A~W, AA~ZZ, AAA, BBB

M1~M10, S1~41

Color system Sound system

NTSC4.43

5.5/6.0/6.5 MHz

PAL 60 Hz 5.5/6.0/6.5 MHz

PAL / SECAM / NTSC4.43 / NTSC3.58

5W

Input : Video / Audio (Monaural)

Monitor output : Video / Audio (Monaural)

5 x 9cm (1)

Speaker

*

Please refer to owner's manual in detail.

21J1ES

- END -

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
