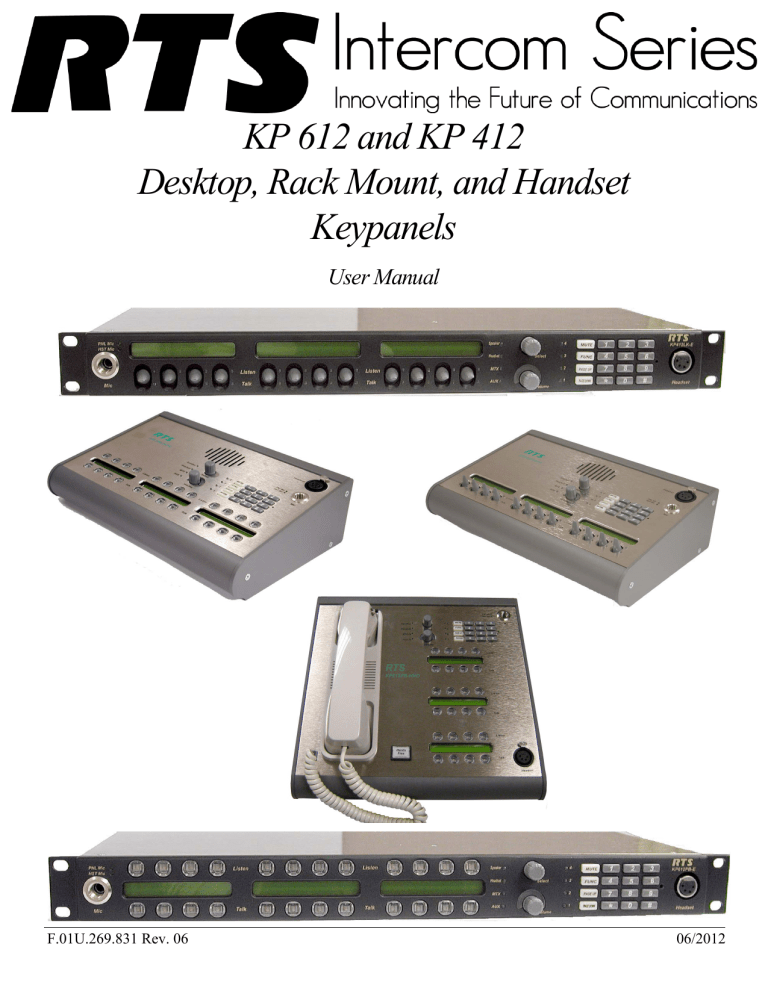

KP 612 and KP 412
Desktop, Rack Mount, and Handset
Keypanels
User Manual
F.01U.269.831 Rev. 06
06/2012
PROPRIETARY NOTICE
The product information and design disclosed herein were originated by
and are the property of Bosch Security Systems, Inc. Bosch reserves all
patent, proprietary design, manufacturing, reproduction, use and sales
rights thereto, and to any article disclosed therein, except to the extent
rights are expressly granted to others.
COPYRIGHT NOTICE
Copyright 2012 by Bosch Security Systems, Inc. All rights reserved.
Reproduction, in whole or in part, without prior written permission from
Bosch is prohibited.
*All other trademarks are property of their respective owners.
WARRANTY AND SERVICE INFORMATION
THE LIGHTNING
FLASH AND
ARROWHEAD
WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
“DANGEROUS
VOLTAGE” INSIDE
THE PRODUCT.
CAUTION: TO REDUCE
THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE
COVER. NO USERSERVICABLE PARTS
INSIDE. REFER
SERVICING TO
QUALIFIED SERVICE
PERSONNEL.
THE EXCLAMATION
POINT WITHIN THE
TRIANGLE IS A
WARNING SIGN
ALERTING YOU OF
IMPORTANT
INSTRUCTIONS
ACCOMPANYING
THE PRODUCT.
SEE MARKING ON BOTTOM/BACK OF PRODUCT.
For warranty and service information, refer to the appropriate web site
below:
RTS Intercoms ...................................... www.rtsintercoms.com/warranty
RTS Digital
RTSTW
AudioCom
RadioCom .......................................... www.telexradiocom.com/warranty
Headsets ........................................ www.intercomheadsets.com/warranty
WARNING: APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR
SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
WARNING: THE MAIN POWER PLUG MUST REMAIN READILY OPERABLE.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING OF
THE CENTER PIN OF THIS PLUG MUST BE MAINTAINED.
CUSTOMER SUPPORT
Technical questions should be directed to:
Customer Service Department
Bosch Security Systems, Inc.
12000 Portland Avenue South
Burnsville, MN 55337 USA
Telephone: 877-863-4169
Fax: 800-323-0498
[email protected]
TECHNICAL QUESTIONS EMEA
Bosch Security Systems Technical Support EMEA
http://www.rtsintercoms.com/contact_main.php
DISCLAIMER
The manufacturer of the equipment described herein makes no
expressed or implied warranty with respect to anything contained
in this manual and shall not be held liable for any implied
warranties of fitness for a particular application or for any
indirect, special, or consequential damages. The information
contained herein is subject to change without prior notice and
shall not be construed as an expressed or implied commitment on
the part of the manufacturer.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPRATUS TO RAIN OR MOISTURE.
WARNING: TO PREVENT INJURY, THIS APPARATUS MUST BE SECURELY
ATTACHED TO THE FLOOR/WALL/RACK IN ACCORDANCE WITH THE
INSTALLATION INSTRUCTIONS.
This product is AC only.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods
of time.
14. Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
Table
of
Contents
Important Safety Instructions .............................................................................................................................. 3
INTRODUCTION ....................................................................................................................... 13
General Description ...............................................................................................................................13
Features ..................................................................................................................................................14
Options ...................................................................................................................................................15
Keypanel References ..............................................................................................................................16
Controls Description ..............................................................................................................................19
Specifications .........................................................................................................................................20
INSTALLATION ........................................................................................................................ 23
Dip Switch Settings ................................................................................................................................23
Connections ............................................................................................................................................25
EXP and LCP Connectors ................................................................................................................................. 25
Frame Connector ............................................................................................................................................... 25
Headset Connector ............................................................................................................................................. 26
Panel Microphone Connector ............................................................................................................................ 26
Aux In ................................................................................................................................................................ 26
Microphone Preamplifier ................................................................................................................................... 27
External Headset, Speaker Output, and Footswitch Input ................................................................................. 27
GPIO .................................................................................................................................................................. 27
Relay 1 & 2 (A &B) .......................................................................................................................................... 27
Coaxial Connection (CSI-200 Coaxial System Interface) ................................................................................. 27
BASIC OPERATION .................................................................................................................. 29
Selecting Headset or Speaker .................................................................................................................29
Listen Volume Adjustments ...................................................................................................................29
Listen Source Selection LED ......................................................................................................................... 29
Intercom Keys and Displays ..................................................................................................................31
Alphanumeric Display Indications for Intercom Keys ...................................................................................... 31
LED Indications for Intercom Keys .................................................................................................................. 31
Intercom Key Operation .........................................................................................................................32
Basic Intercom Key Operation .......................................................................................................................... 33
Operation of Intercom Keys with Auto Functions ............................................................................................ 33
Operation of Intercom Keys with Options ........................................................................................................ 34
Group Option Keys ........................................................................................................................................ 34
Solo Key ......................................................................................................................................................... 34
Exclusive Key ................................................................................................................................................. 34
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
6
KP 612 & KP 412
Operation of Intercom Talk Keys with Speaker DIM Setting ........................................................................... 34
Operation of Intercom Keys Assigned to TIF Ports .......................................................................................... 34
Muting the Microphone .........................................................................................................................34
Call Waiting Operation ..........................................................................................................................35
Addressing .............................................................................................................................................35
Determining the Keypanel Address for ADAM and ADAM CS Intercoms ................................................. 35
Determining the Keypanel Address for Zeus Intercom Systems ................................................................... 35
Setting the Keypanel Address ........................................................................................................................... 35
Handset Operation .................................................................................................................................36
TELEPHONE OPERATION .....................................................................................................39
Receiving a Phone Call ..........................................................................................................................39
Dialing and Hanging Up Using the KP 612/KP 412 Keypanel Dialing Menu ......................................39
Manual Dialing .................................................................................................................................................. 39
Redial ................................................................................................................................................................. 40
Autodial ............................................................................................................................................................. 40
KP 612/KP 412 KEYPANEL MENU SYSTEM .........................................................................41
Menu System, Menu Access ..................................................................................................................41
Menu System, Display Menu .................................................................................................................42
Display Menu, Assign Type .............................................................................................................................. 42
Display Menu, Chan On .................................................................................................................................... 42
Display Menu, Exclusive .................................................................................................................................. 42
Display Menu, Key Groups ............................................................................................................................... 42
Display Menu, Key List .................................................................................................................................... 43
Display Menu, Level 2 ...................................................................................................................................... 43
Display Menu, Matrix ....................................................................................................................................... 43
Display Menu, Panel ID .................................................................................................................................... 43
Display Menu, Solo ........................................................................................................................................... 43
Display Menu, Version ...................................................................................................................................... 43
Menu System, Key Assign Menu ..........................................................................................................44
General Procedure to Use the Key Assign Menu .............................................................................................. 44
Key Assign Menu, Pt-to-Pt ............................................................................................................................... 45
Key Assign Menu, Party Line ........................................................................................................................... 45
Key Assign Menu, IFB ...................................................................................................................................... 45
Key Assign Menu, Spcl List .............................................................................................................................. 45
Key Assign Menu, Sys Relay ............................................................................................................................ 45
Key Assign Menu, Camera ISO ........................................................................................................................ 46
Key Assign Menu, UPL .................................................................................................................................... 46
Key Assign Menu, IFB SL ................................................................................................................................ 46
Key Assign Menu, Quick Assign ...................................................................................................................... 46
Key Assign Menu, Reset Vols .......................................................................................................................... 46
Menu System, Menus ............................................................................................................................47
Menus, Autodial ................................................................................................................................................ 47
Menus, Key Option ........................................................................................................................................... 47
Menus, Key Option, Btn Lock (Button Lock) ............................................................................................... 47
Menus, Key Option, Chime ........................................................................................................................... 48
Menus, Key Option, Clear Options ................................................................................................................ 48
Menus, Key Option, Exclusive ...................................................................................................................... 49
Menus, Key Option, Key Groups ...................................................................................................................... 49
Menus, Key Option, Latching ........................................................................................................................ 50
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
7
Menus, Key Option, Solo ............................................................................................................................... 50
Menus, RVON Conn. ........................................................................................................................................ 51
Menus, Service Menu ........................................................................................................................................ 51
Menus, Service, Aux Inputs ........................................................................................................................... 51
Menus, Service, Baud Rate ............................................................................................................................ 52
Menus, Service, Caller Vol. ........................................................................................................................... 52
Menus, Service, Dim ...................................................................................................................................... 52
Menus, Service, DSP Func ............................................................................................................................ 53
Filters ............................................................................................................................................................. 53
Gating ............................................................................................................................................................. 53
Metering ......................................................................................................................................................... 54
Menus, Service, Handset (Handset model only) ............................................................................................ 55
Menus, Service, LCD Bright .......................................................................................................................... 56
Menus, Service, LCP-16 ................................................................................................................................ 57
Menus, Service, Local GPIO ......................................................................................................................... 57
Menus, Service, Matrix Out ........................................................................................................................... 59
Menus, Service, Mic Select ............................................................................................................................ 59
Menus, Service, Min Volume ........................................................................................................................ 59
Menus, Service, Mod Assign ......................................................................................................................... 60
Menus, Service, Output Level ........................................................................................................................ 61
Menus, Service, Page Skip ............................................................................................................................. 61
Menus, Service, Preamp Out .......................................................................................................................... 61
Menus, Service, Reset Cfg ............................................................................................................................. 62
Menus, Service, RVON Setup (RVON Option Card Only) .......................................................................... 62
Menus, Service, Save Cfg .............................................................................................................................. 62
Menus, Service, Set Addr .............................................................................................................................. 62
Menus, Service, Sidetone ............................................................................................................................... 63
Menus, Service, Tally Duration ........................................................................................................................ 63
Menus, Service, Test Panel ............................................................................................................................ 63
Menus, Service, Tone Gen ............................................................................................................................. 63
Special Functions ...................................................................................................................................64
Quick Assign ..................................................................................................................................................... 64
User Assignable Key ......................................................................................................................................... 64
KP 612/KP 412 KEYPANEL FIRMWARE DOWNLOAD ....................................................... 65
Download Keypanel Firmware through AZedit ....................................................................................65
KP 612/KP 412 MENU STRUCTURE QUICK REFERENCE ................................................ 67
Menu Access ..........................................................................................................................................67
Menu Structure ......................................................................................................................................68
GLOSSARY ................................................................................................................................. 73
A .............................................................................................................................................................73
All Call .............................................................................................................................................................. 73
Alpha ................................................................................................................................................................. 73
Auto Follow (AF) .............................................................................................................................................. 73
Auto Functions .................................................................................................................................................. 73
Auto Listen (AL) ............................................................................................................................................... 73
Auto Mute (AM) ............................................................................................................................................... 73
Auto Reciprocal (AR) ....................................................................................................................................... 74
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
8
KP 612 & KP 412
Auto Table (AT) ................................................................................................................................................ 74
C .............................................................................................................................................................74
Codec ................................................................................................................................................................. 74
Crosspoint .......................................................................................................................................................... 74
D .............................................................................................................................................................74
Destination ......................................................................................................................................................... 74
Dim .................................................................................................................................................................... 75
G .............................................................................................................................................................75
Gateway ............................................................................................................................................................. 75
GPIO .................................................................................................................................................................. 75
I ..............................................................................................................................................................75
IFB ..................................................................................................................................................................... 75
ISO (Camera ISO) ............................................................................................................................................. 76
M ............................................................................................................................................................76
Matrix ................................................................................................................................................................ 76
N .............................................................................................................................................................76
Netmask ............................................................................................................................................................. 76
P .............................................................................................................................................................76
Party Line (PL) .................................................................................................................................................. 76
Port .................................................................................................................................................................... 77
R .............................................................................................................................................................77
Relay .................................................................................................................................................................. 77
S .............................................................................................................................................................78
Special List ........................................................................................................................................................ 78
Stacked Key ....................................................................................................................................................... 78
T .............................................................................................................................................................78
Talk Level 1 ....................................................................................................................................................... 78
Talk Level 2 ....................................................................................................................................................... 78
Trunking ............................................................................................................................................................ 78
RVON-1 79
General Description of the RVON-1 Voice Over Network Card ..........................................................79
Features ..................................................................................................................................................79
Specifications .........................................................................................................................................80
Default Addresses for the RVON Product Line ....................................................................................81
Dip Switches ..........................................................................................................................................81
Firmware Compatibility Requirements for the RVON-1 Card .............................................................82
Installation of the RVON-1 Card in a KP 612/KP 412 ..........................................................................82
RVON-1 Relay ............................................................................................................................................... 83
Addresses and the RVON-1 ...................................................................................................................84
Configure the RVON-1 from the KP 612/KP 412 .................................................................................84
TOP LEVEL MENU, SERVICE, RVON SETUP ............................................................................................ 84
TOP LEVEL MENU, RVON CONN. .............................................................................................................. 85
Configure the RVON-8 using AZedit to contact the RVON-1 .............................................................86
Download RVON-1 Firmware Through AZedit ...................................................................................87
Basic Network Configuration ................................................................................................................89
LAN vs. WAN ................................................................................................................................................... 89
Local Area Network .......................................................................................................................................... 89
Wide Area Network ........................................................................................................................................... 90
ACCESSING THE WIDE AREA NETWORK (WAN) .................................................................................. 90
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
9
NETWORK ADDRESS TRANSLATION (NAT) ........................................................................................... 91
PORTS .............................................................................................................................................................. 91
IP ADDRESSES ............................................................................................................................................... 92
Ping a Computer ................................................................................................................................................ 93
POSSIBLE PITFALL WITH ROUTERS, GATEWAYS, AND SWITCHES ................................................. 94
RVON Configuration ........................................................................................................................................ 95
RVON Serial and Telnet Commands .....................................................................................................96
Setup .................................................................................................................................................................. 96
How to Configure the RVON-1 Using Telnet .......................................................................................96
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
10
Bosch Security Systems, Inc.
KP 612 & KP 412
User Manual
F.01U.269.831
Rev. 06
List
of
Figures
FIGURE 1.
FIGURE 2.
FIGURE 3.
FIGURE 4.
FIGURE 5.
FIGURE 6.
FIGURE 7.
FIGURE 8.
FIGURE 9.
FIGURE 10.
FIGURE 11.
FIGURE 12.
FIGURE 13.
FIGURE 14.
FIGURE 15.
FIGURE 16.
Keypanel Reference Views ............................................................................................... 16
Keypanel Reference Views ............................................................................................... 18
KP 612/KP 412 Keypanel Board, Dip Switch Location ................................................... 24
DE9S Intercom Cable Wiring ........................................................................................... 25
RJ-12 Intercom Cable Wiring ........................................................................................... 26
LED Indicators .................................................................................................................. 29
Speaker and Headset/Handset Selected ............................................................................ 30
Matrix IN Selected ............................................................................................................ 30
Aux IN Selected ................................................................................................................ 30
Module Assignment Example ........................................................................................... 60
Spacer placement on KP 612/KP 412 motherboard ......................................................... 82
J2 Connector on the KP 612/KP 412 Board ..................................................................... 83
The J37 connector on the KP 612/KP 412 board. ............................................................. 83
Local Area Network Diagram ........................................................................................... 89
Wide Area Network Diagram ........................................................................................... 90
Network Address Translation ........................................................................................... 90
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
12
Bosch Security Systems, Inc.
KP 612 & KP 412
User Manual
F.01U.269.831
Rev. 06
CHAPTER 1
Introduction
General Description
The RTS KP 612/KP 412 keypanel fits in a standard 19” rack and is one (1) rack-unit high. It has 12 keys, each key consisting
of one (1) listen button and one (1) talk button. Ten keys are used for intercom talk and listen and two (2) keys are for callwaiting response.
In addition, there are two (2) encoders. One (1) encoder is used for Headset, Microphone, Auxiliary Input, and Matrix In
volume adjustment. The other encoder knob is used for menu selection. The KP 612/KP 412 keypanel has a standard
numerical keypad with four (4) extra keys: Mic Mute, User Assignable, Page Up, and Page Down.
The KP 612 has a 6-character display panel and the KP 412 has a 4-character display panel. The KP 612/KP 412 keypanels
have added significant new features such as digital signal processing (DSP). The KP 612/KP 412 keypanels also offer a
custom design LCD display with support for 16 x 16 Kanji, Katakana, Hiragana, and English characters.
The KP 612/KP 412 keypanels are made of pressed aluminum/metal and feature state of the art audio processors and drivers.
There are three (3) different keypanel models to choose between: Desktop, Rack Mount, and Rack Mount-Lever Key.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
14 Introduction
KP 612 & KP 412
Features
Talk/Listen Configuration:
Contains 12 keys, with 10 keys available for full talk/listen configuration. Keys support
both latching (hands-free) and momentary (push-to-talk) operation. Plus an extensive
scrollable menu system (accessed using an encoder). Menus include helpful prompts to
walk the user through the setup. The 11th and 12th keys are used for the CWW (Call
Waiting Window).
Call Waiting Window:
The 11th and 12th display position are used as a CWW, while the 12th key can be used
for menu displays. The CWW is configured through the menu. The user has three (3)
assignable options from the menu, as follows:
•
•
•
Character Display:
One CWW (12th key only)
Two CWW (11th and 12th key)
The LCD display is custom designed to show 16x16 display size, Japanese or Kanji
characters. Each LCD shows two (2) rows of 16-characters for a total of 32-characters.
Each display area shows 8-character alphas per key (Talk/Listen).
NOTE:
Connections:
No CWW
The KP 612/KP 412 Keypanels have four (4) keys per display.
The back of each keypanel has one (1) DB-9 connector, one (1) RJ-45 connector, and one
(1) BNC (Bayonet Neil-Concelman) for the matrix connection. On the rack mount model
only, there is one (1) RJ-45 connector for Expansion Panels and one (1) RJ-45 connector
for an LCP. There are two (2) mechanical pots for Mic Level Control: one (1) for Headset
Mic and one (1) for Panel Mic Gain.
NOTE:
Only one (1) Matrix connection can be used at a time.
Firmware:
Every keypanel has an in-system downloadable firmware feature, where firmware is
downloaded through the AZedit application to the keypanels.
Configuration:
With the appropriate configuration, the KP 612/KP 412 keypanel can be used as a digital
keypanel (sending and receiving digital audio from the matrix) or as an analog keypanel.
Digital operation is used when coaxial cables are used.
Remote Applications:
The KP 612/KP 412 keypanel can be used in remote applications. The front panel can be
mounted separately and connected to the keypanel using a maximum of 50 feet of cable.
DSP (Digital Signal Processing): Improves microphone voice activation and limiting. Adds new mixing, metering, and
filtering capabilities.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Introduction 15
Options
EKP-816:
Provides additional 12 or 16 intercom keys.
LCP-12 or 16:
Provides easy adjustment of point-to-point and party line listen levels for
individual intercom keys. One LCP-12 or LCP-16 controls volumes for one row
of keys.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
16 Introduction
KP 612 & KP 412
Keypanel References
Desktop Model
1.
Speaker LED
17.
Headset Mic LED
2.
Headset LED
18.
Panel Mic Connector
3.
Matrix LED
19.
Standard Numerical Keypad
4.
AUX LED
20.
Listen Keys
5.
Page 1 LED
21.
Display Panel
6.
Page 2 LED
22.
Talk Keys
7.
Page 3 LED
23.
Headset Mic Gain
8.
Page 4 LED
24.
Panel Mic Gain
9.
Select/Menu Encoder Knob
25.
External Headset Connector
10.
Volume Control
26.
Speaker / Footswitch Connector
11.
Mic Mute Key
27.
DB-9 Connector for Matrix (frame)
12.
User Assignable Key
28.
RJ-12 Connector for Matrix (frame)
13.
Page Up Key
29.
MIC Out
14.
Page Down Key
30.
MIC In
15.
Headset Connector
31.
AUX In
16.
Panel Mic LED
32.
Coaxial Connection
33.
AC (power)
FIGURE 1.
Keypanel Reference Views
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Introduction 17
Rack Mount Model
34.
Panel Mic LED
54.
Standard Numerical Keypad
35.
Headset Mic LED
55.
Headset Connector
36.
Panel Mic Connector
56.
AC (power)
37.
Listen Keys
57.
MIC Out
38.
Panel Display
58.
MIC In
39.
Talk Keys
59.
Speaker/Monitor
40.
Speaker LED
60.
Aux In
41.
Headset LED
61.
Headset Gain
42.
Matrix LED
62.
Mic Gain
43.
Aux In LED
63.
External Headset Connector
44.
Page 4 LED
64.
Speaker/Footswitch Connection
45.
Page 3 LED
65.
DB-9 Connection for Matrix (frame)
46.
Page 2 LED
66.
RJ-11 Connection for Matrix (frame)
47.
Page 1 LED
67.
RJ-45 EXP Connection
48.
Select/Menu Encoder
68.
RJ-45 LCP Connection
49.
Volume Control
69.
Relay 1&2A
50.
Mic Mute
70.
Opto-Isolate Input 1&2 Open Collector 1&2
51.
User Assignable Key
71.
Relay 1&2B
52.
Page Up
72.
Opto-Isolate Input 3&4 Open Collector 3&4
53.
Page Down
73.
Coaxial Connection
FIGURE 1.
Keypanel Reference Views
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
18 Introduction
KP 612 & KP 412
Keypanel With Handset Model
FIGURE 1.
1.
Speaker LED
2.
Headset LED
3.
Matrix LED
4.
AUX LED
5.
Page 4 LED
6.
Page 3 LED
7.
Page 2 LED
8.
Page 1 LED
9.
Select/Menu Encoder
10.
Volume Control
11.
Mic Mute
12.
Func
13.
Page Up
14.
Page Down
15.
Panel Mic LED
16.
Headset Mic LED
17.
Panel Mic Connector
18.
Standard Numerical
Keypad
19.
Listen Keys
20.
Display Panel
21.
Talk Keys
22.
Headset Connector
23.
Hands-Free Switch
24.
Handset RJ-11 Connector
25.
Handset/Speaker
26.
Headset Gain
27.
Mic Gain
28.
External Headset
Connector
29.
Speaker/Footswitch
Connector
30.
DB-9 Connector for
Matrix (frame)
31.
RJ-12 Connector for
Matrix (frame)
32.
Mic Out
33.
Mic In
34.
AUX In
35.
Coax Connector
36.
AC (power)
Keypanel Reference Views
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Introduction 19
Controls Description
Speaker LED
Indicates the user can adjust the speaker levels.
Headset LED
Indicates the user can adjust the headset levels.
Matrix IN LED
Indicates the user can adjust the audio levels from the Matrix IN to the keypanel.
Aux IN LED
Indicates the user can adjust the audio levels from the Aux IN to the keypanel.
Page 4 LED
Indicates setup page four (4) is assigned to the main panel.
Page 3 LED
Indicates setup page three (3) is assigned to the main panel.
Page 2 LED
Indicates setup page two (2) is assigned to the main panel.
Page 1 LED
Indicates setup page one (1) is assigned to the main panel.
Menu Encoder
The menu encoder knob turns clockwise and counter-clockwise to scroll through menu options.
Volume Control
The volume control knob controls the volume of the selected source or destination, as indicated
by the lit LED.
Mic Mute
The Mic Mute button mutes whichever microphone is active so no audio can be transmitted
through the microphone.
Func Key
The Func Key is a user assignable softkey that can be programmed to perform an action
frequently used or is difficult to access, such as a lower level menu item. It can also be
programmed to operate a local GPI output.
Page Up and Down
The Page Up button or Page Down button changes the active page assigned to the main panel.
Panel Mic Connector
Accepts an electret gooseneck microphone, such as the Telex model MCP-90-XX. The model
MCP-90 series panel mic connector is a 1/4” stereo plug, with a threaded shaft for easy
installation.
Panel Mic LED (default mic)
When the Panel Mic LED is lit green, the Panel Mic is active. This is the default setting for the
KP 612/KP 412 Keypanel.
Headset Mic LED
When the Headset Mic LED is lit green, the Headset Mic is active. This automatically becomes
active when a headset is plugged in.
Standard Numerical Keypad
Used to enter autodial numbers as well as dial an outside number for TIF operation.
Listen Buttons
The listen buttons allow the user to listen to audio coming into the keypanel.
Display Panel
The 11th and 12th display positions are used as a CWW and menu display. The CWW is
configured through the menu. The user has three (3) assignable options from the menu, as
follows:
•
•
•
No CWW
One CWW (12th key only)
Two CWW (11th and 12th key)
Talk Keys
The talk buttons allow the user to talk to other keypanels.
Headset Connector
The headset connector is a 4-pin XLR connector, which when plugged into the KP 612/KP 412
keypanel, turns the panel mic off and audio is sent to the headset and the headset mic is
activated.
Handset
The handset is used in place of the headset. If a user wants to use the handset, pin 3 of the 9-pin
D-sub Headset connector must be set to Ground. For more pin out information, see “Headset
(External headset connector)” on page 21.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
20 Introduction
KP 612 & KP 412
Operating
Specifications
-20°C (-4°F) to 60°C (140°F)
Dimensions
Microphone Preamplifier
Desktop
Electret Mic Input Level @ 1kHz
11.3(W) x 7.623(D) x 3.1(H)
-42dBu, 150 Ohms
Rack Mount
Dynamic Mic Input Level @ 1kHz
19(W) x 7.5(D) x 1.75(H)
-50dBu, 150 Ohms
Approvals
Output Level (to Matrix)
UL, CSA, VDE, CE
+8dBu, ±0.2dBu
Connectors
Max Voltage Gain, Mic to Line
Panel Mic Connector
70dB, ±2dB
Type: 3 circuit, 1/4” phone jack with threaded metal bushing,
compatible with RTS MCP-90
Frequency Response
100Hz to 10kHz, ±2dB
Pin Out
Limiter
10dB above nominal
Tone Generator
Output Level (to Matrix)
Tip:
Hot
Ring:
Common
Sleeve
Chassis Ground
Headset Connector
+8dBu, ±2dBu
Type: XLR-4 Female
Output Frequency
500Hz
Headphone Amplifier
Maximum Voltage Gain
46dB
Pin 1
Mic low
Pin 2
Mic high
Pin 3
Headphone low
Pin 4
Headphone high
Intercom Connectors: Parallel-wired DB-9and RJ-12 Connectors
Frequency Response
Type: DB-9 Female
100Hz to 10kHz, ±2dB
Headphone Impedance
8 to 600 Ohms
Output Power
1W to 50 Ohms
Output Voltage Level
8V peak-to-peak (max.)
Speaker Amplifier and Speaker
Frequency Response
100Hz to 10kHz, ±2dB
Pin 1
Data +
Pin 2
Data -
Pin 3
Data Shield
Pin 4
Audio Out (to matrix) +
Pin 5
Audio Out (to matrix) -
Pin 6
Audio In (from matrix) Shield
Pin 7
Audio In (from matrix) -
Pin 8
Audio In (from matrix) +
Pin 9
Audio Out (to matrix) Shield
Type: RJ-12
Output Power (per amplifier)
5 watt into 8 Ohms
Output Voltage Level
12V peak-to-peak
Volume Control Range
30dB
Speaker Rating
Pin 1
Data -
Pin 2
Audio In (from matrix) +
Pin 3
Audio Out (to matrix) +
Pin 4
Audio Out (to matrix) -
Pin 5
Audio In (from matrix) -
Pin 6
Data +
Expansion Connector
8 watts max.
Type: RJ-45
Intercom Input/Output
LCP Connector
Input
Type: RJ-45
Nominal: +8dBu, Peak +20dBu max.
GPI Module Connectors (Optional)
Output
Speaker/Monitor Output
+8dBu, ±2dBu maximum
Type: 5-pin XLR Male
External Line Input (Program Input)
Input Level
+8dBu nominal
General
AC Supply
Internal switching type, 100–240VAC, 50/60Hz with universal
IEC connector for connection to various AC main cords.
Pin 1
Line Out (GND)
Pin 2
Line Out (+)
Pin 3
Line Out (-)
Pin 4
SPK Out (+)
Pin 5
SPK Out (-)
Storage
-40°C (-40°F) to 70°C (158°F)
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Introduction 21
Aux 1 In (Auxiliary Program Input
Opto 3 - 4 In (Opto-isolated control inputs) / OC 1-2(J12)
3-pin XLR Female
Pin 1
Ground
Pin 2
Input +
Pin 3
Type: 9-pin male, D-sub
Input -
Balance Input, +8dBu nominal
Relay 1 & 2 Output
Type: 9-pin male, D-sub
Pin 1
NC contact 1
Pin 2
COM contact 1
Pin 3
Pin 4
Pin 5
NO contact 1
NC contact 2
NO contact 2
Pin 7
+3.3VDC
Pin 8
Ground
Pin 9
+3.3VDC
NC contact 3
COM contact 3
Pin 3
NO contact 3
Pin 4
NC contact 4
Pin 5
COM contact 4
Pin 6
NO contact 4
Pin 7
+3.3VDC
Pin 8
Ground
Pin 9
+3.3VDC
Emitter OC 2
Pin 3
Emitter OC 1
Pin 4
Ground
Pin 5
Ground
Pin 6
Collector OC 1
Pin 7
Collector OC 2
Pin 8
Opto-Out 2
Pin 9
Opto-Out 1
Ground
Pin 6
Collector OC 3
Pin 7
Collector OC 4
Pin 8
Opto-Out 4
Pin 9
Opto-Out 3
Pin 1
Ground
Pin 2
External headset PTT
Pin 3
External headset PTT enable
Pin 4
External headset enable
Pin 5
Balanced dynamic mic input -
Pin 6
Ground
Pin 7
Balanced dynamic mic input +
Pin 8
Left Speaker
Pin 9
Right Speaker
Type: 9-pin male, D-sub
Type: 9-pin male, D-sub
Pin 2
Ground
Pin 5
Foot Switch / Speaker
Opto 1 - 2 In (Opto-isolated control inputs) /OC 1-2(J11)
3.3 VDC
Emitter OC 3
Pin 4
NOTE: Mic Input -50dBu nominal. Headset out 0.325 watts into 8 Ohms
NOTE: The relay 1 and 3 contacts are electrically separate, but operate in
unison. The relay 2 and 4 contacts are electrically separate, but operate in
unison. The +3.3VDC pins are connected internally through 1K resistors to
+3.3VDC and can source up to 3mA. This voltage can be used with the
relay contacts to create an active high output for some devices that require
a +3.3VDC signal to activate. For example, connecting pin 7 to pin 3 of the
Relay 1&2 connector will result in +3.3VDC on pin 2 when the relay is
activated.
Pin 1
Pin 3
Type: 9-pin male, D-sub
Type: 9-pin male, D-sub
Pin 2
Emitter OC 4
Headset (External headset connector)a
Relay 3 & 4 Output
Pin 1
3.3VDC
Pin 2
NOTE: A contact closure between any switch and ground activates that
input. The switch contact inputs are also connected internally through 1K
resistors to internal +3.3 VDC and can source 3mA for use with an external
transistor switch circuit.
COM contact 2
Pin 6
Pin 1
Pin 1
Ground
Pin 2
Speaker Plus (+)
Pin 3
Ground
Pin 4
No Connection
Pin 5
Foot Switch
Pin 6
Speaker Minus (-)
Pin 7
No Connection
Pin 8
No Connection
Pin 9
Ground
NOTE: A switch contact closure from the foot switch input to ground
activates the foot switch input.
MIC In (J7) Unbalanced Panel Microphone Input
Type: 3-pin XLR Female
Pin 1
Ground
Pin 2
DC bias and Audio Plus (+)
Pin 3
Shield (circuit common)
NOTE: Input level -42.5dBu nominal
NOTE: A contact closure between any switch and ground activates that
input. The switch contact inputs are also connected internally through 1K
resistors to internal +3.3VDC and can source 3mA for use with an external
transistor switch circuit.
MIC Out (J8) Balanced Microphone Output
Type: 3-pin XLR Male
Pin 1
Shield (circuit common)
Pin 2
Audio output +
Pin 3
Audio output -
NOTE: Output level +8dBu nominal (balanced)
a. If a user wants to use the handset pin 3 of the 9-pin D-sub
Headset connector must be set to ground.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
22 Introduction
Bosch Security Systems, Inc.
KP 612 & KP 412
User Manual
F.01U.269.831
Rev. 06
CHAPTER 2
Installation
NOTE:
For Dip switch location, see Figure 2 on page 24.
Dip Switch Settings
.
Switch 1
Latch Enable/Disable
Default Setting: Open (Enabled)
Description: An intercom key can always be turned on for momentary
conversation by pressing and holding the key during the conversation. There is
also an electronic latching feature that lets you tap intercom keys to turn them on or
off. This permits convenient hands-free conversation. However, it can also result in
a talk circuit being left on unintentionally. For example, a key that talks to a public
address system could be accidentally left on. Or, an IFB key (a type of key
assignment often used by a director or producer to give instructions to a listener,
such as a news anchor during a television broadcast) could accidently be left on,
causing confusion for the IFB listener. To prevent such accidents, the latching
feature can be turned off.
NOTE:
Dip Switch 1 disables latching for the entire keypanel. If you need to
disable latching for selected keys, leave Dip Switch 1 in the open
position, and then, disable latching for the desired keys using the D
check box in the Keypanel/Ports setup window in AZedit.
Switch 2
Enable/Disable the adjustment of listen volumes
Default Setting: Open (Enabled)
Description: Enables or disables the volume adjust on the keypanel.
Switch 3
Unused
Default Setting: Open (Enable)
Switch 4
Call Flash Time-out
Default Setting: Closed (Infinite Tally)
Description: Whenever there is an incoming call and there is a talk key assigned to
the caller, the talk LED next to that key flashes. If this Dip switch is closed, the
flashing light goes off as the caller’s talk key is closed. Otherwise, flash time can
be set for a 15 second time-out, or until the caller’s talk key is released. Call Flash
Time-out can be set to 5 sec, 10 sec, or 15 sec.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
24 Installation
KP 612 & KP 412
Switch 5
Footswitch Enable/Disable
Default Setting: Open (Disabled)
Description: The optional Connector Module has a footswitch (GRP CALL)
input. If the footswitch is enabled (Dip 5 set to the Closed position), then keys
latched on do not activate until the footswitch is closed. Latched keys are indicated
by blinking amber talk LEDs (on time less than off time), and when the footswitch
is activated, the LEDs provide normal talk on indication.
NOTE:
•
•
•
If the talk key is held down in Footswitch mode, the channel
is activated until the user releases the key. This function
does not require the footswitch to be used.
If Dip Switch 1 is set to the Closed position, nothing latches.
Individual keys can be set to non-latching via AZedit. If this
is done, the footswitch has no effect on the keys set to nonlatching.
Switch 6
Reserved
Switch 7
Reserved. Must be left in the Open position.
Switch 8
Reserved. Must be left in the Open position.
FIGURE 2.
KP 612/KP 412 Keypanel Board, Dip Switch Location
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Installation 25
Connections
EXP and LCP Connectors
Connect from the EXP connector on the back of the KP 612 / KP 412 keypanel to the Expansion 1 connector of an optional
EKP 812 Expansion Panel. Use the interconnect cable supplied with the Expansion Panel.
NOTE:
JP1 must have pins 1 and 2 shorted to use the LCP connection.
Each LCP adjusts the listen levels for up to 16 keypanel keys, and you can connect as many LCP panels as required to adjust
all keys on the KP 612/KP 412 keypanel and on an EKP 812 Expansion panel. An interconnect cable is supplied with each
LCP. Connect the first LCP to the LCP connector on the KP 612/KP 412. Connect the second LCP to the first LCP, and so
forth.
Frame Connector
Use either, not both of the Frame connectors to connect to an intercom port on the intercom system. The intercom port you
connect to should agree with the address set previously.
NOTE:
FIGURE 3.
For more information, see “Addressing” on page 35. Use the following cable diagrams to help you connect your
system.
DE9S Intercom Cable Wiring
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
26 Installation
FIGURE 4.
KP 612 & KP 412
RJ-12 Intercom Cable Wiring
Headset Connector
A dual-sided, mono headset may be connected for use along with or in place of the front panel speaker and a separate
microphone. Headphones may be connected for use with a separate microphone.
Headset Microphone Gain Adjustment
The gain of the headset microphone preamp can be adjusted via the recessed trim pot located on the back panel. See
Figure 1 on page 16. Turn the pot clockwise to increase gain and counter-clockwise to decrease gain.
The range for the headset gain is ±20dB from nominal.
Panel Microphone Connector
A panel microphone may be connected for talking with either the front panel speaker or headphones used for listening. The
connector accepts MCP5, MCP6 or MCP90 panel microphones. Insert the microphone and rotate the entire microphone body
clockwise several turns to lock in place.
Panel Microphone Gain Adjustment
The gain of the panel microphone preamp can be adjusted via the recessed trim pot located on the back panel. Turn the pot
clockwise to increase gain and counter-clockwise to decrease gain.
The range for the panel mic gain ±20dB from nominal.
Aux In
Provides a connector for a line-level audio input (program1).
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Installation 27
Microphone Preamplifier
Provides an unswitched, balanced, microphone preamplifier output.
External Headset, Speaker Output, and Footswitch Input
Provides one (1) DB-9 headset connection, one (1) DB-9 Speaker Output/Footswitch Connection.
GPIO
Opto-Isolate Input 1–4: four (4) general purpose inputs.
Open Collector 1–4: four (4) general purpose outputs.
Relay 1 & 2 (A &B)
Includes two (2) SPGT relay outputs.
Coaxial Connection (CSI-200 Coaxial System Interface)
Provides the ability to link the unit to the matrix using a single 75 Ohm coaxial cable. The interface converts all audio and data
streams to a single transmission path. Perfect for systems where there are existing, but unused 75 Ohm video cables. Requires
CSI-200 interface unit at the intercom matrix end.
Requirements
You must upgrade the following boards to Rev J or above:
•
•
•
•
KP612 (Rack) F.01U.191.343
KP612 (DKP/HND) F.01U.191.344
KP412 (Rack) F.01U.191.341
KP412 (DKP/HND) F.01U.191.342
Flash Cards to Upgrade the Firmware Version to 1.0.0 or later
Flash
Chip
New KP612
Part Number
New KP412
Part Number
U21
F.01U.265.989
F.01U.265.991
U22
F.01U.265.988
F.01U.265.990
To convert an existing KP 612/KP 412 keypanel to use the coaxial connection, do the following:
1.
On the KP 612/KP 412 board, locate U21 and U22 flash chips.
2.
Using IC pullers, remove both flash chips.
3.
Replace the existing flash chips with the new flash chips (see above for part numbers). Carefully snap the flash chips
in place.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
28 Installation
KP 612 & KP 412
To cable the CSI-200, KP 612/412 and the frame, do the following:
1.
Connect a DB-9 connection to Frame A or Frame B (depending upon the channel being used) on the CSI-200.
2.
Connect the opposite end of the DB-9 cable to the Frame you want to use (ADAM, ADAM CS, Zeus, or Cronus).
3.
Depending upon the channel being used, connect the coaxial cable (up to 1000ft) to Coax A or Coax B on the CSI200.
4.
Connect the opposite end of the coaxial cable to the KP 612/KP 412 COAX connect on the back of the unit.
5.
Using AZedit, add 5ms to the Panel Poll Delay (Keypanels|Edit button|Advanced).
6.
Click Apply.
7.
Send changes to the frame.
NOTE: Panel Poll Delay must be set for each CSI-200 connected to the frame.
8.
Power on the CSI-200.
9.
Power on the KP 612/KP 412.
NOTE: On the CSI-200, the frame LED is solid green for the channel that is connected and active. The TX
(Transmit) and RX (Receive) LEDs for the specified channel flash rapidly to signify the connection is
active. On the KP 612/KP 412, dashes or panel assignments on the port are displayed in the panel
window.User Manual
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
CHAPTER 3
Basic Operation
Selecting Headset or Speaker
By default, the panel mic is active. When a headset is used via the 4-pin XLR connector on the keypanel, the Headset Mic
LED indicator lights and the headset mic is active.
Listen Volume Adjustments
By default, the Vol control adjusts the listen volume for the speaker, headset, intercom input, or AUX In, as indicated by the lit
LED. The level of auxiliary program input 1 (if AUX inputs are enabled) and the level of incoming audio from the intercom
matrix can be adjusted. Use the Volume control to adjust the listen volume. The Vol control defaults back to the speaker or
headset after approximately one (1) minute of inactivity. The minimum volume level for either the keypanel speaker or headset
may be adjusted. See “Menus, Service, Min Volume” on page 59.
NOTE:
You can save the volume adjustments to be the power up defaults by using “Menus, Service, Save Cfg” on
page 62.
Listen Source Selection LED
There are four (4) LED indicators for Listen Source selection. Default is Internal Speaker LED on, the rest set to off.
FIGURE 5.
LED Indicators
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
30 Basic Operation
KP 612 & KP 412
On power up Matrix IN audio is routed to the speaker. This is indicated by the following:
FIGURE 6.
Speaker and Headset/Handset Selected
The audio being heard on the speaker is changed through the volume encoder. The audio being heard on the headset is from
Matrix IN. Audio level adjustments on the headset are changed through the volume encoder.
If the encoder is pushed once, it selects between Headset and Speaker Volume. If it is pushed twice, from either headset or
speaker, it jumps to Matrix IN. See Figure 7.
FIGURE 7.
Matrix IN Selected
The above LEDs indicate the level of audio being adjusted goes to Matrix IN.
In order to move between Matrix IN and Aux IN, tap the encoder knob once.
FIGURE 8.
Aux IN Selected
The above LEDs indicate the level of audio goes to Aux IN. If the encoder is pushed twice, it goes back to the previous
selection item. See Figure 6.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Basic Operation 31
Intercom Keys and Displays
Alphanumeric Display Indications for Intercom Keys
Upper Case Letters - Upper case letters indicate keys with any kind of talk assignment, with or without a corresponding listen
assignment. For example; DIR1.
Lower Case Letters - Lower case letters indicate keys with only a listen assignment. For example, dir1.
Dashes ---- NOTE:
Dashes indicate a key has no talk or listen assignment.
The flashing alphanumeric display for the TIF keys, remote IFB keys, and remote ISO keys can be disabled by
placing a check mark in Don’t generate tallies for TIF and trunk use check box, found in AZedit
(Options Menu|Intercom Configuration|Options Tab).
LED Indications for Intercom Keys
NOTE:
For the Japanese model KP 612/KP 412 keypanel, the Talk On LED is red, while the Listen on LED is green.
Talk LED Indications -
Each button is backlit with a bi-colored LED as an indicator. The talk LED is the button below
the display panel. The talk LED indications are as follows:
Continuous Red - Talk is on and the keypanel operator can be heard at the destination.
Continuous Green Talk LED & Flashing Display Alpha (in use) - The key is off, but
someone is talking to the destination. This indication is provided for any local PL, IFB, ISO, or
TIF key. It does not apply to remote IFB or ISO keys. This indication is provided so keypanel
operators know when critical director communications are occurring. If you activate the key,
either of two (2) things occur:
NOTE:
•
If you activate the key and the talk LED turns continuous red, it indicates you and the
other keypanel operator are both talking to the destination.
•
IFB keys only: If the talk LED flashes green when an IFB key is activated, it indicates the
other keypanel has a higher IFB priority and you cannot talk at this time.
The green in use indication for TIF keys can be disabled in AZedit (Options|Intercom Configuration|Options
tab). Select the Don’t generate tallies for TIF and trunk use check box. Send the change to the intercom system.
Flashing Green Talk LED - You cannot talk at this time. This indication occurs when you
activate a local IFB key that is already in use by a keypanel with a higher IFB priority. It also
occurs when you activate any key assigned to a remote destination, but there are currently no
trunks available.
Flashing Red Talk LED - There is an incoming call from the destination assigned to the key.
Activate the key to talk back.
NOTE:
The duration of an incoming call flash is controlled by DIP Switch 4 on the KP 612/KP 412 keypanel. See “Dip
Switch Settings” on page 23.
Amber Talk LED (on time less than off time) - This indicates a key is ready to talk (key is
on), but requires external footswitch activation to talk.
Listen LED Indications -
Bosch Security Systems, Inc.
Each button is backlit with a bi-color LED as an indicator. The listen LED is the button above
the display panel.
User Manual
F.01U.269.831
Rev. 06
32 Basic Operation
KP 612 & KP 412
Intercom Key Operation
IMPORTANT:
When using an AIO-8 or AIO-16 with a SCSI connector, or a Zeus Intercom System, only keypanels
with the same alpha size can be used.
To set the alpha size in AZedit, do the following:
>
On the Alphas page in the Application Preferences notebook in AZedit (Options|Preferences|Alphas), select the
alpha size you desire.
REFERENCE: For more information, see the AZedit User Manual (P/N F.01U.239.453), which can be found at
www.rtsintercoms.com.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Basic Operation 33
Basic Intercom Key Operation
The upper button of an intercom key is on continuously (if assigned). The lower button activates the talk (if assigned). If there
is no talk assignment for an intercom key, the talk button does not activate. If there is no listen assignment, the listen button is
not active.
For momentary activation of a key, do the following:
>
Press and hold the key, and then release it when finished talking.
For latching operation (if enabled), do the following:
1.
Tap the button; it turns on and remains on.
2.
Tap the button again to release the latch.
NOTE: Latching may be turned off for the entire keypanel by setting DIP Switch 1 on the keypanel to the Closed
position. Latching may be disabled for individual keys on a keypanel using AZedit or the latching menu
(Menu|Key Option|Latching).
To configure latching on a keypanel, do the following:
1.
Click the KP button in the AZedit toolbar to open the Keypanels/Ports setup window.
2.
Select the intercom port where the keypanel is connected.
3.
Select the D check box for any keys where you want to disable Latching.
4.
Send the changes to the intercom system.
Operation of Intercom Keys with Auto Functions
NOTE:
Key assignments with auto functions are described in the programming sections that follow. Descriptions of the
auto functions are contained in the “Glossary” on page 73.
Operation of keys with auto functions is as follows:
Talk + auto follow
Talk and listen can be activated separately. The listen assignment listens to whatever is
assigned to the talk key.
Talk + auto listen
Both talk and listen activate when talk is activated.
Talk + auto mute
Listen turns off when talk is activated.
Talk + auto reciprocal
Listen is always on, and talk may be turned on or off.
Talk + auto table
If an IFB talk key has an auto table listen assignment, talk and listen can be independently
activated. The listen key listens to whatever is defined as the IFB Listen Source for the IFB
assigned to the talk key. For an assignment other than IFB, auto-table acts like auto-follow.
REFERENCE: A full explanation of the auto table feature is beyond the scope of this manual. For further
information, search for IFB in the AZedit help file or user manual. Read the topics IFB Auto-Table
Description and IFB Setup Procedures.
All Call Key
Activating the key activates all keys to the left of the original key (up to, but not including,
another All Call key.
Talk + DIM
If a Point-to-Point key has the DIM function as a level 2 talk assignment, activating the key
causes the crosspoint levels to diminish for any other intercom ports currently listening to
the same destination and that are in the same DIM table.
REFERENCE: A full explanation of DIM tables is beyond the scope of this manual.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
34 Basic Operation
KP 612 & KP 412
Operation of Intercom Keys with Options
Group Option Keys
Activating the master key in a key group activates all keys in the group according to each key’s individual key assignment.
Activating a slave key does not affect any other keys in the group.
Solo Key
Activating a key with the solo option causes all other keys to turn off until the Solo key is turned off.
Exclusive Key
Activating a key with the exclusive option causes all other keys to turn off and stay off even after the Exclusive key is turned
off.
Operation of Intercom Talk Keys with Speaker DIM Setting
Activating any talk key causes the speaker or headphone volume at the keypanel to diminish by the amount specified in the
Dim menu item in the Service menu.
NOTE:
Do not confuse this with the Talk+DIM auto function previously described. Talk+DIM affects the speaker or
headphones on the other keypanels when a particular talk key is activated on this keypanel. Speaker DIM affects
the speaker or headphone level on this keypanel when any talk key on the keypanel is activated.
Operation of Intercom Keys Assigned to TIF Ports
If an intercom key is assigned to talk to an intercom port designated as a TIF port in AZedit, tapping the talk button activates
the KP 612/KP 412’s dialing menu. See “Telephone Operation” on page 39.
To designate an intercom port as a TIF, do the following:
1.
In AZedit, click the KP icon on the toolbar to access the Keypanels/Ports setup window.
2.
Select the intercom port where the TIF is connected.
3.
Click Edit.
4.
Select the Advanced tab.
5.
Select the Port is TIF check box.
NOTE: Remember to send the changes to the intercom system.
Muting the Microphone
The Mic Mute key turns microphone muting on or off. The mic mute LED indicator is activate when blinking green.
NOTE:
While muting is on, you cannot be heard on the intercom by anyone on the telephone or by any device connected
to the mic preamp output of the optional connector module.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Basic Operation 35
Call Waiting Operation
Occasionally, a keypanel may call and there is no key assigned to talk back to the caller. In this case, the caller’s name appears
in the CWW. Press the appropriate key to talk back.
To clear a name from a call waiting window, do the following:
>
Tap the listen key above the assignment.
If two (2) call waiting windows are configured on the keypanel, the first call appears in the left window. If a second call comes
into the keypanel, it appears in the right call waiting window. Once the first call is complete, the call in the right call waiting
window moves to the left window. However, if the first call waiting window key is latched on and a call is waiting in the
second call waiting window, and a third call comes in, the second call is dropped and the third call appears in the right call
waiting window.
NOTE:
By default, only the names of callers who are not currently assigned to intercom keys appear in the call waiting
window. This is a configuration option in the Master Controller.
Addressing
NOTE:
SET ADDR must be used during installation or whenever the keypanel is reset or moved to a new port.
Determining the Keypanel Address for ADAM and ADAM CS Intercoms
See Table 1 on page 37.
Determining the Keypanel Address for Zeus Intercom Systems
The address is the number (1–8) printed next to the connector on the back panel of the Zeus frame. This number repeats for
each group of eight (8) connectors. The intercom system is able to distinguish between two (2) keypanels set to the same
address by the group where each is connected.
Setting the Keypanel Address
To set the keypanel address, do the following:
1.
Using the encoder knob, scroll to Menu.
2.
Tap the encoder knob once.
The menu options appear.
Using the encoder knob, scroll to Service.
Tap the encoder knob once.
The Service menu options appears.
Using the encoder knob, scroll to Set Address.
Tap the encoder knob once.
A scrollable list of addresses appear.
Using the encoder knob, scroll to the port address you want to use.
Tap the encoder knob.
The CWW displays Save Config?
Tap the encoder knob to save.
The display shows “*******” and change to “XXXXX”, where XXXXX is the address.
3.
4.
5.
6.
7.
8.
9.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
36 Basic Operation
KP 612 & KP 412
Handset Operation
For information on configuring the handset operation, see “Menus, Service, Handset (Handset model only)” on page 55.
To use the handset in normal mode, do the following:
1.
When a call comes into the keypanel, lift the handset.
2.
Press the talk key and begin talking.
To use the handset in PTT mode, do the following:
1.
When a call comes into the keypanel, lift the handset.
2.
Press the talk key.
3.
Press the PTT key to talk.
4.
Release the PTT key to listen.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
between ADDR numbers and Intercom port numbers for ADAM and ADAM CS Intercom Systems
ADDR
SETTINGS
INTERCOM PORT NUMBERS
User Manual
Rev. 06
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
1
2
3
4
5
6
7
8
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
1
2
3
4
5
6
7
8
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
1
2
3
4
5
6
7
8
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
1
2
3
4
5
6
7
8
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
991
992
993
994
995
996
997
998
999
1000
KP 612 & KP 412
F.01U.269.831
1
2
3
4
5
6
7
8
37 Basic Operation
Bosch Security Systems, Inc.
TABLE 1. Correspondence
38 Basic Operation
Bosch Security Systems, Inc.
KP 612 & KP 412
User Manual
F.01U.269.831
Rev. 06
CHAPTER 4
Telephone Operation
NOTE:
Telephone operations require an optional TIF Telephone Interface. Also, you must first assign an intercom key to
talk/listen to the TIF. We recommend a talk+auto listen assignment.
Receiving a Phone Call
When there is an incoming telephone call, the talk LED flashes green on the selected key.
NOTE:
The green flash for incoming TIF calls is the default operation. Alternatively, a continuous green talk LED
indication can be provided. This is accomplished by selecting Don’t generate tallies for TIF or trunk use in
AZedit (Options|Intercom Configuration|Options Tab). This check box also affects other tally indications.
REFERENCE: For further information, see the AZedit User Manual (P/N F.01U.239.453).
Dialing and Hanging Up Using the KP 612/KP 412 Keypanel Dialing Menu
The dialing menu activates when talking to an intercom port that has the Port is TIF check box selected in AZedit.
Manual Dialing
To dial manually, do the following:
1.
Turn on the TIF talk key.
Manual Dial appears in the call waiting window.
2.
Tap the menu encoder.
Dial#? appears and a dial tone should be audible in your speaker or headset.
a.
To hang up at any time after this point, tap the encoder knob.
Hang Up appears.
b.
Tap the encoder knob again.
3.
Dial the phone number.
Digits appear in the call waiting window as you dial. Dialing tones are audible in the speaker or headset.
4.
If the far end answers, begin your conversation.
NOTE: After the far end answers, you may dial additional digits to retrieve voice mail, or log on to automated
answering systems, etc. Or, refer to the hang up instructions below.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
40 Telephone Operation
KP 612 & KP 412
To hang up the phone, do the following:
1.
Verify that the CWW window is clear.
2.
Hold the encoder for one (1) second.
Hang Up TIF appears.
3.
Continue holding the encoder knob, and tap the talk key assigned to the TIF.
When the encoder is released the CWW window will be cleared.
NOTE: Occasionally, you may receive intercom caller names in the call waiting window while you are talking on
the phone. In this case, the dialing menu options are cleared from the call waiting window, and the Hang Up
option is not available.
Redial
To redial a number, do the following:
1.
Rotate the encoder knob until Manual Dial appears in the call waiting window.
2.
Tap the encoder knob.
3.
Rotate the encoder knob until Redial appears.
4.
Tap the encoder knob.
5.
If the far end answers, begin your conversation.
After the far end answers, you may dial additional digits to retrieve voice mail, or log on to automated answering systems, etc.
Or, refer to the hang up instructions above.
NOTE:
Occasionally you may receive intercom caller names in the call waiting window while you are talking on the
phone. In this case, the dialing menu options are cleared from the call waiting window, and the Hang Up option is
not available.
Autodial
NOTE:
Autodial is only available after you have saved autodial numbers.
To autodial on the TIF, do the following:
1.
Turn on the TIF talk key.
Manual Dial appears in the call waiting window.
2.
Rotate the encoder knob until Autodial appears.
3.
Tap the encoder knob.
4.
Rotate the encoder knob until the desired number to autodial appears.
5.
Tap the encoder knob.
6.
If the far end answers, begin your conversation.
After the far end answers, you may dial additional digits to retrieve voice mail, or log on to automated answering systems, etc.
Or, refer to the hang up instructions above.
NOTE:
Occasionally, you may receive intercom caller names in the call waiting window while you are talking on the
phone. In this case, the dialing menu options are cleared from the call waiting window, and the Hang Up option is
not available.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
CHAPTER 5
KP 612/KP 412 Keypanel Menu System
Menu System, Menu Access
To access the menu, do the following:
1.
On the front panel of the KP 612/KP 412 keypanel, turn the encoder knob to scroll to the menu.
2.
Tap the encoder knob to select the menu.
3.
Turn the encoder knob clockwise to scroll forward and counter-clockwise to scroll backward through a list of menus.
4.
Tap the encoder knob.
NOTE:
A menu system quick reference is located at the back of this manual on page 67.
To navigate within a menu, do the following:
1.
Turn the encoder knob clockwise to scroll forward and counter-clockwise to scroll backward through a list of menu
options.
2.
Tap the encoder knob to enter a menu.
3.
Tap the encoder knob twice to exit a menu or press the encoder knob for one (1) second to exit the menu system.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
42 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Menu System, Display Menu
Use this menu to display information about the keypanel configuration.
Display Menu, Assign Type
Assign Type displays the talk level 1 assignment types for all keys. Abbreviations for the key assignment types appear in the
alphanumeric displays as follows:
P-P
Point-to-Point talk key
PL
Party Line talk key
IFB
Interruptible Foldback talk key
IFB SL
Interruptible Foldback Special List talk key
SPCL
Special List talk key
RLY
Relay activates a GPI output at the intercom frame, or a relay output at a UIO-265, GPIO-16, or FR9528 frame.
ISO
Camera Isolate talk key
UPL
User Programmable Language resource key
AC
All Call key
Display Menu, Chan On
Chan On displays an alpha list in the call waiting window of all intercom ports that currently have talk crosspoints closed to
this keypanel. Chan On is typically used to locate an open mic or other open audio source that needs to be shut off. The most
likely cause is typically a talk key that has been left on at a keypanel. In this case, turn the encoder knob to scroll through the
list of names. Then use the call waiting button to ask the user at the other end to turn off the talk button.
Display Menu, Exclusive
Exclusive displays the key with the exclusive assignment assigned to it. You can only have one exclusive key assigned at a
time.
To configure exclusive on a keypanel, do the following:
1.
Using the encoder knob, scroll to Display.
2.
Tap the encoder knob.
The Display menu options appear.
3.
Using the encoder knob, scroll to display Exclusive.
4.
Tap the encoder knob.
The key with the exclusive assignment lights up.
Display Menu, Key Groups
Key Groups displays the members in a key group. You can configure up to four (4) key groups.
To display key groups, do the following:
1.
Using the encoder knob, scroll to Group 1, Group 2, Group 3, or Group 4.
2.
Tap the encoder button to display the group.
The talk and listen LEDs of the master key light red and talk and listen LEDs for the slave keys light green.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 43
Display Menu, Key List
Key List displays and allows access to all the other assignments on the other keypanel pages not currently showing in the
keypanel display.
Display Menu, Level 2
Level 2 displays the talk level 2 assignments for all keys.
Display Menu, Matrix
Matrix displays the intercom system name for all talk level 1 key assignments. In non-trunked intercom systems, the intercom
system name is always LOCL (local). In trunked intercom systems, intercom system names are created in TrunkEdit
(Intercoms|Names).
Display Menu, Panel ID
Panel ID displays the calculated port number the keypanel connects to. The calculation is based on the data group the
keypanel is connected to, along with the address switch setting on the keypanel. If the address switch is incorrectly set, the
wrong Panel ID displays. If available, the entire alpha is seen by rotating the encoder knob.
Display Menu, Solo
Solo displays the key with the solo assignment assigned to it. You can only have one (1) solo key assigned at a time.
To display the solo key, do the following:
1.
Using the encoder knob, scroll to Display.
2.
Tap the encoder knob.
The Display menu options appear.
3.
Using the encoder knob, scroll to Solo.
4.
Tap the encoder knob.
The key with the solo assignment lights up.
Display Menu, Version
Version displays the firmware version of the keypanel.
NOTE:
For firmware upgrades, contact your intercom system dealer. The KP 612/KP 412 firmware can be upgraded
through AZedit. See “KP 612/KP 412 Keypanel Firmware Download” on page 65.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
44 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Menu System, Key Assign Menu
Key Assign is used to assign intercom keys, adjust listen levels for point-to-point keys and party line keys, assign setup pages,
configure quick assign and reset all volumes.
General Procedure to Use the Key Assign Menu
To access the key assign menu, do the following:
1.
Using the encoder knob, scroll to Key Assign.
2.
Tap the encoder knob to enter the menu.
3.
Using the encoder knob, select a different list as follows:
4.
Pt-to-Pt
Assign a key to talk/listen to another intercom port.
Party Line
Assign a key to talk/listen to a party line.
IFB
Assign a key to talk/listen to an IFB.
Spcl List
Assign a key to talk/listen to a special list.
Sys Relay
Assign a key to activate a relay or GP Output.
Camera ISO
Assign a key to talk/listen to an ISO.
UPL Resrc
Assign a key to activate a UPL resource.
IFB SL
Assign a key to talk/listen to an IFB Special List
Quick Assign
Configure the Quick Assign key with talk/listen options.
Reset Vols
Restore the default listen level for keys that have a point-to-point or party line assignment.
Tap the encoder.
Wait may display while the requested list is uploaded from the intercom system.
5.
Using the encoder knob, scroll to the desired assignment.
6.
Tap the encoder knob.
Talk Lvl 1 appears in the call waiting window.
7.
Using the encoder knob, select a different option.
Talk Level 1
Listen
Talk + AF
Talk + AL
Talk Lvl 2
Talk + AM
Talk + AR
Talk + AT
Assigns only talk level 1. Leaves the listen assignment as is.
Assigns only listen. Leaves the talk assignment as is.
Assigns talk level 1, with auto-follow listen.
Assigns talk level 1, with auto-listen.
Assigns talk level 2.
Assigns talk level 1, with auto-mute listen.
Assigns talk level 1, with auto-reciprocal listen.
Assigns talk + auto-table.
•
If you attempt to assign talk level 2 to a key and there is no talk level 1 assignment, the assignment goes
on talk level 1.
•
If you change the talk level 1 assignment for a key that also has a talk level 2 assignment, the talk level
2 assignment is erased.
8.
Tap the encoder knob.
Tap Key appears.
9.
Tap an available keypanel key.
If you assign any type of talk key, the assignment name appears in the alphanumeric display above the key.
NOTE:
•
If you add a listen assignment to an existing talk assignment, the listen assignment appears briefly in the
alphanumeric display to confirm the assignment. Then, the talk assignment reappears.
•
If you assign a key that is listen only, the assignment name appears briefly in uppercase letters, then
changes to lowercase letters.
When reassigning keys, remember to remove any Chime, Solo, or Key Group options if they are not needed for
the new key assignments.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
NOTE:
KP 612/KP 412 Keypanel Menu System 45
Remote key assignment only (trunk systems only)
If your intercom is trunked, Matrix displays in the call waiting window. You must select a remote intercom
matrix before assigning intercom keys to destinations in that matrix. You do not need to select an intercom matrix
if you are assigning keys in your own intercom system. Also, do not select an intercom matrix if you are
assigning alt-functions or setup pages, or if you are changing listen gains for remote point-to-point keys or
remote party line keys.
To select a matrix, do the following:
a.
Tap the encoder key once to access the Matrix list.
b.
Turn the encoder knob clockwise to scroll forward to locate the desired Matrix.
c.
Tap the encoder knob once.
Wait may display while the scroll lists for that matrix are loading. Pt-to-Pt appears in the call
waiting window (both for local and remote key assignments).
Key Assign Menu, Pt-to-Pt
Pt-to-Pt assigns a key that talks or listens to another intercom port.
NOTE:
Some pt-to-pt destinations may be non-keypanel devices that cannot activate talk and listen paths. Therefore, if
you want full communications, you may need to assign both talk and listen on the key.
Key Assign Menu, Party Line
Party Line assigns a key that talks and/or listens to a party line.
NOTE:
Party line members are usually non-keypanel devices that cannot activate talk and listen paths. Therefore, if you
want full communication with the party line, you may need to assign both talk and listen on the key. If all
communications is normally 2-way, you may want to assign Talk+Auto Listen to the key.
Key Assign Menu, IFB
By default, all IFBs are restricted and Not Avail appears when you attempt to select this item. To see IFBs, you must select the
appropriate scroll enable check boxes in AZedit.
Key Assign Menu, Spcl List
Spcl List assigns a key that talks and/or listens to a special list. This has no effect until members have been assigned to the
special list in AZedit.
NOTE:
Some or all special list members may be non-keypanel devices that cannot activate talk and listen paths.
Therefore, if you want full communication with all members of the special list, you may need to assign both talk
and listen on the key.
Key Assign Menu, Sys Relay
Sys Relay refers to any of several types of control devices that can exist in the intercom system, including:
•
•
•
•
the eight (8) GP outputs from an ADAM frame (J11 on the XCP-ADAM-MC breakout panel).
the eight (8) GP outputs of an ADAM CS frame (J903 on the ADAM CS backpanel).
the relay outputs of an FR9528 Relay Frame (RELAY OUTPUTS connector on the FR9528 backpanel).
the 16 GP outputs of a UIO-256 Universal Input/Output Frame (J5 on the UIO-256 backpanel) or
GPIO-16.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
46 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Key Assign Menu, Camera ISO
By default, all ISOs are restricted and you see Not Avail when you attempt to select this item. To see ISOs, you must select the
appropriate scroll enable check boxes in AZedit.
Key Assign Menu, UPL
By default, all UPLs are restricted and you see Not Avail when you attempt to select this item. To see UPLs, you must select
the appropriate scroll enable check box in AZedit.
Key Assign Menu, IFB SL
By default, all IFB SLs are restricted and you see Not Avail when you attempt to select this item. To see IFB SLs, you must
select the appropriate scroll enable check box in AZedit.
Key Assign Menu, Quick Assign
Quick Assign menu is used to configure what talk/listen function is assigned when a Quick Assignment is made.
Available options are:
Party Line
Point-to-Point
Group
Special List
Also, from this menu, special functions can be individually assigned to a talk/listen assignment. For the different special
assignments, see “Display Menu, Assign Type” on page 42.
Key Assign Menu, Reset Vols
Reset Vols is used to simultaneously reset gains for all point-to-point or party line keys.
To reset volume levels, do the following:
1.
Using the encoder knob, scroll to Reset Vols.
2.
Tap the encoder knob.
Done appears. All key gains are now reset to the default level.
3.
Press the encoder knob for 1 second to exit.
NOTE: You do not need to run Save Cfg after resetting key gains. These settings are stored in the intercom system.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 47
Menu System, Menus
Menus, Autodial
Autodial is used to store autodial numbers. Up to 10 autodial numbers can be stored.
To use autodial, do the following:
1.
Using the encoder knob, scroll to Autodial.
2.
Tap the encoder knob.
Phone # appears.
3.
Using the keypad, enter the phone number.
The numbers scroll in the call waiting window.
NOTE: To insert a pause or space at any time, tap * 9 9. For example, you may have to insert a pause after dialing a
9 to get an outside line.
4.
Tap the encoder knob.
A-Dial #1 appears (store autodial number 1).
5.
Turn and tap the encoder knob to display and select the desired autodial number for storing a different autodial
number
#XX saved appears (where XX is the autodial number you select).
6.
Run Service Menu, Save Cfg to store autodial numbers.
Menus, Key Option
Menus, Key Option, Btn Lock (Button Lock)
Button Lock is used to independently lock a key on or off. The default setting for all keys is no locking.
To enable Btn Lock on a key, do the following:
1.
From the Menus list, select Key Option.
2.
Tap the encoder knob.
Button Lock appears in the display.
3.
Tap the encoder knob.
Tap Key appears in the display.
4.
Press the key you want to enable button lock on.
The keys you select light solid red.
The key appears the following for the associated action:
Solid Red -
Locked on
Flashing Green -
Locked off
No Indication -
Not Locked
5.
Double-tap the encoder knob to return to the previous menu level.
OR
Press and hold the encoder knob to exit the menu structure.
6.
Run Save Cfg. See “Menus, Service, Save Cfg” on page 62.
NOTE: You cannot assign button lock to any key programmed for solo operation or group operation. If you attempt
to assign button lock to these keys, the call waiting window appears SOLO ERR (Solo Error), or GRP ERR
(Group Error).
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
48 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Menus, Key Option, Chime
Chime is used to add a chime tone to any key for incoming call announcement. The chime tone activates for approximately
fiver (5) seconds after a call is received.
To set chime on a key, do the following:
1.
Using the encoder knob, select Chime.
2.
Tap the encoder knob.
Tap Key appears.
3.
Tap any keys on the keypanel where you want to add a chime tone.
4.
Press and hold the encoder knob for one (1) second to exit.
5.
Run Service Menu, Save Cfg to store chime settings.
NOTE: The chime option stays with a key even if you change the key assignment.
To remove a chime from a key, do the following:
1.
Using the encoder knob, select Chime.
2.
Tap the encoder knob.
Tap Key appears.
3.
Tap any keys on the keypanel where you want to remove a chime tone.
4.
Press and hold the encoder knob for one (1) second to exit.
5.
Run Service Menu, Save Cfg to store chime settings.
Menus, Key Option, Clear Options
Clear Options allows you to erase any options enabled on the key.
To clear options from a key, do the following:
1.
Using the encoder knob, select Key Option.
2.
Tap the encoder knob.
Button Lock appears in the display.
3.
Using the encoder knob, select Clear Options.
4.
Tap the encoder knob once.
Tap Key appears in the display and any key with options enabled lights red.
5.
Press the key you want to clear options from.
The red LED turns off.
6.
Double-tap the encoder knob to return to the previous menu level.
OR
Press and hold the encoder knob to exit the menu structure.
1.
Run Save Cfg. See “Menus, Service, Save Cfg” on page 62.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 49
Menus, Key Option, Exclusive
Exclusive is used to cause all other keys to turn off when activated; but unlike the solo key, when the exclusive key is released,
the other keys do not turn on again. You can assign one (1) exclusive key.
1.
Using the encoder knob, select Exclusive.
2.
Tap the encoder knob.
Tap Key appears.
3.
Tap a key.
Both LEDs for the key light red to confirm the assignment. Tap the key again if you want to remove the assignment.
NOTE: Activating the exclusive key causes all other active keys to turn off. The keys do not turn back on when you
turn off the exclusive key.
4.
Run Service Menu, Save Cfg to store the exclusive setting.
NOTE: The exclusive option continues on a key even if you change key assignments.
To remove exclusive from a key, do the following:
1.
Using the encoder knob, select Exclusive.
2.
Tap the encoder knob.
Tap Key appears.
3.
Tap the exclusive key to turn off the LEDs.
4.
Press and hold the encoder knob for 1 second to exit.
The exclusive key is now cleared.
5.
Run Service Menu, Save Cfg to store the exclusive setting.
Menus, Key Option, Key Groups
Key Group is used to set up a key group so you can activate one (1) key (the master key) and all keys in the group become
active. Up to four (4) key groups can be set. The master LED is indicated by red, while the slave LED is indicated by green.
To add a key group, do the following:
1.
Using the encoder knob, select Key Groups.
2.
Tap the encoder knob.
Tap Master appears. The master key is the key you pressed to activate the group.
NOTE: Tap the encoder knob once to bypass the master. You can define the slaves without the master. For example,
using a GP Input to trigger a group.
3.
Tap the keypanel key you want to use as the master.
4.
Once you have assigned the master, turn the encoder knob to display Slaves.
5.
Tap the encoder knob.
Tap Slaves appears. Slave keys are the keys that activate along with the master key.
6.
Tap one (1) or more keypanel keys to select them as slave keys.
Tap the key again to remove it from the key group.
7.
Once you are finished, press the encoder knob for one (1) second to exit.
NOTE: Activating the master key causes it and all the slave keys to activate. The LEDs for each key activates
according to the current key assignment for that call.
8.
Run Service Menu, Save Cfg to store Key Group Settings.
NOTE: Key group settings stay with keys even if you change the key assignments.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
50 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
To clear a key group, do the following:
1.
Using the encoder knob, select Key Groups.
2.
Tap the encoder knob.
Group 1 appears.
3.
Tap the encoder knob.
Tap Master appears.
4.
Tap the encoder knob to clear the master key assignment.
The LED turns off.
5.
Tap the encoder knob.
Tap Slaves appears.
6.
Tap all the keys where the LEDs are lit green.
This turns the LEDs off.
7.
Press and hold the encoder knob for 1 second to exit.
The key group is now cleared.
8.
Run Service Menu, Save Cfg to store the cleared key group setting.
Menus, Key Option, Latching
Latching is used to allow keys to stay on once the key has been tapped. The default setting for latching intercom keys is
latching on for hands-free talk. This feature may be deactivated for selected keys. For more information, see “Basic
Operation” on page 29.
To enable or disable latching, do the following:
1.
Using the encoder knob, select Key Option.
2.
Tap the encoder knob.
Btn Lock appears in the display.
3.
Using the encoder knob, select Latching.
4.
Tap the encoder knob.
Tap Key appears in the display.
5.
Tap all keys as desired to enable or disable latching.
The talk indicators turn green for all keys that have latching enabled and does not display for keys that without
latching enabled.
6.
Press and hold the encoder knob for 1 second to exit.
The key group is now cleared.
7.
Run Service Menu, Save Cfg to store the Latching settings. See “Menus, Service, Save Cfg” on page 62
Menus, Key Option, Solo
Solo is used to cause all other keys to turn off when activated. You can assign one (1) solo key.
To assign a solo key, do the following:
1.
Using the encoder knob, select Solo.
2.
Tap the encoder knob.
Tap Key appears.
3.
Tap a keypanel key.
Both LEDs for the key light red to confirm the assignment. Tap the key again if you want to remove the assignment.
4.
Press and hold the encoder knob for one (1) second to exit.
NOTE: Activating the solo key causes all other active keys to turn off. The keys turn back on when you turn off the
solo key.
5.
Run Service Menu, Save Cfg to store the Solo setting.
NOTE: The solo option stays on a key even if the key assignment changes.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 51
To remove a solo key assignment, do the following:
1.
Using the encoder knob, select Solo.
2.
Tap the encoder knob.
Tap Key appears.
3.
Tap the solo key to turn off the LED.
4.
Press and hold the encoder knob for one (1) second to exit.
The solo key is now cleared.
5.
Run Service Menu, Save Cfg to store the Solo setting.
Menus, RVON Conn.
RVON Conn. menu is used to select an RVON connection to use with the keypanel.
NOTE:
This menu item only appears when an RVON-1 card is installed in the keypanel.
To select an RVON connection, do the following:
1.
Using the encoder knob, select Menus.
2.
Tap the encoder knob.
Autodial appears in the display window.
3.
Using the encoder knob, select RVON Conn.
4.
Tap the encoder knob.
A list of available RVON connections appears in a scrollable list.
5.
Using the encoder knob, select the RVON connection you want to use.
6.
Tap the encoder knob.
The RVON connection is set.
7.
Press and hold the encoder knob for one (1) second to exit.
Menus, Service Menu
Menus, Service, Aux Inputs
Aux Inputs control what input levels can be adjusted by the volume knob.
To configure the Aux Inputs, do the following:
1.
Using the encoder knob, select Aux Inputs.
2.
Tap the encoder knob.
Intercom appears.
3.
Tap the encoder knob.
4.
Using the encoder knob, select either Aux In, Intercom, or Timeout.
5.
Tap the encoder knob.
The arrow indicates the input is enabled allowing the source’s volume to be adjusted.
6.
Press and hold the encoder knob for one (1) second to exit.
The new Aux In assignment is now set.
7.
Run Service Menu, Save Cfg to store the Aux Inputs setting.
NOTE: To assign the destination of the Aux Inputs, see the Mixing entry for Service Menu, DSP Func.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
52 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Menus, Service, Baud Rate
Baud Rate is used to set the baud rate the keypanel uses to transmit audio.
To set the baud rate, do the following:
1.
Using the encoder knob, select Baud Rate.
2.
Tap the encoder knob.
Auto Baud appears.
3.
Using the encoder knob, select Auto Baud, 9600 Baud, or 76.8 Baud.
4.
Tap the encoder knob once to select the baud rate.
5.
Press and hold the encoder knob for one (1) second to exit.
The new baud rate is now set.
6.
Run Service Menu, Save Cfg to store the Baud setting
Menus, Service, Caller Vol.
Caller Vol. is used to adjust the volume of an incoming call. Normally, to adjust the volume on a key, you hold up the listen
key, then turn the volume knob. With caller volume adjust enabled, if you receive an incoming call (a key starts tallying),
rotate the volume knob, and it adjusts the volume for the incoming call key automatically.
You have approximately five (5) seconds in which to make the first adjustment before it times out.
To enable caller volume adjust on the keypanel, do the following:
1.
Using the encoder knob, select Caller Vol.
2.
Tap the encoder knob.
Adj Disab appears.
3.
Using the encoder knob, select Adj Enab.
4.
Tap the encoder knob.
Caller Vol is enabled.
5.
Press and hold the encoder knob for one (1) second to exit.
The caller volume adjust is enabled.
6.
Run Service Menu, Save Cfg to store the Caller Vol. setting
Menus, Service, Dim
Dim is used to diminish, by a specific amount, the speaker or headphone level when a talk key is activated.
To activate dim, do the following:
1.
Using the encoder knob, select Dim.
2.
Tap the encoder knob.
Speaker appears.
3.
Using the encoder knob, select either Speaker or Headset.
4.
Tap the encoder knob.
NOTE: By default, -8dB appears for speaker and 0 dB appears for headset.
5.
Turn the encoder knob clockwise to increase the dim, or counter-clockwise to reduce the dim.
6.
Press and hold the encoder knob for 1 second to exit.
The new dimming level is now set.
7.
Run Service Menu, Save Cfg to store the Dim setting.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 53
Menus, Service, DSP Func
DSP Func is used to access the digital signal processing feature.
To access the DSP Func menu, do the following:
1.
Using the encoder knob, select DSP Func.
2.
Tap the encoder knob.
Filters appears. Turn the encoder knob to see the other DSP function options: Filtering, Gating, Metering, Mixing.
Refer to one (1) of the following paragraphs for further information on each of these options.
Filters
Filtering allows you to add a 9.6kHz notch filter to one (1) or more audio sources. This can be useful in a few cases when the
keypanel data port signal is being heard in the audio line due to cable routing problems.
To configure filters, do the following:
1.
Using the encoder knob, select Filtering.
2.
Tap the encoder knob.
Mic appears.
3.
Using the encoder knob, select a filter option.
4.
Once you have the source to filter, tap the encoder knob.
None appears to indicate that no filtering is selected.
5.
Using the encoder knob, select Notch.
6.
Tap the encoder knob.
Notch appears. The arrow indicates the notch filter is now selected.
7.
Press and hold the encoder knob for one (1) second to exit.
8.
Run Service Menu, Save Cfg to save the change.
Gating
Gating minimizes or eliminates background noise problems by shutting off an audio source when the sound level drops below
a certain threshold.
To configure gating, do the following:
1.
Using the encoder knob, select Gating.
2.
Tap the encoder knob.
Mic appears.
3.
Using the encoder knob, select Microphone, Matrix, or Aux In.
4.
Once you have chosen the source to gate, tap the encoder knob.
Gating appears to indicate that no filtering is selected.
5.
Tap the encoder knob.
Gating appears. The arrow indicates that gating is now selected.
6.
Press and hold the encoder knob for one (1) second to exit.
7.
Run Service Menu, Save Cfg to save the change.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
54 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Metering
Metering lets you use the Vol. display as an LED bar graph meter to monitor an audio signal for about one (1) minute.
To configure metering, do the following:
1.
Using the encoder knob, select Metering.
2.
Tap the encoder knob.
Microphone appears.
3.
Using the encoder knob, select Microphone, Matrix, or Aux 1.
4.
Once you have chosen the source to meter, tap the encoder knob.
Meter: Mic appears to indicate that no filtering is selected.
5.
Using the encoder knob, select Meter:Mic, Meter:Mtx, or Meter:Aux In.
6.
Tap the encoder knob.
The Vol bar graph is now monitoring the selected audio source.
7.
Press and hold the encoder knob for one (1) second to exit metering or allow the metering function to time-out after
approximately one (1) minute.
8.
Run Service Menu, Save Cfg to save the change.
Mixing
Mixing lets you route selected audio signals to the intercom system, to the speaker, or to the left headphone when using
the headset. By default, the microphone signal is routed to the matrix, and the matrix signal is routed to the speaker and
the left headphone.
To configure metering, do the following:
1.
Using the encoder knob, select Mixing.
2.
Tap the encoder knob.
Aux In appears.
3.
Tap the encoder knob again.
To Matrix appears.
4.
Using the encoder knob, select either To Matrix or To Speaker.
5.
Tap the encoder to select if the audio should be activated to the destination.
An arrow appears to indicate if Aux In audio is being fed to that destination.
6.
Press and hold the encoder knob for one (1) second to exit the mixing selections.
7.
Run Service Menu, Save Cfg to save the change.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 55
Menus, Service, Handset (Handset model only)
Handset is used to configure the operation of the handset in the different modes. From this menu you can configure the
handset hold operation (what happens when the handset is onhook), the mode the handset operates (what type of handset is
installed), and the speaker mute operation (what the speaker does when the handset is offhook).
Handset Hold configures if the handset is onhook, when hung up or the handsfree button is turned off, keys which were latched
on, go into selected state and turn amber. If handset hold is off, those keys turn off.
Handset Mode has three (3) different modes:
None-
The panel does not have a handset.
Normal-
The panel has a handset and is in normal mode. PTT (Push to Talk) is not enabled. A normal handset
does not have a PTT button. When the handset is offhook, talk is enabled.
PTT-
The panel has a handset in PTT mode. A PTT handset has a button that must be pressed when the
handset is offhook.
Speaker Mute has two (2) different settings available:
Normal:When the handset is offhook, the speaker is muted.
No Mute:When the handset is onhook, the speaker remains active.
To configure handset hold, do the following:
1.
Using the encoder knob, select Handset.
2.
Tap the encoder knob.
Hold appears in the display window.
3.
Tap the encoder knob.
Off appears in the display window.
4.
Using the encoder knob, select either Off or On.
5.
Tap the encoder knob to confirm the selection.
6.
Run Service Menu, Save Cfg to store the setting.
To configure the handset mode, do the following:
1.
Using the encoder knob, select Handest.
2.
Tap the encoder knob.
Hold appears in the display window.
3.
Using the encoder knob, select Mode.
None appears in the display window.
4.
Using the encoder knob, select either None, Normal, or PTT.
5.
Tap the encoder knob to confirm the selection.
6.
Run Service Menu, Save Cfg to store the setting.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
56 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
To configure speaker mute, do the following:
1.
Using the encoder knob, select Handest.
2.
Tap the encoder knob.
Hold appears in the display window.
3.
Using the encoder knob, select Speaker Mute.
Normal appears in the display window.
4.
Using the encoder knob, select either Normal or No Mute.
5.
Tap the encoder knob to confirm the selection.
6.
Run Service Menu, Save Cfg to save the settings.
Menus, Service, LCD Bright
LCD Bright adjusts the alphanumeric display settings.
To adjust the display brightness, do the following:
1.
Using the encoder knob, select LCD Bright.
2.
Tap the encoder knob.
An option for mods 1 through 16 or All appears.
3.
Turn the encoder knob clockwise to increase the brightness and counter-clockwise to reduce the brightness.
NOTE: The brightness scale ranges from 5 to 100, with 100 being the brightest.
4.
Run Service Menu, Save Cfg to store the LCD Bright setting.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 57
Menus, Service, LCP-16
LCP-16 is used to configure the LCP-16 to the KP 612/412. By default, each LCP-16 you connect to the KP 612/KP 412
keypanel takes control of level adjustments for the first available group of 16 physical keys it finds. The LCP-16 adjusts keys
1-16, which corresponds to the bottom row of keys on the KP 612/KP 412 keypanel; the second LCP-16 adjusts keys 17-32,
and so forth.
If you do not want to use an LCP-16 with certain keys, you must program the KP 612/KP 412 keypanel to skip those keys. For
example, you may not want to use the LCP-16 with the KP 612/KP 412 keypanel, but do want to use it with an EKP 812.
To turn off LCP usage for keys 1–16, do the following:
1.
Using the encoder knob, select LCP-16.
2.
Tap the encoder knob.
1-16: Yes appears. This indicates the first connected LCP-16 attaches to keys 1-16. If you select this option, skip to
step 3.
3.
Turn the encoder knob to see other options.
1-16: Skip appears. This indicates the first connected LCP-16 skips keys 1-16 and attaches to the next available row
of keys.
4.
Tap the encoder knob.
17-32: Yes appears.
5.
Turn the encoder knob to see other options.
17-32: Skip appears. This indicates the first connected LCP-16 skips keys 17-32 and attaches to the next available
row of keys.
6.
Press and hold the encoder knob for one (1) second to exit.
7.
Run Service Menu, Save Cfg to store the new LCP-16 settings.
Menus, Service, Local GPIO
Local GPIO is used to assign the GP inputs and outputs. Inputs can be assigned to activate intercom keys (including group
master keys and a solo key). Outputs can be activated by intercom keys.
To assign and input to activate a key, do the following:
1.
Using the encoder knob, select Local GPIO.
2.
Tap the encoder knob.
Input appears.
3.
Tap the encoder knob.
GPI Opto 1 appears.
4.
Using the encoder knob, select a different GP Input.
5.
Using the encoder knob, select a GP Input.
6.
Tap the encoder knob.
7.
Using the encoder knob, select Talk Key.
8.
Tap the encoder knob.
Tap Key appears.
9.
Tap the keypanel key you want to assign.
This is the key that activates when the GP Input activates.
10.
Press and hold the encoder knob for one (1) second to exit, or tap the encoder knob twice to back up and make more
assignments.
11.
Run Service Menu, Save Cfg to store local GPIO settings.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
58 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
To assign an input to activate a key group, do the following:
1.
Using the encoder knob, select Local GPIO.
2.
Tap the encoder knob.
Input appears.
3.
Tap the encoder knob.
GPI Inp #1 appears.
4.
Using the encoder knob, select a different GP Input.
5.
Using the encoder knob, select a GP Input.
6.
Tap the encoder knob.
7.
Using the encoder knob, select Group.
8.
Tap the encoder knob.
By default, Group 1 appears.
9.
Using the encoder knob, select a different group.
10.
Tap the intercom key you want to assign.
This is the key that activates when the GPI Input activates.
11.
Press and hold the encoder knob for one (1) second to exit, or tap the encoder knob twice to backup and make more
assignments.
12.
Run Service Menu, Save Cfg to store local GPIO settings.
To remove an input assignment, do the following:
1.
Using the encoder knob, select GPIO.
2.
Tap the encoder knob.
3.
Using the encoder knob, select Input.
4.
Tap the encoder knob.
5.
Using the encoder knob, select the GP Input you want to remove.
6.
Tap the encoder knob.
7.
Using the encoder knob, select Not Asgnd.
8.
Tap the encoder knob.
Not Asgnd appears. The arrow indicates that Not Assigned is the new selection.
9.
Press and hold the encoder knob for one (1) second to exit.
10.
Run Service Menu, Save Cfg to store local GPIO settings.
To add or remove a GP output key assignment, do the following:
1.
Using the encoder knob, select Local GPIO.
2.
Tap the encoder knob.
Input appears.
3.
Using the encoder knob, select Output.
4.
Tap the encoder knob.
Relay 1A, 1B appears.
5.
Using the encoder knob, select Relay 2A, 2B, OC Output #1, 3, OC Output #2, or 4.
6.
Tap the encoder knob.
Tap Key appears.
NOTE: If there is a key currently assigned to activate the selected GP Output, both LEDs for that key lights red. If
there is no assignment, no LEDS light red.
7.
Tap a keypanel key or user assignable key to add or remove the GP Output assignment.
8.
Press and hold the encoder knob for one (1) second to exit or tap the encoder knob twice to back up and make more
assignments.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
9.
KP 612/KP 412 Keypanel Menu System 59
Run Service Menu, Save Cfg to store local GPIO settings.
Menus, Service, Matrix Out
Matrix Out is used to select between normal or hot mic. In the normal (default) setting, audio from the mic goes out to the
matrix when the talk key is latched. In the hot mic setting, audio from the mic goes out to the Matrix without regard to the
key’s state.
To configure matrix out, do the following:
1.
Using the encoder knob, select Matrix Out.
2.
Tap the encoder knob.
Normal appears.
3.
Using the encoder knob, select either Normal or Hot Mic.
4.
Tap the encoder.
The Matrix Out is configured.
5.
Press and hold the encoder knob for one (1) second to exit.
6.
Run Service Menu, Save Cfg to store Matrix Out settings.
Menus, Service, Mic Select
Mic Select is used to select between the panel mic or external mic input. In the panel mic (default) setting, audio from the
panel mic is used. In the hdst only setting, audio from the headset mic is used. This is used to force the use of the headset
microphone even when the keypanel’s speaker is being used.
To configure mic select, do the following:
1.
Using the encoder knob, select Mic Select.
2.
Tap the encoder knob.
Normal appears.
3.
Using the encoder knob, select either Normal or Extern.
4.
Tap the encoder knob.
5.
Press and hold the encoder knob for one (1) second to exit.
6.
Run Service Menu, Save Cfg to store Mic Select settings.
Menus, Service, Min Volume
Min Volume is used to set the minimum volume for both the keypanel speaker and the headset speaker(s). This is the
minimum volume level available on the volume control located on the front of the KP 612/KP 412.
To set the minimum volume, do the following:
1.
Using the encoder knob, select Min Volume.
2.
Tap the encoder knob.
3.
Using the encoder knob, increase or decrease the minimum volume level.
The range is -1dB to -60dB or full Mute.
4.
Tap the encoder knob.
5.
Press and hold the encoder knob for one (1) second to exit.
6.
Run Service Menu, Save Cfg to store the Min Volume settings.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
60 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Menus, Service, Mod Assign
Mod Assign is used to define the address of each keypanel key. The KP 612/KP 412 keypanel and EKP 812 use Module ID
numbers (Mod ID Numbers) to define the address of each key and display module see Figure 9 on page 60.
NOTE:
Normally, this is a service adjustment that is required only when replacing a key and display module. It may also
be required if for some reason the key assignments, as displayed in AZedit, appear to be in the wrong position on
the keypanel or expansion panel.
To assign a mod, do the following:
1.
Using the encoder knob, select Mod Assign.
All modules go into Select Module ID.
NOTE: To exit this procedure without making changes, tap the encoder once.
2.
Assign the Mod IDs as shown in Figure 9 on page 60.
3.
Repeat the procedure for each module.
NOTE: You do not need to run Service Menu, Save Cfg after changing mod assignments.
FIGURE 9.
Module Assignment Example
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 61
Menus, Service, Output Level
Output Level is used to adjustment of the nominal audio output level to the matrix from 0 dBu to +8dBu.
To set the output level, do the following:
1.
Using the encoder knob, select Outp Level.
2.
Tap the encoder knob.
0 dBu appears.
3.
Turn the encoder knob clockwise to increase the output level or turn the encoder knob counter-clockwise to decrease
the output level.
4.
Tap the encoder knob.
5.
Press and hold the encoder knob for one (1) second to exit.
6.
Run Service Menu, Save Cfg to store the Output Level settings.
Menus, Service, Page Skip
Page Skip is used to tell the keypanel which assignment pages can be displayed when the Page Up or Page Down button is
pushed. For example, you may allow users to see pages 1, 3 and 4, but don’t want them to access page 2. Using Page Skip, you
can tell the keypanel to skip displaying page 2.
To set a page skip, do the following:
1.
Using the encoder knob, select Page Skip.
2.
Tap the encoder knob.
Page 2: OK appears in the display window.
3.
Using the encoder knob, select the page you want to skip.
Page 2: Skip appears in the display window.
4.
Press and hold the encoder knob for one (1) second to exit.
5.
Run Service Menu, Save Cfg to store the Page Skip settings.
Menus, Service, Preamp Out
Preamp Out is used to choose how audio is routed to the Preamp Out connector.
Available options are:
Switched -
keypanel audio is routed to the preamp out connected when a talk key is latched.
Hot Mic -
audio is always available at the preamp out connector.
Inverted -
keypanel audio is routed to the preamp out when no talk is active; conversely, keypanel audio is not
routed to the preamp out when talk is active.
Disable -
keypanel audio is isolated from the USM connector.
The default setting is 0 dBu.
To configure preamp out, do the following:
1.
Using the encoder knob, select Preamp Out.
2.
Tap the encoder knob.
Switch appears.
3.
Using the encoder knob, select either Switched, Hot Mic, Inverted, or Disabled.
4.
Tap the encoder knob.
5.
Press and hold the encoder knob for one (1) second to exit.
6.
Run Service Menu, Save Cfg to store the USM settings.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
62 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Menus, Service, Reset Cfg
Reset Cfg restores all custom settings to the defaults and erases all stored auto dial numbers.
Menus, Service, RVON Setup (RVON Option Card Only)
RVON Setup is used to configure the IP Address, Netmask Address, and Gateway Address for the RVON device you want to
use.
To configure the RVON device, do the following:
1.
Using the encoder knob, select RVON Setup.
2.
Tap the encoder knob.
IP Address appears.
3.
Tap the encoder knob.
4.
Using the keypad, enter the IP Address.
5.
When finished entering the IP Address, tap the encoder knob.
Netmask appears in the display window.
6.
Tap the encoder knob.
7.
Using the keypad, enter the Netmask.
8.
When finished entering the Netmask, tap the encoder knob.
Gateway appears in the display window.
9.
Tap the encoder knob.
10.
Using the keypad, enter the Gateway Address.
11.
When finished enter the Gateway Address, tap the encoder knob.
RVON Setup appears in the display window.
12.
Press and hold the encoder knob for one (1) second to exit.
13.
Run Service Menu, Save Cfg to store the RVON Setup options.
Menus, Service, Save Cfg
Save Cfg saves custom settings you make in the Key Option or Service menus. After customizing settings, run Save Cfg to
store your custom settings in non-volatile memory. This protects of your settings when the keypanel is powered down.
To erase all custom settings, do the following:
>
Using the encoder knob, select Service Menu, Reset Cfg.
Menus, Service, Set Addr
Set Addr is used to set the address of the keypanel. The address can be set from 1 through 8.
To set the address, do the following:
1.
Using the encoder knob, select Set Addr.
2.
Tap the encoder knob.
Addr: 1 appears in the display window.
3.
Using the encoder knob, select the address you want to assign the keypanel (1 through 8).
4.
Tap the encoder knob.
5.
Press and hold the encoder knob for one (1) second to exit.
6.
Run Service Menu, Save Cfg to store the Set Addr settings.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Keypanel Menu System 63
Menus, Service, Sidetone
Currently not available; planned for future firmware release.
Menus, Service, Tally Duration
Tally Duration is used to set the amount of time the incoming call indicator flashes. You can set the tally to 5, 10 or 15
seconds.
To configure tally duration, do the following:
1.
Using the encoder knob, select Tally Duration.
2.
Tap the encoder knob.
3.
Using the encoder knob, select either 5 sec, 10 sec, or 15 sec.
4.
Tap the encoder knob.
5.
Press and hold the encoder knob for one (1) second to exit.
6.
Run Service Menu, Save Cfg to store the Tally Duration settings.
NOTE: If Dip Switch four (4) is closed, the tally lasts for as long as the caller’s talk key is closed.
Menus, Service, Test Panel
Test Panel allows you to check the operation of all keys and appears.
•
All alphanumeric appears show a % (percent) symbol. Pressing down on any key causes ok to display.
This verifies operation of the key. Tapping up or down on the headset vol sel. key causes the display to
cycle through the available selections.
•
Tapping either the listen or talk button, or the call waiting button causes the corresponding red LED to
light. This verifies the latching operation and also that each red LED is ok.
•
Holding any button causes the corresponding green LED to light. This verifies operation of the green
LEDs.
Menus, Service, Tone Gen
Tone Gen is used to turn the internal tone generator on or off. You can use the tone generator to check the audio path from the
keypanel to the matrix and back.
NOTE:
The microphone is muted when the tone generator is active.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
64 KP 612/KP 412 Keypanel Menu System
KP 612 & KP 412
Special Functions
Quick Assign
Quick Assign is used to assign key assignments to any key on the keypanel. This is only used for top level assignments.
To perform a quick assign, do the following:
1.
Tap the encoder knob once to access the Quick Assign menu.
2.
Using the encoder knob, select between Assign and Clear Assign.
When Assign is selected, the key assign list becomes available.
3.
Using the encoder knob, scroll through the different assignments.
4.
Tap the encoder knob.
Tap Key appears.
5.
Tap the talk button of the key you want to assign.
NOTE: When a Quick Assign list and the FUNC key are tapped, the next Quick Assign list is displayed.
User Assignable Key
The User Assignable Key is used to assign lower level menu items that are frequently used to operate a single key on the
keypanel.
To assign the user assignable key, do the following:
1.
Turn the encoder knob to scroll to a menu item you wish to assign to the key.
The assignment should appear in the call waiting window.
2.
Press and hold the user assignable key until the LED behind the key is constant green for two (2) seconds.
This verifies the assignments have been made.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
CHAPTER 6
KP 612/KP 412 Keypanel Firmware Download
Download Keypanel Firmware through AZedit
To download firmware to the keypanel, do the following:
1.
Open AZedit.
2.
Select Status|Software Versions|Keypanels from the Status menu
The Keypanel Version Information window appears.
3.
Highlight the port of the keypanel to be updated.
NOTE: You may select more than one (1) port at a time by holding the CTRL key down while you select the ports.
4.
Right-click the highlighted selections and select Download Firmware.
The Firmware Download window appears.
5.
Using the browse feature, browse to the file to be downloaded (XXX.hex)
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
66 KP 612/KP 412 Keypanel Firmware Download
KP 612 & KP 412
6.
Click Open.
The Download Device Firmware window appears.
7.
Click Begin Download.
The download begins.
8.
Click OK.
The firmware download to the keypanel is complete. This may take a few minutes to occur.
9.
Verify the version upgrade is correct in the Keypanel Version Information Window.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
CHAPTER 7
KP 612/KP 412 Menu Structure Quick Reference
Menu Access
To access the menu structure, do the following:
1.
On the front panel of the KP 612/KP 412 keypanel, turn the encoder knob to scroll to the menu.
2.
Tap the encoder to select the menu.
3.
Turn the encoder knob clockwise to scroll forward, and counter-clockwise to scroll backward through a list of
menus.
To navigate within a menu, do the following:
1.
Turn the encoder knob clockwise to scroll forward, and counter-clockwise to scroll backward through a list of
menus.
2.
Tap the encoder knob to enter a menu.
3.
Tap the encoder knob twice to exit a menu or press and hold the encoder knob for one (1) second to exit the menu
system.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
68 KP 612/KP 412 Menu Structure Quick Reference
KP 612 & KP 412
Menu Structure
Display
Asgn Type
Chans On
Exclusive
Key Groups
Group 1
Group 2
Group 3
Group 4
Key List
Level 2
Matrix
Panel ID
Solo
Version
Key Assign
Point-to-Point
Party Line
IFB
Spcl List
Sys Relay
Camera ISO
UPL
IFB SL
Quick Assign
Reset Vols
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Menu Structure Quick Reference 69
Menus
Autodial
Phone #?
A-Dial 1-10
Key Option
Btn Lock
Tap Key
Chime
Tap Key
Clear Options
Tap Key
Exclusiv
Tap Key
Key Group
Groups 1-4
Tap Master
Tap Slave
Latching
Tap Key
Solo
Tap Key
RVON Conn. (only appears with RVON device installed)
Service
Aux Inputs
Intercom
Enabled
Disabled
Aux IN
Enabled
Disabled
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
70 KP 612/KP 412 Menu Structure Quick Reference
KP 612 & KP 412
Timeout
30 seconds
None
Baud Rate
Auto Baud
9600 Baud
76.8K Baud
Caller Vol
Adj Disabled
Adj Enabled
DIM
Speaker
0 dB--20dB (-8dB)
Headset
0 dB--20dB (0dB)
DSP Function
Filters
Mic
None
Notch
Matrix
None
Notch
Aux IN
None
Notch
Gating
Mic
Gating
Matrix
Gating
Aux IN
Gating
Metering
Mic
Meter: Mic
Matrix
Meter: MTX
Aux IN
Meter: Aux 1
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
KP 612/KP 412 Menu Structure Quick Reference 71
Mixing
Aux IN
To Matrix
To Speaker
Handset
Hold
Mode
None
Normal
PTT
Speaker Mute
Normal
No Mute
LCD Bright
All
Module 1-16
LCP 16
Main
Skip/Yes
EKP
Skip/Yes
Local GPIO
Input
GPI Opto 1-4
Output
Relays 1A. 1B
Relays 2A. 2B
OC Output 1, 3
OC Output 2, 4
Matrix Out
Normal
Hot Mic
Mic Select
Normal
External
Min Vol.
Speaker
-1dB to 60dB, Mute (-30dB)
Headset
-1dB to 60dB, Mute (-30dB)
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
72 KP 612/KP 412 Menu Structure Quick Reference
KP 612 & KP 412
Mod Assign
Select Module 1
Select Module 2
Select Module 3
Outp Level
0 to 8dB (8dB)
Page Skip
Page 2
Skip/OK
Page 3
Skip/OK
Page 4
Skip/OK
Preamp Out
Switched
Hot Mic
Inverted
Disabled
Reset Cfg
Do Reset
Cancel
RVON Setup
IP Address
Netmask
Gateway
Sidetone
Currently not available; planned for future firmware release.
Tally Duration
5 Secs
10 Secs
15 Secs
Test Panel
Tone Gen
Tone On
Tone Off
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
CHAPTER 8
Glossary
A
All Call
For talk key assignment only. Activating an All Call key also activates all talk keys to the left of the All Call key (up to, but not
including another All Call key).
Alpha
Alphas are the user-changeable names that identify destinations (intercom ports, party lines, etc.). Change Alpha names by
using the Port Alpha button in AZedit. When you assign a destination to a talk key, the alpha name appears in the
alpha-numeric display for that key (on keypanels so equipped).
Auto Follow (AF)
A key assignment for list keys only. Auto Follow causes a key’s listen assignment to always be the same as the talk assigned.
Thus, if you change the talk assignment, you do not also have to change the listen assignment. You can manually activate an
auto-follow listen key independently of the talk key. If you want auto-activation or deactivation or listen during talk, use one
(1) of the other auto key assignments, such as auto-listen, or auto-mute.
Auto Functions
Auto functions are special key assignments that work with other key assignments. For further information, see the glossary
description of individual auto functions: auto-follow, auto-listen, auto-reciprocal, auto-mute, auto-table, all-call, DIM.
Auto Listen (AL)
A key assignment for listen keys only. This assignment works like auto-follow, except listen automatically activates during
talk. Auto-listen is sometimes a good assignment for use with party lines or other non-keypanel devices that do not have talkback control of matrix crosspoints.
Auto Mute (AM)
A key assignment for listen keys only. This assignment works like auto-follow, except listen automatically mutes during talk.
Auto-mute can help prevent feedback or echo when talking to certain destinations. In some cases, you may find it works better
to disable talk latching for this type of key, because if you accidentally leave talk latched on, you can never hear the
destination.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
74 Glossary
KP 612 & KP 412
Auto Reciprocal (AR)
A key assignment for listen keys only. This assignment forces you to continuously listen to whatever is assigned to the talk
key. It is commonly used on keypanels that are not equipped with listen keys, to allow listening to party lines. It is also useful
to force listening when it is desirable to have an operator continuously hear a party line or other source.
Auto Table (AT)
A key assignment for listen keys only, when the corresponding talk is assigned to an IFB. Auto Table causes a listen key’s
assignment to always be the same as the listen source for whatever IFB is currently assigned to the talk key. (You define the
Listen Source in AZedit during IFB setup.) Auto Table is convenient in a broadcast environment when a director needs 2-way
communication with the IFB talent. And the IFB keys are frequently reassigned during the course of a program to talk to new
talent locations. Using AZedit, several IFBs can be set up in advance, and their listen sources can also be defined during setup.
Every time an IFB talk key is reassigned on a keypanel, the listen source for each new IFB automatically becomes the listen
key assignment for that key.
C
Codec
A Codec is an algorithm used to compress audio. Codecs dictate the quality of audio you hear and the network bandwidth
used. The packet size determines how much audio data is carried across the network in each transmitted packet. The Codec
type and packet size chosen require different amounts of bandwidth from the network. As with the Codec type, the packet size
you choose for the audio transfer will affect the audio you hear and the bandwidth you use over the network. The larger the
audio packet you choose to use, the lower the bandwidth used. However, the larger packet size can result in a higher delay and
longer gaps if the packet is lost. On the other hand, smaller packet sizes result in larger bandwidth use, but lower delays and
smaller gaps if the packet is lost. The intercom system engineer and the network designer may want to work together in
choosing the Codec type and packet size suitable for the size of the network, so degradation of network resources does not
occur.
Crosspoint
The term Crosspoint, like the term Matrix, is inherited from intercom systems, such as the RTS CS9500, CS9600, and
CS9700, that use a switching matrix to route intercom audio. In those systems, the crosspoints are the actual switches that
close or open to connect or disconnect talk and listen paths. RTS ADAM, ADAM CS, Zeus, and Cronus Intercom Systems do
not actually use crosspoint switches, but use a technique called TDM (Time Division Multiplexing), in which communications
are routed as digital packets. However, use of the term crosspoint persists since packet routing basically accomplishes the
same thing as conventional crosspoints: namely, connecting distinct talkers and listeners. In this sense, a crosspoint can be
thought of simply as a communication link between any two (2) points in the intercom system.
D
Destination
A destination is anything a talk key talks to or a listen key listens to. A destination can therefore be any port, party line, IFB,
etc.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Glossary 75
Dim
Dim occurs in two (2) contexts in RTS Digital Matrix Intercom Systems. First, the dim table feature. Dim tables are used to
correct a feedback problem that can occur between two (2) keypanels operating in close proximity that have keys assigned to
talk/listen to a common destination. Dim tables are set up in AZedit. Once a dim table is setup, it can be assigned as a level 2
talk assignment for those keys causing the feedback problem
Second, the adjustable speaker dim available in the KP-32 keypanel. This causes the speaker or headphone volume to diminish
by a preset amount whenever a talk key is activated. This can help to prevent occasional feedback between the speaker and
microphone, due to volume settings, microphone placement, etc.
G
Gateway
A Gateway is a node (for example, a computer) on a network that serves as an entrance to another network.
GPIO
General Purpose Input / Output. (You may also see this referred to simply as “GPI”.) GPIO is a means of controlling devices
using switch contact closures, DC voltages, or similar methods. For example, you can control a lighting system from keypanel
keys, or key a transmitter from a talk key during transmit. Or, simply operate a light or buzzer for cueing. In ADAM, ADAM
CS, Zeus, or Cronus Intercom Systems, you can also control intercom events from external switches. For example, you can
activate key assignments, close or open crosspoints, activate GPI outputs, etc. In CS9000 Series intercom systems, general
purpose control outputs are provided by optional FR9528 Relay Frames (8 relays each). In those systems, a relay may be
assigned to an intercom key on a keypanel using the Relay key assignment type. Pressing the intercom button activates the
relay. ADAM, ADAM CS, Zeus, and Cronus intercom system all have a dedicated GPIO connector (J27 on Zeus, J903 on
ADAM CS, J11 on the XCP-ADAM-MC Master Controller breakout panel and J9 on Cronus). This connector supports eight
(8) control inputs and eight (8) control outputs. Additionally, one (1) or more UIO-256/GPIO-16 frames may be connected to
the intercom system. Each UIO-256/GPIO-16 provides another 16 control inputs and no control outputs. Control outputs may
be assigned to the intercom keys using the Relay key assignment type, and the intercom keys can then control external devices
the same as the FR9528. Control inputs can be assigned to activate virtual key assignments. A virtual key assignment is a key
assignment at an intercom port where there is no keypanel connected. Basically, an external switch acts like a talk or listen key.
The control inputs and outputs can also be used as conditions for UPL statements in AZedit. Finally, there is a GPIO option
available for the KP-12 keypanel, and a connector module option for the KP-32, which includes GPIO. These are referred to as
Local GPIO, since they are assigned and used locally at the keypanel. Each local GPIO includes four (4) control inputs and
four (4) control outputs.
I
IFB
IFB (Interrupt Foldback) is a special type of communication in which a listener at a particular intercom output port normally
hears an audio program source connected to a particular intercom port. A keypanel operator can activate a key to interrupt the
audio program source and then talk to the listener. Normal operation resumes when the keypanel operator releases the key. IFB
is typically used to cue on-air talent. For example, the news anchor during a news broadcast typically listens to the broadcast
audio mix in an earset (except the news anchor’s own voice audio is removed from the mix). A director at a keypanel can
interrupt the broadcast audio to the new’s anchors earset and provide new information to the news anchor. IFB could also be
used with a PA (Public Address) system that normally broadcasts background music. The background music can be interrupted
while someone is talking over the PA. IFBs are set up by defining the IFB inputs and outputs, using the intercom system
configuration software (AZedit). The intercom output port is called the IFB output and the program input port is called the IFB
input. IFBs can also be given names which are meaningful to keypanel operators. Once an IFB has been set up and named, it
can be assigned to any keypanel key, provided that IFB assignment has not been restricted or disabled in the intercom system
configuration software.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
76 Glossary
KP 612 & KP 412
ISO (Camera ISO)
ISO is a means for a keypanel operator to isolate a particular intercom port for private communication. While the intercom
port is isolated, it can only hear audio from the keypanel operator. ISO is frequently used in television broadcasting to
temporarily isolate a member of a camera party line. The isolated camera operator can then receive directions without
interference from other audio traffic on the party line. ISOs are setup using the intercom system configuration software
(AZedit). Each ISO can also be given a name which is meaningful to keypanel operators. Once an ISO is set up and named, it
can be assigned to any keypanel key, provided that ISO assignment has not been restricted or disabled in the intercom system
configuration software.
M
Matrix
Matrix is a term inherited from earlier point-to-point intercom systems, where all point-to-point communication was
accomplished by closing specific switches in a switching matrix. Examples include RTS CS9500, CS9600, and CS9700
Intercom Systems. In many instances, Matrix is used interchangeably with Intercom Systems. RTSADAM, ADAM CS, Zeus,
and Cronus intercom systems, on the other hand, do not use a switching matrix, but use a method called TDM (Time Division
Multiplexing), in which communications are routed as digital packets. However, use of the term matrix persists, since packet
routing basically accomplishes the same thing as a conventional switching matrix: namely, connecting distinct talkers and
listeners.
N
Netmask
The Netmask is a string of number similar to an IP Address, except it masks or windows out the network part of an IP Address
so only the host computer part of the address remains (for example, 255.255.255.0).
P
Party Line (PL)
A party line, also called a conference line, is a group of intercom ports which can always talk and/or listen to each other. Party
lines have default names, PL01, PL02, etc. These names can be changed to more meaningful names using the Alphas button in
AZedit. Members are assigned to a party line using Party Line setup in AZedit. Once a party line has been set up, it can also be
assigned to a keypanel key either from the configuration software or at a programmable keypanel. This allows the keypanel
operator to talk and/or listen to the party line without being a member.
IMPORTANT:
Do not confuse special lists and party lines. A special list is used when a keypanel operator needs to
occasionally talk or listen to a group of intercom ports that are otherwise unrelated. A party line is
typically used when several users of non-keypanel devices (such as beltpacks or camera intercoms) are
engaged in a specific common activity and they need to talk and/or listen to each other all the time.
Keypanels are almost never members of party lines (although they can be). However, a keypanel key
can be assigned to occasionally talk or listen to a party line, if desired. Remember, party lines are
primarily set up for party line members, with occasional access by keypanel operators. While special
lists are set up exclusively for keypanel operators to talk or listen to several unrelated intercom ports.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
Glossary 77
Port
Ports are the individual channels devices are connected to. Devices include: 2-way communication devices, such as,
keypanels, beltpacks, etc.; audio sources, such as broadcast feeds or background music; miscellaneous audio output devices,
such as powered loudspeakers, PA systems, etc. The audio signal from any input port can be routed to any output port. For
example, during keypanel setup, you assign keypanel keys so that keypanel operators can talk and listen to other intercom
ports. Communication of this type is called point-to-point communication. You can also route signals between intercom ports
without keypanels. One way to do this is to force crosspoints in the Crosspoint Status window of AZedit. Another way to do
this is with GP Inputs. Intercom ports have identification numbers 001, 002, etc. These numbers cannot be changed. Each
intercom port also has a default name, called an alpha. The default alpha names are N001, N002, etc. These default alpha
names may be changed to names that are more meaningful to keypanel operators. Use the Alphas setup windows in AZedit.
For data routing purposes, port numbers are arranged in groups of eight (8) sequential intercom ports. In an ADAM or ADAM
CS Intercom System, each audio I/O card comprises one (1) data group. In a Zeus Intercom System, each group of eight (8)
port connectors comprises a data group. Within each data group, each keypanel is uniquely identified by its address setting.
Whenever you display the Panel ID, the intercom system determines which data group the keypanel is connected to, and also
the address setting. It then reports the calculated address. For example, suppose a keypanel is connected to data group 3 and
the keypanel address is set to 5. Since each data group consists of eight (8) sequential intercom ports, the calculated port
number for this keypanel is (2*8) + 5, or 21. This is the total of all intercom port numbers on the first two (2) data groups, plus
the offset of five (5) ports into the third data group.
Keypanels are calibrated to send and receive audio at the standard operating levels of the intercom system. No audio gain
adjustment is normally required when connecting these. However, many other types of devices may not operate at the standard
intercom system levels. To assure signal level compatibility between the various types of audio devices connected to the
intercom system, there are separate analog input and output gain adjustments for each intercom port when listening to any
other specific intercom port. This is called the point-to-point listen gain, or crosspoint gain. For example, a keypanel operator
might want to monitor a music source connected at some intercom port, but at a reduced audio level so it does not interfere
with normal intercom communications. The crosspoint gain can be reduced for the keypanel port listening to the port where
the music source is connected. Analog gain adjustment is only available using AZedit. Crosspoint gains can be adjusted either
within AZedit or from a programmable keypanel.
R
Relay
Relay is used interchangeably with GP Output. The relay feature works with the 16 GP outputs of an optional
UIO-256/GPIO-16 and with the relay outputs of an FR9528 Relay Frame. The relay feature also works with the eight (8) GP
outputs of an ADAM, ADAM CS, Zeus, and Cronus intercom system (J27 on a Zeus frame, J903 on an ADAM CS frame, J9
on a Cronus frame, and J11 on the XCP-ADAM-MC Master Controller Breakout Panel). You can assign a keypanel key to
control a GP Output from any of these devices, and then use that key and output to control an external device. For example,
you could use a keypanel key to control lighting. Or, you could assign a relay as a level 2 talk assignment in a stacked talk key
arrangement to both send audio and key a device, such as a paging amplifier or a 2-way radio.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
78 Glossary
KP 612 & KP 412
S
Special List
A special list is a means for a keypanel operator to talk and/or listen to several unrelated destinations using a single key.
Special lists are useful for group call or zone paging. Special list members are defined in AZedit. Once a special list has been
configured, it can be assigned to a keypanel key. Special lists have default names SL01, SL02, etc. These names can be
changed using the Alpha edit window in AZedit. Define the members of the special lists using the Special List setup window.
Once a special list has been setup, you typically assign it to a keypanel key, using the Keypanel Setup window. The keypanel
operator can then activate the special list key to talk or listen to all members of the special list.
IMPORTANT:
Do not confuse special lists and party lines. A special list is used when a keypanel operator needs to
occasionally talk or listen to a group of intercom ports otherwise unrelated. A party line is typically
used when several users of non-keypanel devices (such as beltpacks or camera intercoms) are engaged
in a specific common activity and they need to talk and/or listen to each other all the time. Keypanels
are almost never members of party lines (although they can be). However, a keypanel key can be
assigned to occasionally talk or listen to a party line, if desired. Remember, party lines are primarily set
up for party line members, with occasional access by keypanel operators. While special lists are set up
exclusively for keypanel operators to talk or listen to several unrelated intercom ports.
Stacked Key
See Talk Level 1 and Talk Level 2 descriptions on page 78.
T
Talk Level 1
Talk Level 1 is the normal talk key assignment. This is the assignment normally displayed in the alphanumeric display, on
keypanels so equipped. You may add a talk level 2 assignment to activate a second device along with talk level 1.
Talk Level 2
Talk Level 2 is used with stacked talk keys. A stacked talk key activates two (2) types of communication at once. For example,
a stacked talk key could simultaneously activate audio output to a transmitter using a relay. The audio output is called the level
1 assignment and the relay is called the level 2 assignment.
Trunking
Trunking is a method of interconnecting two (2) or more independent intercom systems. The connection is accomplished by
reserving one (1) or more audio ports in each of the intercom systems for use as audio links between the systems. A special
device, called a Trunk Master is required to control access and usage for the trunked intercom ports. A configuration
application, called TrunkEdit, is used to set up the Trunk Master.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
Appendix A
RVON-1
General Description of the RVON-1 Voice Over Network Card
Installed directly into KP-32 or KP 612/KP 412 keypanels, the RVON-1 provides VoIP (Voice Over Internet Protocol)
communications, for the RTS ADAM Intercom family. In general, VoIP means sending voice information in digital form using
discrete packets rather than the traditional hard wire connection. The RVON-1 delivers an integrated solution for connecting
keypanels to the Intercom Matrix over standard IP networks.
The RVON-1 is compatible with any RTS Matrix Intercom System equipped with a suitable RVON interface. In conjunction
with any new or existing KP-32 or KP 612/KP 412 keypanel, the RVON-1 brings a new level of enterprise-wide and remote
access functionality to your RTS Matrix Intercom.
The RVON-1 card is configurable through the keypanel service menu and the AZedit configuration software. It is also fully
compatible with internationally recognized standards and supports the following protocols: G.711, G.729A, and G.723 (2 bit
rates).
The RVON-1 reaffirms RTS’ history of providing support for the latest technology in a fully supported backward compatible
manner to all its RTS products.
Features
Installation
The RVON-1 provides a single RJ-45 Ethernet connection for use with a 10 BASE-T or 100
BASE-TX network.
1 Channel of Audio In
and Out
The RVON-1 card supports one (1) channel in and out and has configurable network and
bandwidth parameters that can be tailored to individual network functions.
Ethernet Compatible
The RVON-1 card uses standard Ethernet protocols and is compatible with 10 BASE-T and
100 BASE-TX Ethernet compliant devices and networks.
AZedit Configurations
Users have the ability to adjust the audio parameters of the RVON-1 channel to optimize the
available bandwidth.
Swappable Between
Ethernet and AIO
Connection
When connected to an Ethernet LAN, audio comes from the RVON-1 card; and, when an
Ethernet link is not present, the audio comes from the AIO connection. Note, the user does not
need to remove the RVON-1 card to switch to AIO mode.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
80
KP 612 & KP 412
Specifications
DIGITAL
Compression
Audio Bit Rate
Coding Delay
Playout Delay
IP Bandwidth
G.711
64k
125s
20–60ms
160–224kbps
G.729A
8k
10ms
20–120ms
32–112kbps
G.723
5.3k/6.3k
30ms
60–120ms
29–45kbps
*Data depends on CODEC selection.
NOTE: The Playout Delay and Bandwidth depend on the configured amount of audio per packet.
CONNECTIONS
• RJ-45 Ethernet via backcard
• 14-pin KP Compatible Expansion Connector
Pin 1...............................................................5 Volt Analog
Pin 2....................................................................... -12 Volt
Pin 3 ...................................................................... +12 Volt
Pin 4.............................................................. 5 Volt Digital
Pin 5............................................................... Analog GND
Pin 6............................................................... Digital GND
Pin 7...................................................... To Matrix Audio L
Pin 8............................................................................... NC
Pin 9................................................. From Matrix Audio L
Pin 10..................................................................... RS485L
Pin 11............................................... From Matrix Audio H
Pin 12............................................................................. NC
Pin 13................................................... To Matrix Audio H
Pin 14.................................................................... RS485H
Power....... Powered internally from keypanel motherboard
Physical ..... 2.5” W x 5.75” L (63.5mm W x 146.05mm L)
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
81
Default Addresses for the RVON Product Line
TABLE 2. Default
Addresses for the RVON Product Line
Product
Default IP Address
Default Subnet Mask
RVON-I/O
192.168.0.1
255.255.0.0
RVON-8
192.168.0.2
255.255.0.0
RVON-1
192.168.0.3
255.255.0.0
RVON-C
192.168.0.4
255.255.0.0
RVON-16
192.168.0.5
255.255.0.0
GPIO-16
192.168.0.6
255.255.0.0
MCII-e
192.68.0.7
255.255.0.0
Cronus
192.68.0.8
255.255.0.0
Zeus III
192.68.0.9
255.255.0.0
Dip Switches
Switch 1
Reserved
Switch 2
Disable Telnet Shell
Switch 3
Switch 4
Default
Setting:
off (Telnet Enabled)
Description:
The Telnet shell allows you to access configuration options through the use of Telnet.
When DIP switch 2 is off, you can use Telnet to access configuration options on the
RVON-1 card. Turn DIP switch 2 on to disable the Telnet shell.
Enable Boot Downloader
Default
Setting
off (boot downloader disabled)
Description
The purpose of the boot downloader is to allow you to recover from having your main
application image corrupted (either by bad flash programming or by downloading an
invalid image). Turn DIP switch 3 on to enable the boot downloader.
Debug Only!
Default
Setting
off
Description
DIP switch 4 should always be left in the off position. It is reserved for debugging and can
have unintended consequences.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
82
KP 612 & KP 412
Firmware Compatibility Requirements for the RVON-1 Card
TABLE 3. Compatibility
Requirements for the RVON-1 card.
Description
Version
Master Controller
9.19.0 or later
Peripheral Controller
10.10.0 or later
DBX
1.10.1 or later
AZedit
2.06.06 or later
RVON-8
1.1.0 or later
KP-32
2.0.0 or later
Installation of the RVON-1 Card in a KP 612/KP 412
NOTE:
These instructions are applicable for the KP 612, and the KP 412.
To install the RVON-1 card, do the following:
1.
Remove the cover from the KP 612/KP 412 keypanel.
NOTE: It is recommended to seat the RVON-1 card on the J2 connector located on the KP 612/KP 412 motherboard
before snapping the RVON-1 board onto the spacers. Be careful to attach J2 to J37 correctly.
FIGURE 10.
Spacer placement on KP 612/KP 412 motherboard
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
2.
83
Gently secure the RVON-1 board in place.
NOTE: Be sure the orientation of the board is correct, otherwise undesirable effects may occur. Make sure the RJ-45
connection is positioned so it connects correctly to the RJ-45 connector:
FIGURE 11.
J2 Connector on the KP 612/KP 412 Board
In the KP 612/KP 412, the RVON-1 card connects to the KP 612/KP 412 by way of the J2 connector on the RVON, attached to
J37 on the KP 612/KP 412 header.
RJ-45
J37
FIGURE 12.
3.
The J37 connector on the KP 612/KP 412 board.
Connect the RJ-45 extension connector cable to the RVON-1 board.
RVON-1 Relay
When connected to an Ethernet LAN, audio comes from the RVON-1 card; and, when Ethernet is not plugged in, the audio
comes from the AIO connection. Note, the user does not need to remove the RVON-1 to switch to AIO mode.
WARNING:
You cannot have both an Ethernet connection and an AIO connection simultaneously. If the Ethernet and
AIO are connected simultaneously, no audio communication occurs.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
84
KP 612 & KP 412
Addresses and the RVON-1
Because the RVON-1 has an Ethernet interface, it is required to have a MAC (Media Access Control) ID. This is a low level
address that contains 48 bits. Do not confuse this address with an IP Address. In order to be IP compliant, all cards must have
a unique MAC ID when shipped from the manufacturer. Typically, the MAC ID of a piece of hardware, such as the RVON-1
card, has a fixed or static address. Where the RVON-1 card’s IP Address can change over time.
The MAC ID uniquely identifies each node of a network and interfaces directly with the network media. The RVON-1 card
has a small 8-pin serial device on the board that the processor can read the unique MAC ID from. For more information on
MAC IDs, contact technical support.
NOTE:
Each RVON-1 card needs to be programmed with its own IP Address.
Configure the RVON-1 from the KP 612/KP 412
TOP LEVEL MENU, SERVICE, RVON SETUP
The RVON-1 card, when shipped has a default IP Address already configured. This must be changed in order for the RVON-1
card to function properly because the pre-configured IP Address may not work with your network.
To set the IP Address from the Service Level menu, do the following:
1.
On the KP 612/KP 412, scroll to Menu.
The top level menu appears.
2.
Using the encoder knob, scroll to Service.
3.
Tap the encoder knob to select Service.
The Service menu appears.
4.
Using the encoder knob, scroll to RVON Setup.
5.
Tap the encoder knob to select RVON Setup.
The IP Address menu item appears.
6.
Tap the encoder knob to select IP Address.
The IP Address appears.
7.
Enter the first number in the IP Address.
This activates the first octet of the IP Address and clears the rest of the IP Address.
8.
Tap the encoder knob.
This confirms the first octet in the IP Address and moves you to the second octet.
NOTE: Tap the encoder knob to skip over any octet that does not need modifications.
9.
Repeat steps 7 and 8 until the entire IP Address is entered.
10.
Tap the encoder knob.
The Netmask menu item appears.
NOTE: Once you have entered the IP Address, enter the Netmask.
11.
Tap the encoder knob.
The actual Netmask appears.
12.
Enter the first number in the Netmask.
This activates the first octet of the Netmask and clears the rest of the Netmask.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
13.
85
Tap the encoder knob.
This confirms the first octet in the Netmask and moves you to the second octet.
NOTE: Tap the encoder knob to skip over any octet that does not need modification.
14.
Repeat steps 13 and 14 until the entire Netmask is entered.
15.
Tap the encoder knob.
The Gateway IP Address menu item appears.
NOTE: Once you have entered the Netmask, you may need to enter the Gateway IP Address.
16.
Tap the encoder knob.
The actual Gateway IP Address appears.
17.
Enter the first number in the Gateway IP Address.
This activates the first octet of the Gateway IP Address and clears the rest of the address.
18.
Tap the encoder knob.
This confirms the first octet in the Gateway IP Address and moves you to the second octet.
NOTE: Press PGM to skip over any octet that does not need modifications.
19.
Repeat steps 19 and 20 until the entire Gateway is entered.
20.
Tap the encoder knob.
21.
Press and hold the encoder knob to exit the menu.
The changes are now enabled.
NOTE: You can still set the IP Address without being connected to an Ethernet LAN. Once you have entered the IP
information, you are prompted to perform a Save Cfg. The address is saved in the keypanel until the RVON1 is connected to an Ethernet LAN.
TOP LEVEL MENU, RVON CONN.
The RVON Conn. menu is a list of connection offers from other intercoms. This menu allows the keypanel to dynamically
select an intercom and port to which it will connect.
To select the connection offer from the top level menu, do the following:
1.
Using the encoder knob, scroll to RVON Conn.
2.
Tap the encoder knob.
The currently selected connection offer appears in the CWW window. If you have not previously selected the
connection, None appears.
3.
Using the encoder knob, scroll to the connection offer to which you want to connect.
4.
Tap the encoder knob.
The connection offer begins to flash indicating it has been selected.
5.
Press and hold the encoder knob to exit the menu.
The keypanel now connects to the selected port.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
86
KP 612 & KP 412
Configure the RVON-8 using AZedit to contact the RVON-1
To configure the RVON-1 card in AZedit, do the following:
1.
From the Status menu, select I/O Cards.
The I/O Card Status window appears showing the types of installed I/O Cards.
2.
Right-click an RVON-8 card, and then select RVON-8 Configuration.
The RVON-8 Configuration window appears.
NOTE: The RVON-8 you use should be already configured. If it is not configured, refer to your RVON-8 Card User
Manual.
NOTE: Remember, the RVON-1 has only one (1) channel that can be configured.
3.
In the RVON-8 Channel drop down list, select the channel to communicate to the RVON-1 card across the network.
4.
In the Device IP field, enter the IP Address for the RVON-1 card.
5.
From the Device Type drop down list, select RVON-1/Keypanel.
6.
From the Device Channel drop down list, select Channel 1.
NOTE: There may be two (2) channels listed, but the connection can only be made through channel 1.
7.
From the CODEC Type drop down list, select the CODEC type.
8.
From the Packet Size drop down list, select the size of each audio packet.
9.
Select Enable VAD (Voice Activation Detection), if you want to conserve bandwidth when the audio level is below a
given threshold.
NOTE: VAD saves network bandwidth by stopping the flow of audio packets when silence is detected. VAD is
similar to VOX.
10.
Once you are completely finished, click Apply.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
87
Download RVON-1 Firmware Through AZedit
AZedit sends firmware directly to the RVON-1 card over Ethernet. This is different from other I/O cards (except the RVON-8)
that receive the firmware from the Master Controller. For this reason, verify the PC running AZedit is able to contact the
RVON-1 card via the network, or is configured with a Gateway IP Address that can contact the RVON card. If it is not, AZedit
will not be able to find the RVON-8 card.
To test the connection, do the following:
>
Ping the RVON card from a command line window. For more information on how to test for a connection, see “Ping
a Computer” on page 93.
To download the RVON-1 firmware, do the following:
1.
Open AZedit.
2.
From the Status menu, select Software Versions and then Keypanels.
The Keypanel Version window appears.
3.
On the Keypanel Version window, select the Show RVON-1 Versions check box.
4.
Right-click the keypanel which has the RVON-1 installed, and then select Download RVON-1.
The Download Device Firmware window appears.
5.
Using the Browse feature, browse to the file to be downloaded.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
88
KP 612 & KP 412
6.
Click Open.
The Download Device Firmware window appears.
7.
Click Begin Download.
The download begins.
8.
Click OK.
The RVON-1 firmware download is complete. This takes a minute or two to occur.
WARNING:
9.
Do not power down the keypanel until you have verified the new version information from AZedit. If the
card loses power while reprogramming the onboard flash memory, the card may become unbootable and
may need to have its flash chips reprogrammed at the factory.
Verify the correct version is shown on the Keypanel Version window.
NOTE: You can also download the RVON-1 firmware through Status|Ports. You can not check the version once the
download is completed from the Port Status window.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
89
Basic Network Configuration
This section covers basic network configuration setup and testing. Also covered, are basic concepts and operations, including
the difference between LAN and WAN networks and how IP Addressing is used.
In a networked environment, such as a company, typically there are many computers connected together using a router or a
switch. In larger companies, there may be several different routers distributed in buildings and plant locations. A router allows
any LAN-side computer to communicate with other computers and devices outside the LAN (Local Area Network). Routers
send data packets from one (1) place to another place on a network. Routers use network addresses to route packets to the
correct destination. For example, in a TCP/IP network, the IP Address of the network interface is used to direct router
destinations.
Because routers help computers inside the LAN talk with computers outside of the LAN, the security of a company’s LAN
may be compromised by gaps of open ports in the router. Security measures must be instituted to compensate for these
vulnerabilities. Consult you network administrator to learn about the security measures taken to protect your network. VPN
(Virtual Private Network) is one such security measure to protect the intelligence of the LAN. A computer outside the LAN
must have an address or key known by the VPN to allow access to the LAN. Many companies use a VPN to connect two (2)
different LANs, thus allowing the transfer of data between two (2) networks.
LAN vs. WAN
Local Area Network
Simply put, a LAN (Local Area Network) is a computer network that connects a relatively small area (a single building or
group of buildings). Most LANs connect workstations and computers to each other. Each computer (also known as a node),
has its own processing unit and executes its own programs; however, it can also access data and devices anywhere on the
LAN. This means many users can access and share the same information and devices. A good example of a LAN device is a
network printer. Most companies cannot afford the budgetary or hardware expense of providing printers for each of its users;
therefore, one (1) printer (or device) is placed on the LAN where every user can access the same printer.
The LAN uses IP Addresses to route data to different destinations on the network. An IP Address is a 32-bit numeric address
consisting of four (4) numbers separated by periods (for example, 1.160.10.240).
NOTE:
For more information on IP Addresses, see you local network administrator.
FIGURE 13.
Local Area Network Diagram
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
90
KP 612 & KP 412
Wide Area Network
A WAN (Wide Area Network) connects two (2) or more LANs and can span a relatively large geographical area. For
example, Bosch Headquarters in Burnsville, MN is connected to several branch offices in Nebraska and Arkansas over a
WAN. The largest WAN in existence is the Internet.
FIGURE 14.
Wide Area Network Diagram
ACCESSING THE WIDE AREA NETWORK (WAN)
Figure 15 shows LAN IP Addresses using a common IP Address, 10.2.100.X (192.168.X.X is another common address). Most
devices are shipped with these addresses as their default. It is recommended to use these addresses for LANs.
FIGURE 15.
Network Address Translation
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
91
NETWORK ADDRESS TRANSLATION (NAT)
Using the initial IP Address, then converting it to a valid WAN IP Address is how the Network Address Translation (NAT)
works, in theory. Once the IP Address is changed, it is up to the network interface device (such as a router, gateway, switch,
etc.) to keep track of which computers are talking on which ports. For example, if two (2) local devices (PC1 and PC2 in
Figure 15) both wanted to talk via port 1031, then the network interface device would have to change one (1) of the port
requests to the next available port, 1032.
PORTS
In general, a network port is an endpoint to a logical connection. The port number identifies what type of port it is. For
example, port 80 is used for HTTP traffic. When you type an address into the address bar of a web browser, your computer
goes to find an IP Address for the url you are requesting (http://www.telex.com). To obtain this address, the computer contacts
a DNS server (Domain Name Server). Once the IP Address is found, it tries to connect to the http port of the network device
(port 80). See Table 6 for a list of well-known port numbers.
Each network device can be set up to respond or not respond to the various ports. The function of responding or hosting a
service is called serving.
TABLE 4. Packet
Translation
Packet before Translation
Source
Packet after Translation
Destination
Source
Destination
IP Address
Port
Number
IP Address
Port
Number
IP Address
Port
Number
IP Address
Port
Number
To
Internet
10.2.100.2
1031
192.156.136.22
80
99.5.1.30
1031
192.156.136.22
80
From
Internet
192.156.136.22
80
99.5.1.30
1031
192.156.136.22
80
10.2.100.2
1031
If a second workstation on the LAN wants to communicate to the same server, and happens to use the same source port
number, the LAN Modem translates the source port number as well as the source IP Address. In Table 5, a second LAN
computer wants to access a web page. The NAT device now uses port 1032 for this connection where it used port 1031 in
Table 4.
TABLE 5. Packet
Translation
Packet before Translation
Source
Packet After Translation
Destination
Source
Destination
IP Address
Port
Number
IP Address
Port
Number
IP Address
Port
Number
IP Address
Port
Number
To
Internet
10.2.100.1
1031
192.156.136.22
80
99.5.1.30
1032
192.156.136.22
80
From
Internet
192.156.136.22
80
99.5.1.30
1032
192.156.136.22
80
10.2.100.1
1031
Amazingly, all the address translation that occurs takes place automatically in order to make web browsing and other functions
easier. This is also a way for large web hosting services to speed up the network by having different devices perform different
functions
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
92
KP 612 & KP 412
TABLE 6. Well-Known
Port Number
TCP Port Numbers
Description
Port Number
Description
1
TCP Port Service Multiplexer (TCPMUX)
118
SQL Services
5
Remote Job Entry (RJE)
119
Newsgroup (NNTP)
7
ECHO
137
NetBIOS Name Service
18
Message Send Protocol (MSP)
139
NetBIOS Datagram Service
20
FTP-Data
143
Interim Mail Access Protocol (IMAP)
21
FTP- Control
150
NetBIOS Session Service
23
Telnet
156
SQL Server
25
Simple Mail Transfer Protocol (SMTP)
161
SNMP
29
MSG ICP
179
Border Gateway Protocol (BGP)
37
Time
190
Gateway Access Control Protocol (GACP)
42
Host Name Server (Nameserv)
194
Internet Relay Chat (IRC)
43
Whols
197
Directory Location Services (DLS)
49
Login Host Protocol (Login)
389
Lightweight Directory Access Protocol (LDAP)
53
Domain Name Server (DNS)
396
Novell Netware over IP
69
Trivial File Transfer Protocol (TFTP)
443
HTTPS
70
Gopher Service
444
Simple Network Paging Protocol (SNPP)
79
Finger
445
Microsoft-DS
80
HTTP
458
Apple Quick Time
103
X.400 Standard
546
DHCP Client
108
SNA Gateway Access Server
547
DHCP Server
109
POP2
563
SNEWS
110
POP3
569
MSN
115
Simple File Transfer Protocol
1080
Socks
IP ADDRESSES
If you do not know your IP Address, you can open a DOS window in a Windows-based environment and enter the ipconfig
command.
To find your IP Address using ipconfig, do the following:
1.
From the Start Menu, open a Command Prompt window.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
93
2.
At the prompt, type ipconfig, then press Enter.
The IP configurations for your machine, such as the DNS suffix, IP Address, Subnet Mask, and Default Gateway
appears.
3.
At the prompt, type Exit to close the window.
NOTE: If you want more detailed parameters for your machine, type ipconfig/All. This window displays the
computers network configuration settings.
Ping a Computer
Pinging a computer on the network makes sure it is connected and able to receive messages from the network.
NOTE:
You can also ping your RVON-8 card to verify it is responding over the network by putting the cards IP Address
in place of the computer IP Address.
To ping a computer on the network, do the following:
1.
2.
From the Start menu, select Run....
At the Run command, type CMD to open a Command Prompt window.
3.
At the prompt, type the IP Address of the computer you want to ping (for example, 10.2.100.130).
4.
Press Enter.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
94
KP 612 & KP 412
POSSIBLE PITFALL WITH ROUTERS, GATEWAYS, AND SWITCHES
Anytime computers communicate through routers, gateways, and switches, they may be allowed or denied the connection.
Network interface devices can be configured to block specific outgoing requests, as well as incoming requests, based on the IP
Address and/or port. This is one (1) of the security mechanisms of a router. This also happens when broadcast messages are
sent and received.
To view the path an IP Address takes to retrieve information, do the following:.
1.
From the Start Menu, open a Command Prompt window.
2.
At the prompt, type tracert and type the URL or IP Address you want to trace.
3.
Press Enter.
The details of the tracer route are displayed.
NOTE: The message request timed out appears if the IP Address/port in or out is denied to the incoming or outgoing
message.
4.
When you are finished, type exit to close the Command Prompt window.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
95
RVON Configuration
RVON cards use ports for communication of audio and control packets. Because routers can be configured to block certain
incoming and outgoing requests, you need to open the following ports in your network to allow WAN connections to and from
a Network Interface Device. See Table 7 for the ports that need to be opened for the RVON cards to operate properly.
TABLE 7. Ports
necessary for RVON card functionality.
Port
Port Description
2076
UDP Call Control Signalling
2077
UDP Audio Packets
2079
UDP Telex Proprietary
Signalling
2080
TCP Telex Keypanel Protocol
2081
UDP Pass Through Serial
2082
TCP Firmware Download
2100
Remote Administration
2102
Authentication Server
Below, is an example of a router configuration window. Not all routers are configured the same way and may not look exactly
like this window.
Figure 8. Router
NOTE:
Configuration Window
Linksys supports up to 253 nodes on a router. This is why it is called a Router/Switch because there are WAN
functions like a router as well as having a 4-port LAN switch. It also does not support simultaneous forward and
DHCP.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
96
KP 612 & KP 412
RVON Serial and Telnet Commands
RVON card programming can be done via direct serial or Telnet connection. There are several physical connections to an
RVON board:
•
Direct serial through custom debug cable (J20 6-pin bottom front)
The customer debug cable always functions as the general purpose debug tool.
•
DB-9 Backcard J2
The backcard DB-9 must be disabled/enabled via a DIP Switch because it can also be used for serial
port pass-through. The DB-9 backcard can be used for a debug terminal when DIP switch 6 is switched
to the on position.
•
RJ-45 Backcard J1 (Telnet Only)
Setup
Serial Port
Telnet
38,4000 baud, No-flow control
IP Address, port 23
How to Configure the RVON-1 Using Telnet
Regardless whether or not you have access to the physical KP 612/412 with RVON-1 installed on it, you can still configure the
card through the use of Telnet. The following instructions describe how to access the Telnet window and show you some of the
information you can see and edit.
NOTE:
These instructions are to help you get to the Telnet windows and give you an overview of what can be done. This
is not an all inclusive document. Not every action that can be performed are contained within this document.
To display the settings for the RVON-1 Card, do the following:
1.
From the Start menu, open a command prompt (Start|Programs|Accessories).
2.
At the prompt, type Telnet <IP Address> (where IP Address is the IP Address assigned to the RVON-1 card).
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
97
3.
Press Enter.
The RVON logon option appears.
4.
In the logon field, type the RVON logon (default = telex).
Press Enter.
In the password field, type the RVON password (default = password).
Press Enter.
A prompt appears.
Type dbgcmd to access the debug command windows.
5.
6.
7.
8.
Press Enter.
An MXP prompt appears.
10. At the prompt, type Show.
9.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
98
KP 612 & KP 412
11.
Press Enter.
The show commands options and MXP prompt appears.
12.
At the MXP prompt, type the show command from the list you want to see (for example, “show rvon”).
Press Enter.
The values for the RVON-1 card appear.
13.
To edit the RVON-1 configuration, do the following:
1.
Repeat steps 1 through 9 from “How to Configure the RVON-1 Using Telnet” on page 96.
2.
At the MXP prompt, type either set RVON or set EMAC.
3.
Press Enter.
set rvon ip_addr
Allows you to edit the IP Address
set rvon netmask
Allows you to edit the Netmask
set rvon gateway
Allows you to edit the Gateway
set rvon serial_ip
Allows you to edit the serial IP Address
set rvon serial_baud
Allows you to set the baud rate (50–38400)
set rvon user
Allows you to set the username for the RVON-1 card. By default the user
name is “telex”
set rvon password
Allows you to set the password for the RVON-1 card. By default, the password
is “password”
set rvon vad_threshold
Allows you set the vad threshold.
NOTE: In AZedit, you can enable and disable VAD, however, through Telnet
you are able to set the amount. You are able to set the VAD threshold in later
versions of AZedit.
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
KP 612 & KP 412
99
set channel dest_ip
Allows you edit the destination IP Address the RVON-1 card
communicates with
set channel dest_type
Allows you to edit the destination type for the device the
RVON-1 card talks with
set channel dest_channel
Allows you to edit the destination channel of the device the RVON-1 talks
with
set channel channel_codec
Allows you to edit the Codec to be used for transferring the data between
the two (2) devices
set channel input_gain
Allows you to edit the input gain for the RVON-1 card
set channel output_gain
Allows you to edit the output gain for the RVON-1 card
set the channel onhook
onhook = hang up
If the channel was already connected, going offhook has no effect (it is
already offhook if connected). Going onhook hangs up the call, and it
should then try to reconnect.
If the channel was not already connected, going offhook causes it to try and
establish a connection. Going onhook in this stat has no effect (it is already
onhook if idle).
set channel offhook
offhook = connected
If the channel was already connected, going offhook has no effect (it is
already offhook if connected). Going onhook hangs up the call, and it
should then try to reconnect.
If the channel was not already connected, going offhook causes it to try and
establish a connection. Going onhook in this state has no effect (it is
already onhook).
Bosch Security Systems, Inc.
User Manual
F.01U.269.831
Rev. 06
