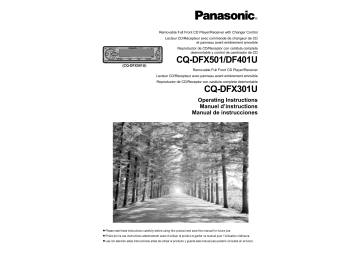

Panasonic CQDFX501U, CQDF401U, CQDFX301U Operating instructions

Panasonic CQDFX501U, CQDF401U, CQDFX301U Operating instructions

SCAN/APM

REMOTE

SEL

VOL

BAND

S

HDB

TUNE

TRACK

CD RECEIVER WITH CHANGER CONTROL

MONO/LO

C 7

8

MUTE

1 2

9

3

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4 OPEN

RANDOM

PWR

REP

SOURCE

12

6

CLOCK

DISP

LEVL

DIMMER

Removable Full Front CD Player/Receiver with Changer Control

Lecteur CD/Récepteur avec commande de changeur de CD et panneau avant entièrement amovible

Reproductor de CD/Receptor con carátula completa desmontable y control de cambiador de CD

CQ-DFX501/DF401U

(CQ-DFX501U)

Removable Full Front CD Player/Receiver

Lecteur CD/Récepteur avec panneau avant entièrement amovible

Reproductor de CD/Receptor con carátula completa desmontable

CQ-DFX301U

Operating Instructions

Manuel d’instructions

Manual de instrucciones

Please read these instructions carefully before using this product and save this manual for future use.

Prière de lire ces instructions attentivement avant d’utiliser Ie produit et garder ce manuel pour l’utilisation ultérieure.

Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.

E

N

G

L

I

S

H

Safety Information

Radio Frequency Interference Statement (Part 15 of the FCC Rules):

Applies only in U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital, pursuant to

Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in an automobile installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio reception, which can be determined by turning the equipment off and on, the user is encouraged to consult the dealer or an experience radio technician for help.

FCC Warning:

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired operation.

§

For Canada:

This Class B digital apparatus complies with Canadian ICES-003.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO

RAIN OR MOISTURE.

CAUTION:

THIS PRODUCT IS A CLASS I LASER PROD-

UCT.

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT

IN HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF. REFER SERVICING TO QUALIFIED

PERSONNEL.

Laser products:

Wave length: 780 nm

Laser power: No hazardous radiation is emitted with safety protection.

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, AND ANNOYING INTERFERENCE, USE

ONLY THE INCLUDED COMPONENTS.

Label Indication and Location

Model No.

N˚ De Modèle

C Q - D F X 5 0 1 U

DISP

3

(CQ-DFX501U)

12V 4~8 15A

Manufactured by Dalian Matsushita

Communication Industrial Co., Ltd.

Dalian China Made in China

FM75

Serial No.

N˚ De Série

This device complies with Part 15 of the

FCC Rules. Operation is subject to the condition that this device does not cause harmful interference.

Find the model number and serial number on either the back or bottom of the unit. Please record them in the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.

MODEL NUMBER

CQ-DFX501U/

CQ-DF401U/CQ-DFX301U

SERIAL NUMBER

DATE PURCHASED

FROM

2

CQ-DFX501/DF401/DFX301U

Consignes de sécurité

MISE EN GARDE:

POUR RÉDUIRE LES RISQUES D’INCENDIE OU D’ÉLEC-

TROCUTION, N’EXPOSEZ PAS CET APPAREIL À LA

PLUIE OU À L’HUMIDITÉ.

ATTENTION :

CET APPAREIL EST UN PRODUIT LASER DE LA CLASSE

I .

L’UTILISATION DE COMMANDES OU RÉGLAGES OU

L’EXÉCUTION D’OPÉRATIONS AUTRES QUE CELLES

QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT

RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT

DANGEREUX.

N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ PAS

D’EFFECTUER VOUS-MÊME DES RÉPARATIONS.

ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR

TOUTE RÉPARATION.

Produits laser:

Longueur d’onde: 780 nm

Puissance du laser: Aucune radiation dangereuse n’est émise avec la protection de sécurité.

AFIN DE PRÉVENIR TOUT RISQUE D’INCENDIE OU

D’INTERFÉRENCES, UTILISER UNIQUEMENT LES

COMPOSANTS FOURNIS.

§

Déclaration d’interférence de fréquences radio

(Partie 15 des Règlements FCC):

Cet appareil numérique de Classe B est conforme au règlement ICES-003 canadien.

Información para su seguridad

ADVERTENCIA:

PARA REDUCIR EL RIESGO DE INCENDIOS O

SACUDIDAS ELÉCTRICAS, NO EXPONGA ESTE

PRODUCTO A LA LLUVIA NI A LA HUMEDAD.

PRECAUCIÓN:

ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE I .

LA UTILIZACIÓN DE CONTROLES, EL HACER

AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTINTOS

DE LOS ESPECIFICADOS EN ESTE MANUAL PODRÍA

CAUSAR UNA EXPOSICIÓN PELIGROSA A LA RA-

DIACIÓN.

NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES

USTED MISMO. SOLICITE LOS TRABAJOS DE SERVI-

CIO AL PERSONAL CALIFICADO.

E

S

P

A

Ñ

O

L

F

R

A

N

Ç

A

I

S

Productos láser:

Longitud de onda: 780 nm

Potencia láser: Con protección de seguridad no se emite radiación peligrosa.

PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDI-

DAS ELÉCTRICAS, Y PARA EVITAR LAS

INTERFERENCIAS MOLESTAS, UTILICE

SOLAMENTE LOS COMPONENTES INCLUIDOS.

Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits soit

à l’arrière soit sous le fond de l’appareil, et de conserver ce manuel comme mémorandum de l’achat afin de permettre l’identification de l’appareil en cas de vol.

CQ-DFX501U/

CQ-DF401U/CQ-DFX301U

NUMÉRO DE MODÈLE

NUMÉRO DE SÉRIE

DATE DE L’ACHAT

VENDEUR

Busque el número del modelo y el número de serie ya sea en la parte trasera o en el fondo de la unidad. Sírvase anotar dichos números en el espacio siguiente, y mantenga este librete como una anotación permanente de su compra para ayudar en la identificación en el caso de robo.

CQ-DFX501U/

NÚMERO DEL MODELO

CQ-DF401U/CQ-DFX301U

NÚMERO DE SERIE

FACHA DE COMPRA

NOMBRE DE LA TIENDA

3

CQ-DFX501/DF401/DFX301U

E

N

I

S

Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work. Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be a member of our family.

Use this Product Safely

When Driving

Keep the volume level low enough to be aware of road and traffic conditions.

When Car Washing

Do not expose the product, including the speakers and CDs, to water or excessive moisture. This could cause electrical shorts, fire, or other damage.

When Parked

Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down before switching the unit on.

Use the Proper Power Supply

This product is designed to operate with a 12 V DC, negative ground battery system (the normal system in a North American car).

Disc Mechanism

Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and disc.

Use Authorized Servicenters

Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list including with this product for service assistance.

For Installation

This product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30x.

4

Components

Operating instructions .................................... 1

Installation hardware................1 set (

➡ page 19)

Power connector ............................................ 1

Remote control unit ........................................ 1

Lithium battery (CR2025)................................ 1

Warranty card.................................................. 1

Note:

This operating instruction manual is for 3 models CQ-DFX501U, CQ-DF401U and CQ-DFX301U. All illustrations throughout this manual represent model CQ-DFX501U unless otherwise specified. The following table describes the differences between 3 models.

Models

Features

S

HDB

Loudness control

Pre-Amp output level

Subwoofer output level

CD changer control

Pre-Amp output connector

LCD color

CQ-DFX501U

Yes

None

4 V

4 V

Yes

Lead type

3 colors

CQ-DF401U

None

Yes

2 V

2 V

Yes

Lead type

Blue

CQ-DFX301U

None

Yes

2 V

2 V

None

Fix type

Blue

CQ-DFX501/DF401/DFX301U

Panasonic est heureuse de vous compter parmi les utilisateurs de ses appareils électroniques. Nous pouvons vous assurer que cet appareil vous procurera de longues heures d’agrément. Notre réputation est fondée sur une ingénierie

électronique et mécanique de haute précision, laquelle préside à la fabrication d’appareils ne comportant que des composants de choix assemblés par un personnel soucieux de la bonne réputation acquise par la qualité de son travail.

Après avoir découvert la qualité, la valeur et la fiabilité de cet appareil, vous aussi serez fier d’être un client Panasonic.

Précautions à prendre

Au volant

Réglez le volume à un niveau qui ne risque pas de masquer les bruits ambiants.

Lavage de la voiture

Afin de prévenir tout risque de court-circuit ou d’incendie, n’exposez pas l’équipement, y compris les hautparleurs et les disques, à l’eau ou à une humidité excessive.

Voiture stationnée

L’habitacle d’une voiture immobile exposée au soleil toutes vitres fermées devient rapidement très chaud.

Laisser rafraîchir l’intérieur du véhicule avant d’utiliser l’appareil.

Source d’alimentation

Cet appareil est conçu pour fonctionner sur un système d’alimentation avec batterie de 12 V c.c. à masse négative (système standard sur les voitures de construction nord-américaine).

Éléments constitutifs

Manuel d’instructions.............................................. 1

Quincaillerie pour l’installation

..............................................1 ensemble ( ➡ page 41)

Connecteur d’alimentation ...................................... 1

Télécommande ........................................................ 1

Pile au lithium (CR2025) ........................................ 1

Carte de garantie .................................................... 1

Mécanisme de disque

N’insérez pas de pièces de monnaie ou de petits objets.

Gardez les tournevis et autres objets métalliques à l’écart du mécanisme de disque et du disque.

Réparation

Ne tentez pas de démonter ou d’ajuster l’appareil vousmême. Veuillez vous référer à la liste des centres de service fournie avec cet appareil pour contacter le service d’assistance.

Installation

L’appareil doit être installé en position horizontale avec son extrémité avant inclinée vers le haut à un angle commode, mais ne dépassant pas 30x.

F

R

A

N

Ç

A

I

S

Remarque:

Ce manuel a été conçu pour les 3 modèles CQ-DFX501U, CQ-DF401U et CQ-DFX301U. Toutes les illustrations du présent manuel mettent en présence le modèle CQ-DFX501U à moins d’indication contraire. Le tableau ci-dessous décrit les différences entre les 3 modèles.

Caractéristiques

S•HDB

Modèles

Enrichissement tonnal

Niveau de sortie préampli

Niveau de sortie d’extrêmes-graves

Commande de changeur de CD

Connecteur de sortie préampli

Couleur d’écran à cristaux liquides

(Couleur LCD)

CQ-DFX501U

Oui

Non

4 V

4 V

Oui

Type ligne

3 couleurs

CQ-DF401U

Non

Oui

2 V

2 V

Oui

Type ligne

Bleu

CQ-DFX301U

Non

Oui

2 V

2 V

Non

Type fixe

Bleu

5

CQ-DFX501/DF401/DFX301U

Panasonic le da la bienvenida a la familia constantemente en aumento de poseedores de productos electrónicos. Nos esforzamos en proporcionarle las ventajas de la ingeniería mecánica y electrónica de precisión, de una fabricación con componentes cuidadosamente seleccionados, y de un montaje realizado por personas orgullosas de la reputación que su trabajo ha cimentado para nuestra empresa. Estamos seguros de que este producto le proporcionará muchas horas de distracción y, una vez comprobada la calidad, el valor y la fiabilidad incorporados, usted también se sentirá orgulloso de pertenecer a nuestra familia.

E

S

P

A

Ñ

O

L

Uso de este equipo con seguridad

Cuando conduzca

Mantenga el nivel del volumen suficientemente bajo para estar atento a la carretera y a las condiciones del tráfico.

Cuando lave el automóvil

No exponga el equipo, incluyendo los altavoces y los

CDs, al agua o a una humedad excesiva. Esto puede causar cortocircuitos eléctricos, incendios u otros daños.

Cuando esté estacionado

El estacionamiento a la luz solar directa puede producir temperaturas muy altas en el interior de su vehículo.

Procure enfriar el interior antes de encender la unidad.

Uso de la alimentación apropiada

Este equipo ha sido diseñado para funcionar con un sistema de batería de 12 V CC con negativo a masa (el sistema normal en un vehículo norteamericano).

Mecanismo de disco

No inserte monedas ni ningún objeto pequeño. Mantenga los destornilladores u otros objetos metálicos apartados del mecanismo de disco y del disco.

Uso de los centros de servicio autorizados

No intente desmontar ni ajustar este equipo de precisión.

Consulte la lista de centros de servicio incluidos con este producto para acudir a ellos cuando sea necesario.

Instalación

La unidad deberá instalarse en posición horizontal, con el extremo delantero hacia arriba formando un ángulo conveniente, pero con no más de 30x.

Componentes

Manual de instrucciones.......................................... 1

Accesorios suministrados ........1 juego ( ➡ página 63)

Conector de alimentación ........................................ 1

Unidad del controlador remoto................................ 1

Pila de litio (CR2025) .............................................. 1

Tarjeta de garantía .................................................. 1

Nota:

Este manual de instrucciones de operación serve para 3 modelos CQ-DFX501U, CQ-DF401U y CQ-DFX301U. Todas las ilustraciones de este manual representan el modelo CQ-DFX501U, a menos que se especifique lo contrario. La tabla siguiente muestra las diferencias entre los 3 modelos.

6

Modelo

Características

S•HDB

Control de sonoridad

Nivel de salida del preamplificador

Nivel de salida de altavoz de graves secundarios

Control de cambiador de CD

Conector de salida del preamplificador

Color de pantalla LCD (cristal líquido)

CQ-DFX501/DF401/DFX301U

CQ-DFX501U

Ninguna

4 V

4 V

Tipo cable conector

3 colores

CQ-DF401U

Ninguna

2 V

2 V

Tipo cable conector

Azul

CQ-DFX301U

Ninguna

2 V

2 V

Ninguna

Tipo fijo

Azul

Contents

Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2

Radio Frequency Interference Statement (Part 15 of the FCC Rules): . . . . 1 2

Use this Product Safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4

Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4

Power and Sound Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to adjust the volume, tone and balance, setting mute and S

HDB, setting/resetting the time, selecting the clock display

Radio Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Manual and automatic tuning, band selection, preset stations

CD Player and CD Changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Disc insert and playback, stop and disc eject, CD play, track selection, search, repeat, random, scan and direct track/disc selection

Note:

The CD changer functions are designed for Panasonic CD changer unit

(optional).

Remote Control Unit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Battery installation, battery notes, control reference guide

Installation Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Step-by-step procedures

Anti-Theft System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Place the removable face plate into case, install removable face plate, security indicator

Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Cautions and wiring diagram

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Where to get service help, troubleshooting tips, error display messages

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Care of the unit, notes on CD

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

FM

CQ-DFX501/DF401/DFX301U

7

E

N

G

L

I

S

H

Table des matières

F

R

A

N

Ç

A

I

S

Consignes de sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1 3

Précautions à prendre . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5

Éléments constitutifs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 5

Commandes d’alimentation et de son . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Comment ajuster le volume, la tonalité et l’équilibre, réglage de la coupure du son et de S•HDB, réglage de l’heure, remise à l’heure, sélection de l’affichage de l’horloge

Fonctionnement de base de la radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Syntonisation manuelle et automatique, sélection de la bande et stations en mémoire

Fonctionnement de base du lecteur CD et du changeur CD. . . . . . . . . . . . . . . 38

Chargement/éjection du disque, lecture de CD, sélection des plages, repérage, lecture en reprise, lecture aléatoire, balayage et sélection directe de plage/disque

Remarque:

Les fonctions du changeur de CD sont conçues pour l’unité de changeur de CD

Panasonic (en option).

Préparation de la télécommande . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Installation de la pile, remarques sur la pile, guide de référence des commandes

Guide d’installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Marche à suivre

Système antivol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Mettre la plaque de façade amovible dans l’étui, installer la plaque de façade amovible, voyant du système de sécurité

Branchements électriques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Précautions et schéma de câblage

En cas de difficulté . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Service après-vente, guide de dépannage, affichage des messages d’erreur

Entretien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Entretien de l’appareil, remarques relatives aux disques CD

Données techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

FM

8

CQ-DFX501/DF401/DFX301U

Índice

Información para su seguridad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Página 1 3

Uso de este equipo con seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6

Componentes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6

Controles de alimentación y sonido . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Cómo ajustar el volumen, tono y equilibrio, configuración de silenciamiento y

S•HDB, puesta inicial de la hora, reposición de la hora, selección de pantalla del reloj

Radio: Conceptos generales. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Sintoniá manual y automática, selección de banda y preajuste de emisoras

Reproductor de CD y Cambiador de CD: Conceptos generales . . . . . . . . . . . . 60

Carga/expulsión de un disco, reproducción de CD, selección de pista, búsqueda, repetición, selección aleatoria, exploración y selección directa de pista/disco

Nota:

Las funciones del cambiador de CD han sido diseñadas para el aparato cambiador de CD de Panasonic (opcional).

Preparación del controlador remoto . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Instalación de la pila, notas sobre la pila, guía de referencia de los controles

Guía de instalación. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Procedimientos paso a paso

Sistema antirrobo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Coloque la placa frontal removible en la caja, instale la placa frontal removible, el indicador de seguridad

Conexiones eléctricas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Medidas de precaución y diagrama del cableado

Solución de problemas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Dónde obtener ayuda técnica, consejos sobre solución de problemas, mensajes de error

Mantenimiento . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Cuidado del aparato, notas sobre los discos compactos

Especificaciones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

FM

CQ-DFX501/DF401/DFX301U

9

E

S

Ñ

O

E

N

G

L

I

S

H

1

Power and Sound Controls

Power

Turn the key in the ignition until the accessory indicator lights.

Power on: Press [SOURCE] (PWR).

Power off: Press [SOURCE] (PWR) again and hold.

ACC

ON

Note:

When the power is switched on for the first time, a demonstration message appears on the display.

To cancel this display, press [DISP].

SCAN/APM

REMOTE

SEL

VOL

BAND

S

HDB

TUNE

TRACK

CD RECEIVER WITH CHANGER CONTROL

MONO/LO

C

MUTE

7

1

8

2

9

3

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4 OPEN

RANDOM

REP

PWR

SOURCE

12

CLOCK

6

DISP

LEVL

DIMMER

Volume

[

" VOL]: Up

[

# VOL]: Down

Press and hold for rapid adjustment.

Volume level

(0 to 40)

Mute

Press [MUTE] to mute the sound completely.

Press [MUTE] again to cancel.

Anti-volume-blast circuit:

When the power is switched off and on again, the volume slowly rises to the previous level.

The anti-volume-blast circuit will not work when the volume level is set lower than position 20 on the display.

10

CQ-DFX501/DF401/DFX301U

Only for CQ-DFX501U

S

HDB

(Super High Definition Bass)

Especially for rock music, the bass-sound will be more powerful.

Press [S

HDB] to change the Super High Definition

Bass on.

(S

HDB on) (S

HDB on)

Regular Mode

Boom Tight

The bass sounds of the speakers are strongly emphasized.

The bass sounds of the speakers are moderately emphasized.

(The sounds of the subwoofer can be heard clearly.)

SCAN/APM

REMOTE

SEL

VOL

BAND

TUNE

TRACK

S

HDB

CD RECEIVER WITH CHANGER CONTROL

MONO/LO

C

MUTE

7

1

8

2

9

3

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4 OPEN

RANDOM

REP

PWR

SOURCE

12

CLOCK

6

DISP

LEVL

DIMMER

E

N

G

L

I

S

H

2

Only for CQ-DF401/DFX301U

Loudness

Press [LOUD] to enhance bass and treble tones at low or medium volume.

LOUD

Press [LOUD] again to cancel.

Level Meter

When the power is on, the level of sound sources, such as radio and CD, is displayed.

Press [LEVL] to change the level meter display.

(Default)

Pattern 1 Pattern 2 Pattern 3

Pattern off Pattern 5 Pattern 4

Dimmer

Press and hold [LEVL] (DIMMER) for more than

2 seconds to change the dimmer level.

(Default)

Dimmer 1

(Bright)

Dimmer 2

(Medium)

Dimmer 3

(Dark)

11

CQ-DFX501/DF401/DFX301U

E

N

G

L

I

S

H

3

Power and Sound Controls

(Continued)

Audio Mode (Bass/Treble/Balance/Fader/Subwoofer)

1

Press [SEL] to select the audio mode.

Regular Mode

Volume Bass Treble

Note:

If no operation takes place for more than

5 seconds in audio mode (2 seconds in volume mode), the display returns to the regular mode.

Subwoofer Fader Balance

SCAN/APM

REMOTE

SEL

VOL

BAND

TUNE

TRACK

S • HDB

CD RECEIVER WITH CHANGER CONTROL

MONO/LO

C

MUTE

7

1

8

2

9

3

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4

OPEN

RANDOM

REP

PWR

SOURCE

12

CLOCK

6

DISP

LEVL

DIMMER

12

2

Press [

" VOL] or [# VOL] to change each level.

Bass:

Adjustable range: j12 dB to i12 dB

Treble:

Adjustable range: j12 dB to i12 dB

Balance:

R (right speaker) or L (left speaker)

Adjustable range: 1 to 15 Balance center

Fader:

F (front speaker) or R (rear speaker)

Adjustable range: 1 to 15 Fader center

Subwoofer volume:

Subwoofer volume level:

From MUTE (0) to 8

Default

CQ-DFX501/DF401/DFX301U

Only for CQ-DFX501U

Cut-off frequency control

The maximum lower frequency level can be adjusted to match your subwoofer and the acoustics inside your car.

When the subwoofer is activated, press

[

% TUNE] or [$ TUNE] to change the cut-off frequency as follows.

Cut-off frequency:

120 Hz/80 Hz (Default: 120 Hz)

Note:

Cut-off frequency control is not available for

CQ-DF401/DFX301U (subwoofer volume can be adjusted).

Clock Basics

The 12-hour system is used for the clock.

SCAN/APM

REMOTE

SEL

VOL

BAND

TUNE

TRACK

S • HDB

CD RECEIVER WITH CHANGER CONTROL

MONO/LO

C

MUTE

7

1

8

2

9

3

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4

OPEN

RANDOM

REP

PWR

SOURCE

12

CLOCK

6

DISP

LEVL

DIMMER

Initial Time

1 Press [DISP] (CLOCK).

Hours

2 Press and hold [DISP] (CLOCK).

(Hours blink.)

3 Press [

% TUNE] or [$ TUNE].

(Hours set.)

Minutes

4 Press [DISP] (CLOCK).

(Minutes blink.)

5 Press [

% TUNE] or [$ TUNE].

(Minutes set.)

6 Press [DISP] (CLOCK).

(End.)

Note:

Press and hold [

% TUNE] or [$ TUNE] to change numbers rapidly.

Clock Display

Press [DISP] (CLOCK) to switch to the clock display.

In tuner mode:

Broadcast station

In CD player (changer) mode:

Clock display

Playing time

When the power is off:

Clock display

Clock display No display

Note:

The [DISP] (CLOCK) button will not work while the CD player or CD changer is set to the scan play mode. Cancel the scan play mode before pressing [DISP] (CLOCK).

Time Reset

Press and hold [DISP] (CLOCK) for more than

2 seconds to activate the time setting mode to reset the time.

Then, repeat steps 3 to 6.

13

CQ-DFX501/DF401/DFX301U

E

N

G

L

I

S

H

4

E

N

G

L

I

S

H

5

Radio Basics

1

Mode Selection

Press [SOURCE] to change to the radio mode.

Source

Radio

CD player

(When a CD is inserted.)

CD changer control

Only for CQ-DFX501/DF401U

(When a CD changer is connected.)

SCAN/APM

REMOTE

SEL

VOL

BAND

TUNE

TRACK

S

HDB

CD RECEIVER WITH CHANGER CONTROL

MONO/LO

C

MUTE

7

1

8

2

9

3

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4

ST

OPEN

RANDOM

REP

PWR

SOURCE

12

CLOCK

6

DISP

LEVL

DIMMER

FM stereo indicator

2

Band

Press [BAND] to change the band.

14

3

Manual Tuning

[

$ TUNE]: Higher frequency

[

% TUNE]: Lower frequency

Seek Tuning

Press and hold ...

[

$ TUNE]: Higher frequency

[

% TUNE]: Lower frequency

Tuning will automatically stop when the signals of the next broadcast station are received.

4

Mono/Local Selection

MONO: Noise is significantly decreased when weak signals are received from an FM broadcast station.

LOCAL: Only strong signals of stations are searched in seek tuning, while at the

LOCAL OFF setting, relatively weak signals are also searched.

FM broadcast:

Press and hold [MUTE] (MONO/LOC) to change the mode.

Release when at the desired mode.

AM broadcast:

Press and hold [MUTE] (MONO/LOC) to switch

LOCAL mode on and off.

FM broadcast:

MONO

LOCAL

MONO

LOCAL

AM broadcast:

LOCAL

MONO OFF/

LOCAL OFF

MONO ON/

LOCAL OFF

MONO ON/

LOCAL ON

MONO OFF/

LOCAL ON

LOCAL OFF

LOCAL ON

CQ-DFX501/DF401/DFX301U

Preset Station Setting

Up to 6 stations each can be saved in the FM1,

FM2, FM3 and AM preset station memories.

1

Band

Press [BAND] to select a desired band.

(

➡ page 14)

Caution:

To ensure safety, never attempt to preset stations while you are driving.

E

N

G

L

I

S

H

6

SCAN/APM

REMOTE

SEL

VOL

BAND

TUNE

TRACK

S

HDB

CD RECEIVER WITH CHANGER CONTROL

MONO/LO

MUTE

C 7

1

8

2

9

3

Preset number

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4 OPEN

RANDOM

REP

PWR

SOURCE

12

CLOCK

6

DISP

LEVL

DIMMER

2

Auto Station Preset

Press and hold [BAND] (APM) for more than 2 seconds (auto preset memory).

The 6 strongest available stations will be automatically saved in the memory under preset buttons [1] to [6].

Once set, the preset stations are sequentially scanned for 5 seconds each.

Note:

The stations manually preset on the selected band will be deleted.

Manual Station Preset

1 Use manual or seek tuning to find a station. (

➡ page 14)

2 Press and hold one of the preset buttons [1] to [6] until the display blinks once.

3

Tuning in a Preset Station

Press the corresponding preset button [1] to [6] to tune in a preset station.

Note:

You can change the memory presetting by repeating the above procedure.

15

CQ-DFX501/DF401/DFX301U

E

N

G

L

I

S

H

7

CD Player and CD Changer

Note:

The CD changer functions are designed for

Panasonic CD changer unit (optional).

Cautions:

Only 12 cm CD is available for this unit.

This unit is not designed for any 8 cm CD.

If you insert an 8 cm CD and can not eject it, turn ACC of your car off once and turn it on again, then press [<]

(EJECT).

Lights when the disc is loaded.

MOSFET

45W

X

4 OPEN

RANDOM

REP

PWR

SOURCE

< (EJECT)

Label side

Close

Disc Insert and Playback

1

Open the front panel.

Press [OPEN] to open the front panel.

2

Insert the disc.

Close the front panel manually.

Playback will start automatically.

Stop and Disc Eject

Press [<] (EJECT) to stop CD play and eject the disc.

When CD is in the player

Press [SOURCE] to change to CD play mode.

Listening to a CD

SCAN/APM

REMOTE

SEL

VOL

BAND

S • HDB

TUNE

TRACK

CD RECEIVER WITH CHANGER CONTROL

MONO/LOC

7

8

MUTE

1 2

9

3

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4

OPEN

RANDOM

REP

PWR

SOURCE

12

6

CLOCK

DISP

LEVL

DIMMER

Track Selection

[5TRACK]: Advance to the next track.

[6TRACK]: Back to the beginning of the current track.

Back to the previous track.

(Press twice.)

16

Track Search

Press and hold ...

[5TRACK]: Fast forward

[6TRACK]: Fast backward

Release to resume the regular CD or CD changer play.

CQ-DFX501/DF401/DFX301U

Mode Selection

Press [SOURCE] to change to the CD player or

CD changer mode.

Source

Radio

CD player

(When a CD is inserted.)

CD changer control

Only for CQ-DFX501/DF401U

(When a CD changer is connected.)

Display Change

Press [DISP] to switch to the clock display.

CD player:

Track number/Track playing time Clock display

CD changer:

Disc number/Track number/

Track playing time

Clock display

CD player

Direct Track Selection

Press a track number button from [1] to

[6].

The corresponding track starts playing.

Press and hold a track number button from

[7] to [12] ([1] to [6]) for more than 1 second.

The corresponding track starts playing.

SCAN/APM

REMOTE

SEL

VOL

BAND

S

HDB

TUNE

TRACK

CD RECEIVER WITH CHANGER CONTROL

MONO/LO

C

MUTE

7

1

8

2

9

3

CD changer

Direct Disc Selection

Press a disc number button from [1] to [6].

The corresponding disc starts playing.

Press and hold a disc number button from [7] to

[12] ([1] to [6]) for more than 1 second.

The corresponding disc starts playing.

E

N

G

L

I

S

H

8

CQ-DFX501U

10

4

11

5

MOSFET

45W

X

4 OPEN

RANDOM

REP

PWR

SOURCE

12

CLOCK

6

DISP

LEVL

DIMMER

Track scan play

Disc scan play

Track random play

CD player

CD changer

Track repeat play

CD player

CD changer

Track scan play

CD player

CD changer

Disc scan play

CD changer

Lights when a magazine is loaded in the changer.

Press and hold [REP] (RANDOM) for more than 2 seconds.

All the tracks (on all discs in the magazine*) are played in random order.

(*Only for CD changer)

Press and hold [REP] (RANDOM) again to cancel.

Track random play

Track repeat play

RAND

Press [REP].

The current track is repeated.

Press [REP] again to cancel.

REP

Press [BAND] (SCAN).

The first 10 seconds of each track on the disc are played in sequence.

Press [BAND] (SCAN) again to cancel.

Press and hold [BAND] (SCAN) for more than 2 seconds.

The first track of all the discs in the magazine is played for 10 seconds each.

Press and hold [BAND] (SCAN) again to cancel.

CQ-DFX501/DF401/DFX301U

17

E

N

G

L

I

S

H

9

Remote Control Unit Preparation

Battery Installation

1 Remove the battery holder.

Pull the holder by the position B while pushing position A in the direction indicated by the arrow.

2 Install the battery on the battery holder.

Set a new battery properly with its (i) side facing up as shown in the figure.

3 Insert the battery holder.

Push in the battery holder back into its original position.

Back side

Lithium battery

(included)

Position B

Battery Notes

Battery holder Position A

Remove and dispose of an old battery immediately.

Battery Information:

Battery type: Panasonic lithium battery (CR2025) (included)

Battery life: Approximately 6 months with normal use (at room temperature)

Caution:

Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire.

Battery leakage may damage the unit.

Do not disassemble or short the battery. Do not throw a battery into a fire.

Keep batteries away from children to avoid the risk of accidents.

Be careful to the local disposal rules when you dispose of batteries.

Control Reference Guide

Buttons of the remote control function in the same way as the controls on the main unit of the reference page.

Point the remote control unit at the main unit’s sensor (REMOTE).

(ATT)

MUTE

Power button (PWR)

(

➡ page 10)

Mode button (MODE)

(

➡ pages 14, 16)

PWR

MODE

VOL

Mute button (MUTE)

(

➡ page 10)

Volume control buttons

(VOL,

" #)

(

➡ page 10)

Band/Disc up* button

(BAND/DISC UP*)

(

➡ pages 14, 17)

*Only for CD changer control

(When the CD changer is connected.)

PRG

BAND/DISC UP

TUNE

TRACK

Tune/ Track buttons

(TUNE/TRACK, 6 5/

% $)

(

➡ pages 14, 16)

Car Audio

18

CQ-DFX501/DF401/DFX301U

Installation Guide

WARNING

This installation information is designed for experienced installers and is not intended for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.

Any attempt to install this product in a motor car by anyone other than qualified installer could cause damage to the electrical system and could result in serious personal injury or death.

Installation Hardware

No.

1

Item

Mounting collar

Diagram Q’ty

1

2

Hex. nut (5 mm·)

3

Rear support strap

4

5

Tapping screw

(5 mm·a16 mm)

Mounting bolt (5 mm·)

6

Power connector

7

8

Removable face plate case

Trim plate

1

1

1

1

1

1

1

If you encounter problems, please consult your nearest professional installer.

Caution:

This unit operates with a 12 V DC negative ground auto battery system only. Do not attempt to use it in any other system. Doing so could cause serious damage.

Before you begin installation, look for the items which are packed with your unit.

Warranty Card…Fill this out promptly.

Panasonic Servicenter for Service Directory

…Keep for future reference in case the product needs servicing.

Installation Hardware…Needed for in-dash installation.

Required Tools

You’ll need a screwdriver, a 1.5 V AA battery, and the following:

12 V DC

Test bulb

Electrical tape

Side-cut pliers

E

N

G

L

I

S

H

10

Overview

This product should be installed by a professional.

However, if you plan to install this product yourself, your first step is to decide where to install it. The instructions in these pages will guide you through the remaining steps:

(Please refer to the “WARNING” statement above.)

Identify and label the car wires.

Connect the car wires to the wires of the power connector.

Install the unit in the dashboard.

Check the operation of the unit.

Dashboard Specifications

Thickness

Min. 3 ⁄

16 z

(4.75 mm)

Max. 7 ⁄

32 z

(5.56 mm)

2 3 ⁄

32 z

(53 mm)

7 5 ⁄

32 z

(182 mm)

19

CQ-DFX501/DF401/DFX301U

E

N

G

L

I

S

H

11

Installation Guide

Identify All Leads

The first step in installation is to identify all the car wires you’ll use when hooking up your sound system.

As you identify each wire, we suggest that you label it using masking tape and a permanent marker.

This will help avoid confusion when making connections later.

Note:

Do not connect the power connector to the stereo unit until you have made all connections. If there are no plastic caps on the stereo hooking wires, insulate all exposed leads with electrical tape until you are ready to use them. Identify the leads in the following order.

Power Lead

If your car has a radio or is pre-wired for one:

Cut the connector wires one at a time from the plug

(leaving the leads as long as possible) so that you can work with individual leads.

(Continued)

20

Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.

Touch the other lead of the test bulb to each of the exposed wires from the cut radio connector plug.

Touch one wire at a time until you find the outlet that causes the test bulb to light.

Now turn the ignition off and then on. If the bulb also turns off and on, that outlet is the car power lead.

If your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for radio

(RADIO), accessory (ACC), or ignition (IGN).

Battery Lead

If your stereo unit has a yellow lead, you will need to locate the car’s battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power to maintain a clock, memory storage, or other function.)

If your car has a radio or is pre-wired for one:

With the ignition and headlights off, identify the car battery lead by grounding one lead of the test bulb to the chassis and checking the remaining exposed wires from the cut radio connector plug.

CQ-DFX501/DF401/DFX301U

If your car is not wired for an audio unit:

Go to the fuse block and find the fuse port for the battery, usually marked BAT.

Speakers

Identify the car speaker leads. There are two leads for each speaker which are usually color coded.

A handy way to identify the speaker leads and the speaker they are connected with is to test the leads using a 1.5 V AA battery as follows.

Hold one lead against one pole of the battery and stroke the other lead across the other pole. You will hear a scraping sound in one of the speakers if you are holding a speaker lead.

If not, keep testing different lead combinations until you have located all the speaker leads. When you label them, include the speaker location for each.

Antenna Motor

If your car is equipped with an automatic power antenna, identify the car motor antenna lead by connecting one bulb tester lead to the car battery lead and touching the remaining exposed wires from the cut radio connector plug one at a time. You will hear the antenna motor activate when you touch the correct wire.

Antenna

The antenna lead is a thick, black wire with a metal plug at the end.

Connect All Leads

Now that you have identified all the wires in the car, you are ready to begin connecting them to the stereo unit wires. The wiring diagram (

➡ pages 25,

26) shows the proper connections and color coding of the leads.

We strongly recommend that you test the unit before making a final installation.

You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all exposed wires.

Important:

Connect the red power lead last, after you have made and insulated all other connections.

Ground

Connect the black ground lead of the power connector to the metal car chassis.

Speakers

Connect the speaker wires. See the wiring diagram

(

➡ pages 25, 26) for the proper hookups. Follow the diagram carefully to avoid damaging the speakers and the stereo unit.

The speakers used must be able to handle more than 45 W of audio power. If using an optional audio amplifier, the speakers should be able to handle the maximum amplifier output power. Speakers with low input ratings can be damaged. Speaker impedance should measure 4–8 ≠, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.

Motor Antenna

Connect the car motor antenna lead to the dark blue motor antenna relay control lead.

Battery

Connect the yellow battery lead to the correct radio wire or to the battery fuse port on the fuse block.

Antenna

Connect the antenna by plugging the antenna lead into the antenna receptacle.

Equipment

Connect any optional equipment such as an amplifier, according to the instructions furnished with the equipment. Leave about 12z (30 cm) of distance between the speaker leads/amplifier unit and the antenna/antenna extension cord. Read the operating and installation instructions of any equipment you will connect to this unit.

Power

Connect the red power lead to the correct car radio wire or to the appropriate fuse port on the fuse block.

If the stereo unit functions properly with all these connections made, disconnect the wires and proceed to the final installation.

Final Installation

Lead Connections

Connect all wires, making sure that each connection is insulated and secure. Bundle all loose wires and fasten them with tape so they will not fall down later. Now insert the stereo unit into the mounting collar.

Congratulations! After making a few final checks, you’re ready to enjoy your new auto stereo system.

Final Checks

1. Make sure that all wires are properly connected and insulated.

2. Make sure that the stereo unit is securely held in the mounting collar.

3. Turn on the ignition to check the unit for proper operation.

If you have difficulties, consult your nearest authorized professional installer for assistance.

E

N

G

L

I

S

H

12

Preparation

We strongly recommend that you wear gloves for installation work to protect yourself from injuries.

When bending the mounting tabs of the mounting collar with a screwdriver, be careful not to injure your hands and fingers.

Disconnect the cable from the negative - battery terminal (see caution below).

Unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30o.

Less than 30x

Caution:

Do not disconnect the battery terminals of a car with a trip or navigational computer since all user settings stored in memory will be lost.

Instead take extra care with installing the unit to prevent shorts.

Dashboard Installation

Installation Opening

2 3 /

32 q

(53 mm)

7

5

/

32 q

(182 mm)

This unit can be installed in any dashboard having an opening as shown above. The dashboard should be 3 ⁄

16 z

(4.75 mm)j 7 ⁄

32 z

(5.56 mm) thick in order to be able to support the unit.

21

CQ-DFX501/DF401/DFX301U

E

N

G

L

I

S

H

13

Installation Guide

Installation Procedures

First complete the electrical connections, and then check them for correctness. (

➡ pages

25, 26)

(Continued)

1

Insert mounting collar 1 into the dashboard, and

bend the mounting tabs out with a screwdriver.

Make sure that the lock lever (§) is flush with the mounting collar 1 (not projecting outward).

Lock lever (§)

6 Power connector

Lock lever (§)

2

3

4

Mounting tabs

5 Mounting bolt

Secure the rear of the unit.

After fixing mounting bolt 5 and power connector

6, fix the rear of the unit to the car body by either method (a) or (b) shown below.

Insert trim plate 8.

After installation, reconnect the negative - bat-

tery terminal.

Remove the Unit

Switch off the power of the unit.

1

Remove the removable face plate.

1 Press [OPEN]. The removable face plate will be opened.

5W

X

4

OPEN

RANDOM

REP

PWR

2 Push the face plate to either the right or left.

3 Pull it out toward you.

Main unit

1 Open

Contact

2 Push

3 Pull out

E

N

G

L

I

S

H

14

2

Remove the trim plate 8 with a screwdriver.

3

Pull out the unit while pushing down the lock lever with a screwdriver.

8 Trim plate

Screwdriver

1

2

Lock lever

22

(a) Using the rear support strap 3

Fire wall of car

4 Tapping screw 3 mm·

2 Hex. nut

3 Rear support strap

5 Mounting bolt

1 Mounting collar

(b) Using the rubber cushion (option)

Rubber cushion (option)

Rear support bracket

(provided on the car)

5 Mounting bolt

1 Mounting collar

CQ-DFX501/DF401/DFX301U

4

Remove the unit pulling with both hands.

Lock lever

CQ-DFX501/DF401/DFX301U

23

E

N

G

L

I

S

H

15

Anti-Theft System

This unit is equipped with a removable face plate. Removing this face plate makes the radio totally inoperable.

The security indicator will blink.

Place the Removable Face

Plate into Case

1 Switch off the power of the unit.

2 Remove the removable face plate. (

➡ page 23)

3 Gently press the button of the case and open the cover. Place the face plate into the case and take it with you when you leave the car.

7 Removable face plate case

Install Removable Face Plate

1 Fit the face plate with its right or left hole on one of the pins provided on the main unit.

2 Fit the other hold on the other pin applying slight pressure.

3 Move the face plate up and down a few times to make sure it is secure. Then close the front panel and press down the right side of the face plate until it clicks into plate.

2

3

1

Contact

Security Indicator

The security indicator blinks when the removable face plate is removed from the unit.

Press and hold [SEL] to turn the security indicator on or off. (“LED ON” or “LED OFF”).

24

Default

Display Security indicator

Blinks

OFF

Security indicator

Cautions:

This face plate is not water-proof. Do not expose it to water or excessive moisture.

Do not remove the face plate while driving your car.

Do not place the face plate on the dashboard or nearby areas where the temperature rises to high level.

Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts.

If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth.

Do not apply a strong downward force onto the face plate and do not put anything on it while it is open, or it might be damaged.

CQ-DFX501/DF401/DFX301U

Electrical Connections

Cautions:

This product is designed to operate of a 12 V DC, negative ground battery system.

To prevent damage to the unit, be sure to follow the wiring diagram below.

Remove approx. 1 ⁄

4 z

(5 mm) of protective covering from the ends of the leads before connecting.

Do not insert the power connector into the unit until the wiring is completed.

Be sure to insulate any exposed wires from a possible short-circuit from the car chassis. Bundle all cables and keep cable terminals free from touching any metal parts.

Remember, if your car has a drive computer or a navigation computer, the data of its memory may be erased when the battery terminals are disconnected.

Accessory used for wiring

No.

6

Item

Power connector

Q’ty

1

Recommended external amplifier combination (example)

Pre-amp out (rear/front) [CY-M9054 (4 channels system)]

Subwoofer out [CY-M9054 (2 channels system) or CY-M7052 (1 channel system)]

Wiring Diagram

Only for CQ-DFX301U

Red

White

(MONO)

S

W-OUT

Subwoofer cord

E

N

G

L

I

S

H

16

Pre-Amp output connector (Front)

Pre-Amp output connector (Rear)

CQ-DFX301U

L (White)

R (Red)

Antenna

6

Power connector

Ground lead

To a clean, bare metallic part of car chassis.

Motor antenna relay control lead

(To motor antenna) (Max. 500 mA)

This lead is not intended for use with switch actuated power antenna.

Amp. relay control power lead

This lead is for connection to the power amplifier.

Black

Dark blue

Gray/black stripe

FRONT SP

White/black stripe

(s)

White

(r) (s)

Gray

(r)

BATTERY 15A

Yellow

Red

ACC

Fuse (15 A)

Resistor (1 k≠)

Power lead

To ACC power,

+12 V DC

Speaker lead

REAR SP

Green/black stripe

(s)

Green

(r) (s)

Battery lead

To the car battery, continuous +12 V DC

Violet/black stripe

(r)

Violet

Left speaker

(Front)

Right speaker

(Front)

Left speaker

(Rear)

Right speaker

(Rear)

CQ-DFX501/DF401/DFX301U

25

E

N

G

L

I

S

H

17

Electrical Connections

Wiring Diagram

Only for CQ-DFX501/DF401U

(Continued)

CD changer

CX-DP88U

DIN extension cord (DIN/BATT/RCA/GND)

Yellow Fuse (3 A)

Battery lead

Black

Ground lead

Be sure to connect to a well grounded metallic part of your car because noises or troubles may occur.

Red

White

(MONO)

DIN cord

RCA cord

S

W-OUT

White (L)

Red (R)

Subwoofer cord

CD

C-IN

CQ-DFX501/DF401U

CD changer control connector

Antenna

Red (R)

White (L)

Red (R)

White (L)

REAR

Preout cord (rear)

FRONT

Preout cord (front)

Ground lead

To a clean, bare metallic part of car chassis.

Motor antenna relay control lead

(To motor antenna) (Max. 500 mA)

This lead is not intended for use with switch actuated power antenna.

Amp. relay control power lead

This lead is for connection to the power amplifier.

Black

Dark blue

Yellow

Red

6

BATTERY 15A

ACC

Power connector

Fuse (15 A)

Battery lead

To the car battery, continuous +12 V DC

Resistor (1 k≠)

Power lead

To ACC power,

+12 V DC

White/black stripe

(s)

White

(r)

Gray/black stripe

FRONT SP

(s)

Gray

(r)

Speaker lead

REAR SP

Green/black stripe

(s)

Green

(r)

Violet/black stripe

(s)

Violet

(r)

Left speaker

(Front)

Right speaker

(Front)

Left speaker

(Rear)

Right speaker

(Rear)

26

CQ-DFX501/DF401/DFX301U

Troubleshooting

Preliminary Steps

Check and take steps as described in the tables below.

If You Suspect Something Wrong

Immediately switch power off.

Disconnect the power connector and check that there is neither smoke nor heat from the unit before asking for repairs.

Never try to repair the unit yourself because it is dangerous to do so.

Troubleshooting Tips

Common

Trouble

No power.

Cautions:

Do not use the unit if it malfunctions or is something wrong.

Do not use the unit in abnormal condition, for example, without sound, or with smoke or foul smell, can cause ignition or electric shock. Immediately stop using it and call the store where you purchased it.

Cause/Step

Car’s engine switch is not on.

Turn your car’s ignition switch to ACC or ON.

Cables are not correctly connected.

Connect cables correctly.

Battery cable is not correctly connected.

Connect the battery cable to the terminal that is always live.

Accessory cable is not correctly connected.

Connect the accessory cable to your car’s ACC source.

Grounding wire is not correctly connected.

Connect the grounding wire to a metal part of the car.

Fuse is burnt.

Call the store where you purchased the unit, or your nearest service station (see the attached sheet) and ask for fuse replacement.

No sound.

Mute is set to ON.

Set it to OFF.

Cables are not correctly connected.

Connect cables correctly.

Condensation (dew)

Wait for a while before use.

Radio

Trouble

Much noise in FM stereo and monaural broadcasts.

Preset station is reset.

Cause/Step

Station is too far, or signals are too weak.

Select other stations of higher signal level.

Battery cable is not correctly connected.

Connect the battery cable to the terminal that is always live.

CQ-DFX501/DF401/DFX301U

27

E

N

G

L

I

S

H

18

E

N

G

L

I

S

H

19

Troubleshooting

CD

(Continued)

Trouble

CD is inside but no sound.

CD sound skips, tone quality is low.

Sound skips due to vibration.

CD is not ejected.

Cause/Step

CD is upside down.

Place CD in the correct direction, and the label side up.

CD is dirty.

Clean CD, referring to the section on “Notes on CD”.

CD is dirty.

Clean CD, referring to the section on “Notes on CD”.

Mounting angle is over 30o.

Adjust mounting angle to less than 30o.

Instable mounting.

Mount the unit securely with the mounting parts, referring to the section on installation.

CD is defective.

Mechanical trouble.

Press [OPEN] to open the panel and press [<] (EJECT). If normal

operation is not restored yet, call the store where you purchased the unit or the nearest service station to ask for repairs.

Sound Setting

Trouble

No sound from left, right, front or rear speakers.

Left and right sounds are reversed in stereo listening.

Remote Control

Trouble

Cause/Step

Left and right balance, or front and rear balance is off on one side.

Adjust balance/fader mode as appropriate.

Cables are not correctly connected.

Connect the cables correctly.

The right speaker wire is connected to the left speaker and the left speaker wire to the right speaker.

Connect the speaker wires to the correct ones.

Buttons are invalid for operation.

Cause/Step

Battery poles (i) (j) are reversed.

Insert the battery correctly.

Wrong the battery.

Check the battery.

Battery has run down.

Replace the battery.

Remote control is in the wrong direction.

Direct the remote control at sensor (REMOTE) on the panel.

28

CQ-DFX501/DF401/DFX301U

Error Display Messages

CD

Display Cause/Step

Disc is dirty, or is upside down.

Press [OPEN] to open the front panel, and then press [<] (EJECT) to

eject the disc.

Disc has scars.

Press [OPEN] to open the front panel, and then press [<] (EJECT) to

eject the disc.

No operation by some cause.

Turn off the car engine (ACC off) and remove the fuse from the battery lead (yellow) for 1 minute. Then reinstall the fuse.

CD Changer

Display

Only for CQ-DFX501/DF401U

Cause/Step

Disc is dirty, or is upside down.

Select the next available compact disc.

E

N

G

L

I

S

H

20

DISC No.

Disc has scars.

Select the next available compact disc.

DISC No.

No operation by some cause.

Press [RESET] on the CD changer (optional).

No disc in the changer (magazine).

Insert discs into the changer (magazine).

Notes:

There may be cases where the disc numbers affected by an error are displayed before “E1” or “E2”.

Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the operating instructions for the changer used.

Maintenance

Your product is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents.

Product Servicing

If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Servicenter. The product should be serviced only by a qualified technician.

Replacing the Fuse

Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.

If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.

29

CQ-DFX501/DF401/DFX301U

E

N

G

L

I

S

H

21

Maintenance

Care of the Unit

Cleaning this Unit

Use a dry, soft cloth to wipe.

Caution on Cleaning

Never use solvents such as benzine, thinner as they may mar the surface of the unit.

Notes on CD

ONLY USE DISCS CARRYING THE LABEL

How to hold the CD

Do not touch the underside of the disc.

Do not make scratches on the disc.

Do not bend disc.

When not in use, keep CD in the case.

Do not use irregular shaped CDs

Do not leave discs on the following places:

Direct sunlight

Near car heaters

Dirty, dusty and damp areas

Seats and dashboards

Disc cleaning

Use a dry, soft cloth to wipe from the center outward.

Caution on new discs

A new disc may have rough edges on its inner and outer perimeter. These may cause malfunction.

Remove the rough edges using a pencil, etc.

Label side

Do not use irregular shaped CDs

<Right>

Rough edge

<Wrong>

Rough edge

30

CQ-DFX501/DF401/DFX301U

Specifications

General

Power supply:

Current consumption:

Maximum power output:

Tone adjustment range:

12 V DC (11 Vj16 V), test voltage 14.4 V, negative ground

Less than 2.2 A (CD play mode; 0.5 Wa4 channels)

45 Wa4 channels at 400 Hz, Volume control maximum

Bass:

Treble: n

12 dB at 100 Hz n

12 dB at 10 kHz

Suitable speaker impedance: 4j8 ≠

Pre-Amp output voltage: 4.0 V (CD play mode; 1 kHz, 0 dB) (CQ-DFX501U)

2.0 V (CD play mode; 1 kHz, 0 dB) (CQ-DF401/DFX301U)

Subwoofer output voltage: 4.0 V (CQ-DFX501U)

Output impedance:

Dimensions (WaHaD):

Weight:

2.0 V (CQ-DF401/DFX301U)

200 ≠

7za1 15 /

16 za

5 7 /

8 z

(178a50a150 mm)

3 lbs. 5 oz (1.5 kg)

FM Stereo Radio

Frequency range:

Usable sensitivity:

87.9 MHzj107.9 MHz

11.0 dBf. (1.25 ¨V, 75 ≠)

50 dB quieting sensitivity: 15.2 dBf. (1.6 ¨V, 75 ≠)

Frequency response: 30 Hzj15 kHz (n3 dB)

Alternate channel selectivity: 75 dB

Stereo separation: 42 dB (1 kHz)

Image response ratio:

IF response ratio:

Signal/noise ratio:

75 dB

100 dB

70 dB

AM Radio

Frequency range:

Usable sensitivity:

530 kHzj1 710 kHz

28 dB/¨V (25 ¨V, S/N 20 dB)

CD Player

Sampling frequency:

DA converter:

Error correction system:

Pick-up type:

Light source:

Wave length:

Frequency response:

Signal/noise ratio:

32 times oversampling

MASH • 1 bit/4 DAC system

Panasonic super decoding algorithm

Astigma 3-beam

Semiconductor laser

780 nm

20 Hzj20 kHz (n1 dB)

96 dB

Total harmonic distortion: 0.01 % (1 kHz)

Wow and flutter: Below measurable limits

Channel separation: 75 dB

Above specifications comply with EIA standards.

Note:

Specifications and the design are subject to modification without notice due to improvements in technology.
