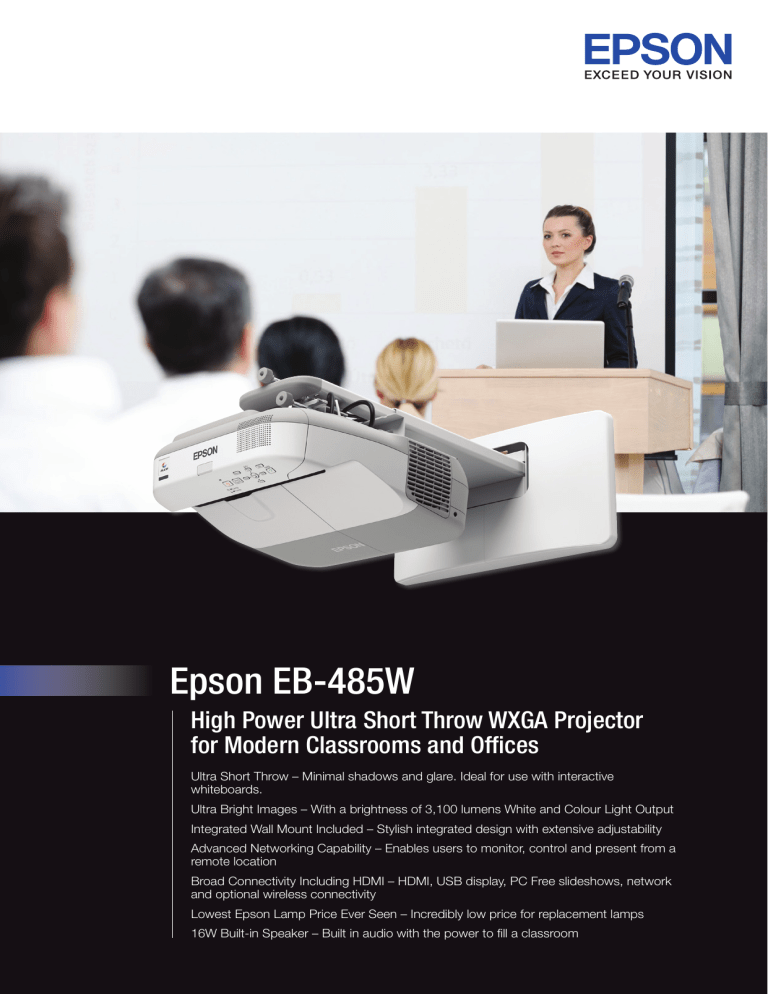

Epson EB-485W
High Power Ultra Short Throw WXGA Projector
for Modern Classrooms and Offices
Ultra Short Throw – Minimal shadows and glare. Ideal for use with interactive
whiteboards.
Ultra Bright Images – With a brightness of 3,100 lumens White and Colour Light Output
Integrated Wall Mount Included – Stylish integrated design with extensive adjustability
Advanced Networking Capability – Enables users to monitor, control and present from a
remote location
Broad Connectivity Including HDMI – HDMI, USB display, PC Free slideshows, network
and optional wireless connectivity
Lowest Epson Lamp Price Ever Seen – Incredibly low price for replacement lamps
16W Built-in Speaker – Built in audio with the power to fill a classroom
Epson EB-485W
Product Specifications
PRODUCT NAME PRODUCT CODE WHAT’S IN THE BOX
TECHNOLOGY
Projection System LCD Panel OPTICAL
Zoom Screen Size Projection Distance Throw Ratio Projection Lens F Number Projection Lens Focal Length Focus Method Offset IMAGE
Colour Light Output White Light Output Resolution Native Aspect Ratio Contrast Ratio Lamp Hours Lamp Type Keystone Correction Vertical: Keystone Correction Horizontal: Epson EB-485W
V11H454053
Epson EB-485W Projector, 5m Power Cable,
Remote Control, Batteries x 2, Projector
Software Ver. 1.03b (CD ROM), Password
Protect Sticker, User Manual Set, Setting
Plate (mount), Template Sheet.
Epson 3LCD, 3-chip technology
0.59-inch with MLA
1-1.35 (Digital Zoom)
60" to 102"
74.3" screen 0.438 m
0.27 (Zoom: Wide), 0.37 (Zoom: Tele)
1.80
3.71mm
Manual Focus
6.0:-1
3,100 Lumens
3,100 Lumens
WXGA
16:10
3,000:1
Normal/Eco: 3,000/4,000 Hours
190 W UHE
-5 to +5 degrees
-5 to +5 degrees
CONNECTIVITY
Input: Video 1 x RCA (Yellow), 1 x S-Video,
2 x Component (via D-sub 15-pin)
Input: Computer 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B
Input: USB Device (Document Camera) USB Type A Ver.2.0
Input: Three-In-One USB Display
1 x USB 2.0 type B
Input: Digital HDMI x 1
Input: Audio 1 x RCA (Red/White), 2 x Stereo mini jack
Input: Control 1 x USB 2.0 type B, RS232C
Input: Epson USB Document Camera 1 x USB 2.0 type B
Network I/O RJ45 x 1 (100Mbps)
Wireless Connectivity
Optional
Output: Video
D-sub 15 pin (monitor out - black molding)
Output: Audio
Stereo mini jack x 1
Speaker Output 16W
ADVANCED FEATURES
EasyMP Network & Control Yes
EasyMP Network Projection
Yes
PC Free Presentations No
USB Plug ‘n Play Yes
AV Mute Slide No
Instant Off Yes
Direct Power On/Off Yes
Security Kensington®-style lock provision, Padlock,
Security cable hole, Wireless LAN unit lock,
Password protect function
Colour Modes Dynamic, Theatre
GENERAL
Dimensions D x W x H (excluding feet) 375 x 367 x 143mm
Weight 5.4kg
Lamp Warranty 12 months or 750 hours - whichever comes first
Projector Warranty 3 years
Power Consumption: Lamp on Normal/Eco: 300/215W
Power Consumption: Standby
0.27W (communication off)
Noise Level Normal/Eco: 35/28dB
Epson is the registered trademark of Seiko Epson Corporation. All other names and company names used herein are for identification purpose only and may
be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. All print samples shown herein are
simulations. Specifications are subject to change without notice.
EPSON AUSTRALIA
3 Talavera Road
North Ryde NSW 2113
Tel: (02) 8899 3666
www.epson.com.au
EPSON NEW ZEALAND
Level 2, 7-9 Fanshawe Street
Auckland, 1010
Tel: (09) 366 6855
www.epson.co.nz
ABN 91 002 625 783
4/12
