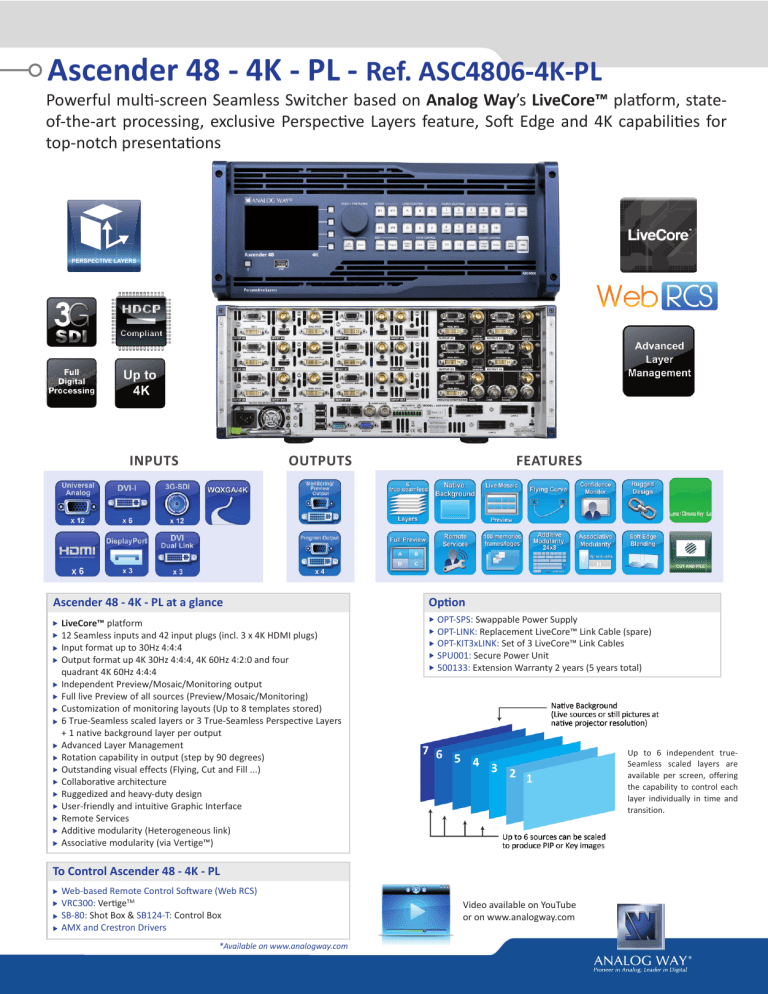

Ascender 48 - 4K - PL - Ref. ASC4806-4K-PL

Ascender 48 - 4K - PL - Ref. ASC4806-4K-PL
Ascender 48 - 4K - PL - Ref. ASC4806-4K-PL
Powerful multi-screen Seamless Switcher based on Analog Way’s LiveCore™ platform, stateof-the-art processing, exclusive Perspective Layers feature, Soft Edge and 4K capabilities for
top-notch presentations
PERSPECTIVE LAYERS
INPUTS
OUTPUTS
FEATURES
CUT AND FILL
Ascender 48 - 4K - PL at a glance
LiveCore™ platform
12 Seamless inputs and 42 input plugs (incl. 3 x 4K HDMI plugs)
Input format up to 30Hz 4:4:4
Output format up 4K 30Hz 4:4:4, 4K 60Hz 4:2:0 and four
quadrant 4K 60Hz 4:4:4
Independent Preview/Mosaic/Monitoring output
Full live Preview of all sources (Preview/Mosaic/Monitoring)
Customization of monitoring layouts (Up to 8 templates stored)
6 True-Seamless scaled layers or 3 True-Seamless Perspective Layers
+ 1 native background layer per output
Advanced Layer Management
Rotation capability in output (step by 90 degrees)
Outstanding visual effects (Flying, Cut and Fill ...)
Collaborative architecture
Ruggedized and heavy-duty design
User-friendly and intuitive Graphic Interface
Remote Services
Additive modularity (Heterogeneous link)
Associative modularity (via Vertige™)
Option
OPT-SPS: Swappable Power Supply
OPT-LINK: Replacement LiveCore™ Link Cable (spare)
OPT-KIT3xLINK: Set of 3 LiveCore™ Link Cables
SPU001: Secure Power Unit
500133: Extension Warranty 2 years (5 years total)
Up to 6 independent trueSeamless scaled layers are
available per screen, offering
the capability to control each
layer individually in time and
transition.
To Control Ascender 48 - 4K - PL
Web-based Remote Control Software (Web RCS)
VRC300: VertigeTM
SB-80: Shot Box & SB124-T: Control Box
AMX and Crestron Drivers
*Available on www.analogway.com
Video available on YouTube
or on www.analogway.com
Web RCS
Key features
12 Seamless inputs and 42 input plugs
4 outputs with 5 output plugs
• 6 x HDMI (incl. 3 HDMI 4K 30Hz)
• 9 x DVI-I (3 DVI Dual Link included)
• 3 x DisplayPort (4-Lanes)
• 12 x 3G/HD/SD-SDI
• 12 x UniversaI Analog (6x HD15 & 6xDVI-A)
• Universal Analog (HD15 & DVI-A)
• DVI-I (DVI Dual Link available on output #1
and #3, HDMI 4K available on outputs #2 &
#4 through DVI connectors
• 3G/HD/SD-SDI
• Video Optical SFP module cage
Features & Effects
• Up to 6 True-Seamless scaled layers per screen / up to 3 True-Seamless Perspective Layers
per screen
• Independent Native Background
• 144 presets memories and 144 master presets memories
• 100 memories for frames and logos
• Frames and Logos: fully resizable
• True A/B mix
• Output capability up to 2560x1600 and 4K
• 4 Customizable display layouts: Full Preview, Live Mosaic, Monitoring and Recording
• Display configurations: Mixer, Hybrid, Hard Edge & Soft Edge
• Additive modularity: combine 2 Ascender 48 - 4K - PL to share/add inputs & outputs up
to 24x8
• Associative modularity: synchronize up to 4 units to create blends with to 16 outputs
• Layer border: Edge/Smooth/Shadow/Smooth Edge (Edge: color/width/height)
• New tools box for layers: Transitions, Effects, Speed, Timing, Faders, Strobe, Mirror,...
• Numerous effects: Cut, Dissolve, Slide, Wipe, Stretch, Circle, Depth, Flip, Flying Curve, Background Cut, Transparency, Luma/Chroma Key, DSK, Cut and Fill
• Web-based Remote Control Software for multiple users: Web RCS
• Remote Tools
• The Web RCS offers a user-friendly graphic interface
consisting of 3 independent sections: Setup, Edit and Live. A
Preconfig. mode indicates how to easily configure the device
step by step.
• With dynamic snapshots of the connected sources available
in the interface, the intuitive dashboard allows operators to
fully prepare their shows and control them live during their
events.
• An innovative Sequences mode allows easy organization of
presets through drag and drop operation.
In addition to its four main outputs, Ascender 48 - 4K - PL features an independent Dual-Link output for monitoring purposes.
This output offers versatile and customizable display options, ensuring effective monitoring and flawless show control. All images are live and can be labeled through
Web Remote Control Software. Additional information on each source is also available directly on the live video windows.
Full Preview
Dimensions:
 D 21.41''x W 17.51'' x H 6.97'' ("Rack ears"
not included)
 D 544 mm x W 444.8 mm x H 177 mm
("Rack ears" not included)
Weight:
 19 kg
 41.89 lbs
Power Supply:
100-240 VAC ; 4.8A ; 50/60Hz ; 285 W
Live Mosaic
Supplied with:
 1 x Power supply cord
 1 x Ethernet cross cable (for device control)
 1 x MCO 10 pin connector
 1 x Web-based Remote Control Software included
and hosted on the device
 1 x Rack mount kit (front ears and rear support)
 1 x User Manual (PDF version)*
 1 x Quick Start Guide*
Warranty:
3-year warranty on parts and labor back to factory.
* All User Manuals and Quick Start Guides
are also available on www.analogway.com
Specifications subject to change without prior notice
All technical specifications are available on our website
Europe, Middle East and Africa - ANALOG WAY SAS - Tel: +33 (0)1 81 89 08 60 / Fax: +33 (0)1 57 19 04 54 / Email: [email protected]
The Americas - ANALOG WAY Inc. - Tel: +1 212 269 1902 / Fax: +1 212 269 1943 / Email: [email protected]
Asia Pacific - ANALOG WAY Pte Ltd - Tel: +65 62 92 58 00 / Fax: +65 62 92 52 05 / Email: [email protected]
Follow us
ASC4806-4K-PL-UK-07/20/2016
