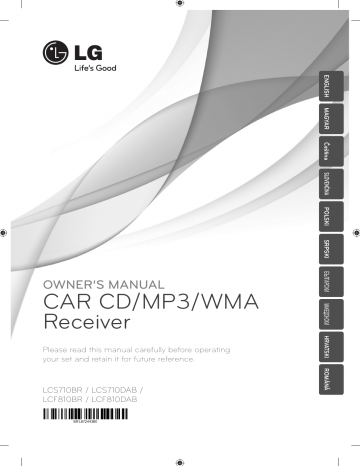

OWNER’S MANUAL

CAR CD/MP3/WMA

Receiver

Please read this manual carefully before operating your set and retain it for future reference.

LCS710BR / LCS710DAB /

LCF810BR / LCF810DAB

2

Getting Started

1

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK) NO

USER-SERVICEABLE PARTS INSIDE REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

This lightning fl ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING: Do not install this equipment in a

confi ned space such as a book case or similar unit.

Always operate the vehicle in a safe manner. Do not become distracted by the vehicle while driving, and always be fully aware of all driving condition. Do not change settings, or any functions. Pull over in a safe and legal manner before attempting such operations.

Do not use for many hours at extremely low or high temperature.

(-10 °C to 60 °C)

To reduce the risk of electric shock, do not remove the cover or back of this product. There are no user-serviceable parts inside.

Refer servicing to qualifi ed service personnel.

To reduce the risk of fi re or electric shock, do not expose this product to dripping or splashing water, rain, or moisture.

The temperature of unit’s outside can be extremely high, please use the unit after proper installation in your vehicle.

This unit cannot play 8 cm disc (use

12 cm disc only).

While driving, keep the sound volume at a proper level.

Do not drop it and avoid heavy impacts at anytime.

This unit is for vehicles with a

12-volt battery and negative grounding. Before installing it in a recreational vehicle, lorry or bus, check the battery voltage.

To avoid shorts in the electrical system, be sure to disconnect the E battery cable before beginning the installation.

Getting Started

3

CAUTION: This product employs a Laser System.

To ensure proper use of this product, please read this owner’s manual carefully and retain it for future reference. Shall the unit require maintenance, contact an authorized service centre.

Use of controls, adjustments or the performance of procedures other than those specifi ed herein may result in hazardous radiation exposure.

To prevent direct exposure to laser beam, do not try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.

“This device is equipped with a portable battery or accumulator.

Safe way to remove the battery or the battery from the equipment:

Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators."

The battery shall not be exposed to excessive heat such as sunshine, fi re or the like.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the

European Directive 2002/96/EC.

2. All electrical and electronic products shall be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old appliance, please service or the shop where you purchased the product.

LG Electronics hereby declares that this/ these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive

1999/5/EC, 2006/95/EC and ECE

Regulation 10.03 (3.2.9).

European representative :

LG Electronics Service Europe B.V.

Veluwezoom 15, 1327 AE Almere, The

Netherlands

(Tel : +31-(0)36-547-8888)

You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.

(Mastered/Live File System : Disc format system for

Windows Vista)

>

Caution

When being connected in a wrong way, the unit displays as follows.

- Antenna / Remote port short : "ON PORT

SHORT CIRCUIT CHECK"

After connecting it again, restart the unit.

1

4

Table of Contents

1

2

3

4

5

Table of Contents

5 Front panel [LCS710BR / LCS710DAB]

6 Front panel [LCF810BR / LCF810DAB]

2 Connecting

8 About detachable control panel

[LCS710BR / LCS710DAB]

8 – Attaching the control panel

8 – Detaching the control panel

9 About detachable control panel

[LCF810BR / LCF810DAB]

9 – Attaching the control panel

9 – Detaching the control panel

10 Installation

10 – Removing the existing receiver unit

11 Connection

11 – Connecting to a car

16 Listening to music from an external device

16 – Preventing radical changes in volume as switching sources

17 Listening to the TUNER

17 – Storing desired frequencies manually

17 – Listening to a preset station

19 Listening to the DAB (Only LCS710DAB /

LCF810DAB)

19 – Storing desired frequencies manually

19 – Listening to a preset station

19 – Adjusting DAB settings

20 Using an USB device / SD card

20 – Moving to another drive

21 – Quick Search of a desired fi le

21 – Deleting the desired fi le

21 – Playable USB device / SD card

Requirement

21 – Recording to USB device / SD card

22 Listening to music by connecting iPod / iPhone

22 – Pausing or restarting playback

22 – Searching for a section within a track / fi le

22 – Checking information about your music

23 – Playing back tracks / fi les in a way you want

3 Operating

12 Operation

12 – Turning off the sound temporarily

12 – Using EQ (Equalizer)

12 – Checking the clock

12 – Turning off the display light

12 – Resetting the unit

13 – Adjusting the general settings

14 Listening to a CD

14 – Pausing or restarting CD playback

14 – Searching for a section within a track / fi le

15 – Skipping to another track/ fi le

15 – Checking information about your music

15 – Playing back tracks / fi les in a way you want

23 – Compatible iPod models

24 Connecting a Bluetooth wireless technology

25 – Using the buttons for Bluetooth wireless technology

25 – Using a Bluetooth wireless technology

26 – Adjusting the setting

27 – WICS (Wireless Controller &

Synchronization)

28 – Phone compatibility list

4 Troubleshooting

31 Troubleshooting

5 Appendix

32 Specifi cations

Getting Started

5

Front panel [LCS710BR / LCS710DAB]

a b c d e f g h i

[Front unit detached panel]

1

j k l m n o p q r s t u v a B

Ejects a disc.

b SRC / • OFF

- When pressed, selects function sources.

- When pressed and held, powers unit on or off . c N

Plays and pauses playback.

Temporarily stops the sound.

d Volume knob

- Adjusts volume level.

- Confi rms the settings.

- Checks tracks, fi les or preset stations.

e

F

In each mode, sets playback items.

`

Activates setting menu.

f BAND

- Selects a band in Tuner mode.

- Moves to a next USB drive.

iPOD / • TA

- Searches stations that have TA / TP

information, when it is pressed and held.

- Activates 2WAY Control.

g Remote Sensor h Display window i 6

Opens the front panel.

j

R

Recording to USB / SD card.

k

- Activates BT function.

- Answers a call.

l

Returns to the previous step.

Ends a call.

m A / D

Skip / Search / Seek / Tune n EQ

Improves sound quality.

- When pressed, selects the EQ function.

o DISP

- Press it, you can check the clock time.

- Press and hold it, you can turn on /off the

display window and the light of LED buttons.

p INT

Intro scan.

q RPT

Repeats playback.

r SHF s Numeric buttons (1 to 6)

Selects a numbered preset station in TUNER.

t AUX

If connected to other portable player, you can enjoy music from it on the unit.

u USB port v SD card slot

6

Getting Started

1

Front panel [LCF810BR / LCF810DAB]

a b c d e f g h

[Front unit detached panel] i j k l m n o p q a SRC / • OFF

- When pressed, selects function sources.

- When pressed and held, powers unit on or off . b N

Plays and pauses playback.

Temporarily stops the sound.

c Volume knob

- Adjusts volume level.

- Confi rms the settings.

- Checks tracks, fi les or preset stations.

d

F

In each mode, sets playback items.

`

Activates setting menu.

e BAND

- Selects a band in Tuner mode.

- Moves to a next USB drive.

iPOD / • TA

- Searches stations that have TA / TP

information, when it is pressed and held.

- Activates 2WAY Control.

f Display window g Remote Sensor h OPEN

Opens the front panel.

i

R

Recording to USB / SD card.

j

- Activates BT function.

- Answers a call.

k

Returns to the previous step.

Ends a call.

l A / D

Skip / Search / Seek / Tune m EQ

Improves sound quality.

- When pressed, selects the EQ function.

n DISP

- Press it, you can check the clock time.

- Press and hold it, you can turn on /off the

display window and the light of LED buttons.

o AUX

If connected to other portable player, you can enjoy music from it on the unit.

p USB port q SD card slot

Remote control

Getting Started

7

i DISP

• Press it, you can check the clock time.

• Press and hold it, you can turn on / off the

display window and the light of LED buttons.

j RPT

Repeats playback.

k INT

Intro scan.

l Numeric buttons (1 to 6)

Selects a numbered preset station in TUNER.

Battery Installation

1

a SRC / • OFF

• When pressed, selects function sources.

• When pressed and held, powers unit off .

b FUNC

When pressed, sets playback items in each mode.

• MENU

When pressed and held, activates setting menu.

c BAND

Selects a band in Tuner mode.

DRV

Moves to a next USB drive.

d d/M Plays or pauses playback.

e SHF Shuffl es playback.

f MUTE Temporarily stops the sound.

g VOLUME W / S

Adjusts volume level.

h c / v

Skip / Search / Seek / Tune

Returns to the previous step.

w / s

• List up / down

• Adjusts settings.

• Moves 10 MP3 / WMA tracks backward or

forward if there is no folder or one folder on a

CD.

• Moves to the previous or next folder if there

are more than 2 folders on a CD.

ENTER / LIST

• Confi rms the settings.

• Checks tracks, fi les or preset stations.

1. Pull out the battery holder with a sharp product like a ball point pen.

2. Put the battery with and correctly on the battery holder.

3. Push the battery holder back into its original position.

,

Note

 Use only one CR2025 (3 V) lithium battery.

 Remove the battery if the remote control is not used for a long period of time.

 Do not leave the product in a hot or humid place.

 Do not handle the battery with metallic tools.

 Do not store the battery with metallic materials.

8

Connecting

About detachable control panel

[LCS710BR /

LCS710DAB]

2

Attaching the control panel

Detaching the control panel

2. Push the control panel to right.

1. Align the left side of the panel with the stopper.

2. Push the right side of panel into the unit until it clicks.

>

Caution

 The control buttons may not work properly if the control panel is not attached properly.

If this occurs, gently press the display.

 Do not leave the control panel in any area exposed to high temperatures or direct sunlight.

 Do not drop the control panel or otherwise subject it to strong impact.

 Do not allow such volatile agents as benzine, thinner, or insecticides to come into contact with the surface of the control panel.

3. Pull the control panel out of the unit.

4. Put the detached control panel into the protective case.

Control panel

Protective Case

,

Note

Periodically wipe the contacts on the back of the control panel with a cotton swap moistened with alcohol. For safety, turn off the ignition before cleaning, and remove the key from the ignition switch.

About detachable control panel

[LCF810BR /

LCF810DAB]

Connecting

9

Detaching the control panel

1. Press the OPEN to open the control panel.

Attaching the control panel

1. Attach

CA

of the control panel to part

CB of the unit.

2. Push the control panel to left.

2

i h

2. Attach

C

of the control panel to part

D of the unit while pushing the control panel to left.

3. Close the control panel.

3. Pull the control panel out of the unit.

4. Put the detached control panel into the protective case.

k j

>

Caution

 The control buttons may not work properly if the control panel is not attached properly.

If this occurs, gently press the display.

 Do not leave the control panel in any area exposed to high temperatures or direct sunlight.

 Do not drop the control panel or otherwise subject it to strong impact.

 Do not allow such volatile agents as benzine, thinner, or insecticides to come into contact with the surface of the control panel.

Control panel

Protective Case

,

Note

Periodically wipe the contacts on the back of the control panel with a cotton swap moistened with alcohol. For safety, turn off the ignition before cleaning, and remove the key from the ignition switch.

10

Connecting

Installation

ISO-DIN Installation

2

Basic Installation

Before installing, make sure that the ignition-switch is set to OFF and remove the terminal of the car battery to avoid short-circuiting.

Bend the claws according to the thickness of the dashboard.

Control panel

1. Remove the existing receiver unit.

2. Make the necessary connections.

3. Install the installation sleeve.

4. Install the unit into the installation sleeve.

Removing the existing receiver unit

If there is already an installation sleeve for the receiver unit in the dashboard, it must be removed.

Control panel

1. Slide the unit into the ISO-DIN frame.

2. Fit screws removed from the old unit.

3. Slide the unit and frame into the dash opening.

4. Install the dash panel or adapter plate.

(According to models, this step may not be needed.)

5. Install the trim ring to the unit.

6. Install the control panel to the unit.

1. Remove the rear support from the unit.

2. Remove the control panel and trim ring from the unit.

3. Insert the lever into the hole on one side of the unit. Perform the same operation on the other side and pull the unit out from the mounting sleeve.

Connecting

11

Connection

Connecting to a car

Wired remote input (Black): Hard-wired control adapter can be connected.

(Optional)

Wired mic (Optional)

To Audio out To Audio in a b c d e f g h a b c d e f g h

B f Power Antenna (Blue)

Sub-woofer Left Sub-woofer Right

Front Left Front Right

Rear Left Rear Right

Power

Antenna

Sub-woofer

Amplifi er

SMB type of DAB Antenna can be connected.

(Only LCS710DAB / LCF810DAB)

Control Relay

B g Dimmer (Pink)

Dimmer Switch

B c To Ignition (Red)

Ignition Switch

B d To Battery (+) (Yellow)

B h Ground (-) (Black)

A

A

A

A

A

A

A

A a b c d e f g h

B e Remote On

(Blue / White)

Amplifi er

B b Phone Mute

(Orange)

B a Not connected

A a Gray : Front Right +

A b Gray / Black Stripe: Front Right -

A c Violet : Rear Right +

A d Violet / Black Stripe: Rear Right -

A e White : Front Left +

A f White / Black Stripe: Front Left -

A g Green : Rear Left +

A h Green / Black Stripe: Rear Left -

2

3

12

Operating

Operation

Basic operations

1. Turn the unit on by pressing any key on the unit.

2. Select a source by pressing SRC.

3. Rotate the volume knob to adjust the volume on the unit.

Or press VOLUME W / S on the remote control.

,

Note

If a source is not connected to the unit, the source is not recognized.

Checking the clock

1. Press DISP to check the clock.

2. Press it again to remove it.

Turning off the display light

1. Press and hold DISP.

2. Press and hold it again to turn it on.

,

Note

Under the light-off condition, press any key, the light is turned on and then off automatically if you don't press it within a few seconds.

Resetting the unit

You can reset the unit when it does not operate properly.

1. Detach the control panel.

Refer to page 8 to 9 for detaching the control panel.

2. Press the RESET hole with a sharp object.

Turning off the sound temporarily

1. Press to mute your unit. (Except CD, USB device and SD card)

Or press MUTE on the remote control.

2. To cancel it, press again.

Or press MUTE again.

Using EQ (Equalizer)

EQ is to increase or decrease the signal strength of audio frequencies. The function helps you to enjoy sound more plentifully.

Press EQ on the unit. And rotate the volume knob to select the item and press it. The indicator lights up in the following order.

FLAT / XDSS+ / POP / CLASSIC / ROCK /

JAZZ / VOCAL / SALSA / SAMBA / REGGAE

/ RUSSY / USER EQ1 / USER EQ2

,

Note

You can adjust sound level to your preference.

Once you select a USER EQ1 / 2 mode and press and hold ` on the unit, then adjust the sound level ((BAS (bass), MID (middle), TRB

(treble), BALANCE (left / right speaker), FADER

(front / rear speaker), SW (Subwoofer), SW-F

(Subwoofer Frequency), A-EQ (Auto EQ)), it will be automatically stored for the currently selected USER EQ1 / 2 mode. Refer to the "For

[SOUND] setting" for USER EQ1 / 2 mode on the page 13.

[LCS710BR / LCS710DAB] [LCF810BR / LCF810DAB]

Operating

13

Adjusting the general settings

You can adjust [SOUND], [LIGHT] and [OTHER] settings.

On the unit

1. Press and hold `.

2. Rotate the volume knob to select [SOUND],

[LIGHT], or [OTHER] and press it.

3. Rotate the volume knob to select the item and press it.

4. Rotate the volume knob clockwise or counterclockwise to adjust the level.

5. Press th e volume knob to confi rm the setting.

If you want to return to the previous step, press

.

On the Remote Control

1. Press and hold FUNC / • MENU.

[OTHER] and press ENTER.

ENTER.

5. Press ENTER to confi rm the setting.

If you want to return to the previous step, press

.

For [SOUND] setting

You can adjust sound quality by adjusting the level of BALANCE (left / right speaker), FADER (front / rear speaker), SW (Subwoofer), SW-F (Subwoofer

Frequency) and A-EQ (Auto EQ).

- When you set the EQ to USER EQ1 / 2 mode. :

You can adjust the sound level of BAS (bass), MID

(middle), TRB (treble), BALANCE (left / right speaker),

FADER (front / rear speaker), SW (Subwoofer), SW-F

(Subwoofer Frequency) and A-EQ (Auto EQ)

 SW (Subwoofer)

You can adjust the volume of subwoofer.

 SW-F (Subwoofer Frequency)

You can enable the subwoofer.

SW OFF <-> SW 55 Hz <-> SW 85 Hz <-> SW 120

Hz.

 A-EQ (Auto EQ) ON / OFF

AUTO EQ operates only in the music fi le supported with genre in the device. When you set AUTO EQ to ON, POP, CLASSIC, ROCK, or JAZZ is automatically selected according to the music genre.

For [LIGHT] setting

You can adjust the light eff ects by adjusting LED,

DIM, or DIM L.

 LED COL1 / COL2 / AUTO : You can change the

LED window color.

 DIM (Dimmer) OFF / ON / AUTO : You can change the brightness of the display window during the power-on status.

Settings

DIM ON

DIM OFF

DIM AUTO

Description

The display window becomes dark.

The display window becomes bright.

The dimmer operates according to the car dimmer setting.

 DIM L (Dimmer Level) : When you set DIM to ON

/ AUTO, you can adjust the dimmer level. (-2, -1,

0, +1, +2)

3

14

Operating

3

For [OTHER] setting

 AUX (Auxiliary) ON / OFF

It is possible to use auxiliary equipment with this unit. Activate the auxiliary setting when using auxiliary equipment connected to this unit.

 DEMO OFF / ON

You can change the initial indication on the display to information name (function name, EQ name, etc...) while listening to a source.

 BEEP 2ND / ALL

BEEP 2ND : The beep is generated when a key is pressed for longer than 2 seconds.

BEEP ALL : The beep is generated when any key is pressed.

 CLK (Clock)

For the model RDS is not supported unit or even for a RDS supported unit.

- When RDS CT information is not received and

then you set CT to OFF, you can adjust the time by yourelf. Set the clock as follows ;

1. Select a source to TUNER.

2. Press the

F

to select the CT and then set

CT to OFF.

(Refer to the " Adjusting TUNER settings " on the page 18 for setting the CT (Clock Time)

ON / OFF.)

3. Press and hold ` on the unit to select

[OTHER] and then select CLK by rotating the volume knob.

4. Set the hour by rotating the volume knob.

5. Press the volume knob to confi rm the hour.

6. Set the minute by rotating the volume knob.

7. Press the volume knob to confi rm the minute.

- When RDS CT information is received ;

The clock is displayed according to the RDS CT

information.

- When RDS is not supported, set the clock

according to 3 to 7 steps.

Listening to a CD

[LCS710BR / LCS710DAB]

1. Insert a CD.

2. Rotate the volume knob on the unit to adjust the volume.

Or press VOLUME W / S on the remote control.

[LCF810BR / LCF810DAB]

1. Press the OPEN to open the control panel.

2. Insert a CD.

3. Close the control panel.

4. Rotate the volume knob on the unit to adjust the volume.

Or press VOLUME W / S on the remote control.

,

Note

Make sure to press B after pressing OPEN to eject a disc. Refer to the picture above.

Pausing or restarting CD playback

Or press d/M on the remote control.

2. Press it to resume playback.

Searching for a section within a track / fi le

1. Press and hold A / D on the unit for about 1 second during playback.

Or press and hold c / v on remote control.

Or press d/M on the remote control.

Operating

15

Skipping to another track/ fi le

Press A / D on the unit.

Or press c / v on the remote control.

Or

1. Press the volume knob on the unit.

Or press ENTER on the remote control.

2. Rotate the volume knob on the unit to select a desired ROOT or folder and press it.

Or press w / s and press ENTER on the remote control.

3. Rotate the volume knob on the unit to select a desired track / fi le and press it.

Or press w / s and press ENTER on the remote control.

,

Note

To skip to previous track, press briefl y A with- in 3 seconds of playing time.

Checking information about your music

MP3 / WMA fi les often come with tags. The tag gives the Title, Artist or Album.

Press DISP repeatedly during MP3 / WMA / CD TEXT fi le playback. If there is no information, "NO TEXT" will be shown in the display window.

Playing back tracks / fi les in a way you want

For using applicable buttons

1. Press INT / RPT / SHF.

2. Press it again to cancel.

Or

Using the FUNC button

On the unit

1. Press

F

.

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to select the option.

4. Press the volume knob to set the option.

If you want to return to the previous step, press

.

On the Remote Control

If you want to return to the previous step, press

.

 RPT (Repeat)

The current selected tracks / fi les (1 RPT) or folder

( RPT) on the disc is played repeatedly.

 SHF (Shuffl e)

Each fi les in the current selected folder

( SHF) or all of the tracks / fi les (SHF) on the disc is played randomly. During random playback, even if you press A, you won't go back to the previous track.

 INT (Intro Scan)

The fi rst 10 seconds of all tracks / fi les (INT) or each fi les in the current selected folder ( INT) on the disc are played.

 DEV (Device) USB / SD

You can change the recording device.

USB <-> SD

 MODE

SPD REC / SPD COPY

SPD REC : The recording speed is normal. And during the recording, you can listen to the music being recorded.

SPD COPY : The recording speed is twice as fast.

And during the recording, you can listen to the

TUNER / DAB. But you cannot listen to the music being recorded.

,

Note

DEV and MODE are only available when the disc is activating.

3

3

16

Operating

,

Note

: The icon is displayed during MP3 / WMA playback.

MP3 / WMA Disc compatibility with this

unit is limited as follows:

1. Sampling Frequency / 8 kHz to 48 kHz

(MP3) 22.05 kHz to 48 kHz (WMA).

2. Bit rate / within 8 kbps to 320 kbps (include

VBR) (MP3) 32 kbps to 320 kbps (WMA).

3. CD-R / CD-RW fi le system should be "ISO

9660".

4. If you record MP3 / WMA fi les using software which cannot create a FILE

SYSTEM, for example "Direct-CD" etc., it will not be possible to playback MP3 / WMA fi les. We recommend that you use "Easy-

CD Creator" which creates an ISO 9660 fi le system.

You have to set the disc format option to [Mastered] in order to make the discs compatible with the LG players when formatting rewritable discs. When setting the option to Live File System, you cannot use it on LG players.

(Mastered / Live File System : Disc format system for Windows Vista)

Customers should also note that permission is required in order to download MP3 / WMA fi les and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner.

Listening to music from an external device

1. Connect an external device to the AUX jack with line input cable.

2. Select a source to AUX.

3. Play the connected Auxiliary Equipment.

4. Rotate the volume knob on the unit to adjust the volume.

Or press VOLUME W / S on the remote control.

Preventing radical changes in volume as switching sources

Only when you set AUX to ON as switching sources, you can adjust the volume level of each source to prevent radical changes in volume by selecting

GAIN 0 / +3 / +6.

1. Press

F

on the unit.

Or press FUNC / • MENU on the remote control.

2. Rotate the volume knob on the unit.

Or press w / s on the remote control to set the option. (GAIN 0 / +3 / +6)

3. Press the volume knob on the unit.

Or press ENTER on the remote control to confi rm the setting.

4. If you want to return to the previous step, press

.

Or press on the remote control.

Operating

17

Listening to the

TUNER

1. Press SRC repeatedly to select a source to

TUNER.

3. For manual search, press and hold A / D on the unit until “MANUAL“ is displayed. Then press it repeatedly to select a desired frequency.

Or press and hold c / v on the remote control.

For auto search, press A / D on the unit until

“SEARCH” is displayed. (Except MW)

Or press c / v on the remote control.

4. Rotate the volume knob on the unit to adjust the volume.

Or press VOLUME W / S on the remote control.

Storing desired frequencies manually

to store.

2. Select the desired frequency by using A / D on the unit.

Or use c / v on the remote control.

3. Press the volume knob and rotate the volume knob to select a preset station among 1 to 6 and then press and hold the volume knob until the beep sound is heard.

Or press ENTER and press w / s to select a preset station among 1 to 6 and then press and hold ENTER until the beep sound is heard on the remote control.

Or press and hold one of preset buttons among

1 to 6 on the remote control until the beep sound is heard.

Or press and hold one of preset buttons among

1 to 6 on the unit until the beep sound is heard.

(Only LCS710BR / LCS710DAB)

4. Repeat steps 1 to 3 to preset other stations.

,

Note

When a station is stored on the preset numbers on which another station of the same band has already been preset, the previously preset station is automatically erased.

Listening to a preset station

2. Press the volume knob on the unit.

Or press ENTER on the remote control.

3. Rotate the volume knob to select a preset station.

Or press w / s on the remote control.

4. Press the volume knob.

Or press ENTER on the remote control.

Or

Press BAND and then press the desired preset button among 1 to 6 on the remote control.

Or press BAND and then press the desired preset button among 1 to 6 on the unit. (Only LCS710BR /

LCS710DAB)

3

18

Operating

3

Adjusting TUNER settings

On the unit

1. Press

F

.

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to set the option and press it.

4. If you want to return to the previous step, press

.

On the Remote Control

4. If you want to return to the previous step, press

.

 PTY (Program type,

RDS (OPTIONAL))

It searches the radio stations by program type of

FM tuner.

The program types are displayed as follows.

NEWS FINANCE

AFFAIRS

INFO

SPORT

EDUCATE

CHILDREN

SOCIAL

RELIGION

PHONE IN

DRAMA

CULTURE

TRAVEL

LEISURE

SCIENCE DOCUMENT

VARIED POP M

WEATHER ROCK M

EASY M

LIGHT M

CLASSICS

OTHER M

JAZZ

COUNTRY

NATION M

OLDIES

FOLK M

 A / S (Auto Store)

The six strongest broadcasting frequencies will be stored under preset button 1 to 6 in the order of their signal strength. To cancel, press the volume knob (or ENTER on the remote control).

 P / S (Preset scan)

Each preset station appears. To cancel, press the volume knob (or ENTER on the remote control).

 SENS (Tuner sensitivity) MID / HI / LOW

In an area in which signal reception is weak, it helps the tuner to search more stations. The weaker the reception is, the lower option you should set to.

RDS (OPTIONAL)

 AF (Alternative Frequency) ON / OFF

When the reception quality drops, the tuner automatically changes to another station in the network, broadcasting a better reception quality, using the PI and AF codes.

 REG (Region) ON / OFF

REG ON : The unit switches to another station, within the same network, broadcasting the same program when the receiving signals from the current station become weak.

REG OFF : The unit switches to another station, within the same network when the receiving signals from the current station become weak.

(In this mode, the program may diff er from the one currently received.)

 TA (Traffi c Announcement) ALARM / SEEK

TA ALARM : When the tuned station has no TP information for 5 seconds, a double beep sound is output.

TA SEEK : When the tuned station does not receive TP information for 5 seconds, the receiver retunes to the next station that has the TP information.

 PI (Programme Identifi cation) SOUND / MUTE

PI SOUND : When the frequency of a tuned station switches to an AF (Alternative frequency) with an unidentifi ed PI, it keeps the sound.

PI MUTE : When the frequency of a tuned station switches to an AF with an unidentifi ed PI, it mutes the sound until the PI is identifi ed.

 CT (Clock Time) ON / OFF

You can use the RDS CT information to update the time. When RDS CT information is not received and then you set CT to OFF, you can adjust the time by yourself. Refer to the page 14 for setting the clock.

Operating

19

Listening to the DAB

(Only LCS710DAB /

LCF810DAB)

1. Press SRC repeatedly to select a source to DAB.

4. Repeat steps 1 to 3 to preset other stations.

,

Note

When a station is stored on the preset numbers on which another station of the same band has already been preset, the previously preset station is automatically erased.

3. Press the volume knob on the unit.

Or press ENTER on the remote control.

4. Rotate the volume knob to select a station.

Or press w / s on the remote control.

5. Press the volume knob.

Or press ENTER on the remote control.

station.

Or press c / v on the remote control.

For auto search, press and hold A / D on the unit until “ENS SRCH” (Ensemble Search) is displayed.

Or press and hold c / v on the remote control.

7. Rotate the volume knob on the unit to adjust the volume.

Or press VOLUME W / S on the remote control .

Storing desired frequencies manually

to store.

2. Select the desired frequency by using A / D on the unit.

Or use c / v on the remote control.

3. Press and hold the volume knob and rotate the volume knob to select a preset station among 1 to 6 and then press and hold the volume knob until the beep sound is heard.

Or press and hold ENTER and press w / s to select a preset station among 1 to 6 and then press and hold the ENTER until the beep sound is heard on the remote control.

Or press and hold one of preset buttons among

1 to 6 on the remote control until the beep sound is heard.

Or press and hold one of preset buttons among

1 to 6 on the unit until the beep sound is heard.

(Only LCS710DAB)

Listening to a preset station

2. Press and hold the volume knob on the unit.

Or press ENTER on the remote control.

3. Rotate the volume knob to select a preset station.

Or press w / s on the remote control.

4. Press the volume knob.

Or press ENTER on the remote control.

Or

Press BAND and then press the desired preset button among 1 to 6 on the remote control.

Or press BAND and then press the desired preset button among 1 to 6 on the unit. (Only LCS710DAB)

Adjusting DAB settings

On the unit

1. Press

F

.

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to set the option and press it.

4. If you want to return to the previous step, press

.

On the Remote Control

4. If you want to return to the previous step, press

.

3

3

20

Operating

 PTY (Program type,

RDS (OPTIONAL))

The program types are displayed as follows.

When you select an item, it will start operating immediately.

NEWS FINANCE

AFFAIRS

INFO

SPORT

EDUCATE

CHILDREN

SOCIAL

RELIGION

PHONE IN

DRAMA

CULTURE

TRAVEL

LEISURE

SCIENCE DOCUMENT

VARIED POP M

WEATHER ROCK M

EASY M

LIGHT M

CLASSICS

OTHER M

JAZZ

COUNTRY

NATION M

OLDIES

FOLK M

 A-SCAN (Auto Scan)

Scans all available services. To confi rm the lists, press the volume knob and rotate the volume knob.

 P-SCAN (Preset Scan)

The broadcasting frequencies stored in the preset number are received Sequentially.

Each broadcasting frequencies are received for 6 seconds.

 DRC (Dynamic Range Control) ON / OFF

Automatically adjusts the audio level.

 ANNOUNCE (Announcement) X / O

Provides information on selected contents.

Warning), NEWS, WTHR (Weather), EVNT (Event),

SEVNT (Special Event), PINFO (Program Info),

SPORT (Sport Report), FNNC (Financial Report)

 LINK

DAB+FM / OFF / DAB / FM

When the reception quality drops, the tuner automatically changes to another station in the network.

If the broadcasting is disconnected during operation, it does not sound until the next broadcasting is linked. It takes about 10 seconds.

Depending on the amount of broadcasting information, it can be shorter or longer.

,

Note

If each preset number has no stored frequency,

"EMPTY" is displayed.

Using an USB device /

SD card

[USB]

1. Open the USB cover.

2. Connect the USB device.

3. Press SRC repeatedly to select a source to USB.

4. Rotate the volume knob on the unit to adjust the volume.

Or press VOLUME W / S on the remote control.

[SD]

1. Detach the control panel. (Refer to "About detachable control panel" on page 8 to 9.)

2. Connect the SD card.

3. Attach the control panel.

4. Press SRC repeatedly to select a source to SD.

5. Rotate the volume knob on the unit to adjust the volume.

Or press VOLUME W / S on the remote control.

[LCS710BR / LCS710DAB] [LCF810BR / LCF810DAB]

Moving to another drive

When connecting this unit to multi-reader, press

BAND on the unit (or DRV on remote control) to go the next drive. Each time you press the button, the driver modes change.

Operating

21

Quick Search of a desired fi le

You can select and play a desired fi le regardless of the order in USB device / SD card.

1. Press the volume knob on the unit.

Or press ENTER on the remote control.

2. Rotate the volume knob on the unit to select a desired ROOT or folder and press it.

Or press w / s and press ENTER on the remote control.

3. Rotate the volume knob on the unit to select a desired track / fi le and press it.

Or press w / s and press ENTER on the remote control.

Deleting the desired fi le

You can select and delete a playable fi le you want.

1. Select the desired fi le in the same way as "Quick

Search of a desired fi le"

2. Press

R

, and then "DELETE?" displayed. Press it again to delete.

When the delete operation is started, playing is stopped. When the delete operation is ended, the list of fi les is displayed. If you do not select a fi le within few seconds, or press the , the fi rst fi le is played.

,

Note

Other functions are same with "Listening to a

CD". Refer to page 14 to 15.

Playable USB device / SD card

Requirement

 Do not extract the USB device / SD card during operation (play, etc.).

 An USB device / SD card which requires additional programme installation when you have connected it to a computer, is not supported.

 Regular back up is recommended to prevent data loss.

 If you use a USB extension cable, USB HUB, USB

Multi-reader, or external HDD, the USB device may not be recognized.

 When you connect a partitioned USB device into the unit, only the fi rst partition is recognized on it.

 Some USB device may not work with this unit.

 Digital camera and mobile phone are not supported.

 USB Port of the unit cannot be connected to PC.

The unit cannot be used as a storage device.

 Using FAT (16 / 32) fi le system is supported.

Using NTFS fi le system is supported to read only.

Recording to USB device / SD card

[USB]

1. Open the USB cover and connect it to the unit.

2. Select one of the following lists. (CD, FM tuner,

DAB(Only LCS710DAB / LCF810DAB), Bluetooth

Handsfree)

3. Press

R

to start recording.

For one track CD recoridng, press it once.

For all tracks recording, press and hold it until the beep is heared. (In case of MP3 / WMA CD, recorded all fi les in the folder.)

4. Press it again to stop.

[SD]

1. Detach the control panel and connect it to the unit. Then attach the control panel.

(Refer to "About detachable control panel" on page 8 to 9.)

2. Select CD only.

3. Press

R

to start recording.

For one track CD recoridng, press it once.

For all tracks recording, press and hold it until the beep is heared. (In case of MP3 / WMA CD, recorded all fi les in the folder.)

4. Press it again to stop.

3

3

22

Operating

,

Note

 [USB] Only in CD, FM tuner, DAB and

Bluetooth Handsfree, recording is available.

[SD] Only in CD, recording is available.

 Do not remove the USB device / SD card during recording, or an incomplete fi le may be made and not deleted on PC.

 When USB device / SD card is not connected, "REC ERR NO USB" / "REC ERR

NO SD" displays and cannot record.

 When USB device / SD card memory is full,

"MEMORY FULL" [LCS710BR / LCS710DAB]

"REC ERR MEMORY FULL" [LCF810BR /

LCF810DAB] displays and stops recording.

 While FM tuner / DAB / Bluetooth Handsfree recording, the broadcastings are recorded as a fi le every 20 minutes.

 While one track CD recording, "REC 1" appears. While other recording, "REC" appears.

 You can adjust the recording speed.

(Refer to the page 15.)

Listening to music by connecting iPod / iPhone

You can enjoy iPod / iPhone-stored music on the unit by connecting it to the USB connector using the appropriate cable.

[LCS710BR / LCS710DAB] [LCF810BR / LCF810DAB]

1. Open the USB cover.

2. Connect the iPod / iPhone.

3. Press SRC to select a source to USB.

4. Rotate the volume knob to adjust the volume on the unit.

Or press VOLUME W / S on the remote control.

,

Note

Refer to the page 23 to check the compatible iPod model for this unit.

Pausing or restarting playback

Or press d/M on the remote control.

2. Press it to resume playback.

Searching for a section within a track / fi le

During playback, press and hold A / D and then release at a point you want.

Checking information about your music

MP3 / WMA fi les often come with tags. The tag gives the Title, Artist or Album.

Press DISP repeatedly during MP3 / WMA fi le playback. If there is no information, "NO TEXT" will be shown in the display window.

Operating

23

Playing back tracks / fi les in a way you want

On the Unit

1. Press

F

.

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to select the option.

4. Press the volume knob to set the option.

If you want to return to the previous step, press

.

On the Remote Control

2. Press it again to cancel.

Or

If you want to return to the previous step, press

.

 RPT (Repeat)

The current selected tracks / fi les (1 RPT) or folder ( RPT) on the iPod / iPhone is played repeatedly.

 SHF (Shuffl e)

Each fi le in the currently selected album

( SHF) or all of the tracks / fi les (SHF) on the iPod / iPhone are played randomly.

During random playback, even if you press A, you won't go back to the previous track.

 SPD (BOOK SPEED)

You can adjust the audiobook speed of iPod / iPhone to NOR (Normal), FAST or SLOW.

Playing back fi les by music menus

You can check fi les by music menus and play it back.

The music menus are as follows.

PLAYLISTS / ARTISTS / ALBUMS / GENRES

/ SONGS / COMPOSER / AUDIO BOOK /

PODCAST / ...

1. Press the volume knob on the unit.

Or press ENTER on the remote control.

2. Rotate the volume knob on the unit to select a music menu and press it.

Or press w / s on the remote control.

3. Rotate the volume knob on the unit to select a fi le.

Or press w / s on the remote control.

4. Press the volume knob on the unit to confi rm the setting.

Or press ENTER on the remote control.

5. If you want to return to the previous step, press

.

Or press on the remote control.

2WAY Control

You can control on the unit and iPod / iPhone.

 Press iPOD / • TA on the unit. Then playback is paused. And you can control on the unit and iPod / iPhone.

 While using the 2WAY Control, any functions are not available on the unit.

 Press iPOD / • TA again to cancel the 2WAY

Control.

Compatible iPod models

iPod classic (5th / 6th generation) iPod nano (1st / 2nd / 3rd / 4th / 5th generation) iPod touch (1st / 2nd / 3rd generation) iPhone iPhone 3G iPhone 3GS iPhone 4

We recommend that you use the OS

Version 4.2.1 or more.

3

24

Operating

3

Microphone (OPTIONAL)

 Unit has a built-in microphone.

“Made for iPod” means that an electronic accessory has been designed to connect specifi cally to iPod and has been certifi ed by the developer to meet

Apple performance standards.

“Works with iPhone” means that an electronic accessory has been designed to connect specifi cally to iPhone and has been certifi ed by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. iPod is a trademark of Apple Inc., registered in the

U.S. and other countries.

iPhone is a trademark of Apple Inc.

[LCS710BR / LCS710DAB] [LCF810BR / LCF810DAB]

 The microphone needs to be close to and pointed toward the person speaking. Install the microphone as shown below.

Microphone unit

Connecting a

Bluetooth wireless technology

Before you start the pairing procedure, make sure the Bluetooth wireless technology is turned on in to your phone. Refer to your phone’s user guide.

Pairing links your unit and phone with Bluetooth wireless technology, and is required only once for the initial setup. If the connection is successful, the phone is registered (Device 1 to 10). The process of pairing may be diff erent depend on the phones.

The PIN CODE is 1234.

ON PLAYER

1. Enter the menu.

2. Find the "CONNECT" menu.

3. Enter the "CONNECT" menu.

4. Select the "SEARCH" menu.

Rotate the volume knob

Press the volume knob

Rotate the volume knob

5. Search the phones supported

Bluetooth wireless technology.

Press the volume knob

6. Select a phone you want to connect.

Rotate the volume knob

7. Connect the phone.

Press the volume knob

,

Note

If you power off the unit while talking on the phone through the unit by using the BT function, the function is deactivated and you can talk on the phone directly.

Operating

25

Using the buttons for

Bluetooth wireless technology

a b c d a Volume knob

• Press the volume knob : Go to the next contents of the setting.

• Rotate the volume knob : Move the contents vertically on the setting or choose a spell when you write the words on the unit. b

• Press it to enter BT function.

• Answers a call.

c

Returns to the previous step.

Ends a call.

d A / D

Adjusts the mic volume while talking on the phone by BT function.

• A : Press it to delete a spell or go back previous contents.

• D : When you write some words on the unit, press it to move next space on display.

Using a Bluetooth wireless technology

Disconnecting a phone

Go to the menu ( -> CONNECT -> LIST ->

Connected device name -> DISCONN).

Answering and Ending a call

When your unit rings, press to answer a call.

To end a call, press .

Rejecting a call

When your unit rings, press .

Making a call saved as a preset number

Press and a preset number (1 to 6).

Checking missed calls

When an incoming call is not answered, the missed call message is displayed on the display window

(without headset profi le). When the “ ? ” appears, go to the menu ( -> CALL -> LASTCALL). You can check the list of missed call.

,

Note

 The lists of LASTCALL are sorted from newest to oldest entries.

 When you want to make an international call, press D to add “+” and to delete it press again.

 “+” can only be added when the detail list of

LASTCALL is selected.

 Rejecting a call / Making a call saved preset number / Missed call notifi cation

(These features are only available on phones with Handsfree profi le.)

 You can record the Bluetooth Handsfree to

USB. (Refer to the page 21 to 22.)

3

26

Operating

3

Audio transfer

It is possible to switch the audio connection between your phone equipped with Bluetooth wireless technology and this unit.

1. Press to answer the call.

2. Press again. The “PRIVATE” is displayed.

If the private mode is selected on the unit, press to return to the call to hands-free mode.

Paring your unit and device with

Bluetooth wireless technology (MP3

Player, MP3 Phone...)

When you activate your Bluetooth device’s linked unit, you can listen to MP3 with wireless connections.

The method of use for a Bluetooth device is the same as when using a Bluetooth phone. Refer to the phone’s user guide for using this function.

Playing MP3 fi les

When you turn Bluetooth on, your device supported

Bluetooth wireless technology displays “Bluetooth” on the home screen. The Bluetooth remains on until you turn the device off . Press SRC repeatedly to select “BT”. To play an MP3 fi le stored on your device. Refer to the phone’s user guide for using this function. This feature is only available on phones with A2DP(Advanced Audio Distribution Profi le).

Bluetooth wireless technology profi les information

In order to use Bluetooth wireless technology, devices must be able to interpret certain profi les.

This unit is compatible with following profi les.

GAP (Generic Access Profi le)

HFP (Hands Free Profi le)

GAVDP (Generic Audio / Video Distribution Profi le)

A2DP (Advanced Audio Distribution Profi le)

AVRCP (Audio / Video Distribution Remote Control

Profi le)

PBA / PBAP (Phone Book Access Profi le)

Adjusting the setting

1. Press .

2. Rotate the volume knob to select an item and press it.

3. Rotate the volume knob to set the option and press it.

4. If you want to return to the previous step, press

.

CALL

 LASTCALL

Phone number list (Received, Dialed, Missed).

CALL -> LASTCALL -> Select the phone number

-> Press the volume knob -> Display the information -> Press the volume knob -> DIAL,

SAVE, DELETE menu will be displayed.

- To call the phone number, DIAL -> Press the

volume knob.

- To save the phone number, SAVE -> Press the

volume knob -> select the preset number (1 to

6) -> Press the volume knob.

Press the volume knob -> NAME -> Press the

volume knob.

volume knob -> ALL -> Press the volume knob.

 DIAL

Enters the number directly on the unit. To select the 0 to 9 rotate the volume. Press D to make the phone number. To call it, Press the volume knob.

 PRESET

Checks and deletes/dials the phone number saved preset number.

CALL -> PRESET -> Select the preset number and press the volume knob -> Display the information

-> Press the volume knob -> DIAL, DELETE menu will be displayed.

- To call the phone number, select DIAL and Press

the volume knob.

- To delete the selected phone number, DELETE ->

NAME -> Press the volume knob.

- To delete all phone number, DELETE -> ALL ->

Press the volume knob.

Operating

27

P-BOOK

 LIST

Checks the list of the phone numbers saved by phonebook.

 SEARCH

Searches the phone number in the list.

 GET

Getting the phonebook from the phone automatically. This menu is only available on phones with PBA / PBAP (Phone Book Access Profi le).

CONNECT

 LIST

Checks the list of the Connected Device Name.

 SEARCH

Searches the phones available to connect. The

Connected Device Name is displayed on the top.

SETUP

 VISIBLE

Makes it is impossible to search this unit.

(SHOWN <-> HIDDEN)

 AUTO CON

Adjusts connection with automatically or not.

(ON <-> OFF)

 AUTO ANS

Adjusts answering automatically or not.

(MANUAL <-> AUTO)

 MIC VOL

Adjusts microphone volume on the phone from 1 to 5. While you are on the phone with

Bluetooth wireless technology, press A / D (or c / v on the remote control) to adjust the

MIC volume.

 REDIAL

Adjusts the counts of redial. (1 TIME <-> 2 TIMES)

INFO

 NAME

Changes the name of this unit.

 ADDRESS

Checks the address.

 PIN-CODE

Changes the PIN code. Default is 1234.

WICS (Wireless Controller &

Synchronization)

You can control the unit by using the "WICS" application.

1. Search the “WICS” application and install it.

[Displays installed "WICS" application]

2. Pairing links your unit and iPhone with

Bluetooth wireless technology. (Refer to the page 24.)

3. When you run the “WICS” application, activating source is displayed after initial screen. Then you can control the unit on iPhone.

[Initial screen] [Tuner screen]

- You can select a source by pressing "SOURCE".

3

[Source Mode screen]

28

Operating

3

Phone compatibility list

Bluetooth list and manufacturing H : Hnadsfree P : Phonebook Sync (GET) company applicable. A : Audio Streming (A2DP)

Company List H A P Company List H A P

Nokia

Motorola

3250

6110

6288

E90

N73

N95

N77

E71

E61

5200

N80

N70

N72

N91

E75

N97

5800 (Xpress music)

C6

E5

E52

X6

N97-1

N900

6710 (Navigator)

ROKR E6

V3x

RIZR K1

V9

Z8

V9r

XT701

XT720

(MOTOROI)

Milestone Droid

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

SAMSUNG

SONY

ERICSSON

D900

SGH-U600

SGH-Z240

SGH-F300

SGH-E890

SGH-E950

SGH-F210

SGH-G600 i-900

F330

F480

L878

M8800 PIXON

S5603

S8003 JET(8GB) i8510 INNOV8 (16G) i8910 Omnia HD

U808

B5722

B7330 (Omnia Pro)

B7620 (Giorgio

Armani)

C3303K

(Champ)

M5650U (Lindy)

M8910

(Pixon12)

S7350

S8500 (Wave) i5503 (Galaxy 5) i5700 (Galaxy

Spica) i9000 (Galaxy

S(16G))

T959

Galaxy Tab

W880

Z610

W300

K800i

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

Operating

29

Bluetooth list and manufacturing H : Hnadsfree P : Phonebook Sync (GET) company applicable. A : Audio Streming (A2DP)

Company

SONY

ERICSSON

LG

List

P990i

W910i

C702i

G705

W595

W705

W980i

Xperia-X1

Vizaz

Xperia-X2

Xperia-X10

KE850

KU250

KU970

KS10

KC550

KC780

KC910(Renoir)

KF350(IceCream)

KF600

KF700

KF750(Secret)

KF900(PRADA2)

KM380

KM900(Arena)

KP500(Cookie)

KT520

KT610

KU990

GD900

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

H A P Company List

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

LG

Rim

O

O

O

O

O

O

O

APPLE

ASUS

HTC

BL40 (New Chocolate)

KM335

GD510 (POP)

GD880

GM730

GS500 (Cookie Plus)

GT505

GT540

GW305

GX500

Bold 9700

Storm2 9550 iphone iphone 3GS

(16GB) iphone 3GS

(32GB) iPhone 4G

(16GB)

I-Pad

P750

Goole G1

Magic G2

Hero G3

Touch2

Legend

Nexus One

Desire

O

O O

O

O

O

O

O

O

O

O

O

O

H A P

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

O

,

Note

 When the phone features <Bluetooth

Power Save> function, you should make the function turned on to maintain connection.

 When you switch the call mode from handsfree to phone, the connection may be disconnected.

 Some phones don’t support Reject function.

 Low battery in phone may cause the problems.

3

30

Operating

3

“The Bluetooth word mark and logos are owned by the Bluetooth SIG,

Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.”

Bluetooth® wireless technology is a system which allows radio contact between electronic devices within a max range of 10 meters.

Connecting individual devices under Bluetooth® wireless technology does not incur any charges. A mobile phone with Bluetooth® wireless technology can be operated via the Cascade if the connection was made via

Bluetooth® wireless technology.

operating condition for using a Bluetooth wireless technology function

 Close windscreen.

 Turn off the air conditioner / heater.

 Stop the vehicle or drive at low speed.

 Make the call in a quiet location.

- There may be diff erences in call quality depending on phone type, road conditions weather, etc.

- Using the phone while driving may cause unexpected accidents.

- The Bluetooth wireless technology function may not operate properly with certain types of phones

equipped with Bluetooth wireless technology.

Troubleshooting

31

Troubleshooting

Symptoms Cause

Power doesn't turned on.

The unit doesn't operate.

Leads and connectors are not properly.

The fuse is blown.

Solution

Confi rm once more that all connections are correct.

Rectify the problem that caused the fuse to blow, and then replace it. Be very sure to install the correct fuse with the same rate.

Turn the unit off and then on again.

No sound is heard.

Noise and other factors are causing the built in microprocessor to operate incorrectly.

Cables are not connected correctly.

Connect the cables correctly.

There's audio skipping.

This unit is not fi rmly secured.

Secure this unit fi rmly.

The playback is not possible.

The disc is dirty.

Clean the disc.

Radio stations cannot be tuned in.

The disc of unplayable type is loaded.

The signal strength of the stations is too weak. (When tuning in with automatic tuning.)

No station has been preset or preset stations have been cleared. (When tuning by scanning preset stations.) iPod/ iPhone does not work.

Check whether iPod / iPhone is connected to the unit correctly.

Battery power is low.

The unit does not operate correctly even when the appropriate remote control buttons are pressed.

Check what type the disc.

Tuned in the stations manually.

Preset the stations.

(Refer to the page 17.)

Connect it to the unit correctly.

Load a new battery.

4

32

Appendix

5

Specifi cations

General

Output Power : 53 W x 4 CH (Max.)

Power Source : DC 12 V

Speaker impedance : 4 Ω

Ground System : Negative

Dimensions (W x H x D) : (178 x 50 x169) mm

(without Control Panel)

Net Weight : 1.37 kg

TUNER

FM Tuning Range :

87.5 MHz to 108.0 MHz

S / N Ratio : 55 dB

Distortion : 0.7 %

Usable Sensitivity : 12 dBμV

AM (MW) Tuning Range :

(520 to 1720) kHz or (522 to 1620) kHz

S / N Ratio : 50 dB

Distortion : 1.0 %

Usable Sensitivity : 28 dBμV

DAB

Distortion : 0.1 %

Channel Separation (1 kHz) : 68 dB

CD

Frequency Response : 20 Hz to 20 kHz

S / N Ratio : 80 dB

Distortion : 0.12 %

Channel Separation (1 kHz) : 55 dB

AUX

Frequency Response : 20 Hz to 20 kHz

S / N Ratio : 80 dB

Distortion : 0.1 %

Channel Separation (1 kHz) : 45 dB

Max Input Level (1 kHz) : 1.1 V

USB

Version : USB 1.1 or USB 2.0 Full Speed

Bus Power Supply (USB) : DC 5 V 1 A

SD

Distortion : 0.1 %

Line OUT

Frequency Response : 20 Hz to 20 kHz

Output Voltage : 2 V (Max.)

Subwoofer

Frequency Response : 20 Hz to 120 Hz

Output Voltage : 2 V (Max.)

 Design and specifi cations are subject to change without notice.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
