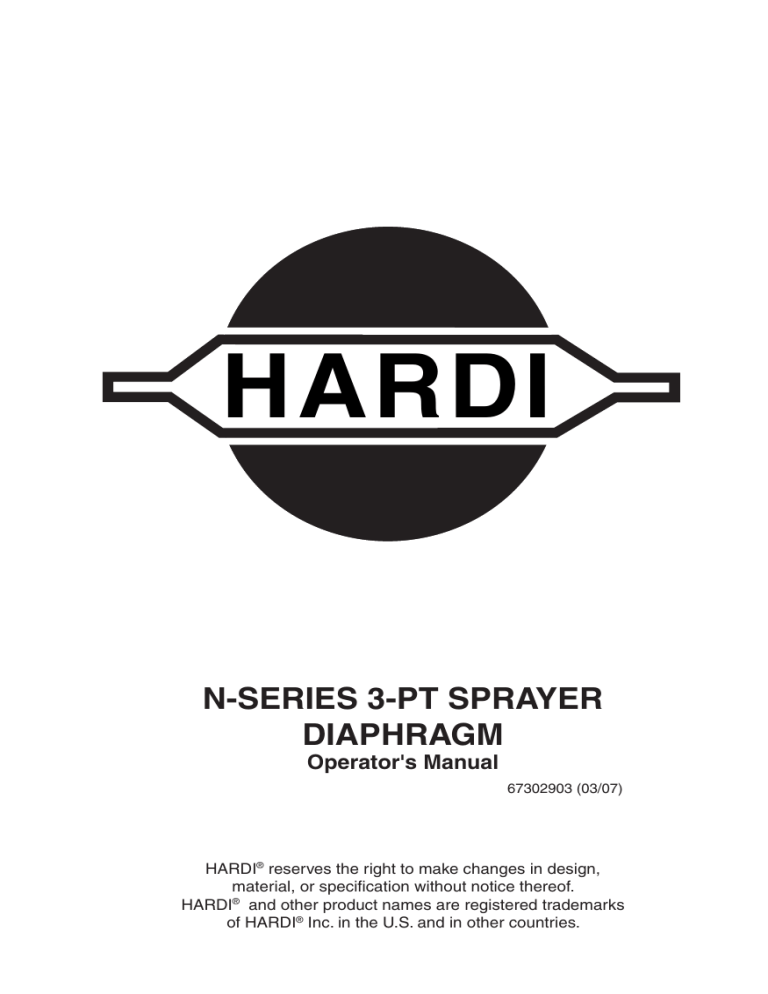

HARDI

N-SERIES 3-PT SPRAYER

DIAPHRAGM

Operator's Manual

67302903 (03/07)

HARDI

®

reserves the right to make changes in design, material, or specifi cation without notice thereof.

HARDI ® and other product names are registered trademarks of HARDI

®

Inc. in the U.S. and in other countries.

TABLE OF CONTENTS

1.0 INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.0 SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1 Follow Safety Instructions . . . . . . . . . . . . . . . . . . . . 9

2.2 Operating the Sprayer Safely . . . . . . . . . . . . . . . . . 9

2.3 Handling Chemical Products Safely . . . . . . . . . . . . 11

2.4 Local Poison Information Center . . . . . . . . . . . . . . . 12

3.0 HOOKING UP THE SPRAYER . . . . . . . . . . . . . . . . . . . . . . 13

3.1 P.T.O. Shaft Operator Safety . . . . . . . . . . . . . . . . . . 14

3.2 Installation Of P.T.O. Shaft. . . . . . . . . . . . . . . . . . . . 14

3.3 Power Supply (electric controls only) . . . . . . . . . . . 16

3.4 Control box (electric controls only) . . . . . . . . . . . . . 17

4.0 OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . 18

4.1 Filling The Main Tank (all models) . . . . . . . . . . . . . . 18

4.2 Filling The Clean Water Tank (optional). . . . . . . . . . 18

4.3 EC-3 Standard Plumbing Diagram . . . . . . . . . . . . . 19

4.4 EC-3 Plumbing Diagram w/optional Rate Controller 20

4.5 Adjustment of the EC-3 Electric Controls . . . . . . . . 21

4.6 ET-3 Manual Control Plumbing Diagram . . . . . . . . . 23

4.7 Adjustment of the ET-3 Manual Controls. . . . . . . . . 24

4.8 ET-2 Manual Control Plumbing Diagram . . . . . . . . . 26

4.9 Adjustment of the ET-2 Manual Controls. . . . . . . . . 27

4.10 BK-3 Manual Control Plumbing Diagram . . . . . . . . 29

4.11 Adjustment of the BK-3 Manual Controls . . . . . . . . 30

4.12 Operation Of The Tank Drain Valve (all models) . . . 33

4.13 Adjustment of Air Pressure in Pressure Damper

(All models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

4.14 Self Cleaning Filter (optional) . . . . . . . . . . . . . . . . . 34

(All models with standard booms) . . . . . . . . . . . . . . 35

(All models with standard booms) . . . . . . . . . . . . . . 36

2 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

5.0 NOZZLE SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

(All models with standard booms) . . . . . . . . . . . . . . 37

5.2 Giant End Nozzle Selection (Pasture Sprayer only) 40

5.3 Spraygun Nozzle Selection (All models) . . . . . . . . . 42

5.4 Calibration (All models with standard booms). . . . . 43

5.5 Calibration (Pasture sprayer model only) . . . . . . . . 47

6.0 MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

6.2 Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

6.3 Nozzles And Fittings . . . . . . . . . . . . . . . . . . . . . . . . 54

6.4 Replacement Of P.T.O. Shaft Protection Guards. . . 55

6.5 Replacement Of P.T.O. Shaft Cross Journals . . . . . 55

6.6 Changing the Valves and Diaphragms (all pumps) . 56

6.7 Breakaway Clutch Adjustment (MB Boom only) . . . 57

6.8 Lubrication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

7.0 OFF-SEASON STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . 61

7.1 Preparation after Off-Season Storage. . . . . . . . . . . 62

8.0 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

8.1 Clean Water Dispenser (optional) . . . . . . . . . . . . . . 63

8.2 Spraygun And Hose wrap (optional) . . . . . . . . . . . . 63

8.3 Maverick Rate Controller (optional). . . . . . . . . . . . . 64

8.4 Large 4" Pressure Gauge (optional) . . . . . . . . . . . . 64

8.5 Chemical Filler (optional) . . . . . . . . . . . . . . . . . . . . 65

8.6 Chemical Filler Bag & Bottle Rinse Kit (optional) . . 65

8.7 SMV Sign Kit (optional) . . . . . . . . . . . . . . . . . . . . . . 66

9.0 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

9.1 General Spray Systems . . . . . . . . . . . . . . . . . . . . . 67

10.0 TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . 69

10.1 Dimensions and weights . . . . . . . . . . . . . . . . . . . . . 69

10.2 Power consumption. . . . . . . . . . . . . . . . . . . . . . . . . 69

11.0 WARRANTY POLICY AND CONDITIONS . . . . . . . . . . . . 70

12.0 NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 3

HARDI

Dear Owner,

Thank you for purchasing a HARDI ® product and welcome to the ever- increasing family of HARDI ® sprayer owners.

Our sprayers and accessories are rapidly becoming a familiar sight on North American farms. We believe that this results from growers becoming increasingly conscious of crop protection input costs and the vital need for cost effective spray application equipment.

Please take the time to thoroughly read the Operator’s Manual before using your equipment. You will fi nd many helpful hints as well as important safety and operation information.

Some of the features on your HARDI

®

sprayer were suggested by growers. There is no substitute for “on farm” experience and we invite your comments and suggestions. If any portion of this instruction book remains unclear after reading it, contact your HARDI

®

dealer or service personnel for further explanation before using the equipment.

For Product, Service or Warranty Information:

- Please contact your local HARDI ® dealer.

To contact HARDI

®

directly:

- Please use the HARDI

®

Customer Service number: 1-866-770-7063

- Or send your email to [email protected]

Visit us online at: www.hardi-us.com

HARDI

®

NORTH AMERICA INC.

1500 West 76th St.

Davenport, Iowa 52806

8550 W. Roosevelt Avenue

Visalia, California 93291

Phone: (563) 386-1730

Fax: (563) 386-1710

Phone: (559) 651-4016

Fax: (559) 651-4160

Sincerely,

290 Sovereign Rd.

London, Ontario N6M 1B3

Phone: (519) 659-2771

Fax: (519) 659-2821

4

Rex R. Guthland

President

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

Fig. 1

N155 GALLON 3-PT WITH 26' MB BOOM

Fig. 2

N105 GALLON 3-PT PASTURE SPRAYER MODEL

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 5

6

1.0 INTRODUCTION

We congratulate you for choosing a HARDI

® plant protection product.

The reliability and effi ciency of this product depends on your care. The fi rst step is to carefully read and pay attention to this operator's manual.

It contains essential information for the effi cient use and long life of this quality product.

As this instruction book covers all N-series models, please pay attention to the sections dealing with your specifi c model.

This manual covers the HARDI

®

N-series 3-PT sprayers, available in

105, 155 or 210 gallon (400 L, 600 L or 800 L) capacities. They are equipped with a HARDI

®

603, 1203 or 1303 diaphragm pump (540

RPM P.T.O. drive), 3-PT frame and tank with electrical (EC) or manual

(ET or BK) controls. Available standard booms include:

N105: 20' MB, 26' MB

N155: 20' MB, 26' MB, 33' MB, 40' MB

N210: 20' MB, 26' MB, 33' MB, 40' MB

Other boom options include: No boom (spray gun only), pasture sprayer nozzles (30', 40', 50' spray width), VS8D 1-Row Berry Boom or

VII 2-Row Berry Boom.

The heart of your sprayer is the diaphragm pump. The design is simple, resulting in low maintenance requirements and guaranteed pump life.

The bearings and crankshaft are grease lubricated and are therefore protected from spray solution if any diaphragm fails in service. A drain hole is located in the base of the crank case to facilitate the draining of any foreign matter. The pump is self-priming and can be run dry without damage.

The EC-3 electric control unit consists of: Electrically operated master on/off valve, electrically operated boom distribution valves, manual pressure adjustment valve, 2-1/2" pressure gauge, and adjustable pressure agitation.

The ET-2/ET-3 manual control unit consists of: Manual pressure adjustment valve, boom distribution valves, 2-1/2" pressure gauge, and adjustable pressure agitation.

Note: ET-2 control is used on pasture sprayer model

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

The BK-3 manual control unit consists of: On/off function, distribution valves with pressure equalization, manual pressure adjustment valve, pressure fi lter with 2-1/2" pressure gauge and HARDI-MATIC. The

HARDI-MATIC is a mechanical rate controller that ensures a constant volume of spray solution per acre at varying speeds in the same gear.

The tanks, made of impact proof and chemical resistant poly eth yl ene, have a purposeful design with rounded contours and a large deep equipped with a top suction fi lter for easy service and a top operated tank drain.

All standard booms (20', 26', 33' or 40' MB) feature ISO fl at fan nozzles with 20" spacing. The 40' MB boom features a self-levelling trapeze center.

The pasture sprayer model includes a height adjustable offset nozzle bracket bolted to the rear of the 3-PT frame for mounting either two

HARDI ® Giant End Nozzles or two "Boom Buster" nozzles (Evergreen

Products, Inc.). The two HARDI ® Giant End Nozzles provide a consistent spray pattern and droplet distribution. They are available in three different sizes ranging from 3.22 - 9.38 GPM (12.7 - 36 l/min) between 20 - 70 PSI (1.5 - 5 bar) spray pressure. Under optimal spraying conditions, the maximum spray swath covered by the two opposite mounted HARDI ® Giant End Nozzles is 30', 40' or 50' (10m,

12m or 16m).

Available options include:

Spray Mate II Rate Controller (requires electric EC control)

Remote control cable (for manual BK control only)

Self cleaning fi lter (with 50 mesh fi lter)

4 gallon (15 L) clean water dispenser

Chemical fi ller with optional bag & bottle rinse

4" pressure gauge

Hose wrap with 25' of 3/8" hose and a model 60L HARDI ® spray gun

Hose reel with 160' of 3/8" hose and a model 60L HARDI ® spray gun

*

Hose reel with 275' of 5/8" hose and a model 60L HARDI ® spray gun

**

Hydraulic boom vertical fold (40' MB boom only)

SMV Sign kit

*

Not available on N210 with boom

**

Not available with boom

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 7

2.0 SAFETY INFORMATION

WARNING

ALWAYS READ OPERATOR'S MANUAL BEFORE

USING EQUIPMENT

DO NOT REMOVE ANY SAFETY DEVICES OR

SHIELDS. NEVER SERVICE, CLEAN OR REPAIR A

MACHINE WHILE IT IS OPERATING

WARNING

ALWAYS WATCH FOR THIS SYMBOL TO POINT OUT

IMPORTANT SAFETY PRECAUTIONS

IT MEANS ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED!

8 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

RECOGNIZE SAFETY INFORMATION

This is the Safety-alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for per son al injury.

Follow recommended precautions and safe operating practices.

2.1 Follow Safety Instructions

- Carefully read all the safety messages in this manual and the safety labels fi tted to the machine. Keep safety labels in good condition.

Replace missing or damaged safety labels. Be sure that new equipment components include any current safety labels. Replacement safety labels are available from your authorized HARDI

®

dealer.

- Learn how to operate the sprayer and how to use the controls

instructions.

- Keep your sprayer in proper working condition. Unauthorized modifi cations or use may impair the function and/or safety and affect the machine's life.

- If you do not understand any part of this manual and need assistance, please contact your authorized HARDI

®

dealer.

2.2 Operating The Sprayer Safely

1. Read the complete manual carefully and become familiar with the operation of the equipment before initial operation in each spraying season. Failure to do so may result in possible over or under-application of spray solution which may drastically affect crop production and lead to personal injury.

2. Before starting the engine on the tractor unit, be sure all operating

controls are in the off or neutral position (including spray controls) and disengage the tractor power train.

3. Operate spray functions only when seated in the operator’s seat.

4. One of the most frequent causes of personal injury or death results from persons falling off or being run over. Do not permit others to ride on or in. Only one person, the operator, should be on the machine when in operation.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 9

5. Before leaving the tractor seat, stop the engine, put all controls in neutral, and put the transmission control lever in the park position or neutral with the brakes locked. Read the tractor operations manual for added safety precautions.

6. P.T.O. driven equipment can cause serious injury. Before working on or near the P.T.O. shaft, servicing or cleaning the equipment, put

P.T.O. lever in the DISENGAGE position and stop the engine.

7. Keep hands, feet & clothing away from moving parts.

8. Wear relatively tight and belted clothing to prevent from being caught on some part of the machine.

9. Slow down when turning.

10. Always keep children away from your sprayer and/or tractor unit.

11. Slow moving tractors and spray equipment can create a hazard when on public roads. Avoid personal injury or death resulting from any accidents by using fl ashing lights. Local regulations may require installation of fl ashing warning lights.

12. Understand service procedures before undertaking any maintenance. Never lubricate, service, or adjust the machine while it's moving. Securely support any components before working on them.

13. Keep all parts in good condition and properly installed. Fix damaged parts immediately. Replace worn or broken parts. Remove excessive buildup of grease, oil or debris.

10 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

2.3 Handling Chemical Products Safely

1. Direct exposure to hazardous chemicals can cause serious injury.

These chemicals can include lubricants, coolants, paints, adhesives and agricultural chemicals. Material Safety Data Sheets (M.S.D.S.) are available for all hazardous chemicals which inform the user of specifi c details including, physical and health hazards, safety procedures, and emergency response techniques.

2. Protective clothing such as rubber gloves, goggles, coveralls and respirator must be worn while handling chemicals. All protective clothing should be kept in excellent condition and cleaned regularly or discarded.

3. If chemicals come in contact with any exposed skin areas, wash immediately with clean water and detergent. Never place nozzle tips or any other components that have been exposed to chemicals to lips to blow out obstructions. Use a soft brush to clean spray nozzles.

4. Dedicate an area to fi ll, fl ush, calibrate and decontaminate sprayer where chemicals will not drift or run off to contaminate people, animals, vegetation, water supply, etc. Locate this area where there is no chance of children coming in contact with this residue.

5. Decontaminate equipment used in mixing, transferring and applying chemicals after use. Follow the instructions on the chemical label for the correct procedure required. Wash spray residue from outside of the sprayer to prevent corrosion.

6. Extreme care should be taken in measuring spray products. Powders should be used in suitable sized packages or weighed accurately.

Liquids should be poured into a suitable graduated container. Keep chemical containers low when pouring. Wear a fi ltered respirator and let the wind blow away from you to avoid dust and/or splashes contacting the skin or hair.

7. Store chemicals in a separate, plainly marked locked building. Keep the chemical in its original container with the label intact.

8. Dispose all empty containers after rinsing in accordance with local regulations & by-laws. Dispose of all unused chemicals and left over fertilizer in an approved manner

9. Keep a fi rst aid kit and fi re extinguisher available at all times when

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 11

2.4 Local Poison Information Center

If you live anywhere in the United States, the following toll free number will connect you to your Local Poison Information Center.

PHONE NO. 1 - 8 0 0 - 2 2 2 - 1 2 2 2

If you live outside the United States, fi nd the number for the poison control center in your phone book and write it in the space below:

PHONE NO. _________ - _________ - _____________

Keep a list, in the space provided below, of all the chemicals that you have in use.

1. __________________________________________________

2. __________________________________________________

3. __________________________________________________

4. __________________________________________________

5. __________________________________________________

6. __________________________________________________

7. __________________________________________________

8. __________________________________________________

9. __________________________________________________

10. __________________________________________________

12 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

3.0 HOOKING UP THE SPRAYER

WARNING: MAKE SURE THAT YOUR TRACTOR HAS SUFFICIENT

HORSEPOWER, BRAKING ABILITY AND CARRYING

CAPACITY TO SAFELY CONTROL THE TRACTOR WITH

THE SPRAYER MOUNTED.

Check your tractor operator's manual for 3 point lifting capacity (See section 10.1 for approximate weight of your N-series model sprayer and section 10.2 for minimum tractor power requirements).

1. Attach lower lift arms.

2. Attach P.T.O. shaft (See sections 3.1 and 3.2).

3. Attach top link.

IMPORTANT: Make absolutely sure that the correct 3 point hitch

pins are used and that they are securely installed.

4. Raise sprayer from ground and adjust 3 point linkage so that tank is level in the raised position (ensure that the sprayer tank is level from side to side as well as front to back).

5. Also follow these general recommendations:

• Increase tire pressure if necessary (refer to tractor operator's manual) to compensate for the added weight.

• Make sure that no parts of the sprayer come into contact with the tractor.

• Be careful when fi lling the sprayer for the fi rst time.

• Travel at slower speeds when driving with a full tank.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 13

14

3.1 P.T.O. Shaft Operator Safety

WARNING: ALWAYS STOP ENGINE BEFORE ATTACHING THE

TRANSMISSION SHAFT TO TRACTOR P.T.O. - MOST

TRACTOR P.T.O. SHAFTS CAN BE ROTATED BY HAND

TO FACILITATE SPLINE ALIGNMENT, WHEN ENGINE

IS STOPPED.

When attaching the shaft, make sure that the snap lock is FULLY

ENGAGED - push and pull shaft until it locks.

PROTECTION GUARDS ARE FATAL.

Always keep protection guards and chains intact and make sure that it covers all rotating parts, in clud ing CV-joints at each end of the shaft.

Do not use with out protection guard.

Do not touch or stand on the transmission shaft when it is rotating

- safety distance: min 5' (1.5 meters).

Prevent protection guards from rotating by attaching the chains, al low ing suffi cient slack for turns.

Make sure that protection guards around tractor P.T.O. and im ple ment shaft are intact. Check every 40 hours.

Always STOP ENGINE and re move the ignition key before car ry ing out main te nance or repairs to the trans mis sion shaft or im ple ment.

3.2 Installation Of P.T.O. Shaft

WARNING: THE P.T.O. SHAFT ANGLE WILL CHANGE WHEN

RAISING AND LOWERING THE 3 POINT LINKAGE.

TO PREVENT EXCESSIVE LOADING AND BINDING

ON THE P.T.O. SHAFT, IT MAY BE ADVISABLE TO

LEAVE THE P.T.O. SHAFT DISCONNECTED UNTIL

THIS OPERATION IS COMPLETED. THEN P.T.O. SHAFT

ADJUSTMENTS CAN BE MADE.

Initial in stal la tion of the shaft is done as fol lows:

1. Attach sprayer to tractor and set sprayer in the position with shortest distance between the tractor and spray er pump P.T.O. shafts.

2. Stop engine and remove ig ni tion key.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

3.2 Installation Of P.T.O. Shaft (continued)

3. If P.T.O. shaft must be short ened, pull the shaft apart. Fit the two shaft parts at tractor and spray er pump and measure how much it is necessary to shorten the shaft. Mark the protection guards.

min. 6" (150mm)

Fig. 3

min. 3/4" (20mm)

Note: The shaft must al ways have a minimum over lap of 6" (150 mm)

(Fig. 3).

4. Shorten the two parts equal ly. Use a saw, and fi le the profi les af ter wards to re move burrs (Fig. 4).

min. 3/4" (20mm)

Fig. 4

5. Grease the profi les, and reas sem ble the male and female parts.

6. Fit the shaft to tractor and spray er pump.

Fig. 5

Note: Female part to wards tractor. Fit the chains to prevent the pro tec tion guards from rotating with the shaft.

7. To ensure long life of the P.T.O. shaft, try to avoid work ing an gles great er than 15° (Fig. 5).

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 15

3.3 Power Supply (electric controls only)

A 12 Volt DC power supply is required to operate the electrical boom distribution valve solenoids (Fig. 6). Connect the power supply wiring harness as follows:

Red wire to positive (+) and Black wire to negative (-).

IMPORTANT: Do not connect to the starter motor or generator/alterna-

tor. Warranty is void if this is done.

The power supply wiring harness is equipped with a 7.5 Amp inline fuse to protect the control box.

DISTRIBUTION VALVE SOLENOIDS

Fig. 6

16 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

3.4 Control box (electric controls only)

The HARDI ® N-series 3-PT sprayer equipped with electric controls uses an electrical control box for master on/off control and individual boom section on/off control. An optional rate controller box is also available.

1. Mount the control box in a convenient location near the operator.

2. Route the power supply (installed in section 3.3) to the small plug on the control box.

3. Route the main wiring harness from the sprayer to the large plug on the control box.

Fig. 7

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 17

4.0 OPERATING INSTRUCTIONS

4.1 Filling The Main Tank (all models)

Water is fi lled into the tank by re mov ing the tank lid located at the center of sprayer tank. It is rec om mend ed to use water as clean as possible for spraying pur pos es. Fill water through the strainer basket

(optional) to pre vent foreign par ti cles from entering the tank.

WARNING: DO NOT LET THE FILLING HOSE ENTER THE TANK.

KEEP IT OUT SIDE THE TANK, POINTING TOWARDS

THE FILLING HOLE (FIG. 8). IF THE END OF THE

HOSE IS BENEATH THE SURFACE OF THE

TANK CONTENTS AND THE WATER SUPPLY

STOPS, CHEMICALS

MAY BE SIPHONED

BACK AND CONTAMI-

NATE THE WATER

SUPPLY SOURCE

AND LINES.

Fig. 8

4.2 Filling The Clean Water Tank (optional)

Unscrew the clean water tank lid and fi ll with clean water only.

IMPORTANT: The water from this tank is only for hand washing,

cleaning blocked nozzles, etc.

WARNING: ALTHOUGH THE HANDWASH TANK IS

ONLY FILLED WITH CLEAN WATER,

THE WATER MUST NEVER BE USED

FOR DRINKING, DUE TO THE SMALL

RISK OF CONTAMINATION WHILE

FILLING, ETC.

Fig. 9

18 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

4.3 EC-3 Standard Plumbing Diagram

Review and study the following diagram. By following the fl ow through the diagram, you will better understand the various functions of your sprayer system.

7

11

6

5 4

3

9

1

8

10

12

2

13

Fig. 10

2. Diaphragm Pump

3. Pressure Control Valve

6. System Pressure Gauge

7. Spraygun (optional)

9. Tank

10. Bypass Return

4. Agitation Valve 11. Self-Cleaning Filter (optional)

5. Spraygun Valve (optional) 12. Boom Distribution Valves

13. Boom

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 19

4.4 EC-3 Plumbing Diagram w/optional Rate Controller

Review and study the following diagram. By following the fl ow through the diagram, you will better understand the various functions of your sprayer system.

7

6

5 4

3

11

10

9

1

8

10

14

12

15

2

20

13

Fig. 11

2. Diaphragm Pump

3. Pressure Relief Valve*

10. Bypass Returns

11. Self-Cleaning Filter (optional)

4. Agitation Valve 12. Boom Distribution Valves

5. Spraygun Valve (optional) 13. Boom

6. System Pressure Gauge

7. Spraygun (optional)

8. Agitation

14. Flowmeter

15. Pressure Regulator

*Turn Pressure Relief Valve clockwise all the way in when used with the optional Rate Controller. Refer to Maverick Operator's manual for adjustment of the controls.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

4.5 Adjustment of the EC-3 Electric Controls

1

2

4

3

SPRAYER CONTROLS:

1. Pressure control valve

2. System Pressure gauge

3. Agitation valve

4. Spraygun valve (optional)

5

CONTROL BOX:

5. Master On/Off Switch

6. Distribution Switches

SPRAYGUN

VALVE

OFF

6

Fig. 12

ON

Boom Operation

1. Choose the correct nozzle. Make sure that all nozzles are the same type and capacity. Refer to section 5.0 for nozzle selection and calibration.

2. Locate your sprayer in a suitable location to spray water from the boom. Fill the tank with clean water (see section 4.1).

3. Turn the Pressure Control Valve 1 (Fig. 12) counter clockwise all the way out.

4. Set Master On/Off boom switch 5 and individual boom switches 6

(Fig. 12) "ON". Set spraygun valve 4 (Fig. 12) "OFF".

5. With the tractor in neutral, engage the P.T.O. to start the pump.

Adjust the R.P.M.'s to normal operating speed.

6. Increase pressure by turning Pressure Control Valve 1 (Fig. 12) clockwise. Adjust until the pressure gauge 2 (Fig. 12) reaches the desired pressure (turn Pressure Control Valve counter clockwise to decrease pressure).

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 21

Operating the Spraygun (optional)

7. Set spraygun valve 4 (Fig. 12) "ON" and set Master On/Off boom switch 5 (Fig. 12) "OFF".

8. Then depress the red handle A (Fig. 13) to spray fl uid from the spraygun. Check the pressure on the system pressure gauge 2 (Fig.

12) and follow step 6 to adjust.

9. To adjust the spray pattern, turn the black handle B (Fig. 13) OUT for a narrow spray pattern for long distances and IN for a wide pattern for more coverage at close distances.

22

Fig. 13

Agitation Adjustment

Ag i ta tion is nec es sary to keep the so lu tion in your tank prop er ly mixed.

Con sult your chem i cal sup pli er for the rec om mend ed amount of ag i ta tion.

In gen er al, max i mum agitation is required but some products tend to foam easily. To reduce foaming in some instances anti-foaming agents may be added to the tank (Refer to chemical label). When running low liquid levels in the tank, agitation may be reduced to fa cil i tate pump priming and avoid pressure fl uc tu a tions. Make sure that you have ad-

just ed the agitation properly before sprayer calibration.

Turn the agitation valve 3 (Fig. 12) clockwise to reduce the agitation fl ow. Turn the valve counter-clockwise to in crease the agitation fl ow.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

4.6 ET-3 Manual Control Plumbing Diagram

Review and study the following diagram. By following the fl ow through the diagram, you will better understand the various functions of your sprayer system.

7

6

5 12

3

4

9

1

8

10

11

2

13

Fig. 14

2. Diaphragm Pump

3. Pressure Control Valve

6. System Pressure Gauge

7. Spraygun (optional)

9. Tank

10. Bypass Return

4. Agitation Valve 11. Self-Cleaning Filter (optional)

5. Spraygun Valve (optional) 12. Boom Distribution Valves

13. Boom

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 23

4.7 Adjustment of the ET-3 Manual Controls

3

5

2

1

4

24

Fig. 15

1. Pressure control valve

2. Distribution valves

3. System pressure gauge

4. Agitation valve

5. Spraygun valve (optional)

ON

OFF

Boom Operation

1. Choose the correct nozzle. Make sure that all nozzles are the same type and capacity. Refer to section 5.0 for nozzle selection and calibration.

2. Locate your sprayer in a suitable location to spray water from the boom. Fill the tank with clean water (see section 4.1).

3. Turn the Pressure Control Valve 1 (Fig. 15) counter clockwise all the way out.

4. Set the three distribution valves 2 (Fig. 15) to the ON position. Set spraygun valve 5 (Fig. 15) to the OFF position.

5. With the tractor in neutral, engage the P.T.O. to start the pump.

Adjust the R.P.M.'s to normal operating speed.

6. Increase pressure by turning Pressure Control Valve 1 (Fig. 15) clockwise. Adjust until the pressure gauge 3 (Fig. 15) reaches the desired pressure (turn Pressure Control Valve counter clockwise to decrease pressure).

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

Operating the Spraygun (optional)

7. Set the three distribution valves 2 (Fig. 15) to the OFF position. Set spraygun valve 5 (Fig. 15) to the ON position.

8. Then depress the red handle A (Fig. 16) to spray fl uid from the spraygun. Check the pressure on the system pressure gauge 3 (Fig.

15) and follow step 6 to adjust.

9. To adjust the spray pattern, turn the black handle B (Fig. 16) OUT for a narrow spray pattern for long distances and IN for a wide pattern for more coverage at close distances.

Fig. 16

Agitation Adjustment

Ag i ta tion is nec es sary to keep the so lu tion in your tank prop er ly mixed.

Con sult your chem i cal sup pli er for the rec om mend ed amount of ag i ta tion.

In gen er al, max i mum agitation is required but some products tend to foam easily. To reduce foaming in some instances anti-foaming agents may be added to the tank (Refer to chemical label). When running low liquid levels in the tank, agitation may be reduced to fa cil i tate pump priming and avoid pressure fl uc tu a tions. Make sure that you have ad-

just ed the agitation properly before sprayer calibration.

Turn the agitation valve 4 (Fig. 15) clockwise to reduce the agitation fl ow. Turn the valve counter-clockwise to in crease the agitation fl ow.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 25

4.8 ET-2 Manual Control Plumbing Diagram

Review and study the following diagram. By following the fl ow through the diagram, you will better understand the various functions of your sprayer system.

7

6

5 12

3

4

1

9

8

10

11

13 2

Fig. 17

2. Diaphragm Pump

3. Pressure Control Valve

6. System Pressure Gauge

7. Spraygun (optional)

9. Tank

10. Bypass Return

4. Agitation Valve 11. Self-Cleaning Filter (optional)

5. Spraygun Valve (optional) 12. Boom Distribution Valves

13. Pasture Sprayer Nozzles

26 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

4.9 Adjustment of the ET-2 Manual Controls

3

5

2

1

4

Fig. 18

1. Pressure control valve

2. Distribution valves

3. System pressure gauge

4. Agitation valve

5. Spraygun valve (optional)

ON

OFF

Operating the Pasture Sprayer Nozzles

1. Choose the correct pasture sprayer nozzles (Section 5.2). Make sure that both nozzles are the same type and capacity.

2. Locate your sprayer in a suitable location to spray water from the boom. Fill the tank with clean water (see section 4.1).

3. Turn Pressure Control Valve 1 (Fig. 18) counter clockwise all the way.

4. Set the two distribution valves 2 (Fig. 18) to the ON position. Set spraygun valve 5 (Fig. 18) to the OFF position.

5. With the tractor in neutral, engage the P.T.O. to start the pump.

Adjust the R.P.M.'s to normal operating speed.

6. Increase pressure by turning Pressure Control Valve 1 (Fig. 18) clockwise. Adjust until the pressure gauge 3 (Fig. 18) reaches the desired pressure (turn Pressure Control Valve counter clockwise to decrease pressure).

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 27

Operating the Spraygun (optional)

7. Set the two distribution valves 2 (Fig. 18) to the OFF position. Set spraygun valve 5 (Fig. 18) to the ON position.

8. Then depress the red handle A (Fig. 19) to spray fl uid from the spraygun. Check the pressure on the system pressure gauge 3 (Fig.

18) and follow step 6 to adjust.

9. To adjust the spray pattern, turn the black handle B (Fig. 19) OUT for a narrow spray pattern for long distances and IN for a wide pattern for more coverage at close distances.

28

Fig. 19

Agitation Adjustment

Ag i ta tion is nec es sary to keep the so lu tion in your tank prop er ly mixed.

Con sult your chem i cal sup pli er for the rec om mend ed amount of ag i ta tion.

In gen er al, max i mum agitation is required but some products tend to foam easily. To reduce foaming in some instances anti-foaming agents may be added to the tank (Refer to chemical label). When running low liquid levels in the tank, agitation may be reduced to fa cil i tate pump priming and avoid pressure fl uc tu a tions. Make sure that you have ad-

just ed the agitation properly before sprayer calibration.

Turn the agitation valve 4 (Fig. 18) clockwise to reduce the agitation fl ow. Turn the valve counter-clockwise to in crease the agitation fl ow.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

4.10 BK-3 Manual Control Plumbing Diagram

Review and study the following diagram. By following the fl ow through the diagram, you will better understand the various functions of your sprayer system.

6

12

14

7

3

4

5

10

1

10

11

9

8

2

13

Fig. 20

2. Diaphragm Pump

3. HARDI-MATIC

9. Tank

10. Bypass Returns

4. Agitation Valve 11. Self-Cleaning Filter (optional)

5. Spraygun Valve (optional) 12. Boom Distribution Valves with

6. Pressure Filter with

pressure gauge

7. Spraygun (optional)

pressure equalization

13. Boom

14. On/Off Valve

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 29

4.11 Adjustment of the BK-3 Manual Controls

2

A

B

6

5 B

3

4

1

A

30

Fig. 21

1. Choose the correct nozzle. Make sure that all nozzles are the same type and capacity. Refer to section 5.0 for nozzle selection and calibration.

2. Locate your sprayer in a suitable location to spray water from the boom. Fill the tank with clean water (see section 4.1).

3. Open or close lever 1 (Fig. 21) depending on whether pressure agitation is required (Remember pressure agitation takes 5% to 10% of pump output).

4. Turn main On/Off handle 2 (Fig. 21) to ON position A.

5. Set all hand levers 3 (Fig. 21) on the distribution valves to ON position A.

6. Turn the HARDI-MATIC valve 4 (Fig. 21) counter-clockwise all the way out.

7. With the tractor in neutral, engage the P.T.O. to start the pump.

Adjust the R.P.M.'s to normal operating speed.

Note: The P.T.O. revolutions must be kept between 300-600 R.P.M. for the HARDI-MATIC to function properly.

8. Increase pressure by turning the HARDI-MATIC valve 4 (Fig. 21) clockwise. Adjust until the pressure gauge 6 (Fig. 21) reaches the desired pressure (turn HARDI-MATIC valve counter clockwise to decrease pressure).

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

Adjustment of Pressure Equalization

Note: Adjust the constant boom section pressure one section at a time as follows: (Start with the valve turned closed before adjusting).

9. Place the fi rst boom distribution valve lever 3 (Fig. 21) in the OFF position B.

10. Turn the adjusting screw 5 (Fig. 21) until the pressure gauge 6

(Fig. 21) again shows the same pressure as in step 8 (Turn the screw clockwise for higher pressure, counter clockwise for lower pressure).

11. Turn the boom distribution valve lever 3 (Fig. 21) back to the ON position A.

12. Repeat steps 9 through 11 for the remaining boom section valves.

Note: Hereafter adjustment of the constant boom pressure will only be needed if you change to nozzles with other capacities, but not required if only changing pressure or application rate using the same nozzles.

Operating the Control Unit while driving

13. In order to shut off the entire boom, turn the ON/OFF handle 2 (Fig.

21) to OFF position B. This returns the pump output to the tank through the return system. The diaphragm anti-drip valves ensure instantaneous closing of all nozzles.

In order to shut off one or more boom sections, turn the boom distribution lever(s) 3 (Fig. 21) of the unneeded boom section(s) to OFF position B. The constant pressure device ensures that the pressure does not increase in the section(s) which are still operating.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 31

Operating the Spraygun (optional)

14. Set the three distribution valves 3 (Fig. 21) to the OFF position. Set spraygun valve 5 (Fig. 20) to the ON position.

15. Then depress the red handle A (Fig. 22) to spray fl uid from the spraygun. Check the pressure on the system pressure gauge 6

(Fig. 21) and follow step 8 to adjust.

16. To adjust the spray pattern, turn the black handle B (Fig. 22) OUT for a narrow spray pattern for long distances and IN for a wide pattern for more coverage at close distances.

Fig. 22

32 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

4.12 Operation Of The Tank Drain Valve (all models)

WARNING: BEFORE USING THE TANK DRAIN, VERIFY THAT

DISPOSAL OF WASTE IS DONE ACCORDING TO

CHEMICAL LABEL INSTRUCTIONS AND LOCAL

REGULATIONS.

The HARDI

®

N-series 3-PT sprayer is equipped with a top operated tank drain valve.

The top operated tank drain valve handle is located near the tank lid. To open the drain valve, turn the red drain valve handle (Fig. 23) counter-clockwise.

To close the drain valve, turn the handle (Fig. 23) clockwise.

TOP OPERATED TANK DRAIN

To open

To close

Fig. 23

4.13 Adjustment of Air Pressure in Pressure Damper

(All models)

The air pressure in the damper on the HARDI

®

diaphragm pump is factory preset at 30 psi (2 bar). This is suitable for nozzle spray pressures between 45 psi (3 bar) and 225 psi (15 bar). If different nozzle pressures are required, set pressure damper at pressures indicated.

PSI (BAR)

20-45 (1-3)

PSI (BAR)

0-15 (0-1)

45-255 (3-15) 15-45 (1-3)

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 33

4.14 Self Cleaning Fil ter (optional)

This fi lter automatically fl ushes out particles and chemical deposits, re duc ing routine main te nance, nozzle plugging and operator exposure.

No ad just ments are required but different mesh screens may be installed for various types of products. The mesh size of the fi l ter in use should al ways be small er than the fl ow av er age of the noz zles used.

Self-Cleaning Filter

Operating Diagram

2. Double fi lter screen

4. To operating unit

6. Return to tank

Choice Of Correct Restrictor for S.C.F.

It is important to have a large fl ow though the self clean ing fi lter. This is achieved by choos ing the restrictor size in re la tion to the liquid con sump tion of the spray boom.

The hose (A) is un screwed from the self-clean ing fi lter. Be careful not to lose the seal ball or spring when the restrictor is put in the hose and the hose be ob tained, the restrictor is too large. 4 Restrictors are supplied. Use the green one (larg est or i fi ce) fi rst.

Choose the next smaller restrictor. Start with a black one, then a white and fi nal ly a red one.

34 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

4.15 Unfolding/Folding Boom

(All models with standard booms)

Unfolding boom into operating position

1. Remove transport lock pins A (Fig. 24) and swing boom into operating position. Store transport lock pins in original locations so they don't get lost.

2. Lift outer boom sections up and over to horizontal position (not necessary for 20' MB boom). Carefully check that feed hoses do not interfere with spray pattern.

3. Remove trapeze lock pin B (Fig. 24) to allow for self-leveling boom feature (40' MB boom only).

Note: The trapeze lock pin may also be used to lock the boom in a tilted position (40' MB boom only).

A

B

Fig. 24

Folding boom into transport position

1. Replace trapeze lock pin B (Fig. 24) in center position (40' MB boom only).

2. Fold outer boom section over to rest on inner boom section (not necessary for 20' MB boom).

3. Remove transport lock pins A (Fig. 24) and fold boom into transport position. Secure with transport lock pins A (Fig. 24).

WARNING: MAKE ABSOLUTELY CERTAIN BOOM TRANSPORT LOCK

PINS ARE INSTALLED AND SECURED WITH CLIP PINS

BEFORE TRANSPORTING THE SPRAYER.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 35

4.15 Boom Height Adjustment

(All models with standard booms)

Correct boom height is very important in order to achieve the most optimal spray pattern. Small adjustments of the boom height can usually be made with the 3-point suspension from the tractor - raising or lowering the sprayer.

In crops where greater adjustments are needed, the boom height can be changed manually by removing the 4 bolts holding the boom to the frame.

Note: This is best done by 2 people or with a mechanical hoist.

36 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

5.0 NOZZLE SELECTION

Correct selection of nozzles and calibration of the sprayer are critical to achieve accurate and cost effective use of farm crop protection prod-

ucts.

Your HARDI

®

N-series sprayer has been supplied with standard nozzles. Should you wish a different application rate or different type of nozzle, HARDI

®

manufactures a nozzle for virtually every need.

IMPORTANT: Always consult your chemical supplier for rec om -

mend ed chemical rate and water application rate. Always wear protective gloves when handling nozzles.

5.1 Boom Nozzle Selection

(All models with standard booms)

The following tables show what types of spray nozzles are suitable for different applications. It is important to use the correct nozzle.

HARDI

®

ISO COLOR TIPS™

110 degree fl at fan, one piece cap and nozzle; color coded for fl ow rate se lec tion.

For herbicides, insecticides, and fertilizer applications. 50, 80, and

100 mesh screens are normally used.

HARDI

®

ISO LowDrift COLOR

TIPS™ 110 degree fl at fan, one piece cap and nozzle, 1553 solid stream nozzle; color coded for fl ow rate selection.

In-Line Filters will normally be used.

F110

LD110

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 37

38

HARDI

®

INJET™ NOZZLES; air inclusion nozzles with removable restrictor. Color coded for fl ow rate selection. In-Line Filters will normally be used.

FLAT SPRAY NOZZLES in 65 degree, 80 degree, and 110 degree spray angles. For her bi cides, insecticides, and fertilizer applications. 50, 80, and 100 mesh screens are normally used.

4665-65 degree

2080-80 degree

4110-110 degree

Part # 330013-

O-ring

FLOOD NOZZLES set at 40° spacing. Designed for high vol ume application.

4598

HOLLOW CONE NOZZLES for high pressure and high vol ume insecticide application in row crops. 1553 nozzles are

ALWAYS used with swirl plates shown below EXCEPT when used as solid stream nozzles.

50, 80, or 100 mesh screens are normally used with these nozzles

SWIRL PLATE used in con junc tion with cone nozzle to create desired spray pattern. These swirls work with 1553 series cone nozzles. Grey, blue, or black swirls are used to create hollow cone effect. White swirls are used to create full cone effect.

1553

Must add swirl to produce hollow cone pattern

Grey

Blue

Black

White

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

HOLLOW CONE CERAMIC

NOZZLES for high pressure and high volume fungicide and insecticide application.

1299

LARGE DROPLET HOLLOW

CONE NOZZLE for use where drift must be kept to a minimum.

These nozzles must always be fi tted with 1553 nozzles and grey swirl plates. 50, 80 or 100 mesh screens are normally used with these nozzles.

371077

LARGE DROPLET FLAT SPRAY

TIP IN 150 DEGREE SPRAY

ANGLE. Always used in conjunction with 1553-14-16-18 or 20 cone nozzle. 50, 80 or 100 mesh screens are normally used with these nozzles.

371551

SOLID STREAM NOZZLE for high volume liquid fer tilizer ap pli ca tion. In this application, the

1553 nozzle is always used with

330013 o-ring and 50, 80 or 100 mesh screens.

HARDI ® QUINTASTREAM

5 HOLE LIQUID FERTILIZER

NOZZLE Five streams of liquid are distributed at different angles and fl ows. Highest fl ow is from the middle stream and lowest in the outer; overlapping streams.

This allows for boom movements that do not infl uence distribution.

Boom heights of 20" can be used as safely as 30".

1553 less swirl

372011 thru

372019

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 39

5.2 Giant End Nozzle Selection (Pasture Sprayer only)

The two opposite mounted HARDI ® Giant End Nozzles are available in three different sizes and provide a maximum spray width of 30', 40' or

50' (10m, 12m or 16m) under optimal spraying conditions at the recommended 20" (50 cm) nozzle spray heights (Fig. 25).

For sprayers equipped with "Boom Buster" nozzles (Evergreen Products, Inc.), consult the supplied nozzle application chart.

Giant End Nozzle characteristics:

• Off center spray nozzle

• Pressure range: 20 to 70 PSI

• Spray width up to 25 ft. (per nozzle)

• SYNTAL precision molded thermoplastic

IMPORTANT: Always consult your chemical supplier for rec om -

mend ed chemical rate and water application rate. Always wear protective gloves when handling nozzles.

The following tables show which HARDI ® Giant End Nozzles are suitable for different applications. It is important to use the correct nozzle.

PSI

20

30

40

50

70

Part #

G-1000 Red G-1200 White G-1600 Blue

3.224

3.949

GPM

3.762

4.607

5.015

6.143

4.560

5.098

6.032

371556

5.320

5.948

7.037

371557

7.093

7.930

9.383

371558

40

Fig. 25

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

ED G-1000 R ITE G-1200 WH E LU G-1600 B

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 41

5.3 Spraygun Nozzle Selection (All models)

The 1099-20 nozzle (HARDI ® ref. no. 371314) is the standard nozzle for the spraygun. This nozzle supplies the following rates in U.S. gallons per minute at the given pressures:

GPM

NOZZLE PSI

1099-20

60

70

100

150

200

20

30

40

50

0.678

0.829

0.956

1.068

1.169

1.261

1.504

1.840

2.123

0.538

0.661

0.766

0.857

0.940

1.018

1.222

1.500

1.736

Other size 1099 nozzles are available from your HARDI ® Dealer.

42 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

5.4 Calibration (All models with standard booms)

WARNING: ALWAYS CALIBRATE YOUR SPRAYER WITH CLEAN

WATER ONLY! IN ADDITION, WEAR PROTECTIVE

Why must you calibrate a sprayer?

A nozzle selection chart will tell you what application rate you should expect. Variations due to nozzle wear, errors in pressure adjustment, and tractor speedometer can result in a possible error in application rate.

How do you calibrate a sprayer?

Calibration kits are available from HARDI ® , #818493 for US gallons &

#818492 for metric calibration.

Following are some tips to remember when using the calibration kit method:

• When determining the length of time required to drive the recommended distance, drive in actual fi eld conditions with a half-full tank.

• Repeat the test several times, each time avoiding the tracks from the previous test. Take the average of the times recorded.

• Calibration of the sprayer should be completed at the beginning of the season and repeated after every 2 to 3 full days of spraying, and every time you change volume rate or use new nozzles.

• Before you calibrate, check the fl ow of each nozzle. If it puts out more than 10% of its original volume, replace it.

Select your calibration method: Ounce method or Formula method.

Then follow the steps described in the corresponding section(s):

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 43

Ounce Method

1. Determine how long it takes to cover the test strip. Use the following chart to determine the length of your test strip. Row width for broadcast application is equal to your nozzle spacing. For your drop nozzle or band application, use row spacing.

Row width or nozzle spacing (in.)

40

38

36

34

32

30

28

26

24

22

20

18

16

Distance (ft.)

102

107

113

120

127

136

146

157

170

185

204

227

255

14 291

2. Measure the amount of time it takes you to travel the test strip when throttle is set at spraying speed.

3. In a container (with oz. measurements), catch the spray from one nozzle for that amount of time. For drop or band nozzles, catch the spray from all nozzles for the row.

4. Read the ounces in the container. That is the actual U.S. GPA applied.

(ounces = GPA)

44 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

Formula Method

1. Check your spraying speed. Measure a test strip of at least 200 feet

(300 feet is ideal). Travel the distance at the speed you plan on spraying and record the time it takes to travel the distance. Read from the chart or use the formula to fi nd your exact travel speed.

Travel Time (in seconds)

Speed in MPH

3.0

3.5

4.0

200 ft.

45

39

34

27

300 ft.

68

58

51

45

41 distance (ft.) x 0.68 = MPH

seconds

5.0

6.0

7.0

7.5

8.0

9.0

23

19

18

17

15

34

29

27

26

23

2. Calculate the required nozzle output. Use either the nozzle wheel (if

nozzle spacing is 20 inches), or this formula:

Formula:

GPM = GPA x MPH x W (in.)

5940

Formula:

GPM = 10 x 7 x 20 = .24 GPM

5940

Note: W= • Nozzle spacing (in inches) for broadcast application.

• Row spacing (in inches) divided by number of nozzles

per row for drop nozzle application.

• Sprayed band width or swath width (in inches) for band

application divided by number of nozzles per band.

• Note that on the nozzle wheel, W = 20 inches.

3. Set correct pressure. Read the required pressure from the nozzle table in the nozzle catalogue or nozzle wheel. With clean water in the tank

and line, turn on the sprayer and set the target pressure. Collect the

spray from one nozzle for one minute in a container. Adjust pressure

until you collect the precise GPM called for.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 45

Calibration For Carriers Other Than Water

Use the following water rate conversion chart to determine the right conversion factor. When you've determined the new converted GPM or

GPA, you can follow the steps on either the pressure or ounce method of calibration.

Weight of solution Specifi c Gravity Conversion Factors

.84 .92

.96 .98

lbs/gal-water 1.00

1.08 1.04

1.20 1.10

10.65 lbs/gal-28% N 1.28 1.13

1.32 1.15

1.44 1.20

1.68 1.30

Example: 20 GPA of 28% N

Then GPA (solution) x conversion factor = GPA (water)

20 GPA (28% N) x 1.13 = 22.6 GPA (water)

Calibrate for 22.6 GPA of water

For conversion to Imperial gallons per acre, multiply U.S. GPA by .833

For conversion to liters per hectare, multiply U.S. GPA by 9.34

For conversion to liters per acre, multiply U.S. GPA by 3.78

Formula for tractor speed: Distance (in feet) x .682 = MPH

Second

46 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

5.5 Calibration (Pasture sprayer model only)

WARNING: ALWAYS CALIBRATE YOUR SPRAYER WITH CLEAN

WATER ONLY! IN ADDITION, WEAR PROTECTIVE

CLOTHING WHEN CALIBRATING YOUR SPRAYER!

Why must you calibrate a sprayer?

A nozzle selection chart will tell you what application rate you should expect. Variations due to nozzle wear, errors in pressure adjustment, and tractor speedometer can result in a possible error in application rate.

How do you calibrate a sprayer?

Calibration kits are available from HARDI ® , #818493 for US gallons &

#818492 for metric calibration.

Following are some tips to remember when using the calibration kit method:

• When determining the length of time required to drive the recommended distance, drive in actual fi eld conditions with a half-full tank.

• Repeat the test several times, each time avoiding the tracks from the previous test. Take the average of the times recorded.

• Calibration of the sprayer should be completed at the beginning of the season and repeated after every 2 to 3 full days of spraying, and every time you change volume rate or use new nozzles.

• Before you calibrate, check the fl ow of each nozzle. If it puts out more than 10% of its original volume, replace it.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 47

48

Formula Method

1. Check your spraying speed. Measure a test strip of at least 200 feet (300 feet is ideal). Travel the distance at the speed you plan on spraying and record the time it takes to travel the distance. Read from the chart or use the formula to fi nd your exact travel speed.

Speed in MPH

3.0

3.5

4.0

200 ft.

45

39

34

Formula:

30

Distance (ft.) x 0.68 = MPH 5.0

Time (sec.) 6.0

7.0

7.5

8.0

9.0

27

23

19

18

17

15

300 ft.

68

58

51

45

41

34

29

27

26

23

2. After determining your forward speed and choosing your application rate according to the recommendations on the chemical container, use the following formula to calculate the total nozzle capacity:

Formula:

Total GPM = W (ft.) x GPA x MPH

495

Note: W = Total measured sprayed width (ft.) at operating pressure.

3. To initially calculate which nozzle to use, let W = 30 ft., 40ft. or 50 ft. for HARDI ® Giant End Nozzles G-1000 Red, G-1200 White or G-

1600 Blue, respectively (Fig. 24 & Fig. 25).

Example: Total sprayed width: 40 ft. (G-1200 White nozzles)

Application rate: 20 GPA

Forward speed: 7 mph

11.3 GPM = 40 ft. x 20 GPA x 7 mph

495

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

Calibration (continued)

4. Divide the total nozzle capacity by 2 (the number of nozzles) to get the GPM needed per nozzle to match the speed, pressure and width used in the calculations (Example: 11.3 ÷ 2 = 5.65 GPM).

Capacity of single nozzle in GPM = Total GPM

Number of nozzles

5. For HARDI ® Giant End Nozzles, use the nozzle chart (Fig. 25) to fi nd the nozzle with the closest desired output and pressure. (The G-

1200 White nozzle at 50 PSI is the closest for this example at 5.948

GPM).

IMPORTANT: Al ways check actual sprayed width at operating

pressure once the correct nozzle has been chosen. Locate the sprayer in a suitable location and use clean water to check.

6. If the measured sprayed width at operating pressure differs from the value used in step 2, re-calculate the total nozzle capacity using the measured sprayed width. Divide by 2 to get the nozzle capacity in

GPM needed per nozzle (step 4). This will be the corrected nozzle capacity in GPM required from each nozzle for proper application rate.

7. Double-check the nozzle output with a measuring jug (using clean water at operating pressure). If the measured nozzle output matches the required calculated output, calibration is complete.

8. If necessary, use the following formulas to adjust either the spraying speed or operating pressure to achieve proper calibration.

New speed (MPH) = Desired output (GPM) x Previous speed (MPH)

Measured output (GPM)

New pressure (PSI) = Desired output (GPM) x Previous pressure (PSI)

Measured output (GPM)

Note: If the operating pressure is changed, the actual spraying width will need to be checked again. If spraying width differs, repeat steps 6-8.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 49

Calibration For Carriers Other Than Water

Use the following water rate conversion chart to determine the right conversion factor. When you've determined the new converted GPM or

GPA, you can follow the steps in the formula method of calibration.

Weight of solution Specifi c Gravity Conversion Factors

.84 .92

.96 .98

lbs/gal-water 1.00

1.08 1.04

1.20 1.10

10.65 lbs/gal-28% N 1.28 1.13

1.32 1.15

1.44 1.20

1.68 1.30

Example: 20 GPA of 28% N

Then GPA (solution) x conversion factor = GPA (water)

20 GPA (28% N) x 1.13 = 22.6 GPA (water)

Calibrate for 22.6 GPA of water

For conversion to Imperial gallons per acre, multiply U.S. GPA by .833

For conversion to liters per hectare, multiply U.S. GPA by 9.34

For conversion to liters per acre, multiply U.S. GPA by 3.78

Formula for tractor speed: Distance (in feet) x .682 = MPH

Second

50 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

6.0 MAINTENANCE

IMPORTANT: Always clean the sprayer at the end of your workday

or before servicing is done to avoid unnecessary contact with chemicals.

In order to derive full benefi t from the sprayer for many years, the fol-

low ing few, but im por tant rules should be followed.

6.1 Cleaning The Sprayer

Guidelines

Read the whole label for the chem i cal used. Take note of any par tic u lar in struc tions regarding rec om mend ed protective clothing, de ac ti vat ing agents, etc. Read the de ter gent and de ac ti vat ing agent labels. If clean-

ing pro ce dures are given, follow them closely.

Be familiar with local leg is la tion regarding disposal of pes ti cides washings, man da to ry de con tam i na tion meth ods, etc. Contact the ap pro pri ate body (e.g. Dept. of Ag ri cul ture).

Cleaning starts with cal i bra tion, as a well cal i brat ed spray er will en sure a min i mal amount of re main ing spray liquid.

It is good practice to clean the spray er immediately after use, there by ren der ing the spray er safe and ready for the next ap pli ca tion. This also pro longs the life of the com po nents.

It is sometimes necessary to leave spray liquid in the tank for short pe ri ods - over night, or until the weather becomes suitable for spray ing again. Unauthorized per sons and animals must not have ac cess to the sprayer under these circumstances.

If the product applied is cor ro sive, it is recommended to coat all metal parts of the sprayer before and after use with a suit able rust in hib i tor.

Remember: Clean sprayers are safe spray ers.

Clean sprayers are ready for action.

Clean sprayers can not be dam aged by chemicals and

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 51

52

Cleaning

1. Dilute remaining spray liquid in the tank with at least 10 parts water and spray the liquid out in the fi eld you have just sprayed.

Note: It is ad vis able to in crease the forward speed (dou ble if possible) and reduce the pressure.

2. Select and use the ap pro pri ate protective clothing. Select detergent suitable for cleaning and suit able de ac ti vat ing agents if necessary.

3. Rinse and clean sprayer and tractor ex ter nal ly. Use de ter gent if necessary.

4. Remove all fi lters and clean them. Be careful not to damage the mesh. Replace fi lters when the sprayer is completely clean.

5. With the pump running, rinse the inside of the tank. Re mem ber the tank roof. Rinse and operate all com po nents and any equipment that has been in contact with the chemical.

6. After spraying the liquid out again in the fi eld, stop the pump and fi ll at least 1/5 of the tank with clean wa ter. Note that some chemicals require the tank to be com plete ly fi lled. Add appropriate detergent and/or deactivating agent, e.g. Washing soda or Triple ammonia.

Note: If a cleaning pro ce dure is given on the chemical label, follow it closely.

7. Start the pump and op er ate all controls en abling the liquid to come in contact with all the components. Leave the dis tri bu tion valves until last. Some detergents and de ac ti vat ing agents work best if left in the tank for a short period. Check the label.

8. Drain the tank and let the pump run dry. Rinse inside of tank, again letting the pump run dry.

9. Stop the pump. If the chemicals used have a tendency to block nozzles, re move and clean them now.

10. Replace all fi lters and noz zles and store the sprayer. If, from previous experiences, it is noted that the solvents in the chemicals are particularly ag gres sive, store the sprayer with the tank lid open.

Note: If the sprayer is cleaned with a high pres sure cleaner we recommend lu bri ca tion of the entire machine (Section 6.8).

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

6.2 Filters

IMPORTANT: Wear protective clothing when servicing & handling

components that have been in contact with spray liquid.

Clean fi lters ensure :

• Sprayer components such as valves, diaphr agms and operat ing unit are not hindered or damaged during operation.

• Nozzle blockages do not occur while spray ing.

• Long life of pump. A blocked suction fi lter will result in pump cavitation.

Suction fi lter

The main fi lter protecting spray er com po nents is the suc tion fi l ter at the top of the tank. Check it reg u lar ly. Make sure the O-ring on the fi lter housing is in good condition and lubricated*.

Pressure fi lter (BK-3 Control Unit only)

The BK-3 Control unit is equipped with a built-in pressure fi lter.

Unscrew the base to check and clean the fi lter. Make sure the O-ring on the fi lter housing is in good condition and lubricated*.

*HARDI

®

recommends using a vegetable based oil to prolong the life of the O-ring.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 53

ISO Nozzle

Size

Suction Filter Self Cleaning

Filter (optional)

Nozzle

Screen

Inline Filters

(optional)

Pink (075)

Orange (01)

Green (015)

Yellow (02)

Lilac (025)

Blue (03)

50

50

100

80

Red (04)

& Larger

30*

*Standard mesh

6.3 Nozzles And Fittings

Poor seals are usually caused by:

50*

100

80

50*

100

80

50*

• Missing O-rings or gaskets

• Damaged or incorrectly seated O-rings

• Dry or deformed O-rings or gaskets

• Foreign materials

Therefore, in case of leaks; DO NOT overtighten. Disassemble, check condition and position of O-ring or gasket, clean, lubricate and reassemble. For radial type seals (O-ring) hand tighten only, do not use pliers (Fig. 27).

The O-rings need to be lubricated ALL THE WAY AROUND before fi tting on to the nozzle tube.

54

Fig. 27

HARDI ® recommends using a vegetable based oil to prolong the life of the O-ring.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

6.4 Replacement Of P.T.O. Shaft Protection Guards

The replacement of defective pro tec tion guards is easy to do.

1. The retaining ring A (Fig. 28) holds the base cone B (Fig. 28) and shield bell C (Fig. 28) to the shield tube D (Fig. 28).

2. Locate the three white tabs on the retaining ring A (Fig. 28) visible through holes on the shield bell C (Fig. 28). Pushing these tabs will release the retaining ring A (Fig. 28).

3. Remove the base cone B (Fig. 28) and shield bell C (Fig. 28) from the shield tube D (Fig. 28).

4. Assemble again in reverse order, using new parts where necessary.

5. Apply grease (Section 6.8).

Use only genuine HARDI ® spare parts to service the P.T.O. shaft.

A

B

C

D

C

B

A

A. Retaining Ring

B. Base Cone

C. Shield Bell

D. Shield tubes

Fig. 28

6.5 Replacement Of P.T.O. Shaft Cross Journals.

1. Remove protection guard as described pre vi ous ly.

2. Remove circlip rings.

3. Press the cross journal sidewards, use ham mer and punch if necessary.

4. Remove needle bearing cups and cross journal can now be re-

moved.

5. Carefully remove nee dle bearing cups from new cross journal and install it in re verse order. Before fi tting the nee dle bearing cups again, check that nee dles are placed cor rect ly. Avoid dust and dirt in the new bear ings.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 55

56

6.6 Changing the Valves and Diaphragms (all pumps)

Note: It is recommended that if one or more diaphragms and or valves need replacing, they should all be replaced. Complete rebuild kits are available from HARDI ® (check the table below for part numbers).

Pump model 603 1203 1303

Hardi ® Part No.

750656 750696 750175

1. Remove the valve cover 1. Before changing the valves 2, note the orientation of the valves so that they are replaced correctly.

2. It is recommended to use new O-rings 3 when changing or checking valves.

3. Remove diaphragm covers 4 to gain access to the diaphragms.

4. Remove the diaphragm bolts 5. The diaphragms 6 may now be changed.

5. If fl uids have reached the crankcase, regrease the pump thoroughly.

Also make sure the drain hole at the bottom of the pump is not blocked.

6. Reassemble with torque settings shown below.

Pump

Model

Valve Cover

Ft/lb (Nm)

603 34 (46)

1203/1303 45 (60)

Diaphragm

Bolt Ft/lb (Nm)

18.5 (25)

45 (60)

Diaphragm

Cover

37 (50)

50 (70)

4

4

1

1

5

5

6

2

3

6

3

2

Model 1203

(603 similar)

Model 1303

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

6.7 Breakaway Clutch Adjustment (MB Boom only)

WARNING: NEVER PLACE FINGERS INTO OPEN BREAKAWAY

CLUTCH OR YOU MAY BE INJURED SHOULD CLUTCH

SNAP CLOSED! DO NOT TIGHTEN THE BREAKAWAY

CLUTCH MORE THAN WHAT IS NECESSARY! OVER

TIGHTENING CAN CAUSE DAMAGE TO THE BOOM!

IMPORTANT: Properly lubricate clutch assembly before adjusting the

tension. Breakaway clutch cap screws (A) (Fig. 29) must be torqued to 40 Ft/lb (55 N-m) every week (40 hours) to prevent boom damage.

Lubricate every day (8 hours) to ensure maximum performance and life.

The tension on the clutch for the breakaway wing section can be adjusted by loosening or tightening nut C (Fig. 29).

1. Check that the lower nut D (Fig. 29) is fully tightened.

2. The breakaway wing section should pivot around the axle shaft E

(Fig. 29). Make sure wing section is free to move.

3. Loosen jam nut B (Fig. 29).

4. If the breakaway clutch releases too easily, tighten nut C (Fig. 29).

If the breakaway clutch releases too stiffl y, loosen nut C (Fig. 29).

Clutch is properly tensioned when breakaway wing section returns to alignment with center section after breaking away.

5. Tighten jam nut B (Fig. 29) after adjustment.

B

C

E

A

D

Fig. 29

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 57

6.8 Lubrication

Recommended lubrication is shown in following tables.

Use ball bearing grease (lithium grease No. 2)

Note: If the sprayer is cleaned with a high pressure cleaner or fertilizer has been used, we recommend lubrication of all sections.

Position on sprayer

Grease

Oil

Operation hours

Page to find more information

Winter protection or off-season storage

Sprayer

4

Boom

3

2

1

Fig. 30

N-series sprayer lubrication points

5

58 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

1 X 40

2

A

B

X

10

X 50

56

55

55

3 X 40

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 59

4 X 8

5 X 8

57

60 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

7.0 Off-Season Storage

When the spraying season is over, you should de vote some extra time to the Spray er. If chem i cal res i dues are left over in the spray er for long periods, it can reduce the life of the individual com po nents. To pre serve the sprayer and pro tect the com po nents, carry out the following offsea son stor age pro gram:

1. Clean the sprayer completely - inside and outside - as described under "Cleaning The Spray er" (section 6.1). Make sure that all valves, hos es and auxiliary equipment have been cleaned with de ter gent and fl ushed with clean wa ter afterwards, so no chem i cal residues are left in the sprayer.

2. Replace any damaged seals and repair any leaks.

3. Empty the sprayer completely and let the pump work for a few minutes. Operate all valves and handles to drain as much water out of the spraying circuit as pos si ble. Let the pump run until air is coming out of all the nozzles.

4. Pour in a mixture of ethylene glycol base antifreeze and water at the ratio for the desired temperature protection (there will be a small amount of water left in the hoses, pump and bottom of tank). The volume of the mixture needs to be enough keep the tank sump full while the pump is running fl uid through the entire circuit.

5. En gage the pump and op er ate all valves and func tions of the plumbing system. Spray the spraygun (optional) into the tank until antifreeze sprays out to make sure the line is full of antifreeze.

Open the distribution valves so the an ti freeze is sprayed through the nozzles as well. The an ti freeze will also pre vent O-rings, seals, di a phragms etc. from dry ing out.

6. When the sprayer is dry, re move rust from any scratch es or damages in the paint and touch up the paint.

7. Lubricate all lubricating points according to the lu bri cat ing scheme regardless of intervals stated.

8. Re move the glycerine-fi lled pres sure gaug e and store in a vertical position in frost free con di tions.

9. Apply a thin layer of an ti cor ro sive oil (e.g. SHELL ENSIS FLU ID,

CASTROL RUSTILLO or sim i lar) on all metal parts. Avoid oil on rubber parts, hoses and tires.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 61

Off-Season Storage (continued)

10. All electric plugs and sockets are to be stored in a dry plastic bag to protect them from moisture, dirt, and corrosion.

11. Remove all the control boxes (including any rate controller control box) from the tractor and store them in a dry and clean place.

12. To pro tect against dust, the spray er can be cov ered by a tar pau lin.

Ensure ventilation to prevent condensation.

7.1 Preparation After Off-Season Storage

After a stor age period, the sprayer should be pre pared for the next season the fol low ing way:

1. Remove the cover. (If fi tted)

2. Fit the pressure gauge again. Seal with Tefl on tape.

3. Con nect the sprayer to the trac tor, including electric controls (if any).

4. Emp ty the tank of remaining an ti freeze.

5. Rinse the entire liquid circuit on the spray er with clean water.

6. Fill with clean water and check all functions.

62 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

8.0 ACCESSORIES

8.1 Clean Water Dispenser (optional)

Fig. 30

Fig. 31

Clean Water Dispenser

A handy source of fresh water on the sprayer to clean up plugged nozzles and for rinsing gloves and hands after performing service or maintenance.

8.2 Spraygun And Hose Wrap (optional)

Fig. 32

A spraygun with adjustable spray pattern and 25 ft. of 3/8" hose for spraying fence row or spot spraying a small area can be installed onto your sprayer. A handy hose wrap and spraygun holder can be conveniently located on the sprayer to transport the spraygun. A Hose Reel with 160' of 3/8" hose

*

or 275' of 5/8" hose

**

is also available.

*

Not available on N210 with boom

**

Not available with boom

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 63

8.3 Maverick Rate Controller (optional)

Fig. 33

The Maverick Rate Controller offers precise rate control regardless of fi eld conditions. It is equipped with a Master control switch and built-in boom switches. It features on-the-go rate adjustment, push button auto/ manual control for spot treatment, as well as a minimum fl ow feature to ensure proper application pattern as ground speed slows to extremes.

8.4 Large 4" Pressure Gauge (optional)

Fig.33

64

Fig. 34

A large and easy to read 4" pressure gauge is available to replace the standard 2-1/2" gauge.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

8.5 Chemical Filler (optional)

Fig. 38

Fig. 35

Chemical Filler

Will inject all types of chemical formulations, liquid, powder or granules, into the bottom of the tank near the agitation fl ow. A cleaning ring ensures that chemical residue is removed from the fi ller tank.

8.6 Chemical Filler Bag & Bottle Rinse Kit (optional)

Fig. 39

Fig. 36

Chemical Filler Bag & Bottle Rinse Kit

A container rinse kit for liquid containers or plastic bags is also available for installation into the chemical fi ller hopper.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 65

8.7 SMV Sign Kit (optional)

Fig.33

Fig. 37

A kit is available to mount an SMV Sign to the nozzle bracket.

66 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

9.0 TROUBLESHOOTING

9.1 General Spray Systems

Problem Cause

1. No liquid getting to the pump. A. Suction fi lter plugged.

2. Lack of pressure

3. Pressure jumping

A. Suction fi lter plugged.

B. P.T.O. speed not fast enough.

C. Suction side air leak.

D. Pump valves obstructed

or worn. Replace valves if

necessary (Section 6.6).

E. Check pressure gauge.

A. Suction side air leak.

B. P.T.O. shaft slipping on pump

4. Pressure dropping

C. Suction fi lter partially plugged.

D. Check pressure gauge.

A. P.T.O. shaft slipping on pump

B. Suction side air leak.

C. Suction fi lter partially plugged.

5. Control box not operating one A. Check connections at battery.

or more boom sections B. Check for blown inline fuse on

power supply wiring harness.

(7.5 Amp - Section 3.3)

C. Check electrical wiring for bad connection.

D. Check for 12 Volts at boom

distribution valve solenoids.

6. Liquid leaking from pump

7. Poor agitation

A. Damaged diaphragm(s).

Replace (Section 6.6).

A. Agitation valve not open.

B. Agitation nozzle plugged.

C. Agitation nozzle missing.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 67

9.1 General Spray Systems (continued)

Problem Cause

8. Excessive vibrations in hoses A. P.T.O. shaft slipping on pump

9. Can't get tank empty.

B. Suction side air leak.

A. Small tear or pin hole in

B. Tank is not level.

68 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

10.0 TECHNICAL SPECIFICATIONS

10.1 Dimensions and weights

The following charts give approximate dimensions and weights for the

HARDI ® N-series 3-PT sprayers. Since each sprayer can have many different options/confi gurations, these are only approximate. If more accurate results are needed, it is recommended to measure or weigh the sprayer before connecting it to the tractor.

Tank size

(Gal.)

105

155

210

With boom

Dimensions a x b x c

(inches)

55 x 75 x 83

Empty

Weight

(lbs.)

375

55 x 101 x 102

55 x 101 x 102

475

525

Loaded

Weight*

(lbs.)

1251

1768

2276

Without boom

Dimensions a x b x c

(inches)

28 x 39 x 52

Empty

Weight

(lbs.)

250

31 x 47 x 55

31 x 63 x 57

300

350

Loaded

Weight*

(lbs.)

1126

1593

2101

*Total loaded weight with water. Some solutions may weigh more.

10.2 Power consumption

Minimum tractor requirements:

N105 ................... 30HP (22 kW)

N155 ................... 40HP (30 kW)

N210 ................... 60HP (45 kW)

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 69

70

11.0 WARRANTY POLICY AND CONDITIONS

HARDI ® NORTH AMERICA INC. , 1500 West 76th Street, Davenport, Iowa USA: 8550 W. Roosevelt Avenue,

Visalia, CA, USA; and 290 Sovereign Road, London, Ontario, Canada hereinafter called "HARDI

®

", offers the following limited warranty in accordance with the provisions below to each original retail purchaser of HARDI ® new equipment of its own manufacturer, from an authorized HARDI ® dealer, that such equipment is at the time of delivery to such purchaser, free from defects in material and workmanship and that such equipment will be warranted for a period of two years from the date of delivery to the end user providing the machine is used and serviced in accordance with the recommendations in the Operator's Manual and is operated under normal farm conditions.

1. This limited warranty is subject to the following exceptions:

a) Parts of the machine not manufactured by HARDI ® , (i.e. engines, tires, tubes, electronic controls, and other components or trade accessories, etc.) are not covered by this warranty but are subject to the warranty of the original manufacturer. Any claim falling into this category will be taken up with the manufacturer concerned.

b) This warranty will be withdrawn if any equipment has been used for purposes other than for which it was intended or if it has been misused, neglected, or damaged by accident, let out on hire or furnished by a rental agency. Nor can claims be accepted if parts other than those manufactured by HARDI ® have been incorporated in any of our equipment. Further, HARDI

® shall not be responsible for damage in transit or handling by any common carrier and under no circumstances within or without the warranty period will HARDI ® be liable for damages of loss of use, or damages resulting from delay or any consequential damage.

2. We cannot be held responsible for loss of livestock, loss of crops, loss because of delays in harvesting or any expense or loss incurred for labor, supplies, substitute machinery, rental for any other reason, or for injuries either to the owner or to a third party, nor can we be called upon to be responsible for labor charges, other than originally agreed, incurred in the removal or replacement of components.

3. The customer will be responsible for and bear the costs of:

a) Normal maintenance such as greasing, maintenance of oil levels, minor adjustments, etc.

b) Transportation of any HARDI ® product to and from where the warranty work is performed.

c) Dealer travel time to and from the machine or to deliver and return the machine from the service workshop for repair.

d) Dealer traveling costs.

4. Parts defi ned as normal wearing items, (i.e. tires and V-belts) are not in any way covered under this warranty.

5. This warranty will not apply to any product which is altered or modifi ed without the express written permission of HARDI ® and/or repaired by anyone other than an Authorized Service Dealer.

6. Warranty is dependent upon the strict observance by the purchaser of the following provisions:

a) That this warranty may not be assigned or transferred to anyone.

b) That the Warranty Registration Certifi cate has been correctly completed by dealer and purchaser with their names and addresses, dated, signed and returned to the appropriate address as given on the

Warranty Registration Certifi cate.

c) That all safety instructions in the operator's manual shall be followed and all safety guards regularly inspected and replaced where necessary.

7. No warranty is given on second-hand products and none is to be implied.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

WARRANTY POLICY AND CONDITIONS

8. Subject to the following terms, conditions and contributions, HARDI ® extends the warranty on polyethylene tanks (excluding fi ttings, lids and gaskets) to FIVE YEARS. To qualify for this extended warranty, the tank must be drained and fl ushed with fresh water after each day of use. HARDI ® 's liability is limited to replacement of the tank, FOB our plant at no cost to the purchaser during the fi rst twenty four months; at 40% of the then current price during the third year ; at 60% during the fourth year ; and at 80% during the fi fth year. This fi ve year extended warranty is subject, in each instance, to the tank being inspected and approved for replacement or repair by HARDI ® personnel before HARDI ® will accept any liability hereunder.

9. Subject to the following terms, conditions and contributions, HARDI ® extends the warranty on HARDI ® diaphragm pumps (excluding wear parts such as diaphragms, valves, etc.) to FIVE YEARS. To qualify for this extended warranty, the pump must be drained and fl ushed with fresh water after each day of use.

HARDI ® 's liability is limited to replacement of defective parts, FOB our plant at no cost to the purchaser during the fi rst twenty four months after date of purchase; at 40% of the then current retail price during the third year ; at 60% during the fourth year ; and at 80% during the fi fth year. This fi ve year extended warranty is subject, in each instance, to the pump being inspected and approved for replacement or repair by HARDI ® personnel before HARDI ® will accept any liability hereunder.

10. HARDI ® reserves the right to incorporate any change in design in its products without obligation to make such changes on units previously manufactured.

11. The judgement of HARDI

® in all cases of claims under this warranty shall be fi nal and conclusive and the

purchaser agrees to accept its decisions on all questions as to defect and to the exchange of any part or parts.

12. No employee or representative is authorized to change this warranty in any way or grant any other warranty unless such change is made in writing and signed by an offi cer of HARDI ® at it's head offi ce.

13. Any warranty work performed which will exceed $400.00 MUST be approved IN ADVANCE by the Service

Manager.

14. Claims under this policy must be fi lled with HARDI

®

within thirty (30) days of work performed or warranty shall be void.

15. Parts requested must be returned prepaid within thirty (30) days for warranty settlement.

16. Warranty claims must be COMPLETELY fi lled out properly or will be returned.

DISCLAIMER OF FURTHER WARRANTY

THERE ARE NO WARRANTIES, EXPRESSED OR IMPLIED, EXCEPT AS SET FORTH ABOVE.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE PRODUCT

CONTAINED HEREIN. IN NO EVENT SHALL THE COMPANY BE LIABLE FOR INDIRECT, SPECIAL OR

CONSEQUENTIAL DAMAGES (SUCH AS LOSS OF ANTICIPATED PROFITS) IN CONNECTION WITH THE

RETAIL PURCHASER'S USE OF THE PRODUCT.

HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL 71

12.0 NOTES

72 HARDI ® N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL
