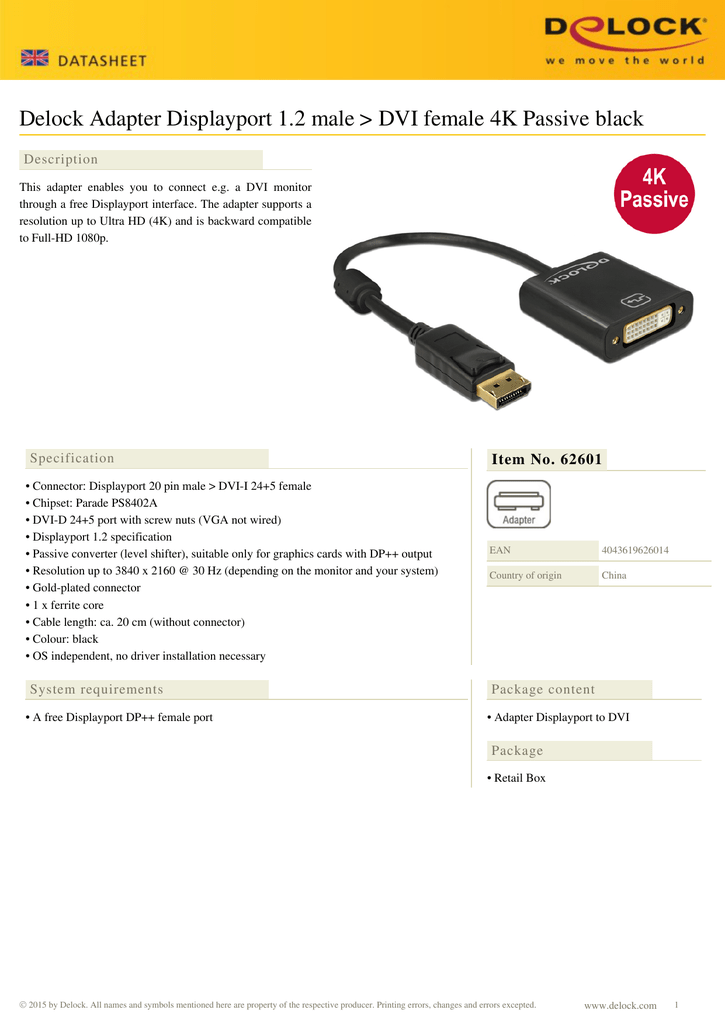

Delock Adapter Displayport 1.2 male > DVI female 4K Passive black
This adapter enables you to connect e.g. a DVI monitor
through a free Displayport interface. The adapter supports a
resolution up to Ultra HD (4K) and is backward compatible
to Full-HD 1080p.
• Connector: Displayport 20 pin male > DVI-I 24+5 female
• Chipset: Parade PS8402A
• DVI-D 24+5 port with screw nuts (VGA not wired)
• Displayport 1.2 specification
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the monitor and your system)
• Gold-plated connector
• 1 x ferrite core
• Cable length: ca. 20 cm (without connector)
• Colour: black
• OS independent, no driver installation necessary
System requirements
• A free Displayport DP++ female port
Item No. 62601
Country of origin
Package content
• Adapter Displayport to DVI
• Retail Box
© 2015 by Delock. All names and symbols mentioned here are property of the respective producer. Printing errors, changes and errors excepted.
