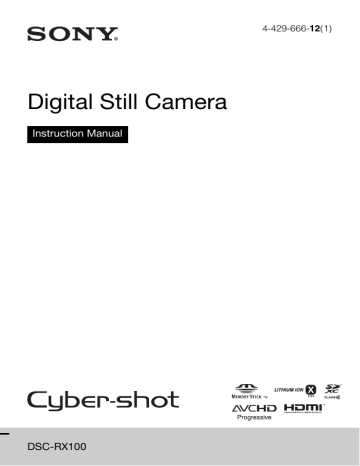

Digital Still Camera
Digital Still Camera
Learning more about the camera (“Cyber-shot
“Cyber-shot User Guide” is an on-line manual. Refer to it for in-depth instructions on the many functions of the camera.
Access the Sony support page.
Select your country or region.
Search for the model name of your camera within the support page.
• Check the model name on the bottom of your camera.
Checking the supplied items
The number in parentheses indicates the number of pieces.
• Camera (1)
• Rechargeable battery pack NP-BX1 (1)
• Micro USB cable (1)
• AC Adaptor AC-UD10/UD11 (1)
• Power cord (mains lead) (not supplied in the USA and Canada) (1)
• Wrist strap (1)
• Strap adapter (2)
(Strap adapters are used to attach the shoulder strap (sold separately), as illustrated.)
• Instruction Manual (this manual) (1)
The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call your Sony dealer regarding this product.
Model No. DSC-RX100
Serial No. _____________________________
Model No. AC-UD10/AC-UD11
Serial No. _____________________________
To reduce fire or shock hazard, do not expose the unit to rain or moisture.
IMPORTANT SAFETY INSTRUCTIONS
-SAVE THESE INSTRUCTIONS
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, CAREFULLY FOLLOW THESE
If the shape of the plug does not fit the power outlet, use an attachment plug adaptor of the proper configuration for the power outlet.
If the battery pack is mishandled, the battery pack can burst, cause a fire or even chemical burns. Observe the following cautions.
• Do not disassemble.
• Do not crush and do not expose the battery pack to any shock or force such as hammering, dropping or stepping on it.
• Do not short circuit and do not allow metal objects to come into contact with the battery terminals.
• Do not expose to high temperature above 60°C (140°F) such as in direct sunlight or in a car parked in the sun.
• Do not incinerate or dispose of in fire.
• Do not handle damaged or leaking lithium ion batteries.
• Be sure to charge the battery pack using a genuine Sony battery charger or a device that can charge the battery pack.
• Keep the battery pack out of the reach of small children.
• Keep the battery pack dry.
• Replace only with the same or equivalent type recommended by Sony.
• Dispose of used battery packs promptly as described in the instructions.
Connect the AC Adaptor to the nearest wall outlet (wall socket).
If some trouble occurs while using the AC Adaptor, immediately shut off the power by disconnecting the plug from the wall outlet (wall socket).
The power cord (mains lead), if supplied, is designed specifically for use with this camera only, and should not be used with other electrical equipment.
For Customers in the U.S.A. and Canada
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are recyclable.
You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you.
For more information regarding recycling of rechargeable batteries, call toll free
1-800-822-8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking Lithium-Ion batteries.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
For Customers in the U.S.A.
UL is an internationally recognized safety organization.
The UL Mark on the product means it has been UL Listed.
If you have any questions about this product, you may call:
Sony Customer Information Center
The number below is for the FCC related matters only.
Declaration of Conformity
Trade Name: SONY
Model No.: DSC-RX100
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone No.: 858-942-2230
This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
The supplied interface cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.
For Customers in Europe
Notice for the customers in the countries applying EU Directives
The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku Tokyo,
108-0075 Japan. The Authorized Representative for EMC and product safety is Sony
Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
This product has been tested and found compliant with the limits set out in the EMC
Directive for using connection cables shorter than 3 meters (9.8 feet).
The electromagnetic fields at the specific frequencies may influence the picture and sound of this unit.
If static electricity or electromagnetism causes data transfer to discontinue midway (fail), restart the application or disconnect and connect the communication cable (USB, etc.) again.
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.
On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.
By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.
In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.
For all other batteries, please view the section on how to remove the battery from the product safely.
Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
Notice for customers in the United Kingdom
A moulded plug complying with BS 1363 is fitted to this equipment for your safety and convenience.
Should the fuse in the plug supplied need to be replaced, a fuse of the same rating as the supplied one and approved by ASTA or BSI to BS 1362, (i.e., marked with an or mark) must be used.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station.
A Shutter button
B Mode dial
Shooting)/ (Scene Selection)
C For shooting: W/T (zoom) lever
For viewing: Index/Playback zoom lever
D Self-timer lamp/Smile Shutter lamp/AF illuminator
E Power/Charge lamp
F ON/OFF (Power) button
• Do not cover the flash with your fingers.
• When using the flash, the flash pops up automatically. If not using the flash, press it down manually.
I Hook for strap
J Control Ring
M Light sensor
N LCD screen
O Fn (Function) button
P MOVIE (Movie) button
Q Micro USB connector
R MENU button
S Control wheel
/ (In-Camera Guide/Delete) button
V Battery insertion slot
W Battery eject lever
X Tripod socket hole
• Use a tripod with a screw less than 5.5 mm (7/32 inches) long.
Otherwise, you cannot firmly secure the camera, and damage to the camera may occur.
Y Access lamp
Z Memory card slot wj HDMI micro jack wk Battery/Memory card cover
Inserting the battery pack
Battery eject lever
Open the cover.
Insert the battery pack.
• While pressing the battery eject lever, insert the battery pack as illustrated. Make sure that the battery eject lever locks after insertion.
• Closing the cover with the battery inserted incorrectly may damage the camera.
Charging the battery pack
Off: Charging finished
Charging error or charging paused temporarily because the camera is not within the proper temperature range
For customers in the USA and Canada
For customers in countries/ regions other than the USA and Canada
Connect the camera to the AC Adaptor (supplied), using the micro USB cable (supplied).
Connect the AC Adaptor to the wall outlet (wall socket).
The Power/Charge lamp lights orange, and charging starts.
• Turn off the camera while charging the battery.
• You can charge the battery pack even when it is partially charged.
• When the Power/Charge lamp flashes and charging is not finished, remove and re-insert the battery pack.
• If the Power/Charge lamp on the camera flashes when the AC Adaptor is connected to the wall outlet (wall socket), this indicates that charging is temporarily stopped because the temperature is outside the recommended range.
When the temperature gets back within the appropriate range, the charging resumes. We recommend charging the battery pack in an ambient temperature of between 10°C to 30°C (50ºF to 86ºF).
• The battery pack may not be effectively charged if the terminal section of the battery is dirty. In this case, wipe any dust off lightly using a soft cloth or a cotton swab to clean the terminal section of the battery.
• Connect the AC Adaptor (supplied) to the nearest wall outlet (wall socket). If malfunctions occur while using the AC Adaptor, disconnect the plug from the wall outlet (wall socket) immediately to disconnect from the power source.
• When charging is finished, disconnect the AC Adaptor from the wall outlet (wall socket).
• Be sure to use only genuine Sony brand battery packs, micro USB cable (supplied) and AC Adaptor (supplied).
Charging time (Full charge)
The charging time is approximately 155 min. using the AC Adaptor
• The above charging time applies when charging a fully depleted battery pack at a temperature of 25°C (77°F). Charging may take longer depending on conditions of use and circumstances.
Charging by connecting to a computer
The battery pack can be charged by connecting the camera to a computer using a micro USB cable.
• Note the following points when charging via a computer:
– If the camera is connected to a laptop computer that is not connected to a power source, the laptop battery level decreases. Do not charge for an extended period of time.
– Do not turn on/off or restart the computer, or wake the computer to resume from sleep mode when a USB connection has been established between the computer and the camera. The camera may cause a malfunction. Before turning on/off, or restarting the computer or waking the computer from sleep mode, disconnect the camera and the computer.
– No guarantees are made for charging using a custom-built computer or a modified computer.
Battery life and number of images that can be recorded and played back
Shooting (still images)
Viewing (still images)
Approx. 165 min.
Approx. 250 min.
Approx. 80 min.
Number of images
Approx. 330 images
Approx. 5000 images
• The above number of images applies when the battery pack is fully charged. The number of images may decrease depending on the conditions of use.
• The number of images that can be recorded is for shooting under the following conditions:
– Using Sony “Memory Stick PRO Duo” (Mark2) media (sold separately)
– The battery pack is used at an ambient temperature of 25°C (77°F).
• The number for “Shooting (still images)” is based on the CIPA standard, and is for shooting under the following conditions:
(CIPA: Camera & Imaging Products Association)
– DISP is set to [Display All Info.].
– Shooting once every 30 seconds.
– The zoom is switched alternately between the W and T ends.
– The flash strobes once every two times.
– The power turns on and off once every ten times.
• The battery life for movies applies shooting under the following conditions:
– Record Setting: 60i 17M(FH)/50i 17M(FH)
– When continuous shooting ends because of set limits (29 minutes), press the
MOVIE (Movie) button again to continue shooting. Shooting functions such as zoom will not be available.
The camera can be supplied with power from the wall outlet (wall socket) by connecting to the AC Adaptor (supplied), using the micro USB cable
(supplied). This way, there is no need to worry about draining the battery when shooting over extended periods or when the camera is connected to a TV or computer.
Shooting and playback are possible without a battery pack in the camera.
Inserting a memory card (sold separately)
Ensure the notched corner faces correctly.
Open the cover.
Insert the memory card (sold separately).
• With the notched corner facing as illustrated, insert the memory card until it clicks into place.
Close the cover.
Memory cards that can be used
Memory Stick PRO Duo
Memory Stick PRO-HG Duo
Memory Stick Duo
Memory Stick Micro (M2)
SD memory card
SDHC memory card
SDXC memory card
microSD memory card microSDHC memory card
For still images For movies
(Class 4 or faster)
(Class 4 or faster)
(Class 4 or faster)
(Class 4 or faster)
(Class 4 or faster)
• In this manual, the products in the table are collectively referred to as follows:
A: “Memory Stick Duo” media
B: “Memory Stick Micro” media
C: SD card
D: microSD memory card
• When using “Memory Stick Micro” media or microSD memory cards with this camera, make sure to use with the appropriate adaptor.
To remove the memory card/battery pack
Memory card: Push the memory card in once to eject the memory card.
Battery pack: Slide the battery eject lever. Be sure not to drop the battery pack.
This may cause damage to data in the memory card.
Setting the clock
Power/Charge lamp (green)
Select items: b / B
Set the numeric value of date and time: v
Press the ON/OFF (Power) button.
Date & Time setting is displayed when you turn on the camera for the first time.
• It may take time for the power to turn on and allow operation.
Check that [Enter] is selected on the screen, then press z on the control wheel.
Select a desired geographic location by following the on-screen instructions, then press z.
Set [Daylight Svg.:], date and [Date Format:], then press z.
• Midnight is indicated as 12:00 AM, and noon as 12:00 PM.
Check that [Enter] is selected, then press z.
Shooting still images/movies
Do not cover the flash.
W/T (zoom) lever
: Intelligent Auto
W: zoom out
T: zoom in
Shooting still images
Press the shutter button halfway down to focus.
When the image is in focus, a beep sounds and the z or indicator lights.
Press the shutter button fully down to shoot an image.
Press the MOVIE (Movie) button to start recording.
• Use the W/T (zoom) lever to change the zoom scale.
• Press the shutter button to shoot still images while continuing to record the movie.
Press the MOVIE button again to stop recording.
• Do not pull up the flash manually. This may cause a malfunction.
• When using the zoom function while shooting a movie, the sound of the camera operating will be recorded. The sound of the MOVIE button operating may also be recorded when movie recording is finished.
• Continuous shooting is possible for approximately 29 minutes at one time at the camera’s default settings and when the temperature is approximately 25°C (77°F).
When movie recording is finished, you can restart recording by pressing the
MOVIE button again. Recording may stop to protect the camera depending on the ambient temperature.
W: zoom out
T: zoom in
Select images: B (next)/b (previous) or turn the control wheel
Press the (Playback) button.
• You can switch the display mode between still images and movies by selecting MENU t [Still/Movie Select].
Selecting next/previous image
Select an image by pressing B (next)/b (previous) on the control wheel or by turning the control wheel. Press z in the center of the control wheel to view movies.
Deleting an image
Press / button.
Select [Delete] with v on the control wheel, then press z.
Rotating an image
Press the Fn (Function) button.
Returning to shooting images
Press the shutter button halfway down.
Viewing the Guide
This camera is equipped with a built-in instruction guide.
/ (In-Camera Guide)
The camera displays explanations for MENU items and the setting values.
Press the MENU button.
Select the desired MENU item, then press
/ (In-Camera Guide) button.
The camera displays shooting tips for the shooting mode selected.
Press / (In-Camera Guide) button in shooting mode.
Select the desired shooting tip, then press z on the control wheel.
The shooting tip is displayed.
• You can scroll the screen using v/V and change shooting tips using b/B.
Introduction of other functions
Other functions can be operated using the control wheel, MENU button, etc.
Control wheel x
DISP (Display Contents): Allows you to change the screen display.
(Flash Mode): Allows you to select a flash mode for still images.
/ (Exposure Comp./Photo Creativity): Allows you to adjust image brightness. Allows you to change [Bkground Defocus], [Brightness], [Color],
[Vividness] and [Picture Effect] when shooting mode is set to [Intelligent
Auto] or [Superior Auto].
/ (Drive Mode): Allows you to use the self-timer and burst shooting mode.
z (Tracking focus): The camera tracks the subject and adjusts focus automatically even when the subject is moving.
Fn (Function) button
Allows you to register seven functions and recall those functions when shooting.
Press the Fn (Function) button.
2 Select the desired function using the Fn (Function) button or b/B on the control wheel.
Select the setting value by turning the control wheel or Control Ring.
Your favorite functions can be assigned to the Control Ring; when shooting, established settings can be changed just by turning the Control Ring.
Still shooting menu
Soft Skin Effect
Auto Port. Framing
Selects the size of still images.
Selects the aspect ratio for still images.
Sets the image quality for still images.
Selects the size of panoramic images.
Sets the shooting direction for panoramic images.
Sets the drive mode, such as for continuous shooting.
Sets the flash settings.
Selects the focus method.
Selects the area of focus.
Sets the Soft Skin Effect and the effect level.
Selects to detect faces and adjust various settings automatically. Sets to automatically release the shutter when a smile is detected.
Analyzes the scene when capturing a face and saves another image with a more impressive composition.
Clear Image Zoom
Long Exposure NR
High ISO NR
Shooting Tip List
Adjusts the luminous sensitivity.
Selects the metering mode that sets which part of the subject to measure to determine the exposure.
Adjusts the intensity of flash output.
Adjusts color tones of an image.
Compensates automatically for brightness and contrast.
Selects the desired image processing.
Shoots still images with a texture unique to the selected effect.
Provides a higher-quality zoomed image than with
Provides zoomed images at higher magnification than with Clear Image Zoom.
Sets noise reduction processing for shots with a shutter speed of 1/3 second or longer.
Sets noise reduction processing for high-sensitivity shooting.
Sets the AF illuminator, which provides light for a dark scene to aid focusing.
Changes the range of reproducible colors.
Accesses all shooting tips.
Sets whether to record a shooting date on the still image.
Selects pre-set settings to match various scene conditions.
Selects settings you want to recall when the mode dial is set to [Memory recall].
Registers the desired modes or camera settings.
Movie shooting menu
Selects the movie file format.
Selects the size of the recorded movie frame.
Sets the still image size shot when recording a movie.
Sets whether to record audio when shooting a movie.
Reduces wind noise during movie recording.
Selects the exposure mode to suit your subject or effect.
Red Eye Reduction Reduces the red-eye phenomenon when using flash.
Sets a grid line display to enable alignment to a structural outline.
Displays the captured image after shooting. Sets auto review.
Sets the screen display modes that can be selected by pressing DISP on the control wheel.
Enhances the outline of in-focus ranges with a specific color.
Sets the color used for the peaking function.
Assigns the desired functions to the Control Ring.
Sets whether to display animation when operating the
Customizes the functions displayed when the Fn
(Function) button is pressed.
Assigns the desired functions to the center button.
Func. of Center
Func. of Left
Func. of Right
Assigns the desired functions to the left button.
Assigns the desired functions to the right button.
Displays an enlarged image when focusing manually.
Sets the length of time the image will be shown in an enlarged form.
Sets whether to track faces as a priority when tracking.
Registers or changes the person to be given priority in the focus.
Selects the display format for images.
Deletes an image.
Shows a slide show.
Displays multiple images at the same time.
Connects to a 3D compatible TV and allows you to view
Protects the images.
Adds a print order mark to a still image.
Adds various textures to images.
Adjusts the volume.
Sets how to play back an image recorded in portrait.
Memory Card Tool menu
Formats the memory card.
Sets the method used to assign file numbers to still images and movies.
Select REC Folder Changes the selected folder for storing images.
Creates a new folder for storing still images and movies
Recover Image DB
Recovers the image database file and enables recording and playback.
Displays the remaining recording time of movies and the recordable number of still images on the memory card.
Clock setup menu
Sets date and time, and daylight savings.
Sets the location of use.
Mode Dial Guide
Power Saving Start
Sets the default position of the cursor on the menu to the top item or the last-selected item.
Turns the mode dial guide (the explanation of each shooting mode) on or off.
Sets the screen brightness.
Sets the length of time until the camera turns off automatically.
Sets the resolution when the camera is connected to an
CTRL FOR HDMI
Operates the camera from a TV that supports
Sets the upload function of the camera when using an
Sets the USB connection method.
USB LUN Setting
Sets the mode when the camera is connected to a computer using a USB connection.
USB Power Supply Sets whether to supply power using a USB connection.
Sets the operating sound of the camera.
Displays the camera software version.
Selects the language.
Sets the [Drop Sensor] function.
Sets demonstration playback of a movie to on or off.
Restores settings to their defaults.
* Appears when an Eye-Fi card (sold separately) is inserted into the camera.
Install “PlayMemories Home” (Windows)
The built-in software “PlayMemories Home” allows you to import still images and movies to your computer and use them.
You can shoot or play back images on this camera even if you do not install
“PlayMemories Home”, however, “PlayMemories Home” is required to import AVCHD movies to your computer.
Connect the camera to a computer.
Windows 7: [Computer] t camera icon t media icon t Double-click [PMHOME.EXE]
Windows XP/Vista: [Computer] (in Windows XP, [My
Computer]) t [PMHOME] t Double-click
Follow the instructions on the screen to complete the installation.
• “PlayMemories Home” is not compatible to Mac OS. If you play back images on a
Mac, use the applications that are installed on your Mac.
For details, visit the following URL.
Features of “PlayMemories Home”
Below are examples of the functions available when you use “PlayMemories
Home”. To take advantage of the various “PlayMemories Home” functions, connect to the Internet and install the “Expanded Feature”.
• You can import images shot with the camera to a computer and display them.
• You can display images stored on a computer by shooting date in a calendar display.
• You can correct (Red Eye Correction, etc.) still images, print the images, send images by e-mail, and change the shooting date and time.
• You can save and print images with the date.
• You can create a disc from AVCHD movies imported to a computer.
Install “Image Data Converter”
“Image Data Converter” allows you to develop RAW images.
Download the software from the following URL and install it on your computer.
Mac: http://www.sony.co.jp/imsoft/Mac/ x
Features of “Image Data Converter”
Below are examples of the functions available when you use “Image Data
• You can edit RAW images using multiple correction functions, such as tone curve or sharpness.
• You can adjust images using white balance, aperture and Creative Style, etc.
• You can save displayed and edited still images to your computer.
There are two ways to save RAW images: save and leave as RAW data or save in a general-purpose file format.
• You can display and compare the RAW images/JPEG images that are shot with this camera.
• You can rank images in five levels.
• You can set the color label.
For other details, see Help under “Image Data Converter”.
Click [Start] t [All Programs] t [Image Data Converter] t [Help] t
[Image Data Converter Ver.4].
“Image Data Converter” support page (English only) http://www.sony.co.jp/ids-se/
Number of still images and recordable time of movies
The number of still images and recordable time may vary depending on the shooting conditions and the memory card.
Image Size: L: 20M
When [Aspect Ratio] is set to [3:2]*
RAW & JPEG
* When the [Aspect Ratio] is set to other than [3:2], you can record more pictures than shown above. (Except when [Quality] is set to [RAW].) x
The table below shows the approximate maximum recording times. These are the total times for all movie files. Continuous shooting is possible for approximately 29 minutes. The maximum size of an MP4-format movie file is up to approximately 2 GB.
(h (hour), m (minute))
60i 24M(FX)/50i 24M(FX)
60i 17M(FH)/50i 17M(FH)
60p 28M(PS)/50p 28M(PS)
1 h 10 m
• The recordable time of movies varies because the camera is equipped with VBR
(Variable Bit Rate), which automatically adjusts image quality depending on the shooting scene. When you record a fast-moving subject, the image is clearer but the recordable time is shorter because more memory is required for recording.
The recordable time also varies depending on the shooting conditions, the subject or the image quality/size settings.
Notes on using the camera
Functions built into this camera
• This manual describes 1080 60i-compatible devices and 1080 50i-compatible devices.
To check whether your camera is a 1080 60i-compatible device or 1080 50icompatible device, check for the following marks on the bottom of the camera.
1080 60i-compatible device: 60i
1080 50i-compatible device: 50i
• This camera is compatible with 1080 60p or 50p-format movies. Unlike standard recording modes up to now, which record in an interlacing method, this camera records using a progressive method. This increases the resolution, and provides a smoother, more realistic image.
On use and care
Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens.
Notes on recording/playback
• Before you start recording, make a trial recording to make sure that the camera is working correctly.
• The camera is neither dust-proof, nor splash-proof, nor water-proof.
• Avoid exposing the camera to water. If water enters inside the camera, a malfunction may occur. In some cases, the camera cannot be repaired.
• Do not aim the camera at the sun or other bright light. It may cause the malfunction of the camera.
• If moisture condensation occurs, remove it before using the camera.
• Do not shake or strike the camera. It may cause a malfunction and you may not be able to record images. Furthermore, the recording media may become unusable or image data may be damaged.
Do not use/store the camera in the following places
• In an extremely hot, cold or humid place
In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction.
• Storing under direct sunlight or near a heater
The camera body may become discolored or deformed, and this may cause a malfunction.
• In a location subject to rocking vibration
• Near a location that generates strong radio waves, emits radiation or is strongly magnetic place. Otherwise, the camera may not properly record or play back images.
• In sandy or dusty places
Be careful not to let sand or dust get into the camera. This may cause the camera to malfunction, and in some cases this malfunction cannot be repaired.
Do not sit down in a chair or other place with the camera in the back pocket of your trousers or skirt, as this may cause malfunction or damage the camera.
Carl Zeiss lens
The camera is equipped with a Carl Zeiss lens which is capable of reproducing sharp images with exellent contrast. The lens for the camera has been produced under a quality assurance system certified by Carl Zeiss in accordance with the quality standards of Carl Zeiss in Germany.
Notes on the screen
The screen is manufactured using extremely high-precision technology so over
99.99% of the pixels are operational for effective use. However, some tiny black and/or bright dots (white, red, blue or green) may appear on the screen. These dots are a normal result of the manufacturing process, and do not affect the recording.
Notes on the flash
• Do not carry the camera by the flash unit, or use excessive strength on it.
• If water, dust or sand get into the open flash unit, it may cause a malfunction.
On camera’s temperature
Your camera and battery may get hot due to continuous use, but it is not a malfunction.
On the overheat protection
Depending on the camera and battery temperature, you may be unable to record movies or the power may turn off automatically to protect the camera.
A message will be displayed on the screen before the power turns off or you can no longer record movies. In this case, leave the power off and wait until the camera and battery temperature goes down. If you turn on the power without letting the camera and battery cool enough, the power may turn off again or you may be unable to record movies.
On charging the battery
If you charge a battery that has not been used for a long time, you may be unable to charge it to the proper capacity.
This is due to the battery characteristics, and is not a malfunction. Charge the battery again.
Warning on copyright
Television programs, films, videotapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the provisions of the copyright laws.
No compensation for damaged content or recording failure
Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc.
Cleaning the camera surface
Clean the camera surface with a soft cloth slightly moistened with water, then wipe the surface with a dry cloth. To prevent damage to the finish or casing:
– Do not expose the camera to chemical products such as thinner, benzine, alcohol, disposable cloths, insect repellent, sunscreen or insecticide.
Image device: 13.2 mm × 8.8 mm
(1.0 type) Exmor CMOS sensor
Total pixel number of camera:
Approx. 20.9 Megapixels
Effective pixel number of camera:
Approx. 20.2 Megapixels
Lens: Carl Zeiss Vario-Sonnar T
3.6× zoom lens f = 10.4 mm – 37.1 mm (28 mm –
100 mm (35 mm film equivalent))
F1.8 (W) – F4.9 (T)
While shooting movies (16:9):
29 mm – 105 mm
While shooting movies (4:3):
36 mm – 128 mm
When [SteadyShot] is set to
Exposure control: Automatic exposure,
Aperture priority, Shutter priority,
Manual exposure, Scene Selection
White balance: Automatic, Daylight,
Shade, Cloudy, Incandescent,
Fluorescent (Warm White/
Cool White/Day White/Daylight),
Flash, Color temperature/Color filter, Custom
For 1080 50i:
PAL color, CCIR standards HDTV
1080/50i, 1080/50p specification
For 1080 60i:
NTSC color, EIA standards HDTV
1080/60i, 1080/60p specification
Still images: JPEG (DCF, Exif,
MPF Baseline) compliant, DPOF compatible
Movies (AVCHD format):
AVCHD format Ver. 2.0 compatible
Video: MPEG-4 AVC/H.264
Audio: Dolby Digital 2ch, equipped with Dolby Digital Stereo
Manufactured under license from
Movies (MP4 format):
Video: MPEG-4 AVC/H.264
Audio: MPEG-4 AAC-LC 2ch
Recording media: “Memory Stick
Duo” media, “Memory Stick
Micro” media, SD cards, microSD memory cards
Flash: Flash range (ISO sensitivity
(Recommended Exposure Index) set to Auto):
Approx. 0.3 m to 17.1 m
(11 3/4 inches to 56 ft.
1 3/4 inches) (W)
Approx. 0.55 m to 6.3 m (1 ft.
9 1/2 inches to 20 ft. 8 inches) (T)
[Input and Output connectors]
HDMI connector: HDMI micro jack
Micro USB connector:
USB communication: Hi-Speed USB
7.5 cm (3.0 type) TFT drive
Total number of dots:
1 228 800 dots
Power: Rechargeable battery pack
NP-BX1, 3.6 V
AC Adaptor AC-UD10/UD11, 5 V
Power consumption (during shooting):
Operating temperature: 0 °C to 40 °C
(32 °F to 104 °F)
Storage temperature: –20 °C to +60 °C
(–4 °F to +140 °F)
Dimensions (CIPA compliant):
101.6 mm × 58.1 mm × 35.9 mm
(4 inches × 2 3/8 inches ×
1 7/16 inches) (W/H/D)
Mass (CIPA compliant) (including NP-
BX1 battery pack, “Memory Stick
Approx. 240 g (8.5 oz)
Exif Print: Compatible
PRINT Image Matching III:
AC Adaptor AC-UD10/UD11
Power requirements: AC 100 V to
240 V, 50 Hz/60 Hz, 0.2 A
Output voltage: DC 5 V, 1 500 mA
Operating temperature: 0 °C to 40 °C
(32 °F to 104 °F)
Storage temperature: –20 °C to +60 °C
(–4 °F to +140 °F)
AC-UD10: Approx. 78 mm ×
22 mm × 36 mm (3 1/8 inches ×
7/8 inches × 1 7/16 inches)
AC-UD11: Approx. 70 mm ×
33 mm × 36 mm (2 7/8 inches ×
1 5/16 inches × 1 7/16 inches)
AC-UD10: Approx. 45 g (1.6 oz)
AC-UD11: Approx. 50 g (1.8 oz)
Rechargeable battery pack
Used battery: Lithium-ion battery
Maximum voltage: DC 4.2 V
Nominal voltage: DC 3.6 V
Maximum charge voltage: DC 4.2 V
Maximum charge current: 1.89 A
Capacity: 4.5 Wh (1 240 mAh)
Design and specifications are subject to change without notice.
• The following marks are trademarks of Sony Corporation.
“Memory Stick PRO Duo,”
“Memory Stick PRO-HG Duo,”
“Memory Stick Duo,” “Memory
• “AVCHD Progressive” and
“AVCHD Progressive” logotype are trademarks of Panasonic Corporation and Sony Corporation.
• Windows is registered trademark of
Microsoft Corporation in the United
States and/or other countries.
• Mac and Mac OS are registered trademarks of Apple Inc.
• SDXC logo is a trademark of SD-3C,
• “ ” and “PlayStation” are registered trademarks of Sony
Computer Entertainment Inc.
• In addition, system and product names used in this manual are, in general, trademarks or registered trademarks of their respective developers or manufacturers.
However, the ™ or ® marks are not used in all cases in this manual.
Additional information on this product and answers to frequently asked questions can be found at our Customer Support Website.
Printed on 70% or more recycled paper using VOC (Volatile Organic
Compound)-free vegetable oil based ink.
• Add further enjoyment with your
PlayStation 3 by downloading the application for PlayStation 3 from
PlayStation Store (where available.)
• The application for PlayStation 3 requires PlayStation Network account and application download.
Accessible in areas where the
PlayStation Store is available.
© 2012 Sony Corporation Printed in China
* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
