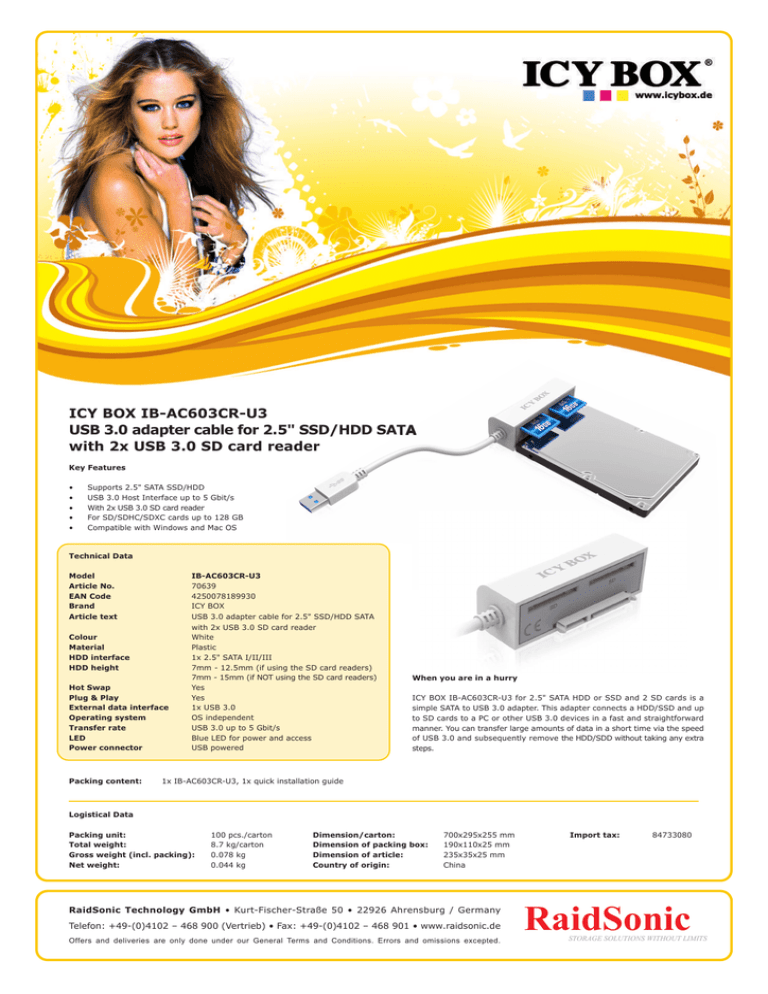

RaidSonic IB-AC603CR-U3 Datasheet

RaidSonic IB-AC603CR-U3 Datasheet
ICY BOX IB-AC603CR-U3
USB 3.0 adapter cable for 2.5" SSD/HDD SATA
with 2x USB 3.0 SD card reader
Key Features
•
•
•
•
•
Supports 2.5" SATA SSD/HDD
USB 3.0 Host Interface up to 5 Gbit/s
With 2x USB 3.0 SD card reader
For SD/SDHC/SDXC cards up to 128 GB
Compatible with Windows and Mac OS
Technical Data
Model
Article No.
EAN Code
Brand
Article text
Colour
Material
HDD interface
HDD height
Hot Swap
Plug & Play
External data interface
Operating system
Transfer rate
LED
Power connector
Packing content:
IB-AC603CR-U3
70639
4250078189930
ICY BOX
USB 3.0 adapter cable for 2.5" SSD/HDD SATA
with 2x USB 3.0 SD card reader
White
Plastic
1x 2.5" SATA I/II/III
7mm - 12.5mm (if using the SD card readers)
7mm - 15mm (if NOT using the SD card readers)
Yes
Yes
1x USB 3.0
OS independent
USB 3.0 up to 5 Gbit/s
Blue LED for power and access
USB powered
When you are in a hurry
ICY BOX IB-AC603CR-U3 for 2.5" SATA HDD or SSD and 2 SD cards is a
simple SATA to USB 3.0 adapter. This adapter connects a HDD/SSD and up
to SD cards to a PC or other USB 3.0 devices in a fast and straightforward
manner. You can transfer large amounts of data in a short time via the speed
of USB 3.0 and subsequently remove the HDD/SDD without taking any extra
steps.
1x IB-AC603CR-U3, 1x quick installation guide
Logistical Data
Packing unit:
Total weight:
Gross weight (incl. packing):
Net weight:
100 pcs./carton
8.7 kg/carton
0.078 kg
0.044 kg
Dimension/carton:
Dimension of packing box:
Dimension of article:
Country of origin:
700x295x255 mm
190x110x25 mm
235x35x25 mm
China
RaidSonic Technology GmbH • Kurt-Fischer-Straße 50 • 22926 Ahrensburg / Germany
Telefon: +49-(0)4102 – 468 900 (Vertrieb) • Fax: +49-(0)4102 – 468 901 • www.raidsonic.de
Offers and deliveries are only done under our General Terms and Conditions. Errors and omissions excepted.
Import tax:
84733080
RaidSonic
STORAGE SOLUTIONS WITHOUT LIMITS
