HP L8U11ET Datasheet

HP L8U11ET Datasheet
Datasheet

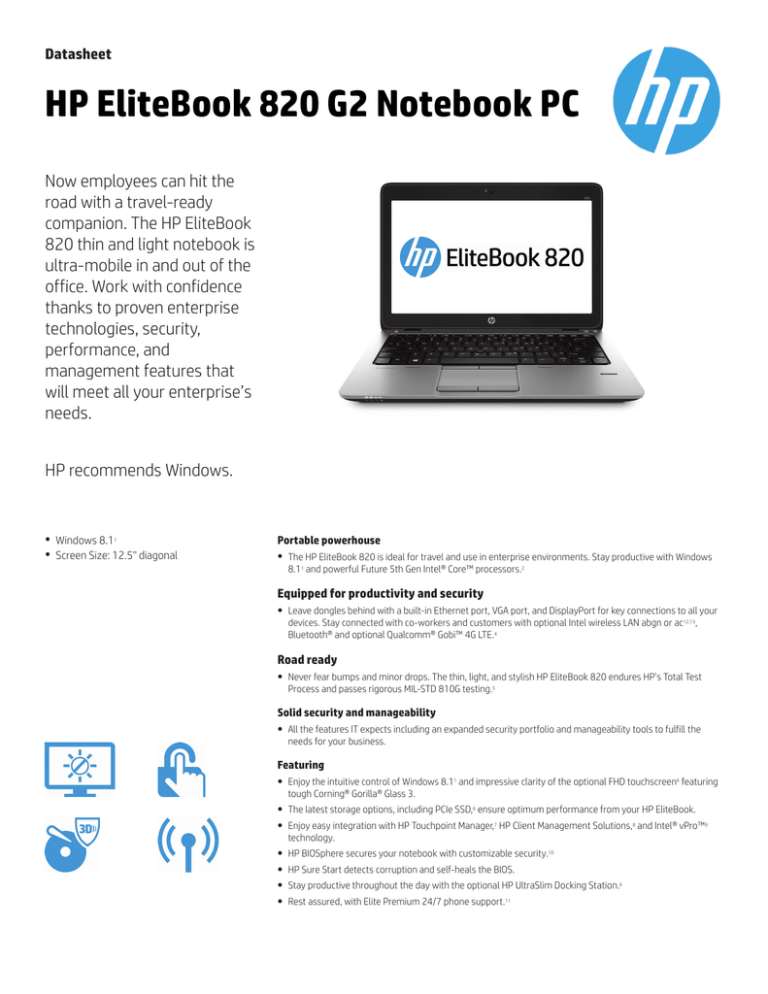

HP EliteBook 820 G2 Notebook PC
Now employees can hit the
road with a travel-ready
companion. The HP EliteBook
820 thin and light notebook is
ultra-mobile in and out of the
office. Work with confidence
thanks to proven enterprise
technologies, security,
performance, and
management features that
will meet all your enterprise’s
needs.
HP recommends Windows.
●
●
Windows 8.11
Screen Size: 12.5" diagonal
Portable powerhouse
● The HP EliteBook 820 is ideal for travel and use in enterprise environments. Stay productive with Windows
8.11 and powerful Future 5th Gen Intel® Core™ processors.2
Equipped for productivity and security
● Leave dongles behind with a built-in Ethernet port, VGA port, and DisplayPort for key connections to all your
devices. Stay connected with co-workers and customers with optional Intel wireless LAN abgn or ac12,13,
Bluetooth® and optional Qualcomm® Gobi™ 4G LTE.4
Road ready
● Never fear bumps and minor drops. The thin, light, and stylish HP EliteBook 820 endures HP’s Total Test
Process and passes rigorous MIL-STD 810G testing.5
Solid security and manageability
● All the features IT expects including an expanded security portfolio and manageability tools to fulfill the
needs for your business.
Featuring
● Enjoy the intuitive control of Windows 8.11 and impressive clarity of the optional FHD touchscreen6 featuring
tough Corning® Gorilla® Glass 3.
● The latest storage options, including PCIe SSD,6 ensure optimum performance from your HP EliteBook.
● Enjoy easy integration with HP Touchpoint Manager,7 HP Client Management Solutions,8 and Intel® vPro™9
technology.
● HP BIOSphere secures your notebook with customizable security.10
● HP Sure Start detects corruption and self-heals the BIOS.
● Stay productive throughout the day with the optional HP UltraSlim Docking Station.6
● Rest assured, with Elite Premium 24/7 phone support.11
Datasheet | HP EliteBook 820 G2 Notebook PC
HP recommends Windows.
HP EliteBook 820 G2 Notebook PC Specifications Table
2
Available Operating System
Windows 8.1 Pro 64 1
Windows 8.1 64 1
Windows 8.1 Pro for Education 64 1
Windows 7 Professional 32 (available through downgrade rights from Windows 8.1 Pro 64) 2
Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64) 2
Windows 7 Professional 32 1
Windows 7 Professional 64 1
Ubuntu Linux
FreeDOS 2.0
Processor Family 3
Future 5th Gen Intel® Core™ Processors
Chipset
Chipset is integrated with processor
Maximum Memory
16 GB 1600 MHz DDR3L SDRAM 4
SODIMM slots are customer accessible/upgradeable; Supports dual channel memory
Memory Slots
2 SODIMM
Internal Storage
up to 500 GB SATA (7200 rpm) 5
up to 500 GB SATA FIPS 140-2 SED (5400 rpm) 5
128 GB up to 512 GB SATA SSD 5
180 GB up to 256 GB SATA SE SSD 5
up to 256 GB M.2 PCIe SSD 5
Flash Cache
32 GB M.2 (optional with HDD configurations)
Display
12.5" diagonal HD SVA anti-glare flat LED-backlit (1366 x 768); 12.5" diagonal FHD UWVA ultra slim LED-backlit (1920 x 1080); 12.5" diagonal
FHD UWVA ultra slim LED-backlit touch screen (1920 x 1080) 10
Available Graphics
Integrated: Intel® HD Graphics 5500
Audio
HD audio with DTS Studio Sound™; Integrated dual-microphone array; 2 integrated stereo speakers
Wireless Technologies
HP lt4211 LTE/EV-DO/HSPA+ Qualcomm® Gobi™ 4G Mobile Broadband; HP lt4112 LTE/HSPA+ Qualcomm® Gobi™ 4G Mobile Broadband; HP
hs3110 HSPA+ Mobile Broadband; Intel 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.0 Combo; Intel 802.11a/b/g/n (2x2) and Bluetooth® 4.0; Intel
802.11a/b/g/n/ac (1x1) and Bluetooth® 4.0 Combo; Near Field Communication (NFC) module (optional) 6,7,8,9
(Support for Miracast (models with Windows 8.1 only))
Communications
Intel I218-LM GbE (10/100/1000 NIC)
Expansion Slots
1 multi-format digital media reader
(supports SD, SDHC, SDXC)
Ports and Connectors
2 USB 3.0; 1 USB 3.0 charging; 1 DisplayPort 1.2; 1 VGA; 1 headphone/microphone combo; 1 AC power; 1 RJ-45; 1 docking connector
Input Device
Spill-resistant keyboard, optional backlit; Glass touchpad (with chemically etched surface) with on/off button, supports 2-way scroll, taps and
gestures enabled by default, two-finger scrolling, two finger zoom (pinch)
Camera
720p HD webcam (select models) 10
Available Software
HP BIOSphere with HP Sure Start; HP Touchpoint Manager; HP 3D Driveguard; HP Connection Manager (models with Windows 7); HP Wireless
Hotspot; HP PageLift; HP Recovery Manager; HP Support Assistant; HP ePrint; Buy Office 11,12,13,14,15,16
Security Management
Security lock slot (lock must be purchased separately); TPM 1.2/2.0 (Infineon, soldered down); Integrated smart card reader (active); Fingerprint
reader (optional)
Power
45 W Smart AC adapter HP Long Life 3-cell, 46 WHr Li-ion polymer
Dimensions
12.2 x 8.48 x 0.83 in
31 x 21.5 x 2.1 cm
Weight
Starting at 2.94 lb (non-touch); Starting at 3.48 lb (touch)
Starting at 1.34 kg (non-touch); Starting at 1.58 kg (touch)
(Weight will vary by configuration.)
Environmental
Low halogen 17
Energy Efficiency Compliance
ENERGY STAR® certified configurations available
Expansion Solutions
2013 UltraSlim Docking Station
Warranty
Limited 3-year and 1-year warranty options available, depending on country. Batteries have a default one year limited warranty except for Long
Life batteries which will have same 1-year or 3-year limited warranty as the platform. Optional HP Care Pack Services are available to extend
your protection beyond the standard limited warranty. For more details visit: hp.com/go/cpc.
3
Datasheet | HP EliteBook 820 G2 Notebook PC
HP recommends Windows.
HP EliteBook 820 G2 Notebook PC
Accessories and services (not included)
4
HP 2013 UltraSlim Docking
Station
Quickly and easily expand your display, network, and device connectivity to customize an always-ready
workspace with the HP 2013 UltraSlim Docking Station, a simple one-click, slide-in side dock for select
ultraslim HP EliteBook Notebook PCs.
Product number: D9Y32AA
HP Docking Station Cable Lock
The HP Docking Station Cable Lock is dramatically simpler to use than previous locks and delivers enhanced
security. The HP Docking Station Cable Lock gives you two locking options: lock the docking station only (which
also prevents access to the advanced docking stations drive bay) or lock both the docking station and the
notebook.
Product number: AU656AA
HP Display and Notebook II
Stand
Quickly and easily create a comfortable workspace for your notebook or notebook and docking station and an
external display with the HP Display and Notebook II Stand, which brings your notebook PC, docking station,
and display up off the desk.
Product number: E8G00AA
HP Ultra Mobile Wireless
Mouse
Low-profile, long-life, and designed for comfort.
Here’s the long-life wireless mouse that’s so compact you can toss it in your carrying case without bulking out
its profile, so power-smart it keeps up with your work day, and so comfortable you‘ll look for reasons to use it.
Product number: H6F25AA
HP Slim Ultrabook
Professional Top Load Case
The HP Slim Ultrabook Top Load—a stylish, durable, and compact carrying case built for your Ultrabook™.1 A
black twill fabric accented with gray plaid combines form and function to help protect your hardware and give
you a polished appearance.
Product number: F3W15AA
HP External USB DVDRW Drive
Connect the HP External USB DVD/RW to any available USB port on your PC1 to get immediate read/write
access to your optical media.
Product number: F2B56AA
Datasheet | HP EliteBook 820 G2 Notebook PC
HP recommends Windows.
Messaging Footnotes
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See
http://www.microsoft.com.
1
Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance
will vary depending on your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
3 HP Connection Manager available on Windows 7 only.
4 Built in Qualcomm® Gobi® modules available in select HP products and require wireless data service contract, network support, and is not available in all areas. Contact service provider to determine the coverage area and
availability. 4G LTE not available in all regions. Connection speeds will vary due to location, environment, network conditions, and other factors.
2
MIL STD 810G testing is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Test results are not a guarantee of future performance under these test conditions.
Sold separately or as an optional feature.
HP Touchpoint Manager supports Android™, iOS and Windows operating systems and PCs, notebooks, tablets and smartphones from various manufacturers. Some features require a subscription. Not available in all
countries see www.hp.com/touchpoint for availability information. Touchpoint Manager require purchase of a subscription.
5
6
7
Requires Microsoft Windows Operating System.
Some functionality of this technology, such as Intel® Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances"
applications for Intel vPro technology is dependent on 3rd party software providers. HP BIOSphere features may vary depending on the PC platform & configuration.
8
9
HP BIOSphere features may vary depending on the PC platform & configuration.
Elite support only available in the US and Canada in English.
wireless is an optional add-on feature and requires wireless access point and Internet service is required and is not included. Availability of public wireless access points limited.
13 The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac
WLAN devices.
10
11
12 802.11
Technical Specifications Footnotes
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See
http://www.microsoft.com.
2 This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows 8.1 Pro software. You may only use one version of the Windows software at a time. Switching between
versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
3 Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance will
vary depending on your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
4 Maximum memory capacities assume Windows 64-bit operating systems or Linux. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.
5 For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30GB (for Windows 8) is reserved for system recovery software.
6 802.11 wireless is an optional add- on feature and requires wireless access point and Internet service is required and is not included. Availability of public wireless access points limited.
7 4G LTE module is optional and require separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions,
and other factors. 4G LTE not available on all products, in all regions.
8 Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming media players that also support Miracast. You can use Miracast to share what you’re doing on your PC and present a
slide show. For more information: http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast
9 NFC is an optional feature.
10 HD content required to view HD images.
11 Not available in all countries see www.hp.com/touchpoint for availability information. Some Touchpoint Manager features require purchase of a subscription.
12 HP 3D Drive Guard requires Windows.
13 The HP Wireless Hotspot application requires an active internet connection and separately purchased data plan. While HP wireless hotspot is active, on-device applications will continue to work and will use the same data plan
as the wireless hotspot. Wireless hotspot data usage may incur additional charges. Check with your service provider for plan details. Requires Windows 8.1 or HP Connection Manager for Windows 7.
14 HP Mobile Connect service requires a compatible CDMA or HSPA mobile broadband module and prepaid service purchase. Find coverage and
availability for your service area at hp.com/go/mobileconnect
15 HP PageLift requires Windows 7 or higher.
16 HP ePrint requires an internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see
www.hp.com/go/businessmobileprinting
17 External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
1
Sign up for updates
hp.com/go/getupdated
Learn more at
hp.com
© Copyright 2014. Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for
HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Intel and Core are trademarks of Intel Corporation in the U.S.
and other countries. Qualcomm and Gobi are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Trademarks of
Qualcomm Incorporated are used with permission. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. All other trademarks
are the property of their respective owners. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Studio Sound
is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
4AA5-5002ENUC , December 2014
