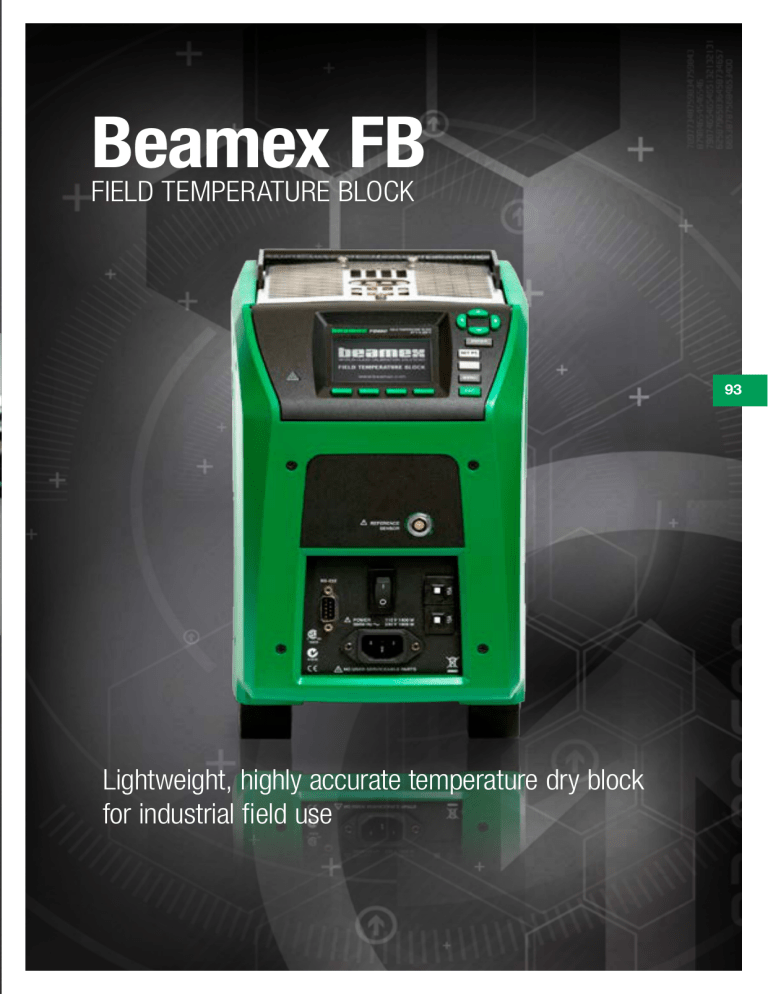

Beamex FB
Beamex FB
FIELD TEMPERATURE BLOCK
93
Lightweight, highly accurate temperature dry block
for industrial field use
An ideal temperature
block for industrial
field use
94
Lightweight, highly accurate temperature
dry block for industrial field use
The Beamex field temperature block (FB) is an ideal temperature block for
industrial field use. It is lightweight and easy to carry. It is an extremely
quick dry block, yet it provides excellent accuracy.
Main features of the Beamex FB
Lightweight, portable
The Beamex FB field temperature block is ideal for industrial field use. It
only weighs about 8 kg, and it is small enough to carry around.
Speed
The Beamex FB is extremely quick to reach various temperatures, i.e. it
cools down to –25 °C in 15 minutes and heats up to +660 °C in 15 minutes.
This saves time and increases productivity.
95
Accuracy and performance
The Beamex FB is an easily portable unit that also provides excellent
calibration accuracy. The display accuracy is up to ±0.2 °C and its control
technology provides great stability up to ±0.01 °C. The dual zone
controlled block provides excellent axial uniformity up to ±0.04 °C and
radial uniformity up to ±0.01 °C.
Smart reference sensors
The Beamex FB has an internal reference thermometer (in R models),
which enables connections to the Beamex smart reference sensors.
These sensors have a memory that contains all of the sensor correction
data. This enables the use of the reference sensor as a real plug-and-play.
Accredited calibration
Each Beamex FB field temperature block is delivered with an accredited
calibration certificate.
Usability
The large LCD display, function keys and multilingual, menu-based user
interface makes the Beamex FB easy to use. A graphic and audible
stability indicator lets you know when a block is stable. The HOT warning
light indicates when the block is hot (over +50 °C). It blinks as long as the
block is too hot to touch, even when the unit is switched off or when the
mains cable is disconnected.
Part of the Beamex ICS integrated calibration solution
The communication port enables communication with selected Beamex
MC calibrators for automation calibration and documentation, making the
Beamex FB products part of the Beamex ICS integrated calibration
solution. Combined with the Beamex MC6 calibrator, loop calibrations are
possible with conventional, HART and Fieldbus temperature transmitters
with sensors.
BEAMEX FB | FIELD EQUIPMENT
Beamex FB series specifications
FB150
FB350
FB660
–25 °C to 150 °C
(–13 °F to 302 °F)
33 °C to 350 °C
(91 °F to 662 °F)
50 °C to 660 °C
(122 °F to 1220 °F)
±0.2 °C Full range
±0.2 °C Full range
±0.35 °C at 50 °C
±0.35 °C at 420 °C
±0.5 °C at 660 °C
±0.01 °C Full range
±0.02 °C at 33 °C
±0.02 °C at 200 °C
±0.03 °C at 350 °C
±0.03 °C at 50 °C
±0.05 °C at 420 °C
±0.05 °C at 660 °C
±0.05 °C Full range
±0.04 °C at 33 °C
±0.1 °C at 200 °C
±0.2 °C at 350 °C
±0.05 °C at 50 °C
±0.35 °C at 420 °C
±0.5 °C at 660 °C
±0.01 °C Full range
±0.01 °C at 33 °C
±0.015 °C at 200 °C
±0.02 °C at 350 °C
±0.02 °C at 50 °C
±0.05 °C at 420 °C
±0.10 °C at 660 °C
Loading effect
(with a 6.35 mm reference probe
and three 6.35 mm probes)
±0.006 °C Full range
±0.015 °C Full range
±0.015 °C at 50 °C
±0.025 °C at 420 °C
±0.035 °C at 660 °C
Hysteresis
±0.025 °C
±0.03 °C
±0.01 °C
Immersion depth
150 mm (5.9 in)
Insert OD dimensions
30 mm (1.18 in)
25.3 mm (0.996 in)
24.4 mm (0.96 in)
Heating time
16 min: 23 °C to 140 °C
23 min: 23 °C to 150 °C
25 min: –25 °C to 150 °C
5 min: 33 °C to 350 °C
15 min: 50 °C to 660 °C
Cooling time
15 min: 23 °C to –25 °C
25 min: 150 °C to –25 °C
32 min: 350 °C to 33 °C
14 min: 350 °C to 100 °C
35 min: 660 °C to 50 °C
25 min: 660 °C to 100 °C
Resolution
0.01 °C / °F
Display
LCD, °C or °F user-selectable
Size (H x W x D)
290 mm x 185 mm x 295 mm (11.4 x 7.3 x 11.6 in)
Weight
8.16 kg (18 lb)
7.3 kg (16 lb)
7.7 kg (17 lb)
230 V (±10 %) 50/60 Hz, 575 W
100 V to 115 V (±10 %) 50/60 Hz, 635 W
230 V (±10 %), 50/60 Hz, 1800 W
100 V to 115 V (±10 %), 50/60 Hz,
1400 W
230 V (±10 %), 50/60 Hz, 1800 W
100 V to 115 V (±10 %), 50/60 Hz,
1400 W
Computer interface
RS-232
RS-232
RS-232
Calibration
Accredited calibration certificate provided
Environmental operating conditions
0 °C to 50 °C, 0 % to 90 % RH (non-condensing)
Specifications valid in
environmental conditions
13 °C … 33 °C
Temperature range at 23 °C
Display accuracy
Stability
Axial uniformity at 40 mm (1.6 in)
Radial uniformity
96
Power requirements
R Model Specifications
FB
Resistance range
0 Ω to 400 Ω
Resistance accuracy
0 Ω to 42 Ω: ±0.0025 Ω
42 Ω to 400 Ω: ±60 ppm of reading
1)
Characterizations
Temperature accuracy (100 ohm PRT)
ITS-90, CVD, IEC-60751, resistance
2)
±(0.015 °C + 0.008 % of temperature reading)
Sensor connection
4-wire, 6-pin Smart Lemo
Calibration
Accredited calibration certificate provided
1) Measurement accuracy specifications apply within the specified environmental operating conditions and assume 4-wires for PRTs.
2) The built-in reference thermometer readout accuracy does not include the sensor probe accuracy.
FIELD EQUIPMENT | BEAMEX FB
Inserts
Inserts for FB models
Insert
Model
Description
MH1
FB150
Multihole, metric / reference; ¼”, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm
MH1
FB350, FB660
Multihole, metric / reference; ¼”, 4 mm, 6 mm, 8 mm, 10 mm
MH2
All models
Multihole, metric / reference; ¼”, 2x3 mm, 2x4 mm, 6 mm
B
All models
Blank
Special
All models
Special
Please contact Beamex for custom inserts.
10 mm
4 mm 1/4 in
3 mm
4 mm
1/4 in
6 mm
8 mm
FB150-MH1
3 mm
3 mm
6 mm
4 mm
FB150-MH2
10 mm
4 mm
1/4 in
6 mm 8 mm
4 mm 1/4 in
3 mm
6 mm
3 mm
4 mm
FB350-MH1, FB660-MH1
FB350-MH2, FB660-MH2
Standard Accessories
• Power Cord
• RS-232 Cable
• User Guide
• Accredited Calibration Certificate
• LEMO Connector for reference sensor (R models only)
• Block Insulator (in FB150)
• Tongs (insert removal tool)
Optional Accessories
• Transport Case for temperature block
• Inserts
BEAMEX FB | FIELD EQUIPMENT
97
SUMMARY
Beamex FB
FIELD TEMPERATURE BLOCK
Lightweight, highly accurate temperature dry block for
industrial field use. The Beamex field temperature block (FB)
98
is an ideal temperature block for industrial field use. It is
lightweight and easy to carry. It is an extremely quick
dry block, yet it provides excellent accuracy.
Available models
• FB150 / FB150R with range −25 °C … +150 °C
• FB350 / FB350R with range +33 °C … +350 °C
• FB660 / FB660R with range +50 °C … +660 °C
The R models include an internal reference thermometer with a
connection for an external reference sensor.
Smart reference probes
Beamex smart reference probes are high-quality extremely stable
reference PRT probes with an integrated memory which stores
the individual probe coefficients. They are available in two versions:
300 mm straight version or a 90° bent version.
Main features
Lightweight, portable and quick field block
Highly accurate
Temperature ranges from a –25°C to +660°C
Dual zone control techniques enable excellent stability
and uniformity
Accredited calibration certificate as standard
Part of the Beamex ICS integrated calibration solution
FIELD EQUIPMENT | BEAMEX FB
