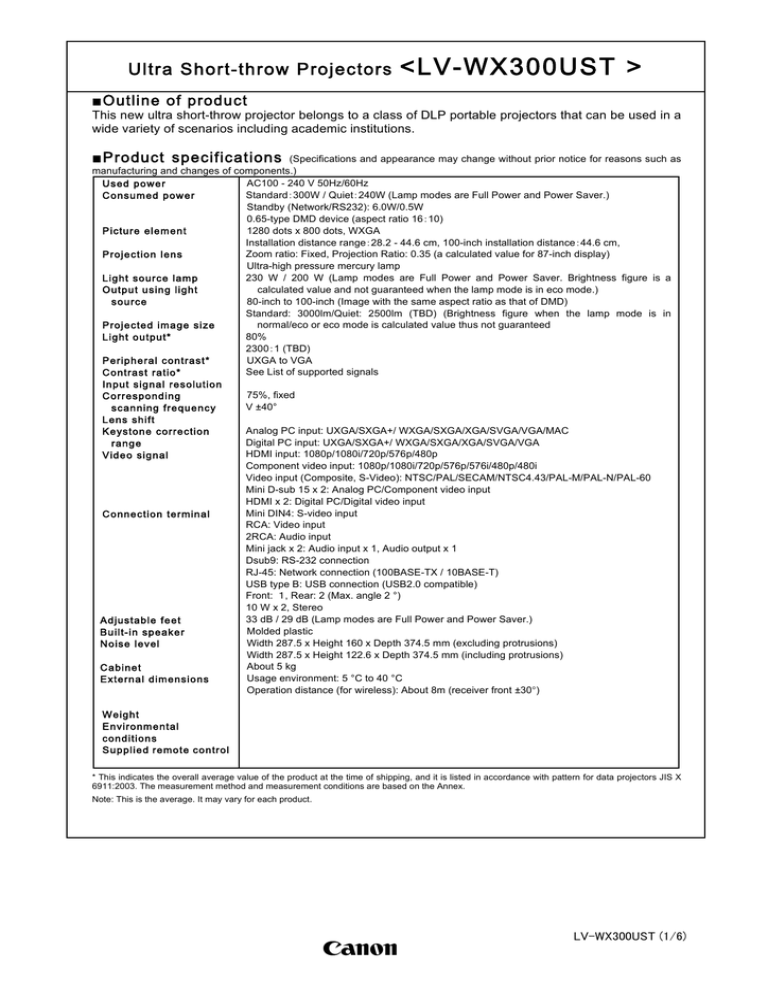

Ultra Short-throw Projectors
<LV-WX300UST >
■Outline of product
This new ultra short-throw projector belongs to a class of DLP portable projectors that can be used in a
wide variety of scenarios including academic institutions.
■Product specifications
(Specifications and appearance may change without prior notice for reasons such as
manufacturing and changes of components.)
Used power
AC100 - 240 V 50Hz/60Hz
Consumed power
Standard:300W / Quiet:240W (Lamp modes are Full Power and Power Saver.)
Standby (Network/RS232): 6.0W/0.5W
0.65-type DMD device (aspect ratio 16:10)
Picture element
1280 dots x 800 dots, WXGA
Installation distance range:28.2 - 44.6 cm, 100-inch installation distance:44.6 cm,
Projection lens
Zoom ratio: Fixed, Projection Ratio: 0.35 (a calculated value for 87-inch display)
Ultra-high pressure mercury lamp
Light source lamp
230 W / 200 W (Lamp modes are Full Power and Power Saver. Brightness figure is a
Output using light
calculated value and not guaranteed when the lamp mode is in eco mode.)
source
80-inch to 100-inch (Image with the same aspect ratio as that of DMD)
Standard: 3000lm/Quiet: 2500lm (TBD) (Brightness figure when the lamp mode is in
Projected image size
normal/eco or eco mode is calculated value thus not guaranteed
Light output*
80%
2300:1 (TBD)
Peripheral contrast*
UXGA to VGA
See List of supported signals
Contrast ratio*
Input signal resolution
75%, fixed
Corresponding
V ±40°
scanning frequency
Lens shift
Analog PC input: UXGA/SXGA+/ WXGA/SXGA/XGA/SVGA/VGA/MAC
Keystone correction
Digital PC input: UXGA/SXGA+/ WXGA/SXGA/XGA/SVGA/VGA
range
HDMI input: 1080p/1080i/720p/576p/480p
Video signal
Component video input: 1080p/1080i/720p/576p/576i/480p/480i
Video input (Composite, S-Video): NTSC/PAL/SECAM/NTSC4.43/PAL-M/PAL-N/PAL-60
Mini D-sub 15 x 2: Analog PC/Component video input
HDMI x 2: Digital PC/Digital video input
Mini DIN4: S-video input
Connection terminal
RCA: Video input
2RCA: Audio input
Mini jack x 2: Audio input x 1, Audio output x 1
Dsub9: RS-232 connection
RJ-45: Network connection (100BASE-TX / 10BASE-T)
USB type B: USB connection (USB2.0 compatible)
Front: 1, Rear: 2 (Max. angle 2 °)
10 W x 2, Stereo
33 dB / 29 dB (Lamp modes are Full Power and Power Saver.)
Adjustable feet
Molded plastic
Built-in speaker
Width 287.5 x Height 160 x Depth 374.5 mm (excluding protrusions)
Noise level
Width 287.5 x Height 122.6 x Depth 374.5 mm (including protrusions)
About 5 kg
Cabinet
Usage environment: 5 °C to 40 °C
External dimensions
Operation distance (for wireless): About 8m (receiver front ±30°)
Weight
Environmental
conditions
Supplied remote control
* This indicates the overall average value of the product at the time of shipping, and it is listed in accordance with pattern for data projectors JIS X
6911:2003. The measurement method and measurement conditions are based on the Annex.
Note: This is the average. It may vary for each product.
LV-WX300UST (1/6)
■ Key features
l WXGA-3000 lm and contrast ratio of 2300:1
This projector is a WXGA model capable of providing light output of 3,000 lumens, which is bright
for a projector in portable class. Its contrast ratio is 2300:1 to project sharp images.
l Ultra short-throw projector that enables close-in projection onto a screen or wall
This projector is an ultra short-throw model that realizes projection ratio of 0.35:1.
In order to project a 100-inch image on the wall, distance from the screen to projector is only 45cm.
l Two HDMI terminals
The projector is equipped with 2 HDMI terminals to support input of high-resolution digital videos.
Connect with devices such as Blu-ray disc player to project high-resolution videos.
■ External dimensions diagram
(Unit: mm)
LV-W X300UST
(Note) The above diagrams are not drawn to scale.
LV-WX300UST (2/6)
■ Terminals
[Com m on term inals]
① S-Video
② VGA out
③ VGA1, VGA2
④ USB
⑤ AC
⑥ Mic
⑦ RS-232
⑧ Audio out
⑨ HDMI 2
⑩ HDMI 1
⑪ RJ-45
⑫ Video
⑬ Audio L/R
(for Video and S-Video)
⑭ Security bar
■ Names
⑮ Kensington lock
⑯ Audio in
[Com m on Nam es]
① Lens
② Lens cover
③ IR receiver
④ Aspheric mirror
⑤ Focus ring
⑥ Function keys
LV-WX300UST (3/6)
■ Installation distance and image size
Projection lens for this projector doe not feature optical zoom function.
For this reason, image size is adjusted by moving the installation position (throw distance).
“L” in the diagram (left) represents throw distance. It
is the horizontal distance from the front of the
projector to the screen.
L H represents the image height; it is the vertical
distance from the top to the bottom of the image.
H
s
Hs is the distance in vertical direction from the
bottom of the projector to the top of the image.
Ratio between H and Hs for this projector is fixed, as
shown below:
LV-WX300UST
10:2.5 (Hs = H x 0.25)
H
Although it is not shown in this diagram, the width of
the image is indicated with W.
Note: Although this projector can be used in a conventional
position (placed on a desktop), it is designed to be
mounted on a wall up-side-down, using a bracket.
Optimum displayable images sizes are between 80 to 100 inches.
Image size and throw distance are as indicated below.
(Unit: m)
Image size (16:10)
Installation
distance
Throw
distance
Projection ratio
Type
W
[cm]
H
[cm]
L
[cm]
L’
[cm]
L'/W
80
172
108
28.2
60.2
0.350
85
183
114
32.3
64.3
0.351
90
193
121
36.4
68.4
0.353
95
204
128
40.5
72.5
0.354
76.6
0.355
100
215
135
44.6
Note: Figures in the above chart are approximate.
This projector adopts aspheric mirror for its optical system. For this reason, there
is a gap between installation distance and projection distance as shown in the
diagram on the right. The difference is expressed with the following formula.
L' = L + 32.0
L L' Projection ratio is calculated with the above formula using throw distance, not
installation distance.
Projection ratio is not proportional to the throw distance because the image size
at the starting point for throw distance is not zero.
This projector features 3 adjustable feet.
Feet are used to adjust left/right tilt.
The projection angle can be adjusted up to 2.0 degrees between the projector
and installation surface.
LV-WX300UST (4/6)
■List of supported signals
The video signals that can be input in this product are described in the table below.
Video signal input is accepted in the following ranges: Horizontal scanning frequency between 15 KHz and 75 KHz, and vertical
scanning frequency between 50Hz and 60Hz.
●Digital (DVI/HDMI) /Analog PC (RGB)
●Apple Macintosh (analog/digital)
Signal format
Horizontal
frequency
[KHz]
Vertical frequency
[Hz]
Signal format
Horizontal
frequency
[KHz]
Vertical frequency
[Hz]
720x400
37.9
85.04
640x480
35.0
66.7
31.5
60.0
832x624
49.7
74.5
37.9
72.8
1024x768
60.2
74.9
37.5
75.0
1152x870
68.7
75.1
43.3
85.0
640x480
35.2
37.9*
800x600
1024x600
72.2
53.7
72.2
1
1280x768
1280x800
60.0
50.0
576p
31.3
50.0
37.5
50.0
45.0
60.0
33.8
60.0
28.1
50.0
27.0
24.0
28.0
25.0
65.0
1
70.1
60.0
75.0
68.7
85.0
2
1680x1050
1920x1200
1920x1080
1920×2205*
4
1
720p
1080i
120.0*
2
99.0
120.0
67.5
75.0
33.7
30.0
45.0
60.0
67.5
60.0
90.0
120.0
56.3
50.0
47.4
60.0
NTSC
15.734
60.0
PAL.SECAM
15.625
50.0
1080p
47.8*
1
59.9*
1
49.7*
1
59.8*
1
62.8
74.9
71.6
84.9
2
3
119.9*
60.0*
2
3
75.0
85.0
3
60.0*
3
85.9
85.0
-
60.0
47.7
60.0
65.3
60.0
55.9*
1600x1200
60.0*
56.5
55.5
1440x900
60.0
31.5
60.0*
3
15.734
15.625
91.1
1400x1050*
480i
576i
80.0
1280x1470
4
*
3
1366x768*
Vertical frequency
[Hz]
480p
64.0*
1280x960
Horizontal
frequency
[KHz]
60.0
101.6*
1280x1024
2
Signal format
60.0
41.5
1152x864
120.0*
●Digital video /Component video
37.3
97.6*
1280x720*
2
1
35.8
48.4*
1024x768
60.3*
48.1
76.3*
1024x576
56.3
1
●Composite video
<Notes on 3D>
1
* Supports non-3D and 3D signal with Frame Sequential
and Top-Bottom format.
*2 Supports non-3D and 3D signal with Frame Sequential
format
*3 Supports non-3D and 3D signal with Top-Bottom format.
4
* Supports 3D signal with Frame Packing format.
There 3D timing showing depend the EDID file and display
card. It is possible that user cannot
choose the above 3D timings on display card.
The resolution of the panel is 1280 x 800. Resolution other
than native resolution may display with
uneven size of text or lines.
59.9
3
59.9
70.6
75.0
75.0
60.0
64.7
59.9
65.3
60.0
74.0
60.0
67.5
60.0
-
23.97
LV-WX300UST (5/6)
■Accessories
Projector Remote Controller (with battery)
LV-RC10
Power source: DC 3.0V (uses CR2025 battery)
Operating range: Distance of approx. 8m from
the projector; angle of±30° in any direction
from directly in front of the infrared remote
receiver.
Computer Cable
Mini Dsub15-MiniDsub15
Used to connect the projector to a PC for
transferring analog PC signals.
AC Power Cord
Connects the projector to the power plug
Supplied
(common)
Projector Remote Controller (with battery)
LV-RC10
Options
Replacement
parts
Projector Remote Controller (with battery)
LV-RC9
Same as the supplied accessory.
Wall-mounting Bracket LV-WL02
Used to hang the projector from the wall
Replacement Lamp
Ultra high-pressure mercury lamp
1
Recommended replacement time* :
5000H/8000H (Lamp mode: Full Power and
Power Saver.)
*1: When the lamp has a 50% survival rate and can maintain a 50% light retention ratio. This figure does not guarantee the lamp
life.
■Precautions when installing/using
High wattage lamps are used in the projector, and it becomes very hot. Take care as follows.
①
This projector produces intense light from the projection lens. Do not stare directly into the lens, otherwise damage to eyes could
result.
②
Do not set anything on top of the projector. Also do not project with projectors stacked directly on top of each other.
③
Do not place any object in front of the lens while the projector is in use as focused light projected to an object for a prolonged
time may result in a fire.
④
Do not block the intake and exhaust vents of the projector.
Also, install the projector so that the intake and exhaust vents are not subjected directly to warm air and cold air of air
conditioning.
⑤
The projector uses high-pressure mercury lamp for its light source, which may deteriorate or reduce luminance owing to the
characteristics and extensive use of the mercury lamp. Prolonged usage may also lead to breakage of the lamp. In such
instances, immediately replace the lamp to a new lamp. Contact a local dealer for service and replacement of the lamp; such
maintenance should be conducted at a service center by a qualified personnel.
⑥
When operating the projector inserted in a box, ensure that the ambient temperature within the box during operation is within the
range of 0°C to 40°C. Also, do not block the intake and exhaust vents. Even when the ambient temperature is 40°C or lower,
the protection circuit of the projector may function and shut down the projector due to internal retention of the exhaust heat.
Sufficiently consider the ambient temperature environment when installing the projector.
⑦
Set the Fan Control mode (High altitude mode) to ON when using the projector in high altitudes (1,500 meters or move above
sea level) where the atmospheric pressure is low.
LV-WX300UST (6/6)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
