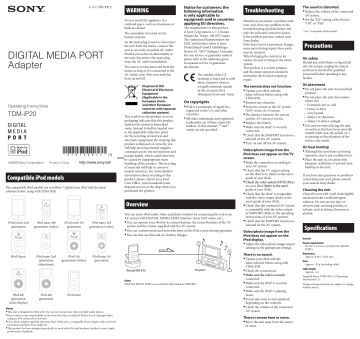

DIGITAL MEDIA PORT Adapter
4-127-366-11(1)
WARNING
Do not install the appliance in a
confined space, such as a bookcase or
built-in cabinet.
The nameplate is located on the
bottom exterior.
DIGITAL MEDIA PORT
Adapter
Operating Instructions
TDM-iP20
2009 Sony Corporation
Printed in China
Compatible iPod models
The compatible iPod models are as follows. Update your iPod with the latest
software before using with TDM-iP20.
As the main plug is used to disconnect
the unit from the mains, connect the
unit to an easily accessible AC outlet.
Should you notice an abnormality in
the unit, disconnect the main plug
from the AC outlet immediately.
The unit is not disconnected from the
mains as long as it is connected to the
AC outlet, even if the unit itself has
been turned off.
Disposal of Old
Electrical & Electronic
Equipment (Applicable in the
European Union
and other European
countries with separate
collection systems)
This symbol on the product or on its
packaging indicates that this product
shall not be treated as household
waste. Instead it shall be handed over
to the applicable collection point
for the recycling of electrical and
electronic equipment. By ensuring this
product is disposed of correctly, you
will help prevent potential negative
consequences for the environment and
human health, which could otherwise
be caused by inappropriate waste
handling of this product. The recycling
of materials will help to conserve
natural resources. For more detailed
information about recycling of this
product, please contact your local
Civic Office, your household waste
disposal service or the shop where you
purchased the product.
Notice for customers: the
following information
is only applicable to
equipment sold in countries
applying EU directives.
The manufacturer of this product
is Sony Corporation, 1-7-1 Konan
Minato-ku, Tokyo, 108-0075 Japan.
The Authorized Representative for
EMC and product safety is Sony
Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany.
For any service or guarantee matters
please refer to the addresses given
in separate service or guarantee
documents.
The validity of the CE
marking is restricted to only
those countries where it
is legally enforced, mainly
in the countries EEA
(European Economic Area).
On copyrights
iPod is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
All other trademarks and registered
trademarks are of their respective
holders. In this manual, TM and ®
marks are not specified.
Overview
iPod touch 2nd
generation
iPod classic
iPod nano 4th
generation (video)
iPod nano 2nd
generation
(aluminum)
iPod touch 1st
generation
iPod 5th
generation (video)
iPod nano 3rd
generation (video)
You can enjoy iPod audio, video and photo contents by connecting this unit to an
AV system with DIGITAL MEDIA PORT interface (Sony DAV series, etc.).
You can operate your iPod by its control buttons, the control buttons of the AV
system and the remote supplied with the AV system.
You can confirm menu and item selections on the iPod screen during operation.
You can also use this unit as a battery charger.
iPod nano 1st
generation
iPod and TDM-iP20
Note
AV system
DIGITAL MEDIA PORT is occasionally abbreviated as DMPORT.
iPod 4th
generation
(color display)
Notes
iPod 4th
generation
iPod mini
This unit is designed for iPod only. You can not connect any other portable audio players.
Sony cannot accept responsibility in the event that data recorded to iPod is lost or damaged when
using an iPod connected to this unit.
Use a Dock Adapter supplied with your iPod. Otherwise, a compatible Dock Adapter will need to be
purchased separately from Apple Inc.
This product has been designed specifically to work with iPod and has been certified to meet Apple
performance standards.
Troubleshooting
Should you encounter a problem with
your unit, find your problem in the
troubleshooting checklist below and
take the indicated corrective action.
If the problem persists, contact your
Sony dealer.
Note that if service personnel changes
some parts during repair, these parts
may be retained.
When bringing the system in for
repairs, be sure to bring in the entire
system.
This product is a system product,
and the entire system is needed to
determine the location requiring
repair.
The remote does not function.
The sound is distorted.
Reduce the volume of the connected
AV system.
Set the “EQ” setting of the iPod to
“Off ” or “Flat”.
*See ‘‘Compatible iPod models”.
Precautions
On safety
Should any solid object or liquid fall
into the system, unplug the system
and have it checked by qualified
personnel before operating it any
further.
On placement
Update your iPod with the
latest software before using with
TDM‑iP20.
Remove any obstacles.
Point the remote at the AV system
(DAV series, etc.)’s sensor.
The distance between the remote
and the AV system is too far.
Replace the battery.
Make sure the iPod* is securely
connected.
Check that the DMPORT function is
selected on the AV system.
Turn on and off the AV system.
Do not place the unit in an inclined
position.
Do not place the unit in locations
where it is;
Extremely hot or cold
Dusty or dirty
Very humid
Subject to vibrations
Subject to direct sunlight.
Use caution when placing the unit
on surfaces that have been specially
treated (with wax, oil, polish, etc.)
as staining or discoloration of the
surface may result.
Video/photo image from the
iPod does not appear on the TV
screen.
Although the unit heats up during
operation, this is not a malfunction.
Place the unit in a location with
adequate ventilation to prevent heat
buildup in the unit.
Make the connection according to
your AV system.
Check that the TV output setting
on the iPod is on (Refer to the user’s
guide of your iPod).
����������������������������������
Check the color system (NTSC/PAL)
on your iPod (Refer
���������������������
to the user’s
guide of your iPod)�.
Check that the iPod* is compatible
with the video output (Refer to the
user’s guide of your iPod).
Check that the connected AV system
is compatible with the video output
of DMPORT (Refer to the operating
instructions of your AV system).
Check that the DMPORT function is
selected on the AV system.
Video/photo image from the
iPod does not appear on the
iPod display.
On heat buildup
If you have any questions or problems
concerning your unit, please consult
your nearest Sony dealer.
Cleaning the unit
Clean the unit with a soft cloth slightly
moistened with a mild detergent
solution. Do not use any type of
abrasive pad, scouring powder, or
solvent, such as thinner, benzine or
alcohol.
Specifications
General
Adjust the video/photo image output
settings to the appropriate settings.
Power requirements:
There is no sound.
Dimensions:
Update your iPod with the
latest software before using with
TDM‑iP20.
Check the connections.
�������������������������������
Make sure the unit is securely
connected.
Make sure the iPod* is securely
connected.
Make sure the iPod* is playing
music.
It may take time to start playback
depending on the contents.
Check the volume of the connected
AV system.
There is severe hum or noise.
Move the unit away from the source
of noise.
DC IN: 5 V, 0.6 A (via DIGITAL MEDIA
PORT)
Approx.  80 × 22(h) mm
Mass:
Approx. 132 g (including cable)
Cable length:
Approx. 1 m
Supplied items: TDM-iP20 (1)/Operating
Instructions (1)
Design and specifications are subject to change
without notice.
Getting Started
Operating the Unit
To connect/disconnect the
unit
1: List of parts locations
DMPORT

To DMPORT jack
Connect the cable so that both
marks are aligned.
To remove the DIGITAL MEDIA PORT cable from
the DMPORT jack, press both side buttons and
pull it out.

Connecting
1 Connect the DIGITAL MEDIA PORT
cable of this unit to the DIGITAL
MEDIA PORT jack of an AV system
(DAV series, etc.). Make sure the
AV system is turned off before
connecting.
2 Turn on the AV system with
a DIGITAL MEDIA PORT jack
connected to this unit, and
select the DIGITAL MEDIA PORT
function.

 DIGITAL MEDIA PORT cable
 iPod connector
 Power indicator: Lights up in green while the power is supplied.
Disconnecting
To use the unit as a battery
charger
You can use the unit as a battery
charger. While the power indicator
is lit, the battery can be charged. The
charging status appears in the iPod
display. For details, refer to the user’s
guide of your iPod.
To remove the iPod Dock
Adapter
To remove the iPod Dock Adapter, pull it up
with your fingernail or a flat object using
the slot inside the adapter.
Performing basic
operations
You can operate your iPod by the AV
system with DIGITAL MEDIA PORT
interface (Sony DAV series, etc.) and
the remote supplied with the AV
system.
Notes
To use an iPod, refer to the user’s guide of
your iPod.
Before disconnecting the iPod, pause
playback.
Basic Operations
Press
/

/
Before disconnecting, turn off the AV
system.
/ /ENTER
To put the iPod into the unit
/
1 Choose the iPod Dock Adapter
that fits your iPod.
2 Insert the Dock Adapter into the
unit.
/
2: Installing the TDM-iP20
Connect and position the TDM-iP20 as illustrated below.
Video cable
(not supplied)
TV
3 Place the iPod into the unit.
DIGITAL MEDIA
PORT cable
AV system
(Sony DAV series, STR series, etc.)
Notes
TDM-iP20
Notes
DIGITAL MEDIA
PORT cable
TV
TDM-iP20
Notes
�����������������������������������������������������������������������������������������������
This unit turns on/off automatically whenever the connected AV system (DAV series, etc.) turns
on/off.
�������������������������������������������������������������������������������������������������
Video content may not be played back depending on the connected AV system. For details, refer to
the operating instructions of your AV system.
/MENU/
DISPLAY/
RETURN
VOLUME
+/–
When placing or removing the iPod, handle
the iPod in the same angle as that of the iPod
connector on this unit and do not twist or
sway the iPod to prevent connector damage.
Do not carry the unit with an iPod set
on the connector. Doing so may cause a
malfunction.
When placing or removing the iPod, brace
the unit with one hand and take care not to
press the controls of the iPod by mistake.
To
Start/pause play.
Pause play.
Works much like
running your thumb
around the Click
Wheel on the iPod
counterclockwise
(clockwise).
Works much like the
center button on the
iPod.
Press and release
to skip to the next
(previous) song/
video or chapter of
audiobook/podcast.
Hold down to
fast-forward (fastrewind).
Fast-forward (fastrewind) play.
Works much like the
Menu button on the
iPod.
Adjust the volume
level.
Point the remote at the AV system.
Depending on the connected AV system, the
operation or buttons may differ. Refer to the
operating instructions of your AV system.
Depending on the connected iPod,
operations may differ.
Before enjoying video, adjust the video
settings on the iPod to the appropriate
settings according to your situation.
It may take time to start playback depending
on the contents.
The volume cannot be adjusted using the
volume control on the iPod when it is
connected to the AV system.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
