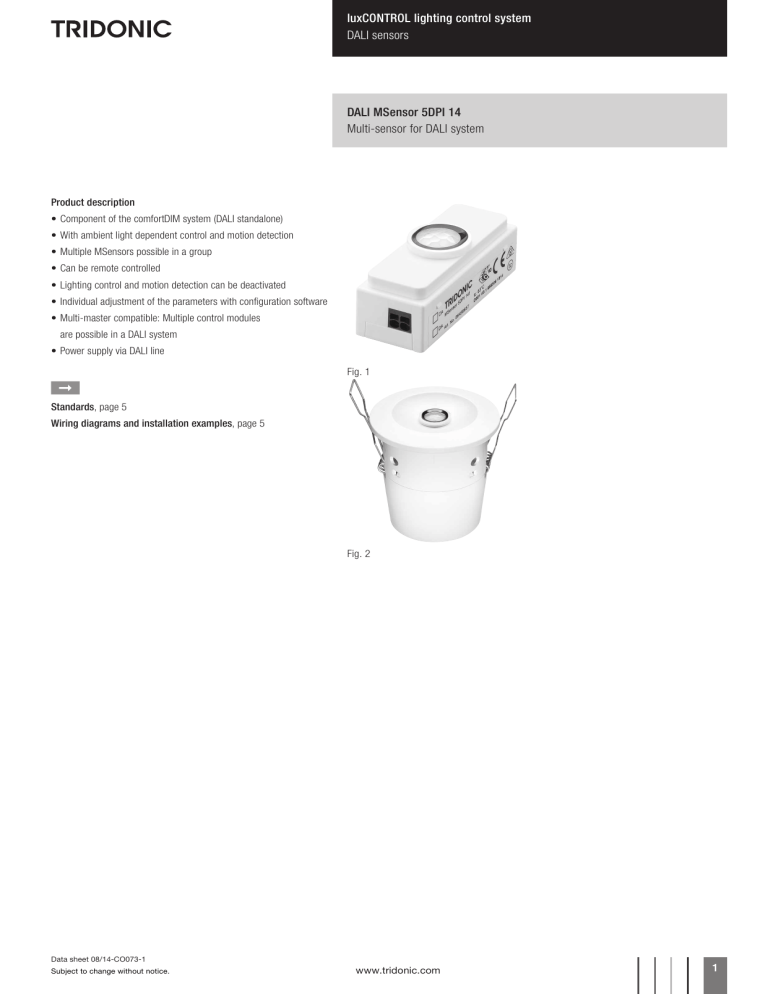

luxCONTROL lighting control system DALI sensors DALI MSensor

luxCONTROL lighting control system DALI sensors DALI MSensor
luxCONTROL lighting control system
DALI sensors
DALI MSensor 5DPI 14
Multi-sensor for DALI system
Product description
•Component of the comfortDIM system (DALI standalone)
•With ambient light dependent control and motion detection
•Multiple MSensors possible in a group
•Can be remote controlled
•Lighting control and motion detection can be deactivated
•Individual adjustment of the parameters with configuration software
•Multi-master compatible: Multiple control modules
are possible in a DALI system
•Power supply via DALI line
Fig. 1
È
Standards, page 5
Wiring diagrams and installation examples, page 5
Fig. 2
Data sheet 08/14-CO073-1
Subject to change without notice.
www.tridonic.com
1
luxCONTROL lighting control system
DALI sensors
DALI MSensor 5DPI 14
Multi-sensor for DALI system
0 ... +50 °C
Storage temperature
-25 ... +55 °C
Type of protection
IP20
44,4
2
6 mA from DALI
Operating temperature
1,9
3
DALI cable
Current draw
12,8
Supply via
16,4
Technical data
Ø13,9
5,5
65,4
Fig. 1
Ø46,75
Ø58
128
Fig. 2
Ordering data
Type
Article number
Figure
Packaging, carton
DALI MSensor 5DPI 14f Luminaire installation
86459657
1
40 pc(s).
DALI MSensor 5DPI 14rc Ceiling installation
86459658
2
63 pc(s).
Specific technical data
Type
Detection
Ø of detection range,
mounted at a height of 2.5 m
Swivel design
Detection angle
Light measurement
at the sensor head1
Infra-red
control range
DALI MSensor 5DPI 14f
4m
no
360°
10 – 650 lx
5m
DALI MSensor 5DPI 14rc
4m
no
360°
10 – 650 lx
5m
1 The measured value at the sensor head corresponds to approx. 15 to 2,000 lux on the surface measured.
Data sheet 08/14-CO073-1
Subject to change without notice.
www.tridonic.com
2
ACCESSORIES
luxCONTROL lighting control system
DALI sensors
REMOTECONTROL IR6
Product description
•Optional infra-red remote control
•Switching on and off (On/Off button)
•Dimming (Up/Down button)
•Activation of automatic lighting control
•Setting the threshold control point (Set button)
Ordering data
Type
ACCESSORIES
REMOTECONTROL IR6
Article number
28000647
Dimensions L x W x H Packaging carton
86.5 x 40.5 x 7.2 mm 1 pc(s).
DALI RC
Product description
•Optional infra-red remote control
•Switching on and off (On/Off button)
•Dimming (Up/Down button)
•Activating automatic lighting control (sun/cloud button)
•Calling up two scenes
•Calling up five fixed light output values
(100, 50, 25, 12 and 6 %)
•Individual adjustment of the button assignments
with configuration software
Ordering data
Type
DALI-RC
Article number
86458263
Packaging, carton
10 pc(s).
•Setting the threshold control point
•With wall bracket
Data sheet 08/14-CO073-1
Subject to change without notice.
www.tridonic.com
3
ACCESSORIES
luxCONTROL lighting control system
DALI sensors
IR SMART Controller
Product description
•Optional infra-red remote control
•Switching on and off (On/Off button)
•Dimming (Up/Down button)
•Activation of automatic lighting control (Automatic button)
•Setting the threshold control point (Set button)
Ordering data
Type
DSI-SMART Controller
Data sheet 08/14-CO073-1
Subject to change without notice.
www.tridonic.com
Article number
86451922
Packaging, carton
1 pc(s).
4
luxCONTROL lighting control system
DALI sensors
The DALI MSensor is the ideal addition to the comfortDIM series of products as it offers daylight-dependent lighting control, presence detection and remote control.
It has been designed for the following principal applications:
• Individual offices
• Open-plan offices
• Training / presentation rooms
• Corridors, passageways and garages
The DALI MSensor controls a DALI group and is designed that it can be used together with the comfortDIM components (e.g. DALI-XC). For this reason the
DALI MSensor can be addressed and grouped like an ECG, making system configuration easier. The configuration of the sensors is done by the
masterCONFIGURATOR software tool (since version V2.12). For further information please refer to the DALI MSensor manual on www.tridonic.com.
As an option, the DALI MSensor can be operated from three remote controls. The remote controls available with the system are: DALI-RC, IR-SMART Controller
and REMOTECONTROL IR6.
A maximum of 12 sensors can be operated on one DALI circuit. This restriction is due to the permitted data traffic on the DALI circuit.
To use the DALI MSensor in conjunction with an external system some modes are available. To ensure a proper function please take account of the
advices in the DALI MSensor manual on www.tridonic.com.
Wiring
Standards
EN 61547
EN 61347-1
EN 61347-2-11
EN 55015
EN 62386-101/102
L
N
DALI
PS
Uconverter
Uconverter
DALI MSensor
DALI
XC (GC)
DALI
XC (SC)
DALI
USB
Multiple sensors can be operated on a DALI circuit.
The functions of the sensor can be activated autonomously or
in a network of several sensors.
Glow-wire test
according to
EN 61347-1 passed.
DALI standard
The DALI MSensor is
designed to control control gear with DALI standard IEC 60929 (DALI
V0) and IEC 62386
(DALI V1).
Wiring type and cross section for rc version
The wiring can be solid wire or stranded wire with a cross-section of 0.2 mm² to
1.5 mm².
wire preparation:
0.2 – 1.5 mm²
7.5 – 8.5 mm
Wiring type and cross section for f version
The wiring can be solid wire or stranded wire with a cross-section of 0.2 mm² to
0.5 mm².
wire preparation:
0.2 – 0.5 mm²
7.5 – 8.5 mm
Data sheet 08/14-CO073-1
Subject to change without notice.
www.tridonic.com
5
luxCONTROL lighting control system
DALI sensors
Remote control
The DALI MSensor can be controlled with 3 remote controls:
•IR-SMART Controller
•DALI-RC
•REMOTECONTROL IR6
IR-SMART Controller
DALI-RC
IR sender
ON – Luminaire group ON
UP – Increase light value
Automatic control mode
ON/OFF
SET – saves the current
light control value
OFF – Luminaire group OFF
LED status display
IR sender
Switch all luminaires in the
DALI system ON or OFF
Light value 100 % brightness
DOWN – Reduce light value
Light value 50 % brightness
Increase or reduce the light value
(dimming the DALI system)
Light value 25 % brightness
Automatic control mode ON
Light value 12 % brightness
Call up scene 2
Light value 6 % brightness
Call up scene 1
Installation
• The DALI MSensor must not be connected to the mains. It is supplied directly
via the DALI signal line.
• A maximum of 12 DALI MSensors must be operated in one DALI circuit.
• DALI is not SELV.
The installation instructions for mains voltage therefore apply.
• Please ensure that the detection range of the sensor lies in the lighting area
of the controlled luminaires.
• Please ensure that the detection ranges of the sensors do not overlap. This
may have influence to the lighting control.
• When installed at a height other than the recommended installation height
(2,5m), the presence sensor might show different characteristics. When
mounted at a higher level, its sensitivity is reduced. If mounted at a lower
level, its range is diminished.
• Heaters, fans, printers and copiers located in the detection zone may cause
incorrect presence detection.
Data sheet 08/14-CO073-1
Subject to change without notice.
www.tridonic.com
6
luxCONTROL lighting control system
DALI sensors
Presence / motion detection
Light level recognition area
y
Sensor alignment
y
x
x
h
αx2 = 22°
αx1 = 38°
α = 78°
αy = 30°
h
h
d
x2
h*
x1
x1
y
x2
y
y
d
1.7 m
1.3 m
0.7 m
1.0 m
2.8 m
2.0 m
1.6 m
0.8 m
1.2 m
3.2 m
2.3 m
1.8 m
0.9 m
1.3 m
3.7 m
2.5 m
2.0 m
1.0 m
1.4 m
4.0 m
2.7 m
2.1 m
1.1 m
1.6 m
4.4 m
3.0 m
2.3 m
1.2 m
1.7 m
4.9 m
3.5 m
2.7 m
1.4 m
2.0 m
5.7 m
4.0 m
3.1 m
1.6 m
2.3 m
6.5 m
*
The recommended maximum room height for office applications
is 3 m and for corridor applications for example 4 m.
Up to 2 m mounting height presence is detected and
over 2 m motion is detected.
Calculation of the diameter (light area):
x1 = tan(ax1) × h
x2 = tan(ax2) × h
y = tan(ay) × h
Calculation of the diameter (motion area):
d = 2 × tan(0,5 × a) × h
The following operating modes can be set for lighting control via the
masterCONFIGURATOR configuration software:
The following operating modes can be set for the motion detector via the
masterCONFIGURATOR configuration software:
Active
Constant light control is active.
Active
Inactive
Constant light control is deactivated. The lighting is switched
on an adjustable light value.
The light is switched on or off automatically depending on
whether or not there is a person in the room.
Off Only
The motion detector only switches the connected lighting
off. The luminaires are switched on manually via the connected external switch or infra-red control.
Never Off
If it has not detected any movement the sensor dims to the
“Absence value” parameter and remains at this value
Inactive
The motion sensor is deactivated. The light must be switched on or off manually.
Setpoint adjustment
• IR-SMART Controller and REMOTECONTROL IR6: Pressing the Set button
(> 3 s) stores the current light value as a new setpoint.
• DALI-RC: Über das Drücken der Automatic-Taste (>3 s) wird
der aktuell gemessene Lichtwert als neuer Sollwert abgespeichert.
•masterCONFIGURATOR
Bright-out
If the nominal illuminance (e.g. 500 lux) is exceeded for 10 minutes by more
than 150 % (e.g. 750 lux), the lighting is switched off even if motion is detected.
The lighting is switched on again when the measured light value falls below the
setpoint.
This function can be adjusted via the masterCONFIGURATOR.
Run-on time
This is the time after which the lighting is switched off if no movement is
detected. It can be set via the “Run-on time” parameter.
Absence value
On the DALI MSensor you can set whether the light is to be switched off after
the switch-off delay or dimmed to the second light value. The light value and the
dwell time (how long the value is held) can be set via the “Absence value” and
“Switch-off delay” parameters.
Dead time “Manual-off”
If the system is switched off manually via the switch or remote control the
motion sensor is deactivated. At the end of a delay time if motion has not been
detected the motion sensor is activated again. If the sensor detects motion
during the “Manual-off” delay, the time will be reset to the start.
Data sheet 08/14-CO073-1
Subject to change without notice.
www.tridonic.com
7
luxCONTROL lighting control system
DALI sensors
General settings
Parameter
Motion Detector
Light Regulation
Setpoint Light Regulation
Power On Setting
Bright-out timeout
Bright-out threshold
Control Speed
Switch On Value
Controlled group
Default Values
enabled
enabled
150 lx
no action
10 min
150 %
4
auto (calculated)
Broadcast
Adjustable range
enabled, enabled (only OFF), disabled
enabled, disabled
5 – 500 lx
no action, last state, maximum level, off, presence value
1 – 120 min
100 – 300 %
0 – 7, 0 = slow, 7 = fast
minimum level, maximum level, calculated
Broadcast or group 0 – 15
Default Values
fast
ambient light-controlled
20 min
5.6 s
3 %
10 min
5.6 s
10 min
Adjustable range
fast, 0.7 – 90.5 s
ambient light-controlled, fixed
30 s – 60 min, infinite
fast, 0.7 – 90.5 s
1 – 100 %
0.7 s – 60 min, never OFF
fast, 0.7 – 90.5 s
fast, 0 s – 20 min
Default Parameter Motion Detector
Parameter
1 Fade-in time
A Presence value
2 Run-on time
3 Fade time
B Absence value
4 Switch-off delay
5 Fade-off time
Manual-off
Data sheet 08/14-CO073-1
Subject to change without notice.
www.tridonic.com
8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
