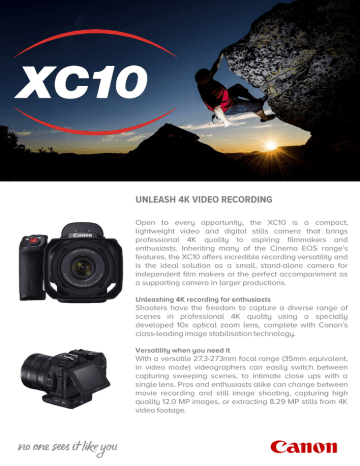

Canon XA XC10
 no one sees if like “you
UNLEASH 4K VIDEO RECORDING
Open to every opportunity, the XC10 is a compact,
lightweight video and digital stills camera that brings
professional 4K quality to aspiring filmmakers and
enthusiasts. Inheriting many of the Cinema EOS range’s
features, the XC10 offers incredible recording versatility and
is the ideal solution as a small, stand-alone camera for
independent film makers or the perfect accompaniment as
a supporting camera in larger productions.
Unleashing 4K recording for enthusiasts
Shooters have the freedom to capture a diverse range of
scenes in professional 4K quality using a specially
developed 10x optical zoom lens, complete with Canon's
class-leading image stabilisation technology.
Versatility when you need it
With a versatile 27.3-273mm focal range (35mm equivalent,
in video mode) videographers can easily switch between
capturing sweeping scenes, to intimate close ups with a
single lens. Pros and enthusiasts alike can change between
movie recording and still image shooting, capturing high
quality 12.0 MP images, or extracting 8.29 MP stills from 4K
video footage.
Canon
XC10
UNLEASH 4K VIDEO RECORDING
12.0 Es
| 4 К | XF-AVC HIGH-SENSITIVITY
STILL IMAGE RECORDING
Shooters have the freedom to capture a Canon’s new XF-AVC H.264 codec Pros and enthusiasts alike can change
diverse range of scenes in professional supports recording in both 4K and Full between movie recording and still image
4K quality using a specially developed HD quality, enabling easy integration shooting, capturing high quality 12.0 MP
10x optical zoom lens, complete with into industry- standard Non-Linear Edit images, or extracting 8.29 MP stills from 4K
Canon’s class-leading image systems video footage
stabilisation technology
1.0 Slow
ыы Fast
CMOS Motion
A powerful combination of a specially A selection of slow and fast motion Featuring a newly developed DiG!C DV5
developed 1” CMOS sensor and Canon's recording modes — including up to 1200x image processor, for optimum colour
new DIGIC DV5 image processor gives fast motion in 4K/Full HD, and up to1/4x reproduction, faster readout and higher
both budding filmmakers or slow motion in HD — as well as interval AF speeds
experienced pros the speed and quality shooting provide further creative
they demand to capture 4K video opportunities
no one sees (I like you Canon
wi
CERTIFIED
`
CFast
A 2.0
Wi-Fi compatible enabling remote control of key Featuring a 7.66cm vari-angle touch LCD, with XC10 can record UHDTV standard (3840 x 2160) 4K
features via a browser, smartphone or tablet 100% field coverage, providing direct access to footage to an internal CFast 2.0TM card at up to
the menu system through a simple set of cross 305Mbps, or Full HD (1920 x 1080) footage to an
keys with an included optical loupe viewfinder, SD card at up to 50Mbps, with pro-standard 4:2:2
that fits the LCD colour sampling for high resolution performance
din,
U
4K Video Lens
Compact and lightweight camcorder body Using a specially developed 10x opticalzoom The XC10 delivers rich colour, with a high ISO of up
broadens the range of image expression with lens with a versatile 27.3-273mm focal range to 20,000 ensuring excellent results in low light
advanced compact optical technology enabling (35mm equivalent, in video mode) videographers conditions, and a 12-stop Wide Dynamic Range,
10x optical zooming with the lens extended by a can easily switch between capturing sweeping providing vivid detail in both highlights and
mere 36.2 mm scenes, to intimate close ups with a single lens shadows
no one sees tE like you Canon
Technical Specifications
XC10
IMAGE SENSOR
Sensor
System
Total pixels per sensor
Effective pixels per sensor
Minimum illumination
Horizontal Resolution
f-Inch CMOS
Bayer pattern filter
13.36MP
Video Mode: 8.29MP (3840 x 2160); Stills mode: 12MP
(4000 x 3000)
Auto Mode: NTSC
59.94i: Approx. 6.4 lux (at 1/60 sec. shutter speed)
29.97P: Approx. 3.2 lux (at 1/30 sec. shutter speed)
23.98P: Approx. 2.56 lux (at 1/24 sec. shutter speed)
AUTO MODE: PAL
50.00i: Approx. 5.32 lux (at 1/50 sec. shutter speed)
25.00P: Approx. 2.68 lux (at 1/25 sec. shutter speed)
Manual Mode, NTSC & PAL
59.94i/29.97P/23.98P/50.00i/25.00P: Approx. 0.05 lux
(shutter speed 1/2 sec.)
1600 lines or more (4K Recording), 800 or more (Full HD
recording)
SYSTEM
MONITORING PANEL
Monitoring Panel
Size
Dots
Image quality adjustments
Adjustable
Waveform Monitor
Focus Assist
Capacitive touch screen LCD
3-Inch /7.66cm
approx. 1,030,000
Brightness, Backlight
Yes. Z-axis parallel hinge mechanism
No
Magnification. Area selectable via touch screen
LENS
Zoom ratio
Focal length
Minimum focus distance
ND filter
Zoom control
Focus control
Iris control
Aperture range
Filter diameter
Lens elements/groups
Aperture blades
Image stabilization system
Digital zoom
10x
Video Mode: 8.9 - 89mm (27.3-273mm 35mm equivalent)
Stills Mode: 4.3 - 24.1-241mm,/ 3:2 - 25 - 250mm, /16:9 -
27.3 - 273mm (approx.)
50cm across entire zoom range; approx. 8cm at wide
macro setting
Yes, single density built-in. 1/8 (3-step) equivalent
Manual. 35mm conversion markers provided
AF, Face detection and tracking, Push AF, AiAF (Photo
Mode) Manual focus ring
Touch Focus Function.
Auto, manual via control wheel
72.8 - 1/5.6 (W-T)
58mm
12 Groups of 14 elements
8 blade diaphragm. Mechanical shutter built in.
Optical (lens shift) + electronic stabilisation.
Movie Mode IS options: Dynamic IS” Standard IS, Powered
IS
No Digital Zoom. 2 x Digital Teleconverter via assignable
button
IMAGE PROCESSOR
DIGIC DV 5
Type
, УСС 4:2:2
Sampling accuracy
Bit depth S-bit
RECORDING
Video storage media
Capacity
Recording time
Recording file format
Recording format
Recording frame rate (PAL
model)
Slow/Fast motion
Interval Record
Frame Record
Pre Record (cache record)
Scan Reverse
HD->SD conversion
Internal Data Transfer
Photo storage media
Still Image quality
4K: CFast 2.0" card; Full HD/Photo: SD card (Class 10
recommended for 50Mbps)
Depends on card used
Depends on card capacity. 4K: CFast 2.0™ 64GB approx. 25
min @305Mbps.
Full HD 64GB SD card approx. 170 min @50Mbps
Material eXchange Format (MXF)
Video Format: XF-AVC. Compression Format: MPEG-4
AVC/H.264
4K Recording: 305Mbps/205Mbps at 25.00P
Full HD Recording: SOMbps at 50.00P, 35Mbps at
50.00i/25.00P
Yes: 1/4x - 1200x speed ‘ Frame rate is 25.00P
Yes, Photo Mode only
No.
Yes, in Full HD mode to SD card only. 5 Second pre-record
time
No
No
No
SD card
8.29 - 12Mp depending on format
Peaking Yes, Red, blue or yellow selectable
Zebra Yes. 70% or 100%, selectable
Markers Yes. Horizontal or grid markers white or grey
EVF
Size No EVF. Optical loupe viewfinder attachment for LCD screen
supplied
INPUTS/OUTPUTS
Audio in Built-in stereo microphone, 3.5mm stereo mini jack external
Headphone output
Video monitor output
HDMI
HDMI Video Output
(Recording Mode)
HDMI Video Output
(Playback Mode)
USB
HD/SD-SDI output
Time code
Genlock
Component out
AV terminal
DC input
Remote Control Terminal
microphone
3.5mm Stereo mini jack
No
Yes. Output only
Colour Bars (HD output only)
Camera Mode: (Dependent on capabilities of external
recording device)
305Mps/205Mbps: 3840x2160 (29.97P/23.98P/25.00P)
1920x1080 (59.94P/59.94i/50.00P/50.00i) 720 x
480.59.94P/720 x 576: 50.00P
50 Mbps: 1920 x 1080 (59.94P/59. 94i/50.00P/50.00i) 720 x
480: 59.94P/
720 x 576: 50.00P
35 Mbps: 1920 x 1080 (59.94P/59. 94i/50.00P/50.00i) 720 x
480: 59.94P/
720 x 576: 50.00P
NTSC
4K movie playback : 38540x2160/29.97P:
1920x1080/59.94P/59.94i
(29.97P) 720x480/59.94P
4K movie playback : 3840x2160/23.98P:
1920x1080/59.94P/59.94i
(23.98P) 720x480/59.94P
HD movie playback: 1920x1080/59.94P/59.94j
720x480/59.94P
PAL
4K movie playback : 3840x2160/25.00P:
1920x1080/50.00P/50.00i
720x576/50.00P
HD movie playback: 1920x1080/50.00P/50.00i
720x576/50.00P
Yes mini-B, Hi-speed, Output only
No
Yes, via HDMI
No
No
No
Yes
No
Colour Bars Yes. PAL Model: EB/SMPTE. Can be output via HDMI
MISC
Tally lamp Yes
Accessory shoe
Custom key
Custom Dial
Yes, Hotshoe with synch contact for Canon Speedlite
No
No
no one sees ir Nike you
Canon
Technical Specifications
XC10
SHOOTING FUNCTIONS
EXPOSURE
Exposure metering
Exposure compensation
Auto Exposure mode
Exposure Lock
Auto Gain Control setting
Auto Gain Control limit
ISO Sensitivity
Movie mode: Standard, spotlight, backlight
Photo mode: Evaluative, centre-weighted, spot
-2.0 - +2.0 stops in 1/3 stop increments (photos) and 1/4 stop
increments (movies)
AUTO/Programmed AE (P)/Shutter-priority AE (Tv/Aperture-
priority (Av) / SCN (Portrait /Sports /Night Scene /Snow
/Beach /Sunset /Low Light / Spotlight / Fireworks)
Yes (in compatible modes)
Yes.
28.5dB
Movie /Photo: ISO 160 - 20000
Movie Mode with Canon Log or Wide DR selected: 500 to
20000
WHITE BALANCE
Auto
Preset
Shockless WB
Manual setting
YES
6 Presets: Daylight, Shade, Cloudy, Tungsten (incandescent
lamps or halogen bulbs), Fluorescent H (3-wavelength type
fluorescent), Fluorescent (white fluorescent)
Yes
Set 1, Set 2 (Default 5,500K)
TIME CODE
Countup system
Start value setting
Regen/Rec Run/Free Run/Preset (Non-Drop Frame)
“00:00:00:00”, Set/Reset selectable
Gain setting 0.0 - 42.0dB
At the fine gain setting: Any setting in a 0.5 increment
between 0.0 dB and 42.0 dB
Movie Mode with Canon Log or Wide DR selected: 9.0 dB
(8.5 dB at fine gain setting) to 42.0 dB
SHUTTER SPEED
Control Modes
Shutter speed
Manual, Shutter Priority AE (Tv), Auto Slow Shutter On/Off
Movie Mode: 1/2, 1/3, VA, 1/5, 1/6 to 72000 sec. (in 1/4-step
increments)
Photo Mode: 0.5 sec., 0.4 sec., O.3 sec., 74 - 72000 sec. (in
1/3-step increments)
AUDIO
Recording
Audio Scene (Movies)
Audio Settings (Movie Mode)
Linear PCM (2ch, 16 bit, 48 kHz)
Standard/Music/Festivals/Speech/Meetings/Forest
and Birds/Noise Suppression/Custom Setting*
(*) Custom setting cannot be selected in Auto mode.
Built-in Mic Wind Screen. Auto High/Auto Low/Off
Internal mic attenuator: Auto / On / Off
Built-in Mic Frequency: Response: Normal, low-range
boosting, low-range cutting,
mid-range boosting, low and
high-range boosting
Built-in Mic Directionality: Monaural / Normal / Wide / Zoom:
MIC Att. Auto / On / Off : MIC Low Cut. On/Off: Audio limiter,
On/Off: Audio compressor: High/Low/Off
Shutter Angle No
Slow Shutter (SLS) Yes
Clear Scan No
INFARED
Infrared shooting mode No
Built-in IR lamp No
WI-FI & GPS
SPECIFICATIONS
Wireless LAN standards
Supported Wi-Fi Functions
Supported Browser for
Remote Operation
Remote Operation Control
Features
Live view image Resolution
Authentication Systems
IEEE 802.1b/g/n (2.4GHz band) / IEEE 802.118/n (5GHZ
band”)
*5GHz band not available in Qatar
Photo Mode: Playback (in browser) from SD card; Download
and save images to user terminal device via web browser.
Internet Explorer, Safari (10S), Safari (Mac OS),
Android standard browser
Aperture, Focus, WB, Shutter Speed, ISO/Gain, Shooting
Mode, Start/Stop Recording
Camera setting mode: 680 x 383; Simplified setting: 284 x
160
Open/WPA-PSK/WPA2-PSK
Encryption WEP64, WEP128, TKIP, AES
GPS Information (Optional Latitude/Longitude/Elevation, Coordinated Universal Time
Accessory) (UTC)
ACCESSORIES
Supplied
Optional
Battery Type
Power Consumption
Continuous Recording Time
Lens hood, (Loupe) Viewfinder Unit, Remote Controller (RC-
6), Battery Pack LP-E6N, High Speed HDMI Cable
(HTC100/S), Compact Power unit CA-570, AC Cable,
Interface Cable (IFC-300PCU/S), Shoulder Strap
Canon Battery Charger LC-E6/LC-E6E
GPS receiver GP-E?,
Canon Speedlites (270EX II, 320EX (with video light), 430EX
Il, 580EX Il, 6OOEX-RT) - 2nd curtain synchronisation and
wireless functions not supported,
Canon PROTECT Filter 58 mm, Canon ND4-L Filter 58 mm,
Canon NDS-L Filter 58 mm
LP-E6N (7.2v,1865 mAh) supplied
Approx. Max. Recording: 6.0W*%Playback: 4.1W
Approx.: 110 mins (maximum) / 75 mins(typical)?
MISCELLANEOUS
Dimensions
Weight (camera only)
Weight (fully equipped)
Operating Temperature range
Approx. 125x102x122mm (body only)
Approx. 13Ix115x238mm (with viewfinder unit and lens hood)
Approx. 930g
Approx. 1040g (with lens hood, battery, CFast 2.0™ card and
SD card)
Approx. 0° Cto 40° C, 85% (relative humidity)
Approx. -5° Cto 45° C, 60% (relative humidity)
no one sees ir Nike you
All data is based on Canon standard testing methods except where indicated.
Subject to change without notice.
" Dynamic IS not possible when recording in 4K or using Slow & Fast Motion mode
? In 4K rec. mode 1/4 x and 1/2 x speed not possible to CFast 2.0 ™ card. In Full HD to SD
card, V4 x rec is 1280 x 720
3 Recording time to CFast 2.0" card. 305Mbps, at 25.00P, PAL mode
Canon is an authorised licensee of the CFast 2.0" trademark, which may be registered in
various jurisdictions
For more information visit
canon.com.au
canon.co.nz
Canon
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
