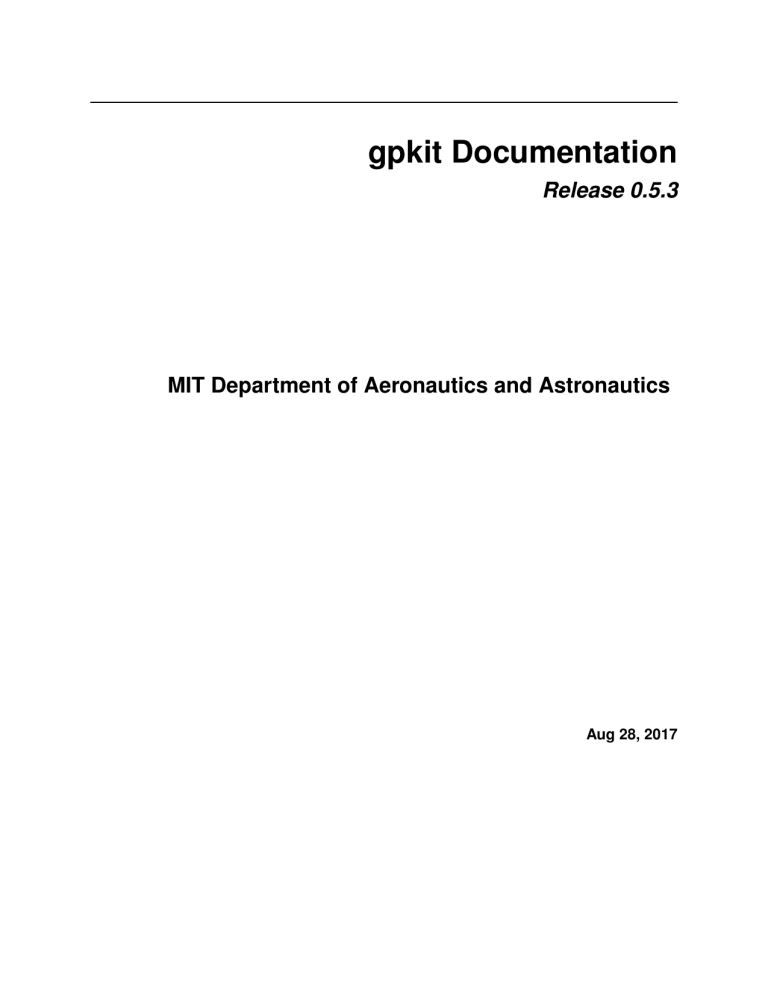

gpkit Documentation

gpkit Documentation

Release 0.5.3

MIT Department of Aeronautics and Astronautics

Aug 28, 2017

Contents

1 Geometric Programming 101

3

1.1

What is a GP?

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3

1.2

Why are GPs special?

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

1.3

What are Signomials / Signomial Programs?

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

1.4

Where can I learn more?

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

2 GPkit Overview

2.1

Symbolic expressions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2

Substitution

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

2.3

Model objects

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

5

5

3 Installation Instructions

9

3.1

Installation dependencies

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

3.2

Install a GP solver

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10

3.3

Install GPkit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

3.4

Debugging installation

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11

3.5

Bleeding-edge / developer installations

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

12

4 Getting Started

13

4.1

Declaring Variables

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

4.2

Creating Monomials and Posynomials

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

4.3

Declaring Constraints

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

14

4.4

Formulating a Model

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

4.5

Solving the Model

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

4.6

Printing Results

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

4.7

Sensitivities and dual variables

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

5 Debugging Models

17

5.1

Potential errors and warnings

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

5.2

Dual Infeasibility

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

5.3

Primal Infeasibility

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

19

6 Visualization and Interaction

25

6.1

Interactive Control Panel

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

6.2

Plotting a 1D Sweep

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

25

7 Building Complex Models

29

i

7.1

Inheriting from Model

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

7.2

Accessing Variables in Models

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

7.3

Vectorization

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

7.4

Multipoint analysis modeling

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

31

8 Advanced Commands

37

8.1

Derived Variables

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

37

8.2

Sweeps

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

38

8.3

Tight ConstraintSets

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

39

8.4

Substitutions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

8.5

Composite Objectives

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

42

9 Signomial Programming

43

9.1

Example Usage

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

43

9.2

Sequential Geometric Programs

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

44

10 Examples

49

10.1 iPython Notebook Examples

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

10.2 A Trivial GP

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

49

10.3 Maximizing the Volume of a Box

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

50

10.4 Water Tank

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51

10.5 Simple Wing

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

52

10.6 Simple Beam

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

54

11 Glossary

57

11.1 Subpackages

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

57

11.2 Submodules

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

90

11.3 gpkit.build module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

90

11.4 gpkit.exceptions module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

91

11.5 gpkit.keydict module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

92

11.6 gpkit.modified_ctypesgen module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

93

11.7 gpkit.repr_conventions module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

93

11.8 gpkit.small_classes module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

93

11.9 gpkit.small_scripts module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

94

11.10 gpkit.solution_array module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

95

11.11 gpkit.varkey module

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

96

11.12 Module contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

97

12 Citing GPkit

13 Acknowledgements

99

101

14 Release Notes

103

14.1 Version 0.5.3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

14.2 Version 0.5.2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

14.3 Version 0.5.1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

14.4 Version 0.5.0

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

14.5 Version 0.4.2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

14.6 Version 0.4.0

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

14.7 Version 0.3.4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

14.8 Version 0.3.2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

14.9 Version 0.3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

14.10 Version 0.2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Python Module Index

109

ii

gpkit Documentation, Release 0.5.3

GPkit is a Python package for defining and manipulating geometric programming (GP) models.

Our hopes are to bring the mathematics of Geometric Programming into the engineering design process in a disciplined and collaborative way, and to encourage research with and on GPs by providing an easily extensible object-oriented framework.

GPkit abstracts away the backend solver so that users can work directly with engineering equations and optimization concepts. Supported solvers are MOSEK and CVXOPT .

Join our mailing list and/or chatroom for support and examples.

Contents 1

gpkit Documentation, Release 0.5.3

2 Contents

CHAPTER

1

Geometric Programming 101

What is a GP?

A Geometric Program (GP) is a type of non-linear optimization problem whose objective and constraints have a particular form.

The decision variables must be strictly positive (non-zero, non-negative) quantities. This is a good fit for engineering design equations (which are often constructed to have only positive quantities), but any model with variables of unknown sign (such as forces and velocities without a predefined direction) may be difficult to express in a GP. Such models might be better expressed as

Signomials .

More precisely, GP objectives and inequalities are formed out of monomials and posynomials. In the context of GP, a monomial is defined as: 𝑓 (π‘₯) = 𝑐π‘₯ π‘Ž

1

1 π‘₯ π‘Ž

2

2

...π‘₯ π‘Ž 𝑛 𝑛 where 𝑐 is a positive constant, π‘₯

1..𝑛 are decision variables, and π‘Ž taking π‘₯, 𝑦 and 𝑧 to be positive variables, the expressions

1..𝑛 are real exponents. For example,

7π‘₯ 4π‘₯𝑦

2 𝑧

2π‘₯ 𝑦

2 𝑧

0.3

√οΈ€

2π‘₯𝑦 are all monomials. Building on this, a posynomial is defined as a sum of monomials: 𝑔(π‘₯) =

𝐾

∑︁ 𝑐 π‘˜ π‘₯ π‘Ž

1

1 π‘˜ π‘₯ π‘Ž

2

2 π‘˜

...π‘₯ π‘Ž 𝑛 𝑛 π‘˜ π‘˜=1

For example, the expressions π‘₯

2

+ 2π‘₯𝑦 + 1 7π‘₯𝑦 + 0.4(𝑦𝑧)

−1/3

0.56 + π‘₯

0.7

𝑦𝑧 are all posynomials. Alternatively, monomials can be defined as the subset of posynomials having only one term. Using 𝑓 𝑖 to represent a monomial and 𝑔 𝑖 to represent a posynomial, a GP in standard form is

3

gpkit Documentation, Release 0.5.3

written as: minimize 𝑔

0

(π‘₯) subject to 𝑓 𝑖

(π‘₯) = 1, 𝑖 = 1, ...., π‘š 𝑔 𝑖

(π‘₯) ≤ 1, 𝑖 = 1, ...., 𝑛

Boyd et. al. give the following example of a GP in standard form: minimize π‘₯

−1 𝑦

−1/2 𝑧

−1 subject to (1/3)π‘₯

−2 𝑦

−2

+ 2.3π‘₯𝑧 + 4π‘₯𝑦𝑧

+ (4/3)𝑦

1/2 𝑧

−1

≤ 1 π‘₯ + 2𝑦 + 3𝑧 ≤ 1

(1/2)π‘₯𝑦 = 1

Why are GPs special?

Geometric programs have several powerful properties:

1. Unlike most non-linear optimization problems, large GPs can be solved extremely quickly.

2. If there exists an optimal solution to a GP, it is guaranteed to be globally optimal.

3. Modern GP solvers require no initial guesses or tuning of solver parameters.

These properties arise because GPs become convex optimization problems via a logarithmic transformation. In addition to their mathematical benefits, recent research has shown that many practical problems can be formulated as GPs or closely approximated as GPs.

What are Signomials / Signomial Programs?

When the coefficients in a posynomial are allowed to be negative (but the variables stay strictly positive), that is called a Signomial.

A Signomial Program has signomial constraints. While they cannot be solved as quickly or to global optima, because they build on the structure of a GP they can often be solved more quickly than a generic nonlinear program. More information can be found under

Signomial Programming .

Where can I learn more?

To learn more about GPs, refer to the following resources:

• A tutorial on geometric programming , by S. Boyd, S.J. Kim, L. Vandenberghe, and A. Hassibi.

• Convex optimization , by S. Boyd and L. Vandenberghe.

• Geometric Programming for Aircraft Design Optimization , Hoburg, Abbeel 2014

4 Chapter 1. Geometric Programming 101

CHAPTER

2

GPkit Overview

GPkit is a Python package for defining and manipulating geometric programming (GP) models, abstracting away the backend solver.

Our hopes are to bring the mathematics of Geometric Programming into the engineering design process in a disciplined and collaborative way, and to encourage research with and on GPs by providing an easily extensible object-oriented framework.

Symbolic expressions

GPkit is a limited symbolic algebra language, allowing only for the creation of geometric program compatible equations (or signomial program compatible ones, if signomial programming is enabled). As mentioned in

Geometric Programming 101 , one can view monomials as posynomials with a single term,

and posynomials as signomials that have only positive coefficients. The inheritance structure of these objects in GPkit follows this mathematical basis.

Substitution

The Varkey object in the graph above is not a algebraic expression, but what GPkit uses as a variable’s

“name”. It carries the LaTeX representation of a variable and its units, as well as any other information the user wishes to associate with a variable. The use of VarKeys as opposed to numeric indexing is an important part of the GPkit framework, because it allows a user to keep variable information local and modular.

GPkit keeps its internal representation of objects entirely symbolic until it solves. This means that any expression or Model object can replace any instance of a variable (as represented by a VarKey) with a number, new VarKey, or even an entire Monomial at any time with the .sub() method.

5

gpkit Documentation, Release 0.5.3

6 Chapter 2. GPkit Overview

gpkit Documentation, Release 0.5.3

Model objects

In GPkit, a Model object represents a symbolic problem declaration. That problem may be either GPcompatible or SP-compatible. To avoid confusion, calling the solve() method on a model will either attempt to solve it for a global optimum (if it’s a GP) or return an error immediately (if it’s an SP). Similarly, calling localsolve() will either start the process of SP-solving (stepping through a sequence of

GP-approximations) or return an error for GP-compatible Models. This framework is illustrated below.

2.3. Model objects 7

gpkit Documentation, Release 0.5.3

8 Chapter 2. GPkit Overview

CHAPTER

3

Installation Instructions

If you encounter bugs during installation, please email [email protected] or raise a GitHub issue .

Installation dependencies

To install GPkit, you’ll need to have the following python packages already installed on your system:

• pip

• numpy version 1.8.1 or newer

• scipy

• pint and at least one solver, which we’ll choose and install in a later step.

There are many ways to install these dependencies, but here’s our suggestion:

Get pip

Mac OS X Run easy_install pip at a terminal window.

Linux

Use your package manager to install pip Ubuntu: python-pip

Windows Install the Python 2.7 64-bit version of Anaconda .

Get python packages

Mac OS X

Run the following commands: sudo apt-get install

9

gpkit Documentation, Release 0.5.3

• pip install pip --upgrade

• pip install numpy

• pip install scipy

• pip install pint

Linux

Use your package manager to install numpy and scipy Ubuntu: install python-numpy python-scipy

Run pip install pint (for system python installs, use sudo pip)

Windows Do nothing at this step; Anaconda already has the needed packages.

sudo apt-get

Install a GP solver

GPkit interfaces with two off the shelf solvers: cvxopt, and mosek. Cvxopt is open source; mosek requires a commercial licence or (free) academic license.

At least one solver is required.

Installing cvxopt

Mac OSX Run pip install cvxopt

Linux Run sudo apt-get install libblas-dev liblapack-dev libsuitesparse-dev or otherwise install those libraries

Run pip install cvxopt (for system python installs, use sudo pip)

If experiencing issues with wheel in Ubuntu 16.04, try the official installer.

Windows Run conda install -c omnia cvxopt in an Anaconda Command Prompt.

Installing mosek

Dependency note: GPkit uses the python package ctypesgen to interface with the MOSEK C bindings.

Licensing note: if you do not have a paid license, you will need an academic or trial license to proceed.

Mac OS X

• If which gcc does not return anything, install XCode and the Apple Command Line Tools .

• Install ctypesgen with pip install ctypesgen --pre.

• Download MOSEK 7 , then:

– Move the mosek folder to your home directory

– Follow these steps for Mac .

– Request an academic license file and put it in ~/mosek/

Linux

• Install ctypesgen with pip install ctypesgen --pre (for system python installs, use sudo pip

)

10 Chapter 3. Installation Instructions

gpkit Documentation, Release 0.5.3

• Download MOSEK , then:

– Move the mosek folder to your home directory

– Follow these steps for Linux .

– Request an academic license file and put it in ~/mosek/

Windows

• Install ctypesgen by running pip install ctypesgen --pre in an Anaconda Command Prompt .

• Download MOSEK , then:

– Follow these steps for Windows .

– Request an academic license

C:\Users\(your_username)\mosek\

– Make sure gcc is on your system path.

file and put it in

* To do this, type gcc into a command prompt.

* If you get executable not found, then install the 64-bit version (x86_64 installer architecture dropdown option) of mingw .

* Make sure the mingw bin directory is on your system path (you may have to add it manually).

Install GPkit

• Run pip install gpkit at the command line (for system python installs, use sudo pip)

• Run pip install jupyter to install jupyter notebook (recommended)

• Run jupyter nbextension enable --py widgetsnbextension for interactive control of models in jupyter (recommended)

• Run python -c "import gpkit.tests; gpkit.tests.run()" to run the tests; if any tests do not pass, please email [email protected] or raise a GitHub issue .

• Join our mailing list and/or chatroom for support and examples.

Debugging installation

You may need to rebuild GPkit if any of the following occur:

• You install a new solver (mosek or cvxopt) after installing GPkit

• You delete the .gpkit folder from your home directory

• You see Could not load settings file. when importing GPkit, or

• Could not load MOSEK library:

ImportError('$HOME/.gpkit/ expopt.so not found.')

To rebuild GPkit, first try running python -c "from gpkit.build import rebuild; rebuild()". If that doesn’t work then try the following:

• Run pip uninstall gpkit

3.3. Install GPkit 11

gpkit Documentation, Release 0.5.3

• Run pip install --no-cache-dir --no-deps gpkit

• Run python -c "import gpkit.tests; gpkit.tests.run()"

• If any tests fail, please email [email protected] or raise a GitHub issue .

Bleeding-edge / developer installations

Active developers may wish to install the latest GPkit directly from the source code on Github. To do so,

1. Run pip uninstall gpkit to uninstall your existing GPkit.

2. Run git clone https://github.com/hoburg/gpkit.git to clone the GPkit repository.

3. Run pip install -e gpkit to install that directory as your environment-wide GPkit.

4. Run cd ..; python -c "import gpkit.tests; gpkit.tests.run()" to test your installation from a non-local directory.

12 Chapter 3. Installation Instructions

CHAPTER

4

Getting Started

GPkit is a Python package, so we assume basic familiarity with Python: if you’re new to Python we recommend you take a look at Learn Python .

Otherwise,

install GPkit

and import away:

from gpkit import

Variable, VectorVariable, Model

Declaring Variables

Instances of the Variable class represent scalar variables. They create a VarKey to store the variable’s name, units, a description, and value (if the Variable is to be held constant), as well as other metadata.

Free Variables

# Declare a variable, x x = Variable( "x" )

# Declare a variable, y, with units of meters y = Variable( "y" , "m" )

# Declare a variable, z, with units of meters, and a description z = Variable( "z" , "m" , "A variable called z with units of meters" )

Fixed Variables

To declare a variable with a constant value, use the Variable class, as above, but put a number before the units:

13

gpkit Documentation, Release 0.5.3

# Declare \rho equal to 1.225 kg/m^3.

# NOTE: in python string literals, backslashes must be doubled rho = Variable( "\\rho" , 1.225

, "kg/m^3" , "Density of air at sea level" )

In the example above, the key name "\rho" is for LaTeX printing (described later). The unit and description arguments are optional.

#Declare pi equal to 3.14

pi = Variable( "\\pi" , 3.14

)

Vector Variables

Vector variables are represented by the VectorVariable class. The first argument is the length of the vector. All other inputs follow those of the Variable class.

# Declare a 3-element vector variable "x" with units of "m" x = VectorVariable( 3 , "x" , "m" , "Cube corner coordinates" ) x_min = VectorVariable( 3 , "x" , [ 1 , 2 , 3 ], "m" , "Cube corner minimum" )

Creating Monomials and Posynomials

Monomial and posynomial expressions can be created using mathematical operations on variables.

# create a Monomial term xy^2/z x = Variable( "x" ) y = Variable( "y" ) z = Variable( "z" ) m = x

* y

**

2 / z type (m) # gpkit.nomials.Monomial

# create a Posynomial expression x + xy^2 x = Variable( "x" ) y = Variable( "y" ) p = x + x

* y

**

2 type (p) # gpkit.nomials.Posynomial

14

Declaring Constraints

Constraint objects represent constraints of the form Monomial >= Posynomial or Monomial

== Monomial

(which are the forms required for GP-compatibility).

Note that constraints must be formed using <=, >=, or == operators, not < or >.

# consider a block with dimensions x, y, z less than 1

# constrain surface area less than 1.0 m^2 x = Variable( "x" , "m" ) y = Variable( "y" , "m" ) z = Variable( "z" , "m" )

S = Variable( "S" , 1.0

, "m^2" ) c = ( 2

* x

* y + 2

* x

* z + 2

* y

* z <= S) type (c) # gpkit.nomials.PosynomialInequality

Chapter 4. Getting Started

gpkit Documentation, Release 0.5.3

Formulating a Model

The Model class represents an optimization problem. To create one, pass an objective and list of Constraints.

By convention, the objective is the function to be minimized. If you wish to maximize a function, take its reciprocal. For example, the code below creates an objective which, when minimized, will maximize x*y*z.

objective = 1 / (x

* y

* z) constraints = [ 2

* x

* y + 2

* x

* z + 2

* y

* z <= S, x >= 2

* y] m = Model(objective, constraints)

Solving the Model

When solving the model you can change the level of information that gets printed to the screen with the verbosity setting. A verbosity of 1 (the default) prints warnings and timing; a verbosity of 2 prints solver output, and a verbosity of 0 prints nothing.

sol = m .

solve(verbosity = 0 )

Printing Results

The solution object can represent itself as a table:

print

sol .

table()

Cost

----

15.59

[ 1 / m

**

3 ]

Free Variables

-------------x : 0.5774

[m] y : 0.2887

[m] z : 0.3849

[m]

Constants

---------

S : 1 [m

**

2 ]

Sensitivities

-------------

S : 1.5

We can also print the optimal value and solved variables individually.

print

"The optimal value is %s ." % sol[ "cost" ]

print

"The x dimension is %s ." % sol(x)

print

"The y dimension is %s ." % sol[ "variables" ][ "y" ]

4.4. Formulating a Model 15

gpkit Documentation, Release 0.5.3

The optimal value

is

15.5884619886

.

The x dimension

is

0.5774

meter .

The y dimension

is

0.2887

meter .

Sensitivities and dual variables

When a GP is solved, the solver returns not just the optimal value for the problem’s variables (known as the “primal solution”) but also the effect that relaxing each constraint would have on the overall objective

(the “dual solution”).

From the dual solution GPkit computes the sensitivities for every fixed variable in the problem. This can be quite useful for seeing which constraints are most crucial, and prioritizing remodeling and assumptionchecking.

Using variable sensitivities

Fixed variable sensitivities can be accessed

["sensitivities"]["constants"] dict, as in this example: from

import gpkit

x = gpkit .

Variable( "x" ) x_min = gpkit .

Variable( "x_{min}" , 2 ) sol = gpkit .

Model(x, [x_min <= x]) .

solve()

assert

sol[ "sensitivities" ][ "constants" ][x_min] == 1 a SolutionArray’s

These sensitivities are actually log derivatives ( 𝑑log(𝑦) 𝑑log(π‘₯)

); whereas a regular derivative is a tangent line, these are tangent monomials, so the 1 above indicates that x_min has a linear relation with the objective.

This is confirmed by a further example:

import gpkit

x = gpkit .

Variable( "x" ) x_squared_min = gpkit .

Variable( "x^2_{min}" , 2 ) sol = gpkit .

Model(x, [x_squared_min <= x

**

2 ]) .

solve()

assert

sol[ "sensitivities" ][ "constants" ][x_squared_min] == 2

16 Chapter 4. Getting Started

CHAPTER

5

Debugging Models

A number of errors and warnings may be raised when attempting to solve a model. A model may be primal infeasible: there is no possible solution that satisfies all constraints. A model may be dual infeasible: the optimal value of one or more variables is 0 or infinity (negative and positive infinity in logspace).

For a GP model that does not solve, solvers may be able to prove its primal or dual infeasibility, or may return an unknown status.

GPkit contains several tools for diagnosing which constraints and variables might be causing infeasibility.

The first thing to do with a model m that won’t solve is to run m.debug(), which will search for changes that would make the model feasible:

"Debug examples"

from gpkit import

Variable, Model x = Variable( "x" , "ft" ) x_min = Variable( "x_min" , 2 , "ft" ) x_max = Variable( "x_max" , 1 , "ft" ) y = Variable( "y" , "volts" ) m = Model(x / y, [x <= x_max, x >= x_min]) m .

debug(verbosity = 0 )

> Trying to solve with bounded variables and relaxed constants

Solves with these variables bounded: value near upper bound: [y] sensitive to upper bound: [y] and these constants relaxed: x_min [ft]: relaxed from 2 to 1

> ...success!

> Trying to solve with relaxed constraints

> ...does not solve with relaxed constraints.

17

gpkit Documentation, Release 0.5.3

Note that certain modeling errors (such as omitting or forgetting a constraint) may be difficult to diagnose from this output.

Potential errors and warnings

RuntimeWarning:

final status of solver 'mosek' was 'DUAL_INFEAS_CER', not 'optimal’

– The solver found a certificate of dual infeasibility: the optimal value of one or more variables is 0 or infinity. See Dual Infeasibility below for debugging advice.

RuntimeWarning:

final status of solver 'mosek' was 'PRIM_INFEAS_CER', not 'optimal’

– The solver found a certificate of primal infeasibility: no possible solution satisfies all constraints. See Primal Infeasibility below for debugging advice.

RuntimeWarning:

final status of solver 'cvxopt' was 'unknown', not 'optimal’

or RuntimeWarning:

final status of solver 'mosek' was ‘UNKNOWN’, not 'optimal’.

– The solver could not solve the model or find a certificate of infeasibility. This may indicate a dual infeasible model, a primal infeasible model, or other numerical issues. Try debugging with the techniques in Dual and Primal Infeasibility below.

RuntimeWarning:

Primal solution violates constraint: 1.0000149786 is greater than 1

– this warning indicates that the solver-returned solution violates a constraint of the model, likely because the solver’s tolerance for a final solution exceeds GPkit’s tolerance during solution checking. This is sometimes seen in dual infeasible models, see Dual Infeasibility below. If you run into this, please note on this GitHub issue your solver and operating system.

RuntimeWarning:

Dual cost nan does not match primal cost 1.00122315152

– Similarly to the above, this warning may be seen in dual infeasible models, see Dual

Infeasibility below.

Dual Infeasibility

In some cases a model will not solve because the optimal value of one or more variables is 0 or infinity

(negative or positive infinity in logspace). Such a problem is dual infeasible because the GP’s dual problem, which determines the optimal values of the sensitivites, does not have any feasible solution. If the solver can prove that the dual is infeasible, it will return a dual infeasibility certificate. Otherwise, it may finish with a solution status of unknown.

gpkit.constraints.bounded.Bounded

is a simple tool that can be used to detect unbounded variables and get dual infeasible models to solve by adding extremely large upper bounds and extremely small lower bounds to all variables in a ConstraintSet.

When a model with a Bounded ConstraintSet is solved, it checks whether any variables slid off to the bounds, notes this in the solution dictionary and prints a warning (if verbosity is greater than 0).

For example, Mosek returns DUAL_INFEAS_CER when attempting to solve the following model:

18 Chapter 5. Debugging Models

gpkit Documentation, Release 0.5.3

"Demonstrate a trivial unbounded variable"

from gpkit import

Variable, Model

from gpkit.constraints.bounded

import

Bounded x = Variable( "x" ) constraints = [x >= 1 ] m = Model( 1 / x, constraints) # MOSEK returns DUAL_INFEAS_CER on .solve() m = Model( 1 / x, Bounded(constraints))

# by default, prints bounds warning during solve sol = m .

solve(verbosity = 0 ) print sol .

summary() print "sol['boundedness'] is:" , sol[ "boundedness" ]

Upon viewing the printed output,

Solves

with

these variables bounded: value near upper bound: [x] sensitive to upper bound: [x]

Cost

----

1e-30

Free Variables

-------------x : 1e+30 sol[ 'boundedness' ]

is

: { 'value near upper bound' : array([x], dtype = object ),

Λ“→

'sensitive to upper bound' : array([x], dtype = object )}

The problem, unsurprisingly, is that the cost 1/x has no lower bound because x has no upper bound.

For details read the Bounded docstring.

Primal Infeasibility

A model is primal infeasible when there is no possible solution that satisfies all constraints. A simple example is presented below.

"A simple primal infeasible example"

from gpkit import

Variable, Model x = Variable( "x" ) y = Variable( "y" ) m = Model(x

* y, [ x >= 1 , y >= 2 , x

* y >= 0.5

, x

* y <= 1.5

])

5.3. Primal Infeasibility 19

gpkit Documentation, Release 0.5.3

20

# m.solve() # raises uknown on cvxopt

# and PRIM_INFEAS_CER on mosek

It is not possible for x*y to be less than 1.5 while x is greater than 1 and y is greater than 2.

A common bug in large models that use substitutions is to substitute overly constraining values in for variables that make the model primal infeasible. An example of this is given below.

"Another simple primal infeasible example"

from gpkit import

Variable, Model

#Make the necessary Variables x = Variable( "x" ) y = Variable( "y" , 2 )

#make the constraints constraints = [ x >= 1 ,

0.5

<= x

* y, x

* y <= 1.5

]

#declare the objective objective = x

* y

#construct the model m = Model(objective, constraints)

#solve the model

#raises RuntimeWarning uknown on cvxopt and RuntimeWarning

#PRIM_INFES_CER with mosek

#m.solve()

Since y is now set to 2 and x can be no less than 1, it is again impossible for x*y to be less than 1.5 and the model is primal infeasible. If y was instead set to 1, the model would be feasible and the cost would be 1.

Relaxation

If you suspect your model is primal infeasible, you can find the nearest primal feasible version of it by relaxing constraints: either relaxing all constraints by the smallest number possible (that is, dividing the less-than side of every constraint by the same number), relaxing each constraint by its own number and minimizing the product of those numbers, or changing each constant by the smallest total percentage possible.

"Relaxation examples"

from gpkit import

Variable, Model x = Variable( "x" ) x_min = Variable( "x_min" , 2 ) x_max = Variable( "x_max" , 1 ) m = Model(x, [x <= x_max, x >= x_min]) print "Original model" print "==============" print m print

Chapter 5. Debugging Models

gpkit Documentation, Release 0.5.3

# m.solve() # raises a RuntimeWarning!

print "With constraints relaxed equally" print "================================"

from gpkit.constraints.relax

import

ConstraintsRelaxedEqually allrelaxed = ConstraintsRelaxedEqually(m) mr1 = Model(allrelaxed .

relaxvar, allrelaxed) print mr1 print mr1 .

solve(verbosity = 0 ) .

table() # solves with an x of 1.414

print print "With constraints relaxed individually" print "====================================="

from gpkit.constraints.relax

import

ConstraintsRelaxed constraintsrelaxed = ConstraintsRelaxed(m) mr2 = Model(constraintsrelaxed .

relaxvars .

prod()

* m .

cost

**

0.01

,

# add a bit of the original cost in constraintsrelaxed) print mr2 print mr2 .

solve(verbosity = 0 ) .

table() # solves with an x of 1.0

print print "With constants relaxed individually" print "==================================="

from gpkit.constraints.relax

import

ConstantsRelaxed constantsrelaxed = ConstantsRelaxed(m) mr3 = Model(constantsrelaxed .

relaxvars .

prod()

* m .

cost

**

0.01

,

# add a bit of the original cost in constantsrelaxed) print mr3 print mr3 .

solve(verbosity = 0 ) .

table() # brings x_min down to 1.0

print

Original model

==============

# minimize x

# subject to x <= x_max x >= x_min

With constraints relaxed equally

================================

# minimize

C_Relax

# subject to

C_Relax >= x

* x_max

**-

1

C_Relax >= x

**-

1

* x_min

C_Relax >= 1

Cost

----

1.414

Free Variables

--------------

5.3. Primal Infeasibility 21

gpkit Documentation, Release 0.5.3

22

x : 1.414

| Relax

C : 1.414

Constants

--------x_max : 1 x_min : 2

Sensitivities

------------x_min : + 0.5

x_max : 0.5

With constraints relaxed individually

=====================================

# minimize

C_Relax .

1 _( 0 ,)

*

C_Relax .

1 _( 1 ,)

* x

**

0.01

# subject to

C_Relax .

1 >= [gpkit .

Monomial(x

* x_max

**-

1 ), gpkit .

Monomial(x

**-

1

* x_

Λ“→ min)]

C_Relax .

1 >= 1

Cost

----

2

Free Variables

-------------x : 1

| Relax .

1

C : [ 1

Constants

--------x_max : 1 x_min : 2

Sensitivities

------------x_min : + 1 x_max : 0.99

2 ]

With constants relaxed individually

===================================

# minimize x

**

0.01

* x_max_Relax .

2

* x_min_Relax .

2

# subject to x <= x_max x >= x_min x_min_Relax .

2 >= 1 x_min >= x_min_Relax .

2

**-

1

* x_min_{before}_Relax .

2

Chapter 5. Debugging Models

gpkit Documentation, Release 0.5.3

x_min <= x_min_Relax .

2

* x_min_{before}_Relax .

2 x_max_Relax .

2 >= 1 x_max >= x_max_Relax .

2

**-

1

* x_max_{before}_Relax .

2 x_max <= x_max_Relax .

2

* x_max_{before}_Relax .

2

Cost

----

2

Free Variables

-------------x : 1 x_max : 1 x_min : 1

| Relax .

2 x_max : 1 x_min : 2

Constants

--------x_max_{before} : 1 x_min_{before} : 2

Sensitivities

------------x_min : + 1 x_max : 0.99

5.3. Primal Infeasibility 23

gpkit Documentation, Release 0.5.3

24 Chapter 5. Debugging Models

CHAPTER

6

Visualization and Interaction

Interactive Control Panel

A model can be manipulated and visualized in Jupyter Notebook by calling model.controlpanel().

By default this creates a slider for every constant in the model and gives them automatic ranges, but variables and/or ranges can be changed in the Settings tab or specified in the first argument to controlpanel()

.

Besides the default behaviour shown above, the control panel can also display custom analyses and plots via the fn_of_sol argument, which accepts a function (or list of functions) that take the solution as their input.

Plotting a 1D Sweep

Methods exist to facilitate creating, solving, and plotting the results of a single-variable sweep (see

Sweeps

for details). Example usage is as follows:

"Demonstrates manual and auto sweeping and plotting"

import matplotlib as mpl

mpl .

use( 'Agg' )

# comment out the lines above to show figures in a window

import numpy as np from gpkit import

Model, Variable, units x = Variable( "x" , "m" , "Swept Variable" ) y = Variable( "y" , "m^2" , "Cost" ) m = Model(y, [y >= (x / 2 )

**-

0.5

* units .

m

**

2.5

+ 1

* units .

m

**

2 , y >= (x / 2 )

**

2 ])

# arguments are: model, swept: values, posnomial for y-axis sol = m .

sweep({x: np .

linspace( 1 , 3 , 20 )}, verbosity = 0 )

25

gpkit Documentation, Release 0.5.3

f, ax = sol .

plot(y) ax .

set_title( "Manually swept (20 points)" ) f .

show() f .

savefig( "plot_sweep1d.png" )

# arguments are: model, swept: (min, max, optional logtol), posnomial for y-

Λ“→ axis sol = m .

autosweep({x: ( 1 , 3 )}, tol = 0.001

, verbosity = 0 ) f, ax = sol .

plot(y) ax .

set_title( "Autoswept (7 points)\nGuaranteed to be in blue region" ) f .

show() f .

savefig( "plot_autosweep1d.png" )

Which results in:

26 Chapter 6. Visualization and Interaction

gpkit Documentation, Release 0.5.3

6.2. Plotting a 1D Sweep 27

gpkit Documentation, Release 0.5.3

28 Chapter 6. Visualization and Interaction

CHAPTER

7

Building Complex Models

Inheriting from Model

GPkit encourages an object-oriented modeling approach, where the modeler creates objects that inherit from Model to break large systems down into subsystems and analysis domains. The benefits of this approach include modularity, reusability, and the ability to more closely follow mental models of system hierarchy. For example: two different models for a simple beam, designed by different modelers, should be able to be used interchangeably inside another subsystem (such as an aircraft wing) without either modeler having to write specifically with that use in mind.

When you create a class that inherits from Model, write a .setup() method to create the model’s variables and return its constraints. GPkit.Model.__init__ will call that method and automatically add your model’s name and unique ID to any created variables.

Variables created in a setup method are added to the model even if they are not present in any constraints.

This allows for simplistic ‘template’ models, which assume constant values for parameters and can grow incrementally in complexity as those variables are freed.

At the end of this page a detailed example shows this technique in practice.

Accessing Variables in Models

GPkit provides several ways to access a Variable in a Model (or ConstraintSet):

• using Model.variables_byname(key). This returns all Variables in the Model, as well as in any submodels, that match the key.

• using Model.topvar(key). This returns the top-level Variable that matches the key. The

Variable must appear at the top level, not in a submodel.

• using Model.__getitem__. Model[key] returns the only variable matching the key, even if the match occurs in a submodel. If multiple variables match the key, an error is raised.

These methods are illustrated in the following example.

29

gpkit Documentation, Release 0.5.3

"Demo of accessing variables in models"

from gpkit import

Model, Variable

class Battery

(Model):

"A simple battery"

def

setup ( self ): h = Variable( "h" , 200 , "Wh/kg" , "specific energy" )

E = Variable( "E" , "MJ" , "stored energy" ) m = Variable( "m" , "lb" , "battery mass" )

return

[E <= m

* h]

class Motor

(Model):

"Electric motor"

def

setup ( self ): m = Variable( "m" , "lb" , "motor mass" ) f = Variable( "f" , 20 , "lb/hp" , "mass per unit power" )

Pmax = Variable( "P_ {max} " , "hp" , "max output power" )

return

[m >= f

*

Pmax]

class PowerSystem

(Model):

"A battery powering a motor"

def

setup ( self ): components = [Battery(), Motor()] m = Variable( "m" , "lb" , "mass" )

return

[components, m >= sum (comp .

topvar( "m" )

for

comp

in

components)]

PS = PowerSystem() print "Getting the only var 'E': " , PS[ "E" ] print "The top-level var 'm': " , PS .

topvar( "m" ) print "All the variables 'm': " , PS .

variables_byname( "m" )

Getting the only var 'E' : E_PowerSystem / Battery [MJ]

The top level var 'm' : m_PowerSystem [lb]

All the variables 'm' : [gpkit .

Variable(m_PowerSystem [lb]), gpkit .

Λ“→

Variable(m_PowerSystem / Battery [lb]), gpkit .

Variable(m_PowerSystem / Motor

Λ“→

[lb])]

Vectorization

gpkit.Vectorize

creates an environment in which Variables are created with an additional dimension:

"from gpkit/tests/t_vars.py"

def

test_shapes ( self ):

with

gpkit .

Vectorize( 3 ):

with

gpkit .

Vectorize( 5 ): y = gpkit .

Variable( "y" ) x = gpkit .

VectorVariable( 2 , "x" ) z = gpkit .

VectorVariable( 7 , "z" )

30 Chapter 7. Building Complex Models

gpkit Documentation, Release 0.5.3

self .

assertEqual(y .

shape, ( 5 , 3 )) self .

assertEqual(x .

shape, ( 2 , 5 , 3 )) self .

assertEqual(z .

shape, ( 7 , 3 ))

This allows models written with scalar constraints to be created with vector constraints:

"Vectorization demonstration"

from gpkit import

Model, Variable, Vectorize

class Test

(Model):

"A simple scalar model"

def

setup ( self ): x = Variable( "x" )

return

[x >= 1 ] print "SCALAR" m = Test() m .

cost = m[ "x" ] print m .

solve(verbosity = 0 ) .

summary() print "__________\n" print "VECTORIZED"

with

Vectorize( 3 ): m = Test() m .

cost = m[ "x" ] .

prod() m .

append(m[ "x" ][ 1 ] >= 2 ) print m .

solve(verbosity = 0 ) .

summary()

SCALAR

Cost

----

1

Free Variables

-------------x : 1

__________

VECTORIZED

Cost

----

2

Free Variables

-------------x : [ 1 2 1 ]

Multipoint analysis modeling

In many engineering models, there is a physical object that is operated in multiple conditions. Some variables correspond to the design of the object (size, weight, construction) while others are vectorized over

7.4. Multipoint analysis modeling 31

gpkit Documentation, Release 0.5.3

the different conditions (speed, temperature, altitude). By combining named models and vectorization we can create intuitive representations of these systems while maintaining modularity and interoperability.

In the example below, the models Aircraft and Wing have a .dynamic() method which creates instances of AircraftPerformance and WingAero, respectively. The Aircraft and Wing models create variables, such as size and weight without fuel, that represent a physical object. The dynamic models create properties that change based on the flight conditions, such as drag and fuel weight.

This means that when an aircraft is being optimized for a mission, you can create the aircraft (AC in this example) and then pass it to a Mission model which can create vectorized aircraft performance models for each flight segment and/or flight condition.

"""Modular aircraft concept"""

import numpy as np from gpkit import

Model, Variable, Vectorize

class Aircraft

(Model):

"The vehicle model"

def

setup ( self ): self .

fuse = Fuselage() self .

wing = Wing() self .

components = [ self .

fuse, self .

wing]

W = Variable( "W" , "lbf" , "weight" )

return

self .

components, [

W >= sum (c .

topvar( "W" )

for

c

in

self .

components)

]

def

dynamic ( self , state):

"This component's performance model for a given state."

return

AircraftP( self , state)

class AircraftP

(Model):

"Aircraft flight physics: weight <= lift, fuel burn"

def

setup ( self , aircraft, state): self .

aircraft = aircraft self .

wing_aero = aircraft .

wing .

dynamic(state) self .

perf_models = [ self .

wing_aero]

Wfuel = Variable( "W_ {fuel} " , "lbf" , "fuel weight" )

Wburn = Variable( "W_ {burn} " , "lbf" , "segment fuel burn" )

return

self .

perf_models, [ aircraft .

topvar( "W" ) + Wfuel <= ( 0.5

* state[ "\\rho" ]

* state[ "V" ]

**

2

* self .

wing_aero[ "C_L" ]

* aircraft .

wing[ "S" ]),

Wburn >= 0.1

* self .

wing_aero[ "D" ]

]

class FlightState

(Model):

"Context for evaluating flight physics"

def

setup ( self ):

Variable( "V" , 40 , "knots" , "true airspeed" )

Variable( "\\mu" , 1.628e-5 , "N*s/m^2" , "dynamic viscosity" )

Variable( "\\rho" , 0.74

, "kg/m^3" , "air density" )

32 Chapter 7. Building Complex Models

gpkit Documentation, Release 0.5.3

class FlightSegment

(Model):

"Combines a context (flight state) and a component (the aircraft)"

def

setup ( self , aircraft): self .

flightstate = FlightState() self .

aircraftp = aircraft .

dynamic( self .

flightstate)

return

self .

flightstate, self .

aircraftp

class Mission

(Model):

"A sequence of flight segments"

def

setup ( self , aircraft):

with

Vectorize( 4 ): # four flight segments self .

fs = FlightSegment(aircraft)

Wburn = self .

fs .

aircraftp[ "W_ {burn} " ]

Wfuel = self .

fs .

aircraftp[ "W_ {fuel} " ] self .

takeoff_fuel = Wfuel[ 0 ]

return

self .

fs, [Wfuel[: 1 ] >= Wfuel[ 1 :] + Wburn[: 1 ],

Wfuel[ 1 ] >= Wburn[ 1 ]]

class Wing

(Model):

"Aircraft wing model"

def

dynamic ( self , state):

"Returns this component's performance model for a given state."

return

WingAero( self , state)

def

setup ( self ):

W = Variable( "W" , "lbf" , "weight" )

S = Variable( "S" , 190 , "ft^2" , "surface area" ) rho = Variable( "\\rho" , 1 , "lbf/ft^2" , "areal density" )

A = Variable( "A" , 27 , "-" , "aspect ratio" ) c = Variable( "c" , "ft" , "mean chord" )

return

[W >= S

* rho, c == (S / A)

**

0.5

]

class WingAero

(Model):

"Wing aerodynamics"

def

setup ( self , wing, state):

CD = Variable( "C_D" , "-" , "drag coefficient" )

CL = Variable( "C_L" , "-" , "lift coefficient" ) e = Variable( "e" , 0.9

, "-" , "Oswald efficiency" )

Re = Variable( "Re" , "-" , "Reynold's number" )

D = Variable( "D" , "lbf" , "drag force" )

return

[

CD >= ( 0.074

/ Re

**

0.2

+ CL

**

2 / np .

pi / wing[ "A" ] / e),

Re == state[ "\\rho" ]

* state[ "V" ]

* wing[ "c" ] / state[ "\\mu" ],

D >= 0.5

* state[ "\\rho" ]

* state[ "V" ]

**

2

*

CD

* wing[ "S" ],

]

class Fuselage

(Model):

"The thing that carries the fuel, engine, and payload"

7.4. Multipoint analysis modeling 33

gpkit Documentation, Release 0.5.3

34 def

setup ( self ):

# fuselage needs an external dynamic drag model,

# left as an exercise for the reader

# V = Variable("V", 16, "gal", "volume")

# d = Variable("d", 12, "in", "diameter")

# S = Variable("S", "ft^2", "wetted area")

# cd = Variable("c_d", .0047, "-", "drag coefficient")

# CDA = Variable("CDA", "ft^2", "drag area")

Variable( "W" , 100 , "lbf" , "weight" )

AC = Aircraft()

MISSION = Mission(AC)

M = Model(MISSION .

takeoff_fuel, [MISSION, AC]) sol = M .

solve(verbosity = 0 ) vars_of_interest = set (AC .

varkeys) vars_of_interest .

update(MISSION .

fs .

aircraftp .

unique_varkeys) vars_of_interest .

add( "D" ) print sol .

summary(vars_of_interest)

Note that the output table can be filtered with a list of variables to show.

Cost

----

1.943

[lbf]

Free Variables

--------------

| Aircraft

W : 290

| Aircraft / Wing

W : 190 c : 2.653

[lbf] weight

[lbf] weight

[ft] mean chord

W_{burn} : [

Λ“→ burn

| Mission / FlightSegment / AircraftP

0.487

W_{fuel} : [ 1.94

0.486

1.46

0.485

0.97

0.485

0.485

]

]

[lbf] segment fuel

[lbf] fuel weight

| Mission / FlightSegment / AircraftP / WingAero

D : [ 4.87

4.86

4.85

4.85

] [lbf] drag force

Sensitivities

-------------

| Aircraft / Fuselage

W : + 0.25

weight

| Aircraft / Wing

S : + 0.68

\rho : + 0.48

A : 0.31

surface area areal density aspect ratio

Next Largest Sensitivities

--------------------------

| Mission / FlightSegment / AircraftP / WingAero e : [ 0.093

0.092

0.092

0.092

] Oswald efficiency

Chapter 7. Building Complex Models

gpkit Documentation, Release 0.5.3

| Mission / FlightSegment / FlightState

V : [ + 0.1

+ 0.1

+ 0.1

+ 0.1

\rho : [ + 0.034

+ 0.034

+ 0.035

+ 0.035

] true airspeed

] air density

7.4. Multipoint analysis modeling 35

gpkit Documentation, Release 0.5.3

36 Chapter 7. Building Complex Models

CHAPTER

8

Advanced Commands

Derived Variables

Evaluated Fixed Variables

Some fixed variables may be derived from the values of other fixed variables. For example, air density, viscosity, and temperature are functions of altitude. These can be represented by a substitution or value that is a one-argument function accepting model.substitutions (for details, see

Substitutions

below).

# code from t_GPSubs.test_calcconst in tests/t_sub.py

x = Variable( "x" , "hours" ) t_day = Variable( "t_{day}" , 12 , "hours" ) t_night = Variable( "t_{night}" ,

lambda

c: 24 c[t_day], "hours" )

# note that t_night has a function as its value m = Model(x, [x >= t_day, x >= t_night]) sol = m .

solve(verbosity = 0 ) self .

assertAlmostEqual(sol(t_night) / gpkit .

ureg .

hours, 12 ) m .

substitutions .

update({t_day: ( "sweep" , [ 8 , 12 , 16 ])}) sol = m .

solve(verbosity = 0 ) self .

assertEqual( len (sol[ "cost" ]), 3 ) npt .

assert_allclose(sol(t_day) + sol(t_night), 24 )

Evaluated Free Variables

Some free variables may be evaluated from the values of other (non-evaluated) free variables after the optimization is performed. For example, if the efficiency 𝜈 of a motor is not a GP-compatible variable, but (1 − 𝜈) is a valid GP variable, then 𝜈 can be calculated after solving. These evaluated free variables can be represented by a Variable with evalfn metadata. Note that this variable should not be used in constructing your model!

37

gpkit Documentation, Release 0.5.3

# code from t_constraints.test_evalfn in tests/t_sub.py

x = Variable( "x" ) x2 = Variable( "x^2" , evalfn =

lambda

v: v[x]

**

2 ) m = Model(x, [x >= 2 ]) m .

unique_varkeys = set ([x2 .

key]) sol = m .

solve(verbosity = 0 ) self .

assertAlmostEqual(sol(x2), sol(x)

**

2 )

For evaluated variables that can be used during a solution, see externalfn under

Sequential Geometric

Programs .

Sweeps

Sweeps are useful for analyzing tradeoff surfaces.

A sweep “value” is an Iterable of numbers, e.g. [1, 2, 3]. The simplest way to sweep a model is to call model.sweep({sweepvar: sweepvalues}) , which will return a solution array but not change the model’s substitutions dictionary. If multiple sweepvars are given, the method will run them all as independent one-dimensional sweeps and return a list of one solution per sweep. The method model.autosweep({sweepvar:

(start, end)}, tol=0.01) behaves very similarly, except that only the bounds of the sweep need be specified and the region in betwen will be swept to a maximum possible error of tol in the log of the cost. For details see

1D Autosweeps

below.

Sweep Substitutions

Alternatively, or to sweep a higher-dimensional grid, Variables can swept with a substitution value takes the form ('sweep', Iterable), such as ('sweep', np.linspace(1e6, 1e7, 100)).

During variable declaration, giving an Iterable value for a Variable is assumed to be giving it a sweep value: for example, x = Variable("x", [1, 2, 3]) will sweep x over three values.

Vector variables may also be substituted for: y = VectorVariable(3, "y", ("sweep" ,

[[1, 2], [1, 2], [1, 2]]) will sweep 𝑦 ∀ 𝑦 𝑖

∈ {1, 2}.

A Model with sweep substitutions will solve for all possible combinations: e.g., if there’s a variable x with value ('sweep', [1, 3]) and a variable y with value ('sweep', [14, 17]) then the gp will be solved four times, for (π‘₯, 𝑦) ∈ {(1, 14), (1, 17), (3, 14), (3, 17)}. The returned solutions will be a one-dimensional array (or 2-D for vector variables), accessed in the usual way.

Parallel Sweeps

During a normal sweep, each result is independent, so they can be run in parallel. To use this feature, run

$ ipcluster start at a terminal: it will automatically start a number of iPython parallel computing engines equal to the number of cores on your machine, and when you next import gpkit you should see a note like Using parallel execution of sweeps on 4 clients. If you do, then all sweeps performed with that import of gpkit will be parallelized.

This parallelization sets the stage for gpkit solves to be outsourced to a server, which may be valuable for faster results; alternately, it could allow the use of gpkit without installing a solver.

38 Chapter 8. Advanced Commands

8.3. Tight ConstraintSets gpkit Documentation, Release 0.5.3

1D Autosweeps

If you’re only sweeping over a single variable, autosweeping lets you specify a tolerance for cost error instead of a number of exact positions to solve at. GPkit will then search the sweep segment for a locally optimal number of sweeps that can guarantee a max absolute error on the log of the cost.

Accessing variable and cost values from an autosweep is slightly different, as can be seen in this example:

"Show autosweep_1d functionality"

import numpy as np import gpkit from gpkit import

units, Variable, Model

from gpkit.tools.autosweep

import

autosweep_1d

from gpkit.small_scripts

import

mag

A = Variable( "A" , "m**2" ) l = Variable( "l" , "m" ) m1 = Model(A

**

2 , [A >= l

**

2 + units .

m

**

2 ]) tol1 = 1e-3 bst1 = autosweep_1d(m1, tol1, l, [ 1 , 10 ], verbosity = 0 ) print "Solved after %2i passes, cost logtol +/%.3g

" % (bst1 .

nsols, bst1 .

tol)

# autosweep solution accessing l_vals = np .

linspace( 1 , 10 , 10 ) sol1 = bst1 .

sample_at(l_vals) print "values of l:" , l_vals print "values of A:" , sol1( "A" ) cost_estimate = sol1[ "cost" ] cost_lb, cost_ub = sol1 .

cost_lb(), sol1 .

cost_ub() print "cost lower bound:" , cost_lb print "cost estimate: " , cost_estimate print "cost upper bound:" , cost_ub

# you can evaluate arbitrary posynomials np .

testing .

assert_allclose(mag( 2

* sol1(A)), mag(sol1( 2

*

A)))

assert

(sol1[ "cost" ] == sol1(A

**

2 )) .

all()

# the cost estimate is the logspace mean of its upper and lower bounds np .

testing .

assert_allclose((np .

log(mag(cost_lb)) + np .

log(mag(cost_ub))) / 2 , np .

log(mag(cost_estimate)))

# this problem is two intersecting lines in logspace m2 = Model(A

**

2 , [A >= (l / 3 )

**

2 , A >= (l / 3 )

**

0.5

* units .

m

**

1.5

]) tol2 = { "mosek" : 1e-12 , "cvxopt" : 1e-7 ,

"mosek_cli" : 1e-6 }[gpkit .

settings[ "default_solver" ]] bst2 = autosweep_1d(m2, tol2, l, [ 1 , 10 ], verbosity = 0 ) print "Solved after %2i passes, cost logtol +/%.3g

" % (bst2 .

nsols, bst2 .

tol) print "Table of solutions used in the autosweep:" print bst2 .

solarray .

table()

If you need access to the raw solutions arrays, the smallest simplex tree containing any given point can be gotten with min_bst = bst.min_bst(val), the extents of that tree with bst.bounds and solutions of that tree with bst.sols. More information is in help(bst).

Tight ConstraintSets

Tight ConstraintSets will warn if any inequalities they contain are not tight (that is, the right side does not equal the left side) after solving. This is useful when you know that a constraint _should_ be tight for a

39

gpkit Documentation, Release 0.5.3

given model, but reprenting it as an equality would be non-convex.

from gpkit import

Variable, Model

from gpkit.constraints.tight

import

Tight

Tight .

reltol = 1e-2 # set the global tolerance of Tight x = Variable( 'x' ) x_min = Variable( 'x_{min}' , 2 ) m = Model(x, [Tight([x >= 1 ], reltol = 1e-3 ), # set the specific tolerance x >= x_min]) m .

solve(verbosity = 0 ) # prints warning

Substitutions

Substitutions are a general-purpose way to change every instance of one variable into either a number or another variable.

Substituting into Posynomials, NomialArrays, and GPs

The examples below all use Posynomials and NomialArrays, but the syntax is identical for GPs (except when it comes to sweep variables).

# adapted from t_sub.py / t_NomialSubs / test_Basic

from gpkit import

Variable x = Variable( "x" ) p = x

**

2

assert

p .

sub(x, 3 ) == 9

assert

p .

sub(x .

varkeys[ "x" ], 3 ) == 9

assert

p .

sub( "x" , 3 ) == 9

Here the variable x is being replaced with 3 in three ways: first by substituting for x directly, then by substituting for the VarKey("x"), then by substituting the string “x”. In all cases the substitution is understood as being with the VarKey: when a variable is passed in the VarKey is pulled out of it, and when a string is passed in it is used as an argument to the Posynomial’s varkeys dictionary.

Substituting multiple values

# adapted from t_sub.py / t_NomialSubs / test_Vector

from gpkit import

Variable, VectorVariable x = Variable( "x" ) y = Variable( "y" ) z = VectorVariable( 2 , "z" ) p = x

* y

* z

assert

all (p .

sub({x: 1 , "y" : 2 }) == 2

* z)

assert

all (p .

sub({x: 1 , y: 2 , "z" : [ 1 , 2 ]}) == z .

sub(z, [ 2 , 4 ]))

To substitute in multiple variables, pass them in as a dictionary where the keys are what will be replaced and values are what it will be replaced with. Note that you can also substitute for VectorVariables by their name or by their NomialArray.

40 Chapter 8. Advanced Commands

gpkit Documentation, Release 0.5.3

Substituting with nonnumeric values

You can also substitute in sweep variables (see

Sweeps ), strings, and monomials:

# adapted from t_sub.py / t_NomialSubs

from gpkit import

Variable

from gpkit.small_scripts

import

mag x = Variable( "x" , "m" ) xvk = x .

varkeys .

values()[ 0 ] descr_before = x .

exp .

keys()[ 0 ] .

descr y = Variable( "y" , "km" ) yvk = y .

varkeys .

values()[ 0 ]

for

x_

in

[ "x" , xvk, x]:

for

y_

in

[ "y" , yvk, y]:

if not

isinstance (y_, str )

and

type (xvk .

units) != str : expected = 0.001

else

: expected = 1.0

assert

abs (expected mag(x .

sub(x_, y_) .

c)) < 1e-6

if

type (xvk .

units) != str :

# this means units are enabled z = Variable( "z" , "s" )

# y.sub(y, z) will raise ValueError due to unit mismatch

Note that units are preserved, and that the value can be either a string (in which case it just renames the variable), a varkey (in which case it changes its description, including the name) or a Monomial (in which case it substitutes for the variable with a new monomial).

Updating ConstraintSet substitutions

ConstraintSets have a .substitutions KeyDict attribute which will be substituted before solving.

This KeyDict accepts variable names, VarKeys, and Variable objects as keys, and can be updated (or deleted from) like a regular Python dictionary to change the substitutions that will be used at solvetime. If a ConstraintSet itself contains ConstraintSets, it and all its elements share pointers to the same substitutions dictionary object, so that updating any one of them will update all of them.

Substituting with replacement

Any of the substitutions above can be run with p.subinplace(*args) to substitute directly into the object in question.

Fixed Variables

When a Model is created, any fixed Variables are used to form a dictionary:

{var: var.

descr["value"] for var in self.varlocs if "value" in var.descr}

. This dictionary in then substituted into the Model’s cost and constraints before the substitutions argument is (and hence values are supplanted by any later substitutions).

solution.subinto(p) will substitute the solution(s) for variables into the posynomial p, returning a NomialArray. For a non-swept solution, this is equivalent to p.sub(solution["variables"]).

8.4. Substitutions 41

gpkit Documentation, Release 0.5.3

You can also substitute by just calling the solution, i.e. solution(p). This returns a numpy array of just the coefficients (c) of the posynomial after substitution, and will raise a‘ ValueError` if some of the variables in p were not found in solution.

Freeing Fixed Variables

After creating a Model, it may be useful to “free” a fixed variable and resolve. This can be done using the command del m.substitutions["x"], where m is a Model. An example of how to do this is shown below.

from gpkit import

Variable, Model x = Variable( "x" ) y = Variable( "y" , 3 ) # fix value to 3 m = Model(x, [x >= 1 + y, y >= 1 ])

_ = m .

solve() # optimal cost is 4; y appears in sol["constants"]

del

m .

substitutions[ "y" ]

_ = m .

solve() # optimal cost is 2; y appears in Free Variables

Note that del m.substitutions["y"] affects m but not y.key. y.value will still be 3, and if y is used in a new model, it will still carry the value of 3.

42

Composite Objectives

Given 𝑛 posynomial objectives 𝑔 𝑖

, you can sweep out the problem’s Pareto frontier with the composite objective: 𝑔

0 𝑀

0

∏οΈ€ 𝑖̸=0 𝑣 𝑖

+ 𝑔

1 𝑀

1

∏οΈ€ 𝑖̸=1 𝑣 𝑖

+ ... + 𝑔 𝑛

∏οΈ€ 𝑖 𝑣 𝑖 where 𝑖 ∈ 0...𝑛 − 1 and 𝑣 𝑖

= 1 − 𝑀 𝑖 and 𝑀 𝑖

∈ [0, 1]

GPkit has the helper function composite_objective for constructing these.

import numpy as np import gpkit

L, W = gpkit .

Variable( "L" ), gpkit .

Variable( "W" ) eqns = [L >= 1 , W >= 1 , L

*

W == 10 ] co_sweep = [ 0 ] + np .

logspace( 6 , 0 , 10 ) .

tolist() obj = gpkit .

tools .

composite_objective(L + W, W

**-

1

*

L

**-

3 , normsub = {L: 10 , W: 10 }, sweep = co_sweep) m = gpkit .

Model(obj, eqns) m .

solve()

The normsub argument specifies an expected value for your solution to normalize the different 𝑔 𝑖

(you can also do this by hand). The feasibility of the problem should not depend on the normalization, but the spacing of the sweep will.

The sweep argument specifies what points between 0 and 1 you wish to sample the weights at. If you want different resolutions or spacings for different weights, the sweeps argument accepts a list of sweep arrays.

Chapter 8. Advanced Commands

CHAPTER

9

Signomial Programming

Signomial programming finds a local solution to a problem of the form: minimize 𝑔

0

(π‘₯) subject to 𝑓 𝑖

(π‘₯) = 1, 𝑖 = 1, ...., π‘š 𝑔 𝑖

(π‘₯) − β„Ž 𝑖

(π‘₯) ≤ 1, 𝑖 = 1, ...., 𝑛 where each 𝑓 is monomial while each 𝑔 and β„Ž is a posynomial.

This requires multiple solutions of geometric programs, and so will take longer to solve than an equivalent geometric programming formulation.

In general, when given the choice of which variables to include in the positive-posynomial / 𝑔 side of the constraint, the modeler should:

1. maximize the number of variables in 𝑔,

2. prioritize variables that are in the objective,

3. then prioritize variables that are present in other constraints.

The .localsolve syntax was chosen to emphasize that signomial programming returns a local optimum. For the same reason, calling .solve on an SP will raise an error.

By default, signomial programs are first solved conservatively (by assuming each β„Ž is equal only to its constant portion) and then become less conservative on each iteration.

Example Usage

"""Adapted from t_SP in tests/t_geometric_program.py"""

import gpkit

# Decision variables x = gpkit .

Variable( 'x' ) y = gpkit .

Variable( 'y' )

43

gpkit Documentation, Release 0.5.3

44

# must enable signomials for subtraction

with

gpkit .

SignomialsEnabled(): constraints = [x >= 1 y, y <= 0.1

]

# create and solve the SP m = gpkit .

Model(x, constraints) print m .

localsolve(verbosity = 0 ) .

summary()

assert

abs (m .

solution(x) 0.9

) < 1e-6

When using the localsolve method, the reltol argument specifies the relative tolerance of the solver: that is, by what percent does the solution have to improve between iterations? If any iteration improves less than that amount, the solver stops and returns its value.

If you wish to start the local optimization at a particular point π‘₯ π‘˜

, however, you may do so by putting that position (a dictionary formatted as you would a substitution) as the xk argument.

Sequential Geometric Programs

The method of solving local GP approximations of a non-GP compatible model can be generalized, at the cost of the general smoothness and lack of a need for trust regions that SPs guarantee.

For some applications, it is useful to call external codes which may not be GP compatible. Imagine we wished to solve the following optimization problem: minimize 𝑦 subject to 𝑦 ≥ sin(π‘₯) πœ‹

4

≤ π‘₯ ≤ πœ‹

2

This problem is not GP compatible due to the sin(x) constraint. One approach might be to take the first term of the Taylor expansion of sin(x) and attempt to solve:

"Can be found in gpkit/docs/source/examples/sin_approx_example.py"

import numpy as np from gpkit import

Variable, Model x = Variable( "x" ) y = Variable( "y" ) objective = y constraints = [y >= x, x <= np .

pi / 2.

,

] x >= np .

pi / 4.

, m = Model(objective, constraints) print m .

solve(verbosity = 0 ) .

summary()

Cost

----

0.7854

Free Variables

--------------

Chapter 9. Signomial Programming

gpkit Documentation, Release 0.5.3

x : 0.7854

y : 0.7854

We can do better, however, by utilizing some built in functionality of GPkit. For simple cases with a single

Variable, GPkit looks for externalfn metadata:

"Can be found in gpkit/docs/source/examples/external_sp2.py"

import numpy as np from gpkit import

Variable, Model x = Variable( "x" )

def

y_ext ( self , x0):

"Returns constraints on y derived from x0"

if

x

not in

x0:

return

self >= x

return

self >= x / x0[x]

* np .

sin(x0[x]) y = Variable( "y" , externalfn = y_ext) m = Model(y, [np .

pi / 4 <= x, x <= np .

pi / 2 ]) print m .

localsolve(verbosity = 0 ) .

summary()

Cost

----

0.7854

Free Variables

-------------x : 0.7854

y : 0.7854

However, for external functions not intrinsically tied to a single variable it’s best to use the full ConstraintSet API, as follows:

Assume we have some external code which is capable of evaluating our incompatible function:

"""External function for GPkit to call.

Can be found in gpkit/docs/source/examples/external_function.py"""

import numpy as np def

external_code (x):

"Returns sin(x)"

return

np .

sin(x)

Now, we can create a ConstraintSet that allows GPkit to treat the incompatible constraint as though it were a signomial programming constraint:

"Can be found in gpkit/docs/source/examples/external_constraint.py"

from gpkit.exceptions

import

InvalidGPConstraint

from external_function import

external_code

class ExternalConstraint

( object ):

9.2. Sequential Geometric Programs 45

gpkit Documentation, Release 0.5.3

"Class for external calling" varkeys = {}

def

__init__ ( self , x, y):

# We need a GPkit variable defined to return in our constraint.

The

# easiest way to do this is to read in the parameters of interest in

# the initiation of the class and store them here.

self .

x = x self .

y = y

def

as_posyslt1 ( self , _):

"Ensures this is treated as an SGP constraint"

raise

InvalidGPConstraint( "ExternalConstraint cannot solve as a GP." )

def

as_gpconstr ( self , x0, _):

"Returns locally-approximating GP constraint"

# Unpacking the GPkit variables x = self .

x y = self .

y

# Creating a default constraint for the first solve

if not

x0:

return

(y >= x)

# Returns constraint updated with new call to the external code

else

:

# Unpack Design Variables at the current point x_star = x0[ "x" ]

# Call external code res = external_code(x_star)

# Return linearized constraint

return

(y >= res

* x / x_star) and replace the incompatible constraint in our GP:

"Can be found in gpkit/docs/source/examples/external_sp.py"

import numpy as np from gpkit import

Variable, Model

from external_constraint import

ExternalConstraint x = Variable( "x" ) y = Variable( "y" ) objective = y constraints = [ExternalConstraint(x, y), x <= np .

pi / 2.

,

] x >= np .

pi / 4.

, m = Model(objective, constraints) print m .

localsolve(verbosity = 0 ) .

summary()

46 Chapter 9. Signomial Programming

gpkit Documentation, Release 0.5.3

Cost

----

0.7854

Free Variables

-------------x : 0.7854

y : 0.7854

which is the expected result. This method has been generalized to larger problems, such as calling XFOIL and AVL.

If you wish to start the local optimization at a particular point π‘₯

0

, however, you may do so by putting that position (a dictionary formatted as you would a substitution) as the x0 argument

9.2. Sequential Geometric Programs 47

gpkit Documentation, Release 0.5.3

48 Chapter 9. Signomial Programming

CHAPTER

10

Examples

iPython Notebook Examples

More examples, including some with in-depth explanations and interactive visualizations, can be seen on nbviewer .

A Trivial GP

The most trivial GP we can think of: minimize π‘₯ subject to the constraint π‘₯ ≥ 1.

"Very simple problem: minimize x while keeping x greater than 1."

from gpkit import

Variable, Model

# Decision variable x = Variable( "x" )

# Constraint constraints = [x >= 1 ]

# Objective (to minimize) objective = x

# Formulate the Model m = Model(objective, constraints)

# Solve the Model sol = m .

solve(verbosity = 0 )

# print selected results print ( "Optimal cost: %s " % sol[ "cost" ]) print ( "Optimal x val: %s " % sol(x))

49

gpkit Documentation, Release 0.5.3

Of course, the optimal value is 1. Output:

Optimal cost: 1.0

Optimal x val: 1.0

Maximizing the Volume of a Box

This example comes from Section 2.4 of the GP tutorial , by S. Boyd et. al.

"Maximizes box volume given area and aspect ratio constraints."

from gpkit import

Variable, Model

# Parameters alpha = Variable( "alpha" , 2 , "-" , "lower limit, wall aspect ratio" ) beta = Variable( "beta" , 10 , "-" , "upper limit, wall aspect ratio" ) gamma = Variable( "gamma" , 2 , "-" , "lower limit, floor aspect ratio" ) delta = Variable( "delta" , 10 , "-" , "upper limit, floor aspect ratio" )

A_wall = Variable( "A_ {wall} " , 200 , "m^2" , "upper limit, wall area" )

A_floor = Variable( "A_ {floor} " , 50 , "m^2" , "upper limit, floor area" )

# Decision variables h = Variable( "h" , "m" , "height" ) w = Variable( "w" , "m" , "width" ) d = Variable( "d" , "m" , "depth" )

# Constraints constraints = [A_wall >= 2

* h

* w + 2

* h

* d,

A_floor >= w

* d, h / w >= alpha, h / w <= beta, d / w >= gamma, d / w <= delta]

# Objective function

V = h

* w

* d objective = 1 / V # To maximize V, we minimize its reciprocal

# Formulate the Model m = Model(objective, constraints)

# Solve the Model and print the results table print m .

solve(verbosity = 0 ) .

table()

The output is

Cost

----

0.003674

[ 1 / m

**

3 ]

Free Variables

-------------d : 8.17

[m] depth h : 8.163

[m] height w : 4.081

[m] width

50 Chapter 10. Examples

gpkit Documentation, Release 0.5.3

Constants

---------

A_{floor} : 50 [m

**

2 ] upper limit, floor area

A_{wall} : 200 [m

**

2 ] upper limit, wall area alpha : 2 lower limit, wall aspect ratio beta : 10 upper limit, wall aspect ratio delta : 10 gamma : 2 upper limit, floor aspect ratio lower limit, floor aspect ratio

Sensitivities

-------------

A_{wall} : alpha :

-

+

1.5

0.5

upper limit, wall area lower limit, wall aspect ratio gamma : + 0.0003

lower limit, floor aspect ratio

A_{floor} : 5.7e-09 upper limit, floor area beta : 1.4e-09 upper limit, wall aspect ratio delta : 1.4e-09 upper limit, floor aspect ratio

Water Tank

Say we had a fixed mass of water we wanted to contain within a tank, but also wanted to minimize the cost of the material we had to purchase (i.e. the surface area of the tank):

"Minimizes cylindrical tank surface area for a particular volume."

from gpkit import

Variable, VectorVariable, Model

M = Variable( "M" , 100 , "kg" , "Mass of Water in the Tank" ) rho = Variable( "\\rho" , 1000 , "kg/m^3" , "Density of Water in the Tank" )

A = Variable( "A" , "m^2" , "Surface Area of the Tank" )

V = Variable( "V" , "m^3" , "Volume of the Tank" ) d = VectorVariable( 3 , "d" , "m" , "Dimension Vector" ) constraints = (A >= 2

*

(d[ 0 ]

* d[ 1 ] + d[ 0 ]

* d[ 2 ] + d[ 1 ]

* d[ 2 ]),

V == d[ 0 ]

* d[ 1 ]

* d[ 2 ],

M == V

* rho) m = Model(A, constraints) sol = m .

solve(verbosity = 0 ) print sol .

summary()

The output is

Cost

----

1.293

[m

**

2 ]

Free Variables

--------------

A : 1.293

V : 0.1

d : [ 0.464

0.464

Sensitivities

0.464

[m

**

2 ] Surface Area of the Tank

[m

**

3 ] Volume of the Tank

] [m] Dimension Vector

10.4. Water Tank 51

gpkit Documentation, Release 0.5.3

-------------

M : + 0.67

Mass of Water

in

the Tank

\rho : 0.67

Density of Water

in

the Tank

52

Simple Wing

This example comes from Section 3 of Geometric Programming for Aircraft Design Optimization , by W.

Hoburg and P. Abbeel.

"Minimizes airplane drag for a simple drag and structure model."

import numpy as np from gpkit import

Variable, Model pi = np .

pi

# Constants k = Variable( "k" , 1.2

, "-" , "form factor" ) e = Variable( "e" , 0.95

, "-" , "Oswald efficiency factor" ) mu = Variable( "\\mu" , 1.78e-5 , "kg/m/s" , "viscosity of air" ) rho = Variable( "\\rho" , 1.23

, "kg/m^3" , "density of air" ) tau = Variable( "\\tau" , 0.12

, "-" , "airfoil thickness to chord ratio" )

N_ult = Variable( "N_ {ult} " , 3.8

, "-" , "ultimate load factor" )

V_min = Variable( "V_ {min} " , 22 , "m/s" , "takeoff speed" )

C_Lmax = Variable( "C_{L,max}" , 1.5

, "-" , "max CL with flaps down" )

S_wetratio = Variable( "(\\frac {S} {S_ {wet} })" , 2.05

, "-" , "wetted area ratio" )

W_W_coeff1 = Variable( "W_{W_ {coeff1} }" , 8.71e-5 , "1/m" ,

"Wing Weight Coefficent 1" )

W_W_coeff2 = Variable( "W_{W_ {coeff2} }" , 45.24

, "Pa" ,

"Wing Weight Coefficent 2" )

CDA0 = Variable( "(CDA0)" , 0.031

, "m^2" , "fuselage drag area" )

W_0 = Variable( "W_0" , 4940.0

, "N" , "aircraft weight excluding wing" )

# Free Variables

D = Variable( "D" , "N" , "total drag force" )

A = Variable( "A" , "-" , "aspect ratio" )

S = Variable( "S" , "m^2" , "total wing area" )

V = Variable( "V" , "m/s" , "cruising speed" )

W = Variable( "W" , "N" , "total aircraft weight" )

Re = Variable( "Re" , "-" , "Reynold's number" )

C_D = Variable( "C_D" , "-" , "Drag coefficient of wing" )

C_L = Variable( "C_L" , "-" , "Lift coefficent of wing" )

C_f = Variable( "C_f" , "-" , "skin friction coefficient" )

W_w = Variable( "W_w" , "N" , "wing weight" ) constraints = []

# Drag model

C_D_fuse = CDA0 / S

C_D_wpar = k

*

C_f

*

S_wetratio

C_D_ind = C_L

**

2 / (pi

*

A

* e) constraints += [C_D >= C_D_fuse + C_D_wpar + C_D_ind]

# Wing weight model

W_w_strc = W_W_coeff1

*

(N_ult

*

A

**

1.5

*

(W_0

*

W

*

S)

**

0.5

) / tau

Chapter 10. Examples

gpkit Documentation, Release 0.5.3

W_w_surf = W_W_coeff2

*

S constraints += [W_w >= W_w_surf + W_w_strc]

# and the rest of the models constraints += [D >= 0.5

* rho

*

S

*

C_D

*

V

**

2 ,

Re <= (rho / mu)

*

V

*

(S / A)

**

0.5

,

C_f >= 0.074

/ Re

**

0.2

,

W <= 0.5

* rho

*

S

*

C_L

*

V

**

2 ,

W <= 0.5

* rho

*

S

*

C_Lmax

*

V_min

**

2 ,

W >= W_0 + W_w] print ( "SINGLE\n======" ) m = Model(D, constraints) sol = m .

solve(verbosity = 0 ) print (sol .

summary()) print ( "SWEEP\n=====" )

N = 2 sweeps = {V_min: ( "sweep" , np .

linspace( 20 , 25 , N)),

V: ( "sweep" , np .

linspace( 45 , 55 , N)), } m .

substitutions .

update(sweeps) sweepsol = m .

solve(verbosity = 0 ) print (sweepsol .

summary())

The output is

SINGLE

======

Cost

----

303.1

[N]

Free Variables

--------------

A : 8.46

C_D : 0.02059

C_L : 0.4988

C_f : 0.003599

D : 303.1

Re : 3.675e+06

S : 16.44

V : 38.15

W : 7341

W_w : 2401 aspect ratio

Drag coefficient of wing

Lift coefficent of wing skin friction coefficient total drag force [N]

Reynold 's number

[m

**

2 ] total wing area

[m / s] cruising speed

[N] total aircraft weight

[N] wing weight

Most Sensitive

--------------

W_0 : + 1 aircraft weight excluding wing e : 0.48

Oswald efficiency factor

(\frac{S}{S_{wet}}) : + 0.43

wetted area ratio k : + 0.43

form factor

V_{ min } : 0.37

takeoff speed

SWEEP

=====

Cost

10.5. Simple Wing 53

gpkit Documentation, Release 0.5.3

----

[ 338 294

Sweep Variables

---------------

V : [ 45

V_{ min } : [ 20

396 326 ] [N]

45

25

55

20

55

25

] [m / s] cruising speed

] [m / s] takeoff speed

Free Variables

--------------

A : [ 6.2

C_D : [ 0.0146

Λ“→ wing

C_L : [ 0.296

Λ“→ wing

C_f : [ 0.00333

Λ“→ coefficient

8.84

0.0196

0.463

0.00361

4.77

0.0123

0.198

0.00314

7.16

0.0157

0.31

0.00342

]

]

]

] aspect ratio

Drag coefficient of

Lift coefficent of skin friction

D : [ 338 294 396 326 ] [N]

Re : [ 5.38e+06 3.63e+06 7.24e+06 4.75e+06 ] total drag force

Reynold 's number

S : [

Λ“→ weight

18.6

12.1

17.3

W : [ 6.85e+03 6.97e+03 6.4e+03

11.2

6.44e+03

] [m

**

2 ] total wing area

] [N]

W_w : [ 1.91e+03 2.03e+03 1.46e+03 1.5e+03 ] [N] total aircraft wing weight

Most Sensitive

--------------

W_0 : [ + 0.92

Λ“→ weight excluding wing

V_{ min } : [ 0.82

Λ“→ speed

V : [ + 0.59

Λ“→ speed

(\frac{S}{S_{wet}}) : [ + 0.56

Λ“→ ratio k : [ + 0.56

+

-

+

+

+

0.95

0.41

0.25

0.45

0.45

+

-

+

+

+

0.85

1

0.97

0.63

0.63

+

-

+

+

+

0.85

0.71

0.75

0.54

0.54

] aircraft

] takeoff

] cruising

] wetted area

] form factor

54

Simple Beam

In this example we consider a beam subjected to a uniformly distributed transverse force along its length.

The beam has fixed geometry so we are not optimizing its shape, rather we are simply solving a discretization of the Euler-Bernoulli beam bending equations using GP.

"""

A simple beam example with fixed geometry. Solves the discretized

Euler-Bernoulli beam equations for a constant distributed load

"""

import numpy as np from gpkit import

Variable, VectorVariable, Model, ureg

from gpkit.small_scripts

import

mag

class Beam

(Model):

"""Discretization of the Euler beam equations for a distributed load.

Chapter 10. Examples

gpkit Documentation, Release 0.5.3

Arguments

---------

N : int

Number of finite elements that compose the beam.

L : float

[m] Length of beam.

EI : float

[N m^2] Elastic modulus times cross-section's area moment of inertia.

q : float or N-vector of floats

[N/m] Loading density: can be specified as constants or as an array.

"""

def

setup ( self , N = 4 ):

EI = Variable( "EI" , 1e4 , "N*m^2" ) dx = Variable( "dx" , "m" , "Length of an element" )

L = Variable( "L" , 5 , "m" , "Overall beam length" ) q = VectorVariable(N, "q" , 100

* np .

ones(N), "N/m" ,

"Distributed load at each point" )

V = VectorVariable(N, "V" , "N" , "Internal shear" )

V_tip = Variable( "V_ {tip} " , 0 , "N" , "Tip loading" )

M = VectorVariable(N, "M" , "N*m" , "Internal moment" )

M_tip = Variable( "M_ {tip} " , 0 , "N*m" , "Tip moment" ) th = VectorVariable(N, "\\theta" , "-" , "Slope" ) th_base = Variable( "\\theta_ {base} " , 0 , "-" , "Base angle" ) w = VectorVariable(N, "w" , "m" , "Displacement" ) w_base = Variable( "w_ {base} " , 0 , "m" , "Base deflection" )

# below: trapezoidal integration to form a piecewise-linear

# approximation of loading, shear, and so on

# shear and moment increase from tip to base (left > right) shear_eq = (V >= V .

right + 0.5

* dx

*

(q + q .

right)) shear_eq[ 1 ] = (V[ 1 ] >= V_tip) # tip boundary condition moment_eq = (M >= M .

right + 0.5

* dx

*

(V + V .

right)) moment_eq[ 1 ] = (M[ 1 ] >= M_tip)

# slope and displacement increase from base to tip (right > left) theta_eq = (th >= th .

left + 0.5

* dx

*

(M + M .

left) / EI) theta_eq[ 0 ] = (th[ 0 ] >= th_base) # base boundary condition displ_eq = (w >= w .

left + 0.5

* dx

*

(th + th .

left)) displ_eq[ 0 ] = (w[ 0 ] >= w_base)

# minimize tip displacement (the last w) self .

cost = w[ 1 ]

return

[shear_eq, moment_eq, theta_eq, displ_eq,

L == (N 1 )

* dx] b = Beam(N = 6 , substitutions = { "L" : 6 , "EI" : 1.1e4

, "q" : 110

* np .

ones( 6 )}) b .

zero_lower_unbounded_variables() sol = b .

solve(verbosity = 0 ) print sol .

summary() w_gp = sol( "w" ) # deflection along beam

L, EI, q = sol( "L" ), sol( "EI" ), sol( "q" ) x = np .

linspace( 0 , mag(L), len (q))

* ureg .

m # position along beam q = q[ 0 ] # assume uniform loading for the check below w_exact = q / ( 24.

*

EI)

* x

**

2

*

(x

**

2 4

*

L

* x + 6

*

L

**

2 ) # analytic soln

assert

max ( abs (w_gp w_exact)) <= 1.1

* ureg .

cm

PLOT =

False if

PLOT:

10.6. Simple Beam 55

gpkit Documentation, Release 0.5.3

import matplotlib.pyplot

as plt

x_exact = np .

linspace( 0 , L, 1000 ) w_exact = q / ( 24.

*

EI)

* x_exact

**

2

*

(x_exact

**

2 4

*

L

* x_exact + 6

*

L

**

2 ) plt .

plot(x, w_gp, color = 'red' , linestyle = 'solid' , marker = '^' , markersize = 8 ) plt .

plot(x_exact, w_exact, color = 'blue' , linestyle = 'dashed' ) plt .

xlabel( 'x [m]' ) plt .

ylabel( 'Deflection [m]' ) plt .

axis( 'equal' ) plt .

legend([ 'GP solution' , 'Analytical solution' ]) plt .

show()

The output is

Cost

----

1.62

[m]

Free Variables

-------------dx : 1.2

Λ“→ element

M : [ 1.98e+03 1.27e+03 713

Λ“→ moment

V : [ 660

\theta : [ w : [ -

528

0.177

0.106

396

0.285

0.384

Most Sensitive

--------------

L : + 4

EI : 1 q : [ + 0.0072

Λ“→ point

+ 0.042

+ 0.12

+ 0.23

317

264

0.341

0.759

[m] Length of an

...

] [N

* m] Internal

...

] [N]

...

]

...

] [m]

Internal shear

Slope

Displacement

Overall beam length

...

] Distributed load at each

By plotting the deflection, we can see that the agreement between the analytical solution and the GP solution is good.

56 Chapter 10. Examples

CHAPTER

11

Glossary

For an alphabetical listing of all commands, check out the genindex

Subpackages gpkit.constraints package

Submodules gpkit.constraints.array module

Implements ArrayConstraint class gpkit.constraints.array.ArrayConstraint(constraints, left, oper, right)

Bases:

gpkit.constraints.single_equation.SingleEquationConstraint

,

gpkit.constraints.set.ConstraintSet

A ConstraintSet for prettier array-constraint printing.

ArrayConstraint gets its sub method from ConstrainSet, and so left and right are only used for printing.

When created by NomialArray left and right are likely to be be either NomialArrays or Varkeys of

VectorVariables.

subinplace

( subs)

Substitutes in place, updating self.substitutions accordingly.

Keys substituted with subinplace are no longer present, so if such a key is also in self.substitutions that substitution is now orphaned. If subs[key] describes some key in the

ConstraintSet (i.e. one key has been substituted for another), then a substitution is added, mapping the orphaned value to this new key; otherwise, an error is raised.

57

gpkit Documentation, Release 0.5.3

gpkit.constraints.bounded module

Implements Bounded class gpkit.constraints.bounded.Bounded(constraints, verbosity=1 , eps=1e-30 , lower=None , upper=None)

Bases:

gpkit.constraints.set.ConstraintSet

Bounds contained variables so as to ensure dual feasibility.

constraints [iterable] constraints whose varkeys will be bounded substitutions [dict] as in ConstraintSet.__init__

verbosity [int] how detailed of a warning to print 0: nothing 1: print warnings eps [float] default lower bound is eps, upper bound is 1/eps lower [float] lower bound for all varkeys, replaces eps upper [float] upper bound for all varkeys, replaces 1/eps

process_result

( result)

Creates (and potentially prints) a dictionary of unbounded variables.

sens_from_dual

( las

, nus)

Return sensitivities while capturing the relevant lambdas gpkit.constraints.bounded.varkey_bounds( varkeys , lower, upper)

Returns constraints list bounding all varkeys.

varkeys [iterable] list of varkeys to create bounds for lower [float] lower bound for all varkeys upper [float] upper bound for all varkeys

gpkit.constraints.costed module

Implement CostedConstraintSet class gpkit.constraints.costed.CostedConstraintSet(cost, constraints substitutions=None ,

, add_cost_values_to_substitutions=True)

Bases:

gpkit.constraints.set.ConstraintSet

A ConstraintSet with a cost cost : gpkit.Posynomial constraints : Iterable substitutions : dict

controlpanel

(

*args , **kwargs)

Easy model control in IPython / Jupyter

Like interact(), but with the ability to control sliders and their ranges live. args and kwargs are passed on to interact()

interact

( ranges=None , fn_of_sol=None, **solvekwargs)

Easy model interaction in IPython / Jupyter

By default, this creates a model with sliders for every constant which prints a new solution table whenever the sliders are changed.

58 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

fn_of_sol [function] The function called with the solution after each solve that displays the result. By default prints a table.

ranges [dictionary {str: Slider object or tuple}] Determines which sliders get created. Tuple values may contain two or three floats: two correspond to (min, max), while three correspond to (min, step, max)

** solvekwargs kwargs which get passed to the solve()/localsolve() method.

reset_varkeys

()

Resets varkeys to what is in the cost and constraints

rootconstr_latex

( excluded=None)

Latex showing cost, to be used when this is the top constraint

rootconstr_str

( excluded=None)

String showing cost, to be used when this is the top constraint

subinplace

( subs)

Substitutes in place.

gpkit.constraints.geometric_program module

Implement the GeometricProgram class class gpkit.constraints.geometric_program.GeometricProgram(cost, straints , consubstitutions=None , verbosity=1)

Bases:

gpkit.constraints.costed.CostedConstraintSet

,

gpkit.nomials.

data.NomialData

Standard mathematical representation of a GP.

cost [Constraint] Posynomial to minimize when solving constraints [list of Posynomials] Constraints to maintain when solving (implicitly Posynomials

<= 1) GeometricProgram does not accept equality constraints (e.g. x == 1); instead use two inequality constraints (e.g. x <= 1, 1/x <= 1) verbosity [int (optional)] If verbosity is greater than zero, warns about missing bounds on creation.

solver_out and solver_log are set during a solve result is set at the end of a solve if solution status is optimal

>>>

gp = gpkit .

geometric_program .

GeometricProgram(

# minimize x,

[ # subject to

1/x # <= 1, implicitly

])

>>>

gp .

solve()

check_solution

( cost , primal, nu, la, tol=0.001, abstol=1e-20)

Run a series of checks to mathematically confirm sol solves this GP cost: float cost returned by solver primal: list primal solution returned by solver

11.1. Subpackages 59

gpkit Documentation, Release 0.5.3

60

nu: numpy.ndarray monomial lagrange multiplier la: numpy.ndarray posynomial lagrange multiplier

RuntimeWarning, if any problems are found

gen

( verbosity=1)

Generates nomial and solve data (A, p_idxs) from self.posynomials

solve

( solver=None , verbosity=1, warn_on_check=False, *args, **kwargs)

Solves a GeometricProgram and returns the solution.

solver [str or function (optional)] By default uses one of the solvers found during installation.

If set to “mosek”, “mosek_cli”, or “cvxopt”, uses that solver. If set to a function, passes that function cs, A, p_idxs, and k.

verbosity [int (optional)] If greater than 0, prints solver name and solve time.

* args, ** kwargs : Passed to solver constructor and solver function.

result [dict] A dictionary containing the translated solver result; keys below.

cost [float] The value of the objective at the solution.

variables [dict] The value of each variable at the solution.

sensitivities [dict] monomials [array of floats] Each monomial’s dual variable value at the solution.

posynomials [array of floats] Each posynomials’s dual variable value at the solution.

gpkit.constraints.geometric_program.genA( exps , varlocs)

Generates A matrix from exps and varlocs exps [list of Hashvectors] Exponents for each monomial in a GP varlocs [dict] Locations of each variable in exps

A [sparse Cootmatrix] Exponents of the various free variables for each monomial: rows of A are monomials, columns of A are variables.

missingbounds [dict] Keys: variables that lack bounds. Values: which bounds are missed.

gpkit.constraints.linked module gpkit.constraints.model module

Implements Model class gpkit.constraints.model.Model(cost=None, constraints=None

**kwargs)

Bases:

gpkit.constraints.costed.CostedConstraintSet

,

Symbolic representation of an optimization problem.

*args ,

The Model class is used both directly to create models with constants and sweeps, and indirectly inherited to create custom model classes.

cost [Posynomial (optional)] Defaults to Monomial(1).

constraints [ConstraintSet or list of constraints (optional)] Defaults to an empty list.

Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

substitutions [dict (optional)] This dictionary will be substituted into the problem before solving, and also allows the declaration of sweeps and linked sweeps.

name [str (optional)] Allows “naming” a model in a way similar to inherited instances, and overrides the inherited name if there is one.

program is set during a solve solution is set at the end of a solve

autosweep

( sweeps

, tol=0.01, samplepoints=100, **solveargs)

Autosweeps {var: (start, end)} pairs in sweeps to tol.

Returns swept and sampled solutions. The original simplex tree can be accessed at sol.bst

debug

( solver=None , verbosity=1, **solveargs)

Attempts to diagnose infeasible models.

gp

( verbosity=1 , constants=None, **kwargs)

Return program version of self program: NomialData Class to return, e.g. GeometricProgram or SignomialProgram return_attr: string attribute to return in addition to the program

localsolve

( solver=None , verbosity=1, skipsweepfailures=False, *args, **kwargs)

Forms a mathematical program and attempts to solve it.

solver [string or function (optional)] If None, uses the default solver found in installation.

verbosity [int (optional)] If greater than 0 prints runtime messages. Is decremented by one and then passed to programs.

skipsweepfailures [bool (optional)] If True, when a solve errors during a sweep, skip it.

* args, ** kwargs : Passed to solver sol [SolutionArray] See the SolutionArray documentation for details.

ValueError if the program is invalid. RuntimeWarning if an error occurs in solving or parsing the solution.

name

= None

naming

= None

num

= None

program

= None

solution

= None

solve

( solver=None , verbosity=1, skipsweepfailures=False, *args, **kwargs)

Forms a mathematical program and attempts to solve it.

solver [string or function (optional)] If None, uses the default solver found in installation.

verbosity [int (optional)] If greater than 0 prints runtime messages. Is decremented by one and then passed to programs.

skipsweepfailures [bool (optional)] If True, when a solve errors during a sweep, skip it.

* args,

** kwargs : Passed to solver sol [SolutionArray] See the SolutionArray documentation for details.

ValueError if the program is invalid. RuntimeWarning if an error occurs in solving or parsing the solution.

11.1. Subpackages 61

gpkit Documentation, Release 0.5.3

sp

( verbosity=1 , constants=None, **kwargs)

Return program version of self program: NomialData Class to return, e.g. GeometricProgram or SignomialProgram return_attr: string attribute to return in addition to the program

subconstr_latex

( excluded=None)

The collapsed appearance of a ConstraintBase

subconstr_str

( excluded=None)

The collapsed appearance of a ConstraintBase

sweep

( sweeps , **solveargs)

Sweeps {var: values} pairs in sweeps. Returns swept solutions.

zero_lower_unbounded_variables

()

Recursively substitutes 0 for variables that lack a lower bound

gpkit.constraints.prog_factories module

Scripts for generating, solving and sweeping programs gpkit.constraints.prog_factories.run_sweep( genfunction , self, solution, skipsweepfailures , constants, sweep, linkedsweep , solver , verbosity ,

*args , **kwargs)

Runs through a sweep.

gpkit.constraints.relax module

Models for assessing primal feasibility class gpkit.constraints.relax.ConstantsRelaxed(constraints, clude_only=None , clude=None)

Bases:

gpkit.constraints.set.ConstraintSet

Relax constants in a constraintset.

constraints [iterable] Constraints which will be relaxed (made easier).

include_only [set] if declared, variable names must be on this list to be relaxed exclude [set] if declared, variable names on this list will never be relaxed inexrelaxvars [Variable] The variables controlling the relaxation. A solved value of 1 means no relaxation was necessary or optimal for a particular constant. Higher values indicate the amount by which that constant has been made easier: e.g., a value of 1.5 means it was made 50 percent easier in the final solution than in the original problem. Of course, this can also be determined by looking at the constant’s new value directly.

process_result

( result) class gpkit.constraints.relax.ConstraintsRelaxed(constraints)

Bases:

gpkit.constraints.set.ConstraintSet

Relax constraints, as in Eqn. 11 of [Boyd2007].

constraints [iterable] Constraints which will be relaxed (made easier).

62 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

relaxvars [Variable] The variables controlling the relaxation. A solved value of 1 means no relaxation was necessary or optimal for a particular constraint. Higher values indicate the amount by which that constraint has been made easier: e.g., a value of 1.5 means it was made 50 percent easier in the final solution than in the original problem.

[Boyd2007] : “A tutorial on geometric programming”, Optim Eng 8:67-122 class gpkit.constraints.relax.ConstraintsRelaxedEqually(constraints)

Bases:

gpkit.constraints.set.ConstraintSet

Relax constraints the same amount, as in Eqn. 10 of [Boyd2007].

constraints [iterable] Constraints which will be relaxed (made easier).

relaxvar [Variable] The variable controlling the relaxation. A solved value of 1 means no relaxation. Higher values indicate the amount by which all constraints have been made easier: e.g., a value of 1.5 means all constraints were 50 percent easier in the final solution than in the original problem.

[Boyd2007] : “A tutorial on geometric programming”, Optim Eng 8:67-122

gpkit.constraints.set module

Implements ConstraintSet class gpkit.constraints.set.ConstraintSet(constraints, substitutions=None)

Bases: list

Recursive container for ConstraintSets and Inequalities

append

( value)

as_gpconstr

( x0 , substitutions=None)

Returns GPConstraint approximating this constraint at x0

When x0 is none, may return a default guess.

as_posyslt1

( substitutions=None)

Returns list of posynomials which must be kept <= 1

flat

( constraintsets=True)

Yields contained constraints, optionally including constraintsets.

latex

( excluded=None)

LaTeX representation of a ConstraintSet.

process_result

( result)

Does arbitrary computation / manipulation of a program’s result

There’s no guarantee what order different constraints will process results in, so any changes made to the program’s result should be careful not to step on other constraint’s toes.

•check that an inequality was tight

•add values computed from solved variables

reset_varkeys

()

Goes through constraints and collects their varkeys.

rootconstr_latex

( excluded=None)

The appearance of a ConstraintSet in addition to its contents

11.1. Subpackages 63

gpkit Documentation, Release 0.5.3

rootconstr_str

( excluded=None)

The appearance of a ConstraintSet in addition to its contents

sens_from_dual

( las , nus)

Computes constraint and variable sensitivities from dual solution las [list] Sensitivity of each posynomial returned by self.as_posyslt1

nus: list of lists Each posynomial’s monomial sensitivities constraint_sens [dict] The interesting and computable sensitivities of this constraint var_senss [dict] The variable sensitivities of this constraint

str_without

( excluded=None)

String representation of a ConstraintSet.

subconstr_latex

( excluded=None)

The collapsed appearance of a ConstraintSet

subconstr_str

( excluded=None)

The collapsed appearance of a ConstraintSet

subinplace

( subs)

Substitutes in place, updating self.substitutions accordingly.

Keys substituted with subinplace are no longer present, so if such a key is also in self.substitutions that substitution is now orphaned. If subs[key] describes some key in the

ConstraintSet (i.e. one key has been substituted for another), then a substitution is added, mapping the orphaned value to this new key; otherwise, an error is raised.

topvar

( key)

If a variable by a given name exists in the top model, return it

unique_varkeys

= frozenset([])

variables_byname

( key)

Get all variables with a given name

varkeys

= None gpkit.constraints.set.raise_badelement( cns

, i, constraint)

Identify the bad element and raise a ValueError gpkit.constraints.set.raise_elementhasnumpybools( constraint)

Identify the bad subconstraint array and raise a ValueError

gpkit.constraints.sigeq module

Implements SignomialEquality class gpkit.constraints.sigeq.SignomialEquality(left, right)

Bases:

gpkit.constraints.set.ConstraintSet

A constraint of the general form posynomial == posynomial

gpkit.constraints.signomial_program module

Implement the SignomialProgram class

64 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

class gpkit.constraints.signomial_program.SignomialProgram(cost, straints , consubstitutions=None , verbosity=1)

Bases:

gpkit.constraints.costed.CostedConstraintSet

Prepares a collection of signomials for a SP solve.

cost [Posynomial] Objective to minimize when solving constraints [list of Constraint or SignomialConstraint objects] Constraints to maintain when solving (implicitly Signomials <= 1) verbosity [int (optional)] Currently has no effect: SignomialPrograms don’t know anything new after being created, unlike GeometricPrograms.

gps is set during a solve result is set at the end of a solve

>>>

gp = gpkit .

geometric_program .

SignomialProgram(

# minimize x,

[ # subject to

1/x - y/x, # <= 1, implicitly y/10 # <= 1

])

>>>

gp .

solve()

firstgp

( x0 , substitutions)

Generates a simplified GP representation for later modification

gp

( x0=None , verbosity=1, modifylastgp=False)

The GP approximation of this SP at x0.

localsolve

( solver=None , verbosity=1, x0=None, reltol=0.0001, iteration_limit=50, modifylastgp=True , **kwargs)

Locally solves a SignomialProgram and returns the solution.

solver [str or function (optional)] By default uses one of the solvers found during installation.

If set to “mosek”, “mosek_cli”, or “cvxopt”, uses that solver. If set to a function, passes that function cs, A, p_idxs, and k.

verbosity [int (optional)] If greater than 0, prints solve time and number of iterations. Each

GP is created and solved with verbosity one less than this, so if greater than 1, prints solver name and time for each GP.

x0 [dict (optional)] Initial location to approximate signomials about.

reltol [float] Iteration ends when this is greater than the distance between two consecutive solve’s objective values.

iteration_limit [int] Maximum GP iterations allowed.

* args, ** kwargs : Passed to solver function.

result [dict] A dictionary containing the translated solver result.

gpkit.constraints.single_equation module

Implements SingleEquationConstraint

11.1. Subpackages 65

gpkit Documentation, Release 0.5.3

class gpkit.constraints.single_equation.SingleEquationConstraint(left, oper , right)

Bases: object

Constraint expressible in a single equation.

func_opers

= {‘<=’: <built-in function le>, ‘=’: <built-in function eq>, ‘>=’: <built-in function ge>}

latex

( excluded=None)

Latex representation without attributes in excluded list

latex_opers

= {‘<=’: ‘\\leq’, ‘=’: ‘=’, ‘>=’: ‘\\geq’}

process_result

( result)

Process solver results

str_without

( excluded=None)

String representation without attributes in excluded list

sub

( subs)

Returns a substituted version of this constraint.

subconstr_latex

( excluded)

The collapsed latex of a constraint

subconstr_str

( excluded)

The collapsed string of a constraint gpkit.constraints.single_equation.trycall( obj , attr, arg, default)

Try to call method of an object, returning default if it does not exist

gpkit.constraints.tight module

Implements Tight class gpkit.constraints.tight.Tight(constraints, substitutions=None, reltol=None, raiseerror=False)

Bases:

gpkit.constraints.set.ConstraintSet

ConstraintSet whose inequalities must result in an equality.

process_result

( result)

Checks that all constraints are satisfied with equality

reltol

= 1e-06

Module contents

Contains ConstraintSet and related classes and objects

gpkit.interactive package

Submodules gpkit.interactive.chartjs module

66 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

gpkit.interactive.linking_diagram module

Module for creating diagrams illustrating variables shared between submodels.

gpkit.interactive.linking_diagram.linking_diagram( topmodel , subsystems, filename)

Method to create a latex diagram illustrating how variables are linked between a parent model and its submodels topmodel - a model object, the parent model of all submodels susbystems - a list of model objects, each a submodel of the topmodel filename - a string which is the name of the file latex output will be written to note: the following packages must be used in the latex file usepackage{tikz} usetikzlibrary{backgrounds}

gpkit.interactive.plot_sweep module

Implements plot_sweep1d function gpkit.interactive.plot_sweep.assign_axes( var , posys, axes)

Assigns axes to posys, creating and formatting if necessary gpkit.interactive.plot_sweep.format_and_label_axes( var

, posys, axes, ylabel=True)

Formats and labels axes gpkit.interactive.plot_sweep.plot_1dsweepgrid( model , sweeps , posys , origsol=None , tol=0.01

,

**solveargs)

Creates and plots a sweep from an existing model

Example usage: f, _ = plot_sweep_1d(m, {‘x’: np.linspace(1, 2, 5)}, ‘y’) f.savefig(‘mysweep.png’)

gpkit.interactive.plotting module

Plotting methods gpkit.interactive.plotting.compare( models , sweeps, posys, tol=0.001)

Compares the values of posys over a sweep of several models.

If posys is of the same length as models, this will plot different variables from different models.

Currently only supports a single sweepvar.

Example Usage: compare([aec, fbc], {“R”: (160, 300)},

[”cost”, (“W_{rm batt}”, “W_{rm fuel}”)], tol=0.001) gpkit.interactive.plotting.plot_convergence( model)

Plots the convergence of a signomial programming model model: Model Signomial programming model that has already been solved matplotlib.pyplot Figure Plot of cost as functions of SP iteration #

11.1. Subpackages 67

gpkit Documentation, Release 0.5.3

gpkit.interactive.ractor module

Implements Ractor-based interactive CADtoons gpkit.interactive.ractor.ractorjs( title , model , update_py , ranges , constraint_js=’‘)

Creates Javascript/HTML for CADtoon interaction without installing GPkit.

gpkit.interactive.ractor.ractorpy( model , update_py, ranges, constraint_js=’‘, showtables=(‘cost’ , ‘sensitivities’))

Creates interactive iPython widget for controlling a CADtoon gpkit.interactive.ractor.showcadtoon( title , css=’‘)

Displays cadtoon as iPython HTML

gpkit.interactive.sensitivity_map module

Implements heatmapped equations to highlight sensitivities.

class gpkit.interactive.sensitivity_map.SensitivityMap(model, paintby=’constants’)

Bases: object

Latex representations of a model heatmapped by its latest sensitivities model [Model] The Model object that the Map will be based on paintby [string] The unit of colouring. Must be one of “constants”, “monomials”, or “posynomials”.

from IPython.display import display for key in m.solution[”sensitivities”]: print key display(SensitivityMap(m, paintby=key))

constraint_latex_list

( paintby)

Generates LaTeX for constraints.

latex

LaTeX representation.

solution

Gets solution, indexing into a sweep if necessary.

gpkit.interactive.sensitivity_map.colorfn_gen( scale , power=0.66)

Generates color gradient of a given power law.

gpkit.interactive.sensitivity_map.signomial_print( sig , sol , colorfn , paintby=’constants’ , idx=None)

For pretty printing with Sympy

gpkit.interactive.widgets module

Module contents

Module for the interactive and plotting functions of GPkit

68 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

gpkit.nomials package

Submodules gpkit.nomials.array module

Module for creating NomialArray instances.

Example

>>>

x = gpkit .

Monomial( 'x' )

>>>

px = gpkit .

NomialArray([ 1 , x, x

**

2 ]) class gpkit.nomials.array.NomialArray

Bases: numpy.ndarray

A Numpy array with elementwise inequalities and substitutions.

input_array : array-like

>>>

px = gpkit .

NomialArray([ 1 , x, x

**

2 ])

c

The coefficient vector in the GP input data sense

latex

( matwrap=True)

Returns 1D latex list of contents.

left

Returns (0, self[0], self[1] ... self[N-1])

outer

( other)

Returns the array and argument’s outer product.

padleft

( padding)

Returns ({padding}, self[0], self[1] ... self[N])

padright

( padding)

Returns (self[0], self[1] ... self[N], {padding})

prod

( *args , **kwargs)

Returns a product. O(N) if no arguments and only contains monomials.

right

Returns (self[1], self[2] ... self[N], 0)

str_without

( excluded=None)

Returns string without certain fields (such as ‘models’).

sub

( subs , require_positive=True)

Substitutes into the array

sum

(

*args , **kwargs)

Returns a sum. O(N) if no arguments are given.

units

units must have same dimensions across the entire nomial array

vectorize

( function , *args, **kwargs)

Apply a function to each terminal constraint, returning the array

11.1. Subpackages 69

gpkit Documentation, Release 0.5.3

gpkit.nomials.array.array_constraint( symbol , func)

Return function which creates constraints of the given operator.

gpkit.nomials.data module

Machinery for exps, cs, varlocs data – common to nomials and programs class gpkit.nomials.data.NomialData(exps=None, cs=None, simplify=True)

Bases: object

Object for holding cs, exps, and other basic ‘nomial’ properties.

cs: array (coefficient of each monomial term) exps: tuple of {VarKey: float} (exponents of each monomial term) varlocs: {VarKey: list} (terms each variable appears in) units: pint.UnitsContainer

diff

( var)

Derivative of this with respect to a Variable var (Variable): Variable to take derivative with respect to

NomialData

init_from_nomials

( nomials)

Way to initialize from nomials. Calls __init__. Used by subclass __init__ methods.

values

The NomialData’s values, created when necessary.

varkeys

The NomialData’s varkeys, created when necessary for a substitution.

gpkit.nomials.data.simplify_exps_and_cs( exps , cs, return_map=False)

Reduces the number of monomials, and casts them to a sorted form.

exps [list of Hashvectors] The exponents of each monomial cs [array of floats or Quantities] The coefficients of each monomial return_map [bool (optional)] Whether to return the map of which monomials combined to form a simpler monomial, and their fractions of that monomial’s final c.

exps [list of Hashvectors] Exponents of simplified monomials.

cs [array of floats or Quantities] Coefficients of simplified monomials.

mmap [list of HashVectors] List for each new monomial of {originating indexes: fractions}

gpkit.nomials.nomial_core module

The shared non-mathematical backbone of all Nomials class gpkit.nomials.nomial_core.Nomial(exps=None, cs=None, simplify=True)

Bases:

gpkit.nomials.data.NomialData

Shared non-mathematical properties of all nomials

c

= None

convert_to

( arg)

Convert this signomial to new units

70 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

latex

( excluded=None)

For pretty printing with Sympy

prod

()

Return self for compatibility with NomialArray

str_without

( excluded=None)

String representation excluding fields (‘units’, varkey attributes)

sub

= None

sum

()

Return self for compatibility with NomialArray

to

( arg)

Create new Signomial converted to new units

unitstr

( units , into=’%s’, options=’~’, dimless=’‘)

Returns the string corresponding to an object’s units.

value

Self, with values substituted for variables that have values float, if no symbolic variables remain after substitution (Monomial, Posynomial, or Nomial), otherwise.

gpkit.nomials.nomial_math module

Signomial, Posynomial, Monomial, Constraint, & MonoEQCOnstraint classes class gpkit.nomials.nomial_math.Monomial(exps=None, quire_positive=True ,

**descr)

Bases:

gpkit.nomials.nomial_math.Posynomial

cs=1 , resimplify=True ,

A Posynomial with only one term

Same as Signomial. Note: Monomial historically supported several different init formats

These will be deprecated in the future, replaced with a single __init__ syntax, same as

Signomial.

mono_approximation

( x0) class gpkit.nomials.nomial_math.MonomialEquality(left, oper, right)

Bases:

gpkit.nomials.nomial_math.PosynomialInequality

A Constraint of the form Monomial == Monomial.

sens_from_dual

( la , nu)

Returns the variable/constraint sensitivities from lambda/nu class gpkit.nomials.nomial_math.Posynomial(exps=None, cs=1

, require_positive=True

, simplify=True,

**descr)

Bases:

gpkit.nomials.nomial_math.Signomial

A Signomial with strictly positive cs

Same as Signomial. Note: Posynomial historically supported several different init formats

These will be deprecated in the future, replaced with a single __init__ syntax, same as

Signomial.

11.1. Subpackages 71

gpkit Documentation, Release 0.5.3

mono_lower_bound

( x0)

Monomial lower bound at a point x0 x0 (dict): point to make lower bound exact

Monomial class gpkit.nomials.nomial_math.PosynomialInequality(left, oper, right)

Bases:

gpkit.nomials.nomial_math.ScalarSingleEquationConstraint

A constraint of the general form monomial >= posynomial Stored in the posylt1_rep attribute as a single Posynomial (self <= 1) Usually initialized via operator overloading, e.g. cc = (y**2 >= 1 + x)

as_gpconstr

( x0 , substitutions)

GP version of a Posynomial constraint is itself

as_posyslt1

( substitutions=None)

Returns the posys <= 1 representation of this constraint.

sens_from_dual

( la , nu)

Returns the variable/constraint sensitivities from lambda/nu class gpkit.nomials.nomial_math.ScalarSingleEquationConstraint(left, oper

, right)

Bases:

gpkit.constraints.single_equation.SingleEquationConstraint

A SingleEquationConstraint with scalar left and right sides.

nomials

= []

subinplace

( substitutions)

Modifies the constraint in place with substitutions.

class gpkit.nomials.nomial_math.Signomial(exps=None, cs=1 , require_positive=True , simplify=True ,

**descr)

Bases:

gpkit.nomials.nomial_core.Nomial

A representation of a Signomial.

exps: tuple of dicts Exponent dicts for each monomial term cs: tuple Coefficient values for each monomial term require_positive: bool If True and Signomials not enabled, c <= 0 will raise ValueError

Signomial Posynomial (if the input has only positive cs) Monomial (if the input has one term and only positive cs)

diff

( var)

Derivative of this with respect to a Variable var (Variable): Variable to take derivative with respect to

Signomial (or Posynomial or Monomial)

mono_approximation

( x0)

Monomial approximation about a point x0 x0 (dict): point to monomialize about

Monomial (unless self(x0) < 0, in which case a Signomial is returned)

72 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

posy_negy

()

Get the positive and negative parts, both as Posynomials

Posynomial, Posynomial: p_pos and p_neg in (self = p_pos - p_neg) decomposition,

sub

( substitutions , require_positive=True)

Returns a nomial with substitued values.

3 == (x**2 + y).sub({‘x’: 1, y: 2}) 3 == (x).gp.sub(x, 3) substitutions [dict or key] Either a dictionary whose keys are strings, Variables, or VarKeys, and whose values are numbers, or a string, Variable or Varkey.

val [number (optional)] If the substitutions entry is a single key, val holds the value require_positive [boolean (optional, default is True)] Controls whether the returned value can be a Signomial.

Returns substituted nomial.

subinplace

( substitutions)

Substitutes in place.

class gpkit.nomials.nomial_math.SignomialInequality(left, oper, right)

Bases:

gpkit.nomials.nomial_math.ScalarSingleEquationConstraint

A constraint of the general form posynomial >= posynomial Stored internally (exps, cs) as a single

Signomial (0 >= self) Usually initialized via operator overloading, e.g. cc = (y**2 >= 1 + x - y)

Additionally retains input format (lhs vs rhs) in self.left and self.right Form is self.left >= self.right.

as_approxsgt

( x0)

Returns monomial-greater-than sides, to be called after as_approxlt1

as_approxslt

()

Returns posynomial-less-than sides of a signomial constraint

as_gpconstr

( x0 , substitutions=None)

Returns GP approximation of an SP constraint at x0

as_posyslt1

( substitutions=None)

Returns the posys <= 1 representation of this constraint.

class gpkit.nomials.nomial_math.SingleSignomialEquality(left, right)

Bases:

gpkit.nomials.nomial_math.SignomialInequality

A constraint of the general form posynomial == posynomial

as_approxsgt

( x0)

Returns monomial-greater-than sides, to be called after as_approxlt1

as_approxslt

()

Returns posynomial-less-than sides of a signomial constraint

as_gpconstr

( x0 , substitutions=None)

Returns GP approximation of an SP constraint at x0

as_posyslt1

( substitutions=None)

Returns the posys <= 1 representation of this constraint.

gpkit.nomials.nomial_math.non_dimensionalize( posy)

Non-dimensionalize a posy (warning: mutates posy)

11.1. Subpackages 73

gpkit Documentation, Release 0.5.3

gpkit.nomials.substitution module

Module containing the substitution function gpkit.nomials.substitution.append_sub( sub , keys, constants, sweep, linkedsweep)

Appends sub to constants, sweep, or linkedsweep.

gpkit.nomials.substitution.parse_subs( varkeys , substitutions)

Seperates subs into constants, sweeps linkedsweeps actually present.

gpkit.nomials.substitution.substitution( nomial , substitutions)

Efficient substituton into a list of monomials.

varlocs [dict] Dictionary mapping variables to lists of monomial indices.

exps [Iterable of dicts] Dictionary mapping variables to exponents, for each monomial.

cs [list] Coefficient for each monomial.

substitutions [dict] Substitutions to apply to the above.

val [number (optional)] Used to substitute singlet variables.

varlocs_ [dict] Dictionary of monomial indexes for each variable.

exps_ [dict] Dictionary of variable exponents for each monomial.

cs_ [list] Coefficients each monomial.

subs_ [dict] Substitutions to apply to the above.

74 gpkit.nomials.variables module

Implement Variable and ArrayVariable classes class gpkit.nomials.variables.ArrayVariable

Bases:

gpkit.nomials.array.NomialArray

A described vector of singlet Monomials.

shape [int or tuple] length or shape of resulting array

* args : may contain “name” (Strings)

“value” (Iterable) “units” (Strings + Quantity) and/or “label” (Strings)

** descr : VarKey description

NomialArray of Monomials, each containing a VarKey with name ‘$name_{i}’, where $name is the vector’s name and i is the VarKey’s index.

class gpkit.nomials.variables.Variable(*args, **descr)

Bases:

gpkit.nomials.nomial_math.Monomial

A described singlet Monomial.

* args [list] may contain “name” (Strings)

“value” (Numbers + Quantity) or (Iterable) for a sweep “units” (Strings + Quantity)

Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

and/or “label” (Strings)

** descr [dict] VarKey description

Monomials containing a VarKey with the name ‘$name’, where $name is the vector’s name and i is the VarKey’s index.

key

Get the VarKey associated with this Variable

sub

(

*args , **kwargs)

Same as nomial substitution, but also allows single-argument calls x = Variable(‘x’) assert x.sub(3) == Variable(‘x’, value=3)

to

( arg)

Create new Signomial converted to new units class gpkit.nomials.variables.VectorizableVariable(*args, **descr)

Bases:

gpkit.nomials.variables.Variable

, gpkit.nomials.variables.

ArrayVariable

A Variable outside a vectorized environment, an ArrayVariable within.

Module contents

Contains nomials, inequalities, and arrays

gpkit.tests package

Submodules gpkit.tests.diff_output module

Function to diff example output and allow small numerical errors gpkit.tests.diff_output.diff( output1 , output2, tol=0.001) check that output1 and output2 are same up to small errors in numbers

gpkit.tests.from_paths module

Runs each file listed in pwd/TESTS as a test class gpkit.tests.from_paths.TestFiles(methodName=’runTest’)

Bases: unittest.case.TestCase

Stub to be filled with files in $pwd/TESTS gpkit.tests.from_paths.add_filetest( testclass , path)

Add test that imports the given path and runs its test() function gpkit.tests.from_paths.clean( string)

Parses string into valid python variable name https://stackoverflow.com/questions/3303312/ how-do-i-convert-a-string-to-a-valid-variable-namein-python gpkit.tests.from_paths.newtest_fn( name , solver, import_dict, path)

Doubly nested callbacks to run the test with getattr(self, name)()

11.1. Subpackages 75

gpkit Documentation, Release 0.5.3

gpkit.tests.from_paths.run( filename=’TESTS’ , xmloutput=False, skipsolvers=None)

Parse and run paths from a given file for each solver

gpkit.tests.helpers module

Convenience classes and functions for unit testing class gpkit.tests.helpers.NewDefaultSolver(solver)

Bases: object

Creates an environment with a different default solver class gpkit.tests.helpers.NullFile

Bases: object

A fake file interface that does nothing

close

()

Having not written, cease.

write

( string)

Do not write, do not pass go.

class gpkit.tests.helpers.StdoutCaptured(logfilepath=None)

Bases: object

Puts everything that would have printed to stdout in a log file instead gpkit.tests.helpers.generate_example_tests( path , testclasses, solvers=None, newtest_fn=None)

Mutate TestCase class so it behaves as described in TestExamples docstring path [str] directory containing example modules to test testclass [class] class that inherits from unittest.TestCase

newtest_fn [function] function that returns new tests. defaults to import_test_and_log_output solvers [iterable] solvers to run for; or only for default if solvers is None gpkit.tests.helpers.logged_example_testcase( name , imported, path)

Returns a method for attaching to a unittest.TestCase that imports or reloads module ‘name’ and stores in imported[name]. Runs top-level code, which is typically a docs example, in the process.

Returns a method.

gpkit.tests.helpers.new_test( name , solver, import_dict, path, testfn=None) logged_example_testcase with a NewDefaultSolver gpkit.tests.helpers.run_tests( tests

, xmloutput=None, verbosity=2)

Default way to run tests, to be used in __main__.

tests: iterable of unittest.TestCase xmloutput: string or None if not None, generate xml output for continuous integration, with name given by the input string verbosity: int verbosity level for unittest.TextTestRunner

76 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

gpkit.tests.run_tests module

Script for running all gpkit unit tests gpkit.tests.run_tests.import_tests()

Get a list of all GPkit unit test TestCases gpkit.tests.run_tests.run( xmloutput=False , tests=None, unitless=True)

Run all gpkit unit tests.

xmloutput: bool If true, generate xml output files for continuous integration

gpkit.tests.t_constraints module

Unit tests for Constraint, MonomialEquality and SignomialInequality class gpkit.tests.t_constraints.TestBounded(methodName=’runTest’)

Bases: unittest.case.TestCase

Test bounded constraint set

test_substitution_issue905

() class gpkit.tests.t_constraints.TestConstraint(methodName=’runTest’)

Bases: unittest.case.TestCase

Tests for Constraint class

test_additive_scalar

()

Make sure additive scalars simplify properly

test_additive_scalar_gt1

()

1 can’t be greater than (1 + something positive)

test_bad_elements

()

test_constraintget

()

test_equality_relaxation

()

test_evalfn

()

test_init

()

Test Constraint __init__

test_oper_overload

()

Test Constraint initialization by operator overloading class gpkit.tests.t_constraints.TestMonomialEquality(methodName=’runTest’)

Bases: unittest.case.TestCase

Test monomial equality constraint class

test_inheritance

()

Make sure MonomialEquality inherits from the right things

test_init

()

Test initialization via both operator overloading and __init__

test_non_monomial

()

Try to initialize a MonomialEquality with non-monomial args

test_str

()

Test that MonomialEquality.__str__ returns a string

11.1. Subpackages 77

gpkit Documentation, Release 0.5.3

78

class gpkit.tests.t_constraints.TestSignomialInequality(methodName=’runTest’)

Bases: unittest.case.TestCase

Test Signomial constraints

test_init

()

Test initialization and types

test_posyslt1

() class gpkit.tests.t_constraints.TestTight(methodName=’runTest’)

Bases: unittest.case.TestCase

Test tight constraint set

test_posyconstr_in_gp

()

Tests tight constraint set with solve()

test_posyconstr_in_sp

()

test_sigconstr_in_sp

()

Tests tight constraint set with localsolve()

gpkit.tests.t_examples module

Unit testing of tests in docs/source/examples class gpkit.tests.t_examples.TestExamples(methodName=’runTest’)

Bases: unittest.case.TestCase

To test a new example, add a function called test_$EXAMPLENAME, where $EXAMPLENAME is the name of your example in docs/source/examples without the file extension.

This function should accept two arguments (e.g. ‘self’ and ‘example’). The imported example script will be passed to the second: anything that was a global variable (e.g, “sol”) in the original script is available as an attribute (e.g., “example.sol”)

If you don’t want to perform any checks on the example besides making sure it runs, just put “pass” as the function’s body, e.g.: def test_dummy_example(self, example): pass

But it’s good practice to ensure the example’s solution as well, e.g.: def test_dummy_example(self, example): self.assertAlmostEqual(example.sol[”cost”],

3.121)

test_autosweep

( example)

test_beam

( example)

test_debug

( example)

test_external_sp

( example)

test_external_sp2

( example)

test_model_var_access

( example)

test_performance_modeling

( example)

test_primal_infeasible_ex1

( example)

test_primal_infeasible_ex2

( example)

test_relaxation

( example)

Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

test_simple_box

( example)

test_simple_sp

( example)

test_simpleflight

( example)

test_sin_approx_example

( example)

test_unbounded

( example)

test_vectorize

( example)

test_water_tank

( example)

test_x_greaterthan_1

( example) gpkit.tests.t_examples.assert_logtol( first , second, logtol=1e-06)

Asserts that the logs of two arrays have a given abstol

gpkit.tests.t_keydict module

Test KeyDict class class gpkit.tests.t_keydict.TestKeyDict(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the KeyDict class

test_dictlike

()

test_failed_getattr

()

test_getattr

()

test_setattr

()

test_vector

()

gpkit.tests.t_model module

Tests for GP and SP classes class gpkit.tests.t_model.Box(cost=None, constraints=None, *args, **kwargs)

Bases:

gpkit.constraints.model.Model

simple box for model testing

setup

() class gpkit.tests.t_model.BoxAreaBounds(cost=None, constraints=None

,

*args

,

Bases:

gpkit.constraints.model.Model

**kwargs) for testing functionality of separate analysis models

setup

( box) class gpkit.tests.t_model.TestGP(methodName=’runTest’)

Bases: unittest.case.TestCase

Test GeometricPrograms. This TestCase gets run once for each installed solver.

name

= ‘TestGP_’

ndig

= None

11.1. Subpackages 79

gpkit Documentation, Release 0.5.3

solver

= None

test_601

()

test_additive_constants

()

test_constants_in_objective_1

()

Issue 296

test_constants_in_objective_2

()

Issue 296

test_cost_freeing

()

Test freeing a variable that’s in the cost.

test_exps_is_tuple

() issue 407

test_mdd_example

()

test_posy_simplification

() issue 525

test_sensitivities

()

test_sigeq

()

test_simple_united_gp

()

test_singular

()

Create and solve GP with a singular A matrix

test_terminating_constant_

()

test_trivial_gp

()

Create and solve a trivial GP: minimize x + 2y subject to xy >= 1

The global optimum is (x, y) = (sqrt(2), 1/sqrt(2)).

test_trivial_vector_gp

()

Create and solve a trivial GP with VectorVariables

test_zero_lower_unbounded

()

test_zeroing

() class gpkit.tests.t_model.TestModelNoSolve(methodName=’runTest’)

Bases: unittest.case.TestCase

model tests that don’t require a solver

test_modelname_added

()

test_no_naming_on_var_access

() class gpkit.tests.t_model.TestModelSolverSpecific(methodName=’runTest’)

Bases: unittest.case.TestCase

test cases run only for specific solvers

test_cvxopt_kwargs

() class gpkit.tests.t_model.TestSP(methodName=’runTest’)

Bases: unittest.case.TestCase

test case for SP class – gets run for each installed solver

80 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

name

= ‘TestSP_’

ndig

= None

solver

= None

test_initially_infeasible

()

test_issue180

()

test_partial_sub_signomial

()

Test SP partial x0 initialization

test_relaxation

()

test_sigs_not_allowed_in_cost

()

test_small_named_signomial

()

test_sp_bounded

()

test_sp_initial_guess_sub

()

test_sp_substitutions

()

test_trivial_sp

()

test_trivial_sp2

()

test_unbounded_debugging

()

Test nearly-dual-feasible problems

test_values_vs_subs

() class gpkit.tests.t_model.Thing(cost=None, constraints=None, *args, **kwargs)

Bases:

gpkit.constraints.model.Model

a thing, for model testing

setup

( length) gpkit.tests.t_model.test alias of TestSP_cvxopt gpkit.tests.t_model.testcase alias of

TestSP

gpkit.tests.t_nomial_array module

Tests for NomialArray class class gpkit.tests.t_nomial_array.TestNomialArray(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the NomialArray class. Also tests VectorVariable, since VectorVariable returns a NomialArray

test_array_mult

()

test_constraint_gen

()

test_elementwise_mult

()

test_empty

()

test_getitem

()

11.1. Subpackages 81

gpkit Documentation, Release 0.5.3

82 test_left_right

()

test_ndim

()

test_outer

()

test_prod

()

test_shape

()

test_substition

()

test_sum

()

test_units

()

gpkit.tests.t_nomials module

Tests for Monomial, Posynomial, and Signomial classes class gpkit.tests.t_nomials.TestMonomial(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the Monomial class

test_div

()

Test Monomial division

test_eq_ne

()

Test equality and inequality comparators

test_init

()

Test multiple ways to create a Monomial

test_latex

()

Test latex string creation

test_mul

()

Test monomial multiplication

test_numerical_precision

() not sure what to test here, placeholder for now

test_pow

()

Test Monomial exponentiation

test_repr

()

Simple tests for __repr__, which prints more than str

test_str_with_units

()

Make sure __str__() works when units are involved

test_units

() make sure multiplication with units works (issue 492) class gpkit.tests.t_nomials.TestPosynomial(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the Posynomial class

test_constraint_gen

()

Test creation of Constraints via operator overloading

test_diff

()

Test differentiation (!!)

Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

test_eq

()

Test Posynomial __eq__

test_eq_units

()

test_init

()

Test Posynomial construction

test_integer_division

()

Make sure division by integer doesn’t use Python integer division

test_mono_lower_bound

()

Test monomial approximation

test_posyposy_mult

()

Test multiplication of Posynomial with Posynomial

test_simplification

()

Make sure like monomial terms get automatically combined class gpkit.tests.t_nomials.TestSignomial(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the Signomial class

test_eq_ne

()

Test Signomial equality and inequality operators

test_init

()

Test Signomial construction

gpkit.tests.t_small module

Tests for small_classes.py and small_scripts.py

class gpkit.tests.t_small.TestCootMatrix(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the CootMatrix class

test_shape

() class gpkit.tests.t_small.TestHashVector(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the HashVector class

test_init

()

Make sure HashVector acts like a dict

test_mul_add

()

Test multiplication and addition

test_neg

()

Test negation

test_pow

()

Test exponentiation class gpkit.tests.t_small.TestSmallScripts(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for gpkit.small_scripts

11.1. Subpackages 83

gpkit Documentation, Release 0.5.3

test_pint_366

()

test_unitstr

()

gpkit.tests.t_solution_array module

Tests for SolutionArray class class gpkit.tests.t_solution_array.TestResultsTable(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for results_table()

test_nan_printing

()

Test that solution prints when it contains nans

test_result_access

() class gpkit.tests.t_solution_array.TestSolutionArray(methodName=’runTest’)

Bases: unittest.case.TestCase

Unit tests for the SolutionArray class

test_call

()

test_call_units

()

test_call_vector

()

test_key_options

()

test_subinto

()

test_table

()

test_units_sub

()

gpkit.tests.t_sub module

Test substitution capability across gpkit class gpkit.tests.t_sub.TestModelSubs(methodName=’runTest’)

Bases: unittest.case.TestCase

Test substitution for Model objects

test_bad_gp_sub

()

test_bad_subinplace

()

test_calcconst

()

test_getkey

()

test_model_composition_units

()

test_model_recursion

()

test_persistence

()

test_phantoms

()

test_quantity_sub

()

test_skipfailures

()

84 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

test_united_sub_sweep

()

test_vector_init

()

test_vector_sub

()

test_vector_sweep

()

Test sweep involving VectorVariables class gpkit.tests.t_sub.TestNomialSubs(methodName=’runTest’)

Bases: unittest.case.TestCase

Test substitution for nomial-family objects

test_basic

()

Basic substitution, symbolic

test_dimensionless_units

()

test_numeric

()

Basic substitution of numeric value

test_scalar_units

()

test_signomial

()

Test Signomial substitution

test_string_mutation

()

test_unitless_monomial_sub

()

Tests that dimensionless and undimensioned subs can interact.

test_variable

()

Test special single-argument substitution for Variable

test_vector

()

gpkit.tests.t_tools module

Tests for tools module class gpkit.tests.t_tools.TestTools(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for math models

test_binary_sweep_tree

()

test_composite_objective

()

test_fmincon_generator

()

Test fmincon comparison tool

test_fmincon_generator_logspace

()

Test fmincon comparison tool (logspace)

test_te_exp_minus1

()

Test Taylor expansion of e^x - 1

test_te_secant

()

Test Taylor expansion of secant(var)

test_te_tangent

()

Test Taylor expansion of tangent(var)

11.1. Subpackages 85

gpkit Documentation, Release 0.5.3

86

gpkit.tests.t_tools.assert_logtol( first , second, logtol=1e-06)

Asserts that the logs of two arrays have a given abstol

gpkit.tests.t_vars module

Test VarKey, Variable, VectorVariable, and ArrayVariable classes class gpkit.tests.t_vars.TestArrayVariable(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the ArrayVariable class

test_is_vector_variable

()

Make sure ArrayVariable is a shortcut to VectorVariable (we want to know if this changes).

test_str

()

Make sure string looks something like a numpy array class gpkit.tests.t_vars.TestVarKey(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the VarKey class

test_dict_key

() make sure variables are well-behaved dict keys

test_eq_neq

()

Test boolean equality operators

test_init

()

Test VarKey initialization

test_repr

()

Test __repr__ method

test_units_attr

()

Make sure VarKey objects have a units attribute class gpkit.tests.t_vars.TestVariable(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the Variable class

test_eq_ne

()

test_hash

()

Hashes should collide independent of units

test_init

()

Test Variable initialization

test_to

()

test_unit_parsing

()

test_value

()

Detailed tests for value kwarg of __init__ class gpkit.tests.t_vars.TestVectorVariable(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for the VectorVariable class. Note: more relevant tests in t_posy_array.

test_constraint_creation_units

()

Chapter 11. Glossary

11.1. Subpackages gpkit Documentation, Release 0.5.3

test_init

()

Test VectorVariable initialization class gpkit.tests.t_vars.TestVectorize(methodName=’runTest’)

Bases: unittest.case.TestCase

TestCase for gpkit.vectorize

test_shapes

()

gpkit.tests.test_repo module

Implements tests for all external repositories.

gpkit.tests.test_repo.call_and_retry( cmd , max_iterations=5, delay=5)

Tries max_iterations times (waiting d each time) to run a command gpkit.tests.test_repo.get_settings()

Gets settings from a TESTCONFIG file gpkit.tests.test_repo.git_clone( repo , branch=’master’)

Tries several times to clone a given repository gpkit.tests.test_repo.pip_install( package , local=False)

Tries several times to install a pip package gpkit.tests.test_repo.test_repo( repo=’.’ , xmloutput=False)

Test repository.

If no repo name given, runs in current directory. Otherwise, assumes is in directory above the repo with a shared gpkit-models repository.

gpkit.tests.test_repo.test_repos( repos=None , xmloutput=False)

Get the list of external repos to test, and test.

Module contents

GPkit testing module

gpkit.tools package

Submodules gpkit.tools.autosweep module

Tools for optimal fits to GP sweeps class gpkit.tools.autosweep.BinarySweepTree(bounds, sols, sweptvar, costposy)

Bases: object

Spans a line segment. May contain two subtrees that divide the segment.

bounds [two-element list] The left and right boundaries of the segment sols [two-element list] The left and right solutions of the segment costs [array] The left and right logcosts of the segment splits [None or two-element list] If not None, contains the left and right subtrees

87

gpkit Documentation, Release 0.5.3

splitval [None or float] The worst-error point, where the split will be if tolerance is too low splitlb [None or float] The cost lower bound at splitval splitub [None or float] The cost upper bound at splitval

add_split

( splitval , splitsol)

Creates subtrees from bounds[0] to splitval and splitval to bounds[1]

add_splitcost

( splitval , splitlb, splitub)

Adds a splitval, lower bound, and upper bound

cost_at

(

_ , value, bound=None)

Logspace interpolates between split and costs. Guaranteed bounded.

min_bst

( value)

Returns smallest bst around value.

posy_at

( posy , value)

Logspace interpolates between sols to get posynomial values.

No guarantees, just like a regular sweep.

sample_at

( values)

Creates a SolutionOracle at a given range of values

solarray

Returns a solution array of all the solutions in an autosweep

sollist

Returns a list of all the solutions in an autosweep class gpkit.tools.autosweep.SolutionOracle(bst, sampled_at)

Bases: object

Acts like a SolutionArray for autosweeps

cost_lb

()

Gets cost lower bounds from the BST and units them

cost_ub

()

Gets cost upper bounds from the BST and units them

plot

( posys=None

, axes=None)

Plots the sweep for each posy

solarray

Returns a solution array of all the solutions in an autosweep gpkit.tools.autosweep.autosweep_1d( model , logtol, sweepvar, bounds, **solvekwargs)

Autosweep a model over one sweepvar gpkit.tools.autosweep.get_tol( costs , bounds, sols, variable)

Gets the intersection point and corresponding bounds from two solutions.

gpkit.tools.autosweep.recurse_splits( model

, bst, variable, logtol, solvekwargs, sols)

Recursively splits a BST until logtol is reached

gpkit.tools.fmincon module

A module to facilitate testing GPkit against fmincon

88 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

gpkit.tools.fmincon.generate_mfiles( model , logspace=False , algorithm=’interior-point’ , guess=’ones’ , gradobj=’on’ , gradconstr=’on’ , writefiles=True)

A method for preparing fmincon input files to run a GPkit program

INPUTS: model [GPkit model] The model to replicate in fmincon logspace [Boolean] Whether to re-produce the model in logspace algorithm: [string] Algorithm used by fmincon ‘interior-point’: uses the interior point solver ‘SQP’: uses the sequential quadratic programming solver guess: [string] The type of initial guess used ‘ones’: One for each variable ‘order-ofmagnitude-floor’: The “log-floor” order of magnitude of the GP/SP optimal solution (i.e. O(99)=10)

‘order-of-magnitude-round’: The “log-nearest” order of magnitude of the GP/SP optimal solution (i.e. O(42)=100)

‘almost-exact-solution’: The GP/SP optimal solution rounded to 1 significant figure

OR [list] The actual values of initial guess to use gradconstr: [string] Include analytical constraint gradients? ‘on’: Yes ‘off’: No gradobj: [string] Include analytical objective gradients? ‘on’: Yes ‘off’: No writefiles: [Boolean] whether or not to actually write the m files gpkit.tools.fmincon.make_initial_guess( model , newlist , logspace=False)

Returns initial guess guess=’ones’ ,

gpkit.tools.spdata module

Implements SPData class class gpkit.tools.spdata.SPData(model)

Bases:

gpkit.nomials.data.NomialData

Generates matrices describing an SP.

>>>

spdata = SPData(m)

>>>

spdata .

save( 'example_sp.h5' )

save

( filename)

Save spdata to an h5 file.

gpkit.tools.tools module

Non-application-specific convenience methods for GPkit gpkit.tools.tools.composite_objective(

*objectives , **kwargs)

Creates a cost function that sweeps between multiple objectives.

gpkit.tools.tools.mdmake( filename , make_tex=True)

Make a python file and (optional) a pandoc-ready .tex.md file

11.1. Subpackages 89

gpkit Documentation, Release 0.5.3

gpkit.tools.tools.mdparse( filename , return_tex=False)

Parse markdown file, returning as strings python and (optionally) .tex.md

gpkit.tools.tools.te_exp_minus1( posy , nterm)

Taylor expansion of e^{posy} - 1 posy [gpkit.Posynomial] Variable or expression to exponentiate nterm [int] Number of non-constant terms in resulting Taylor expansion gpkit.Posynomial Taylor expansion of e^{posy} - 1, carried to nterm terms gpkit.tools.tools.te_secant( var , nterm)

Taylor expansion of secant(var).

var [gpkit.monomial] Variable or expression argument nterm [int] Number of non-constant terms in resulting Taylor expansion gpkit.Posynomial Taylor expansion of secant(x), carried to nterm terms gpkit.tools.tools.te_tangent( var , nterm)

Taylor expansion of tangent(var).

var [gpkit.monomial] Variable or expression argument nterm [int] Number of non-constant terms in resulting Taylor expansion gpkit.Posynomial Taylor expansion of tangent(x), carried to nterm terms

Module contents

Contains miscellaneous tools including fmincon comparison tool

Submodules gpkit.build module

Finds solvers, sets gpkit settings, and builds gpkit class gpkit.build.CVXopt

Bases:

gpkit.build.SolverBackend

CVXopt finder.

look

()

Attempts to import cvxopt.

name

= ‘cvxopt’ class gpkit.build.Mosek

Bases:

gpkit.build.SolverBackend

MOSEK finder and builder.

build

()

Builds a dynamic library to GPKITBUILD or $HOME/.gpkit

90 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

look

()

Looks in default install locations for latest mosek version.

name

= ‘mosek’

patches

= {‘dgopt.c’: {‘printf(“Number of Hessian non-zeros: %d\\n”,nlh[0]->numhesnz);’: ‘MSK_echotask(task,MSK_STREAM_MSG,”Number of Hessian non-zeros: %d\\n”,nlh[0]->numhesnz);’}, ‘expopt.c’: {‘printf(“Warning: The variable with index \’%d\’ has only positive coefficients akj.\\n The problem is possibly ill-posed.\\n.\\n”,i);’: ‘MSK_echotask(expopttask,MSK_STREAM_MSG, “Warning: The variable with index \’%d\’ has only positive coefficients akj.\\n The problem is possibly ill-posed.\\n.\\n”,i);’, ‘printf(“Warning: The variable with index \’%d\’ has only negative coefficients akj.\\n The problem is possibly ill-posed.\\n”,i);’: ‘MSK_echotask(expopttask,MSK_STREAM_MSG, “Warning: The variable with index \’%d\’ has only negative coefficients akj.\\n The problem is possibly ill-posed.\\n”,i);’, ‘printf (“solsta = %d, prosta = %d\\n”, (int)*solsta,(int)*prosta);’: ‘MSK_echotask(expopttask,MSK_STREAM_MSG, “solsta = %d, prosta = %d\\n”, (int)*solsta,(int)*prosta);’}} class gpkit.build.MosekCLI

Bases:

gpkit.build.SolverBackend

MOSEK command line interface finder.

look

()

Attempts to run mskexpopt.

name

= ‘mosek_cli’ class gpkit.build.SolverBackend

Bases: object

Inheritable class for finding solvers. Logs.

build

= None

installed

= False

look

= None

name

= None gpkit.build.build_gpkit()

Builds GPkit gpkit.build.call( cmd)

Calls subprocess. Logs.

gpkit.build.diff( filename , diff_dict)

Applies a simple diff to a file. Logs.

gpkit.build.isfile( path)

Returns true if there’s a file at $path. Logs.

gpkit.build.log( *args)

Print a line and append it to the log string.

gpkit.build.pathjoin( *args)

Join paths, collating multiple arguments.

gpkit.build.rebuild()

Changes to the installed gpkit directory and runs build_gpkit() gpkit.build.replacedir( path)

Replaces directory at $path. Logs.

gpkit.exceptions module

GPkit-specific Exception classes exception gpkit.exceptions.InvalidGPConstraint

Bases: exceptions.Exception

Raised when a non-GP-compatible constraint is used in a GP

11.4. gpkit.exceptions module 91

gpkit Documentation, Release 0.5.3

gpkit.keydict module

Implements KeyDict and KeySet classes class gpkit.keydict.KeyDict(*args, **kwargs)

Bases: dict

KeyDicts do two things over a dict: map keys and collapse arrays.

>>>> kd = gpkit.keydict.KeyDict()

If .keymapping is True, a KeyDict keeps an internal list of VarKeys as canonical keys, and their values can be accessed with any object whose key attribute matches one of those VarKeys, or with strings matching any of the multiple possible string interpretations of each key:

For example, after creating the KeyDict kd and setting kd[x] = v (where x is a Variable or VarKey), v can be accessed with by the following keys:

•x

•x.key

•x.name (a string)

•“x_modelname” (x’s name including modelname)

Note that if a item is set using a key that does not have a .key attribute, that key can be set and accessed normally.

If .collapse_arrays is True then VarKeys which have a shape parameter (indicating they are part of an array) are stored as numpy arrays, and automatically de-indexed when a matching VarKey with a particular idx parameter is used as a key.

See also: gpkit/tests/t_keydict.py.

collapse_arrays

= True

get

( key , alternative=<type ‘exceptions.KeyError’>)

keymapping

= True

parse_and_index

( key)

Returns key if key had one, and veckey/idx for indexed veckeys.

update

(

*args , **kwargs)

Iterates through the dictionary created by args and kwargs

update_keymap

()

Updates the keymap with the keys in _unmapped_keys class gpkit.keydict.KeySet(*args, **kwargs)

Bases:

gpkit.keydict.KeyDict

KeyDicts that don’t collapse arrays or store values.

add

( item)

Adds an item to the keyset

collapse_arrays

= False

update

(

*args , **kwargs)

Iterates through the dictionary created by args and kwargs

92 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

gpkit.keydict.clean_value( key , value)

Gets the value of variable-less monomials, so that x.sub({x: gpkit.units.m}) and x.sub({x: gpkit.ureg.m}) are equivalent.

Also converts any quantities to the key’s units, because quantities can’t/shouldn’t be stored as elements of numpy arrays.

gpkit.modified_ctypesgen module gpkit.repr_conventions module

Repository for representation standards gpkit.repr_conventions.unitstr( units , into=’%s’, options=’~’, dimless=’‘)

Returns the string corresponding to an object’s units.

gpkit.small_classes module

Miscellaneous small classes class gpkit.small_classes.CootMatrix(*args, **kwargs)

Bases:

gpkit.small_classes.CootMatrix

A very simple sparse matrix representation.

append

( row , col, data)

Appends entry to matrix.

dot

( arg)

Returns dot product with arg.

tocoo

()

Converts to another type of matrix.

tocsc

()

Converts to another type of matrix.

tocsr

()

Converts to a Scipy sparse csr_matrix

todense

()

Converts to another type of matrix.

todia

()

Converts to another type of matrix.

todok

()

Converts to another type of matrix.

gpkit.small_classes.CootMatrixTuple alias of

CootMatrix

class gpkit.small_classes.Count

Bases: object

Like python 2’s itertools.count, for Python 3 compatibility.

11.6. gpkit.modified_ctypesgen module 93

gpkit Documentation, Release 0.5.3

next

()

Increment self.count and return it class gpkit.small_classes.DictOfLists

Bases: dict

A hierarchy of dicionaries, with lists at the bottom.

append

( sol)

Appends a dict (of dicts) of lists to all held lists.

atindex

( i)

Indexes into each list independently.

classify

( cls)

Converts dictionaries whose first key isn’t a string to given class.

to_united_array

( unitless_keys=() , united=False)

Converts all lists into array, potentially grabbing units from keys.

class gpkit.small_classes.HashVector(*args, **kwargs)

Bases: dict

A simple, sparse, string-indexed vector. Inherits from dict.

The HashVector class supports element-wise arithmetic: any undeclared variables are assumed to have a value of zero.

arg : iterable

>>>

x = gpkit .

nomials .

Monomial( 'x' )

>>>

exp = gpkit .

small_classes .

HashVector({x: 2 }) class gpkit.small_classes.SolverLog(verbosity=0, output=None, *args, **kwargs)

Bases: list

Adds a write method to list so it’s file-like and can replace stdout.

write

( writ)

Append and potentially write the new line.

gpkit.small_classes.matrix_converter( name)

Generates conversion function.

gpkit.small_scripts module

Assorted helper methods gpkit.small_scripts.is_sweepvar( sub)

Determines if a given substitution indicates a sweep.

gpkit.small_scripts.latex_num( c)

Returns latex string of numbers, potentially using exponential notation.

gpkit.small_scripts.mag( c)

Return magnitude of a Number or Quantity gpkit.small_scripts.nomial_latex_helper( c

, pos_vars, neg_vars)

Combines (varlatex, exponent) tuples, separated by positive vs negative exponent, into a single latex string

94 Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

gpkit.small_scripts.try_str_without( item , excluded)

Try to call item.str_without(excluded); fall back to str(item) gpkit.small_scripts.veckeyed( key)

Return a veckey version of a VarKey

gpkit.solution_array module

Defines SolutionArray class class gpkit.solution_array.SolutionArray

Bases:

gpkit.small_classes.DictOfLists

A dictionary (of dictionaries) of lists, with convenience methods.

cost : array variables: dict of arrays sensitivities: dict containing: monomials : array posynomials : array variables: dict of arrays localmodels [NomialArray] Local power-law fits (small sensitivities are cut off)

>>> import gpkit

>>> import numpy as np

>>>

x = gpkit .

Variable( "x" )

>>>

x_min = gpkit .

Variable( "x_ {min} " , 2 )

>>>

sol = gpkit .

Model(x, [x >= x_min]) .

solve(verbosity = 0 )

>>>

>>>

# VALUES

>>>

values = [sol(x), sol .

subinto(x), sol[ "variables" ][ "x" ]]

>>> assert

all (np .

array(values) == 2 )

>>>

>>>

# SENSITIVITIES

>>>

senss = [sol .

sens(x_min), sol .

sens(x_min)]

>>>

senss .

append(sol[ "sensitivities" ][ "variables" ][ "x_ {min} " ])

>>> assert

all (np .

array(senss) == 1 )

plot

( posys=None

, axes=None)

Plots a sweep for each posy

program

= None

subinto

( posy)

Returns NomialArray of each solution substituted into posy.

summary

( showvars=() , ntopsenss=5)

Print summary table, showing top sensitivities and no constants

table

( showvars=() , tables=(‘cost’, ‘sweepvariables’, ‘freevariables’, ‘constants’, ‘sensitivities’) , **kwargs)

A table representation of this SolutionArray tables: Iterable

Which to print of (“cost”, “sweepvariables”, “freevariables”, “constants”, “sensitivities”) fixedcols: If true, print vectors in fixed-width format latex: int

If > 0, return latex format (options 1-3); otherwise plain text

11.10. gpkit.solution_array module 95

gpkit Documentation, Release 0.5.3

included_models: Iterable of strings If specified, the models (by name) to include excluded_models: Iterable of strings If specified, model names to exclude str

table_titles

= {‘variables’: ‘Variables’, ‘freevariables’: ‘Free Variables’, ‘sweepvariables’: ‘Sweep Variables’, ‘constants’: ‘Constants’} gpkit.solution_array.insenss_table( data

, _, maxval=0.1, **kwargs)

Returns insensitivity table lines gpkit.solution_array.results_table( data , title, minval=0, printunits=True, fixedcols=True , varfmt=’%s : ‘, valfmt=’%-.4g

‘ , vecfmt=’%-8.3g’, included_models=None, excluded_models=None , latex=False, sortbyvals=False , **_)

Pretty string representation of a dict of VarKeys Iterable values are handled specially (partial printing) data: dict whose keys are VarKey’s data to represent in table title: string minval: float skip values with all(abs(value)) < minval printunits: bool fixedcols: bool if True, print rhs (val, units, label) in fixed-width cols varfmt: string format for variable names valfmt: string format for scalar values vecfmt: string format for vector values latex: int If > 0, return latex format (options 1-3); otherwise plain text included_models: Iterable of strings If specified, the models (by name) to include excluded_models: Iterable of strings If specified, model names to exclude sortbyvals [boolean] If true, rows are sorted by their average value instead of by name.

gpkit.solution_array.senss_table( data ,

**kwargs) showvars=() ,

Returns sensitivity table lines title=’Sensitivities’ gpkit.solution_array.topsenss_filter( data , showvars, nvars=5)

Filters sensitivities down to top N vars

, gpkit.solution_array.topsenss_table( data , showvars, nvars=5, **kwargs)

Returns top sensitivity table lines

96

gpkit.varkey module

Defines the VarKey class class gpkit.varkey.VarKey(name=None, **kwargs)

Bases: object

An object to correspond to each ‘variable name’.

name [str, VarKey, or Monomial] Name of this Variable, or object to derive this Variable from.

Chapter 11. Glossary

gpkit Documentation, Release 0.5.3

** kwargs : Any additional attributes, which become the descr attribute (a dict).

VarKey with the given name and descr.

eq_ignores

= frozenset([’units’, ‘value’])

latex

( excluded=None)

Returns latex representation.

latex_unitstr

()

Returns latex unitstr

naming

Returns this varkey’s naming tuple

new_unnamed_id

()

Increment self.count and return it

str_without

( excluded=None)

Returns string without certain fields (such as ‘models’).

subscripts

= (‘models’, ‘idx’)

unitstr

( units , into=’%s’, options=’~’, dimless=’‘)

Returns the string corresponding to an object’s units.

Module contents

GP and SP Modeling Package

For examples please see the examples folder.

Requirements

numpy MOSEK or CVXOPT scipy(optional): for complete sparse matrix support sympy(optional): for latex printing in iPython Notebook

Attributes

settings [dict] Contains settings loaded from ./env/settings class gpkit.GPkitUnits

Bases: object

Return monomials instead of Quantitites class gpkit.NamedVariables(model)

Bases: object

Creates an environment in which all variables have a model name and num appended to their varkeys.

class gpkit.SignomialsEnabled

Bases: object

Class to put up and tear down signomial support in an instance of GPkit.

11.12. Module contents 97

gpkit Documentation, Release 0.5.3

>>> import gpkit

>>>

x = gpkit .

Variable( "x" )

>>>

y = gpkit .

Variable( "y" , 0.1

)

>>> with

SignomialsEnabled():

>>>

constraints = [x >= 1 y]

>>>

gpkit .

Model(x, constraints) .

localsolve() class gpkit.Vectorize(dimension_length)

Bases: object

Creates an environment in which all variables are exended in an additional dimension.

gpkit.begin_variable_naming( model)

Appends a model name and num to the environment.

gpkit.disable_units()

Disables units support in a particular instance of GPkit.

Posynomials created after calling this are incompatible with those created before.

If gpkit is imported multiple times, this needs to be run each time.

The correct way to call this is: import gpkit gpkit.disable_units()

The following will not have the intended effect: from gpkit import disable_units disable_units() gpkit.enable_units( path=None)

Enables units support in a particular instance of GPkit.

Posynomials created after calling this are incompatible with those created before.

If gpkit is imported multiple times, this needs to be run each time.

gpkit.end_variable_naming()

Pops a model name and num from the environment.

gpkit.load_settings( path=’/home/docs/checkouts/readthedocs.org/user_builds/gpkit/envs/latest/local/lib/python2.7/sitepackages/gpkit/env/settings’)

Load the settings file at SETTINGS_PATH; return settings dict

98 Chapter 11. Glossary

If you use GPkit, please cite it with the following bibtex:

@Misc

{gpkit, author = {Edward Burnell

and

Warren Hoburg}, title = {GPkit software

for

geometric programming}, howpublished = {\url{https: // github .

com / hoburg / gpkit}}, year = { 2017 },

} note = {Version 0.5

.

3 }

CHAPTER

12

Citing GPkit

99

gpkit Documentation, Release 0.5.3

100 Chapter 12. Citing GPkit

We thank the following contributors for helping to improve GPkit:

• Marshall Galbraith for setting up continuous integration.

• Stephen Boyd for inspiration and suggestions.

• Kirsten Bray for designing the GPkit logo.

CHAPTER

13

Acknowledgements

101

gpkit Documentation, Release 0.5.3

102 Chapter 13. Acknowledgements

CHAPTER

14

Release Notes

This page lists the changes made in each point version of gpkit.

Version 0.5.3

• faster SP solves (#1109)

• LinkedConstraintSet deprecated (#1110)

• Fixes to autosweep, ConstraintSet, interactive

• Solution time is now stored with soltutions (including sweeps/SPs)

• Model strings are divided with slashes (e.g. Airplane/Wing)

Version 0.5.2

• Added new sweep and autosweep methods to Model

– Added plot routines to the results of those routines to make it easy to plot a 1D sweep.

• Added new summary method to solution_array.

– It and table accept iterables of vars, will only print vars in that iterable (or, by default, all vars)

• Cleaned up and documented the interactive submodule

– removed contour and sensitivity plots

– added a 1D-sweep plotting function

– added that plotting function as an option within the control panel interface

• Overhauled and documented three types of variables whose value is determined by functions:

103

gpkit Documentation, Release 0.5.3

– calculated constants

– post-solve calculated variables

– between-GP-solves calculated variables (for Sequential Geometric Programs)

• Fix Bounded and implement debug() for SPs

• Apply subinplace to substitutions dictionary as well

• Require GP substitutions to be Numbers only

• Extend Bounded to one-sided bounds

• Print model’s numbers by default, unless "modelnums" in exclude

• Implement lazy keymapping, allowing GP/SP results to be KeyDicts

• Handle Signomial Inequalities that become Posynomial Inequalities after substitution

• Various documentation updates

• Various bug fixes

Version 0.5.1

• O(N) sums and monomial products

• Warn about invalid ConstraintSet elements

• allow setting Tight tolerance as a class attribute

• full backwards compatibility for __init__ methods

• scripts to test remote repositories

• minor fixes, tests, and refactors

• 3550 lines of code, 1800 lines of tests, 1700 lines of docstring. (not counting interactive)

Version 0.5.0

• No longer recommend the use of linked variables and subinplace (see below)

• Switched default solver to MOSEK

• Added Linked Variable diagram (PR #915)

• Changed how overloaded operators interact with pint (PR #938)

• Added and documented debugging tools (PR #933)

• Added and documented vectorization tools

• Documented modular model construction

• 3200 lines of code, 1800 lines of tests, 1700 lines of docstring. (not counting interactive)

104 Chapter 14. Release Notes

gpkit Documentation, Release 0.5.3

Changes to named models / Model inheritance

We are deprecating the creation of named submodels with custom __init__ methods. Previously, variables created during __init__ in any class inheriting from Model were replaced by a copy with

__class__.__name__

added as varkey metadata. This was slow, a bit irregular, and hacky.

We’re moving to an explicitly-irregular setup method, which (if declared for a class inheriting from Model) is automatically called during Model.__init__ inside a NamedVariables(self.

__class__.__name__) environment. This 1) handles the naming of variables more explicitly and efficiently, and 2) allows us to capture variables created within setup, so that constants that are not a part of any constraint can be used directly (several examples of such template models are in the new Building

Complex Models documentation).

Model.__init__

calls setup with the arguments given to the constructor, with the exception of the reserved keyword substitutions. This allows for the easy creation of a named model with custom parameter values (as in the documentation’s Beam example). setup methods should return an iterable

(list, tuple, ConstraintSet, ...) of constraints or nothing if the model contains no constraints. To declare a submodel cost, set self.cost during setup. However, we often find declaring a model’s cost explicitly just before solving to be a more legible practice.

In addition to permitting us to name variables at creation, and include unconstrained variables in a model, we hope that setup methods will clarify the side effects of named model creation.

Version 0.4.2

• prototype handling of SignomialEquality constraints

• fix an issue where solution tables printed incorrect units (despite the units being correct in the

SolutionArray data structure)

• fix controlpanel slider display for newer versions of ipywidgets

• fix an issue where identical unit-ed variables could have different hashes

• Make the text of several error messages more informative

• Allow monomial approximation of monomials

• bug fixes and improvements to TightConstraintSet

• Don’t print results table automatically (it was unwieldy for large models). To print it, print sol.table()

.

• Use cvxopt’s ldl kkt solver by default for more robustness to rank issues

• Improved ConstraintSet.__getitem__, only returns top-level Variable

• Move toward the varkeys of a ConstraintSet being an immutable set

• CPI update

• numerous pylint fixes

• BoundedConstraint sets added for dual feasibility debugging

• SP sweep compatibility

14.5. Version 0.4.2

105

gpkit Documentation, Release 0.5.3

Version 0.4.0

• New model for considering constraints: all constraints are considered as sets of constraints which may contain other constraints, and are asked for their substitutions / posynomial less than 1 representation as late as possible.

• Support for calling external code during an SP solve.

• New class KeyDict to allow referring to variables by name or with objects.

• Many many other bug fixes, speed ups, and refactors under the hood.

Version 0.3.4

• Modular / model composition fixes and improvements

• Working controlpanel() for Model

• ipynb and numpy dependency fixes

• printing fixes

• El Capitan fix

• slider widgets now have units

Version 0.3.2

• Assorted bug fixes

• Assorted internal improvements and simplifications

• Refactor signomial constraints, resulting in smarter SP heuristic

• Simplify and strengthen equality testing for nomials

• Not counting submodules, went from 2400 to 2500 lines of code and from 1050 to 1170 lines of docstrings and comments.

Version 0.3

• Integrated GP and SP creation under the Model class

• Improved and simplified under-the-hood internals of GPs and SPs

• New experimental SP heuristic

• Improved test coverage

• Handles vectors which are partially constants, partially free

• Simplified interaction with Model objects and made it more pythonic

• Added SP “step” method to allow single-stepping through an SP

• Isolated and corrected some solver-specific behavior

• Fully allowed substitutions of variables for 0 (commit 4631255)

106 Chapter 14. Release Notes

gpkit Documentation, Release 0.5.3

• Use “with” to create a signomials environment (commit cd8d581)

• Continuous integration improvements, thanks @galbramc !

• Not counting subpackages, went from 2200 to 2400 lines of code (additions were mostly longer error messages) and from 650 to 1050 lines of docstrings and comments.

• Add automatic feasibility-analysis methods to Model and GP

• Simplified solver logging and printing, making it easier to access solver output.

Version 0.2

• Various bug fixes

• Python 3 compatibility

• Added signomial programming support (alpha quality, may be wrong)

• Added composite objectives

• Parallelized sweeping

• Better table printing

• Linked sweep variables

• Better error messages

• Closest feasible point capability

• Improved install process (no longer requires ctypesgen; auto-detects MOSEK version)

• Added examples: wind turbine, modular GP, examples from 1967 book, maintenance (part replacement)

• Documentation grew by ~70%

• Added Advanced Commands section to documentation

• Many additional unit tests (more than doubled testing lines of code)

14.10. Version 0.2

107

gpkit Documentation, Release 0.5.3

108 Chapter 14. Release Notes

Python Module Index g

gpkit

,

97

gpkit.build

,

90

gpkit.constraints

,

66

gpkit.constraints.array

,

57

gpkit.constraints.bounded

,

58

gpkit.constraints.costed

,

58

gpkit.constraints.geometric_program

,

59

gpkit.constraints.model

,

60

gpkit.constraints.prog_factories

,

62

gpkit.constraints.relax

,

62

gpkit.constraints.set

,

63

gpkit.constraints.sigeq

,

64

gpkit.constraints.signomial_program

,

64

gpkit.constraints.single_equation

,

65

gpkit.constraints.tight

,

66

gpkit.exceptions

,

91

gpkit.interactive

,

68

gpkit.interactive.linking_diagram

,

67

gpkit.interactive.plot_sweep

,

67

gpkit.interactive.plotting

,

67

gpkit.interactive.ractor

,

68

gpkit.interactive.sensitivity_map

,

68

gpkit.keydict

,

92

gpkit.nomials

,

75

gpkit.nomials.array

,

69

gpkit.nomials.data

,

70

gpkit.nomials.nomial_core

,

70

gpkit.nomials.nomial_math

,

71

gpkit.nomials.substitution

,

74

gpkit.nomials.variables

,

74

gpkit.repr_conventions

,

93

gpkit.small_classes

,

93

gpkit.small_scripts

,

94

gpkit.solution_array

,

95

gpkit.tests

,

87

gpkit.tests.diff_output

,

75

gpkit.tests.from_paths

,

75

gpkit.tests.helpers

,

76

gpkit.tests.run_tests

,

77

gpkit.tests.t_constraints

,

77

gpkit.tests.t_examples

,

78

gpkit.tests.t_keydict

,

79

gpkit.tests.t_model

,

79

gpkit.tests.t_nomial_array

,

81

gpkit.tests.t_nomials

,

82

gpkit.tests.t_small

,

83

gpkit.tests.t_solution_array

,

84

gpkit.tests.t_sub

,

84

gpkit.tests.t_tools

,

85

gpkit.tests.t_vars

,

86

gpkit.tests.test_repo

,

87

gpkit.tools

,

90

gpkit.tools.autosweep

,

87

gpkit.tools.fmincon

,

88

gpkit.tools.spdata

,

89

gpkit.tools.tools

,

89

gpkit.varkey

,

96

109

gpkit Documentation, Release 0.5.3

110 Python Module Index

Index

A

add() (gpkit.keydict.KeySet method),

92

add_filetest() (in module gpkit.tests.from_paths),

75

add_split() (gpkit.tools.autosweep.BinarySweepTree

method),

88

add_splitcost() (gpkit.tools.autosweep.BinarySweepTree

assert_logtol() (in module gpkit.tests.t_tools),

85

assign_axes() (in module gpkit.interactive.plot_sweep),

67

atindex() (gpkit.small_classes.DictOfLists method),

94

autosweep() (gpkit.constraints.model.Model method),

61

autosweep_1d() (in module gpkit.tools.autosweep),

88

method),

88

append() (gpkit.constraints.set.ConstraintSet method),

63

B

append() (gpkit.small_classes.CootMatrix method),

93

begin_variable_naming() (in module gpkit),

98

append() (gpkit.small_classes.DictOfLists method),

94

BinarySweepTree (class in gpkit.tools.autosweep), append_sub() (in module gpkit.nomials.substitution),

74

Bounded (class in gpkit.constraints.bounded),

58

array_constraint() (in module gpkit.nomials.array),

69

Box (class in gpkit.tests.t_model),

79

ArrayConstraint (class in gpkit.constraints.array),

57

BoxAreaBounds (class in gpkit.tests.t_model),

ArrayVariable (class in gpkit.nomials.variables),

74

build (gpkit.build.SolverBackend attribute), as_approxsgt() (gpkit.nomials.nomial_math.SignomialInequality

90

method),

73

build_gpkit() (in module gpkit.build),

91

91

79

87

as_approxsgt() (gpkit.nomials.nomial_math.SingleSignomialEquality

method),

73

C

as_approxslt() (gpkit.nomials.nomial_math.SignomialInequality

69

method),

73

c (gpkit.nomials.nomial_core.Nomial attribute),

70

as_approxslt() (gpkit.nomials.nomial_math.SingleSignomialEquality

91

method),

73

call_and_retry() (in module gpkit.tests.test_repo),

87

as_gpconstr() (gpkit.constraints.set.ConstraintSet

check_solution() (gpkit.constraints.geometric_program.GeometricProgram

method),

63

method),

59

as_gpconstr() (gpkit.nomials.nomial_math.PosynomialInequality

94

method),

72

clean() (in module gpkit.tests.from_paths),

75

as_gpconstr() (gpkit.nomials.nomial_math.SignomialInequality

92

method),

73

close() (gpkit.tests.helpers.NullFile method),

76

as_gpconstr() (gpkit.nomials.nomial_math.SingleSignomialEquality

92

method),

73

collapse_arrays (gpkit.keydict.KeySet attribute),

92

as_posyslt1() (gpkit.constraints.set.ConstraintSet

colorfn_gen() (in module method),

63

kit.interactive.sensitivity_map),

68

as_posyslt1() (gpkit.nomials.nomial_math.PosynomialInequality

67

gpmethod),

72

composite_objective() (in module gpkit.tools.tools),

89

as_posyslt1() (gpkit.nomials.nomial_math.SignomialInequality

62

method),

73

constraint_latex_list() as_posyslt1() (gpkit.nomials.nomial_math.SingleSignomialEquality

(gpkit.interactive.sensitivity_map.SensitivityMap

method),

73

method),

68

assert_logtol() (in module gpkit.tests.t_examples),

79

ConstraintSet (class in gpkit.constraints.set),

63

111

gpkit Documentation, Release 0.5.3

ConstraintsRelaxed (class in gpkit.constraints.relax),

62

ConstraintsRelaxedEqually (class in gpget() (gpkit.keydict.KeyDict method),

92

get_settings() (in module gpkit.tests.test_repo),

87

kit.constraints.relax),

63

get_tol() (in module gpkit.tools.autosweep),

88

controlpanel() (gpkit.constraints.costed.CostedConstraintSet

git_clone() (in module gpkit.tests.test_repo),

87

method),

58

convert_to() (gpkit.nomials.nomial_core.Nomial

method),

70

CootMatrix (class in gpkit.small_classes),

93

CootMatrixTuple (in module gpkit.small_classes),

93

cost_at() (gpkit.tools.autosweep.BinarySweepTree

method),

88

cost_lb() (gpkit.tools.autosweep.SolutionOracle method),

88

gp() (gpkit.constraints.model.Model method), gpkit (module),

97

61

gp() (gpkit.constraints.signomial_program.SignomialProgram

method),

65

gpkit.build (module),

90

gpkit.constraints (module),

66

gpkit.constraints.array (module),

57

gpkit.constraints.bounded (module),

58

cost_ub()

D

58

(gpkit.tools.autosweep.SolutionOracle

method),

88

CostedConstraintSet (class in gpkit.constraints.costed),

Count (class in gpkit.small_classes),

CVXopt (class in gpkit.build),

90

93

gpkit.constraints.costed (module),

58

gpkit.constraints.geometric_program (module),

59

gpkit.constraints.model (module),

60

gpkit.constraints.prog_factories (module),

62

gpkit.constraints.relax (module),

62

gpkit.constraints.set (module),

63

gpkit.constraints.sigeq (module),

64

gpkit.constraints.signomial_program (module),

64

gpkit.constraints.single_equation (module),

65

debug() (gpkit.constraints.model.Model method),

61

gpkit.constraints.tight (module),

66

DictOfLists (class in gpkit.small_classes),

94

gpkit.exceptions (module),

91

diff() (gpkit.nomials.data.NomialData method),

70

gpkit.interactive (module),

68

diff() (gpkit.nomials.nomial_math.Signomial method),

72

gpkit.interactive.linking_diagram (module),

67

diff() (in module gpkit.build),

91

gpkit.interactive.plot_sweep (module),

67

diff() (in module gpkit.tests.diff_output),

75

gpkit.interactive.plotting (module),

67

disable_units() (in module gpkit),

98

gpkit.interactive.ractor (module),

68

dot() (gpkit.small_classes.CootMatrix method),

93

gpkit.interactive.sensitivity_map (module),

68

E

gpkit.keydict (module),

92

gpkit.nomials (module),

75

enable_units() (in module gpkit),

98

gpkit.nomials.array (module),

69

end_variable_naming() (in module gpkit),

98

gpkit.nomials.data (module),

70

eq_ignores (gpkit.varkey.VarKey attribute),

97

gpkit.nomials.nomial_core (module),

70

F

gpkit.nomials.nomial_math (module),

71

gpkit.nomials.substitution (module),

74

firstgp() (gpkit.constraints.signomial_program.SignomialProgram

74

method),

65

gpkit.repr_conventions (module),

93

flat() (gpkit.constraints.set.ConstraintSet method),

63

gpkit.small_classes (module),

93

gpkit.small_scripts (module),

94

format_and_label_axes() (in module gpkit.interactive.plot_sweep),

67

attribute),

66

gpkit.solution_array (module), func_opers (gpkit.constraints.single_equation.SingleEquationConstraint

87

95

gpkit.tests.diff_output (module),

75

gpkit.tests.from_paths (module),

75

G

gpkit.tests.helpers (module),

76

gen() (gpkit.constraints.geometric_program.GeometricProgram

77

method),

60

gpkit.tests.t_constraints (module),

77

genA() (in module gpkit.constraints.geometric_program), gpkit.tests.t_examples (module),

78

60

gpkit.tests.t_keydict (module),

79

generate_example_tests() (in module gpkit.tests.helpers), gpkit.tests.t_model (module),

79

76

gpkit.tests.t_nomial_array (module),

81

generate_mfiles() (in module gpkit.tools.fmincon),

88

gpkit.tests.t_nomials (module),

82

GeometricProgram (class in gpgpkit.tests.t_small (module),

83

kit.constraints.geometric_program),

59

gpkit.tests.t_solution_array (module),

84

112 Index

gpkit Documentation, Release 0.5.3

I

gpkit.tests.t_sub (module),

84

gpkit.tests.t_tools (module),

85

gpkit.tests.t_vars (module),

86

gpkit.tests.test_repo (module),

87

gpkit.tools (module),

90

gpkit.tools.autosweep (module),

87

gpkit.tools.fmincon (module),

88

gpkit.tools.spdata (module),

89

gpkit.tools.tools (module),

89

gpkit.varkey (module),

96

GPkitUnits (class in gpkit),

97

H

HashVector (class in gpkit.small_classes),

94

import_tests() (in module gpkit.tests.run_tests),

77

init_from_nomials() (gpkit.nomials.data.NomialData

method),

70

insenss_table() (in module gpkit.solution_array),

96

installed (gpkit.build.SolverBackend attribute),

91

interact() (gpkit.constraints.costed.CostedConstraintSet

method),

58

InvalidGPConstraint,

91

is_sweepvar() (in module gpkit.small_scripts),

94

isfile() (in module gpkit.build),

91

K

log() (in module gpkit.build),

91

logged_example_testcase() (in module kit.tests.helpers),

76

look (gpkit.build.SolverBackend attribute),

91

look() (gpkit.build.CVXopt method),

90

look() (gpkit.build.Mosek method),

90

look() (gpkit.build.MosekCLI method),

91

M

gpmag() (in module gpkit.small_scripts),

94

make_initial_guess() (in module gpkit.tools.fmincon),

89

matrix_converter() (in module gpkit.small_classes),

94

mdmake() (in module gpkit.tools.tools),

89

mdparse() (in module gpkit.tools.tools),

89

min_bst() (gpkit.tools.autosweep.BinarySweepTree

method),

88

Model (class in gpkit.constraints.model),

60

mono_approximation() (gpkit.nomials.nomial_math.Monomial

method),

71

mono_approximation() (gpkit.nomials.nomial_math.Signomial

method),

72

mono_lower_bound() (gpkit.nomials.nomial_math.Posynomial method),

71

Monomial (class in gpkit.nomials.nomial_math),

71

MonomialEquality (class in gpkit.nomials.nomial_math),

71

Mosek (class in gpkit.build),

90

MosekCLI (class in gpkit.build),

91

key (gpkit.nomials.variables.Variable attribute),

75

KeyDict (class in gpkit.keydict),

92

keymapping (gpkit.keydict.KeyDict attribute),

92

KeySet (class in gpkit.keydict),

92

N

L

name (gpkit.build.CVXopt attribute),

90

latex (gpkit.interactive.sensitivity_map.SensitivityMap

name (gpkit.build.Mosek attribute),

91

attribute),

68

name (gpkit.build.MosekCLI attribute),

91

latex() (gpkit.constraints.set.ConstraintSet method),

63

name (gpkit.build.SolverBackend attribute),

91

latex() (gpkit.constraints.single_equation.SingleEquationConstraint

61

method),

66

name (gpkit.tests.t_model.TestGP attribute),

79

latex() (gpkit.nomials.array.NomialArray method),

69

name (gpkit.tests.t_model.TestSP attribute),

80

NamedVariables (class in gpkit),

97

latex() (gpkit.nomials.nomial_core.Nomial method),

70

latex() (gpkit.varkey.VarKey method),

97

latex_unitstr() (gpkit.varkey.VarKey method),

97

naming (gpkit.constraints.model.Model attribute), latex_num() (in module gpkit.small_scripts),

94

naming (gpkit.varkey.VarKey attribute),

97

latex_opers (gpkit.constraints.single_equation.SingleEquationConstraint

79

attribute),

66

ndig (gpkit.tests.t_model.TestSP attribute),

81

new_test() (in module gpkit.tests.helpers),

76

61

left (gpkit.nomials.array.NomialArray attribute),

69

new_unnamed_id() (gpkit.varkey.VarKey method),

97

NewDefaultSolver (class in gpkit.tests.helpers),

76

linking_diagram() (in module gpkit.interactive.linking_diagram),

67

newtest_fn() (in module gpkit.tests.from_paths),

75

load_settings() (in module gpkit),

98

next() (gpkit.small_classes.Count method),

93

localsolve() (gpkit.constraints.model.Model method),

61

Nomial (class in gpkit.nomials.nomial_core),

70

localsolve() (gpkit.constraints.signomial_program.SignomialProgram

94

method),

65

NomialArray (class in gpkit.nomials.array),

69

NomialData (class in gpkit.nomials.data),

70

Index 113

gpkit Documentation, Release 0.5.3

nomials (gpkit.nomials.nomial_math.ScalarSingleEquationConstraint

88

attribute),

72

non_dimensionalize() (in kit.nomials.nomial_math),

73

module

NullFile (class in gpkit.tests.helpers),

76

num (gpkit.constraints.model.Model attribute),

61

gpreltol (gpkit.constraints.tight.Tight attribute), replacedir() (in module gpkit.build),

91

66

reset_varkeys() (gpkit.constraints.costed.CostedConstraintSet

method),

59

reset_varkeys() (gpkit.constraints.set.ConstraintSet

O

outer() (gpkit.nomials.array.NomialArray method),

69

method),

63

results_table() (in module gpkit.solution_array),

96

right (gpkit.nomials.array.NomialArray attribute),

69

rootconstr_latex() (gpkit.constraints.costed.CostedConstraintSet

P

method),

59

rootconstr_latex() (gpkit.constraints.set.ConstraintSet

method),

63

rootconstr_str() (gpkit.constraints.costed.CostedConstraintSet

padleft() (gpkit.nomials.array.NomialArray method),

69

padright() (gpkit.nomials.array.NomialArray method),

69

parse_and_index() (gpkit.keydict.KeyDict method),

92

parse_subs() (in module gpkit.nomials.substitution),

74

patches (gpkit.build.Mosek attribute),

91

pathjoin() (in module gpkit.build),

91

pip_install() (in module gpkit.tests.test_repo),

87

plot() (gpkit.solution_array.SolutionArray method),

95

plot() (gpkit.tools.autosweep.SolutionOracle method),

88

plot_1dsweepgrid() (in module gpmethod),

59

rootconstr_str() (gpkit.constraints.set.ConstraintSet

method),

63

run() (in module gpkit.tests.from_paths),

75

run() (in module gpkit.tests.run_tests),

77

run_sweep() (in module gpkit.constraints.prog_factories),

62

run_tests() (in module gpkit.tests.helpers),

76

kit.interactive.plot_sweep),

67

plot_convergence() (in module gpkit.interactive.plotting),

67

posy_at() (gpkit.tools.autosweep.BinarySweepTree

method),

88

posy_negy() (gpkit.nomials.nomial_math.Signomial

method),

72

S

sample_at() (gpkit.tools.autosweep.BinarySweepTree

method),

88

save() (gpkit.tools.spdata.SPData method),

89

ScalarSingleEquationConstraint (class in gp-

Posynomial (class in gpkit.nomials.nomial_math),

71

PosynomialInequality (class in gpkit.nomials.nomial_math),

72

process_result() (gpkit.constraints.bounded.Bounded

method),

58

process_result() (gpkit.constraints.relax.ConstantsRelaxed

method),

62

process_result() (gpkit.constraints.set.ConstraintSet

method),

63

kit.nomials.nomial_math),

72

sens_from_dual() (gpkit.constraints.bounded.Bounded

method),

58

sens_from_dual() (gpkit.constraints.set.ConstraintSet

method),

64

sens_from_dual() (gpkit.nomials.nomial_math.MonomialEquality

method),

71

sens_from_dual() (gpkit.nomials.nomial_math.PosynomialInequality

method),

72

method),

66

process_result() (gpkit.constraints.tight.Tight method),

66

prod() (gpkit.nomials.array.NomialArray method),

69

prod() (gpkit.nomials.nomial_core.Nomial method),

71

program (gpkit.constraints.model.Model attribute),

61

program (gpkit.solution_array.SolutionArray attribute),

95

(class in kit.interactive.sensitivity_map),

68

senss_table() (in module gpkit.solution_array),

96

setup() (gpkit.tests.t_model.Box method),

79

gpsetup() (gpkit.tests.t_model.BoxAreaBounds method),

79

setup() (gpkit.tests.t_model.Thing method),

81

showcadtoon() (in module gpkit.interactive.ractor),

68

Signomial (class in gpkit.nomials.nomial_math),

72

signomial_print() (in module kit.interactive.sensitivity_map),

68

gp-

R

ractorjs() (in module gpkit.interactive.ractor),

68

ractorpy() (in module gpkit.interactive.ractor),

68

raise_badelement() (in module gpkit.constraints.set),

64

raise_elementhasnumpybools() (in module gpkit.constraints.set),

64

rebuild() (in module gpkit.build),

91

SignomialEquality (class in gpkit.constraints.sigeq),

64

SignomialInequality (class in gpkit.nomials.nomial_math),

73

SignomialProgram (class in kit.constraints.signomial_program),

64

SignomialsEnabled (class in gpkit),

97

gp-

114 Index

gpkit Documentation, Release 0.5.3

simplify_exps_and_cs() (in module gpkit.nomials.data),

70

SingleEquationConstraint (class kit.constraints.single_equation),

65

in gp-

SingleSignomialEquality (class kit.nomials.nomial_math),

73

in gpsolarray (gpkit.tools.autosweep.BinarySweepTree

attribute),

88

solarray (gpkit.tools.autosweep.SolutionOracle attribute),

88

sollist (gpkit.tools.autosweep.BinarySweepTree

attribute),

88

solution (gpkit.constraints.model.Model attribute),

61

solution (gpkit.interactive.sensitivity_map.SensitivityMap

attribute),

68

SolutionArray (class in gpkit.solution_array),

95

subinplace() (gpkit.constraints.array.ArrayConstraint

method),

57

subinplace() (gpkit.constraints.costed.CostedConstraintSet

method),

59

subinplace() (gpkit.constraints.set.ConstraintSet method),

64

subinplace() (gpkit.nomials.nomial_math.ScalarSingleEquationConstraint

method),

72

subinplace() (gpkit.nomials.nomial_math.Signomial

method),

73

subinto() (gpkit.solution_array.SolutionArray method),

95

subscripts (gpkit.varkey.VarKey attribute),

97

substitution() (in module gpkit.nomials.substitution),

74

sum() (gpkit.nomials.array.NomialArray method),

69

sum() (gpkit.nomials.nomial_core.Nomial method),

71

SolutionOracle (class in gpkit.tools.autosweep),

88

summary() (gpkit.solution_array.SolutionArray method), solve() (gpkit.constraints.geometric_program.GeometricProgram

95

sweep() (gpkit.constraints.model.Model method),

62

method),

60

solve() (gpkit.constraints.model.Model method),

61

solver (gpkit.tests.t_model.TestGP attribute),

79

T

solver (gpkit.tests.t_model.TestSP attribute),

81

SolverBackend (class in gpkit.build),

91

table() (gpkit.solution_array.SolutionArray method),

95

table_titles (gpkit.solution_array.SolutionArray attribute),

SolverLog (class in gpkit.small_classes),

94

sp() (gpkit.constraints.model.Model method),

61

96

te_exp_minus1() (in module gpkit.tools.tools),

90

SPData (class in gpkit.tools.spdata),

89

StdoutCaptured (class in gpkit.tests.helpers),

76

te_secant() (in module gpkit.tools.tools),

90

te_tangent() (in module gpkit.tools.tools),

90

str_without() method),

64

(gpkit.constraints.set.ConstraintSet

test (in module gpkit.tests.t_model),

81

test_601() (gpkit.tests.t_model.TestGP method),

80

method),

66

str_without() (gpkit.nomials.array.NomialArray method),

69

str_without() (gpkit.nomials.nomial_core.Nomial

method),

71

str_without() (gpkit.varkey.VarKey method),

97

sub (gpkit.nomials.nomial_core.Nomial attribute),

71

(gpkit.tests.t_model.TestGP

method),

80

test_additive_scalar() (gpkit.tests.t_constraints.TestConstraint method),

77

test_additive_scalar_gt1() (gpkit.tests.t_constraints.TestConstraint method),

77

method),

66

method),

81

sub() (gpkit.nomials.array.NomialArray method),

69

test_autosweep() (gpkit.tests.t_examples.TestExamples

sub() (gpkit.nomials.nomial_math.Signomial method),

73

method),

78

sub() (gpkit.nomials.variables.Variable method),

75

test_bad_elements() (gpsubconstr_latex() (gpkit.constraints.model.Model

kit.tests.t_constraints.TestConstraint method), method),

62

77

subconstr_latex() (gpkit.constraints.set.ConstraintSet

test_bad_gp_sub() (gpkit.tests.t_sub.TestModelSubs

method),

64

method),

84

subconstr_latex() (gpkit.constraints.single_equation.SingleEquationConstraint

(gpkit.tests.t_sub.TestModelSubs

method),

66

method),

84

subconstr_str() (gpkit.constraints.model.Model method), test_basic() (gpkit.tests.t_sub.TestNomialSubs method),

62

85

subconstr_str() (gpkit.constraints.set.ConstraintSet

test_beam() (gpkit.tests.t_examples.TestExamples

method),

64

method),

78

subconstr_str() (gpkit.constraints.single_equation.SingleEquationConstraint

(gpkit.tests.t_tools.TestTools

method),

66

method),

85

Index 115

gpkit Documentation, Release 0.5.3

test_calcconst() method),

84

(gpkit.tests.t_sub.TestModelSubs

test_call() (gpkit.tests.t_solution_array.TestSolutionArray

method),

84

method),

83

test_eq_ne() (gpkit.tests.t_vars.TestVariable method),

86

test_eq_neq() (gpkit.tests.t_vars.TestVarKey method),

86

test_eq_units() (gpkit.tests.t_nomials.TestPosynomial

test_call_units() (gpkit.tests.t_solution_array.TestSolutionArray

method),

84

test_call_vector() (gpkit.tests.t_solution_array.TestSolutionArray

method),

84

method),

77

83

test_equality_relaxation() (gpkit.tests.t_constraints.TestConstraint method), test_composite_objective() (gpkit.tests.t_tools.TestTools

method),

85

test_constants_in_objective_1() kit.tests.t_model.TestGP method),

80

(gptest_evalfn() (gpkit.tests.t_constraints.TestConstraint

method),

77

test_exps_is_tuple() method),

80

(gpkit.tests.t_model.TestGP

test_constants_in_objective_2() kit.tests.t_model.TestGP method),

80

test_constraint_creation_units() kit.tests.t_vars.TestVectorVariable

86

test_constraint_gen() kit.tests.t_nomial_array.TestNomialArray

method),

81

test_constraint_gen() (gpkit.tests.t_nomials.TestPosynomial

method),

82

test_constraintget() (gpkit.tests.t_constraints.TestConstraint method),

77

test_cost_freeing() (gpkit.tests.t_model.TestGP method),

80

test_cvxopt_kwargs() (gpkit.tests.t_model.TestModelSolverSpecific

method),

80

test_debug() (gpkit.tests.t_examples.TestExamples

method),

78

(gp-

(gpmethod),

(gptest_dict_key() (gpkit.tests.t_vars.TestVarKey method),

86

test_dictlike() test_diff() method),

79

(gpkit.tests.t_nomials.TestPosynomial

method),

82

test_dimensionless_units() kit.tests.t_sub.TestNomialSubs

85

(gpmethod), test_div() (gpkit.tests.t_nomials.TestMonomial method),

82

test_elementwise_mult() kit.tests.t_nomial_array.TestNomialArray

(gpmethod), method),

82

test_eq_ne() method), test_eq_ne()

81

(gpkit.tests.t_keydict.TestKeyDict

test_empty() (gpkit.tests.t_nomial_array.TestNomialArray

81

test_eq() (gpkit.tests.t_nomials.TestPosynomial method),

(gpkit.tests.t_nomials.TestMonomial

82

(gpkit.tests.t_nomials.TestSignomial

test_external_sp() (gpkit.tests.t_examples.TestExamples

method),

78

test_external_sp2() (gpkit.tests.t_examples.TestExamples

method),

78

test_failed_getattr() (gpkit.tests.t_keydict.TestKeyDict

method),

79

test_fmincon_generator() (gpkit.tests.t_tools.TestTools

method),

85

test_fmincon_generator_logspace() (gpkit.tests.t_tools.TestTools method), test_getattr() (gpkit.tests.t_keydict.TestKeyDict method),

79

test_getitem() (gpkit.tests.t_nomial_array.TestNomialArray

method), test_getkey() (gpkit.tests.t_sub.TestModelSubs method),

84

81

85

test_hash() (gpkit.tests.t_vars.TestVariable method),

86

test_inheritance() (gpkit.tests.t_constraints.TestMonomialEquality

method),

77

test_init() (gpkit.tests.t_constraints.TestConstraint

method),

77

test_init() (gpkit.tests.t_constraints.TestMonomialEquality

method),

77

test_init() (gpkit.tests.t_constraints.TestSignomialInequality

test_init() (gpkit.tests.t_nomials.TestMonomial method), test_init() method),

82

78

(gpkit.tests.t_nomials.TestPosynomial

method),

83

test_init() (gpkit.tests.t_nomials.TestSignomial method),

83

test_init() (gpkit.tests.t_small.TestHashVector method),

83

test_init() (gpkit.tests.t_vars.TestVariable method),

86

test_init() (gpkit.tests.t_vars.TestVarKey method),

86

test_init() (gpkit.tests.t_vars.TestVectorVariable method),

86

test_initially_infeasible() method),

81

(gpkit.tests.t_model.TestSP

test_integer_division() (gpkit.tests.t_nomials.TestPosynomial

method),

83

116 Index

gpkit Documentation, Release 0.5.3

test_is_vector_variable() kit.tests.t_vars.TestArrayVariable

(gpmethod),

86

test_issue180() (gpkit.tests.t_model.TestSP method),

81

test_key_options() kit.tests.t_solution_array.TestSolutionArray

(gpmethod),

81

test_performance_modeling() (gpkit.tests.t_examples.TestExamples

method),

78

test_persistence() method),

84

(gpkit.tests.t_sub.TestModelSubs

method),

84

test_latex() (gpkit.tests.t_nomials.TestMonomial

test_phantoms() method),

84

(gpkit.tests.t_sub.TestModelSubs

method),

82

test_pint_366() test_left_right() (gpkit.tests.t_nomial_array.TestNomialArray

method),

(gpkit.tests.t_small.TestSmallScripts

83

method),

81

test_mdd_example() (gpkit.tests.t_model.TestGP

method),

80

test_model_composition_units() (gpkit.tests.t_sub.TestModelSubs method),

84

test_model_recursion() (gpkit.tests.t_sub.TestModelSubs

method),

84

test_model_var_access() (gpkit.tests.t_examples.TestExamples

method), test_posy_simplification() (gpkit.tests.t_model.TestGP

method),

80

test_posyconstr_in_gp() kit.tests.t_constraints.TestTight

78

test_posyconstr_in_sp() kit.tests.t_constraints.TestTight

78

(gpmethod),

(gpmethod), test_posyposy_mult() (gpkit.tests.t_nomials.TestPosynomial

method),

83

78

test_modelname_added() (gpkit.tests.t_model.TestModelNoSolve method),

80

test_mono_lower_bound() (gpkit.tests.t_nomials.TestPosynomial

method),

83

test_mul() (gpkit.tests.t_nomials.TestMonomial method),

82

test_mul_add() method),

83

(gpkit.tests.t_small.TestHashVector

test_nan_printing() kit.tests.t_solution_array.TestResultsTable

(gptest_posyslt1() (gpkit.tests.t_constraints.TestSignomialInequality

method),

78

test_pow() (gpkit.tests.t_nomials.TestMonomial method),

82

test_pow() (gpkit.tests.t_small.TestHashVector method),

83

test_primal_infeasible_ex1() kit.tests.t_examples.TestExamples

(gpmethod), method), method),

83

84

test_ndim() (gpkit.tests.t_nomial_array.TestNomialArray

82

test_neg() (gpkit.tests.t_small.TestHashVector method), test_no_naming_on_var_access() (gpkit.tests.t_model.TestModelNoSolve method),

80

test_non_monomial() (gpkit.tests.t_constraints.TestMonomialEquality

78

test_primal_infeasible_ex2() (gpkit.tests.t_examples.TestExamples

method),

78

test_prod() (gpkit.tests.t_nomial_array.TestNomialArray

method),

82

test_quantity_sub() (gpkit.tests.t_sub.TestModelSubs

method),

84

test_relaxation() (gpkit.tests.t_examples.TestExamples

method),

78

test_relaxation() (gpkit.tests.t_model.TestSP method),

81

method),

77

test_numeric() kit.tests.t_nomials.TestMonomial

82

test_oper_overload()

(gpkit.tests.t_sub.TestNomialSubs

method),

85

test_numerical_precision() (gpmethod),

(gpkit.tests.t_constraints.TestConstraint method),

77

test_repo() (in module gpkit.tests.test_repo),

87

test_repos() (in module gpkit.tests.test_repo),

87

test_repr() (gpkit.tests.t_nomials.TestMonomial method),

82

test_repr() (gpkit.tests.t_vars.TestVarKey method),

86

test_result_access() (gpkit.tests.t_solution_array.TestResultsTable

method),

84

test_scalar_units() (gpkit.tests.t_sub.TestNomialSubs

method),

85

test_sensitivities() (gpkit.tests.t_model.TestGP method), test_outer() (gpkit.tests.t_nomial_array.TestNomialArray

method),

82

test_partial_sub_signomial() (gpkit.tests.t_model.TestSP

80

test_setattr() (gpkit.tests.t_keydict.TestKeyDict method),

79

Index 117

gpkit Documentation, Release 0.5.3

test_shape() (gpkit.tests.t_nomial_array.TestNomialArray

method),

82

test_shape() (gpkit.tests.t_small.TestCootMatrix method),

83

test_shapes() (gpkit.tests.t_vars.TestVectorize method),

87

test_sigconstr_in_sp() (gpkit.tests.t_constraints.TestTight

method),

78

test_sigeq() (gpkit.tests.t_model.TestGP method),

80

test_signomial() (gpkit.tests.t_sub.TestNomialSubs

method),

85

test_sigs_not_allowed_in_cost() (gpkit.tests.t_model.TestSP method),

81

test_simple_box() (gpkit.tests.t_examples.TestExamples

method),

78

test_simple_sp() (gpkit.tests.t_examples.TestExamples

method),

79

test_simple_united_gp() (gpkit.tests.t_model.TestGP

method),

80

test_simpleflight() (gpkit.tests.t_examples.TestExamples

method),

79

test_simplification() (gpkit.tests.t_nomials.TestPosynomial

method),

83

test_sin_approx_example() (gpkit.tests.t_examples.TestExamples

method),

79

test_singular() (gpkit.tests.t_model.TestGP method),

80

test_skipfailures() method),

84

(gpkit.tests.t_sub.TestModelSubs

test_small_named_signomial() kit.tests.t_model.TestSP method),

81

(gptest_sp_bounded() (gpkit.tests.t_model.TestSP method),

81

test_sp_initial_guess_sub() (gpkit.tests.t_model.TestSP

method),

81

test_sp_substitutions() method),

81

(gpkit.tests.t_model.TestSP

test_str() (gpkit.tests.t_constraints.TestMonomialEquality

method),

77

test_str() (gpkit.tests.t_vars.TestArrayVariable method),

86

test_str_with_units() kit.tests.t_nomials.TestMonomial

82

test_string_mutation() (gpkit.tests.t_sub.TestNomialSubs

method),

85

(gpmethod), method),

84

method),

82

test_substitution_issue905() (gpkit.tests.t_constraints.TestBounded

method),

77

test_sum() (gpkit.tests.t_nomial_array.TestNomialArray

method),

82

test_table() (gpkit.tests.t_solution_array.TestSolutionArray

method),

84

test_te_exp_minus1() method),

85

(gpkit.tests.t_tools.TestTools

test_te_secant() (gpkit.tests.t_tools.TestTools method),

85

test_te_tangent() (gpkit.tests.t_tools.TestTools method),

85

test_terminating_constant_() (gpkit.tests.t_model.TestGP

method),

80

test_to() (gpkit.tests.t_vars.TestVariable method),

86

test_trivial_gp() (gpkit.tests.t_model.TestGP method),

80

test_trivial_sp() (gpkit.tests.t_model.TestSP method),

81

test_trivial_sp2() (gpkit.tests.t_model.TestSP method),

81

test_trivial_vector_gp() (gpkit.tests.t_model.TestGP

method),

80

test_unbounded() (gpkit.tests.t_examples.TestExamples

method),

79

test_unbounded_debugging() (gpkit.tests.t_model.TestSP

method),

81

test_unit_parsing() method),

86

(gpkit.tests.t_vars.TestVariable

test_united_sub_sweep() kit.tests.t_sub.TestModelSubs method),

84

(gptest_unitless_monomial_sub() kit.tests.t_sub.TestNomialSubs

(gpmethod),

85

test_units() (gpkit.tests.t_nomial_array.TestNomialArray

method),

82

test_units() (gpkit.tests.t_nomials.TestMonomial

method),

82

test_units_attr() (gpkit.tests.t_vars.TestVarKey method),

86

test_units_sub() (gpkit.tests.t_solution_array.TestSolutionArray

method),

84

test_unitstr() (gpkit.tests.t_small.TestSmallScripts

method),

84

test_value() (gpkit.tests.t_vars.TestVariable method),

86

test_values_vs_subs() (gpkit.tests.t_model.TestSP

method),

81

test_variable() (gpkit.tests.t_sub.TestNomialSubs

method),

85

test_vector() (gpkit.tests.t_keydict.TestKeyDict method),

79

test_vector() (gpkit.tests.t_sub.TestNomialSubs method),

85

(gpkit.tests.t_sub.TestModelSubs

method),

85

(gpkit.tests.t_sub.TestModelSubs

method),

85

test_vector_sweep() (gpkit.tests.t_sub.TestModelSubs

method),

85

test_vectorize() (gpkit.tests.t_examples.TestExamples

118 Index

gpkit Documentation, Release 0.5.3

method),

79

test_water_tank() (gpkit.tests.t_examples.TestExamples

method),

79

test_x_greaterthan_1() test_zero_lower_unbounded() kit.tests.t_model.TestGP method),

80

(gpkit.tests.t_examples.TestExamples

method),

79

(gptest_zeroing() (gpkit.tests.t_model.TestGP method),

80

TestArrayVariable (class in gpkit.tests.t_vars),

86

TestBounded (class in gpkit.tests.t_constraints),

77

testcase (in module gpkit.tests.t_model),

81

TestConstraint (class in gpkit.tests.t_constraints),

77

TestCootMatrix (class in gpkit.tests.t_small),

83

TestExamples (class in gpkit.tests.t_examples),

78

TestFiles (class in gpkit.tests.from_paths),

75

TestGP (class in gpkit.tests.t_model),

79

TestHashVector (class in gpkit.tests.t_small),

83

TestKeyDict (class in gpkit.tests.t_keydict),

79

TestModelNoSolve (class in gpkit.tests.t_model),

80

TestModelSolverSpecific (class in gpkit.tests.t_model),

80

TestModelSubs (class in gpkit.tests.t_sub),

84

TestMonomial (class in gpkit.tests.t_nomials),

82

TestMonomialEquality (class in gpkit.tests.t_constraints),

77

TestNomialArray (class in gpkit.tests.t_nomial_array),

81

TestNomialSubs (class in gpkit.tests.t_sub),

85

TestPosynomial (class in gpkit.tests.t_nomials),

82

TestResultsTable (class in gpkit.tests.t_solution_array),

84

TestSignomial (class in gpkit.tests.t_nomials),

83

TestSignomialInequality (class in gpkit.tests.t_constraints),

77

TestSmallScripts (class in gpkit.tests.t_small),

83

TestSolutionArray (class in gpkit.tests.t_solution_array),

84

TestSP (class in gpkit.tests.t_model),

80

TestTight (class in gpkit.tests.t_constraints),

78

TestTools (class in gpkit.tests.t_tools),

85

TestVariable (class in gpkit.tests.t_vars),

86

TestVarKey (class in gpkit.tests.t_vars),

86

TestVectorize (class in gpkit.tests.t_vars),

87

TestVectorVariable (class in gpkit.tests.t_vars),

86

Thing (class in gpkit.tests.t_model),

81

Tight (class in gpkit.constraints.tight),

66

to() (gpkit.nomials.nomial_core.Nomial method),

71

to() (gpkit.nomials.variables.Variable method),

75

to_united_array() (gpkit.small_classes.DictOfLists

method),

94

tocoo() (gpkit.small_classes.CootMatrix method),

93

tocsc() (gpkit.small_classes.CootMatrix method),

93

tocsr() (gpkit.small_classes.CootMatrix method),

93

todense() (gpkit.small_classes.CootMatrix method),

93

todia() (gpkit.small_classes.CootMatrix method),

93

todok() (gpkit.small_classes.CootMatrix method),

93

topsenss_filter() (in module gpkit.solution_array),

96

topsenss_table() (in module gpkit.solution_array),

96

topvar() (gpkit.constraints.set.ConstraintSet method),

64

try_str_without() (in module gpkit.small_scripts),

94

trycall() (in module gpkit.constraints.single_equation),

66

U

unique_varkeys (gpkit.constraints.set.ConstraintSet attribute),

64

units (gpkit.nomials.array.NomialArray attribute),

69

unitstr() (gpkit.nomials.nomial_core.Nomial method),

71

unitstr() (gpkit.varkey.VarKey method),

97

unitstr() (in module gpkit.repr_conventions),

93

update() (gpkit.keydict.KeyDict method),

92

update() (gpkit.keydict.KeySet method),

92

update_keymap() (gpkit.keydict.KeyDict method),

92

V

value (gpkit.nomials.nomial_core.Nomial attribute),

71

values (gpkit.nomials.data.NomialData attribute),

70

Variable (class in gpkit.nomials.variables),

74

variables_byname() (gpkit.constraints.set.ConstraintSet

method),

64

VarKey (class in gpkit.varkey),

96

varkey_bounds() (in module gpkit.constraints.bounded),

58

varkeys (gpkit.constraints.set.ConstraintSet attribute),

64

varkeys (gpkit.nomials.data.NomialData attribute),

70

veckeyed() (in module gpkit.small_scripts),

95

VectorizableVariable (class in gpkit.nomials.variables),

75

Vectorize (class in gpkit),

98

vectorize() (gpkit.nomials.array.NomialArray method),

69

W

write() (gpkit.small_classes.SolverLog method),

94

write() (gpkit.tests.helpers.NullFile method),

76

Z

zero_lower_unbounded_variables() kit.constraints.model.Model method),

62

(gp-

Index 119

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
