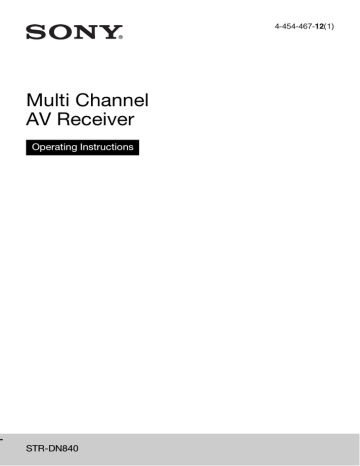

4-454-467-12(1)
Multi Channel
AV Receiver
Operating Instructions
STR-DN840
WARNING
To reduce the risk of fire or
electric shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of fire, do not cover the
ventilation opening of the appliance with
newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked flame
sources (for example, lighted candles).
To reduce the risk of fire or electric shock, do
not expose this appliance to dripping or
splashing, and do not place objects filled with
liquids, such as vases, on the appliance.
Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.
As the main plug is used to disconnect the unit
from the mains, connect the unit to an easily
accessible AC outlet. Should you notice an
abnormality in the unit, disconnect the main
plug from the AC outlet immediately.
Do not expose batteries or appliances with
battery-installed to excessive heat, such as
sunshine and fire.
The unit is not disconnected from the mains as
long as it is connected to the AC outlet, even
if the unit itself has been turned off.
Excessive sound pressure from earphones and
headphones can cause hearing loss.
This symbol is intended to
alert the user to the presence
of the Hot Surface that may be
hot if it is touched during the
normal operation.
This equipment has been tested and found to
comply with the limits set out in the EMC
Directive using a connection cable shorter
than 3 meters.
2US
For customers in the United
States
Owner’s Record
The model and serial numbers are located on
the rear of the unit. Record these numbers in
the space provided below. Refer to them
whenever you call upon your Sony dealer
regarding this product.
Model No.
Serial No.
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
Important Safety
Instructions
1)
2)
3)
4)
5)
6)
7)
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the
polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of
the obsolete outlet.
10) Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories
specified by the manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug is
damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
To reduce the risk of electric shock, the
speaker cord should be connected to the
apparatus and the speakers in accordance with
the following instructions.
1) Disconnect the AC power cord from the
MAINS.
2) Strip 10 to 15 mm of the wire insulation of
the speaker cord.
3) Connect the speaker cord to the apparatus
and the speakers carefully so as not to
touch the core of speaker cord by hand.
Also disconnect the AC power cord from
the MAINS before disconnecting the
speaker cord from the apparatus and the
speakers.
The following FCC
statement applies only to
the version of this model
manufactured for sale in the
U.S.A. Other versions may
not comply with FCC
technical regulations.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
3US
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Properly shielded and grounded cables and
connectors must be used for connection to
host computers and/or peripherals in order to
meet FCC emission limits.
This equipment must not be co-located or
operated in conjunction with any other
antenna or transmitter.
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio
frequency (RF) Exposure Guidelines in
Supplement C to OET65.
This equipment should be installed and
operated keeping the radiator at least 20cm or
more away from person’s body (excluding
extremities: hands, wrists, feet and ankles).
For customers in Canada
Properly shielded and grounded cables and
connectors must be used for connection to
host computers and/or peripherals.
Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause
undesired operation of the device.
This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment and meets RSS-102 of the IC
radio frequency (RF) Exposure rules.
This equipment should be installed and
operated keeping the radiator at least 20cm or
more away from person’s body (excluding
extremities: hands, wrists, feet and ankles).
4US
About This Manual
• The instructions in this manual are for model
STR-DN840. The model number is located
at the lower right corner of the front panel.
The illustrations used in this manual are of
the USA model and they may be different
from your model. Any differences in
operation are marked in the manual as “USA
model only”.
• The instructions in this manual describe the
operation of the receiver with the supplied
remote control. You can also use the buttons
or knobs on the receiver if they have the
same or similar names as those on the
remote control.
On copyrights
This receiver incorporates Dolby* Digital and
Pro Logic Surround and the DTS** Digital
Surround System.
* Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic, Surround
EX, and the double-D symbol are
trademarks of Dolby Laboratories.
** Manufactured under license under U.S.
Patent Nos: 5,956,674; 5,974,380;
6,226,616; 6,487,535; 7,212,872;
7,333,929; 7,392,195; 7,272,567 & other
U.S. and worldwide patents issued &
pending. DTS-HD, the Symbol, &
DTS-HD and the Symbol together are
registered trademarks & DTS-HD Master
Audio is a trademark of DTS, Inc. Product
includes software. В© DTS, Inc. All Rights
Reserved.
This receiver incorporates High-Definition
Multimedia Interface (HDMITM) technology.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
AirPlay, iPhone, iPod, iPod classic, iPod
nano, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.
All other trademarks and registered
trademarks are of their respective holders. In
this manual, в„ў and В® marks are not specified.
“Made for iPod” and “Made for iPhone” mean
that an electronic accessory has been designed
to connect specifically to iPod or iPhone,
respectively, and has been certified by the
developer to meet Apple performance
standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards. Please note that the use
of this accessory with iPod or iPhone may
affect wireless performance.
DLNAв„ў, the DLNA Logo and DLNA
CERTIFIEDв„ў are trademarks, service marks,
or certification marks of the Digital Living
Network Alliance.
“Sony Entertainment Network” logo and
“Sony Entertainment Network” are
trademarks of Sony Corporation.
Wake-on-LAN is a trademark of International
Business Machines Corporation in the United
States.
Windows and the Windows logo are either
registered trademarks or trademarks of
Microsoft Corporation in the United States
and/or other countries.
This product is protected by certain
intellectual property rights of Microsoft
Corporation. Use or distribution of such
technology outside of this product is
prohibited without a license from Microsoft or
an authorized Microsoft subsidiary.
MPEG Layer-3 audio coding technology and
patents licensed from Fraunhofer IIS and
Thomson.
“x.v.Color (x.v.Colour)” and “x.v.Color
(x.v.Colour)” logo are trademarks of Sony
Corporation.
“BRAVIA” is a trademark of Sony
Corporation.
“PlayStation” is a registered trademark of
Sony Computer Entertainment Inc.
“WALKMAN” is a registered trademark of
Sony Corporation.
MICROVAULT is a trademark of Sony
Corporation.
VAIO and VAIO Media are registered
trademarks of Sony Corporation.
PARTY STREAMING and PARTY
STREAMING logo are trademarks of Sony
Corporation.
The Wi-Fi CERTIFIED Logo is a certification
mark of the Wi-Fi Alliance.
The BluetoothВ® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Sony
Corporation is under license.
Other trademarks and trade names are those of
their respective owners.
InstaPrevueв„ў is a trademark or registered
trademark of Silicon Image, Inc. in the United
States and other countries.
FLAC Decoder
Copyright (C)
2000,2001,2002,2003,2004,2005,2006,2007
Josh Coalson
Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following
conditions are met:
– Redistributions of source code must retain
the above copyright notice, this list of
conditions and the following disclaimer.
– Redistributions in binary form must
reproduce the above copyright notice, this
list of conditions and the following
disclaimer in the documentation and/or
other materials provided with the
distribution.
5US
– Neither the name of the Xiph.org
Foundation nor the names of its contributors
may be used to endorse or promote products
derived from this software without specific
prior written permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS “AS IS” AND ANY
EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT
LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE
OF THIS SOFTWARE, EVEN IF ADVISED
OF THE POSSIBILITY OF SUCH
DAMAGE.
6US
Table of Contents
About This Manual ....................... 4
Supplied accessories ..................... 9
Description and location of
parts ...................................... 10
Getting started ............................. 18
Connections
1: Installing the speakers ............ 20
2: Connecting the speakers ......... 22
3: Connecting the TV .................. 24
4a: Connecting the video
equipment ............................. 25
4b: Connecting the audio
equipment ............................. 29
5: Connecting the antennas
(aerials) ................................. 30
6: Connecting to the network ...... 30
Preparing the Receiver
Connecting the AC power cord
(mains lead) .......................... 33
Turning on the receiver ............... 33
Setting up the receiver using the
Easy Setup ............................ 33
Configuring the network settings
of the receiver ....................... 36
Guide to on-screen display
(OSD) operation ................... 40
Basic Operations
Playing an input source
equipment ............................. 41
Playing an iPod/iPhone ............... 43
Playing a USB device ................. 45
Tuner Operations
Enjoying Sound Effects
Selecting the sound field .............51
Using the Sound Optimizer
function .................................54
Selecting the calibration type ......55
Adjusting the Equalizer ...............55
Using the Pure Direct function ....55
Resetting sound fields to the
default settings ......................56
Using Network Features
About the network functions of
the receiver ............................56
Setting up the server ....................57
Enjoying audio content stored on
the server ...............................62
Enjoying Sony Entertainment
Network (SEN) .....................65
Using the PARTY STREAMING
function .................................68
Streaming music from iTunes
with AirPlay ..........................70
Updating the software .................71
Searching for an item using a
keyword .................................74
Using Bluetooth
Features
About the Bluetooth wireless
technology .............................75
About the Bluetooth functions of
the receiver ............................75
Listening to music of a Bluetooth
device ....................................76
Listening to FM/AM radio .......... 48
Presetting FM/AM radio stations
(Preset Memory) ................... 50
7US
“BRAVIA” Sync Features
What is “BRAVIA” Sync? ..........79
Preparing for the “BRAVIA”
Sync .......................................79
One-Touch Play ...........................80
System Audio Control .................81
System Power-Off .......................81
Scene Select .................................81
Home Theatre Control .................82
Remote Easy Control ..................82
Other Operations
Switching between digital and
analog audio (INPUT
MODE) .................................83
Using other audio input jacks
(Audio Input Assign) ............83
Using a bi-amplifier
connection .............................85
Reverting back to the factory
default settings ......................85
Adjusting Settings
Using the Settings menu ..............86
Easy Setup ...................................88
Speaker Settings menu ................88
Audio Settings menu ...................92
HDMI Settings menu ..................94
Input Settings menu .....................95
Network Settings menu ...............95
System Settings menu .................96
Operating without using the
OSD .......................................97
Using the Remote
Control
Reassigning the input button .....103
Resetting the input buttons ........104
8US
Additional Information
Precautions ................................ 104
Troubleshooting ........................ 106
Specifications ............................ 119
Index ......................................... 122
Supplied accessories
•
•
•
•
•
Operating Instructions (this manual)
Quick Setup Guide (1)
Remote control (RM-AAU170) (1)
R6 (size AA) batteries (2)
FM wire antenna (aerial) (1)
Inserting batteries into
the remote control
Insert two R6 (size-AA) batteries
(supplied) in the remote control. Observe
the correct polarity when installing
batteries.
• AM loop antenna (aerial) (1)
• Optimizer microphone (ECM-AC2) (1)
Notes
• Do not leave the remote control in an extremely
hot or humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds
of batteries.
• Do not expose the remote control sensor to
direct sunlight or lighting apparatuses. Doing so
may cause a malfunction.
• If you do not intend to use the remote control for
an extended period of time, remove the batteries
to avoid possible damage from battery leakage
and corrosion.
• When you replace the batteries, the remote
control buttons may be reset to their default
settings. If this happens, reassign the input
buttons (page 103).
• When the receiver no longer responds to the
remote control, replace all the batteries with
new ones.
9US
Description and location of parts
Front panel
A ?/1 (on/standby) (page 33, 50, 56)
Press TUNING +/– to scan a station.
The indicator above the button lights
up as follows:
Green: The receiver is turned on.
Amber: The receiver is in standby
mode, and
– Either “Control for HDMI”
(page 94), “Network Standby”
(page 96), or “BT Standby”
(page 78) is set to “On”.
– “Pass Through” (page 94) is set to
“On” or “Auto”.
Lights off when the receiver is in
standby mode and “Control for
HDMI”, “Pass Through”, “Network
Standby”, and “BT Standby” are set to
“Off”.
D A.F.D./2CH, MOVIE, MUSIC
(page 51, 53)
E Display panel (page 11)
F SOUND OPTIMIZER (page 54)
G BLUETOOTH (page 76)
Note
L
M
N
O
P
If the indicator flashes slowly, the software
update is in progress (page 71). If the
indicator flashes in quick succession, the
software update has error (page 106).
B SPEAKERS (page 35)
C TUNING MODE, TUNING +/–
Press TUNING MODE to operate a
tuner (FM/AM).
10US
Operates the Bluetooth function.
H DIMMER
Adjusts the brightness of the display
panel in 3 levels.
I DISPLAY (page 102)
J Remote control sensor
Receives signals from remote control.
K PURE DIRECT (page 55)
The indicator above the button lights
up when PURE DIRECT is activated.
MASTER VOLUME (page 42)
INPUT SELECTOR (page 42)
(USB) port (page 29)
AUTO CAL MIC jack (page 34)
PHONES jack
Connects to headphones.
Indicators on the display panel
A Input indicator
Lights up to indicate the current input.
HDMI
The receiver recognizes the equipment
connected via an HDMI IN jack.
ARC
TV input is selected and the Audio
Return Channel (ARC) signals are
detected.
COAX
Digital signal is input through the
COAXIAL jack (page 83).
OPT
Digital signal is input through the
OPTICAL jack (page 83).
B PARTY
Lights up when PARTY
STREAMING function is activated
(page 68).
C S.OPTIMIZER
Lights up when Sound Optimizer
function is activated (page 54).
D D.C.A.C.
Lights up when the measurement
results of the “Auto Calibration”
function are applied.
E
G Speaker system indicator
(page 35)
H Tuning indicator
ST
Lights up when the receiver tunes to a
stereo broadcast.
MEM
Lights up when memory function, such
as Preset Memory (page 50), etc., is
activated.
I SLEEP
Lights up when the Sleep Timer is
activated (page 15).
J EQ
Lights up when the equalizer is
activated.
K D.L.L.
Lights up when the D.L.L. (Digital
Legato Linear) function is activated
(page 92).
L D.R.C.
Lights up when dynamic range
compression is activated (page 93).
M NEO:6
Lights up when DTS Neo:6 Cinema/
Music decoding is activated (page 53).
TrueHD*
Lights up when the receiver is
decoding Dolby True HD signals.
F DTS(-HD) indicator*
Lights up the respective indicator
when the receiver is decoding the
corresponding DTS format signals.
DTS
DTS
DTS-HD
DTS-HD
11US
N Dolby Pro Logic indicator
Lights up the respective indicator
when the receiver performs Dolby Pro
Logic processing. This matrix
surround decoding technology can
enhance input signals.
PL
Dolby Pro Logic
PL II
Dolby Pro Logic II
PL IIx
Dolby Pro Logic IIx
PL IIz
Dolby Pro Logic IIz
Note
These indicators may not light up depending
on the speaker pattern setting.
O A.P.M.
Lights up when the A.P.M. (Automatic
Phase Matching) function is activated.
You can only set the A.P.M. function
in the DCAC (Digital Cinema Auto
Calibration) function (page 33).
P UPDATE
Lights up when a new software is
available (page 71).
Q BT
Lights up when Bluetooth device is
connected.
R Wireless LAN signal strength
indicator
Lights up to show the strength of the
wireless LAN signal (page 38, 39).
No signal.
The signal strength is weak.
The signal strength is
moderate.
The signal strength is strong.
S Wired LAN indicator
Lights up when LAN cable is
connected.
12US
T USB
Lights up when iPod/iPhone or USB
device is detected.
* When playing a Dolby Digital or DTS format
disc, make sure that you have completed the
digital connections and that INPUT MODE is
not set to “Analog” (page 83) or “Analog
Direct” is not selected.
Rear panel
A DIGITAL INPUT/OUTPUT section
E AUDIO INPUT/OUTPUT section
HDMI IN/OUT* jacks (page
24, 27, 29)
White (L)
OPTICAL IN jacks (page 24,
28)
Red (R)
Black
COAXIAL IN jack (page 29)
B TUNER section
FM ANTENNA jack
(page 30)
AM ANTENNA terminals
(page 30)
C NETWORK section
AUDIO IN jacks
(page 24, 28, 29)
SUBWOOFER OUT
jacks (page 22)
F VIDEO INPUT/OUTPUT section
(page 24, 28)
Yellow
VIDEO IN/OUT*
jacks
* You must connect the HDMI TV OUT or
MONITOR OUT jack to your TV to watch the
selected input image (page 24).
LAN port (page 32)
Wireless LAN antenna
(page 32)
D SPEAKERS section (page 22)
13US
Remote control
Use the supplied remote control to operate
this receiver and other equipment. The
remote control is assigned to operate Sony
audio/video equipment. You can reassign
the input button to match the equipment
connected to your receiver (page 103).
To use the buttons printed
in pink
Hold down SHIFT (N), then press the
button printed in pink that you want to use.
Example: Hold down SHIFT (N), then
press MEM (E).
2
Press
RM-AAU170
1
Hold down
To control the receiver
A ?/1 (on/standby)
Turns the receiver on or sets it to the
standby mode.
Saving the power in standby mode
When “Control for HDMI”, “Network
Standby”, “Pass Through”, and “BT
Standby” are set to “Off”.
B TV ?/11) (on/standby)
Turns the TV on or sets it to the
standby mode.
C Input buttons
Selects the equipment you want to use.
When you press any of the input
buttons, the receiver turns on. The
buttons are assigned to control Sony
equipment.
Numeric/text buttons1) 2)
Hold down SHIFT (N), then press
numeric/text buttons to
– preset/tune to the preset stations
(page 50).
14US
– select track numbers. Press 0/10 /= to
select track number 10.
– select channel numbers.
– select the letters (ABC, DEF, etc.).
– select [email protected] for punctuation marks (!, ?,
etc.) or other symbols (#, %, etc.)
when you enter characters for
network features.
Press TV in (C), hold down SHIFT
(N), then press the numeric buttons to
select the TV channels.
CHARACTER
Hold down SHIFT (N), then press
CHARACTER to select the character
type for network features.
Each time you press CHARACTER,
the character type changes in sequence
as follows:
“abc” (lowercase letters) t “ABC”
(uppercase letters) t “123”
(numbers)
CLEAR1)
Hold down SHIFT (N), then press
CLEAR to
– erase a letter for network features.
– clear a mistake when you press the
incorrect numeric/text button.
D ALPHABET SEARCH
Searches for item using a keyword
(page 74).
• The Sleep Timer will be canceled when
you perform the following.
– Press SLEEP again.
– Update the software of the receiver.
– Press ?/1.
MEM
Hold down SHIFT (N), then press
MEM to store a station during tuner
operation.
F iPhone CTRL
Enters iPod/iPhone control mode when
using iPod/iPhone.
G POP UP/MENU1)
Opens or closes the BD-ROM’s Popup Menu, or the DVD’s menu.
TOP MENU1)
Opens or closes the BD-ROM’s or
DVD’s Top Menu.
H AMP MENU
Displays the menu to operate the
receiver (page 97).
I OPTIONS1)
Displays and selects items from the
options menu.
J HOME1)
Displays the home menu to operate the
audio/video equipment.
K m/M1), ./>1), N1), X1),
x1)
ALPHABET PREV
Backward/forward, skip, play, pause,
stop operation.
Searches for previous item.
TUNING +/–1)
ALPHABET NEXT
Scans a station.
Searches for next item.
D.TUNING2)
E SLEEP
Press AMP (X), then press SLEEP to
set the receiver to off automatically at
a specified time. Each time you press
SLEEP, the display changes cyclically
as follows:
0:30:00 t 1:00:00 t 1:30:00 t
2:00:00 t OFF
Tips
• To check the remaining time before the
receiver turns off, press SLEEP. The
remaining time appears on the display
panel.
Enters direct tuning mode.
PRESET +/–1)
Selects preset stations or channels.
L SOUND FIELD +/– 2)
Selects a sound field (page 51).
M PURE DIRECT (page 55)
Enters Pure Direct mode.
N SHIFT
Changes the remote control button
function to activate the buttons printed
in pink.
15US
O
+/–
Adjust the volume level of all speakers
at the same time.
P
Turns off the sound temporarily. Press
the button again to restore the sound.
Q RETURN O1)
Returns to the previous menu or exits
the menu while the menu or on-screen
guide is displayed on the TV screen.
1)
1)
R
, V/v/B/b
Press V/v/B/b to select the menu
items, then press
to enter/confirm
the selection.
S DISPLAY1)
Views information on the display
panel.
T
SHUFFLE1)
Plays a track or a folder in random
order.
REPEAT1)
Plays a track or a folder repeatedly.
U PARTY START/CLOSE2)
Starts or closes a PARTY (page 69).
PARTY JOIN/LEAVE
Joins or leaves a PARTY (page 69).
V PREVIEW (HDMI)
Selects the “Preview for HDMI”
function.
Turns on a live picture-in-picture
preview of HDMI inputs connected to
this receiver. Press V/v repeatedly to
select each HDMI input preview, then
press to enter/confirm the selection.
(This feature is powered by Silicon
Image InstaPrevueTM technology)
Note
The “Preview for HDMI” function is
available for HDMI BD, DVD, GAME, and
VIDEO input.
Tips
• This function does not work in the
following cases.
– The equipment is not connected to the
HDMI input jack.
16US
– The equipment connected to the
supported HDMI input jack is not turned
on.
– The current input is not HDMI input.
– When “Fast View” is set to “Off”.
– When an unsupported HDMI video
format (480i, 576i, 4K, some 3D video
signal, some video camera signal or
VGA signal) is input.
• The picture-in-picture preview will be
blacked out when 4K or some 3D video
signal is input.
W TV INPUT1)
Selects the input signal (TV input or
video input).
X AMP
Activates the receiver operation.
1) See the table on
page 17 for information on the
buttons that you can use to control each
equipment.
2) The 5/JKL/VIDEO, PARTY START/CLOSE,
D.TUNING/N, and SOUND FIELD +
buttons have tactile dots. Use the tactile dots as
reference when operating the receiver.
Notes
• The above explanation is intended to serve as
examples.
• Depending on the model of your connected
equipment, some functions explained in this
section may not work with the supplied remote
control.
To control other Sony equipment
Name
TV
B TV ?/1
z
C Numeric buttons
z
VCR
DVD
player
Blu-ray Disc
player
CD player
z
z
z
z
z
z
z
z
z
CLEAR
G POP UP/MENU
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
z
N, X, x
z
z
z
z
z
Q RETURN O
z
z
z
R V/v/B/b,
z
z
z
z
S DISPLAY
z
z
z
z
z
z
TOP MENU
I OPTIONS
z
J HOME
z
K ./>
z
m/M
T SHUFFLE
z
REPEAT
W TV INPUT
z
z
z
17US
Getting started
You can enjoy your audio/video equipment connected to the receiver by following the
simple steps below.
Before connecting cords, be sure to disconnect the AC power cord (mains lead).
Installing and connecting the
speakers (page 20, 22)
Preparing the receiver
See “Connecting the AC power cord (mains
lead)” (page 33) and “Turning on the receiver”
(page 33).
Checking the connection appropriate
for your equipment
Connecting the TV and video
equipment (page 24, 25)
The image quality depends on the connecting
jack. See the illustration below. Select the
connection according to the jacks on your
equipment.
We recommend that you connect your video
equipment via HDMI connection if they have
HDMI jacks.
Digital
Analog
High quality image
Connecting the audio equipment
(page 29)
18US
Setting the receiver
See “Setting up the receiver using the Easy
Setup” (page 33).
Setting the audio output settings on the
connected equipment
To output multi channel digital audio, check the
digital audio output setting on the connected
equipment.
For a Sony Blu-ray Disc player, check that
“Audio (HDMI),” “BD Audio MIX Setting,”
“Dolby Digital/DTS,” “Dolby Digital,” and
“DTS” are set to “Auto,” “Off,” “Bitstream,”
“Dolby Digital,” and “DTS,” respectively (as
of August 1, 2012).
For a PlayStation 3, after having connected the
receiver with an HDMI cable, select the “Audio
Output Settings” in “Sound Settings,” and
select “HDMI” and “Automatic” (with system
software version 4.21).
For details, refer to the operating instructions
supplied with the connected equipment.
z
Digital audio formats supported by the receiver
Digital audio formats that this receiver can decode depend on digital audio output jacks of
the equipment connected. This receiver supports the following audio formats.
Audio format
[Display]
Maximum number
of channels
Connection between the playback
equipment and the receiver
COAXIAL/OPTICAL
HDMI
5.1
a
a
Dolby Digital EX
[DOLBY D EX]
6.1
a
a
Dolby Digital Plusa)
[DOLBY D +]
7.1
Г—
a
Dolby
[DOLBY HD]
7.1
Г—
a
DTS
[DTS]
5.1
a
a
DTS-ES
[DTS-ES]
6.1
a
a
DTS 96/24
[DTS 96/24]
5.1
a
a
DTS-HD
High Resolution Audioa)
[DTS-HD HR]
7.1
Г—
a
DTS-HD
Master Audioa)b)
[DTS-HD MA]
7.1
Г—
a
DSDa)
[DSD]
5.1
Г—
a
Multi Channel Linear PCMa)
[PCM]
7.1
Г—
a
Dolby Digital
[DOLBY D]
TrueHDa)
a) Audio
b)
signals are output in another format if the playback equipment does not correspond to the
format. For details, refer to the operating instructions of the playback equipment.
Signals with a sampling frequency of more than 96 kHz are played back at 96 kHz or 88.2 kHz.
19US
Connections
1: Installing the speakers
This receiver allows you to use up to a 7.2
channel system (7 speakers and 2
subwoofers).
7.1 channel speaker system
using surround back
speakers
Example of speaker system
configuration
You can enjoy high fidelity reproduction of
DVD or Blu-ray Disc software recorded
sound in 6.1 channel or 7.1 channel format.
• 6.1 channel speaker placement
Place the surround back speaker behind
the listening position.
A Front speaker (Left)
B Front speaker (Right)
C Center speaker
D Surround speaker (Left)
E Surround speaker (Right)
F Surround back speaker (Left)*
G Surround back speaker (Right)*
H Front high speaker (Left)*
I Front high speaker (Right)*
J Subwoofer
* You cannot use the surround back speakers and
the front high speakers simultaneously.
5.1 channel speaker system
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer.
20US
• 7.1 channel speaker placement
Place the surround back speakers as
shown in the illustration below. The angle
A should be the same.
7.1 channel speaker system
using front high speakers
Connections
You can enjoy vertical sound effects by
connecting additional two front high
speakers.
Place the front high speakers
– at an angle between 25° to 35°.
– at an angle of 20° ± 5° in height.
20Лљ В± 5Лљ
Tip
Since the subwoofer does not emit highly
directional signals, you can place it wherever you
want.
21US
2: Connecting the speakers
Before connecting cords, be sure to disconnect the AC power cord (mains lead).
Surround speaker
Right
Left
B
A
Right
A Monaural audio cord (not supplied)
B Speaker cord (not supplied)
22US
B
B
A
Subwoofer*
Center speaker
B
Left
Surround back/
Bi-amplifier/ Front high/
Front B speaker**
Right
Left
Front A speaker
Bi-amplifier connection
If you are not using surround back speakers
and front high speakers, you can connect
the front speakers to the SPEAKERS
SURROUND BACK/ BI-AMP/ FRONT
HIGH/ FRONT B terminals using a biamplifier connection.
Front speaker
(Right)
Front speaker
(Left)
Note
After you have installed and connected your
speaker, be sure to select the speaker pattern from
the Speaker Settings menu (page 88).
Connect the jacks on the Lo (or Hi) side of
the front speakers to the SPEAKERS
FRONT A terminals, and connect the jacks
on the Hi (or Lo) side of the front speakers
to the SPEAKERS SURROUND BACK/
BI-AMP/ FRONT HIGH/ FRONT B
terminals.
Make sure that metal fittings of Hi/Lo
attached to the speakers have been removed
from the speakers to avoid receiver
malfunction.
After you have made the bi-amplifier
connection, set the “SB Assign” to “BiAmp” in the Speaker Settings menu
(page 90).
23US
Connections
* When you connect a subwoofer with an auto
standby function, turn off the function when
watching movies. If the auto standby function
is set to on, it turns to standby mode
automatically based on the level of the input
signal to the subwoofer, and the sound may
not be output.
** Notes on the SPEAKERS SURROUND
BACK/ BI-AMP/ FRONT HIGH/ FRONT B
terminals connection.
– If you connect only one surround back
speaker, connect it to L of this terminals.
– If you have an additional front speaker
system, connect them to this terminals.
Set the “SB Assign” to “Speaker B” in the
Speaker Settings menu (page 90). You can
select the front speaker system you want by
using the SPEAKERS button on the
receiver (page 35).
– You can connect the front speakers to this
terminals using bi-amplifier connection
(page 23).
Set the “SB Assign” to “Bi-Amp” in the
Speaker Settings menu (page 90).
3: Connecting the TV
You can watch the selected input image when you connect the HDMI TV OUT or
MONITOR OUT jack to a TV. You can operate this receiver using a OSD (On-Screen
Display) if you connect HDMI TV OUT jack to a TV.
Before connecting cords, be sure to disconnect the AC power cord (mains lead).
TV
Audio signals
Video signals
Audio/Video
signals
or
A**
B**
ARC
C
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Video cord (not supplied)
D HDMI cable (not supplied)
Sony recommends that you use an
HDMI-authorized cable or Sony HDMI
cable.
24US
D*
Recommended connection
Alternative connection
* If your TV is compatible with the Audio Return
Channel (ARC) function, connect D.
Be sure to set the “Control for HDMI” to “On”
in HDMI Settings menu (page 80). If you want
to select an audio signal using other than an
HDMI cable (e.g., via an optical digital cord or
an audio cord), switch the audio input mode
using INPUT MODE (page 83).
**If your TV is not compatible with the ARC
function, connect A or B.
Be sure to turn off the TV’s volume or
activate the TV’s muting function.
4a: Connecting the
video equipment
Using HDMI connection
High-Definition Multimedia Interface
(HDMI) is an interface which transmits
video and audio signals in digital format.
By connecting Sony “BRAVIA” Synccompatible equipment using HDMI cables,
operations can be simplified. See
““BRAVIA” Sync Features” (page 79).
Notes
HDMI features
• Depending on the status of the connection
between the TV and the antenna (aerial), the
image on the TV screen may be distorted. If this
is the case, place the antenna (aerial) farther
away from the receiver.
• When connecting optical digital cords, insert the
plugs straight until they click into place.
• Do not bend or tie optical digital cords.
• A digital audio signals transmitted by
HDMI can be output from the speakers
connected to the receiver. This signal
supports Dolby Digital, DTS, DSD and
Linear PCM. For details, see “Digital
audio formats supported by the receiver”
(page 19).
• The receiver can receive Multi Channel
Linear PCM (up to 8 channels) with a
sampling frequency of 192 kHz or less
with an HDMI connection.
• This receiver supports High Bitrate
Audio (DTS-HD Master Audio, Dolby
TrueHD), Deep Color (Deep Colour),
“x.v.Color (x.v.Colour)”, and 4K or 3D
transmission.
• To enjoy 3D images, connect 3Dcompatible TV and video equipment
(Blu-ray Disc player, Blu-ray Disc
recorder, PlayStation 3, etc.) to the
receiver using High Speed HDMI cables,
put on 3D glasses, and then play back a
3D-compatible content.
• To enjoy 4K (HDMI BD, GAME, and
VIDEO input) images, connect 4Kcompatible TV and video equipment
(Blu-ray Disc player, etc.) to the receiver
using High Speed HDMI cables, and then
play back a 4K-compatible content.
• You can view HDMI BD, DVD, GAME,
and VIDEO input on picture-in-picture
preview.
Tips
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
• When you connect the audio output jack of the
TV to the TV IN jacks of the receiver to output
the TV sound from the speakers connected to
the receiver, set the sound output jack of the TV
to “Fixed” if it can be switched between either
“Fixed” or “Variable”.
To listen to the sound from
the TV
If your TV does not support System Audio
Control function, set the “HDMI Audio
Out” to “TV+AMP” in the HDMI Settings
menu (page 94).
25US
Connections
To enjoy the TV broadcast
in multi channel surround
sound from the receiver
Notes on HDMI connections
• Depending on the TV or the video
equipment, 4K or 3D images may not be
displayed. Check the 3D image formats
supported by the receiver (page 120).
• Refer to the operating instructions of each
connected equipment for details.
When connecting cords
• Before connecting cords, be sure to
disconnect the AC power cord (mains
lead).
• It is not necessary to connect all the cords.
Connect according to the availability of
jacks on the connected equipment.
• Use a High Speed HDMI cable. If you use
a Standard HDMI cable, 1080p, Deep
Color (Deep Colour), 4K or 3D images
may not be displayed properly.
• We do not recommend using an HDMIDVI conversion cable. When you connect
an HDMI-DVI conversion cable to a
DVI-D equipment, the sound and/or the
image may be lost. Connect a separate
audio cords or digital connecting cords,
then set the “Audio Input Assign” in the
Input Settings menu (page 83) when the
sound is not output correctly.
• When connecting optical digital cords,
insert the plugs straight until they click
into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
If you want to connect
several digital equipment,
but cannot find an unused
input
See “Using other audio input jacks (Audio
Input Assign)” (page 83).
26US
Connecting equipment with HDMI jacks
Connections
If your equipment does not have an HDMI jack, see page 28.
Blu-ray Disc player
DVD player
PlayStation 3
VCR, DVD recorder,
Video game
Audio/video
signals
Audio/video
signals
Audio/video
signals
Audio/video
signals
A
A
A
A
A HDMI cable (not supplied)
Sony recommends that you use an HDMIauthorized cable or Sony HDMI cable.
Notes
A
A
Audio/video
signals
Audio/video
signals
Satellite tuner,
cable TV tuner
Super Audio CD
player
• BD input has a better sound quality. When you need
a higher sound quality, connect your equipment to
the BD (for AUDIO) jack and select BD as input.
• The default settings for the BD input button on the
remote control is Blu-ray Disc player. Be sure to
change the default setting of the BD input button so
that you can use the button to control your
equipment. For details, see “Reassigning the input
button” (page 103).
• You can also rename the BD input so that it can be
displayed on the receiver display panel. For details,
see “Name In” in Input Settings menu (page 95).
27US
Connecting equipment with jacks other than HDMI
jacks
Satellite tuner, cable TV tuner
Audio signals
Video signals
VCR, DVD recorder, Video game
Audio signals
Video signals
or
A
B
C
A Optical digital cord (not supplied)
B Audio cord (not supplied)
C Video cord (not supplied)
28US
B
C
Recommended connection
Alternative connection
Connecting an iPod,
iPhone, USB device
Connections
4b: Connecting the
audio equipment
Connecting a Super
Audio CD Player, CD
player
Before connecting cords, be sure to
disconnect the AC power cord (mains
lead).
Super Audio CD player,
CD player
Audio signals
A
or
A
B
iPod, iPhone,
USB device
A USB cable (not supplied)
A Coaxial digital cord (not supplied)
B Audio cord (not supplied)
Recommended connection
Alternative connection
29US
5: Connecting the
antennas (aerials)
6: Connecting to the
network
Before connecting the antennas (aerials),
be sure to disconnect the AC power cord
(mains lead).
If you have an Internet connection, you can
connect this receiver to the Internet as well.
You can connect through a wireless or a
wired LAN connection.
AM loop antenna
(aerial) (supplied)
FM wire antenna (aerial)
(supplied)
System requirements
The following system environment is
required to use the network function of the
receiver.
A Broadband line
connection
A Broadband line connection to the
Internet is required in order to listen to
Sony Entertainment Network (SEN) and to
update the software of the receiver.
Modem
This is the device that is connected to the
broadband line to communicate with the
Internet. Some of these devices are
integrated with the router.
Router
Notes
• To prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and
other equipment.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal as possible.
30US
• Use a router compatible with 100 Mbps
or greater transmission speeds to enjoy
content on your home network.
• We recommend that you use a router
equipped with the built-in DHCP
(Dynamic Host Configuration Protocol)
server.
This function automatically assigns IP
addresses on the LAN.
• Use a wireless LAN router/access point if
you want to use a wireless LAN
connection.
LAN cable (CAT5) (For a
wired LAN connection only)
Connections
• We recommend that you use this type of
cable for a wired LAN.
Some flat-type LAN cables are easily
affected by noise. We recommend that
you use normal-type cables.
• If the receiver is used in an environment
in which there is power supply noise from
electric products or in a noisy network
environment, use a shielded-type LAN
cable.
Server
A server is a device which delivers content
(music, photos, and videos) to a DLNA
device on a home network. A device that
can be used as a server (a computer, etc.)
must be connected to your wireless or
wired LAN home network*.
* For details on servers which are compatible
with this receiver, see page 57.
31US
Configuration example
The following illustration is a configuration example of a home network with the receiver
and a server.
We recommend that you connect the server to the router with a wired connection.
Server
Internet
Modem
Router
LAN cable
(not supplied)
A For a wired LAN connection only.
B For a wireless LAN connection only.
Be sure to use a wireless LAN router/access
point.
Note
An audio playback on a server may occasionally
be interrupted when you use a wireless
connection.
32US
LAN cable
(not supplied)
Preparing the Receiver
Connect the AC power cord (mains lead) to
a wall outlet.
AC power cord (mains lead)
To the wall outlet
Turning on the receiver
?/1
Setting up the receiver
using the Easy Setup
You can set the basic settings of the
receiver easily by operating the receiver in
accordance with the instructions on the TV
screen.
Switch the input of the TV to the input
which the receiver is connected.
When you turn on the receiver for the first
time or after the receiver is initialized, the
Easy Setup screen appears on the TV
screen. Follow the on-screen instructions to
set up the receiver.
You can set up the following functions
using the Easy Setup.
– Language
– Speaker Settings
– Network Settings
Notes on Speaker
Settings (Auto
Calibration)
This receiver is equipped with DCAC
(Digital Cinema Auto Calibration) function
which allows you to perform automatic
calibration as follows:
• Check the connection between each
speaker and the receiver.
• Adjust the speaker level.
Press ?/1 (on/standby) to turn on the
receiver.
33US
Preparing the Receiver
Connecting the AC
power cord (mains lead)
You can also turn on the receiver using ?/1
button on the remote control. When you
turn off the receiver, press ?/1 again.
“STANDBY” flashes on the display panel.
Do not disconnect the AC power cord
(mains lead) while “STANDBY” is
flashing. This may cause a malfunction.
• Measure the distance of each speaker
from your seating position.1)
• Measure the speaker size.1)
• Measure the frequency characteristics
(EQ).1)
• Measure the frequency characteristics
(Phase).1)2)
1)
The measurement result is not utilized when
“Analog Direct” is selected.
measurement result is not utilized when
Dolby TrueHD or DTS-HD signals with a
sampling frequency of more than 48 kHz are
being received.
2) The
The DCAC is designed to achieve proper
sound balance for your room. However,
you can adjust the speaker levels manually
according to your preference. For details,
see “Test Tone” (page 92).
Notes
• The speakers emit very loud sound during the
calibration and the volume cannot be adjusted.
Provide consideration to your neighborhood and
to the children in presence.
• If the muting function has been activated before
you perform Auto Calibration, the muting
function will shut off automatically.
• The correct measurements may not be able to
take or Auto Calibration cannot be performed
when special speakers, such as dipole speakers
are used.
To set up the Auto
Calibration
Before you perform Auto
Calibration
Before you perform Auto Calibration,
check the following items.
• Set up and connect the speakers (page 20,
22).
• Connect only the supplied optimizer
microphone to the AUTO CAL MIC jack.
Do not connect any other microphones to
this jack.
• Set the “SB Assign” to “Bi-Amp” in the
Speaker Settings menu if you use biamplifier connection (page 90).
• Set the “SB Assign” to “Speaker B” in the
Speaker Settings menu if you use
speakers front B connection (page 90).
• Make sure the speaker output is not set to
“SPK OFF” (page 35).
• Make sure that you are not using PARTY
STREAMING function (page 68).
• Disconnect the headphones.
• Remove any obstacles in the path
between the optimizer microphone and
the speakers to avoid measurement
errors.
• Get accurate measurement by making
sure the environment is quiet.
34US
Optimizer microphone
1
2
Connect the supplied optimizer
microphone to the AUTO CAL MIC
jack.
Set up the optimizer microphone.
Place the optimizer microphone at
your seating position and set it at the
same height as your ears.
Confirm active subwoofer
setup
• When a subwoofer is connected, turn on
the subwoofer and turn up the volume
prior to activating the subwoofer. Turn
the LEVEL to just before the mid-point.
• If you connect a subwoofer with a
crossover frequency function, set the
value to maximum.
• If you connect a subwoofer with an auto
standby function, set it to off
(deactivated).
Setting the speakers
To set the surround back
To select the front speaker
You can select the front speakers you want
to drive.
Be sure to use the buttons on the receiver to
perform this operation.
SPEAKERS
speakers
You can switch the usage of the speaker(s)
connected to the SURROUND BACK/
BI-AMP/FRONT HIGH/FRONT B
terminals in accordance with the intended
use.
Note
This setting is only available if the “Speaker
Pattern” is set to a setting without surround back
and front high speakers.
Press SPEAKERS repeatedly to select
the front speaker system you want to
drive.
1 Press HOME.
You can confirm the selected speakers
terminals by checking the indicator on the
display panel.
2
3
4
5
The home menu is displayed on the TV
screen.
Press V/v repeatedly to select
“Settings”, then press
.
Press V/v repeatedly to select
“Speaker Settings”, then press
.
Press V/v repeatedly to select “SB
Assign”, then press
.
Select the speaker setup that you
want, then press
.
• Speaker B: If you connect an
additional front speaker system to the
SURROUND BACK/BI-AMP/
FRONT HIGH/FRONT B terminals,
select “Speaker B”.
Indicators Selected speakers
SP A
The speaker connected to the
SPEAKERS FRONT A
terminals.
SP B*
The speaker connected to the
SPEAKERS SURROUND
BACK/ BI-AMP/ FRONT
HIGH/ FRONT B terminals.
SP A+B*
The speaker connected to both
the SPEAKERS FRONT A and
SPEAKERS SURROUND
BACK/ BI-AMP/ FRONT
HIGH/ FRONT B terminals
(parallel connection).
35US
Preparing the Receiver
Note
Depending on the characteristics of the
subwoofer you are using, the setup distance value
may be different from the actual position.
• Bi-Amp: If you connect front speakers
to the SURROUND BACK/BI-AMP/
FRONT HIGH/FRONT B terminals
using a bi-amplifier connection, select
“Bi-Amp”.
• Off: If you connect surround back or
front high speakers to the
SURROUND BACK/BI-AMP/
FRONT HIGH/FRONT B terminals,
select “Off”.
Indicators Selected speakers
“SPK OFF” appears on the
display panel.
No audio signals are output from
any speaker terminals.
Using a wired LAN
connection
DISPLAY
V/v/B/b,
* To select “SP B” or “SP A+B”, set the “SB
Assign” to “Speaker B” in the Speaker Settings
menu (page 90).
Note
This setting is not available when headphones are
connected.
HOME
1
To cancel Auto Calibration
The Auto Calibration function will be
canceled when you perform the following
during the measurement process:
– Press ?/1.
– Press the input buttons on the remote
control or turn the INPUT SELECTOR
on the receiver.
– Press
.
– Press SPEAKERS on the receiver.
– Change the volume level.
– Connect the headphones.
The home menu is displayed on the TV
screen.
2
3
4
5
To set up the receiver
manually
See “Adjusting Settings” (page 86).
Configuring the network
settings of the receiver
The network settings for the receiver must
be set correctly to use the Home Network,
SEN, AirPlay, and PARTY STREAMING
functions.
36US
Press HOME.
Press V/v repeatedly to select
“Settings”, then press
.
Press V/v repeatedly to select
“Network Settings”, then press
.
Press V/v repeatedly to select
“Internet Settings”, then press
.
Press V/v repeatedly to select
“Wired Setup”, then press
.
If “Change Settings?” appears on the
TV screen, select “OK”, then press
.
6
Press V/v repeatedly to select
“Auto”, then press
.
IP settings information appears on the
TV screen.
When using a fixed IP address
Select “Custom”, then press
. The
IP Address Setting appears on the TV
screen.
Press
. Press V/v to select the value
for “IP Address”. Press b to key in the
value for the next position. Press
to
exit cursor.
Next, enter the value for “Subnet
Mask” and “Default Gateway”. Press
b for DNS Settings page. Then enter
the value for “Primary DNS” and
“Secondary DNS”.
7
Press b.
8
Perform the server settings.
To listen to audio content stored on the
server, you need to set up your server
(page 57).
Tip
When checking the network settings, see
“Information” (page 95).
Using a wireless LAN
connection
There are several connecting methods you
can use to set up a wireless network:
searching for an access point, using a WPS
connecting method (either the push-button
method or the PIN code method), or
manual setting.
Notes
• Make sure not to use the wireless LAN function
where medical equipment (such as a pacemaker)
is used or where the use of wireless
communication is prohibited.
• Before connecting to your home network, you
need to prepare a wireless LAN router/access
point. For details, refer to the operating
instructions of the device.
• Depending on your home network environment,
the wireless LAN router/access point may have
been set up such that it cannot be connected
using WPS, even though it is compatible with
WPS. For details on whether your wireless LAN
router/access point is compatible or not
compatible with WPS, and on the setup of a
WPS connection, refer to the operating
instructions of your wireless LAN router/access
point.
• You may encounter setup difficulties if the
receiver and the wireless LAN router/access
point are located too far from each other. If you
do, move the devices closer to each other.
Searching for an access
point and setting up a
wireless network (Access
Point Scan method)
You can set up a wireless network by
searching for an access point. To set up the
network using this connection method, you
will be required to select or enter the
following information. Check the
following information in advance, and
record it in the space provided below.
The network name (SSID*) that
identifies your network**. (This
will be needed in step 7.)
:
If your wireless home network is
secured by encryption, the
security key (WEP key, WPA/
WPA2 key) for your network**.
(This will be needed in step 8.)
:
* SSID (Service Set Identifier) is a name that
identifies a particular access point.
** This information should be available from a
label on your wireless LAN router/access
point, from the operating instructions, from
the person who set up your wireless network,
or from the information provided by your
Internet service provider.
1
Select “Wireless Setup” in step 5
in “Using a wired LAN connection”
(page 36).
If “Change Settings?” appears on the
TV screen, select “OK”, then press
.
2
Press V/v repeatedly to select
“Access Point Scan”, then press
.
The receiver starts searching for access
points, and displays a list of up to 30
available network name (SSID).
3
Press V/v repeatedly to select the
network name (SSID) you want,
then press
.
The security setting display appears on
the TV screen.
37US
Preparing the Receiver
“Connecting to the Internet” appears
on the TV screen. “Network setup is
completed” appears after the network
settings are completed. To return to the
Network Settings menu, press
.
(Depending on the network
environment, the network settings may
take some time.)
4
Enter the security key (WEP key,
WPA/WPA2 key), then press
.
By default, the security key appears as
“*****”. Press DISPLAY repeatedly
to encrypt and disclose the security
key.
“IP Settings” appears on the TV
screen.
5
Press V/v repeatedly to select
“Auto”, then press
.
When using a fixed IP address
Select “Custom”, then press
.
The IP Address Setting appears on the
TV screen.
Press
. Press V/v to select the value
for “IP Address”. Press b to key in the
value for the next position. Press
to
exit cursor.
Next, enter the value for “Subnet
Mask” and “Default Gateway”. Press
b for DNS Settings page. Then, enter
the value for “Primary DNS” and
“Secondary DNS”.
6
Press b.
“Connecting to the internet” flashes on
the TV screen.
“Network setup is completed” appears
after the network settings are
completed and “
” lights up on the
display panel. To return to the
Network Settings menu, press
.
(Depending on the network
environment, the network settings may
take some time.)
7
Perform the server settings.
To listen to audio content stored on the
server, you need to set up your server
(page 57).
Note
If your network has not been secured by
encryption (using the security key), the security
setting display does not appear in step 8.
Tip
When checking the network settings, see
“Information” (page 95).
38US
Setting up a wireless
network using an access
point compliant with WPS
You can easily set up a wireless network
using an access point compliant with WPS.
The WPS setting can be made using either
the push-button configuration method or
the PIN (Personal Identification Number)
code method.
What is WPS (Wi-Fi
Protected Setup)?
WPS is a standard created by the Wi-Fi
Alliance allowing you to setup a wireless
network easily and securely.
Setting up a wireless
network using the WPS push
button configuration
method
You can easily set up a WPS wireless
connection with one push of the designated
button.
1 Select “WPS Push” in step 2 in
“Searching for an access point and
setting up a wireless network
(Access Point Scan method)”
(page 37).
2 Follow the on-screen instructions,
and press the WPS button on the
access point.
Message: Push WPS button on access
point within 2 minutes
WPS button on the
wireless LAN
router/access point
“Setup with WPS Push Button is
completed” appears after the network
settings are complete and “
” lights
up on the display panel. To return to the
Network Settings menu, press
.
(Depending on the network
environment, the network settings may
take some time.)
3 Perform the server settings.
To listen to audio content stored on the
server, you need to set up your server
(page 57).
(Depending on the network
environment, the network settings may
take some time.)
5 Perform the server settings.
To listen to audio content stored on the
server, you need to set up your server
(page 57).
Tips
• When checking the network settings, see
“Information” (page 95).
• For details on entering the PIN code into the
wireless LAN router/access point, refer to the
operating instructions of the wireless LAN
router/access point.
Setting up a wireless
network using the WPS PIN
code method
If the access point supports the WPS PIN
(Personal Identification Number) code
connection, you can set up a WPS wireless
connection by entering the receiver’s PIN
code into the wireless LAN router/access
point.
1 Select “Manual Registration” in step
2 in “Searching for an access point
and setting up a wireless network
(Access Point Scan method)”
(page 37).
2 Press V/v repeatedly to select “WPS
PIN”, then press
.
The available SSID (access point) list
appears.
3 Press V/v repeatedly to select the
network name (SSID) you want, then
press
.
The PIN code (8 digits) of the receiver
appears on the TV screen. Leave the PIN
code displayed until the connection is
complete. (A different PIN code is
displayed each time you perform this
operation.)
4 Input the receiver’s PIN code into the
wireless LAN router/access point.
The receiver starts the network settings.
“Completed” appears after the network
” lights
settings are complete and “
up on the display panel. To return to the
Network Settings menu, press
.
If you cannot find the
network name (SSID) you
want (manual setup
method)
You can input the network name (SSID)
you want manually if it does not appear on
the list.
1 Select “Manual Registration” in step
2
3
4
5
2 in “Searching for an access point
and setting up a wireless network
(Access Point Scan method)”
(page 37).
Press V/v repeatedly to select
“Direct Input”, then press
.
Enter the network name (SSID), then
press
.
Press V/v repeatedly to select the
security setting you want, then press
.
Follow steps 4 to 7 in “Searching for
an access point and setting up a
wireless network (Access Point Scan
method)” (page 37).
39US
Preparing the Receiver
Tip
When checking the network settings, see
“Information” (page 95).
Guide to on-screen
display (OSD) operation
You can display the menu of the receiver
on the TV screen and select the function
you want to use on the TV screen by
pressing V/v/B/b and
on the remote
control.
When you start operating the receiver,
make sure to press AMP on the remote
control first. Otherwise, operations that
follow may not be aimed at the receiver.
3
Press V/v repeatedly to select a
menu you want, then press
to
enter the menu.
The menu item list appears on the TV
screen.
Example: When you select “Watch”.
AMP
4
V/v/B/b,
RETURN
O
OPTIONS
HOME
Using the menu
1
2
Switch the input of the TV so that
an image of the menu is displayed.
5
Press V/v repeatedly to select the
menu item you want to adjust, then
press
to enter the menu item.
Repeat steps 3 and 4 to select the
parameter you want.
Tip
When “OPTIONS” appears in the lower right
portion of the OSD, you can display the function
list by pressing OPTIONS and selecting a related
function.
To return to the previous
screen
Press RETURN O.
Press HOME.
To exit the menu
The home menu is displayed on the TV
screen.
Depending on the TV, the home menu
may take some time to appear on the
TV screen.
Press HOME to display the home menu,
then press HOME again.
40US
Overview of the home
menus
Description
Watch
Selects the video source to
be input to the receiver
(page 41).
Listen
Selects the music from the
SA-CD/CD, USB device,
Bluetooth device, Home
Network or SEN (page 41).
You can also enjoy FM/AM
radio of the built in receiver.
Sound Effects
Enables you to enjoy sound
development provided by
various Sony proprietary
technologies or functions
(page 51).
Settings
Adjusts the settings of the
receiver (page 86).
Basic Operations
Playing an input source
equipment
?/1
Input
buttons
V/v/B/b,
OPTIONS
HOME
2 +/–
1
SOUND
FIELD +/–
Press HOME.
The home menu is displayed on the TV
screen.
2
Select “Watch” or “Listen,” then
press
.
The menu item list appears on the TV
screen.
3
4
Select the equipment you want,
then press
.
Turn on the equipment and start
playback.
41US
Basic Operations
Menu icon
5
Press 2 +/– to adjust the volume.
You can also use MASTER VOLUME
on the receiver.
6
Press SOUND FIELD +/– to enjoy
the surround sound.
You can also use A.F.D./2CH,
MOVIE or MUSIC on the receiver.
For details, see page 51.
Tips
• You can turn INPUT SELECTOR on the
receiver or press input buttons on the remote
control to select the equipment you want.
• You can adjust the volume differently using the
MASTER VOLUME knob on the receiver or
the 2 +/– button on the remote control.
To turn the volume up or down quickly
– Turn the knob quickly.
– Press and hold the button.
To make fine adjustment
– Turn the knob slowly.
– Press the button and release it immediately.
To activate the muting
function
Press
.
The muting function will be canceled when
you do the following.
• Press
again.
• Change the volume.
• Turn off the receiver.
• Perform Auto Calibration.
To avoid damaging your
speakers
Before you turn off the receiver, be sure to
turn down the volume level.
42US
Playing an iPod/iPhone
You can enjoy music contents from the iPod/iPhone by connecting it to the
on the receiver.
For details on connecting the iPod/iPhone, see page 29.
(USB) port
Compatible iPod/iPhone models
iPod touch
4th generation
iPod touch
3rd generation
iPod touch
2nd generation
iPod nano
6th generation
iPod nano
5th generation
(video camera)
iPod nano
4th generation
(video)
iPod nano
3rd generation
(video)
iPod classic
iPhone 3GS
iPhone 3G
iPhone 4S
iPhone 4
Notes
• Sony cannot accept responsibility in the event that data recorded to iPod/iPhone is lost or damaged
when using an iPod/iPhone connected to this receiver.
• This product has been designed specifically to work with iPod/iPhone and has been certified to meet
Apple performance standards.
43US
Basic Operations
You can use the following iPod/iPhone models on this receiver. Update your iPod/iPhone
with the latest software before using it.
To operate the iPod/iPhone
using the remote control
Selecting the iPod/
iPhone control mode
You can select the iPod/iPhone control
mode using the iPhone CTRL on the
remote control.
You can also control all operations by
viewing the information on the display
panel when the TV screen is turned off.
USB
iPhone
CTRL
iPhone
CTRL
SHUFFLE
REPEAT
V/v/B/b,
HOME
1
m/M
Press HOME.
N
./>
The home menu is displayed on the TV
screen.
2
3
Select “Listen”, then press
Select “USB”, then press
.
.
When the iPod or iPhone is connected,
“iPod/iPhone” appears on the TV
screen.
4
Follow the on-screen instructions
to select the iPod/iPhone control
mode.
X
x
Press USB before you use the following
buttons.
Press
Operation
N
Starts play.
X, x
Pauses play.
m/M
Fast reverses or forwards.
./>
Goes to the previous/next
track.
REPEAT
Enters repeat mode.
SHUFFLE
Enters shuffle mode.
iPhone CTRL Selects the iPod/iPhone
control mode.
44US
Notes on iPod/iPhone
• The iPod/iPhone is charged when
connected to the receiver while the
receiver is turned on.
• You cannot transfer songs onto the iPod/
iPhone from this receiver.
• Do not remove the iPod/iPhone during
operation. To avoid data corruption or
damage to the iPod/iPhone, turn the
receiver off when connecting or
removing the iPod/iPhone.
Extensions
MP3 (MPEG-1
Audio Layer III)
“.mp3”
AAC*
“.m4a”, “.3gp”,
“.mp4”
WMA9 Standard*
“.wma”
WAV
“.wav”
FLAC
“.flac”
* The receiver does not play files encoded with
DRM.
Message and explanation
Reading
The receiver is recognizing and reading
information of the iPod or iPhone.
Not supported
An unsupported iPod or iPhone is connected.
No device is connected
Compatible USB
devices
You can use the following Sony USB
devices on this receiver.
No iPod or iPhone is connected.
Verified Sony USB device
No music
Product name
Model name
No music was found.
WalkmanВ®
NWZ-A864
Headphones not supported
No sound is output from the headphones when
iPod or iPhone is connected.
NWZ-B152F / B162F /
B172
NWZ-E053 / E354 / E363 /
E373 / E453 / E463 / E575
NWZ-F805 / F806N
Playing a USB device
NWZ-S755 / S764 / S774 /
S774BT
You can enjoy music from the USB device
by connecting it to the (USB) port on the
receiver.
For details on connecting a USB device,
see “Connecting an iPod, iPhone, USB
device” (page 29).
The music file formats that can be played
back by this receiver are as follows:
NWZ-W262 / W272
NWZ-Z1040 / Z1070
NWD-W253
MICROVAULT USM1GL / 4GL / 8GL /
32GL
USM16GLX / 32GLX /
64GLX
USM4GN / 8GN / 32GN
USM4GM / 16GM
USM8GQ / 32GQ / 64GQ
USM16GR / 32GR
45US
Basic Operations
iPod/iPhone message list
File format
Product name
Model name
USM4GS / 8GJ / 8GT /
16GS / 16GU / 64GP /
512J
Digital Voice
Recorder
Operating the USB
device
ICD-SX713 / SX1000 /
PX232 / PX333F / FX8 /
TX50 / UX513F /
UX523F / UX532 /
UX533F
V/v/B/b,
OPTIONS
HOME
ICZ-R50 / R51
N
Notes
• The receiver is unable to read data in NTFS
format.
• The receiver is unable to read data other than
that saved in the first partition of a hard disk
drive.
• Operation of models not listed here is not
guaranteed.
• Operation may not always be ensured even
when using these USB devices.
• Some of these USB devices may not be
available for purchase in certain areas.
• When formatting the above models, be sure to
format using the model itself or the dedicated
formatting software for that model.
• When connecting a USB device to the receiver,
be sure to connect after the display “Creating
Library” or “Creating Database” on the USB
device has disappeared.
46US
1
Press HOME.
The home menu is displayed on the TV
screen.
2
3
Select “Listen”, then press
Select “USB”, then press
.
.
When the USB device is connected,
“USB” appears on the TV screen.
You can operate the USB device using
the remote control of the receiver.
4
Select the content you want from
the content list, then press
.
The selected content starts playback
and the information of music/video
contents appears on the TV screen.
To operate the USB device
using the remote control
USB
N
./>
X
x
Press USB before you use the following
buttons.
Press
Operation
N
Starts play.
X
Pauses play.
x
Stops play.
./>
Goes to the previous/next file.
REPEAT
Enters repeat mode.
SHUFFLE
Enters shuffle mode.
• Do not remove the USB device during
operation. To avoid data corruption or
damage to the USB device, turn the
receiver off when connecting or
removing the USB device.
• Do not connect the receiver and the USB
device through a USB hub.
• When the USB device is connected,
“Reading” appears.
• It may take about 10 seconds before
“Reading” appears depending on the type
of USB device connected.
• When the USB device is connected, the
receiver reads all the files on the USB
device. If there are many folders or files
on the USB device, it may take a long
time to finish reading the USB device.
• The receiver can recognize up to
– 256 folders (including “ROOT” folder).
– 256 audio files for each folder.
– 8 folder levels (tree structure of files,
including “ROOT” folder).
The maximum number of audio files and
folders may vary depending on the file
and folder structure.
Do not save other types of files or
unnecessary folders on a USB device.
• Compatibility with all encoding/writing
softwares, recording devices, and
recording media cannot be guaranteed.
Incompatible USB device may produce
noise or interrupted audio or may not play
at all.
• Some time may be needed to start
playback when:
– the folder structure is complex.
– the memory capacity is excessive.
• This receiver does not necessarily
support all the functions provided in a
connected USB device.
• The playback order for the receiver may
differ from the playback order of the
connected USB device.
• Folders that have no audio files are
skipped.
• When playing a very long track, some
operations may cause playback delay.
47US
Basic Operations
SHUFFLE
REPEAT
Notes on the USB device
USB message list
Message and explanation
Tuner Operations
Reading
The receiver is recognizing and reading
information of the USB device.
Device error
The memory of the USB device could not be
recognized (page 45).
Not supported
An unsupported USB device is connected, an
unknown device is connected, or the USB
device is connected through a USB hub
(page 45).
Listening to FM/AM
radio
You can listen to FM and AM broadcasts
through the built-in tuner. Before
operation, be sure you have connected the
FM and AM antennas (aerials) to the
receiver (page 30).
Tip
No device is connected
The tuning scale for direct tuning is shown below.
No USB device is connected or the connected
USB device is not recognized.
Area
FM
AM
No Track
USA, Canada
100 kHz
10 kHz*
No track was found.
Mexico
50 kHz
10 kHz*
* The AM tuning scale can be changed (page 50).
48US
1 Frequency indication (page 49)
2 Preset station list (page 50)
Tuning to a station
automatically (Auto
Tuning)
Numeric
buttons
Select “Tuning +” or “Tuning –”, then
press
.
V/v/b,
HOME
D.TUNING
SHIFT
1
2
Select “Listen” from the home
menu, then press
.
Select “FM” or “AM” from the
menu, then press
.
The FM or AM menu list appears on
the TV screen.
FM/AM screen
You can select and operate each item
on the screen by pressing V/v/B/b and
.
In case of poor FM stereo
reception
1 Tune in the station you want to listen
to using Auto Tuning, Direct Tuning
(page 49), or select the preset
station you want (page 50).
2 Press OPTIONS.
3 Select “FM Mode”, then press .
4 Select “Mono”, then press .
Tuning to a station
directly (Direct Tuning)
You can enter the frequency of a station
directly by using the numeric buttons.
1
2
Press D.TUNING.
Hold down SHIFT, then press the
numeric buttons to enter the
frequency, then press
.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
Tip
Adjust the direction of the AM loop antenna
(aerial) for optimum reception upon tuning
to an AM station.
49US
Tuner Operations
OPTIONS
Select “Tuning +” to scan from lower to
higher frequency stations, select
“Tuning –” to scan from higher to lower
stations. The receiver stops scanning
whenever a station is received.
If you cannot tune to a
station
“– – – .– – MHz” or “– – – – kHz” appears
and then the screen returns to the current
frequency.
Make sure you have entered the right
frequency. If not, repeat step 2. If you still
cannot tune to a station, the frequency may
not be in use in your area.
Presetting FM/AM radio
stations
(Preset Memory)
You can store up to 30 FM and 30 AM
stations as your favorite stations.
V/v/B/b,
Changing the AM tuning
scale
You can change the AM tuning scale to
either 9 kHz or 10 kHz using the buttons on
the receiver.
OPTIONS
1
?/1
2
3
TUNING MODE
1
2
Select “Preset Memory”, then
press
.
Select a preset number, then press
.
The station is stored as the selected
preset number.
4
Press ?/1 to turn off the receiver.
Repeat steps 1 to 4 to store
another station.
You can store station as follows:
• AM band: AM 1 to AM 30
• FM band: FM 1 to FM 30
While holding down TUNING
MODE, press ?/1 on the receiver.
The current AM tuning scale is
changed to 9 kHz (or 10 kHz).
To reset the scale to 10 kHz (or 9 kHz),
repeat the procedure above.
Tune to the station that you want to
preset using Auto Tuning (page 49)
or Direct Tuning (page 49).
Tuning to preset
stations
Notes
1
• Depending on the settings, the receiver may take
some time to change the AM tuning scale.
• All preset stations will be erased when you
change the tuning scale.
2
3
Select “FM” or “AM” from the
menu, then press
.
Select “Select Preset”, then press
.
Select the preset station you want,
then press
.
Preset numbers from 1 to 30 are
available.
50US
Naming preset stations
(Name Input)
1
2
3
4
5
Select “FM” or “AM” from the
menu, then press
.
Select “Select Preset”, then press
.
Select the preset number which
you want to name, then press
,
then press OPTIONS.
Select “Name Input”, then press
.
Press V/v repeatedly to select a
character, then press b.
You can move the input position
backward and forward by pressing
B/b. You can enter a name up to 8
characters.
Repeat step 5 to input a character
one by one, then press
.
The name you entered is registered.
Selecting the sound
field
1
2
3
Select “Sound Effects” from the
home menu, then press
.
Select “Sound Field”, then press
.
Select the sound field you want.
Tip
You can select the sound field you want by
pressing SOUND FIELD +/– repeatedly on the
remote control. You can also use A.F.D./2CH,
Movie or Music on the receiver.
Auto Format Direct
(A.F.D.)/2 channel sound
mode
Note
Some letters that can be displayed on the TV
screen cannot be displayed on the display panel.
Auto Format Direct (A.F.D.) mode: This
mode allows you to listen to higher fidelity
sound and select the decoding mode for
listening to a 2 channel stereo sound as
multi channel sound.
2 channel sound mode: You can switch
the output sound to 2 channel sound
regardless of the recording formats of the
software you are using, the playback
equipment connected, or the sound field
settings of the receiver.
x A.F.D. Auto (A.F.D. AUTO)
Presets the sound as it was recorded/
encoded without adding any surround
effects.
However, for USA and Canada models,
this receiver will generate a low frequency
signal for output to the subwoofer when
there is no LFE signals.
51US
Enjoying Sound Effects
6
Enjoying Sound Effects
x Multi Stereo (MULTI ST.)
Outputs 2 channel left/right signals from all
speakers. However, sound may not be
output from certain speakers depending on
the speaker settings.
x 2ch Stereo (2CH ST.)
The receiver outputs the sound from the
front left/right speakers only. There is no
sound from the subwoofer.
Standard 2 channel stereo sources
completely bypass the sound field
processing and multi channel surround
formats are downmixed to 2 channels.
x Analog Direct (A. DIRECT)
You can switch the audio of the selected
input to 2 channel analog input. This
function enables you to enjoy high quality
analog sources.
When using this function, only the volume
and front speaker level can be adjusted.
Note
You cannot select “Analog Direct” while using
the BD, DVD, GAME, Bluetooth, USB, Home
Network, SEN and AirPlay function.
Movie mode
You can take advantage of surround sound
simply by selecting one of the receiver’s
pre-programmed sound fields. They bring
the exciting and powerful sound of movie
theaters into your home.
x HD-D.C.S.
HD Digital Cinema Sound (HD-D.C.S.) is
Sony’s new innovative home theater
technology using the latest acoustic and
digital signal processing technologies. It is
based on precise response measurement
data of a mastering studio.
With this mode, you are able to enjoy Bluray and DVD movies at home with not only
the high quality of sound, but also the best
sound ambience, just as the movie’s sound
engineer intended in the mastering process.
52US
You can select the effect type for HDD.C.S. as follows.
• Dynamic: This setting is suitable for an
environment which is reverberant but
lacks a spacious feeling (where sound
absorption is not sufficient). It
emphasizes the reflection of sound and
reproduces the sound of a large, classical
movie theater. Thus, the spacious feeling
of a dubbing theater is emphasized and a
unique acoustic field is created.
• Theater: This setting is suitable for a
general living room. It reproduces the
reverberation of sound just like in a
movie theater (dubbing theater). It is most
appropriate for watching content
recorded on a Blu-ray Disc when you
want the atmosphere of a movie theater.
• Studio: This setting is suitable for a
living room with the appropriate sound
equipment. It reproduces the
reverberation of sound provided when a
theatrical sound source is remixed for a
Blu-ray Disc to a volume level suitable
for home use. The level of reflection and
reverberation of sound is kept to the
minimum. However, dialogues and
surround effects are reproduced vividly.
x PLII Movie
Performs Dolby Pro Logic II Movie mode
decoding. This setting is ideal for movies
encoded in Dolby Surround. In addition,
this mode can reproduce sound in 5.1
channel for watching videos of overdubbed
or old movies.
x PLIIx Movie
Performs Dolby Pro Logic IIx Movie mode
decoding. This setting expands Dolby Pro
Logic II Movie or Dolby Digital 5.1 to
discrete 7.1 movie channels.
x PLIIz Height (PLIIz)
x Stadium (STADIUM)
Performs Dolby Pro Logic IIz mode
decoding. This setting can expand a source
sound from a 5.1 channel to a 7.1 channel
to which a vertical equipment is applied,
and gives a dimension of presence and
depth.
Reproduces the feeling of a large open-air
stadium.
x Neo:6 Cinema (Neo:6 CIN)
x Portable Audio (PORTABLE)
Performs DTS Neo:6 Cinema mode
decoding. A source recorded in 2 channel
format is decoded into 7 channels.
Reproduces a clear enhanced sound image
from your portable audio device. This
mode is ideal for MP3 and other
compressed music.
Music mode
You can take advantage of surround sound
simply by selecting one of the receiver’s
pre-programmed sound fields. They bring
the exciting and powerful sound of concert
halls into your home.
Reproduces the sound characteristics of the
Berlin Philharmonic Hall.
x Concertgebouw
(CONCERTGEB)
Reproduces the sound characteristics
produced by reflectivity of a concert hall in
Amsterdam, Netherlands, which features a
large sound stage.
x Musikverein (MUSIKVEREI)
Reproduces the sound characteristics of a
concert hall in Vienna, Austria, which
features a resonant and unique
reverberative sound.
Reproduces the feeling of sports
broadcasting.
x PLII Music
Performs Dolby Pro Logic II Music mode
decoding. This setting is ideal for normal
stereo sources such as CDs.
x PLIIx Music
Performs Dolby Pro Logic IIx Music mode
decoding. This setting is ideal for normal
stereo sources such as CDs.
x PLIIz Height (PLIIz)
Performs Dolby Pro Logic IIz mode
decoding. This setting can expand a source
sound from a 5.1 channel to a 7.1 channel
to which a vertical equipment is applied,
and gives a dimension of presence and
depth.
x Neo:6 Music (Neo:6 MUS)
Performs DTS Neo:6 Music mode
decoding. A source recorded in 2 channel
format is decoded into 7 channels. This
setting is ideal for normal stereo sources
such as CDs.
x Jazz Club (JAZZ)
Reproduces the acoustics of a jazz club.
x Live Concert (CONCERT)
Reproduces the acoustics of a 300-seat live
house.
53US
Enjoying Sound Effects
x Berlin P.Hall (BERLIN)
x Sports (SPORTS)
When headphones are
connected
You can only select this sound field if the
headphones are connected to the receiver.
x HP 2CH
This mode is selected automatically if you
use headphones (except “Analog Direct”).
Standard 2 channel stereo sources
completely bypass the sound field
processing and multi channel surround
formats are downmixed to 2 channels
except LFE signals.
x HP Direct (HP DIRECT)
This mode is selected automatically if you
use headphones when “Analog Direct” is
selected.
Outputs the analog signals without
processing by the equalizer, sound field,
etc.
If you connect a subwoofer
This receiver will generate a low frequency
signal for output to the subwoofer when
there is no LFE signal, which is a low-pass
sound effect output from a subwoofer to a 2
channel signal. However, the low
frequency signal is not generated for
“Neo:6 Cinema” or “Neo:6 Music” when
all speakers are set to “Large”.
In order to take full advantage of the Dolby
Digital bass redirection circuitry, we
recommend setting the subwoofer’s cut off
frequency as high as possible.
Notes on sound fields
• Depending on the speaker pattern
settings, some sound fields may not be
available.
• You cannot select PLIIx Movie/Music
and PLIIz Height at the same time.
– PLIIx Movie/Music is available only
when the speaker pattern is set to a
setting with surround back speaker(s).
54US
– PLIIz Height is available only when the
speaker pattern is set to a setting with
front high speakers.
• The sound fields for music and movie do
not work in the following cases.
– DTS-HD Master Audio, DTS-HD High
Resolution Audio or Dolby TrueHD
with sampling frequency of more than
48 kHz are being received.
– “Analog Direct” is selected.
• “PLII Movie”, “PLIIx Movie”, “PLII
Music”, “PLIIx Music”, “PLIIz Height”,
“Neo:6 Cinema”, and “Neo:6 Music” do
not work when the speaker pattern is set
to 2/0 or 2/0.1.
• When one of the sound fields for music is
selected, no sound is output from the
subwoofer if all the speakers are set to
“Large” in the Speaker Settings menu.
However, the sound will be output from
the subwoofer if
– the digital input signal contains LFE
signals.
– the front or surround speakers are set to
“Small”.
– “Multi Stereo”, “PLII Movie”, “PLII
Music”, “PLIIx Movie”, “PLIIx
Music”, “PLIIz Height”, “HD-D.C.S.”
or “Portable Audio” is selected.
Using the Sound
Optimizer function
The Sound Optimizer lets you enjoy clear
and dynamic sound at low volume levels. It
automatically calibrates the sound which
cannot be heard well when you turn down
the volume level. After Auto Calibration is
performed, the sound level is optimized to
suit your environment.
1
Select “Sound Effects” from the
home menu, then press
.
2
3
3
Select “Sound Optimizer”, then
press
.
Select “Normal” or “Low”, then
press
.
The Sound Optimizer function is
activated. To adjust for the reference
level of a movie, select “Normal”. To
adjust for a CD or other software
whose average sound pressure level is
processed highly, select “Low”.
Notes
• This function does not work in the following
cases.
– “Analog Direct” is being used.
– Headphones are connected.
• The receiver may play back signals at a lower
sampling frequency than the actual sampling
frequency of the input signals, depending on the
audio format.
Select “Bass” or “Treble”.
Adjust the gain, then press
.
Notes
• This function does not work when “Analog
Direct” is being used.
• Frequencies for Bass and Treble are fixed.
• Depending on the audio format, the receiver
may play back signals at a lower sampling
frequency than the original sampling frequency
of the input signals.
Using the Pure Direct
function
You can select the calibration type you
want after performing the Auto Calibration.
For details, see “Calibration Type”
(page 90).
1
2
3
Adjusting the Equalizer
Select “Sound Effects” from the
home menu, then press
.
Select “Pure Direct”, then press
.
Select “On” or “Off”, then press
.
Note
You can use the following parameters to
adjust the tonal quality (bass/treble level)
for each speaker.
When Pure Direct function is selected, “Sound
Optimizer”, “Equalizer”, “Auto Volume”, and
“D.Range Comp.” do not work.
Treble
Level
(dB)
Frequency (Hz)
1
2
Select “Sound Effects” from the
home menu, then press
.
Select “Equalizer”, then press
.
55US
Enjoying Sound Effects
The Pure Direct mode lets you enjoy higher
fidelity sound. When Pure Direct is on, the
display panel lights off to suppress noise
that affects sound quality. You can use the
Pure Direct function with all inputs.
Selecting the
calibration type
Bass
4
5
Select “Front”, “Center”,
“Surround”, or “Front High”, then
press
.
To cancel Pure Direct
The Pure Direct function will be cancelled
when you perform the following:
– Press PURE DIRECT again.
– Change the sound field.
– Change the scene setting on the TV
(Scene Select).
– Change the setting of “Sound Optimizer”,
“Equalizer”, “Auto Volume”, or
“D.Range Comp.”.
Resetting sound fields
to the default settings
Be sure to use the buttons on the receiver to
perform this operation.
MUSIC
?/1
1
2
Press ?/1 to turn off the receiver.
While holding down MUSIC, press
?/1.
“S.F. CLEAR” appears on the display
panel and all sound fields are reset to
their default setting.
56US
Using Network Features
About the network
functions of the
receiver
• You can enjoy audio content which has
been stored on a DLNA-compliant device
(DLNA CERTIFIEDв„ў Products) that
has an authorized DLNA logo displayed
on the device (page 62).
• You can use the receiver as a device
equivalent to a UPnP media renderer on
your home network.
• With an Internet connection, you can
listen to music services (page 65) and
update the software of the receiver.
• You can listen to the same music at the
same time in different rooms through the
PARTY STREAMING function.
• You can register Media Remote devices
to control the receiver.
• You can play back audio content on iOS
devices or an iTunes Library with
AirPlay.
About DLNA
DLNA (Digital Living Network Alliance)
is a standard organization made up of
manufacturers of various products, such as
servers (computers, etc.), AV equipment,
and mobile computing devices which
exchange content (music, photos, and
videos). DLNA decides upon standards and
publishes an authorized logo to be
displayed on devices which support DLNA
standards.
Setting up the server
To listen to audio content stored on your
server with this receiver, you need to set up
the server in advance. The following server
devices are compatible with this receiver.
• Sony VAIO Media plus 1.3, 1.4, 2.0, and
2.1
• Sony HDD Network Audio System
NAS-S500HDE*, NAS-S55HDE*
• Sony Network AV receiver
STR-DA6400ES*, TA-DA5600ES*
• Microsoft Windows Media Player 12
installed on Windows 8 and Windows 7
(page 57 and 59)
• Microsoft Windows Media Player 11
installed on Windows Vista/Windows XP
(page 60)
When using Windows 8
This section explains how to set up
manufacturer-installed Windows Media
Player 12 for Windows 8. For details on
how to operate Windows Media Player 12,
refer to Help for Windows Media
Player 12.
1
Go to Control Panel.
Select [All Apps] under [Start].
Select [Control Panel].
* Not available in some countries or regions.
Notes
• The items displayed on the computer may be
different from the ones shown below, depending
on the version of the operating system or the
computer environment. For details, refer to
Help for your operating system.
• It may take a little more time when playing
music using a “Play To” feature in Windows
depending on the situation.
Tip
If the Windows 8 display does not appear
like above, proceed with the steps below.
57US
Using Network Features
If the server has a function that limits
access from other devices, you must
change the setting on the server to allow the
receiver to access it.
This section explains how to set up
Windows Media Player when using it as a
server.
For details on the settings of other server
devices, refer to the operating instructions
or help of the respective devices or
applications.
Select [Control Panel] under
[Settings].
3
4
2
Select [Change advanced sharing
settings].
Select [Choose media streaming
options] from Media streaming.
Select [View network status and
tasks] under [Network and
Internet].
The [Network Sharing Center]
window appears.
Tip
If the item you want does not appear on the
display, try to change the display type of the
Control Panel.
5
58US
If [Media streaming is not turned
on] appears on the [Media
streaming options] window, select
[Turn on media streaming].
6
Select [Allow All].
The [Allow All Media Devices]
window opens.
If all the devices in the local network
are set to [Allowed], select [OK] and
close the window.
When using Windows 7
This section explains how to set up
manufacturer-installed Windows Media
Player 12 for Windows 7.
For details on how to operate Windows
Media Player 12, refer to Help for
Windows Media Player 12.
1
7
8
9
Go to [Start] – [Control Panel].
Select [Allow all computers and
media devices].
Select [Next] and [Finish] to close
the window.
2
Refresh the server list.
The [Network and Sharing Center]
window appears.
Tip
If the item you want does not appear on the
display, try to change the display type of the
Control Panel.
3
Select [Public network] under
[View your active networks].
If the display shows other than
[Public Network], go to step 6.
The [Set Network Location] window
appears.
59US
Using Network Features
When the settings are completed,
refresh the server list of the receiver
and select this server from the server
list. For details on selecting a server,
see “To refresh the server list”
(page 62).
Select [View network status and
tasks] under [Network and
Internet].
4
5
Select [Home network] or [Work
network] according to the
environment in which the receiver
is used.
Follow the instructions that appear
on the display according to the
environment in which the receiver
is used.
When the settings are completed,
confirm that the item under [View your
active networks] is changed to [Home
network] or [Work network] in the
[Network and Sharing Center]
window.
6
Select [Change advanced sharing
settings].
9
Select [Allow all].
The [Allow All Media Devices]
window opens. If all the devices in the
local network are set to [Allowed],
select [OK] and close the window.
10 Select [Allow all computers and
media devices].
11 Select [OK] to close the window.
12 Refresh the server list.
When the settings are completed,
refresh the server list of the receiver
and select this server from the server
list. For details on selecting a server,
see “To refresh the server list”
(page 62).
7
Select [Choose media streaming
options…] from [Media streaming].
When using Windows
Vista/XP
This section explains how to set up
Windows Media Player 11 installed on
Windows Vista/XP*.
For details on how to operate Windows
Media Player 11, refer to Help for
Windows Media Player 11.
8
If [Media streaming is not turned
on] appears on the [Media
streaming options] window, select
[Turn on media streaming].
60US
* Windows Media Player 11 is not manufacturerinstalled on Windows XP. Access the
Microsoft website, download the installer, and
then install Windows Media Player 11 on your
computer.
1
Go to [Start] – [All Programs].
2
Select [Windows Media Player].
6
7
Windows Media Player 11 starts up.
3
Select [Media Sharing…] from the
[Library] menu.
8
If you are using Windows XP, go to
step 9.
4
When
is displayed, select
[Networking…].
9
Check [Private] and select [Next].
Confirm that [Location type] is
changed to [Private], and select
[Close].
Confirm that [(Private network)] is
displayed on the [Network and
Sharing Center] window, and close
the window.
If [Share my media] in the [Media
Sharing] window that is displayed
in step 3 is not checked, check
[Share my media], then select
[OK].
The [Network and Sharing Center]
window appears.
5
Select [Customize].
10 Select [Settings…] that appears
beside [Share my media to:].
11 Check [Allow new devices and
computers automatically] and
select [OK].
Note
The [Set Network Location] window
appears.
Uncheck this item after you confirm that the
receiver can be connected to the server and
play audio content stored on the server.
61US
Using Network Features
A list of connectable devices is
displayed.
12 Refresh the server list.
When the settings are completed,
refresh the server list of the receiver
and select this server from the server
list. For details on selecting a server,
see “To refresh the server list”
(page 62).
To refresh the server list
When you add a new server to the home
network, or when you cannot find the
server you want on the list, refresh the
server list.
Enjoying audio content
stored on the server
You can play back audio content stored on
the server using the receiver in MP3, Linear
PCM, WMA, FLAC and AAC* formats.
Audio content with DRM (Digital Rights
Management) copyright protection cannot
be played on this receiver.
* The receiver can play AAC files with the
extension of “.m4a”, “.mp4” or “.3gp” only.
1 While the server list is displayed,
Server
press OPTIONS.
2 Select “Refresh”, then press .
The refreshed server list appears.
Tip
The receiver keeps a history of the last five
connected servers and these servers appear at the
top of the server list. Up to 20 servers can be
displayed in a server list.
To delete a server from the
server list
1 While the server list is displayed,
This receiver
HOME
NETWORK
SHUFFLE
REPEAT
select the server you want to delete,
then press OPTIONS.
The options menu appears.
2 Select “Delete”, then press .
The confirmation display appears on the
TV screen.
3 Select “OK”, then press .
“Completed” appears, and the selected
server is deleted.
DISPLAY
V/v/B/b,
RETURN
O
62US
OPTIONS
HOME
N
X
Note
Even if you delete the server from the server list,
the server will appear in the list again if the
receiver finds it on the network (such as when you
refresh the server list).
ALPHABET
SEARCH
1
./>
x
Press HOME NETWORK.
The server list appears on the TV
screen.
If the last selected item (playlist,
album, folder, etc.) appears on the TV
screen, press RETURN O repeatedly
until the server list appears.
When “No server is available”
appears, or when the server on the list
is not available, press OPTIONS.
Select “Refresh”, then press
. The
refreshed server list appears.
Tip
You can also select “HOME NETWORK”
from “Listen” in home menu.
2
Select the server which holds the
content you want to play back.
The content list appears on the TV
screen.
Note
If the server device supports the Wake-onLAN standard, the receiver turns the server
on automatically. If the server does not
support the Wake-on-LAN standard, turn on
the server in advance. For details on settings
or operations of Wake-on-LAN of your
server, refer to the operating instructions or
help of your server.
3
Select the item (playlist, album,
folder, etc.) you want, then press
.
4
Select the track you want, then
press
.
Playback starts.
Make sure that sound is being output
from the speakers of the receiver.
Notes
• Tracks that the receiver cannot play appear on
the TV screen as well. You cannot sort a list of
playable tracks.
• “!” appears at the top of a track name that cannot
be played on the receiver, and is skipped during
playback.
• Play is not resumed from the last selected item
if you unplug the power cord from the wall
outlet.
• The receiver may take time to display items
when browsing a folder that contains a large
amount of audio content. In this case, use the
Keyword Search (page 74).
To set Access Settings
You can set access restrictions or
permission for the devices on the device
list.
1
2
3
Press HOME NETWORK.
Press OPTIONS.
Select “Access Settings”, then
press
.
To set the auto access
permission
1 Select “Auto Access” in “Access
Settings”, then press
.
2 Select “Allow” or “Not Allow”, then
press
.
• Allow: All the device on the home
network are permitted to access this
receiver. This receiver can start a
PARTY as host device and join a
PARTY as a guest device if requested.
• Not Allow: The receiver restricts a
new device that is accessing the
receiver. When connecting a new
device to the home network, add the
device to the device list, and set access
permission (page 64).
Note
Up to 20 devices can be added to the device list.
If 20 devices have already been registered,
“Device list is full” appears, and a new device
cannot be added to the list. In this case, delete
unnecessary devices from the list (page 64).
63US
Using Network Features
If another item appears, repeat this step
to narrow down the choices until the
item you want appears. The items that
are displayed depend on the connected
server.
Tips
• If you select a folder (such as an artist folder,
genre folder, etc.), then press the N button, the
receiver plays all items in the selected folder.
• The receiver resumes from the last selected item
when the function is changed to Home Network
function, until the receiver is turned off. When
“Network Standby” is set to “On”, play resumes
from the last selected item, even if you turned
off the receiver.
To add devices to the
device list
1 Select “Control Device” in “Access
Settings”, then press
.
The registered device list appears on the
TV screen.
2 Select “Add Device”, then press .
3 Select the device you want, then
press
.
The selected device is added to the
device list. For details on setting the
access, see “To set access permission for
the devices” (page 64).
To set access permission
for the devices
You can set access permission for a device
on the device list. Only devices set to
“Allow” are recognized on the home
network.
To register the TV SideView
Device
1 Press HOME NETWORK.
Tip
You can also select “HOME NETWORK”
from “Listen” in home menu.
2 Press OPTIONS.
3 Select “TV SideView Device
Registration”, then press
.
4 Select “Start Registration”, then
press
.
The receiver starts to detect TV
SideView device that is ready for
registration.
“Connecting” appears on the TV screen.
Press “Registration” on the TV
SideView device. However, the receiver
will exit the registration if no device
detected in 30 seconds.
5 Select “Finish”, then press .
1 Select “Control Device” in “Access
Settings”, then press
.
The registered device list appears on the
TV screen.
2 Select the device you want, then
press
.
3 Select “Access”, then press .
4 Select “Allow” or “Not Allow”, then
press
.
To cancel the registration
To delete a device from the list
To view the registered TV
SideView Device
Select “Delete” in step 3, then press
.
Select “OK” on the confirmation display,
then press
.
Using the TV SideView
TV SideView is a free mobile application
for the remote device (smartphone, etc). By
using the TV SideView with this receiver,
you can easily enjoy the receiver by the
operation on your remote device.
Select “Cancel” in step 4, then press
Up to 5 TV SideView devices can be added to the
device list. If 5 devices have already been
registered, “Device full” appears, and a new
device cannot be added to the list. In this case,
delete unnecessary devices from the list
(page 64).
Select “Registered TV SideView Devices”
in step 3, then press
.
To delete registered TV
SideView devices from the
device list
1 Select “Registered TV SideView
Devices” in step 3, then press
.
2 Select the device you want to delete,
then press
.
3 Select “Delete”, then press
64US
.
Note
.
4 Select “OK”, then press
.
The selected device is deleted from the
device list.
Checking the copyright
protection
This receiver cannot play back files in
WMA format with DRM copyright
protection.
If a WMA file cannot be played back on
this receiver, check the property of that file
on your computer to see whether the file is
DRM-copyrighted.
Open the folder or volume where the WMA
file is stored and right-click the file to
display the [Properties] window. If there is
a [License] tab, the file is DRMcopyrighted and cannot be played back on
this receiver.
Operating Home
Network function using
the remote control
Do the following
Pause
playback*
Press X during playback.
Press N to resume
playback.
Stop playback
Press x.
Go to beginning Press ./> repeatedly.
of the current
track, previous/
next track
Reselect the
item you want
to play
Press RETURN O
repeatedly until the
directory you want appears.
Or press OPTIONS, select
“Server List”, then select
the item you want.
To return to the playback
display, press OPTIONS
and select “Now Playing”.
Do the following
Search the item While selecting the contents
you want using in the server, press
a keyword
ALPHABET SEARCH,
and then enter a keyword
(page 74).
Change the
server
Press x. Then select
“Server List”, and press .
Select the server you want,
then press .
Select Repeat
Play
Press REPEAT repeatedly
until “Repeat All” or
“Repeat One” appears on
the TV screen.
Select Shuffle
Play
Press SHUFFLE repeatedly
until “Shuffle On” appears
on the TV screen.
* Depending on the server or track, pause
playback may not work when the Home
Network function is selected.
Enjoying Sony
Entertainment Network
(SEN)
You can listen to music services offered on
the Internet with this receiver (SEN
function).
To use this function, the receiver must be
connected to the network and the network
must be connected to the Internet. For
details, see “6: Connecting to the network”
(page 30).
Visit the website below for more
information on the SEN:
http://
www.sonyentertainmentnetwork.com
65US
Using Network Features
To
To
1
Press SEN.
The service provider list appears on the
TV screen. If the receiver
automatically displays the last selected
service or station, press RETURN O
repeatedly until the service provider
list appears.
SEN
This receiver
Tip
Note
Before using music services, you may have to
register your receiver depending on the service
provider. For details on registration, visit the
customer support site of the service provider.
You can also select “SEN” from “Listen” in
the home menu.
2
3
Select “vTuner”, then press
.
Select the folder or station you
want, then press
.
• Press V/v repeatedly to select the
item.
• Press
to go to the next directory,
or to listen to the station.
• Press RETURN O to go to the
previous directory.
Numeric
buttons
SEN
Note
MEM
If “No service is available” appears and you
cannot obtain a service provider list, press
OPTIONS and select “Refresh”.
ALPHABET
SEARCH
Tip
V/v/B/b,
RETURN
O
OPTIONS
HOME
The receiver displays the last selected service or
station when the function is changed to SEN
function, until the receiver is turned off. When
“Network Standby” is set to “On”, the last
selected service or station is displayed even if you
turned off the receiver.
To operate SEN function
using the remote control
To
SHIFT
The following steps explain how to select
“vTuner” as an example of music services
offered on the Internet.
66US
Do the following
Change the
Press RETURN O to
station or service return to the service
provider list, then select
the service again.
To return to the playback
display again, press
OPTIONS and select
“Now Playing”.
To
Do the following
Use various
functions while
the receiver is
selecting or
playing a station
or service
Press OPTIONS. The
item displayed may vary
according to the selected
item or directory.
Select the service While selecting or
options
playing the contents in the
service, press OPTIONS.
Select “Service Options”,
then press
. The
contents of the service
options vary depending
on the selected services.
Search the item While selecting the
you want using a contents in the server,
keyword
press ALPHABET
SEARCH, and then enter
a keyword (page 74).
View the
available
information
Press DISPLAY
repeatedly to view the
artist name, album name,
etc.
You can store up to 20 stations as your
favorite stations.
1
2
Select the station you want to
preset.
During reception, hold down
SHIFT, then press MEM.
The preset memory list appears.
3
4
Select a preset number, then press
.
Repeat steps 1 to 3 to store
another station.
The service provider list appears on the
TV screen. If the receiver automatically
displays the last selected station, press
RETURN O repeatedly until the
service provider list appears.
2 Select “Preset”, then press .
“Preset” appears at the top of the service
provider list.
3 Select the preset station you want,
then press
.
Note
There may be some stations that cannot be preset,
depending on the service providers. If you try to
preset such a station, “Not available” appears on
the display.
Tip
Use the numeric buttons to select the preset
station. Press SHIFT, then press the numeric
button that corresponds to the preset number, then
press
to select the preset station directly.
Enjoying a variety of
music services
You can enjoy listening to the content of a
variety of music services offered on the
Internet.
Visit the website below for more
information on music services, how to
enjoy services, and the registration code of
the receiver.
http://munlimited.com/home
Checking the registration
code
You may be required to enter the
registration code of the receiver when you
enjoy a new music service.
1 Select “Listen” from the menu, then
press
.
67US
Using Network Features
Presetting stations
To listen to the preset
station
1 Press SEN.
2 Select “SEN”, then press
.
The service provider list appears on the
TV screen. If the receiver automatically
displays the last selected service or
station, press RETURN O repeatedly
until the service provider list appears.
3 Select “Registration Code”, then
press
.
The registration code of the receiver
appears.
PARTY
START/
CLOSE
PARTY
JOIN/
LEAVE
Using the PARTY
STREAMING function
Audio contents currently being played back
on this receiver can be also played back on
all devices corresponding to the PARTY
STREAMING function on your home
network at the same time.
If you encounter an interruption when
using a wireless connection, connect your
receiver to the router with a wired
connection (page 32).
While PARTY streaming, a device called a
“PARTY host” starts a PARTY and
streams music, and a device called a
“PARTY guest” joins a PARTY and
receives music from the “PARTY host”.
Before using the PARTY STREAMING
function, make sure that “PARTY
STREAMING” is set to “On” (page 96).
PARTY guest
PARTY guest
PARTY host
PARTY guest
68US
SHIFT
You can enjoy the PARTY STREAMING
function with other devices* that have this
PARTY STREAMING logo shown below.
* Available PARTY STREAMING-compliant
devices may differ depending on the countries
or regions. For details on available devices,
contact your nearest Sony dealers.
Starting a PARTY
You can start a PARTY so that other
devices that support the PARTY
STREAMING function can play the same
music even though they are in different
rooms.
1
2
Make sure the PARTY guest
devices are turned on and ready to
join a PARTY.
Play the sound source you want.
Audio content of all the sound sources
on this receiver can be streamed.
Notes
3
The receiver can join a PARTY that has
been started by another device so that you
can enjoy the same audio content being
played in a different room.
While the PARTY host device is
having a PARTY, press PARTY JOIN
and the receiver joins the PARTY as
a PARTY guest.
To leave a PARTY
Press PARTY LEAVE.
Notes
• You cannot join a PARTY in the following
cases:
– you have a PARTY on this receiver.
– you have already joined another PARTY.
• If you press PARTY JOIN when no PARTY is
started, but a device complying with PARTY
STREAMING function is playing, the device
will be the PARTY host, and the receiver will
join the PARTY as a PARTY guest.
• The PARTY guest device function
automatically switches to HOME NETWORK
when the device joins a PARTY. Even if the
PARTY guest device leaves the PARTY, the
function remains as HOME NETWORK.
Tip
If “Network Standby” is set to “On”, the receiver
turns on and joins the PARTY automatically
when the PARTY host device starts the PARTY.
Press PARTY START.
“START.PARTY” appears on the
display panel.
The receiver starts PARTY streaming
as a PARTY host.
To close a PARTY
Press PARTY CLOSE.
69US
Using Network Features
• Only audio contents on this receiver can be
streamed. During PARTY host, video
signals are not output to the TV, and audio
signals will downmix to 2 channel. In this
case, you can only select “2ch Stereo” as
sound field.
• When you start a PARTY as PARTY host,
you may face a time gap between the audio
output and visual display in the following
cases.
– The Audio Return Channel (ARC)
function is used.
– The video output of the equipment is
connected to the TV and the audio output
is connected to the digital or analog
audio input jacks on the receiver.
• Sources with copyright protection may not
be streamed.
Joining a PARTY
Streaming music from
iTunes with AirPlay
1
Tap/click on the
icon at bottom
right of the iOS device screen or
iTunes window.
[iOS device]
Using a wireless network, you can play
back audio content on iOS devices such as
an iPhone, iPod touch, iPad or an iTunes
Library on your PC with this receiver.
PC
iPhone/iPod
touch/iPad
[iTunes]
Compatible iPod/iPhone/
iPad models
iPhone 4S, iPhone 4, iPhone 3GS, iPod
touch (2nd, 3rd or 4th generation), iPad,
iPad2, iPad 3rd generation with iOS 4.2 or
later, and Mac or PC with iTunes 10.1 or
later.
Notes
• Refer to “Compatible iPod/iPhone/iPad
models” on this page for details on the
supported versions of iOS or iTunes.
• Update iOS or iTunes to the latest version
before using with the receiver.
• Refer to the operating instructions of your
device for details on operating iOS devices,
iTunes or AirPlay.
• You cannot use this receiver as a PARTY host
while using the AirPlay function.
2
Select “STR-DN840” on the AirPlay
menu of iTunes or your iOS device.
[iOS device]
[iTunes]
70US
3
Start playing back audio content
on an iOS device or on iTunes.
AirPlay is selected as a function of the
receiver automatically.
Tips
• “******” is the last 6 digits of MAC Address of
the receiver.
• If the playback does not start, perform the
process again from step 1.
To confirm/edit the device
name
See “Device Name” (page 96) for
instructions on how to rename the device.
To control AirPlay playback
Tips
• The most recent control command to the
receiver is given priority. The receiver starts
playing back audio content of another device
when it accepts control from that AirPlayequipped device, even if this receiver is being
used for AirPlay with the original device.
• The very loud sound may output from this
receiver when you set the volume too loud using
iOS devices or iTunes.
• For details on the use of iTunes, refer to the
Help of iTunes.
• The volume level of iOS devices or iTunes may
not be able to be linked with the volume level of
this receiver.
By downloading the latest version of the
software, you can take advantage of the
newest functions. The receiver accesses the
Sony server to update the software.
If a new update is available, “[New
Software] Perform Software Update.”
appears on the TV screen and “UPDATE”
appears on the display panel when you are
connected to the Internet and using the
Home Network or SEN function.
Make sure that other equipment connected
to the receiver is stopped before updating
the software.
For details on software update available,
refer to the customer support site
(page 118).
Notes
• Make sure not to turn off the receiver,
disconnect the network cable or perform any
operation on the receiver while the updating
operation is in progress.
• If you try to update the software when the Sleep
Timer is on, the Sleep Timer will turn off
automatically.
1
Press HOME.
The home menu is displayed on the TV
screen.
2
Select “Settings”, then press
.
The Settings menu list appears on the
TV screen.
3
4
5
Select “System Settings”, then
press
.
Select “Network Update”, then
press
.
Select “Update”, then press
.
The receiver starts checking the
available software update.
71US
Using Network Features
You can use the 2 +/–, N, X, x, .,
>, SHUFFLE and REPEAT buttons.
Operation from the receiver and the remote
control is active only when the receiver is
selected as the device for output.
When you use iTunes, set an iOS device to
accept control from this receiver and the
remote control when you want to use this
receiver and the remote control to operate
an iOS device.
Updating the software
6
When “A new version of software
is found” appears on the TV
screen, select “Update now”, then
press
.
A message that confirms whether or
not you agree to the terms of the
software update appears. Confirm the
message and also read the “ENDUSER LICENSE AGREEMENT FOR
SONY SOFTWARE” (page 125), then
press
.
If the update is not available, “No
update is required.” appears.
7
Select “Agree”, then press
.
The receiver starts to update the
software and the TV screen is turned
off automatically. The ?/1 (on/
standby) indicator on the front panel
flashes during the update. It may take a
while (about 40 minutes at the longest)
for the receiver to finish the update.
The required time will depend on the
amount of data in the updates, the line
type of the network, the network
communication environment, etc.
“Complete” appears after the software
update is finished.
Changes or adjustments made to the
settings are now reset to the defaults.
Note
If one of the below conditions appears, the
software update has error.
– The ?/1 (on/standby) indicator flashes in
quick succession.
– “ERROR” appears on the display panel.
– No indicator lights up on the display panel
or the ?/1 (on/standby) indicator lights off.
– The receiver does not finish the update
after 40 minutes and “UPDATING” keep
on flashes on the display panel.
Unplug the power cord, and then plug in the
power cord again. The receiver will try to
update the software. If the condition
continues, contact your nearest Sony dealer.
To cancel the procedure or
to go back to the previous
screen
Press RETURN O at any point before the
receiver starts the software update.
You cannot cancel the procedure or go
back to the previous screen when the
update starts.
Network features message
list
Network settings
Message and explanation
Connection failed
The receiver has failed to connect the
network.
Input error
The entered values are incorrect or invalid.
Not in use
An operation that is currently prohibited is
being performed.
Not supported
The access point device does not support the
WPS PIN code method.
Home Network
Message and explanation
Cannot connect
The receiver cannot be connected to the
selected server.
Cannot get info
The receiver cannot retrieve information on
the server.
Cannot JOIN PARTY
The receiver has failed to join a PARTY.
Cannot play
The receiver cannot play audio files due to an
unsupported file format or playback
restrictions.
Cannot START PARTY
The receiver has failed to start a PARTY.
Data error
You tried to play an unplayable file.
72US
Message and explanation
Message and explanation
Device list is full
No service is available
You cannot register any more devices to the
device list.
There is no service provider.
No server is available
• The selected service is not available.
• An operation that is currently unavailable is
being performed.
There is no server on the network that the
receiver can connect to. Try refreshing the
server list (page 62).
No track is found
There is no playable file in the selected folder
on the server.
Not found
Not available
Not in use
An operation that is currently prohibited is
being performed.
Software update
There is no item on the server that matches a
keyword.
Message and explanation
Not in use
The receiver cannot access to the server to
download the latest version of the software.
Enter the settings menu and update the
software again (page 71).
An operation that is currently prohibited is
being performed.
SEN
Message and explanation
Cannot connect to server
The receiver cannot be connected to the
server.
Cannot connect
Cannot download
The receiver failed downloading the update
data while performing the software update.
Enter the settings menu and update the
software again (page 71).
Using Network Features
Cannot get data
The receiver cannot obtain content from the
server.
Cannot play
The receiver cannot play a service or station
due to an unsupported file format or playback
restrictions.
Data error
• You tried to play an unplayable file.
• The receiver does not recognize the data on
the server.
Software update is required
The service is not available in the current
version of the receiver software.
Visit the website below for more information
on the software update:
http://munlimited.com/home
No preset station is stored
There is no station stored on the receiver for
the selected preset number.
73US
Note
Searching for an item
using a keyword
When a list is displayed on the TV screen
(such as artist list, a track list, etc.), you can
enter a keyword to search for an item you
want.
Searching by keywords is available only
when the Home Network or SEN function
is selected.
Enter a keyword that will match the letters or
a word at the beginning of the name or title
of the item you want to search for. When the
receiver searches for an item, “The” at the
beginning of a name and the following space
will be ignored.
3
ALPHABET
SEARCH
5
Press ALPHABET SEARCH while
an item list (artist list, track list,
etc.) is displayed on the TV screen.
The keyword input display appears on
the TV screen.
2
Hold down SHIFT, then press the
numeric/text buttons to enter a
keyword.
A keyword can be up to 15 characters.
74US
Repeat steps 1 to 3 until you find
the item you want, then press
.
Select the track you want, then
press
.
Playback starts.
ALPHABET
NEXT
ALPHABET
PREV
SHIFT
1
.
An item that matches the keyword
appears. If the item appears is not the
one you are searching for, press
ALPHABET PREV/ALPHABET
NEXT to display the previous/next
item.
4
Numeric/
text
buttons
Press
Using Bluetooth Features
About the Bluetooth
wireless technology
Bluetooth wireless technology is a shortrange wireless technology that enables
wireless data communication between
digital devices. Bluetooth wireless
technology operates within a range of about
10 meters (33 feet).
You do not need wires to get connected as
you do with a USB connection, and you do
not need to place the devices face to face as
you do with wireless infrared technology.
Bluetooth wireless technology is a global
standard supported by thousands of
companies. These companies produce
products that meet the global standard.
About the Bluetooth
functions of the
receiver
Communication System
and Compatible
Bluetooth Profiles of
this receiver
Profile is standardization of the function for
each Bluetooth device specification. This
receiver supports the following Bluetooth
version and profiles:
Communication System:
Bluetooth Specification version 3.0
Compatible Bluetooth Profiles:
– A2DP (Advanced Audio Distribution
Profile): Receiving audio content of
high-quality.
– AVRCP 1.3 (Audio Video Remote
Control Profile): Controlling audio/video
equipment; pausing, stopping, starting
playback, volume control, etc.
Notes
75US
Using Bluetooth Features
Check the websites for the latest
information about compatible Bluetooth
devices with URLs listed under “About
support information” (page 118).
• To be able to use the Bluetooth function, the
Bluetooth device to be connected requires the
same profile as the receiver’s.
Note also that even if the same profile exists,
devices may vary in function depending on their
specifications.
• Due to the characteristic of Bluetooth wireless
technology, the sound played on this receiver is
slightly delayed from the sound played on the
Bluetooth device during listening to the music.
Listening to music of a
Bluetooth device
4
For details, refer to the operating
instructions of your Bluetooth device.
A list of detected devices may appears
on the Bluetooth device display
depending on the type of Bluetooth
device. This receiver is displayed as
“STR-DN840”.
You can play music of a Bluetooth device
via this receiver after pair and connect the
Bluetooth device with the receiver.
Pairing the receiver
with a Bluetooth device
Pairing is an operation where Bluetooth
devices register with each other
beforehand. Use the procedure below to
pair the receiver with your Bluetooth
device. Once a pairing operation is
performed, it does not need to be performed
again. If pairing is already completed,
proceed to “Playing music of a Bluetooth
device” (page 77).
BLUETOOTH
Note
When establishing a connection with this
receiver, select the audio profile (A2DP,
AVRCP) at the Bluetooth device. If the
Bluetooth device does not support the
AVRCP profile, you cannot perform
playback or other operations with this
receiver (page 75).
5
2
3
Place the Bluetooth device within
1 meter (3.3 feet) from this
receiver.
Press BLUETOOTH to select
Bluetooth function.
Hold down BLUETOOTH for
2 seconds to activate the pairing
mode of the receiver.
“Pairing ready” appears and “BT”
flashes quickly on the display panel.
Perform step 4 within 5 minutes,
otherwise pairing will be canceled. In
this case, repeat this step.
76US
Select “STR-DN840” on the
Bluetooth device display.
If “STR-DN840” is not displayed,
repeat from step 1.
6
7
1
Perform pairing on the Bluetooth
device to detect this receiver.
If passkey* is required on the
display of the Bluetooth device,
enter “0000”.
Once pairing is completed,
connect this receiver with the
Bluetooth device.
Depending on the device, connection
is automatically made along with the
pairing. Once the connection is
established, the device name appears
and “BT” lights up on the display
panel.
* Passkey may be called “Passcode”, “PIN code”,
“PIN number” or “Password”.
Notes
• The receiver only supports numerical passkey
up to 4 digits.
• You can pair up to 9 Bluetooth devices with this
receiver. If 10th Bluetooth device is paired, the
least recently connected device will be replaced
by the new one.
• To pair with other Bluetooth devices, repeats
steps 1 to 6.
To cancel pairing operation
Hold down BLUETOOTH after step 3.
“CANCEL” appears on the display panel.
Playing music of a
Bluetooth device
You can operate a Bluetooth device by
connecting the receiver and a Bluetooth
device using AVRCP.
Check the following before playing music:
– The Bluetooth function of the Bluetooth
device is turned on.
– Pairing has been completed.
1
Press BLUETOOTH to select
Bluetooth function.
The receiver automatically connects to
the last connected Bluetooth device.
If you cannot connect with a last
connected Bluetooth device, press
BLUETOOTH on the receiver.
Once the connection is established,
proceed to step 3.
2
Establish a connection from the
Bluetooth device.
For details, refer to the operating
instructions of your Bluetooth device.
Start playback from the Bluetooth
device.
You can also press N on the remote
control.
4
Adjust the volume.
Press 2 +/– (or turn the MASTER
VOLUME knob on the receiver).
Note
Depending on the type of Bluetooth device,
you can adjust the volume using the controls
of the Bluetooth device.
To operate the Bluetooth
device using the remote
control
m/M
N
./>
X
x
Press
Operation
N*
Starts play.
X
Pauses play.
x
Stops play.
m/M
Fast reverses or forwards.
./>
Goes to the previous/next file.
* If no Bluetooth device is connected and you
press N, the receiver automatically connects
to the last connected Bluetooth device and play
back the music.
Note
These operations may not be available for certain
Bluetooth devices. In addition, the actual
operations may differ depending on the
connected Bluetooth device.
Notes
• Once the connection is established, the device
name appears on the TV screen and “BT” lights
up on the display panel.
77US
Using Bluetooth Features
3
• To disconnect from a Bluetooth device, press
BLUETOOTH on the receiver. You can also
disconnect from your Bluetooth device. For
details, refer to the operating instructions of
your Bluetooth device.
• While connected to a Bluetooth device, this
receiver cannot be detected and a connection
cannot be established from another Bluetooth
device.
• If you cannot connect with a paired Bluetooth
device, perform the pairing operation between
the receiver and the Bluetooth device again.
• If the input has been set to “BLUETOOTH”
when you turn on the receiver, the receiver
automatically connects to the last connected
Bluetooth device.
Setting the Bluetooth
Standby mode
To turn off this function
Select “Off” in step 2, then press
.
Notes
You can set the “BT Standby” (Bluetooth
Standby) mode so that the receiver can be
controlled by the Bluetooth device even
when the receiver is in standby mode.
1
2
3
4
5
Select “Listen” from the home menu,
then press
.
Select “BLUETOOTH”, then press
.
Press OPTIONS.
Select “BT Standby”, then press
.
Select “On”, then press
.
The receiver turns on automatically
when the Bluetooth device is
connected to the receiver.
To turn off this function
Select “Off” in step 5, then press
.
Notes
• When the receiver is in standby mode, the ?/1
(on/standby) indicator on the front panel lights
up in amber if “BT Standby” is set to “On”.
• You can only select this parameter when a
Bluetooth device is paired.
Setting the Bluetooth
audio codecs
You can enable or disable AAC (Advanced
Audio Coding) audio.
1
2
Select “BT AAC” in step 4 in
“Setting the Bluetooth Standby
mode”, then press
.
Select “On” or “Off”, then press
.
• On: AAC audio is available.
• Off: AAC audio is not available.
78US
• You can enjoy high quality sound if the AAC is
enabled.
• When you change the setting, the Bluetooth
device is disconnected from the receiver
automatically.
Checking the
information of a
connected Bluetooth
device
Select “Address Info” in step 4 in
“Setting the Bluetooth Standby mode”,
then press
.
Address info appears on the TV screen.
Tip
You can check the Bluetooth device information
by pressing DISPLAY repeatedly.
Each time you press DISPLAY, the display will
change cyclically as follows:
Bluetooth device name t Bluetooth device
address t Sound field currently applied t
Volume level t Input you selected
“BRAVIA” Sync Features
What is “BRAVIA”
Sync?
The “BRAVIA” Sync function allows
communication between Sony products
such as TV, Blu-ray Disc player, DVD
player, AV amplifier, etc. that supports the
Control for HDMI function.
By connecting Sony equipment that is
compatible with the “BRAVIA” Sync with
an HDMI cable (not supplied), operation is
simplified as follows:
• One-Touch Play (page 80)
• System Audio Control (page 81)
• System Power-Off (page 81)
• Scene Select (page 81)
• Home Theatre Control (page 82)
• Remote Easy Control (page 82)
Control for HDMI is a mutual control
function standard used by HDMI CEC
(Consumer Electronics Control) for HDMI
(High-Definition Multimedia Interface).
We recommend that you connect the
receiver to products featuring “BRAVIA”
Sync.
Notes
The receiver is compatible with the
“Control for HDMI-Easy Setting”
function.
• If your TV is compatible with the
“Control for HDMI-Easy Setting”
function, you can set the Control for
HDMI function of the receiver and
playback equipment automatically by
setting the Control for HDMI function on
your TV (page 79).
• If your TV is not compatible with the
“Control for HDMI-Easy Setting”
function, set the Control for HDMI
function of the receiver, playback
equipment and TV individually
(page 79).
If your TV is compatible
with the “Control for HDMIEasy Setting” function
1 Connect the receiver, TV and
playback equipment via HDMI
connection (page 24, 25).
(The respective equipment must be
compatible with the Control for HDMI
function.)
2 Turn on the receiver, TV and
playback equipment.
3 Turn on the Control for HDMI
function of the TV.
The Control for HDMI function of the
receiver and all the connected equipment
are turned on simultaneously. Wait until
“COMPLETE” appears. The setup is
complete.
For details on setup of the TV, refer to the
operating instructions of your TV.
79US
“BRAVIA” Sync Features
• You may use “One Touch Play”, “System
Audio Control”, and “System Power-Off”
function with non-Sony equipment. However,
compatibility with all non-Sony equipment is
not guaranteed.
• “Scene Select” and “Home Theatre Control”
features are Sony proprietary functions. They
cannot operate with non-Sony equipment.
• Equipment not compatible with “BRAVIA”
Sync cannot activate these features.
Preparing for the
“BRAVIA” Sync
If your TV is not compatible
with the “Control for HDMIEasy Setting” function
V/v/b,
HOME
1 Press HOME.
2
3
4
5
6
7
8
9
The home menu is displayed on the TV
screen.
Select “Settings” from the menu,
then press
.
The Settings menu list appears on the
TV screen.
Select “HDMI Settings”, then press
.
Select “Control for HDMI”, then press
.
Select “On”, then press
.
The Control for HDMI function is set to
on.
Press HOME to display the home
menu, then press HOME again to
exit the menu.
Select the HDMI input of the receiver
and TV to match the HDMI input of
the connected equipment, so that the
image from the connected
equipment is displayed.
Set the Control for HDMI function for
the connected equipment to on.
If the Control for HDMI function for the
connected equipment is already set to
on, you do not need to change the
setting.
Repeat steps 7 and 8 for other
equipment that you want to use the
Control for HDMI function.
For details on setting the TV and
connected equipment, refer to the
operating instructions of the respective
equipment.
80US
Notes
• When you unplug the HDMI cable or change the
connection, perform the steps given in “If your
TV is compatible with the “Control for HDMIEasy Setting” function” (page 79) or “If your
TV is not compatible with the “Control for
HDMI-Easy Setting” function” (page 80).
• Before you perform the “Control for HDMIEasy Setting” on your TV, be sure to turn on the
TV and other connected equipment including
the receiver first.
• If the playback equipment cannot function after
you have made the settings for “Control for
HDMI-Easy Setting”, check the Control for
HDMI setting of the playback equipment.
• If the connected equipment does not support the
“Control for HDMI-Easy Setting”, but still
supports the Control for HDMI, then you need
to set the Control for HDMI function for the
connected equipment before you perform the
“Control for HDMI-Easy Setting” from the TV.
One-Touch Play
When you start playback the equipment
connected to the receiver via an HDMI
connection, the receiver and TV operation
are simplified as follow:
Receiver and TV
Turns on (if in standby mode)
Switches to appropriate HDMI input
If you set “Pass Through” to “Auto” or
“On” (page 94), then set the receiver to
standby mode, sound and image can be
output only from the TV.
Notes
• Be sure that the System Audio Control function
is set to on using TV menu.
• Depending on the TV, the start of the content
may not appear.
• Depending on the settings, the receiver may not
turn on when “Pass Through” is set to “Auto” or
“On”.
Tip
You can also select a connected equipment, such
as Blu-ray Disc player or DVD player from the
TV menu. The receiver and TV will automatically
switch to the appropriate HDMI input.
System Audio Control
You can enjoy the TV sound from the
speakers connected to the receiver by a
simple operation.
You can operate System Audio Control
function using the TV menu. For details,
refer to the operating instructions of the
TV.
TV
Sets System
Audio Control
to on
• When “Control for HDMI” is set to “On”, the
“HDMI Audio Out” settings in the HDMI
Settings menu will set automatically based on
the System Audio Control settings (page 94).
• If the TV is turned on before turning on the
receiver, the TV will momentarily loose the
sound output.
System Power-Off
When you turn the TV off, using the power
button on the TV’s remote control, the
receiver and the connected equipment turn
off automatically.
You can also use the receiver’s remote
control to turn off the TV.
Receiver
• Turns on (if in
standby mode)
• Switches to
appropriate
HDMI input
TV ?/1
Press TV ?/1.
Minimizes TV
volume
Outputs TV sound
Notes
• If System Audio Control does not function
according to your TV setting, refer to the
operating instructions of the TV.
Notes
• Set the TV power supply interlock function to
on before using the System Power-Off function.
For details, refer to the operating instructions of
the TV.
• Depending on the condition of the connected
equipment, it may not be turned off. For details,
refer to the operating instructions of the
connected equipment.
Scene Select
The optimum picture quality and sound
field are selected automatically according
to the scene selected on your TV.
For details on the operation, refer to the
operating instructions of the TV.
81US
“BRAVIA” Sync Features
You can also use the System Audio Control
function as follows.
• If you turn on the receiver while the TV is
turned on, the System Audio Control
function will automatically activate to
output TV sound through the speakers
connected to the receiver. However, if
you turn off the receiver, the sound will
output from the TV speakers.
• When you enjoy the TV sound from the
speakers connected to the receiver, you
can adjust the volume or turn off the
sound temporarily by using the TV’s
remote control.
The TV, receiver and the connected
equipment are turned off.
Note
The sound field may not switch depending on the
TV.
Correspondence table
Scene setting on the TV
Sound field
Cinema
HD-D.C.S.
Sports
Sports
Music
Live Concert
Animation
A.F.D. Auto
A.F.D. Auto
Game
A.F.D. Auto
Graphics
A.F.D. Auto
Home Theatre Control
If a “Home Theatre Control”-compatible
TV is connected to the receiver, an icon for
Internet based applications appears on the
connected TV.
You can switch an input of the receiver or
switch sound fields by using your TV’s
remote control. You can also adjust the
level of the center speaker or the
subwoofer, or adjust the settings of “Sound
Optimizer” (page 54), “Dual Mono”
(page 93), or “A/V Sync.” (page 93).
Note
To use the Home Theatre Control function, your
TV must be able to access a broadband service.
For details, refer to the operating instructions of
your TV.
82US
Remote Easy Control
You can use the TV remote control to
operate the menu of the receiver.
Select the receiver (AV AMP)
recognized by the TV.
Notes
• The receiver is recognized as “Tuner (AV
AMP)” by the TV.
• Your TV must be compatible with the link
menu.
• Depending on the type of TV, some of the
operations may not be available.
• COAX: Specifies the digital audio
signals input to the DIGITAL
COAXIAL jack.
• Analog: Specifies the analog audio
signals input to the AUDIO IN (L/R)
jacks.
Other Operations
Switching between
digital and analog audio
(INPUT MODE)
When you connect equipment to both
digital and analog audio input jacks on the
receiver, you can fix the audio input mode
to either of them, or switch from one to the
other, depending on the type of material
you intend to watch.
1
Select “Settings” from the home
menu, then press
.
The Settings menu list appears on the
TV screen.
2
3
Select “Input Settings”, then press
.
Select “Input Mode”, then press
.
Using other audio input
jacks
(Audio Input Assign)
You can reassign the digital input jacks to
other input if the default settings of the
jacks do not correspond to your connected
equipment.
After you have reassigned the input jacks,
you can use the input button (or INPUT
SELECTOR on the receiver) to select the
equipment you connected.
Example:
When you connect the DVD player to the
OPTICAL IN 1 (SAT/CATV) jack.
– Assign the OPTICAL IN 1 (SAT/CATV)
jack to “DVD”.
1
Select “Settings” from the home
menu, then press
.
The Settings menu list appears on the
TV screen.
2
3
4
Select “Input Settings”, then press
.
Select “Audio Input Assign”, then
press
.
Select the input name you want to
assign, then press
.
83US
Other Operations
The selected audio input mode appears
on the TV screen.
• Auto: Gives priority to digital audio
signals. If there are more than one
digital connection, HDMI audio
signals have priority.
If there are no digital audio signals,
analog audio signals are selected.
When TV input is selected, priority
is given to the Audio Return
Channel (ARC) signals. If your TV
is not compatible with the ARC
function, the digital optical audio
signals are selected.
If the Control for HDMI functions of
both the receiver and the TV are not
activated, the ARC does not work.
• OPT: Specifies the digital audio
signals input to the DIGITAL
OPTICAL jack.
Notes
• Based on the input, “------” appears on the
display panel, and other modes cannot be
selected.
• When “Analog Direct” is being used, audio
input is set to “Analog”. You cannot select other
modes.
5
6
Select the audio signals you want
to assign to the input which you
selected in step 4 using V/v/B/b.
Press
.
Input name
Assignable
audio input
jacks
BD
DVD
GAME
SAT/
CATV
VIDEO
SA-CD/
CD
OPT 1
a
a
a
a*
a
a
OPT 2
a
a
a
a
a
a
COAX
a
a
a
a
a
a*
None
a*
a*
a*
a
a*
a
* Default setting
Notes
• When you assign the digital audio input, the INPUT MODE setting may change automatically.
• One reassignment is allowed for each input.
84US
Using a bi-amplifier
connection
Reverting back to the
factory default settings
1
You can clear all memorized settings and
revert the receiver back to the factory
default settings by performing the
following procedure. This procedure can
also be used to initialize the receiver before
you use it for the first time.
Be sure to use the buttons on the receiver to
perform this operation.
Select “Settings” from the home
menu, then press
.
The Settings menu list appears on the
TV screen.
2
3
4
5
6
Select “Speaker Settings”, then
press
.
Select “Speaker Pattern”, then
press
.
?/1
Select the appropriate speaker
pattern so that there are no
surround back speakers and front
high speakers, then press
.
Select “SB Assign”, then press
Select “Bi-Amp”, then press
.
.
The same signals output from the
SPEAKERS FRONT A terminals can
be output from the SPEAKERS
SURROUND BACK/ BI-AMP/
FRONT HIGH/ FRONT B terminals.
To exit the menu
Press HOME.
1
2
Press ?/1 to turn off the receiver.
Hold down ?/1 for 5 seconds.
The “CLEARING” appears on the
display panel for a while, then changes
to “CLEARED!”.
Changes or adjustments made to the
settings are now reset to the defaults.
Notes
Note
• Set the “SB Assign” to “Bi-Amp” before you
perform Auto Calibration.
• If you set the “SB Assign” to “Bi-Amp”, the
speaker level and distance settings of the
surround back speakers and front high speakers
become invalid, and those of the front speakers
are used.
It takes about a few minutes for the memory to be
cleared completely. Do not turn the receiver off
until “CLEARED!” appears on the display.
Other Operations
85US
3
Adjusting Settings
Select the menu item you want,
then press
to access the menu
item.
Example: When you select “Speaker
Settings”
Using the Settings menu
You can adjust various settings for
speakers, surround effects, etc. using the
Settings menu.
V/v/B/b,
RETURN
O
HOME
1
Press HOME.
The home menu is displayed on the TV
screen.
4
Select the parameter you want,
then press
.
To return to the previous
screen
Press RETURN O.
To exit the menu
Press HOME to display the home menu,
then press HOME again.
2
Select “Settings” from the home
menu, then press
to enter the
menu mode.
The Settings menu list appears on the
TV screen.
86US
Settings menu list
Settings
Speaker Settings
(page 88)
Auto Calibration
Calibration Type
Speaker Pattern
A.P.M.
Center Lift Up
SB Assign
Manual Setup
Crossover Freq.
Test Tone
Distance Unit
Audio Settings
(page 92)
D.L.L.
Sound Optimizer
Equalizer
Sound Field
A/V Sync.
Auto Volume
Dual Mono
D.Range Comp.
HDMI Settings
(page 94)
Control for HDMI
Pass Through
HDMI Audio Out
Subwoofer Level
Fast View
Input Settings
(page 95)
Input Mode
Input Edit
Audio Input Assign
Name In
Network Settings
(page 95)
Internet Settings
Information
PARTY STREAMING
Device Name
Network Standby
System Settings
(page 96)
Language
Auto Standby
Network Update
Update Alert
Adjusting Settings
Easy Setup
(page 88)
87US
Note
The menu parameters displayed on the TV screen
vary, depending on the current settings or the
status of the selected icon.
Easy Setup
• WRN Check: Displays warning
related to the measurement results. See
“Message list after Auto Calibration
measurement” (page 89).
• Exit: Exits the setting process without
saving the measurement results.
3 Save the measurement result.
Select “Save&Exit” in step 2.
Notes
Re-runs the Easy Setup to make the basic
settings. Follow the on-screen instructions
(page 33).
Speaker Settings menu
You can adjust each speaker manually.
You can also adjust the speaker levels after
the Auto Calibration is completed.
• The A.P.M. (Automatic Phase Matching)
function is activated after you save the
measurement result.
• The A.P.M. function does not work in the
following cases.
– The calibration type is set to “Off” when
using the “Calibration Type” (page 90).
– When Dolby TrueHD or DTS-HD signals
with a sampling frequency of more than
48 kHz are being received.
• If you reposition your speaker, we
recommend that you perform Auto
Calibration again to enjoy the surround
sound.
Note
The speaker settings are only for the current
seating position.
x Auto Calibration
Lets you perform the automatic calibration
function.
1 Follow the instructions on the TV
screen, then press
.
The measurement starts in five seconds.
The measurement process will take
approximately 30 seconds with a test
tone.
When the measurement ends, a beep
sounds and the screen switches.
Note
If an error code appears on the screen, see
“Message list after Auto Calibration
measurement” (page 89).
2 Select the item you want, then press
.
• Retry: Performs the Auto Calibration
again.
• Save&Exit: Save the measurement
results and exits the setting process.
88US
Tips
• You can select the calibration type after you
have performed the Auto Calibration and saved
the settings.
• You can change the unit of distance in “Distance
Unit” in the Speaker Settings menu (page 92).
• The size of a speaker (“Large”/“Small”) is
determined by the low frequency
characteristics. The measurement results may
vary, depending on the position of the optimizer
microphone and speakers, and the shape of the
room. It is recommended that you apply the
measurement results. However, you can change
those settings in the Speaker Settings menu.
Save the measurement results first, then try to
change the settings.
To check the Auto Calibration
results
To check error code or warning message
obtained during “Auto Calibration”
(page 88), proceed with the following
steps.
Select “WRN Check” in step 2 in “Auto
Calibration” (page 88), then press
.
Display and explanation
When “Error Code” appears
Check the error and perform Auto
Calibration again.
1 Press
.
“Retry ?” appears on the TV screen.
2 Select “Yes”, then press .
3 Repeat steps 1 to 3 in “Auto
Calibration” (page 88).
Message list after Auto
Calibration measurement
Display and explanation
Error Code 30
Headphones are connected to PHONES on
front panel of receiver. Remove the
headphones and redo Auto Calibration.
Error Code 31
The SPEAKERS is set to off. Set to other
speaker settings and perform the Auto
Calibration again.
Error Code 32
Error Code 33
Speakers were not detected or not connected
properly.
• None of the front speakers are connected or
only one front speaker is connected.
• Either the surround left or surround right
speaker is not connected.
• Surround back speakers or front high
speakers are connected even though
surround speakers are not connected.
Connect the surround speaker(s) to the
SPEAKERS SURROUND terminals.
Warning 40
The measurement process has completed with
high noise level detection. You may be able to
achieve better results if you try in a quiet
environment again.
Warning 41
Warning 42
The input from the microphone is too big.
• The distance between the speaker and the
microphone may be too close. Set them
apart and perform the measurement again.
Warning 43
The distance and position of a subwoofer
cannot be detected. This may be caused by
noise. Try to perform the measurement in a
quiet environment.
No Warning
There is no warning information.
Tip
Depending on the position of the subwoofer, the
measurement results may vary. However, there
will be no problems even if you continue to use
the receiver with that value.
89US
Adjusting Settings
• The surround back speaker is connected
only to the SPEAKERS SURROUND
BACK/ BI-AMP/ FRONT HIGH/
FRONT B R terminals. When you
connect only one surround back speaker,
connect it to the SPEAKERS
SURROUND BACK/
BI-AMP/ FRONT HIGH/ FRONT B L
terminals.
• Either the front left high or front right
high speaker is not connected.
The optimizer microphone is not
connected. Make sure that the optimizer
microphone is connected properly and
perform the Auto Calibration again.
If the optimizer microphone is connected
properly but the error code still appears,
the optimizer microphone cable may be
damaged.
If a warning message appears, check the
message and use the receiver without
change.
Or if necessary, perform Auto Calibration
again.
x Calibration Type
Lets you select the calibration type after
you have performed the Auto Calibration
and saved settings.
• Full Flat: Makes the measurement of
frequency from each speaker flat.
• Engineer: Sets to “the Sony listening
room standard” frequency characteristics.
• Front Ref.: Adjusts the characteristics of
all the speakers to match the
characteristics of the front speakers.
• Off: Sets the Auto Calibration equalizer
level to off.
x Speaker Pattern
Lets you select the speaker pattern
according to the speaker systems you are
using.
x A.P.M. (Automatic Phase
Matching)
Lets you set the A.P.M. function in the
DCAC function (page 33). Calibrates the
phase characteristics of the speakers and
ensures a well-coordinated surround space.
• Auto: Switches the A.P.M. function on or
off automatically.
• Off: Does not activate the A.P.M.
function.
Notes
• This function does not work in the following
cases.
– “Analog Direct” is being used.
– Headphones are connected.
– “Auto Calibration” has not been performed.
• The receiver may play back signals at a lower
sampling frequency than the actual sampling
frequency of the input signals, depending on the
audio format.
x Center Lift Up
By using the front high speakers, you can
lift up the sounds of the center speaker to an
appropriate height on the screen, allowing
you to enjoy natural representation without
discomfort.
• 1 – 10
• Off
90US
Note
This function does not work in the following
cases.
– Headphones are connected.
– There is no center speaker.
– There are no front high speakers.
– “2ch Stereo”, “Analog Direct”, and “Multi
Stereo” is being used.
– The sound field for music is being used.
x SB Assign (Surround back
speaker assign)
Lets you set the SPEAKERS SURROUND
BACK/ BI-AMP/ FRONT HIGH/ FRONT
B terminals for a bi-amplifier or speakers
front B connection. For details, see “To set
the surround back speakers” (page 35).
Notes
• Be sure to set the “SB Assign” before you
perform Auto Calibration.
• When you change the connection from a biamplifier or speakers front B to surround back
or front high speakers connection, set the “SB
Assign” to “Off”, then set up the speakers again.
See “Auto Calibration” (page 88) or “Manual
Setup” (page 90).
x Manual Setup
Lets you adjust each speaker manually on
the “Manual Setup” screen. You can also
adjust the speaker levels after the Auto
Calibration is completed.
To adjust the speaker level
You can adjust each speaker’s level (front
left/right, front left/right high, center,
surround left/right, surround back left/
right, subwoofer).
1 Select the speaker on the screen for
which you want to adjust the level,
then press
.
2 Select the parameter under “Level”,
then press
.
3 Adjust the level of the selected
speaker, then press
.
You can adjust the level from –10.0 dB
to +10.0 dB in 0.5 dB intervals.
Note
To adjust the distance from the
seating position to each speaker
You can adjust the distance from the
seating position to each speaker (front left/
right, front left/right high, center, surround
left/right, surround back left/right,
subwoofer).
1 Select the speaker on the screen for
which you want to adjust the
distance from the seating position,
then press
.
2 Select the parameter under
“Distance”, then press
.
3 Set the distance of the selected
speaker, then press
.
You can adjust the distance from
1 m 0 cm to 10 m 0 cm (3 feet 3 inches
to 32 feet 9 inches) in 10 cm (1 inch)
intervals.
Notes
• Depending on the speaker pattern setting, some
parameters may not be available.
• This function does not work when “Analog
Direct” is being used.
To adjust the size of each speaker
You can adjust each speaker’s (front left/
right, front left/right high, center, surround
left/right, surround back left/right) size.
1 Select the speaker on the screen for
which you want to adjust the size,
then press
.
2 Select the parameter under “Size”,
then press
.
3 Set the size of the selected speaker,
then press
.
• Large: If you connect large speakers
that will effectively reproduce bass
frequencies, select “Large”. Normally,
select “Large”.
• Small: If the sound is distorted, or you
feel a lack of surround effects when
using multi channel surround sound,
select “Small” to activate the bass
redirection circuitry and output the
bass frequencies of each channel from
the subwoofer or other “Large”
speakers.
Notes
• Distance and Size cannot be set when
headphones are connected.
• This function does not work when “Analog
Direct” is being used.
Tips
• The “Large” and “Small” settings for each
speaker determine whether the internal sound
processor will cut the bass signal from that
channel.
When the bass is cut from a channel, the bass
redirection circuitry sends the corresponding
bass frequencies to the subwoofer or other
“Large” speakers.
However, since bass sound has a certain amount
of directionality, it is best not to cut it, if
possible. Therefore, even when using small
speakers, you can set them to “Large” if you
want to output the bass frequencies from that
speaker. On the other hand, if you are using a
large speaker, but prefer not to have bass
frequencies output from that speaker, set it to
“Small”.
If the overall sound level is lower than you
prefer, set all speakers to “Large”. If there is not
enough bass, you can use the equalizer to boost
the bass levels.
• The surround back speakers will be set to the
same setting as that of the surround speakers.
91US
Adjusting Settings
When one of the sound fields for music is
selected, no sound is output from the subwoofer if
all the speakers are set to “Large” in the Speaker
Settings menu. However, the sound will be output
from the subwoofer if
– the digital input signal contains LFE signals.
– the front or surround speakers are set to
“Small”.
– “Multi Stereo”, “PLII Movie”, “PLII Music”,
“PLIIx Movie”, “PLIIx Music”, “PLIIz
Height”, “HD-D.C.S.” or “Portable Audio” is
selected.
• When the front speakers are set to “Small”, the
center, surround, and surround back/front high
speakers are also automatically set to “Small”.
• If you do not use the subwoofer, the front
speakers are automatically set to “Large”.
x Crossover Freq. (Speaker
crossover frequency)
Lets you set the bass crossover frequency
of speakers that the speaker size has been
set to “Small” in the Speaker Settings
menu. Measured speaker crossover
frequency is set for each speaker after the
Auto Calibration.
1 Select the parameter under the
speaker on the screen for which you
want to adjust the crossover
frequency, then press
.
2 Adjust the value, then press .
x Test Tone
Lets you select the test tone type on the
“Test Tone” screen.
Tips
• To adjust the level of all speakers at the same
time, press 2 +/–. You can also use MASTER
VOLUME on the receiver.
• The adjusted value is shown on the TV screen
during adjustment.
To output test tone from each
speaker
You can output test tone from the speakers
in sequence.
1 Select “Test Tone”, then press .
2 Select the type of test tone or
speaker you want, then press
.
• Off: The test tone is output from each
speaker manually.
• Auto: The test tone is output from each
speaker in sequence.
• Fix FL, Fix FR, Fix CNT, Fix SL, Fix
SR, Fix SB*, Fix SBL, Fix SBR, Fix
LH, Fix RH, Fix SW: You can select
which speakers will output the test
tone.
3 Adjust the speaker level for manual
test tone, then press
.
92US
* “Fix SB” appears when only one surround back
speaker is connected.
x Distance Unit
Lets you select the unit of measurement for
setting distances.
• feet: The distance is displayed in feet.
• meter: The distance is displayed in
meters.
Audio Settings menu
You can adjust settings for the audio to suit
your preference.
x D.L.L. (Digital Legato Linear)
The D.L.L. function is Sony proprietary
technology that allows low quality digital
audio signals and analog audio signals to be
played back with high quality sound.
• Auto 1: This function is available for
lossy compression audio formats and
analog audio signals.
• Auto 2: This function is available for
Linear PCM signals, as well as lossy
compression audio formats and analog
audio signals.
• Off
Notes
• This function may not work, depending on the
content via a USB device, or a home network.
• This function works when “A.F.D. Auto”,
“Multi Stereo”, “2ch Stereo”, or “Headphone
(2ch)” is selected. However, this function does
not work in the following cases.
– “FM TUNER” or “AM TUNER” input is
selected.
– Linear PCM signals with a sampling
frequency of other than 44.1 kHz are being
received.
– Dolby Digital Plus, Dolby Digital EX, Dolby
TrueHD, DTS 96/24, DTS-HD Master Audio,
or DTS-HD High Resolution Audio signals
are being received.
– During network function, signals with a
sampling frequency of other than 44.1 kHz is
being received.
x Sound Optimizer
x Equalizer
Lets you adjust the bass and treble level for
each speaker. For details, see “Adjusting
the Equalizer” (page 55).
x Sound Field
Lets you select a sound effect applied to
input signals. For details, see “Enjoying
Sound Effects” (page 51).
x A/V Sync. (Synchronizes
audio with video output)
Lets you delay the output of audio to
minimize the time gap between audio
output and visual display.
This function is useful when you use a large
LCD or plasma monitor or a projector.
• HDMI Auto: The time gap between
audio output and visual display for the
monitor connected via an HDMI
connection will be adjusted automatically
based on the information for the TV. This
feature is available only when the
monitor supports the A/V Sync function.
• 0 ms – 300 ms: You can adjust the delay
from 0 ms to 300 ms in 10 ms intervals.
Notes
• This function does not work when “Analog
Direct” is being used.
• The delay time may vary depending on audio
format, sound field, speaker pattern and speaker
distance settings.
x Auto Volume
This receiver can adjust the volume
automatically depending on the input
signal or content from the connected
equipment.
This function is useful, for example, when
the sound of a commercial is louder than
the TV programs.
• On
• Off
Notes
• Be sure to reduce the volume level before you
turn on/off this function.
• As this function is available only when Dolby
Digital, DTS or Linear PCM signals are input,
the sound may suddenly increase when you
switch to other formats.
• This function does not work in the following
cases.
– Linear PCM signals with a sampling
frequency of more than 48 kHz are being
received.
– Dolby Digital Plus, Dolby TrueHD, DTS 96/
24, DTS-HD Master Audio, or DTS-HD High
Resolution Audio signals are being received.
x Dual Mono (Digital broadcast
language selection)
Lets you select the language you want
when you listen to the dual audio of a
digital broadcast when available. This
feature only functions for Dolby Digital
sources.
• Main/Sub: Sound of the main language
will be output through the front left
speaker and sound of the sub language
will be output through the front right
speaker simultaneously.
• Main: Sound of the main language will
be output.
• Sub: Sound of the sub language will be
output.
x D.Range Comp. (Dynamic
Range Compression)
Lets you compress the dynamic range of
the soundtrack. This may be useful when
you want to watch movies at low volumes
late at night. Dynamic range compression
is possible with Dolby Digital sources only.
• On: The dynamic range is compressed as
intended by the recording engineer.
• Auto: The dynamic range is compressed
automatically.
93US
Adjusting Settings
Lets you enjoy clear and dynamic sound at
low volume levels. For details, see “Using
the Sound Optimizer function” (page 54).
• Normal
• Low
• Off
• Off: The dynamic range is not
compressed.
HDMI Settings menu
• Off: The receiver does not output HDMI
signals when in standby mode. Turn on
the receiver to enjoy the connected
equipment’s source on the TV. This
setting saves power in the standby mode
when compared with the “On” setting.
Note
You can adjust the required settings for
equipment connected to the HDMI jack.
x Control for HDMI
Lets you turn the Control for HDMI
function on or off. For details, see
“Preparing for the “BRAVIA” Sync”
(page 79).
• On
• Off
Notes
• When you set “Control for HDMI” to “On”,
“HDMI Audio Out” may be changed
automatically.
• When the receiver is in standby mode, the ?/1
(on/standby) indicator on the front panel lights
up in amber if “Control for HDMI” is set to
“On”.
x Pass Through
Lets you output the HDMI signals to the
TV even when the receiver is in standby
mode.
• On: When the receiver is in the standby
mode, the receiver continuously outputs
HDMI signals from the receiver’s HDMI
TV OUT jack.
• Auto: When the TV is turned on while
the receiver is in the standby mode, the
receiver outputs HDMI signals from the
receiver’s HDMI TV OUT jack. Sony
recommends this setting if you use a
“BRAVIA” Sync compatible Sony TV.
This setting saves power in the standby
mode when compared with the “On”
setting.
94US
When “Auto” is selected, it may take a little more
time for the image and sound to be output to the
TV than when “On” is selected.
x HDMI Audio Out
Lets you set the HDMI audio signals output
from the playback equipment connected to
the receiver via an HDMI connection.
• AMP: The HDMI audio signals from the
playback equipment are only output to
the speakers connected to the receiver.
Multi channel sound can be played back
as it is.
Note
Audio signals are not output from the TV’s
speaker when “HDMI Audio Out” is set to
“AMP”.
• TV+AMP: The sound is output from
TV’s speaker and the speakers connected
to the receiver.
Notes
• The sound quality of the playback equipment
depends on the TV’s sound quality, such as
the number of channels, and the sampling
frequency, etc. If the TV has stereo speakers,
the sound output from the receiver is also in
stereo as that of the TV, even if you play back
multi channel source.
• When you connect the receiver to a video
equipment (projector, etc.), sound may not be
output from the receiver. In this case, select
“AMP”.
x Audio Input Assign
Lets you set the level of the subwoofer to
0 dB or + 10 dB when PCM signals are
input via an HDMI connection. You can set
the level for each input to which an HDMI
input jack is assigned independently.
• Auto: Automatically sets the level to 0dB
or +10dB, depending on the audio stream.
• +10dB
• 0dB
Lets you set the audio input jack(s)
assigned to each input.
For details, see “Using other audio input
jacks (Audio Input Assign)” (page 83).
x Fast View
Lets you set the operation of Fast View.
This fast HDMI switching function
supports all HDMI inputs.
• Auto: You can select HDMI input faster
than the normal selection.
• Off: Fast View and preview for HDMI
functions are not available.
Input Settings menu
You can adjust the settings for the
connections of the receiver and other
equipment.
x Name In
Lets you set the name displayed on the
Watch/Listen menu.
You can enter a name of up to 8 characters
for inputs and display it.
It is more recognizable having the
equipment named on the display than the
jacks.
1 Select “Name In”, then press .
2 Select the input you want to name,
then press
.
3 Press V/v repeatedly to select a
character then press b.
You can move the input position
backward and forward by pressing B/b.
4 Repeat step 3 to input a character
one by one, then press
.
The name you entered is registered.
x Input Mode
Network Settings menu
Lets you fix the audio input mode when
you connect equipment to both digital and
analog audio input jacks. For details, see
“Switching between digital and analog
audio (INPUT MODE)” (page 83).
You can adjust the settings for the network.
The Network Settings menu is available
only when the Home Network or SEN
function is selected.
x Input Edit
x Internet Settings
Lets you set the following items for each
input.
• Watch: Displays an input to the Watch
menu.
• Listen: Displays an input to the Listen
menu.
• Watch+Listen: Displays an input to both
the Watch and Listen menus.
Lets you make the network settings. For
details, see “Configuring the network
settings of the receiver” (page 36).
• Wired Setup
• Wireless Setup
x Information
Lets you check the network information for
the network.
1 Select “Information”, then press .
95US
Adjusting Settings
x Subwoofer Level
2 Select the setting item you want to
check, then press
.
The current setting information appears
on the TV screen.
You can check the settings* for
“Physical Connection”, “SSID”,
“Security Settings”, “IP Address
Setting”, “IP Address”, “Subnet Mask”,
“Default Gateway”, “DNS Settings”,
“Primary DNS”, “Secondary DNS”, and
“MAC Address”.
* The setting items during setup differ
depending on the network environment and
connection type.
x PARTY STREAMING
Lets you set the receiver to use the PARTY
STREAMING function.
1 Select “PARTY STREAMING”, then
press
.
2 Select “On” or “Off”, then press .
• On: The receiver can be detected by
other devices on the home network.
The receiver can start or close a
PARTY, and can join or leave a
PARTY.
• Off: The receiver can be detected by
other devices on the home network.
However, the receiver cannot start or
close a PARTY, and cannot join or
leave a PARTY.
x Device Name
Lets you assign a device name to the
receiver up to 30 characters to be easily
recognizable by other devices on the home
network.
To assign the device name
1 Select “Device Name”, then press
.
2 Press
to select the current device
name.
3 Hold down SHIFT, then press
numeric/text button to enter the
device name.
4 Press .
96US
Tip
The default device name is “STR-DN840
******”.
“******” is the last 6 digits of MAC Address of
the receiver.
x Network Standby
While the “Network Standby” mode is set
to “On”, the receiver can always be
connected and controlled over the network.
1 Select “Network Standby”, then
press
.
2 Select “Off” or “On”, then press .
• On: The network function works even
when the receiver is in standby mode,
and resume operations when controlled
over the network.
• Off: The network function turns off
when the receiver is in standby mode.
The receiver takes more time to
resumes operation when powered on
again.
Note
When the receiver is in standby mode, the ?/1
(on/standby) indicator on the front panel lights up
in amber if “Network Standby” is set to “On”.
System Settings menu
You can adjust the settings of the receiver.
x Language
Lets you select the language for the
messages on the screen.
• English
• French
• German
• Spanish
x Auto Standby
Operating without using
the OSD
You can operate this receiver using the
display panel even if the TV is not
connected to the receiver.
Notes
• This function does not work in the following
cases.
– “FM TUNER”, “AM TUNER”, “USB”,
“HOME NETWORK”, or “SEN” input is
selected.
– AirPlay or PARTY STREAMING function is
being used.
– The software of the receiver is being updated.
• If you use the Auto standby mode and the Sleep
Timer at the same time, the Sleep Timer has
priority.
x Network Update
Lets you update the software of the receiver
to the latest version.
For details, see “Updating the software”
(page 71).
To check the software version
1 Select “Network Update”, then press
.
2 Select “Version”, then press .
The software version appears on the TV
screen.
x Update Alert
Lets you set whether or not to inform you of
newer software version information on the
TV screen.
• On
• Off
DISPLAY
AMP MENU
V/v/B/b,
RETURN
O
Using the menu on the
display panel
1
Press AMP MENU.
The menu is displayed on the display
panel of the receiver.
2
3
4
Press V/v repeatedly to select the
menu you want, then press
.
Press V/v repeatedly to select the
parameter you want to adjust, then
press
.
Press V/v repeatedly to select the
setting you want, then press
.
To return to the previous
display
Press B or RETURN O.
To exit the menu
Press AMP MENU.
Note
Some parameters and settings may appear
dimmed on the display panel. This means that
they are either unavailable or fixed and
unchangeable.
97US
Adjusting Settings
Lets you set the receiver switch to standby
mode automatically when you do not
operate the receiver or when there is no
signals input to the receiver.
• On: Switches to standby mode after
approximately 20 minutes.
• Off: Does not switch to standby mode.
Overview of the menus
The following options are available in each menu. For details on navigating through menus,
see page 97.
Menu
[Display]
Parameters
[Display]
Auto Calibration
settings
[<AUTO CAL>]
Auto Calibration start
[A.CAL START]
Level settings
[<LEVEL>]
Settings
Auto Calibration typea)
[CAL TYPE]
FULL FLAT, ENGINEER,
FRONT REF, OFF
Auto Phase Matchinga)
[A.P.M.]
A.P.M. AUTO, A.P.M. OFF
Test toneb)
[TEST TONE]
OFF, FIX xxxc), AUTO xxxc)
Front left speaker levelb)
[FL LEVEL]
FL –10.0 dB to FL +10.0 dB
(0.5 dB interval)
Front right speaker levelb)
[FR LEVEL]
FR –10.0 dB to FR +10.0 dB
(0.5 dB interval)
Center speaker levelb)
[CNT LEVEL]
CNT –10.0 dB to CNT +10.0 dB
(0.5 dB interval)
Surround left speaker levelb)
[SL LEVEL]
SL –10.0 dB to SL +10.0 dB
(0.5 dB interval)
Surround right speaker levelb)
[SR LEVEL]
SR –10.0 dB to SR +10.0 dB
(0.5 dB interval)
Surround back speaker levelb)
[SB LEVEL]
SB –10.0 dB to SB +10.0 dB
(0.5 dB interval)
Surround back left speaker levelb) SBL –10.0 dB to SBL +10.0 dB
[SBL LEVEL]
(0.5 dB interval)
98US
Surround back right speaker
levelb)
[SBR LEVEL]
SBR –10.0 dB to SBR +10.0 dB
(0.5 dB interval)
Front left high speaker levelb)
[LH LEVEL]
LH –10.0 dB to LH +10.0 dB
(0.5 dB interval)
Front right high speaker levelb)
[RH LEVEL]
RH –10.0 dB to RH +10.0 dB
(0.5 dB interval)
Subwoofer levelb)
[SW LEVEL]
SW –10.0 dB to SW +10.0 dB
(0.5 dB interval)
Parameters
[Display]
Settings
Speaker settings
[<SPEAKER>]
Speaker pattern
[SP PATTERN]
5/2.1 to 2/0 (20 patterns)
Center Speaker Lift up
[CNT LIFT]
1 to 10, OFF
Front speakers sizeb)
[FRT SIZE]
LARGE, SMALL
Center speaker sizeb)
[CNT SIZE]
LARGE, SMALL
Surround speakers sizeb)
[SUR SIZE]
LARGE, SMALL
Front high speakers sizeb)
[FH SIZE]
LARGE, SMALL
Surround back speaker assignd)
[SB ASSIGN]
SPK B, BI-AMP, OFF
Front left speaker distanceb)
[FL DIST.]
FL 1.00 m to FL 10.00 m
(FL 3’3” to FL 32’9”)
(0.01 m (1 inch) interval)
Front right speaker distanceb)
[FR DIST.]
FR 1.00 m to FR 10.00 m
(FR 3’3” to FR 32’9”)
(0.01 m (1 inch) interval)
Center speaker distanceb)
[CNT DIST.]
CNT 1.00 m to CNT 10.00 m
(CNT 3’3” to CNT 32’9”)
(0.01 m (1 inch) interval)
Surround left speaker distanceb)
[SL DIST.]
SL 1.00 m to SL 10.00 m
(SL 3’3” to SL 32’9”)
(0.01 m (1 inch) interval)
Surround right speaker distanceb)
[SR DIST.]
SR 1.00 m to SR 10.00 m
(SR 3’3” to SR 32’9”)
(0.01 m (1 inch) interval)
Surround back speaker distanceb)
[SB DIST.]
SB 1.00 m to SB 10.00 m
(SB 3’3” to SB 32’9”)
(0.01 m (1 inch) interval)
Surround back left speaker
distanceb)
[SBL DIST.]
SBL 1.00 m to SBL 10.00 m
(SBL 3’3” to SBL 32’9”)
(0.01 m (1 inch) interval)
Surround back right speaker
distanceb)
[SBR DIST.]
SBR 1.00 m to SBR 10.00 m
(SBR 3’3” to SBR 32’9”)
(0.01 m (1 inch) interval)
Front left high speaker distanceb)
[LH DIST.]
LH 1.00 m to LH 10.00 m
(LH 3’3” to LH 32’9”)
(0.01 m (1 inch) interval)
Adjusting Settings
Menu
[Display]
99US
Menu
[Display]
Parameters
[Display]
Settings
Front right high speaker distanceb) RH 1.00 m to RH 10.00 m
(RH 3’3” to RH 32’9”)
[RH DIST.]
(0.01 m (1 inch) interval)
Subwoofer distanceb)
[SW DIST.]
SW 1.00 m to SW 10.00 m
(SW 3’3” to SW 32’9”)
(0.01 m (1 inch) interval)
Distance unit
[DIST. UNIT]
FEET, METER
Front speakers crossover
frequencye)
[FRT CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz interval)
Center speaker crossover
frequencye)
[CNT CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz interval)
Surround speakers crossover
frequencye)
[SUR CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz interval)
Front high speakers crossover
frequencye)
[FH CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz interval)
Input Mode
[INPUT MODE]
AUTO, OPT, COAX, ANALOG
Naming Inputs
[NAME IN]
For details, see “Name In” in Input
Settings menu (page 95).
Digital audio input Assignment
[A. ASSIGN]
For details, see “Using other audio
input jacks (Audio Input Assign)”
(page 83).
Surround settings
[<SURROUND>]
HD-D.C.S. Effect Typef)
[HD-D.C.S. TYP]
DYNAMIC, THEATER, STUDIO
EQ settings
[<EQ>]
Front speakers bass level
[FRT BASS]
FRT B. –10 dB to FRT B. +10 dB
(1.0 dB step)
Front speakers treble level
[FRT TREBLE]
FRT T. –10 dB to FRT T. +10 dB
(1.0 dB step)
Center speaker bass level
[CNT BASS]
CNT B. –10 dB to CNT B. +10 dB
(1.0 dB step)
Center speaker treble level
[CNT TREBLE]
CNT T. –10 dB to CNT T. +10 dB
(1.0 dB step)
Surround speakers bass level
[SUR BASS]
SUR B. –10 dB to SUR B. +10 dB
(1.0 dB step)
Surround speakers treble level
[SUR TREBLE]
SUR T. –10 dB to SUR T. +10 dB
(1.0 dB step)
Input settings
[<INPUT>]
100US
Menu
[Display]
Audio settings
[<AUDIO>]
HDMI settings
[<HDMI>]
Bluetooth settings
[<BT>]
Settings
Front high speakers bass level
[FH BASS]
FH B. –10 dB to FH B. +10 dB
(1.0 dB step)
Front high speakers treble level
[FH TREBLE]
FH T. –10 dB to FH T. +10 dB
(1.0 dB step)
FM station receiving mode
[FM MODE]
STEREO, MONO
Naming preset stations
[NAME IN]
For details, see “Naming preset
stations (Name Input)” (page 51).
Digital Legato Linear
[D.L.L.]
D.L.L. AUTO2, D.L.L. AUTO1,
D.L.L. OFF
Sound Optimizer
[OPTIMIZER]
OFF, LOW, NORMAL
Synchronizes audio with video
output
[A/V SYNC]
0 ms to 300 ms (10 ms interval),
HDMI AUTO
Advanced AUTO volume
[AUTO VOL]
A. VOL ON, A. VOL OFF
Digital broadcast language
selection
[DUAL MONO]
MAIN/SUB, MAIN, SUB
Dynamic range compression
[D. RANGE]
COMP. ON, COMP. AUTO,
COMP. OFF
Control for HDMI
[CTRL: HDMI]
CTRL ON, CTRL OFF
Pass Through
[PASS THRU]
ON, AUTO, OFF
HDMI Audio out
[AUDIO OUT]
AMP, TV+AMP
Subwoofer Level
[SW LEVEL]
SW AUTO, SW +10 dB, SW 0 dB
Fast View
[FAST VIEW]
AUTO, OFF
Bluetooth standby modeg)
[BT STANDBY]
STBY ON, STBY OFF
Bluetooth AAC
[BT AAC]
AAC ON, AAC OFF
101US
Adjusting Settings
Tuner settings
[<TUNER>]
Parameters
[Display]
Menu
[Display]
Parameters
[Display]
Settings
System settings
[<SYSTEM>]
Network Standby
[NET STBY]
STBY ON, STBY OFF
Auto standby mode
[AUTO STBY]
STBY ON, STBY OFF
Version Display
[VER. x.xxx]h)
a) You can select this setting only when you have performed the Auto Calibration and saved the settings.
b) Depends on the speaker pattern setting, some parameters or settings may not be available.
c)
xxx represent a speaker channel (FL, FR, CNT, SL, SR, SB, SBL, SBR, LH, RH, SW).
d) You can only select this parameter if “SP PATTERN” is not set to a setting with surround back or front
high speakers (page 90).
can only select this parameter if your speaker is set to “SMALL”.
can only select this parameter if you select “HD-D.C.S.” as sound field.
can only select this parameter when a Bluetooth device is paired.
x.xxx represent a version number.
e)
You
f) You
g) You
h)
To view the information on
the display panel
The display panel provides various
information of the receiver status such as
sound field.
1 Select the input for which you want to
check the information.
2 Press AMP, then press DISPLAY
repeatedly.
Each time you press DISPLAY, the
display will change cyclically as
follows.
Index name of the input1) t Input you
selected t Sound field currently
applied2) t Volume level t Stream
information3)
When listening to FM and AM
radio
Preset station name1) t Frequency t
Sound field currently applied t
Volume level
1)
Index name appears only when you have
assigned one to the input or preset station.
Index name does not appear when only blank
spaces have been entered or it is same as the
input name.
102US
2) “PURE.DIRECT”
3)
appears when Pure Direct
function is activated.
Stream information may not be displayed.
Note
Character or marks may not be displayed for
some languages.
3
Using the Remote Control
Reassigning the input
button
Note
You cannot reassign the TV, TUNER,
BLUETOOTH, USB, HOME NETWORK, SEN
input buttons.
TV ?/1
Numeric
buttons
1
Input
buttons
While holding down the input
button of which you want to
change the assignment, hold down
TV ?/1.
Example: Press 1, then release TV ?/1.
Now you can use the SAT/CATV
button to control the Blu-ray Disc
player.
Categories
Press
Blu-ray Disc player
(command mode BD1)a)
1
Blu-ray Disc recorder
(command mode BD3)a)
2
DVD player
(command mode DVD1)
3
DVD recorder
(command mode DVD3)b)
4
VCR
(command mode VTR3)c)
5
CD player
6
a)For details on the BD1 or BD3 setting, refer
to the operating instructions supplied with
the Blu-ray Disc player or Blu-ray Disc
recorder.
b)
Sony DVD recorders are operated with a
DVD1 or DVD3 setting. For details, refer
to the operating instructions supplied with
the DVD recorders.
c)Sony VCRs are operated with a VTR 3
setting which corresponds to VHS.
Example: While holding down
SAT/CATV, hold down TV ?/1.
2
With the TV ?/1 button held,
release the input button.
Example: With the TV ?/1 button
held, release SAT/CATV.
103US
Using the Remote Control
You can change the default settings of the
input buttons to suit the equipment in your
system. For example, if you connect a Bluray Disc player to the SAT/CATV jack on
the receiver, you can set the SAT/CATV
button on this remote control to control the
Blu-ray Disc player.
Referring to the following table,
press the corresponding button for
the category you want, then
release TV ?/1.
Resetting the input
buttons
TV INPUT
Additional Information
TV ?/1
?/1
Precautions
On safety
Should any solid object or liquid fall into
the cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
2–
1
2
While holding down 2 –, press
and hold ?/1, then press TV INPUT.
Release all buttons.
The input buttons are reset to the
default settings.
• Before operating the receiver, check that
the operating voltage is identical with
your local power supply.
The operating voltage is indicated on the
nameplate on the back of the receiver.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the
unit itself has been turned off.
• If you are not going to use the receiver for
a long time, be sure to disconnect the
receiver from the wall outlet. To
disconnect the AC power cord (mains
lead), grasp the plug itself; never pull the
cord.
• (USA and Canada models only)
One blade of the plug is wider than the
other for the purpose of safety and will fit
into the wall outlet only one way. If you
are unable to insert the plug fully into the
outlet, contact your dealer.
• The AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To
avoid burning yourself, do not touch the
cabinet.
104US
On placement
On operation
Before connecting other equipment, be sure
to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with
a soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
On Bluetooth
communication
• Bluetooth devices should be used within
approximately 10 meters (33 feet)
(unobstructed distance) of each other.
The effective communication range may
become shorter under the following
conditions.
– When a person, metal object, wall or
other obstruction is between the
devices with a Bluetooth connection
– Locations where a wireless LAN is
installed
– Around microwave ovens that are in
use
– Locations where other electromagnetic
waves occur
• Bluetooth devices and wireless LAN
(IEEE 802.11b/g) use the same frequency
band (2.4 GHz). When using your
Bluetooth device near a device with
wireless LAN capability, electromagnetic
interference may occur. This could result
in lower data transfer rates, noise, or
inability to connect. If this happens, try
the following remedies:
– Use this receiver at least 10 meters
(33 feet) away from the wireless LAN
device.
– Turn off the power to the wireless LAN
equipment when using your Bluetooth
device within 10 meters (33 feet).
– Install this receiver and Bluetooth
device as closer to each other as
possible.
• The radio waves broadcast by this
receiver may interfere with the operation
of some medical devices. Since this
interference may result in malfunction,
always turn off the power on this receiver
and Bluetooth device in the following
locations:
– In hospitals, on trains, in airplanes, at
gas stations, and any place where
flammable gasses may be present
– Near automatic doors or fire alarms
• This receiver supports security functions
that comply with the Bluetooth
specification to ensure secure connection
during communication using Bluetooth
technology. However, this security may
be insufficient depending on the setting
contents and other factors, so always be
careful when performing communication
using Bluetooth technology.
105US
Additional Information
• Place the receiver in a location with
adequate ventilation to prevent heat
buildup and prolong the life of the
receiver.
• Do not place the receiver near heat
sources, or in a place subject to direct
sunlight, excessive dust, or mechanical
shock.
• Do not place anything on top of the
cabinet that might block the ventilation
holes and cause malfunctions.
• Do not place the receiver near equipment
such as a TV, VCR, or tape deck. (If the
receiver is being used in combination
with a TV, VCR, or tape deck, and is
placed too close to that equipment, noise
may result, and picture quality may
suffer. This is especially likely when
using an indoor antenna (aerial).
Therefore, we recommend using an
outdoor antenna (aerial).)
• Use caution when placing the receiver on
surfaces that have been specially treated
(with wax, oil, polish, etc.) as staining or
discoloration of the surface may result.
• Sony cannot be held liable in any way for
damages or other loss resulting from
information leaks during communication
using Bluetooth technology.
• Bluetooth communication is not
necessarily guaranteed with all Bluetooth
devices that have the same profile as this
receiver.
• Bluetooth devices connected with this
receiver must comply with the Bluetooth
specification prescribed by the Bluetooth
SIG, Inc., and must be certified to
comply. However, even when a device
complies with the Bluetooth
specification, there may be cases where
the characteristics or specifications of the
Bluetooth device make it impossible to
connect, or may result in different control
methods, display or operation.
• Noise may occur or the audio may cut off
depending on the Bluetooth device
connected with this receiver, the
communications environment, or
surrounding conditions.
If you have any questions or problems
concerning your receiver, please consult
your nearest Sony dealer.
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use
this troubleshooting guide to help you
remedy the problem. Should any problem
persist, consult your nearest Sony dealer.
Note that if service personnel changes
some parts during repair, these parts may
be retained.
Power
The receiver is turned off
automatically.
• “Auto Standby” is set to “On”
(page 97).
• The Sleep Timer function is working
(page 15).
• “PROTECTOR” is working
(page 118).
The ?/1 (on/standby) indicator flashes
in quick succession.
• The software update has error. Unplug
the power cord, and then plug in the
power cord again. The receiver will try
to update the software. If the indicator
continues to flash in quick succession,
contact your nearest Sony dealer.
No image appears on the TV.
• Select the appropriate input using the
input buttons.
• Set your TV to the appropriate input
mode.
• Move your audio equipment away
from the TV.
• Make sure that cables are correctly and
securely connected to equipment.
106US
• Depending on the playback
equipment, you may need to set up the
equipment. Refer to the operating
instructions supplied with each
equipment.
• Be sure to use a High Speed HDMI
cable when you view images or listen
to sound, especially for the 1080p,
Deep Color (Deep Colour), 4K or 3D
transmission.
No 3D image appears on the TV.
• Press HOME.
• Check that the TV is connected
correctly.
• Depending on the TV, the OSD menu
may take some time to appear on the
TV screen.
Display panel is turned off.
• If PURE DIRECT indicator lights up,
press PURE DIRECT to turn off the
function (page 55).
• Press DIMMER on the receiver to
adjust the brightness of the display
panel.
No 4K image appears on the TV.
• Depending on the TV or the video
equipment, 4K images may not be
displayed. Check your video capability
and setting of your TV and video
equipment. Also, make sure you
connect the video equipment to 4K
available HDMI IN jack of this
receiver.
When the receiver is in standby mode,
there is no image output from the TV.
• When the receiver enters into standby
mode, image is from the last HDMI
equipment selection before you turned
off the receiver. If you are enjoying
other equipment, play the equipment
and perform the One-Touch Play
operation, or turn on the receiver to
select the HDMI equipment you want
to enjoy.
• Make sure “Pass Through” is set to
“On” in the HDMI Settings menu if
you connect equipment not compatible
with the “BRAVIA” Sync to the
receiver (page 94).
Sound
There is no sound, no matter which
equipment is selected, or only a very
low-level sound is heard.
• Check that all connecting cords are
inserted to their input/output jacks for
the respective jacks of the receiver,
speakers and the equipment.
• Check that both the receiver and all
equipment are turned on.
• Check that MASTER VOLUME
control is not set to “VOL MIN”.
• Check that the SPEAKERS is not set
to “SPK OFF” (page 35).
• Check that headphones are not
connected to the receiver.
• Press
on the remote control to
cancel the muting function.
• Try pressing the input button on the
remote control or turning the INPUT
SELECTOR on the receiver to select
the equipment of your choice
(page 41).
107US
Additional Information
• Depending on the TV or the video
equipment, 3D images may not be
displayed. Check the 3D image
formats supported by the receiver
(page 120).
The OSD menu does not appear on the
TV screen.
• When you want to listen to the sound
from the TV speaker, set the “HDMI
Audio Out” to “TV+AMP” in the
HDMI Settings menu (page 94). If you
cannot play back multi channel audio
source, set to “AMP”. However, the
sound will not output through the TV
speaker.
• Sound may be interrupted when the
sampling frequency, the number of
channels or audio format of audio
output signals from the playback
equipment is switched.
There is severe hum or noise.
• Check that the speakers and equipment
are connected securely.
• Check that the connecting cords are
away from a transformer or motor, and
at least 3 meters (10 feet) away from a
TV set or fluorescent light.
• Move your audio equipment away
from the TV.
• The plugs and jacks are dirty. Wipe
them with a cloth slightly moistened
with alcohol.
There is no sound, or only a very lowlevel sound is heard from specific
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only
one channel is output from the
headphones, the equipment may not be
connected to the receiver correctly.
Check that all the cords are fully
inserted into the jacks on both the
receiver and the equipment.
If both channels are output from the
headphones, the front speaker may not
be connected to the receiver correctly.
Check the connection of the front
speaker which is not outputting any
sound.
• Make sure you have connected to both
the L and R jacks of an analog
equipment, analog equipment requires
both L and R jack connections. Use an
audio cord (not supplied).
108US
• Adjust the speaker level (page 90).
• Check that the speaker settings are
appropriate for the setup using the
Auto Calibration menu or “Speaker
Pattern” in the Speaker Settings menu.
Then check that sound is output from
each speaker correctly, using “Test
Tone” in the Speaker Settings menu.
• Some discs have no Dolby Digital
Surround EX information.
• Check that the subwoofer is connected
correctly and securely.
• Make sure you have turned on your
subwoofer.
• Depending on the selected sound field,
no sound will be available from the
subwoofer.
• When all speakers are set to “Large”
and “Neo:6 Cinema” or “Neo:6
Music” is selected, there is no sound
from the subwoofer.
There is no sound from a specific
equipment.
• Check that the equipment is connected
correctly to the audio input jacks for
that equipment.
• Check that the cord(s) used for the
connection is (are) fully inserted into
the jacks on both the receiver and the
equipment.
• Check the INPUT MODE (page 83).
• Check that the equipment is connected
correctly to the HDMI jack for that
equipment.
• Depending on the playback
equipment, you may need to set up the
HDMI setting of the equipment. Refer
to the operating instructions supplied
with each equipment.
• Be sure to use a High Speed HDMI
cable when you view images or listen
to sound, especially for the 1080p,
Deep Color (Deep Colour), 4K or 3D
transmission.
• If you cannot listen to the sound of the
equipment connected to the receiver
while TV input is selected on the
receiver
– Be sure to change the input of the
receiver to HDMI when you want to
watch a program on the equipment
connected via HDMI connection to
the receiver.
– Change the TV channel when you
want to watch a TV broadcast.
– Be sure to select the correct
equipment or input you want when
you watch a program from the
equipment connected to the TV.
Refer to the operating instructions of
the TV on this operation.
• When “Analog Direct” is being used,
the sound is not output. Use other
sound field (page 51).
• When using the Control for HDMI
function, you cannot control the
connected equipment using TV’s
remote control.
– Depending on the connected
equipment and TV, you may need to
set up the equipment and TV. Refer
to the operating instructions
supplied with each equipment and
TV.
– Change the input of the receiver to
the HDMI input connected to the
equipment.
• Check that the selected digital audio
input jack is not reassigned to other
inputs (page 83).
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and equipment
are connected correctly and securely.
• Adjust the sound level parameters
using the Speaker Settings menu.
109US
Additional Information
• Sound may not be output from the
receiver while the OSD appears on the
TV screen. Press HOME to display the
home menu, then press HOME again.
• Audio signals (format, sampling
frequency, bit length, etc.) transmitted
from an HDMI jack may be suppressed
by the connected equipment. Check
the setup of the connected equipment if
the image is poor or the sound does not
come out of the equipment connected
via the HDMI cable.
• When the connected equipment is not
compatible with copyright protection
technology (HDCP), the image and/or
the sound from the HDMI TV OUT
jack may be distorted or may not be
output. If this is the case, check the
specification of the connected
equipment.
• Set the image resolution of the
playback equipment to more than
720p/1080i to enjoy High Bitrate
Audio (DTS-HD Master Audio, Dolby
TrueHD).
• The image resolution of the playback
equipment may need to be at certain
settings before you can enjoy DSD and
Multi Channel Linear PCM. Refer to
the operating instructions of the
playback equipment.
• Make sure the TV is compatible with
the System Audio Control function.
• If the TV does not have System Audio
Control function, set the “HDMI
Audio Out” settings in HDMI Settings
menu to
– “TV+AMP” if you want to listen to
the sound from the TV speaker and
receiver.
– “AMP” if you want to listen to the
sound from the receiver.
• When you connect the receiver to a
video equipment (projector, etc.),
sound may not be output from the
receiver. In this case, set the “HDMI
Audio Out” to “AMP” in the HDMI
Settings menu (page 94).
Dolby Digital or DTS multi channel
sound is not reproduced.
• Check that the DVD, etc. you are
playing is recorded in Dolby Digital or
DTS format.
• When connecting the DVD player,
etc., to the digital input jacks of this
receiver, make sure the digital audio
output setting of the connected
equipment is available.
• Set “HDMI Audio Out” to “AMP” in
the HDMI Settings menu (page 94).
• You can enjoy High Bitrate Audio
(DTS-HD Master Audio, Dolby
TrueHD), DSD, and Multi Channel
Linear PCM only with an HDMI
connection.
The surround effect cannot be
obtained.
• Make sure you have selected the sound
field for movie or music (page 52).
• Sound fields do not function when
DTS-HD Master Audio, DTS-HD
High Resolution Audio or Dolby
TrueHD with sampling frequency of
more than 48 kHz are being received.
A test tone is not output from the
speakers.
• The speaker cords may not be
connected securely. Check to see if
they are connected securely and cannot
be disconnected by pulling on them
slightly.
• The speaker cords may have shortcircuit problem.
• Make sure that you are not using
PARTY STREAMING function
(page 68).
A test tone is output from a different
speaker than the speaker displayed on
the TV screen.
• The speaker pattern set up is incorrect.
Make sure that the speaker
connections and the speaker pattern
match correctly.
110US
When the receiver is in standby mode,
there is no sound output from the TV.
• When the receiver enters into standby
mode, sound is from the last HDMI
equipment selection before you turned
off the receiver. If you are enjoying
other equipment, play the equipment
and perform the One-Touch Play
operation, or turn on the receiver to
select the HDMI equipment you want
to enjoy.
• Make sure “Pass Through” is set to
“ON” in the HDMI Settings menu if
you connect equipment not compatible
with the “BRAVIA” Sync to the
receiver (page 94).
There is a time gap between the audio
output and visual display.
• Check that the PARTY STREAMING
function is not being used. To close a
PARTY, press PARTY START/
CLOSE until “CLOSE PARTY”
appears. For details, see page 69.
Tuner
The FM reception is poor.
• Use a 75-ohm coaxial cable (not
supplied) to connect the receiver to an
outdoor FM antennas (aerial) as shown
below.
Outdoor FM antenna (aerial)
Receiver
Radio stations cannot be tuned in.
• Check that the antennas (aerials) are
connected securely. Adjust the
antennas (aerials) and connect an
external antenna (aerial), if necessary.
iPod/iPhone
The sound is distorted.
• Press 2 – on the remote control
repeatedly.
• Set the “EQ” setting of the iPod/
iPhone to “Off” or “Flat”.
There is no sound from the iPod/
iPhone.
• Disconnect the iPod/iPhone and
connect the iPod/iPhone again.
The iPod/iPhone cannot be charged.
• Check that the receiver is turned on.
• Make sure the iPod/iPhone is
connected firmly.
The iPod/iPhone cannot be operated.
• Check that you have removed the
protect case of the iPod/iPhone.
• Depending on the contents of the iPod/
iPhone, it may take time to start
playback.
• Turn off the receiver, then disconnect
the iPod/iPhone. Turn on the receiver
again and reconnect the iPod/iPhone.
• You are using an unsupported iPod/
iPhone. See “Compatible iPod/iPhone
models” (page 43) for the supported
device types.
The ringtones volume of the iPhone
does not change.
• Adjust the ring volume using the
controls on the iPhone.
USB device
Are you using a supported USB
device?
• If you connect an unsupported USB
device, the following problems may
occur. See “Compatible USB devices”
(page 45) for the supported device
types.
– The USB device is not recognized.
– File or folder names are not
displayed on this receiver.
– Playback is not possible.
– The sound skips.
– There is noise.
– A distorted sound is output.
There is noise, skipping, or distorted
sound.
• Turn off the receiver and reconnect the
USB device, then turn on the receiver.
• The music data itself contains noise, or
the sound is distorted.
The USB device is not recognized.
• Turn off the receiver, then disconnect
the USB device. Turn on the receiver
again and reconnect the USB device.
• Connect the supported USB device
(page 45).
• The USB device does not work
properly. Refer to the USB device
operating instructions on how to deal
with this problem.
Playback does not start.
• Turn off the receiver and reconnect the
USB device, then turn on the receiver.
• Connect the supported USB device
(page 45).
• Press N to start playback.
111US
Additional Information
• The signal strength of the stations is
too weak with automatic tuning. Use
direct tuning.
• Make sure you set the tuning scale
correctly (when tuning in AM stations
with direct tuning) (page 50).
• No stations have been preset or the
preset stations have been cleared
(when tuning by scanning preset
stations is used). Preset the stations
(page 50).
• Press AMP, then press DISPLAY
repeatedly on the remote control so
that the frequency appears on the
display panel.
The USB device cannot be connected
into the (USB) port.
• The USB device is being connected
upside down. Connect the USB device
in the correct orientation.
Erroneous display.
• The data stored in the USB device may
have been corrupted.
• The character codes that can be
displayed by this receiver are as
follows:
– Upper cases (A to Z)
– Lower cases (a to z)
– Numbers (0 to 9)
– Symbols (’ = < > * + , – . / @ [ \ ] _ `)
Other characters may not be displayed
correctly.
“Reading” is displayed for an extended
time, or it takes a long time before
playback starts.
• The reading process can take a long
time in the following cases.
– There are many folders or files on
the USB device.
– The file structure is extremely
complex.
– The memory capacity is excessive.
– The internal memory is fragmented.
Thus, we recommend following these
guidelines.
– Total folders on USB device: 256 or
less (including “ROOT” folder)
– Total files per folder: 256 or less.
Audio file cannot be played back.
• MP3 files in MP3 PRO format cannot
be played back.
• The audio file is a multiple track audio
file.
• Some AAC files may not be played
back correctly.
• WMA files in Windows Media Audio
Lossless and Professional format
cannot be played back.
• USB device formatted with file
systems other than FAT16 or FAT32
are unsupported.*
112US
• If you use partitioned USB device,
only audio files on the first partition
can be played back.
• Playback is possible up to 8 levels
(including “ROOT” folder).
• The number of folders has exceeded
256 (including “ROOT” folder).
• The number of files in a folder has
exceeded 256.
• Files that are encrypted or protected by
passwords, etc. cannot be played back.
* This unit supports FAT16 and FAT32, but
some USB device may not support all of
these FAT.
For details, refer to the operating
instructions of each USB device or contact
the manufacturer.
Network connection
The receiver cannot connect to the
WPS via a wireless LAN connection.
• You cannot connect to a network using
WPS when your access point is set to
WEP. Set up your network after
searching the access point using the
access point scan.
An error message appears.
• Check the nature of the error. See
“Network features message list”
(page 72).
Cannot connect to the network.
• Check the network status. See
“Information”, then select “Physical
Connection” in step 2 (page 95).
If “Connection Fail” appears, set up
the network connection again
(page 57).
• When the system is connected through
a wireless network, move the receiver
and the wireless LAN router/access
point closer to each other and do the
setup again.
Cannot control the receiver using the
TV SideView device.
• The receiver may take a long time to
connect to the network after you turn
on the receiver. Wait for a few
moments, and then try using the TV
SideView again.
• Make sure “Network Standby” is set to
“On” in the Network Settings menu so
that you can use the TV SideView
immediately after you have turned on
the receiver.
Cannot select the Network Settings
menu.
• Wait for a few moments after you
turned on the receiver, and then select
the Network Settings menu again.
Home Network
Cannot connect to the network.
• Make sure the wireless LAN router/
access point is turned on.
• Make sure the server is turned on.
• The network settings on the receiver
may be incorrect. Check the network
status. See “Information”, then select
“Physical Connection” in step 2
(page 95).
If “Connection Fail” appears, set up
the network connection again
(page 57).
• The server may be unstable. Restart it.
• Confirm that the receiver and the
server are connected to the wireless
LAN router/access point correctly.
• Confirm that the server has been set
correctly (page 57). Confirm that the
receiver has been registered to the
server and allows the music streaming
from the server.
• When the system is connected to the
wireless network, move the receiver
and the wireless LAN router/access
point closer to each other.
• If the ICF (Internet Connection
Firewall) function is active on the
computer, this may prevent the
receiver from connecting to the
computer (only when your computer is
used as a server). You may need to
change the firewall settings to allow
the receiver to connect. (For details on
changing the firewall settings, refer to
the operating instructions supplied
with your computer.)
• If you have initialized the receiver or
performed a system recovery on your
server, perform the network settings
again (page 57).
The server (such as a computer) does
not appear in the server list. (“No
Server” appears on the TV screen.)
• You may have turned on this receiver
before you turned on the server.
Refresh the server list (page 62).
• Make sure that the wireless LAN
router/access point is turned on.
• Make sure that the server is turned on.
• Confirm that the server has been set
correctly (page 57). Confirm that the
receiver has been registered to the
server and allows the music streaming
from the server.
• Confirm that the receiver and the
server are connected to the wireless
LAN router/access point correctly.
Check the network setting information
(page 95).
113US
Additional Information
• Check the settings of the wireless LAN
router/access point and do the setup
again. For details on the settings of the
devices, refer to the operating
instructions of the devices.
• Make sure that you use a wireless LAN
router/access point.
• Wireless networks are influenced by
electromagnetic radiation emitted by
microwave ovens and other devices.
Move the unit away from these
devices.
• Make sure that the wireless LAN
router/access point is turned on.
• Refer to the operating instructions of
your wireless LAN router/access
point, and check the multicast setting.
If the multicast setting is enabled on
the wireless LAN router/access point,
disable it.
Cannot play audio data normally.
• Shuffle Play is selected. Press
SHUFFLE repeatedly until “SHUF”
disappears.
Play does not start, or does not
automatically change to the next track
or file.
• Make sure that the audio file you are
trying to play is in a format supported
by this receiver (page 62).
• WMA files with DRM copyright
protection cannot be played back.
For how to check the copyright
protection of a WMA file, see page 65.
The sound skips during playback.
• The bandwidth of your wireless LAN
may be too low. Move the receiver and
the wireless LAN router/access point
closer to each other, without any
obstacles in between them.
• When using your computer as a server,
the computer may be running many
applications. If anti-virus software is
active on the computer, temporarily
disable the software as it needs large
amount of system resources.
• Depending on the network
environment, it may not be possible to
play tracks with more than one device
operating at the same time. Turn off
another device to enable the receiver to
play tracks.
“Cannot Play” appears.
• You cannot play any files other than
audio files.
• Confirm that the server has been set
correctly (page 57). Confirm that the
receiver has been registered to the
server and allows the music streaming
from the server.
114US
• Check to confirm whether the audio
file on the server has been damaged or
erased. Refer to the operating
instructions supplied with the server.
• You cannot play the following tracks:
– A track that violates playback
restrictions.
– A track with irregular copyright
information.
– A track that you purchased at an
online music store that does not
allow home network streaming.
– A track in a format unsupported by
the receiver (page 62).
• Confirm that the selected track has not
been erased from the server. If the
track has been erased, select another
track.
• Make sure that the wireless LAN
router/access point is turned on.
• Make sure that the server is turned on.
• The server may be unstable. Restart it.
• Confirm that the receiver and the
server are connected to the wireless
LAN router/access point correctly.
“No Track” appears.
• If there are no tracks or folders in the
selected folder, you cannot extend the
folder to display its contents.
Cannot play back a copyrighted WMA
format track.
• For how to check the copyright
protection of a WMA file, see page 65.
You cannot select a previously
selected track.
• The track information may have been
changed on the server. Reselect the
server in the server list (page 62).
Devices on the home network cannot
connect to the receiver.
• “Network Standby” may be set to
“Off”. Turn on the receiver or set
“Network Standby” to “On” in
Network Settings menu (page 96).
The receiver cannot be turned on
automatically when accessed by
devices on the network.
• The receiver itself does not support the
Wake-on-LAN standard. Therefore the
receiver cannot be turned on by Wakeon-LAN when “Network Standby” is
set to “Off”. Set “Network Standby” to
“On” in Network Settings menu
(page 95) so that the receiver can
respond to operations by other devices
via a network (page 96).
Devices on the network cannot turn on
the receiver.
• The receiver cannot be turned on with
a Wake-on-LAN start up operated by
other devices on a network.
The receiver cannot play the track that
is currently being played by the PARTY
host.
• The PARTY host is playing a track of
an audio format that cannot be played
on the receiver.
• It may take a while before the playback
sound is output.
The receiver joins an unintended
PARTY.
• If more than one PARTY has been
started when the receiver joins, the
receiver may not be able to join the
PARTY you want. Close the other
PARTY, and then join the PARTY you
want.
AirPlay
The receiver cannot be found from an
iOS device.
• Check your set-up of the firewall of the
security software. Refer to the website
(page 118) for details.
• Make sure the iOS device or the
computer with iTunes is connected to
your home network.
• Update the AirPlay software version of
the receiver and the iOS device to the
latest version (page 71).
The sound skips.
• The sound may skip depending on
factors such as the network
environment when you use a wireless
network.
• The servers are overloaded. Close all
unneeded applications you are
currently using.
This receiver cannot be operated.
• Update the software version of the iOS
device to the latest version (page 71).
• Update the software version of the
receiver to the latest version (page 71).
• Make sure another device is not
streaming to the AirPlay compatible
device at the same time.
115US
Additional Information
• Confirm that the network is correctly
set up. If it is not, the connection
cannot be made (page 96).
• The device on the device list is set to
“Not Allow” (page 63), or the device is
not added to the device list (page 63).
• A maximum of 20 connectable devices
has been set. Delete unnecessary
devices on the device list, and then set
“Auto Access” to “Allow” (page 63).
• Server operation of the receiver is
suspended if the receiver is conducting
one of the following operations.
– Playing a track stored on the server
(the receiver is operating as a player)
– Updating the software
– Formatting the system
Buttons such as 2 +/–, N, X, x,
., >, SHUFFLE and REPEAT do
not work.
• Make sure that the settings that allow
iTunes to accept control from this
receiver are active.
• The receiver is not selected as the
remote speaker on the iOS device.
Select the receiver as the network
speaker.
SEN
You cannot connect the receiver to a
service.
• Make sure that the wireless LAN
router/access point is turned on.
• Check the network status. See
“Information” (page 95), then select
“Physical Connection” in step 2. If
“Connection Fail” appears, set up the
network connection again (page 57).
• When the system is connected to the
wireless network, move the receiver
and the wireless LAN router/access
point closer to each other.
• If your contract with your Internet
provider limits Internet connection to
one device at a time, this device will
not be able to access the Internet when
another device is already connected.
Consult your carrier or service
provider.
The sound skips.
• The bandwidth of your wireless LAN
may be too low. Move the receiver and
the wireless LAN router/access point
closer to each other, without any
obstacles between.
116US
Bluetooth device
Pairing cannot be done.
• Move the Bluetooth device closer to
the receiver.
• Pairing may not be possible if other
Bluetooth devices are present around
the receiver. In this case, turn off the
other Bluetooth devices.
• Enter the same passkey that was
entered at the Bluetooth device
correctly (page 76).
Cannot make the Bluetooth
connection.
• The Bluetooth device you attempted to
connect does not support the A2DP
profile, and cannot be connected with
the receiver.
• Press BLUETOOTH on the receiver to
connect to the last connected Bluetooth
device.
• Turn on the Bluetooth function of the
Bluetooth device.
• Establish a connection from the
Bluetooth device.
• The pairing registration information
has been erased. Perform the pairing
operation again (page 76).
• While connected to a Bluetooth device,
this receiver cannot be detected and a
connection cannot be established from
another Bluetooth device.
• Erase the pairing registration
information of a Bluetooth device
(page 76) and perform the pairing
operation again.
The sound skips or fluctuates, or the
connection is lost.
• The receiver and the Bluetooth device
are too far apart.
• If there are obstacles between the
receiver and your Bluetooth device,
remove or avoid the obstacles.
• If there is equipment that generates
electromagnetic radiation, such as a
wireless LAN, other Bluetooth device,
or a microwave oven nearby, move
them away.
The sound of your Bluetooth device
cannot be heard on this receiver.
• Turn up the volume on your Bluetooth
device first, and then adjust the volume
using 2 +/– (or MASTER
VOLUME on the receiver).
• If there are obstacles between the
receiver and your Bluetooth device,
remove or avoid the obstacles.
• If there is equipment that generates
electromagnetic radiation, such as a
wireless LAN, other Bluetooth device,
or a microwave oven nearby, move
them away.
• Turn down the volume of the
connected Bluetooth device.
“BRAVIA” Sync (Control
for HDMI)
The Control for HDMI function does not
work.
• Check the HDMI connection
(page 25).
• Make sure “Control for HDMI” is set
to “On” in HDMI Settings menu
(page 94).
• Make sure the connected equipment is
compatible with the Control for HDMI
function.
• Check the Control for HDMI settings
on the connected equipment. Refer to
the operating instructions of the
connected equipment.
• If you unplug the HDMI cable or
change the connection, repeat the
procedures of “Preparing for the
“BRAVIA” Sync” (page 79).
Remote control
The remote control does not function.
• Point the remote control at the remote
control sensor on the receiver
(page 10).
• Remove any obstacles in the path
between the remote control and the
receiver.
• Replace all the batteries in the remote
control with new ones, if they are
weak.
• Make sure you select the correct input
on the remote control.
117US
Additional Information
Severe hum or noise
• When “Control for HDMI” is set to
“Off”, the “BRAVIA” Sync does not
work properly, even if the equipment
is connected to the HDMI IN jack.
• The types and the number of
equipment which can be controlled by
the “BRAVIA” Sync are restricted in
the HDMI CEC standard as follows.
– Recording equipment (Blu-ray Disc
recorder, DVD recorder, etc.): up to
3 equipment
– Playback equipment (Blu-ray Disc
player, DVD player, etc.): up to 3
equipment
– Tuner-related equipment: up to 4
equipment
– AV receiver (audio system): up to 1
equipment
Error messages
If there is a malfunction, a message appears
on the display panel. You can check the
condition of the system by the message. If
any problem persists, consult your nearest
Sony dealer.
PROTECTOR
Irregular current is output to the
speakers, or the receiver is covered and
ventilation holes are blocked. The
receiver will automatically turn off after
a few seconds. Remove the object
covering the upper panel of the receiver,
check the speaker connection and turn
on the power again.
USB FAIL
An over current from the (USB) port
was detected. The receiver will
automatically turn off after a few
seconds. Check the iPod/iPhone or USB
device, then unplug it and turn on the
power again.
For other messages, see “Message list after
Auto Calibration measurement” (page 89),
“iPod/iPhone message list” (page 45),
“USB message list” (page 48) and
“Network features message list” (page 72).
Clearing the memory
Reference sections
To clear
See
All memorized settings
page 85
Customized sound fields
page 56
118US
About support
information
Refer to the following web site for details
of the latest information on the receiver.
For customers in the USA:
http://www.esupport.sony.com/
For customers in Canada:
[English]
http://www.sony.ca/ElectronicsSupport/
[French]
http://fr.sony.ca/ElectronicsSupport/
For customers in Latin America:
http://esupport.sony.com/LA
Specifications
AUDIO POWER
SPECIFICATIONS
Output (Analog)
SUBWOOFER
Voltage: 2 V/1 kilohm
Equalizer
Gain levels
В±10 dB, 1 dB step
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
3) INPUT SHORT (with sound field and equalizer
(USA model only)
4)
Amplifier section
Minimum RMS Output Power1)
(6 ohms, 20 Hz – 20 kHz, THD 0.09%)
95 W + 95 W
Stereo Mode Output Power1)
(6 ohms, 1 kHz, THD 1%)
110 W + 110 W
Surround Mode Output Power1) 2)
(6 ohms, 1 kHz, THD 0.9%)
150 W per channel
1)
Measured under the following conditions:
Power requirements: 120 V AC, 60 Hz.
2) Reference power output for front, center,
surround, surround back and front high
speakers. Depending on the sound field settings
and the source, there may be no sound output.
FM tuner section
Tuning range
87.5 MHz – 108.0 MHz (100 kHz step)
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
AM tuner section
Tuning range
530 kHz – 1,710 kHz (10 kHz step)
531 kHz – 1,710 kHz (9 kHz step)
Antenna (aerial)
Loop antenna (aerial)
Video section
Inputs/Outputs
Video:
1 Vp-p, 75 ohms
Frequency response
Analog
10 Hz – 100 kHz, +0.5/–2 dB (with
sound field and equalizer bypassed)
Input
Analog
Sensitivity: 500 mV/50 kilohms
S/N3): 105 dB (A, 500 mV4))
Digital (Coaxial)
Impedance: 75 ohms
S/N: 100 dB (A, 20 kHz LPF)
Digital (Optical)
S/N: 100 dB (A, 20 kHz LPF)
119US
Additional Information
With 6 ohm loads, both channels driven,
from 20 – 20,000 Hz; rated 100 watts per
channel minimum RMS power, with no
more than 0.09% total harmonic distortion
from 250 milliwatts to rated output.
bypassed).
Weighted network, input level.
HDMI Video
Input/Output (HDMI Repeater block)
3D
Format
2D
Frame
packing
Side-by-Side
(Half)
Over-Under
(Top-and-Bottom)
4096 Г— 2160p @ 23.98/24 Hz
a
–
–
–
3840 Г— 2160p @ 29.97/30 Hz
a
–
–
–
3840 Г— 2160p @ 25 Hz
a
–
–
–
3840 Г— 2160p @ 23.98/24 Hz
a
–
–
–
1920 Г— 1080p @ 59.94/60 Hz
a
–
a
a
1920 Г— 1080p @ 50 Hz
a
–
a
a
1920 Г— 1080p @ 29.97/30 Hz
a
a
a
a
1920 Г— 1080p @ 25 Hz
a
a
a
a
1920 Г— 1080p @ 23.98/24 Hz
a
a
a
a
1920 Г— 1080i @ 59.94/60 Hz
a
a
a
a
1920 Г— 1080i @ 50 Hz
a
a
a
a
1280 Г— 720p @ 59.94/60 Hz
a
a
a
a
1280 Г— 720p @ 50 Hz
a
a
a
a
1280 Г— 720p @ 29.97/30 Hz
a
a
a
a
1280 Г— 720p @ 23.98/24 Hz
a
a
a
a
720 Г— 480p @ 59.94/60 Hz
a
–
–
–
720 Г— 576p @ 50 Hz
a
–
–
–
640 Г— 480p @ 59.94/60 Hz
a
–
–
–
iPod/iPhone section
DC 5V 1.0 A MAX
USB section
Supported format*
MP3 (MPEG 1 Audio Layer-3):
32 kbps – 320 kbps, VBR
AAC:
16 kbps – 320 kbps, CBR, VBR
WMA9 Standard:
40 kbps – 320 kbps, CBR, VBR
WAV:
8 kHz – 192 kHz, 16 bit PCM
8 kHz – 192 kHz, 24 bit PCM
120US
FLAC:
8 kHz – 192 kHz, 16 bit FLAC
44.1 kHz – 192 kHz, 24 bit FLAC
* Compatibility with all encoding/writing
software, recording devices and recording
media cannot be guaranteed.
Transfer speed
High-speed
Supported USB device
Mass Storage Class
Maximum current
500 mA
General
Ethernet LAN
10BASE-T/100BASE-TX
Wireless LAN
Compatible standards:
IEEE 802.11 b/g
Security:
WEP 64 bit, WEP 128 bit, WPA/
WPA2-PSK (AES), WPA/WPA2PSK (TKIP)
Radio frequency:
2.4 GHz
Power requirements
120 V AC, 60 Hz
Power consumption
240 W
Power consumption (during standby mode)
0.3 W (When “Control for HDMI”,
“Pass Through”, “Network Standby”,
and “BT Standby” are set to “Off”.)
Dimensions (width/height/depth) (Approx.)
430 mm Г— 156 mm Г— 329.4 mm
(17 in Г— 6 1/4 in Г— 13 in) including
projecting parts and controls
Mass (Approx.)
8.5 kg (18 lb 9 oz)
Bluetooth section
Communication system
Bluetooth Specification version 3.0
Output
Bluetooth Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m1)
Frequency band
2.4 GHz band (2.4000 GHz –
2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible Bluetooth profiles2)
A2DP (Advanced Audio Distribution
Profile)
AVRCP 1.3 (Audio Video Remote
Control Profile)
Supported Codecs3)
SBC4), AAC
Transmission range (A2DP)
20 Hz – 20,000 Hz (Sampling frequency
44.1 kHz)
Design and specifications are subject to
change without notice.
1) The actual range will vary depending on factors
such as obstacles between devices, magnetic
fields around a microwave oven, static
electricity, cordless phone, reception
sensitivity, antenna’s performance, operating
system, software application, etc.
2) Bluetooth standard profiles indicate the purpose
of Bluetooth communication between devices.
3) Codec: Audio signal compression and
conversion format
4) Subband Codec
121US
Additional Information
NETWORK section
Index
Numerics
2 channel 51
5.1 channel 20
7.1 channel 20
A
A.F.D. mode 51
A/V Sync. 93, 101
Access Point Scan 37
Advanced Auto Volume 93
AirPlay 70
Alphabet search 15
AM 48
Audio Input Assign 95
Audio Settings 92, 101
Auto Calibration Settings 98
Auto Standby 97, 102
Auto Tuning 49
Auto Volume 93
Automatic Phase Matching 90
Center Lift Up 90
Clear
memory 85
remote control 104
sound field 56
Connection
antennas 30
audio equipment 29
Network 30
speakers 22
TV 24
USB device 29
video equipment 25
Wired 32
Wireless 32
Control for HDMI 94, 101
Crossover frequency 92, 100
D
Bass 100
Bi-Amp 85
Bi-amplifier connection 85
Bluetooth
Playing 77
Bluetooth Settings 101
BRAVIA Sync
preparing 79
D.L.L. (Digital Legato Linear) 92
DCAC (Digital Cinema Auto
Calibration) 33
Device Name 96
Direct Tuning 49
Display panel 11
Distance Unit 92, 100
DLNA 56
Dolby Digital EX 19
Dual Mono 93, 101
DVD player 27
Dynamic range compression 93, 101
C
E
B
Cable TV tuner 27, 28
Calibration Type 98
CD player 29
122US
Easy Setup 33
Effect level 100
EQ Settings 55, 100
F
Fast View 95
Fixed IP address 38
FM 48
FM Mode 49, 101
Movie mode 52
Music mode 53
Music Services 65
Muting 42
N
H
Name Input 51
Network settings 95
Network Standby 96
Network Update 97
Additional Information
HD-D.C.S. 52
HDMI 101
HDMI Audio Out 94, 101
HDMI Settings 94, 101
Home Network 62
Home Theatre Control 82
O
One-Touch Play 80
OSD (On-Screen Display) 40
I
Input 41
Input Assign 83
Input Edit 95
INPUT MODE 83
Input Settings 95
IP Setting 96
iPod/iPhone
Charging 45
Compatible models 43
P
L
R
Level Settings 98
Listen 40
Remote control 14
Resetting 33
M
S
Manual Setup 90
Menu 86, 98
Message
Auto Calibration 89
Error 118
iPod/iPhone 45
Network features 72
USB 48
Satellite tuner 27, 28
SB Assign 90, 99
Scene Select 81
SEN 65
Server 57
Server list 62
Settings menu 86
Sleep Timer 15
PARTY STREAMING 68
Pass Through 94, 101
Passkey 76
PlayStation 3 27
Preset Memory 50
Preset stations 50
PROTECTOR 118
Pure Direct 55
123US
Software Update 97
Sound Effects 51
Sound field 51
Speaker Pattern 90, 99
Speaker Settings 88, 99
SPEAKERS 35
Subwoofer Level 95
Super Audio CD player 29
Surround Settings 100
System Audio Control 81
System Power-Off 81
System Settings 96, 102
T
Test Tone 92, 98
Treble 100
Tuner 48
Tuner Settings 101
TV 24
U
Update Alert 97
USB device 45
USB FAIL 118
V
Viewing information on the display
panel 102
W
Wake-on-LAN 63
Watch 40
Wired network 36
Wireless LAN antenna 13
Wireless LAN signal strength 12
Wireless network 37
124US
WPS
PIN code 39
Push button 38
END-USER LICENSE AGREEMENT FOR SONY SOFTWARE
You should carefully read the following agreement before using the SONY SOFTWARE (defined
below). Using the SONY SOFTWARE indicates your acceptance of the agreement. If you do not agree
with it, you are not authorized to use the SONY SOFTWARE.
IMPORTANT - READ CAREFULLY: This End-User License Agreement (“EULA”) is a legal
agreement between you and Sony Corporation (“SONY”), the manufacturer of your Sony hardware
device (the “PRODUCT”) and the licensor of the SONY SOFTWARE. All Sony software and third
party software (other than such software subject to its own separate license) included with your
PRODUCT and any updates and upgrades thereto shall be referred to herein as the “SONY
SOFTWARE”. You may use the SONY SOFTWARE only with the PRODUCT.
By using the SONY SOFTWARE, you agree to be bound by the terms of this EULA. If you do not
agree to the terms of this EULA, SONY is unwilling to license the SONY SOFTWARE to you. In such
event, you should not use the SONY SOFTWARE.
SONY SOFTWARE LICENSE
The SONY SOFTWARE is protected by copyright laws and international copyright treaties, as well as
other intellectual property laws and treaties. The SONY SOFTWARE is licensed, not sold.
GRANT OF LICENSE
All title, copyright and other rights in and to the SONY SOFTWARE are owned by SONY or its
licensors. This EULA grants you the right to use the SONY SOFTWARE for personal use only.
DESCRIPTION OF REQUIREMENTS, RESTRICTIONS, RIGHTS AND LIMITATIONS
Limitations. You may not copy, modify, reverse engineer, decompile or disassemble the SONY
SOFTWARE in whole or in part.
Separation of Components. The SONY SOFTWARE is licensed as a single product. Its component
parts may not be separated.
Use on Single PRODUCT. The SONY SOFTWARE may only be used with a single PRODUCT.
Rental. You may not rent or lease the SONY SOFTWARE.
Software Transfer. You may permanently transfer all of your rights under this EULA only when the
SONY SOFTWARE is transferred together with and as part of the PRODUCT, provided that you retain
no copies, transfer all of the SONY SOFTWARE (including but not limited to all copies, component
parts, media, instruction manuals, other printed materials, electronic documents, recovery disks and this
EULA) and the recipient agrees to the terms of this EULA.
Termination. Without prejudice to any other rights, SONY may terminate this EULA if you fail to
comply with the terms of this EULA. In such event, when requested by SONY, you must send the
PRODUCT to an address designated by SONY, and SONY will send back the PRODUCT to you as
soon as practicable after the SONY SOFTWARE has been deleted from the PRODUCT.
Confidentiality. You agree to keep confidential information contained in SONY SOFTWARE which
is not publicly known and not to disclose such information to others without SONY’s prior written
approval.
HIGH RISK ACTIVITIES
The SONY SOFTWARE is not fault-tolerant and is not designed, manufactured or intended for use or
resale as on-line control equipment in hazardous environments requiring fail-safe performance, such as
in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control,
direct life support machines or weapons systems, in which the failure of the SONY SOFTWARE could
lead to death, personal injury or severe physical or environmental damage (“High Risk Activities”).
SONY and its suppliers specifically disclaim any express or implied warranty of fitness for High Risk
Activities.
125US
EXCLUSION OF WARRANTY ON SONY SOFTWARE
You expressly acknowledge and agree that use of the SONY SOFTWARE is at your sole risk. The
SONY SOFTWARE is provided “AS IS” and without warranty of any kind, and SONY, its vendors and
SONY’s licensors (for purposes of this SECTION only, collectively, “SONY”) EXPRESSLY
DISCLAIM ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE. SONY DOES NOT WARRANT THAT THE FUNCTIONS CONTAINED IN THE SONY
SOFTWARE ARE FREE FROM ERRORS OR BUGS OR WILL MEET YOUR REQUIREMENT,
AND SONY DOES NOT WARRANT THAT THE OPERATION OF THE SONY SOFTWARE
WILL BE CORRECTED. FURTHERMORE, SONY DOES NOT WARRANT OR MAKE ANY
REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE SONY
SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY OR OTHERWISE.
NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY SONY OR A SONY
AUTHORIZED REPRESENTATIVE SHALL CREATE A WARRANTY OR IN ANY WAY
INCREASE THE SCOPE OF THIS WARRANTY. SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OF IMPLIED WARRANTIES, IN WHICH CASE THE ABOVE EXCLUSION
WOULD NOT APPLY TO YOU.
Without limiting any of the foregoing, it is specifically provided that the SONY SOFTWARE is not
designed or intended for use on any product other than the PRODUCT. SONY provides no warranty
that any product, software, content or data created by you or a third party will not be damaged by the
SONY SOFTWARE.
LIMITATION OF LIABILITY
SONY, ITS SUPPLIERS AND SONY’S LICENSOR’S (for purposes of this SECTION ONLY,
collectively, “SONY”) SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RELATING TO THE SONY SOFTWARE ARISING FROM OR BASED ON BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY, BREACH OF CONTRACT, NEGLIGENCE,
STRICT LIABILITY OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, BUT
ARE NOT LIMITED TO, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF
USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWN TIME AND USER’S
TIME, REGARDLESS OF WHETHER SONY HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN ANY CASE, SONY’S ENTIRE LIABILITY TO YOU UNDER ANY
PROVISION OF THIS EULA SHALL BE LIMITED TO THE AMOUNT ACTUALLY PAID
ALLOCABLE TO THE SONY SOFTWARE.
EXPORTS
If you use or transfer the SONY SOFTWARE in or to a country other than your country of residence,
you shall comply with applicable laws and regulations relating to exports, imports and customs.
GOVERNING LAW
This EULA shall be construed, governed, interpreted and applied in accordance with the laws of Japan,
without regards to any conflict of laws provisions. Any dispute arising out of this EULA shall be
subject to the exclusive venue and jurisdiction of the courts in Tokyo, Japan, and you and SONY hereby
consent to the venue and jurisdiction of such courts. YOU AND SONY WAIVE THE RIGHT TO
TRIAL BY JURY WITH RESPECT TO ANY MATTERS ARISING UNDER OR RELATING TO
THIS EULA.
SEVERABILITY
If any part of this EULA is held invalid or unenforceable, other parts will remain valid.
Should you have any questions in connection with this EULA or the limited warranty provided
hereunder, you may contact SONY by writing to SONY at the designated contact address mentioned in
the warranty card included in the product package.
126US
4-454-467-12(1)
В©2013 Sony Corporation
Printed in Malaysia
