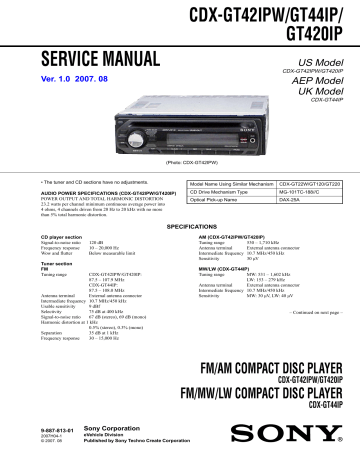

CDX-GT42IPW/GT44IP/
GT420IP
SERVICE MANUAL
US Model
CDX-GT42IPW/GT420IP
Ver. 1.0 2007. 08
AEP Model
UK Model
CDX-GT44IP
(Photo: CDX-GT42IPW)
• The tuner and CD sections have no adjustments.
Model Name Using Similar Mechanism
CDX-GT22W/GT120/GT220
AUDIO POWER SPECIFICATIONS (CDX-GT42IPW/GT420IP)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
23.2 watts per channel minimum continuous average power into
4 ohms, 4 channels driven from 20 Hz to 20 kHz with no more
than 5% total harmonic distortion.
CD Drive Mechanism Type
MG-101TC-188//C
Optical Pick-up Name
DAX-25A
SPECIFICATIONS
CD player section
Signal-to-noise ratio
Frequency response
Wow and flutter
AM (CDX-GT42IPW/GT420IP)
Tuning range
530 – 1,710 kHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
30 ВµV
120 dB
10 – 20,000 Hz
Below measurable limit
Tuner section
FM
Tuning range
MW/LW (CDX-GT44IP)
Tuning range
MW: 531 – 1,602 kHz
LW: 153 – 279 kHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity
MW: 30 ВµV, LW: 40 ВµV
CDX-GT42IPW/GT420IP:
87.5 – 107.9 MHz
CDX-GT44IP:
87.5 – 108.0 MHz
Antenna terminal
External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Usable sensitivity
9 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
67 dB (stereo), 69 dB (mono)
Harmonic distortion at 1 kHz
0.5% (stereo), 0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 – 15,000 Hz
– Continued on next page –
FM/AM COMPACT DISC PLAYER
CDX-GT42IPW/GT420IP
FM/MW/LW COMPACT DISC PLAYER
CDX-GT44IP
9-887-813-01
2007H04-1
В© 2007. 08
Sony Corporation
eVehicle Division
Published by Sony Techno Create Corporation
CDX-GT42IPW/GT44IP/GT420IP
Power amplifier section
Outputs
Speaker outputs (sure seal connectors)
Speaker impedance
4 – 8 ohms
Maximum power output
52 W Г— 4 (at 4 ohms)
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be damaged
by heat.
General
Output
TEST DISCS
Please use the following test discs for the check on the CD section.
Inputs
Tone controls
Loudness
Power requirements
Dimensions
Mounting dimensions
Mass
Supplied accessories
Audio outputs terminal
(CDX-GT42IPW/GT420IP:
front, sub/rear switchable)
(CDX-GT44IP: sub/rear switchable)
Power antenna (aerial) relay control terminal
Power amplifier control terminal
Telephone ATT control terminal
(CDX-GT44IP)
Antenna (aerial) input terminal
AUX input jack (stereo mini jack)
iPod signal input terminal
(dock connector)
Low: В±10 dB at 60 Hz (XPLOD)
Mid: В±10 dB at 1 kHz (XPLOD)
High: В±10 dB at 10 kHz (XPLOD)
+4 dB at 100 Hz
+2 dB at 10 kHz
12 V DC car battery (negative ground)
Approx. 178 Г— 50 Г— 179 mm
(7 1/8 Г— 2 Г— 7 1/8 in.) (w/h/d)
Approx. 182 Г— 53 Г— 162 mm
(7 1/4 Г— 2 1/8 Г— 6 1/2 in.) (w/h/d)
Approx. 1.3 kg (2 lb. 14 oz.)
Parts for installation and connections (1 set)
Card remote commander: RM-X151
YDES-18 (Part No. 3-702-101-01)
PATD-012 (Part No. 4-225-203-01)
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
If the optical pick-up block is defective, please replace the whole
optical pick-up block.
Never turn the semi-fixed resistor located at the side of optical pickup block.
optical pick-up
MPEG Layer-3 audio coding technology and
patents licensed from Fraunhofer IIS and Thomson.
Design and specifications are subject to change without
notice.
SERVICE NOTES
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
2
semi-fixed resistor
CDX-GT42IPW/GT44IP/GT420IP
TABLE OF CONTENTS
This compact disc player is classified as a CLASS 1 LASER
product. The CLASS 1 LASER PRODUCT label is located on the
exterior.
1.
SERVICE NOTE ........................................................ 4
• CDX-GT44IP
2.
GENERAL
Location of Controls (CDX-GT42IPW) ..........................
Connections (CDX-GT42IPW) .......................................
Location of Controls (CDX-GT44IP) .............................
Connections (CDX-GT44IP) ...........................................
Location of Controls (CDX-GT420IP) ...........................
Connections (CDX-GT420IP) .........................................
This label is located on the bottom of the chassis.
• CD Playback
You can play CD-DA (also containing CD TEXT) and CD-R/
CD-RW (MP3/WMA files).
Type of discs
Label on the disc
CD-DA
MP3
WMA
SOLDER
• UNLEADED
Boards requiring use of unleaded solder are printed with the leadfree mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350В°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
5
5
7
7
9
9
3.
DISASSEMBLY
3-1.
3-2.
3-3.
3-4.
3-5.
3-6.
3-7.
3-8.
3-9.
3-10.
3-11.
Sub Panel Assy ................................................................
CD Mechanism Block .....................................................
Main Board ......................................................................
Servo Board .....................................................................
Chassis (T) Sub Assy .......................................................
Roller Arm Assy ..............................................................
Chassis (OP) Assy ...........................................................
Chucking Arm Sub Assy .................................................
Sled Motor Assy ..............................................................
Optical Pick-up Section ...................................................
Optical Pick-up ................................................................
4.
DIAGNOSIS FUNCTION ........................................ 18
5.
DIAGRAMS
5-1.
5-2.
5-3.
5-4.
5-5.
5-6.
5-7.
5-8.
5-9.
5-10.
5-11.
Block Diagram –Main Section– ......................................
Block Diagram –Display Section– ..................................
Printed Wiring Board –Main Section– ............................
Schematic Diagram –Main Section (1/4)– ......................
Schematic Diagram –Main Section (2/4)– ......................
Schematic Diagram –Main Section (3/4)– ......................
Schematic Diagram –Main Section (4/4)– ......................
Printed Wiring Board –ATMEL Section– .......................
Schematic Diagram –ATMEL Section– ..........................
Printed Wiring Board –Key Section– ..............................
Schematic Diagram –Key Section– .................................
6.
EXPLODED VIEWS
12
12
13
13
14
14
15
15
16
17
17
21
22
23
24
25
26
27
28
29
30
31
6-1. Main Section .................................................................... 38
6-2. Front Panel Section ......................................................... 39
6-3. CD Mechanism Section (MG-101TC-188//C) ................ 40
7.
ELECTRICAL PARTS LIST .................................. 41
3
CDX-GT42IPW/GT44IP/GT420IP
SECTION 1
SERVICE NOTE
EXTENSION CABLE AND SERVICE POSITION
When repairing or servicing this set, connect the jig (extension cable)
as shown below.
• Connect the MAIN board (CN350) and the SERVO board (CN2)
with the extension cable (Part No. J-2502-076-1).
MAIN BOARD
CN350
J-2502-076-1
SERVO BOARD
CN2
NOTE FOR REPLACEMENT OF THE SERVO BOARD
When repairing, the complete SERVO board (A-1201-631-A) should
be replaced since any parts in the SERVO board cannot be repaired.
NOTE FOR REPLACEMENT OF THE AUX JACK (J901)
To replace the AUX jack requires alignment.
1. Insert the AUX jack into the KEY board.
2. Place the KEY board on the front panel.
3. Solder the three terminals of the jack.
KEY board
AUX jack
front panel
4
CDX-GT42IPW/GT44IP/GT420IP
SECTION 2
GENERAL
This section is extracted
from instruction manual.
• LOCATION OF CONTROL (CDX-GT42IPW)
Location of controls and basic operations
Main unit
12 3
4
5
6
78
OFF
PUSH SELECT
EQ3
SOURCE
AUX
SEEK
SEEK
SCRL
MODE
DSPL
ALBUM
BTM
1
9 q; qa qs qd qf
OFF
SOURCE
ATT
SEL
MODE
w;
wa
qs
+
ws
–
qk
ql
SCRL
DSPL
1
2
3
4
5
6
SHUF
3
4
PAUSE
5
qg
Card remote commander
RM-X151
1
4
qj
2
REP
wd
wf
+
6
qh
This section contains instructions on the location
of controls and basic operations. For details, see
the respective pages.
For iPod operation, see “iPod” on page 9. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A OFF button
To power off; stop the source.
B EQ3 (equalizer) button page 10
To select an equalizer type (XPLOD,
VOCAL, EDGE, CRUISE, SPACE,
GRAVITY, CUSTOM or OFF).
C Volume control dial/select button
page 10
To adjust volume (rotate); select setup items
(press and rotate).
D SOURCE button
To power on; change the source (Radio/CD/
AUX/PD).
VOL
–
J DSPL (display)/SCRL (scroll) button
page 8
To change display items (press); scroll the
display item (press and hold).
The following buttons on the card remote
commander have also different buttons/functions
from the unit. Remove the insulation film before
use (page 4).
K SEEK –/+ buttons
CD/PD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); reverse/fastforward a track (press and hold).
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
qj < (.)/, (>) buttons
To control CD/radio/PD, the same as
(SEEK) –/+ on the unit.
Setup, sound setting, etc., can be operated by
< ,.
L MODE button page 8
To select the radio band (FM/AM); select the
play mode of iPod.
M BTM button page 8
To start the BTM function (press and hold).
N RESET button (located behind the front
panel) page 4
O Number buttons
CD/PD:
(1)/(2): ALBUM –/+ (during MP3/WMA
playback)
To skip albums (press); skip albums
continuously (press and hold).
(3): REP page 8
(4): SHUF page 8
(6): PAUSE
To pause playback. To cancel, press
again.
Radio:
To receive stored stations (press); store
stations (press and hold).
qk DSPL (display) button
To change display items.
ql VOL (volume) +/– button
To adjust volume.
w; ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
wa SEL (select) button
The same as the select button on the unit.
ws M (+)/m (–) buttons
To control CD/PD, the same as (1)/(2)
(ALBUM –/+) on the unit.
Setup, sound setting, etc., can be operated by
M m.
wd SCRL (scroll) button
To scroll the display item.
wf Number buttons
To receive stored stations (press); store
stations (press and hold).
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless (SOURCE) on the unit is pressed, or a disc is
inserted to activate the unit first.
P Receptor for the card remote
commander
E Disc slot
Insert the disc (label side up), playback
starts.
F Display window
G AUX input jack page 11
To connect a portable audio device.
H Z (eject) button
To eject the disc.
I
(front panel release) button page 5
6
7
• CONNECTIONS (CDX-GT42IPW)
Connection example
Notes
• Be sure to connect the ground (earth) lead before connecting
the amplifier.
• The alarm will only sound if the built-in amplifier is used.
A
AUDIO OUT
FRONT
AUDIO OUT
REAR*
Ejemplo de conexiones
Notas
• Asegúrese de conectar primero el cable de conexión a masa
antes de realizar la conexiГіn del amplificador.
• La alarma sonará únicamente si se utiliza el amplificador
incorporado.
* AUDIO OUT SUB/REAR
B
AUDIO OUT
FRONT
AUDIO OUT
REAR*
* AUDIO OUT SUB/REAR
5
CDX-GT42IPW/GT44IP/GT420IP
*1 RCA pin cord (not supplied)
*2 AUDIO OUT can be switched SUB or REAR.
For details, see the supplied Operating
Instructions.
*1
*1 Cable con terminales RCA (no suministrado)
*2 AUDIO OUT (salida de audio) puede
cambiarse a SUB (secundaria) o REAR
(posterior). Para obtener informaciГіn, consulte
el manual de instrucciones suministrado.
*1
AUDIO OUT
FRONT
L
R
from car antenna (aerial)
desde la antena del automГіvil
REAR FRONT
AUDIO OUT
AUDIO OUT
REAR*2
Fuse (10 A)
Fusible (10 A)
2
3
AMP REM
Blue/white striped
Con rayas azules y blancas
Max. supply current 0.3 A
Corriente mГЎx. de alimentaciГіn de 0,3 A
White
Blanco
Left
Izquierdo
Black
Negro
1
White/black striped
Con rayas blancas y negras
Gray
Gris
Right
Derecho
Blue
Azul
Green
Verde
Left
Izquierdo
ANT REM
Max. supply current 0.1 A
Corriente mГЎx. de alimentaciГіn de 0,1 A
Gray/black striped
Con rayas grises y negras
Red
Rojo
2
4
Green/black striped
Con rayas verdes y negras
Purple
Morado
Right
Derecho
Purple/black striped
Con rayas moradas y negras
Connection diagram
1 To a metal surface of the car
First connect the black ground (earth) lead, then connect the
yellow and red power supply leads.
2 To the power antenna (aerial) control lead or
power supply lead of antenna (aerial) booster
Notes
• It is not necessary to connect this lead if there is no power
antenna (aerial) or antenna (aerial) booster, or with a
manually-operated telescopic antenna (aerial).
• When your car has a built-in FM/AM antenna (aerial) in
the rear/side glass, see “Notes on the control and power
supply leads.”
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting any other
system may damage the unit.
4 To the +12 V power terminal which is
energized in the accessory position of the
ignition switch
Notes
• If there is no accessory position, connect to the +12 V
power (battery) terminal which is energized at all times.
Be sure to connect the black ground (earth) lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna (aerial) in
the rear/side glass, see “Notes on the control and power
supply leads.”
5 To the +12 V power terminal which is
energized at all times
Be sure to connect the black ground (earth) lead to a metal
surface of the car first.
Notes on the control and power supply leads
• The power antenna (aerial) control lead (blue) supplies +12 V
DC when you turn on the tuner.
• When your car has built-in FM/AM antenna (aerial) in the rear/
side glass, connect the power antenna (aerial) control lead
(blue) or the accessory power supply lead (red) to the power
terminal of the existing antenna (aerial) booster. For details,
consult your dealer.
• A power antenna (aerial) without a relay box cannot be used
with this unit.
Memory hold connection
When the yellow power supply lead is connected, power will
always be supplied to the memory circuit even when the ignition
switch is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with
adequate power handling capacities to avoid its damage.
• Do not connect the speaker terminals to the car chassis, or
connect the terminals of the right speakers with those of the
left speaker.
• Do not connect the ground (earth) lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active speakers
(with built-in amplifiers) to the speaker terminals may damage
the unit.
• To avoid a malfunction, do not use the built-in speaker leads
installed in your car if the unit shares a common negative (–)
lead for the right and left speakers.
• Do not connect the unit’s speaker leads to each other.
Note on connection
If speaker and amplifier are not connected correctly, “FAILURE”
appears in the display. In this case, make sure the speaker and
amplifier are connected correctly.
Diagrama de conexiГіn
1 A una superficie metГЎlica del automГіvil
Conecte primero el cable de conexiГіn a masa negro, y
despuГ©s los cables amarillo y rojo de fuente de alimentaciГіn.
2 Al cable de control de la antena motorizada
o al cable de fuente de alimentaciГіn del
amplificador de seГ±al de la antena
Notas
• Si no se dispone de antena motorizada ni de amplificador
de antena, o se utiliza una antena telescГіpica accionada
manualmente, no serГЎ necesario conectar este cable.
• Si el automóvil incorpora una antena de FM/AM en el
cristal trasero o lateral, consulte “Notas sobre los cables
de control y de fuente de alimentación”.
3 A AMP REMOTE IN de un amplificador de
potencia opcional
Esta conexiГіn es sГіlo para amplificadores. La conexiГіn de
cualquier otro sistema puede daГ±ar la unidad.
4 Al terminal de alimentaciГіn de +12 V que
recibe energГ­a en la posiciГіn de accesorio
del interruptor de encendido
Notas
• Si no hay posición de accesorio, conéctelo al terminal de
alimentaciГіn (baterГ­a) de +12 V que recibe energГ­a sin
interrupciГіn.
AsegГєrese de conectar primero el cable de conexiГіn a
masa negro a una superficie metГЎlica del automГіvil.
• Si el automóvil incorpora una antena de FM/AM en el
cristal trasero o lateral, consulte “Notas sobre los cables
de control y de fuente de alimentación”.
5 Al terminal de alimentaciГіn de +12 V que
recibe energГ­a sin interrupciГіn
AsegГєrese de conectar primero el cable de conexiГіn a masa
negro a una superficie metГЎlica del automГіvil.
Notas sobre los cables de control y de fuente de
alimentaciГіn
• El cable de control de la antena motorizada (azul) suministrará
cc de + 12 V cuando conecte la alimentaciГіn del sintonizador.
• Si el automóvil dispone de una antena de FM/AM incorporada
en el cristal trasero o lateral, conecte el cable de control de
antena motorizada (azul) o el cable de fuente de alimentaciГіn
auxiliar (rojo) al terminal de alimentaciГіn del amplificador de
antena existente. Para obtener mГЎs informaciГіn, consulte a su
distribuidor.
• Con esta unidad no es posible utilizar una antena motorizada
sin caja de relГ©.
ConexiГіn para protecciГіn de la memoria
Si conecta el cable de fuente de alimentaciГіn amarillo, el circuito
de la memoria recibirГЎ siempre alimentaciГіn, aunque apague el
interruptor de encendido.
Notas sobre la conexiГіn de los altavoces
• Antes de conectar los altavoces, desconecte la alimentación
de la unidad.
• Utilice altavoces con una impedancia de 4 a 8 Ω con la
capacidad de potencia adecuada para evitar que se daГ±en.
• No conecte los terminales de altavoz al chasis del automóvil,
ni conecte los terminales del altavoz derecho con los del
izquierdo.
• No conecte el cable de conexión a masa de esta unidad al
terminal negativo (–) del altavoz.
• No intente conectar los altavoces en paralelo.
• Conecte solamente altavoces pasivos. Si conecta altavoces
activos (con amplificadores incorporados) a los terminales de
altavoz, puede daГ±ar la unidad.
• Para evitar fallas de funcionamiento, no utilice los cables de
altavoz incorporados instalados en el automГіvil si su unidad
comparte un cable negativo común (–) para los altavoces
derecho e izquierdo.
• No conecte los cables de altavoz de la unidad entre sí.
Nota sobre la conexiГіn
Si el altavoz y el amplificador no estГЎn conectados
correctamente, aparecerá “FAILURE” en la pantalla. Si es así,
compruebe la conexiГіn de ambos dispositivos.
6
Yellow
Amarillo
5
CDX-GT42IPW/GT44IP/GT420IP
• LOCATION OF CONTROL (CDX-GT44IP)
Location of controls and basic operations
Main unit
12 3
4
5
6
78
OFF
PUSH SELECT
EQ3
SOURCE
AUX
SEEK
SEEK
SCRL
MODE
DSPL
ALBUM
PTY
AF/TA
1
9 q; qa qs qd qf
OFF
SOURCE
ATT
SEL
MODE
w;
wa
qs
+
ws
–
qk
SCRL
DSPL
1
4
ql
2
3
5
6
SHUF
3
4
PAUSE
5
qg
Card remote commander
RM-X151
1
4
qj
2
REP
wd
wf
+
6
qh
This section contains instructions on the location
of controls and basic operations. For details, see
the respective pages.
For iPod operation, see “iPod” on page 10. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A OFF button
To power off; stop the source.
B EQ3 (equalizer) button page 12
To select an equalizer type (XPLOD,
VOCAL, EDGE, CRUISE, SPACE,
GRAVITY, CUSTOM or OFF).
C Volume control dial/select button
page 12
To adjust volume (rotate); select setup items
(press and rotate).
D SOURCE button
To power on; change the source (Radio/CD/
AUX/PD).
VOL
–
E Disc slot
Insert the disc (label side up), playback
starts.
J DSPL (display)/SCRL (scroll) button
page 8, 9
To change display items (press); scroll the
display item (press and hold).
The following buttons on the card remote
commander have also different buttons/functions
from the unit. Remove the insulation film before
use (page 4).
K SEEK –/+ buttons
CD/PD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); reverse/fastforward a track (press and hold).
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
qj < (.)/, (>) buttons
To control CD/radio/PD, the same as
(SEEK) –/+ on the unit.
Setup, sound setting, etc., can be operated by
< ,.
L MODE button page 8
To select the radio band (FM/MW/LW);
select the play mode of iPod.
M AF (Alternative Frequencies)/
TA (Traffic Announcement)/
PTY (Program Type) button page 9,
10
To set AF and TA (press); select PTY (press
and hold) in RDS.
N RESET button (located behind the front
panel) page 4
O Number buttons
CD/PD:
(1)/(2): ALBUM –/+ (during MP3/WMA
playback)
To skip albums (press); skip albums
continuously (press and hold).
(3): REP page 8
(4): SHUF page 8
(6): PAUSE
To pause playback. To cancel, press
again.
Radio:
To receive stored stations (press); store
stations (press and hold).
qk DSPL (display) button
To change display items.
ql VOL (volume) +/– button
To adjust volume.
w; ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
wa SEL (select) button
The same as the select button on the unit.
ws M (+)/m (–) buttons
To control CD/PD, the same as (1)/(2)
(ALBUM –/+) on the unit.
Setup, sound setting, etc., can be operated by
M m.
wd SCRL (scroll) button
To scroll the display item.
wf Number buttons
To receive stored stations (press); store
stations (press and hold).
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless (SOURCE) on the unit is pressed, or a disc is
inserted to activate the unit first.
P Receptor for the card remote
commander
F Display window
G AUX input jack page 13
To connect a portable audio device.
H Z (eject) button
To eject the disc.
I
(front panel release) button page 5
6
7
• CONNECTIONS (CDX-GT44IP)
Connection example
Notes
• Be sure to connect the ground (earth) lead before connecting
the amplifier.
• The alarm will only sound if the built-in amplifier is used.
A
Anschlussbeispiel
AUDIO OUT
REAR*
Hinweise
• Schließen Sie unbedingt zuerst das Massekabel an, bevor Sie
den Verstärker anschließen.
• Der Warnton wird nur ausgegeben, wenn der integrierte
Verstärker verwendet wird.
Exemple de raccordement
* AUDIO OUT SUB/REAR
Remarques
• Raccordez d’abord le câble de mise à la masse avant de
raccorder l’amplificateur.
• L’alarme est émise uniquement lorsque l’amplificateur intégré
est utilisГ©.
B
Esempio di collegamento
Note
• Assicurarsi di collegare il cavo di terra prima di collegare
l’apparecchio all’amplificatore.
• L’allarme viene emesso solo se è in uso l’amplificatore
incorporato.
AUDIO OUT
REAR*
Voorbeeldaansluitingen
Opmerkingen
• Sluit eerst de aardingskabel aan voordat u de versterker
aansluit.
• U hoort de pieptoon alleen als de ingebouwde versterker wordt
gebruikt.
* AUDIO OUT SUB/REAR
7
CDX-GT42IPW/GT44IP/GT420IP
*1 Note for the antenna (aerial) connecting
If your car antenna (aerial) is an
ISO (International Organization for
Standardization) type, use the supplied
adaptor 2 to connect it. First connect
the car antenna (aerial) to the supplied
adaptor, then connect it to the antenna
(aerial) jack of the master unit.
2
* RCA pin cord (not supplied)
*3 AUDIO OUT can be switched SUB or
REAR. For details, see the supplied
Operating Instructions.
*
*
1
from car antenna (aerial)
von Autoantenne
de l’antenne de la voiture
dall’antenna dell’auto
van een auto-antenne
*1 Hinweis zum AnschlieГџen der Antenne
Wenn Ihre Autoantenne der ISO-Norm
*1 Nota per il collegamento dell’antenna
(Internationale Normungsgemeinschaft)
Se l’antenna dell’auto è di tipo
entspricht, schlieГџen Sie sie mithilfe des
ISO (International Organization for
mitgelieferten Adapters 2 an. Verbinden
Standardization), utilizzare l’adattatore
Sie zuerst die Autoantenne mit dem
2 in dotazione per collegarla. Collegare
mitgelieferten Adapter und verbinden Sie
prima l’antenna della macchina
diesen dann mit der Antennenbuchse
all’adattatore in dotazione, quindi
des Hauptgeräts.
collegarla alla presa dell’antenna
dell’apparecchio principale.
*2 Cinchkabel (nicht mitgeliefert)
*2 Cavo a piedini RCA (non in dotazione)
*3 AUDIO OUT kann zwischen SUB
und REAR umgeschaltet werden.
*3 AUDIO OUT puГІ essere impostato
Näheres hierzu finden Sie in der
su SUB o su REAR. Per ulteriori
Bedienungsanleitung.
informazioni, consultare il manuale di
istruzioni per l’uso.
2
2
L
R
BUS
IN
REAR
FRONT
AUDIO OUT
AUDIO OUT REAR*3
Max. supply current 0.3 A
max. Versorgungsstrom 0,3 A
Courant d’alimentation maximum 0,3 A
Alimentazione massima fornita 0,3 A
Max. voedingsstroom 0,3 A
AMP REM
ATT
Fuse (10 A)
Sicherung (10 A)
Fusible (10 A)
Fusibile (10 A)
Zekering (10 A)
Blue/white striped
BlauweiГџ gestreift
RayГ© bleu/blanc
Rigato blu e bianco
Blauw/wit gestreept
*1 Remarque sur le raccordement de
*1 Opmerking bij de antenne-aansluiting
l’antenne
Indien uw auto is uitgerust met een
Si votre antenne de voiture est de type
antenne van het type ISO (International
ISO (Organisation internationale de
Organization for Standardization),
normalisation), utilisez l’adaptateur fourni
moet u die aansluiten met behulp
van de bijgeleverde adapter 2. Sluit
2 pour la raccorder. Raccordez d’abord
l’antenne de voiture à l’adaptateur fourni
eerst de auto-antenne aan op de
et, ensuite, à la prise d’antenne de
bijgeleverde adapter en vervolgens de
l’appareil principal.
antennestekker op het hoofdtoestel.
*2 Cordon Г broche RCA (non fourni)
*2 Tulpstekkersnoer (niet bijgeleverd)
*3 AUDIO OUT peut ГЄtre commutГ© sur SUB *3 AUDIO OUT kan worden ingesteld
ou REAR. Pour obtenir plus de dГ©tails,
op SUB of REAR. Raadpleeg de
reportez-vous au mode d’emploi.
gebruiksaanwijzing voor meer informatie.
3
Light blue
Hellblau
Bleu ciel
Azzurro
Lichtblauw
5
7
1
from the car’s power connector
vom Stromanschluss des Fahrzeugs
du connecteur d’alimentation de la voiture
dal connettore di alimentazione dell’auto
van de autovoedingsaansluiting
4
8
2
Purple
Violett
Violet
Viola
Paars
+
Speaker, Rear, Right
Lautsprecher hinten rechts
Haut-parleur, arriГЁre, droit
Diffusore, posteriore, destro
Luidspreker, achter, rechts
5
–
Speaker, Rear, Right
Lautsprecher hinten rechts
Haut-parleur, arriГЁre, droit
Diffusore, posteriore, destro
Luidspreker, achter, rechts
6
+
Speaker, Front, Right
Lautsprecher vorne rechts
Haut-parleur, avant, droit
Diffusore, anteriore, destro
Luidspreker, voor, rechts
7
–
Speaker, Front, Right
Lautsprecher vorne rechts
Haut-parleur, avant, droit
Diffusore, anteriore, destro
Luidspreker, voor, rechts
8
See “Power connection diagram” on the reverse side for details.
Näheres dazu finden Sie im „Stromanschlussdiagramm“. Blättern
Sie dazu bitte um.
Voir le « Schéma de raccordement d’alimentation » au verso pour
plus de dГ©tails.
4
Yellow
Gelb
Jaune
Giallo
Geel
continuous power supply
permanente Stromversorgung
alimentation continue
alimentazione continua
continu voeding
7
Red
Rot
Rouge
Rosso
Rood
switched power supply
geschaltete Stromversorgung
alimentation commutГ©e
alimentazione commutata
geschakelde voeding
3
5
Blue
Blau
Bleu
Blu
Blauw
power antenna (aerial) control
Motorantennensteuerung
antenne Г©lectrique
comando dell’antenna elettrica
elektrische antenne
8
Black
Schwarz
Noir
Nero
Zwart
ground (earth)
Masse
masse
terra
aarding
4
Per ulteriori informazioni, vedere “Diagramma dei collegamenti di
alimentazione” che si trova sul retro.
Zie "Voedingsaansluitschema" op de achterkant voor meer details.
Connection diagram
This connection is only for amplifiers. Connecting any other
system may damage the unit.
B To the interface cable of a car telephone
Warning
If you have a power antenna (aerial) without a relay box,
connecting this unit with the supplied power connecting
lead 3 may damage the antenna (aerial).
Notes on the control and power supply leads
• The power antenna (aerial) control lead (blue) supplies +12 V
DC when you turn on the tuner, or when you activate the AF
(Alternative Frequency) or TA (Traffic Announcement) function.
• When your car has built-in FM/MW/LW antenna (aerial) in the
rear/side glass, connect the power antenna (aerial) control
lead (blue) or the accessory power supply lead (red) to the
power terminal of the existing antenna (aerial) booster. For
details, consult your dealer.
• A power antenna (aerial) without a relay box cannot be used
with this unit.
Memory hold connection
When the yellow power supply lead is connected, power will
always be supplied to the memory circuit even when the ignition
switch is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with
adequate power handling capacities to avoid its damage.
• Do not connect the speaker terminals to the car chassis, or
connect the terminals of the right speakers with those of the
left speaker.
• Do not connect the ground (earth) lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active speakers
(with built-in amplifiers) to the speaker terminals may damage
the unit.
• To avoid a malfunction, do not use the built-in speaker leads
installed in your car if the unit shares a common negative (–)
lead for the right and left speakers.
• Do not connect the unit’s speaker leads to each other.
Note on connection
If speaker and amplifier are not connected correctly, “FAILURE”
appears in the display. In this case, make sure the speaker and
amplifier are connected correctly.
Anschlussdiagramm
A An AMP REMOTE IN des gesondert
erhältlichen Endverstärkers
Dieser Anschluss ist ausschließlich für Verstärker gedacht.
SchlieГџen Sie nichts anderes daran an. Andernfalls kann
das Gerät beschädigt werden.
B An Schnittstellenkabel eines Autotelefons
Warnung
Wenn Sie eine Motorantenne ohne Relaiskästchen
verwenden, kann durch Anschließen dieses Geräts mit
dem mitgelieferten Stromversorgungskabel 3 die
Antenne beschädigt werden.
Hinweise zu den Steuer- und Stromversorgungsleitungen
• Die Motorantennen-Steuerleitung (blau) liefert +12 V
Gleichstrom, wenn Sie den Tuner einschalten oder die
AF- (Alternativfrequenzsuche) oder die TA-Funktion
(Verkehrsdurchsagen) aktivieren.
• Wenn das Fahrzeug mit einer in der Heck-/
Seitenfensterscheibe integrierten FM (UKW)/MW/LWAntenne ausgestattet ist, schließen Sie die MotorantennenSteuerleitung (blau) oder die Zubehörstromversorgungsleitung
(rot) an den Stromversorgungsanschluss des vorhandenen
Antennenverstärkers an. Näheres dazu erfahren Sie bei Ihrem
Händler.
• Es kann nur eine Motorantenne mit Relaiskästchen
angeschlossen werden.
SchГ©mas de raccordement
A Au niveau du AMP REMOTE IN d’un
amplificateur de puissance facultatif
Gray
Grau
Gris
Grigio
Grijs
Schema di collegamento
A A AMP REMOTE IN di un amplificatore di
potenza opzionale
Ce raccordement existe seulement pour les amplificateurs.
Le raccordement Г tout autre systГЁme peut endommager
l’appareil.
Questo collegamento ГЁ riservato esclusivamente agli
amplificatori. Non collegare un tipo di sistema diverso onde
evitare di causare danni all’apparecchio.
B Vers le cordon de liaison d’un téléphone de
voiture
B Al cavo di interfaccia di un telefono per auto
Avertissement
Si vous disposez d’une antenne électrique sans boîtier
de relais, le branchement de cet appareil au moyen du
cordon d’alimentation fourni 3 risque d’endommager
l’antenne.
Remarques sur les câbles de commande et d’alimentation
• Le câble de commande (bleu) fournit du courant continu de
+12 V lorsque vous mettez le tuner sous tension ou lorsque
vous activez la fonction AF (frГ©quence alternative) ou TA
(messages de radioguidage).
• Lorsque votre voiture est équipée d’une antenne FM/MW
(GO)/LW (PO) intГ©grГ©e dans la vitre arriГЁre/latГ©rale,
raccordez le câble de commande d’antenne (bleu) ou le
câble d’alimentation des accessoires (rouge) à la borne
d’alimentation de l’amplificateur d’antenne existant. Pour plus
de dГ©tails, consultez votre revendeur.
• Une antenne électrique sans boîtier de relais ne peut pas être
utilisГ©e avec cet appareil.
Stromversorgung des Speichers
Wenn die gelbe Stromversorgungsleitung angeschlossen ist,
wird der Speicher stets (auch bei ausgeschalteter ZГјndung) mit
Strom versorgt.
Raccordement pour la conservation de la mГ©moire
Lorsque le câble d’alimentation jaune est connecté, le circuit
de la mГ©moire est alimentГ© en permanence mГЄme si la clГ© de
contact est en position d’arrêt.
Hinweise zum Lautsprecheranschluss
• Schalten Sie das Gerät aus, bevor Sie die Lautsprecher
anschlieГџen.
• Verwenden Sie Lautsprecher mit einer Impedanz zwischen 4 und
8 Ohm und ausreichender Belastbarkeit. Ansonsten können die
Lautsprecher beschädigt werden.
• Verbinden Sie die Lautsprecheranschlüsse nicht mit dem
Wagenchassis und verbinden Sie auch nicht die AnschlГјsse
des rechten mit denen des linken Lautsprechers.
• Verbinden Sie die Masseleitung dieses Geräts nicht mit dem
negativen (–) Lautsprecheranschluss.
• Versuchen Sie nicht, Lautsprecher parallel anzuschließen.
• An die Lautsprecheranschlüsse dieses Geräts dürfen nur
Passivlautsprecher angeschlossen werden. SchlieГџen Sie
keine Aktivlautsprecher (Lautsprecher mit eingebauten
Verstärkern) an, da das Gerät sonst beschädigt werden
könnte.
• Um Fehlfunktionen zu vermeiden, verwenden Sie nicht die
im Fahrzeug installierten, integrierten Lautsprecherleitungen,
wenn am Ende eine gemeinsame negative (–) Leitung für den
rechten und den linken Lautsprecher verwendet wird.
• Verbinden Sie nicht die Lautsprecherkabel des Geräts
miteinander.
Remarques sur le raccordement des haut-parleurs
• Avant de raccorder les haut-parleurs, mettez l’appareil hors
tension.
• Utilisez des haut-parleurs ayant une impédance de 4 à 8 ohms
et une capacitГ© adГ©quate sous peine de les endommager.
• Ne raccordez pas les bornes du système de haut-parleurs au
chГўssis de la voiture et ne pas connecter les bornes du hautparleur droit Г celles du haut-parleur gauche.
• Ne raccordez pas le câble de mise à la masse de cet appareil
à la borne négative (–) du haut-parleur.
• Ne tentez pas de raccorder les haut-parleurs en parallèle.
• Connectez uniquement des haut-parleurs passifs. Le
raccordement de haut-parleurs actifs (avec des amplificateurs
intГ©grГ©s) aux bornes des haut-parleurs pourrait endommager
l’appareil.
• Pour éviter tout problème de fonctionnement, n’utilisez pas les
cГўbles des haut-parleurs intГ©grГ©s installГ©s dans votre voiture
si l’appareil dispose d’un câble négatif commun (–) pour les
haut-parleurs droit et gauche.
• Ne raccordez pas entre eux les cordons des haut-parleurs de
l’appareil.
Hinweis zum AnschlieГџen
Wenn Lautsprecher und Verstärker nicht richtig angeschlossen
sind, erscheint „FAILURE“ im Display. Vergewissern Sie sich
in diesem Fall, dass Lautsprecher und Verstärker richtig
angeschlossen sind.
8
3
5
7
2
4
6
8
Remarque sur le raccordement
Si les haut-parleurs et l’amplificateur ne sont pas raccordés
correctement, le message « FAILURE » s’affiche. Dans ce
cas, assurez-vous que les haut-parleurs et l’amplificateur sont
raccordГ©s correctement.
White
WeiГџ
Blanc
Bianco
Wit
Green
GrГјn
Vert
Verde
Groen
+
Speaker, Front, Left
Lautsprecher vorne links
Haut-parleur, avant, gauche
Diffusore, anteriore, sinistro
Luidspreker, voor, links
–
Speaker, Front, Left
Lautsprecher vorne links
Haut-parleur, avant, gauche
Diffusore, anteriore, sinistro
Luidspreker, voor, links
+
Speaker, Rear, Left
Lautsprecher hinten links
Haut-parleur, arriГЁre, gauche
Diffusore, posteriore, sinistro
Luidspreker, achter, links
–
Speaker, Rear, Left
Lautsprecher hinten links
Haut-parleur, arriГЁ re, gauche
Diffusore, posteriore, sinistro
Luidspreker, achter, links
Negative polarity positions 2, 4, 6, and 8 have striped leads.
An den negativ gepolten Positionen 2, 4, 6 und 8 befinden sich gestreifte Adern.
Les positions de polaritГ© nГ©gative 2, 4, 6 et 8 sont dotГ©es de cordons rayГ©s.
Le posizioni a polaritГ negativa 2, 4, 6 e 8 hanno cavi rigati.
De posities voor negatieve polariteit (2, 4, 6 en 8) hebben gestreepte kabels.
Positions 1, 2, 3, and 6 do not have pins.
An Position 1, 2, 3 und 6 befinden sich keine Stifte.
Les positions 1, 2, 3 et 6 ne comportent pas de broches.
Le posizioni 1, 2, 3 e 6 non hanno piedini.
De posities 1, 2, 3 en 6 hebben geen pins.
A To AMP REMOTE IN of an optional power
amplifier
1
from the car’s speaker connector
vom Lautsprecheranschluss des Fahrzeugs
du connecteur de haut-parleur de la voiture
dal connettore dei diffusori dell’auto
van de autoluidsprekeraansluiting
Avvertenza
Quando si collega l’apparecchio con il cavo di
alimentazione in dotazione 3, si potrebbe danneggiare
l’antenna elettrica se questa non dispone di scatola a relè.
Note sui cavi di controllo e di alimentazione
• Il cavo (blu) di controllo dell’antenna elettrica fornisce
alimentazione pari a +12 V CC quando si attiva il
sintonizzatore oppure la funzione TA (notiziario sul traffico) o
AF (frequenza alternativa).
• Se l’automobile è dotata di antenna FM/MW/LW incorporata
nel vetro posteriore/laterale, collegare il cavo (blu) di
controllo dell’antenna elettrica o il cavo (rosso) di ingresso
dell’alimentazione ausiliaria al terminale di alimentazione
dell’amplificatore di potenza dell’antenna esistente. Per ulteriori
informazioni, consultare il proprio fornitore.
• Non è possibile usare un’antenna elettrica senza scatola a relè
con questo apparecchio.
Collegamento per la conservazione della memoria
Quando il cavo di alimentazione giallo ГЁ collegato, viene sempre
fornita alimentazione al circuito di memoria anche quando
l’interruttore di accensione è spento.
Note sul collegamento dei diffusori
• Prima di collegare i diffusori spegnere l’apparecchio.
• Usare diffusori di impedenza compresa tra 4 e 8 ohm e con
capacitГ di potenza adeguata, altrimenti i diffusori potrebbero
venire danneggiati.
• Non collegare i terminali del sistema diffusori al telaio dell’auto
e non collegare i terminali del diffusore destro a quelli del
diffusore sinistro.
• Non collegare il cavo di terra di questo apparecchio al
terminale negativo (–) del diffusore.
• Non collegare i diffusori in parallelo.
• Assicurarsi di collegare soltanto diffusori passivi, poiché
il collegamento di diffusori attivi, dotati di amplificatori
incorporati, ai terminali dei diffusori potrebbe danneggiare
l’apparecchio.
• Per evitare problemi di funzionamento, non utilizzare i cavi dei
diffusori incorporati installati nell’automobile se l’apparecchio
condivide un cavo comune negativo (–) per i diffusori destro e
sinistro.
• Non collegare fra loro i cavi dei diffusori dell’apparecchio.
Nota sui collegamenti
Se l’amplificatore e il diffusore non sono collegati correttamente,
“FAILURE” viene visualizzato nel display. In tal caso, accertarsi
che l’amplificatore e il diffusore siano collegati correttamente.
Aansluitschema
A Naar AMP REMOTE IN van een optionele
versterker
Deze aansluiting is alleen bedoeld voor versterkers. Door
een ander systeem aan te sluiten kan het apparaat worden
beschadigd.
B Naar het interface-snoer van een
autotelefoon
Waarschuwing
Indien u een elektrische antenne hebt zonder relaiskast,
kan het aansluiten van dit apparaat met de bijgeleverde
voedingskabel 3 de antenne beschadigen.
Opmerkingen over de bedienings- en voedingskabels
• De bedieningskabel van de elektrische antenne (blauw) levert
+12 V gelijkstroom wanneer u de tuner inschakelt of de AF
(alternatieve frequenties) of TA (verkeersinformatie) functie
activeert.
• Wanneer uw auto is uitgerust met een FM/MW/LW-antenne
in de achterruit/zijruit, moet u de bedieningskabel van de
elektrische antenne (blauw) of de voedingskabel van de
accessoires (rood) aansluiten op de voedingsingang van de
bestaande antenneversterker. Raadpleeg uw dealer voor meer
details.
• Met dit apparaat is het niet mogelijk een elektrische antenne
zonder relaiskast te gebruiken.
Instandhouden van het geheugen
Zolang de gele voedingskabel is aangesloten, blijft de
stroomvoorziening van het geheugen intact, ook wanneer de
contactschakelaar van de auto wordt uitgeschakeld.
Opmerkingen betreffende het aansluiten van de luidsprekers
• Zorg dat het apparaat is uitgeschakeld, alvorens de
luidsprekers aan te sluiten.
• Gebruik luidsprekers met een impedantie van 4 tot 8 Ohm
en let op dat die het vermogen van de versterker kunnen
verwerken. Als u dit niet doet, kunnen de luidsprekers ernstig
beschadigd raken.
• Verbind in geen geval de aardingskabel van de luidsprekers
met het chassis van de auto en sluit de aansluitingen van de
rechter- en linkerluidspreker niet op elkaar aan.
• Verbind de aarddraad van dit apparaat niet met de negatieve
(–) aansluiting van de luidspreker.
• Probeer nooit de luidsprekers parallel aan te sluiten.
• Sluit geen actieve luidsprekers (met ingebouwde versterkers)
aan op de luidsprekeraansluiting van dit apparaat. Dit zal
leiden tot beschadiging van de actieve luidsprekers. Sluit dus
altijd uitsluitend luidsprekers zonder ingebouwde versterker
aan.
• Om defecten te vermijden mag u de bestaande
luidsprekerbedrading in uw auto niet gebruiken wanneer er een
gemeenschappelijke negatieve (–) kabel is voor de rechter- en
linkerluidsprekers.
• Verbind de luidsprekerkabels niet met elkaar.
Opmerking over aansluiten
Als de luidspreker en versterker niet goed zijn aangesloten,
wordt "FAILURE" in het display weergegeven. In dit geval moet u
zorgen dat de luidspreker en versterker correct zijn aangesloten.
CDX-GT42IPW/GT44IP/GT420IP
• LOCATION OF CONTROL (CDX-GT420IP)
Location of controls and basic operations
Main unit
12 3
4
5
6
78
OFF
PUSH SELECT
EQ3
SOURCE
AUX
SEEK
SEEK
SCRL
MODE
DSPL
ALBUM
BTM
1
9 q; qa qs qd qf
OFF
SOURCE
ATT
SEL
MODE
w;
wa
qs
+
ws
–
qk
ql
SCRL
DSPL
1
2
3
4
5
6
SHUF
3
4
PAUSE
5
qg
Card remote commander
RM-X151
1
4
qj
2
REP
wd
wf
+
6
qh
This section contains instructions on the location
of controls and basic operations. For details, see
the respective pages.
For iPod operation, see “iPod” on page 9. The
corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A OFF button
To power off; stop the source.
B EQ3 (equalizer) button page 10
To select an equalizer type (XPLOD,
VOCAL, EDGE, CRUISE, SPACE,
GRAVITY, CUSTOM or OFF).
C Volume control dial/select button
page 10
To adjust volume (rotate); select setup items
(press and rotate).
D SOURCE button
To power on; change the source (Radio/CD/
AUX/PD).
VOL
–
J DSPL (display)/SCRL (scroll) button
page 8
To change display items (press); scroll the
display item (press and hold).
The following buttons on the card remote
commander have also different buttons/functions
from the unit. Remove the insulation film before
use (page 4).
K SEEK –/+ buttons
CD/PD:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); reverse/fastforward a track (press and hold).
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
qj < (.)/, (>) buttons
To control CD/radio/PD, the same as
(SEEK) –/+ on the unit.
Setup, sound setting, etc., can be operated by
< ,.
L MODE button page 8
To select the radio band (FM/AM); select the
play mode of iPod.
M BTM button page 8
To start the BTM function (press and hold).
N RESET button (located behind the front
panel) page 4
O Number buttons
CD/PD:
(1)/(2): ALBUM –/+ (during MP3/WMA
playback)
To skip albums (press); skip albums
continuously (press and hold).
(3): REP page 8
(4): SHUF page 8
(6): PAUSE
To pause playback. To cancel, press
again.
Radio:
To receive stored stations (press); store
stations (press and hold).
qk DSPL (display) button
To change display items.
ql VOL (volume) +/– button
To adjust volume.
w; ATT (attenuate) button
To attenuate the sound. To cancel, press
again.
wa SEL (select) button
The same as the select button on the unit.
ws M (+)/m (–) buttons
To control CD/PD, the same as (1)/(2)
(ALBUM –/+) on the unit.
Setup, sound setting, etc., can be operated by
M m.
wd SCRL (scroll) button
To scroll the display item.
wf Number buttons
To receive stored stations (press); store
stations (press and hold).
Note
If the unit is turned off and the display disappears, it
cannot be operated with the card remote commander
unless (SOURCE) on the unit is pressed, or a disc is
inserted to activate the unit first.
P Receptor for the card remote
commander
E Disc slot
Insert the disc (label side up), playback
starts.
F Display window
G AUX input jack page 11
To connect a portable audio device.
H Z (eject) button
To eject the disc.
I
(front panel release) button page 5
6
7
• CONNECTIONS (CDX-GT420IP)
Connection example
Notes
• Be sure to connect the ground (earth) lead before connecting
the amplifier.
• The alarm will only sound if the built-in amplifier is used.
A
AUDIO OUT
FRONT
AUDIO OUT
REAR*
Exemple de raccordement
Remarques
• Raccordez d’abord le câble de mise à la masse avant de
raccorder l’amplificateur.
• L’alarme est émise uniquement lorsque l’amplificateur intégré
est utilisГ©.
* AUDIO OUT SUB/REAR
B
AUDIO OUT
FRONT
AUDIO OUT
REAR*
* AUDIO OUT SUB/REAR
9
CDX-GT42IPW/GT44IP/GT420IP
*1 RCA pin cord (not supplied)
*2 AUDIO OUT can be switched SUB or
REAR. For details, see the supplied
Operating Instructions.
*1
*1 Cordon Г broche RCA (non fourni)
*2 AUDIO OUT peut ГЄtre commutГ© sur SUB
ou REAR. Pour obtenir plus de dГ©tails,
reportez-vous au mode d’emploi fourni.
*1
AUDIO OUT
FRONT
L
R
from car antenna (aerial)
à partir de l’antenne du véhicule
REAR FRONT
AUDIO OUT
AUDIO OUT
REAR*2
Fuse (10 A)
Fusible (10 A)
2
3
AMP REM
Blue/white striped
RayГ© bleu/blanc
Max. supply current 0.3 A
Courant max. fourni 0,3 A
White
Blanc
Left
Gauche
Black
Noir
1
White/black striped
RayГ© blanc/noir
Gray
Gris
Right
Droit
Blue
Bleu
Green
Vert
Left
Gauche
ANT REM
Max. supply current 0.1 A
Courant max. fourni 0,1 A
Gray/black striped
RayГ© gris/noir
Red
Rouge
2
4
Green/black striped
RayГ© vert/noir
Purple
Violet
Right
Droit
Purple/black striped
RayГ© violet/noir
Connection diagram
SchГ©ma de raccordement
1 To a metal surface of the car
1 ГЂ un point mГ©tallique de la voiture
First connect the black ground (earth) lead, then connect the
yellow and red power supply leads.
2 To the power antenna (aerial) control lead or
power supply lead of antenna (aerial) booster
Notes
• It is not necessary to connect this lead if there is no power
antenna (aerial) or antenna (aerial) booster, or with a
manually-operated telescopic antenna (aerial).
• When your car has a built-in FM/AM antenna (aerial) in
the rear/side glass, see “Notes on the control and power
supply leads.”
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting any other
system may damage the unit.
4 To the +12 V power terminal which is
energized in the accessory position of the
ignition switch
Notes
• If there is no accessory position, connect to the +12 V
power (battery) terminal which is energized at all times.
Be sure to connect the black ground (earth) lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna (aerial) in
the rear/side glass, see “Notes on the control and power
supply leads.”
5 To the +12 V power terminal which is
energized at all times
Be sure to connect the black ground (earth) lead to a metal
surface of the car first.
Notes on the control and power supply leads
• The power antenna (aerial) control lead (blue) supplies +12 V
DC when you turn on the tuner.
• When your car has built-in FM/AM antenna (aerial) in the rear/
side glass, connect the power antenna (aerial) control lead
(blue) or the accessory power supply lead (red) to the power
terminal of the existing antenna (aerial) booster. For details,
consult your dealer.
• A power antenna (aerial) without a relay box cannot be used
with this unit.
Memory hold connection
When the yellow power supply lead is connected, power will
always be supplied to the memory circuit even when the ignition
switch is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with
adequate power handling capacities to avoid its damage.
• Do not connect the speaker terminals to the car chassis, or
connect the terminals of the right speakers with those of the
left speaker.
• Do not connect the ground (earth) lead of this unit to the
negative (–) terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active speakers
(with built-in amplifiers) to the speaker terminals may damage
the unit.
• To avoid a malfunction, do not use the built-in speaker leads
installed in your car if the unit shares a common negative (–)
lead for the right and left speakers.
• Do not connect the unit’s speaker leads to each other.
Note on connection
If speaker and amplifier are not connected correctly, “FAILURE”
appears in the display. In this case, make sure the speaker and
amplifier are connected correctly.
Branchez d’abord le câble de mise à la masse noir et,
ensuite, les câbles d’alimentation jaune et rouge.
2 Au câble de commande d’antenne électrique
ou au câble d’alimentation de l’amplificateur
d’antenne
Remarques
• Il n’est pas nécessaire de raccorder ce câble s’il n’y a pas
d’antenne électrique ni d’amplificateur d’antenne, ou avec
une antenne tГ©lescopique manuelle.
• Si votre voiture est équipée d’une antenne FM/AM
intГ©grГ©e dans la vitre arriГЁre/latГ©rale, voir В« Remarques
sur les câbles de commande et d’alimentation ».
3 Au niveau de AMP REMOTE IN de
l’amplificateur de puissance en option
Ce raccordement s’applique uniquement aux amplificateurs.
Le branchement de tout autre systГЁme risque
d’endommager l’appareil.
4 ГЂ la borne +12 V qui est alimentГ©e quand la
clГ© de contact est sur la position accessoires
Remarques
• S’il n’y a pas de position accessoires, raccordez la borne
d’alimentation (batterie) +12 V qui est alimentée en
permanence.
Raccordez d’abord le câble de mise à la masse noir à un
point mГ©tallique du vГ©hicule.
• Si votre voiture est équipée d’une antenne FM/AM
intГ©grГ©e dans la vitre arriГЁre/latГ©rale, voir В« Remarques
sur les câbles de commande et d’alimentation ».
5 ГЂ la borne +12 V qui est alimentГ©e en
permanence
Raccordez d’abord le câble de mise à la masse noir à un
point mГ©tallique du vГ©hicule.
Remarques sur les câbles de commande et d’alimentation
• Le câble de commande d’antenne électrique (bleu) fournit une
alimentation de + 12 V CC lorsque vous mettez la radio sous
tension.
• Lorsque votre voiture est équipée d’une antenne FM/AM
intГ©grГ©e dans la vitre arriГЁre/latГ©rale, raccordez le cГўble de
commande d’antenne (bleu) ou le câble d’alimentation des
accessoires (rouge) à la borne d’alimentation de l’amplificateur
d’antenne existant. Pour plus de détails, consultez votre
dГ©taillant.
• Une antenne électrique sans boîtier de relais ne peut pas être
utilisГ©e avec cet appareil.
Raccordement pour la conservation de la mГ©moire
Lorsque le câble d’alimentation jaune est raccordé, le circuit
de la mГ©moire est alimentГ© en permanence mГЄme si la clГ© de
contact est sur la position d’arrêt.
Remarques sur le raccordement des haut-parleurs
• Avant de raccorder les haut-parleurs, mettez l’appareil hors
tension.
• Utilisez des haut-parleurs ayant une impédance de 4 à 8 ohms
avec une capacitГ© Г©lectrique adeequate pour Г©viter de les
endommager.
• Ne raccordez pas les bornes du système de haut-parleurs au
chГўssis de la voiture et ne raccordez pas les bornes du hautparleur droit Г celles du haut-parleur gauche.
• Ne raccordez pas le câble de mise à la masse de cet appareil
à la borne négative (–) du haut-parleur.
• N’essayez pas de raccorder les haut-parleurs en parallèle.
• Raccordez uniquement des haut-parleurs passifs. Le
raccordement de haut-parleurs actifs (avec amplificateurs
intГ©grГ©s) aux bornes des haut-parleurs peut endommager
l’appareil.
• Pour éviter tout problème de fonctionnement, n’utilisez pas les
cГўbles des haut-parleurs intГ©grГ©s installГ©s dans votre voiture si
l’appareil partage un câble négatif commun (–) pour les hautparleurs droit et gauche.
• Ne raccordez pas entre eux les cordons des haut-parleurs de
l’appareil.
Remarque sur le raccordement
Si les haut-parleurs et l’amplificateur ne sont pas raccordés
correctement, le message « FAILURE » s’affiche. Dans ce cas,
assurez-vous que les haut-parleurs et l’amplificateur sont bien
raccordГ©s.
10
Yellow
Jaune
5
CDX-GT42IPW/GT44IP/GT420IP
SECTION 3
DISASSEMBLY
Note: This set can be disassemble according to the following sequence.
SET
3-1.
SUB PANEL ASSY
(Page 12)
3-2.
CD MECHANISM BLOCK
(Page 12)
3-3.
MAIN BOARD
(Page 13)
3-4.
SERVO BOARD
(Page 13)
3-5.
CHASSIS (T) SUB ASSY
(Page 14)
3-6.
ROLLER ARM ASSY
(Page 14)
3-7.
CHASSIS (OP) ASSY
(Page 15)
3-8.
CHUCKING ARM SUB ASSY
(Page 15)
3-9.
SLED MOTOR ASSY
(Page 16)
3-10. OPTICAL PICK-UP SECTION
(Page 17)
3-11. OPTICAL PICK-UP
(Page 17)
11
CDX-GT42IPW/GT44IP/GT420IP
Note: Follow the disassembly procedure in the numerical order given.
3-1. SUB PANEL ASSY
3 two claws
2 two claws
1 two screws
(+PTT 2.6 Г— 6)
4 sub panel assy
3-2. CD MECHANISM BLOCK
7 CD mechanism block
6 bracket (CD)
5 two screws
(+PTT 2.6 Г— 4)
3
2 screw
(+PTT 2.6 Г— 6)
4 CN350
1 screw
(+PTT 2.6 Г— 6)
12
CDX-GT42IPW/GT44IP/GT420IP
3-3. MAIN BOARD
2 two screws
(+PTT 2.6 Г— 8)
8 two screws
(+P 2.6 Г— 8)
1 three ground point screws
(+PTT 2.6 Г— 6)
9 two screws
(+PTT 2.6 Г— 10)
0 screw
(+P 2.6 Г— 10)
4 CN250 (8P)
6 screw
(+PTT 2.6 Г— 8)
7 connection cord
qa screw
(+PTT 2.6 Г— 10)
qs heat sink
qd MAIN board
insulating sheet
3
5 CN200 (3P)
3-4. SERVO BOARD
WHT
RED
BLK
WHT
RED
BLK
RED
ORG
BLE
YEL
GRY
2 toothed lock screw
(M 1.7 Г— 2.5)
3 toothed lock screw
(M 1.7 Г— 2.5)
SERVO board
5 SERVO board
1 Remove the eleven solders.
4 optical pick-up (16 core)
(CN1)
claw
claw
13
CDX-GT42IPW/GT44IP/GT420IP
3-5. CHASSIS (T) SUB ASSY
2 two precision screws
(+P 1.7 Г— 2.2)
1 two precision screws
(+P 1.7 Г— 2.2)
4 chassis (T) sub assy
3 claw
3-6. ROLLER ARM ASSY
5 roller arm assy
4 gear (RA1)
1 spring (RAL)
3 washer
2 spring (RAR)
14
CDX-GT42IPW/GT44IP/GT420IP
3-7. CHASSIS (OP) ASSY
6 chassis (OP) assy
1 tension spring (KF)
5
7 coil spring (damper) (natural)
8 coil spring (damper) (black)
4 slider (R)
3 lever (D)
2 gear (LE1)
3-8. CHUCKING ARM SUB ASSY
3 chucking arm sub assy
1 spring
2
Note: Have this portion receive the chassis.
Note: Have this portion receive the chassis.
Note: Be careful not to touch the turn table.
15
CDX-GT42IPW/GT44IP/GT420IP
3-9. SLED MOTOR ASSY
2 three serration screws
(M 2 Г— 3)
3 sled mtor assy
1 spring
turn table
spring
stand
Note:
Never remove these parts since they were adjusted.
stand
Note: Place the stand with care not to touch the turn table.
Note for Assembly
three serration screws
(M 2 Г— 3)
sled mtor assy
Note: Take care to prevent the chassis from being bent
when tightening the three machine screws.
16
CDX-GT42IPW/GT44IP/GT420IP
3-10. OPTICAL PICK-UP SECTION
2 optical pick-up section
1
Note: Be careful not to touch the lens and hologram
terminal when removing the optical pick-up section.
3-11. OPTICAL PICK-UP
1 pan tapping screw
(M 1.4 Г— 2.5)
2 leaf spring (sub guide)
3 leaf spring (OP)
5 optical pick-up
4 lead screw assy
Notes for Assembly
Prevent the end of the
leaf spring (sub guide) from being
in contact with the OP slide base.
Prevent the end of the
leaf spring (sub guide) from being
in contact with the OP slide base.
There is space at the end of the
leaf spring (sub guide) to avoid
contact with the slide.
17
CDX-GT42IPW/GT44IP/GT420IP
SECTION 4
DIAGNOSIS FUNCTION
Description of the Diagnostics function:
4. Contents of each display mode
4-1. Reset count display mode
1. Setting the Diag display mode
With the power off, press the [4] button, [5] button, and [4] button
on the set body or the remote control (for more than 2 seconds)
in turn.
2. Canceling the Diag display mode
During the Diag function mode, press the [OFF] button.
3. Initial display in the Diag display mode.
Just when the Diag mode is entered, “reset count” is displayed.
The display mode is switched by each rotation of
M >/SEEK + or . m/SEEK – keys.
XX
Reset count
(in hexadecimal format)
Diag code
01: Reset count
4-2. Reset count by watchdog timer display mode
02
XX
Reset count
(in hexadecimal format)
Reset count display
01
01
Diag code
02: Number of resets by watchdog timer
XX
4-3. Number of connected units display mode
Reset count by watchdog timer display
02
XX
Number of connected units display
031
XXX
031
XXX
Show the number of connected units for
CD-C, MD-C and XM respectively from
the rightmost (in hexadecimal format).
Recency of information
1-3: 1 represents the latest.
Diag code
03: Number of connected unit.
Operating hours display
04
XXXX
The display mode is switched by each rotation of [2] or [1] keys
during the number of connected units display mode.
CD error information display
051
No. of connected units history 1 (latest) display
XX
031
OFFSET/FAILURE error display
XXX
No. of connected units history 2 display
061XXXXX
032
XXX
No. of connected units history 3 display
033
XXX
4-4. Operating hours display mode
04
XXXX
Operating hours
(in hexadecimal format)
Diag code
04: Operating hours
18
CDX-GT42IPW/GT44IP/GT420IP
4-5. CD error information display mode
4-5-1. Error description
4-6. OFFSET/FAILURE error display mode
061XXXXX
051
XX
Error information
Error description Indication
Description
(in hexadecimal
1X
SERVO ERROR
format)
3X
LOADING ERROR
Recency of information
4X
TRACK JUMP
1-3: 1 represents the latest.
5X
TEXT ERROR
Diag code
FX
MECHA
ERROR
05: CD error information
Operating hours
Error description
(0: OFFSET, 1: FAILURE)
Recency of information
1-3: 1 represents the latest.
Diag code
06: OFFSET/FAILURE
The display mode is switched by each rotation of [2] or [1] keys
during the OFFSET/FAILURE error display mode.
4-5-2. Disc type and operating hours
051XXXXX
OFFSET/FAILURE error history 1 (latest) display
Disc type
Operating hours
Disc type
Recency of information
1-3: 1 represents the latest.
Diag code
05: CD error information
Indication
0
1
2
3
8
F
Disc type
MP3
WMA
AAC
ATRAC
CD/DA
UNKNOWN
The display mode is switched by each rotation of [2] or [1] keys
during the CD error information display mode.
061XXXXX
OFFSET/FAILURE error history 2 display
062XXXXX
OFFSET/FAILURE error history 3 display
063XXXXX
CD error info history 1 (latest)
Error description plus error details display
051
XX
CD error info history 1 (latest)
Disc type plus operating hours display
051XXXXX
CD error info history 2
Error description plus error details display
052
XX
CD error info history 2
Disc type plus operating hours display
052XXXXX
CD error info history 3
Error description plus error details display
053
XX
CD error info history 3
Disc type plus operating hours display
053XXXXX
19
CDX-GT42IPW/GT44IP/GT420IP
MEMO
20
CDX-GT42IPW/GT44IP/GT420IP
SECTION 5
DIAGRAMS
5-1. BLOCK DIAGRAM — MAIN SECTION —
ELECTRONIC VOLUME
IC401
AUX/IPOD SELECT
SWITCH
IC210
IPOD–AUD-L
(IPOD IN)
X 14
IPOD–AUD–GND
R–CH
13 X1
12 X0
R–CH
J901
AUX
3 Z1
5 Z0
REAR
R-CH
9 AUX–LCH
7 AUX–RCH
MUTE
Q432
Z 4
8 AUX–GND
Z–Z1 9
Y–Y1 10
X-X1 11
FUNCTION SELECT
SWITCH
Q210
OUT–FL 25
12 IN-FL
OUT–RL 23
11 IN-RL
OUT–FR 26
OUT–RR 24
MUTE 28
1 ANT
L–CH 4
R–CH 3
TU–SCL 13
TU-SDA 14
R–CH
R–CH
4 TU–LCH
3 TU–RCH
SCL 29
SDA 30
R–CH
6 CD–LCH
5 CD–RCH
SAOUT 19
SADA 18
SACLK 17
I2C–SCL
I2C–SDA
R–CH (FRONT)
R–CH (REAR)
VOLATT
MUTE
Q440
TU+5V
B.U +3.3V
QUALITY 5
S–METER 6
TU-MUTE 7
E2P–SCL 16
E2P–SDA 17
TU–ATTIN 8
RDS–OUT 9
13 NSMASK
QUALITY
VSM
TUATT
38 QUALITY
39 VSM
12 TU ATT
EEP–SCL
EEP–SDA
25 EEP_CKO
24 EEP_SIO
GT44IP
53 TUATTIN
RDS DEMODULATOR
IC50
RDS–OUT
16 MPX
R-CH
I2C-SCL
I2C-SDA
4 SCL
2 SDA
CN350
CD
MECHANISM
UNIT
(MG–101TC)
11
15
AU_LCH
22
24
26
16
5
7
UNI_SO
UNI_SI
UNI_CLK
Z_MUTE
CD_ON
CDM_ON
6
21
27
SYS_RST
EJECT_OK
BUS_ON
AU_RCH
RDS+3.3V
SWITCH
Q50
10 XTO
9 XTI
6
ANT-REM 27
BATT
F901
VP 35
VP1 20
VP2 6
I2C-SCL
I2C-SDA
VOL ATT 9
BU+B
AUDIO+B
SERVO+3.3V
MECHA+6V
PANEL+B
16 BEEP
22 STB
25 DIAG
VDDA 1
VDDB 7
ANT-REM
BATT
37
30
31
33
34
BU+5V
AUDIO +8.3V
SERVO+3.3V
MECHA+6V
PANEL+B
GT44IP
BU+3.3V
TELEPHONE
ATTENATION CHECK
Q701
TELATT 98
26 RDS ON
GT44IP
R–CH
D609
UNISO
UNISI
UNISCK
Z-MUTE
CD_ON
CDM_ON
D353
ACCESSORY CHECK
Q702
BUS INTERFACE
IC601
BUSON A 57
8
9
10
11
12
13
BU IN 54
77 RESET
88 SYSRST
96 BUSON
BU+3.3V
13
ACC_IN 99
59
58
60
61
91
92
DATA OUT
DATA IN
B/U–C
CLK–IN
BUS–IN
RST
BATT 3
BATTERY CHECK
Q605,D602,603
BATT
UNI SI
UNI S02
UNI CLK
D260
A_ATT
BU_IN
D_+3.3V
A_+3.3V
BU_+3.3V
DR_+6V
16
AMP-REM
D493
D251
9
25
18
19
8
1,2
RL+
RL–
56 DAVN
INTN 15
X50
8.664MHz
5
AMP-REM 29
SACLK 15
SAOUT 14
SAIN 46
I2C_SCK 33
I2C_SIO 34
FL+
FL–
4
FR+
12
FR–
3
RR+
11
RR–
BATT
BEEP 5
AMPSTB 8
DIAG 7
SCL
SCL 11
SDA
SDA 12
2
10
D491
ATT 100
TU–ATTIN
9
R-CH
MUTE
CONTROL SWITCH
Q491,492
55 FUNC SEL
NOISE MASK
SWITCH
Q1
1
OUT-RL+ 9
OUT-RL– 7
I2C–SCL
I2C–SDA
R
GT42IPW/GT420IP
OUT-FL+ 5
OUT-FL– 3
MUTE
Q470
SYSTEM CONTROL
IC501 (1/2)
10 VCC (+8.3V)
11 TU–VDD (TU+5V)
15 E2P-VDD
FRONT
R-CH
CN300
GT44IP
AUDIO +8.3V
R
L
I2C BUS CONTROLLED
POWER AMP/MULTIPLE
VOLTAGE REGULATOR
IC300
IC220
TU1
(TUNER UNIT)
J1
(ANTENNA)
L
R–CH
R–CH
IPOD–AUD–R
(1/2)
SUBOUT L 21
SUBOUT R 22
BUSON A
SYSRST
BU IN
SERVO +3.3V
1 VOUT
VDD 2
DISPLAY
SECTION
(Page 22)
• R-CH is omitted due to same as L-CH.
• Signal Path
: CD PLAY
: FM
RESET
IC602
BU_+3.3V
MECHA +6V
A
TU+5V
BU +3.3V
TU+5V REG
Q3,D2
AUDIO +8.3V
: AM/MW/LW
: AUX
S103
RESET
: IPOD
BU+3.3V
CDX-GT42IPW/GT44IP/GT420IP
21
21
BU+3.3V REG
IC681
BU +5V
7
TEL–ATT
ACC
J652
AUDIO
OUT
CDX-GT42IPW/GT44IP/GT420IP
5-2. BLOCK DIAGRAM — DISPLAY SECTION —
• NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
SYSTEM CONTROL
IC501 (2/2)
DISPLAY CONTROL
IC901
40 KEYIN1
KEY MATRIX
LSW901–911,
S901–904
5
|
50
41 KEYIN0
64 DI
63 CL
62 CE
52 KEY ACK
76 AD_ON
LCD901
LIQUID
CRYSTAL
DISPLAY
PANEL
•
60
COM4 51
I
|
COM1 54
DIMMER
KEY ACKNOWLEDGE
SWITCH
Q664
S1
I
•
S48 55
BACK LIGHT
LCD_SO 28
LCD_SCK 29
LCD_CE 27
D503
1
2
RE901
PUSH SELECT
(VOLUME)
ROTARY
ENCODER
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
For schematic diagrams.
For printed wiring boards.
Note:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•
f
: internal component.
• C : panel designation.
Note:
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
a
: Through hole.
•
: Pattern from the side which enables seeing.
•
(The other layers' patterns are not indicated.)
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
PANEL+B
(
RE-0
RE-1
LED931
LCD BACK
LIGHT
)
LSW901–911,
LED941,942,
944,945,951–953
KEY
ILLUMINATE
31 RE-IN0
32 RE-IN1
X502
32.768kHz
X501
18.432MHz
(
)
•
•
•
•
79 XOUT
DIMMER
SWITCH
Q931
80 XIN
•
82 OSCIN
•
LCD
BACK LIGHT
SWITCH
Q932
83 OSCOUT
•
•
REMOTE CONTROL
SIGNAL RECEIVER
IC971
62 NOSE_SW
IPOD-CHARGE
IPOD CHARGE
CONTROL SWITCH
IC260
SIRCS 64
3 OUT
IPOD ADAPTOR
IC250
BUS ON/OFF
SWITCH
Q258
BATT
14 OC1A
IR
IPOD-TX+5V
IPOD TX+5V
CONTROL SWITCH
Q252,253
(2/2)
IPOD-RX+5V
IPOD RX+5V
CONTROL SWITCH
Q254,255
10 TXD
C
Q
These are omitted
B E
BE C
These are omitted
ECB
These are omitted
— ATMEL Board —
BUSON A
1
BUIN
MOSI 1
UNI SI
MISO 2
UNI SO2
SCK 3
UNI CLK
A
3
IC501 i; (XOUT)
1
IC50 9 (XTI)
IC250 8 (XTAL1)
MAIN
SECTION
(Page 21)
0.7Vp-p
0.7Vp-p
1Vp-p
D250
RESET 4
SYSRST
8.664MHz
32.768kHz
7.3728MHz
T1 41
IPOD+3.3V
IPOD DET
Parts on the pattern face side seen from the
pattern face are indicated.
Parts on the parts face side seen from the
parts face are indicated.
• Waveforms
D255
9 RXD
A : B+ Line.
B : B– Line.
H : adjustment for repair.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
(
) : AM/MW/LW
<
> : CD PLAY
в€— : Impossible to measure
Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production
tolerances.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
Circled numbers refer to waveforms.
Signal path.
J : CD PLAY
F : FM
f : AM/MW/LW
L : AUX
g : IPOD
— MAIN Board —
INT0 11
AIN0/INT2 42
(IPOD IN)
Caution:
Pattern face side:
(Side B)
Parts face side:
(Side A)
XTAL1 8
IPOD DETECT
Q256
12 INT1
XTAL2 7
0.5 V/DIV, 0.1 Вµsec/DIV
0.2 V/DIV, 20 Вµsec/DIV
X250
7.3728kHz
2
IC501 id (OSCOUT)
1.5Vp-p
18.432MHz
0.5 V/DIV, 0.1 Вµsec/DIV
CDX-GT42IPW/GT44IP/GT420IP
22
22
0.2 V/DIV, 0.1 Вµsec/DIV
CDX-GT42IPW/GT44IP/GT420IP
5-3. PRINTED WIRING BOARD — MAIN SECTION —
2
1
: Uses unleaded solder.
3
4
5
6
7
8
9
10
11
12
13
J652
AUDIO OUT
REAR
A
J1
(ANTENNA)
R
-1
GT42IPW
/GT420IP
FRONT
L
L
-2
R
-3
-4
CDX-GT42IPW/GT420IP
JC31
JC29 JC30
C426
C440
C442
C330
C325 JW50
RED
JW51
C309
JC13
R423
JW49
C452
C444
C423
C424
R449
C307
C301
C304
IC300
C305
F901
D999
R445
R450
C432
CN300
C998
C445
C443
B
C701
C702
RED
C705
JC992
JC253
L405
C415
C409
C402
C401
JC37
JW113
R553
JW126
R286
5
Q253
Q255
C260
R278
R910
X501
S103
RESET
B
KEY BOARD CN901
(Page 30)
(IPOD)
CDX-GT42IPW/GT44IP/GT420IP
23
R289
R282
R281
R280
(CHASSIS)
I
R283
R291
D252
C259
D253
D254
C265
C261
Q254
R277
Q252
C266
JC260
Q256
L291
R293 CN250
R274
R285
IC260
R273
C268
R290
JC262
R294
JC257
JC261
1
R284
R275
JW89
JC40
C509
C264
C263
C258
L501
D503
JC2
JC17
R533
JC23
JW86
R517
R570
JC42
Q664
JC24
R532
R561
JC256
JC254
JW92
JC514
JW91
R526
D502
D113
CN370
JC990
JW106
JW105
C405
JW95
R555
JW104
JC33
C315
JW81
X502
C515
R522
R504
C516
R521
R505
R529
JC255
C519
R279
D110
R673
R519
C257
JW4
JC16
R916
FMB3
JW3
C155
JW25
JC504
JW22
D112
C502
R672
R276
D152
JW15
R503
R502
CD
MECHANISM
UNIT
(MG-101TC)
L261
JW124
JC259
D109
JW16
C514
11
JW123
X501
R674
C501
(Page 28)
8
9
C291
10
12
JW111
JC510
L151
C154
C513
ATMIL
BOARD
CN261
JW112
D251
C510
A
7
JW110
JW87
D151
R540
JC509
CN200
IC602
2
3
1
4
JW94
C512
5
6
C290
D353
C508
JW18
JW17
L406
R600
C507
JC513
JW5
JW19
JW14
C151 C152
R221 R211
R152
D153
JC512
R212 R213
Q210
R214
C210
IC501
R512
R523
R222
C220
R559
R510
R520
JW13
JC214
R235
C221
R151 R154
R153
JW1
JW2
R155
JC213
R232
C153
JC211
R233
R915
R509
JC101
JW11
JW10
R234
JC217
R220
R57
JW7
JC212
R58
JW9
C57
C60
C56
JW8
JW6
C61
JC210
R917
R914
C504
R525
IC210
L50
L5
JW20
JC3
R557
R556
4
JW118
FMB4
R511
R524
Q50
X50
JC503
JC50
IC50
JW21
JC511
JC100
C55
G
L3
C211
C54
L2
C11
JW12
R52
C10
C207
R54
R210
JW122
C52
JC102
C53
R53
JC51
C50
GT44IP
R15
JC215
C51
IC220
JW125
R55
R558
R544
3
R552
R534
JW26
1
2
JW117
D260
JW93
JC4
JW80
JC14
JC38
JW34
JW27
JW79
JW107
JC36
D609
R401
JW78
GT44IP
GT42IPW/GT420IP
JC991
R601
L410
C418
R537
IC601
R602
JC35
JW77
JC500
R301
JC506
JC505
C317
C363
R538
JW35
JW23
GT44IP
C58
R551
D602
C601
R507
R573
R302
JW36
JW28
GT42IPW/GT420IP
R567
R7
GT44IP
R565
JW31
JW29
JC216
C319
R671
L4
C419
R604
R603
R607
JC34
R402
JW75
C318
CDX-GT44IP
CN350
C403
JW76
JC501
R6
JC12
JW32
C7
L402
L401
JW73
JC508
C5
C231 JW30
C8
JW39
D2
R13
R568
L409
GT42IPW/GT420IP
R566
JW40
JW33
JC18
JW100
D603
Q605
L251
D491
R564
JW71
JW72
JW74
JC507
JW37
Q3
C316
R563
R531
D493
JW42
R12
JW24
JW67
GT44IP
JW96
C417
Q491
R491
R606
L407
R351
C916
JW41
C2
C6
C314
JW69
L1
E
JW68
JW120
JW66
C683
C682
C313
JC1
C624
JW98
L403
JW88
R10
C3
Q492
L300
JW103
JW99
C412
JW43
D304
D607
JW70
C364
JW82
JW83
R9
JW84
JW127
JC5
C681
C491
L901
JW44
R5
JW57
C308
JC8
R431
C306
R4
JW56
L902
R471
JW45
C431
R8
H
JW46
R485
R3
D302
JW97
JW90
Q1
D303
R705
JC32
R451
JW85
C1
R1
C493
C704
D301
R636
C494
R430
R708
IC681
C471
C461
JW38
R470
R452
R2
F
R461
R420
IC401
C997
Q701
D312
C622
R460
C361
GT44IP
C15
D
R440
C451
GT42IPW
/GT420IP
JW47
R481
C486
C362
D998
R707
D702
C623
TU1
C703
D311
JW65
JW64
JW62
D307
R706
C485
C484
R702
D309
JW60
JW61
JW58
JW59
D310
JW102
R703
Q702
JC258
JW121
D704
R704
C473
JC9
JC7
JW101
R701
GT44IP
JW55
D305
C472
JC6
D308
C302
C462
JW53
JW54
D306
R421
C320
C312
C454
JW63
JW114
R448
R462
Q470
R472
C
Q460
C434
JW52
C303
R447
JC11
C421
JC15 R442
C441
JC10
JW48
R614
Q420
D256
Q440
C463
Q452
Q432
23
11
1-874-160-
(11)
• Semiconductor Location
Ref. No.
D2
D109
D110
D112
D113
D151
D152
D153
D251
D252
D253
D254
D256
D260
D301
D302
D303
D304
D305
D306
D307
D308
D309
D310
Location
E-2
H-3
H-3
H-3
H-4
H-2
H-2
H-2
G-7
H-8
H-8
H-8
H-9
E-8
C-7
C-7
C-8
C-8
C-5
C-5
C-5
C-6
C-6
C-6
Ref. No.
D311
D312
D353
D491
D493
D502
D503
D602
D603
D607
D609
D702
D704
D998
D999
Location
C-7
C-6
F-7
E-5
E-5
H-6
H-5
D-9
D-9
C-8
E-8
C-7
B-7
C-8
B-7
IC50
IC210
IC220
IC260
IC300
IC401
IC501
IC601
G-2
G-3
F-2
G-9
B-5
D-3
G-6
D-9
Ref. No.
IC602
IC681
Location
F-7
D-5
Q1
Q3
Q50
Q210
Q252
Q253
Q254
Q255
Q256
Q420
Q432
Q440
Q452
Q460
Q470
Q491
Q492
Q605
Q664
Q701
Q702
D-2
E-2
G-2
G-4
H-8
H-8
H-8
H-8
H-7
B-4
B-3
B-3
B-3
C-3
C-3
E-5
D-5
D-9
H-5
C-8
C-7
CDX-GT42IPW/GT44IP/GT420IP
5-4. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 32 for IC Block Diagrams.
C317
R302 C319
C303
R301
C318
C302
C444
C424
R445
R423
JC30
JC29
C325 JC31
L902
C308
C330
L901
C306
C309
C304
C301
C305
C307
IC300
JC12
IC B/D
JC508
CN300
JC511
C434
JC32
C313
C314
C315
C316
D302
D301
C454
D704
R701
C312
D999
D998
D312
R705
JC33
C320
D702
C997
D311
D310
D309
D308
D307
D306
D305
D303
D304
C998
F901
D607
C701
R702
R703
C704
Q701
C705
R704
L300
R707
R706
D491
Q702
Q491
JC8
R708
C702
IC681
R491
C703
IC602
Q492
R604
D493
C622
R603
C491
D603
D602
JC1
R600
Q605
C683
C682 C681
R531
IC601
C601
R602
R601
JC36
R607
R606
D260
D609
IC B/D
(Page 26)
(Page 27)
CDX-GT42IPW/GT44IP/GT420IP
24
24
C624
C623
(Page 25)
CDX-GT42IPW/GT44IP/GT420IP
• Refer to page 22 for Waveforms.
5-5. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — • Refer to page 32 for IC Block Diagrams.
J652
J1
TU1
C442
C445
C443
JC13
C440
C452
C432
R449
R450
C3
C423
C362
C472
Q470
Q420
Q460
Q440
Q452
Q432
R4
C361
Q1
C1
C2
C6
R9
C7
R2
R448 JC15 R447
JC6
JC7
R421
R442
R451
R431
C421
C441
C451
C431
Q3
JC9
R462
R13
R8
R1
R5
R472
R12
C5
R7
C473
JC5
L4
C462
D2
C463
R6
C426
C8
C15
JC11
R3
R10
JC10
L1
IC B/D
IC401
IC50
C486
(Page 24)
C50
R55
C58
R15
IC B/D
C51
JC51
C10 C11
C52
Q50
C485
C53
C55
R53
L50
R481
C484
R420
C461
R460
C60
R58
R452
C471
C56
R558
R470
R471
C57
R52
R57
R440
R461
JC513
R54
C61
R430
X50
C54
JC50
R485
L3
L2
C494 C493
L5
C364
C363
R213
Q210
JC210
IC220
IC B/D
R212
IC B/D
JC216
IC210
JC217
R222 C221 C207 R221 C220 R220
CN200
C231
R232
JC212
R233
JC211
R214 C211
R211 C210 R210
(Page 26)
(Page 26)
(Page 27)
CDX-GT42IPW/GT44IP/GT420IP
25
25
CDX-GT42IPW/GT44IP/GT420IP
5-6. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) — • Refer to page 34 for IC Block Diagrams.
(Page 24)
(Page 25)
IC260
JC991
IC B/D
R286
R290
C263
JC253
C264
JC254
JC990
C258
R273
C268
C257
JC992
C290
C291
JC261
L261
JC262
(Page 29)
R294
CN350
JC34
JC35
C417
L407
R274
Q252
C412
C403
R555
L401
L403
R275
C405
(Page 27)
L402
R402
L409
C419
L410
R276
C409
L405
Q253
C415
R401
C418
L406
R277
R351
Q254
R278
CN250
R279
R280
C401
JC258
JC257
Q255
D353
R281
C402
R284
R282
JC260
R289
R285
JC256
R283
L251
Q256
(Page 25)
D251
R293
C266
C265
C261
C260
D254
C259
D253
D252
D256
JC259
L291
R291
CDX-GT42IPW/GT44IP/GT420IP
26
26
CDX-GT42IPW/GT44IP/GT420IP
• Refer to page 22 for Waveforms.
5-7. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) — • Refer to page 36 for IC Pin Description of IC501.
(Page 24)
(Page 25)
R553
JC37
R533
D502
R674
R532
JC510
JC215
C509
JC17
R235
C508
C507
JC514
JC42
R529
R672
R570
JC2
JC255
R519
C519
JC24
R568
R561
R517
R234
JC214
JC213
X502
JC500
C153
Q664
(Page 26)
C152
X501
C151
R154
R910
R565
R155
JC16 C514
R509
R567
D503
JC40
L501
R916
JC509
C154
R152
JC501
C502
R671
R673
R526
JC3
R151
L151
C510
R540
R917
R153
C916
JC23
C155
R505
R503
IC501
JC100
R504
R502
CN370
C512
C501
R636
R524
C513
R525
JC503
R520
R523
R566
C515
R522
R521
JC101
JC504
(Page 31)
C516
R564
JC4
R512
R510
JC102
C504
CDX-GT42IPW/GT44IP/GT420IP
27
27
D152
D153
D151
D110
D109
D113
S103
R559
R511
R914
R915
JC506
JC505
JC507
JC14
R534
R551
R552
R573
R537
R538
R507
R556
D112
JC512
R544
R557
R563
JC38
JC18
CDX-GT42IPW/GT44IP/GT420IP
5-8. PRINTED WIRING BOARD — ATMEL SECTION —
1
2
3
: Uses unleaded solder.
4
5
6
7
8
9
10
11
12
13
14
CN260
R288
R253
R264
R263
R262
R292
R259
R256
R257
C253
R255
R252
F
C255
R261
IC250
R260 C254
C250
R267
R254
E
R270
R268
C252
C251
D
R250
X250
R251
C
C256
Q258
D255
R266
R265
B
D250
A
G
CN261
11
1-874-161-
1
12
(11)
H
1-874-161-
A
MAIN BOARD
(Page 23)
CDX-GT42IPW/GT44IP/GT420IP
28
28
11
(11)
CDX-GT42IPW/GT44IP/GT420IP
• Refer to page 22 for Waveforms.
5-9. SCHEMATIC DIAGRAM — ATMEL SECTION — • Refer to page 35 for IC Block Diagrams.
CN261
R257
R256
C253
R255
R253
R259
(Page 26)
R254
R260
R252
C252
C251
C254
X250
IC250
C255
C250
R261
R251
R262
CN260
R263
R264
R288
D250
R250
IC B/D
R292
R270
R268
R266
R267
R265
D255
Q258
C256
CDX-GT42IPW/GT44IP/GT420IP
29
29
CDX-GT42IPW/GT44IP/GT420IP
5-10. PRINTED WIRING BOARD — KEY SECTION —
2
1
3
: Uses unleaded solder.
4
5
6
7
8
9
10
11
12
13
14
A
R945
LED941
LED931
LCD901
LIQUID CRYSTAL DISPLAY PANEL
R901
52
S904
LED945
C971
R975
R944
LED9
R948
R905
LSW902
DSPL/
SCRL
LED941,
S901
Z
LED943
LSW903
953
C
LSW904
LED931
(LCD BACK LIGHT)
S903
LSW901
EQ3
LSW904
.m
SEEK–
LED944
LED951
LED
B
R902
R943
LSW901
LED944,
S903
SOURCE
LSW903
M >
SEEK+
LED951–953
(RING ILLUMINATION)
S902
S901
LED942
LED942,
S902
OFF
R946
LSW902
IC971
LSW909
LSW908
LSW907
LSW906
LSW905
LSW911
LSW910
D
1
4
2
3
11
1-874-380- (11)
LSW905
BTM/CAT
(GT42IPW)
AF/TA/PTY
LSW906
1/ALBUM–
(Page 23)
MAIN BOARD CN370
BTM
(GT420IP)
B
5
Q932
R907
RE901
G
Q931
J901
R982
R984
H
C983
RE901
PUSH SELECT
(VOLUME)
R985
C986
D982
D981
D903
R974
R931
R981
C981
R977
C984
R986
R904
R903
1
J901
AUX
R932
R979
R987
2
FB903
R933
R978
IC901
R971
D991
4
R954 R953
R908
D992
3
CN901
R949
R911
R934
R972
R910
D994
D993
R947
R909
R992
F
R951
R914
R912
R915
(GT44IP)
R950
IC971
LSW911
6/PAUSE
LSW910
5
LSW909
4/SHUF
LSW908
3/REP
LSW907
2/ALBUM+
R952
R913
E
LED945,
S904
MODE
R942 R941
11
1-874-380- (11)
• Semiconductor Location
Ref. No.
Location
D903
D981
D982
D991
D992
D993
D994
G-11
G-10
G-10
G-11
G-11
G-11
F-14
Ref. No.
IC901
IC971
Location
G-8
D-13
LED931
LED941
LED942
LED944
C-13
A-13
A-1
B-4
Ref. No.
LED945
LED951
LED952
LED953
Location
C-4
B-3
C-4
C-2
Q931
Q932
G-10
G-10
CDX-GT42IPW/GT44IP/GT420IP
30
30
CDX-GT42IPW/GT44IP/GT420IP
5-11. SCHEMATIC DIAGRAM — KEY SECTION —
R975
R981
LED941
LSW903(2/2)
R945
R943
R931
R949
LSW911(2/2)
R951
LED951
R982
IC971
R932
LSW905(2/2)
R933
LED944
LSW901(2/2)
R941
LSW910(2/2)
LSW908(2/2)
R947
C971
R971
LED931
R942
LED945
LSW902(2/2)
LSW904(2/2)
LSW906(2/2)
LSW909(2/2)
R953
LED952
Q931
C981
R934
C983
R984
C984
R985
R986
R987
LSW907(2/2)
R952
R954
LED953
D981
R948
LED942
R950
Q932
D982
R946
R944
LED943
C986
R977
R978
R979
R972
R992
LCD901
RE901
CN901
R901
R902
R903
R905
R904
R910
R911
R912
R913
S904
LSW905(1/2)
LSW906(1/2)
LSW907(1/2)
LSW908(1/2)
LSW909(1/2)
LSW902(1/2)
LSW901(1/2)
R909
R914
R915
D994
J901
D991
D992
D993
FB903
LSW903(1/2)
(Page 27)
LSW911(1/2)
S903
R908
R974
LSW910(1/2)
S902
R907
LSW904(1/2)
S901
903
CDX-GT42IPW/GT44IP/GT420IP
31
31
IC901
CDX-GT42IPW/GT44IP/GT420IP
• IC Block Diagrams
IC300 TDA8588AJ/N2/R1 (MAIN Board (1/4))
IC601 BA8271F-E2 (MAIN Board (1/4))
TAB 1
BUS ON 1
BUS ON
SWITCH
RST 2
RESET
SWITCH
6 VP2
BATT 3
BATTERY
SWITCH
8 PGND3
10 SVR
CLK 4
VREF 5
DATA 6
9 DATA IN
12 IN-FL
GND 7
8 DATA OUT
2 SDA
OUT-FL- 3
I2C BUS
4 SCL
FL
OUT-FL+ 5
14 VCC
13
12
11
10
RESET
BUS ON
CLK IN
BU IN
OUT-RL- 7
RL
OUT-RL+ 9
PROTECTION/
DIAGNOSTIC
IN-RR 15
14 IN-FR
MUTE
S-GND 13
MUTE
IN-RL 11
16 BEEP
VP
OUT-RR+ 17
18 PGND2
RR
OUT-RR- 19
IC401 BD3442FS-E2 (MAIN Board (2/4))
20 VP1
OUT-FR+ 21
FR
OUT-FR- 23
STANDBY/
MUTE
22 STB
CHIP DETECT/
DIAGNOSTIC
DIAG 25
BUS-L 1
24 PGND1
BATTERY
DETECTION
TEMPERATURE
PROTECTION
VCC2
31 GND
BUS-R 2
26 RST
100k
ANT-REM 27
SWITCH
TU-L 3
INPUT
SELECTOR
INPUT
GAIN
VOLUME1
/MUTE
TREBLE
/BASS
/MIDDLE
VOLUME2
I2C
BUS
LOGIC
100k
TU-R 4
28 CRES
AMP-REM 29
CD-L 5
30 AUDIO8.3V
29 SCL
VCC
27 VCC
100k
REGULATOR
MECH6V 33
30 SDA
28 MUTE
100k
SWITCH
SERVO5V 31
32 FIL
100k
ENABLE
LOGIC
CD-R 6
32 GND
FADER
26 OUTF1
250k
FADER
25 OUTF2
250k
FADER
24 OUT-R1
FADER
23 OUT-R2
100k
34 PANEL+B
EFFECT
AUX-L 7
VP 35
AUX-G 8
REFERENCE
VOLTAGE
B.UP+B 37
REGULATOR
36 CBU
LOADDUMP
PROTECTION
AUX-R 9
BACK-UP
SWITCH
250k
DS32 10
22 OUTS1
DS11 11
FADER
DS22 12
LPF
21 OUTS2
EBIAS 13
FADER
20 ADJ
DS21 14
DS11 15
DS31 16
CDX-GT42IPW/GT44IP/GT420IP
32
32
19 SOUT
SPECTRUM
ANALYZER
18 DATA
17 CLK
CDX-GT42IPW/GT44IP/GT420IP
IC50 TDA7333013TR (MAIN Board (2/4))
3
BAND PASS
FILTER
INTERPOLATOR
SINC4
FILTER
MPX
REF3 2
REF2 3
VSS 5
16 MPX
15 INTN
SDAOUT
SDAIN
TEST LOGIC
SCK
I C/SPI
&
INTERFACE SPI
PIN MUX'S
TESTREG
RAM
RDS
RDSREG BUFFER
INTN DEMODULATOR &
&
SYNCHRONIZATION
CONTROL
LOGIC
REF1 4
SIGMA DELTA
CONVERTER
SINC4REG
VDDA 1
2
14
13
12
11
CSN
SA
SDA
SCL
2
TM 6
10 XTO
OSCILLATOR
VDDD 7
9 XTI
RESETN 8
VDD
Y
X
X1
X0
X–X1
Y–Y1
Z–Z1
IC210 BU4053BCFV-E2 (MAIN Board (2/4))
16
15
14
13
12
11 10 9
LEVEL
CONVERTER
1
2
3
4
5
6
7
8
Y1
Y0
Z1
Z
Z0
INT
VEE
VSS
BINARI
TO 1 OF 2
DECODER
WITH
INHIBIT
33
CDX-GT42IPW/GT44IP/GT420IP
IC220 NJM4558V-TE2 (MAIN Board (2/4))
8 V+
A OUTPUT 1
7 B OUTPUT
A
B
A -INPUT 2
6 B -INPUT
A +INPUT 3
5 B +INPUT
V- 4
IC260 NJM2387ADL3 (MAIN Board (3/4))
CURRENT
LIMIT
OVERVOLTAGE
PROTECTION
THERMAL
PROTECTION
BANDGAP
REFERENCE
34
1
2
3
4
5
VIN
CONTROL
VOUT
VADJ
GND
CDX-GT42IPW/GT44IP/GT420IP
AVCC
TOSC2
27
26 25 24 23
TDI
TDO
GND
TOSC1
AREF
28
ADC6
29
ADC5
33 32 31 30
ADC4
ADC7
IC250 ATMEGA32L-8AU-S5 (ATMEL Board)
ADC3 34
22 TMC
PORT C
DRIVERS
/BUFFERS
PORT A
DRIVERS
/BUFFERS
ADC2 35
ADC1 36
21 TCK
20 SDA
ADC0 37
19 SCL
PORT A
DIGITAL
INTERFACE
PORT C
DIGITAL
INTERFACE
VCC 38
MUX &
ADC
ADC
INTERFACE
TWI
PROGRAM
COUNTER
STACK
POINTER
TIMERS
/COUNTERS
PROGRAM
FLASH
SRAM
INTERNAL
OSCILLATOR
INSTRUCTION
REGISTER
GENERAL
PURPOSE
REGISTERS
WATCHDOG
TIMER
GND 39
X
Y
Z
INSTRUCTION
DECODER
CONTROL
LINES
OSCILLATOR
INTERNAL
CALIBRATED
OSCILLATOR
MCU CTRL.
& TIMING
ALU
INTERRUPT
UNIT
AVR CPU
PROGRAMMING
LOGIC
STATUS
REGISTER
EEPROM
SPI
USART
COMP.
INTERFACE
PORT B
DIGITAL
INTERFACE
18 GND
PORT D
DIGITAL
INTERFACE
17 VCC
16 OC2
XCK/T0 40
T1 41
AIN0/INT2 42
15 ICP1
PORT B
DRIVERS
/BUFFERS
PORT D
DRIVERS
/BUFFERS
14 OC1A
13 OC1B
AIN1/OC0 43
12 INT1
SS 44
1
2
3
4
5
6
7
8
9
10
11
MOSI
MISO
SCK
RESET
VCC
GND
XTAL2
XTAL1
RXD
TXD
INTO
OSCILLATOR
35
CDX-GT42IPW/GT44IP/GT420IP
• IC PIN DESCRIPTIONS
• IC501 MB90F045PF-G-9059-SPE1 (SYSTEM CONTROL) (MAIN BOARD (4/4))
Pin No.
Pin Name
I/O
Pin Description
1
AREASEL0
I
Destination function setting pin 0
2
AREASEL1
I
Destination function setting pin 1
3
AREASEL2
I
Destination function setting pin 2
4
B OUT SEL
I
Black out with/without discrimination select signal input
5
BEEP
O
BEEP signal output to power amplifier
6
NCO
O
Not used. (Open)
7
DIAG
I
Status signal input from power amplifier
8
AMPSTB
O
Stand-by signal output to power requlation
9
VOLATT
O
Electronic volume attenuate control signal output
10
NCO
O
Not used. (Open)
“H”: Black out
11
VSS
—
Ground pin
12
TUATT
O
Tuner mute control signal output
13
NSMASK
O
Noise mask signal output
14
SA OUT
O
Serial data signal output for electronic volume spectrum analyzer
15
SA CLK
O
Serial clock signal output for electronic volume spectrum analyzer
16
ILLUMI SEL
I
Illumination voltage setting signal input
17
COL SEL
I
Two colors select signal input
“H”: 10.4 V, “L”: 9.0 V
“H”: Two colors, “L”: color
18 to 22
NCO
O
Not used. (Open)
23
VCC5
—
Power supply pin (+3.3V)
24
EEP_SIO
I/O
EEPROM bus serial data signal input/output
25
EEP_CKO
O
EEPROM bus serial clock signal output
26
RDS ON
O
RDS (radio data system) ON signal output
27
LCD_CE
O
Chip enable signal output to LCD driver
28
LCD_SO
O
Serial data signal output to LCD driver
29
LCD_SCK
O
Serial clock signal output to LCD driver
30
NCO
O
Not used. (Open)
31
RE-IN0
I
Rotary encoder signal input 0
32
RE-IN1
I
Rotary encoder signal input 1
33
I2C_SCK
O
I2C bus serial clock signal output
34
I2C_SIO
I/O
I2C bus serial data signal input/output
35
DAVDD
—
A/D converter power supply pin (+3.3V)
36
AVRH
—
A/D converter external reference power supply pin (+3.3V)
37
DAVSS
—
A/D converter Ground pin
38
QUALITY
I
Noise detect signal input
39
VSM
I
S-meter voltage detect signal input
40
KEYIN1
I
Key signal input 1
41
KEYIN0
I
42
VSS
—
43
RC_IN0
I
Rotary commander key signal input
44, 45
NCO
O
Not used. (Open)
46
SA IN
I
Serial data signal input for electronic volume spectrum analyzer
47
NCO
O
Not used. (Open)
48
AD_ON
O
A/D converter power supply control signal output
49
MD0
I
Operation mode setting pin 0 (Pull up)
50
MD1
I
Operation mode setting pin 1 (Pull up)
51
MD2
I
Operation mode setting pin 2 (Pull down)
36
Key signal input 0
Ground pin
Not used in this set. (Pull up)
52
KEYACK
I
Key acknowledgment detect signal input
53
TU_ATTIN
I
Tuner mute zero cross detect signal input
CDX-GT42IPW/GT44IP/GT420IP
Pin No.
Pin Name
I/O
54
BUIN
I
Back-up power supply detect signal input
Pin Description
55
FUNC SEL
O
AUX/i-Pod audio select control signal output
56
DAVN
I
RDS data block synchronized detect signal input
57
BUSON_A
O
BUS on signal output for i-Pod
58
UNISI
I
S-BUS data signal input
59
UNISO
O
S-BUS data signal output
60
UNISCK
O
S-BUS clock signal output
61
Z-MUTE
I
CD zero cross mute detect signal input
62
NOSE_SW
I
Front panel attachment detect signal input
Memory mode select signal input
63
FLASH_W
I
64
SIRCS
I
Remote control signal input
65 to 70
NCO
O
Not used. (Open)
“H”: AUX audio, “L”: i-Pod audio
“L”: Panel on, “H”: Panel off
Not used in this set. (Pull up)
Normally “H” input: Single chip mode, after reset “L”: Flash write mode
71
RC_IN1
I
Rotary commander shift key signal input
72 to 76
NCO
O
Not used. (Open)
Not used in this set. (Pull up)
77
RESET
I
System reset signal input
78
NCO
O
Not used. (Open)
79
XIN
I
Low speed operation clock signal input (32.768 kHz)
80
XOUT
O
Low speed operation clock signal output (32.768 kHz)
81
VSS1
—
Ground pin
82
OSCIN
I
High speed operation clock signal input (18.432 MHz)
83
OSCOUT
O
High speed operation clock signal output (18.432 MHz)
84
VCC3
—
Power supply pin (+3.3 V)
85
CYRIL_SEL
I
Cyril correspondence discrimination signal input
86
DEMOSEL
I
DEMO select signal input
87
NCO
O
Not used. (Open)
88
SYSRST
O
System reset signal output
89, 90
NCO
O
Not used. (Open)
91
CD_ON
I
CD mechanism servo power supply control request signal input
“L”: No correspondence
“H”: DEMO on, “L”: DEMO off
92
CDM_ON
I
CD mechanism deck power supply control request signal input
93 to 95
NCO
O
Not used. (Open)
96
BUSON
O
BUS ON signal output
97
TESTIN
I
Test mode detect signal input
98
TELATT
I
Telephone attenuate detect signal input
Not used in this set. (Pull up)
99
ACC_IN
I
Accessory power supply detect signal input
100
ATT
O
Audio mute control signal output
37
CDX-GT42IPW/GT44IP/GT420IP
SECTION 6
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
•
•
•
6-1.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
-XX and -X mean standardized parts, so
they may have some difference from the
original one.
Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
R
R
Parts Color Cabinet’s Color
Accessories are given in the last of this parts list.
MAIN SECTION
not supplied
A
9
MG-101TC-188//C
#2
7
#1
#3
B
A
#5
4
#3
F901
#4
#6
ATMEL board
#4
#3
8
5
not supplied
not supplied
3
6
#1
TU1
not supplied
B
2
#1
not supplied
#1
1
Ref. No.
Part No.
Description
Remark
Ref. No.
1
2
3
4
5
X-2179-121-1
2-583-939-01
X-2179-691-1
2-348-996-01
A-1310-322-A
PANEL ASSY, SUB
SCREW (+B 2X4)
LOCK ASSY
SCREW (+PTT 2.6X6), GROUND POINT
MAIN BOARD, COMPLETE (GT42IPW/GT420IP)
5
6
7
A-1310-342-A MAIN BOARD, COMPLETE (GT44IP)
2-345-298-01 PLATE (TU), GROUND
1-831-838-11 CORD (WITH CONNECTOR) (ISO) (POWER)
(GT44IP)
1-833-974-31 CONNECTION CORD FOR AUTOMOBILE
(POWER) (GT42IPW/GT420IP)
7
38
Part No.
Description
8
9
F901
TU1
#1
1-834-339-11
3-274-210-01
1-532-877-11
A-3220-961-B
7-685-792-09
CORD, CONNECTION (for iPod)
SHEET (IPOD)
FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUNER UNIT (TUX-032)
SCREW +PTT 2.6X6 (S)
#2
#3
#4
#5
#6
7-685-790-01
7-685-793-09
7-685-794-09
7-685-134-19
7-621-284-40
SCREW +PTT 2.6X4 (S)
SCREW +PTT 2.6X8 (S)
SCREW +PTT 2.6X10 (S)
SCREW +P 2.6X8 TYPE2 NON-SLIT
SCREW +P 2.6X10
Remark
CDX-GT42IPW/GT44IP/GT420IP
6-2.
FRONT PANEL SECTION
60
59
RE901
not supplied
not supplied
58
60
57
LCD901
61
not supplied
(KEY board)
J901
56
not supplied
not supplied
not supplied
52
not supplied
55
not supplied
54
51
53
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
51
51
51
52
52
A-1310-324-A
A-1310-332-A
A-1310-344-A
X-2178-983-1
X-2178-987-1
PANEL COMPLETE ASSY, FRONT (GT42IPW)
PANEL COMPLETE ASSY, FRONT (GT420IP)
PANEL COMPLETE ASSY, FRONT (GT44IP)
BUTTON ASSY (S) (GT42IPW/GT420IP)
BUTTON ASSY (S) (GT44IP)
57
58
59
60
61
1-780-533-11
3-214-226-11
3-214-215-01
3-250-543-91
X-2186-697-1
CONDUCTIVE BOARD, CONNECTION
ILLUMINATOR (LCD)
PANEL, BACK
SCREW (+B P-TITE M2)
CASE ASSY (for FRONT PANEL) (GT44IP)
53
54
54
54
55
3-251-320-01
X-2179-126-1
X-2179-127-1
X-2179-128-1
X-2186-575-1
EMBLEM (NO. 2.5), SONY
PANEL (SV) ASSY, FRONT (GT42IPW)
PANEL (SV) ASSY, FRONT (GT420IP)
PANEL (SV) ASSY, FRONT (GT44IP)
KNOB (VOL) (SV) ASSY
J901
1-820-624-11 SMALL TYPE JACK (VERTICAL) (AUX)
LCD901 1-802-508-11 DISPLAY PANEL, LIQUID CRYSTAL
(GT42IPW/GT420IP)
LCD901 1-802-509-11 DISPLAY PANEL, LIQUID CRYSTAL (GT44IP)
RE901 1-479-902-21 ENCODER, ROTARY (PUSH SELECT/VOLUME)
56
2-349-626-01 SPRING (RELEASE)
39
CDX-GT42IPW/GT44IP/GT420IP
6-3.
CD MECHANISM SECTION
(MG-101TC-188//C)
101
102
not supplied
not supplied
103
#7
#7
105
not supplied
not supplied
not supplied
not supplied
not supplied
104
not supplied
not supplied
not supplied
not supplied
107
106
106
Ref. No.
Part No.
Description
101
102
0 103
104
A-1283-704-A
A-1283-705-A
X-2149-672-1
2-626-869-21
MECHANICAL BLOCK ASSY (08)
DAXEV08//C
SERVICE ASSY, OP (DAX-25A)
SCREW (M2X3), SERRATION
40
Remark
Ref. No.
105
106
107
#7
Part No.
Description
Remark
3-348-998-31
3-352-758-31
A-1201-631-A
7-627-000-00
SCREW (M1.4X2.5), TAPPING, PAN
SCREW (M1.7X2.5), TOOTHED LOCK
SERVO BOARD, COMPLETE
SCREW, PRECISION +P 1.7X2.2 TYPE 3
CDX-GT42IPW/GT44IP/GT420IP
SECTION 7
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
Ref. No.
Part No.
•
•
•
•
Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
SEMICONDUCTORS
In each case, u : Вµ, for example:
uA.. : ВµA.. uPA.. : ВµPA..
uPB.. : ВµPB.. uPC.. : ВµPC.. uPD.. : ВµPD..
CAPACITORS
uF : ВµF
COILS
uH : ВµH
Description
Remark
ATMEL BOARD (SUPPLIED WITH MAIN BOARD,
COMPLETE)
************
< CAPACITOR >
C250
C251
C252
C253
C254
1-164-730-11
1-162-916-11
1-162-916-11
1-164-730-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
C255
C256
1-107-826-11 CERAMIC CHIP
1-107-826-11 CERAMIC CHIP
0.0012uF
12PF
12PF
0.0012uF
0.1uF
10%
5%
5%
10%
10%
50V
50V
50V
50V
16V
0.1uF
0.1uF
10%
10%
16V
16V
Ref. No.
R267
R268
R270
R288
R292
Part No.
Description
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
Remark
100K
100K
1K
100K
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
X250
1-814-039-11 VIBRATOR, CRYSTAL (7.3728MHz)
*************************************************************
KEY BOARD
**********
< CAPACITOR >
1-770-624-21 PIN, CONNECTOR 7P
1-821-549-11 PIN, CONNECTOR 12P
C971
C981
C983
C984
C986
8-719-060-48 DIODE RB751V-40TE-17
8-719-060-48 DIODE RB751V-40TE-17
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-125-891-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
0.1uF
0.1uF
0.47uF
10%
10%
10%
10%
10%
16V
16V
16V
16V
10V
< CONNECTOR >
6-807-809-01 IC ATMEGA32L-8AU-S5
CN901
1-819-758-12 PLUG, CONNECTOR 15P
< DIODE >
< TRANSISTOR >
Q258
When indicating parts by reference
number, please include the board.
1-216-845-11
1-216-845-11
1-216-821-11
1-216-845-11
1-216-864-11
< IC >
IC250
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
1-780-533-11 CONDUCTIVE BOARD, CONNECTION
3-214-226-11 ILLUMINATOR (LCD)
< DIODE >
D250
D255
KEY
< VIBRATOR >
< CONNECTOR >
CN260
CN261
ATMEL
8-729-027-43 TRANSISTOR DTC114EKA-T146
< RESISTOR >
R250
R251
R252
R253
R254
1-216-841-11
1-216-833-11
1-216-809-11
1-216-833-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
47K
10K
100
10K
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R255
R256
R257
R259
R260
1-216-833-11
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
100K
100K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R261
R262
R263
R264
R265
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R266
1-216-845-11 METAL CHIP
100K
5%
1/10W
D903
D981
D982
D991
D992
6-501-782-01
6-501-730-01
6-501-193-01
6-501-743-01
6-501-743-01
DIODE
DIODE
DIODE
DIODE
DIODE
MAZ8180GMLS0
MAZ8051GMLS0
1SS355WTE-17
MAZ8068GMLS0
MAZ8068GMLS0
D993
D994
6-501-743-01 DIODE MAZ8068GMLS0
6-501-743-01 DIODE MAZ8068GMLS0
< JUMPER RESISTOR >
FB903
1-216-295-11 SHORT CHIP
0
< IC >
IC901
IC971
6-707-063-01 IC LC75826WH-US-E
6-600-629-01 IC RS-470 (IR)
< JACK >
J901
1-820-624-11 SMALL TYPE JACK (VERTICAL) (AUX)
41
CDX-GT42IPW/GT44IP/GT420IP
KEY
Ref. No.
MAIN
Part No.
Description
Remark
< LIQUID CRYSTAL DISPLAY >
LCD901 1-802-508-11 DISPLAY PANEL, LIQUID CRYSTAL
(GT42IPW/GT420IP)
LCD901 1-802-509-11 DISPLAY PANEL, LIQUID CRYSTAL (GT44IP)
< DIODE >
LED931
LED941
LED942
LED943
LED944
6-501-339-01
8-719-053-09
8-719-053-09
1-216-864-11
8-719-053-09
LED NESW505CT-AST (LCD BACK LIGHT)
LED SML-310VTT86 (Z)
LED SML-310VTT86 (OFF)
SHORT CHIP
0
LED SML-310VTT86 (SOURCE)
LED945
LED951
LED952
LED953
8-719-053-09
8-719-053-09
8-719-053-09
8-719-053-09
LED
LED
LED
LED
SML-310VTT86 (MODE)
SML-310VTT86 (RING ILLUMINATION)
SML-310VTT86 (RING ILLUMINATION)
SML-310VTT86 (RING ILLUMINATION)
< SWITCH >
LSW901 1-786-805-12 SWITCH, TACTILE (WITH LED) (EQ3)
LSW902 1-786-805-12 SWITCH, TACTILE (WITH LED) (DSPL/SCRL)
LSW903 1-786-805-12 SWITCH, TACTILE (WITH LED)
(M > SEEK+)
LSW904 1-786-805-12 SWITCH, TACTILE (WITH LED)
(. m SEEK–)
LSW905 1-786-805-12 SWITCH, TACTILE (WITH LED) (BTM/CAT)
(GT42IPW)
LSW905 1-786-805-12 SWITCH, TACTILE (WITH LED) (AF/TA/PTY)
(GT44IP)
LSW905 1-786-805-12 SWITCH, TACTILE (WITH LED) (BTM)
(GT420IP)
LSW906 1-786-805-12 SWITCH, TACTILE (WITH LED) (1/ALBUM –)
LSW907 1-786-805-12 SWITCH, TACTILE (WITH LED) (2/ALBUM +)
LSW908 1-786-805-12 SWITCH, TACTILE (WITH LED) (3/REP)
Ref. No.
Part No.
Description
R934
R941
R942
R943
R944
1-216-822-11
1-216-813-11
1-216-813-11
1-216-812-11
1-216-811-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1.2K
220
220
180
150
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R945
R946
R947
R948
R949
1-216-812-11
1-216-811-11
1-216-812-11
1-216-811-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
180
150
180
150
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R950
R951
R952
R953
R954
1-216-809-11
1-216-812-11
1-216-811-11
1-216-812-11
1-216-811-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
180
150
180
150
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R971
R972
R974
R975
R977
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R978
R979
R981
R982
R984
1-216-809-11
1-216-809-11
1-216-811-11
1-216-811-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
100
150
150
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R985
R986
R987
R992
1-216-821-11
1-216-821-11
1-216-857-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
1K
1K
1M
0
5%
5%
5%
1/10W
1/10W
1/10W
< ROTARY ENCODER >
RE901
1-479-902-21 ENCODER, ROTARY (PUSH SELECT/VOLUME)
LSW909 1-786-805-12 SWITCH, TACTILE (WITH LED) (4/SHUF)
LSW910 1-786-805-12 SWITCH, TACTILE (WITH LED) (5)
LSW911 1-786-805-12 SWITCH, TACTILE (WITH LED) (6/PAUSE)
< SWITCH >
S901
1-786-653-11 SWITCH, TACTILE (Z)
S902
1-786-653-11 SWITCH, TACTILE (OFF)
S903
1-786-653-11 SWITCH, TACTILE (SOURCE)
S904
1-786-653-11 SWITCH, TACTILE (MODE)
*************************************************************
< TRANSISTOR >
Q931
Q932
8-729-027-44 TRANSISTOR DTC114TKA-T146
6-551-444-01 TRANSISTOR RT1N436C-TP-1
< RESISTOR >
R901
R902
R903
R904
R905
1-216-820-11
1-216-821-11
1-216-821-11
1-216-822-11
1-216-823-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
820
1K
1K
1.2K
1.5K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R907
R908
R909
R910
R911
1-216-820-11
1-216-821-11
1-216-821-11
1-216-822-11
1-216-823-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
820
1K
1K
1.2K
1.5K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R912
R913
R914
R915
R931
1-216-824-11
1-216-825-11
1-216-827-11
1-216-828-11
1-216-812-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1.8K
2.2K
3.3K
3.9K
180
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R932
R933
1-216-812-11 METAL CHIP
1-216-812-11 METAL CHIP
180
180
5%
5%
1/10W
1/10W
42
Remark
A-1310-322-A MAIN BOARD, COMPLETE (IN CLUDING ATMEL
BOARD) (GT42IPW/GT420IP)
A-1310-342-A MAIN BOARD, COMPLETE (IN CLUDING ATMEL
BOARD) (GT44IP)
*********************
7-621-284-40 SCREW +P 2.6X10
7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
7-685-794-09 SCREW +PTT 2.6X10 (S)
< CAPACITOR >
C1
1-126-963-11 ELECT
4.7uF
20%
C2
C3
C5
C6
1-126-947-11
1-162-970-11
1-126-947-11
1-162-970-11
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
47uF
0.01uF
47uF
0.01uF
20%
10%
20%
10%
C7
C8
C10
1-162-970-11 CERAMIC CHIP
1-162-970-11 CERAMIC CHIP
1-162-923-11 CERAMIC CHIP
0.01uF
0.01uF
47PF
10%
10%
5%
50V
(GT44IP)
35V
25V
35V
25V
25V
25V
50V
(GT44IP)
CDX-GT42IPW/GT44IP/GT420IP
MAIN
Ref. No.
Part No.
Description
Remark
C11
1-162-923-11 CERAMIC CHIP
47PF
5%
50V
(GT44IP)
10%
16V
(GT42IPW/GT420IP)
10%
16V
(GT44IP)
10%
16V
(GT44IP)
10%
16V
(GT44IP)
C15
1-107-826-11 CERAMIC CHIP
0.1uF
C50
1-107-826-11 CERAMIC CHIP
0.1uF
C51
1-107-826-11 CERAMIC CHIP
0.1uF
C52
1-107-826-11 CERAMIC CHIP
0.1uF
C53
1-107-826-11 CERAMIC CHIP
0.1uF
10%
C54
1-107-826-11 CERAMIC CHIP
0.1uF
10%
C55
1-107-826-11 CERAMIC CHIP
0.1uF
10%
C56
1-162-917-11 CERAMIC CHIP
15PF
5%
C57
1-162-917-11 CERAMIC CHIP
15PF
5%
C58
1-162-959-11 CERAMIC CHIP
330PF
5%
C60
1-162-970-11 CERAMIC CHIP
0.01uF
10%
C61
1-126-947-11 ELECT
47uF
20%
C151
C152
1-165-908-11 CERAMIC CHIP
1-165-908-11 CERAMIC CHIP
1uF
1uF
10%
10%
50V
(GT44IP)
25V
(GT44IP)
35V
(GT44IP)
10V
10V
C153
C154
C155
C207
C210
1-126-963-11
1-163-017-00
1-163-017-00
1-100-507-11
1-163-251-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
4.7uF
0.0047uF
0.0047uF
4.7uF
100PF
20%
10%
10%
20%
5%
50V
50V
50V
6.3V
50V
C211
C220
C221
C231
C257
1-165-908-11
1-163-251-11
1-165-908-11
1-165-908-11
1-115-339-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1uF
100PF
1uF
1uF
0.1uF
10%
5%
10%
10%
10%
10V
50V
10V
10V
50V
C258
C259
C260
C261
C263
1-126-964-11
1-162-964-11
1-162-964-11
1-162-964-11
1-107-826-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10uF
0.001uF
0.001uF
0.001uF
0.1uF
20%
10%
10%
10%
10%
50V
50V
50V
50V
16V
C264
C265
C266
C268
C290
1-126-947-11
1-115-339-11
1-165-908-11
1-107-826-11
1-162-960-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
47uF
0.1uF
1uF
0.1uF
220PF
20%
10%
10%
10%
10%
35V
50V
10V
16V
50V
C291
C301
C302
C303
C304
1-127-715-11
1-115-340-11
1-162-970-11
1-128-551-11
1-115-340-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
0.22uF
0.22uF
0.01uF
22uF
0.22uF
10%
10%
10%
20%
10%
16V
25V
25V
63V
25V
C305
C306
C307
C308
C309
1-162-970-11
1-124-261-00
1-162-970-11
1-124-261-00
1-115-340-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
0.01uF
10uF
0.01uF
10uF
0.22uF
10%
20%
10%
20%
10%
25V
50V
25V
50V
25V
C312
C313
1-115-340-11 CERAMIC CHIP
1-162-970-11 CERAMIC CHIP
0.22uF
0.01uF
10%
10%
25V
25V
16V
(GT44IP)
16V
(GT44IP)
16V
(GT44IP)
50V
(GT44IP)
50V
(GT44IP)
Ref. No.
Part No.
Description
C314
C315
C316
C317
C318
1-124-261-00
1-162-970-11
1-124-261-00
1-124-257-00
1-162-923-11
ELECT
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
10uF
0.01uF
10uF
2.2uF
47PF
20%
10%
20%
20%
5%
50V
25V
50V
50V
50V
Remark
C319
C320
C325
C330
C361
1-216-864-11
1-162-970-11
1-115-340-11
1-115-340-11
1-127-715-11
SHORT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0
0.01uF
0.22uF
0.22uF
0.22uF
10%
10%
10%
10%
25V
25V
25V
16V
C362
C363
C364
C401
C402
1-127-715-11
1-126-160-11
1-126-160-11
1-124-234-00
1-162-970-11
CERAMIC CHIP
ELECT
ELECT
ELECT
CERAMIC CHIP
0.22uF
1uF
1uF
22uF
0.01uF
10%
20%
20%
20%
10%
16V
50V
50V
16V
25V
C403
C405
C409
C412
C415
1-124-584-00
1-124-234-00
1-124-261-00
1-162-970-11
1-162-970-11
ELECT
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
100uF
22uF
10uF
0.01uF
0.01uF
20%
20%
20%
10%
10%
10V
16V
50V
25V
25V
C417
C418
C419
C421
C423
1-162-970-11
1-162-966-11
1-162-966-11
1-126-964-11
1-165-908-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
0.01uF
0.0022uF
0.0022uF
10uF
1uF
10%
10%
10%
20%
10%
25V
50V
50V
50V
10V
C424
C426
C431
C432
C434
1-162-927-11
1-165-908-11
1-124-261-00
1-163-251-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
100PF
1uF
10uF
100PF
100PF
5%
10%
20%
5%
5%
50V
10V
50V
50V
50V
C440
C441
C442
C443
C444
1-163-251-11
1-126-964-11
1-163-251-11
1-165-908-11
1-162-927-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100PF
10uF
100PF
1uF
100PF
5%
20%
5%
10%
5%
50V
50V
50V
10V
50V
C445
C451
C452
C454
C461
1-165-908-11
1-126-964-11
1-163-251-11
1-162-927-11
1-126-964-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
1uF
10uF
100PF
100PF
10uF
10%
20%
5%
5%
20%
10V
50V
50V
50V
50V
C462
C463
C471
C472
C473
1-165-908-11
1-165-908-11
1-126-964-11
1-165-908-11
1-165-908-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
1uF
1uF
10uF
1uF
1uF
10%
10%
20%
10%
10%
10V
10V
50V
10V
10V
C484
C485
C486
C491
C493
1-107-826-11
1-126-933-11
1-126-964-11
1-124-589-11
1-162-967-11
CERAMIC CHIP
ELECT
ELECT
ELECT
CERAMIC CHIP
0.1uF
100uF
10uF
47uF
0.0033uF
10%
20%
20%
20%
10%
16V
16V
50V
16V
50V
C494
C501
C502
C504
C507
1-162-967-11
1-162-970-11
1-162-964-11
1-162-970-11
1-162-917-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0033uF
0.01uF
0.001uF
0.01uF
15PF
10%
10%
10%
10%
5%
50V
25V
50V
25V
50V
C508
C509
C510
1-162-916-11 CERAMIC CHIP
1-164-227-11 CERAMIC CHIP
1-165-908-11 CERAMIC CHIP
12PF
0.022uF
1uF
5%
10%
10%
50V
25V
10V
43
CDX-GT42IPW/GT44IP/GT420IP
MAIN
Ref. No.
Part No.
Description
Part No.
Description
C512
C513
C514
C515
C516
1-162-964-11
1-162-970-11
1-162-964-11
1-162-970-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001uF
0.01uF
0.001uF
0.01uF
0.01uF
10%
10%
10%
10%
10%
50V
25V
50V
25V
25V
Remark
D493
D502
D503
D602
D603
6-501-654-01
8-719-060-48
6-501-193-01
6-501-782-01
6-501-738-01
DIODE
DIODE
DIODE
DIODE
DIODE
LBAT54CLT1G
RB751V-40TE-17
1SS355WTE-17
MAZ8180GMLS0
MAZ8062GMLS0
C519
C601
C622
C623
C624
1-107-826-11
1-162-970-11
1-128-057-11
1-126-926-11
1-126-176-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
ELECT
0.1uF
0.01uF
330uF
1000uF
220uF
10%
10%
20%
20%
20%
16V
25V
6.3V
10V
10V
D607
D609
D702
D704
D998
6-501-571-01
6-501-654-01
6-501-782-01
6-501-782-01
6-501-782-01
DIODE
DIODE
DIODE
DIODE
DIODE
1N5404-C311-3
LBAT54CLT1G
MAZ8180GMLS0
MAZ8180GMLS0 (GT44IP)
MAZ8180GMLS0
C681
C682
C683
C701
C702
1-162-970-11
1-162-970-11
1-124-584-00
1-112-302-11
1-164-005-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
0.01uF
0.01uF
100uF
3300uF
0.47uF
10%
10%
20%
20%
25V
25V
10V
16V
25V
D999
6-501-782-01 DIODE MAZ8180GMLS0
C703
C704
C705
C916
C997
1-164-005-11
1-115-340-11
1-115-340-11
1-162-964-11
1-163-009-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47uF
0.22uF
0.22uF
0.001uF
0.001uF
10%
10%
10%
10%
25V
25V
25V
50V
50V
C998
1-163-009-11 CERAMIC CHIP
0.001uF
10%
50V
< CONNECTOR >
CN200
* CN250
CN300
CN350
CN370
1-564-705-11
1-564-710-11
1-774-701-21
1-820-611-11
1-819-773-13
PIN, CONNECTOR (SMALL TYPE) 3P
PIN, CONNECTOR (SMALL TYPE) 8P
PIN, CONNECTOR 16P
CONNECTOR, BOARD TO BOARD 28P
SOCKET, CONNECTOR 15P
< DIODE >
D2
D109
D110
D112
D113
6-501-734-01
6-501-743-01
6-501-743-01
6-501-743-01
6-501-743-01
DIODE
DIODE
DIODE
DIODE
DIODE
D151
D152
D153
D251
D252
1-805-043-11
1-805-043-11
6-501-743-01
6-501-656-01
6-501-782-01
ABSORBER, CHIP SURGE
ABSORBER, CHIP SURGE
DIODE MAZ8068GMLS0
DIODE LBAT54ALT1G
DIODE MAZ8180GMLS0
D253
D254
D256
D260
D301
6-501-782-01
6-501-743-01
6-501-743-01
6-501-654-01
6-501-362-01
DIODE
DIODE
DIODE
DIODE
DIODE
MAZ8180GMLS0
MAZ8068GMLS0
MAZ8068GMLS0
LBAT54CLT1G
1A4-TA26
D302
D303
D304
D305
D306
6-501-362-01
6-501-362-01
6-501-362-01
6-501-362-01
6-501-362-01
DIODE
DIODE
DIODE
DIODE
DIODE
1A4-TA26
1A4-TA26
1A4-TA26
1A4-TA26
1A4-TA26
D307
D308
D309
D310
D311
6-501-362-01
6-501-362-01
6-501-362-01
6-501-362-01
6-501-362-01
DIODE
DIODE
DIODE
DIODE
DIODE
1A4-TA26
1A4-TA26
1A4-TA26
1A4-TA26
1A4-TA26
D312
D353
D491
6-501-362-01 DIODE 1A4-TA26
6-501-656-01 DIODE LBAT54ALT1G
6-501-193-01 DIODE 1SS355WTE-17
44
MAZ8056GMLS0
MAZ8068GMLS0
MAZ8068GMLS0
MAZ8068GMLS0
MAZ8068GMLS0
Ref. No.
Remark
< FUSE >
F901
1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
< IC >
IC50
IC210
IC220
IC260
IC300
6-803-747-01
8-759-448-71
8-759-278-58
6-709-213-01
6-705-359-02
IC
IC
IC
IC
IC
TDA7333013TR (GT44IP)
BU4053BCFV-E2
NJM4558V-TE2
NJM2387ADL3(TE2)
TDA8588AJ/N2/R1
IC401
IC501
IC601
IC602
IC681
6-710-065-01
6-807-652-01
6-703-884-01
6-709-458-01
6-711-670-01
IC
IC
IC
IC
IC
BD3442FS-E2
MB90F045PF-G-9059-SPE1
BA8271F-E2
XC61CN2802NR
XC6218P332PR
< JACK >
J1
J652
J652
1-815-185-13 JACK (ANTENNA)
1-774-698-11 JACK, PIN 2P (AUDIO OUT REAR) (GT44IP)
1-774-699-12 JACK, PIN 4P (AUDIO OUT REAR/FRONT)
(GT42IPW/GT420IP)
< JUMPER RESISTOR >
JC1
JC2
JC3
JC4
JC5
1-216-296-11
1-414-595-11
1-216-296-11
1-216-296-11
1-216-296-11
SHORT CHIP
0
INDUCTOR, FERRITE BEAD
SHORT CHIP
0
SHORT CHIP
0
SHORT CHIP
0
JC6
JC7
JC8
JC9
JC10
1-216-296-11
1-216-296-11
1-216-296-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC11
JC12
JC13
JC14
JC15
1-216-864-11
1-216-296-11
1-216-864-11
1-216-296-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC16
JC17
JC18
JC23
JC24
1-216-296-11
1-216-864-11
1-216-864-11
1-216-296-11
1-216-821-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
METAL CHIP
0
0
0
0
1K
JC29
JC30
JC31
JC32
1-216-296-11
1-216-296-11
1-216-296-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
5%
1/10W
CDX-GT42IPW/GT44IP/GT420IP
MAIN
Ref. No.
Part No.
Description
Part No.
Description
JC33
JC34
JC35
JC36
JC37
1-216-296-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
Remark
L261
L291
L300
L401
L402
1-414-595-11
1-400-382-11
1-456-617-11
1-216-864-11
1-216-295-11
INDUCTOR, FERRITE BEAD
FERRITE, EMI (SMD) (1608)
COIL, CHOKE
SHORT CHIP
0
SHORT CHIP
0
JC38
JC40
JC42
JC50
JC51
1-216-296-11
1-216-864-11
1-216-821-11
1-216-864-11
1-216-296-11
SHORT CHIP
SHORT CHIP
METAL CHIP
SHORT CHIP
SHORT CHIP
0
0
1K
5%
0 (GT44IP)
0
L403
L405
L406
L407
L409
1-216-295-11
1-216-864-11
1-500-245-11
1-216-864-11
1-469-844-11
SHORT CHIP
0
SHORT CHIP
0
INDUCTOR, FERRITE BEAD
SHORT CHIP
0
INDUCTOR
2.2uH
JC100
JC101
JC102
JC210
JC211
1-216-296-11
1-216-296-11
1-216-296-11
1-216-864-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
L410
L501
L901
L902
1-469-876-11
1-469-844-11
1-216-295-11
1-469-844-11
INDUCTOR, FERRITE BEAD
INDUCTOR
2.2uH
SHORT CHIP
0
INDUCTOR
2.2uH
JC212
JC213
JC214
JC215
JC216
1-216-864-11
1-216-296-11
1-216-296-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC217
JC253
JC254
JC255
JC256
1-216-296-11
1-216-864-11
1-216-296-11
1-216-296-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC257
JC258
JC259
JC260
JC261
1-216-864-11
1-216-296-11
1-216-296-11
1-216-864-11
1-216-864-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC262
JC500
JC501
JC503
JC504
1-216-864-11
1-216-864-11
1-216-864-11
1-216-296-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC505
JC506
JC507
JC508
JC509
1-216-296-11
1-216-296-11
1-216-296-11
1-216-296-11
1-216-296-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
0
0
0
0
JC510
JC511
JC512
JC513
JC514
1-216-864-11
1-216-864-11
1-216-296-11
1-216-864-11
1-216-821-11
SHORT CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
METAL CHIP
0
0
0
0
1K
JC990
JC991
JC992
1-216-296-11 SHORT CHIP
1-216-296-11 SHORT CHIP
1-216-296-11 SHORT CHIP
1/10W
Ref. No.
Remark
< TRANSISTOR >
1-469-844-11
1-414-595-11
1-414-595-11
1-469-844-11
1-216-864-11
L50
L151
L251
1-469-844-11 INDUCTOR
1-216-295-11 SHORT CHIP
1-216-864-11 SHORT CHIP
8-729-027-43
6-551-431-01
6-551-696-01
8-729-027-43
8-729-620-07
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
DTC114EKA-T146 (GT44IP)
2SC6027T100-QR
ISA1235AC1TP-1EF (GT44IP)
DTC114EKA-T146
2SC3052EF-T1-LEF
Q253
Q254
Q255
Q256
Q420
8-729-620-07
8-729-620-07
8-729-620-07
8-729-620-07
6-551-863-01
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC3052EF-T1-LEF
2SC3052EF-T1-LEF
2SC3052EF-T1-LEF
2SC3052EF-T1-LEF
RTAN140C-T112A-1
Q432
Q440
Q452
Q460
Q470
6-551-863-01
6-551-863-01
6-551-863-01
8-729-027-44
8-729-027-44
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
RTAN140C-T112A-1
RTAN140C-T112A-1
RTAN140C-T112A-1
DTC114TKA-T146
DTC114TKA-T146
Q491
Q492
Q605
Q664
Q701
8-729-027-23
8-729-027-43
8-729-027-43
8-729-027-23
8-729-620-07
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
DTA114EKA-T146
DTC114EKA-T146
DTC114EKA-T146
DTA114EKA-T146
2SC3052EF-T1-LEF (GT44IP)
Q702
8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF
< RESISTOR >
5%
0
0
0
< COIL >
L1
L2
L3
L4
L5
Q1
Q3
Q50
Q210
Q252
INDUCTOR
2.2uH
INDUCTOR, FERRITE BEAD (GT44IP)
INDUCTOR, FERRITE BEAD (GT44IP)
INDUCTOR
2.2uH
SHORT CHIP
0
2.2uH (GT44IP)
0
0
1/10W
R1
1-216-809-11 METAL CHIP
100
5%
R2
R3
R4
R5
1-216-839-11
1-216-843-11
1-216-839-11
1-216-843-11
33K
68K
33K
68K
5%
5%
5%
5%
R6
R7
R8
1-414-595-11 INDUCTOR, FERRITE BEAD
1-414-595-11 INDUCTOR, FERRITE BEAD
1-216-839-11 METAL CHIP
33K
5%
R9
R10
1-216-843-11 METAL CHIP
1-216-821-11 METAL CHIP
68K
1K
5%
5%
R12
R13
R15
R52
1-216-811-11
1-216-811-11
1-216-864-11
1-216-845-11
150
5%
150
5%
0 (GT44IP)
100K
5%
R53
1-216-797-11 METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
10
5%
1/10W
(GT44IP)
1/10W
1/10W
1/10W
1/10W
1/10W
(GT44IP)
1/10W
1/10W
1/10W
1/10W
1/10W
(GT44IP)
1/10W
(GT44IP)
45
CDX-GT42IPW/GT44IP/GT420IP
MAIN
Ref. No.
R54
R55
Part No.
Description
Remark
Ref. No.
Part No.
Description
R449
R450
R451
R452
R460
1-216-833-11
1-216-833-11
1-216-809-11
1-216-809-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
10K
10K
100
100
0
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
Remark
R461
R462
R470
R471
R472
1-216-821-11
1-216-833-11
1-216-864-11
1-216-821-11
1-216-833-11
METAL CHIP
METAL CHIP
SHORT CHIP
METAL CHIP
METAL CHIP
1K
10K
0
1K
10K
5%
5%
1/10W
1/10W
5%
5%
1/10W
1/10W
R481
R485
R491
R502
R503
1-216-801-11
1-218-883-11
1-216-805-11
1-216-809-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
22
33K
47
100
100
5%
0.5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R504
R505
R507
1-218-871-11 METAL CHIP
1-218-871-11 METAL CHIP
1-216-845-11 METAL CHIP
10K
10K
100K
R509
R510
1-216-812-11 METAL CHIP
1-216-821-11 METAL CHIP
180
1K
R511
R512
R517
R519
R520
1-216-821-11
1-216-821-11
1-216-841-11
1-216-845-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
1K
47K
100K
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R521
R522
R523
R524
R525
1-216-825-11
1-216-825-11
1-216-809-11
1-216-833-11
1-216-833-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
2.2K
2.2K
100
10K
10K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R526
R529
R531
R532
R533
1-216-845-11
1-216-809-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100
100K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R534
R537
1-216-833-11 METAL CHIP
1-216-845-11 METAL CHIP
10K
100K
5%
5%
R538
1-216-845-11 METAL CHIP
100K
R540
R544
1-216-845-11 METAL CHIP
1-216-809-11 METAL CHIP
100K
100
R151
1-414-595-11 INDUCTOR, FERRITE BEAD (GT44IP)
1-216-797-11 METAL CHIP
10
5%
1/10W
(GT44IP)
1-216-833-11 METAL CHIP
10K
5%
1/10W
(GT44IP)
1-216-821-11 METAL CHIP
1K
5%
1/10W
(GT44IP)
1-216-817-11 METAL CHIP
470
5%
1/10W
R152
R153
R154
R155
R210
1-216-817-11
1-216-835-11
1-216-835-11
1-216-825-11
1-216-025-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
470
15K
15K
2.2K
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R211
R212
R213
R214
R220
1-216-833-11
1-216-864-11
1-216-837-11
1-216-853-11
1-216-025-11
METAL CHIP
SHORT CHIP
METAL CHIP
METAL CHIP
RES-CHIP
10K
0
22K
470K
100
5%
1/10W
5%
5%
5%
1/10W
1/10W
1/10W
R221
R222
R232
R233
R234
1-216-833-11
1-216-853-11
1-216-837-11
1-216-837-11
1-216-843-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
470K
22K
22K
68K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R235
R273
R274
R275
R276
1-216-843-11
1-216-296-11
1-216-833-11
1-216-833-11
1-216-833-11
METAL CHIP
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
68K
0
10K
10K
10K
5%
1/10W
5%
5%
5%
1/10W
1/10W
1/10W
R277
R278
R279
R280
R281
1-216-833-11
1-216-833-11
1-216-833-11
1-218-912-11
1-218-885-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
10K
10K
10K
510K
39K
5%
5%
5%
0.5%
0.5%
1/10W
1/10W
1/10W
1/10W
1/10W
R282
R283
R284
R285
R286
1-414-595-11
1-414-595-11
1-216-845-11
1-216-845-11
1-216-825-11
INDUCTOR, FERRITE BEAD
INDUCTOR, FERRITE BEAD
METAL CHIP
100K
METAL CHIP
100K
METAL CHIP
2.2K
5%
5%
5%
1/10W
1/10W
1/10W
R289
R290
R291
R293
R294
1-216-864-11
1-216-838-11
1-216-296-11
1-216-864-11
1-216-864-11
SHORT CHIP
METAL CHIP
SHORT CHIP
SHORT CHIP
SHORT CHIP
0
27K
0
0
0
5%
1/10W
R301
R302
R351
R401
R402
1-216-811-11
1-216-841-11
1-216-845-11
1-216-821-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
150
47K
100K
1K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R551
R552
R553
R555
R556
1-216-845-11
1-216-845-11
1-216-841-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
47K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R420
R421
R423
R430
R431
1-216-864-11
1-216-813-11
1-216-809-11
1-216-809-11
1-216-809-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
220
100
100
100
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R557
R558
R559
R561
R563
1-216-809-11
1-216-833-11
1-216-845-11
1-216-845-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100
10K
100K
100K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R440
R442
R445
R447
R448
1-216-864-11
1-216-813-11
1-216-809-11
1-216-833-11
1-216-833-11
SHORT CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0
220
100
10K
10K
R564
1-216-845-11 METAL CHIP
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
R565
R566
1-216-845-11 METAL CHIP
1-216-845-11 METAL CHIP
100K
100K
R567
1-216-845-11 METAL CHIP
100K
R57
R58
46
0.5%
1/10W
0.5%
1/10W
5%
1/10W
(GT42IPW/GT420IP)
5%
1/10W
5%
1/10W
1/10W
1/10W
(GT44IP)
5%
1/10W
(GT42IPW/GT420IP)
5%
1/10W
5%
1/10W
1/10W
(GT44IP)
5%
1/10W
5%
1/10W
(GT42IPW/GT420IP)
5%
1/10W
CDX-GT42IPW/GT44IP/GT420IP
MAIN
Ref. No.
Part No.
Description
Remark
R568
R570
R573
1-216-849-11 METAL CHIP
1-216-809-11 METAL CHIP
1-216-845-11 METAL CHIP
220K
100
100K
5%
5%
5%
R600
R601
1-216-845-11 METAL CHIP
1-216-851-11 METAL CHIP
100K
330K
5%
5%
1/10W
1/10W
1/10W
(GT44IP)
1/10W
1/10W
R602
R603
R604
R606
R607
1-216-851-11
1-216-821-11
1-216-835-11
1-216-821-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
330K
1K
15K
1K
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R636
R671
R672
R673
R674
1-216-845-11
1-216-809-11
1-216-809-11
1-216-833-11
1-216-845-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100
100
10K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R701
1-216-821-11 METAL CHIP
1K
5%
R702
1-216-841-11 METAL CHIP
47K
5%
R703
1-216-833-11 METAL CHIP
10K
5%
R704
1-216-833-11 METAL CHIP
10K
5%
R705
1-249-425-11 CARBON
4.7K
5%
1/10W
(GT44IP)
1/10W
(GT44IP)
1/10W
(GT44IP)
1/10W
(GT44IP)
1/4W
R706
R707
R708
R910
R914
1-216-841-11
1-216-841-11
1-216-829-11
1-216-864-11
1-216-864-11
47K
47K
4.7K
0
0
5%
5%
5%
1/10W
1/10W
1/10W
R915
R916
R917
1-216-864-11 SHORT CHIP
1-216-864-11 SHORT CHIP
1-216-821-11 METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT CHIP
SHORT CHIP
0
0
1K
Ref. No.
1/10W
Description
Remark
ACCESSORIES
************
1-479-077-13 REMOTE COMMANDER (RM-X151)
2-548-729-01 LID, BATTERY CASE (for RM-X151)
3-217-561-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
(GT420IP)
3-217-561-21 MANUAL, INSTRUCTION (ENGLISH,GERMAN,
FRENCH,ITALIAN,DUTCH) (GT44IP)
3-217-561-31 MANUAL, INSTRUCTION (ENGLISH,SPANISH)
(GT42IPW)
3-217-562-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
FRENCH) (GT420IP)
3-217-562-21 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
GERMAN,FRENCH,ITALIAN,DUTCH) (GT44IP)
3-217-562-31 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH) (GT42IPW)
X-2186-697-1 CASE ASSY (for FRONT PANEL) (GT44IP)
*************************************************************
PARTS FOR INSTALLATION AND CONNECTIONS
***************************************
151
152
153
154
155
X-2179-430-1
2-686-802-01
3-246-011-01
X-3366-972-2
3-259-776-01
156
157
1-465-459-41 ADAPTOR, ANTENNA (GT44IP)
1-833-974-31 CONNECTION CORD FOR AUTOMOBILE
(POWER) (GT42IPW/GT420IP)
1-831-838-11 CORD (WITH CONNECTOR) (ISO) (POWER)
(GT44IP)
158
5%
Part No.
SERVO
151
FRAME ASSY, FITTING
COLLAR
KEY (FRAME)
SCREW ASSY (EXP), FITTING (GT44IP)
SCREW (+K 5X8 TP) (GT42IPW/GT420IP)
152
153
< SWITCH >
S103
1-786-826-11 SWITCH, TACTILE (RESET)
< TUNER UNIT >
TU1
Г—2
154
155
A-3220-961-B TUNER UNIT (TUX-032)
< VIBRATOR >
Г—4
X50
1-813-532-11 VIBRATOR, CRYSTAL (8.664MHz) (GT44IP)
X501
1-813-524-21 VIBRATOR, CERAMIC (18.432MHz)
X502
1-767-317-11 VIBRATOR, CRYSTAL (32.768kHz)
*************************************************************
156
157
158
A-1201-631-A SERVO BOARD, COMPLETE
**********************
*************************************************************
MISCELLANEOUS
***************
7
1-831-838-11 CORD (WITH CONNECTOR) (ISO) (POWER)
(GT44IP)
7
1-833-974-31 CONNECTION CORD FOR AUTOMOBILE
(POWER) (GT42IPW/GT420IP)
8
1-834-339-11 CORD, CONNECTION (for iPod)
0 103
X-2149-672-1 SERVICE ASSY, OP (DAX-25A)
*************************************************************
47
CDX-GT42IPW/GT44IP/GT420IP
REVISION HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
48
Ver.
Date
1.0
2007. 08
Description of Revision
New
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
