PD-0100-0066
Revision A

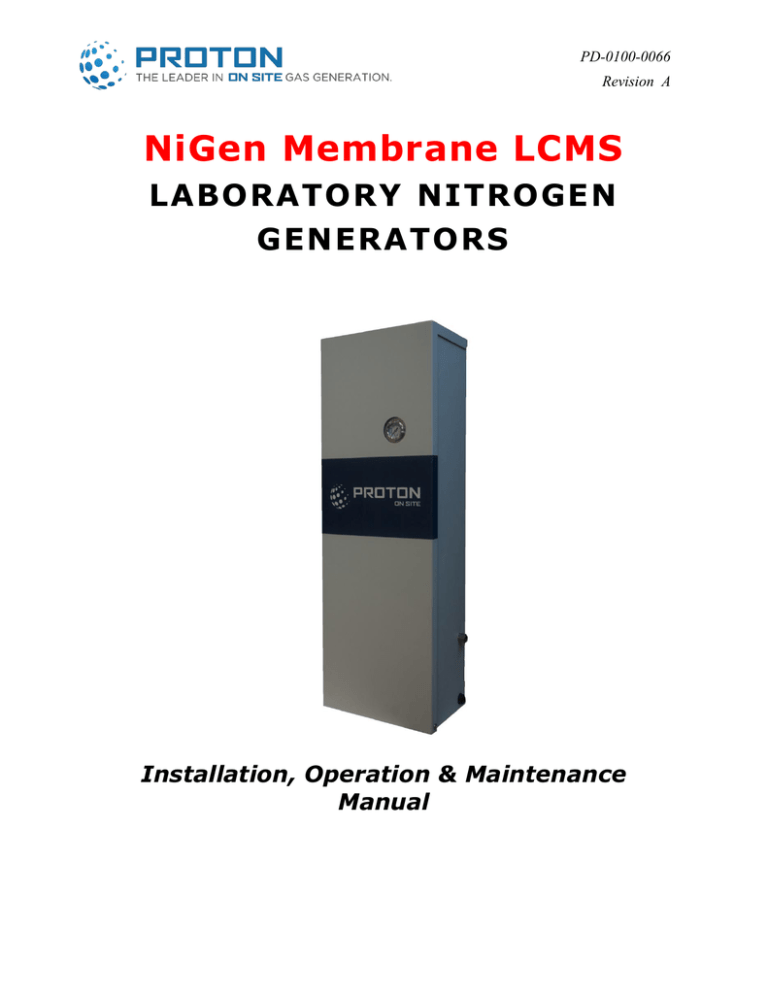

NiGen Membrane LCMS
LABORATORY NITROGEN
GENERATORS
Installation, Operation & Maintenance
Manual
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
NiGen Membrane LCMS Nitrogen Generators
Installation, Operation & Maintenance Manual
Covering the following laboratory hydrogen generator models:
Model
Proton Part Number
NiGen Membrane LCMS
54-0112-0012
Proton OnSite
10 Technology Drive
Wallingford, CT 06492
203-949-8697
203-678-2000
[email protected]
www.protononsite.com
В© 2012 Proton Energy Systems, Inc. d/b/a Proton OnSite
All rights not expressly granted herein are reserved.
Information in this document is provided in connection with Proton Energy Systems Inc. d/b/a Proton OnSite
(“Proton”) products and services. No license, express or implied, by estoppel or otherwise, to any
intellectual property rights is granted by this document. Except as provided in Proton Terms and Conditions
of Sale for such products and services, Proton assumes no liability whatsoever, and Proton disclaims any
express or implied warranty, whether written or oral, relating to sale and/or use of Proton products or
services including liability or warranties relating to fitness for a particular purpose, merchantability, or
infringement of any patent, copyright or other intellectual property right. Proton products are not intended for
use in medical, life saving, or life sustaining applications.
Proton may make changes to specifications and product descriptions at any time, without notice.
This document as well as any software, processes or procedures described in it is furnished under license
and may only be used or copied in accordance with the terms of the license. The information in this
document is furnished for informational use only, is subject to change without notice, and should not be
construed as a commitment by Proton. Proton assumes no responsibility or liability for any errors or
inaccuracies that may appear in this document or any software that may be provided in association with this
document.
Except as permitted by such license, no part of this document may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means without the express written consent of Proton.
В® Proton, Proton OnSite, Proton Energy Systems, the Proton design, StableFlow, StableFlow Hydrogen
Control System and design, HOGEN, and FuelGen are registered trademarks of Proton Energy Systems,
Inc.
Any other brands and/or names used herein are the property of their respective owners.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 2 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
Purchaser – please record your generator serial and configuration numbers in
this space:
Serial Number ____________________________________________
Configuration Number______________________________________
Disclaimer
Proton OnSite has written this manual to be an easy to use guide for the NiGen Membrane LCMS Nitrogen
Gas Generators. All statements, technical information, and recommendations in this manual and in any
guides or related documents are believed reliable, but the accuracy and completeness thereof are not
guaranteed or warranted. They are not intended to be, nor should they be understood to be, representations or
warranties concerning the products described.
This nitrogen gas generator has been sold subject to the limited warranties set forth in the warranty statement.
Further, Proton reserves the right to make changes in the specifications of the products described in this
manual at any time without notice and without obligation to notify any person of such changes.
This laboratory nitrogen generator is designed for operation only by trained personnel familiar with the use of
similar equipment and with safety requirements for the use of nitrogen and other industrial gases. Before
operating this laboratory nitrogen generator, make sure to read and understand this information provided
herein. If you have questions, please contact Proton OnSite Systems or your generator supplier.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 3 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
LIMITED WARRANTY
NiGen Membrane LCMS NITROGEN GAS GENERATOR SYSTEMS
LIMITED WARRANTY: PROTON ENERGY SYSTEMS INC. (“PROTON”) warrants that the ITEMS LISTED BELOW shall
be free from defects in material and workmanship for the stated period of time commencing from date of shipment or as stated below.
NiGen Membrane LCMS Nitrogen GAS GENERATOR SYSTEM:
Repair or replacement parts for Nitrogen Gas Generator System:
One (1) year from shipment
Ninety (90) days from shipment
EXCLUDED FROM THIS LIMITED WARRANTY: The following shall be excluded from the Limited Warranty:
п‚·
Parts and items considered consumable in normal operations, including those parts and items supplied with the
Nitrogen Gas Generator System (“System”) for maintenance.
п‚·
Any System and its parts that are not installed, operated, and maintained in accordance with the unit’s manual
supplied with the System.
п‚·
Damages due to accident, abuse, acts of God, acts of terrorism, misuse or negligence, or which result, in whole or in
part, from improper or unauthorized use or repair of the System, or use of the System in a manner for which it was
not designed, or by causes external to the System such as, but not limited to, power or air conditioning failure or
voltage irregularities.
REMEDY: BUYER’S sole and exclusive remedy in the event of defect, and the liability of PROTON hereunder is limited
to the adjustment, repair, or replacement of the defective item or part with a similar item or part free of defect.
Such adjustments, repairs, or replacements will be made at PROTON’S Wallingford, Connecticut, plant or, for Systems only, at the
site of the System, if BUYER so elects. All costs for shipping equipment or parts shall be on the account of the BUYER whether to or
from the point of manufacture. Labor costs associated with travel, expenses, and subsistence costs for field services shall be on the
account of the BUYER.
VOIDING OF THE LIMITED WARRANTY: This Limited Warranty is immediately void upon:
п‚·
THE OPENING OR DISASSEMBLY OF THE SYSTEM CABINET (OR ANY PART THEREIN), OR
п‚·
THE SALE, ASSIGNMENT OR ANY OTHER TRANSFER OF TITLE BY BUYER OF THE ITEMS OR
PARTS OTHERWISE COVERED UNDER THIS LIMITED WARRANTY
WAIVER OF ALL OTHER WARRANTIES: THE LIMITED WARRANTY PROVIDED HEREUNDER AND
THE RIGHTS AND REMEDIES OF THE BUYER HEREUNDER ARE IN LIEU OF, AND BUYER EXPRESSLY
WAIVES, ALL OTHER WARRANTIES, GUARANTEES, OBLIGATIONS, LIABILITIES, OR REMEDIES,
EXPRESSED OR IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION
IMPLIED WARRANTIES OF MERCHANTABILITY AND NON-INFRINGEMENT, IMPLIED WARRANTIES
ARISING FORM THE COURSE OF DEALING OR USAGE OF TRADE AND IMPLIED WARRANTIES OF
SUITABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
LIMITATION OF LIABILITY: THE REMEDIES PROVIDED IN THIS LIMITED WARRANTY ARE EXCLUSIVE
AND PROTON SHALL IN NO WAY BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY
KIND WHATSOEVER INCLUDING WITHOUT LIMITATION LOSS OF USE, REVENUE OR PROFIT.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 4 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
NiGen Membrane LCMS Laboratory Nitrogen Generators
INSTALLATION, OPERATION & MAINTENANCE MANUAL
Prepared by
PROTON ONSITEВ®
CONTENTS
1
2
Introduction ................................................................................................................ 8
1.1
General Information .................................................................................................... 9
1.2
Product Specification ................................................................................................. 10
Safety ........................................................................................................................ 12
2.1
Using Nitrogen Gas .................................................................................................... 12
2.2
Oxygen Enrichment ................................................................................................... 12
2.3
Safety Devices ............................................................................................................. 13
2.4
Technical Service Contact Information ................................................................... 14
3
Placement ................................................................................................................. 15
4
Installation ............................................................................................................... 16
4.1
4.1.1
4.1.2
4.1.3
4.2
5
Packaging Disposal .................................................................................................... 17
Adjusting Nitrogen Pressure ..................................................................................... 19
Maintenance ............................................................................................................. 20
6.1
6.1.1
7
Nitrogen Outlet ......................................................................................................................16
Air inlet ..................................................................................................................................17
Condensate Drain ..................................................................................................................17
Operation .................................................................................................................. 18
5.1
6
Pneumatic Connections ............................................................................................. 16
Filter Maintenance ..................................................................................................... 20
Filter Replacement .................................................................................................................21
APPENDIX A - FORMS ......................................................................................... 24
7.1
Filter Element Change Log ....................................................................................... 24
7.2
Customer Registration Form .................................................................................... 25
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 5 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
TABLE OF FIGURES
FIGURE 1 DIMENSIONAL CONVENTIONS ...........................................................................................................11
FIGURE 2 MOUNTING DETAIL ..........................................................................................................................15
FIGURE 3 EXAMPLE OF MOISTURE TRAP ...........................................................................................................16
FIGURE 4 REGULATOR LOCATIONS ..................................................................................................................19
FIGURE 5 FILTER ELEMENT LOCATIONS ...........................................................................................................20
FIGURE 6 ISOLATION VALVE AND 2 OF 3 FILTER HOUSINGS ..............................................................................21
FIGURE 7 REMOVE CONDENSATE DRAIN LINE ..................................................................................................21
FIGURE 8 REMOVING COALESCING FILTER HOUSING BOWL .............................................................................22
FIGURE 9 COALESCING FILTER ELEMENT ........................................................................................................22
FIGURE 10 CARBON FILTER ELEMENT .............................................................................................................22
FIGURE 11 INSTALLING NEW COALESCING ELEMENT.........................................................................................23
LIST OF TABLES
TABLE 1 NIGEN MEMBRANE NITROGEN GENERATOR TECHNICAL SPECIFICATIONS ............................................10
TABLE 2 GENERATOR GAS INLET/OUTLET FITTINGS .........................................................................................11
TABLE 3 OXYGEN CONCENTRATION CALCULATION ...........................................................................................13
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 6 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
This Installation, Operation & Maintenance Manual and the NiGen Membrane LCMS
laboratory nitrogen generators use the following safety symbols and conventions to alert
you to information intending to help you operate your laboratory nitrogen generators
correctly and safely.
Manual Conventions
- Indicates a potentially hazardous situation, which, if not avoided, could result in death
or serious injury. The reader is in a situation that could cause bodily injury. Do not
proceed beyond a Warning symbol until the indicated conditions are fully understood and
met.
- Indicates a potentially hazardous situation, which, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices. This could result
in equipment damage or loss of data. Do not proceed beyond a Caution symbol until the
indicated conditions are fully understood and met.
- Notes contain helpful suggestions or references.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 7 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
1 Introduction
Congratulations on your purchase of a NiGen Membrane Nitrogen generator. The
nitrogen generator is the most capable laboratory nitrogen generator available today. The
NiGen Membrane nitrogen generators provide high purity-grade nitrogen on demand and
provide the following benefits:
п‚·
34 SLPM (72 SCFH), 60 SLPM (127 SCFH), or 120 SLPM (254 SCFH) at 100
psi depending on model
п‚·
Up to 100 psig delivery pressure
п‚·
Stable gas costs
п‚·
Reduced likelihood of contamination from cylinder change out
п‚·
Elimination of cylinder upkeep
п‚·
Narrow footprint for enhanced laboratory space utilization
Proton OnSite has provided these instructions to guide in the installation, operation, and
maintenance of the nitrogen generator. These instructions provide technical product
information, installation requirements, and detailed mechanical interface specifications.
Important safety information is also included in this manual. Please take time to
familiarize yourself with the system and the manual.
This manual attempts to answer most of the frequently asked questions with regards to
the operation of the unit. However, should you have any questions, the PROTON
technical staff stands ready to answer them and support the successful deployment of this
equipment. Please call (203) 949-8697 and ask for field service technical support or
email [email protected] Please have the part number and
configuration number of your unit available.
IT IS THE CUSTOMER’S RESPONSIBILITY TO CONSULT WITH THE
LOCAL AUTHORITY HAVING JURISDICTION (AHJ) REGARDING LOCAL
CODE REQUIREMENTS FOR INSTALLATION AND OPERATION OF THIS
EQUIPMENT.
DO NOT USE THE NITROGEN GENERATOR IN A MANNER NOT SPECIFIED
BY PROTON ONSITE.
PROTON ONSITE can offer a full range of installation services if you are not
comfortable with installation of the nitrogen generator.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 8 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
1.1 General Information
The NiGen laboratory nitrogen generator, when connected to a suitable air source,
produces a continuous stream of pressurized nitrogen gas and automatically maintains a
user-set downstream pressure.
This manual covers the installation operation and maintenance of NiGen Membrane
Models LCMS 34, LCMS 60 and LCMS 120 nitrogen generators.
The manual assumes the user is familiar with pneumatic circuit components, and is aware
of appropriate safety precautions and use of compressed air and nitrogen gases.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 9 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
1.2 Product Specification
Requirement
NiGen Membrane LCMS 34
Product Flow Rate
34 SLPM (72 SCFH)
NiGen Membrane LCMS 60 NiGen Membrane LCMS 120
60 SLPM (127 SCFH)
120 SLPM (254 SCFH)
Delivery Pressure, bar (psi)
0 – 6.9 bar (0-100 psi) @ 95% purity at rated flow rate1
Product Impurities
<1 ppm Oxygen, <10 ppm Water Vapor, <1 ppb Hydrocarbons /Halocarbons,
Balance Hydrogen
Inlet Air Pressure
7.6 – 10.0 bar (110-145 psi)
Inlet Air Temperature
15 – 35 ⁰C (59 – 95 ⁰F)
Inlet Air Flow Rates
≥90 SLPM (190 SCFH)
≥155 SLPM (328 SCFH)
Inlet Air Purity Requirements
Per ISO8573-1:2010
Particulates
<0.1 mg/m3 (Class 1)
Oil Concentration
<0.1 mg/m3 (Class 1)
Water Vapor (Humidity)
< 3 вЃ°C (37 вЃ°F)
≥310 SLPM (656SCFH)
Enclosure Characteristics
External Dimensions
(WxDxH)
Weight
33 cm x 20.3 cm x 91.4 cm (13” W x 8” D x 36” H)
19.1 kg( 42 lbs)
21.3 kg (47 lbs)
25.8 kg (57 lbs)
Environmental Considerations
Location - Min/Max Ambient
Operating Temperature
5-35 °C (40– 100 °F)
Location - Max Ambient Humidity
< 70% (non- condensing)
Location - Variation from Level
+/- 3Вє maximum
Location – Room ventilation
Requirements
See Section 2.2 to determine room ventilation requirements (pg 12)
Installation
Wall Mount
Minimum 12.7 cm (5”) on right and left side of unit for gas and drain connections
Control
Adjustable Pressure set point with manual regulator
Display
product pressure gauge indicator
Environment
Indoor, Non- hazardous, Non- classified, Non-explosive
Safety
Enclosure Protection
IP20
Noise
< 54 dB (A) @ 1m
Mechanical Ports
3/8” Female NPT, with interface kit
Expected yearly operator usage
8000 hr
1.
Other flow rates at different purities are possible, consult sales representative for availability and specifications
Table 1 NiGen Membrane Nitrogen Generator Technical Specifications
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 10 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
H
Nitrogen
Outlet
Air Inlet
Condensate
Drain
W
D
Figure 1 Dimensional Conventions
See Table 1
Fluid
Flow
Direction
Fitting
Mating Information
Fitting
Location
Nitrogen
Out
3/8” Female NPT
Fractional and/or
metric tube adapters
provided
Right Side
Air
In
3/8” Female NPT
Fractional and/or
metric tube adapters
provided
Left Side
Condensate
Out
3/8” OD Push Connect
Tubing Provided
Right Side
Table 2 Generator Gas Inlet/Outlet Fittings
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 11 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
2 Safety
The safety guidelines below may not cover all situations. If there are concerns or
questions, please contact Proton OnSite technical Service or check with local authorities.
THE LCMS MEMBRANE GENERATORS ARE A LABORATORY
INSTRUMENT DESIGNED FOR OPERATION BY TRAINED PERSONNEL.
UNSAFE CONDITIONS MAY RESULT IF THE GENERATOR IS OPERATED
BY UNTRAINED PERSONNEL OR PERSONNEL UNFAMILIAR WITH
NITROGEN AND ENRICHED OXYGEN SAFETY.
ALL PERSONNEL HANDLING, USING OR MAINTAINING THIS
GENERATOR MUST EMPLOY SAFE WORKING PRACTICES AND OBSERVE
ALL RELEVANT LOCAL HEALTH AND SAFETY REGULATIONS.
2.1 Using Nitrogen Gas
Nitrogen is an odorless, colorless nontoxic gas that can displace the air content of the
workspace and increase the risk of asphyxiation if not used properly.
Never directly inhale the gas produced and check gas connections with a liquid leak
detector at initial installation or after a service event where gas plumbing has to be
disconnected.
2.2 Oxygen Enrichment
As a byproduct of the nitrogen production, the generator has the ability to increase the
oxygen content levels greater than 23% thus creating an “oxygen enriched” atmosphere if
minimum ventilation requirements are not present within the space the generator is
installed.
In order to determine if the ventilation is sufficient, please perform the calculations in
Table 3. The units used shall be in cubic feet. Be sure to use the same measurement
system for all calculations during this process.
The calculation makes a conservative estimate by assuming the following: air input to
nitrogen out is 2:1. The calculation also assumes that the membrane is 100% efficient in
removing oxygen from the nitrogen product, therefore releasing the maximum O2 content
to the environment the unit is installed.
If the air exchange rate of the installation location is unknown, please contact your
laboratory or facilities manger to determine the correct air exchange rate to use for the
calculation.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 12 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
If calculated oxygen enrichment exceeds 23%, Proton OnSite recommends increasing the
area ventilation rate or relocating the generator to a more suitable area.
Calculate room volume
V: __________ room volume in cubic feet
Enter area air ventilation rate
R: __________ room air exchanges per hour
Multiply V x R
A: __________
Multiply A x 21%
B: __________
Insert values A and B into the appropriate equation for your specific model to determine
potential oxygen enrichment. If the oxygen concentration exceeds 23%, Proton recommends you
improve area ventilation or relocate equipment to a more suitable area.
For MODEL LCMS 34:
O2 concentration % =
For MODEL LCMS 60:
O2 concentration % =
For MODEL LCMS 120:
15+рќ‘©
рќ‘Ё
25+рќ‘©
O2 concentration % =
рќ‘Ё
* 100%
* 100%
50+рќ‘©
рќ‘Ё
* 100%
EXAMPLE: A room that is 10 feet by 12 feet with an 8 foot ceiling has a volume V of 960 cubic
feet. If the room ventilation rate is 4 exchanges per hour, then value A is 3840 and value B is
806. For the model LCMS 34, the potential O2 concentration will be 21.3%, less than the 23%
enriched oxygen threshold value. No area change is needed.
Table 3 Oxygen Concentration Calculation
2.3 Safety Devices
MAXIMUM PRESSURE: In case of anomalous air inlet pressure surge, a safety valve
prevents the generator pressure from exceeding 12.0 bar (175 psi). The air will be vented
within the enclosure.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 13 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
2.4 Technical Service Contact Information
Proton OnSite Technical Service can be contacted as follows:
Proton OnSite
10 Technology Drive
Wallingford, CT 06492
203-949-8697
203-678-2000
[email protected]
www.protononsite.com
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 14 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
3 Placement
Wall mount the unit vertically with hardware capable of supporting up to 25.8 kg (57
lbs). Clearance of 15 cm (6 inches) is recommended on either side of the generator for
plumbing connections. The unit can be installed with minimal clearances as long as the
cover may be removed for maintenance of filter elements and the unit is plumbed
correctly.
The mounting details are shown in Figure 2. The dimensions are in inches
Figure 2 Mounting Detail
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 15 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
4 Installation
TURN OFF AIR SUPPLY PRIOR TO INSTALLATION
It is recommended that the air supply to the generator be protected from liquid
condensation by installing a moisture trap upstream of the Nitrogen Generator. The trap
should be installed in a manner that it acts as a drip leg on the supply of air (an example
is shown in Figure 3.
To Generator
Figure 3 Example of moisture trap
It is also recommended that an air isolation valve be installed up stream of the unit to
allow for safe maintenance.
4.1 Pneumatic Connections
The Pneumatic Connections for the Nitrogen Generator should be plumbed with piping or
tubing that is suitably rated for the working pressure and flow rates of the gases being
used.
4.1.1 Nitrogen Outlet
When mounted on the wall, the air inlet is on the right side of the nitrogen generator (See
Figure 1). The unit is equipped with a 3/8” female NPT fitting. Fittings have been
provided to adapt this to either a fractional or a metric tube, depending upon your
location.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 16 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
4.1.2 Air inlet
When mounted on the wall, the air inlet is on the left lower side of the nitrogen generator
(See Figure 1). The unit is equipped with a 3/8” female NPT fitting. Fittings have been
provided to adapt this to either a fractional or metric tube, depending upon your location.
4.1.3 Condensate Drain
When mounted on the wall the condensate drain is on the right lower side of the
nitrogen generator (See Figure 1). The connection is a 3/8” OD push to connect type
fitting. 7.6 meters (25 feet) of 3/8” tubing has been provided to allow this drain to be
routed to a suitable drain location.
4.2 Packaging Disposal
It is recommended to keep the packaging, should the generator need to be returned to the
factory for any reason. If the packaging has been discarded and the generator needs to be
returned to the factory, a charge will be assessed for the shipment of new packaging
materials. All returns must be made in the original packaging or a Proton OnSite
approved substitute.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 17 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
5 Operation
During operation the Nitrogen Generator delivers Nitrogen gas at a preset pressure. This
set pressure can be read on the front product pressure gauge. This gauge is visible
through a window cutout in the front cover. The product pressure can be adjusted to any
desired pressure up to 6.9 bar (100 psig) by adjusting the product pressure regulator
within the generator (see section 5.1.)
Safety glasses should be worn whenever the front cover of the Nitrogen Generator is
removed. Components within the Nitrogen Generator can be pressurized with air
up to 10 bar (145 psig).
If the nitrogen demand exceeds the rating of the Nitrogen Generator, then the pressure
across the membrane will begin to droop and will negatively affect the purity of the
nitrogen delivered. If you are finding that you are using more Nitrogen than the unit is
capable of delivering, please contact your sales representative. Options are available to
expand the output capacity of your Nitrogen Generator.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 18 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
5.1 Adjusting Nitrogen Pressure
1. To adjust the product pressure, remove the Nitrogen Generator cover by removing
the two Вј turn screws on the bottom sides of the front cover.
Within the nitrogen generator, there are three pressure regulators. The first regulator sits
on the top of the membrane column and two are mounted on a plate where the nitrogen
product pressure gauge is installed. The only regulator that should be adjusted is the
bottom regulator indicated in the following Figure 4.
2. To raise product pressure, rotate the knob slowly clockwise until the Product
Pressure Gauge reads the desired pressure.
3. To lower product pressure, rotate the Product Pressure Regulator knob slowly
counter-clockwise until the Product Pressure Gauge reads the desired pressure.
Membrane Regulators
(DO NOT ADJUST)
Product Pressure Gauge
PI426
Product Pressure Regulator
PRV425
(User Adjustable)
Figure 4 Regulator Locations
The other regulators are preset at the factory to maintain a specific pressure drop
across the membrane to assure purity of the nitrogen. Unauthorized adjustment of
these regulators can adversely affect the nitrogen purity. If these regulators have
been adjusted by mistake, please contact Proton OnSite Technical Service for
further guidance.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 19 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
6 Maintenance
Maintenance of the Nitrogen Generator can be performed within a half hour, minimizing
down time.
The manual drains on the carbon filter housings described below should be checked
periodically to ensure that excessive amounts of moisture are not getting past the
coalescing element.
6.1 Filter Maintenance
Within the generator, three filter elements will need replacement at a minimum interval
of every six (6) months. The frequency of filter element change will ultimately be
determined by quality of the input air; therefore, will be site specific. The filter element
locations are shown in Figure 5. An annual maintenance kit is available that provides
two sets of filter elements to satisfy the minimum change interval requirement. Please
contact Proton OnSite for part number and pricing of this kit.
Coalescing Filter
(F115)
Bowl Drain Valve
Carbon Filter (F103)
Condensate Line
Carbon Filter (F420)
Figure 5 Filter Element Locations
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 20 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
6.1.1 Filter Replacement
1. CLOSE external customer installed isolation valve.
2. Remove the cover of the nitrogen generator by removing the two Вј turn screws on
the bottom sides of the front cover.
3. CLOSE the Air Inlet Isolation valve MSO101 (Figure 6). The handle will point
outward when the valve is closed.
Isolation Valve
MSO101
(shown open)
Figure 6 Isolation Valve and 2 of 3 Filter Housings
4. Allow the Nitrogen Product pressure (see Figure 4) to bleed down to zero gauge
pressure.
5. Disconnect the push-to-connect drain fitting from the bottom of the coalescing filter
housing (Figure 7). A flat screwdriver or a firm grasp of the fitting collet will be
required to disengage the tube from the fitting.
Condensate Drain Line
Figure 7 Remove Condensate Drain Line
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 21 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
6. The housings for each filter element can now be opened so the coalescing and carbon
elements may be replaced. (Figure 8, Figure 9, Figure 10). Turn each bowl
counterclockwise to open (Figure 8).
The filter housing bowls and the filter elements utilize O-Rings for sealing. Tools are
not required to secure these housings and are designed to be hand tight.
Figure 8 Removing Coalescing Filter Housing Bowl
Figure 9 Coalescing Filter Element
Figure 10 Carbon Filter Element
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 22 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
7. Install the new coalescing element
Figure 11 Installing new Coalescing element
8. Replace the housing. Turn bowl clockwise until had tight.
9. Reinstall the condensate drain line to the coalescing filter housing previously
removed see Figure 7.
10. Replace two (2) carbon filter elements, then replace each bowl. Insure that each
bowl drain valve is closed tight.
11. Open Supply Isolation Valve (Figure 6)
12. Reinstall Cover
13. Return the Nitrogen Generator to service by opening the customer supplied isolation
valve.
14. Verify Product Pressure Gauge (Figure 4) displays the desired pressure
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 23 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
7 APPENDIX A - FORMS
7.1 Filter Element Change Log
Use the form below to record the coalescing and carbon filter element change out dates.
The recommended change interval is six months for all elements.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 24 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
7.2 Customer Registration Form
Please fill out the form on the last page, remove it from the manual, and fax it to Proton
OnSite (Fax Number: 1-203-949-8016) to ensure that your NiGen Nitrogen Generator is
properly registered. The form may also be sent by mail to the following address:
Customer Service
Proton OnSite
10 Technology Drive
Wallingford, CT 06492
Proper registration is important for product support and automatic notification regarding
routine maintenance.
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 25 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
This page intentionally blank
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 26 of 27
NiGen Membrane LCMS Laboratory Nitrogen Generators
Installation, Operation & Maintenance Manual
NiGen Membrane LCMS Laboratory Nitrogen Generator
Generator Model Name
Generator Serial Number
From what supplier did you purchase the
generator?
Name of your company?
Company website address?
The application for your nitrogen generator?
Your name?
Your title?
Your phone number with country code?
Your fax number with country code
Your e-mail address?
The place where the generator is located (city,
state, country)
Are you the person responsible for the
operation of the nitrogen generator?
Do you have any questions at this time that
you need Proton OnSite to answer?
PD-0100-0066 Rev. A
--UNAUTHORIZED COPIES PROHIBITED--
Page 27 of 27
Was this manual useful for you? yes no
Thank you for your participation!
