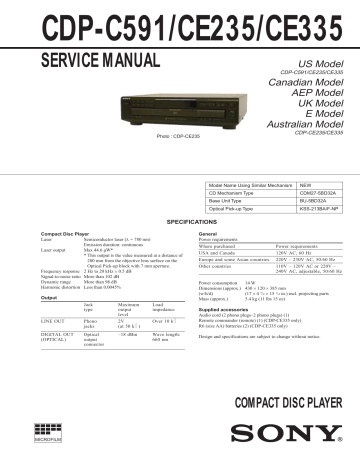

CDP-C591/CE235/CE335
SERVICE MANUAL
US Model
CDP-C591/CE235/CE335
Canadian Model
AEP Model
UK Model
E Model
Australian Model
CDP-CE235/CE335
Photo : CDP-CE235
Model Name Using Similar Mechanism
NEW
CD Mechanism Type
CDM27-5BD32A
Base Unit Type
BU-5BD32A
Optical Pick-up Type
KSS-213BA/F-NP
SPECIFICATIONS
Compact Disc Player
Laser
Semiconductor laser (О» = 780 nm)
Emission duration: continuous
Laser output
Max 44.6 ВµW*
* This output is the value measured at a distance of
200 mm from the objective lens surface on the
Optical Pick-up block with 7 mm aperture.
Frequency response 2 Hz to 20 kHz В± 0.5 dB
Signal-to-noise ratio More than 102 dB
Dynamic range
More than 98 dB
Harmonic distortion Less than 0.0045%
Output
Jack
type
LINE OUT
Phono
jacks
DIGITAL OUT
(OPTICAL)
Optical
output
connector
Maximum
output
level
2V
(at 50 kΩ)
Load
impedance
–18 dBm
Wave length:
660 nm
Over 10 kΩ
General
Power requirements
Where purchased
USA and Canada
Power requirements
120V AC, 60 Hz
Europe and some Asian countries
Other countries
220V – 230V AC, 50/60 Hz
110V – 120V AC or 220V –
240V AC, adjustable, 50/60 Hz
Power consumption
Dimensions (approx.)
(w/h/d)
Mass (approx.)
14 W
430 Г— 120 Г— 385 mm
(17 Г— 4 3/4 Г— 15 1/4 in.) incl. projecting parts
5.4 kg (11 lbs 15 oz)
Supplied accessories
Audio cord (2 phono plugs–2 phono plugs) (1)
Remote commander (remote) (1) (CDP-CE335 only)
R6 (size AA) batteries (2) (CDP-CE335 only)
Design and specifications are subject to change without notice.
COMPACT DISC PLAYER
MICROFILM
This appliance is classified
as a CLASS 1 LASER
product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH
MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
1.
TABLE OF CONTENTS
GENERAL В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 5
2.
DISASSEMBLY
2-1.
2-2.
2-3.
2-4.
Case, Bottom Plate and Front Panel В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 6
Back Panel and Disc Table В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 6
Optical Pick-up Block Assembly В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 7
Bracket (Gear) Assembly В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 7
3.
TEST MODE В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 8
4.
ELECTRICAL BLOCK CHECKING В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 9
5.
DIAGRAMS
5-1.
5-2.
5-3.
5-4.
5-5.
5-6.
5-7.
5-8.
5-9
Circuit Boards Location В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 10
IC Block Diagrams В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 11
Printed Wiring Board — BD Section — ·························· 12
Schematic Diagram — BD Section — ····························· 13
Printed Wiring Board — Main Section — ······················· 14
Schematic Diagram — Main Section — ·························· 15
Printed Wiring Board — Display Section — ··················· 16
Schematic Diagram — Display Section — ······················ 17
IC Pin Function
• IC302 System Control (CXP82324-090Q) ···················· 18
6.
EXPLODED VIEWS
6-1.
6-2.
6-3.
6-4.
Front Panel and Case Section В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 19
Back Panel and Disc Table Section В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 20
Chassis Section В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 21
Base Unit Section (BU-5BD32A) В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В·В· 22
7.
ELECTRICAL PARTS LIST ................................... 23
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE ! SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIГ€SES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
—2—
MODEL IDENTIFICATION
— BACK PANEL —
SAFETY CHECK-OUT
(US model only)
After correcting the original service problem, perform the
following safety checks before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage as
described below.
4-987-
CDP-C591
US MODEL
CDP-CE235
US MODEL
Canadian MODEL
AEP,North European MODEL
UK MODEL
Australian MODEL
E,Saudi Arabia MODEL
Singapore MODEL
CDP-CE335
US MODEL
Canadian MODEL
AEP,North European MODEL
UK MODEL
Australian MODEL
E,Saudi Arabia MODEL
Singapore MODEL
: 618-7ПЂ
:
:
:
:
:
:
:
618-0ПЂ
618-1ПЂ
618-2ПЂ
618-3ПЂ
618-4ПЂ
618-5ПЂ
618-6ПЂ
:
:
:
:
:
:
:
619-0ПЂ
619-1ПЂ
619-2ПЂ
619-3ПЂ
619-4ПЂ
619-5ПЂ
619-6ПЂ
LEAKAGE
The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microampers).
Leakage current can be measured by any one of three methods.
1.
A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.
2.
A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.
3.
Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter. The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples of
a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
To Exposed Metal
Parts on Set
0.15ВµF
1.5kΩ
AC
voltmeter
(0.75V)
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
—3—
Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
HOW TO OPEN THE DISC TRAY WHEN POWER
SWITCH TURNS OFF
Insert a tapeing driver into the aperture of the unit bottom,
and turn in the direction of arrow (to OUT direction.)
* To close the disc tray, turn the driver
in the reverse direction(to IN direction).
IN
OU
T
Tray
NOTE FOR MAIN GEAR INSTALLATION
5 Rotate the MAIN GEAR until the portion
that has no gears, of the MAIN GEAR
is aligned with the shaft of the GEAR (REV).
Then insert the GEAR (REV).
6 Stopper washer (5)
Projected portion
3 Install the MAIN GEAR while aligning
the protrusion of the MAIN GEAR to
the cut-off of the ENCODER.
1 Rotate the GEAR (U/D)
to the arrow A direction.
2 Set the cut-out of the ENCODER
to the right when viewed from the front view.
A
SHAFT
B
Front view
B
4 Open the SET LEVER and
LOCK LEVER in the direction of
the arrow B, and push in the MAIN GEAR.
—4—
SECTION 1
GENERAL
Identifying the Parts
Front Panel
1
2 3 4 5 6
7
8
9 0 !ВЎ !в„ў !ВЈ
@ВЎ
@Вў
@в€ћ
1
2
3
4
5
6
7
8
9
!Вє
!ВЎ
!в„ў
!ВЈ
1/u POWER switch
CONTINUE button
SHUFFLE button
PROGRAM button
REPEAT button
DISC CHECK button
DISC 1-5 button
Display window
” (play) button
P (pause) button
p (stop) button
EX-CHANGE button
DISC SKIP button
@ВЈ
@в„ў
!ВЄ
@Вє
!Вў
!в€ћ
!В§
!В¶
!•
!ВЄ
@Вє
@ВЎ
@в„ў
@ВЈ
@Вў
@в€ћ
—5—
!Вў
!В¶
!•
!В§
6 OPEN/CLOSE button
AMS knob
FADER button
MUSIC SCAN button
CLEAR button
CHECK button
) (forward) button
0 (backward) button
Disc tray
PEAK SEARCH button
EDIT/TIME FADE button
TIME button
!в€ћ
SECTION 2
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
2-1. CASE, BOTTOM PLATE AND FRONT PANEL
4 Case
1 Two screws
(M3 Г— 8)
0 Two screws
(BVTT3 Г— 8)
3 Two screws
(BV3 Г— 8)
2 Two screws
(M3 Г— 8)
9 Flat type wire(9 core)
(MAIN board, to CN402)
!в„ў Front panel
8 Flat type wire(35 core)
(MAIN board, to CN402)
6 Three screws
(BVTP 3 Г— 10)
!ВЎ Three screws
(BVTP 3 Г— 10)
5 Four screws
(BVTP 3 Г— 10)
7 Bottom plate
2-2. BACK PANEL AND DISC TABLE
!ВЈ Screw
(PTPWH 3 Г— 12)
!Вў Disc table(B)
3 Back panel
2 Five screws
(BVTP 3 Г— 10)
!в€ћ Disc table(A)
!в„ў Bracket
(guide B1)
!ВЎ Screw
(BVTP 3 Г— 8)
1 Connector
9 Screw
(BVTP 3 Г— 8)
4 Flat type wire(6 core)
(MAIN board, to CN404)
0 Bracket (guide F1)
6 Bracket (guide B1)
5 Screw
(BVTP 3 Г— 8)
8 Bracket (guide F1)
7 Screw
(BVTP 3 Г— 8)
—6—
2-3. OPTICAL PICK-UP BLOCK ASSEMBLY
1 Pull out the tray.
(Refer to "HOW TO OPEN THE DISC TRAY WHEN
POWER SWITCH TURNS OFF" on page 4.)
3 Screw
(PTPWH 3 Г— 12)
4 Two screws
(PTPWH 2.6 Г— 6)
5 Two screws
(PTPWH 2.6 Г— 6)
9 Optical pick-up block assembly
2 Flat type wire(16 core)
(BD board, to CN101)
7 Compression spring(BU)
6 Holder (BU)
8 Compression spring (BU)
2-4. BRACKET (GEAR) ASSEMBLY
1 Stopper washer(5)
2 Gear (REV)
3 Stopper washer(5)
7 Stopper washer(5)
4 Gear (MAIN)
8 Gear (U/D)
9 Five screws
(BVTP 3 Г— 8)
5 Screws
(BVTP 3 Г— 8)
0 Bracket (GEAR)
assembly
6 Rotary encoder
Note : As for the installation of the main gear, refer to “Note for MAIN
GEAR installation” on page 4.
—7—
SECTION 3
TEST MODE
1 ADJ Mode
When the main power is turned on while the ADJ terminal is set to
LOW, the CDP-C591/CE235/335 enters the ADJ mode that enables
to implement the servo related checks.
The disk tray is not loaded or rotated.
The fifth program is automatically played back.
3 Default Shipment Mode
When the main power is turned on while pressing the DISCSKIP
and the PROGRAM keys, the CDP-C591/CE235/335 enters the
default shipment mode in which the default settings when shipped
from the factory are set.
Move the DISC 1 to the front and stop the machine. When the
message “NODISC” appears, it indicates that the mode has
ended with success.
The following items are valid even when the main power is turned
on first and the ADJ terminal is then set to LOW.
The high speed search cannot be performed.
The focus servo gain is not decreased.
CLV servo gain is not decreased.
GFS is ignored even if it is set to the LOW.
Q data is ignored even if it cannot be read.
Switching of the monitor terminal is possible.
Every pressing of the FADER key advances the MONITOR
terminal in the following order.
RFCKnGFCnError rate
When “3” of the remote controller is pressed, the tracking servo
is turned off.
When “8” of the remote controller is pressed, the tracking servo
is turned on.
4 Aging Mode
When the OPEN key is pressed while the DISC1 and the CHECK
keys are being pressed with the main power being turned ON, the
CDP-C591/CE235/335 enters the aging mode in which aging is
performed in the following sequence.
* The servo related items cannot be checked in the CDP-C591/
CE235/335.
2 Key Check and Display Check Mode
When the main power is turned on while the AFADJ terminal is set
to LOW, the CDP-C591/CE235/335 enters the key check and display
check mode in which keys and displays can be checked.
First, all display tubes turn on.
When any key is pressed after display tubes are turned on, the
number of the keys that have been pressed appear on the left
and the key number appears on the right.
(Pushing the JOG key is counted as one of the keys.)
However, the following keys are treated as the special keys
that show the different operations.
STOP : All display turn-on check
PLAY : Grid check
PAUSE : Segment check
JOG
: Calendar check
When receiving a signal from remote controller, the display
“ []– ** ” appears.
(Number of asterisks ** changes depending on the pressed
key. For example, ** is 50 when the PLAY key is pressed.)
—8—
Reads TOC
Accesses the last program
Plays the last program for 3 seconds
EX-CHANGE
DISCSKIP
CLOSE
Accesses the first program
Playback the first program
OPEN
DISPSKIP
CLOSE
A-1
A-2
PLAY display appears
A-4
A-5
A-6
A-7
PLAY display appears
A-9
A-A
A-0
When an error occurs during aging, the message “Err–*” appears
and the operation is stopped.
The system does not accept any key operations during aging.
SECTION 4
ELECTRICAL BLOCK CHECKING
Note :
1.
2.
3.
4.
CD Block is basically designed to operate without adjustment.
Therefore, check each item in order given.
Use YEDS-18 disc (3-702-101-01) unless otherwise indicated.
Use an oscilloscope with more than 10MΩ impedance.
Clean the object lens by an applicator with neutral detergent
when the signal level is low than specified value with the
following checks.
Note : Clear RF signal waveform means that the shape “ ◊ ” can be clearly
distinguished at the center of the waveform.
RF signal waveform
[ BD BOARD ] — Conductor Side —
VOLT/DIV : 200mV
TIME/DIV : 500ns
level : 1.45 В± 0.3Vp-p
TP(VC)
S-Curve Check
Oscilloscope
E-F Balance (1 Track jump) Check
BD board
oscilloscope
TP(FE)
TP(VC)
TP(RF)
BD board
Procedure :
1. Connect oscilloscope to TP (FE).
2. Connect between TP (FE1) and TP (VC) by lead wire.
3. Connect between TP (AGCCON) and TP (GND) by lead wire.
4. Turn Power switch on.
5. Load a disc (YEDS-18) and actuate the focus search. (In
consequence of open and close the disc tray, actuate the focus
search)
6. Confirm that the oscilloscope waveform (S-curve) is
symmetrical between A and B. And confirm peak to peak level
within 4 В±1 Vp-p.
TP(TE)
TP(VC)
TP(FE)
Procedure :
1. Connect oscilloscope to TP (TE) and TP (VC).
2. Turned Power switch on.
3. Load a disc (YEDS-18) and playback the number five track.
4. Press the ( button. (Becomes the 1 track jump mode.)
5. Confirm that the level B and A (DC voltage) on the oscilloscope
waveform.
1 track jump waveform
center of
waveform
symmetry
B
A (DC voltage)
0V
A
within 4 В±1Vp-p
level=1.3В±0.6Vp-p
B
symmetry
A Г— 100=less than В±22%
Specified level: ––
B
After check, remove the lead wire connected in step 2 and 3.
Note : • Try to measure several times to make sure than the ratio
of A : B or B : A is more than 10 : 7.
• Take sweep time as long as possible and light up the
brightness to obtain best waveform.
RF PLL Free-run Frequency Check
Procedure :
1. Connect frequency counter to TP (PLCK) with lead wire.
RF Level Check
BD board
oscilloscope
frequency counter
TP (PLCK)
BD board
TP(RF)
TP(VC)
2.
3.
Procedure :
1. Connect oscilloscope to TP (RF).
2. Connect between TP (AGCCON) and TP (GND) by lead wire.
3. Turned Power switch on.
4. Load a disc (YEDS-18) and playback.
5. Confirm that oscilloscope waveform is clear and check RF
signal level is correct or not.
6. After check, remove the lead wire connected in step 2.
—9—
TP(PLCK)
TP(GND)
TP(AGCCON)
S-curve waveform
7.
Adjustment Location :
Turned Power switch on.
Put the disc (YEDS-18) in to play the number five track.
Confirm that reading on frequency counter is 4.3218MHz.
20
40
TP(TE1)
CN102
80
IC101
TP(FE1)
TP(TE)
1
21
61
41
60
CDP-C591/CE235/CE335
SECTION 5
DIAGRAMS
5-1. CIRCUIT BOARDS LOCATION
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this necessary note is printed in
each block)
BD BOARD
TABLE MOTOR BOARD
SENSOR BOARD
LOADING MOTOR BOARD
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•
%
: indicates tolerance.
Вў
•
: internal component.
• C : panel designation.
Note:
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part
number specified.
POWER SW BOARD
KEY BOARD
MAIN BOARD
DISPLAY BOARD
— 10 —
Note:
Les composants identifiГ©s par
une marque ! sont critiques
pour la sГ©curitГ©.
Ne les remplacer que par une
piГ©ce por tant le numГ©ro
spГ©cifiГ©.
• U : B+ Line.
• V : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production tolerances.
• Circled numbers refer to waveforms.
• Signal path.
J
: CD
c
: CD DIGITAL
• Abbreviation
CND : Canadian
AED : North European
AUS
: Aurstrarian
EA
: Saudi Arabia
SP
: Singapore
Note on Printed Wiring Boards:
• X : parts extracted from the component side.
Вў
: internal component.
•
• b : Pattern from the side which enables seeing.
CDP-C591/CE235/CE335
5-2. IC BLOCK DIAGRAMS
BD board
IGEN
AVSS0
ADIO
RFDC
CE
TE
47
46 45
44
43 42 41
INTERNAL BUS
ERROR
CORRECTOR
D/A
INTERFACE
ASYMMETRY
CORRECTION
16K
RAM
OPERATIONAL
AMPLIFIER
ANALOG SWITCH
EFM
DEMODULATOR
BCK 63
1
FIN1
2
A/D
CONVERTER
EMPH 64
TIMING
LOGIC
SERVO DSP
SUBCODE
PROCESSOR
LOUT1 72
PWM
AVSS1 73
AVSS2 74
PWM
3rd ORDER
NOISE SHAPER
LOUT2 75
AIN2 76
FOCUS
SERVO
FOCUS PWM
GENERATOR
TRACKING
SERVO
TRACKING
PWM GENERATOR
SLED
SERVO
SLED PWM
GENERATOR
RMUT 79
LMUT 80
33
32
31
30
29
28
FRDR
FFDR
TRDR
TFDR
SRDR
SFDR
SERVO
INTERFACE
SERVO AUTO
SEQUENCER
SERIAL IN
INTERFACE
DIGITAL
CLV
26 MDP
25 LOCK
MIRR, DFCT,
FOK
DETECTOR
24 FOK
23 DFCT
22 MIRR
5
VREG
6
VCC
7
OUT1+
8
OUT1-
9
VIN2
17
FIN2
REFERENCE
VOLTAGE
OVER CURRENT
LIMITTER
16
RIN2
CT2
14 VEE
13
FBIN-
12
FBIN+
XRST
DATA
XLAT
CLOK
SENS
SCLK
VDD
ATSK
11 OUT2+
10
OUT2-
C2PO
SCOR
9 10 11 12 13 14 15 16 17 18 19 20
WFCK
XUGF
XPCK
GFS
5 6 7 8
SPOA
SPOB
XLON
4
SYSM
-
3
IC603 M5293L
IC103 CXA2568M-T6
VCC
APC PD AMP
24 VCC
GND
2
23 LC/PD
22 LD_ON
VCC
VEE
5k
HOLD 1
VEE
AGCVTH 2
APC LD AMP
LD
3
VC
PD
VCC
4
+
21 HOLD_SW
20 AGCCONT
(50%/30%
OFF)
ON/OFF
5
B
6
C
7
D
8
VEE
9
4
VC
VEE
RF SUMMING AMP
VC
RF_EQ_AMP
VC
18 RFTC
17 RF_1
16 RFO
15 RFE
VC
VEE
ERROR AMP
FOCUS
14 FE
VC
VC
F 10
E 11
13 TE
VC
VC BUFFER
VC 12
TRACKING
ERROR AMP
VC
VCC
VEE
VC
— 11 —
VC
REFERENCE
VOLTAGE
–
OVERHEAT
PROTECTION
19 RF_BOT
IN
A
5
REFERENCE
VOLTAGE
3
OUT
27k
VREF
1
1
OVER HEAT
PROTECTION
15
+
SQSO
SQCK
VREF
18
21 COUT
CPU
INTERFACE
1 2
3
4
IOUT
27 SSTP
OVER SAMPLING
DIGITAL FILTER
AOUT2 77
AVDD2 78
PWM GENERATOR
37 XTSL
36 TES1
35 TEST
34 VSS
VEE
66
67
68
69
70
71
CLOCK
GENERATOR
REFERENCE
VOLTAGE
OUTPUT
RIN1
XVDD 65
XTAI
XTAO
XVSS
AVDD1
AOUT1
AIN1
VIN1
COVERNER
OUTPUT
LRCK 61
DIGITAL
PLL
V IN
40 SE
39 FE
38 VC
VCC
AVDD0
51 50 49 48
COVERNER DRIVER
FWD/REV CONTROLLER
RFAC
BIAS
ASYI
ASYO
52
VEE
AVSS3
56 55 54 53
COVERNER
LOAD CURRENT
DETECTION
AMPLIFIER
PCO
FILI
FILO
CLTV
59 58 57
REVERSIBLE DRIVER
FWD/REV CONTROLLER
VDD
VSS
AVDD3
60
LOW VOLTAGE
OUTPUT
DOUT
IC304 BA6780
DIGITAL
OUT
PCMD 62
IC601 LA5602
MAIN board
IC101 CXD2587Q
OVERCURRENT
LIMITTER
EN
2
ON/OFF
CDEL
3
RESET
GEN
GND
4
RES
CN
5
6
V OUT
7
ERROR
AMP
CDP-C591/CE235/CE335
5-3. PRINTED WIRING BOARD – BD SECTION –
• See page 10 for Circuit Board Location.
(VC)
(RF)
(PLCK)
(GND)
(AGCCON)
(FE)
E
(TE)
(FE1)
(Page 14)
(TE1)
16
16
• Semiconductor
— 12 —
• Semiconductor
Location
Location
Ref. No.
Location
Ref. No.
Q101
C-3
IC101
IC102
IC103
Location
C-2
B-1
B-1
CDP-C591/CE235/CE335
5-4. SCHEMATIC DIAGRAM – BD SECTION –
• See page 11 for IC Block Diagrams.
• Waveform
E
(Page 15)
16
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
— 13 —
Les composants identifiГ©s par
une marque ! sont critiques
pour la sГ©curitГ©.
Ne les remplacer que par une
piГЁce portant le numГ©ro spГ©cifiГ©.
CDP-C591/CE235/CE335
5-5. PRINTED WIRING BOARD – MAIN SECTION –
• See page 10 for Circuit Board Location.
1
2
3
4
5
6
7
8
9
10
• Semiconductor
Location
Ref. No.
A
16
B
C
D
E
F
16
G
16
12
16
H
— 14 —
16
Location
D302
D401
D501
D601
D602
D603
D604
D605
D606
D608
D609
F-7
G-9
G-9
C-7
B-7
B-7
B-7
C-7
C-7
D-7
D-6
IC302
IC304
IC371
IC401
IC601
IC602
IC603
D-2
D-5
G-10
E-7
C-6
C-6
C-7
Q201
Q402
Q404
Q405
Q406
Q502
Q503
Q505
Q506
Q601
E-4
E-8
C-2
F-9
E-8
F-8
G-9
F-9
E-8
C-7
CDP-C591/CE235/CE335
5-6. SCHEMATIC DIAGRAM – MAIN SECTION –
• See page 11 for IC Block Diagrams.
• See page 18 for IC Pin Function. (IC302)
17
17
13
17
17
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
— 15 —
Les composants identifiГ©s par
une marque ! sont critiques
pour la sГ©curitГ©.
Ne les remplacer que par une
piГЁce portant le numГ©ro spГ©cifiГ©.
• Waveform
CDP-C591/CE235/CE335
5-7. PRINTED WIRING BOARD – DISPLAY SECTION –
• See page 10 for Circuit Board Location.
1
2
3
4
5
6
7
8
9
10
11
12
A
B
14
C
D
E
14
F
14
G
H
14
I
— 16 —
CDP-C591/CE235/CE335
5-8. SCHEMATIC DIAGRAM – DISPLAY SECTION –
15
15
15
15
— 17 —
CDP-C591/CE235/CE335
5-9. IC PIN FUNCTION
• IC302 SYSTEM CONTROL (CXP82324-090Q)(MAIN board)
Pin No.
Pin Name
I/O
Function
Pin No.
Pin Name
I/O
Function
1
BUS IN
I
Not used. (Pull up)
41
P4
O
FL display tube segmant output 4
2
RM IN
I
Remote control signal input
42
P5
O
FL display tube segmant output 5
3
ADJ
I
ADJ mode setting pin
43
P6
O
FL display tube segmant output 6
4
XLT
O
CXD2587 latch output
44
P7
O
FL display tube segmant output 7
5
LD ON
O
Laser diode ON output
45
P8
O
FL display tube segmant output 8
6
TSENS
I
Table position sensor input
46
P9
O
FL display tube segmant output 9
7
PRGL
O
Not used. (Pull up)
47
P10
O
FL display tube segmant output 10
8
CLK
O
CXD2587 serial clock output
48
P11
O
FL display tube segmant output 11
9
AMUTE
O
Mute output pin
49
P12
O
FL display tube segmant output 12
10
DATA
O
CXD2587 serial data output
50
P13
O
FL display tube segmant output 13
11
SQCK
O
Subcode Q read clock
51
P14
O
FL display tube segmant output 14
12
SUBQ
I
Subcode Q read data input
52
P15
O
FL display tube segmant output 15
13
SCLK
O
Not used. (Open)
53
P16
O
FL display tube segmant output 16
14
S1
I
CDM27 table rotary encoder input 1
54
P17
O
FL display tube segmant output 17
15
S2
I
CDM27 table rotary encoder input 2
55
P18
O
FL display tube segmant output 18
16
S3
I
CDM27 table rotary encoder input 3
56
P19
O
FL display tube segmant output 19
17
LED
O
Not used. (Open)
57
P20
O
FL display tube segmant output 20
18
LDOUT
O
Loading-out output
58 to 62
NC
O
Not used. (Open)
19
LDIN
O
Loading-in output
63
G1
O
FL display tube grid output 1
20
TBLL
O
Rotary table rotation counter-clockwise rotation output
64
G2
O
FL display tube grid output 2
21
TBLR
O
Rotary table rotation clockwise rotation output
65
G3
O
FL display tube grid output 3
22
CD123
I
Not used. (Pull up)
66
G4
O
FL display tube grid output 4
23
KEY1
I
A/D input 1 for key input
67
G5
O
FL display tube grid output 5
24
KEY2
I
A/D input 2 for key input
68
G6
O
FL display tube grid output 6
25
KEY3
I
A/D input 3 for key input
69
G7
O
FL display tube grid output 7
26
KEY4
O
Not used. (Open)
70
G8
O
FL display tube grid output 8
27
KEY5
O
Not used. (Open)
71
VG
—
FL display tube filament voltage (–30 V)
28
KEY6
I
A/D input 6 for key input
72
VDD
—
+5V
29
VERSION
I
Version setting input pin (Open)
73
NC
—
+5V
30
XRST
I
Reset input
74
NC
O
Not used. (Open)
31
EXTAL
—
Oscillator connection pin
75
NC
O
Not used. (Open)
32
XTAL
—
Oscillator connection pin
76
AFADJ
I
AFADJ mode setting pin
33
Vss
—
Ground
77
BUS OUT
O
Not used. (Open)
34 to 37
NC
O
Not used. (Open)
78
DSENS
I
Disc sensor input
38
P1
O
FL display tube segmant output 1
79
SENS
I
CXD2587 internal state monitor input
39
P2
O
FL display tube segmant output 2
80
SCOR
I
Subcode sync. input
40
P3
O
FL display tube segmant output 3
— 18 —
SECTION 6
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•
Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Abbreviation
CND : Canadian
AED : North European
AUS : Aurstrarian
EA
: Saudi Arabia
SP
: Singapore
•
When indicating parts by reference number,
please include the board name.
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiГ©s par une marque
! sont critiques pour la sГ©curitГ©.
Ne les remplacer que par une piГЁce portant
le numГ©ro spГ©cifiГ©.
6-1. FRONT PANEL AND CASE SECTION
22
21
21
21
#2
17
not supplied
16
15
12
13
14
17
17 19
18
17
11
3
2
10
1
#1
17
9
5
#1
8
7
20
not supplied
#1
4
#1
6
Ref. No.
1
2
2
3
4
5
* 6
7
Part No.
Description
4-997-437-11
4-987-779-01
4-987-779-11
3-008-600-01
4-987-994-01
PANEL, LOADING
WINDOW (FL)(CE235,C591)
WINDOW (FL)(CE335)
EMBLEM (5-AR), SONY
KNOB(AMS)
7
Remarks
8
8
3-354-981-01 SPRING (SUS), RING
4-978-398-21 CUSHION
4-977-593-01 RING(DIA. 50), ORNAMENTAL
(EXCEPT US,CND)
4-997-418-11 PANEL, FRONT(CE235)
4-997-418-21 PANEL, FRONT(CE335)
8
9
10
4-997-418-41 PANEL, FRONT(C591)
1-777-837-11 WIRE(FLAT TYPE) (35 CORE)
4-987-777-01 BUTTON (FF)
Ref. No.
Part No.
Description
11
12
13
* 14
15
4-987-775-01
4-987-776-01
4-987-774-01
1-664-524-11
4-999-354-01
BUTTON (PLAY)
BUTTON (FUNC)
BUTTON (MODE)
KEY BOARD
BUTTON (POWER)
* 16
17
18
* 19
20
1-664-523-11
4-951-620-01
1-777-838-11
A-4699-474-A
X-4946-618-1
P.SW BOARD
SCREW (2.6 Г— 8), +BVTP
WIRE(FLAT TYPE) (6 CORE)
DISPLAY BOARD, COMPLETE
FOOT ASSY(US,CND)
20
21
* 22
X-4946-641-1 FOOT ASSY(EXCEPT US,CND)
4-210-291-01 SCREW (CASE 3 TP2)
4-978-492-11 CASE
— 19 —
Remarks
6-2. BACK PANEL AND DISC TABLE SECTION
53
not
supplied
52
#3
55
M801
51
#4
56
75
US,CND
MODEL
57
58
#5
63
64
UK MODEL
65
60
61
63
66
68
54
#4
59
68
70
64
73
63
59
AEP, AED, EA,
SP MODEL
62
59
63
64
AUS MODEL
59
E MODEL
#6
67
59
#1
74
#1
72
#1
#4
not supplied
71
not supplied
#4
#4
not supplied
69
#4
#4
not supplied
Remarks Ref. No.
70
70
* 71
* 71
* 71
Ref. No.
51
52
53
* 54
* 55
Part No.
4-957-299-11
4-957-304-21
X-4949-852-1
1-659-737-11
1-647-364-11
Description
TABLE (B), DISC
BELT(RM)
GEAR(ROTARY A) ASSY
SENSOR BOARD
TABLE MOTOR BOARD
Part No.
3-703-571-11
4-966-267-11
4-214-618-01
4-214-618-11
4-214-618-22
Description
Remarks
BUSHING (S) (FBS002), CORD(E)
BUSHING (FBS001), CORD(EXCEPT E)
PANEL, BACK(CE235:US)
PANEL, BACK(CE235:CND)
PANEL, BACK(CE235:AEP,AED)
56
57
58
! 59
! 59
3-325-697-01
4-957-284-01
X-4943-477-1
1-558-943-41
1-575-651-21
WASHER
GEAR(ROTARY B)
BRACKET (RM) ASSY
CORD, POWER(E)
CORD, POWER(AEP,AED,EA,SP)
*
*
*
*
*
71
71
71
71
71
4-214-618-32
4-214-618-41
4-214-618-51
4-214-618-61
4-214-618-71
PANEL, BACK(CE235:UK)
PANEL, BACK(CE235:AUS)
PANEL, BACK(CE235:E,EA)
PANEL, BACK(CE235:SP)
PANEL, BACK(C591)
! 59
! 59
! 59
! 59
60
1-590-926-11
1-696-845-11
1-751-529-11
1-783-531-41
4-957-293-01
CORD, POWER(CND)
CORD, POWER(AUS)
CORD, POWER(UK)
CORD, POWER(US)
SPRING (RACK RELEASE)
*
*
*
*
*
71
71
71
71
71
4-214-619-01
4-214-619-11
4-214-619-22
4-214-619-32
4-214-619-41
PANEL, BACK(CE335:US)
PANEL, BACK(CE335:CND)
PANEL, BACK(CE335:AEP,AED)
PANEL, BACK(CE335:UK)
PANEL, BACK(CE335:AUS)
61
62
63
64
65
4-957-291-11
4-957-868-01
4-988-162-01
4-934-376-01
4-957-292-11
LEVER (RACK RELEASE)
SCREW (+PTPWH 2.6 Г— 20)
ROLLER
SHAFT (ROLLER)
SLIDER (RACK)
* 71
* 71
72
73
74
4-214-619-51
4-214-619-61
1-782-816-11
X-4943-480-1
1-500-386-11
PANEL, BACK(CE335:E,EA)
PANEL, BACK(CE335:SP)
WIRE(FLAT TYPE) (6 CORE)
BRACKET (ROLLER D) ASSY
FILTER, CLAMP (FERRITE CORE)
66
67
! 68
! 68
* 69
4-957-294-01
4-957-298-01
1-569-007-11
1-569-008-31
4-951-619-21
SPRING (D.T), TENSION
TABLE (A), DISC
ADAPTOR, CONVERSION 2P(E)
ADAPTOR, CONVERSION(EA)
CUSHION (A)
75
M801
— 20 —
4-957-295-11 CUSHION (RM)
A-4660-525-A MOTOR ASSY, ROTARY
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiГ©s par
une marque ! sont critiques
pour la sГ©curitГ©.
Ne les remplacer que par une
piГЁce portant le numГ©ro spГ©cifiГ©.
6-3. CHASSIS SECTION
101
107
#3
107
101
101
103
BU-5BD32A
104
102
108
109
#4
#4
105
125
108
not
supplied
#4
110
106
112
128
114
117 116
127
113
111
115
#4
118
T601
not
supplied
M761
119
#8
120
#1
126
121
124
123
#1
122
Ref. No.
Part No.
Description
Ref. No.
Part No.
Description
101
102
103
104
105
4-957-283-01
4-957-288-01
4-957-287-21
4-957-286-11
1-466-996-11
WASHER (5), STOPPER
GEAR (MAIN)
GEAR (REV)
GEAR (U/D)
ENCODER, ROTARY
Remarks
* 118
119
120
* 121
* 122
1-659-738-11
X-4949-851-1
4-944-490-01
4-957-555-01
4-957-556-01
LOADING BOARD
PULLEY ASSY
BELT (TIMING)
SHEET, INSULATING(EXCEPT US,CND)
SHEET, INSULATING(EXCEPT US,CND)
106
107
108
109
110
X-4946-195-1
4-933-134-01
4-948-503-01
1-790-490-11
4-957-289-22
BRACKET (GEAR) ASSY
SCREW (+PTPWH M2.6 Г— 6)
SPRING (BU), COMPRESSION
WIRE, (FLAT TYPE) (21 CORE)
HOLDER (BU)
123
* 124
* 124
* 124
125
3-531-576-11
A-4724-491-A
A-4724-492-A
A-4724-493-A
1-452-925-21
RIVET(EXCEPT US,CND)
MAIN BOARD, COMPLETE(US,CND)
MAIN BOARD, COMPLETE(AEP,UK,AED,SP,AUS)
MAIN BOARD, COMPLETE(E,EA)
MAGNET ASSY
111
112
113
114
115
4-957-300-03
4-957-281-01
4-957-279-11
4-957-303-01
4-934-375-21
CHASSIS
SPRING (LOCK LEVER)
LEVER, LOCK
GEAR (LOADING C)
GEAR (LOADING B)
126
127
128
M761
! T601
4-993-142-11
4-981-731-21
4-981-731-11
A-4604-834-A
1-429-956-11
PULLEY (L), PRESS
CUSHION (U/D)
CUSHION (U/D)
MOTOR ASSY, LOADING
TRANSFORMER, POWER(US,CND)
116
117
4-957-285-01 LEVER, SET
4-962-087-01 SPRING (S), TENSION
! T601
! T601
1-431-076-11 TRANSFORMER, POWER(AEP,UK,AED,SP,AUS)
1-431-168-11 TRANSFORMER, POWER(E,EA)
— 21 —
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Remarks
Les composants identifiГ©s par
une marque ! sont critiques
pour la sГ©curitГ©.
Ne les remplacer que par une
piГЁce portant le numГ©ro spГ©cifiГ©.
6-4. BASE UNIT SECTION (BU-5BD32A)
751
752
753
#7
755
M101
754
M102
754
S101
756
757
758
Ref. No.
Part No.
Description
! 751
752
753
754
755
8-848-379-31
1-769-069-11
4-917-567-21
4-951-940-41
4-917-565-01
OPTICAL PICK-UP KSS-213BA/F-NP
WIRE (FLAT TYPE) (16 CORE)
GEAR (M)
INSULATOR (BU)
SHAFT, SLED
Remarks
Ref. No.
Part No.
Description
756
* 757
758
M101
M102
4-917-564-01
A-4724-494-A
4-951-620-01
X-4917-523-3
X-4917-504-1
GEAR (P), FLATNESS
BD BOARD, COMPLETE
SCREW (2.6 Г— 8), +BVTP
MOTOR ASSY(SPINDLE)
MOTOR ASSY(SLED)
S101
1-572-085-11 SWITCH, LEAF(LIMIT IN)
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
— 22 —
Remarks
Les composants identifiГ©s par
une marque ! sont critiques
pour la sГ©curitГ©.
Ne les remplacer que par une
piГЁce portant le numГ©ro spГ©cifiГ©.
SECTION 7
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts
specified in the diagrams or the components
used on the set.
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
•
•
•
•
When indicating parts by reference number,
please include the board name.
Ref. No.
Part No.
*
A-4724-494-A BD BOARD, COMPLETE
*******************
CAPACITORS:
uF: ВµF
RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
COILS
uH: ВµH
Abbreviation
CND : Canadian
AED : North European
AUS : Aurstrarian
EA : Saudi Arabia
SP
: Singapore
Description
Remarks
Ref. No.
C181
C182
Part No.
BD
•
SEMICONDUCTORS
In each case, u: Вµ, for example:
uA...: ВµA... , uPA... , ВµPA... ,
uPB... , ВµPB... , uPC... , ВµPC... ,
uPD..., ВµPD...
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiГ©s par une marque
! sont critiques pour la sГ©curitГ©.
Ne les remplacer que par une piГЁce portant
le numГ©ro spГ©cifiГ©.
Description
1-163-009-11 CERAMIC CHIP
1-163-123-00 CERAMIC CHIP
Remarks
0.001uF
180PF
10%
5%
50V
50V
< CONNECTOR >
< CAPACITOR >
C101
C102
C103
C104
C108
1-163-005-11
1-164-004-11
1-163-005-11
1-163-009-11
1-164-004-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
470PF
0.1uF
470PF
0.001uF
0.1uF
10%
10%
10%
10%
10%
50V
25V
50V
50V
25V
C109
C110
C111
C112
C113
1-163-011-11
1-164-182-11
1-163-251-11
1-163-038-91
1-163-038-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0015uF
0.0033uF
100PF
0.1uF
0.1uF
10%
10%
5%
25V
25V
50V
50V
50V
C114
C115
C116
C117
C118
1-163-038-91
1-126-607-11
1-126-607-11
1-126-209-11
1-163-009-11
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
0.1uF
47uF
47uF
100uF
0.001uF
25V
20%
20%
20%
10%
C119
C121
C122
C123
C124
1-163-235-11
1-163-038-91
1-126-206-11
1-163-021-91
1-107-823-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
22PF
0.1uF
100uF
0.01uF
0.47uF
5%
25V
20%
10%
10%
C125
C126
C127
C128
C129
1-163-038-91
1-163-038-91
1-117-681-11
1-163-038-91
1-163-031-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
0.1uF
100uF
0.1uF
0.01uF
25V
25V
20%
25V
50V
C130
C131
C133
C140
C141
1-164-346-11
1-124-779-00
1-164-346-11
1-164-346-11
1-164-346-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
1uF
10uF
1uF
1uF
1uF
16V
20%
16V
16V
16V
C143
C151
C153
C154
C156
1-163-038-91
1-163-235-11
1-163-038-91
1-110-501-11
1-163-235-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
22PF
0.1uF
0.33uF
22PF
25V
5%
25V
10%
5%
C157
C159
C161
C162
C163
1-163-009-11
1-163-019-00
1-126-206-11
1-126-205-11
1-126-206-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
0.001uF
0.0068uF
100uF
47uF
100uF
10%
10%
20%
20%
20%
50V
50V
6.3V
6.3V
6.3V
C165
C167
C168
C171
C172
1-163-038-91
1-163-235-11
1-163-235-11
1-163-009-11
1-163-123-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1uF
22PF
22PF
0.001uF
180PF
25V
5%
5%
10%
5%
50V
50V
50V
50V
CN101
CN102
< FERRITE BEAD >
FB101
FB103
1-500-445-21 FERRITE
1-500-445-21 FERRITE
0UH
0UH
< IC >
IC101
IC102
IC103
4V
4V
4V
50V
1-784-360-11 CONNECTOR,FFC(LIF(NON-ZIF))21P
1-777-937-11 CONNECTOR, FFC/FPC 16P
8-752-386-85 IC CXD2587Q
8-759-549-28 IC BA5974FP-E2
8-752-085-51 IC CXA2568M-T6
< TRANSISTOR >
Q101
8-729-010-08 TRANSISTOR MSB710-R
< RESISTOR >
50V
6.3V
50V
16V
R101
R102
R103
R104
R105
1-216-077-00
1-216-097-91
1-216-077-00
1-216-085-00
1-216-097-91
METAL CHIP
RES,CHIP
METAL CHIP
METAL CHIP
RES,CHIP
15K
100K
15K
33K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
16V
R106
R107
R108
R109
R110
1-216-049-91
1-216-073-00
1-216-061-00
1-216-121-91
1-216-025-91
RES,CHIP
METAL CHIP
METAL CHIP
RES,CHIP
RES,CHIP
1K
10K
3.3K
1M
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R111
R113
R114
R116
R117
1-216-121-91
1-216-121-91
1-216-073-00
1-216-001-00
1-216-049-91
RES,CHIP
RES,CHIP
METAL CHIP
METAL CHIP
RES,CHIP
1M
1M
10K
10
1K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R119
R123
R124
R131
R143
1-216-041-00
1-216-073-00
1-216-097-91
1-216-037-00
1-216-103-00
METAL CHIP
METAL CHIP
RES,CHIP
METAL CHIP
METAL CHIP
470
10K
100K
330
180K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R144
R147
R148
R149
R158
1-216-103-00
1-216-069-00
1-216-001-00
1-216-001-00
1-216-111-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
180K
6.8K
10
10
390K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
16V
50V
16V
50V
— 23 —
BD
Ref. No.
DISPLAY
KEY
MAIN
LOADING
Part No.
Description
R159
R161
R162
R171
R172
1-216-101-00
1-216-308-00
1-216-101-00
1-216-078-00
1-216-073-00
METAL CHIP
METAL CHIP
METAL CHIP
RES,CHIP
METAL CHIP
150K
4.7
150K
16K
10K
5%
5%
5%
5%
5%
Remarks
1/10W
1/10W
1/10W
1/10W
1/10W
R173
R181
R182
R183
R184
1-216-077-00
1-216-078-00
1-216-073-00
1-216-077-00
1-216-025-91
METAL CHIP
RES,CHIP
METAL CHIP
METAL CHIP
RES,CHIP
15K
16K
10K
15K
100
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R185
1-216-025-91 RES,CHIP
100
5%
1/10W
Description
Remarks
S801
S802
S803
S804
S805
1-554-303-21
1-554-303-21
1-554-303-21
1-554-303-21
1-554-303-21
SWITCH, TACTILE(FADER)
SWITCH, TACTILE(MUSIC SCAN)
SWITCH, TACTILE(CLEAR)
SWITCH, TACTILE(CHECK)
SWITCH, TACTILE())
S806
S808
S809
S810
S811
1-554-303-21
1-554-303-21
1-554-303-21
1-554-303-21
1-554-303-21
SWITCH, TACTILE(0)
SWITCH, TACTILE(В§OPEN/CLOSE)
SWITCH, TACTILE(DISC SKIP)
SWITCH, TACTILE(EX-CHANGE)
SWITCH, TACTILE(p)
S812
1-554-303-21 SWITCH, TACTILE(P)
S813
1-554-303-21 SWITCH, TACTILE(В·)
S814
1-475-543-11 ENCODER, ROTARY(AMS)
************************************************************
1-233-412-11 RES, CHIP NETWORK 1.0K (3216)
1-233-576-11 RES, CHIP NETWORK 100
< SWITCH >
S101
Part No.
< SWITCH >
< RESISTOR ARRAY >
RN101
RN102
Ref. No.
1-664-524-11 KEY BOARD
*********
*
1-572-085-11 SWITCH, LEAF(LIMIT IN)
< CONNECTOR >
< VIBRATOR >
CN701
CN702
X101
1-767-408-21 VIBRATOR, CRYSTAL 16.9344MHz
************************************************************
1-770-540-31 SOCKET, CONNECTOR 6P
1-750-195-11 CONNECTOR, BOARD TO BOARD 6P
< RESISTOR >
1-664-522-11 DISPLAY BOARD
*************
*
R713
R714
1-249-415-11 CARBON
1-249-417-11 CARBON
680
1K
5%
5%
1/4W F
1/4W F
< CAPACITOR >
< SWITCH >
C801
1-126-968-11 ELECT
100uF
20%
6.3V
S713
1-554-303-21 SWITCH, TACTILE(PEAK SEARCH)
S714
1-554-303-21 SWITCH, TACTILE(EDIT/TIME FADE)
S715
1-554-303-21 SWITCH, TACTILE(TIME)
************************************************************
< CONNECTOR >
* CN810
1-691-958-11 SOCKET, CONNECTOR 35P
< FLUORESCENT INDICATOR TUBE >
FL810
1-659-738-11 LOADING BOARD
**************
*
1-517-616-11 TUBE, FLUORESCENT INDICATOR
M761
A-4604-834-A MOTOR ASSY, LOADING
< IC >
************************************************************
IC810
8-749-014-66 IC NJL56H400A
*
A-4724-492-A MAIN BOARD, COMPLETE(AEP,UK,AED,SP,AUS)
********************
*
A-4724-493-A MAIN BOARD, COMPLETE(E,EA)
********************
*
A-4724-491-A MAIN BOARD, COMPLETE(US,CND)
********************
< RESISTOR >
R801
R802
R811
R812
R813
1-247-807-31
1-247-807-31
1-249-415-11
1-249-417-11
1-249-419-11
CARBON
CARBON
CARBON
CARBON
CARBON
100
100
680
1K
1.5K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W F
1/4W F
1/4W F
R814
R815
R816
R817
R818
1-249-421-11
1-247-843-11
1-249-427-11
1-249-415-11
1-249-417-11
CARBON
CARBON
CARBON
CARBON
CARBON
2.2K
3.3K
6.8K
680
1K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R819
R820
R821
R822
R823
1-249-419-11
1-249-421-11
1-247-843-11
1-249-427-11
1-249-431-11
CARBON
CARBON
CARBON
CARBON
CARBON
1.5K
2.2K
3.3K
6.8K
15K
5%
5%
5%
5%
5%
1/4W F
1/4W F
1/4W
1/4W F
1/4W
R824
R840
1-249-431-11 CARBON
1-247-807-31 CARBON
15K
100
5%
5%
1/4W
1/4W
7-685-871-01 SCREW +BVTT 3 Г— 6 (S)
F
F
F
F
< CAPACITOR >
C316
C317
C373
C374
C401
1-164-159-11
1-161-494-00
1-161-494-00
1-104-664-11
1-126-965-11
CERAMIC
CERAMIC
CERAMIC
ELECT
ELECT
0.1uF
0.022uF
0.022uF
47uF
22uF
50V
25V
25V
20%
20%
16V
50V
C404
C410
C501
C504
C509
1-104-665-11
1-162-290-31
1-126-965-11
1-124-443-00
1-126-963-11
ELECT
CERAMIC
ELECT
ELECT
ELECT
100uF
470PF
22uF
100uF
4.7uF
20%
10%
20%
20%
20%
10V
50V
50V
10V
50V
— 24 —
MAIN
Ref. No.
Part No.
Description
C509
C509
C510
C601
C602
1-126-163-11
1-126-963-11
1-162-290-31
1-119-941-91
1-126-944-11
ELECT
ELECT
CERAMIC
ELECT
ELECT
4.7uF
4.7uF
470PF
470uF
3300uF
20%
20%
10%
20%
20%
50V
50V
50V
6.3V
16V
C603
C604
C605
C606
C607
1-126-942-61
1-126-963-11
1-126-963-11
1-126-963-11
1-126-941-11
ELECT
ELECT
ELECT
ELECT
ELECT
1000uF
4.7uF
4.7uF
4.7uF
470uF
20%
20%
20%
20%
20%
16V
50V
50V
50V
6.3V
C608
C609
C610
C614
C616
1-104-666-11
1-128-552-11
1-124-907-11
1-104-665-11
1-161-494-00
ELECT
ELECT
ELECT
ELECT
CERAMIC
220uF
47uF
10uF
100uF
0.022uF
20%
20%
20%
20%
25V
10V
63V
50V
16V
C619
C622
C625
C626
C628
1-104-664-11
1-161-494-00
1-161-494-00
1-161-494-00
1-104-664-11
ELECT
CERAMIC
CERAMIC
CERAMIC
ELECT
47uF
0.022uF
0.022uF
0.022uF
47uF
20%
25V
25V
25V
20%
16V
C651
1-104-664-11 ELECT
47uF
20%
16V
CN401
CN402
CN403
* CN404
* CN601
1-785-841-11
1-764-411-11
1-770-540-31
1-568-825-11
1-573-047-11
Remarks
Description
Remarks
< COIL >
L601
L602
L603
1-412-473-21 INDUCTOR
1-414-151-21 INDUCTOR
1-412-473-21 INDUCTOR
0uH
470uH
0uH
< TRANSISTOR >
Q201
Q402
Q404
Q405
Q406
8-729-119-78
8-729-141-26
8-729-119-78
8-729-029-56
8-729-141-26
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC403SP-51
2SC3622A-LK
2SC403SP-51
DTA144ESA
2SC3622A-LK
Q502
Q503
Q505
Q506
Q601
8-729-141-26
8-729-029-56
8-729-029-56
8-729-141-26
8-729-119-76
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
TRANSISTOR
2SC3622A-LK
DTA144ESA
DTA144ESA
2SC3622A-LK
2SA1175-HFE
< RESISTOR >
< CONNECTOR >
1-249-430-11
1-249-429-11
1-249-429-11
1-249-426-11
1-249-425-11
CARBON
CARBON
CARBON
CARBON
CARBON
12K
10K
10K
5.6K
4.7K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W F
CONNECTOR, FFC/FPC 21P
PIN, CONNECTOR (PC BOARD) 35P
SOCKET, CONNECTOR 6P
SOCKET, CONNECTOR 6P
PIN, CONNECTOR (PC BOARD) 2P
R254
R262
R263
R312
R313
1-249-430-11
1-249-382-11
1-249-382-11
1-249-437-11
1-249-429-11
CARBON
CARBON
CARBON
CARBON
CARBON
12K
1.2
1.2
47K
10K
5%
5%
5%
5%
5%
1/4W
1/6W F
1/6W F
1/4W
1/4W
< DIODE >
R314
R315
R316
R317
R318
1-249-425-11
1-249-425-11
1-249-425-11
1-249-427-11
1-249-427-11
CARBON
CARBON
CARBON
CARBON
CARBON
4.7K
4.7K
4.7K
6.8K
6.8K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R319
R321
R322
R323
R331
1-249-427-11
1-249-429-11
1-249-429-11
1-249-441-11
1-249-427-11
CARBON
CARBON
CARBON
CARBON
CARBON
6.8K
10K
10K
100K
6.8K
5%
5%
5%
5%
5%
1/4W F
1/4W
1/4W
1/4W
1/4W F
R333
R401
R402
R403
R404
1-249-429-11
1-215-425-00
1-215-425-00
1-215-445-00
1-215-443-00
CARBON
METAL
METAL
METAL
METAL
10K
1.5K
1.5K
10K
8.2K
5%
1%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R405
R406
R407
R408
R409
1-215-469-00
1-215-405-00
1-215-453-00
1-249-421-11
1-215-405-00
METAL
METAL
METAL
CARBON
METAL
100K
220
22K
2.2K
220
1%
1%
1%
5%
1%
1/4W
1/4W
1/4W
1/4W F
1/4W
R410
R412
R416
R501
R502
1-249-441-11
1-215-405-00
1-249-421-11
1-215-425-00
1-215-425-00
CARBON
METAL
CARBON
METAL
METAL
100K
220
2.2K
1.5K
1.5K
5%
1%
5%
1%
1%
1/4W
1/4W
1/4W F
1/4W
1/4W
R503
R504
R505
R506
R507
1-215-445-00
1-215-443-00
1-215-469-00
1-215-405-00
1-215-453-00
METAL
METAL
METAL
METAL
METAL
10K
8.2K
100K
220
22K
1%
1%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
8-719-991-33
8-719-991-33
8-719-991-33
8-719-200-82
8-719-200-82
DIODE
DIODE
DIODE
DIODE
DIODE
1SS133T-77
1SS133T-77
1SS133T-77
11ES2
11ES2
D603
D604
D605
D606
D608
8-719-200-82
8-719-200-82
8-719-200-82
8-719-923-60
8-719-991-33
DIODE
DIODE
DIODE
DIODE
DIODE
11ES2
11ES2
11ES2
MTZJ-T-77-9.1A
1SS133T-77
D609
8-719-921-40 DIODE MTZJ-4.7C
< TERMINAL >
1-537-770-21 TERMINAL BOARD, GROUND
< IC >
IC302
IC304
IC371
IC401
IC601
8-752-902-15
8-759-356-03
8-749-921-12
8-759-145-58
8-759-061-65
IC602
IC603
8-749-011-78 IC BA17807T
8-759-633-42 IC M5293L
IC
IC
IC
IC
IC
CXP82324-090Q
BA6780
GP1F32T(DIGITAL OUT)
UPC4558C
LA5602
< JACK >
J301
Part No.
R205
R206
R251
R252
R253
D302
D401
D501
D601
D602
EB101
Ref. No.
1-785-868-11 JACK, PIN 2P(LINE OUT)
16V
— 25 —
F
F
F
F
F
MAIN
Ref. No.
P.SW
SENSOR
TABLE MOTOR
Part No.
Description
Remarks
Ref. No.
Part No.
R508
R509
R510
R512
R516
1-249-421-11
1-215-405-00
1-249-441-11
1-215-405-00
1-249-421-11
CARBON
METAL
CARBON
METAL
CARBON
2.2K
220
100K
220
2.2K
5%
1%
5%
1%
5%
1/4W F
1/4W
1/4W
1/4W
1/4W F
*
1-659-737-11 SENSOR BOARD
*************
Description
Remarks
R517
R601
R602
R603
R604
1-249-441-11
1-249-435-11
1-249-429-11
1-249-438-11
1-249-429-11
CARBON
CARBON
CARBON
CARBON
CARBON
100K
33K
10K
56K
10K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R607
1-249-411-11 CARBON
330
5%
1/4W
< CONNECTOR >
CN851
CN852
1-573-383-11 PIN, CONNECTOR (PC BOARD) 2P
1-750-243-11 SOCKET, CONNECTOR 6P
< DIODE >
D851
D852
8-749-924-18 DIODE PHOTO INTERRUPTER RPI-1391
8-749-924-30 DIODE PHOTO REFLECTOR GP2S28
< RESISTOR >
< SWITCH >
! S601
1-572-675-11 SWITCH, POWER VOLTAGE CHANGE
(AC VOLTAGE)(E,EA)
R851
1-249-416-11 CARBON
820
5%
1/4W F
R852
1-249-406-11 CARBON
120
5%
1/4W F
************************************************************
1-647-364-11 TABLE MOTOR BOARD
*****************
*
< TRANSFORMER >
! T601
! T601
! T601
1-429-956-11 TRANSFORMER, POWER(US,CND)
1-431-076-11 TRANSFORMER, POWER(AEP,UK,AED,SP,AUS)
1-431-168-11 TRANSFORMER, POWER(E,EA)
M801
A-4660-525-A MOTOR ASSY, ROTARY
************************************************************
< VIBRATOR >
MISCELLANEOUS
*************
X401
1-579-175-11 VIBRATOR, CERAMIC 10.0MHz
************************************************************
1-664-523-11 P.SW BOARD
**********
*
9
18
! 59
! 59
! 59
1-777-837-11
1-777-838-11
1-558-943-41
1-575-651-21
1-590-926-11
WIRE(FLAT TYPE) (35 CORE)
WIRE(FLAT TYPE) (6 CORE)
CORD, POWER(E)
CORD, POWER(AEP,AED,EA,SP)
CORD, POWER(CND)
! 59
! 59
! 59
! 68
! 68
1-696-845-11
1-751-529-11
1-783-531-41
1-569-007-11
1-569-008-31
CORD, POWER(AUS)
CORD, POWER(UK)
CORD, POWER(US)
ADAPTOR, CONVERSION 2P(E)
ADAPTOR, CONVERSION(EA)
72
74
105
109
125
1-782-816-11
1-500-386-11
1-466-996-11
1-790-490-11
1-452-925-21
WIRE(FLAT TYPE) (6 CORE)
FILTER, CLAMP (FERRITE CORE)
ENCODER, ROTARY
WIRE, (FLAT TYPE) (21 CORE)
MAGNET ASSY
! 751
752
M101
M102
M761
8-848-379-31
1-769-069-11
X-4917-523-3
X-4917-504-1
A-4604-834-A
OPTICAL PICK-UP KSS-213BA/F-NP
WIRE (FLAT TYPE) (16 CORE)
MOTOR ASSY(SPINDLE)
MOTOR ASSY(SLED)
MOTOR ASSY, LOADING
< CONNECTOR >
CN703
1-750-186-11 CONNECTOR, BOARD TO BOARD 6P
< RESISTOR >
R701
R702
R703
R704
R705
1-249-415-11
1-249-417-11
1-249-419-11
1-249-421-11
1-247-843-11
CARBON
CARBON
CARBON
CARBON
CARBON
680
1K
1.5K
2.2K
3.3K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
F
F
F
F
R706
R707
R708
R709
1-249-427-11
1-249-431-11
1-249-419-11
1-249-421-11
CARBON
CARBON
CARBON
CARBON
6.8K
15K
1.5K
2.2K
5%
5%
5%
5%
1/4W F
1/4W
1/4W F
1/4W F
< SWITCH >
S701
S702
S703
S704
S705
1-554-303-21
1-554-303-21
1-554-303-21
1-554-303-21
1-554-303-21
SWITCH, TACTILE(DISC 1)
SWITCH, TACTILE(DISC 2)
SWITCH, TACTILE(DISC 3)
SWITCH, TACTILE(DISC 4)
SWITCH, TACTILE(DISC 5)
S706
S707
S708
S709
S710
1-554-303-21
1-554-303-21
1-554-303-21
1-554-303-21
1-554-303-21
SWITCH, TACTILE(CONTINUE)
SWITCH, TACTILE(SHUFFLE)
SWITCH, TACTILE(PROGRAM)
SWITCH, TACTILE(REPEAT)
SWITCH, TACTILE(DISC CHECK)
M801
A-4660-525-A MOTOR ASSY, ROTARY
************************************************************
S751
1-554-118-00 SWITCH, PUSH (1 KEY)(POWER)
************************************************************
— 26 —
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiГ©s par
une marque ! sont critiques
pour la sГ©curitГ©.
Ne les remplacer que par une
piГЁce portant le numГ©ro spГ©cifiГ©.
Ref. No.
Part No.
Description
Remarks
Ref. No.
ACCESSORIES & PACKING MATERIALS
*******************************
1-418-204-11 REMOTE COMMANDER(RM-DC335)(CE335)
1-558-271-11 CORD,CONNECTION(AUDIO)
3-865-901-11 MANUAL, INSTRUCTION(ENGLISH)(US/AUS)
3-865-901-21 MANUAL, INSTRUCTION
(ENGLISH/FRENCH/SPANISH)(CND/AEP/E/EA/SP/UK)
3-865-901-31 MANUAL, INSTRUCTION
(GERMAN/DUTCH/ITALIAN/PORTUGUESE)(AEP)
3-865-901-41 MANUAL, INSTRUCTION(CHINESE)(E/SP)
3-865-901-51 MANUAL, INSTRUCTION(ARABIC)(EA)
3-865-901-61 MANUAL, INSTRUCTION
(SWEDISH/DANISH/FINNISH)(AED)
4-981-643-01 COVER BATTERY (For RM-DC335)(CE335)
************************************************************
*************
HARDWARE LIST
*************
SCREW +BVTP 3 Г— 10 TYPE2 N-S
SCREW +BVTT 3 Г— 8 (S)
SCREW (M3 Г— 12), TAPPING
SCREW +BVTP 3 Г— 8 TYPE2 N-S
SCREW +B
2Г—3
#1
#2
#3
#4
#5
7-685-647-79
7-685-872-09
7-685-648-79
7-685-646-79
7-621-772-00
#6
#7
#8
7-685-134-19 SCREW (+ PTPWH) (2.6 Г— 8)
3-713-786-51 SCREW +P
2Г—3
7-685-871-01 SCREW +BVTT 3 Г— 6 (S)
— 27 —
Part No.
Description
Remarks
CDP-C591/CE235/CE335
Sony Corporation
9-928-847-11
Home A&V Products Company
— 28 —
99C1689-1
Printed in Japan В©1999.3
Published by Quality Assurance Dept.
(Shinagawa)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
