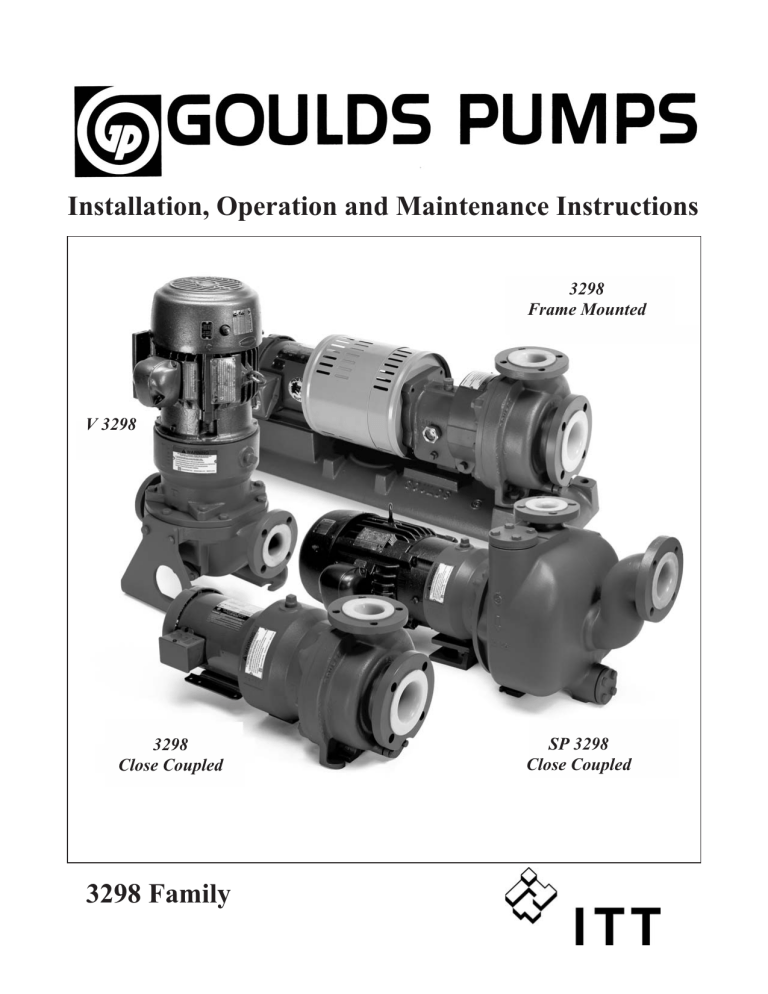

Installation, Operation and Maintenance Instructions
3298
Frame Mounted
V 3298
3298
Close Coupled
3298 Family
SP 3298
Close Coupled
FOREWORD
This manual provides instructions for the Installation, Operation, and Maintenance of the Goulds Model
3298 family of Magnetic Drive Process Pumps. This manual must be read and understood before
installation and start-up.
The design, materials, and workmanship incorporated in the construction of Goulds pumps makes them
capable of giving trouble-free service. The life and satisfactory service of any mechanical unit, however,
is enhanced and extended by correct application, proper installation, periodic inspection, condition
monitoring and careful maintenance. This instruction manual was prepared to assist operators in
understanding the construction and the correct methods of installing, operating, and maintaining these
pumps.
ITT - Goulds shall not be liable for physical injury, damage or delays caused by a failure to observe the
instructions for Installation, Operation, and Maintenance contained in this manual.
Warranty is valid only when genuine ITT - Goulds Pumps parts are used.
Use of the equipment on a service other than stated in the order could nullify the warranty, unless
written approval is obtained in advance from ITT - Goulds Pumps.
Supervision by an authorized ITT - Goulds representative is recommended to assure proper installation.
Additional manuals can be obtained by contacting your local ITT - Goulds representative, by calling
1-800-446-8537, or visiting our website at www.gouldspumps.com.
THIS MANUAL EXPLAINS
n Proper Installation
n Start-Up Procedures
n Operation Procedures
n Routine Maintenance
n Pump Overhaul
n Troubleshooting
n Ordering Spare or Repair Parts
4
3298 Family Rev. 5/08
TABLE OF CONTENTS
SECTION
PAGE
SAFETY
1
11
GENERAL INFORMATION
2
15
INSTALLATION
3
27
OPERATION
4
33
PREVENTIVE MAINTENANCE
5
39
DISASSEMBLY & REASSEMBLY
6
113
SPARE AND REPAIR PARTS
7
125
APPENDICES
8
7
I
Hydraulic Coverage Charts
II
Coupling Guard Installation
III
Impeller Trim Procedures
IV
Power Monitors
V
Reliability Tips for Operating Lined Magnetically-Driven
Sealless Pumps (Quick Reference Guide
VI
Polyshield® ANSI Combo Installation, Operation and
Maintenance Instructions
3298 Family Rev. 5/08
5
6
3298 Family Rev. 5/08
IMPORTANT SAFETY NOTICE
To: Our Valued Customers
User safety is a major focus in the design of our products. Following the precautions outlined in this
manual will minimize your risk of injury.
ITT Goulds pumps will provide safe, trouble-free service when properly installed, maintained, and
operated.
Safe installation, operation, and maintenance of ITT Goulds Pumps equipment are an essential end user
responsibility. This Pump Safety Manual identifies specific safety risks that must be considered at all
times during product life. Understanding and adhering to these safety warnings is mandatory to ensure
personnel, property, and/or the environment will not be harmed. Adherence to these warnings alone,
however, is not sufficient — it is anticipated that the end user will also comply with industry and corporate
safety standards. Identifying and eliminating unsafe installation, operating and maintenance practices is
the responsibility of all individuals involved in the installation, operation, and maintenance of industrial
equipment.
Please take the time to review and understand the safe installation, operation, and maintenance guidelines
outlined in this Pump Safety Manual and the Instruction, Operation, and Maintenance (IOM) manual.
Current manuals are available at www.gouldspumps.com/literature_ioms.html or by contacting
your nearest Goulds Pumps sales representative.
These manuals must be read and understood before installation and start-up.
For additional information, contact your nearest Goulds Pumps sales representative or visit our Web site at
www.gouldspumps.com.
S-1
SAFETY WARNINGS
Specific to pumping equipment, significant risks bear reinforcement above and beyond normal safety precautions.
WARNING
A pump is a pressure vessel with rotating parts that can be hazardous. Any pressure vessel can explode,
rupture, or discharge its contents if sufficiently over pressurized causing death, personal injury, property
damage, and/or damage to the environment. All necessary measures must be taken to ensure over
pressurization does not occur.
WARNING
Operation of any pumping system with a blocked suction and discharge must be avoided in all cases.
Operation, even for a brief period under these conditions, can cause superheating of enclosed pumpage and
result in a violent explosion. All necessary measures must be taken by the end user to ensure this condition is
avoided.
WARNING
The pump may handle hazardous and/or toxic fluids. Care must be taken to identify the contents of the pump
and eliminate the possibility of exposure, particularly if hazardous and/or toxic. Potential hazards include, but
are not limited to, high temperature, flammable, acidic, caustic, explosive, and other risks.
WARNING
Pumping equipment Instruction, Operation, and Maintenance manuals clearly identify accepted methods for
disassembling pumping units. These methods must be adhered to. Specifically, applying heat to impellers
and/or impeller retaining devices to aid in their removal is strictly forbidden. Trapped liquid can rapidly
expand and result in a violent explosion and injury.
ITT Goulds Pumps will not accept responsibility for physical injury, damage, or delays caused by a failure to
observe the instructions for installation, operation, and maintenance contained in this Pump Safety Manual or the
current IOM available at www.gouldspumps.com/literature.
S-2
SAFETY
DEFINITIONS
Throughout this manual the words WARNING, CAUTION, ELECTRICAL, and ATEX are used to indicate
where special operator attention is required.
Observe all Cautions and Warnings highlighted in this Pump Safety Manual and the IOM provided with
your equipment.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Example: Pump shall never be operated without coupling guard installed correctly.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
Example: Throttling flow from the suction side may cause cavitation and pump damage.
ELECTRICAL HAZARD
Indicates the possibility of electrical risks if directions are not followed.
Example: Lock out driver power to prevent electric shock, accidental start-up, and physical injury.
When installed in potentially explosive atmospheres, the instructions that follow the Ex symbol must be
followed. Personal injury and/or equipment damage may occur if these instructions are not followed. If there
is any question regarding these requirements or if the equipment is to be modified, please contact an ITT
Goulds Pumps representative before proceeding.
Example:
Improper impeller adjustment could cause contact between the rotating and stationary
parts, resulting in a spark and heat generation.
S-3
GENERAL PRECAUTIONS
WARNING
A pump is a pressure vessel with rotating parts that can be hazardous. Hazardous fluids may be contained by the
pump including high temperature, flammable, acidic, caustic, explosive, and other risks. Operators and
maintenance personnel must realize this and follow safety measures. Personal injuries will result if procedures
outlined in this manual are not followed. ITT Goulds Pumps will not accept responsibility for physical injury,
damage or delays caused by a failure to observe the instructions in this manual and the IOM provided with your
equipment.
General Precautions
WARNING
NEVER APPLY HEAT TO REMOVE IMPELLER. It may explode due to
trapped liquid.
NEVER use heat to disassemble pump due to risk of explosion from tapped liquid.
WARNING
NEVER operate pump without coupling guard correctly installed.
WARNING
WARNING
NEVER run pump below recommended minimum flow when dry, or without
prime.
WARNING
ALWAYS lock out power to the driver before performing pump maintenance.
NEVER operate pump without safety devices installed.
WARNING
WARNING
WARNING
WARNING
NEVER operate pump with discharge valve closed.
NEVER operate pump with suction valve closed.
DO NOT change service application without approval of an authorized ITT
Goulds Pumps representative.
WARNING
Safety Apparel:
ΠInsulated work gloves when handling hot bearings or using bearing heater
ΠHeavy work gloves when handling parts with sharp edges, especially
impellers
ΠSafety glasses (with side shields) for eye protection
ΠSteel-toed shoes for foot protection when handling parts, heavy tools, etc.
ΠOther personal protective equipment to protect against hazardous/toxic fluids
WARNING
Receiving:
Assembled pumping units and their components are heavy. Failure to properly lift
and support equipment can result in serious physical injury and/or equipment
damage. Lift equipment only at specifically identified lifting points or as
instructed in the current IOM. Current manuals are available at
www.gouldspumps.com/literature_ioms.html or from your local ITT Goulds
Pumps sales representative. Note: Lifting devices (eyebolts, slings, spreaders, etc.)
must be rated, selected, and used for the entire load being lifted.
WARNING
Alignment:
Shaft alignment procedures must be followed to prevent catastrophic failure of
drive components or unintended contact of rotating parts. Follow coupling
manufacturer’s coupling installation and operation procedures.
S-4
General Precautions
WARNING
CAUTION
Before beginning any alignment procedure, make sure driver power is locked out.
Failure to lock out driver power will result in serious physical injury.
Piping:
Never draw piping into place by forcing at the flanged connections of the pump.
This may impose dangerous strains on the unit and cause misalignment between
pump and driver. Pipe strain will adversely effect the operation of the pump
resulting in physical injury and damage to the equipment.
WARNING
Flanged Connections:
Use only fasteners of the proper size and material.
WARNING
Replace all corroded fasteners.
WARNING
Ensure all fasteners are properly tightened and there are no missing fasteners.
WARNING
Startup and Operation:
When installing in a potentially explosive environment, please ensure that the
motor is properly certified.
WARNING
Operating pump in reverse rotation may result in contact of metal parts, heat
generation, and breach of containment.
WARNING
Lock out driver power to prevent accidental start-up and physical injury.
WARNING
The impeller clearance setting procedure must be followed. Improperly setting
the clearance or not following any of the proper procedures can result in sparks,
unexpected heat generation and equipment damage.
WARNING
If using a cartridge mechanical seal, the centering clips must be installed and set
screws loosened prior to setting impeller clearance. Failure to do so could result
in sparks, heat generation, and mechanical seal damage.
WARNING
The coupling used in an ATEX classified environment must be properly certified
and must be constructed from a non-sparking material.
Never operate a pump without coupling guard properly installed. Personal injury
will occur if pump is run without coupling guard.
WARNING
WARNING
Make sure to properly lubricate the bearings. Failure to do so may result in excess
heat generation, sparks, and / or premature failure.
CAUTION
The mechanical seal used in an ATEX classified environment must be properly
certified. Prior to start up, ensure all points of potential leakage of process fluid to
the work environment are closed.
CAUTION
Never operate the pump without liquid supplied to mechanical seal. Running a
mechanical seal dry, even for a few seconds, can cause seal damage and must be
avoided. Physical injury can occur if mechanical seal fails.
Never attempt to replace packing until the driver is properly locked out and the
coupling spacer is removed.
WARNING
WARNING
WARNING
Dynamic seals are not allowed in an ATEX classified environment.
DO NOT operate pump below minimum rated flows or with suction and/or
discharge valve closed. These conditions may create an explosive hazard due to
vaporization of pumpage and can quickly lead to pump failure and physical injury.
S-5
General Precautions
Ensure pump is isolated from system and pressure is relieved before
disassembling pump, removing plugs, opening vent or drain valves, or
disconnecting piping.
Shutdown, Disassembly, and Reassembly:
Pump components can be heavy. Proper methods of lifting must be employed to
avoid physical injury and/or equipment damage. Steel toed shoes must be worn at
all times.
WARNING
WARNING
WARNING
The pump may handle hazardous and/or toxic fluids. Observe proper
decontamination procedures. Proper personal protective equipment should be
worn. Precautions must be taken to prevent physical injury. Pumpage must be
handled and disposed of in conformance with applicable environmental
regulations.
WARNING
Operator must be aware of pumpage and safety precautions to prevent physical
injury.
WARNING
Lock out driver power to prevent accidental startup and physical injury.
CAUTION
Allow all system and pump components to cool before handling them to prevent
physical injury.
CAUTION
If pump is a Model NM3171, NM3196, 3198, 3298, V3298, SP3298, 4150, 4550,
or 3107, there may be a risk of static electric discharge from plastic parts that are
not properly grounded. If pumped fluid is non-conductive, pump should be
drained and flushed with a conductive fluid under conditions that will not allow
for a spark to be released to the atmosphere.
WARNING
Never apply heat to remove an impeller. The use of heat may cause an explosion
due to trapped fluid, resulting in severe physical injury and property damage.
CAUTION
Wear heavy work gloves when handling impellers as sharp edges may cause
physical injury.
CAUTION
Wear insulated gloves when using a bearing heater. Bearings will get hot and can
cause physical injury.
S-6
ATEX CONSIDERATIONS and INTENDED USE
Special care must be taken in potentially explosive environments to ensure that the equipment is properly
maintained. This includes but is not limited to:
1.
2.
3.
Monitoring the pump frame and liquid end temperature.
Maintaining proper bearing lubrication.
Ensuring that the pump is operated in the intended hydraulic range.
The ATEX conformance is only applicable when the pump unit is operated within its intended use. Operating,
installing or maintaining the pump unit in any way that is not covered in the Instruction, Operation, and
Maintenance manual (IOM) can cause serious personal injury or damage to the equipment. This includes any
modification to the equipment or use of parts not provided by ITT Goulds Pumps. If there is any question
regarding the intended use of the equipment, please contact an ITT Goulds representative before proceeding.
Current IOMs are available at www.gouldspumps.com/literature_ioms.html or from your local ITT Goulds
Pumps Sales representative.
All pumping unit (pump, seal, coupling, motor and pump accessories) certified for use in an ATEX classified
environment, are identified by an ATEX tag secured to the pump or the baseplate on which it is mounted. A
typical tag would look like this:
The CE and the Ex designate the ATEX compliance. The code directly below these symbols reads as follows:
II
2
G/D
T4
=
=
=
=
Group 2
Category 2
Gas and Dust present
Temperature class, can be T1 to T6 (see Table 1)
Table 1
Code
T1
Max permissible
surface temperature
o
F (oC)
842 (450)
Max permissible
liquid temperature
o
F (oC)
700 (372)
T2
572 (300)
530 (277)
T3
392 (200)
350 (177)
T4
275 (135)
235 (113)
T5
212 (100)
Option not available
T6
185
Option not available
(85)
The code classification marked on the equipment must be in accordance with the specified area where the
equipment will be installed. If it is not, do not operate the equipment and contact your ITT Goulds Pumps sales
representative before proceeding.
S-7
PARTS
The use of genuine Goulds parts will provide the safest and
most reliable operation of your pump. ITT Goulds Pumps ISO
certification and quality control procedures ensure the parts are
manufactured to the highest quality and safety levels.
Please contact your local Goulds representative for details on
genuine Goulds parts.
S-8
GENERAL INFORMATION
PUMP DESCRIPTION . . . . . .
NAMEPLATE INFORMATION
RECEIVING THE PUMP . . . .
Storage Requirements . . . . .
Handling . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
11
12
13
13
13
2
PUMP DESCRIPTION
The Model 3298 is a sealless close coupled or frame
mounted centrifugal pump with an enclosed impeller that is
driven by a synchronous magnetic coupling and meets
dimensional standards of ANSI B73.1. (The 1x1 1 2-5 is not
ANSI dimensional.)
Rear Impeller Wear Ring - is standard on M and L group
size pumps and is not required on S group sizes. The wear
ring is pressed into the rear of the impeller assembly. The
wear ring reduces axial thrust in the M and L group size
pumps.
The SP 3298 is a self-priming sealless close coupled or
frame mounted centrifugal pump with an enclosed impeller
that is driven by a synchronous magnetic coupling. The
pump and frame / adapter feet locations meet ANSI B73.1
dimensional standards.
Magnetic Coupling - is a coaxial synchronous type using
rare earth magnets. This concept results in a compact
design and allows the impeller to turn at the same speed as
the motor, (i.e. there is no slip between the drive and driven
magnets.)
The V 3298 is a vertical in-line sealless close coupled
centrifugal pump with an enclosed impeller that is driven
by a synchronous magnetic coupling and meets the
dimensional standards of ANSI B73.2.
Magnets - Neodymium Iron (NdFe).
Casing - The casings are one piece cast ductile iron lined
with 1/8" TEFZEL®1 and have ANSI class 150 flanges with
a TEFZEL® raised face. The 3298 and SP 3298 are end
suction, top centerline discharge and are self-venting. The
V 3298 is side suction, side discharge and is also
self-venting.
Impeller Magnet Assembly - The 3298 family utilizes a
one or two piece impeller magnet assembly. The magnet
ring is balanced to ISO 1940 G6.3 levels and is sealed
within the solid enclosed TEFZEL® impeller magnet
assembly.
Stationary Shaft - The impeller magnet assembly rotates
about a solid stationary silicon carbide shaft. The shaft is
supported at one end by the containment shell and the other
end by the TEFZEL® bearing spider.
Containment Shell - isolates the pumped liquid from the
atmosphere. The containment shell construction is backed
with vinylester FRP.
Radial Bearings and Thrust Bearings - Goulds standard
bearing material is carbon with optional Pure Sintered
Alpha Grade Silicon Carbide or DryGuard™ Pure Sintered
Alpha Grade Silicon Carbide.
Standard Close Coupled Mounting - The drive magnet
assembly is keyed, set screwed and mounted directly to the
motor shaft. This arrangement eliminates the need to
perform pump/motor alignment.
3
Optional Power End - The standard configuration is cast
iron with flood oil lubricated ball bearings. Pure oil mist
systems are available as an option. For protection and
reliability of the bearings and the lubricant, a labyrinth seal
is provided. On the inboard side a lip seal is used to prevent
leakage of oil into the magnetic drive assembly.
Bearing Spider - The bearing spider constructed from
solid TEFZEL® houses one of the key silicon carbide thrust
bearings in the pump and supports the stationary shaft at
one end.
1
TEFLON® and TEFZEL®: Registered trademarks for fluoropolymer resins, films and fibers made by DuPont.
The 1x1 12-5 is tangential discharge.
3
Frame mounted power end not available on the V 3298.
2
3298 Family Rev. 5/08
11
NAMEPLATE INFORMATION
Every pump has two Goulds nameplates that provide
information about the pump. The tags are located on the
casing and bearing frame.
Description
Fig.
No.
When ordering spare parts, you will need to identify pump
model, size, serial number, and the item number of required
parts. Information can be taken from the pump casing tag.
Item numbers can be found in this manual
Example
Fig. 1
English
Pump Casing Tag - provides information about
the pump’s hydraulic characteristics.
Note the format of the pump size:
Discharge x Suction - Nominal maximum
Impeller Diameter in inches
(Example: 2x3-8)
(Figs. 1 & 2).
Fig. 2
Metric
Bearing Frame Tag - provides information on
the lubrication system used (Fig. 3).
Fig. 3
ATEX Tag - If applicable, your pump unit may
have the following ATEX tag affixed to the
pump and/or baseplate. See the Safety section for
a description of the symbols and codes (Fig. 4).
Fig. 4
12
3298 Family Rev. 5/08
RECEIVING THE PUMP
Inspect the pump as soon as it is received. Make notes of
damaged or missing items on the receipt and freight bill.
File any claims with the transportation company
immediately.
Baseplate mounted units are moved with slings under the
pump and driver. (Figs. 5 & 7)
STORAGE REQUIREMENTS
Short Term - (Less than 3 months) Goulds normal
packaging procedure is designed to protect the pump
during shipping. Upon receipt store in a covered and dry
location.
2
Long Term - (More than 6 months) Preservative treatment
of bearings and machined surfaces will be required. Rotate
shaft several times every 3 months. Refer to driver and
coupling manuals for their long term storage procedures.
Store in a dry covered location.
HANDLING
!
▲
WARNING
Failure to properly lift and support equipment could
result in serious injury or damage to pumps.
Fig. 6
Use care when moving pumps. Lifting equipment must be
able to adequately support the entire assembly. Hoist bare
pumps, using a sling under the suction flange and bearing
housing. (Fig. 5)
!
▲
WARNING
These pumps use ceramic silicon carbide components.
Do not drop pump or subject to shock loads, this may
damage internal ceramic components.
Fig. 7
Fig. 5
3298 Family Rev. 5/08
13
Complete vertical pumps are lifted with straps under the
pump and motor (Fig. 8). Bare vertical pumps (without a
motor) are lifted with straps under the pump and motor
adapter (Fig. 9).
Fig. 9
Fig. 8
14
3298 Family Rev. 5/08
INSTALLATION
BASEPLATE INSPECTION. . . . . . . . . . . . .
SITE/FOUNDATION . . . . . . . . . . . . . . . . .
LEVEL BASEPLATE . . . . . . . . . . . . . . . .
Cast Iron/Fabricated Steel . . . . . . . . . . . . .
Feature Fabricated Steel/API Style. . . . . . . . .
Baseplate Leveling Worksheet . . . . . . . . . . .
ALIGNMENT AND ALIGNMENT PROCEDURE
Alignment Checks . . . . . . . . . . . . . . . . .
Alignment Criteria . . . . . . . . . . . . . . . . .
Set Up. . . . . . . . . . . . . . . . . . . . . . . .
Measurement . . . . . . . . . . . . . . . . . . . .
Angular Alignment . . . . . . . . . . . . . . . . .
Parallel Alignment . . . . . . . . . . . . . . . . .
Complete Alignment . . . . . . . . . . . . . . . .
Alignment Troubleshooting . . . . . . . . . . . .
GROUT BASEPLATE . . . . . . . . . . . . . . . .
PIPING. . . . . . . . . . . . . . . . . . . . . . . . .
General . . . . . . . . . . . . . . . . . . . . . . .
Suction Piping . . . . . . . . . . . . . . . . . . .
Discharge Piping . . . . . . . . . . . . . . . . . .
Final Piping Check . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
15
15
16
16
17
18
19
19
19
20
20
20
21
21
22
22
23
23
23
25
25
3
that is to be installed in a potentially explosive environment must be done so in accordance with the
! Equipment
following installation instructions.
BASEPLATE INSPECTION
1.
Remove all equipment.
3.
2.
Completely clean the underside of baseplate. It is
sometimes necessary to coat the underside of the
baseplate with an epoxy. This may have been
purchased as an option.
Remove the rust preventative solution from the
machined pads with an appropriate solution.
SITE / FOUNDATION
A pump should be located near the supply of liquid and
have adequate space for operation, maintenance, and
inspection.
Baseplate mounted pumps are normally grouted to a
concrete foundation, which has been poured on a solid
footing. The foundation must be able to
3298 Family Rev. 5/08
absorb any vibration and to form a permanent, rigid
support for the pumping unit.
The location and size of the foundation bolts are shown on
the outline assembly drawing, provided with the pump data
package.
15
equipment being installed must be properly
! All
grounded to prevent unexpected static electric
discharge. This includes ensuring that the PFA
lined pumps are pumping fluids that are conductive.
If not, a static electric discharge may occur when the
pump is drained and disassembled for maintenance
purposes.
Foundation bolts commonly used are sleeve type (Fig. 10)
and J type (Fig. 11). Both designs permit movement for
final bolt adjustment.
1.
Inspect foundation for dust, dirt, oil, chips, water, etc.
and remove any contaminants. Do not use oil-based
cleaners as grout will not bond to it.
2.
Prepare the foundation in accordance with the grout
manufacturer’s recommendations.
Fig. 10
Fig. 11
LEVEL BASEPLATE
CAST IRON / FABRICATED STEEL
1.
2.
Place two sets of wedges or shims on the foundation,
one set on each side of every foundation bolt
(Fig. 12, 13). The wedges should extend .75 in.
(20 mm) to 1.5 in. (40 mm) above the foundation, to
allow for adequate grouting. This will provide even
support for the baseplate once it is grouted.
3.
Carefully lower baseplate onto foundation bolts.
4.
Level baseplate to within .125 in.(3mm) over the length of
the base and .062 in. (1.5 mm) over the width of the base by
adjusting shims or wedges.
5.
Hand tighten bolts.
Remove water and/or debris from anchor bolt
holes/sleeves. If the sleeve type bolts are being used,
fill the sleeves with rags to prevent grout from
entering.
Fig. 13
Fig. 12
16
3298 Family Rev. 5/08
FEATURE FABRICATED STEEL/
API STYLE
7.
Place the two levels on the pump pads, one lengthwise
on a single pump pad, and another across the middle of
both pump pads. (Fig. 16)
(BASEPLATES PROVIDED WITH VERTICAL
LEVELING ADJUSTORS)
1.
Coat the jack screws with an anti-seizing compound to
allow for easy removal after the grout has been cured.
2.
Cut round circular plates from bar stock to set the jack
screws on. The edges of the plates should be
chamfered to reduce stress concentrations.
3.
Set the baseplate on the foundation and use the four
corner jack screws to raise the baseplate off the
foundation 0.75" to 1.5" (Fig. 14). The two center jack
screws should not be touching the foundation.
Fig. 16
3
8.
Level the pump pads as close to zero as possible, in
both directions, by adjusting the jack screws.
9.
Install the anchor bolts until they are hand tight.
10. Return the levels to the motor pads and check the level
measurements.
Fig. 14
4.
Place two machinist levels on the motor pads, one
lengthwise on a single motor pad, and another across the
ends of both motor pads (Fig 15).
NOTE: When using a machinist level, it is important
that the surface being leveled is free of all
contaminants, such as dust, to ensure an accurate
reading.
5.
Level the motor pads as close to zero as possible, in
both directions, by adjusting the four jack screws.
6.
Next, turn down the center jack screws so that they are
resting on their metal discs on the foundation.
11. Adjust the jack screws and anchor bolts, if necessary,
until all level measurements are within the design
requirements of 0.002 in./ft.
12. When taking readings, center the level over the pad
being measured.
NOTE: The Baseplate Leveling Worksheet provided
may be used when taking readings.
Fig. 15
3298 Family Rev. 5/08
17
BASEPLATE LEVELING WORKSHEET
LEVEL MEASUREMENTS
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
18
3298 Family Rev. 5/08
ALIGNMENT AND ALIGNMENT PROCEDURE
B ▲
!
WARNING
Before beginning any alignment procedure, make sure
driver power is locked out. Failure to lock out driver
power can result in serious personal injury.
procedures must be followed to prevent
! Alignment
unintended contact of rotating parts. Follow
coupling manufacturer's coupling installation and
operation procedures.
To remove guard, refer to coupling guard assembly/
disassembly instructions.
The points at which alignment is checked and adjusted are:
·
·
Initial Alignment is done prior to operation when
the pump and the driver are at ambient temperature.
Final Alignment is done after operation when the
pump and driver are at operating temperature.
Alignment is achieved by adding or removing shims from
under the feet of the driver and shifting equipment
horizontally as needed.
NOTE: Proper alignment is the responsibility of the
installer of the unit.
Accurate alignment of the equipment must be attained.
Trouble-free operation can be accomplished by following
these procedures:
ALIGNMENT CHECKS
Final Alignment (Hot Alignment)
· After First Run - To obtain correct alignment when both
pump and driver are at operating temperature.
Thereafter, alignment should be checked periodically in
accordance with plant operating and maintenance
procedures.
NOTE: Alignment check must be made if process
temperature changes, piping changes, and/or pump
service is performed.
3
ALIGNMENT CRITERIA
Good alignment is achieved when the dial indicator
readings as specified in the alignment procedure are .002
in. (.05 mm) Total Indicated Reading (T.I.R.) or less when
the pump and driver are at operating temperature (Final
Alignment).
During the installation phase, however, it is necessary to
set the parallel alignment in the vertical direction to a
different criteria due to differences in expansion rates of
the pump and driver. Table 2 below shows recommended
cold settings for electric motor driven pumps based on
different pumpage temperatures. Driver manufacturers
should be consulted for recommended cold settings for
other types of drivers (steam turbines, engines, etc.).
Table 2
Cold Settings of Parallel
Vertical Alignment
Pumpage
Temperature
Set Driver Shaft
50°F (10°C)
.002in. (.05mm) LOW
Initial Alignment (Cold Alignment)
150°F (65°C)
.001in. (.03mm) HIGH
· Before Grouting Baseplate - To ensure alignment can be
250°F (120°C)
.005in. (.12mm) HIGH
obtained.
· After Grouting Baseplate - To ensure no changes to
alignment have occurred during grouting process.
· After Connecting Piping - To ensure that pipe strains
haven’t altered alignment. If changes have occurred,
alter piping to remove pipe strains on pump flanges.
3298 Family Rev. 5/08
19
SET UP
1.
Mount two dial indicators on one of the coupling
halves (X) so they contact the other coupling half (Y)
(Fig. 17).
2.
Check setting of indicators by rotating coupling half X
to ensure indicators stay in contact with coupling half
Y but do not bottom out. Adjust indicators
accordingly.
Fig. 18
4.
Repeat steps 1 through 3 until indicator A reads .002
in (.05 mm) or less.
Horizontal Correction (Side to Side)
1. Zero indicator A on left side of coupling half Y, 90°
from top dead center (9 o’clock).
Fig. 17
MEASUREMENT
1.
To ensure accuracy of indicator readings, always rotate
both coupling halves together so indicators contact the
same point on coupling half Y. This will eliminate any
measurement problems due to runout on coupling half
Y.
2.
Take indicator measurements with driver feet hold
down bolts tightened. Loosen hold down bolts prior to
making alignment corrections.
3.
Take care not to damage indicators when moving
driver during alignment corrections.
2.
Rotate indicators through top dead center to the right
side, 180° from the start (3 o’clock). Observe needle
and record reading.
3.
Negative Reading - The coupling halves are further
apart on the right side than the left. Correct by either
sliding the shaft end of the driver to the left or the
other end to the right.
Positive Reading - The coupling halves are closer
together on the right side than the left. Correct by
either sliding the shaft end of the driver to the right or
the other end to the left (Fig. 19).
4.
Repeat steps 1 through 3 until indicator A reads .002
in. (.05 mm) or less.
ANGULAR ALIGNMENT
A unit is in angular alignment when indicator A (Angular
indicator) does not vary by more that .002 in. (.05 mm) as
measured at four locations 90° apart.
Vertical Correction (Top to Bottom)
1. Zero indicator A at top dead center (12 o’clock) of
coupling half Y.
2.
Rotate indicators to bottom dead center
(6 o’clock). Observe needle and record reading.
3.
Negative Reading - The coupling halves are further
apart at the bottom than at the top. Correct by either
raising the driver feet at the shaft end (add shims) or
lowering the driver feet at the other end (remove
shims) (Fig. 18).
Fig. 19
5.
Re-check both horizontal and vertical readings to
ensure adjustment of one did not disturb the other.
Correct as necessary.
Positive Reading - The coupling halves are closer at
the bottom than at the top. Correct by either lowering
the driver feet at the shaft end (remove shims) or
raising the driver feet at the other end (add shims).
20
3298 Family Rev. 5/08
Positive Reading - Coupling half Y is to the
right of coupling half X. Correct by sliding driver
evenly in the appropriate direction.
PARALLEL ALIGNMENT
A unit is in parallel alignment when indicator P (parallel
indicator) does not vary by more than .002 in. (.05 mm) as
measured at four points 90° apart at operating temperature.
Note the preliminary cold setting criteria, Table 2.
Vertical Correction (Top to Bottom)
1. Zero indicator P at top dead center of coupling
(12 o’clock) half Y (Fig. 19).
2.
Rotate indicator to bottom dead center
(6 o’clock). Observe needle and record reading.
3.
Negative Reading - Coupling half X is lower than
coupling half Y. Correct by removing shims of
thickness equal to half of the indicator reading under
each driver foot.
Positive Reading - Coupling half X is higher than
coupling half Y. Correct by adding shims of thickness
equal to half of the indicator reading from each driver
foot (Fig. 20).
Fig. 21
3
NOTE: Failure to slide motor evenly will affect
horizontal angular correction.
4.
Repeat steps 1 through 3 until indicator P reads .002
in. (.05 mm) or less.
5.
Re-check both horizontal and vertical readings to
ensure adjustment of one did not disturb the other.
Correct as necessary.
COMPLETE ALIGNMENT
A unit is in complete alignment when both indicators A
(angular) and P (parallel) do not vary by more than .002 in.
(.05 mm) as measured at four points 90° apart.
Fig. 20
NOTE: Equal amounts of shims must be added to or
removed from each driver foot. Otherwise the vertical
angular alignment will be affected.
4.
Repeat steps 1 through 3 until indicator P reads within
.002 in. (.05 mm) or less when hot, or per Table 1
when cold.
Horizontal Correction (Side to Side)
1. Zero indicator P on the left side of coupling half Y,
90° from top dead center (9 o’clock).
2.
3.
Rotate indicators through top dead center to the right
side, 180° from the start. Observe needle and record
reading (3 o’clock).
Negative Reading - Coupling half Y is to the left of
coupling half X. Correct by sliding driver evenly in the
appropriate direction (Fig. 21).
3298 Family Rev. 5/08
Vertical Correction (Top to Bottom)
1. Zero indicators A and P at top dead center
(12 o’clock) of coupling half Y.
2.
Rotate indicator to bottom dead center (6 o’clock).
Observe the needles and record the readings.
3.
Make corrections as outlined previously.
Horizontal Correction (Side to Side)
1. Zero indicators A and P on the left side of coupling
half Y, 90° from top dead center (9 o’clock).
2.
Rotate indicators through top dead center to the right
side, 180° from the start (3 o’clock). Observe the
needle, measure and record the reading.
3.
Make corrections as outlined previously.
4.
Recheck both vertical and horizontal readings to
ensure adjustment of one did not disturb the other.
Correct as necessary.
21
ALIGNMENT TROUBLESHOOTING
Table 3
Alignment Troubleshooting
PROBLEM
PROBABLE CAUSE
Cannot obtain horizontal (Side-to-Side)
Driver feet bolt bound.
alignment, angular or parallel.
Cannot obtain vertical (Top to Bottom)
alignment, angular or parallel.
Baseplate not leveled properly,
probably bowed.
REMEDY
Loosen pump hold down bolts and slide pump and driver
until horizontal alignment is achieved.
Determine if center of baseplate should be raised or
lowered and correct by evenly adding or removing shims
at the center of the baseplate.
NOTE: With experience, the installer will understand
the interaction between angular and parallel and will
make corrections appropriately.
GROUT BASEPLATE
1.
Clean areas of baseplate that will contact grout. Do not
use an oil-based cleaner because grout will not bond to it.
2.
Build a dam around foundation (Fig. 22). Thoroughly
wet foundation.
3.
Pour grout through grout hole in baseplate up to level of
dam. Remove air bubbles from grout as it is poured by
puddling, using a vibrator, or pumping the grout into
place. Non-shrink grout is recommended (Fig. 22).
4.
Allow grout to set.
5.
Fill remainder of baseplate with grout. Remove air as
before (Fig. 23).
Fig. 23
Fig. 22
6.
Allow grout to set at least 48 hours.
7.
Tighten foundation bolts.
ALIGNMENT CHECK
Re-check alignment before continuing, using methods
previously described.
22
3298 Family Rev. 5/08
PIPING
Guidelines for piping are given in the Centrifugal Pump
section of the “Hydraulic Institute Standards” and should
be reviewed prior to pump installation.
A ▲
!
WARNING
Never draw piping into place by forcing at the flanged
connections of the pump. This will impose dangerous
strains on the unit and cause misalignment between
pump and driver. Pipe strain can adversely effect the
operation of the pump. That could result in serious
personal injury and damage to equipment.
loads from the piping system, including
! Flange
those from thermal expansion of the piping, must
not exceed the limits of the pump. Casing deforma-
3
tion can result in contact with rotating parts and
result in excess heat generation, sparks and
premature failure.
Fig. 25
1.
All piping must be supported independently and must
line up naturally with the pump flanges.
2.
Piping runs shall be designed to minimize friction
losses.
5.
DO NOT make final connection of piping to pump
until grout has hardened and pump and driver
hold-down bolts have been tightened.
The piping should be arranged to allow pump flushing
prior to removal of the unit on services handling
corrosive liquids.
6.
System should be thoroughly cleaned prior to
installation.
3.
4.
It is suggested that expansion loops or joints, if used,
be properly installed in suction and/or discharge lines
when handling liquids at elevated temperatures, so
linear expansion of piping will not draw pump out of
alignment (Fig. 24 & 25).
SUCTION PIPING
A ▲
!
WARNING
NPSHA must always exceed NPSHR as shown on
Goulds performance curves received with order.
Reference Hydraulic Institute for NPSH and pipe
friction values needed to evaluate suction piping.
Properly installed suction piping is a necessity for trouble
free pump operation. Suction piping should be flushed
BEFORE connection to the pump.
1.
Use of elbows close to the pump suction flange should
be avoided. There should be a minimum of 2 pipe
diameters of straight pipe between the elbow and
suction inlet. Where used, elbows should be long
radius (Fig. 26)
Fig. 24
3298 Family Rev. 5/08
23
CORRECT
CORRECT PIPING
Fig. 26
Fig. 28
Suction Lift Conditions
1. Suction pipe must be free from air pockets
Fig. 27
2.
3.
Use suction pipe one or two sizes larger than the pump
suction, with a reducer at the suction flange. Suction
piping should never be of smaller diameter than the
pump suction.
Reducers should be eccentric at the pump suction
flange with sloping side down and horizontal side at
the top (Figs. 26, 27, 28).
$
CAUTION
2.
Suction piping must slope upwards to pump.
3.
All joints must be air tight.
4.
A means of priming the pump must be provided, such
as a foot valve, except for the self priming pump.
Suction Head/Flooded Suction Conditions
1. An isolation valve should be installed in the suction
line at least two pipe diameters from the suction to
permit closing of the line for pump inspection and
maintenance.
2.
Keep suction pipe free from air pockets.
3.
Piping should be level or slope gradually downward
from the source of supply
Pump must never be throttled on suction side.
4.
Suction strainers, when used, must have a net “free
area” of at least three times the suction pipe area.
4.
No portion of the piping should extend below pump
suction flnge.
5.
Separate suction lines are recommended when more
than one pump is operating from the same source of
supply.
5.
The size of entrance from supply should be one or two
sizes larger than the suction pipe.
6.
The suction pipe must be adequately submerged below
the liquid surface to prevent vortices and air
entrainment at the supply.
24
3298 Family Rev. 5/08
DISCHARGE PIPING
INCORRECT PIPING
1.
Isolation and check valves should be installed in
discharge line. Locate the check valve between
isolation valve and pump, this will permit inspection of
the check valve. The isolation valve is required for
priming, regulation of flow, and for inspection and
maintenance of pump. The check valve prevents pump
or seal damage due to reverse flow through the pump
when the driver is turned off.
2.
Increasers, if used, should be placed between pump
and check valves.
3.
Cushioning devices should be used to protect the
pump from surges and water hammer, if quick-closing
valves are installed in system.
3
FINAL PIPING CHECK
After Connecting Piping to the Pump
Fig. 29
CORRECT PIPING
shaft by hand to ensure it rotates smoothly
! Rotate
and there is no rubbing which could lead to excess
heat generation and or sparks.
1.
Rotate shaft several times by hand to be sure that there
is no binding and all parts are free.
2.
Check alignment, per the alignment procedure outlined
previously to determine absence of pipe strain. If pipe
strain exists, correct piping.
build up of gases within the pump, sealing system
! Aand
or process piping system may result in an
explosive environment within the pump or process
piping system. Ensure process piping system, pump
and sealing system are properly vented prior to
operation.
Fig. 30
3298 Family Rev. 5/08
25
26
3298 Family Rev. 5/08
OPERATION
PREPARATION FOR START-UP . . . . . . . . . . . . . . .
Checking Rotation - Frame Mounted . . . . . . . . . . . . .
Couple Pump and Driver . . . . . . . . . . . . . . . . . . . .
Install Coupling Guard . . . . . . . . . . . . . . . . . . . . .
Checking Rotation - Close Coupled . . . . . . . . . . . . . .
Lubricating Bearings . . . . . . . . . . . . . . . . . . . . . .
Connect Condition Monitoring Devices . . . . . . . . . . . .
Priming Pump . . . . . . . . . . . . . . . . . . . . . . . . .
STARTING PUMP . . . . . . . . . . . . . . . . . . . . . . . .
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Considerations. . . . . . . . . . . . . . . . . . . . .
Operating at Reduced Capacity . . . . . . . . . . . . . . . .
Suction Valve Closed / Dry Run Operation . . . . . . . . . .
Draining Tanks / Dry Run Operation . . . . . . . . . . . . .
Discharge Valve Closed . . . . . . . . . . . . . . . . . . . .
Operating Under Freezing Conditions . . . . . . . . . . . . .
3298 MINIMUM CONTINUOUS RECOMMENDED FLOW
SHUTDOWN . . . . . . . . . . . . . . . . . . . . . . . . . . .
FINAL ALIGNMENT . . . . . . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
27
27
27
27
28
28
28
28
28
29
29
29
29
29
29
30
30
31
31
4
PREPARATION FOR START-UP
!
CHECKING ROTATION FRAME MOUNTED
$
CAUTION
Serious damage may result if pump is run in the
wrong rotation.
1.
Lock out power to driver.
B ▲
!
WARNING
Lock out driver power to prevent accidental start-up
that could result in serious personal injury.
2.
Make sure coupling spacer is removed and coupling
hubs are fastened tightly to the shafts and are not loose.
NOTE: Pump is shipped with coupling spacer removed.
3.
4.
Make sure everyone is clear. Jog driver just long enough
to determine direction of rotation. Rotation must
correspond to arrow on bearing frame.
5.
Lock out power to driver.
When installing in a potentially explosive environment, please ensure that the motor is properly
certified.
Unlock driver power.
3298 Family Rev. 5/08
COUPLE PUMP AND DRIVER
B ▲
!
WARNING
Lock out driver power to prevent accidental start-up
that could result in serious personal injury.
Lubricate coupling per manufacturer’s instructions and
install coupling spacer.
INSTALL COUPLING GUARD
Install coupling guard as defined in the appendix.
!
▲
WARNING
Never operate a pump without a coupling guard
properly installed. Operating pump without a properly
installed coupling guard can result in serious personal
injury.
27
CHECKING ROTATION - CLOSE
COUPLED
$!
CAUTION
Serious damage may result if pump is run
in the wrong rotation.
1.
Unlock driver power.
2.
Make sure everyone is clear. Jog driver just long
enough to determine direction of rotation. Rotation of
motor fan must correspond to arrow on close coupled
frame.
LUBRICATING BEARINGS
!
Bearings must be lubricated properly in order to
prevent excess heat generation, sparks, and
premature failure.
Flood Oil Lubrication - Pumps are shipped without oil. Fill
bearing frame with oil through filler connection until oil
level reaches center of sight-glass (Fig. 31). A high quality
turbine type oil with rust and oxidation inhibitors should be
used as specified in Table 6.
Close Coupled Pumps - Pump does not have ball bearings.
Consult motor instruction book for required lubrication.
▲!
WARNING
Operation of the unit without proper lubrication will
cause bearing failure and pump seizure.
Fig. 31
CONNECT CONDITION
MONITORING DEVICES
If unit is equipped with power monitoring systems, this
must be connected.
PRIMING PUMP
Never start pump until properly primed (pump casing and
suction piping are full of liquid). Components such as
internal sleeve bearings depend on liquid for lubrication
and will quickly fail if run dry.
Your particular system conditions will dictate method used
to prime pump.
STARTING PUMP
1.
Make sure suction valve and any recirculation or
cooling lines are open.
2.
Fully close or partially open discharge valve as
dictated by system conditions.
3.
Start driver.
$!
CAUTION
Immediately observe pressure gauges. If discharge
pressure is not quickly attained, stop driver, reprime
and attempt to restart.
4.
28
Slowly open discharge valve until the desired flow is
obtained.
$!
CAUTION
Continuous operation against closed discharge valve
will cause pump to overheat. Overheating the
magnetic drive assembly will weaken or ruin the
magnets.
!
▲
WARNING
Continuous operation against closed discharge valve
may vaporize liquid creating an explosive hazard due
to confined vapor under high pressure and
temperature.
3298 Family Rev. 5/08
OPERATION
GENERAL CONSIDERATIONS
Always vary capacity with valve in discharge line. NEVER
throttle flow from suction side.
Driver may overload or magnets de-couple if pumpage
specific gravity (density) is greater than originally assumed,
or rated flow rate is exceeded.
Always operate the pump at or near the rated conditions to
prevent damage resulting from cavitation or recirculation.
$
Do not operate above rated temperature range of
magnets as this will weaken or ruin the magnets.
temperature in an ATEX classified environ! Service
ment is limited by Table 1 in the Safety section.
Table 4
Temperature Ratings
Group
XS
Size
1x1.5-5
Rated Temperature
250° F (121° C)
S
All
250° F (121° C)
M
All
250° F (121° C)
L
All
250° F (121° C)
OPERATINGAT REDUCED CAPACITY
WARNING
Do NOT operate pump below minimum rated flows or
with discharge valve closed. These conditions may
vaporize liquid creating an explosive hazard due to
confined vapor under high pressure and temperature.
SUCTION VALVE CLOSED / DRY RUN
OPERATION
!
▲
WARNING
Do not operate pump with suction valve closed.
Operating pump after suction valve closed will cause
wear of thrust and radial bearings and pump failure.
Operating pump with suction valve closed may
vaporize liquid creating an explosvie hazard due to
confined vapor under high pressure and temperature.
$
$
CAUTION
Always operate the pump at or near the rated
conditions to prevent damage resulting from cavitation
or recirculation.
CAUTION
Damage occurs from:
1. Increased vibration levels - Affects bearings.
2. Increased radial loads - Stresses on shaft and
bearings.
3. Heat build up - Vaporization causing rotating parts
to score or seize.
4. Cavitation - Damage to internal surfaces of pump.
Goulds recommends the use of a power monitor to prevent
pump damage from systems which have the potential for
dry run operation. Refer to Appendix for information on
power monitors.
DRAINING TANKS / DRY RUN
OPERATION
!
▲
WARNING
After pump has drained tank, it should be shut down
immediately. Operating pump after the tank has been
drained of liquid will cause wear of thrust and radial
bearings and pump failure. Operating pump after
tank has been drained of liquid may vaporize liquid
creating an explosive hazard due to confined vapor
under high pressure and temperature.
Goulds recommends the use of a power monitor to prevent
pump damage from systems which have the potential for
dry run operation.
DISCHARGE VALVE CLOSED
!
▲
WARNING
Do not operate pump with discharge valve closed.
Operating pump with a closed discharge valve may
vaporize liquid creating an explosive hazard due to
confined vapor under high pressure and temperature.
CAUTION
Always vary capacity with regulating valve in the
discharge line. NEVER throttle flow from the suction
side.
3298 Family Rev. 5/08
CAUTION
Driver may overload if the pumpage specific gravity
(density) is greater than originally assumed, or the
rated flow rate is exceeded.
$
CAUTION
!
▲
$
Goulds recommends the use of a power monitor and/or a
minimum flow by-pass line to prevent pump damage from
systems which have the potential for closed discharge operation.
29
4
OPERATING UNDER
FREEZING CONDITIONS
Exposure to freezing conditions, while pump is idle, could
cause liquid to freeze and damage the pump. Liquid inside
pump should be drained. Liquid inside cooling coils, if
supplied, should also be drained.
3298 Minimum Continuous Recommended Flow
Table 5 - Minimum Flow1
Group
Pump Size
3600
60 Hertz
GPM
1800
1x1 -5
1½ x 2 - 6
1x1 -6
1x1 -8
1½ x 3 - 7
2x3-6
1½ x 3 - 8
2x3-8
3x4-7
1 x 2 - 10
1½ x 3 - 10
2 x 3 - 10
3 x 4 - 10G
3 x 4 - 10H
4 x 6 - 10
1
5
5
15
20
30
30
50
80
30
60
100
175
—
—
0.5
3
3
8
10
15
15
9
13
5
30
50
90
90
(5)
475
—
—
2
4
6
8
8
5
9
3
20
33
60
30
(5)
325
0.2
1
2
3
5
6
6
9
18
5
11
19
33
—
—
0.1
0.5
1
2
2
3
3
2
9
3
5
10
16
17
(5)
95
—
—
0.5
1
1
1
1
1
6
2
4
6
11
3
(5)
55
1 x 1½ - 6
2x3-6
5
30
3
15
2
8
2
6
1
3
0.5
1
1½ x 2 - 6
1½ 2 - 8
2x3-6
1½ x 2 - 10
5
60
60
30
3
30
30
5
2
20
20
3
2
11
11
5
1
7
7
0.7
0.5
4
4
0.5
1200
3000
50 Hertz
m3/hr
1500
1000
3298
XS
S
M
L
SP 3298
S
V 3298
S
M
NOTES:
1.
2.
3.
4.
5.
30
All flows are continuous operation 24 hours/day - 7 days/week.
Based on water with a specific gravity of 1.0 and specific heat of 1.0
Pumps can be operated reliably at lower minimum flows under intermittent operating conditions. Contact
Goulds Pumps. Intermittent Operation = operating under these conditions less than 15% of the time.
Contact factory for pump efficiency at minimum flows.
Can be operated at substantially lower flows with adequate NPSH margin. Contact Goulds for details.
3298 Family Rev. 5/08
SHUTDOWN
1.
Slowly close discharge valve.
2.
Shut down and lock out driver to prevent accidental
rotation.
!
▲
WARNING
When handling hazardous and/or toxic fluids, skin, eye
and respiratory protection are required. If pump is
being drained, precautions must be taken to prevent
injury or environmental contamination. Pumpage
must be handled and disposed of in conformance with
applicable environmental regulations.
FINAL ALIGNMENT
!
Alignment procedures must be followed to prevent
unintended contact of rotating parts. Follow
coupling manufacturer's coupling installation and
operation procedures.
3298 Family Rev. 5/08
1.
Run the unit under actual operating conditions for a
sufficient length of time to bring the pump and driver
up to operating temperature.
2.
Check and reset alignment per alignment procedure
outlined earlier.
3.
Reinstall coupling guard per instruction in appendix.
31
4
32
3298 Family Rev. 5/08
PREVENTIVE MAINTENANCE
GENERAL COMMENTS . . . . . . . . . . . . . . . .
MAINTENANCE SCHEDULE . . . . . . . . . . . . .
MAINTENANCE OF BEARINGS — Frame Mounted
TROUBLESHOOTING . . . . . . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
33
33
34
35
GENERAL COMMENTS
A routine maintenance program can extend the life of your pump. Well maintained equipment will last longer and require fewer repairs. It is recommended that maintenance records be kept to help pinpoint potential causes of problems.
preventive maintenance section must be adhered to in order to keep the applicable ATEX classification of the
! The
equipment. Failure to follow these procedures will void the ATEX classification for the equipment.
MAINTENANCE SCHEDULE
ROUTINE MAINTENANCE
·
·
·
Bearing lubrication (frame mounted pumps)
Vibration analysis
Discharge pressure
ROUTINE INSPECTIONS
·
·
·
Check level and condition of oil through sight glass
on bearing frame. (frame mounted Pumps)
Check for unusual noise, vibration, and bearing temperatures.
YEARLY INSPECTIONS
·
Check pump capacity, pressure, and power. If the
pump performance does not satisfy your process requirements, the pump should be disassembled and inspected. Worn parts should be replaced.
INSPECTION INTERVALS
Inspection intervals should be shortened appropriately if
the pumpage is abrasive and/or corrosive,
if the environment is classified as potentially
! orexplosive.
Inspect pump and piping for leaks.
3 MONTH MAINTENANCE
·
·
·
Check foundation hold down bolts of motor and
pump for tightness.
Change oil per (frame mounted pumps) per guidelines on following page.
Check alignment per section 3.
3298 Family Rev. 5/08
33
5
MAINTENANCE OF BEARINGS—FRAME MOUNTED
STANDARD CLOSE COUPLED PUMP
Many 3298s, SP 3298s, and V 3298s are close coupled
mounted as standard. Close coupled pumps do not have
bearings which require lubrication.
this section on bearing lubrication,
! Throughout
different pumpage temperatures are listed. If the
equipment is ATEX certified and the listed
temperature exceeds the applicable value shown in
Table 1 under Safety, then that temperature is not
valid. When this situation occurs, please consult
with your ITT/Goulds representative.
OIL LUBRICATED BEARINGS
!
▲
WARNING
Pumps are shipped without oil. Oil lubricated bearings
must be lubricated at the job site.
Remove fill plug (113A) and add oil until level is at the
center of the sight glass (319). Replace fill plug (Fig. 32)
(See Table 6).
Fig. 32
OIL LUBRICATED BEARINGS
Frame mounted 3298s and SP 3298s do have bearings
which require lubrication. Oil level is measured through
the sight glass. Oil level must not fall below center of site
glass. An increase in level may be noted after start up due
to oil circulation within the bearing frame. Change oil after
200 hours for new bearings, thereafter, every 4000
operating hours or 6 months, whichever period is shorter.
Table 6
Bearing Frame Lubrication Requirement
ISO Grade
VG 68
Approximate SSU
100°F (38°C)
300
DIN 51517
C68
Kinematic Viscosity at 40°C (105°F)
(mm2/sec)
68
Acceptable
Exxon
NUTO H68
Chevron
GTS Oil 68
Mobil
DTE 26
Gulf
Harmony
Shell
Tellus Oil 68
Phillips
Mangus Oil 315
Phillips
MM SAE 20-20W
Phillips
HDS SAE 20-20W
NOTE: This is a list of oils that meet the lubrication requirements of this pump. It is not intended to be an
endorsement of products listed nor exclude other oils that meet these requirements.
34
3298 Family Rev. 5/08
TROUBLESHOOTING
Table 7
Troubleshooting Pump
Problem /
Malfunction
Probable Cause
Remedy
3298-V 3298
Pump not primed.
Add initial charge to casing.
SP 3298
No liquid
delivered
Pump not
producing rated
flow or head
Pump starts then
stops pumping
Bearings run hot
Pump is noisy or
vibrates
3298 Family Rev. 5/08
Reprime pump, check that pump and suction
line are full of liquid.
Suction lift greater than maximum allowable
- raise sump level.
Suction line clogged.
Check suction line pressure. If low,
locate and remove obstructions.
Impeller clogged with foreign material.
Disassemble and remove blockage.
Magnet de-coupling.
Shut down. Check temperature and
viscosity of pumpage.
Air leak in suction line.
Check for leakage and correct.
Impeller partly clogged.
Back flush pump to clean impeller.
Worn impeller rings.
Replace defective part as required.
Insufficient suction head.
Ensure that suction line shutoff valve is
fully open and line is unobstructed.
Check suction pressure.
Worn or broken impeller.
Inspect and replace if necessary.
Wrong Rotation.
Correct Wiring.
Improperly primed pump.
Reprime pump.
Air leak in suction line.
Check for leakage and correct.
Magnet de-coupling.
Shut down. Check temperature and
viscosity of pumpage.
Air or vapor pockets in suction line.
Rearrange piping as necessary, to
eliminate air pockets.
Improper lubrication.
Check lubricant for suitability and level.
Lube cooling.
Check cooling system.
Improper alignment.
Check pump alignment.
Improper pump / driver alignment.
Align shafts.
Partly clogged impeller causing imbalance.
Disassemble and remove blockage.
Broken or bent impeller or shaft.
Replace as required.
Base not rigid enough.
Tighten hold down bolts of pump and motor or adjust stilts.
Check grout.
Suction or discharge piping not anchored or
properly supported.
Anchor per Hydraulic Institute Standards recommendations
(Edition 14, centrigual pump section).
Pump is cavitating.
Increase NPSH available.
5
35
TROUBLESHOOTING, con't
Table 7
Troubleshooting Pump
Problem /
Malfunction
Motor requires
excessive power
Condition
monitoring device
shuts down pump
36
Probable Cause
Remedy
Head lower than rating. Pumps too much
liquid.
Intall throttle valve.
Liquid heavier than expected.
Check specific gravity and viscosity.
Head higher than rating, capacity at rating.
Check impeller diameter.
Rotating parts binding or severely worn.
Check internal wearing parts for proper clearances.
Wrong Rotation.
Correct wiring.
Damaged sleeve & thrust bearings.
Replace as required.
Plugged recirculation circuit.
Disassemble and remove blockage. Determine and correct
cause of blockage.
Recirculation liquid vaporization.
Check actual liquid temperature versus design temperature.
Check actual NPSH available versus design. Check minimum
flow requirement for pump size. Correct all as necessary.
Damaged containment shell.
Replace as required.
Magnets decoupled.
Check temperature and viscosity of pumpage.
Pump run dry.
Check control device for proper operation. Check suction line
for blockage. Reprime pump.
Excessive motor power.
System head lower than rating. Pumps too much liquid. Check
rotating parts for binding and wear. Liquid heavier than
expected.
3298 Family Rev. 5/08
Table 7A
Failure Symptoms Due to Dry Run Operation
Poor lubrication or dry run operation of 3298 liquid lubricated bearing surfaces results in a significant increase of heat generation. The
lack of cooling flow through the pump also causes significant temperature increase of the bearings. This temperature increase causes
damage to the surrounding parts as described and shown in Fig. 33: (Numbers in Fig. 33 correspond to numbers described below).
1.
The plastic surrounding the outboard thrust bearing may be melted.
2.
The plastic surrounding the carbon or silicon carbide impeller radial bearings may be melted.
3.
The plastic surrounding the inboard thrust bearings may be melted.
4.
If the impeller seizes on the shaft due to excessive heat, the shaft may spin in the shaft spider, wearing the inside diameter of
the shaft spider.
REMEDY
A.
Install dry run protection device like a power monitor (refer to appendix for more information on power monitors)
B.
Modify process system or controls to eliminate dry run operation.
C.
Change bearing material to DryGuard™ coated silicon carbide if silicon carbide bearings were initially installed in the pump.
Fig. 33
3298 Family Rev. 5/08
37
38
3298 Family Rev. 5/08
DISASSEMBLY& REASSEMBLY
REQUIRED TOOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
PREPARATION FOR DISASSEMBLY . . . . . . . . . . . . . . . . . 47
DISASSEMBLY
3298 XS Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
3298 S Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
3298 M Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
3298 L Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
SP 3298 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
V 3298 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
INSPECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
REASSEMBLY
3298 XS Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
3298 S Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
3298 M Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
3298 L Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
SP 3298 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
V 3298 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
SECTIONALS, PARTS LIST,
MATERIALS OF CONSTRUCTION . . . . . . . . . . . . . . . . 92-112
6
REQUIRED TOOLS
!
▲
WARNING
This pump contains extremely strong magnets. The
use of non-magnetic tools and work surface are
required.
Non-Magnetic Tools
·
·
9/16", 3/4" Socket wrench
5
5
" x 2" Hex Cap Screws (Qty = 3)
16
8
" x 4" Hex Cap Screws (Qty = 3)
Tool Kits
Tool kits have been created to insure easy assembly and
disassembly of 3298’s. Goulds recommends the use of
these kits by our customers
Non-metallic hammer
Tools
NOTE: Keep magnetic tools away from magnets.
·
·
·
·
·
·
·
·
Long T-handle Allen wrench - 3/16"
1/2", 9/16", 3/4" sockets
Table 8
3298 Tool Kit
XS
R298TK04
X
R298TK01
M
R298TK02
L
R298TK03
Socket wrench with minimum 4" extension
Screw drivers
Lip seal driver
Hammer
3298 Family Rev. 5/08
39
OPTIONAL TOOLS
Optional Tool Kit - #R298TK04 for XS Group
1 x 1½-5 Bearing Spider Installation Driver - Tool Number B03309A Qty. 1
Fig. 34
1½ x2-6 Bearing Spider Installation Driver - Tool Number B04370A Qty. 1
Fig. 35
40
3298 Family Rev. 5/08
Radial Bearing Installation Tool - Tool Number B03310A Qty. 1
Fig. 36
Bearing Press Support Tool - Tool Number A06872A
6
Fig. 37
Shaft Wrench - Tool Number A01676A
Fig. 38
3298 Family Rev. 5/08
41
OPTIONAL TOOL KIT - #R298TK01
for 3298 S Group Sizes 1 x 11 2-6, 1 x 11 2-8, 2 x 3-6
for SP 3298 S Group Sizes 1 x 11 2-6, 2 x 3-6
for V 3298 S Group Sizes 11 2 x 2-6, 11 2 x 2 - 8, 2 x 3-6
Bearing Spider Installation Driver - Tool Number B02496A Qty. 1
Fig. 39
Radial Bearing Installation Tool - Tool Number B02497A Qty. 1
Fig. 40
42
3298 Family Rev. 5/08
OPTIONAL TOOL KIT - #R298TK02
for 3298 M Group Pump Sizes 2 x 3-8, 3 x 4-7, 1 x 2-10
for V 3298 M Group Sizes 11 2 x 2-10
Bearing Spider Installation Driver - Tool Number B03147A, Qty 1
Fig. 41
Bearing Spider Installation Driver - Tool Number B03148A Qty. 1
Fig. 42
3298 Family Rev. 5/08
43
6
Radial Bearing Installation Tool - Tool Number B03149A Qty. 1
Fig. 43
Magnet Assembly/ Disassembly Guide Rods - Tool Number B03189A Qty. 2
Fig. 44
44
3298 Family Rev. 5/08
OPTIONAL TOOL KIT - #R298TK03
for L Group Pump Sizes 3 x 4-10, 4 x 6-10
Bearing Spider Installation Driver - Tool Number B03191A Qty. 1
Fig. 45
6
Radial Bearing Installation Tool - Tool Number B03175A Qty. 1
Fig. 46
3298 Family Rev. 5/08
45
Radial Bearing Installation Tool - Tool Number B03149A Qty. 1
Fig. 47
Magnetic Assembly/Disassembly Guide Rods - Tool Number B03189A Qty. 2
Fig. 48
46
3298 Family Rev. 5/08
PREPARATION FOR DISASSEMBLY
!
▲
build up of gases within the pump, sealing
! Asystem
and or process piping system may result in
an explosive environment within the pump or
process piping system. Ensure process piping
system, pump, and sealing system are properly
vented prior to operation.
!
▲
WARNING
The 3298 family of pumps often handles hazardous
and/or toxic fluids. Skin, eye and respiratory
protection required. Precautions must be taken to
prevent injury or environmental contamination.
Drain and decontaminate pump in accordance with
all federal, state, local, and company regulations.
of process liquid may result in creating an
! Leakage
explosive atmosphere. Follow all pump and seal
assembly procedures.
1.
Lock out power to driver.
2.
Shut off all valves controlling flow to and from pump.
3.
The pump should be drained and flushed before it is
removed from the piping. After isolating the pump
from the system, flush the pump using a compatible
liquid.
!
▲
WARNING
Ensure pump is isolated from system and pressure is
relieved before any plugs are removed or piping
disconnected.
4.
Disconnect all piping and auxiliary equipment.
5.
Remove coupling guard (For frame mounted
version).
6.
Remove coupling (For frame mounted version).
7.
Remove casing foot and frame / C-face motor support
foot bolts.
8.
Remove pump from baseplate.
9.
Drain Oil from frame mounted pump.
DECONTAMINATION PROCEDURE
10. Connect clean flush liquid supply to discharge
nozzle.
11. Devise a means of collecting flush liquid as it drains
out the drain connection.
12. Flush to remove residue.
6
WARNING
Failure to properly lift and support equipment could
result in serious injury or damage to pumps.
3298 Family Rev. 5/08
47
DISASSEMBLY
3298 XS GROUP DISASSEMBLY
!
▲
WARNING
Each component must be individually decontaminated using procedures in accordance with all
federal, state, local, and company environmental
regulations.
!
▲
3.
Grasp suction flange of casing and pull casing liquid
end free from magnet assembly (Fig. 49).
4.
Remove casing bolts (356A) (Fig. 49).
5.
Wrap a piece of emery cloth around the containment
shell (750) and secure with a large hose clamp (Fig. 50).
6.
Screw C-face motor support bolts (370B) into the
tapped holes of the clamp ring (141C) and tighten
evenly to remove containment shell. Remove O-ring
(412M) from containment shell (750) and discard.
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
NOTE: When working on pump, use a bench with a
non-magnetic work surface such as wood or brass
surface.
$
CAUTION
The shop area must be clean and free of any substances that would contaminate the magnets, ex.
ferrous metals.
1.
Secure the C-face motor support (228) to workbench.
2.
Remove 4 bolts (370B) from the C-face motor
support (228) (Fig. 49).
Fig. 50
7.
Remove hose clamp and emery cloth.
Fig. 49
48
3298 Family Rev. 5/08
8.
Remove impeller assembly (101) (Fig. 51).
9.
Remove shaft (122A) if replacement is necessary
(Fig. 51).
10. Inspect bearing spider (101A). Press out through
suction of casing (100) if replacement is necessary
(Fig. 51).
12. When replacement of the close coupled drive magnet
assembly (740B) is required, remove and discard the
nylok set screws (222L). Use a puller and the 2 3/8" tapped holes provided to remove the magnet
assembly from the motor shaft.
Fig. 51
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet {one (1) meter}. Serious injury to
fingers and hands will result.
Fig. 52
11. Press out radial bearing (197B) from impeller
assembly (101) utilizing the bearing tool if
replacement is necessary (Fig. 52).
3298 Family Rev. 5/08
49
6
3298 S GROUP DISASSEMBLY
!
▲
WARNING
Each component must be individually decontaminated using procedures in accordance with all
federal, state, local, and company environmental
regulations.
!
▲
5.
Wrap a piece of emery cloth around the containment
shell (750) and secure with a large hose clamp (Fig. 54).
6.
Screw C-face motor support / bearing frame bolts
(370B) into the tapped holes of the clamp ring
(141C) and tighten evenly to remove containment
shell. Remove O-ring (412M) from containment
shell (750) and discard.
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
NOTE: When working on pump, use a bench with a
non-magnetic work surface such as wood or brass
surface.
$
CAUTION
The shop area must be clean and free of any
substances that would contaminate the magnets, ex.
ferrous metals.
1.
2.
Secure the C-face motor support / bearing frame
(228) to workbench.
Remove four bolts (370B) from the C-face motor
support / bearing frame (228) (Fig. 53).
Fig. 54
7.
Remove hose clamp and emery cloth.
8.
Remove impeller assembly (101) (Fig. 55).
9.
Remove shaft (122A) if replacement is necessary
(Fig. 55).
10. Inspect bearing spider (101A) and press out through
suction of casing (100) if replacement is necessary
(Fig. 55).
Fig. 53
3.
Grasp suction flange of casing and pull casing liquid
end free from magnet assembly (Fig. 53).
4.
Remove casing bolts (356A) (Fig. 53).
50
Fig. 55
3298 Family Rev. 5/08
!
▲
14. Place shaft wrench on drive shaft (122B) and remove
the hex nut (355A) (Fig. 57).
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
11. Press out radial bearings (197B) from impeller
assembly (101) utilizing the bearing tool if
replacement is necessary (Fig. 56).
Fig. 57
15. Place three 5 16" x 2" cap screws in jacking screw
holes in magnet assembly (740B) (Fig. 58).
Jacking Screws
6
Fig. 56
Fig. 58
12. Remove reverse thrust bearing (197C) from
containment shell (750) if replacement is necessary.
16. Tighten jacking screws evenly and in sequence until
the magnet assembly (740B) can be removed.
13. When replacement of the close coupled drive magnet
assembly (740B) is required, remove and discard the
nylok set screws (222L). Use a puller and the 2 3/8" tapped holes provided to remove the magnet
assembly from the motor shaft.
17. Remove magnet assembly (740B) and set aside away
from attracting metals (Fig. 59).
This completes disassembly of the 3298
close coupled version. If disassembly of
the 3298 frame mounted version is
required proceed to Step 14.
Fig. 59
3298 Family Rev. 5/08
51
18. Remove bearing end cover bolts (370C) (Fig. 60).
25. Remove lip seal (333D) as shown (Fig. 62).
19. Install two end cover bolts (370C) in jacking screw
holes, tighten evenly to remove bearing end cover
(109A).
20. Slide bearing end cover (109A) back. Labyrinth oil
seal (332A) will slide back with the end cover.
21. Remove labyrinth seal (332A) (Fig. 60).
22. Remove bearing end cover (109A). Remove gasket
(360A) and discard (Fig. 60).
Fig. 62
This completes disassembly of the 3298
S frame mounted version.
Fig. 60
23. Remove drive shaft (122B) with ball bearings (112)
from bearing frame (228) (Fig. 61).
Fig. 61
24. Press bearings (112) off shaft and inspect.
52
3298 Family Rev. 5/08
3298 M GROUP DISASSEMBLY
!
▲
WARNING
Each component must be individually decontaminated using procedures in accordance with all
federal, state, local, and company environmental
regulations.
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
3.
Tighten jacking screws (418) until gap between
clamp ring (141C) and C-face motor support bearing
frame is 3.5 inches. Then grasp suction flange of
casing and pull casing liquid end free from magnet
assembly (Fig. 63).
4.
Remove casing bolts (356A).
5.
Wrap a piece of emery cloth around the containment
shell (750) and secure with a large hose clamp (Fig. 64).
6.
Screw C-face motor support / bearing frame bolts
(370B) into the tapped holes of the clamp ring
(141C) and tighten evenly to remove containment
shell. Remove O-ring (412M) from containment
shell (750) and discard.
NOTE: When working on pump, use a bench with a
non-magnetic work surface such as wood or brass
surface.
$
CAUTION
The shop area must be clean and free of any
substances that would contaminate the magnets, ex.
ferrous metals.
1.
Secure the C-face motor support / bearing frame
(228) to workbench.
2.
Remove four bolts (370B) from the C-face motor
support/bearing frame (228) (Fig. 63)
6
Fig. 64
7.
Remove hose clamp and emery cloth.
Motor Not Shown
Fig. 63
3298 Family Rev. 5/08
53
8.
Remove impeller assembly (101) (Fig. 65).
9.
Remove shaft (122A) if replacement is necessary
(Fig. 65).
10. Inspect bearing spider (101A) and press out through
suction of casing (100) if replacement is necessary
(Fig. 65).
12. Inspect rear impeller wear ring (203) and remove if
replacement is necessary.
13. Remove reverse thrust bearing (197C) from
containment shell (750) if replacement is necessary.
14. When replacement of the close coupled drive magnet
assembly (740B) is required, remove and discard the
nylok set screws (222L). Use a puller and the 2 3/8" tapped holes provided to remove the magnet
assembly from the motor shaft.
This completes disassembly of the 3298
close coupled version. If disassembly of
the 3298 frame mounted version is
required proceed to Step 15.
15. Place shaft wrench on drive shaft (122B) and remove
the hex nut (355A) (Fig. 67).
Fig. 65
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
11. Press out radial bearings (197B) from impeller
assembly (101) utilizing the bearing tool if
replacement is necessary (Fig. 66).
Fig. 67
16. Place three 5 8" x 4" cap screws in jacking screw holes
in magnet assembly (740B) (Fig. 68). Note: M
group sizes have rub rings. Reference sectionals in
the Dissassembly & Reassembly Section.
Jacking Screws
Fig. 68
Fig. 66
54
3298 Family Rev. 5/08
17. Tighten jacking screws evenly and in sequence until
the magnet assembly (740B) can be removed.
27. Press bearings (112) off shaft and inspect.
28. Remove lip seal (333D) as shown (Fig. 73).
18. Remove magnet assembly (740B) and set aside away
from attracting metals (Fig. 69).
Fig. 71
Fig. 69
19. Remove 5 16" rub ring cap screw (372Y) from bottom
of bearing frame (228). (Fig. 70)
20. Remove rub ring (144A) from bearing frame
(228) (Fig. 70).
6
Fig. 72
Fig. 70
21. Remove bearing end cover bolts (370C) (Fig. 71).
22. Install two end cover bolts (370C) in jacking screw
holes, tighten evenly to remove bearing end cover
(109A).
23. Slide bearing end cover (109A) back. Labyrinth oil
seal (332A) will slide back with the end cover.
24. Remove labyrinth seal (332A) (Fig. 71).
Fig. 73
25. Remove bearing end cover (109A). Remove gasket
(360A) and discard (Fig. 71).
26. Remove drive shaft (122B) with ball bearings (112)
and wave washer (529) (Fig. 72).
3298 Family Rev. 5/08
This completes disassembly of the 3298
M frame mounted version.
55
3298 L GROUP DISASSEMBLY
!
▲
WARNING
!
▲
WARNING
6.
Each component must be individually decontaminated using procedures in accordance with all
federal, state, local and company environmental
regulations.
Screw C-face motor support / bearing frame bolts
(370B) into the tapped holes of the clamp ring
(141C) and tighten evenly to remove containment
shell. Remove O-ring (412M) from containment
shell (750) and discard.
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
NOTE: When working on pump, use a bench with a
non-magnetic work surface such as wood or brass
surface.
$
Fig. 75
CAUTION
The shop area must be clean and free of any
substances that would contaminate the magnets, ex.
ferrous metals.
1.
Secure the C-face motor support / bearing frame
(228) to workbench.
2.
Remove four bolts (370B) from the C-face motor
support/bearing frame (228) (Fig. 74).
7.
Remove hose clamp and emery cloth.
8.
Remove impeller assembly (101) (Fig. 76).
9.
Remove shaft (122A) if replacement is necessary
(Fig. 76).
10. Inspect bearing spider (101A) and press out through
suction of casing (100) if replacement is necessary
(Fig. 76).
Motor Not Shown
Fig.
Fig. 74
74
3.
Tighten jacking screws (418) until gap between
clamp ring (141C) and C-face motor support bearing
frame is 3.5 inches. Then grasp suction flange of
casing and pull casing liquid end free from magnet
assembly (Fig. 74).
4.
Remove casing bolts (356A).
5.
Wrap a piece of emery cloth around the containment
shell (750) and secure with a large hose clamp (Fig. 75).
56
Fig. 76
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
3298 Family Rev. 5/08
11. Press out radial bearings (197B) from impeller
assembly (101) utilizing the bearing tool if
replacement is necessary (Fig. 77).
Fig. 79
16. Place shaft wrench on drive shaft (122B) and remove
the hex nut (355A) (Fig. 79).
Jacking Screws
Fig. 77
12. Inspect rear impeller wear ring (203) and remove if
replacement is necessary.
13. Remove retaining ring (361H). Slide or press driven
magnet assembly (740A) off impeller assembly (101)
(Fig. 78).
Fig. 80
17. Place three 5 8" x 4" cap screws in jacking screw holes
in magnet assembly (740B) (Fig. 80). Note: L
group sizes have rub rings. Reference sectionals in
Disassembly/Reassembly section.
18. Tighten jacking screws evenly and in sequence until
the magnet assembly (740B) can be removed.
19. Remove magnet assembly (740B) and set aside away
from attracting metals (Fig. 81).
Fig. 78
14. Remove reverse thrust bearing (197C) from
containment shell (750) if replacement is necessary.
15. When replacement of the close coupled drive magnet
assembly (740B) is required, remove and discard the
nylok set screws (222L). Use a puller and the 2 - 3/8"
tapped holes provided to remove the magnet assembly
from the motor shaft.
This completes disassembly of the 3298
close coupled version. If disassembly of
the 3298 frame mounted version is
required, proceed to Step 16.
3298 Family Rev. 5/08
Fig. 81
57
6
20. Remove 5 16" rub ring cap screw (372Y) from bottom
of bearing frame (228) (Fig. 82).
27. Remove drive shaft (122B) with ball bearings (112)
and wave washer (529) (Fig. 84).
Fig. 82
Fig. 84
21. Remove rub ring (144A) from bearing frame
(228) (Fig. 82).
28. Press bearings (112) off shaft and inspect.
22. Remove bearing end cover bolts (370C) (Fig. 83).
29. Remove lip seal (333D) as shown (Fig. 85).
23. Install two end cover bolts (370C) in jacking screw
holes, tighten evenly to remove bearing end cover
(109A).
24. Slide bearing end cover (109A) back. Labyrinth oil
seal (332A) will slide back with the end cover.
25. Remove labyrinth seal (332A) (Fig. 83).
26. Remove bearing end cover (109A). Remove gasket
(360A) and discard (Fig. 83).
Fig. 85
This completes disassembly of the 3298
L frame mounted version.
Fig. 83
58
3298 Family Rev. 5/08
SP 3298 DISASSEMBLY
!
▲
WARNING
!
▲
WARNING
Each component must be individually decontaminated using procedures in accordance with all
federal, state, local, and company environmental
regulations.
5.
Remove the backplate bolts (372V) (Fig. 87).
6.
Thread casing bolts (372V) into tapped holes in
backplate (444) and tighten evenly to remove the
backplate / clamp ring assembly from the casing
(100). Remove the O-ring (412V) from the backplate
and discard (Fig. 87).
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
372V
NOTE: When working on pump, use a bench with a
non-magnetic work surface such as wood or brass
surface.
$
CAUTION
The shop area must be clean and free of any
substances that would contaminate the magnets, ex.
ferrous metals.
Fig. 87
Secure the C-face motor support / bearing frame
(228) to workbench.
7.
Remove impeller assembly (101) (Fig. 88).
8.
Remove clamp ring bolts (356A).
2.
Remove four bolts (370B) from the C-face motor
support / bearing frame (228) (Fig. 86).
9.
3.
Grasp suction flange of casing and pull casing liquid
end free from magnet assembly (Fig. 86).
Screw C-face motor support / bearing frame bolts
(370B) into the tapped holes of the clamp ring
(141C) and tighten evenly to remove containment
shell. Remove O-ring (412M) from containment
shell (750) and discard (Fig. 88).
1.
6
Fig. 88
Fig. 86
10. Remove hose clamp and emory cloth.
4.
Wrap a piece of emery cloth around the containment
shell (750) and secure with a large hose clamp (Fig. 87).
3298 Family Rev. 5/08
11. Remove shaft (122A) from the containment shell if
replacement is necessary (Fig. 89).
59
12. Remove volute insert (100U) from casing (100) (Fig. 89).
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
13. Inspect bearing spider (101A) and press out through
volute insert if replacement is necessary (Fig. 89).
!
▲
WARNING
Fig. 90
80
15. Remove reverse thrust bearing (197C) from
containment shell (750) if replacement is necessary.
16. When replacement of the close coupled drive magnet
assembly (740B) is required, remove and discard the
nylok set screws (222L). Use a puller and the 2 3/8" tapped holes provided to remove the magnet
assembly from the motor shaft.
Fig. 89
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
This completes disassembly of the 3298
close coupled version. If disassembly of
the 3298 frame mounted version is
required, proceed to Step 17.
17. Place shaft wrench on drive shaft (122B) and remove
the hex nut (355A) (Fig. 91).
14. Press out radial bearings (197B) from impeller
assembly (101) utilizing the bearing tool if
replacement is necessary (Fig. 90).
Fig. 91
60
3298 Family Rev. 5/08
18. Place three 5 16" x 2" cap screws in jacking screw
holes in magnet assembly (740B) (Fig. 92).
19. Tighten jacking screws evenly and in sequence until the
magnet assembly (740B) can be removed.
Jacking Screws
Fig. 94
Fig. 92
20. Remove magnet assembly (740B) and set aside away
from attracting metals (Fig. 93).
6
Fig. 95
Fig. 93
21. Remove bearing end cover bolts (370C) (Fig. 94).
22. Install two end cover bolts (370C) in jacking screw
holes, tighten evenly to remove bearing end cover
(109A).
23. Slide bearing end cover (109A) back. Labyrinth oil
seal (332A) will slide back with the end cover.
24. Remove labyrinth seal (332A) (Fig. 94).
25. Remove bearing end cover (109A). Remove gasket
(360A) and discard (Fig. 94).
26. Remove drive shaft (122B) with ball bearings (112)
from bearing frame (228) (Fig. 95).
27. Press bearings (112) off shaft and inspect.
Fig. 96
This completes disassembly of the
SP 3298 S frame mounted version.
28. Remove lip seal (333D) as shown (Fig. 95).
3298 Family Rev. 5/08
61
V 3298 DISASSEMBLY
!
▲
WARNING
Each component must be individually decontaminated using procedures in accordance with all
federal, state, local, and company environmental
regulations.
!
▲
4.
Remove casing bolts (356A) (Fig. 97)
5.
Wrap a piece of emery cloth around the containment
shell (750) and secure with a large hose clamp (Fig. 98).
6.
Screw C-face motor support / bearing frame bolts
(370B) into the tapped holes of the clamp ring
(141C) and tighten evenly to remove containment
shell. Remove O-ring (412M) from containment
shell (750) and discard.
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
NOTE: When working on pump, use a bench with a
non-magnetic work surface such as wood or brass
surface.
$
CAUTION
The shop area must be clean and free of any
substances that would contaminate the magnets, ex.
ferrous metals.
Fig. 98
1.
Secure the casing (100) to workbench.
2.
Remove 4 bolts (370B) from the C-face motor
support / bearing frame (228) (Fig. 97).
7.
Remove hose clamp and emery cloth.
Fig. 97
3.
62
Grasp motor adapter and pull free from casing (Fig. 97).
3298 Family Rev. 5/08
8.
Remove impeller assembly (101) (Fig. 99).
9.
Remove shaft (122A) if replacement is necessary
(Fig. 99).
10. Inspect bearing spider (101A) and pull out from
casing (100) using spider removal tool if replacement
is necessary (Fig. 99).
Fig. 100
This completes disassembly of the V
3298 close coupled version.
6
Fig. 99
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result.
11. Press out radial bearings (197B) from impeller
assembly (101) utilizing the bearing tool if
replacement is necessary (Fig. 100).
12. Remove reverse thrust bearing (197C) from
containment shell (750) if replacement is necessary.
13. When replacement of the close coupled drive magnet
assembly (740B) is required, remove and discard the
nylok set screws (222L). Use a puller and the 2 3/8” tapped holes provided to remove the magnet
asembly from the motor shaft.
3298 Family Rev. 5/08
63
INSPECTIONS
Model 3298 parts must be inspected to the following criteria
before reassembly to ensure pump will run properly. Any
part not meeting required criteria should be replaced.
CASING (100)
1.
Casing (100) should be inspected for excessive wear,
abrasive damage, cut or a loose liner.
VOLUTE INSERT (SP 3298 Only)
1.
Volute insert (100U) should be inspected for excessive
wear, abrasive damage or cut surfaces.
SPIDER (101A)
1.
Spider Bearing should be inspected for cracks, chips,
or scoring.
IMPELLER (101)
1.
Inspect leading and trailing edges of vanes for
erosion damage.
2.
Inspect impeller for cracks and grooves in excess of
.030 in. (.75 mm).
3.
Check for blocked passages.
*and L Group Sizes Only -
For M
2 x 3-8, 3 x 4-7, 1 x 2-10, 4 x 6-10
BACKPLATE (SP 3298 Only)
1.
Fig. 102
Backplate (444) should be inspected for excessive wear,
abrasive damage, cut or a loose liner.
BACK WEAR RING (203)
1.
Inspect back wear ring per following table:
Table 9
INSPECTION LOCATIONS:
Diametrical Back Wear Ring Clearances
New
Replace
Clearance
at
Size
in. (mm) in. (mm)
1 x 1½-5
1½ x 2-6
1 x 1 12-6
1 x 1½-7
1 x 1½-8
Wear Ring to
Containment
Shell
Location A
Ref. Fig. 101 /
102
Fig. 101
No Wear Ring No Wear Ring
2 x 3-6
1½ x 3-8
1 x 1 12-8
3 x 4-7
2 x 3-8
1 x 2-10
1½ x 3-10
2 x 3-10
3 x 4-10H
3 x 4-10G
0.060/0.066
(1.52/1.68)
0.090
(2.3)
0.060/0.070
(1.52/1.78)
0.094
(2.4)
4 x 6-10
NOTE: S group sizes 1 x 1 1 2-6, 1 x 1 1 2-8, 2 x 3-6 do
64
3298 Family Rev. 5/08
CONTAINMENT SHELL (750)
not have wear ring (203).
RADIAL BEARING (197B)
1.
Inspect bearings for cracks or chips.
2.
Inspect dimensions per Table 10:
Table 10
Diametric Bearing Clearances
New
Clearance
in. (mm)
Replace at
in. (mm)
Shaft to Bearing
.003 - .006
.012
Location B
Ref. Fig. 85 & 85A
(.076 - .152)
(.305)
1.
Must be free from scratches or cracks.
2.
Grooves in excess of .010 in. (.25 mm) for the
outside diameter and .030 in (.75mm) for the inside
diameter require containment shell replacement.
3.
Shaft (122A) should fit snug into containment shell.
MAGNET ASSEMBLY (740B)
!
▲
REVERSE THRUST BEARING
(197C)
Inspect bearing for cracks, chips, or scoring. If minimum
groove height is less than the minimum height recommended, then replace (Fig. 103).
IMPELLER THRUST BEARING
(197D)
Inspect bearing for cracks, chips, and scoring.
If minimum groove height is less than the minimum
height recommended, then replace (Fig. 103).
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meter]. Serious injury to
fingers and hands will result .
NOTE: The magnets are extremely brittle. It is
normal to have chips (up to 10% of the magnet
surface) per MMPA standard no. 0100-90.
1.
Magnets must be free of major cracks (extending over
50% of surface) and also free of imperfections that
create loose particles.
2.
If magnet assembly (740B) was exposed to product,
it should be replaced.
3.
Inspect assembly for cracks and replace if any are
found.
4.
Inspect magnets for proper bonding to carrier.
BEARING FRAME (228) - Frame
Mounted Version Only
.020 Min. Groove Height
Fig. 103
1.
Visually inspect frame and frame foot for cracks.
2.
Inspect for corrosion or pitting of frame and/or rub
ring if parts have been exposed to pumpage.
3.
Inspect frame bearing bores. The maximum
acceptable bore is 2.4419 in. (62.024 mm) for
S group size pumps and 2.8353 in. (72.017 mm) for
M and L group size pumps.
4.
Inspect ball bearings for contamination and damage.
5.
Make sure gasket surfaces are clean.
6.
Visually inspect bearing end cover (109A) for cracks
and pits. Gasket surface must be clean.
7.
Replace lip seal (332A).
8.
Visually inspect shaft (122B) for cracks and scoring.
STATIONARY SHAFT (122A)
Shaft should be free from cracks and scoring.
3298 Family Rev. 5/08
65
6
3298 REASSEMBLY
3298 XS GROUP REASSEMBLY
$
Refer to Table 11 for torque values while reassembling
pump.
Use caution when using a hydraulic press as you
cannot feel when the bearing hits the bottom of the
bore.
Table 11
*Bolt Torque Table
Ft-Lbs (Nm)
Location
NOTE: On occasion, the action of pressing the radial
bearings into the impeller may cause some ETFE to
peel. If this occurs, press out the bearings, remove
any ETFE filings, and then press the bearings back
into the impeller.
Dry
Threads
Hex Nut - 355A
30 (40)
Clamp Ring Screws - 356A
30 (40)
Support / Frame Screws - 370B
30 (40)
Cover to Frame - 370C
30 (40)
Drain Screws - 426A XS, S
14 (19)
Drain Screws - 426A M, L
* Torque values based on Dry Threads
18(25)
!
▲
CAUTION
2.
Turn impeller over and install impeller thrust bearing
(197D). Line up the two slots in the impeller thrust
bearing to the two tabs in the impeller (Fig. 105).
WARNING
The magnets contained in this unit are extremely
powerful. Keep magnetic drive components and
magnetic tools apart from each other by a minimum
of three (3) feet [one (1) meters]. Serious injury to
fingers and hands will result.
1.
Lubricate the outside of the radial bearing. Press the
radial bearing (197B) into impeller utilizing the
bearing installation tool. Support impeller with
bearing press support tool, as shown. Line up
keyway in bearing with key in impeller (Fig. 104).
Fig. 105
3.
Press shaft (122A) into containment shell (750)
(Fig. 106).
4.
Coat O-ring (412M) with O-ring lubricant. The
lubricant is used to help the O-ring remain in place.
Insert O-ring in containment shell (750). (Fig. 106).
Fig. 104
Fig. 106
66
3298 Family Rev. 5/08
5.
Slide impeller assembly (101) onto shaft (Fig. 107).
Fig. 107
6.
Press spider (101A) into casing (100) with spider
tool (Fig. 108).
Fig. 109
9.
Install clamp ring (141C) to casing (100) with 6 hex
cap screws (356A) (Fig. 109).
6
Fig. 108
7.
8.
Check rotary assembly total travel. See Fig. 109 for
the appropriate measurements needed. For the XS
pump, total travel is A - B and should be 0.026 0.083 in. (0.66-2.11 mm).
Install containment shell / impeller assembly into
casing (100). Use care that the O-ring (412M)
remains in place.
!
▲
Fig. 110
10. Set partially built assembly aside well away from
attracting metals.
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
3298 Family Rev. 5/08
67
11. For use with 143TC/145TC motor frames. Install
four expansion plugs (408Z) into C-face motor
support (228) by tapping on the plug with a 5/8" rod
(Fig. 111).
17. Remove the shim. Rotate the magnet assembly 90°
to access the other set screw. Tighten.
Fig. 111
Fig. 103
113
For motor frames 182TC - 256TC expansion plugs are
not used.
12. Set C-face motor support (228) on motor. Install 4
screws (371).
13. Slide key (178Y) into motor shaft keyway.
14. Install 2 set screws (222L) into magnet assembly
(740B) (Fig. 112).
Fig. 114
Final Assembly for close coupled and
frame mounted versions
18. Bolt down C-face support / frame (228) to work
bench if not already done so.
!
▲
Fig. 112
15. Install magnet assembly inside the C-face motor
support by sliding an 1/8" shim into the groove/
notch located in the side of the magnet assembly.
Slowly drop in the magnet assembly until the shim is
resting on the face of the C-face motor support (Fig.
113). Reference Fig. 114 for installation dimensions.
16. Rotate the magnet assembly (740B) to line up the key
(178Y) with the access hole on the C-face motor
support (228). Tighten the first set screw (222L)
through the access hole.
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
19. Slide casing assembly into C-face support / bearing frame
assembly by holding casing firmly by the suction flange
and suction side of the discharge flange. Keep hands
away from clamp ring to avoid pinched fingers. Slowly
insert to avoid damage.
20. Secure with 4 hex cap screws (370B). Tighten.
shaft by hand to ensure it rotates smoothly
! Rotate
and there is no rubbing which could lead to excess
heat generation and or sparks.
This completes XS group assembly.
68
3298 Family Rev. 5/08
3298 S GROUP REASSEMBLY
1.
Slide key (178S) into impeller (101). To hold key in
place, stake impeller at end of key (Fig. 115). Use a
center punch.
3.
Slide bearing spacer (157A) into impeller (Fig. 117).
4.
Press second radial bearing (197B) into impeller
(Fig. 117).
5.
Turn impeller over and install impeller thrust bearing
(197D). Line up the two slots in the impeller thrust
bearing to the two tabs in the impeller (Fig. 117).
Fig. 115
2.
Lubricate the outside of both radial bearings. Press
the first radial bearing (197B) into impeller utilizing
the bearing installation tool. Support impeller as
shown. Line up keyway in bearing with key in
impeller (Fig. 116).
Fig. 117
6.
Slide reverse thrust bearing (197C) on shaft (122A).
7.
Press shaft (122A) into containment shell (750)
(Fig. 118).
8.
Coat O-ring (412M) with O-ring lubricant. The
lubricant is used to help the O-ring remain in place.
Insert O-ring in containment shell (750) (Fig. 118).
Fig. 116
$
CAUTION
Fig. 118
Use caution when using a hydraulic press as you
cannot feel when the bearing hits the bottom of the
bore.
NOTE: On occasion, the action of pressing the radial
bearings into the impeller may cause some ETFE to
peel. If this occurs, press out the bearings, remove
any ETFE filings, and then press the bearings back
into the impeller.
3298 Family Rev. 5/08
69
6
9.
Slide impeller assembly (101) onto shaft (Fig. 119).
12. Install containment shell / impeller assembly into
casing (100). Use care that the O-ring (412M)
remains in place.
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
13. Install clamp ring (141C) to casing (100) with six
hex cap screws (356A) (Fig. 122).
Fig. 119
10. Press spider (101A) into casing (100) with spider
tool (Fig. 120).
BEARING SPIDER
INSTALLATION DRIVER
Fig. 122
14. Set partially built assembly aside well away from
attracting metals. Continue assembly with the close
coupled or frame mounted version of assembly as
described below.
Fig. 120
11. Check rotary assembly total travel. See Fig. 121
below for the appropriate measurements needed. For
the S pump, total travel is A - B and should be
0.013 - 0.100 in. (0.33 - 2.5 mm).
Close Coupled Assembly
15. For use with 143TC/145TC motor frames. Install 4
expansion plugs (408Z) into C-face motor support (228)
by tapping on the plug with a 5/8" rod (Fig. 123).
Fig. 123
For motor frames 182TC - 256TC expansion plugs are
not used.
Fig. 121
70
16. Set C-face motor support (228) on motor. Install 4
screws (371).
17. Slide key (178Y) into motor shaft keyway.
3298 Family Rev. 5/08
18. Install two set screws (222L) into magnet assembly
(740B) (Fig. 124).
This completes the assembly of a closed coupled drive
end. Proceed to Step 24.
Frame Mounted Assembly
15. Install ball bearings (112) on shaft (122B) at both
ends.
NOTE: There are several methods used to install
bearings. The preferred method is to use an
induction heater that heats as well as demagnetizes
the bearings.
16. Install the lipseal (333D) in bearing frame (228)
(Fig. 127).
Fig. 124
19. Install magnet assembly inside the C-face motor
support by sliding a 1/8" shim into the groove/ notch
located in the side of the magnet assembly. Slowly
drop in the magnet assembly until the shim is resting
on the face of the C-face motor support (Fig. 125).
Reference Fig. 126 for installation dimensions.
6
Fig. 127
17. Bolt or clamp bearing frame (228) to work bench
(Fig. 128).
Fig. 125
Fig. 126
20. Rotate the magnet assembly (740B) to line up the key
(178Y) with the access hole on the C-face motor
support (228). Tighten the first set screw (222L)
through the access hole.
Fig. 128
21. Remove the shim. Rotate the magnet assembly 90°
to access the other set screw. Tighten.
3298 Family Rev. 5/08
71
18. Install shaft (122B) with ball bearings (112) into
bearing frame (228). The threaded end of the shaft
goes toward the magnets (Fig. 129).
!
▲
WARNING
Use non-magnetic socket and wrench to avoid
personal injury or damage to parts.
22. Install magnet assembly (740B) onto shaft (122B)
(Fig. 131).
Fig. 129
NOTE: It may be necessary to lightly press shaft
with bearings into the bearing frame (228). It is
important to press the bearings in by putting a sleeve
on the inner race of the outboard ball bearing.
19. Install bearing end cover gasket (360A) and bearing end
cover (109A) with hex cap screws (370C) (Fig. 130).
Fig. 131
$
CAUTION
Do NOT hammer magnet assembly (740B) on to
shaft. This will damage ball bearings (112).
23. Place shaft wrench on drive shaft (122B). Install hex
nut (355A). Torque nut per Torque Table 11 in this
section.
Final Assembly for Close Coupled and
Frame Mounted Versions
24. Install gasket (360W) into the clamp ring (141C).
25. Bolt down C-face support / frame (228) to
workbench if not already done so.
!
▲
Fig. 130
NOTE: Bolt pattern for the bearing end cover
(109A) is not symmetric so the bearing end cover
gasket (360A) and bearing end cover (109A) can only
go on one way. This ensures that the oil return slot
will always be down.
20. Press labyrinth seal (332A) into end cover (109A).
Ensure O-rings are in grooves of labyrinth seal. Orient
expulsion ports to the 6 o’clock position and press into
bearing end cover (109A) until it is shouldered against
end cover. No adjustment is necessary.
NOTE: Ensure shaft O-ring, grooves, shaft keyways
and keyway in frame are free of burrs.
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
26. Slide casing assembly into C-face support / bearing frame
assembly by holding casing firmly by the suction flange
and suction side of the discharge flange. Keep hands
away from clamp ring to avoid pinched fingers. Slowly
insert to avoid damage.
27. Secure with four hex cap screws (370B). Tighten.
shaft by hand to ensure it rotates smoothly
! Rotate
and there is no rubbing which could lead to excess
heat generation and or sparks.
This completes S group assembly.
21. Install key (178Y) on shaft (122B) (Fig. 131).
72
3298 Family Rev. 5/08
3298 M GROUP REASSEMBLY
1.
Slide key (178S) into impeller (101). To hold key in
place, stake impeller at end of key (Fig. 132). Use a
center punch.
3.
Slide bearing spacer (157A) into impeller (Fig. 134).
4.
Press second radial bearing (197B) into impeller
(Fig. 134).
5.
Press back impeller wear ring (203) into impeller
assembly (Fig. 134).
6.
Turn impeller over and install impeller thrust bearing
(197D). Line up the two slots in the impeller thrust
bearing to the two tabs in the impeller (Fig. 134).
Fig. 132
2.
Lubricate the outside of both radial bearings. Press
the first radial bearing (197B) into impeller utilizing
the bearing installation tool. Support impeller as
shown. Line up keyway in bearing with key in
impeller (Fig. 133).
Fig. 134
7.
Slide reverse thrust bearing (197C) on shaft (122A).
8.
Press shaft (122A) into containment shell (750)
(Fig. 135).
9.
Coat O-ring (412M) with O-ring lubricant. The
lubricant is used to help the O-ring remain in place.
Insert O-ring in containment shell (750) (Fig. 135).
Fig. 133
$
CAUTION
Fig. 135
Use caution when using a hydraulic press as you
cannot feel when the bearing hits the bottom of the
bore.
NOTE: On occasion, the action of pressing the radial
bearings into the impeller may cause some ETFE to
peel. If this occurs, press out the bearings, remove
any ETFE filings, and then press the bearings back
into the impeller.
3298 Family Rev. 5/08
73
6
10. Slide impeller assembly (101) onto shaft (Fig. 136).
13. Install containment shell / impeller assembly into
casing (100). Use care that the O-ring (412M)
remains in place.
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
14. Install clamp ring (141C) to casing (100) with eight
hex cap screws (356A) (Fig. 139).
Fig. 136
11. Press spider (101A) into casing (100) with spider
tool (Fig. 137).
BEARING SPIDER
INSTALLATION DRIVER
Fig. 139
Fig. 137
12. Check rotary assembly total travel. See Fig. 138
below for the appropriate measure- ments needed.
For the M pump, total travel should be 0.020 - 0.105
in. (0.51 - 2.67 mm).
15. Set partially built assembly aside well away from
attracting metals. Continue assembly with the close
coupled or frame mounted version of assembly as
described below.
Close Coupled Assembly
16. For motor frames 284TSC - 286TSC install four
expansion plugs (408Z) into C-face motor support
(228) by tapping on the plug with a 1" rod (Fig. 140).
Fig. 140
For motor frames 182TC - 256TC and motor frame
324TSC expansion plugs are not used.
Fig. 138
17. Set C-face motor support (228) on motor. Install
four screws (371).
18. Slide key (178Y) into motor shaft keyway.
74
3298 Family Rev. 5/08
19. Install two set screws (222L) into magnet assembly
(740B) (Fig. 141).
22. Remove the shim. Rotate the magnet assembly 90°
to access the other set screw. Tighten.
This completes the assembly of a closed
coupled drive end. Proceed to Step 27.
Frame Mounted Assembly
16. Install ball bearings (112) on shaft (122B) at both
ends.
NOTE: There are several methods used to install
bearings. The preferred method is to use an
induction heater that heats as well as demagnetizes
the bearings.
Fig. 141
17. Install the lipseal (333D) in bearing frame (228)
(Fig. 144).
20. Install magnet assembly inside the C-face motor
support by sliding a 1/8" shim into the groove/notch
located in the side of the magnet assembly. Slowly
drop in the magnet assembly until the shim is resting
on the face of the C-face motor support (Fig. 142).
Reference Fig. 143 for installation dimensions.
6
Fig. 144
Fig. 142
18. Bolt or clamp bearing frame (228) to work bench
(Fig. 145).
Fig. 143
21. Rotate the magnet assembly (740B) to line up the key
(178Y) with the access hole on the C-face motor
support (228). Tighten the first set screw (222L)
through the access hole.
3298 Family Rev. 5/08
Fig. 145
75
19. Install shaft (122B) with ball bearings (112) into
bearing frame (228). The threaded end of the shaft
goes toward the magnets (Fig. 146). Install wave
washer (529) (Fig. 147).
.
Fig. 148
Fig. 146
NOTE: Ensure shaft O-ring, grooves, shaft keyways
and keyway in frame are free of burrs.
22. Install key (178Y) on shaft (122B) (Fig. 149).
!
▲
WARNING
Use non-magnetic socket and wrench to avoid
personal injury or damage to parts.
23. Install magnet assembly (740B) onto shaft (122B)
(Fig. 149).
Fig. 147
NOTE: It may be necessary to lightly press shaft
with bearings into the bearing frame (228). It is
important to press the bearings in by putting a sleeve
on the inner race of the outboard ball bearing.
20. Install bearing end cover gasket (360A) and bearing
end cover (109A) with hex cap screws (370C)
(Fig. 148).
NOTE: Bolt pattern for the bearing end cover
(109A) is not symmetric so the bearing end cover
gasket (360A) and bearing end cover (109A) can only
go on one way. This ensures that the oil return slot
will always be down.
21. Press labyrinth seal (332A) into end cover (109A).
Ensure O-rings are in grooves of labyrinth seal.
Orient expulsion ports to the 6 o’clock position and
press into bearing end cover (109A) until it is
shouldered against end cover. No adjustment is
necessary.
76
Fig. 149
$
CAUTION
Do NOT hammer magnet assembly (740B) on to
shaft. This will damage ball bearings (112).
24. Place shaft wrench on drive shaft (122B). Install hex
nut (355A). Tighten nut per Torque Table 11 in this
section.
3298 Family Rev. 5/08
25. Install rub ring (144A) into bearing frame (228).
Line up through hole in rub ring with tapped hole in
frame (228) by using scribe mark on the rub ring to
reference tapped hole in frame. Lightly tap rub ring
(144A) with rubber mallet until it shoulders into
bearing frame (228) (Fig. 150).
30. Install guide rods (Qty = 2, B03189A) into clamp
ring (141C). These rods will help guide the casing
assembly into C-face support / frame (228) which
contains drive magnets (740B) (Fig. 152).
Fig. 152
Fig. 150
26. Install 5 16" hex cap screw (372Y) into bottom of
frame (228). This screw will prevent rotation of rub
ring (144A) from rotating during pump operation
(Fig. 150).
Final Assembly for Close Coupled and
Frame Mounted Versions
31. Slide casing assembly towards C-face support/
bearing frame assembly by holding casing firmly by
the suction flange and suction side of the discharge
flange.
32. Position casing assembly so that the two guide rods
are engaged into two (2) of the C-face support /
frame cap screw holes and the jacking screws (418)
are in contact with the casing assembly clamp ring
(141C) (Fig. 153).
27. Install gasket (360W) into the clamp ring (141C)
(Fig. 152).
6
28. Bolt down C-face support / frame (228) to
workbench if not already done so.
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
29. Tighten jacking screws (418) until they are fully
extended through the C-face support / frame flange
(228). Extension from frame should be
approximately 3.5 inches (Fig. 151).
Fig. 153
33. Untighten jacking screws (418) and slowly draw
casing assembly into C-face support / bearing frame
assembly. Keep hands away from clamp ring to
avoid pinched fingers.
34. When casing assembly clamp ring fully contacts
C-face support / bearing frame assembly, secure with
four hex cap screws (370B). Tighten.
shaft by hand to ensure it rotates smoothly
! Rotate
and there is no rubbing which could lead to excess
heat generation and or sparks.
This completes M group assembly.
Fig. 151
3298 Family Rev. 5/08
77
3298 L GROUP REASSEMBLY
1.
Install o-ring (496G) into driven magnet assembly
(740A).
2.
Lubricate o-ring (496G) with Parker o-ring lube or
equivalent. Press driven magnet assembly (740A)
onto impeller assembly (101). Install retaining ring
(361H) into groove in impeller assembly (101)
(Fig. 154).
Part
Retaining
Ring
Material
Carbon Fiber
Reinforced
Tefzel®
Item
Qty
361H
1
Fig. 156
$
CAUTION
Use caution when using a hydraulic press as you
cannot feel when the bearing hits the bottom of the
bore.
Fig. 154
3.
NOTE: On occasion, the action of pressing the radial
bearings into the impeller may cause some ETFE to
peel. If this occurs, press out the bearings, remove
any ETFE filings, and then press the bearings back
into the impeller.
Slide key (178S) into impeller (101). To hold key in
place, stake impeller at end of key (Fig. 155). Use a
center punch.
5.
Slide bearing spacer (157A) into impeller (Fig. 157).
6.
Press second radial bearing (197B) into impeller
(Fig. 157).
7.
Press back impeller wear ring (203) into impeller
assembly (Fig. 157).
Fig. 155
4.
78
Lubricate the outside of both radial bearings. Press
the first radial bearing (197B) into impeller utilizing
the bearing installation tool. Support impeller as
shown. Line up keyway in bearing with key in
impeller (Fig. 156).
Fig. 157
3298 Family Rev. 5/08
8.
Slide reverse thrust bearing (197D) on shaft (122A).
Press shaft (122A) into containment shell (750).
9.
Coat O-ring (412M) with O-ring lubricant. The
lubricant is used to help the O-ring remain in place.
Insert O-ring in containment shell (750). (Fig. 158).
12. Check rotary assembly total travel. See Fig. 161 for
the appropriate measurements needed. For the L
pump, total travel is A - B and should be 0.020 0.105 in. (0.51 - 2.67 mm)
Fig. 158
Fig. 161
10. Slide impeller assembly (101) onto shaft (Fig. 159).
13. Install containment shell / impeller assembly into
casing (100). Use care that the O-ring (412M)
remains in place.
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
Fig. 159
11. Press spider (101A) into casing (100) with spider
tool (Fig. 160).
Fig. 162
14. Install clamp ring (141C) to casing (100) with 8 hex
cap screws (356A) (Fig. 162).
15. Set partially built assembly aside well away from
attracting metals. Continue assembly with the close
coupled or frame mounted version of assembly as
described below.
Fig. 160
3298 Family Rev. 5/08
79
6
Close Coupled Assembly
16. For motor frames 284TSC - 286TSC install 4
expansion plugs (408Z) into C-face motor support
(228) by tapping on the plug with a 1" rod (Fig. 163).
155
Fig. 165
Fig. 163
For motor frames 182TC - 256TC and motor frame
324TSC expansion plugs are not used.
17. Set C-face motor support (228) on motor. Install 4
screws (371).
18. Slide key (178Y) into motor shaft keyway.
19. Install 2 set screws (222L) into magnet assembly
(740B) (Fig. 164).
20. Install magnet assembly inside the C-face motor
support by sliding an 1/8" shim into the groove/
notch located in the side of the magnet assembly.
Slowly drop in the magnet assembly until the shim is
resting on the face of the C-face motor support
(Fig. 165). Reference Fig. 166 for installation
dimensions.
Fig. 166
21. Rotate the magnet assembly (740B) to line up the key
(178Y) with the access hole on the C face motor
support (228). Tighten the first set screw (222L)
through the access hole.
22. Remove the shim. Rotate the magnet assembly 90°
to access the other set screw. Tighten.
This completes the assembly of a closed
coupled drive end. Proceed to Step 27.
Fig. 164
80
3298 Family Rev. 5/08
Frame Mounted Assembly
16. Install ball bearings (112) on shaft (122B) at both
ends.
NOTE: There are several methods used to install
bearings. The preferred method is to use an
induction heater that heats as well as demagnetizes
the bearings.
17. Install the lipseal (333D) in bearing frame (228)
(Fig. 167).
Fig. 169
Fig. 167
Fig. 170
6
18. Bolt or clamp bearing frame (228) to work bench
(Fig. 168).
20. Install bearing end cover gasket (360A) and bearing
end cover (109A) with hex cap screws (370C)
(Fig. 171).
NOTE: Bolt pattern for the bearing end cover
(109A) is not symmetric so the bearing end cover
gasket (360A) and bearing end cover (109A) can only
go on one way. This ensures that the oil return slot
will always be down.
Fig 168
19. Install shaft (122B) with ball bearings (112) into
bearing frame (228). The threaded end of the shaft
goes toward the magnets (Fig. 169). Install wave
washer (529) (Fig. 170).
NOTE: It may be necessary to lightly press shaft
with bearings into the bearing frame (228). It is
important to press the bearings in by putting a sleeve
on the inner race of the outboard ball bearing.
3298 Family Rev. 5/08
Fig. 171
81
21. Press labyrinth seal (332A) into end cover (109A).
Ensure O-rings are in grooves of labyrinth seal.
Orient expulsion ports to the 6 o’clock position and
press into bearing end cover (109A) until it is
shouldered against end cover. No adjustment is
necessary.
NOTE: Ensure shaft O-ring, grooves, shaft keyways,
and keyway in frame are free of burrs.
22. Install key (178Y) on shaft (122B) (Fig. 172).
!
▲
WARNING
Use non-magnetic socket and wrench to avoid
personal injury or damage to parts.
23. Install magnet assembly (740B) onto shaft (122B)
(Fig. 172).
Fig. 173
26. Install 5 16" hex cap screw (372Y) into bottom of
frame (228). This screw will prevent rotation of rub
ring (144A) from rotating during pump operation
(Fig. 173).
Final Assembly for Close Coupled and
Frame Mounted Versions
27. Install gasket (360W) into the clamp ring (141C)
(Fig. 175).
28. Bolt down C-face support / frame (228) to work
bench if not already done so.
!!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
Fig. 172
$
CAUTION
29. Tighten jacking screws (418) until they are fully
extended through the C-face support / frame flange
(228). Extension from frame should be
approximately 3.5 inches (Fig. 174).
Do NOT hammer magnet assembly (740B) on to
shaft. This will damage ball bearings (112).
24. Place shaft wrench on drive shaft (122B). Install hex
nut (355A). Torque nut per Torque Table 11 in this
section.
25. Install rub ring (144A) into bearing frame (228).
Line up through hole in rub ring with tapped hole in
frame (228) by using scribe mark on the rub ring to
reference tapped hole in frame. Lightly tap rub ring
(144A) with rubber mallet until it shoulders into
bearing frame (228) (Fig. 173).
Fig. 174
82
3298 Family Rev. 5/08
30. Install guide rods (Qty = 2, B03189A) into clamp
ring (141C). These rods will help guide the casing
assembly into C-face support/frame (228) which
contains drive magnets (740B) (Fig. 175).
Fig. 176
Fig. 175
31. Slide casing assembly towards C-face support/
bearing frame assembly by holding casing firmly by
the suction flange and suction side of the discharge
flange.
32. Position casing assembly so that the two guide rods
are engaged into two (2) of the C-face support/frame
cap screw holes and the jacking screws (418) are in
contact with the casing assembly clamp ring (141C)
(Fig. 176).
33. Untighten jacking screws (418) and slowly draw
casing assembly into C-face support/bearing frame
assembly. Keep hands away from clamp ring to
avoid pinched fingers.
34. When casing assembly clamp ring fully contacts
C-face support/bearing frame assembly, secure with
four hex cap screws (370B). Tighten.
shaft by hand to ensure it rotates smoothly
! Rotate
and there is no rubbing which could lead to excess
heat generation and or sparks.
This completes L group assembly.
6
3298 Family Rev. 5/08
83
SP 3298 REASSEMBLY
S GROUP REASSEMBLY
1.
Slide key (178S) into impeller (101). To hold key in
place, stake impeller at end of key (Fig. 177). Use a
center punch.
Fig. 177
2.
Fig. 178
Lubricate the outside of both radial bearings. Press
the first radial bearing (197B) into impeller using the
bearing installation tool. Support the impeller as
shown. Line up keyway in bearing with key in the
impeller (Fig. 178).
$
CAUTION
Use caution when using a hydraulic press as you
cannot feel when the bearing hits the bottom of the
bore.
NOTE: On occasion, the action of pressing the radial
bearings into the impeller may cause some ETFE to
peel. If this occurs, press out the bearings, remove
any ETFE filings, and then press the bearings back
into the impeller.
3.
Slide bearing spacer (157A) into impeller (Fig. 179).
4.
Press second radial bearing (197B) into impeller
(Fig. 179).
5.
Turn impeller over and install impeller thrust bearing
(197D) lining up tab (Fig. 179).
6.
Slide reverse thrust bearing (197C) on shaft (122A).
7.
Press shaft (122A) into containment shell (750).
Fig. 179
Fig. 180
84
3298 Family Rev. 5/08
Fig. 181
8.
Coat O-ring (412M) with O-ring lubricant. The
lubricant is used to help the O-ring remain in place.
Insert O-ring in containment shell (Fig. 180).
9.
Place backplate (444) face down on work surface.
6
10. Place containment shell with reverse thrust bearing in
backplate. Place clamp ring (141C) over containment shell and secure with clamp ring bolts (356A)
(Fig. 181).
11. Coat O-ring (412V) with O-ring lubricant. The
lubricant is used to help the O-ring remain in place.
Insert O-ring in backplate.
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
Fig. 182
12. Slide impeller assembly (101) onto shaft (Fig. 182).
3298 Family Rev. 5/08
85
14. Press spider (101A) into volute insert (100U) with
spider tool (Fig. 183).
15. Press volute insert with spider into the casing (100)
(Fig. 183).
$
CAUTION
Ensure volute insert is oriented such that the cutwater (tongue) is up. If installed incorrectly, pump
will not prime and could cause pump failure.
Fig. 185
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
Fig. 183
16. Check rotary assembly total travel. See Fig. 184
below for the appropriate measurements needed.
Total travel is A - B and should be .013 - .100 in.
(0.33-2.5 mm).
18. Set partially built assembly aside well away from
attracting metals. Continue assembly with the close
coupled or frame mounted version of assembly as
described below.
Close Coupled Assembly
19. For use with 143TC/145TC motor frames. Install
four expansion plugs (408Z) into C-face motor
support (228) by tapping on the plug with a 5/8" rod
(Fig. 186).
Fig. 186
Fig. 184
17. Install containment shell / clamp ring / impeller /
backplate assembly into the casing assembly and
secure with casing bolts (372V) (Fig. 185).
86
For motor frames 182TC - 256TC expansion plugs are
not used.
20. Set C-face motor support (228) on motor. Install four
screws (371).
21. Slide key (178Y) into motor shaft keyway.
3298 Family Rev. 5/08
22. Install two set screws (222L) into magnet assembly
(740B) (Fig. 187).
This completes the assembly of a closed
coupled drive end. Proceed to Step 28.
Frame Mounted Assembly
19. Install ball bearings (112) on shaft (122B) at both
ends.
NOTE: There are several methods used to install
bearings. The preferred method is to use an
induction heater that heats as well as demagnetizes
the bearings.
Fig. 187
20. Install the lipseal (333D) in bearing frame (228)
(Fig. 190).
23. Install magnet assembly inside the C-face motor
support by sliding a 1/8" shim into the groove/notch
located in the side of the magnet assembly. Slowly
drop in the magnet assembly until the shim is resting
on the face of the C-face motor support (Fig. 188).
Reference Fig. 189 for installation dimensions.
6
Fig. 190
21. Bolt or clamp bearing frame (228) to work bench
(Fig. 191).
Fig. 188
Fig. 189
24. Rotate the magnet assembly (740B) to line up the key
(178Y) with the access hole on the C-face motor
support (228). Tighten the first set screw (222L)
through the access hole.
25. Remove the shim. Rotate the magnet assembly 90°
to access the other set screw. Tighten.
3298 Family Rev. 5/08
Fig. 191
87
22. Install shaft (122B) with ball bearings (112) into
bearing frame (228). The threaded end of the shaft
goes toward the magnets (Fig. 192).
NOTE: Ensure shaft O-ring, grooves, shaft keyways
and keyway in frame are free of burrs.
25. Install key (178Y) on shaft (122B) (Fig. 194).
!
▲
WARNING
Use non-magnetic socket and wrench to avoid
personal injury or damage to parts.
26. Install magnet assembly (740B) onto shaft (122B)
(Fig. 194).
Fig. 192
NOTE: It may be necessary to lightly press shaft
with bearings into the bearing frame (228). It is
important to press the bearings in by putting a sleeve
on the inner race of the outboard ball bearing.
23. Install bearing end cover gasket (360A) and bearing
end cover (109A) with hex cap screws (370C)
(Fig. 193).
Fig. 194
$
CAUTION
Do NOT hammer magnet assembly (740B) on to
shaft. This will damage ball bearings (112).
27. Place shaft wrench on drive shaft (122B). Install hex
nut (355A). Torque nut per Torque Table 11 in this
section.
Final Assembly for Close Coupled and
Frame Mounted Versions
28. Install gasket (360W) into the clamp ring (141C).
29. Bolt down C-face support/frame (228) to workbench
if not already done so.
!
▲
Fig. 193
NOTE: Bolt pattern for the bearing end cover
(109A) is not symmetric so the bearing end cover
gasket (360A) and bearing end cover (109A) can only
go on one way. This ensures that the oil return slot
will always be down.
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
30. Slide casing assembly into C-face support/bearing
frame assembly by holding casing firmly by the
suction flange and suction side of the discharge
flange. Keep hands away from clamp ring to avoid
pinched fingers. Slowly insert to avoid damage.
31. Secure with four hex cap screws (370B). Tighten.
24. Press Labyrinth seal (332A) into end cover (109A).
Ensure O-rings are in grooves of labyrinth seal.
Orient expulsion ports to the 6 o’clock position and
press into bearing end cover (109A) until it is
shouldered against end cover. No adjustment is
necessary.
88
shaft by hand to ensure it rotates smoothly
! Rotate
and there is no rubbing which could lead to excess
heat generation and or sparks.
This completes S group assembly.
3298 Family Rev. 5/08
V 3298 GROUP REASSEMBLY
1.
Slide key (178S) into impeller (101). To hold key in
place, stake impeller at end of key (Fig. 195). Use a
center punch.
3.
Slide bearing spacer (157A) into impeller
(Fig. 197).
4.
Press second radial bearing (197B) into impeller
(Fig. 197).
5.
Turn impeller over and install impeller thrust bearing
(197D) lining up tab (Fig. 197).
Fig. 195
2.
Lubricate the outside of both radial bearings. Press
the first radial bearing (197B) into impeller utilizing
the bearing installation tool. Support impeller as
shown. Line up keyway in bearing with key in
impeller (Fig. 196).
Fig. 197
6.
Slide reverse thrust bearing (197C) on shaft (122A).
Press shaft (122A) into containment shell (Fig. 198).
7.
Coat O-ring (412M) with O-ring lubricant. The
lubricant is used to help the O-ring remain in place.
Insert O-ring in containment shell (750) (Fig. 198).
Fig. 196
$
Fig. 198
CAUTION
Use caution when using a hydraulic press as you
cannot feel when the bearing hits the bottom of the
bore.
NOTE: On occasion, the action of pressing the radial
bearings into the impeller may cause some ETFE to
peel. If this occurs, press out the bearings, remove
any ETFE filings, and then press the bearings back
into the impeller.
3298 Family Rev. 5/08
89
6
8.
Slide impeller assembly (101) onto shaft (Fig. 199).
11. Install containment shell / impeller assembly into
casing (100). Use care that the O-ring (412M)
remains in place.
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
12. Install clamp ring (141C) to casing (100) with six
hex cap screws (356A) (Fig. 202).
Fig. 199
9.
Press spider (101A) into casing (100) with spider
tool (Fig. 200).
Fig. 202
13. Set partially built assembly aside well away from
attracting metals.
Fig. 200
14. For use with 143TC/145TC motor frames. Install
four expansion plugs (408Z) into C-face motor
support (228) by tapping on the plug with a 5/8" rod
(Fig. 203).
10. Check rotary assembly total travel. See Fig. 201 for
the appropriate measurements needed. Total travel is
A - B and should be within the following limits: S
pumps 0.013 - 0.100 in. (0.33 - 2.5mm), and M
pumps 0.020 - 0.105 in. (0.51 - 2.67mm).
Fig. 203
For motor frames 182TC - 256TC expansion plugs are
not used.
15. Set C-face motor support (228) on motor. Install four
screws (371).
Fig. 201
90
16. Slide key (178Y) into motor shaft keyway.
3298 Family Rev. 5/08
17. Install two set screws (222L) into magnet assembly
(740B) (Fig. 204).
Fig. 207
Fig. 204
18. Install magnet assembly inside the C-face motor
support by sliding a 1/8" shim into the groove/notch
located in the side of the magnet assembly. Slowly
drop in the magnet assembly until the shim is resting
on the face of the C-face motor support (Fig. 205).
Reference Figs. 206 and 207 for installation
dimensions.
19. Rotate the magnet assembly (740B) to line up the key
(178Y) with the access hole on the C-face motor
support (228). Tighten the first set screw (222L)
through the access hole.
20. Remove the shim. Rotate the magnet assembly 90°
to access the other sets. Tighten.
21. Install gasket (360W) into the clamp ring (141C).
22. Bolt down C-face support / frame (228) to work
bench if not already done so.
!
▲
WARNING
The magnets contained in this unit are extremely
powerful. Serious injury to fingers and hands will
result if care is not taken.
23. Slide casing assembly into C-face support / bearing frame
assembly by holding casing firmly by the suction flange
and suction side of the discharge flange. Keep hands
away from clamp ring to avoid pinched fingers. Slowly
insert to avoid damage.
24. Secure with four hex cap screws (370B). Tighten.
Fig. 205
shaft by hand to ensure it rotates smoothly
! Rotate
and there is no rubbing which could lead to excess
heat generation and or sparks.
This completes the V 3298 assembly.
Fig. 206
3298 Family Rev. 5/08
91
6
Sectional 3298 XS Group Close Coupled
Sizes 1 x 11 2-5 and 1½ x 2-6
NEMA
Motors
IEC
Motors
3298 XS 1 x 11 2-5 and 1½ x 2-6 — Close Coupled
92
3298 Family Rev. 5/08
3298 XS Group Close Coupled
Sizes 1 x 11 2-5 and 1½ x 2-6
Close Coupled
1
2
Item #
Part Name
Material
100
101
Casing
Impeller, Assembly
101A1
Bearing Spider
122A
Stationary Shaft
141C
178Y
Clamp Ring
Key, Motor to Magnet Assembly
197B1
Bearing, Radial
197D1
Bearing, Impeller Thrust
222L
228
2412
351G
356A
358
370B
370F
Set Screw
C Face Motor Support
Frame Foot
Gasket, Casing Drain
Hex Cap Screw - Clamp Ring to Casing
Cover, Drain
Hex Cap Screw - Support to Clamp Ring
Hex Cap Screw - Frame Foot to Support
412M1
O-Ring - Containment Shell
426A
492A
740B
Hex Cap Screw - Drain Cover
Plug - Access Hole
Drive Carrier
750
Containment Shell
Ducitle Iron / Tefzel ®
Carbon Filled Tefzel®
Standard - Carbon Filled Tefzel ® / Silicon Carbide
Optional - DryGuard Silicon Carbide
Standard - Silicon Carbide
Optional - DryGuard Silicon Carbide
Ducitle Iron
Steel
Standard - Carbon Graphite
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Standard - Carbon/Glass filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Steel
Cast Iron
Ducitle Iron
Gylon
304SS
Steel
304SS
304SS
Standard - Viton®
Optional - EDPM
Optional - Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
304SS
Steel
Cast Iron / Neodymium Iron
Carbon Filled Tefzel® / Fiber
Reinforced Vinylester
Recommended Spare Parts
Not supplied on 1 ½ x 2 - 6 with 213/215TC motor frame
3298 Family Rev. 5/08
93
6
Sectional 3298 S Group Frame Mounted
Sizes 1 x 11 2-6, 1 x 11 2-8, 1½ x 3-7, 2 x 3-6
3298 S Group Frame Mounted Version
94
3298 Family Rev. 5/08
3298 S Group Frame Mounted
Sizes 1 x 11 2-6, 1 x 11 2-8, 1½ x 3-7, 2 x 3-6
Frame Mounted
Item #
Part Number
Material
100
101
Casing
Impeller, Assembly
101A *
Bearing Spider
109A
112 *
End Cover
Ball Bearings
122A
Stationary Shaft
122B
141C
157A
178S *
178Y
Drive Shaft
Clamp Ring
Bearing Spacer - Radial Bearings
Key, Impeller to Radial Bearings
Key, Drive Carrier
197B *
Bearing - Radial
197C *
Bearing, Reverse Thrust
197D *
Bearing, Impeller - Thrust
228
332A *
333D *
351G *
355A *
356A
358
360A *
360W
370B
370C
Frame - Bearing
Laby Seal Outboard
Oil Lip Seal - Inboard
Gasket, Case Drain
Hex Nut
Hex Cap Screw - Clamp Ring to Case
Flange - Case Drain
Gasket - End Cover to Frame
Gasket - Frame to Clamp Ring
Hex Cap Screw - Frame to Clamp Ring
Hex Cap Screw - End Cover
412M *
O-Ring - Containment Shell
426A
740B
750
* Recommended Spart Parts
Hex Cap Screw - Case Drain
Drive Magnet Assembly
Containment Shell
Ductile Iron / Tefzel ®
Carbon filled Tefzel ®
Standard - Carbon filled Tefzel ®/ Silicon Carbide
Optional - Carbon filled Tefzel ®/ DryGuard Silicon
Carbide
Ductile Iron
Steel
Standard - Silicon Carbide
Optional - DryGuard Silicon Carbide
Steel
Ductile Iron
Teflon®
Teflon®
Steel
Standard - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Cast Iron
Brass
BUNA Rubber
Gylon
Steel
304SS
Steel
Varnished Kraft
Aramid Fibers w/EPDM
304SS
304SS
Standard - Viton®
Optional - EPDM
Optional - Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
304SS
Cast Iron / Neohymium Iron
Tefzel® / Fiber Reinforced Vinylester
3298 Family Rev. 5/08
95
6
Sectional 3298 S Group Close Coupled
Sizes 1 x 11 2-6, 1 x 11 2-8, 1½ x 3-7, 2 x 3-6
NEMA
Motors
IEC
Motors
3298 S Group Close Coupled Version
96
3298 Family Rev. 5/08
3298 S Group Close Coupled
Sizes 1 x 11 2-6, 1 x 11 2-8, 1½ x 3-7, 2 x 3-6
3298 S Group Close Coupled
Item
Number
Part Name
Material
100
101
Casing
Impeller, Assembly
101A *
Bearing Spider
122A
Stationary Shaft
141C
157A
178S *
178Y
Clamp Ring
Bearing Spacer - Radial Bearings
Key, Impeller to Radial Bearings
Key, Motor to Carrier
197B *
Bearing - Radial
197C *
Bearing, Reverse Thrust
197D *
Bearing, Impeller - Thrust
222L
228
351G *
356A
358
360W *
370B
Set Screw
Motor Support - Close Coupled
Gasket, Case Drain
Hex Cap Screw - Clamp Ring to Case
Flange - Case Drain
Gasket - Motor Support to Clamp Ring
Hex Cap Screw - Motor Support to Clamp Ring
412M *
O-Ring - Containment Shell
Ductile Iron / Tefzel ®
Carbon Filled Tefzel®
Standard - Carbon filled Tefzel ® / Silicon Carbide
Optional - Carbon filled Tefzel / DryGuard Silicon
Carbide
Standard - Silicon Carbide
Optional - DryGuard Silicon Carbide
Ductile Iron
Teflon®
Teflon®
Steel
Standard - Carbon Graphite
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Carbon Filled Teflon®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Steel
Cast Iron
Gylon
304SS
Steel
Aramid Fibers w/EPDM
304SS
Standard - Viton®
Optional - EPDM
Optional - Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
304SS
Steel
Cast Iron / Neohymium Iron
Tefzel ®/ Fiber Reinforced Vinylester
426A
492A
740B
750
* Recommended Spare Parts
Item
Number
1
2
Hex Cap Screw - Case Drain
Access Hole Plug
Drive Magnet Assembly
Containment Shell
Part Name
228
Frame, Close Coupled (IEC)
333L
Screw, Set
371
H.C. Screw - Motor to Frame
388T
H.C. Screw - Adapt to Frame 1
408A
Plug - Drain
492A
Plug - Access Hole
503
Ring, Adapter 1
742B
Ring, Centering 2
Used with Motor Frames 132 & 160 only.
Used with Motor Frames 80 & 90 only.
3298 Family Rev. 5/08
Material
Ductile Iron
304SS
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Cast Iron
Carbon Steel
97
6
Sectional 3298 M Group Frame Mounted
Sizes 3 x 4-7, 1½ x 3-8, 2 x 3-8, 1 x 2-10
3298 M Group Frame Mounted Version
98
3298 Family Rev. 5/08
3298 M Group Frame Mounted
Sizes 3 x 4-7, 1½ x 3-8, 2 x 3-8, 1 x 2-10
Frame Mounted
Item Number
Part Name
Material
100
101
Casing
Impeller, Assembly
101A*
Bearing Spider
109A
112*
113A
End Cover
Ball Bearings
Plug - Oil Fill
122A
Stationary Shaft
122B
141C
144A
157A
178S*
178Y
Drive Shaft
Clamp Ring
Rub Ring
Bearing Spacer - Radial
Key, Impeller to Bearings
Key, Drive Carrier
197B*
Bearing - radial
197C*
Bearing, Reverse Thrust
197D*
Bearing, Impeller - Thrust
203*
228
241
319
332A
333D*
351G*
355A
356A
358
360A*
360W*
370B
370C
370F
372Y
408A
408J
Ring - Back Wearing
Frame - Bearing
Frame Foot
Sight Window
Labyrinth Seal
Lip Seal
Gasket, Case Drain
Flanged Hex Nut
Hex Cap Screw - Clamp Ring to Case
Flange, Case Drain
Gasket - Cover to Frame
Gasket - Frame to Clamp Ring
Hex Cap Screw - Frame to Clamp Ring
Hex Cap Screw - Cover to Frame
Hex Cap Screw - Frame Foot
Hex Cap Screw - Frame to Rub Ring
Plug- Drain
Plug - Oiler
412M*
O-ring - Containment Shell
Ductile Iron / Tefzel ®
Carbon filled Tefzel ®
Standard - Carbon filled Tefzel ® / Silicon Carbide
Optional - Carbon filled Tefzel ® / DryGuard Silicon Carbide
Ductile Iron
Steel
Steel
Standard - Silicon Carbide
Optional - DryGuard Silicon Carbide
Steel
Ductile Iron
Cast Iron
Teflon®
Teflon®
Steel
Standard - Carbon Graphite
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Cast Iron
Cast Iron
Steel / Glass
Carbon Filled Teflon®
Buna Rubber
Gylon
Steel
304SS
Steel
Varnished Kraft
Aramid Fibers w/EPDM
304SS
304SS
304SS
304SS
Steel
Steel
Standard - Viton®
Optional - EPDM
Optional Teflon®
Optional - Chemraz® 505
Optional - Kalrez® 4079
304SS
304SS
Steel
Cast Iron / Neodymiumn
Tefzel® / Fiber Reinforced Vinylester
418
426A
529*
740B
750
* Recommended Spare Parts
3298 Family Rev. 5/08
H. T. Bolt - Jacking
Hex Cap Screw - Case Drain
Washer, Wave Spring
Drive Carrier
Containment Shell
99
6
Sectional 3298 M Group Close Coupled
Sizes 3 x 4-7, 1½ x 3-8, 2 x 3-8, 1 x 2-10
3298 M Group Close Coupled Version
100
3298 Family Rev. 5/08
3298 M Group Close Coupled
Sizes 3 x 4-7, 1½ x 3-8, 2 x 3-8, 1 x 2-10
Close Coupled
Item Number
Part Name
Material
100
101
Casing
Impeller, Assembly
101A*
Bearing Spider
122A
Stationary Shaft
141C
157A
178S*
178Y
Clamp Ring
Bearing Spacer - Radial
Key, Impeller to Bearings
Key, Motor to Drive Carrier
197B*
Bearing - Radial
197C*
Bearing, Reverse Thrust
197D*
Bearing, Impeller Thrust
203*
222L
228
241
351G*
356A
358
360W*
370B
370F
371
408A
Ring, Back Wearing
Set Screw
Frame, Close Coupled
Frame Foot
Gasket, Case Drain
Hex Cap Screw - Clamp Ring to Case
Flange - Case Drain
Gasket - Frame Support to Clamp Ring
Hex Cap Screw - Frame to Clamp Ring
Hex Cap Screw - Frame Foot
Hex Cap Screw - Frame to Motor
Plug - Drain
412M*
O-ring - Containment Shell
Ductile Iron / Tefzel ®
Carbon filled Tefzel ®
Standard - Carbon filled Tefzel ® / Silicon Carbide
Optional - Carbon filled Tefzel ® / DryGuard Silicon Carbide
Standard - Silicon Carbide
Optional - DryGuard Silicon Carbide
Ductile Iron
Teflon®
Teflon®
Steel
Standard - Carbon
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Steel
Cast Iron
Cast Iron
Gylon
304SS
Steel
Aramid Fibers w/EPDM
304SS
304SS
304SS
Steel
Standard - Viton®
Optional - EPDM
Optional Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
304SS
304SS
Steel
Cast Iron / Neodymium Iron
Tefzel® / Fiber Reinforced Vinylester
418
426A
492A
740B
750
* Recommended Spare Parts
3298 Family Rev. 5/08
Hex Tap Bolt - Jacking
Hex Cap Screw - Case Drain
Plug - Access Hole
Drive Carrier
Containment Shell
101
6
3298 L Group Frame Mounted
Sizes 1½ x 3-10, 2 x 3-10, 3 x 4-10G, 3 x 4-10H, 4 x 6-10
3298 L Group Frame Mounted Version
102
3298 Family Rev. 5/08
3298 L Group Frame Mounted
Sizes 1½ x 3-10, 2 x 3-10, 3 x 4-10G, 3 x 4-10H, 4 x 6-10
Frame Mounted
Item Number
Part Name
Material
100
101
Casing
Impeller, Assembly
101A*
Bearing Spider
109A
112*
113A
End Cover
Ball Bearings
Plug - Oil Fill
122A
Stationary Shaft
122B
141C
144A
157A
178S*
178Y
Drive Shaft
Clamp Ring
Rub Ring
Bearing Spacer - Radial
Key, Impeller to Bearings
Key, Drive Carrier
197B*
Bearing - radial
197C*
Bearing, Reverse Thrust
197D*
Bearing, Impeller - Thrust
203*
228
241
319
332A
333D*
351G*
355A
356A
358
360A*
360W*
361H
370B
370C
370F
372Y
408A
408J
Ring - Back Wearing
Frame - Bearing
Frame Foot
Sight Window
Labyrinth Seal
Lip Seal
Gasket, Case Drain
Flanged Hex Nut
Hex Cap Screw - Clamp Ring to Case
Flange, Case Drain
Gasket - Cover to Frame
Gasket - Frame to Clamp Ring
Retaining Ring
Hex Cap Screw - Frame to Clamp Ring
Hex Cap Screw - Cover to Frame
Hex Cap Screw - Frame Foot
Hex Cap Screw - Frame to Rub Ring
Plug- Drain
Plug - Oiler
412M*
O-Ring - Containment Shell
418
426A
H. T. Bolt - Jacking
Hex Cap Screw - Case Drain
496G*
O-ring Driven Magnet Assembly
529*
740A
740B
750
Washer, Wave Spring
Driven Magnet Assembly
Drive Carrier
Containment Shell
Ductile Iron / Tefzel ®
Carbon Fiber Reinforced Tefzel ®
Standard - Carbon filled Tefzel ® / Silicon Carbide
Optional - Carbon filled Tefzel ® / DryGuard Silicon Carbide
Ductile Iron
Steel
Steel
Standard - Silicon Carbide
Optional -DryGuard Silicon Carbide
Steel
Ductile Iron
Cast Iron
Teflon®
Teflon®
Steel
Standard - Carbon Graphite
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - Carbon filled Tefzel ® / DryGuard Silicon Carbide
Carbon Filled Teflon®
Cast Iron
Cast Iron
Steel / Glass
Carbon Filled Teflon®
Buna Rubber
Gylon
Steel
304SS
Steel
Varnished Kraft
Aramid Fibers w/EPDM
Teflon® Encapsulated Silicone
304SS
304SS
304SS
304SS
Steel
Steel
Standard - Viton®
Optional - EPDM
Optional Teflon®
Optional - Chemraz® 505
Optional - Kalrez® 4079
304SS
304SS
Standard Viton®
Optional - EPDM
Optional - Teflon®
Optional - Chemraz® 505
Optional - Kalrez® 4079
Steel
Tefzel® / Neodymium Iron
Cast Iron / Neodymiumn
Carbon filled Tefzel ® / Fiber Reinforced Vinylester
3298 Family Rev. 5/08
103
6
3298 L Group Close Coupled
Sizes 1½ x 3-10, 2 x 3-10, 3 x 4-10G, 3 x 4-10H, 4 x 6-10
3298 L Group Close Coupled Version
104
3298 Family Rev. 5/08
3298 L Group Close Coupled
Sizes 1½ x 3-10, 2 x 3-10, 3 x 4-10G, 3 x 4-10H, 4 x 6-10
Close Coupled
Item Number
Part Name
Material
100
101
Casing
Impeller, Assembly
101A*
Bearing Spider
122A
Stationary Shaft
141C
157A
178S*
178Y
Clamp Ring
Bearing Spacer - Radial
Key, Impeller to Bearings
Key, Motor to Drive Carrier
197B*
Bearing - Radial
197C*
Bearing, Reverse Thrust
197D*
Bearing, Impeller Thrust
203*
222L
228
241
351G*
356A
358
360W*
361H
370B
370F
371
408A
Ring, Back Wearing
Set Screw
Frame, Close Coupled
Frame Foot
Gasket, Case Drain
Hex Cap Screw - Clamp Ring to Case
Flange - Case Drain
Gasket - Frame Support to Clamp Ring
Retaining Ring
Hex Cap Screw - Frame to Clamp Ring
Hex Cap Screw - Frame Foot
Hex Cap Screw - Frame to Motor
Plug - Drain
412M*
O-Ring - Containment Shell
418
426A
492A
740A
740B
750
Hex Tap Bolt - Jacking
Hex Cap Screw - Case Drain
Plug - Access Hole
Driven Magnet Assembly
Drive Carrier
Containment Shell
496G*
O-Ring - Driven Magnet Assembly
Ductile Iron / Tefzel ®
Carbon Fiber Tefzel®
Standard - Carbon filled Tefzel ® / Silicon Carbide
Optional - Carbon filled Tefzel ® / DryGuard Silicon Carbide
Standard - Silicon Carbide
Optional - DryGuard Silicon Carbide
Ductile Iron
Teflon®
Teflon®
Steel
Standard - Carbon
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Steel
Cast Iron
Cast Iron
Gylon
304SS
Steel
Aramid Fibers w/EPDM
Teflon® Encapsulated Silicone
304SS
304SS
304SS
Steel
Standard - Viton®
Optional - EPDM
Optional Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
304SS
304SS
Steel
Tefzel® Neodymium Iron
Cast Iron / Neodymium Iron
Carbon filled Tefzel ® / Fiber Reinforced Vinylester
Standard Viton®
Optional - EPDM
Optional Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
* Recommended Spare Parts
3298 Family Rev. 5/08
105
6
SP 3298 S Group Frame Mounted
Sizes 1 x 11 2-6, 2 x 3-6
SP 3298 S Group Frame Mounted Version
106
3298 Family Rev. 5/08
SP 3298 S Group Frame Mounted
Sizes 1 x 11 2-6, 2 x 3-6
Frame Mounted
Item Number
Part Name
Material
100
100U
101
101A*
109A
112*
113A
122A
122B
141C
157A
178S*
178Y
Casing
Volute Insert
Impeller, Assembly
Bearing Spider
End Cover
Ball Bearings
Plug - Oil Fill
Stationary Shaft
Drive Shaft
Clamp Ring
Bearing Spacer - Radial
Key, Impeller to Radial Bearings
Key, Drive Carrier
197B*
Bearing - radial
197C*
Bearing, Reverse Thrust
197D*
Bearing, Impeller - Thrust
203
228
319
332A*
333D*
355A*
356A
360A*
360W
370B
370C
372V
408A
408J
Ring - Back Wearing
Frame - Bearing
Sight Window
Labyrinth Seal
Lip Seal
Flanged Hex Nut
Hex Cap Screw - Clamp Ring to Backplate
Gasket - Cover to Frame
Gasket - Frame to Clamp Ring
Hex Cap Screw - Frame to Clamp Ring
Hex Cap Screw - Cover to Frame
Hex Cap Screw - Backplate to Casing
Plug- Drain
Plug - Oiler
412M*
O-ring - Containment Shell
412V*
O-ring Backplate
Ductile Iron / TEFZEL ®
Carbon Filled TEFZEL®
TEFZEL®
TEFZEL® / Silicon Carbide
Ductile Iron
Steel
Steel
Silicon Carbide
Steel
Ductile Iron
TEFLON®
TEFZEL®
Steel
Standard - Carbon
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled TEFLON®
Cast Iron
Steel / Glass
Carbon Filled TEFLON®
Buna Rubber
Steel
304SS
Varnished Kraft
Aramid Fibers w/EPDM
304SS
304SS
304SS
Steel
Steel
Standard - Viton®
Optional - EPDM
Optional Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
Standard - Viton®
Optional - EPDM
Optional Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
Ductile Iron/TEFZEL®
Cast Iron / Neodymium
TEFZEL® / Fiber Reinforced Vinyl Ester
Carbon Steel
Carbon Steel
Non-Asbestos Packing
Non-Asbestos Packing
304SS
444
740B
750
811
811A
811B
811C
811D
* Recommended Spare Parts
3298 Family Rev. 5/08
Backplate
Drive Magnet Assembly
Containment Shell
Cover - Case Drain
Cover - Case Fill
Gasket - Case Drain
Gasket - Case Fill
Hex Cap Screw - Drain Cover
107
6
SP 3298 S Group Close Coupled
Sizes 1 x 11 2-6, 2 x 3-6
NEMA
Motors
IEC
Motors
SP 3298 S Group Close Coupled Version
108
3298 Family Rev. 5/08
SP 3298 S Group Close Coupled
Sizes 1 x 11 2-6, 2 x 3-6
Close Coupled
Item Number
Part Name
Material
100
100U
101
101A*
122A
141C
157A
178S*
178Y
Casing
Volute Insert
Impeller, Assembly
Bearing Spider
Stationary Shaft
Clamp Ring
Bearing Spacer - Radial
Key, Impeller to Radial Bearings
Key, Motor to Drive Carrier
197B*
Bearing - radial
197C*
Bearing, Reverse Thrust
197D*
Bearing, Impeller - Thrust
222L
228
356A
360W*
370B
372V
Set Screw
Frame - Close Coupled (NEMA)
Hex Cap Screw - Clamp Ring to Backplate
Gasket - Supp. to Clamp Ring
Hex Cap Screw - Frame to Clamp Ring
Hex Cap Screw - Backplate to Casing
412M*
O-ring - Containment Shell
412V*
O-ring Backplate
444
492A
740B
750
811
811A
811B
811C
811D
Backplate
Plug - Access Hole
Drive Magnet Assembly
Containment Shell
Cover - Case Drain
Cover - Case Fill
Gasket - Case Drain
Gasket - Case Fill
Hex Cap Screw - Drain Cover
Ductile Iron / TEFZEL ®
Carbon Filled TEFZEL®
TEFZEL®
TEFZEL® - Silicon Carbide
Silicon Carbide
Ductile Iron
TEFLON®
TEFZEL®
Steel
Standard - Carbon
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
303SS
Cast Iron
304SS
Aramid Fibers w/EPDM
304SS
304SS
Standard - Viton®
Optional - EPDM
Optional Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
Standard - Viton®
Optional - EPDM
Optional Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
Ductile Iron/TEFZEL®
Steel
Cast Iron / Neodymium Iron
TEFZEL® / Fiber Reinforced Vinyl Ester
Carbon Steel
Carbon Steel
Non-Asbestos Packing
Non-Asbestos Packing
304SS
228
Frame, Close Coupled (IEC)
222L
Screw, Set
371
H.C. Screw - Motor to Frame
388T
H.C. Screw - Adapt to Frame 1
408A
Plug - Drain
492A
Plug - Access Hole
503
Ring, Adapter 1
742B
Ring, Centering 2
* Recommended Spare Parts
3298 Family Rev. 5/08
Ductile Iron
304SS
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Cast Iron
Carbon Steel
109
6
Sectional V 3298
Sizes 11 2 x 2-6, 2 x 3-6, 11 2 x 2-8
M: 11 2 x 2-10
NEMA
Motors
IEC
Motors
110
V 3298
3298 Family Rev. 5/08
V 3298 Group Close Coupled
Sizes S: 11 2 x 2-6, 2 x 3-6, 11 2 x 2-8 M: 11 2 x 2-10
Close Coupled
Item Number
Part Name
Material
100
101
101A
122A
141C
157A
178S
178Y
Casing
Impeller, Assembly
Bearing Spider
Stationary Shaft
Clamp Ring
Bearing Spacer - Radial
Key, Impeller to Radial Bearings
Key, Motor to Magnet Assembly
197B
Bearing - Radial
197C
Bearing, Reverse Thrust
197D
Bearing, Impeller - Thrust
203
222L
228
351G
356A
358
360W
370B
Ring - Back Wear Ring
Set Screw
Frame - Close Coupled (NEMA)
Gasket, Casing Drain
Hex Cap Screw - Clamp Ring to Case
Cover, Drain
Gasket - Supp. To Clamp Ring
Hex Cap Screw - Backplate to Casing
412M
O-ring - Containment Shell
426A
492A
740B
750
Hex Cap Screw - Drain Cover
Plug - Access Hole
Magnet Assemby
Containment Shell
Ductile Iron / TEFZEL ®
TEFZEL®
TEFZEL® - Silicon Carbide
Silicon Carbide
Ductile Iron
TEFLON®
TEFZEL®
Steel
Standard - Carbon
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon®
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Carbon Filled Teflon
303SS
Cast Iron
Non-Asbestos Packing
304SS
Steel
Aramid Fibers w/ EDPM
304SS
Standard - Viton®
Optional - EPDM
Optional Teflon® Encapsulated Viton®
Optional - Chemraz® 505
Optional - Kalrez® 4079
304SS
Steel
Cast Iron / Neodymium Iron
TEFZEL® / Fiber Reinforced Vinyl Ester
Item
Number
Part Name
228
Frame, Close Coupled (IEC)
222L
Screw, Set
371
H.C. Screw - Motor to Frame
388T
H.C. Screw - Adapt to Frame 1
408A
Plug - Drain
492A
Plug - Access Hole
503
Ring, Adapter 1
742B
Ring, Centering 2
1
Used with Motor Frames 132 & 160 only.
2
Used with Motor Frames 80 & 90 only.
* Recommended Spare Parts
3298 Family Rev. 5/08
Material
Ductile Iron
304SS
Carbon Steel
Carbon Steel
Carbon Steel
Carbon Steel
Cast Iron
Carbon Steel
111
6
112
3298 Family Rev. 5/08
SPARE AND REPAIR PARTS
RECOMMENDED SPARES . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
HOW TO ORDER PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
INTERCHANGEABILITY . . . . . . . . . . . . . . . . . . . . . . . . . 117-122
RETURN OF MATERIALS . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
When ordering parts, always refer to part name, Goulds Serial No., and indicate Item No. from the
sectional drawing.
RECOMMENDED SPARES
Liquid End
Part
Containment Shell O-ring
Gasket - Clamp Ring
Bearing Spider
Impeller Bearing
Radial Bearing
Reverse Thrust Bearing
Impeller Thrust Bearing
Rear Impeller Wear Ring
(M and L Group Sizes Only)
Material
Standard-Viton
Optional - EDPM
Optional - TEFLON® Encapsulated Viton
Aramid Fiber / EDPM Binder
TEFZEL® / Silicon Carbide
TEFZEL®
Standard - Carbon
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Silicon Carbide
Standard - Carbon Filled Teflon ®
Optional - Silicon Carbide
Optional - DryGuard Silicon Carbide
Standard - Carbon Filled TEFLON®
Item
Qty
412M
1
360W
101A
178S
1
1
1
197B
2
1973
1
197D
1
203
1
Power End - Frame Mounted Only
End Cover Gasket
Labyrinth Seal
Ball Bearing
Lip Seal
Hex Flange Nut
L Group Impeller O-Ring
3298 Family Rev. 5/08
Varnished Kraft
Carbon Filled TEFLON®
Steel
Buna Rubber
Steel
Standard-Viton
Optional - EDPM
Optional - TEFLON® Encapsulated Viton
360A
332A
112
333D
355A
1
1
2
1
1
496G
1
113
7
Table 12
3298 Repair Kits
Bearing Kits1
Size
XS Group
1X1.5-5
1.5X2-6
S Group
1X1.5-6
1X1.5-8
1.5X3-7
2X3-6
M Group
1.5X3-8
1X2-10
2X3-8
3X4-7
L Group
1.5X3-10
2X3-10
3X4-10H
3X4-10G
4X6-10
Carbon
Silicon
Carbide
DryGuard™
Repair Kit2
Carbon /
DrySilicon
Carbide
Guard™
Power
End
Kit3
N/A
R298BKCXS26 R298BKSXS15
R298BKCXS6 R298BKSXS6
R298BKSFXS15
R298BKSFXS6
R298K155V
R298RK526V
R298RKSFX15
R298RKS526
R298BKSF15
R298BKSF15
R298BKSF3
R298BKSF3
R298RK156V
R298RK158V
R298RK36V
R298RK36V
R298RKSF15
R298RKSF15
R298RKSF3
R298RKSF3
R298BKCM153 R298BKSM153
R298BKCM2
R298BKSM2
R298BKCM3
R298BKSM3
R298BKCM4
R298BKSM4
R298BKSFM153
R298BKSFM3
R3+9BKSFM3
R298BKSFM4
R298RK538V
R298RK210V
R298RK38V
R298RK47V
R298RKSF538
R298RKSFM2
R298RKSFM3
R298RKSFM4
R298BKCL310 R298BKSL310
R298BKCL310 R298BKSL310
R298BKCL4
R298BKSL4
R298BKCL410 R298BKS4310
R298BKCL6
R298BKSL6
R298BKSFL310
R298BKSFL310
R298BKSFL4
R298BKSFL410
R298BKSFL6
R298RK5310V
R298RK2310V
R298RK410V
R298RK3410V
R298RK610V
R298RKSF5310
R298RKSF2310
R298RKSFL4
R298RKSF3410
R298RKSFL6
R298BKCS15
R298BKCS15
R298BKCS3
R298BKCS3
R298BKSS15
R298BKSS15
R298BKSS3
R298BKSS3
N/A
R298PKS
R298PKML
R298PKML
1
The Bearing Kits include the spider, the thrust bearing, the bearing spacer, bearing key, radial bearings, rear
impeller wear ring (if required), and the containment shell o-ring.
2
The Pump Repair Kits include the impeller, shaft, reverse thrust bearing and the containment shell
(L groups also include magnet retaining ring.)
3
The Power End Repair Kits include the ball bearings, drive carrier key, lip seal, hex flange nut (drive carrier shaft
nut), bearing end cover gasket, frame gasket, and the labyrinth o-rings.
114
3298 Family Rev. 5/08
7
3298 Family Rev. 5/08
115
INTERCHANGEABILITY 3298 XS GROUP
116
3298 Family Rev. 5/08
INTERCHANGEABILITY 3298 S GROUP
7
3298 Family Rev. 5/08
117
INTERCHANGEABILITY 3298 M GROUP
INTERCHANGEABILITY 3298 M GROUP (SIZE 1½ x 3-8 ONLY)
118
3298 Family Rev. 5/08
INTERCHANGEABILITY 3298 L GROUP
7
3298 Family Rev. 5/08
119
INTERCHANGEABILITY SP 3298 S GROUP
120
3298 Family Rev. 5/08
INTERCHANGEABILITY V 3298 S GROUP
7
3298 Family Rev. 5/08
121
INTERCHANGEABILITY V 3298 M GROUP
122
3298 Family Rev. 5/08
RETURN OF MATERIALS
If it is necessary to return the pump to a Goulds factory or
repair facility for service, certain procedures must be
followed.
Do not return any parts without authorization from the
warranty engineer, a warranty claim number, and the
preprinted shipping label supplied by Goulds. In rare
instances because of the pumpage, ITT Goulds Pumps
Warranty Services may, at their option, decide not to have
the parts returned.
The parts being returned must be decontaminated prior to
shipment. The decontamination must be verified in
writing. The correct Material Safety Data Sheet (MSDS)
must accompany the parts along with decontamination
"sign off." This information is stated within the ITT
Goulds Pumps "decontamination procedure." The
Warranty Service engineer will send a copy of this
procedure to the customer. Please remember that
inspection of the parts cannot be started until we receive
the proper documentation. This is a safety and legal issue
and consequently strict adherence to procedure is
mandatory — there will be no exceptions.
Before shipping, check with your carrier for special
procedures that may be required when shipping highly
magnetic materials.
All pumps must be decontaminated prior to return. Refer
to Preparation for Disassembly and Decontamination
Procedure.
7
3298 Family Rev. 5/08
123
124
3298 Family Rev. 5/08
APPENDIX I
3298 HYDRAULIC COVERAGE CHARTS
8
3298 Family Rev. 5/08
125
3298 HYDRAULIC COVERAGE CHARTS
126
3298 Family Rev. 5/08
SP 3298 HYDRAULIC COVERAGE CHARTS
8
3298 Family Rev. 5/08
127
SP 3298 HYDRAULIC COVERAGE CHARTS
128
3298 Family Rev. 5/08
V 3298 HYDRAULIC COVERAGE CHARTS
8
3298 Family Rev. 5/08
129
V 3298 HYDRAULIC COVERAGE CHARTS
130
3298 Family Rev. 5/08
APPENDIX II
COUPLING GUARD INSTALLATION Frame Mounted Only
!
The coupling guard used in an ATEX classified
environment must be constructed from a nonsparking material.
B▲
!
WARNING
Before assembly or disassembly of the coupling guard is
performed, the motor must be de- energized, the motor
controller/starter put in a locked-out position, and a
caution tag placed at the starter indicating the disconnect.
Replace coupling guard before resuming normal
operation of the pump. Goulds Pumps assumes no
liability for avoiding this practice.
XLT-X Align the end plate (pump end) to the pump
bearing housing so that the large slots on the end
plate clear the bearing housing tap bolts and the small
slots are aligned to the impeller adjusting bolts.
Attach the end plate to the bearing housing using the
jam nuts on the impeller adjusting bolts as shown in
Fig. II-3.
After the end plate is attached to the bearing housing,
the impeller clearance must be checked and reset as
explained in the Preventive Maintenance section.
NOTE: Coupling adjustments should be completed
before proceeding with coupling guard assembly.
Fig. II-2
8
Fig. II-1
Simplicity of design allows complete assembly of the
coupling guard, including the end plate (pump end), in
about fifteen minutes. If the end plate is already in place,
assembly can be accomplished in about five minutes.
Assembly:
NOTE: If end plate (pump end) is already installed,
make any necessary coupling adjustments and then
proceed to Step 2.
Fig. II-3
1. STX, MTX, LTX - Align end plate (pump end) to
the bearing frame. (No impeller adjustment
required.)
3298 Family Rev. 5/08
131
2. Spread bottom of coupling guard half (pump end)
slightly and place over pump end plate as shown in
Fig. II-4. The annular groove in the guard half is
located around the end plate (Fig. II-5).
Fig. II-7
4. Spread bottom of coupling guard half (driver end)
slightly and place over coupling guard half (pump
end) so that annular groove in coupling guard half
(driver end) faces the motor as shown in Fig. II-8.
Fig. II-4
Fig. II-5
3. After the coupling guard half (pump end) is located
around the end plate, secure it with a bolt, nut and
two washers through the round hole at the front end
of the guard half as shown in Fig. II-6. Tighten
securely (Fig. II-7).
Fig. II-8
Fig. II-6
132
3298 Family Rev. 5/08
5. Place end plate (driver end) over motor shaft as
shown in Fig. II-9. Locate the end plate in the
annular groove at the rear of the coupling guard half
(driver end) and secure with a bolt, nut, and two
washers through the round hole at the rear of the
guard half. Finger tighten only.
Fig. II-10
Disassembly
The coupling guard must be removed for certain
maintenance and adjustments to the pump, such as
adjustment of the coupling, impeller clearance
adjustment, etc. The coupling guard should be replaced
after maintenance is completed.
Fig. II-9
6. Adjust length of coupling guard to completely cover
shafts and coupling as shown in Fig. II-10 by sliding
coupling guard half (driver end) towards motor.
After adjusting guard length, secure with bolt, nut
and two washers through the slotted holes at the
center of the guard and tighten. Check all nuts on the
guard assembly for tightness.
▲
!
WARNING
Before assembly or disassembly of the coupling guard is
performed, the motor must be de- energized, the motor
controller/starter put in a locked-out position, and a
caution tag placed at the starter indicating the disconnect.
Replace coupling guard before resuming normal
operation of the pump. Goulds Pumps assumes no
liability for avoiding this practice.
DO NOT resume normal pump operation with the
coupling guard removed.
NOTE: Refer to illustrations for assembly in reverse
order.
1. Remove nut, bolt, and washers from center slotted
hole in the coupling guard. Slide motor end coupling
guard half towards pump (Fig. II-10).
2. Remove nut, bolt, and washers from coupling guard
half (driver end), and remove end plate (Fig. II-9).
3. Spread bottom of coupling guard half slightly and lift
off (Fig. II-8).
4. Remove remaining nut, bolt, and washers from
coupling guard half (pump end). Spread bottom of
coupling guard half slightly and lift off (Fig. II-4).
This completes disassembly of the
coupling guard.
NOTE: It is not necessary to remove the end plate
(pump end) from the pump bearing housing. The
bearing housing tap bolts are accessible without
removing the end plate in case maintenance of
internal pump parts is necessary. Before removing
the pump bearing housing, refer to Section 6 Disassembly & Reassembly.
3298 Family Rev. 5/08
133
8
134
3298 Family Rev. 5/08
APPENDIX III
IMPELLER AND SP 3298 TRIM PROCEDURE
IMPELLER TRIM PROCEDURE
DO NOT chuck the impeller assembly.
DO NOT take cuts larger than .050".
DO NOT over tighten arbor screw (this could crack the carbon bearings).
DO:
1.
Use Arbor tool A06785A01 (XS Group size 1 x 1 1 2-5).
Use Arbor tool A06785A02 (S Group sizes 1 x 1 1 2-6, 1 x 1 1 2-8, 2 x 3-6).
Use Arbor tool A06785A03 (M and L Group sizes 2 x 3-8, 3 x 4-7, 1 x 2-10, 3 x 4-10, 4 x 6-10).
2.
Make sure Arbor is running true - within .002 TIR.
3.
Tighten screw only enough to turn impeller without slipping.
NOTES:
1.
Allowable front shroud t.i.r. is .060”.
2.
When trimming an XS impeller, trim both the front and back shrouds and the vanes to a minimum diameter of 3 3/4”.
Trimming between 3 3/4” and 3”, trim only the front shroud and the vanes.
3.
Nylon impeller arbor sleeves may be used in place of bearings.
XS Group B04674A01
S Group B04676A02
M Group B04676A03
L Group B04676A04
Group XS
8
Fig. III-1
3298 Family Rev. 5/08
135
IMPELLER TRIM PROCEDURE
Group S & M
Fig. III-2
Group L
Fig. III-3
136
3298 Family Rev. 5/08
RECOMMENDED CUTTING TOOL
Fig. III-4
SP3298 VOLUTE INSERT TRIM PROCEDURE
DO NOT take cuts larger than .050”
DO:
1.
Use Arbor Tool C06820A (SP3298 1X1.5-6)
2.. Use Arbor Tool C06821A (SP3298 2X3-6)
3.
Make sure arbor is running true within .002” tir.
Fig. III-5
3298 Family Rev. 5/08
137
8
SP3298 VOLUTE INSERT
CUTWATER TRIM PROCEDURE
Machine cutwater diameter to full depth "R" as shown in
Table III-1.
Table III-1
Impeller Diameter
5.00
5.12
5.25
5.38
5.50
5.62
5.75
5.88
6.00
6.06
a. Use arbor C06820A for SP3298 1x1.5-6
b. Use arbor C06821A for SP3298 2x3-6
"R" +/0 0/010"
2.563
2.625
2.688
2.750
2.813
2.875
2.938
3.000
3.063
3.094
III-6
III-7
138
3298 Family Rev. 5/08
APPENDIX IV
POWER MONITORS
CONDENSED POWER MONITOR USER GUIDE
ITT Goulds Pumps offers various power monitoring
devices which have been designed to protect pumps from
dry-running, running against a closed discharge valve,
and running outside of the recommended operating region
for specific pump sizes, speeds, and impeller diameters.
Power monitors were designed to detect power relative to
load which is a linear function as opposed to measuring
amperage relative to load which is a parabolic function.
The linear characteristic of measuring power vs. load
enhances sensitivity at low power conditions where
increments in power are critical. See Fig. IV-1 for
comparison of power measurements vs. amperage
measurements. Quite simply, a properly adjusted and
installed power monitor is an insurance policy for
securing extended pump life.
The following summarized concepts will assist in
effectively selecting and properly calibrating power
monitors used to protect pumps.
1. Read your power monitor installation instructions
and wiring diagram before attempting to calibrate the
unit.
2. Understand your pump’s recommended operating
envelope as provided by ITT Goulds Pumps.
4. Understand the full range of your operating duty,
including power requirements at the rated minimum
and maximum flow conditions.
5. If only small fluctuations occur between the rated
point and trip points (less than 15% of the total motor
horsepower available), then the Integra Motor
Minder should not be used. In this case, use either
the Emotron or Load Controls unit as they can
detect to approximately 1% changes in horsepower.
6. Understand the relationship and limitations of item
numbers 2, 3, and 4 as an integrated functional
system.
7. Identify potential failures that would most likely be
characteristic of your specific process and the pump
type selected.
8. Understand the power scope and torque scope of the
selected electric motor.
9. A complete analysis of the above concepts will
define a safe operating range for your specific
system.
10. When feasible, further define your operating range to
run as close to BEP (best efficiency point) as
practical.
11. Select single trip unit or dual trip unit as practical for
your specific system.
12. Set low power trip point at the power draw required
when operating at the manufacturer’s recommended
minimum flow or higher, yet less than the normal
operating point.
13. Set the high trip point at the power draw required
when operating at the manufacturer’s recommended
maximum flow or lower, or at flow rate that will
prevent cavitation.
Fig. IV-1
3. Understand your systems requirements and
limitations.
3298 Family Rev. 5/08
14. When using dual trip power monitors, select high and
low trip points designed to protect your specific
system within the recommended pump operating
region defined by ITT Goulds Pumps. This method
will create boundaries for a safe pump operating
envelope.
139
8
POWER MONITORS, (cont’d)
15. Set nuisance trip feature for each power trip. The
nuisance trip device should be set at an appropriate
interval that will allow the system to experience
momentary fluctuations in power draw. However,
the nuisance trip device should also be set at an
appropriate time frame that will prevent the pump
from experiencing excessive heat or dangerous
operating conditions.
16. Set the delay timer for start-up conditions that will
appropriately allow the system to come to normal
operating power within a time frame that will
maximize protection of your pump.
17. For variable speed operation, consult ITT Goulds
Pumps or the power monitor manufacturer for
appropriate auxiliary devices designed for operating
at multiple speeds or fluctuating frequencies.
18. Select electrical enclosure that is suitable for the
operating environment or install the unit in an
appropriate electrical panel.
19. Do not activate the power monitor’s manual override
until a thorough examination of the source of the
problem is defined and corrected.
20. Investigate and select power monitor features that are
most suitable for your particular application and plant
safety.
Power monitors can be strategically calibrated to protect
your pump from any of the following conditions by
appropriately determining the power draw at any of these
individual conditions:
·
·
·
·
Dry Running
Closed Discharge Valve
·
·
·
·
·
·
·
·
·
·
·
Plugged Suction
Cavitation
Air Lock
Decoupled Magnets
Solidified, Plugged, or Frozen Discharge Line
Fluctuating Viscosities, Precipitation, or
Coagulation
Broken or Damaged Shaft
Broken or Damaged Coupling
Jammed Impeller
Bad Bearings
Rapid Cycling
The power draw at each of these conditions can be
simulated in a plant test or estimated through calculations
or interpolations from the pump performance curve. By
defining these dangerous power fluctuations, appropriate
calibration of the power monitoring unit will prevent
avoidable pump failures. See Fig. IV-2 for a typical
power evaluation recorded from a common centrifugal
pump electric motor.
Contact ITT Goulds Pumps Application Engineering staff
or regional distributor for assistance and power analysis
for your specific system.
For further details and evaluation of power monitoring
units, a comprehensive power monitor user guide is
available from ITT Goulds Pumps distribution network.
No Prime
Inadequate Suction Conditions
Fig. IV-2
140
3298 Family Rev. 5/08
APPENDIX V
Reliability Tips for Operating
Lined Magnetically-Driven Sealless Pumps
QUICK REFERENCE SUMMARY
These summarized reliability guidelines outline
recommendations for creating an optimal environment for
operating lined mag-drive pumps. For further details on
the subject of operating a lined-mag drive pump with
superior reliability, please request the Lined Mag-Drive
Reliability Guide from your ITT Goulds Pumps’
representative.
· Do not operate mag-drive pump without considering
the process liquid’s vapor pressure characteristics over
the temperature range of the application. Adequate
NPSHa as well as vapor pressure is mandatory to
prevent cavitation or vaporization in localized low
pressure regions within the pump.
· Do not operate mag-drive pumps under no flow
· Use power monitoring devices when potentially
· Do not operate mag-drive pumps against a closed
· Consider temperature controlling devices such as heat
conditions.
discharge valve.
· Do not operate mag-drive pumps with solids that
exceed the manufacturer’s maximum limits in particle
size or concentration.
· Before operating mag-drive pumps, confirm chemical
compatibility of process liquid with all wetted pump
components in an effort to reduce corrosion,
permeation, or erosion.
· Do not operate mag-drive pumps with process liquids
that may exceed the maximum temperature limits or
fall below the minimum temperature limits defined by
the pump manufacturer.
· Do not operate mag-drive pumps outside of the
manufacturer’s recommended operating range.
Otherwise, recirculate adequate flow through bypass
lines when operating near or below the manufacturer’s
recommended mechanical and thermal operating flow
to prevent excessive temperature rise or recirculation
cavitation.
· Consider the inner and outer magnet assemblies’
material temperature limits and recoverable flux
density losses due to increased temperatures.
3298 Family Rev. 5/08
operating near or outside of the manufacturer’s
recommended operating envelope.
jackets or steam tracing for pumps that are subject to
process fluids that transform characteristics such as
viscosity, specific gravity, crystallization, coagulation,
solidification, or vaporization with variable process
temperatures.
· Use temperature monitoring devices such as
thermocouples, RTDs, temperature controllers, or
thermometers when process fluid is susceptible to
critical variations in temperature.
· Use leak detectors such as fiber optic sensing devices
or pressure monitoring devices when fluid is prohibited
from entering the atmosphere.
· Ensure selected motor torque at maximum power and
start-up conditions for corrected hydraulic and
magnetic loss power at worst case fluid specific gravity
and viscosity is less than the magnet break-away torque
at maximum temperature.
· Keep process liquid in liquid form.
Prevent the liquid
from flashing.
· Do not exceed the manufacturer’s maximum viscosity
limits as internal fluid circulation velocities will be
inadequate to properly cool and lubricate sleeve
bearings.
141
8
142
3298 Family Rev. 5/08
APPENDIX VI
Polyshield® ANSI Combo
Installation, Operation, and Maintenance Instructions
SAFETY CONSIDERATIONS
APPLICATION
Several important general precautions are listed below:
The polymer concrete material used in the manufacture of
the Polyshield® ANSI Combo has been formulated for
application in a wide range of corrosive fluid handling
services. The material is not, however, universally
corrosion resistant. A comprehensive corrosion guide is
available. (Refer to Accessories Section of the Electronic
Pricebook.) It is strongly recommended that this bulletin
be reviewed prior to specifying or installing a Polyshield®
Product.
1. Do not remove the Polyshield® ANSI Combo from its
shipping pallet until you are ready to hoist it onto its
location.
2. Do not subject the Polyshield® ANSI or Custom
Combo to rough handling or unnecessary mechanical
shock.
3. Do not attempt to lift the Polyshield® ANSI Combo
by any means other than that which is prescribed in
these procedures.
4. Do not use hammer blows or other impact loading to
adjust the positioning of the Polyshield® ANSI
Combo. Do not pry against the Polyshield® mounting
block when moving the motor during shaft alignment.
5. Do not attempt to transport, handle, or install a
Polyshield® ANSI Combo when ambient temperature
is below -50° F (-45° C).
6. Do not operate a pump installed on a Polyshield® ANSI
Combo at process fluid temperatures in excess of 300° F
(150° C) with polymer mounting pads and 500° F with
alloy mounting pads unless prior approval from ITT
Industries - Goulds Pumps is obtained in writing.
temperature in an ATEX classified
! Service
environment is limited by Table 1 in the Safety
Section.
NOTE: Always coordinate installation activity with
operations personnel, and follow all plant safety
requirements and applicable safety and health laws,
directives and regulations.
OVERVIEW
$
STORAGE
This section addresses the storage procedures for the
Polyshield® ANSI Combo only. When storing
Polyshield® ANSI Combos and pump assemblies, it is
important that the proper storage procedures for the pump
be observed as well. Refer to the Installation, Operation
and Maintenance Instructions (IOM) for the particular
Goulds pump that is mounted on your Polyshield®
product.
Polyshield® normal packaging is designed to protect the
Polyshield® ANSI Combo during shipment and handling
from the time it is manufactured at the factory to
installation at the end user’s job site. If the Polyshield®
Combo is to be stored for a period of time prior to
installation, it is recommended that the following
procedures be followed:
a.
CAUTION
Observance of proper handling procedures during
installation is extremely important to prevent damage
to the Polyshield® ANSI Combo. While polymer
concrete possesses inherent high strength, subjecting it
to impact or bending loads through rough handling or
improper lifting or mounting may result in irreparable
damage to the Polyshield® ANSI Combo as well as
damage to the mounted equipment or injury to
personnel.
3298 Family Rev. 5/08
The Polyshield® ANSI Combo is also suitable for
application in a wide range of fluid process temperatures,
specifically, -50° F to 300° F (-45° C to 150° C).
Depending on the configuration of the pump that is to be
mounted on the Polyshield®, fluid process temperature in
excess of 300° F (150° C) may be permissible. Contact
your ITT Industries - Goulds Pumps representative for
assistance in determining acceptability of a specific
application.
Leave the Polyshield® ANSI Combo strapped to its
wooden shipping pallet.
b. Place the pallet on a solid, dry, level surface in a
location where the ANSI Combo cannot be struck by
passing fork trucks, falling objects, etc. Make sure
the pallet does not rock.
c.
Do not stack heavy objects on top of the Polyshield ®
ANSI Combo.
d. If the Polyshield® ANSI Combo is to be stored in an
143
8
outdoor location, cover the Polyshield® completely
with a tarpaulin or dark plastic sheeting to prevent
UV degradation of the surface.
NOTE: UV degradation (bleaching) of the polymer
concrete is the normal result of exposure to sunlight.
This phenomenon is purely a visible change in the
color of the material, which in no way compromises
the performance or corrosion resistance
characteristics of the Polyshield®.
!
▲
WARNING
Do not attempt to stand a Polyshield® on its
end to make more efficient use of storage space.
Neither the Polyshield® Combo nor the strapping that
holds the Polyshield® Combo to its wooden pallet
have been designed for vertical storage. Severe
personal injury or death, as well as irreparable
damage to the Polyshield® Combo may result if the
Combo tips over.
®
Lifting Polyshield Combo Units and Polyshield
Combo / Pump Assemblies
$
®
CAUTION
®
Polyshield units should be transported via
fork truck to the area of their intended installation on
the wooden pallets on which they were shipped. Never
transport a Polyshield® unit over a long distance or
over rough terrain while suspended from slings.
Only trained personnel should do lifting. Pumps and
motors often have integral lifting eyes or eye bolts.
These are intended for use in lifting the individual
pieces of equipment. Do not use these features to lift a
Polyshield® Combo / pump assembly.
Lifting
The following procedures are recommended for lifting
Polyshield® ANSI Combo units:
Polyshield® with no mounted equipment:
!
▲
WARNING
Do not install eyebolts in the Polyshield® thread
inserts for the purpose of lifting the base. This
practice imposes lateral loads on the inserts — which
they were not designed to withstand.
Remove the metal shipping straps that hold the
Polyshield® unit to the wooden pallet. Slip slings under
each end of the Polyshield® unit as a harness (Fig. VI-1).
144
Fig. V-1
Lift the Polyshield® unit a few inches off the pallet and
verify that it hangs reasonably level and that the slings are
not prone to slipping out of position.
!
▲
WARNING
Keep hands and feet out from under the Polyshield ®
unit during these steps. If slings slip and the unit tips
over, severe personal injury or death may result, as
well as irreparable damage to the Polyshield®
Combo.
If the sling appears to be unstable, set the Polyshield® unit
back on the pallet and reposition the slings.
After satisfactory slinging has been achieved, the
Polyshield® unit may be hoisted onto its foundation.
Take care not to bump the unit against fixed objects or
induce any unnecessary shock loads. Lower the unit
slowly over the foundation using care to center the unit
over the rebar cage. Place shim packs or wedges under the
Polyshield® unit at a minimum of eight total or (four [4]
locations on each side) to allow for the removal of the
slings. Twelve (12) total shim locations or (six [6] shim
locations each side are required for Polyshield® units
exceeding six feet in length.
POLYSHIELD® WITH INSTALLED
EQUIPMENT:
Pump and motor installed:
Remove the metal shipping straps that hold the
Polyshield® unit to the wooden pallet. Slip slings under
each end of the Polyshield® unit. This procedure is
recommended up to the MTX or LTX pump units. All
motors up to a 364T NEMA frame may be installed while
mounted. Motor frame sizes 365T or larger should be
removed during locating and installation of the
Polyshield® ANSI Combo units. Check to see that the
pump suction nozzle does not interfere with the lifting
sling. If the pump creates interference, it should be
removed. Lift the Polyshield® ANSI Combo a few inches
off the pallet and verify that it hangs reasonably level and
that the slings are not prone to slipping out of position.
3298 Family Rev. 5/08
After satisfactory slinging has been achieved, the
Polyshield® ANSI Combo may be hoisted onto its
foundation. Take care not to bump the unit against fixed
objects or induce any unnecessary shock loads. Lower
the unit slowly over the foundation using care to center
the unit over the rebar cage. Place shim packs or wedges
under the Polyshield® unit at a minimum of eight total (or
four [4] locations on each side) to allow for the removal
of the slings. Twelve (12) total shim locations (or six [6]
shim locations each side) are required for Polyshield®
units exceeding six feet in length.
INSTALLATION
General Description of the Polyshield® ANSI Combo
The Polyshield® ANSI Combo is a solid, polymer
concrete foundation and baseplate shell that is
manufactured in versions that conform to accommodate
ASME/ANSI B73.1 pumps.
Polyshield® ANSI Combo units are manufactured in five
primary sizes with integral catch basins and removable
motor mounting blocks.
Metallic thread inserts are provided in the mounting
surface for the particular combination of pump and motor
that the Combo is intended. The metallic thread inserts on
the pump end are available in 316SS (18.8 CrNi stainless
steel), Alloy 20 (A744, CN-7M) and Hastelloy C 276
(A494, CW-6M). Multiple motor insert patterns are also
available to accommodate more than one NEMA frame
size. The standard thread insert material for the motor end
is 316SS (18.8 CrNi stainless steel).
Optional alloy pads are available instead of metallic
inserts for requirements that call for 0.002”/ft. and or
process temperatures between 301° F and 500° F.
Polyadjust Motor Block Adjuster System
The Polyshield® ANSI Combo utilizes as standard the
unique Polyshield® Polyadjust motor mounting system
(Fig. VI-2). This system is comprised of a one-piece
polymer concrete motor mounting block having surface
flatness and parallelism equivalent to machine steel
blocks. The Polyadjust motor mounting block system
incorporates the Polyloc Transverse Jack Bolt system.
The Polyloc system provides transverse motor
adjustment. The side-mounted adjusters allow for shaft
alignment to critical tolerances with minimal disturbance
of indicators. The adjusters make contact with a solid
motor mounting block not the foot of the motor.
3298 Family Rev. 5/08
Fig. VI-2
Polyshield® ANSI and Custom Combos Installation
Procedures (NEW CONSTRUCTION)
1. Remove laitance and form grease and oil from area
where the Polyshield® ANSI Combo will be located
using mechanical means, abrasive blasting, or water
blasting. Remove any loose debris including fins,
aggregate, or any protruding objects around the
perimeter of the area where the Polyshield ANSI
Combo will rest.
2. Measure the outside dimensions of the Polyshield®
ANSI Combo and subtract 8” from both the width
and length to determine the rebar maximum
dimension, thus providing clearance from the side of
the walls of the ANSI Combo.
3. Drill holes in the existing slab a minimum of four
inches deep for doweling in the vertical rebar rods
allowing a minimum of one inch clearance from the
top of the interior of the Polyshield® ANSI Combo.
Space the rebar rods of 12” centers. Remove dust
and debris from dowel holes and fill with epoxy
adhesive for anchoring the rebar.
4. Allow the epoxy adhesive to cure, and then install
horizontal rebar rods, tying in place with wire.
5. Place the Polyshield® ANSI Combo over the rebar
cage, making adjustments for proper elevation,
orientation relative to piping centerlines. A qualified
millwright should field verify proper position of the
pump mounting pads relative to the centerline of the
suction piping. Appropriate shims may be placed
along the bottom edge of the Polyshield® ANSI
Combo to aid in leveling. Place shim packs or
wedges under the Polyshield® unit at a minimum of
eight total (or four [4] locations on each side) to
allow for the removal of the slings and metal lifting
straps from each end. A minimum of twelve (12)
total shim locations (or six [6] shim locations each
side) are recommended for Polyshield® units
exceeding seven feet in length.
145
8
6. Check and verify the dimensions again before the
grouting procedure begins.
7. A low slump standard concrete mix is suitable for
filling the Polyshield® ANSI Combo in new
construction.
8. Seal around the outside bottom perimeter of the
Polyshield® ANSI Combo with a fast setting
hydraulic cement. Two brand name hydraulic
cements are: Water Plug Hydraulic Cement and
Dam-It Non Shrink Hydraulic Cement.
9. Pour the concrete mixture through the grout fill port
on the top of the Polyshield® ANSI Combo using a
concrete vibrator to ensure proper flow of the
concrete. Do not over vibrate as excessive vibrating
leads to larger aggregate settling which will result in
a weak mix.
10. Pour the concrete to the bottom edge of the grout fill
port.
11. Remove any loose debris from around edges of the
grout fill port.
12. Seal grout fill port with grout port plug and
Polyshield® Seal Kit provided.
13. Install pump, motor, and attach lines.
TOOLS FOR INSTALLATION
·
·
·
·
·
·
·
·
·
·
·
·
146
Hammer drill with proper size bit
Worm gear saw with diamond blade (if required)
Rebar cutters (new installation)
Concrete mixer
POLYSHIELD® ANSI COMBO
SEALING KIT EPOXY NOVOLAC
(EN) INSTRUCTIONS
Each Kit contains:
·
·
·
·
·
·
Polyshield® EN Resin
Polyshield® EN Hardener
Stir Sticks
Latex Gloves
Instruction Sheet
MSDS Material Safety Data Sheet
APPLICATION INSTRUCTIONS:
The Polyshield® EN Sealing Kit is intended for use in (1)
bonding the plug into the grout hole at the top of the
combo and (2) sealing and providing chemical resistance
barrier around the perimeter of the pump pad.
1. All surfaces to be bonded should be thoroughly
cleaned and should be free of dust, oils and
contaminants. Sand surfaces to be bonded prior to
use.
2. Pour Polyshield® EN Hardener into the Polyshield®
Resin can. Mix well with stir stick for about two
minutes.
3. Apply to properly prepared surface by stir stick or
putty knife.
4. Use MEK, Xylene solvents for cleaning tools and
equipment and for lightly brushing surface to provide
a smooth finish.
Concrete vibrator
Lifting device (for placing Polyshield®
Foundation)
Hand tools
Chipping hammer
Pressure washer or abrasive blast rig as required
Epoxy adhesive (for setting rebar into concrete slab
– new installation)
SAFETY PRECAUTIONS
!
▲
WARNING
Resin and hardener components may be irritating to
the eyes and skin on contact. Vapors may cause
irritation of eyes and respiratory tract. Area must be
ventilated. Wear protective clothing including gloves.
For detailed safety information, refer to the Material
Safety Data Sheets of these products.
Rebar tie wire
Fast set cement
3298 Family Rev. 5/08
POLYSHIELD® ANSI COMBO
SEALING KIT VINYL ESTER (VE)
INSTRUCTIONS
Each Kit contains:
·
·
·
·
·
·
Polyshield® VE Resin
Polyshield® VE Hardeners #1
SHELF LIFE AND STORAGE
Store resin and hardener in their unopened containers in a
dry cool place away from open flames, heat or sources of
ignition. Shelf life is limited to 60 days if stored in a
cool, dry location.
Polyshield® Seal Kits provide sealant for every ANSI
Combo. Polyshield® Seal Kits are shipped with each
ANSI Combo.
Stir Sticks
Table VI-1
Latex Gloves
Fastener Size and
Recommended Torque Values
Instruction Sheet
MSDS Material Safety Data Sheet
Fastener
Standard
APPLICATION INSTRUCTIONS
The Polyshield® VE Sealing Kit is intended for use in (1)
bonding the plug into the grout hole at the top of the
combo and (2) sealing and providing chemical resistance
barrier around the perimeter of pump pad.
5
7
SAFETY PRECAUTIONS
!
▲
WARNING
Resin and hardener components may be irritating to
the eyes and skin on contact. Vapors may cause
irritation of eyes and respiratory tract. Area must be
ventilated. Wear protective clothing including gloves.
For details on safety information, refer to the
Material Safety Data Sheets of these products.
3298 Family Rev. 5/08
6
10
16
18
2
27
8
53
4
94
8
152
1
228
1
5
3
7
1
Recommended
Torque1
lb.-ft.
8
SAE
2. Pour Polyshield® VE Hardener #1 into the
Polyshield® VE Resin can. Mix well with stir stick
for about two minutes.
4. Use MEK, Xylene solvents for cleaning tools and
equipment and for lightly brushing surface to provide
a smooth finish.
16
3
1. All surfaces to be bonded should be thoroughly
cleaned and should be free of dust, oils and
contaminants. Sand surfaces to be bonded prior to
use.
3. Apply to properly prepared surface by stir stick or
putty knife.
Fastener
Nominal Size
Torque values shown for SAE fasteners are based on
dry threads at 75% of proof load for ASTM307
Grades A and B (SAE Grade 1) fasteners.
For lubricated, plated, or PTFE coated threads, use
75% of torque values shown.
8
Polyshield is a registered trademark, U.S. Patent Nos. 5165651,
et. al, apply.
®
147
HOW TO ORDER
When ordering parts call
1-800-446-8537
or your local Goulds Representative
EMERGENCY SERVICE
Emergency parts service is available
24 hours/day, 365 days/year...
Call 1-800-446-8537
How did we measure up?
It is our sincere intention to exceed our customers' expections on every order.
Tell us whether we achieved our goal on your order.
Please take our customer satisfaction survey online at:
http://www.gouldspumps.com/feedbacksurvey.html
We appreciate you taking the time to provide your feedback.
Thank you for buying Goulds pumps, parts, and controls.
Visit our website at www.gouldspumps.com
Form No. I3298 5/08
© 2007 Goulds Pumps, Incorporated
a subsidiary of ITT Corporation
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
