PeopleTools 8.54: System and Server Administration

PeopleTools 8.54: System and Server Administration

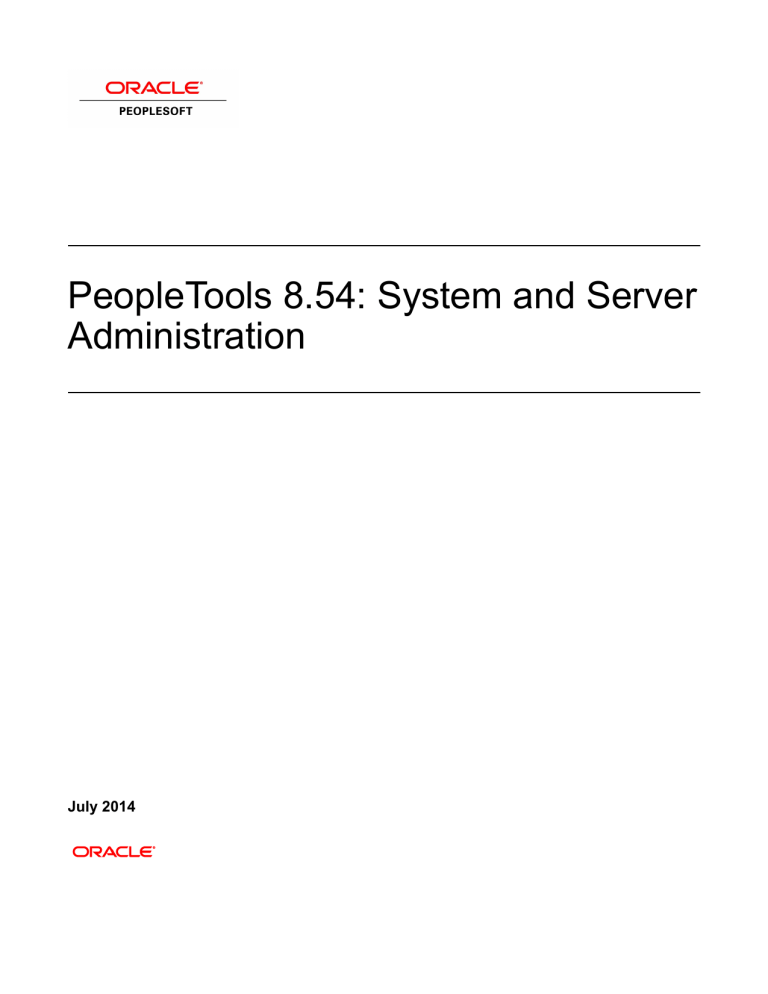

PeopleTools 8.54: System and Server
Administration
July 2014
PeopleTools 8.54: System and Server Administration
CDSKU pt854pbr0_r02
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Trademark Notice
Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be trademarks
of their respective owners.
Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks
are used under license and are trademarks or registered trademarks of SPARC International, Inc.
AMD, Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of
Advanced Micro Devices. UNIX is a registered trademark of The Open Group.
License Restrictions Warranty/Consequential Damages Disclaimer
This software and related documentation are provided under a license agreement containing restrictions
on use and disclosure and are protected by intellectual property laws. Except as expressly permitted
in your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast,
modify, license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any
means. Reverse engineering, disassembly, or decompilation of this software, unless required by law for
interoperability, is prohibited.
Warranty Disclaimer
The information contained herein is subject to change without notice and is not warranted to be error-free.
If you find any errors, please report them to us in writing.
Restricted Rights Notice
If this is software or related documentation that is delivered to the U.S. Government or anyone licensing it
on behalf of the U.S. Government, the following notice is applicable:
U.S. GOVERNMENT END USERS: Oracle programs, including any operating system, integrated
software, any programs installed on the hardware, and/or documentation, delivered to U.S. Government
end users are "commercial computer software" pursuant to the applicable Federal Acquisition Regulation
and agency-specific supplemental regulations. As such, use, duplication, disclosure, modification,
and adaptation of the programs, including any operating system, integrated software, any programs
installed on the hardware, and/or documentation, shall be subject to license terms and license restrictions
applicable to the programs. No other rights are granted to the U.S. Government.
Hazardous Applications Notice
This software or hardware is developed for general use in a variety of information management
applications. It is not developed or intended for use in any inherently dangerous applications, including
applications that may create a risk of personal injury. If you use this software or hardware in dangerous
applications, then you shall be responsible to take all appropriate fail-safe, backup, redundancy, and
other measures to ensure its safe use. Oracle Corporation and its affiliates disclaim any liability for any
damages caused by use of this software or hardware in dangerous applications.
Third Party Content, Products, and Services Disclaimer
This software or hardware and documentation may provide access to or information on content, products,
and services from third parties. Oracle Corporation and its affiliates are not responsible for and expressly
disclaim all warranties of any kind with respect to third-party content, products, and services. Oracle
Corporation and its affiliates will not be responsible for any loss, costs, or damages incurred due to your
access to or use of third-party content, products, or services.
Alpha and Beta Draft Documentation Notice
If this document is in preproduction status:
This documentation is in preproduction status and is intended for demonstration and preliminary use only.
It may not be specific to the hardware on which you are using the software. Oracle Corporation and its
affiliates are not responsible for and expressly disclaim all warranties of any kind with respect to this
documentation and will not be responsible for any loss, costs, or damages incurred due to the use of this
documentation.
Contents
Preface........................................................................................................................................................xix
Understanding the PeopleSoft Online Help and PeopleBooks........................................................... xix
PeopleSoft Hosted Documentation............................................................................................... xix
Locally Installed Help................................................................................................................... xix
Downloadable PeopleBook PDF Files..........................................................................................xix
Common Help Documentation......................................................................................................xix
Field and Control Definitions........................................................................................................ xx
Typographical Conventions............................................................................................................ xx
ISO Country and Currency Codes................................................................................................ xxi
Region and Industry Identifiers.................................................................................................... xxi
Access to Oracle Support..............................................................................................................xxi
Documentation Accessibility........................................................................................................xxii
Using and Managing the PeopleSoft Online Help.............................................................................xxii
System and Server Administration.....................................................................................................xxii
Contact Us...........................................................................................................................................xxii
Follow Us............................................................................................................................................xxii
Chapter 1: Getting Started with System and Server Administration.................................................. 23
System and Server Administration Overview...................................................................................... 23
PSADMIN.......................................................................................................................................23
Analytic Servers............................................................................................................................. 24
Web Servers.................................................................................................................................... 24
Verity Search Indexes.....................................................................................................................25
PeopleSoft Configuration Manager................................................................................................26
PeopleTools Utilities.......................................................................................................................26
Tracing and Debugging.................................................................................................................. 27
Jolt Configuration Options............................................................................................................. 27
Timeout Settings............................................................................................................................. 28
System and Server Administration Implementation.............................................................................28
Chapter 2: Understanding PeopleSoft Internet Architecture............................................................... 29
PeopleSoft Architecture Fundamentals.................................................................................................29
Database Server.....................................................................................................................................30
Application Servers...............................................................................................................................30
Application Servers........................................................................................................................ 31
Oracle Tuxedo and Oracle Jolt...................................................................................................... 31
Domains.......................................................................................................................................... 31
PeopleSoft Server Processes.......................................................................................................... 32
Services........................................................................................................................................... 33
Listeners, Handlers, and Queues....................................................................................................34
PeopleSoft Process Scheduler Server................................................................................................... 36
Web Server............................................................................................................................................ 36
Web Server Software......................................................................................................................37
PeopleSoft Servlets.........................................................................................................................38
Oracle Jolt.......................................................................................................................................39
Web Browser.................................................................................................................................. 40
Server Configuration Options............................................................................................................... 41
Logically Separate Server Configuration.......................................................................................41
Physically Separate Server Configuration..................................................................................... 43
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
v
Contents
Implementation Options........................................................................................................................44
Chapter 3: Working with Server Domain Configurations.................................................................... 47
Understanding PS_HOME and PS_CFG_HOME................................................................................47
Implementing Flexible Server Installations................................................................................... 48
Applying Security Restrictions...................................................................................................... 48
Managing a Portable PS_HOME..........................................................................................................49
Working with the Default PS_CFG_HOME........................................................................................ 50
Locating the Default PS_CFG_HOME..........................................................................................50
Using PSADMIN with the Default PS_CFG_HOME................................................................... 51
Working with Alternate PS_CFG_HOME Locations...........................................................................52
Specifying Alternate PS_CFG_HOME Locations......................................................................... 52
Using the %V and %K Meta Variable...........................................................................................52
Configuring Domains in Alternate Locations of PS_CFG_HOME...............................................53
Managing Domains............................................................................................................................... 54
Working with PS_APP_HOME............................................................................................................54
Understanding PS_APP_HOME.................................................................................................... 55
Managing Environments with PS_APP_HOME............................................................................55
Working with PS_CUST_HOME......................................................................................................... 57
Understanding PS_CUST_HOME................................................................................................. 57
Managing Environments with PS_CUST_HOME.........................................................................59
Chapter 4: Using the PSADMIN Utility..................................................................................................63
Understanding PSADMIN.................................................................................................................... 63
Starting PSADMIN............................................................................................................................... 64
Using PSADMIN.................................................................................................................................. 65
Using Configuration Templates............................................................................................................ 65
Using the Quick-Configure Menu........................................................................................................ 66
Setting Domain-Level Environment Variables..................................................................................... 67
Understanding Domain-Level Environment Settings.................................................................... 67
Working with Domain-Level Environment Settings......................................................................68
Setting Domain-Level Environment Variables.............................................................................. 69
Using the PSADMIN Command-Line Interface.................................................................................. 72
Understanding the PSADMIN Command-Line Interface..............................................................72
Using the Miscellaneous Commands............................................................................................. 73
Using the Pure Internet Architecture Commands.......................................................................... 73
Using the Application Server Commands......................................................................................75
Using the Process Scheduler Commands.......................................................................................81
Using the Search Server Commands............................................................................................. 85
Working with PSADMIN Exit Codes............................................................................................86
Using PSADMIN Configuration Files................................................................................................. 88
Understanding PSADMIN Configuration Files............................................................................. 88
Configuring a Domain....................................................................................................................89
Loading a Configuration................................................................................................................ 90
Archiving Application Server Configuration Files........................................................................ 90
Booting a Domain.......................................................................................................................... 91
Stopping a Domain.........................................................................................................................91
Monitoring a Domain..................................................................................................................... 91
Configuring the Application Server to Handle Cache Files and Replay Files..................................... 91
Chapter 5: Using PSADMIN Menus........................................................................................................95
Understanding PSADMIN Menus........................................................................................................ 95
Using the Application Server Administration Menu............................................................................96
Accessing the Application Server Options.................................................................................... 96
vi
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Contents
Administering a Domain................................................................................................................ 97
Importing Domain Configurations................................................................................................. 97
Booting a Domain.......................................................................................................................... 98
Shutting Down a Domain...............................................................................................................99
Checking the Domain Status..........................................................................................................99
Purging the Domain Cache.......................................................................................................... 101
Configuring a Domain..................................................................................................................103
Editing Configuration and Log Files........................................................................................... 103
Creating a Domain....................................................................................................................... 104
Deleting a Domain....................................................................................................................... 105
Configuring an Application Server Domain to Preload Cache....................................................105
Cleaning Domain IPC Resources.................................................................................................108
Using the Process Scheduler Menu.................................................................................................... 108
Using the Search Server Menu...........................................................................................................109
Using the Web (PIA) Server Menu.................................................................................................... 109
Understanding PeopleSoft Web Server Administration Using PSADMIN................................. 110
Accessing the Web Server Options..............................................................................................110
Creating a PIA Domain................................................................................................................111
Deleting a PIA Domain................................................................................................................114
Booting a PIA Domain................................................................................................................ 115
Shutting Down a PIA Domain.....................................................................................................116
Checking PIA Domain Status...................................................................................................... 116
Configuring a PIA Domain..........................................................................................................117
Editing PIA Configuration Files.................................................................................................. 118
Viewing Log Files........................................................................................................................ 119
Administering a PIA Site............................................................................................................. 119
Deleting a PIA Site...................................................................................................................... 121
Managing Windows Services for PIA Domains.......................................................................... 122
Switching Configuration Homes (PS_CFG_HOME).........................................................................123
Setting Up the PeopleSoft Windows Service to Start an Application Server Domain....................... 124
Understanding Microsoft Windows Services...............................................................................124
Configuring the PeopleSoft Service.............................................................................................125
Testing the Service....................................................................................................................... 126
Editing the Service Configuration File........................................................................................ 127
Chapter 6: Setting Application Server Domain Parameters...............................................................129
Startup Options....................................................................................................................................129
DBName....................................................................................................................................... 129
DBType......................................................................................................................................... 129
UserID...........................................................................................................................................129
UserPswd...................................................................................................................................... 129
Connect ID....................................................................................................................................130
Connect Password.........................................................................................................................130
ServerName...................................................................................................................................130
StandbyDBName.......................................................................................................................... 130
StandbyDBType............................................................................................................................ 130
StandbyUserId...............................................................................................................................130
StandbyUserPswd......................................................................................................................... 130
Database Options................................................................................................................................ 131
SybasePacketSize..........................................................................................................................131
UseLocalOracleDB....................................................................................................................... 131
EnableDBMonitoring....................................................................................................................131
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
vii
Contents
PSDB Maximum Cursors.............................................................................................................131
Security Options..................................................................................................................................132
Validate Signon With Database....................................................................................................132
DomainConnectionPwd................................................................................................................ 133
Workstation Listener Options............................................................................................................. 133
Address......................................................................................................................................... 133
Port................................................................................................................................................ 134
Encryption.....................................................................................................................................134
Min Handlers................................................................................................................................ 134
Max Handlers............................................................................................................................... 134
Max Clients per Handler..............................................................................................................134
Client Cleanup Timeout............................................................................................................... 134
Init Timeout.................................................................................................................................. 135
Tuxedo Compression.................................................................................................................... 135
Jolt Listener Options...........................................................................................................................135
Address......................................................................................................................................... 135
Port................................................................................................................................................ 135
Encryption.....................................................................................................................................135
Min Handlers................................................................................................................................ 136
Max Handlers............................................................................................................................... 136
Max Clients per Handler..............................................................................................................136
Client Cleanup Timeout............................................................................................................... 136
Init Timeout.................................................................................................................................. 136
Client Connection Mode.............................................................................................................. 136
Jolt Compression Threshold.........................................................................................................136
Additional Prompt........................................................................................................................ 137
Jolt Relay Adapter Options................................................................................................................ 137
Listener Address........................................................................................................................... 137
Listener Port................................................................................................................................. 137
Domain Settings.................................................................................................................................. 138
Domain ID.................................................................................................................................... 138
Add to PATH................................................................................................................................ 138
Spawn Threshold.......................................................................................................................... 138
Log Directory............................................................................................................................... 139
Restartable.....................................................................................................................................139
Allow Dynamic Changes............................................................................................................. 139
LogFence.......................................................................................................................................140
LogFieldSeparator.........................................................................................................................140
AppLogFence................................................................................................................................141
Trace-Log File Character Set....................................................................................................... 141
ProcessRestartMemoryLimit........................................................................................................ 141
PeopleCode Debugger Options...........................................................................................................142
Trace Options...................................................................................................................................... 143
TraceSQL...................................................................................................................................... 143
TraceSQLMask............................................................................................................................. 143
TracePC.........................................................................................................................................143
TracePCMask................................................................................................................................144
TracePPR and TracePPRMask..................................................................................................... 144
TracePIA and TracePIAMask...................................................................................................... 145
TraceAE........................................................................................................................................ 145
TraceAnalytic and Trace AnalyticMask.......................................................................................145
viii
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Contents
TracePPM......................................................................................................................................146
DumpMemoryImageAtCrash........................................................................................................146
DumpManagerObjectsAtCrash.....................................................................................................146
Log Error Report, Mail Error Report.......................................................................................... 146
Cache Settings.....................................................................................................................................146
EnableServerCaching....................................................................................................................146
CacheBaseDir................................................................................................................................147
ServerCacheMode.........................................................................................................................147
MaxCacheMemory........................................................................................................................148
EnableDBCache............................................................................................................................ 149
PreLoadCache and PreLoadMemoryCache................................................................................. 149
EnableCacheRepair.......................................................................................................................149
AdjustMaxCacheMem.................................................................................................................. 150
ExcessivePruningThreshold..........................................................................................................150
CacheMissThreshold.....................................................................................................................150
MaxRepairCollection.................................................................................................................... 151
Remote Call Options...........................................................................................................................151
RCCBL Redirect...........................................................................................................................151
RCCBL PRDBIN......................................................................................................................... 153
PSAPPSRV Options............................................................................................................................154
Min Instances................................................................................................................................154
Max Instances............................................................................................................................... 154
Service Timeout............................................................................................................................154
Recycle Count...............................................................................................................................154
ProcessRestartMemoryLimit........................................................................................................ 154
Allowed Consec Service Failures................................................................................................ 154
Max Fetch Size.............................................................................................................................155
Auto Select Prompts.....................................................................................................................155
AutoLoad JVM............................................................................................................................. 155
Serial Recycle............................................................................................................................... 155
Tuxedo Queue Size...................................................................................................................... 156
PSANALYTICSRV Options............................................................................................................... 156
Min Instances................................................................................................................................156
Max Instances............................................................................................................................... 156
Analytic Instance Idle Timeout.................................................................................................... 156
ProcessRestartMemoryLimit........................................................................................................ 156
PSSAMSRV Options...........................................................................................................................157
Min Instances................................................................................................................................157
Max Instances............................................................................................................................... 157
Service Timeout............................................................................................................................157
Recycle Count...............................................................................................................................157
ProcessRestartMemoryLimit........................................................................................................ 157
Allowed Consec Service Failures................................................................................................ 157
Max Fetch Size.............................................................................................................................157
PSQCKSRV Options...........................................................................................................................158
Min Instances................................................................................................................................158
Max Instances............................................................................................................................... 158
Service Timeout............................................................................................................................158
Recycle Count...............................................................................................................................158
ProcessRestartMemoryLimit........................................................................................................ 158
Allowed Consec Service Failures................................................................................................ 158
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
ix
Contents
Max Fetch Size.............................................................................................................................159
Serial Recycle............................................................................................................................... 159
PSQRYSRV Options........................................................................................................................... 159
Min Instances................................................................................................................................159
Max Instances............................................................................................................................... 159
Service Timeout............................................................................................................................159
Recycle Count...............................................................................................................................159
ProcessRestartMemoryLimit........................................................................................................ 160
Allowed Consec Service Failures................................................................................................ 160
Max Fetch Size.............................................................................................................................160
Use Dirty-Read............................................................................................................................. 160
Serial Recycle............................................................................................................................... 160
Integration Broker Server Processes...................................................................................................161
SMTP Settings.................................................................................................................................... 161
SMTPServer..................................................................................................................................161
SMTPPort..................................................................................................................................... 161
SMTPServer1................................................................................................................................162
SMTPPort1................................................................................................................................... 162
SMTPSender................................................................................................................................. 162
SMTP BlackberryReplyTo........................................................................................................... 162
SMTPSourceMachine................................................................................................................... 162
SMTPCharacterSet........................................................................................................................162
SMTPEncodingDLL..................................................................................................................... 162
SMTPGuaranteed..........................................................................................................................162
SMTPTrace................................................................................................................................... 162
SMTPSendTime............................................................................................................................163
SMTPUserName........................................................................................................................... 163
SMTPUserPassword..................................................................................................................... 163
SMTPUserName1......................................................................................................................... 163
SMTPUserPassword1................................................................................................................... 163
SMTPTimeToWaitForResult........................................................................................................ 163
SMTPUseSSL............................................................................................................................... 163
SMTPSSLPort...............................................................................................................................164
SMTPClientCertAlias................................................................................................................... 164
SMTPSSLPort1.............................................................................................................................164
SMTPUseSSL1............................................................................................................................. 164
SMTPClientCertAlias1................................................................................................................. 164
SMTPDNSTimeoutRetries........................................................................................................... 164
Implementing NT LAN Manager................................................................................................ 164
Implementing Simple Authentication and Security Layer...........................................................165
SMTP Further Considerations......................................................................................................165
Interface Driver Options..................................................................................................................... 166
SCP_LOCALE..............................................................................................................................166
PSTOOLS Options..............................................................................................................................166
EnablePPM Agent........................................................................................................................ 166
Add to CLASSPATH....................................................................................................................166
JavaVM Options........................................................................................................................... 167
Proxy Host.................................................................................................................................... 167
Proxy Port..................................................................................................................................... 167
Non Proxy Hosts.......................................................................................................................... 168
Usage Monitoring State................................................................................................................168
x
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Contents
Character Set.................................................................................................................................168
Suppress App Error Box (Microsoft Windows Only)................................................................. 169
DbFlags......................................................................................................................................... 169
Suppress SQL Error..................................................................................................................... 170
Integration Broker Options................................................................................................................. 171
Min Message Size for Compression............................................................................................ 171
Thread Pool Size.......................................................................................................................... 171
Search.................................................................................................................................................. 171
Search Indexes.................................................................................................................................... 171
PSRENSRV Options........................................................................................................................... 172
log-severity_level..........................................................................................................................172
io_buffer_size................................................................................................................................172
default_http_port...........................................................................................................................172
default_https_port......................................................................................................................... 172
default_auth_token........................................................................................................................172
PSPPMSRV Options........................................................................................................................... 172
Min Instances................................................................................................................................172
Max Instances............................................................................................................................... 173
Select Server Process Options............................................................................................................ 173
Do you want the Publish/Subscribe servers configured?.............................................................173
Move quick PSAPPSRV services into a second server (PSQCKSRV)?......................................173
Move long-running queries into a second server (PSQRYSRV)?............................................... 173
Do you want JOLT configured?...................................................................................................173
Do you want JRAD configured?..................................................................................................173
Do you want WSL Configured?.................................................................................................. 174
Do you want to enable PeopleCode Debugging (PSDBGSRV)?................................................ 174
Do you want Event Notification configured (PSRENSRV)?.......................................................174
Do you want MCF Servers configured?...................................................................................... 174
Do you want Performance Collators configured?........................................................................174
Do you want Analytic Servers configured?.................................................................................174
Do you want Domains Gateway configured?.............................................................................. 174
Chapter 7: Working with Oracle WebLogic.........................................................................................175
Understanding WebLogic....................................................................................................................175
Working With the WebLogic Server Administration Console........................................................... 175
Starting WebLogic...............................................................................................................................176
Starting WebLogic on Microsoft Windows................................................................................. 177
Starting WebLogic on UNIX....................................................................................................... 178
Stopping WebLogic.............................................................................................................................178
Stopping WebLogic Using the Administration Console..............................................................178
Stopping WebLogic Using the Command Line........................................................................... 179
Using WebLogic Server Administration Console to Monitor PeopleSoft Sessions........................... 179
Setting Up Reverse Proxy Servers..................................................................................................... 180
Understanding Reverse Proxy Servers For PeopleSoft Implementations.................................... 181
Configuring Microsoft IIS as an RPS..........................................................................................181
Configuring Microsoft IIS 7.0 as an RPS....................................................................................183
Configuring WebLogic as an RPS............................................................................................... 186
Configuring Oracle Sun Java System Web Server as an RPS..................................................... 188
Configuring Apache HTTP as an RPS........................................................................................ 191
Setting The HTTP Session Timeout...................................................................................................192
Setting Authentication Failure Timeout............................................................................................. 193
Enabling or Disabling HTTP Keep Alive.......................................................................................... 193
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
xi
Contents
Changing WebLogic User Passwords.................................................................................................194
Implementing WebLogic SSL Keys and Certificates.........................................................................195
Understanding SSL Encryption with WebLogic..........................................................................195
Obtaining Encryption Keys.......................................................................................................... 196
Preparing Keys and Certificates for the Keystore....................................................................... 198
Importing Keys and Certificates Into the Keystore..................................................................... 200
Configuring WebLogic SSL Encryption Keys.............................................................................202
Enabling TLS-Only on WebLogic......................................................................................................204
Configuring TLS-Only on WebLogic Server...............................................................................204
Configuring Browsers for TLS.................................................................................................... 204
Configuring Reverse Proxy Servers for TLS...............................................................................205
Working With WebLogic Session Cookies........................................................................................ 205
Securing Servlets on WebLogic..........................................................................................................206
Adjusting the JVM Heap Size............................................................................................................208
Determining the Service Pack Level.................................................................................................. 209
Enabling HTTP Access Log...............................................................................................................210
Chapter 8: Working with IBM WebSphere.......................................................................................... 211
Understanding WebSphere Application Server within Your PeopleSoft Implementation..................211
Deploying PeopleSoft Applications With WebSphere.................................................................211
Using The Integrated Solutions Console..................................................................................... 211
WebSphere Application Server Profiles.......................................................................................213
IBM HTTP Server........................................................................................................................214
Starting and Stopping WebSphere Application Servers..................................................................... 214
Starting the WebSphere Server.................................................................................................... 214
Stopping the WebSphere Server...................................................................................................214
Managing WebSphere Server with PSADMIN............................................................................215
Configuring Reverse Proxy Servers For WebSphere......................................................................... 215
Understanding Reverse Proxy Servers With IBM WebSphere.................................................... 215
Configuring IBM HTTP Server as a Reverse Proxy Server........................................................216
Configuring Microsoft IIS as a Reverse Proxy Server................................................................ 217
Configuring Oracle Sun Java System Web Server as a Reverse Proxy Server............................219
Setting Up SSL For WebSphere.........................................................................................................221
Understanding WebSphere Key Stores........................................................................................ 221
Generating a Certificate Using pskeymanager.............................................................................221
Configuring the WebSphere Container to Support SSL.............................................................. 223
Enabling TLS-Only on WebSphere.................................................................................................... 224
Configuring WebSphere for TLS................................................................................................. 225
Configuring Browsers for TLS.................................................................................................... 225
Testing TLS.................................................................................................................................. 225
Configuring Reverse Proxy Servers for TLS...............................................................................226
Securing The Administrative Console and Applications For WebSphere..........................................226
Understanding WebSphere Security.............................................................................................226
Securing the Administrative Console...........................................................................................227
Configuring Application Security................................................................................................ 229
Setting HTTP Session Timeout.......................................................................................................... 232
Setting Authentication Failure Timeout............................................................................................. 232
Working With JVM Heap Size...........................................................................................................232
Working with Logging and Tracing Options......................................................................................233
Enabling HTTP Access and HTTP Error Logging......................................................................233
Enabling General Logging and Tracing.......................................................................................233
Chapter 9: Configuring Verity Search and Building Verity Search Indexes..................................... 235
xii
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Contents
Understanding Verity Search Indexes.................................................................................................235
Overview of Verity Search Indexes............................................................................................. 235
Types of Verity Indexes............................................................................................................... 236
Components of the Verity and PeopleSoft Search Architecture.................................................. 236
Building Verity Indexes................................................................................................................238
Verity Search Index Limitations.................................................................................................. 238
User Search Strategies for Verity.................................................................................................239
Configuring Verity Search Options.................................................................................................... 240
Understanding PeopleSoft Search Configurations....................................................................... 240
Configuring Verity Search to run within the Application Server (Type-1)..................................243
Configuring Verity Search to Run as a Separate Process (Type-2)............................................. 243
Configuring a Separate Verity Search Server (Type-3)............................................................... 243
Verity Search Server Administration........................................................................................... 247
Working with Verity Indexes..............................................................................................................250
Understanding Common Verity Controls.....................................................................................250
Understanding Supported MIME Types...................................................................................... 250
Opening Existing Verity Collections............................................................................................252
Creating New Verity Collections................................................................................................. 252
Building Record-Based Verity Indexes.............................................................................................. 252
Modifying Record-Based Verity Index Properties.......................................................................253
Adding Subrecords to Verity Search Indexes.............................................................................. 255
Building File System (Spider) Verity Indexes....................................................................................256
Setting File System Options.........................................................................................................257
Defining What to Index............................................................................................................... 258
Building HTTP Spider Verity Indexes............................................................................................... 259
Defining HTTP Gateway Settings............................................................................................... 260
Defining What to Index............................................................................................................... 261
Administering Verity Search Indexes................................................................................................. 261
Specifying the Verity Index Location.......................................................................................... 261
Administering the Verity Search Index........................................................................................263
Editing Properties......................................................................................................................... 263
Scheduling Administration........................................................................................................... 264
Sharing Indexes Between Application Servers and PeopleSoft Process Scheduler..................... 264
Modifying the VdkVgwKey Key....................................................................................................... 265
Chapter 10: Using PeopleSoft Configuration Manager.......................................................................267
Understanding PeopleSoft Configuration Manager............................................................................267
Common Elements in PeopleSoft Configuration Manager..........................................................267
Starting PeopleSoft Configuration Manager...................................................................................... 267
Launching Configuration Manager.............................................................................................. 268
Managing PeopleTools 8.4x and PeopleTools 8.5x Configuration Manager Settings................. 268
Specifying Startup Settings.................................................................................................................269
Specifying Display Settings................................................................................................................271
Specifying Crystal Report, Business Interlink, and JDeveloper Settings...........................................273
Specifying Trace Settings................................................................................................................... 273
Specifying Workflow Settings............................................................................................................ 274
Specifying Remote Call/AE Settings..................................................................................................275
Configuring Developer Workstations................................................................................................. 275
Importing and Exporting Environment Settings.................................................................................277
Configuring User Profiles...................................................................................................................277
Defining a Profile......................................................................................................................... 278
Specifying Databases and Application Servers........................................................................... 278
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
xiii
Contents
Configuring Process Scheduler.................................................................................................... 280
Configuring nVision..................................................................................................................... 282
Specifying Common Settings.......................................................................................................284
Specifying Command Line Options................................................................................................... 285
Setting Up the PeopleTools Development Environment....................................................................286
Understanding the PeopleTools Development Environment....................................................... 287
Understanding the Client Setup Process...................................................................................... 287
Verifying PS_HOME Access....................................................................................................... 287
Verifying Connectivity................................................................................................................. 287
Verify Supporting Applications....................................................................................................288
Using the Configuration Manager................................................................................................288
Running the Client Setup Process................................................................................................288
Chapter 11: Using PeopleTools Utilities................................................................................................ 291
Understanding the PeopleTools Utilities............................................................................................ 291
Using the System Information Page...................................................................................................291
Understanding the System Information Page...............................................................................291
Viewing the System Information Page........................................................................................ 292
Using Administration Utilities............................................................................................................294
Signon Event Message................................................................................................................. 295
PeopleTools Options.....................................................................................................................298
Message Catalog...........................................................................................................................309
Spell Check System Dictionary................................................................................................... 311
Translate Values............................................................................................................................312
Load Application Server Cache................................................................................................... 313
Tablespace Utilities.......................................................................................................................320
Tablespace Management...............................................................................................................321
DDL Model Defaults....................................................................................................................321
BOE Integration Administration.................................................................................................. 323
Strings Table................................................................................................................................. 324
Lookup Exclusion.........................................................................................................................325
XML Link Function Registry...................................................................................................... 325
Merchant Integration Utilities...................................................................................................... 325
TableSet IDs................................................................................................................................. 325
Record Group............................................................................................................................... 326
TableSet Control........................................................................................................................... 326
Convert Panels to Pages...............................................................................................................327
Update Utilities.............................................................................................................................329
Remote Database Connection...................................................................................................... 330
URL Maintenance.........................................................................................................................331
File Extension List....................................................................................................................... 345
Copy File Attachments.................................................................................................................349
Copy File Attachments (Batch)....................................................................................................351
Delete Orphan Files (Batch)........................................................................................................ 352
Query Administration................................................................................................................... 352
Sync ID Utilities...........................................................................................................................353
nVision Report Request Admin................................................................................................... 353
Analytic Server Administration....................................................................................................353
Upgrade Conversion..................................................................................................................... 353
Analytic Model Viewer................................................................................................................ 353
Analytic Instance Load/Unload....................................................................................................353
Analytic Instance Create/Del/Copy/.............................................................................................353
xiv
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Contents
Pre-Load Cache Utilities.............................................................................................................. 353
Gather Utility................................................................................................................................353
QAS Administration..................................................................................................................... 355
Oracle Resource Management......................................................................................................355
Using Audit Utilities...........................................................................................................................355
Using the Record Cross Reference Component.......................................................................... 356
Performing a System Audit..........................................................................................................357
Performing Database Level Auditing...........................................................................................358
Using Debug Utilities......................................................................................................................... 358
Using the PeopleTools Test Utilities Page...................................................................................359
Replay Appserver Crash...............................................................................................................362
Using the Trace PeopleCode Utility............................................................................................ 362
Using the Trace SQL Utility........................................................................................................362
Using International Utilities................................................................................................................362
Setting International Preferences..................................................................................................363
Setting Process Field Size............................................................................................................363
Administering Time Zones...........................................................................................................363
Managing Languages....................................................................................................................364
Using Optimization Utilities............................................................................................................... 365
Using PeopleSoft Ping........................................................................................................................ 365
PeopleSoft Ping Chart.................................................................................................................. 366
PeopleSoft Ping Delete.................................................................................................................367
PeopleSoft Ping Options.............................................................................................................. 367
Chapter 12: Tracing, Logging, and Debugging.................................................................................... 369
Working with PeopleSoft Server Process Logs..................................................................................369
Setting Up the PeopleCode Debugger................................................................................................370
Debugging for a Two-Tier Connection........................................................................................ 370
Debugging for a Three-Tier Connection......................................................................................370
Using the PeopleCode Debugger................................................................................................. 373
Configuring PeopleCode Trace...........................................................................................................373
Configuring SQL Trace...................................................................................................................... 374
Enabling IDDA Logging.................................................................................................................... 375
Understanding IDDA Logging.....................................................................................................375
Enabling IDDA Logging..............................................................................................................376
Working with IDDA Functional Categories................................................................................ 376
Configuring Logging Options...................................................................................................... 377
Viewing IDDA Logging Output.................................................................................................. 378
Chapter 13: Working with Jolt Configuration Options...................................................................... 381
Configuring Jolt Failover and Load Balancing.................................................................................. 381
Configuring Weighted Load Balancing........................................................................................381
Configuring Jolt Failover............................................................................................................. 381
Configuring Dynamic Reloading of the Application Server Connection String................................ 382
Configuring Jolt Session Pooling....................................................................................................... 382
Configuring Parallel Pagelet Loading................................................................................................ 382
Configuring Domain Connection Password....................................................................................... 383
Using Jolt Internet Relay.................................................................................................................... 383
Jolt Internet Relay Architecture................................................................................................... 384
Implementation Considerations.................................................................................................... 385
Configuring JRLY........................................................................................................................ 385
Configuring JRAD........................................................................................................................387
Running Jolt Internet Relay......................................................................................................... 388
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
xv
Contents
Chapter 14: Working with Push Notification Framework..................................................................391
Understanding the Push Notification Framework.............................................................................. 391
Setting up Push Notification Configurations......................................................................................393
Configuring Application Server for Push Notifications.............................................................. 393
Configuring the Application Server for Inter-Domain Events.....................................................394
Configuring the Process Scheduler for Inter-Domain Events......................................................394
Defining Events...................................................................................................................................395
Subscribing to an Event......................................................................................................................396
Subscribing to an Event through the IWC Page..........................................................................396
Subscribing to an Event through Programmatic Subscription..................................................... 397
Subscribing through Application Server runtime........................................................................ 398
Publishing an Event............................................................................................................................ 398
Working with Event Collections.........................................................................................................400
Defining an Event Collection.......................................................................................................400
Subscribing to an Event Collection............................................................................................. 400
Application Data Set Definitions for Events............................................................................... 401
System Requirements for Push Notification...................................................................................... 401
Using the Push Notification Window.................................................................................................401
Viewing All Notifications............................................................................................................ 403
Setting up the Notification Window Configuration..................................................................... 404
Appendix A: Securing PS_HOME and PS_CFG_HOME...................................................................409
Understanding PS_HOME and PS_CFG_HOME Security................................................................409
Understanding PS_HOME Security............................................................................................. 409
Understanding Minimum Access Required by the User Starting Domains.................................410
Understanding PS_CFG_HOME Security................................................................................... 411
Securing PS_HOME on UNIX...........................................................................................................411
Managing a Secure PS_HOME on UNIX..........................................................................................412
Working with User Accounts....................................................................................................... 412
Configuring Partial PS_HOME Access....................................................................................... 412
Securing PS_HOME on Windows......................................................................................................412
Multiple Administrator User Accounts........................................................................................413
Local User Accounts.................................................................................................................... 415
Managing a Secure PS_HOME on Windows.....................................................................................417
Working With Mapped Drives, UNC Paths, and TM_TUXIPC_MAPDRIVER.........................417
Working With Oracle ProcMGR Windows Service.....................................................................418
Managing TM_TUXIPC_MAPDRIVER..................................................................................... 418
Resolving Initialization Timeout Issues....................................................................................... 418
Working With the Tuxedo TM_CPAU Setting............................................................................ 419
Implementing PS_CFG_HOME Security...........................................................................................420
Securing PS_CFG_HOME on UNIX.......................................................................................... 420
Securing PS_CFG_HOME on Windows..................................................................................... 421
Appendix B: WebLogic Managed Server Architecture....................................................................... 423
PeopleSoft Internet Architecture Servlets and Applications.............................................................. 423
WebLogic Domain Types................................................................................................................... 423
Understanding WebLogic Domain Types.................................................................................... 424
Single-Server Domains.................................................................................................................424
Multi-Server Domains.................................................................................................................. 425
Distributed Managed Servers....................................................................................................... 429
Common Default Settings............................................................................................................ 430
WebLogic Domain Directory Structure and Files.............................................................................. 435
WebLogic Domain Directory Structure....................................................................................... 435
xvi
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Contents
WebLogic Domain File Listing by Type..................................................................................... 435
J2EE Application Files.................................................................................................................440
PIA Install and Reinstall Options.......................................................................................................441
Administering a WebLogic Server Life Cycle................................................................................... 441
Understanding the WebLogic Server Life Cycle......................................................................... 441
Starting and Stopping Single-Server Processes........................................................................... 442
Starting and Stopping Multi-Server Processes.............................................................................443
Starting and Stopping a Distributed Managed Server................................................................. 447
Tuning Performance and Monitoring Resources................................................................................447
Managing JVM Heap Size........................................................................................................... 447
Monitoring HTTP Session Count for PeopleSoft Interaction Hub.............................................. 449
Changing Configuration Settings........................................................................................................449
Understanding the WebLogic Server Configuration Files........................................................... 449
Changing the WebLogicAdmin Server’s Listen Ports................................................................. 450
Changing Application and Server Deployment Targets...............................................................450
Appendix C: PeopleSoft Timeout Settings............................................................................................ 453
Web Server Timeouts..........................................................................................................................453
Session-Timeout............................................................................................................................456
Web Server Default System Timeout...........................................................................................456
Application Server Timeouts.............................................................................................................. 457
Process Scheduler Timeouts............................................................................................................... 459
Search Server Timeouts...................................................................................................................... 460
PIA Timeouts...................................................................................................................................... 461
Appendix D: Ensuring Session Stickiness............................................................................................. 463
Working With Session Cookie Names............................................................................................... 463
Using PeopleSoft Interaction Hub and Content Providers.................................................................463
Working With Absolute URLs........................................................................................................... 464
Setting The Cookie Domain............................................................................................................... 465
Working with Load Balancer Timeouts..............................................................................................465
Configuring The Session Cookie Name for WebSphere............................................................. 465
Configuring The Cookie Domain for WebSphere....................................................................... 466
Configuring the Session Cookie Name for WebLogic................................................................ 466
Configuring Session Cookie Domain for WebLogic................................................................... 466
Appendix E: Troubleshooting Server Issues......................................................................................... 467
Uploading Files Using Non-Latin Characters.................................................................................... 467
Solution For UNIX.......................................................................................................................467
Solution For Windows..................................................................................................................467
WebSphere: Port Set In the Host Header of a Request Returned Incorrectly.................................... 468
Scenario.........................................................................................................................................468
Solution......................................................................................................................................... 468
Appendix F: Replicating an Installed Environment............................................................................ 471
Understanding Environment Replication............................................................................................471
Replicating a Web Server Environment............................................................................................. 472
Replicating PS_CFG_HOME............................................................................................................. 472
Reconfiguring Replicated Environment Management Components.................................................. 474
Reconfiguring an Environment Management Agent................................................................... 474
Reconfiguring the Environment Management Hub..................................................................... 475
Reconfiguring the Environment Management Viewer.................................................................475
Updating the GUID Value of Cloned Databases......................................................................... 476
Appendix G: Working with PSADMUTIL........................................................................................... 477
Understanding PSADMUTIL............................................................................................................. 477
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
xvii
Contents
Using PSADMUTIL from the Command Line..................................................................................477
xviii
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Preface
Understanding the PeopleSoft Online Help and PeopleBooks
The PeopleSoft Online Help is a website that enables you to view all help content for PeopleSoft
Applications and PeopleTools. The help provides standard navigation and full-text searching, as well as
context-sensitive online help for PeopleSoft users.
PeopleSoft Hosted Documentation
You access the PeopleSoft Online Help on Oracle’s PeopleSoft Hosted Documentation website, which
enables you to access the full help website and context-sensitive help directly from an Oracle hosted
server. The hosted documentation is updated on a regular schedule, ensuring that you have access to the
most current documentation. This reduces the need to view separate documentation posts for application
maintenance on My Oracle Support, because that documentation is now incorporated into the hosted
website content. The Hosted Documentation website is available in English only.
Locally Installed Help
If your organization has firewall restrictions that prevent you from using the Hosted Documentation
website, you can install the PeopleSoft Online Help locally. If you install the help locally, you have more
control over which documents users can access and you can include links to your organization’s custom
documentation on help pages.
In addition, if you locally install the PeopleSoft Online Help, you can use any search engine for fulltext searching. Your installation documentation includes instructions about how to set up Oracle Secure
Enterprise Search for full-text searching.
See PeopleTools Installation for your database platform, “Installing PeopleSoft Online Help.” If you do
not use Secure Enterprise Search, see the documentation for your chosen search engine.
Note: Before users can access the search engine on a locally installed help website, you must enable the
Search portlet and link. Click the Help link on any page in the PeopleSoft Online Help for instructions.
Downloadable PeopleBook PDF Files
You can access downloadable PDF versions of the help content in the traditional PeopleBook format.
The content in the PeopleBook PDFs is the same as the content in the PeopleSoft Online Help, but it has
a different structure and it does not include the interactive navigation features that are available in the
online help.
Common Help Documentation
Common help documentation contains information that applies to multiple applications. The two main
types of common help are:
•
Application Fundamentals
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
xix
Preface
•
Using PeopleSoft Applications
Most product families provide a set of application fundamentals help topics that discuss essential
information about the setup and design of your system. This information applies to many or all
applications in the PeopleSoft product family. Whether you are implementing a single application, some
combination of applications within the product family, or the entire product family, you should be familiar
with the contents of the appropriate application fundamentals help. They provide the starting points for
fundamental implementation tasks.
In addition, the PeopleTools: Applications User's Guide introduces you to the various elements of the
PeopleSoft Pure Internet Architecture. It also explains how to use the navigational hierarchy, components,
and pages to perform basic functions as you navigate through the system. While your application or
implementation may differ, the topics in this user’s guide provide general information about using
PeopleSoft Applications.
Field and Control Definitions
PeopleSoft documentation includes definitions for most fields and controls that appear on application
pages. These definitions describe how to use a field or control, where populated values come from, the
effects of selecting certain values, and so on. If a field or control is not defined, then it either requires
no additional explanation or is documented in a common elements section earlier in the documentation.
For example, the Date field rarely requires additional explanation and may not be defined in the
documentation for some pages.
Typographical Conventions
The following table describes the typographical conventions that are used in the online help.
Typographical Convention
Description
Key+Key
Indicates a key combination action. For example, a plus sign (
+) between keys means that you must hold down the first key
while you press the second key. For Alt+W, hold down the Alt
key while you press the W key.
. . . (ellipses)
Indicate that the preceding item or series can be repeated any
number of times in PeopleCode syntax.
{ } (curly braces)
Indicate a choice between two options in PeopleCode syntax.
Options are separated by a pipe ( | ).
[ ] (square brackets)
Indicate optional items in PeopleCode syntax.
& (ampersand)
When placed before a parameter in PeopleCode syntax,
an ampersand indicates that the parameter is an already
instantiated object.
Ampersands also precede all PeopleCode variables.
⇒
xx
This continuation character has been inserted at the end of a
line of code that has been wrapped at the page margin. The
code should be viewed or entered as a single, continuous line
of code without the continuation character.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Preface
ISO Country and Currency Codes
PeopleSoft Online Help topics use International Organization for Standardization (ISO) country and
currency codes to identify country-specific information and monetary amounts.
ISO country codes may appear as country identifiers, and ISO currency codes may appear as currency
identifiers in your PeopleSoft documentation. Reference to an ISO country code in your documentation
does not imply that your application includes every ISO country code. The following example is a
country-specific heading: "(FRA) Hiring an Employee."
The PeopleSoft Currency Code table (CURRENCY_CD_TBL) contains sample currency code data. The
Currency Code table is based on ISO Standard 4217, "Codes for the representation of currencies," and
also relies on ISO country codes in the Country table (COUNTRY_TBL). The navigation to the pages
where you maintain currency code and country information depends on which PeopleSoft applications
you are using. To access the pages for maintaining the Currency Code and Country tables, consult the
online help for your applications for more information.
Region and Industry Identifiers
Information that applies only to a specific region or industry is preceded by a standard identifier in
parentheses. This identifier typically appears at the beginning of a section heading, but it may also appear
at the beginning of a note or other text.
Example of a region-specific heading: "(Latin America) Setting Up Depreciation"
Region Identifiers
Regions are identified by the region name. The following region identifiers may appear in the PeopleSoft
Online Help:
•
Asia Pacific
•
Europe
•
Latin America
•
North America
Industry Identifiers
Industries are identified by the industry name or by an abbreviation for that industry. The following
industry identifiers may appear in the PeopleSoft Online Help:
•
USF (U.S. Federal)
•
E&G (Education and Government)
Access to Oracle Support
Oracle customers have access to electronic support through My Oracle Support. For information, visit
http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit http://www.oracle.com/pls/topic/
lookup?ctx=acc&id=trs if you are hearing impaired.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
xxi
Preface
Documentation Accessibility
For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program
website at http://www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.
Using and Managing the PeopleSoft Online Help
Click the Help link in the universal navigation header of any page in the PeopleSoft Online Help to see
information on the following topics:
•
What’s new in the PeopleSoft Online Help.
•
PeopleSoft Online Help acessibility.
•
Accessing, navigating, and searching the PeopleSoft Online Help.
•
Managing a locally installed PeopleSoft Online Help website.
System and Server Administration
This book includes several chapters relating to administration tools for the PeopleSoft Pure Internet
Architecture, including application servers and web servers. This content assists you in configuring and
maintaining your server environment.
Note: PeopleSoft supports a number of versions of UNIX and Linux in addition to Microsoft Windows.
Throughout this book, there are references to operating system configuration requirements. Where
necessary, this book refers to specific operating systems by name (for example, Solaris, HP/UX, Linux,
and so on). However, for simplicity the word UNIX is used to refer to all UNIX-like operating systems,
including Linux.
Contact Us
Send us your suggestions Please include release numbers for the PeopleTools and applications that you
are using.
Follow Us
Get the latest PeopleSoft updates on Facebook.
Follow PeopleSoft on [email protected]_Info.
xxii
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 1
Getting Started with System and Server
Administration
System and Server Administration Overview
This section discusses:
•
PSADMIN.
•
Analytic servers.
•
Web servers.
•
Verity Search indexes.
•
PeopleSoft Configuration Manager.
•
PeopleTools utilities.
•
Tracing and debugging.
•
Jolt Internet Relay.
•
Timeout settings.
PSADMIN
You use PSADMIN for managing application server domains, PeopleSoft Process Scheduler domains,
integration server processes, search domains, and so on. PSADMIN also enables you to configure and
manage the behavior of servers with respect to a wide range of PeopleTools infrastructure elements,
including:
•
Tuxedo and Jolt.
•
PeopleCode debugging.
•
Caching.
•
Analytic server framework.
•
Transactional SQL requests.
•
Performance enhancement.
•
PeopleSoft Query.
•
Integration Broker.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
23
Getting Started with System and Server Administration
•
Email.
•
Real time event notification.
•
Performance Monitor.
•
MultiChannel Framework.
Chapter 1
You launch and run PSADMIN using a command line interface.
Related Links
Understanding PSADMIN
Understanding PSADMIN Menus
Analytic Servers
The analytic server framework provided by PeopleSoft is a general server infrastructure designed to meet
the needs of PeopleSoft products that process large amounts of data in memory. It provides a stateful
model of client/server connectivity that these products require to be part of the PeopleTools system,
by keeping track of configuration settings, transaction information, and other data for a session. For
example, client software could request that an analytic model or optimization model be recalculated
in one transaction, then retrieve the results of the calculation on that model at a later time. A server
process handles these requests, and maintains the model state and calculated data in memory between
the requests. Additional transactions can then modify the model and perform recalculations on it without
shuffling all of the data between the client and the server or dumping all the data to a database, thus
preserving in-memory performance.
When a program doesn't “maintain state” or when the infrastructure of a system prevents a program
from maintaining state, it’s known as a stateless program or system. It can’t take information about
the last session into the next session, such as settings the user makes or conditions that arise during
processing. All session state is maintained by the client and is transferred to the server with each request.
As long as an application server is up and running, a user’s session remains active and functional, and any
application server can perform requested transactions.
However, with some products, such as Analytic Calculation Engine or PeopleSoft Optimization
Framework, running a calculation on a multi-dimensional model is likely to produce far more data than
is reasonable to shuttle between a client and server to maintain a stateless connection. For performance
reasons, the calculations are performed completely in memory. If these calculations were to be
synchronized and stored in the database so that a stateless connection could be maintained, performance
would suffer significantly.
Web Servers
PeopleSoft supports Oracle WebLogic and IBM WebSphere web servers, which provide the same basic
functionality to support PeopleSoft applications, including a console interface, secure sockets layer (SSL),
and reverse proxy servers (RPS).
Each web server has its own way of accomplishing its functionality, and each adds its own extra
features that you might find useful to your PeopleSoft system. This PeopleBook provides supplemental
information about configuring and administering the web servers where it has particular relevance to
PeopleSoft.
24
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 1
Getting Started with System and Server Administration
Note: The information in this PeopleBook is not intended to replace any Oracle WebLogic or IBM
WebSphere documentation. Always refer to the manufacturer's documentation for detailed information
about your web server.
Related Links
Understanding WebLogic
Understanding WebSphere Application Server within Your PeopleSoft Implementation
Verity Search Indexes
A search index is a collection of files that is used during a search to quickly find documents of interest.
You build a search index to enable searching on a given set of documents. The set of files that make up
the index is a collection. This collection contains a list of words in the indexed documents, an internal
documents table containing document field information, and logical pointers to the actual document files.
Important! The Verity search engine is not supported with use of the PeopleSoft Search Framework.
If you intend to use the PeopleSoft Search Framework, or any of the features based on the Search
Framework, such as Global Search or Keyword Search, you must install Oracle Secure Enterprise Search
and configure PeopleSoft Search Framework. If you are implementing PeopleSoft applications at the 9.2
version level or greater, Verity is no longer supported. Verity can be used only by PeopleSoft applications
9.1x and below.
Fields contain metadata about a document. For example, Author and Title might be fields in an index.
VdkVgwKey is a special field that identifies each document and is unique to all of the documents in the
collection.
Every search index can be modified by changing the configuration files that are associated with the index.
These configuration files are known as style files and reside in the style directory under the database
directory. A typical configuration of style files define fields for a particular index.
PeopleSoft software supports these types of search indexes:
•
Record-based indexes.
Record-based indexes are used to create indexes of data in PeopleSoft tables. For example, if the
PeopleSoft application has a catalog record that has two fields (Description and PartID), you can
create a record-based index to index the contents of the Description and PartID fields.
•
HTTP spider indexes.
HTTP spider indexes index a web repository by accessing the documents from a web server.
You typically specify the starting uniform resource locator (URL). The indexer walks through all
documents by following the document links and indexes the documents in that repository. You can
control to what depth the indexer should traverse.
•
File system indexes.
File system indexes are similar to HTTP spider indexes, except that the repository that is indexed is a
file system. You typically specify the path to a file directory, then the indexer indexes all documents
within that folder. HTTP spider indexes and file system indexes are sometimes collectively referred to
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
25
Getting Started with System and Server Administration
Chapter 1
as spider indexes. The indexer recognizes a wide variety of document formats, such as Word or Excel
documents. Any document in an unknown format is skipped by the indexer.
Related Links
Understanding Verity Search Indexes
PeopleSoft Configuration Manager
PeopleSoft Configuration Manager is a Microsoft Windows application that simplifies development
workstation administration by enabling you to adjust PeopleSoft registry settings from a central location.
You can set up one development workstation to reflect the environment at your site, then export the
configuration file, which can be shared among other workstations. You can also define separate profiles
for connecting to different PeopleSoft databases.
Note: The PeopleSoft Configuration Manager applies only to development environment workstations,
such as workstations used to launch Application Designer and Data Mover on Windows.
PeopleSoft configuration parameters are grouped on the Configuration Manager pages according to the
function, feature, or tool that they control, including:
•
Startup settings.
•
Display settings.
•
Crystal report and Business Interlink settings.
•
Trace settings.
•
Workflow settings.
•
Remote call settings.
•
Developer workstations.
•
Importing and exporting environment settings.
•
Defining configuration profiles.
Related Links
Understanding PeopleSoft Configuration Manager
PeopleTools Utilities
The PeopleTools utilities are a set of various configuration and administration interfaces that serve as a
browser-based method of setting numerous system settings. These utilities, most of which are available
through the PeopleTools Utilities menu, provide the ability to configure, maintain, or launch a wide range
of features, including:
26
•
The System Information page.
•
The message catalog.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 1
Getting Started with System and Server Administration
•
The spell check dictionary.
•
Translate values.
•
Application server caching.
•
SQR customization.
•
Table management and sharing.
•
Backward compatibility.
•
Remote database connection.
•
File attachments.
•
Stored URLs.
•
Mobile data synchronization (deprecated).
•
Update tracking.
•
Platform-specific database features.
•
Database auditing.
•
International settings.
•
Optimization utilities.
•
PeopleSoft Ping.
Related Links
Understanding the PeopleTools Utilities
Tracing and Debugging
You can use the PeopleCode Debugger to interactively debug a PeopleCode program's configurations
of a two-tier connection to the database or a three-tier connection to the database. You can temporarily
override the PeopleSoft Configuration Manager trace settings for PeopleCode and SQL programs.
Jolt Configuration Options
With Jolt, PeopleSoft provides the options of configuring load balancing, session pooling, domain
connection passwords, and (for some special configurations) Jolt Internet Relay. Load balancing enables
you to route requests to servers according to the ability of a server to handle a given request load.
Powerful, dedicated servers can take a higher load while less powerful servers can take a lighter load.
Session pooling enables user sessions to share web server connections, which is a more efficient use
of system resources. The domain connection password enables you to add a connection password to
the session between the PeopleSoft Internet Architecture and the application server. Jolt Internet Relay
enables you to route connections from one web server to another, perhaps through a fire wall, for specific
configuration or security needs.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
27
Getting Started with System and Server Administration
Chapter 1
Timeout Settings
This topic lists the delivered default timeout settings for the web server, application server, PeopleSoft
Process Scheduler, search servers, and PeopleSoft Internet Architecture (PIA).
System and Server Administration Implementation
The functionality of system and server administration for your PeopleSoft applications is delivered as part
of the standard installation of PeopleTools, which is provided with all PeopleSoft products.
Several activities must be completed before you administer the system and servers for your
implementation:
•
Install PeopleTools according to the installation guide for your database platform and operating
system.
•
Install your PeopleSoft application according to the installation guide for your database platform and
application.
•
Establish a user profile that gives you access to the tools, pages, and processes that you'll use.
Other Sources of Information
In addition to implementation considerations presented in this section, take advantage of all PeopleSoft
sources of information, including the installation guides, release notes, PeopleBooks, and Red Papers.
28
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet
Architecture
PeopleSoft Architecture Fundamentals
Your PeopleSoft application runs within the PeopleSoft Internet Architecture (PIA), which requires a
variety of software and hardware elements, including:
•
relational database management system (RDBMS).
•
application server(s).
•
Process Scheduler server(s).
•
web server(s).
•
web browsers.
It's important to understand the role of each element before you can decide which configuration options
will work best for your implementation. The following diagram illustrates, at a high level, the physical
relationship between the basic elements of the PeopleSoft architecture:
Note:
Image: Distinct tiers of the architecture starting with the database, moving to the application server
and Process Scheduler server, to the web server, then out to the browser
The browser sends requests to the web server, which transmits the request to the application server, which
generates the SQL to run on the database.
Configuring the PeopleSoft infrastructure is not just about enabling internet application deployment
through a browser. PeopleSoft enables you to take advantage of numerous PeopleSoft intranet, internet,
and back-end solutions, including:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
29
Understanding PeopleSoft Internet Architecture
Chapter 2
•
Integration Broker, our service oriented architecture (SOA).
•
PeopleSoft Interaction Hub.
•
Feeds Framework.
•
Search Framework.
•
Performance Monitor.
All of these additional technologies stem from the basic architecture depicted in the previous diagram.
Database Server
The database server houses a database engine and your PeopleSoft application database, which includes
all the PeopleTools metadata, application definitions, system tables, application tables, and application
data. The database server simultaneously handles the application server connections, development
environment connections, and batch programs running against it.
The PeopleSoft database is the repository for all information managed by your PeopleSoft application.
Both application data and PeopleSoft metadata are stored and maintained in the database. Application
Designer, the main tool of the development environment, enables you to define, modify, and maintain this
metadata, which the system uses to drive the runtime architecture. This collection of metada defines a
PeopleSoft application.
With Application Designer you can create dozens of different types of application definitions, such as
fields, records, and pages. When an application developer saves an application definition, the system
saves this definition to the metadata repository in the PeopleSoft database. At runtime, the application
server retrieves the most recent application object definitions from the metadata repository, compiles
and caches the application definition into memory, and runs the business rules based on the most current
definitions.
Application Servers
This section discusses:
30
•
Application servers.
•
Tuxedo and Jolt.
•
Domains.
•
PeopleSoft server processes.
•
Services.
•
Listeners, handlers, and queues
•
Database connectivity.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet Architecture
Application Servers
The application server is the core of PeopleSoft Internet Architecture. It runs business logic and submits
SQL to the database server. An application server consists of numerous PeopleSoft server processes,
grouped in domains. Each server process within a domain provides unique processing abilities, enabling
the application server to respond effectively to a multitude of transaction requests generated throughout
the PeopleSoft architecture.
Application servers require database connectivity software installed locally to maintain the SQL
connection with the RDBMS. You must install the required connectivity software and associated utilities
for your RDBMS on any server on which you intend to run the PeopleSoft Application Server.
After the application server establishes a connection to the database, any device that initiates a transaction
request through the application server takes advantage of the application server's direct connection to the
database.
Oracle Tuxedo and Oracle Jolt
PeopleSoft uses Oracle Tuxedo, a middleware framework and transaction monitor, to manage transactions
between the application server and the database. PeopleSoft also uses Oracle Jolt, a Java API and class
library, to facilitate communication between Tuxedo running on the application server and the PeopleSoft
software running on the web server. Tuxedo and Jolt are required elements of the PeopleSoft application
server.
Note: Tuxedo doesn’t actually perform processing on the application server; it schedules PeopleSoft
server processes to perform the transactions.
Domains
A domain is the collection of server processes, supporting processes, and resource managers that enable
the database connections required to fulfill application requests. You manage each domain with a separate
configuration file, and you configure each application server domain to connect to a single database. A
single application server machine can support multiple application server domains running on it. You
configure an application server domain using the PSADMIN utility.
There can be a one-to-one or a many-to-one relationship between application server domains and a
database. In the simplest case, you configure a single application server domain to connect to a single
PeopleSoft database. In a more sophisticated environment, you may configure multiple application server
domains, with each domain connecting to the same PeopleSoft database. The opposite is not valid; a
single application server domain cannot be used to connect to multiple PeopleSoft databases.
For example, suppose you have installed three application databases. In this case, you must configure
at least three application server domains, one for each database. As demand increases, you may need to
configure multiple application server domains per database, for redundancy, fail-over, and performance
reasons.
You can configure multiple application server domains under a single PeopleSoft configuration home
directory, or PS_CFG_HOME. In this context,PS_CFG_HOME refers to the PeopleSoft high-level
directory on the application server.PS_CFG_HOME is the directory to which you installed the PeopleSoft
application server configuration files creating a domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
31
Understanding PeopleSoft Internet Architecture
Chapter 2
PSADMIN creates a directory beneath PS_CFG_HOME\appserv for each application server domain
that you configure. For example, suppose you create three domains: HCMDMO1, HCMDMO2,
and HCMDMO3. In this case, PSADMIN creates subdirectories \HCMDMO1, \HCMDMO2, and
\HCMDMO3 beneath thePS_CFG_HOME\appserv directory.
PeopleSoft Server Processes
When you boot an application server domain, it starts the set of server processes associated with that
domain. Numerous server processes run in a domain. Each server process establishes a persistent
connection to a PeopleSoft database, and this connection acts as a generic SQL pipeline that the server
process uses to send and receive SQL. Each server process uses its own, exclusive, SQL connection to
facilitate requests from multiple sources. From the RDBMS perspective, each server process within a
domain represents a connected user.
A server process is executable code that receives incoming transaction requests. The server process
carries out a request by making calls to a service, such as MgrGetObject. The server process waits for the
service to complete, then returns information to the device that initiated the request, such as a browser.
While a server process waits for a service to complete, other transaction requests wait in a queue until
the current service completes. A service may take a fraction of a second to complete or several seconds,
depending on the type and complexity of the service. When the service completes, the server process is
then available to process the next request in the corresponding queue.
The number of server processes of each type is configurable and typically varies within a domain,
depending on the requirements of your application or the main purpose of the domain. For example, if a
domain's primary function is to handle application requests, you might see more of the server processes
devoted to that task within that domain, such as PSAPPSRV, PSQCKSRV, and PSQRYSRV. Likewise, if a
domain's primary function is to handle Integration Broker SOA requests, you might see more of the server
processes devoted to that task in the domain, such as the messaging server processes.
You need to configure only those server processes that your implementation requires per domain. The
minimum server processes that a domain requires are PSAPPSRV, PSSAMSRV, and PSWATCHSRV.
Note: PSWATCHSRV is a process that always starts in a domain. It is not an optional server process.
You can configure multiple instances of the same server processes to start when you boot the application
server domain. This helps you to handle predicted workloads.
The following tables describes the PeopleSoft server processes. Not all of the server processes will
necessarily be a part of every domain as that depends on the configuration options you select.
The required server processes are:
32
Server Process
Description
PSAPPSRV
This process performs functional requests, such as building
and loading components. It also provides the memory and
disk-caching feature for PeopleTools objects on the application
server. PSAPPSRV is required to be running in any domain.
PSSAMSRV
This SQL application manager process handles the
conversational SQL that is mainly associated with Application
Designer. This process is required to be running on any
domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet Architecture
Server Process
Description
PSWATCHSRV
Monitors the domain and detects any orphaned application
server processes.
Other server processes that you can elect to configure based on your system requirements, include:
Server Process
Description
PSQCKSRV
Handles quick, read-only SQL requests. This is an optional
process designed to improve performance by reducing the
workload of PSAPPSRV.
PSQRYSRV
Handles any query run by PeopleSoft Query. This is an
optional process designed to improve performance by reducing
the workload of PSAPPSRV.
PSMSGDSP, PSMSGHND, PSPUBDSP, PSPUBHND,
PSSUBDSP, PSSUBHND
Used for "Publish-Subscribe" processing for Integration
Broker and the PeopleSoft service oriented architecture (
SOA).
PSANALYTICSRV
Performs processing and requests required for Analytic
Calculation Engine.
PSRENSRV
Enables real-time event notification (REN) used in various
PeopleTools technology, such as MultiChannel Framework
and report distribution.
PSUQSRV, PSMCFLOG
Used within the MultiChannel Framework to manage queues
and transaction logs.
PSPPMSRV
Handles the processing of all the data recorded by the
Performance Monitor.
PSDBGSRV
When debugging PeopleCode, this server process maintains an
independent connection to the database to avoid conflict.
Services
When a PeopleSoft application sends a request to the application server, it sends a service name and a set
of parameters, such as MgrGetObject and its parameters. Tuxedo then queues the transaction request to a
specific server process that is designed to handle certain services.
When a server process boots, it advertises to the system the predefined services it handles.
Note: When discussing PeopleSoft architecture mechanics and system features, the term service is
used in various contexts. The following statement may help to clarify this term within the context of an
application server domain: An application server domain calls server processes, such as PSAPPSRV,
which in turn invoke services, such as MgrGetObject, which run against the database. The services called
by domain server processes are not to be confused with the services and service operations associated
with the service oriented architecture (SOA) provided by Integration Broker.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
33
Understanding PeopleSoft Internet Architecture
Chapter 2
Listeners, Handlers, and Queues
Listeners, handlers, and queues provide the basis of a domain's functionality. They receive requests, route
requests, store requests, monitor requests, and return request responses.
Image: Listeners route application requests to handlers where they are placed in queues monitored
by server processes that submit requests to the database
The following diagram illustrates how listeners, handlers, and queues interact with incoming requests and
server processes:
Note: For simplicity, the diagram does not depict every server process that runs on the application server.
34
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet Architecture
The following table describes each component depicted in the previous diagram:
Item
Description
Browser
Enables internet and intranet access to all PeopleSoft
applications, including many PeopleTools system
administration interfaces.
Development Environment
A Microsoft Windows workstation used for specific
application development and system administration tasks.
For example, an application developer accesses Application
Designer in the development environment to modify a
page or record definition. Likewise, a system administrator
would access PeopleSoft Data Mover in the development
environment to import a data file. Using the development
environment you can connect directly to the database (a twotier connection) or through the application server (a three-tier
connection).
Note: Using the PeopleTools development environment in
Microsoft Windows, you can connect directly to the database,
or through an application server.
Note: No end user applications are deployed to the C++/
Windows platform. All end user applications are deployed
through the browser.
Workstation listener (WSL)
The workstation listener monitors Tuxedo ports for initial
connection requests sent from the PeopleTools development
environment (as in Application Designer). After the
workstation listener accepts a connection from a workstation,
it directs the request to a workstation handler. From that point,
the workstation interacts only with the workstation handler to
which it is assigned.
Workstation handler (WSH)
The workstation handler processes the requests it receives
from the workstation listener. A unique port number identifies
a workstation handler. The port numbers for the workstation
handler are selected (internally by Tuxedo) from a specified
range of numbers. You can configure multiple workstation
handlers to start automatically if demand increases and other
handlers become overloaded.
Jolt server listener (JSL)
The Jolt server listener applies only to browser requests.
The Jolt server listener monitors the Jolt port for connection
requests sent from the browser through the web server. After
the Jolt server listener accepts a connection, it directs the
request to a Jolt server handler. From that point, the browser
interacts with the Jolt server handler. This is analogous to
the relationship between the workstation server listener and
workstation server handler.
Jolt server handler (JSH)
The Jolt server handler applies only to browser requests. The
Jolt server handler processes the requests it receives from
the Java server listener. The port numbers for the Jolt server
handler are selected internally by Tuxedo in sequential order.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
35
Understanding PeopleSoft Internet Architecture
Chapter 2
Item
Description
Request queues
Each type of server process has a service request queue
that it shares with other server processes of the same type.
For example, PSAPPSRV processes use the queue, APPQ,
and PSQCKSRV processes use the queue, QCKQ. The
workstation handler and Jolt server handler insert requests into
the appropriate queue, and then the individual server processes
complete each request in the order that it arrives.
Server processes
The server processes act as the core of the application server
domain. They maintain the SQL connection and make sure
that each transaction request gets processed on the database
and that the results are returned to the appropriate origin.
PeopleSoft Process Scheduler Server
The PeopleSoft Process Scheduler environment can also be thought of as the "batch" environment. It is
the location where many of your batch programs, such as Application Engine programs, run, and in most
situations, this is also where you have COBOL and SQR executables installed.
In a multiserver environment, you can decide where your Process Scheduler environment resides based
on available servers and performance requirements. In the PeopleSoft topology, you can install Process
Scheduler on a separate server, or it can run on either the application server or the database server.
While you can install PeopleSoft Process Scheduler on any supported application server, database server,
or batch server, it's important that you choose a location that’s supported in your PeopleSoft environment,
which varies per RDBMS platform. In most database environments, you have at least two options.
You use PSADMIN to configure and administer both the application server and PeopleSoft Process
Scheduler server. The PeopleSoft Process Scheduler setup procedure in PSADMIN provides a menudriven interface to configure PeopleSoft Process Scheduler parameters and administer the Process
Scheduler server agent, and it is very similar to the PSADMIN menus for configuring an application
server domain.
Even though the application server and PeopleSoft Process Scheduler have PSADMIN as a
common interface, take advantage of Tuxedo middleware, and share directories under PS_HOME
andPS_CFG_HOME, they are separate entities. For instance, you boot, configure, and shut down the
application server and the PeopleSoft Process Scheduler server separately, and the two environments can
exist on separate server machines.
Related Links
Process Scheduler
Web Server
A Java-enabled web server is required to extend the PeopleSoft architecture to the internet and intranet.
When you install the PeopleSoft Internet Architecture on the web server, you install a collection of
36
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet Architecture
PeopleSoft Java servlets designed to handle a wide range of PeopleSoft transactions originating from the
internet or an intranet.
This section discusses:
•
Web server software
•
PeopleSoft servlets
•
Jolt
Web Server Software
PeopleTools provides and supports the following industry-standard web servers for use within your
PeopleSoft implementation:
•
Oracle WebLogic
•
IBM WebSphere
The following software runs on the PeopleSoft web server:
Software Component
Description
Web server services
Web server services software manages the web server and
provides the HTTP/S 'listener' for browser and remote system
requests.
J2EE Web container
The web container (or servlet engine) is the J2EE environment
in which the PeopleSoft servlets run. This component is
embedded within the web server software.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
37
Understanding PeopleSoft Internet Architecture
Chapter 2
Software Component
Description
Java servlets
Java is the platform-independent programming language
used widely for web-based programs, web applications, and
servlets. Servlets are Java programs that run on the web server,
unlike 'applets' which are downloaded to a client browser to
run. During the PeopleSoft installation, a variety of PeopleSoft
Java servlets are installed on the web server.
Note: By default, PeopleTools installs PIA domains into the
current PS_CFG_HOME location.
Image: Web server running web server services and the web container where PeopleSoft servlets
are installed
The following diagram explains about Web server running the web server services and the web container
that in turn contain PeopleSoft Servlet installations.
PeopleSoft Servlets
The following PeopleSoft servlets reside on the web server:
38
Servlet
Description
PORTAL
The portal servlet handles all of the requests and formatting
for the users accessing PeopleSoft through PeopleSoft portal
technologies. It manages various functionality, such as
browser requests, search, content management, and homepage
personalization.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet Architecture
Servlet
Description
PSIGW
The gateway servlet transmits service requests and responses
between defined nodes as part of the PeopleSoft Service
Oriented Architecture. The gateway handles PeopleSoft-toPeopleSoft, PeopleSoft-to-third party, and third party-toPeopleSoft services.
PSEMHUB
Supports the Environment Management Framework, used by
various lifecycle management tools, such as Change Assistant,
to collect and monitor system information.
Report Repository
This report repository servlet enables users to easily access
and distribute the output of batch reports, such as Crystal and
SQR, run through PeopleSoft Process Scheduler. This servlet
retrieves the report output in the report repository and serves it
to the browser.
PSINTERLINKS
Used with the deprecated product PeopleSoft Business
Interlinks.
Oracle Jolt
When you install Tuxedo, Jolt gets installed by default. The PeopleSoft servlets on the web server
transmit requests and data through a connection to Jolt, which runs on the application server. Jolt extends
Tuxedo capabilities by acting as the communication layer between the Java-based environment of the
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
39
Understanding PeopleSoft Internet Architecture
Chapter 2
servlets and the C++ environment of the application server. You configure the servlets to direct requests
from the web server to a predefined Jolt port on the application server.
Image: PeopleSoft servlets on the web server sending messages to the application server through
Jolt
The following diagram shows the relationship between Jolt and servlets on the web server:
Web browsers and integrated systems don't send requests directly to the application server. Instead, they
send HTTP/S requests to the PeopleSoft servlets running on the web server. The web server translates the
HTTP/S request into a Jolt request that is sent to a specified Jolt port. Then the application server, running
on Tuxedo, submits the appropriate SQL to the database.
Web Browser
A supported web browser is the primary means by which end users access PeopleSoft applications
and system administrators access administrative tools. You do not need to install other software on the
workstation running the browser, such as connectivity software or downloaded applets.
The PeopleSoft system sends only the following to the browser:
•
HTML
•
JavaScript
•
Cookies
Because the browser processes only this basic internet content, the client workstation is not burdened with
unnecessary processing responsibility. All processing occurs at the server level.
40
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet Architecture
After the system authenticates a user during signon, PeopleTools security deploys web browser cookies
to store a unique access token for each user session. As the user navigates around the system, perhaps to
a separate PeopleSoft application, the token in the browser cookie is used to reauthenticate the user and
bypass the sign-in process. The browser authentication cookie is:
•
an in-memory cookie, never written to disk.
•
encrypted to prevent snooping.
•
check-summed to prevent tampering.
Note: To access PeopleSoft applications, the browser option to allow session cookies must be enabled.
Server Configuration Options
Depending on a variety of variables, such as your server operating system, your hardware resources, and
your site's performance requirements, you can configure your environment to support physically separate
or logically separate servers. In some cases, the PeopleSoft standard installation procedure recommends
one or the other depending on, for example, the combination of your database type and operating system.
Any platform-dependent configuration requirements are discussed in your PeopleTools installation
documentation.
See PeopleTools Installation for your platform.
Logically Separate Server Configuration
A logically separate server environment means that multiple servers share the same physical machine.
The servers are logically, but not physically, separate.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
41
Understanding PeopleSoft Internet Architecture
Chapter 2
The following diagram depicts a logical configuration with two server machines. One server contains the
web server, and the other contains the application server and database server:
Image: Logical separation between the RDBMS and the application server with the two elements
running on the same physical server machine
The following diagram depicts a logical configuration with two server machines. One server contains the
web server, and the other contains the application server and database server:
The solid line surrounding the application server and the database server represents one physical machine.
Although this diagram depicts a separate web server, the web server software could also reside on
the same machine with both the application server and the database server. When installing multiple
PeopleSoft architecture elements onto the same machine, the only requirement is that each element be
supported by the underlying operating system.
If all servers are located on the same machine, however, you should consider security and performance
issues. If you're deploying PeopleSoft applications to the internet, you will most likely want your web
server outside of your network firewall and not on the same machine as the database server. Generally,
having your application server on the same physical machine as the database server provides the best
performance as this configuration has no network layer between the application server and the database.
Note: For development, testing, or training purposes, you might want to have all PeopleSoft architecture
elements (or as many as possible) on the same server machine.
42
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet Architecture
Physically Separate Server Configuration
Image: Physical separation between web server, application server, and RDBMS server with each
server residing on different physical server machines
A physically separate server configuration means that the web server, application server, and database
serer each reside on separate machines. The following diagram depicts a physically separate server
configuration:
If the application server and database server don't reside on the same machine, then the application server
and the database server should be connected to the same high-performance, backbone network. This
ensures optimum performance.
Regarding performance, one advantage to keeping the architecture elements separate is that as demand
on your system increases, you can add more server machines at each 'tier' to house more application
servers or web servers in a modular fashion. If the server elements are installed onto a single machine,
your options of increasing system performance are limited by the resources of that machine.
Image: Physical separation between web server, application server, and RDBMS promotes
scalability, enabling the addition of multiple web servers and application servers to meet increased
system demand
The following diagram illustrates how you can add multiple web servers and application servers when
increased demand has pushed previous hardware to its limits.
Within a PeopleSoft system, you can configure multiple PeopleSoft Internet Architecture installations
on a web server as well as configure multiple domains on a single application server machine. If you
reach the resource limits of a single server machine, you can incorporate more server machines to house
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
43
Understanding PeopleSoft Internet Architecture
Chapter 2
additional PeopleSoft Internet Architecture installations or application server domains. Incorporating
multiple, physically separate server machines provides increased:
•
scalability
•
fail-over
•
availability
Implementation Options
Once you have the basic PeopleSoft Internet Architecture elements configured, you can elect to
incorporate additional PeopleTools technology to run within that architectural foundation, including:
Technology
Description
Portal
Oracle PeopleTools provides a variety of portal options
ranging from the base portal technology provided by
PeopleTools, to PeopleSoft Interaction Hub and Portal Pack
solutions. These portal solutions enable you to provide simple
end user navigation, aggregate web-based content, share
content with other portals, and more.
See the product documentation for PeopleTools: Portal
Technology.
See the product documentation for PeopleSoft Interaction
Hub PeopleBooks.
See Your PeopleSoft application portal pack documentation.
Integration Broker
Integration Broker provides a service oriented architecture (
SOA) for exposing PeopleSoft business logic as services and
consuming external web services for PeopleSoft applications
to invoke. Integration Broker supports synchronous and
asynchronous messaging with other PeopleSoft applications
and with third-party systems.
See the product documentation for PeopleTools: Integration
Broker.
Performance Monitor
Performance Monitor enables you to capture and store detailed
performance information for any transaction occurring
within your PeopleSoft implementation. You can monitor
performance in real-time as well as analyze stored, historical
data to help identify trends and problem areas.
See the product documentation for PeopleTools: Performance
Monitor.
44
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 2
Understanding PeopleSoft Internet Architecture
Technology
Description
MultiChannel Framework
MultiChannel Framework delivers an integrated infrastructure
to support multiple interaction channels for call center agents
or other PeopleSoft users who must respond to incoming
requests and notifications on these channels. MultiChannel
Framework supports voice, email, web-based chat, instant
messaging, and generic event channels.
See the product documentation for PeopleTools:
MultiChannel Framework.
Analytic Calculation Engine
Analytic Calculation Engine enables application developers to
define both the calculation rules and the display of calculated
data within PeopleSoft applications for the purposes of
multidimensional reporting, data editing, and analysis.
See the product documentation for PeopleTools: Analytic
Calculation Engine.
Search server
Configuring a search server enables you to off-load Verity
search processing onto a remote server, rather than configuring
search capabilities per domain. In this configuration, Tuxedo
routes search requests from application server domains to the
search domain running on the remote search server. Multiple
application server domains may use the same search server to
execute search requests.
See Configuring Verity Search Options.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
45
Chapter 3
Working with Server Domain Configurations
Understanding PS_HOME and PS_CFG_HOME
On any server that you install the PeopleTools software, the installation program installs the required
files for that server into one high-level directory structure, referred to as PS_HOME. After creating a
domain, the configuration files associated with that domain reside in a directory structure referred to as
"PS_CFG_HOME".
By default, the system separates the binary files (executables and libraries) stored in PS_HOME from
the ASCII files (configuration and log files) associated with a domain stored in PS_CFG_HOME. This
separation of the binary and ASCII files applies only to these servers:
•
PeopleSoft Application Server.
•
PeopleSoft Process Scheduler Server.
•
PeopleSoft Search Server.
•
PeopleSoft Internet Architecture.
Note: Decoupling binary files from ASCII files does not apply to any other PeopleSoft servers, such as
file servers or database servers.
The following table describes the two file types and provides examples of these types within the
PeopleSoft server.
Location
File Type
Description
PeopleSoft Examples
PS_HOME
Binary
Compiled, non-modifiable
executables and libraries.
PSADMIN.EXE
PSAPPSRV.EXE
PSAESRV.EXE
PSAPPENG.DLL
PSODBC.DLL
PS_CFG_HOME
ASCII
Text files associated with
the configuration and
administration of a domain
that can be viewed, modified,
or generated by the system.
PSAPPSRV.CFG
PSAPPSRV.CFX
PSTUXCFG
APPSRV_<DATE>.LOG
TUXLUG.<DATE>
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
47
Working with Server Domain Configurations
Chapter 3
Note: While some ASCII files are present in PS_HOME, these should be considered non-modifiable. For
example, all of the files that are in PS_CFG_HOME when it is initially created, come from the associated
PS_HOME.
The decoupling of these file types enables system administrators to:
•
Streamline and provide more flexible PeopleSoft server installations.
•
Apply unique security restrictions to the binary file and configuration file locations.
Note: Although domains always contain their base template, the CFX and UBX templates (such as small,
medium, and large) remain in PS_HOME. This means that when you create a new domain the template
that you choose comes from PS_HOME\appserv, not PS_CFG_HOME\appserv.
Implementing Flexible Server Installations
Image: Multiple PS_CFG_HOME locations, containing multiple domains, all referencing the same
PS_HOME installation on a remote server
With the binary files separate from the domain configuration, you have the option of installing multiple
domains on multiple separate servers all leveraging the binary files of a single PS_HOME.
This diagram illustrates an example to implement multiple PS_CFG_HOME locations, containing
multiple domains, all referencing the same PS_HOME installation on a remote server
Creating domains on separate servers enables you to:
•
Install the PS_HOME binaries a single time.
•
Incorporate additional server machines for additional domains per demand and performance
requirements.
•
Apply updates and upgrades to a single PS_HOME, reducing the time required for upgrading your
system.
Applying Security Restrictions
With the server binary files and configuration files in separate locations, you can now apply uniform
restrictions per file type. For example, some sites might prefer to have the binary files under read-only
48
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 3
Working with Server Domain Configurations
security, while providing write access to the configuration files to specific users for administrative tasks
and certain server processes, such as logging.
See Understanding PS_HOME and PS_CFG_HOME.
Managing a Portable PS_HOME
After the initial installation of a single PS_HOME, that PS_HOME can be referenced, shared, and used as
PS_HOME for any host server requiring the PS_HOME binaries for running PeopleSoft servers. Using a
single, shared PS_HOME is the simplest, most efficient, and recommended approach.
However, the PS_HOME file system is portable, meaning the PS_HOME directory structure is selfcontained and the content within it functions independent of a specific host or file path location. For
example, if a system administrator elects to have a PS_HOME on each PeopleSoft server host, that
PS_HOME file system can be moved or copied to additional locations on the network where it can be
referenced by new PS_CFG_HOMEs, without requiring any additional setup program runs or manual
configuration within the PS_HOME file system.
Using this portability, system administrators only need to run the PeopleTools installation program once
to create the initial PS_HOME and then copy that PS_HOME to other required locations throughout the
network. Likewise, PeopleTools maintenance can be applied only to one PS_HOME file system, which
can then be copied to other locations.
Note: For efficient copying, PS_HOME can be compressed (zipped) to reduce network traffic.
For example, assume a PS_HOME has been installed on Host_A, A system administrator can copy that
PS_HOME to a local directory on Host_B. The system administrator can launch PSADMIN, and begin
configuring and booting application server domains, Process Scheduler domains, and PIA domains,
without making any changes to the copied PS_HOME. When those domains are configured, the system
automatically registers that PS_HOME location in PS_CFG_HOME/peopletools.properties
When the time comes to apply maintenance, the EMF agent crawling process discovers the PeopleSoft
Home and database information from the domain configuration. Specifically, the PS_CFG_HOME/
peopletools.properties file associates that PS_CFG_HOME with the appropriate PS_HOME
installation (which is the PS_HOME from which the administrator launched PSADMIN to create the
PS_CFG_HOME). The system stores the PS_HOME location in the installlocation key of the
PS_CFG_HOME/peopletools.properties file. For example:
installlocation=C\:\\PT8.54
For UNIX, because the location of PS_HOME is relative, you need to make PS_HOME the current
working directory prior to launching PSADMIN (PS_HOME/appserv/psadmin). For example, you need
to make the current working directory PS_HOME prior to sourcing psconfig.sh, which does not contain a
hard-coded path to PS_HOME. The psconfig.sh script derives the location of PS_HOME from the context
in which it runs.
Note: The same physical PS_HOME may be mounted at different file system locations from different
contexts (from different hosts and PS_CFG_HOMEs), which means the PS_HOME path appears
differently for each of the mount contexts.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
49
Working with Server Domain Configurations
Chapter 3
A single PS_HOME can be shared in situations where the system administrator decides new application
server or Process Scheduler domains need to be created on a host, but the system administrator does not
want to install PeopleTools again to create a local PS_HOME.
1. On Machine X, the system administrator installs PeopleTools to /u01/product/psft/pt/8.54.
2. On Machine Y, the system administrator creates a mount point to the remote PS_HOME that resides
on Machine X. This mounted PS_HOME is at /mnt/psft/pt/8.54.
3. On Machine A a domain administrator logs in, opens a shell, changes directory to PS_HOME at /mnt/
psft/pt/8.54 and sources psconfig.sh.
4. On Machine A a domain administrator starts PSADMIN and creates, configures and starts application
server, Process Scheduler, and or PIA domains.
5. The steps 2-5 are repeated on any other host where PeopleSoft servers are to be created.
If you intend to use the Environment Management Framework for applying updates to your system, you
will need to set PS_AGENT_HOME. For more information on PS_AGENT_HOME, see "Configuring an
Environment Management Agent" (PeopleTools 8.54: Change Assistant and Update Manager).
Working with the Default PS_CFG_HOME
This section discusses how to:
•
Locate the default PS_CFG_HOME.
•
Use PSADMIN with the default PS_CFG_HOME.
Locating the Default PS_CFG_HOME
When you launch PSADMIN, if a PS_CFG_HOME does not exist, the system creates the
PS_CFG_HOME directory in the “user” directory of the current user (the owner of the domain). The
system assumes the presence of the following environment variables:
Operating System
Required Environment Variable
UNIX/Linux
HOME
Windows
USERPROFILE
For example, depending on the operating system of the server, the system creates PS_CFG_HOME in the
following location on the same drive as PS_HOME.
Operating System
PS_CFG_HOME Location
UNIX/Linux
$HOME/psft/pt/<version>
Windows
%USERPROFILE%\psft\pt\<version>
After you create a domain, the domain exists under $PS_CFG_HOME\appserv\<domain>.
50
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 3
Working with Server Domain Configurations
With a user of tsawyer, on UNIX/Linux this would appear as:
/home/tsawyer/peopletools/8.53
peopletools.properties
/appserv
/CRM
/HR
/PRCS
/CRM_PRCS
/HR_PCRS
/Search
/webserv
/ver_dom
With a user of tsawyer, on Windows this would appear as:
C:\Documents and Settings\tsawyer\psft\pt\8.53
peopletools.properties
\appserv
\CRM
\HR
\PRCS
\CRM_PRCS
\HR_PCRS
\Search
\Temp
\webserv
pswinsrv.cfg
Note: The previous examples show a situation in which CRM, HR, CRM_PRCS, HR_PRCS and
ver_dom are all domain directories. They are not in PS_CFG_HOME by default, and appear only after the
domains are created.
To display the default PS_CFG_HOME location, you can submit the following command to PSADMIN:
psadmin -defaultPS_CFG_HOME
Note: These commands are not case sensitive.
Using PSADMIN with the Default PS_CFG_HOME
Launching PSADMIN requires no extra steps or variables defined when domains exist on the same
machine as PS_HOME in the default PS_CFG_HOME location.
When you launch PSADMIN, it will either create (if one doesn’t exist) PS_CFG_HOME or search for
PS_CFG_HOME, based on the current environment settings.
To start PSADMIN, the following conditions need to be fulfilled:
•
PS_CFG_HOME must be a valid location. That is, the base directory must exist (UNIX), or the drive
must exist (Windows).
•
The PS_CFG_HOME must be writeable, and the user running PSADMIN must have write access to
the PS_CFG_HOME location.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
51
Working with Server Domain Configurations
Chapter 3
Working with Alternate PS_CFG_HOME Locations
Domains can exist on the same physical machine or a different physical machine than where the
PS_HOME directory resides. That is, multiple domains on different machines can leverage a single
installation of the PeopleSoft binary files (PS_HOME) installed on a location accessible through your
network.
This section discusses how to:
•
Specify alternate PS_CFG_HOME locations.
•
Configure domains in alternate locations of PS_CFG_HOME.
Specifying Alternate PS_CFG_HOME Locations
The value of the PS_CFG_HOME environment variable determines where PSADMIN installs a domain.
If you accept the default location of PS_CFG_HOME, this environment variable does not need to be
specified. However, if you intend to install your domains in a different location, you need to override the
default by setting the PS_CFG_HOME environment variable prior to launching PSADMIN.
For UNIX and Linux, you can:
•
Set the PS_CFG_HOME environment variable in the psconfig.sh file. However, if you hard code the
PS_CFG_HOME environment variable in psconfig.sh other users will not be able to use the same
PS_HOME for different PS_CFG_HOMEs. All users of the same PS_HOME would invoke the same
psconfig.sh, and therefore see their domains in the same PS_CFG_HOME.
•
Set PS_CFG_HOME in the startup script for the platform/shell, resulting in the automatic inheritance
of the environment variable when a user signs on.
For Windows, you can set PS_CFG_HOME through the Control Panel in the user variables interface, or
issue a SET command prior to starting PSADMIN. For example,
C:\>SET PS_CFG_HOME=n:\psftdomains
C:\>cd pt850\appserv
C:\pt850\appserv>psadmin
In this case, any domains created during this PSADMIN session would be created in n:\psftdomains
\appserv.
Note: If you elect to operate in the same fashion as previous PeopleTools releases (where the
configuration files and the binary files exist within the same directory structure) set PS_CFG_HOME =
PS_HOME.
Using the %V and %K Meta Variable
Use the %V meta variable if you wish to keep all of your PS_CFG_HOMEs together without needing to
set PS_CFG_HOME each time you install a new PeopleTools version.
For example, you could set the PS_CFG_HOME environment variable as follows:
PS_CFG_HOME=C:\PeopleTools\installs\%V
52
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 3
Working with Server Domain Configurations
If using the %V meta variable, assume you have installed two versions of PeopleTools: PT8.50 and
PT8.51. In this case, PSADMIN automatically maps the %V to the PeopleTools version, creating the
following PS_CFG_HOME locations:
C:\PT\installs
\8.50-00
\8.51-00
Use the %K variable if you wish to store PS_CFG_HOMEs by patch level. That is, while %V stores the
files by version (8.50–00, 8.51–00), %K stores files down to the patch level. For example, using %K, a
PS_CFG_HOME may look similar to:
C:\PT\installs
\8.53
\8.53-01
\8.53-03
Configuring Domains in Alternate Locations of PS_CFG_HOME
When using PSADMIN with alternate locations of PS_CFG_HOME, make note of the requirements
discussed in this section.
Working with Remote PS_HOME Locations
If you intend to install your domains on a separate machine from where PS_HOME resides, keep these
items in mind:
•
The network location to where PS_HOME resides must be mapped to from the machine where
PS_CFG_HOME resides.
•
If a domain references a PS_HOME on a mapped drive, problems may arise if the drive letter or path
is changed after initially creating the domain. If a drive mapping changes, the domain definitions
may reference invalid path information. In the event of mapped drive changes, shut down the existing
domains and reconfigure (or recreate) the domains.
•
If PS_HOME resides on a remote server, the operating system of the PS_HOME server and the
PS_CFG_HOME server must match. PeopleTools binaries are native to a platform.
Installing Necessary Components
While you can leverage a single, remote installation of PeopleTools, the server on which
PS_CFG_HOME resides must have any additional components installed locally, such as Tuxedo, database
drivers, ODBC connectivity information, and so on, depending on your implementation.
Ensuring that PS_CFG_HOME is Set Appropriately
Only domains installed within the current PS_CFG_HOME directory can be administered by PSADMIN.
That is, the list of domains to administer that PSADMIN displays depends on the value of the
PS_CFG_HOME variable. PSADMIN does not aggregate a domain list across multiple locations.
Assume that you have domains installed under these two PS_CFG_HOME directories:
•
N:\psftdomains\appserv
•
M:\psftfomains\appserv
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
53
Working with Server Domain Configurations
Chapter 3
Assume also that on server N domain 1 and domain 2 are installed, and on server M domain 3 and domain
4 are installed.
If you launch PSADMIN from server N, where PS_CFG_HOME, by default, is set to N:\psftdomains
\appserv, you will only be able to view and administer domain 1 and domain 2.
Domains created on machine N, can only be configured on machine N. There are settings in the domain
PSTUXCFG file that bind a domain to its host. You can not boot or configure a domain from a different
machine.
Note: The user creating and configuring domains in PSADMIN must have write access to the
PS_CFG_HOME location.
Note: You can have multiple PS_CFG_HOME locations on the same host server, but you will need to
make sure the PS_CFG_HOME is set appropriately prior to starting PSADMIN, or my using the Switch
Config Home PSADMIN option.
Managing Domains
When working with decoupled PS_HOME and PS_CFG_HOME directory structures, keep these
recommendations in mind:
•
Use distinct PS_CFG_HOME locations for each PS_HOME. When a PS_CFG_HOME is created,
PSADMIN brings content from the current PS_HOME into the PS_CFG_HOME, which effectively
binds that PS_CFG_HOME to that PS_HOME. That is, all domains within a given PS_CFG_HOME
should reference the same PS_HOME. Domains in the same PS_CFG_HOME that reference different
PS_HOMEs can encounter unpredictable behavior, especially when applying updates to the system.
•
Install as few PS_HOMEs as possible. Ideally, each PS_CFG_HOME requiring the same PeopleTools
release level points to the same PS_HOME. This approach helps reduce the number of locations that
require patches to be applied.
•
After applying updates (patches) to the PS_HOME, recreate domains associated with that PS_HOME.
•
A domain configured on one machine cannot be copied manually and run on another machine. Use
the Replicate Config Home PSADMIN option to perform this task.
•
The Windows service configuration file (PSWINSRV.CFG) will be invalid if it is shared between
multiple PS_CFG_HOMEs on different network drives.
•
As you maintain your system and upgrade domains, keep in mind that dormant domains will consume
disk space. Make sure to keep track of where your retired domains reside and take action to remove
them when no longer required. It is generally recommended to remove old log files and trace files for
both efficiency and security purposes.
Working with PS_APP_HOME
This topic contains an overview and discusses how to manage environments where PS_APP_HOME has
been implemented.
54
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 3
Working with Server Domain Configurations
Understanding PS_APP_HOME
The PS_APP_HOME environment variable refers to the location where you have installed the contents
of your PeopleSoft application. In all previous PeopleSoft releases, you installed PeopleTools into a highlevel directory referred to as PS_HOME, and then you installed your PeopleSoft application into the
existing PS_HOME location such that PeopleTools and your PeopleSoft application co-exist within the
same directory structure.
In the current release, PeopleTools provides the option of installing your PeopleSoft application
into a separate directory, outside of the PS_HOME location. The location where you install your
PeopleSoft application files is represented by the PS_APP_HOME environment variable. For example, an
environment where PS_APP_HOME is implemented may have the following environment variables set.
Environment Variable
Description
PS_HOME
Location where PeopleTools is installed. For example: C:\PT_
853.
PS_CFG_HOME
Location where the server domain configurations are installed.
For example:
PS_CFG_HOME=D:\pt_server
PS_APP_HOME
Location where your PeopleSoft application files are installed.
For example:
PS_APP_HOME=N:\HCM_920
Important! Deciding whether to install your PeopleSoft application into a separate PS_APP_HOME
should be considered while planning your installation.
See PeopleTools Installation and your PeopleSoft application installation guide.
Installing your applications into PS_HOME is still assumed to be the default approach, and, if you elect
to stay with this model, there is no change to your existing PeopleSoft system management experience.
However, sites that take advantage of the PS_APP_HOME option can expect a variety of benefits,
including:
•
PeopleTools patches and updates can be applied knowing that no application content has been
disturbed. Likewise, PS_APP_HOME application updates can be applied independently.
•
Increased flexibility and modularity in that a single PS_HOME can be associated with multiple
PS_APP_HOME locations.
•
Disk space savings, due to shared PS_HOME amongst multiple PS_APP_HOME locations. Using the
traditional method, each application installation requires its own PeopleTools installation.
•
When troubleshooting it will be easier to isolate application and PeopleTools issues.
Managing Environments with PS_APP_HOME
If you elect to install your PeopleSoft application outside of PS_HOME, then you need to make sure to
set the PS_APP_HOME environment variable prior to running PSADMIN, which can be done manually
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
55
Working with Server Domain Configurations
Chapter 3
or by using a.BAT or shell script. Also, as you configure your system, you need to be mindful of the
PS_APP_HOME location.
Note: If you do not set the PS_APP_HOME environment variable explicitly, PeopleSoft runtime retrieves
all runtime content from PS_HOME. That is, unless you set PS_APP_HOME to a value different than
PS_HOME, the system assumes PS_APP_HOME=PS_HOME.
In many of the configuration settings where PS_APP_HOME might be involved, PeopleTools includes
both PS_APP_HOME and PS_HOME references. For example,
RCCBL PRDBIN=%PS_APP_HOME%/cblbin:%PS_HOME%/cblbin
In environments where PS_APP_HOME has been implemented, system elements, such as server
domains have access to content supplied by both PS_HOME and PS_APP_HOME, but files added by the
PeopleSoft application installation (those residing in PS_APP_HOME) that have the same name as those
in the PeopleTools PS_HOME take preference.
The following table outlines key areas in the PeopleSoft system, where you need to consider the
PS_APP_HOME variable if you have installed your PeopleSoft applications into a location outside of
PS_APP_HOME. When you are installing, configuring, and maintaining your system, make sure to keep
these items in mind and review the documentation associated with these areas.
PeopleSoft Infrastructure Element
PS_APP_HOME Consideration
Application Server
PS_APP_HOME must be set explicitly before running
PSADMIN, similar to setting PS_CFG_HOME manually.
Remote Call COBOL can look for COBOL programs in both
PS_APP_HOME or PS_HOME, so be sure to review those
settings.
See RCCBL PRDBIN.
Process Scheduler
PS_APP_HOME must be set explicitly before running
PSADMIN, similar to setting PS_CFG_HOME manually.
The Process Scheduler domains reference PS_APP_HOME
and PS_HOME locations for the following processes:
•
COBOL
•
Crystal Reports
•
SQR
•
nVision
See "Understanding the PeopleSoft Process Scheduler
Configuration File" (PeopleTools 8.54: Process Scheduler).
Search Server (Verity)
PS_APP_HOME must be set explicitly before running
PSADMIN, similar to setting PS_CFG_HOME manually.
As you would normally, if there are any style files or indexes
in custom locations in your PS_APP_HOME, those need to be
referenced appropriately in configuration files or domain-level
settings.
56
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 3
Working with Server Domain Configurations
PeopleSoft Infrastructure Element
PS_APP_HOME Consideration
COBOL
During your installation, you will need to perform different
tasks when compiling COBOL.
See the product documentation for PeopleTools
Installation"Installing and Compiling COBOL on <your
operating system>"
SQR
When specifying locations where the system should look
for SQR reports, for example, in Process Scheduler or in
Configuration Manager, make sure to consider reports that
may exist in PS_APP_HOME.
Lifecycle Management
For applying updates and performing upgrades, PS_APP
_HOME also needs to be considered for various tasks,
including:
•
Crawling the environment with Environment
Management Framework.
•
Creating change packages
•
Defining environments for upgrades.
See Change Assistant and Update Manager.
Windows Development Environment
When setting up Windows Development workstation profiles
using Configuration Manager, you set the PS_APP_HOME
variable on the Process Scheduler tab, and you'll also consider
your PS_APP_HOME location when specifying:
•
Crystal Reports locations.
•
SQR report locations.
•
COBOL location.
•
nVision directory paths.
•
Data Mover directories.
See Understanding PeopleSoft Configuration Manager.
Working with PS_CUST_HOME
This topic contains an overview and discusses how to manage environments where PS_CUST_HOME
has been implemented.
Understanding PS_CUST_HOME
PS_CUST_HOME (PeopleSoft Customization Home) enables you to further clarify the ownership of
files within your PeopleSoft system and separate them for more efficient lifecycle maintenance and
system administration. While PS_APP_HOME enables you to separate PeopleSoft application files
from PeopleTools files, PS_CUST_HOME enables you to identify your site's customized files and store
them in a location separate from your PeopleTools and PeopleSoft application files. This creates a clear
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
57
Working with Server Domain Configurations
Chapter 3
distinction between code and files delivered by Oracle (PeopleTools and PeopleSoft applications) and
code produced or customized by individual customers.
Important! You can continue to store your custom and modified files within PS_HOME or
PS_APP_HOME if desired. Using PS_CUST_HOME is an option that you can take advantage of if the
additional flexibility provided by PS_CUST_HOME is required.
If your site does not create custom scripts, reports, or programs, then PS_CUST_HOME would not apply
to your system. However, if your site does create custom scripts, reports, or programs, or if your site
modifies delivered application files, then implementing PS_CUST_HOME should be considered.
Examples of customized files that might be stored in PS_CUST_HOME include:
•
Data Mover scripts.
•
DAT files.
•
COBOL programs.
•
SQR programs.
•
Crystal Reports.
•
Java class files.
With your custom files stored in the PS_CUST_HOME location, you can freely take PeopleTools or
PeopleSoft application upgrades and maintenance updates, knowing that your customized files will not be
affected. This approach also keeps PS_HOME and PS_APP_HOME consistent with the content provided
by Oracle, being an exact replication of the files as they were installed.
In addition to lifecycle management benefits, PS_CUST_HOME also offers a significant advantage
with sharing PS_HOME locations among multiple PeopleSoft application systems. If you are not
using PS_CUST_HOME, customizations stored in PS_HOME or PS_APP_HOME that apply to only
one application make it impossible to share that PS_HOME or PS_APP_HOME location with other
PeopleSoft applications. With PS_CUST_HOME, all customizations can be consolidated into a single,
isolated PS_CUST_HOME, and multiple runtime environments can utilize the resources within that
PS_CUST_HOME. If separate environments require different customizations, they can share the same
PS_HOME and PS_APP_HOME but point to separate PS_CUST_HOME locations.
An environment where PS_CUST_HOME is implemented may have the following environment variables
set.
Environment Variable
Description
PS_HOME
Location where PeopleTools is installed. For example:
C:\PT_853
PS_CFG_HOME
Location where the server domain configurations are installed.
For example:
PS_CFG_HOME=D:\PT_SERVER
58
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 3
Working with Server Domain Configurations
Environment Variable
Description
PS_APP_HOME
Location where your PeopleSoft application files are installed.
For example:
PS_APP_HOME=N:\HCM_920
PS_CUST_HOME
Location where your customized PeopleSoft application files
are installed. For example:
PS_CUST_HOME=N:\PSFT_CUSTOM
Managing Environments with PS_CUST_HOME
Managing an environment where PS_CUST_HOME exists is similar to adding PS_APP_HOME
to the list of environment variables, except with PS_APP_HOME you install the application files
using the delivered installation program. As such, the application files are installed automatically into
PS_APP_HOME using the standard directory structure based on PS_HOME. With PS_CUST_HOME,
you need to create the directory structure manually, adding any required folder within the
PS_CUST_HOME using the same structure and naming found in PS_HOME or PS_APP_HOME.
For example, if you have a custom SQR report that you want to store in PS_CUST_HOME, you need to
create this directory structure in your PS_CUST_HOME and place your customized file within the \sqr
directory:
N:\PS_CUST_HOME\sqr
Likewise, if you have custom SQL or Data Mover scripts, you need to create this directory structure in
your PS_CUST_HOME and place your customized files within the \scripts directory:
N:\PS_CUST_HOME\scripts
If using PS_CUST_HOME, you need to make sure to set the PS_CUST_HOME environment variable
prior to running PSADMIN. This can be done permanently in the environment variables interface on a
Windows server, manually on the command line prior to running PSADMIN, or by using a.BAT or shell
script.
Note: If you do not set the PS_CUST_HOME environment variable explicitly, PeopleSoft runtime
retrieves all runtime content from PS_HOME or PS_APP_HOME, if set.
When you configure your system, you need to be mindful of the PS_CUST_HOME location. In the
PeopleTools configuration settings where the system would need to find files within PS_CUST_HOME,
you need to include PS_CUST_HOME as a potential location for such files. For example,
RCCBL PRDBIN=%PS_CUST_HOME%/cblbin:%PS_APP_HOME%/cblbin:%PS_HOME%/cblbin
In environments where PS_CUST_HOME has been implemented, system elements, such as server
domains have access to content supplied by PS_HOME, PS_APP_HOME, and PS_CUST_HOME, but
files residing in PS_CUST_HOME take preference over those with the same name in either PS_HOME or
PS_APP_HOME. If PS_CUST_HOME, PS_APP_HOME, and PS_HOME all exist within a PeopleSoft
system, at runtime, the system checks for files in this order:
1. PS_CUST_HOME
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
59
Working with Server Domain Configurations
Chapter 3
2. PS_APP_HOME
3. PS_HOME
The following table outlines key areas in the PeopleSoft system, where you need to consider the
PS_CUST_HOME variable if you added custom files to that location. When you are installing,
configuring, and maintaining your system, make sure to keep these items in mind and review the
documentation associated with these areas.
PeopleSoft Infrastructure Element
PS_CUST_HOME Consideration
Application Server
PS_CUST_HOME must be set explicitly before running
PSADMIN, similar to setting PS_CFG_HOME manually.
Remote Call COBOL can look for COBOL programs in PS_
CUST_HOME, PS_APP_HOME, or PS_HOME, so be sure to
review those settings.
See RCCBL PRDBIN.
Process Scheduler
PS_CUST_HOME must be set explicitly before running
PSADMIN, similar to setting PS_CFG_HOME manually.
The Process Scheduler domains reference PS_CUST_HOME,
PS_APP_HOME, and PS_HOME locations for the following
processes:
•
COBOL
•
Crystal Reports
•
SQR
•
nVision
See "Understanding the PeopleSoft Process Scheduler
Configuration File" (PeopleTools 8.54: Process Scheduler).
Search Server (Verity)
PS_CUST_HOME must be set explicitly before running
PSADMIN, similar to setting PS_CFG_HOME manually.
As you would normally, if there are any style files or indexes
in custom locations in your PS_CUST_HOME, those need to
be referenced appropriately in configuration files or domainlevel settings.
COBOL
During your installation, you will need to perform different
tasks when compiling COBOL, which are described in detail
in your PeopleTools installation guide.
If you do have custom COBOL programs or files, you must
set the PS_CUST_HOME environment variable prior to
compiling the source code. If PS_CUST_HOME is set, the
system compiles the source code in PS_HOME, PS_APP_
HOME, and PS_CUST_HOME simultaneously, despite the
source code residing in separate locations.
See PeopleTools Installation for <your platform>:"Installing
and Compiling COBOL on <your operating system>"
60
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 3
Working with Server Domain Configurations
PeopleSoft Infrastructure Element
PS_CUST_HOME Consideration
SQR
When specifying locations where the system should look
for SQR reports, for example, in Process Scheduler or in
Configuration Manager, make sure to consider reports that
may exist in PS_CUST_HOME.
Lifecycle Management
For applying updates and performing upgrades, PS_CUST
_HOME also needs to be considered for various tasks,
including:
•
Crawling the environment with Environment
Management Framework.
•
Creating change packages
•
Defining environments for upgrades.
See Change Assistant and Update Manager.
Note: By placing files within PS_CUST_HOME, you are
taking complete responsibility for maintaining the source of
that file and ensuring any changes are made to it for upgrade
or maintenance purposes.
Windows Development Environment
When setting up Windows Development workstation profiles
using Configuration Manager, you set the PS_CUST_HOME
variable on the Process Scheduler tab, and you'll also consider
your PS_CUST_HOME location when specifying:
•
Crystal Reports locations.
•
SQR report locations.
•
COBOL location.
•
nVision directory paths.
•
Data Mover directories.
See Understanding PeopleSoft Configuration Manager.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
61
Chapter 4
Using the PSADMIN Utility
Understanding PSADMIN
PSADMIN simplifies the process of configuring and administering all of the server processes and features
that are available for PeopleSoft servers. For example, you use PSADMIN to configure application server
domains, Process Scheduler servers, PIA domains, and search servers.
Note: PS_HOME is the directory where you install PeopleTools.
Accessing Network Drives in Microsoft Windows Server
This section applies only if all of the following are true:
•
You've upgraded to the current PeopleTools release, including the required Tuxedo version and rolling
patch level, from PeopleTools 8.45 or older.
•
You plan to administer your application server domains on Microsoft Windows Server.
•
One or more PeopleSoft processes need to access a mapped network drive directly. Activities
requiring this can include:
•
Using an instance of PSADMIN that was launched from the network drive.
•
Accessing a database on the network drive.
•
Outputting reports to a location on the network drive.
Note: This section applies only to Tuxedo-managed servers (application server, Process Scheduler server,
and search servers). It does not apply to PIA domains.
Any PeopleSoft processes that reference mapped network drives by their drive letters in this environment
must be able to find the drives, and must have appropriate permission to access them. In Windows Server,
the operating system does not provide this access directly.
PeopleSoft uses Tuxedo's Oracle ProcMGR service and an associated environment variable,
TM_TUXIPC_MAPDRIVER, to gain access to the network drives. You must configure these elements to
provide the appropriate access before you start any PeopleSoft servers or other processes.
To configure access to mapped network drives:
1. Determine which shared network directories your PeopleSoft system will need to access with a drive
and directory path.
2. In your Microsoft Windows system, make sure that the shared network directories are available, and
grant the domain administrator privileges to access them.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
63
Using the PSADMIN Utility
Chapter 4
3. Access the Services utility in Windows Control Panel.
4. Stop the Oracle ProcMGR service.
5. In the Oracle ProcMGR service properties, ensure that the “log on as” account is the account with
domain administrator privileges for the required shared directories.
6. Define the TM_TUXIPC_MAPDRIVER environment variable to specify the drive mappings and
paths of the required shared directories, with the following format:
drive1:=\\machine_name1\dirpath1[;drive2:=\\machine_name2\dirpath2[...]]
For example:
U:=\\myMachine\e$;V:=\\myMachine\PSFT
7. Start the Oracle ProcMGR service.
The service uses the value of TM_TUXIPC_MAPDRIVER to create the necessary drive mappings,
and uses its own log on settings to provide your PeopleSoft system with access to those locations.
Note: Every time your PeopleSoft system needs to access a new mapped network location, you must
repeat this procedure, including the new drive mapping along with the others.
Starting PSADMIN
This section assumes that you have already installed and configured the PeopleSoft application server.
See PeopleTools Installation for your database platform.
To start the PSADMIN utility:
1. Launch the psadmin executable.
PSADMIN is in PS_HOME\appserv.
2. Select the server that you want to configure, administer, or monitor from the PSADMIN menu.
-------------------------------PeopleSoft Server Administration
-------------------------------Config Home:
1)
2)
3)
4)
5)
6)
7)
q)
D:\PT_SERVER\8.53
Application Server
Process Scheduler
Search Server
Web (PIA) Server
Switch Config Home
Service Setup
Replicate Config Home
Quit
Command to execute (1-7, q):
64
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Using PSADMIN
Using PSADMIN involves selecting the number of the menu item that reflects the action that you want to
take, entering the correct number at the command line, and pressing Enter. However, in some cases, you
may want to use the command-line options that PSADMIN offers.
See Using the PSADMIN Command-Line Interface.
Each PSADMIN menu has the same look and feel. To select a menu item, enter the corresponding number
at the prompt and press Enter. To return to the previous menu enterq (quit) at the prompt.
Note: Because the numbers corresponding to the PSADMIN menu commands can change as minor
releases and patches provide different features and capabilities to PSADMIN, this documentation
generally refers to the names of the commands rather than their menu item numbers.
Using Configuration Templates
The initial values that you see in PSADMIN are derived from the configuration template that you select
when you create your domain. The delivered templates provide a range of possible implementations. Each
configuration template includes a number of server processes, such as PSAPPSRV, that is sufficient for its
intended load.
These are the delivered templates:
Configuration Template
Default PSAPPSRV Server
Processes
Example Usage
Small
2
Use for 1–50 users.
Medium
8
Use for 50–500 users.
Large
25
Use for 500–1000 users.
Developer
2
Use for development and demonstration
environments only.
Note: The usage examples above are sample ranges. Each site must determine the optimal template
and number of server processes to suit the types of transactions of a particular user base. The delivered
templates provide reasonable starting points for your implementations. You can add additional server
processes through PSADMIN or by editing the PSAPPSRV.CFG file. For optimum performance, the
number of users per configuration template can vary significantly from application to application.
Note: Oracle does not support creating custom CFX or UBX templates nor modifying delivered CFX or
UBX templates.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
65
Using the PSADMIN Utility
Chapter 4
Using the Quick-Configure Menu
When you create a domain for the first time, PSADMIN presents you with the most commonly changed
parameters on the Quick-Configure menu, so that you can get up and running quickly. After the initial
setup, you may at any time select Configure this domain on the PeopleSoft Domain Administration menu
to access the Quick-Configure menu.
Image: PSADMIN Quick-configure menu
This example illustrates the settings on the Quick-configure menu, enabling you to view and set the
essential configuration options.
The Quick-Configure menu shows which features are currently set for the newly created domain. The
menu contains the values that are most commonly changed when setting up a demonstration or test
domain.
To change the value of a parameter under Features, just enter the number corresponding to the feature to
toggle the feature on or off.
To change the value of a parameter under Settings, enter the number corresponding to the setting and
enter the new value at the prompt.
Note: All of the values that you change remain in effect until you modify them again.
66
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Note: If you select a Settings parameter, then press Enter without entering a new value at the prompt, the
existing value of that parameter is deleted. If you then enter q to quit the Quick-Configure menu, your
changes are discarded, and the original values remain. However, if you load the configuration as shown,
the parameter is saved without a value.
If the parameter is required, you'll see an error message indicating that the configuration could not be
completed. The next time you access the Quick-Configure menu, PSADMIN reloads any empty required
parameter with its original default value, just as it would appear if you were creating a new domain.
To configure the rest of the parameters that are not presented on the Quick-Configure menu, select
Custom configuration to view the full list.
The Quick-Configure menu is not intended to replace the series of configuration sections in the custom
configuration interface. In most cases, your site requires the parameters and tuning options that are
available only through the full custom configuration menu. For this reason, the Quick-Configure menu
is provided primarily for situations where you're setting up a demonstration domain for testing or for
development purposes.
Note: When you use custom configuration, pressing Enter instead of entering a new value for a parameter
does not delete the parameter's value. PSADMIN interpretsEnter to mean that you want to retain the
parameter's existing value. If you want to remove the value, you can enter one or more "white space"
characters by pressing the space bar, or you can enter five underscore characters, and pressENTER.
To apply settings to the configuration files, you must select Load config as shown.
To add and specify environment variables at the domain level, select Edit environment settings.
For more information on editing domain environment variables, see Setting Domain-Level Environment
Variables.
Setting Domain-Level Environment Variables
This section provides an overview and discusses:
•
Working with domain-level environment settings
•
Setting domain-level environment variables.
Understanding Domain-Level Environment Settings
Environment settings can be set at the following levels:
•
Operating System: At this level, the environment settings apply to all processes running at that time
on the host, such as PS_CFG_HOME.
•
Domain: At this level, you can specify settings that apply to only that domain. That is you can
override any operating system environment settings, as well as any that come by default from the
higher-level configuration file (.UBX).
Note: Setting a variable at the domain-level overrides the variable set in the parent environment.
Variables like PS_HOME and PS_CFG_HOME cannot be set at the domain level.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
67
Using the PSADMIN Utility
Chapter 4
The settings you modify or add for that domain will be saved in the *PS_ENVFILE section one of the
following files, depending on the domain type:
•
psappsrv.ubx
•
psprcsrv.ubx
•
pssrchsrv.ubx
When the configuration settings are loaded for that domain, then these settings will also be reflected in
the .env file for that domain.
Note: It is not recommended to modify the .env file manually because it will be overwritten by .ubx
values if the domain is ever re-configured (selecting the Load config as shown option on the
Quick-configure menu). Environment settings should be set using the PeopleSoft Domain Environment
Settings menu.
Working with Domain-Level Environment Settings
To set domain level environment settings, select Edit Environment Settings from the Quick-configure
menu for an application server, Process Scheduler server.
Note: There is no Quick-configure menu for the search server (Verity), however when you configure the
domain, PSADMIN prompts to determine if you want to manage your domain environment variables.
The following example displays application server domain settings.
-------------------------------------PeopleSoft Domain Environment Settings
-------------------------------------Domain Name: ORCLDMO1
TM_BOOTTIMEOUT
:[120]
TM_RESTARTSRVTIMEOUT
:[120]
TM_BOOTPRESUMEDFAIL
:[Y]
FLDTBLDIR32
:[{$TUXDIR}{FS}udataobj]
FIELDTBLS32
:[jrep.f32,tpadm]
ALOGPFX
:[{LOGDIR}{FS}TUXACCESSLOG]
COBPATH
:[{$PS_APP_HOME}\CBLBIN%PS_COBOLTYPE%;
{$PS_HOME}\CBLBIN%PS_COBOLTYPE%]
INFORMIXSERVER
:[{$Startup\ServerName}]
# IPC_EXIT_PROCESS
:[1]
IPC_TERMINATE_PROCESS
:[1]
PATH
:[{$PS_HOME}\verity\{VERITY_OS}
\{VERITY_PLATFORM}\bin;{$PATH};{$Domain Settings\Add to PATH}]
1)
2)
3)
4)
5)
6)
h)
q)
Edit environment variable
Add environment variable
Remove environment variable
Comment / uncomment environment variable
Show resolved environment variables
Save
Help for this menu
Return to previous menu
Edit environment variable
68
Enables you to edit the values of the listed environment settings.
After selecting this option, enter the row number of the
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
environment setting you want to edit, and modify the value as
needed.
Environment variable: TM_BOOTTIMEOUT
Enter value [120]:150
For any settings that you modify, the system displays an asterisk
next to it (*).
Add environment variable
Use this option to add new environment variables for the
domain. After selecting this option, enter the name of the
environment variable and its value when prompted.
Enter name of environment variable: MY_VARIABLE
Enter value: D:\PSFT_HCM
For any settings that you add, the system displays an asterisk
next to it (*).
Remove environment variable
Removes any of the currently listed environment settings. After
selecting this option, enter the row number of the environment
setting you want to remove.
Comment / uncomment environment Use to comment or uncomment the environment setting. When
variable
you comment a setting, the system ignores that domain-level
setting. Any default, or operating system-level settings would
take effect. When you uncomment the setting, the system
recognizes the domain-level setting value.
After selecting this option, enter the row number of the
environment setting you want to comment or uncomment.
Environment variables that are commented (ignored by the
system), have a # symbol next to it.
Show resolved environment variables Expands the meta variables for system settings, such as PS_
HOME, TUXDIR, and so on, so that you can view the actual
file path.
For example, the following is unresolved:
:[{LOGDIR}{FS}TUXACCESSLOG]
And the following is resolved:
:[D:\PT_SERVER\8.53\appserv\FSDMO853\LOGS
\TUXACCESSLOG]
Save
Select to save the settings you've added or modified.
Help for this menu
Select to display online help information for this interface.
Setting Domain-Level Environment Variables
In most cases, you may not need to modify or add domain-level environment variables.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
69
Using the PSADMIN Utility
Chapter 4
Some reasons to set a domain-level environment variable are:
•
custom PeopleCode may require a domain-level environment variable.
•
additional tracing may require additional Tuxedo environment variables, if specified in your Tuxedo
documentation.
•
a GCS analyst may request a specific environment setting for troubleshooting issues.
Note: PS_HOME, PS_CFG_HOME, PS_APP_HOME and PS_CUST_HOME environment variables
should not be set at the domain-level and can cause undesirable results if set at the domain level.
The following table describes the default environment settings exposed at the domain level:
Server Type
Environment Setting
Description
Application Server
TM_BOOTTIMEOUT
Time allowed before Tuxedo performs a
timeout for a domain boot.
TM_RESTARTSRVTIMEOUT
Time allowed before Tuxedo performs a
timeout for a server process restart.
TM_BOOTPRESUMEDFAIL
TM_BOOTPRESUMEDFAIL is an
indicator to the Tuxedo system that
dictates how the domain should behave
if a process fails to start before TM_
BOOTTIMEOUT (above) has been
reached.
When set to Y, no further domain
processes will be started and any existing
domain processes will be terminated.
If set to N, the boot process will proceed.
By default, this is set toY because
domains cannot be relied upon to
function correctly if any of the domain
processes fail to start in a timely fashion.
FLDTBLDIR32
The directory in which field buffer
descriptor files are located. This is an
internal Tuxedo setting.
Modification of this value could result
in unpredictable behavior as Tuxedo will
be unable to locate its buffer descriptor
files.
FIELDTBLS32
The list of the buffer descriptor files
that are required by the domain runtime.
These files are located in the directory
defined by the FLDTBLDIR32 variable.
This is an internal Tuxedo setting.
Modification of this value could result in
unpredictable behavior as Tuxedo may
allocate buffers incorrectly.
70
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Server Type
Environment Setting
Description
ALOGPFX
Path to the Tuxedo access log for that
domain.
COBPATH
COBOL path for that domain.
INFORMIXSERVER
(Applies only to Informix database
connections) Specifies the default
database server to which an explicit or
implicit connection is made.
IPC_EXIT_PROCESS
Indicates that the process should be
shutdown in a graceful fashion, allowing
cleanup functions to execute.
This is analogous to normal shutdown
and is achieved by using the MS C++
ExitProcess function.
Typically this value or IPC_
TERMINATE_PROCESS is set. These
values should be considered to be
mutually exclusive.
IPC_TERMINATE_PROCESS
IPC_TERMINATE_PROCESS is an
indication that the process should exit
immediately.
This is analogous to a process kill or
forced shutdown. The exit handlers do
not have an opportunity to run. This
would typically be used in a situation
where the process has failed to respond
to a normal shutdown instruction.
Typically this value or IPC_EXIT_
PROCESS is set. These values should be
considered to be mutually exclusive.
Process Scheduler Server
Search Server (Verity)
PATH
Specifies a set of directories where
executable programs are located for that
domain.
COBPATH
See COBPATH explanation for
application server.
INFORMIXSERVER
See INFORMIXSERVER explanation
for application server.
PATH
See PATH explanation for application
server.
TM_RESTARTSRVTIMEOUT
Time allowed before Tuxedo performs a
timeout on a server process restart.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
71
Using the PSADMIN Utility
Server Type
Chapter 4
Environment Setting
Description
TM_RESTARTSRVTIMEOUTKILL
TM_RESTARTSRVTIMEOUTKILL is
an indication to the Tuxedo system that
a process that hangs on restart should be
killed.
IPC_EXIT_PROCESS
See IPC_EXIT_PROCESS explanation
for application server.
IPC_TERMINATE_PROCESS
See IPC_TERMINATE_PROCESS
explanation for application server.
PATH
See PATH explanation for application
server.
Using the PSADMIN Command-Line Interface
This section provides an overview of the PSADMIN command-line interface and discusses how to:
•
Use the miscellaneous commands.
•
Use the application server commands.
•
Use the Process Scheduler commands.
•
Use the Search Server commands.
•
Work with PSADMIN exit codes.
Understanding the PSADMIN Command-Line Interface
In some cases, you might want to use the PSADMIN command-line interface rather than starting the
PSADMIN interface and navigating to a particular menu. The command line offers a direct method of
carrying out certain server administration tasks. It also enables you to include PSADMIN actions in
scripts, and simplifies the task of creating numerous domains that use default server settings.
PSADMIN has several variations of its basic command-line syntax for miscellaneous activities and server
administration, which are described in the following sections.
Note: Before you begin using the PSADMIN commands, you should become familiar with PSADMIN
and the components that it controls.
Note: When using the PSADMIN command line and specifying paths containing spaces (such as
directory paths on Windows), the paths must be enclosed within quotes.
72
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Using the Miscellaneous Commands
Following are the available miscellaneous PSADMIN commands:
Command
Description
psadmin -h
Displays command help and syntax.
psadmin -v
Displays the PSADMIN version number, as in Version 8.54.
psadmin -env
Displays your current environment variables.
psadmin -defaultps_cfg_home
Displays the current PS_CFG_HOME environment variable.
psadmin -envsummary
Displays a summary of PS_HOMEs and domains.
psadmin -replicate -ch <source PS_CFG_
HOME>
Replicates a PS_CFG_HOME and its configured domains
to a new location, where they can be started without manual
reconfiguration.
The replicate originates from the source PS_CFG_HOME in
the command line parameter and copies to the current PS_CFG
_HOME that the user is working with as defined either by the
value of the PS_CFG_HOME environment variable or the
default location PSADMIN is using for the operating system.
That is, you copy an existing PS_CFG_HOME into the current
PS_CFG_HOME used by PSADMIN.
Using the Pure Internet Architecture Commands
The Pure Internet Architecture commands follow this basic syntax:
psadmin —w command — d PIA_domain
For example:
psadmin —w start — d peoplesoft
Command
Example
Result of the Example
start
psadmin -w start -d
peoplesoft
Starts the peoplesoft domain.
shutdown
psadmin -w shutdown -d
peoplesoft
Stops the peoplesoft domain.
shutdown!
psadmin -w shutdown! -d
peoplesoft
Performs a forced shutdown of the
peoplesoft domain.
status
psadmin -w status -d
peoplesoft
Displays the status of the domain (started,
stopped, and so on).
remove
psadmin -w remove -d
peoplesoft
Deletes the domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
73
Using the PSADMIN Utility
Chapter 4
Specifying PIA Domain Configuration Settings
You can use the command line to set selected domain settings using the following syntax:
psadmin —w configure — d PIA_domain —c c_set —p p_set
Where c_set (configuration settings) must be provided in the following order and format:
minHeapSize/maxHeapSize/maxThreads/authTokenDomain
And p_set (port settings) must be provided in the following order and format:
httpPort/httpsPort
For example:
psadmin —w configure — d peoplesoft —c 512/512/50/urdomain.com —p
80/443
Specifying PIA Site Configuration Settings
You can use the command line to set selected site settings using the following syntax:
psadmin —w configure — d PIA_domain —s site —c c_set
The c_set (configuration settings) must be provided in the following order and format:
appSrvConnString/webProfile/pooling/reportPath/webProfUser/webProfPwor d/appSrvConnPword
c_set option
Description
appSrvConnString
Application server connect string, such as host:jolt port.
webProfile
The web profile the site will use (PROD, DEV, and so on).
pooling
Indicate whether Jolt pooling should be enabled. (Enabled/Disabled)
reportPath
The reports path, such as D:\psreports.
webProfUser
The user required for accessing the web profile.
webProfPword
The password for the web profile user.
appSrvConnPword
If using a domain connection password, enter that value.
For example:
psadmin —w configure — d peoplesoft —s ps —c URSERVER:9000/PROD/
Enabled/D:\psreports/PS/PS/Liverpool05
74
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Using the Application Server Commands
For application server administration, PSADMIN has two syntax formats — one for creating new
application server domains, and the other for administering existing domains.
Using the Application Server Create Command
Use the following syntax to create a new application server domain:
psadmin -c create -d domain -t template -s s_set [-p p_set]
[-env env_set]
The create command creates an application server configuration file with the specified domain name,
using the specified configuration template.
The domain parameter must be the name of an application server domain that you want to create, for
example, HRDMO.
The template parameter must have one of the following values:
•
small
•
medium
•
large
•
developer
The s_set parameter is an optional string of startup values which provide initial configuration settings that
you would otherwise specify on the PSADMIN application server Quick-Configure menu. You must enter
the startup string as follows:
•
In Windows, the values must be separated by slashes:
DBNAME/DBTYPE/OPR_ID/OPR_PSWD/DOMAIN_ID/ADD_TO_PATH/DB_CNCT_ID/DB_CNCT_PSWD/SE⇒
RVER_NAME/DOM_CONN_PWD/{ENCRYPT|NOENCRYPT}
•
In UNIX, the values must be separated by percent signs:
DBNAME%DBTYPE%OPR_ID%OPR_PSWD%DOMAIN_ID
%ADD_TO_PATH%DB_CNCT_ID%DB_CNCT_PSWD%SERVER_NAME%DOM_CONN_PWD%{ENCRYPT|NOENCRY⇒
PT}
Important! You must enter these values in the order shown. You can omit required values only by
truncating the string from right to left. For example, you can specify DBNAME/DBTYPE, but you can't
specifyDBNAME/DOMAIN_ID.
These startup settings all have default values if you omit any of them. The default values are generally
the values you provided when setting up your PeopleSoft environment, and are the same as they would
initially appear on the PSADMIN application server Quick-Configure menu.
The following table describes the startup settings:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
75
Using the PSADMIN Utility
Chapter 4
Startup (s_set) Setting
Description
DBNAME
Enter the name of the database to which the application server
will connect. This is the same as the DBName parameter in the
Startup section of the psappsrv.cfg file.
Note: If you don't include the s_set parameter, the value of this
setting is the same as the domain name that you specify in the
command.
DBTYPE
Enter the database type. Valid values are ORACLE,
INFORMIX, SYBASE, MICROSFT, DB2ODBC, and
DB2UNIX. This is the same as the DBType parameter in the
Startup section of the psappsrv.cfg file.
Note: Notice the spelling of MICROSFT. DB2ODBC is the
database type for DB2 z/OS.
OPR_ID
Enter the user ID, such as QEDMO, for the domain to use
to connect to the database. This is the same as the UserId
parameter in the Startup section of the psappsrv.cfg file.
OPR_PSWD
Enter the user password that is associated with the specified
user ID. This is the same as the UserPswd parameter in the
Startup section of the psappsrv.cfg file.
DOMAIN_ID
Enter a domain ID, such as TESTSRV1, TESTSRV2, and so
on. This does not need to match the domain name. This name
is important only because the Tuxedo Web Monitor uses it to
identify application server domains on each machine. This is
the same as the Domain ID parameter in the Domain Settings
section of the psappsrv.cfg file.
ADD_TO_PATH
(Optional) Enter the directory path that contains your
connectivity software or database drivers. This is the same as
the Add to PATH parameter in the Domain Settings section of
the psappsrv.cfg file.
Note: If this value contains spaces, it must be in double quotes
(" "). For example:"c:\Program Files".
Important! If you want this setting to be blank, but you
can't truncate the string to this point (you still need to specify
a value for CNCT_ID), you can specify a value of “____
_” (five underscores without the quotes) in this position.
PSADMIN interprets this as a blank value.
76
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Startup (s_set) Setting
Description
CNCT_ID
Enter the connect ID, which is required for all platforms. This
is the same as the ConnectId parameter in the Startup section
of the psappsrv.cfg file.
See "Connect ID" (PeopleTools 8.54: Security
Administration).
CNCT_PSWD
Enter the password that is associated with the connect ID.
This is the same as the ConnectPswd parameter in the Startup
section of the psappsrv.cfg file.
SERV_NAME
(Optional) If your RDBMS requires that you specify the server
name on which the database resides, enter the appropriate
server name. This is the same as the ServerName parameter in
the Startup section of the psappsrv.cfg file.
Important! If you want this setting to be blank, but you can't
truncate the string to this point (you still need to specify the
ENCRYPT setting), you can specify a value of “_____” (five
underscores without the quotes) in this position. PSADMIN
interprets this as a blank value.
ENCRYPT | NOENCRYPT
Specify ENCRYPT to encrypt the values of the UserPswd
andConnectPswd parameters in the psappsrv.cfg file. If you
specify NOENCRYPT (the default value), these values appear
in clear text in the file.
The p_set parameter is an optional string of port numbers that you would otherwise specify on the
PSADMIN application server Quick-Configure menu. Typically, you include this parameter only if you
have more than one domain on the same application server machine or if you need to provide a specific
value due to your environment or testing needs. Otherwise, you should accept the defaults for easy
configuration.
You must specify the port numbers as follows:
•
In Windows, the values must be separated by slashes.
WSL_PORT/JSL_PORT/JRAD_PORT
•
In UNIX, the values must be separated by percent signs.
WSL_PORT%JSL_PORT%JRAD_PORT
Important! You must enter these values in the order shown. You can omit values only by truncating
the string from right to left. For example, you can specify WSL_PORT/JSL_PORT, but you can't
specifyWSL_PORT/JRAD_PORT. These port numbers all have default values if you omit any of them.
The default values are the values you provided when setting up your PeopleSoft environment, and are the
same as they would initially appear on the PSADMIN application server Quick-Configure menu.
The following table describes the port settings:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
77
Using the PSADMIN Utility
Chapter 4
Port (p_set) Setting
Description
WSL_PORT
Workstation listener port number. This is the same as the
Port parameter in the Workstation Listener section of the
PSAPPSRV.CFG file.
Note: Specify this value only if you intend for the domain to
support Windows workstations connecting in the development
environment.
JSL_PORT
Jolt port number. This is the same as the Port parameter in the
JOLT Listener section of the PSAPPSRV.CFG file.
JRAD_PORT
Jolt internet relay port number. This is the same as the Listener
Port parameter in the JOLT Relay Adapter section of the
PSAPPSRV.CFG file.
Note: Specify this value only if you intend for the domain to
support browser deployment, and your web server resides on a
separate machine from the application server.
The env_set specifies domain environment settings, having the following format:
ENVAR_NAME1=ENVVAR_VALUE1#ENVAR_NAME2=ENVVAR_VALUE2
Following is an example of the application server create command:
D:\PT\appserv>psadmin -c create -d HRDOM01 -t small -s PT853803/ORACLE/QEDMO/QEDMO
/TESTSRV2/"c:\oracle\product\11.1.0\client_1\bin"/people/peop1e/_____/ENCRYPT
-p 7200/9020/9200
When you launch the command, you'll see progress messages similar to the following:
Copying application server configuration files...
Copying [D:\PT\appserv\small.cfx] to [D:\PT_SERVER\8.53\appserv\HRDOM01\
psappsrv.cfg]
Stripping Annotations...
Copying [D:\PT\appserv\small.cfx] to [D:\PT_SERVER\8.53\appserv\HRDOM01\
psappsrv.cfx]
Copying Jolt repository file...
Domain created.
Performing load prechecks ...
Loading validation table...
setting DBName=PT853803
setting DBType=ORACLE
setting UserId=QEDMO
setting UserPswd=sgDcfYICragaN1Bz+MTRxf9CAk21Bqlkn/DFpUQAaTs=
setting ConnectId=people
setting ConnectPswd=kyD3QPxnrag=
setting ServerName=
setting Port=7200
setting Port=9020
setting Listener Port=9200
setting Domain ID=TESTSRV2
setting Add to PATH=c:\oracle\product\11.1.0\client_1\bin
New CFG file written with modified Startup parameters
Log Directory entry not found in configuration file.
Setting Log Directory to the default... [PS_SERVDIR\LOGS]
Spawning disabled for server PSAPPSRV.
78
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
WARNING: PSSAMSRV is configured with Min instance set to 1. To avoid loss of
service, configure Min instance to atleast 2.
Configuration file successfully created.
CFG setting changes completed, loading configuration...
Domain configuration complete.
Using the Application Server Administration Commands
Use the following syntax to administer an existing application server domain:
psadmin -ccommand -ddomain
The domain parameter must be the name of an application server domain that you want to administer, for
example, HR846DMO.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
79
Using the PSADMIN Utility
Chapter 4
The valid values of the command parameter are as follows:
Command
Example
Result of the Example
boot
psadmin -c boot -d PSDMO
Boots an application server domain
named PSDMO.
parallelboot
psadmin -c parallelboot -d
PSDMO
Boots an application server domain
named PSDMO, using the parallel boot
option.
configure
psadmin -c configure -d
PSDMO
Reloads the domain configuration for the
PSDMO domain.
pslist
psadmin -c pslist -d PSDMO
Displays the processes that have been
booted for the PSDMO domain. This
includes the system process ID for each
process.
shutdown
psadmin -c shutdown -d
PSDMO
Shuts down the PSDMO application
server domain, by using a normal
shutdown method.
In a normal shutdown, the domain
waits for users to complete their tasks
and turns away new requests before
terminating all of the processes in the
domain.
shutdown!
psadmin -c shutdown! -d
PSDMO
Shuts down the PSDMO application
server domain by using a forced
shutdown method.
In a forced shutdown, the domain
immediately terminates all of the
processes in the domain.
80
sstatus
psadmin -c sstatus -d PSDMO
Displays the Tuxedo processes and
PeopleSoft server processes that are
currently running in the PSDMO
application server domain.
cstatus
psadmin -c cstatus -d PSDMO
Displays the currently connected users in
the PSDMO application server domain.
qstatus
psadmin -c qstatus -d PSDMO
Displays status information about
the individual queues for each server
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Command
Example
Result of the Example
process in the PSDMO application server
domain.
preload
psadmin -c preload -d PSDMO
Preloads the server cache for the
PSDMO domain.
cleanipc
psadmin -c cleanipc -d
PSDMO
Cleans the IPC resources for the PSDMO
domain.
purge
psadmin -c purge -d PSDMO
Purges the cache for the PSDMO
domain.
import
psadmin -c import
c:\ptinstalls\pt85x\...
\psappsrv.cfg` -n NEWSRVR
Imports a domain configuration.
Starting a domain:
Enables you to access the tmadmin
command line by way of the PSADMIN
command line. This allows you to
incorporate tmadmin commands into
scripts, as well as providing more access
to them from the command line.
tmadmin
psadmin -c tmadmin -d
PSDMO
boot -y
Monitoring status of a server process:
psadmin -c tmadmin -d
PSDMO
psr -v -g APPSRV
See PSADMIN command line help for
all possible options.
This can bring more flexibility and
granularity into command line control,
such as starting, stopping, or monitoring
individual server processes.
You can pass any tmadmin command
for any domain within the current PS
_CFG_HOME. Commands can be
issued against running and non-running
domains.
The exit code will be non-zero if the
domain doesn't exist or if the Tuxedo
configuration is corrupt or incomplete.
The tmadmin interface access applies
to application server (-c), Process
Scheduler (-p), and search server (-s)
domains.
Using the Process Scheduler Commands
For Process Scheduler administration, PSADMIN has two syntax formats — one for creating new Process
Scheduler configurations, and the other for administering existing configurations.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
81
Using the PSADMIN Utility
Chapter 4
Using the Process Scheduler Create Command
Use the following syntax to create a new Process Scheduler configuration:
psadmin -p create -d domain -t template -ps ps_set [-env env_set] [-s silent]
The PSADMIN create command creates a Process Scheduler configuration file for the specified database,
using the specified configuration template.
The template parameter must be the name of a .cfx file located in PS_HOME\appserv\prcs, without the
extension. This represents the operating system platform on which you're running PeopleSoft Process
Scheduler. For example, to use the template file called windows.cfx on a Windows machine, specify the
value windows.
The ps_set parameter is an optional string of startup values which provide initial configuration settings
that you would otherwise specify on the PSADMIN Process Scheduler Quick-Configure menu. You must
enter the startup string as follows:
•
In Windows, the values must be separated by slashes.
DBNAME/DBTYPE/PRCSSERVER/OPR_ID/OPR_PSWD/DB_CNCT_ID/DB_CNCT_PSWD/SERVER_NAME/LO⇒
GOUT_DIR/
SQRBIN/ADD_TO_PATH/DBBIN/CRYSTALBIN/DOM_CONN_PWD/{ENCRYPT|NOENCRYPT}
•
In UNIX, the values must be separated by commas.
DBNAME,DBTYPE,PRCSSERVER,OPR_ID,OPR_PSWD,DB_CNCT_ID,DB_CNCT_PSWD,SERVER_NAME,LO⇒
GOUT_DIR,
SQRBIN,ADD_TO_PATH,{ENCRYPT|NOENCRYPT}
Note: The UNIX syntax does not include the DBBIN setting.
Important! You must enter these values in the order shown. You can omit required values only by
truncating the string from right to left. For example, you can specify DBNAME/DBTYPE, but you can't
specifyDBNAME/LOGOUT_DIR.
These startup settings all have default values if you omit any of them. The default values are generally
the values you provided when setting up your PeopleSoft environment, and are the same as they would
initially appear on the PSADMIN Process Scheduler Quick-Configure menu.
Note: Because these PeopleSoft Process Scheduler settings are already documented in the PeopleSoft
Process Scheduler PeopleBook, this section provides only a basic overview of the relationship between
the settings on the command line and the equivalent settings on the PSADMIN Process Scheduler QuickConfigure menu.
The following table describes the startup settings:
Startup (ps_set) Setting
Description
DBNAME
This is the equivalent of the DBName parameter on the
PSADMIN Process Scheduler Quick-Configure menu.
Note: If you don't include the ps_set parameter, the value of
this setting is the same as the database name that you specify
in the command.
82
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Startup (ps_set) Setting
Description
DBTYPE
This is the equivalent of the DBType parameter on the
PSADMIN Process Scheduler Quick-Configure menu.
PRCSSERVER
This is the equivalent of the PrcsServer parameter on the
PSADMIN Process Scheduler Quick-Configure menu.
OPR_ID
This is the equivalent of the UserId parameter on the
PSADMIN Process Scheduler Quick-Configure menu.
OPR_PSWD
Enter the user password that is associated with the specified
user ID. This is the equivalent of the UserPswd parameter on
the PSADMIN Process Scheduler Quick-Configure menu.
CNCT_ID
This is the equivalent of the ConnectId parameter on the
PSADMIN Process Scheduler Quick-Configure menu.
CNCT_PSWD
This is the equivalent of the ConnectPswd parameter on the
PSADMIN Process Scheduler Quick-Configure menu.
SERV_NAME
(Optional) This is the equivalent of the ServerName parameter
on the PSADMIN Process Scheduler Quick-Configure menu.
Important! If you want this setting to be blank, but you can't
truncate the string to this point (you still need to specify a
value for LOGOUT_DIR), you can specify a value of “___
__” (five underscores without the quotes) in this position.
PSADMIN interprets this as a blank value.
LOGOUT_DIR
This is the equivalent of the Log/Output Dir parameter on the
PSADMIN Process Scheduler Quick-Configure menu.
Note: If this value contains spaces, it must be in double quotes
(" "). For example:"c:\psft app\log_output".
SQRBIN
This is the equivalent of the SQRBIN parameter on the
PSADMIN Process Scheduler Quick-Configure menu.
Note: If this value contains spaces, it must be in double quotes
(" "). For example:"C:\PeopleTools\bin\sqr\MSS
\binw".
ADD_TO_PATH
(Optional) This is the equivalent of the AddToPATH parameter
on the PSADMIN Process Scheduler Quick-Configure menu.
Note: If this value contains spaces, it must be in double
quotes (" "). For example:"%WINDIR%\SYSTEM32;c:
\Program Files".
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
83
Using the PSADMIN Utility
Chapter 4
Startup (ps_set) Setting
Description
CRYSTALBIN
(Windows only) Enter the Crystal installation path. This is
equivalent to the Crystal Path parameter in the PSADMIN
Process Scheduler Quick-Configure menu.
Note: If a valid path is not entered, error messages related to
PS ODBC and Crystal Runtime will appear when PSADMIN
loads the configuration.
Note: If this value contains spaces, it must be in double quotes
(" ").
Important! If you want this setting to be blank, but you can't
truncate the string to this point, you can specify a value of "_
____" (five underscores without the quotes) in this position.
PSADMIN interprets this as a blank value.
DBBIN
(Windows only) This is the equivalent of the DBBIN
parameter on the PSADMIN Process Scheduler QuickConfigure menu.
Note: If this value contains spaces, it must be in double quotes
(" "). For example:"C:\my apps\db\MSSQL\Binn".
ENCRYPT | NOENCRYPT
Specify ENCRYPT to encrypt the values of the UserPswd
andConnectPswd parameters in the psprcs.cfg file. If you
specify NOENCRYPT (the default value), these values appear
in clear text in the file.
The env_set specifies domain environment settings, having the following format:
ENVAR_NAME1=ENVVAR_VALUE1#ENVAR_NAME2=ENVVAR_VALUE2
Following is an example of the Process Scheduler create command:
psadmin -p create -d PSHRDB1 -t nt -ps PSHRDB1/MICROSFT/PSNT/
PS/PS/people/peop1e/_____/"c:\psft app\log_output"/c:\psfthr\bin\sqr\MSS\binw/
c:\WINNT\SYSTEM32/C:\Program Files\BusinessObjects\BusinessObjects Enterprise 12.0\⇒
win32_x86
/c:\apps\db\mssql\binn/ENCRYPT
Using the Process Scheduler Administration Commands
Use the following syntax to administer an existing Process Scheduler configuration:
psadmin -pcommand -ddatabase
The database parameter must be the name of a database that's associated with a PeopleSoft Process
Scheduler Server Agent, for example, PSHRDMO.
84
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
The valid values of the command parameter are as follows:
Command
Example
Result of the Example
start
psadmin -p start -d psdmo
Starts a Process Scheduler.
stop
psadmin -p stop -d psdmo
Stops a Process Scheduler.
configure
psadmin -p configure -d
psdmo
Configures a Process Scheduler.
status
psadmin -p status -d psdmo
Displays the status of a Process
Scheduler.
cleanipc
psadmin -p cleanipc -d
psdmo
Cleans the IPC resources for specified
domain
kill
psadmin -p kill -d psdmo
Kills the domain (similar to forced
shutdown).
Related Links
Using the Process Scheduler Menu
Using the Search Server Commands
Use the following syntax to administer an existing search server domain:
psadmin -s command -d domain
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
85
Using the PSADMIN Utility
Chapter 4
The domain parameter must be the name of the search server domain that you want to administer, for
example, PSSRCH. The valid values of the command parameter are as follows:
Command
Example
Result of the Example
create
psadmin -s create -d
PSSRCH
-t <template>
Creates a domain with the specified
name and template.
boot
psadmin -s boot -d PSSRCH
Boots a search server.
configure
psadmin -s configure
-d PSSRCH
Configures a search server.
shutdown
psadmin -s shutdown -d
PSSRCH
Shuts down the domain, by using a
normal shutdown method. In a normal
shutdown, the domain waits for current
transactions to complete and turns away
new requests before terminating all of
the processes in the domain.
shutdown!
psadmin -s shutdown!
-d PSSRCH
Shuts down the domain by using a forced
shutdown method. In a forced shutdown,
the domain immediately terminates all of
the processes in the domain.
sstatus
psadmin -s sstatus -d
PSSRCH
Displays the Tuxedo processes and
PeopleSoft server processes that are
currently running in the domain.
cstatus
psadmin -s cstatus -d
PSSRCH
Displays the currently connected users/
clients.
qstatus
psadmin -s qstatus -d
PSSRCH
Displays status information about the
individual queues for each server process
in the application server domain.
cleanipc
psadmin -p cleanipc -d
PSSRCH
Cleans the IPC resources for the domain.
Working with PSADMIN Exit Codes
The following table lists most PSADMIN command line options for the application server and Process
Scheduler server and their return codes. This can provide insight into the return codes displayed when
using PSADMIN from the command line or in scripts. In general, PSADMIN returns 0 for success and
non-zero when an error occurs.
86
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
Note: N/A indicates the command is not applicable to that server.
Command
Application Server
Process
Scheduler
-v
0
N/A
-h
0
N/A
-env
0
N/A
-defaultPS_CFG_Home
0
N/A
-invalid
-10
N/A
-create -d <domain_name> -t <template>
0
0
-create -d
275
275
create -d <already_existing_domain> -t <template>
265
1
create -d <domain_name> -t <template> -s <s_set>
0
N/A
create -d <domain_name> -t <invalid_template> -s <s
_set>
1
N/A
-p 0
N/A
<domain_name> -t <invalid_template>
create -d <domain_name> -t <template> -s <s_set>
<p_set>
create -d database -t template -ps ps_set
N/A
0
create -d database -t template -silent
N/A
0
delete -d <domain_name>
0
0
delete -d <nonexistent_domain>
235
235
configure -d <domain_name>
0
0
configure -d <nonexistent_domain>
235
235
boot -d <domain_name>
0
N/A
boot -d <nonexistent_domain>
235
N/A
parallelboot -d <domain_name>
-1
N/A
parallelboot -d <nonexistent_domain>
235
N/A
shutdown -d <domain_name>
0
N/A
shutdown -d <nonexistent_domain>
235
N/A
shutdown! -d <domain_name
0
N/A
shutdown! -d <nonexistent_domain>
235
N/A
cleanipc -d <domain_name>
0
0
235
235
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
cleanipc -d <nonexistent_domain>
87
Using the PSADMIN Utility
Chapter 4
Command
Application Server
Process
Scheduler
1
N/A
0
N/A
235
N/A
1
0
0
0
0
0
235
235
0
235
0
235
PreloadFileCache not set in PSAPPSRV.CFG.
preload -d
<domain_name>
PreloadFileCache set in PSAPPSRV.CFG but not in database.
preload -d
<domain_name>
PreloadFileCache set in PSAPPSRV.CFG and in database.
preload -d
<nonexistent_domain>
stop -d <domain_name>
Domain is not started.
pslist -d
<domain_name>
pslist -d <domain_name>
Domain is not started.
pslist -d
<nonexistent_domain>
purge -d <domain_name> -noarch
-log <log_comments>
purge -d <domain_name> -arch <archive_dir>
<log_comments>
-log
Using PSADMIN Configuration Files
This section provides an overview of PSADMIN executables and configuration files and discusses how
to:
•
Configure a domain.
•
Load a configuration.
•
Archive application server configuration files.
•
Boot a domain.
•
Stop a domain.
•
Monitor a domain.
Understanding PSADMIN Configuration Files
You can create, configure, and boot an application server domain from the PSADMIN interface or
through its command-line options.
88
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
The configuration and data files on which the executables rely all reside in PS_CFG_HOME\appserv
\domain_name. Each domain has its own set of these files:
•
PSAPPSRV.CFG
This is the catch-all configuration file that contains the entire collection of configuration values for a
given application server domain.
•
PSAPPSRV.UBX
This is the template or model file for the PSAPPSRV.UBB file. This is where the system stores
environment settings after being edited through PSADMIN.
•
PSAPPSRV.UBB
This file stores and passes all of the domain values to the Tuxedo load configuration program
(tmloadcf.exe).
•
PSAPPSRV.PSX
This is the template or model file specifically for the messaging server configuration sections.
•
PSAPPSRV.ENV
This contains environment information, such as the PS_HOME referenced by a domain.
•
PSAPPSRV.VAL
This contains the format specification for the configuration parameters and, for some parameters, a set
of valid values that can assigned. This helps to prevent administrators from entering invalid values.
•
PSTUXCFG
This contains PeopleSoft and Tuxedo information regarding the location of executables, files, and
command lines for server processes. This file is required to boot a domain.
•
JREPOSITORY
This file contains a list of the services handled by the application server on behalf of Jolt.
Note: Oracle does not support creating custom configuration files, such as CFX or UBX templates, nor
modifying delivered templates. However, modifying PSAPPSRV.CFG and PSPRCS.CFG can be done
through PSADMIN or manually through a text editor.
Configuring a Domain
Regardless of how you specify domain values, ultimately you must run PSADMIN to generate some
necessary files that include your specific values. In the following example, PSADMIN invokes another
PeopleSoft executable, UBBGEN, which reads the values and format in the psappsrv.cfg, psappsrv.val,
and psappsrv.ubx files, and generates the psappsrv.ubb and psappsrv.env files.
Where you see Do you want to change any config values? (y/n), regardless of what you enter, PSADMIN
calls UBBGEN.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
89
Using the PSADMIN Utility
Chapter 4
If you have already entered values manually in the psappsrv.cfg file and enter n, UBBGEN reads those
values and writes to the necessary files.
If you enter y, you see the PSADMIN prompt interface, which is actually a wrapper to UBBGEN.
UBBGEN reads the previous values in the psappsrv.cfg, presents those values, and allows you to change
them. It presents the values in the format that is derived from reading the PSAPPSRV.UBX file, and it
validates selected values based on criteria in the PSAPPSRV.VAL file.
Note: In the previous example, UBBGEN both reads from and writes to the psappsrv.cfg file. It reads
the previous values or defaults and, if any values are modified, it writes the new values to the new
psappsrv.cfg file.
Here are the scenarios by which you can configure a domain:
•
Start PSADMIN, and enter values at all of the prompts.
This generates all of the necessary files automatically.
•
Edit the psappsrv.cfg file.
If you decide not to use PSADMIN you must complete the following tasks in order:
•
From the command line, create a domain based on a particular template.
•
Edit the psappsrv.cfg file in a text editor.
•
Issue the configure command from the PSADMIN command line. This is the command that calls
UBBGEN. You see the following after issuing this command:
n:\<ps_home>\appserv>psadmin -c configure -d HRDOM01
Performing load prechecks ...
Loading validation table...
Loading new configuration...
Domain configuration complete.
Loading a Configuration
After you configure a domain and PSADMIN creates the new configuration file, PSADMIN loads
the new configuration settings into PSTUXCFG so that the domain can properly boot. This occurs
automatically after you have completed all of the prompts for values in PSADMIN.
To load the new configuration, PSADMIN calls the Tuxedo executable, TMLOADCF.EXE, which
populates the PSTUXCFG file. TMLOADCF.EXE reads the newly entered values that appear in the
PSAPPSRV.UBB file and writes them to the PSTUXCFG file.
Archiving Application Server Configuration Files
To track changes made to the psappsrv.cfg file and the history of the changes, a subdirectory, named
"archive," stores various versions of the CFG file. You can find this subdirectory in the domain name
directory, as in C:\PS_CFG_HOME\appserv\domain name\archive, where the current version of
psappsrv.cfg resides.
90
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
When you boot the application server domain for the first time, PSADMIN places a copy of psappsrv.cfg
in the archive directory. In subsequent boots, if PSADMIN detects a change in psappsrv.cfg based on the
time stamp values, it replaces the current psappsrv.cfg with the latest version. The file name of the new
version is then psappsrv_mmddyy_hhmm_ss.cfg, as displayed on the time stamp.
Booting a Domain
When you select Boot this domain, PSADMIN calls the Tuxedo executable, TMBOOT.EXE, which uses
the information that resides in the PSAPPSRV.ENV and PSTUXCFG files to boot the appropriate domain.
Note: You can track the server processes that start by using PSADMIN, ps -ef command in UNIX, or
Task Manager in Microsoft Windows.
Stopping a Domain
When you select Domain shutdown menu and select one of the shutdown options, PSADMIN calls
the Tuxedo executable, TMSHUTDOWN.EXE, which also uses the information that resides in the
PSAPPSRV.ENV and PSTUXCFG files to shut down the appropriate domain.
Following a successful domain shutdown, PSADMIN checks and stops orphaned processes in the
domain. If PSADMIN identifies and stops any orphaned server processes, it displays a screen message at
the end of the shutdown operation.
Monitoring a Domain
To detect any orphaned application server processes, a server process, PSWATCHSRV, monitors the
application server domain. Every two minutes, PSWATCHSRV identifies and stops any hung or orphaned
server processes. If any hung or orphaned processes are found, it writes a message to the application
server log file. The PSWATCHSRV process is the first process to start when you boot up the domain and
the last one to stop when you shut down the domain.
Domain ID Name
To identify orphaned application server processes, all server processes within a server's domain must be
uniquely identified. Therefore, the system appends a unique number to the domain ID in the psappsrv.cfg
file. If you refer to domain IDs in scripts or processes, you may need to change those to reflect the new
naming convention.
The command line varies slightly depending on the application server process, but it looks like this:
PSAPPSRV -C dom=pt84_52692 ...
Configuring the Application Server to Handle Cache Files and
Replay Files
When an application server instance crashes, cache files and replay files are generated automatically. Over
time, the size of these files can consume a large amount of disk space if there are recurring crashes in
a domain. To minimize the buildup of cache files and replay files, you can modify the psappsrv.cfg file
based on the following rules:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
91
Using the PSADMIN Utility
Chapter 4
•
When a crash occurs, the system creates a directory in the domain's LOGS directory.
•
The dump file is saved in a directory within the domain's LOGS directory.
•
The DumpMemoryImageAtCrash setting in the Trace section of the psappsrv.cfg file saves the
memory image of the failed process in Microsoft Windows.
This functionality is only available for Windows. If the value of DumpMemoryImageAtCrash is
MINI, a miniature memory image (with a size less than or equal to 64K) is generated. If the value is
FULL, then a full memory image is created. Depending on how much memory is consumed by the
application, this full memory image can be quite large. The location of the memory image is the same
as the replay file.
•
If DumpManagerObjectsAtCrash is set to Y, then the application server instance:
1. Generates the replay file.
2. Dumps the customized objects being used by the current service request into the special cache
directory.
The cache directory resides in the same location as the replay file.
3. If the value of DumpMemoryImageAtCrash is NONE and the platform is set to MS Windows, a
miniature memory image is created.
•
The settings for DumpManagerObjectsAtCrash and DumpMemoryImageAtCrash are dynamic.
That is, the application server doesn't need to be restarted for these settings to be effective.
•
There is no separate setting for generating the replay file.
This file is generated as mentioned previously.
•
Regardless of the setting in DumpManagerObjectsAtCrash, a summary report of objects in each
managed type for which at least one object is loaded in memory is written to the dump file or
application log file.
The summary report resembles the following example:
PDM
RDM
MDM
PCM
PGM
CRM
SSM
CLM
UPM
Definitions:
Definitions:
Definitions:
Definitions:
Definitions:
Definitions:
Definitions:
Definitions:
Definitions:
Total=36
Total=53
Total=1
Total=199
Total=1
Total=67
Total=1
Total=1
Total=1
Customized=0
Customized=52
Customized=0
Customized=0
Customized=0
Customized=0
Customized=0
Customized=0
Customized=0
In-Use=10
In-Use=50
In-Use=0
In-Use=3
In-Use=1
In-Use=0
In-Use=1
In-Use=0
In-Use=0
Total indicates the total number of in-memory definitions being used by the current service.
Customized indicates how many of those objects are customized, and In-Use indicates how many of
those objects were being used at the time of the crash.
If DumpManagerObjectsAtCrash is set to Y, the summary for each managed object type follows the list of
configured objects that are being dumped as part of the crash information gathering. If a configured object
is in use, its name is prefixed with an asterisk.
92
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 4
Using the PSADMIN Utility
A sample report for a managed object type follows:
RDM(PSOPTIONS/ENG)
*RDM(PSTREEDEFNLABLS/ENG)
RDM Definitions: Total=10
Customized=2
In-Use=1
Note: The asterisk that precedes the object name indicates that this object is being used by the current
service request.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
93
Chapter 5
Using PSADMIN Menus
Understanding PSADMIN Menus
You use PSADMIN to manage all of the main PeopleSoft server types. After launching PS_HOME
\appserv\psadmin.exe from the command line, the PeopleSoft Server Administration (PSADMIN) main
menu appears.
-------------------------------PeopleSoft Server Administration
-------------------------------Config Home:
1)
2)
3)
4)
5)
6)
7)
q)
D:\PT_SERVER\8.53
Application Server
Process Scheduler
Search Server
Web (PIA) Server
Switch Config Home
Service Setup
Replicate Config Home
Quit
Command to execute (1-7, q):
Config Home
Displays the PS_CFG_HOME the current PSADMIN session.
If it is not the PS_CFG_HOME desired, use the Switch Config
Home option to select the appropriate location.
Application Server
Select to manager your application server domains.
Process Scheduler
Select to manager your Process Scheduler domains.
Search Server
Select to manager your Verity—based search server domains.
Note: This menu applies only to the Verity-based search
servers. It does not apply to any PeopleSoft Search Framework
components.
Switch Config Home
Select to switch to an alternative PS_CFG_HOME location.
Determine the current PS_CFG_HOME from the Config Home
value displayed.
Service Setup
(Applies to Microsoft Windows only). Select to configure
domains to start using Windows Services.
Replicate Config Home
Select to replicate configured PS_CFG_HOME locations so that
you can share these pre-created, tuned, and configured server
configurations on the local server or on remote servers.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
95
Using PSADMIN Menus
Chapter 5
Note: As a configuration option, you can configure a domain to spawn server processes according to
the volume of transaction requests. There is no explicit parameter that you must set to enable spawning.
In the following configuration section descriptions, some servers enable you to specify a minimum and
maximum number of server processes. To enable spawning for these server processes, the maximum
value must exceed the minimum value by an increment of at least one. As needed, the domain spawns
server processes up to the maximum value. As the volume of transactions decreases, the number of
spawned server processes decreases, or decays, until the minimum value is reached. By default, spawning
isdisabled.
Note: Generally, the documentation reflects the order in which the configuration sections appear in the
PSADMIN interface or the PSAPPSRV.CFG file.
Using the Application Server Administration Menu
This section discusses how to:
•
Access the application server options.
•
Administer a domain.
•
Boot a domain.
•
Shut down a domain.
•
Perform a normal shutdown.
•
Perform a forced shutdown.
•
Check the domain status.
•
Purge the domain cache.
•
Configure a domain.
•
Edit configuration and log files.
•
Create a domain.
•
Delete a domain.
•
Configure an application server domain to preload cache.
•
Clean domain IPC resources.
Accessing the Application Server Options
To access the menu options for configuring and administering an application server, select Application
Server from the PeopleSoft Server Administration (PSADMIN) menu.
-------------------------------------------PeopleSoft Application Server Administration
--------------------------------------------
96
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
1)
2)
3)
4)
q)
Administer a domain
Create a domain
Delete a domain
Import domain configuration
Quit
Command to execute (1-4, q) : 4
The Administer a domain menu offers numerous configuration, administration, and logging parameters
that you may access frequently.
The menu options and parameters within the Create a domain andDelete a domain menus are one-time
tasks (per domain).
The Import domain configuration menu enables you to import existing configurations.
Administering a Domain
To administer a domain, you must have already created a domain. After you have created a domain,
specify environment-specific settings for the application server to function correctly with your system.
The following sections describe all of the menus and menu options that you use to administer and
configure an application server domain.
To administer a domain:
1. Select Administer a domain from the PeopleSoft Application Server Administration menu.
2. In the Select domain number to administer command line, enter the number that corresponds to the
previously created domain that you want to administer that appears in the Tuxedo domain list.
3. Select the option that you want to perform from the PeopleSoft Domain Administration menu.
PSADMIN transparently sets several environment variables before invoking any Tuxedo administrative
commands. You don't need to set these variables manually. These environment variables are:
•
TUXCONFIG = PS_CFG_HOME/appserv/domain_name/PSTUXCFG
•
APPDIR = PS_CFG_HOME/appserv/domain_name
•
PATH = TUXDIR/bin; PS_HOME/bin/server/winx86; PATH
•
APP_PW = Application Password (initialize)
Importing Domain Configurations
You import existing domain configurations by selecting the Import domain configuration option from
the PeopleSoft Application Server Administration menu. From the PeopleSoft Import Application Server
Configuration menu, you have the option to import a regular domain or an Integration Broker Master
Configuration.
-------------------------------------------PeopleSoft Import Application Server Configuration
-------------------------------------------1) Import regular domain
2) Import IB Master Configuration
q) Quit
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
97
Using PSADMIN Menus
Chapter 5
Command to execute (1-2, q) : 1
Importing a Regular Application Server Domain
When importing a regular application server domain, you can import from a file or from a domain.
-------------------------------------------PeopleSoft Import Application Server Configuration
-------------------------------------------1) Import from file
2) Import from application domain
q) Quit
Command to execute (1-2, q) :
To import configuration settings from a file:
1. From the PeopleSoft Import Application Server Configuration menu, select Import from file.
2. Enter the complete file path to the PSAPPSRV.CFG file containing the desired configuration settings.
For example,
c:\documents and settings\TSAWYER.DOMAINX\PSFT\PT\8.53\appserv\appserv\PT850TST
3. Enter a name for the new domain.
To import configuration settings from an existing domain:
1. From the PeopleSoft Import Application Server Configuration menu, select Import from application
domain.
2. Enter the path to the appropriate PS_CFG_HOME.
For example,
c:\documents and settings\TSAWYER.DOMAINX\PSFT\PT\8.53\appserv
3. From the Tuxedo domain list, select the domain containing the desired configuration settings.
4. Enter a name for the new domain.
Importing an Integration Broker Master Configuration
Use this option to import a master configuration, if you are implementing a "master-slave" integration
server configuration. This implementation option is documented in detail within the Integration Broker
Administration PeopleBook.
See "Implementing Master-Slave Dispatchers" (PeopleTools 8.54: Integration Broker Administration).
Booting a Domain
This boots the Tuxedo domain (the application server) by using the tmboot command. This command will
start all of the server processes that have been configured for your domain.
------------------------------PeopleSoft Domain Boot Menu
------------------------------Domain Name: DOC
98
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
1) Boot (Serial Boot)
2) Parallel Boot
q) Quit
Command to execute (1-2, q) [q]:
You have two booting options: a serial boot and a parallel boot.
Running a Serial Boot
A serial boot starts server processes in a sequential order, with one process beginning to start after the
previous process has completely started.
Running a Parallel Boot
A parallel boot starts server processes at the same time, rather than having each process start sequentially.
This option typically provides shorter boot durations.
Shutting Down a Domain
The PeopleSoft Domain Shutdown menu offers two options: a normal shutdown and a forced shutdown.
------------------------------PeopleSoft Domain Shutdown Menu
------------------------------Domain Name: psdmo
1) Normal shutdown
2) Forced shutdown
q) Quit
Command to execute (1-2, q) [q]:
Performing a Normal Shutdown
A normal shutdown is a quiescent shutdown that waits for users to complete their tasks and turns away
new requests before terminating all of the processes in the domain.
Performing a Forced Shutdown
A forced shutdown is a nonquiescent shutdown that immediately terminates all of the processes in the
domain. Normally, you use the forced shutdown only when a Bulletin Board Liaison (BBL) process
encounters errors and cannot be shut down by using a normal shutdown.
Note: The BBL is a primary Tuxedo process that controls the domain.
Checking the Domain Status
Use the PeopleSoft Domain Status menu to view the status of the server, queues, or clients connected to
the domain.
----------------------------PeopleSoft Domain Status Menu
----------------------------Domain Name: psdmo
1) Server status
2) Client status
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
99
Using PSADMIN Menus
Chapter 5
3) Queue status
q) Quit
Command to execute (1-3, q) [q]:
Server Status
Select Server status to invoke the Tuxedo tmadmin psr subcommand (print server processes), which
displays the Tuxedo processes and PeopleSoft server processes that are currently running. For example:
> Prog Name
--------BBL.exe
PSAPPSRV.exe
PSMONITORSRV.e
PSWATCHSRV.exe
PSAPPSRV.exe
JSL.exe
PSMSGDSP.exe
PSSAMSRV.exe
PSMSGHND.exe
JREPSVR.exe
Queue Name Grp Name
---------- -------62645
RTDC796+
APPQ
APPSRV
MONITOR
MONITOR
WATCH
WATCH
APPQ
APPSRV
00095.00200 JSLGRP
00098.00100 PUBSUB
SAMQ
APPSRV
MBHQ
PUBSUB
00094.00250 JREPGRP
ID RqDone Load Done Current Service
-- ------ --------- --------------0 42801
2140050 ( IDLE )
1
422
21100 ( IDLE )
1
0
0 ( IDLE )
1
0
0 ( IDLE )
2
4
200 ( IDLE )
200
0
0 ( IDLE )
100
4
200 ( IDLE )
100
0
0 ( IDLE )
101
0
0 ( IDLE )
250
29
1450 ( IDLE )
The number of items appearing depends on the number of server processes that you have configured.
Client Status
Select Client status to invoke the Tuxedo tmadmin pclt subcommand (printclient), which displays
connected users. For example:
>
LMID
--------------RTDC79623VMC
RTDC79623VMC
RTDC79623VMC
RTDC79623VMC
User Name
--------------NT
NT
JPOOL_15
NT
Client Name
Time
Status Bgn/Cmmt/Abrt
--------------- -------- ------- ------------JSH
**:**:** IDLE
0/0/0
JSH
**:**:** IDLE
0/0/0
dhcp-adc-twvpn+ 0:02:03 IDLE/W 0/0/0
tmadmin
0:00:00 IDLE
0/0/0
Queue Status
Examining the status of the individual queues for each server process provides valuable tuning
information. Check the queues by using the Queue status option. In the following example, the results of
the Queue status option show the individual server processes, the associated queue, the number of server
processes currently running, and the number of requests waiting to be processed:
> Prog Name
--------PSAPPSRV.exe
JSL.exe
JREPSVR.exe
BBL.exe
PSMONITORSRV.e
PSWATCHSRV.exe
PSSAMSRV.exe
PSMSGHND.exe
PSMSGDSP.exe
Queue Name # Serve Wk Queued # Queued Ave. Len
Machine
------------------- --------- -------- -------------APPQ
2
0
- RTDC79623+
00095.00200
1
0
- RTDC79623+
00094.00250
1
0
- RTDC79623+
62645
1
0
- RTDC79623+
MONITOR
1
0
- RTDC79623+
WATCH
1
0
- RTDC79623+
SAMQ
1
0
- RTDC79623+
MBHQ
1
0
- RTDC79623+
00098.00100
1
0
- RTDC79623+
The results alert you to any bottlenecks that may be occurring on your application server. With this
information, you can make more informed performance decisions. For instance, if the bottlenecks appear
to be persistent, it may indicate that you need to add more instances of a particular server process, such
as PSAPPSRV for example. Or the results may indicate that you need to start either a PSQCKSRV or a
PSQRYSRV.
100
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
Purging the Domain Cache
A proven technique for resolving problem application server environments is to purge the application
server domain cache located in PS_CFG_HOME\appserv\domain_name\CACHE.
Important! You should purge the cache only after due consideration, and in after consultation with
PeopleSoft support or consultants.
Please keep the following in mind:
•
You cannot purge shared file cache.
•
You can purge the cache regardless of whether the application server domain is running; there's no
need to shut it down and reboot. However, the procedure is less disruptive and runs more quickly if
the domain is shut down or its activity level is low.
•
Purging the cache can take five minutes or more on a large or busy domain, depending on the domain
configuration.
•
If database cache is enabled, the database cache will be purged. If the database cache is purged, it
affects all domains using that cache. The database cache is shared across all domains that use the same
byte-order (little-endian or big-endian).
To purge the domain cache:
1. On the PeopleSoft Domain Administration menu, select Purge Cache.
If the cache is currently empty, the purge operation is cancelled, and the PeopleSoft Domain
Administration menu reappears.
If the cache is not empty, the following prompt appears:
Enter log comments about this purge, if any (maximum 256 characters):
2. Enter any information (up to 256 characters) that you want recorded explaining the circumstances of
this cache purge operation, and press Enter. Your comments will be saved to a purge log file.
The following prompt appears:
Do you wish to archive the contents of the current cache? (y/n) [n] :
3. Enter y to archive the cache contents, orn to delete them permanently. The default response isn.
If you enter y, the following prompt appears:
Cache contents will be archived to
PS_CFG_HOME\appserv\domain_name\Archive\CACHE_mmddyy_hhmm_ss.
Hit Enter to continue or provide a new location:
Note: At runtime, PS_CFG_HOME and domain_name are replaced with values appropriate to your
system, andmmddyy_hhmm_ss represents the date and time of the cache purge operation.
4. (If you chose to archive the cache contents) Enter a different archive location if desired, and press
Enter.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
101
Using PSADMIN Menus
Chapter 5
If the location you enter is rejected, the following message appears, and you're prompted to continue:
Failed to archive cache to location.
Note: Continuing this procedure with an invalid location will purge the cache without archiving.
The default location is a unique directory name. Keep in mind that the location you enter might have
been rejected for the following reasons:
•
The directory can't be created due to an invalid drive or network mount.
•
The directory can't be created due to insufficient user privileges.
•
The directory has insufficient space for the cache files.
5. When prompted to continue, enter y to continue the purge operation, orn to cancel the operation and
return to the PeopleSoft Domain Administration menu.
Note: Archiving the cache increases the time required to complete the purge, because the cache files
must be copied to the archive location.
If the application server domain is running, you might see INFO: messages related to version, patch level,
serial number and so on. These are normal and don't require any action. When the cache is successfully
purged, the following message appears:
Purge Cache operation completed successfully.
You may notice that the cache directory is non-empty. Cache files have been
invalidated and will be refreshed from the database.
If the cache was archived, you'll also see the following:
You may also have noticed a number of Sharing Violation messages during the
Cache Purge.
These messages are no cause for alarm and are expected as part of the
cache archival.
If the application server domain is running, an entry is written to the application server log file to indicate
that the cache has been purged.
The purge log file is saved (including any comments you entered in step 2) as PS_CFG_HOME\appserv
\domain_name\LOGS\PurgeCache_mmddyy_hhmm_ss.log.
Note: At runtime, PS_CFG_HOME and domain_name are replaced with values appropriate to your
system, and mmddyy_hhmm_ss represents the date and time of the cache purge operation.
Following is an example of the purge log file contents:
Date:02/17/10 11:47
User Explanation: Processes appeared to take a long time to recycle.
Cache Contents archived to C:\ptservers\appserv\QEDMO\Archive\CACHE_021710_1147_01
102
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
Configuring a Domain
This option prompts you with a model configuration file to gather such parameters as port numbers,
the number of various server processes that are needed, encryption enabling, and so forth. PSADMIN
then invokes a subprogram, UBBGEN, which takes the configuration parameters, builds the file
PS_CFG_HOME/appserv/domain-name/psappsrv.ubb, and carries out thetmloadcf - y psappsrv.ubb
command to generate the following file:PS_CFG_HOME/appserv/domain-name/PSTUXCFG.
The following topics describe all of the parameters that you encounter while configuring an application
server. Either read this section before you fine tune the configuration of your application server or have it
available while you are doing it.
To configure a domain:
1. Select Configure this domain from the PeopleSoft Domain Administration menu.
Enter n (No), if you do not want to continue. This returns you to the previous menu. Otherwise, entery
(Yes).
2. When prompted to change configuration values, enter y.
If you don't need to change any of the values, enter n. By doing so, you create a new configuration file
with the same values that were previously specified. Enter n, or elect not to modify the PSADMIN
parameters, if:
•
You have changed only the location of TUXDIR.
•
You would rather edit the PSAPPSRV.CFG file manually.
•
You installed a new Tuxedo patch.
Note: If you edit the psappsrv.cfg file directly, it is recommended to reload your domain configuration.
This is necessary because some settings in psappsrv.cfg are transferred to the PSTUXCFG file for the
domain. This transfer of settings can only be achieved by running UBBGEN and tmloadcf, which the
"Configure this domain" option performs.
Editing Configuration and Log Files
Use the Edit Configuration/Log Files menu to view the application server and Tuxedo log files. You can
also manually edit the PSAPPSRV.CFG file if you do not want to use the PSADMIN interface.
To have PSADMIN start your text editor (such as Notepad or KEDIT) so that you can manually edit or
view application server configuration and log files, you must specify the text editor in the environment
settings. For example, to use KEDIT, the editor environment setting should look like this:
set EDITOR=c:\apps\kedit\keditw32.exe
To use Notepad, it should look like this:
set EDITOR=c:\Windows\Notepad.exe
Note: You can view and edit a domain's PSAPPSRV.CFG file while the domain is running, but the
changes that you specify do not take effect until the next time you reconfigure the domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
103
Using PSADMIN Menus
Chapter 5
For the following options, you must enter your operator ID to view and edit the files:
Edit PSAPPSRV.tracesql (PSAPPSRV SQL trace file)
Edit PSSAMSRV.tracesql (PSSAMSRV SQL trace file)
For example:
Command to execute (1-7, q) [q]: 5
Enter the operator ID : PTXYZ
Note: PeopleSoft secures the Structured Query Language (SQL) traces because, in some instances, the
SQL that is traced may involve sensitive information.
Note: Server configuration files (.CFG) support the use of environment variables, such as %PS_HOME
%, %TEMP%, and so on.
Edit PSAPPSRV.CFG
The PSAPPSRV.CFG file contains all of the configuration settings for an application server domain. The
PSADMIN interface provides prompts so that you can edit and modify this file within a structured format.
In many cases, and perhaps due to personal preference, you may opt to edit the PSAPPSRV.CFG file
manually in a text editor. When editing this configuration file manually, note that it is similar to editing an
INI file, because all of the parameters are grouped in sections.
Edit APPSRV.LOG
This log file contains PeopleTools specific logging information.
Edit TUXLOG
The TUXLOG file enables you to trace the Tuxedo component for troubleshooting information.
Edit PSAPPSRV.tracesql
You can specifically trace the activity of the PSAPPSRV server process by setting the PSAPPSRV.tracesql
option.
Edit PSSAMSRV.tracesql
You can specifically trace the activity of the PSSAMSRV server process by setting the
PSSAMSRV.tracesql option.
Creating a Domain
The Create a domain option creates a subdirectory underPS_CFG_HOME/appserv using the domain
name you specify as the directory name and copies the required domain files to that directory.
To create an application server domain:
1. Select Create a domain from the PeopleSoft Application Server Administration menu.
2. Enter the name of the domain that you want to create; the name must not exceed eight characters.
3. Select a configuration template from the Configuration template list.
104
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
The configuration templates are preconfigured sets of application server processes.
Deleting a Domain
Use the Delete a domain option to shut down the domain, if running, and delete the domain's subdirectory.
Note: Before you delete a domain, make sure that it is not running.
To delete a domain:
1. Select Delete a domain from the PeopleSoft Application Server Administration menu.
2. From the Tuxedo domain list, select the number that corresponds to the domain that you want to
delete.
3. When prompted to continue, enter y and press Enter.
4. If the application server domain is currently running, PSADMIN informs you of that, and you will
need to determine if you want to continue.
Domain processes are currently running.
and delete the domain.
This option will shutdown
Do you want to continue? (y/n) [n] :
If you enter y, PSADMIN performs a forced shutdown on the domain prior to deleting the domain.
If you enter n, PSADMIN returns you to the PeopleSoft Application Server Administration menu,
allowing you to shutdown the domain manually, if needed.
Configuring an Application Server Domain to Preload Cache
This section provides an overview and discusses how to:
•
Create cache projects.
•
Delete cache projects.
•
Preloading File Cache.
See ServerCacheMode.
See Load Application Server Cache.
Understanding Preload Cache Projects
To improve performance, the application server uses a caching mechanism that keeps commonly used
objects in memory and either file form on the application server or in a database cache. Caching reduces
the need for a complete database query each time a definition is accessed. As more definitions are
accessed, more data becomes stored in the cache. However, if a page, for example, has not already been
accessed, it does not exist in the current cache, and the user may experience a slower response time as
the system requests the page from the database for the first time. To prevent this initial performance
degradation, you can preload file, database, and memory cache with commonly used definitions inserted
into a cache project.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
105
Using PSADMIN Menus
Chapter 5
Preloading cache involves creating a project containing commonly used definitions and then referring
to these projects in the PSADMIN settings PreloadMemoryCache and PreloadCache. By default,
PreloadMemoryCache and PreloadCache are commented out because the two parameters need to be set
to a specific name of a project that you create. You can set the parameters to reference separate projects.
You use the Select Preload Objects page to select frequently used definitions and build the preload project
containing the objects selected.
The cache project is intended to be used for a new domain, where the cache is not yet built. Prior to
providing the domain for production use, use the Preload Cache PSADMIN option to build the cache
containing the objects specified in the project. The domain starts the PSAPPSRV process, builds the
cache, and shuts down.
The memory cache project is intended to be used during a server process recycle. When a the system
starts a new process to replace an old one, the new process loads memory cache based on the project
specified by PreloadMemoryCache so that the new process will not have delays when processing the first
few service requests. Because it is desirable to have new processes start as quickly as possible, there is
a timeout (or limit) of 60 seconds for PreloadMemoryCache. That is, PreloadMemoryCache preloads as
many definitions as possible before the timeout of 60 seconds.
Note: In general, it is not recommended to create large projects for the PreloadMemoryCache project. For
all cache projects (used for file, database, and memory cache) the optimum selections for the projects will
require tuning and testing at your site.
Creating Cache Projects
To create cache projects:
1. In a browser, select PeopleTools, Utilities, Administration, PreLoad Cache, Select Preload Objects.
2. Select the Add a New Value tab, and in the Project Name edit box, enter the name of the project that
will contain the definitions you select, and clickAdd.
Note: All project names used to contain definitions for preloaded cache must contain the "PLC_"
prefix.
3. On the Select Preload Objects page, enter a Description, and select the Object Type to add.
Object Type refers to the definitions you create with PeopleTools, such as components, menus, pages,
Application Engine programs, and so on.
4. Use the Key fields, to refine the selection of the definition as needed.
The keys will differ depending on the Object Type selected.
Note: Project definitions support up to four keys for identification, so you can use up to four keys
when selecting objects for the preload cache project.
5. Click Save.
6. Click Build Project Definition.
7. On the Process Scheduler Request page, click OK.
106
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
This invokes an Application Engine program (PTCHPLC_PRJ) that creates the project definition
in the database and populates it with the definitions you selected. The PTCHPLC_PRJ also
automatically includes all related definitions in the project.
Note: Cache projects can be created manually in Application Designer, without running the
PTCHPLC_PRJ program. The project name must include "PLC_".
Deleting Cache Projects
To delete a preload file cache project:
1. Select PeopleTools, Utilities, Administration, Preload Cache, Delete Preload Project.
2. On the Find an Existing Value page, click the appropriate project name.
3. On the Delete Preload Project page confirm that you have selected the appropriate project and click
Delete the preload project.
Preloading Cache Projects
To preload a cache project:
1. Shut down the application server domain.
2. Edit the PSAPPSRV.CFG configuration file for the appropriate domain.
In the [Cache Settings] section, uncomment the PreloadCache= parameter, and enter the name of
the pre-load project for this application server domain.
For example:
PreloadCache=PLC_PROJECTA
3. On the PeopleSoft Domain Administration menu in PSADMIN, select 9) Preload Cache.
When preloading cache, keep the following in mind:
•
Preload Cache does not work when shared caching is enabled.
•
If database caching is enabled, Preload Cache loads the cache project into the database cache.
Preloading Memory Cache
To preload the memory cache:
Edit the PSAPPSRV.CFG configuration file for the appropriate domain.
In the [Cache Settings] section, uncomment the PreloadMemoryCache= parameter, and enter the
name of the preload project that should be preloaded on this application server for memory cache.
For example:
PreloadMemoryCache=PLC_PROJECTB
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
107
Using PSADMIN Menus
Chapter 5
Working with the Dynamic Cache Repair Utility
PeopleTools provides a dynamic cache repair utility that enables you to configure the system to
monitor and adjust automatically a domain’s cache while it runs, requiring no intervention from system
administrators, and without requiring the domain or a server process to be restarted.
For more information on enabling and using the cache repair utility, see EnableCacheRepair.
Related Links
Load Application Server Cache
Cleaning Domain IPC Resources
Use the Clean IPC Resources of this domain option to clear the interprocess communication (IPC)
resources utilized by a domain. When a domain shuts down normally, the IPC resources it was using get
released as part of the shut down process. However, if a domain terminates abnormally, in many cases
the IPC resources are still assigned to the previous domain instance. This option enables you to clean any
orphaned IPC resources assigned to a domain.
Using the Process Scheduler Menu
PeopleSoft Process Scheduler is used to schedule and run batch processes against the database. Process
Scheduler domains are managed by Tuxedo, just as application server domains are. You only need to
configure PeopleSoft Process Scheduler on a server where you intend to run batch processes. The menu
options are identical to those provided for administering an application server domain, except where the
options are not applicable to a Process Scheduler domain.
-------------------------------------------PeopleSoft Process Scheduler Administration
-------------------------------------------Domain Name: QEDMO
1)
2)
3)
4)
5)
6)
7)
q)
Boot this domain
Domain shutdown menu
Domain status menu
Configure this domain
TUXEDO command line (tmadmin)
Edit configuration/log files menu
Clean IPC resources of this Domain
Quit
Command to execute (1-7, q) :
The Process Scheduler PSADMIN options differ from the application server PSADMIN options for these
items.
108
Function
Difference
Booting
The Process Scheduler domain boot does not provide the
option to select a serial or parallel boot. All Process Scheduler
domains start in serial mode.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
Function
Difference
Viewing//Editing log files and configuration files
The Process Scheduler Edit/View Configuration/Log Files
Menu does not display options for viewing the PSAPPSRV
and PSSAMSRV SQL trace files.
Configuring Integration Broker (messaging) servers
For Process Scheduler domains there is no option to import
a Master IB Domain nor is there the option to configure
messaging servers.
Caching
For Process Scheduler domains there are not options to purge
or preload file cache.
All of the Process Scheduler server configuration information for a specific domain is contained in the
PSPRCS.CFG file, and PSADMIN provides an interface for and prompts you to edit the PSPRCS.CFG
file.
Although you typically edit the PSPRCS.CFG file through PSADMIN, you can find the PSPRCS.CFG
file in the following directory:
•
Windows: PS_CFG_HOME\APPSERV\PRCS\domain
•
UNIX: PS_CFG_HOME/appserv/prcs/domain
Related Links
Using the Application Server Administration Menu
Using the Search Server Menu
If you are setting up a remote search domain for Verity, you use the Search Server menu options to
configure your search domain. The configuration and administration options used in implementing a
search domain are identical to those used in setting up an application server domain.
Important! You use the Search Server menu to configure remote search domains for the Verity search
engine only. These options to not apply to any Oracle Secure Enterprise Search (SES) components.
Related Links
Configuring Verity Search Options
Using the Application Server Administration Menu
Using the Web (PIA) Server Menu
This section provides an overview and discusses how to:
•
Access the PeopleSoft web server options.
•
Create a PIA domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
109
Using PSADMIN Menus
Chapter 5
•
Delete a PIA domain.
•
Boot a PIA domain.
•
Shut down a PIA domain.
•
Check PIA domain status.
•
Configure a PIA domain.
•
Edit PIA configuration files.
•
View PIA log files.
•
Administer a PeopleSoft site.
•
Delete a PeopleSoft site.
•
Manage Windows Services to start PIA domains.
Understanding PeopleSoft Web Server Administration Using PSADMIN
Using PSADMIN you can complete the majority of the web server administrative tasks related to your
PeopleSoft Internet Architecture installation. While you can perform these tasks outside PSADMIN,
using PSADMIN provides a centralized interface from which you can install, delete, configure, tune, and
manage your PeopleSoft web domains and PeopleSoft sites.
For example, you can install PeopleSoft Internet Architecture domains and sites using the PeopleSoft
install program (setup.exe), but you would need to run a separate BAT or SH file to start it, and navigate
to log files manually to confirm it has started. Using PSADMIN you can install the domain and site, but
also configure that domain, boot that domain, confirm it has started, and view log files all from the same
interface. The centralized PSADMIN options provide a convenient alternative for system administrators.
Important! By default, the system installs your PeopleSoft Internet Architecture installation within the
current PS_CFG_HOME location on the web server host. If you have the PIA_HOME environment
variable set, this overrides the use of PS_CFG_HOME for PIA installations.
Note: PSADMIN only manages single-server PIA installations. If you intend to implement multi-server
installations, those need to be created and managed using traditional methods, such as the PsMpPIAInstall
program and the delivered scripts for starting and stopping domains.
Related Links
Understanding WebLogic
Understanding WebSphere Application Server within Your PeopleSoft Implementation
Accessing the Web Server Options
To access the PSADMIN web server options, select 4) Web (PIA) Server from the main PeopleSoft Server
Administration menu.
----------------------------PeopleSoft PIA Administration
-----------------------------
110
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
PIA Home:
D:\PT_SERVER\8.53
1) Administer a domain
2) Create a domain
3) Delete a domain
q) Quit
Command to execute:
PIA Home
Displays the location of your PeopleSoft Internet Architecture
domains. The default location is PS_CFG_HOME. If your
application server and web server run on the same machine, they
will share the PS_CFG_HOME location, by default.
Create a domain
Select to create a PeopleSoft Internet Architecture domain.
Delete a domain
Select to delete a PeopleSoft Internet Architecture domain
Creating a PIA Domain
You create a PIA domain by selecting Create a domain from the PeopleSoft PIA Administration menu.
--------------------------------------------PeopleSoft PIA Administration - Create Domain
--------------------------------------------PIA Home: D:\PT_SERVER\8.53
1) Create a domain
2) Replicate a domain
q) Quit
Command to execute:
Creating a Domain
Creating a PIA domain using PSADMIN provides an option to using the PeopleSoft Multiplatform PIA
install program.
Note: You cannot create a multi-server PIA installation using PSADMIN.
--------------------------------------------PeopleSoft PIA Administration - Create Domain
--------------------------------------------PIA Home:
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
D:\PT_SERVER\8.53
Domain name
Web server
Web server root directory
Web server login id
Web server password
Website name
Application server
JSL Port
HTTP Port
HTTPS Port
Authentication Token Domain
Web profile
Web profile user id
:[peoplesoft]
:[weblogic]
:[c:\oracle]
:[system]
:[Passw0rd]
:[ps]
:[RTDC79623VMC]
:[9000]
:[80]
:[443]
:[]
:[PROD]
:[PTWEBSERVER]
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
111
Using PSADMIN Menus
Chapter 5
14) Web profile password
:[PTWEBSERVER]
15) PeopleSoft reports directory :[c:\psreports]
c) Create the domain as shown
q) Quit
Command to execute:
Enter the number of the menu option to edit the values.
PIA Home
Ensure that the appropriate location is displayed. By default,
PSADMIN installs the PIA domain into the PS_CFG_HOME
environment setting.
Domain name
Enter the name for your domain, such as PeopleSoft_HR.
Web server
Select the appropriate web server type. Enter 2 to toggle
betweenweblogic andwebsphere.
Web server root directory
Enter the location where you have installed your web server,
such as D:\oracle\WebLogic103464bit.
Web server login id
Enter the administrative user ID for logging into the web
server. This would be the same user ID you use to log in to the
administrative console.
Web server password
Enter the password associated with the web server login ID.
Website name
Enter the name of the initial website, such as PSHR.
Note: Using PSADMIN you can only add one site. To add
additional sites, you need to use the PsMpPIAInstall program.
Application server
Enter the application server host machine, such as SERVER01.
JSL port
Enter the JSL port on which the appropriate application server
domain listens for Jolt requests.
HTTP port
Enter the HTTP port for your web server installation
HTTPS port
Enter the HTTPS port for your web server installation.
Authentication Token Domain
Enter the domain used for your authentication tokens, if
implemented, such as .yourcompany.com.
See See the product documentation for PeopleTools Installation
for your database platform: "Setting Up the PeopleSoft Pure
Internet Architecture in GUI Mode," Using Authentication
Domains in the PeopleSoft Pure Internet Architecture
Installation
See "Understanding the Authentication Domain" (PeopleTools
8.54: Portal Technology).
Web profile
112
Choose the name of the web profile you intend to use. A web
profile is a named group of configuration property settings that
the portal applies throughout your PeopleSoft system to control
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
all portal-related behavior. The web profile name will be used to
configure this web site. You can specify one of the predelivered
web profiles, PROD, DEV, TEST, or KIOSK.
See "Configuring Web Profiles" (PeopleTools 8.54: Portal
Technology).
Web profile user ID
Enter the user ID associated with the web profile you've entered.
Web profile password
Enter the password associated with the web profile user ID.
PeopleSoft reports directory
Specify the root directory for the Report Repository, where
Process Scheduler writes report output. Make sure that the
report repository directory is shared. The user that starts PIA
must have write access to the Report Repository directory.
Replicating a Domain
Replicating a PIA domain enables you to copy a PIA domain configuration from another location into
the current PS_CFG_HOME. This enables you to tune and configure a single PIA domain, and replicate
that configuration in multiple locations. Or, you may simply need to move a configuration to a newer or
different server.
Note: You can copy domains from one operating system to another, as in from Windows to Linux, but
you cannot copy domains between web server types, as in from Oracle WebLogic to IBM WebSphere.
--------------------------------------------PeopleSoft PIA Administration - Create Domain
--------------------------------------------PIA Home:
1)
2)
3)
4)
5)
6)
7)
8)
D:\PT_SERVER\8.53
Source Domain home
Source Domain name
Target Domain name
Target Web server
Target Web server home
Target Web server user id
Target Web server password
PeopleSoft reports directory
:[D:\PT_SERVER\8.53]
:[PSHR1]
:[PSHR2]
:[weblogic]
:[c:\oracle]
:[system]
:[Passw0rd]
:[c:\psreports]
r) Replicate the domain as shown
q) Quit
Command to execute:
Source Domain home
Enter the PS_CFG_HOME where the domain you want to copy
is installed.
Note: The source domain home can be on the local host or a
remote host.
The source domain can come from a mapped drive or mounted
file system. The target domain will be created within the current
PS_CFG_HOME.
Source Domain name
Enter the name of the domain to replicate.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
113
Using PSADMIN Menus
Target Domain name
Chapter 5
Enter the name for the new, replicated domain.
Note: The name must be unique if you are replicating within the
same PS_CFG_HOME.
Target Web server
Specify the web server type installed on both the target and
source host.
Enter 4 to toggle betweenweblogic andwebsphere.
Target Web server home
Enter the location where the web server software is installed.
Target Web server user ID
Enter the administrative user ID for the target web server (the
user ID used to login to the administrative console).
Target Web server password
Enter the password associated with the administrative user ID
on the target web server.
PeopleSoft reports directory
Enter the location of the Report Repository on the target web
server.
Deleting a PIA Domain
You delete PIA domains by selecting Delete a domain from the PeopleSoft PIA Administration menu.
-----------------------------------------------------PeopleSoft PIA Domain Administration - Choose a Domain
-----------------------------------------------------1) PT853802
2) ptools853
q) Quit
Command to execute:
To delete a PIA domain:
1. From the PeopleSoft PIA Administration menu, select 3) Delete a domain.
2. From the PeopleSoft PIA Domain Administration - Choose a Domain menu, select the PIA domain to
delete.
3. When prompted to continue, enter y.
4. View the screen messages to verify the system has deleted the domain successfully.
-----------------------------------------------------PeopleSoft PIA Domain Administration - Choose a Domain
-----------------------------------------------------1) PT853802
2) ptools853
q) Quit
Command to execute: 1
114
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
This operation will delete the configuration files for the domain.
If the domain is currently running it will be stopped.
Do you want to continue? [Y/N]: y
Verifying domain status....................................
Removing the domain..................................
The domain has been removed.
Booting a PIA Domain
To boot a PIA domain:
1. From the PeopleSoft PIA Administration menu, select 1) Administer a domain.
2. Choose the PIA domain from the domain list.
3. From the PeopleSoft PIA Domain Administration menu, select 1) Boot this domain.
This will boot the domain and verify its status.
4. View the screen messages to verify the system has booted the domain successfully.
-----------------------------------PeopleSoft PIA Domain Administration
-----------------------------------PIA Home:
PIA Domain:
1)
2)
3)
4)
5)
6)
7)
8)
9)
D:\PT_SERVER\8.53
ptools853
Boot this domain
Shutdown this domain
Get the status of this domain
Configure this domain
Edit configuration files
View log files
Administer a site
Delete a site
Windows Service Setup
q) Quit
Command to execute: 1
Starting the domain................
Server state changed to STARTING................
Server state changed to STANDBY.
Server state changed to STARTING................
.
Server state changed to ADMIN.
Server state changed to RESUMING..
Server state changed to RUNNING.
Verifying domain status..............
The domain has started.
Note that the subsequent display of the PeopleSoft PIA Domain Administration menu indicates Domain
Status: started.
-----------------------------------PeopleSoft PIA Domain Administration
-----------------------------------PIA Home:
D:\PT_SERVER\8.53
PIA Domain:
ptools853
Domain Status: started
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
115
Using PSADMIN Menus
1)
2)
3)
4)
5)
6)
7)
8)
9)
Chapter 5
Boot this domain
Shutdown this domain
Get the status of this domain
Configure this domain
Edit configuration files
View log files
Administer a site
Delete a site
Windows Service Setup
q) Quit
Command to execute:
Shutting Down a PIA Domain
To shut down a PIA domain:
1. From the PeopleSoft PIA Administration menu, select 1) Administer a domain.
2. Choose the PIA domain from the domain list.
3. From the PeopleSoft PIA Domain Administration menu, select 2) Shutdown this domain.
This will stop the domain and verify its status.
4. View the screen messages to verify the system has shut down the domain successfully.
-----------------------------------PeopleSoft PIA Domain Administration
-----------------------------------PIA Home:
PIA Domain:
1)
2)
3)
4)
5)
6)
7)
8)
9)
D:\PT_SERVER\8.53
ptools853
Boot this domain
Shutdown this domain
Get the status of this domain
Configure this domain
Edit configuration files
View log files
Administer a site
Delete a site
Windows Service Setup
q) Quit
Command to execute: 2
Stopping the domain...........
Verifying domain status........................
Command to execute: Server "PIA" was force shutdown successfully ...
Done
Checking PIA Domain Status
To verify status of a PIA domain:
1. From the PeopleSoft PIA Administration menu, select 1) Administer a domain.
2. Choose the PIA domain from the domain list.
116
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
3. From the PeopleSoft PIA Domain Administration menu, select 3) Check the status of this domain.
4. View the Domain Status: line at the top of the menu to verify the domain status.
For example,
Domain Status: started
or
Domain Status: stopped
Configuring a PIA Domain
To configure a PIA domain, select 4) Configure this domain from the PeopleSoft PIA Domain
Administration menu. You use the PeopleSoft PIA Administration - Quick Configure Domain menu to
modify PIA domain settings.
-----------------------------------------------------PeopleSoft PIA Administration - Quick Configure Domain
-----------------------------------------------------PIA Home:
D:\PT_SERVER\8.53
PIA Domain: ptools853
Domain Status: stopped
1)
2)
3)
4)
5)
6)
HTTP Port
HTTP SSL Port
Min Heap Size
Max Heap Size
Max Threads
Auth Token Domain
:[80]
:[443]
:[512m]
:[512m]
:[50]
:[]
s) Save
q) Quit
Command to execute:
HTTP Port
The HTTP port for your web server.
HTTPS Port
The HTTPS port for your web server.
Min Heap Size
The minimum JVM Heap size for the web server instance
occupied by your PIA domain.
Note: For WebLogic include the 'm' as in 512m, but for
WebSphere exclude the 'm' as in512.
Max Heap Size
The maximum JVM Heap size for the web server instance
occupied by your PIA domain.
Note: For WebLogic include the 'm' as in 512m, but for
WebSphere exclude the 'm' as in512.
Max Threads
Specify the maximum number of simultaneous transactions that
the PIA domain web server instance can handle.
Auth Token Domain
Enter the Authentication Token Domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
117
Using PSADMIN Menus
Chapter 5
See "Understanding the Authentication Domain" (PeopleTools
8.54: Portal Technology).
After making configuration changes and saving, PSADMIN responds differently, displaying different
prompts, depending on the state of your domain, and the configuration options you've modified.
Configuration Option
Description
Standard
Can be modified while the server is running. A reboot is
required for the change to take effect.
Dynamic
Can be modified while the server is running. Takes effect
immediately with no reboot required.
Volatile
Cannot be modified while the server is running. The server
must be stopped before the change can be saved.
Editing PIA Configuration Files
To view and edit PIA configuration files, select 5) Edit configuration files from the PeopleSoft PIA
Domain Administration menu.
Note: These files are provided for informational purposes. In most cases, you will not be required to
modify these files unless asked to do so by a Global Customer Support representative.
Note: To open the file editor and view or edit the PIA configuration files on a non-Windows environment,
such as UNIX or Linux, you need to have an X Window System configured and running.
----------------------------------------------------------PeopleSoft PIA Domain Administration - Choose a Config File
----------------------------------------------------------1)
2)
3)
4)
5)
setEnv
config.xml
portal/weblogic.xml
pspc/weblogic.xml
logging.properties
q) Quit
Command to execute:
118
setEnv
Opens the setEnv file in your text editor. This file contains
environment properties that the system initializes when you start
the web server.
config.xml
Opens the config.xml file for the PIA domain web server
instance. The config.xml file contains numerous web server
settings.
portal/<web server type>.xml
Opens the <web server type>.xml file associated with the
PeopleSoft Internet Architecture portal deployment.
pspc/<web server type>.xml
Opens the <web server type>.xml file associated with the
PeopleSoft Portlet Container.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
logging.properties
Opens the logging.properties file for adjusting global and
handler-specific logging levels.
Viewing Log Files
To view PIA domain log files, select 6) View log files from the PeopleSoft PIA Domain Administration
menu.
-------------------------------------------------------PeopleSoft PIA Domain Administration - Choose a Log File
-------------------------------------------------------1)
2)
3)
4)
5)
PIA_access.log
PIA_stderr.log
PIA_stdout.log
PIA_weblogic.log
ptools853.log
0
0
7951
384999
57793
q) Quit
Command to execute:
PIA_access.log
Opens the PIA_access.log in your text editor.
PIA_stderr.log
Opens the PIA_stderr.log in your text editor.
PIA_stdout.log
Opens the PIA_stdout.log in your text editor.
PIA_weblogic.log
Opens the PIA_weblogic.log in your text editor.
<domain name>.log
Opens the log for the current domain in your text editor.
Administering a PIA Site
To administer a PIA site:
1. From the PeopleSoft PIA Administration menu, select 7) Administer a site.
2. Choose the PIA site from the site list.
---------------------------------PeopleSoft PIA Site Administration
---------------------------------PIA Home:
D:\PT_SERVER\8.53
PIA Domain: ptools853: stopped
PIA Site:
PT853803
1) Configure this site
2) Edit configuration file
q) Quit
Command to execute:
Configuring a PIA Site
To configure a PIA site, select 1) Configure this site from the PeopleSoft PIA Site Administration menu.
----------------------------------------------------
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
119
Using PSADMIN Menus
Chapter 5
PeopleSoft PIA Administration - Quick Configure Site
---------------------------------------------------PIA Home:
D:\PT_SERVER\8.53
PIA Domain: ptools853
Domain Status: stopped
PIA Site:
PT853803
1)
2)
3)
4)
5)
6)
7)
8)
9)
s)
q)
Application Server Connect String
Jolt Pooling
AppServer Password
Dynamic Config Reload Setting
Web Profile
Web User Id
Web Password
Report Repository File Path
OBIEE Analytics Server URL
Save
Quit
:[RTDC79623VMC:9010]
:[Enabled]
:[{V1.1}6O5vpwGxd5o=]
:[0]
:[PROD]
:[PTWEBSERVER]
:[PTWEBSERVER]
:[d:/psreports]
:[]
Command to execute:
Application Server Connect String
Specifies the application server(s) from which this web site
will accept connections if Jolt failover and load balancing is
implemented.
This modifies the psserver setting in the configuration.
properties file.
See Configuring Jolt Failover and Load Balancing.
Jolt Pooling
Select to toggle Jolt Pooling [Enabled | Disabled].
This modifies the joltpooling setting in the configuration.
properties file.
See Configuring Jolt Session Pooling.
AppServer Password
Set the domain connection password, which is required for
connecting to the application server domain.
This modifies the DomainConnectionPwd setting in the
configuration.properties file.
See Configuring Domain Connection Password.
Dynamic Config Reload Setting
This setting enables the psserver string (Application Server
Connect String) to be reloaded dynamically. That is, the domain
does not need to be restarted for the changed values to take
effect.
Set Dynamic Config Reload Setting to 1 enables the feature,
while setting it to 0 disable the feature. Default value is 0.
This modifies the DynamicConfigReload setting in the
configuration.properties file.
Note: This setting applies only to the Application Server
Connect String.
120
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
See Configuring Dynamic Reloading of the Application Server
Connection String.
Web Profile
Specify the web profile used to store the configuration settings
for this web site.
This modifies the WebProfile setting in the configuration.
properties file.
Web User ID
The user ID that the Portal uses to access the web profile.
This modifies the WebUserId setting in the configuration.
properties file.
Web Password
The user password that the Portal uses to access the web profile.
This modifies the WebPassword setting in the configuration.
properties file.
Report Repository File Path
The location of the Report Repository.
Note: The system uses this setting value only if a Report
Repository location is not specified in the current web profile.
This modifies the ReportRepositoryPath setting in the
configuration.properties file.
OBIEE Analytics Server URL
Enter the location of the OBIEE analytics server, if
implemented.
Save
After you have made your changes, select S) Save to save your
changes to the PIA site.
Editing PIA Configuration Files
To edit the configuration.properties file directly in your text editor, select 1) Edit configuration file from
the PeopleSoft PIA Site Administration menu.
Deleting a PIA Site
To delete a PIA site:
1. From the PeopleSoft PIA Domain Administration menu, select 8) Delete a site.
2. Choose the PIA site from the site list.
Note: The domain must have at least two sites for the delete operation to succeed. If only one site
exists in the domain, the system will not allow you to delete the only remaining site. A domain must
contain at least one site.
3. When prompted to make sure you want to delete the site, enter y.
---------------------------------------------------PeopleSoft PIA Domain Administration - Choose a Site
---------------------------------------------------Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
121
Using PSADMIN Menus
Chapter 5
1) PSHR
2) PT853803
q) Quit
Command to execute: 1
Are you sure you want to remove the site [Y/N]: y
Removing the site.................
The site has been removed.
Managing Windows Services for PIA Domains
This section discusses:
•
Installing a Windows Service for a PIA Domain.
•
Uninstalling a Windows Service for a PIA Domain.
Installing a Windows Service for a PIA Domain
To install a Windows Service for starting a PIA domain, select 9) Windows Service Setup from the
PeopleSoft PIA Domain Administration.
To install the Windows Service, select 1) Install Service from the Windows Service Setup menu.
--------------------Windows Service Setup
--------------------PIA Home:
D:\PT_SERVER\8.53
PIA Domain: ptools853: stopped
1) Install Service
2) Uninstall Service
q) Quit
Command to execute: 1
Defining NT service for WebLogic admin server PIA
ptools853-PIA installed.
Image: Services console showing the newly installed Windows Service
This example illustrates the fields and controls on the Services console showing the newly installed
Windows Service. You can find definitions for the fields and controls later on this page.
122
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
Uninstalling a Windows Service for a PIA Domain
To uninstall a Windows Service for starting a PIA domain, select 9) Windows Service Setup from the
PeopleSoft PIA Domain Administration.
To uninstall the Windows Service, select 2) Uninstall Service from the Windows Service Setup menu.
--------------------Windows Service Setup
--------------------PIA Home:
D:\PT_SERVER\8.53
PIA Domain: ptools853: stopped
1) Install Service
2) Uninstall Service
q) Quit
Command to execute: 2
ptools853-PIA removed.
Switching Configuration Homes (PS_CFG_HOME)
By default, when you install application servers, Process Scheduler servers, search servers (Verity), and
PIA domains, the system installs them in the current PS_CFG_HOME location. If you do not modify
or override the PS_CFG_HOME location, and you install all of these server types on the same host, all
of these server types will exist and be managed by PSADMIN in the same PS_CFG_HOME location.
With all of the server types installed in the same PS_CFG_HOME, you would not need to use the Switch
Config Home feature. This is the recommended approach.
PSADMIN supports multiple PS_CFG_HOME locations, but you need to make sure to set the
PS_CFG_HOME variable correctly before installing domains, and use the Switch Config Home option to
specify the appropriate PS_CFG_HOME when performing administrative and configuration tasks.
Note: You can set the appropriate PS_CFG_HOME outside of PSADMIN manually, or from a BAT or
shell script, or you can set it using the Switch Config Home feature.
To switch configuration homes:
1. Navigate to the main PSADMIN PeopleSoft Server Administration menu.
2. Select option 5) Switch Config Home.
-------------------------------PeopleSoft Server Administration
-------------------------------Config Home:
1)
2)
3)
4)
5)
6)
7)
q)
D:\HR_SERVER\8.53
Application Server
Process Scheduler
Search Server
Web (PIA) Server
Switch Config Home
Service Setup
Replicate Config Home
Quit
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
123
Using PSADMIN Menus
Chapter 5
Command to execute (1-7, q): 5
3. At the prompt, enter the complete path to the desired PS_CFG_HOME location, and press ENTER.
Note: If the directory structure does not currently exist, PSADMIN creates it.
Please provide new Config Home location or q to quit: D:\PT_SERVER\8.53
4. Verify that the correct Config Home value appears on the PeopleSoft Server Administration menu.
-------------------------------PeopleSoft Server Administration
-------------------------------Config Home:
1)
2)
3)
4)
5)
6)
7)
q)
D:\PT_SERVER\8.53
Application Server
Process Scheduler
Search Server
Web (PIA) Server
Switch Config Home
Service Setup
Replicate Config Home
Quit
Command to execute (1-7, q):
Note: For PIA domains, you can set the PIA_HOME environment variable prior to starting PSADMIN.
If this variable is set, PSADMIN recognizes it, and will install your PIA domains in the PIA_HOME
location. You can switch to this location using the Switch Config Home feature.
Setting Up the PeopleSoft Windows Service to Start an
Application Server Domain
This section provides an overview and discusses how to:
•
Configure the PeopleSoft service.
•
Test the service.
•
Edit the service configuration file.
Note: This section applies only to Microsoft Windows servers. It involves setting application server,
Process Scheduler server, and search server domains to start as PeopleSoft Windows services.
Understanding Microsoft Windows Services
A Microsoft Windows service is a Microsoft-standard package that automatically starts and stops a
process when you boot or shut down a Windows system. You can also start and stop Microsoft Windows
services manually through the Administrative Tools - Services utility, which you can access through the
Control Panel. A service uses a standard application programming interface (API) so that it can interact
with the Control Panel and log messages to the standard event log.
124
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
For PeopleSoft domains, the service starts in an environment that is separate from any users who are
signed in to the system (or to the server machine). If using the Windows service, administrators do not
need to log on to a machine, start PSADMIN, and enter the proper commands to start a domain. In
addition, if you use the PeopleSoft service, an administrator's logon session does not need to remain open
while the domain runs.
If you have multiple application server domains, Process Scheduler servers, or search servers on the same
machine, you can start them all by using the same service setup.
Note: The PeopleSoft service supersedes the method that is provided in the Microsoft Windows resource
kit. Do not use SRVANY.EXE or AT commands to start PeopleSoft domains.
Configuring the PeopleSoft Service
The following procedure assumes that you have already installed and configured a domain on the
Microsoft Windows server.
After completing this procedure, the specified PeopleSoft domains start and shut down automatically
when the operating system recycles.
To set up the Microsoft Windows service:
1. Open the System utility within the Control Panel, and make sure the following variables are set on the
Environment tab in the System Variables section:
Variable
Value
TEMP
Specify the location of the TEMP directory on the Microsoft
Windows server, as in C:\TEMP.
2. In PSADMIN utility, select Service Setup from the main menu.
3. Select Configure a Service from the PeopleSoft Services Administration menu.
4. Enter y to indicate that you want to change configuration values.
5. Enter the names of the application server domains, the Process Scheduler databases, or search server
domains that you want to include as part of the Microsoft Windows service.
To add multiple values, separate each value with a comma and a space.
For example,
Application Server Domains=HRDOM1, HRDOM2, HRDOM3
6. Select Install a Service from the PeopleSoft Services Administration menu.
Note: All of the domains and databases that you specified are part of a single Windows service called
PeopleSoft PS_CFG_HOME, wherePS_CFG_HOME is the location of the domain installations.
7. Return to the Windows Control Panel, and start the Administrative Tools, Services utility.
8. In the Services utility, scroll to find the entry that adheres to the PeopleSoft PS_CFG_HOME naming
convention and access its properties.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
125
Using PSADMIN Menus
Chapter 5
9. On the General tab of the service properties, select a startup type of Automatic.
Note: The default startup mode is Manual.
10. On the Log On tab, the Log On As setting must match theLog On As setting that's defined for the
Oracle ProcMGR service, which was created when you installed Tuxedo.
Both services should either be configured to Log On As Local System Account, or toLog On As This
Account (referring to the same account).
11. On the General tab of the service properties, click Start.
Note: If using a secure, remote PS_HOME, the user ID that starts the Oracle ProcMGR service and the
PeopleSoft service must be same domain user ID and have sufficient privileges to at least read-execute the
remote resources. Also, the TM_IPC_MAPDRIVER environment variable needs to be set appropriately.
The PeopleSoft Windows Service must run under the same user id as the ProcMGR service because the
PeopleSoft Windows service executes the PSADMIN command line options to start and stop domains.
See Understanding PS_HOME and PS_CFG_HOME.
Service Start Failure
It's possible that one or more of the domains or databases that are configured as part of the PeopleSoft
service will fail to start, for reasons unrelated to the service.
The service is marked as started even if only one of its assigned domains starts. A message is written
to the Windows event log for each domain, indicating whether it has started or not. If you experience
problems with any domain or database, check the event log to see if it started successfully.
If all of the assigned domains and databases fail to start, the service is marked as stopped, and the
following message is written to the event log:
Unable to start any of the domains configured for service service_name.
Testing the Service
To test the Microsoft Windows service, reboot the server, and make sure that the appropriate server
executables are running.
For example, for the application server, use the Microsoft Windows Task Manager or the Server status
option from the Domain status menu to see that the following executables are running:
•
PSAPPSRV.EXE
•
PSSAMSRV.EXE
•
BBL.EXE
•
WSL.EXE
Also make sure that any additional server processes that you have configured, such as PSQCKSRV.EXE,
are running.
126
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 5
Using PSADMIN Menus
Editing the Service Configuration File
The Windows Services section of PSADMIN modifies the PSWINSRV.CFG file in the
PS_CFG_HOME\appserv directory. You can edit the file directly by selecting4 (Edit a Service
Configuration File) from the PeopleSoft Services Administration menu. This opens the PSWINSRV.CFG
file in a text editor, where you can enter and save your changes.
The following sections describe each parameter.
Service Start Delay
When a domain resides on the same machine as the database server, consider using the Service Start
Delay setting. By using this feature, you can avoid the situation where the database server is booting and
is not ready to process requests at the time that the service attempts to boot the domain. In this scenario,
without a delay set, the connection fails.
You can configure a Service Start Delay parameter that specifies a delay, in seconds, that elapses before a
service attempts to start any domains. This allows the RDBMS enough time to boot and become available
to accept requests.
The default is 60 seconds.
Application Server Domains
Specify the names of the domains that you want to start automatically when you boot the application
server machine.
If you specify multiple domains, separate each domain with a comma and a space.
Process Scheduler Databases
Enter the databases with which a Process Scheduler server is associated. For each database that you
specify, the associated Process Scheduler server starts when you boot the Microsoft Windows server.
If you specify multiple databases, separate each database with a comma and a space.
Search Server Domains
Specify the names of the domains that you want to start automatically when you boot the search server
machine.
If you specify multiple domains, separate each domain with a comma and a space.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
127
Chapter 6
Setting Application Server Domain
Parameters
Startup Options
Set database sign-in values in the Startup section, so that the domain can connect to the database.
Note: When specifying passwords, such as UserPswd, Connect Password, and StandbyUserPswd you
will be prompted with: Do you want to encrypt this password? Selectingy encrypts the
password so that it does not appear in clear text in the configuration file (PSAPPSRV.CFG) or PSADMIN.
DBName
Enter the PeopleSoft database name, such as FSDMO or HRDMO. This parameter is case sensitive.
DBType
Enter the PeopleSoft database type, such as DB2ODBC, DB2UNIX, INFORMIX, MICROSFT,
ORACLE, or SYBASE. If you enter an invalid database type, PSADMIN prompts you with a valid list.
UserID
Enter the PeopleSoft user ID that is authorized to start the application server. For the application server
to boot, the appropriate user ID with the correct authorizations must be assigned to this parameter. This
is the ID that the application server passes to the database for authentication and connection. The user ID
that you enter here is not related to the actual user (administrator) that carries out the boot command.
The Can Start Application Server permission must be set in the permission list. The authorization to
start an application server does not (directly or indirectly) grant any authorizations or privileges beyond
the ability to start the application server. Each user who attempts to sign in enters a unique user ID and
password, which the application server uses to authenticate each user.
Related Links
"Defining Permissions" (PeopleTools 8.54: Security Administration)
UserPswd
Enter the password to be used by the specified user ID that will gain access to the database.
The password:
•
must be specified in uppercase to simplify administration of the system.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
129
Setting Application Server Domain Parameters
Chapter 6
•
should not exceed 32 characters.
•
(Windows) should not contain any forward-slash characters (/).
•
(UNIX) should not contain any percent characters (%).
Connect ID
Required for all database platforms. Enter the database-level ID that the PeopleSoft system uses to make
the initial connection to the database. This user name must have authority to select from PSACCESPRFL,
PSLOCK, PSOPRDEFN, and PSSTATUS.
Connect Password
Enter the password for the connect ID. For instance, this might be the UNIX user's password (either
uppercase or lowercase).
The password:
•
should not exceed eight characters.
•
(Windows) should not contain any forward-slash characters (/).
•
(UNIX) should not contain any percent characters (%).
ServerName
Required for Sybase and Informix. Enter the name of the server on which the PeopleSoft database is
installed. This value is case sensitive.
StandbyDBName
(Used only for by Oracle databases with Oracle Active Data Guard implemented). Specify the standby
database name.
StandbyDBType
(Used only for by Oracle databases with Oracle Active Data Guard implemented). Specify the standby
database type, such as ORACLE.
StandbyUserId
(Used only for by Oracle databases with Oracle Active Data Guard implemented). Specify the user ID
required to connect to the standby database.
StandbyUserPswd
(Used only for by Oracle databases with Oracle Active Data Guard implemented). Specify the user
password required to connect to the standby database.
130
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Database Options
Use the Database Options section to specify environment variables that may improve the performance of
the system. These options do not apply to every database.
SybasePacketSize
Enter a Transmission Control Protocol (TCP) packet size. The minimum value is 512 and the maximum
value is 65538. The default packet size is 512. If you change the packet size, make the corresponding
changes to the Sybase database server.
See Your Sybase documentation.
UseLocalOracleDB
(Applies only to Oracle databases.). Use this option to enable processes to initiate a local connection to
a PeopleSoft database that is running on the same machine. You should use this option for all PeopleSoft
Process Scheduler (batch) and application server configurations that are local (on the same server) to the
PeopleSoft Oracle instance. This type of connection enables processing to complete significantly quicker.
Enter 1 to enable this option, and enter 0 to disable it.
Note: Using the local Oracle connection disables the Query Kill function.
Related Links
"PeopleSoft Servers and the Oracle Connection String" (PeopleTools 8.54: Data Management)
EnableDBMonitoring
Required for database-level auditing. How this works varies slightly, depending on the database platform.
Use this option to view more information regarding the clients that are connected to a database server
through the application server. For instance, with this enabled, you can view the client machine name or
user ID that is associated with a particular connection. Without this option enabled, all connections appear
somewhat anonymously, as in PSFT or APPSERV.
The default value is 1 (enabled). Enter0 to disable it.
Note: This parameter isn't supported for Informix or DB2 LUW.
PSDB Maximum Cursors
Enables you to configure the maximum number of cursors opened at one time. In general, the maximum
number of cursors that can be open at one time within PeopleTools is 64,000. However, some database
platforms place greater restrictions on the number of cursors that can be open at one time. By default, if
no value is provided, the system allows a maximum of 1024 cursors.
To increase or decrease the default value, assign your custom value to this parameter. The value you set
should be determined on multiple factors including:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
131
Setting Application Server Domain Parameters
Chapter 6
•
Any predefined limits imposed by your database platform.
•
Internal testing of your PeopleSoft application(s).
Always refer to your database documentation for the latest recommendations related to maximum cursors
settings. The following information can be used as a guideline.
Database
Maximum Cursors Limit
Oracle
No predefined limit.
IBM DB2 z/OS
Limited only by available storage.
IBM DB2 LUW
Limited only by available storage.
Microsoft SQL Server
No predefined limit.
Sybase
No predefined limit.
Informix
No predefined limit, but SQL statement length limited to 64
KB.
Note: When running Application Engine programs or Data Mover scripts you may see the following
message in your log files:
Initializing PSDB maximum cursor = 1024
This is an informational message, not an error.
Security Options
Use the Security section to set an additional layer to the sign-in process.
Validate Signon With Database
Use this option to set an additional level of authorization-checking to be performed at the database level.
Enter 1 to enable this option, and enter 0 to disable it.
With this option disabled, if a PeopleSoft user attempts to connect to an application server, the application
server ensures that the user's PeopleSoft user ID and password exist on PSOPRDEFN. If it does not exist,
the request to connect fails. This is PeopleTools-level authentication.
With this option enabled, the application server first attempts to connect to the database by using the
user ID and password as part of the database connection string. If the authorization is successful, it
disconnects, and then the normal PeopleSoft sign-in procedure occurs.
With this option enabled, to connect successfully to the database, the user must be defined on either the
operating system or the database and within PeopleSoft.
Note: For DB2 z/OS, the user ID and password must be defined as z/OS user logon IDs.
132
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
DomainConnectionPwd
The domain connection password adds an extra layer of security between the application server domain
and any connections made to it. This password enables you to further prevent unauthorized clients from
establishing connections to an application server domain. It is recommended to use PSADMIN to update
this value. The value can be up to 30 characters.
All domains, PeopleSoft Internet Architecture, and three-tier workstations used for a particular database,
must use the same domain connection password.
Note: It is not required to add a domain connection password. It is an additional security layer for use if
desired. If you add or change this value in the domain configuration, you must also update any PeopleSoft
Internet Architecture sites and three-tier Windows workstations to reflect the new password expected by
the application server domain.
For the PeopleSoft Internet Architecture configuration, you enter the password in the
configuration.properties file using the same setting, DomainConnectionPwd.
For a three-tier Windows workstation connection, you enter the password in the Configuration Manager
profile using the Domain Connection Password field on the Database/Application Server tab of the Edit
Profile dialog box.
Related Links
Configuring Domain Connection Password
Workstation Listener Options
The workstation listener is the component to which PeopleSoft development environments running on
Windows send Tuxedo messages. Development environments run Application Designer, for example.
By default, the workstation listener is disabled.
Address
%PS_MACH% resolves automatically to the machine name that PSADMIN obtains by using a system
application programming interface (API) call. You can also specify the machine's Internet Protocol (IP)
address (dotted notation) or its resolvable name (domain name server [DNS] name).
You should not change this value except in the following rare cases. If you are configuring files to run an
application server on another machine (that is, you plan to copy PSAPPSRV.CFG and PSAPPSRV.UBB to
a domain on another machine), you must overlay %PS_MACH% with the other machine's name.
Note: If you enter a literal IP address or machine name in place of the %PS_MACH% system variable,
PSADMIN automatically prepends '//' to the value during the configure process. For example, if you
enter 10.831.248.117 in place of %PS_MACH%, after configuring the domain, the value appears
as//10.831.248.117 in both PSADMIN and the psappsrv.cfg file.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
133
Setting Application Server Domain Parameters
Chapter 6
Port
Enter the 4-digit port number to assign to the WSL. Port numbers are arbitrary numbers between 1000
and 64,000 and must not be in use by another service. The default value is 7000.
Encryption
Use this option to enable the encryption of data messages between client workstations and the application
server. Specify one of the following values:
•
0 — No encryption.
Important! This is the default value.
•
40 — 40-bit encryption.
•
128 — 128-bit encryption.
Note: Because this is a dynamic parameter, you must modify it by selecting Custom Configuration on the
Quick-Configure menu, and reboot the application server domain for it to take effect.
Min Handlers
Enter the number of workstation handlers (WSHs) to be started at boot time. The minimum number of
handlers required depends on the domain. A smaller domain, handling less connections, may only need
one WSH to start at boot time. A larger domain, handling more connections, may require ten WSHs to
start at boot time.
Max Handlers
Enter the maximum number of WSHs that can be started for a domain. As connections increase, the
system spawns more WSHs (up to the Max Handler value) to keep up with system demand. If the Min
Handlers value equals the Max Handlers value, Tuxedo does not spawn incremental WSHs.
Max Clients per Handler
Enter the maximum number of client workstation connections that each WSH can manage. Each WSH
can handle approximately 60 client connections. Numbers vary depending upon the resources of the
server. In most cases, you should decrease the default as opposed to increasing it. The default is 40.
Client Cleanup Timeout
Enter the amount of time, in minutes, that a client connection can remain idle (no work requested) before
Tuxedo terminates the client connection. Client disconnects are transparent to a client, and a user just
clicks the mouse to cause a reconnection. The default value for this setting is 60 minutes.
134
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Init Timeout
This value, when multiplied by SCANUNIT (a UBB parameter value that is defined in the
PSAPPSRV.UBB file) specifies the amount of time, in seconds, that Tuxedo allows for a client connection
request to bind to a WSH before terminating the connection attempt.
Tuxedo Compression
Enter the minimum length of a data message for which the application server initiates data compression.
While compression results in favorable performance gains for transactions over a wide area network
(WAN), testing reveals that compression can degrade performance slightly over a local area network
(LAN) due to the compression and decompression overhead.
You should use the default threshold of 5000, which sets a balance between WAN and LAN
environments. This means that only network request and response messages over 5000 bytes are
compressed, and those 5000 and under are uncompressed. If you support both WAN and LAN users,
you can configure a hybrid environment by configuring two application servers: one to support WAN
users (with compression set to 100) and another to support LAN users (with compression set to 100000,
effectively turning compression off).
Jolt Listener Options
Use this section to configure PeopleSoft Internet Architecture connections. The Jolt listener enables
Tuxedo to exchange messages with the web server.
Address
See the equivalent parameter for the workstation listener.
Port
Enter the port number that is used for the Jolt server listener (JSL). This value can be any port number
that is not already in use by another service on the machine that runs the application server domain. By
default, the JSL port is enabled.
Encryption
Use this option to enable the encryption of data messages between client workstations and the web server.
Specify one of the following values:
•
0 — No encryption.
Important! This is the default value. Incoming Jolt requests from the web server (portal, PIA, and
Integration Broker) are not encrypted.
•
40 — 40-bit encryption.
•
128 — 128-bit encryption.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
135
Setting Application Server Domain Parameters
Chapter 6
Min Handlers
Enter the number of Jolt server handlers (JSH) to be started at boot time. Each JSH multiplexes up to 50
connections.
Max Handlers
Enter the maximum number of JSHs.
Note: JSHs spawn by using successive port numbers starting at the port number for the JSL in the
PSAPPSRV.CFG file. Make sure that the additional ports are free before configuring spawning.
Max Clients per Handler
Enter the maximum number of client connections that each JSH can manage.
Client Cleanup Timeout
Enter the amount of time, in minutes, that a client connection can remain idle (no work requested) before
Tuxedo terminates the client connection. Client disconnects are transparent to a client, and a user just
clicks the mouse to cause a reconnection. The default value for this setting is 10 minutes.
Init Timeout
See the equivalent parameter for the workstation listener.
Client Connection Mode
Enter one of these options to control the allowed connection modes from clients:
•
RETAINED: The network connection is retained for the full duration of a session.
•
RECONNECT: The client establishes and brings down a connection when an idle timeout is reached
and reconnects for multiple requests within a session. The reconnection is transparent to the user.
•
ANY: (Default) The server allows client code to request either a RETAINED or RECONNECT type
of connection for a session. Whereas, with the other two options, the server dictates from which type
of client it accepts connections. This option translates to the -c Connection Mode parameter for the
JSL section in the PSAPPSRV.UBB file.
Jolt Compression Threshold
Jolt compression can significantly improve performance. Jolt compression enables messages that are
transmitted through a Jolt connection to be compressed as they flow over the network. You are likely to
see the most significant performance improvements over a WAN.
For compression, the configuration files contain a default compression threshold. This default value
should provide the best results for most situations. However, your application server administrator can
adjust this value to suit your implementation.
136
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
The compression threshold indicates to the server how large a packet must be to require compressing. In
other words, the value that you set is the minimum number of bytes that a single packet must be before
the server compresses it.
Many of the XML messages being sent around the system are greater than 100,000 bytes. These messages
contain HTML in compressed states, so it's generally not required that these messages be compressed.
Because of this, the PeopleSoft default is set to 1,000,000 bytes.
Be careful when adjusting compression settings. If you set the threshold too high, then no packets will
be large enough to be compressed. If you set the threshold too low, you may greatly reduce network
traffic, but be aware that the server will have an increased workload from compressing numerous packets.
Typically, you should decrease the threshold according to the bandwidth of the workstation hardware as
described in the following paragraphs.
If you are handling only LAN connections, you may want to disable compression by setting the threshold
to 99999999 so that only packets larger than 99,999,999 bytes are compressed. Of course, such a large
value effectively disables compression so that no packets are compressed. This means no extra work for
the server compressing packets.
Alternatively, if you have mostly low bandwidth, as in 56-kilobyte (KB) modem connections over a
WAN, then you most likely want to compress the packets as much as possible. When decreasing the
compression threshold, keep in mind that the law of diminishing returns applies. Setting the threshold
much below 1000 puts an increasing load on the server, and this can nullify any performance increases
that you may have gained from reduced network traffic.
Additional Prompt
After you finish all of the configuration sections, PSADMIN prompts you to configure Jolt (which is
enabled by default).
If you are using the PeopleSoft Internet Architecture, you must have Jolt enabled for browser access.
Jolt Relay Adapter Options
The Jolt relay adapter is disabled by default. Unless you have a specific need for JRAD, you should skip
this section.
Related Links
Using Jolt Internet Relay
Listener Address
The default is %PS_MACH%. Enter the machine on which the application server is running. See the
equivalent parameter for the workstation listener.
Listener Port
This option is for advanced configurations requiring the Jolt internet relay (JRLY). The listener port
listens for JRLY requests and must match the JRLY “OUT” port setting in the JRLY configuration file of
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
137
Setting Application Server Domain Parameters
Chapter 6
the sending machine. The port number, as in 9100, is not used unless you enter y at the prompt that asks if
you want to configure JRAD.
Domain Settings
Use this section to specify general settings for the entire domain—not just for a specific component of the
domain or server process.
Domain ID
Enter the name of the application server domain. It does not need to match the name that you specified
when you created the domain. This name is important only because the Tuxedo Web Monitor and
PeopleSoft Watch Server (PSWATCHSRV) use it to identify application server domains and the processes
associated with each machine. It should not exceed 8 characters. Generally, you should use the database
name in lowercase.
Add to PATH
Enter the directory that contains your 64–bit database connectivity software, as in /apps/db/oracle/bin. If
the database connectivity directory is not already specified in the path, you can set it by specifying this
parameter. The value is added to the path.
On UNIX, if you don't enter a value, it uses the current directory—not the current path. To have it set by
default to the current path, enter a period (.).
Note: On Windows, entries that contain a space must be surrounded by quotes. If you don't enter a value,
it uses the current path.
Spawn Threshold
Enter a parameter that's supplied to Tuxedo for control of process spawning by using the -p command-line
option for all server processes. The default setting (1,600:1,1) rarely needs to be changed.
This setting enables the dynamic decay of spawned server processes as the transaction volume decreases.
The value can be loosely translated to mean that if, in 600 seconds, there is less than or equal to one job in
the queue, the decay process begins. This is described in more detail in the timeout settings topic of this
product documentation.
New server processes will be spawned according to the rule defined here. By default, if there is one
outstanding request in the queue for one second or more, an additional process is spawned. Additional
processes will be spawned all the way up to the Max Instances defined for that server type. If Max
Instances and Min Instances are identical, this setting has no effect.
Note: This parameter applies only if, for PSAPPSRV, the value of Max Instances is greater than that
ofMin Instances. By default, spawning is disabled.
For more information, also see servopts(s) in the Oracle Tuxedo reference manual
138
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Related Links
Application Server Timeouts
Log Directory
The log directory contains log files the system generates for a domain, such as Tuxedo logs (TUXLOG)
and APPSRV logs.
The default log directory for a domain is %PS_SERVDIR\logs.
To specify a custom log directory:
1. Uncomment the Log Directory setting in the domain's PSAPPSRV.CFG file.
2. Enter the desired log directory location either directly into the PSAPPSRV.CFG file or through
PSADMIN.
3. Reconfigure the domain using PSADMIN for the new setting to take effect.
When entering custom log directory locations, keep the following length restrictions in mind.
Domain Type
Log Directory Character Length Limit
Application Server
60
Process Scheduler Server
70
Search Server
80
Restartable
Enter y to have Tuxedo restart server processes (except the BBL process) if the server dies abnormally, as
in a 'kill' on UNIX or through the Task Manager on Microsoft Windows. Otherwise, entern.
Allow Dynamic Changes
Often, administrators must set a trace or performance parameter while the domain is up and running. If
you enable this option, then you don't need to reboot the domain for the modified parameter value to take
effect.
Enter y orn to enable or disable dynamic changes. When disabled, you must reboot (or cycle the
processes) for changes to take effect.
When enabled, the server checks an internal time stamp for a particular service request to see if any
values have changed for the parameters for which dynamic changes are valid. If values have changed, the
system uses the modified parameter value.
You should enable this option in your test and development domains. For production environments, you
should enable dynamic changes selectively.
These parameters allow dynamic changes:
•
Recycle Count.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
139
Setting Application Server Domain Parameters
Chapter 6
•
Consecutive service failures.
•
Trace SQL and Trace SQL Mask.
•
Trace PC and Trace PC Mask.
•
Trace PPR and Trace PPR Mask.
•
Log Fence.
•
Enable DB Monitoring.
•
Enable Debugging.
•
Dump Memory Image at Crash.
•
Dump Managed Objects at Crash.
•
Log Error Report.
•
Mail Error Report.
•
SMTP Settings (all except SMTPGuaranteed, SMTPTrace, and SMTPSendTime).
•
Analytic Instance Idle Timeout.
•
Analytic Per Server Log.
Note: The parameters that allow dynamic changes are also identified through comments in the
PSAPPSRV.CFG file. Look for the phrase “Dynamic changes allowed for X,” where X is the parameter
name. This option does not apply to configuration parameters that Tuxedo relies on, such as the number
of processes, whether restart is enabled, the port numbers, the amount of handlers, and so on.
LogFence
Enter a level of network tracing, ranging from –100 (suppressing) to 5 (all). The default is 3.
The trace file is generated in PS_CFG_HOME\appserv\domain\LOGS\psappsrv.log.
LogFieldSeparator
Separate individual fields of data within the domain log file(s). If this setting is not explicitly defined, the
default value is a single SPACE character. This setting must be uncommented in the configuration file to
be enabled.
These meta values can be used as the field separator:
•
TAB
•
SPACE
While the actual key strokes can be used to specify a separator, the escape sequence equivalent of them
is not supported. For example \t is not recognized as a tab character. For purpose of clarity, avoid key
strokes that are not visible to the naked eye, instead use their meta value equivalents.
140
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
AppLogFence
This setting is not available through the PSADMIN interface, but can be entered directly into the
PSAPPSRV.CFG file.
You can use this parameter conditionally to determine whether you want to do specific logging from
your application. You can implement this parameter from PeopleCode using the %AppLogFence system
variable. Complete documentation for this option is in the PeopleCode Developer's Guide.
See "Using Application Logging" (PeopleTools 8.54: PeopleCode Developer’s Guide).
Trace-Log File Character Set
Enter the character set (ANSI or UNICODE) of the machine to which you typically write and read the
traces and log files. If the character sets are not matched between the file and the machine, the file is
unreadable.
ProcessRestartMemoryLimit
Enter a memory threshold for recyclable server processes running within the domain. When the server
processes exceed the limit, the system restarts, or recycles, them. This setting applies to all recyclable
server processes within the domain. If set to 0, this feature is disabled and the system recycles server
processes according to the recycle count setting for that recyclable server process.
To enable the restart memory limit, enter a value, in megabytes, as the memory threshold. For example, if
you set the restart memory limit for the domain to 500, any recyclable server process running within the
domain restarts after it has consumed 500 megabytes of memory and after the current service request has
been processed.
Recyclable server processes include:
•
PSAPPSRV
•
PSANALYTICSRV
•
PSSAMSRV
•
PSQCKSRV
•
PSQRYSRV
•
Integration Broker server processes
The restart memory limit can also be set at the individual server process level as well. That is, you can set
the restart memory limit for the entire domain using the setting in the [Domain Settings] section of the
configuration file, or you can set it for a specific server process to override the domain-level limit for that
server process type.
When the system recycles a server process, the system writes in the log file a statement similar to the
following:
PSAPPSRV.4356 (9) [2014-05-12T09:02:44.273 [email protected]<machine-info>.company.com](0) Rec⇒
ycling server due to reaching the configured memory threshold of 150 (cfg section [⇒
Domain Settings]).
PSAPPSRV.4356 (9) [2014-05-12T09:02:44.273 [email protected]<machine-info>.company.com](0) In ⇒
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
141
Setting Application Server Domain Parameters
Chapter 6
the last request the memory increased up to 193.
PSAPPSRV.4356 (9) [2014-05-12T09:02:44.277 [email protected]<machine-info>.company.com](0) Rec⇒
ycling server after 96 services
PSAPPSRV.5016 (0) [2014-05-12T09:02:45.112](0) PeopleTools Release 8.54-901-R1 (Win⇒
dows) starting. Tuxedo server is APPSRV(99)/1
Note: If you implement this feature, you need to test and monitor the appropriate memory threshold for
your site’s performance requirements and resource usage to reach the optimal setting.
The system implements the ProcessRestartMemoryLimit recycling behavior according to these rules:
•
If ProcessRestartMemoryLimit is disabled for the domain (set to 0), and the
ProcessRestartMemoryLimit parameter is disabled for each individual server process configuration
section, the Recycle Count setting controls when a server process recycles (restarts).
•
If ProcessRestartMemoryLimit is enabled for the domain, all recyclable server processes running
in the domain are subject to that memory limit, unless the ProcessRestartMemoryLimit parameter
is set to a different value in that server type’s configuration section. For example, assume at the
domain level, ProcessRestartMemoryLimit is set to 500, but the ProcessRestartMemoryLimit in the
PSQRYSRV section is set to 600. In this case, all recyclable server processes running in the domain
will be recycled when a server process consumes 500 megabytes off memory, except for PSQRYSRV,
which will not recycle until it reaches the 600 megabyte limit.
•
The ProcessRestartMemoryLimit cannot be set too low so as to prevent the domain from establishing
the minimum memory requirements for booting and performing basic operations. If the memory
limit is set too low, the domain will not boot, and the system writes an error message into the log file
similar to the following:
PSAPPSRV.4272 (0) [2014-05-12T09:18:25.535](0) Taken configuration variable Process⇒
RestartMemoryLimit from the section [Domain Settings] 20 Mb is not big enough. PSAP⇒
PSRV initially needs at least 40 Mb.
For the [Publish&Subscribe] (Integration Broker) server process group, there is an additional
layer of priority given to the ProcessRestartMemoryLimit parameter, because you can set the
ProcessRestartMemoryLimit parameter at the group level as well. For example:
•
If is set within the [Publish&Subscribe] configuration section, that setting overrides any
ProcessRestartMemoryLimit setting at the domain level. The ProcessRestartMemoryLimit value
set within the [Publish&Subscribe] section applies to all integration server processes (handlers and
dispatchers) running in that group within the domain.
•
If ProcessRestartMemoryLimit is set within an individual server process configuration section,
such as [PSPUBHND_dflt] (settings for publication contract handler), that setting overrides any
ProcessRestartMemoryLimit setting at the [Publish&Subscribe] section level or the domain level.
PeopleCode Debugger Options
Use this section to enable and configure the PeopleCode debugging environment. Configuring
PeopleCode debugging is discussed in detail in another section of this PeopleBook.
Related Links
Setting Up the PeopleCode Debugger
142
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Trace Options
This section enables you to specify the tracing options that you can enable on the application server to
track the Structured Query Language (SQL) and PeopleCode of the domains. You can also set all of the
trace parameters from the PeopleSoft sign-in page. Just beneath the Sign In button, click the link that
opens the trace flags page. This enables you to set the trace options and then sign in to the system.
Note: With many of the following trace options, you need to view the comments in the PSAPPSRV.CFG
to understand what to enter to return the trace information you require.
TraceSQL
Enter the logging level for SQL tracing for all clients. Traces are written to PS_CFG_HOME/
appserv/domain/LOGS/domain_user_IDservername.tracesql.
Enter 0 to disable tracing; enter 7 to enable a modest tracing level for debugging. For other levels of
tracing, set this option to a value that equals the sum of the needed options. For example, to trace only
SQL, enter 1; to trace SQL statements and connect statements enter 7 (1+ 2 + 4 = 7). A setting of 7 is
recommended for troubleshooting connection and other basic problems. Tracing can consume large
amounts of disk space over time, so be sure to reset this option to 0 when you finish troubleshooting.
Important! The trace file stores elapsed times for SQL events to a precision of one microsecond (six
decimal places). However, due to limitations of the operating system, Windows precision is actually
in milliseconds (three decimal places), so the last three digits in a Windows trace will always be zero.
Elapsed times in UNIX are accurate to one microsecond.
TraceSQLMask
Enter the logging level ceiling for SQL tracing for individual clients. Traces are written to
PS_CFG_HOME/appserv/domain/LOGS/client_user_IDservername.tracesql.
For Windows clients, you specify the necessary SQL tracing level by using the PeopleSoft Configuration
Manager on the Trace tab. To prevent clients from turning on the application server trace and consuming
resources, the application server uses TraceSQLMask as an administrative control facility.
If a client transmits a request to trace SQL, the application server compares the value that is transmitted
to the TraceSQLMask value. If the client value is less than or equal to the TraceSQLMask value, the
application server enables the trace. However, if the client value is greater, the application server enables
the trace up to the TraceSQLMask value. Trace files are written on the application server; no trace shows
up on the client workstation.
TracePC
Enter a level for PeopleCode tracing for activity that is generated by all clients on a domain.
Eligible values are defined in the configuration file. TracePC values are displayed in the PeopleSoft
Configuration Manager on the Trace tab. You can find the results in PS_CFG_HOME/appserv/domain/
LOGS/domain.log.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
143
Setting Application Server Domain Parameters
Chapter 6
Important! The trace file stores elapsed times for PeopleCode events to a precision of one microsecond
(six decimal places). However, due to limitations of the operating system, Windows precision is actually
in milliseconds (three decimal places), so the last three digits in a Windows trace will always be zero.
Elapsed times in UNIX are accurate to one microsecond.
TracePCMask
Enter which PeopleCode trace options that are requested by client machines will be written to the trace
file. You can find the results in PS_CFG_HOME/appserv/domain/LOGS/client_machine.domain.log.
TracePPR and TracePPRMask
Use these options to trace the activity in the page processor. Typically, these options are used internally
only by PeopleSoft developers; however, you may need to view the results of this trace when
troubleshooting.
Tracing-related display processing is useful for seeing when and if related displays are being updated and
if they are updating successfully. Some sample output in the log file from setting this flag includes:
Starting Related Display processing
Related Display processing - PPR_RELDSPLVALID not set
Related Display processing - All Rows
Starting Related Display processing for - PSACLMENU_VW2.MENUNAME
Related Display processing for - PSACLMENU_VW2.MENUNAME - completed successfully
Finished Related Display processing
By using the keylist generation tracing in addition to the related display tracing, you can determine why
the related displays have the wrong value. It shows where the keys are coming from. The following is a
sample of keylist generation tracing:
Starting Keylist generation
Keylist generation - FIELDVALUE is a key
FIELDVALUE is low key
Low key value was supplied =
Key FIELDVALUE =
Keylist generation - FIELDNAME is a key
Keylist generation - Finding value for USRXLATTABLE_VW.FIELDNAME
Not Found in key buffer
Seaching for field FIELDNAME in component buffers
Scanning level 1
Scanning record DERIVED_USROPTN for field FIELDNAME
Field FIELDNAME found in record DERIVED_USROPTN
Found in component buffers, value = PT_TIME_FORMAT
Key FIELDNAME = PT_TIME_FORMAT
Keylist generation - USEROPTN is a key
Keylist generation - Finding value for USRXLATTABLE_VW.USEROPTN
Not Found in key buffer
Seaching for field USEROPTN in component buffers
Scanning level 1
Scanning record DERIVED_USROPTN for field USEROPTN
Scanning record PSUSROPTLIST_VW for field USEROPTN
Field USEROPTN found in record PSUSROPTLIST_VW
Found in component buffers, value = TFRMT
Key USEROPTN = TFRMT
Keylist Generation complete
FIELDNAME = PT_TIME_FORMAT
FIELDVALUE =
USEROPTN = TFRMT
In this example, you can see how the system builds the keylist by first searching in the current record (key
buffer), then searching the buffers in the current level, and then searching up a level, and so on. It also
144
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
indicates exactly what record the key value is taken from. This is useful on complex components where
there are often several instances of a particular field; a common problem is that the value is derived from
an unexpected location.
Combining the keylist tracing and the related display tracing provides a good view of the system behavior.
For example:
Starting Related Display processing
Related Display processing - All Rows
Starting Related Display processing for - PSACLMENU_VW2.MENUNAME
Starting Keylist generation
Keylist generation - MENUNAME is a key
MENUNAME is low key
Low key value was supplied = APPLICATION_ENGINE
Key MENUNAME = APPLICATION_ENGINE
Keylist Generation complete
MENUNAME = APPLICATION_ENGINE
Related Display processing for - PSACLMENU_VW2.MENUNAME - completed successfully
Each related display goes through the keylist generation process, and you can see exactly what key values
are used to populate the related displays and where those key values came from.
The work record flag is a performance feature. If every field in a level-0 record has a value from the
keylist and is display-only, then it is marked as a work record because the values can't be changed. After
it is marked as a work record, that affects how the record behaves. For example, PeopleCode for fields in
the record but not in the component don't run, data isn't saved, and so on. By enabling this tracing option,
you can see which records are flagged as work records. The output looks like this:
Work
Work
Work
Work
Work
Work
Work
Work
flag
flag
flag
flag
flag
flag
flag
flag
cleared
cleared
cleared
cleared
cleared
set for
set for
set for
for record PSCLASSDEFN_SRC
for record PSCLASSDEFN_SRC
for record PSCLASSDEFN
for record PSPRCSPRFL
for record SCRTY_QUERY
record PSCLASSDEFN
record PSPRCSPRFL
record SCRTY_QUERY
Because the flag is turned on and off at various points, the last setting (set or cleared) is the most
important. In the previous trace, PSCLASSDEFN, which is marked as a work record, is cleared and then
set again.
TracePIA and TracePIAMask
Use these options for tracing PeopleSoft page (PIA page) generation.
TraceAE
Use this parameter to activate specific Application Engine traces for tracing Application Engine
programs.
TraceAnalytic and Trace AnalyticMask
The bits enable logging for analytic servers beyond the standard LogFence setting.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
145
Setting Application Server Domain Parameters
Chapter 6
TracePPM
The Performance Monitor agent is a thread that reports performance metrics for each instrumented server
if monitoring is enabled for the database. Select 1 to enable and0 to disable.
See Performance Monitor.
DumpMemoryImageAtCrash
This parameter determines whether or not a memory image of the failing process is created when a
crash occurs. By default, the value is 'NONE' which means that a memory image will not be written
during a crash. This value can be set to 'MINI' or 'FULL'. MINI means that a shorter memory image is
written. This may be a better option if you are leaving this option turned on permanently. FULL may
be appropriate when you are debugging a known issue. Typically, this option is used internally only by
PeopleTools.
DumpManagerObjectsAtCrash
This parameter assists PeopleSoft in debugging any crash problems at your site by providing insight into
the customized object definitions to reproduce the crash on another database.
Log Error Report, Mail Error Report
If you enter y (enabled) and runtime errors are detected (nonfatal error conditions), the system writes
a message and information regarding the runtime error to the current log file. If you assign the
MailErrorReport parameter an email address, an individual, such as a system administrator, can be alerted
whenever the system writes an error to the log. If MailErrorReport is enabled but LogErrorReport is set to
n, the system still sends a message for application server crashes, which always cause data to be written
to the log. The following is an example of setting this parameter to send notifications to an email address:
[email protected]
Cache Settings
Use this section to specify how to handle caching at your site. Enabling caching on the application server
improves performance, but you need to review the available cache options and determine which option
best suits your site.
Note: The majority of the cache settings need to be uncommented in the PSAPPSRV.CFG file.
EnableServerCaching
With EnableServerCaching, you specify what objects the system stores in cache on the application server.
To enable application server disk caching the value must be set to 1 or 2.
If you enter 1 the system caches only the most used classes of objects, and if you enter 2, the system
caches all object types regardless of the frequency of use. Which option you select depends on internal
testing at your site.
146
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
To disable application server caching, set this value to 0. In most cases there is no reason to disable
server caching. Doing so significantly degrades performance, because it requires the application server to
retrieve an object from the database each time the system needs it.
CacheBaseDir
This setting is the location where cache files will be written and stored for this domain.
Note: You must preload your shared cache before you enable shared caching on the application server.
Application Engine processes are independent from application server domains, directories, and
configuration files. Therefore, Application Engine processes do not share cache with application server
domain processes.
ServerCacheMode
Caching enables the system to store definitions locally on the application server, eliminating unnecessary
trips to the database server. If caching were disabled, the system would need to retrieve definitions from
the database with each request, every time. This adds significant overhead to each transaction and affects
system response times.
If server caching is enabled on the application server, which is usually the recommended approach, there
are two modes of caching from which to choose.
Cache Mode
Description
Non-shared cache
By default, non-shared cache mode is enabled (
ServerCacheMode set to 0).
With the non-shared cache mode, each server process that
starts within a domain maintains its own separate cache file.
For example, assume you had two PSAPPSRV processes
configured in a domain. In non-shared cache mode, there is
one cache directory per PSAPPSRV server process, which
each individual PSAPPSRV process uses separately.
In this case, you can find the cache files in PS_CFG_
HOME\appserv\domain\cache\PSAPPSRV_1and \PSAPPSRV
_2.
While the cache directories will grow over time to include the
most used definitions, you have the option to preload the nonshared cache directories with the most used system definitions.
See Configuring an Application Server Domain to Preload
Cache.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
147
Setting Application Server Domain Parameters
Chapter 6
Cache Mode
Description
Shared cache
To set shared caching for the domain, enter 1 at the Set
ServerCacheMode prompt. With this option enabled, you can
find the cache files in PS_CFG_HOME\appserv\domain\cache
\share.
The system assumes that a preloaded cache exists in the share
directory. The preloaded cache contains most instances of the
managed object types that are cached to file. When you boot
the application server, if shared cache files are enabled but no
cache files exist in the expected location, the system reverts to
unshared caching.
To preload shared cache, you run delivered Application Engine
programs that build your shared cache.
See Load Application Server Cache.
MaxCacheMemory
PeopleTools stores metadata in a memory cache on the server machine to increase system performance.
However, in rare situations if the memory cache becomes too large, it can reduce the amount of memory
available to other processes running on the server, which can degrade general performance. Use the
MaxCacheMemory setting in certain situations where it is required to specify the maximum allowable
size of the memory cache.
Note: Typically, this setting only needs to be implemented in rare circumstances, or when instructed to do
so by GCS support staff. In most situations, it is recommended that sufficient memory be installed on the
server machine to ensure optimal performance.
The MaxCacheMemory setting enables you to establish a size limit in megabytes, that the memory cache
should not exceed. Every time the system retrieves an object from the database, such as a page, it updates
the object’s LastUsedDate value. When your system reaches the memory cache threshold controlled by
the MaxCacheMemory setting, the system "prunes“ the oldest objects in the memory cache until the
desired memory cache size is reached.
Note: If a memory cache limit has been set, the system prunes the memory cache to keep it roughly 10%
below the specified limit.
The default value of this setting is 0 (disabled), which disables memory cache pruning altogether,
allowing for an unlimited memory cache. That is, when MaxCacheMemory is set to 0, the system
continues to store a memory cache, but the system will not attempt to prune or reduce the size of the
memory cache.
The default setting (disabled) might not be optimal for your application. You can adjust this setting to
achieve the best trade-off between speed and available memory based on your system requirements. If
you are in a situation where you need to limit the size of the memory cache, enter that limit in megabytes.
Make sure to test your memory cache limit thoroughly in realistic scenarios, reflecting your production
environment.
148
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
EnableDBCache
If enabled, the metadata (cache) is accessed from database, rather than the file system.
To implement database caching, uncomment the parameter and enter Y to enable database caching, orN to
disable database caching. After changing this parameter, the domain does not need to be reconfigured.
The database cache is shared by all domains that enable this option.
When database caching is enabled, these settings are ignored:
•
EnableServerCaching
•
ServerCacheMode
•
CacheBaseDir
You can load the database cache using the Load Application Server Cache utility or the preload cache
utility.
Note: Database caching is also available for Process Scheduler domains.
Related Links
Load Application Server Cache
Configuring an Application Server Domain to Preload Cache
PreLoadCache and PreLoadMemoryCache
If you have created a cache project, specify the project name. Before booting a domain, you have the
option to preload the cache, and this option creates the cache based on the load project you specify.
If database caching is enabled, the cache is preloaded into the database.
Related Links
Configuring an Application Server Domain to Preload Cache
EnableCacheRepair
Set to Y to enable the cache repair utility, which can be configured using these settings:
•
AdjustMaxCacheMem
•
ExcessivePruningThreshold
•
CacheMissThreshold
•
MaxRepairCollection
If set to N, the cache repair utility does not run, and the system ignores these settings.
The cache repair settings enable you to configure the system to monitor and adjust automatically a
domain’s cache while it runs, requiring no intervention from system administrators, and without requiring
the domain or a server process to be restarted.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
149
Setting Application Server Domain Parameters
Chapter 6
Note: When cache repairs occur, the system writes a message to the log file. The messages are preceded
with the text “Cache Repair:” so they can be identified easily. The system begins recording these
messages when the log fence is set to 4.
AdjustMaxCacheMem
AdjustMaxCacheMem only applies if the MaxCacheMemory setting has been enabled for the domain.
MaxCacheMemory is used to remove (also referred to as pruning) old objects from the memory cache so
that it does not become too large and consume more system resources than expected.
Set the number of megabytes by which the system can increase the MaxCacheMemory setting if
the memory cache size has reached the MaxCacheMemory setting. So, rather than pruning more
objects from the memory cache, this setting increases the memory cache limit incrementally. For
example, if MaxCacheMemory is set to 50 and AdjustMaxCacheMem is set to 5, the system increases
MaxCacheMemory to 55 megabytes when the 50 megabyte limit is reached.
Note: When the system increases the MaxCacheMemory value, the increase will not be reflected
in the configuration file. When the application server domain recycles, it assumes the original
MaxCacheMemory value set in the configuration file. You can review the log files to determine what the
system automatically increased the MaxCacheMemory to prior to the recycle, and set the static value in
the configuration file accordingly.
ExcessivePruningThreshold
Expressed as a percentage and represents the percentage of objects fetched from the database or persistent
cache during the service request (and therefore added to memory cache) that have also been pruned from
the memory cache at the end of the service request. If more than 80% of the objects fetched during a
service request are pruned at the end of the service request, then the system is over-pruning.
Once the threshold has been reached, the system adjusts the MaxCacheMemory limit by the
AdjustMaxCacheMem value so that the system is not constantly fetching from the persistent cache.
When this occurs, a message appears in the logs similar to:
Cache Repair: Warning excessive pruning has been detected. 83 percent or more of
cached items have been removed from memory cache. MaxCacheMemory may be set too low.
If AdjustMaxCacheMem is not set to 0, then the system also logs the following message:
Cache Repair: Adjusted internal MaxCacheMemory setting from 50MB to 55MB.
CacheMissThreshold
Threshold for the number of times an object is found to be invalid within the memory and persistent
cache. Once this threshold is reached, the system deletes the object from both memory and persistent
cache, forcing the object to be refreshed from the database.
The system tracks the types of cache separately. If the object is invalid only in memory cache, then it's
only removed from there. But if the object is invalid in the persistent cache (file or database cache), then
it's removed from memory and the persistent cache.
150
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
The log file message is similar to:
Cache Repair: PDM(VAT_OPTIONS_SBP/ENG) Found invalidated object in memory cacheRemoved from memory
Cache Repair: PDM(VAT_OPTIONS_SBP/ENG) Found invalidated object in file cache- Removed
from memory and cache
Cache Repair: PDM(VAT_OPTIONS_SBP/ENG) Found invalidated object in db cache- Removed
from memory and cache
MaxRepairCollection
To keep track of various cache metrics, the system stores some caching information for automatic
analysis to determine if corrective measures need to be taken. The default limitation for this storage
is 5 megabytes. This data is not used for historical reporting or analysis, and it is used only by the
system while a server process is running. Once the limit is reached, the system purges all cache tracking
information.
The log file message is similar to:
Cache Repair: maxed out memory at 5MB, purging cache repair data
Remote Call Options
RCCBL Redirect
Enter 0 to disable redirection and 1 to enable redirection. Redirection causes the server process to retain
intermediate work files that are used to pass parameter values between the server process and a Remote
Call/COBOL program for debugging purposes, and it also generates Remote Call trace information in the
COBOL output files.
If set to 0, the system generates no COBOL output files. If set to 1 (enabled), the system generates:
•
rmtcall_in.<pid>
•
rmtcall_out.<pid>
•
rmtcall_cblmsg.<pid>
•
Remote Call Tracing entries for COBOL output files.
Note: Where <pid> is the Process ID.
Note: RCCBL Redirect should be enabled only when debugging because writing Remote Call trace
entries to the COBOL output files can add to system overhead and overall performance.
Remote Call Trace Information
The information captured for Remote Call tracing follows this general structure:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
151
Setting Application Server Domain Parameters
Chapter 6
Trace Field
Description
Remote Call trace identifier (RCCT)
Remote Call COBOL Trace (RCCT) helps you to identify the Remote Call tracing
in the COBOL output files.
Remote Call Component
Enables you to identify the type of Remote Call being traced:
Trace information
•
PSPCM
•
PTPECOBL
•
PTPNETRT
•
PTPSQLRT
•
Application COBOL
The the trace record can be different depending on what is being traced:
•
In some cases there are parameter/value pairs written in the record, such as:
RCCT: PSPCM: pSamParms->szDBName QE850GA
RCCT: PTPNETRT: DATA-FIELD-REG
BEGIN ->a<- END
•
In other cases there will be trace information that reports the program flow:
RCCT: PTPNETRT: RemoteCall PSCOBNET function CBL_
GET_OS_INFO
Remote Call Output Files
The location and naming of the COBOL output files differ depending on whether the Remote Call is
invoked on the application server or the Process Scheduler server (by the PSAESRV server process).
Location
Description
Application Server
If the Remote Call is invoked on the application server, the COBOL output file(s) are
written to:
PS_CFG_HOME/appserv/<APP_SERVER_DOMAIN>/LOGS
The output file with the Remote Call trace entries follows this naming convention:
<COBOL_PGM>_<OPERID>_<TIMESTAMP>.out
152
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Location
Description
Process Scheduler Server
If Remote Call is invoked on the Process Scheduler server (PSAESRV), the COBOL
output file will be written to:
PS_CFG_HOME/appserv/prcs/<PROCESS_SCHEDULER_DOMAIN>/log_output/CLB
_<Program Name>_<Process_Instance>
The output file with the Remote Call trace entries follows this naming convention:
<COBOL_PGM>_<TIMESTAMP>.out
For example, if a program named PTPTSTAE runs it generates the following:
PS_CFG_HOME/appserv/prcs/HCMPRCS/log_output/CBL_PTPTSTAE_94/PTPECOBL
_1121155222.out
Note: PTPECOBL is the initial target COBOL program invoked by the Remote Call
function because PTPECOBL handles the parameter passing from the PeopleCode
program to the target application Remote Call COBOL program.
RCCBL PRDBIN
Use this parameter to specify where RemoteCall can find the COBOL executables. By default,
RemoteCall looks in a predefined location. This might not be the location where you've installed them on
your system:
•
In UNIX, RemoteCall looks in $PS_HOME/cblbin.
•
In Windows, RemoteCall looks in %PS_HOME%\cblbin%PS_COBOLTYPE%. The
%PS_COBOLTYPE% variable contains a single letter that indicates the character encoding for the
database platform. It's automatically set to one of the following values when the application server
starts:
•
U — Unicode.
•
A — Non-Unicode.
•
E — EBCDIC.
To override this default behavior, set RCCBL PRDBIN to the absolute path of your COBOL executables,
for example:
•
In Windows: RCCBL PRDBIN=c:\pscobol\MYDOMAIN\cblbin
•
In UNIX: RCCBL PRDBIN=/app/psoft/MYDOMAIN/cblbin
Note: This parameter doesn't appear in the PSADMIN custom configuration interface if it's not already
set. You must define it by editing the application server configuration file directly. On the PeopleSoft
Domain Administration menu, select Edit configuration/log files menu, then selectEdit psappsrv.cfg
(current configuration file) to open psappsrv.cfg in a text editor. Define the RCCBL PRDBIN parameter
in the RemoteCall section of the file.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
153
Setting Application Server Domain Parameters
Chapter 6
PSAPPSRV Options
The PSAPPSRV server process performs the functional requests, such as building and loading panel
groups. It also provides the in-memory-caching feature for PeopleTools objects on the application server.
Each server process maintains its own cache.
Min Instances
Enter the minimum number of application server instances that start when you boot the domain. There's
always at least this number of instances running. This translates to the PSAPPSRV server's -m (min)
parameter in the UBB file.
Max Instances
Enter the maximum number of server instances that can be started. This translates to the PSAPPSRV
server's -M (Max) parameter in the UBB file.
Service Timeout
Enter the number of seconds that a PSAPPSRV waits for a service request, such as MgrGetObj
or PprLoad, to complete before timing out. Service timeouts are recorded in the TUXLOG and
APPSRV.LOG. In the event of a timeout, PSAPPSRV is terminated and a replacement process is started
by Tuxedo.
Recycle Count
Enter the number of service requests that each server has carried out before being terminated
(intentionally) and then immediately restarting. Servers must be intermittently recycled to clear buffer
areas. The time that is required to recycle a server is negligible, occurring in milliseconds. The recycle
count does not translate into a native Tuxedo parameter in the PSAPPSRV.UBB file. Instead, the value is
stored in memory and is managed by a PeopleSoft server.
Note: The default value for the small, medium, and large templates is 10,000.
Note: Serial Recycle or Dynamic Recycle parameters can delay the recycle even if the number of the
requests is greater than or equal to the Recycle Count value.
ProcessRestartMemoryLimit
This parameter can be set at the individual server process level or the domain level.
See ProcessRestartMemoryLimit.
Allowed Consec Service Failures
Enter a number greater than 0 to enable dynamic server processes to restart for service failures. To disable
this option, enter 0. The default is 2. The value that you enter is the number of consecutive service failures
that will cause a recycle of the server process. This is a catchall error handling routine that enables
154
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
PSAPPSRV, PSQCKSRV, and PSAMSRV to terminate themselves if they receive multiple, consecutive,
fatal error messages from service routines. Such errors should not occur consecutively, but if they do, the
server process must be recycled or cleansed. A retry message appears on the client browser when this
occurs.
Max Fetch Size
The default is 5000 (K). Enter the maximum memory that is used by the server to store fetched rows for
a transaction before sending the result set back to a client. If the memory limit is exceeded, the client
receives the rows retrieved with a memory buffer exceeded warning. You should use the default value.
PSAPPSRV supports nonconversational transactions, so this parameter provides a way to balance highvolume throughput with the needs of users working with large volumes of data. A value of 0 means
unlimited memory is used. The memory is not preallocated—it is acquired as needed for each transaction.
Auto Select Prompts
Enter 1 (the default) to enable automatic prompting on lookup pages. When the user selects the prompt
lookup button, the application server automatically returns all values for that field, up to 300 rows. If
necessary, the user can refine the search further by entering partial data in the Search By field.
Enter 0 to require the user to enter a partial value before the automatic prompt list appears.
AutoLoad JVM
You can add this parameter, if needed, manually to the [PSAPPSRV] section of the PSAPPSRV.CFG file.
AutoLoad JVM controls whether the JVM gets loaded automatically when the domain boots.
By default, domain behavior reflects a setting of AutoLoad JVM=0 (not enabled).
If you have configured EnablePPM Agent=1, then JVM will be loaded at the domain boot time. If you
have configured EnablePPM Agent=0, then to load JVM when the domain boots, you need add AutoLoad
JVM=1 to the [PSAPPSRV] section of the PSAPPSRV.CFG file.
Serial Recycle
When serial recycling is enabled for a server process, the system recycles server processes of that type
within a domain on a serial basis–one after another–to allow processing to continue uninterrupted. By
default, the domain behavior reflects Serial Recycle=Y (enabled).
When Serial Recycle=Y for PSAPPSRV, for example, then only one PSAPPSRV process will recycle
during the recycle time of 60 seconds when the Recycle Count limit is reached. Then the next PSAPPSRV
will recycle.
When serial recycling is not enabled, all the server processes of that type recycle simultaneously when the
Recycle Count limit is reached, which can cause throughput to pause.
Serial recycling applies to these server process types: PSAPPSRV, PSQCKSRV, PSQRYSRV, and the
Integration Broker server processes.
To disable serial recycling, manually add the Serial Recycle parameter, and assign the value N. For
example:
Serial Recycle=N
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
155
Setting Application Server Domain Parameters
Chapter 6
The recycle time is 60 seconds.
Tuxedo Queue Size
The Integration Broker messaging system uses the Tuxedo queue size indicated in the application server
domain section of PSADMIN to determine when the Tuxedo queue size has reached its maximum.
For more details on this setting, see"Setting the Oracle Tuxedo Queue Size" (PeopleTools 8.54:
Integration Broker Administration).
PSANALYTICSRV Options
PSANALYTICSRV relates to the server processes that are associated with the analytic server framework.
Most of the parameters for PSANALYTICSRV need to be reviewed in the PSAPPSRV.CFG file and
uncommented as needed.
Related Links
MultiChannel Framework
Min Instances
Enter the minimum number of analytic server instances that start when you boot the application server
domain. There's always at least this number of instances running. The default value of this parameter is 3.
Max Instances
Enter the maximum number of analytic server instances that can result from dynamically spawning new
processes. The default value of this parameter is 3.
Analytic Instance Idle Timeout
Enter the number of minutes of inactivity before the analytic instance times out and is unloaded.
This value takes effect only if the PeopleCode AnalyticInstance class Load method specifies a value of -1
for its IdleTimeOut parameter when loading an analytic instance. This includes Load PeopleCode that's
launched from an analytic grid, which enables you to avoid having to explicitly specify a timeout.
The default value of this parameter is 0 (no timeout limit) for domains that are configured with a
developer template, and30 minutes for other domains.
ProcessRestartMemoryLimit
You can set this parameter at the individual server process level, or the domain level.
See ProcessRestartMemoryLimit.
156
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
PSSAMSRV Options
The PSSAMSRV server process communicates through the Tuxedo conversational mode. It performs
transactional SQL requests (updates).
Min Instances
Enter how many servers are started at boot time. This translates to the PSSAMSRV server's -m (min)
parameter in the UBB file.
Max Instances
Enter the maximum number of servers that can be started. This translates to the PSSAMSRV server's -M
(Max) parameter in the UBB file.
Service Timeout
Enter the number of seconds that the server processes waits for a request before timing out. This stops
runaway processes, like an rccbl timeout.
Recycle Count
Enter the number of service requests that each server carries out before being terminated (intentionally).
Tuxedo immediately restarts the server. Servers must be intermittently recycled to clear buffer areas. The
time that is required to recycle a server is negligible, occurring in milliseconds. The recycle count does
not translate into a native Tuxedo parameter in the PSAPPSRV.UBB file. Instead, the value is stored in
memory and is managed by a PeopleSoft server.
ProcessRestartMemoryLimit
This parameter can be set at the individual server process level or the domain level.
See ProcessRestartMemoryLimit.
Allowed Consec Service Failures
Enter a number greater than zero to enable dynamic server process restarts for service failures. To disable
this option, enter 0. The default is 2. The value that you enter is the number of consecutive service
failures that cause a recycle of the server process. This is a catchall error handling routine that enables
PSAPPSRV, PSQCKSRV, and PSSAMSRV to terminate themselves if they receive multiple, consecutive,
fatal error messages from service routines. Such errors should not occur consecutively, but if they do, the
server process must be recycled or cleansed. A retry message appears on the client browser when this
occurs.
Max Fetch Size
The default is 32 (K). Enter the maximum memory that is used by the server to store fetched rows for a
transaction before sending results to the client and refilling the memory buffer. When the memory limit is
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
157
Setting Application Server Domain Parameters
Chapter 6
reached, the server sends rows to the client, but then resumes refilling the buffer and sending results to the
client until the query is complete. You should leave the default value unchanged.
PSSAMSRV supports conversational transactions, so this parameter enables users to tune performance
by adjusting the number of network round-trips that are required for the average transaction. A value of 0
causes unlimited memory to be used, which means one round-trip no matter how large the result set. The
memory is not preallocated, but is acquired as needed.
PSQCKSRV Options
The PSQCKSRV is an optional server process to improve performance. Essentially, the PSQCKSRV, or
quick server, is a copy of the PSAPPSRV. It performs quick requests, such as nontransactional (read-only)
SQL requests. The PSQCKSRV improves overall performance by enabling the PSAPPSRV process to
direct a portion of its workload to PSQCKSRV.
Min Instances
Enter how many servers are started at boot time. This translates to the PSQCKSRV server's –m (min)
parameter in the UBB file.
Max Instances
Enter the maximum number of servers that can be started. This translates to the PSQCKSRV server's –M
(Max) parameter in the UBB file.
Service Timeout
Enter the number of seconds that a PSQCKSRV waits for a request before timing out. This stops runaway
processes, like an rccbl timeout. This applies to incremental PSQCKSRV servers that are dynamically
started by the Max Instances parameter.
Recycle Count
Use the PSAPPSRV specifications.
ProcessRestartMemoryLimit
This parameter can be set at the individual server process level or at the domain level.
See ProcessRestartMemoryLimit.
Allowed Consec Service Failures
Enter a number greater than zero to enable dynamic server process restarts for service failures. To disable
this option, enter 0. The default is 2. The value that you enter is the number of consecutive service failures
that will cause a recycle of the server process. This is a catchall error handling routine that enables
PSAPPSRV, PSQCKSRV, and PSAMSRV to terminate themselves if they receive multiple, consecutive,
fatal error messages from service routines. Such errors should not occur consecutively, but if they do, the
158
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
server process must be recycled or cleansed. A retry message appears on the client browser when this
occurs.
Max Fetch Size
Use the PSAPPSRV specifications.
Serial Recycle
Use the PSAPPSRV specifications.
PSQRYSRV Options
PSQRYSRV handles the SQL that is generated by PeopleSoft Query (PSQED.EXE). With PSQRYSRV
configured, SQL-intensive, complicated, user-defined queries are offloaded to a dedicated server process,
thus freeing PSAPPSRV and PSQCKSRV to handle the SQL requests for which they are more suited.
Note: When running PS/nVision reports from a three-tier, Windows client connection, the system also
routes the SQL generated by both matrix (ledger-based) and tabular (PS Query-based) reports through
PSQRYSRV if it is enabled.
PSQCKSRV also processes SQLRequest services; however, if PSQRYSRV is configured, it processes all
SQLRequests that are initiated specifically by PSQuery (SQLQuery:SQLRequest) or PS/nVision.
Like the PSQCKSRV server process, PSQRYSRV is an optional server process. However, if you allow
users to initiate queries from PeopleSoft Query, you should take advantage of this server process.
Min Instances
Enter how many servers are started at boot time. This translates to the PSQRYSRV server's –m (min)
parameter in the UBB file.
Max Instances
Enter the maximum number of servers that can be started. This translates to the PSQRYSRV server's –M
(Max) parameter in the UBB file.
Service Timeout
Enter the number of seconds that PSQRYSRV waits for a request before timing out. This stops runaway
processes.
Recycle Count
Enter the number of service requests that each server carries out before being terminated (intentionally)
by Tuxedo and then immediately restarted. Servers must be intermittently recycled to clear buffer areas.
The time that is required to recycle a server is negligible, occurring in milliseconds.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
159
Setting Application Server Domain Parameters
Chapter 6
If the recycle count is set to 0, PSQRYSRV is never recycled.
ProcessRestartMemoryLimit
This parameter can be set at the individual process level or at the domain level.
See ProcessRestartMemoryLimit.
Allowed Consec Service Failures
Enter a number greater than 0 to enable dynamic server process restarts for service failures. To disable
this option, enter 0. The default is 2. The value that you enter is the number of consecutive service failures
that will cause a recycle of the server process. This is a catchall error handling routine that enables
PSAPPSRV, PSQCKSRV, PSQRYSRV, and PSSAMSRV to terminate themselves if they receive multiple,
consecutive, fatal error messages from service routines. Such errors should not occur consecutively, but
if they do, the server process must be recycled or cleansed. A retry message appears on the client browser
when this occurs.
Max Fetch Size
Enter the maximum size (in KB) of a result set that is returned from a SELECT query. Use 0 for no limit.
Use Dirty-Read
(Applies only to DB2 systems.) Enter 1 to enable the application server to read uncommitted data from a
table. Enter 0 to disable dirty reads.
This parameter can be used for general reporting and PeopleSoft Query. You can run dirty read queries
through the application server, the Process Scheduler, and in a two-tier connection. The Use Dirty-Read
setting in the application server configuration controls the behavior of PSAPPSRV, PSQCKSRV, and
PSQRYSRV.
Note: Dirty reads are not recommended if you are reading data and doing subsequent processing based
on the disposition of the data at the time that it is read. Between the time the data is read by a subsequent
process and the time the unit of work is completed by the first process, any activity affecting the table data
at the time a subsequent process read could be rolled back, invalidating the accuracy of the data that a
subsequent process read.
Related Links
Query
"Setting Parameters for the Application Engine Server" (PeopleTools 8.54: Process Scheduler)
Serial Recycle
Use the PSAPPSRV specifications.
160
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Integration Broker Server Processes
A variety of server processes are devoted to Integration Broker processing. These servers are configured
in these sections:
•
Publish&Subscribe
•
PSBRKDSP
•
PSBRKHND
•
PSSUBDSP
•
PSSUBHND
•
PSPUBDSP
•
PSPUBHND
These server processes act as dispatchers and handlers of the messages being distributed by the
Integration Broker.
Related Links
Integration Broker Administration
SMTP Settings
You can send electronic mail requests, issued with workflow or PeopleCode, to the application server,
which passes the requests to the specified mail server (SMTPServer). To specify the appropriate SMTP
server and port to receive the email requests, you must edit the SMTP Settings section.
When set in the PSAPPSRV.CFG file, these SMTP settings are not dynamic: SMTPGuaranteed,
SMTPTrace, SMTPSendTime. They require a domain reboot to take effect.
Note: You can also control most of these settings using the PeopleCode SMTPSession class, which
temporarily overrides them without changing the values in PSAPPSRV.CFG. You use this class primarily
when you want to send multiple emails in a single session of the SMTP server, instead of having to
change the permanent SMTP settings for every email. In the event that your application PeopleCode does
not specify its own SMTP settings, the system uses the settings in the PSAPPSRV.CFG file.
See "SMTPSession Class" (PeopleTools 8.54: PeopleCode API Reference).
SMTPServer
Enter the host name and IP address of the mail server machine.
SMTPPort
Enter the port number on the mail server machine.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
161
Setting Application Server Domain Parameters
Chapter 6
SMTPServer1
Enter the host name and IP address of the failover mail server machine in case the other specified server is
down.
SMTPPort1
Enter the port number on the failover mail server machine.
SMTPSender
Enter the sender's internet address. This must be a valid address, such as [email protected]
SMTP BlackberryReplyTo
Enter the internet address that you want to be the reply to address for Blackberry email responses. This
must be a valid address such as [email protected]
SMTPSourceMachine
Enter the sender's source machine name and internet address in the form of MACHINE.XYZCORP.COM.
This value is required in some, but not all environments.
SMTPCharacterSet
Enter the character set that is used on the sender's machine.
SMTPEncodingDLL
Enter the name of a dynamic-link library (DLL) that is used to translate the mail message from the
sender's character set (such as latin1, sjis, big5, gb, ks-c-5601-1987, or ks-c-5601-1992) to a 7-bit safe
character set for transmission.
SMTPGuaranteed
Set this parameter to 1 if you want TriggerBusinessEvent email PeopleCode to be delivered through
the Integration Broker system, which provides some additional administration capabilities for ensuring
delivery of the message. By enabling this feature you implement a mechanism to ensure that emails get
routed to the appropriate place in case SMTP mail fails for reasons such as network timeouts, downed
mail servers, invalid parameters, and so on.
This setting enables the system to track email messages sent using Integration Broker queues. When
sending an email with this option enabled, the system performs an asynchronous local-to-local publish,
and for the subscription the system calls MCFOutboundMail.send to email the message.
SMTPTrace
Enter 1 to enable the tracing of email details to the log file. Enter0 to disable SMTP tracing.
LogFence should be set to 5.
162
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
The system writes the log information to SMTP<DDMM>.log in %PS_SERVDIR%/LOGS, by default, or
the custom value set for Log Directory. For example:
PS_CFG_HOME\APPSERV\domain\LOGS\SMTP6_27.log
SMTPSendTime
Enter 1 to have messages contain a send time that is populated by the application server. Enter 0 to leave
the send time blank and have it populated by the receiving gateway (depending on the gateway).
SMTPUserName
Enter the user name to log in to the SMTP server. This applies only when authentication is enabled on the
SMTP server.
SMTPUserPassword
Enter the password for the user specified by SMTPUserName to access the SMTP server. This applies
only when authentication is enabled on the SMTP server.
Use PSCipher to encrypt the SMTPUserPassword value.
See "Using the PSCipher Utility" (PeopleTools 8.54: Security Administration).
SMTPUserName1
Enter the user name to log in to the failover SMTP server. This applies only when authentication is
enabled on the failover SMTP server.
SMTPUserPassword1
Enter the password for the user specified by SMTPUserName1 to access the failover SMTP server. This
applies only when authentication is enabled on the failover SMTP server.
Use PSCipher to encrypt the SMTPUserPassword1 value.
See "Using the PSCipher Utility" (PeopleTools 8.54: Security Administration).
SMTPTimeToWaitForResult
Enter the time in milliseconds for the mail system to wait for the result of sending each
email. If the time is set to 0, the system doesn't wait, and the returned result will be always
be%ObEmail_SentButResultUnknown ( = -1). If you set this parameter to-1, the system will wait for the
completion of the send process. The default value of this setting is 10000 (ten seconds).
SMTPUseSSL
Indicates that SSL connections are enabled. Enter Y for yes orN for no. The default value isN.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
163
Setting Application Server Domain Parameters
Chapter 6
SMTPSSLPort
If using SSL, specify the SSL port on the SMTP server. The default is 465.
SMTPClientCertAlias
If the SMTP server is configured for client authentication, enter the alias name of the client certificate.
SMTPSSLPort1
Applies to the failover SMTP server.
If using SSL, specify the SSL port on the SMTP server. The default is 465.
SMTPUseSSL1
Applies to the failover SMTP server.
Indicates that SSL connections are enabled. Enter Y for yes orN for no. The default value isN.
SMTPClientCertAlias1
Applies to the failover SMTP server.
If the SMTP server is configured for client authentication, enter the alias name of the client certificate.
SMTPDNSTimeoutRetries
Enables you to configure the number of times the IsDomainNameValid method of the MCFMailUtil
class retries to verify that the domain of an email address submitted to the method is valid. If you need
to override the system default, manually add this parameter to the [SMTP Settings] section of the
PSAPPSRV.CFG file.
Related Links
"IsDomainNameValid" (PeopleTools 8.54: PeopleCode API Reference)
Implementing NT LAN Manager
PeopleTools supports NT LAN Manager (NTLM) as a primary authentication mechanism. NTLM is
a suite of authentication and session security protocols used in various Microsoft network protocol
implementations. To use NTML with PeopleTools, you need to add these parameters manually to the
PSAPPSRV.CFG file and PSPRCS.CFG file in the SMTP settings section.
164
Parameter
Description
SMTPNTLMEnable
Specify whether NTLM is enabled. Add true or false.
SMTPNTLMDomain
Specify the NTLM domain.
SMTPNTLMEnable1
Specify whether NTLM is enabled for the backup server.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Parameter
Description
SMTPNTLMDomain1
Specify the NTLM domain for the backup server.
Implementing Simple Authentication and Security Layer
PeopleTools supports Simple Authentication and Security Layer (SASL) as a primary authentication
mechanism. SASL is a framework for authentication and data security in many internet protocols. While
there are several SASL mechanisms, PeopleTools supports PLAIN SASL only. To use SASL with
PeopleTools, you need to add these parameters manually to the PSAPPSRV.CFG file and PSPRCS.CFG
file in the SMTP settings section.
Parameter
Description
SMTPSASLEnable
Specify whether SASL is enabled.
SMTPSASLMechanism
Specify the SASL mechanism.
SMTPSASLAuthorizationid
Specify the authorization ID
SMTPSASLRealm
Specify the realm.
SMTPSASLEnable1
Specify whether SASL is enabled for the backup server.
SMTPSASLMechanism1
Specify the SASL mechanism for the backup server.
SMTPSASLAuthorizationid1
Specify the authorization ID for the backup server.
SMTPSASLRealm1
Specify the realm for the backup server.
SMTP Further Considerations
Keep in mind the following considerations:
•
PeopleSoft mail integration is on the application server only.
PeopleSoft software does not support VIM/MAPI, because this option is client-side-only integration,
and PeopleSoft Internet Architecture applications run on the server-side.
•
The application server communicates directly with the SMTP server through telnet by using standard
SMTP commands with Multipurpose Internet Mail Extensions (MIME) 1.0 messages.
•
PeopleSoft software currently supports UTF-8 encoding of the e-mail messages by default, and you
can encode e-mail messages in other ways.
With server-side integration, you do not have to certify any specific e-mail client application. You can
use any application to read e-mail.
•
PeopleSoft recommends using the Multichannel Framework mail classes for all e-mail sent from a
PeopleSoft application.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
165
Setting Application Server Domain Parameters
Chapter 6
Related Links
"Understanding PeopleSoft MultiChannel Framework Mail Classes" (PeopleTools 8.54: PeopleCode API
Reference)
Interface Driver Options
Set the following parameter for configuring the interface driver for business interlinks.
Note: PeopleSoft Business Interlinks is a deprecated product and these options currently exist only for
upgrade compatibility and transition.
SCP_LOCALE
Enter the RPS_LOCALE string, which the driver sends to the Supply Chain Planning (SCP) server.
PSTOOLS Options
You may need to set the following parameters in advanced configurations.
EnablePPM Agent
Controls whether the Performance Monitor agent runs and collects performance monitor data. Enter 1
to enable the Performance Monitor agent, and0 to disable the Performance Monitor agent. This setting
overrides the value for this parameter that is set in the database.
Related Links
Performance Monitor
Add to CLASSPATH
The Add To CLASSPATH environment variable parameter enables the Java Virtual Machine (JVM) and
other Java applications where to find the Java class libraries, including any user-defined class libraries.
Because PeopleTools automatically generates CLASSPATH entries for core, delivered class libraries, use
this variable to specify additional class libraries that the PeopleSoft software needs to access. To use this
parameter, you need to uncomment it in the PSAPPSRV.CFG file.
The PeopleCode API Reference provides details on where you can place custom and third-party Java
classes.
See "System Setup for Java Classes" (PeopleTools 8.54: PeopleCode API Reference).
166
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
JavaVM Options
Specify additional options to be passed to the JVM loaded by the domain's server processes. Separate the
options with spaces, for example:
-Xrs -Xmx256m -Xms256m
If the domain will run as a Windows service, you must specify at least the default option, -Xrs.
Note: If you are using the AIX operating system, these options may be required: JavaVM Options=Xrs -Djava.awt.headless=true -Xcheck:jni.
The JavaVM Options parameter specified in the [PSTOOLS] section specifies global JavaVM options
used by every server process in a domain. To override this global value for a particular server process,
you can apply custom JavaVM options to individual server processes by adding the JavaVM Options
parameter manually to the configuration section for that server process.
JavaVM Options can appear multiple times in a single PSAPPSRV.CFG or PSPRCS.CFG file. While the
JavaVM Options value in the [PSTOOLS] section applies to all server processes governed by a particular
configuration file, the system only uses the JavaVM Options value in the [PSTOOLS] section for server
processes that do not have the JavaVM Options parameter added to its configuration settings section.
For example, if the JavaVM Options parameter has been added to the [PSAPPSRV] section of the
PSAPPSRV.CFG file and has been assigned a value, then that value will be used when loading the
JVM as a thread of that PSAPPSRV process. If the JavaVM Options parameter does not appear, or
has no value, in the [PSAPPSRV] section, then the system uses the value specified in the [PSTOOLS]
section when loading the JVM as a thread of the PSAPPSRV process. This applies to any server process:
PSAPPSRV, PSQRYSRV, PSAESRV, and so on.
See your JRE documentation for valid JVM options.
Note: If the server runs behind a proxy server, and Java code will be invoked, you must set the -D Java
options to reflect your proxy connection settings. For example, Java code invoked by any Tuxedomanaged server, such as the application server or Process Scheduler server, requires the following Java
options: -Dhttp.proxyHost=<value>, -Dhttp.nonProxyHosts=<value>, and -Dhttp.proxyPort=<value>.
Proxy Host
If the HTTP destination, such as the gateway host, is behind a proxy server for security reasons, enter the
distinguished name of the proxy server, as in proxy.oracle.com.
Note: The proxy settings configured in the PSAPPSRV.CFG file do not apply to the embedded JVM. For
Java code invoked on a PeopleSoft server (application server, Process Scheduler server, and so on) that
requires a connection to the proxy, set the Java proxy settings using the Java VM Options setting in the
PSAPPSRV.CFG file or PSPRCS.CFG file.
Proxy Port
Enter the port number on which the proxy server is listening for transmissions. For instance, 80 is a
typical default port number.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
167
Setting Application Server Domain Parameters
Chapter 6
Non Proxy Hosts
Enter a list of the hosts that should be connected to directly, not through a proxy server. Separate the
hostnames with a pipe symbol ( | ). You can use an asterisk (*) as a wildcard character to specify a pattern
of similar hostnames.
For example, localhost|*.oracle.com indicates that the local host and all hosts with names
ending in .oracle.com will be accessed directly.
Note: The length of this string cannot exceed 1024 characters.
Usage Monitoring State
Required only if you are enabling the Usage Monitor, which generates system usage metrics using
Performance Monitor technology. The usage metrics can then be incorporated with the PeopleSoft Testing
Framework to enable you to design more efficient test plans that focus efforts on the elements of the
system most used or most affected by and update or upgrade. Usage Monitor must be enabled in the
domain before usage metrics can be captured.
Value
Description
0
Usage Monitor is disabled. No usage information will be
captured.
1
Usage Monitor is enabled, all users are monitored, and all
users are anonymous, as in usage activity is not associated
with a particular user ID. Anonymous data is collected unless
the user configures the Test Name and Test Case Name fields
on the Usage Monitoring page.
2
Usage Monitor is enabled, all users are monitored, and user
are not anonymous. That is, usage activityis associated with a
particular user ID.
Note: There are other options that need to be enabled within Performance Monitoring in addition to the
Usage Monitor State parameter.
Related Links
"Usage Monitor" (PeopleTools 8.54: Performance Monitor)
Character Set
Enter the character set to be used as the system locale. This setting is used to convert text to and from
UNICODE when using interfaces that do not support UNICODE. Such interfaces include file names, text
file contents, and other operating system calls that require non-UNICODE text. This setting controls how
files used by the PeopleTools file attachment feature are named. The default values are:
168
Operating System
Value
UNIX
latin1
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Operating System
Value
z/OS
ccsid1047
Windows
CP_ACP
Note: By default, the parameter is commented out. With no value specified, invalid values or " "(blank
value), the system assumes the above default values as the character set.
To override the default, uncomment the Character Set parameter, and select a character set from the
following list corresponding to the languages that this application server will process. For example, to set
the character set for Simplified Chinese:
Character Set=gb2312
Note: The character set of the application server and the character set of any Microsoft Windows
workstations connecting to that application server must match.
The utf8 option is valid only when the locale character set is UTF-8.
Related Links
"Character Sets Across the Tiers of the PeopleSoft Architecture" (PeopleTools 8.54: Global Technology)
Suppress App Error Box (Microsoft Windows Only)
Enter y to suppress an application error box or message from appearing after an application error occurs.
Entern to view error dialogs and message boxes.
Note: If the system generates an error box for an application server process and this parameter is set to n,
Tuxedo can't restart the down process until you close the error box.
DbFlags
The following values are valid for the DbFlags parameter:
Value
Description
0
Enable the %UpdateStats meta-SQL construct.
1
Disable the %UpdateStats meta-SQL construct.
2
Ignore the Truncate command for DB2 LUW. Use Delete
instead.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
169
Setting Application Server Domain Parameters
Chapter 6
Value
Description
4
Disable a secondary database connection (used with the
GetNextNumberWithGapsCommit PeopleCode function).
This prevents the creation of a secondary database connection,
bundling all SQL into a single unit of work. Without the
additional database connection, the database row lock is held
for a longer time, reducing concurrency in a multiple-user
environment.
Note: Analytic instance processing requires a secondary
database connection, so if you're using analytic servers, ensure
that this value is not set.
8
Disable a persistent second database connection (used with the
GetNextNumberWithGapsCommit PeopleCode function).
This creates a second database connection in each
GetNextNumberWithGapsCommit call, then immediately
closes the second connection. This keeps the number of
database connections to a minimum, but requires each call to
create a new database connection on demand.
Note: The performance impact of making a new database
connection is significant, especially in high volume user
production environments. Don't use this setting without
carefully considering its effect.
DbFlags uses a bit mask so that you can specify one or more of these values. You set this parameter to the
total of the values that you want to apply. For example, to disable %UpdateStats and ignore the Truncate
command, set DbFlags to 3 (setting bits one and two).
The default is value is 1.
See "Using PeopleCode in Application Engine Programs" (PeopleTools 8.54: Application Engine),
"PeopleCode Built-in Functions and Language Constructs" (PeopleTools 8.54: PeopleCode Language
Reference).
Suppress SQL Error
This option is not available through the PSADMIN interface, but it exists in the PSTOOLS section of the
PSAPPSRV.CFG file for small, medium, and large configurations.
For security purposes, this option has a default value of 1 to prevent SQL error details from being
displayed to users. Any SQL errors that occur don't display details, but refer users to consult the system
log. The details that were in the SQL message are written to the log file. This helps to prevent SQL
injection vulnerabilities.
If you want SQL error details to be visible to users, set this property as follows:
Suppress SQL Error=0
Note: In developer configurations, the Suppress SQL Error option doesn't exist in PSAPPSRV.CFG, and
the system assumes a value of 0.
170
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Related Links
"Preventing SQL Injection" (PeopleTools 8.54: PeopleCode Developer’s Guide)
Integration Broker Options
The following parameters apply to Integration Broker. All of the options for Integration Broker are
discussed in detail in the Integration Broker PeopleBooks.
Related Links
Integration Broker Administration
Min Message Size for Compression
Use this parameter to configure the threshold of a message before the system compresses the message.
Thread Pool Size
Set the thread pool size used by the SyncRequest PeopleCode event. The Minimum value is 1 and
maximum allowable is 20.
Search
These options enable you to configure PeopleSoft search. These options are documented in detail in
another section of this PeopleBook.
Note: If you do not specify a search configuration type, the system assumes the default configuration
based on your operating system.
Related Links
Configuring Verity Search Options
Search Indexes
Use this option to specify the location of all the files pertaining to the search index. Index name is the
same as the location. This option is documented in detail in another section of this PeopleBook.
See Specifying the Verity Index Location, Sharing Indexes Between Application Servers and PeopleSoft
Process Scheduler.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
171
Setting Application Server Domain Parameters
Chapter 6
PSRENSRV Options
PSRENSRV is a modified web server designed for real time event notification. The primary purpose of
PSRENSRV is to publish events to the browser.
See "Understanding REN Servers" (PeopleTools 8.54: MultiChannel Framework).
log-severity_level
This is the log severity level for the PSRENSRV process. Settings are Error, Warning, Notice or Debug.
Default is Warning.
io_buffer_size
This is the TCP buffer size when serving content. This should not exceed a value of 65536.
default_http_port
This is the REN servers http port. The default value is 7180.
default_https_port
This is the REN servers https port. The default value is 7143.
default_auth_token
The fully qualified domain name of the server (network domain, not the PeopleSoft application server
domain). This value should match the value of the web server's authentication token domain.
PSPPMSRV Options
PSPPMSRV servers subscribe to performance metrics published by the web service at the PPMI URL
(specified in the Performance Monitor administration pages) and insert them into the database. If you
select Y when you are asked whether you want Performance Collators configured, then the number of
PSPPMSRVs specified in Min Instances=1 will be started. Min and Max instances should be set to the
same value, as new PSPPMSRV serversare not spawned on demand.
Related Links
Performance Monitor
Min Instances
The number of servers started at boot time. This translates to the PSPPMSRV server's –m (min) parameter
in the UBB file.
172
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 6
Setting Application Server Domain Parameters
Max Instances
The maximum number of servers that can be started. This translates to the PSPPMSRV server's –M (max)
parameter in the UBB file.
Select Server Process Options
After you enter all of the previous parameter values for the domain, PSADMIN prompts you for the
following server process options. You can use these prompts to reduce the number of server processes that
start when the domain boots. This, in turn, makes your configuration simpler while conserving system
resources.
For instance, if you enter n for any of the following prompts, the corresponding server process (or a set
of server processes) is not configured for the domain. If you enter n to all of the prompts, the domain will
contain only the minimum required server processes.
Note: You can also enable and disable server processes using the Quick Configure Menu.
Do you want the Publish/Subscribe servers configured?
If you want the messaging server processes to be configured and booted, enter y. If you are not
implementing the Integration Broker technology for a domain, entern.
Note: In addition to setting this option, in Integration Broker you must also activate the domain on which
the pub/sub server resides before you can use the pub/sub system.
See Integration Broker Administration.
Move quick PSAPPSRV services into a second server (PSQCKSRV)?
Enter n if very few clients access the domain and concurrency is not an issue. Enter y to enable the
PSQCKSRV in situations where concurrency and optimal transaction throughput are needed.
Move long-running queries into a second server (PSQRYSRV)?
If you want all user-generated queries to be initiated by PSQuery and handled by a dedicated server
process, enable this option to improve overall performance.
Do you want JOLT configured?
The Jolt listener is required to support the PeopleSoft Internet Architecture by enabling transmission
between the web server and the application server.
Do you want JRAD configured?
JRAD applies to specific configurations only. Accept the default unless you are attempting to configure
JRAD for use with the Jolt internet relay.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
173
Setting Application Server Domain Parameters
Chapter 6
Related Links
Using Jolt Internet Relay
Do you want WSL Configured?
Configures the Workstation Listener for Development Environment (Windows) workstation connections.
Do you want to enable PeopleCode Debugging (PSDBGSRV)?
Enter y to debug PeopleCode programs with the current domain.
Do you want Event Notification configured (PSRENSRV)?
Select Y to start the PSRENSRV servers.
See PSRENSRV Options.
Do you want MCF Servers configured?
Select Y to start the Multi Channel Framework servers.
See MultiChannel Framework.
Do you want Performance Collators configured?
If the domain is servicing a Performance Monitor database, select Y to start the PSPPMSRV servers.
See PSPPMSRV Options.
Do you want Analytic Servers configured?
Configures analytic servers to run in the domain to process Analytic Calculation Engine requests and to
perform optimization processing.
Do you want Domains Gateway configured?
Enable this option of you are configuring a remote , or external, search server to which this domain will
send search requests. That is, if you are configuring a Type-3 search option for an application server
domain, you need to enable the domains gateway on the application server domain to a communication
connection between the application server and its remote search domain.
174
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
Understanding WebLogic
You use the Oracle WebLogic Server as a web server in the PeopleSoft Internet Architecture to deploy
PeopleSoft applications. The PeopleSoft Internet Architecture installation on the WebLogic Server
provides these primary server configuration options.
•
Single server.
This domain configuration contains one server named PIA, and the entire PeopleSoft application
is deployed to it. This configuration is intended for single user or very small scale, non-production
environments.
•
Multi server.
This domain configuration contains seven unique server definitions and a WebLogic cluster, and
the PeopleSoft application is split across multiple server instances on a single machine. This
configuration is intended for the production environment.
•
Distributed managed server.
This option is an extension of the “Multi server” selection and installs the necessary files to boot
managed servers spread across multiple machines. This option requires a “Multi server” installation to
be performed to some other location that contains the configuration for this managed server.
Note: The topics related to WebLogic in this PeopleBook discuss PeopleSoft-specific subjects. Always
refer to your Oracle WebLogic documentation for all general server administration information.
Working With the WebLogic Server Administration Console
The WebLogic Server Administration Console is the main utility that is used to administer and monitor
the WebLogic server processes.
Note: For the sake of brevity, in this document the WebLogic Server Administration Console will be
referred to as the Administration Console.
The Administration Console provides an interface to monitor and configure aspects of a PeopleSoft
application from a web server perspective.
Access the Administration Console by pointing your browser to:
http://<server>:<port>/console
For example,
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
175
Working with Oracle WebLogic
Chapter 7
http://server08.us.oracle.com:80/console
Where the port is the port on which your PeopleSoft Internet Architecture domain is listening.
If it is a multi server installation the Administration Console from the Admin Server is always running on
port 9999. For accessing the Administration Console in a multi server installation, the URL is:
http://<server>:9999/console
Before the Administration Console opens, you will be prompted for the WebLogic administration ID and
password that you specified during the PeopleSoft Internet Architecture installation.
Image: Oracle WebLogic Server Administration Console
This example illustrates the fields and controls on the Oracle WebLogic Server Administration Console.
You can find definitions for the fields and controls later on this page.
The Domain Structure section enables you to navigate to a variety of interfaces related to the elements of
your PeopleSoft domain.
Note: Before making any configuration modifications or performing any administrative operations, such
as stopping the server, always click Lock & Edit first.
Starting WebLogic
This section discusses how to:
176
•
Start WebLogic on Microsoft Windows.
•
Start WebLogic on UNIX.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
Related Links
Administering a WebLogic Server Life Cycle
Starting WebLogic on Microsoft Windows
On Microsoft Windows, you can start WebLogic using:
•
command prompt.
•
Windows service.
Using the Command Prompt
Running WebLogic as a foreground process is beneficial if you need to monitor WebLogic in real time.
To run WebLogic as a foreground process, enter one of the following commands at the command prompt
in PIA_HOME\webserv\domain\bin.
Configuration Type
Command
Single server
startPIA.cmd
Or, you can use the PSADMIN PIA domain menu options.
Multi server - domain admin server
startWebLogicAdmin.cmd
Multi server - managed server
startManagedWebLogic.cmd server
For example,
startManagedWebLogic.cmd PIA
Using the Windows Service
Benefits of running WebLogic as a Windows service include:
•
WebLogic can automatically start when the Windows server boots.
•
You can start and stop the service from a remote Windows machine.
To install the service, open the command prompt, and enter the appropriate command from your
PIA_HOME\webserv\domain\bin directory:
Configuration Type
Command
Single server
installNTservicePIA.cmd
Multi server
InstallNTservice.cmd weblogic_server_
instance_name
For example:
installNTservice.cmd PIA
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
177
Working with Oracle WebLogic
Chapter 7
To start WebLogic as a Windows service, you can:
•
Start the service named WebLogicdomain-servername (for example, peoplesoft-PIA) by using the
Services utility in the Windows Control Panel.
•
Start the service from a command prompt by entering the following command:
NET START peoplesoft-PIA
Note: If WebLogic fails to start as a service, try starting it as a foreground process to make sure there are
no general issues related to the startup.
To uninstall the service, enter the following command:
uninstallNTservicePIA.cmd
Starting WebLogic on UNIX
To start PeopleSoft on UNIX execute the appropriate script in the WebLogic domain directory that the
PeopleSoft install created, as in PIA_HOME/webserv/peoplesoft/bin.
Configuration Type
Command
Single server
startPIA.sh
Multi server - domain admin server
startWebLogicAdmin.sh
Multi server - managed server
startManagedWebLogic.sh server
For example,
startManagedWebLogic.sh PIA
When you run the above scripts, the server runs as background process.
Stopping WebLogic
You can stop Weblogic using:
•
Administration Console
•
command line
Related Links
Administering a WebLogic Server Life Cycle
Stopping WebLogic Using the Administration Console
To stop the PeopleSoft server:
1. In the left pane of the console, expand Environment, and select Servers.
178
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
2. In the Summary of Servers table, click the name of the server that you want to shut down.
3. Select the Control tab, and then the Start/Stop tab.
4. From the Shutdown drop-down menu, select one of the following options:
•
When work completes: This command initiates a graceful shutdown, which gives WebLogic
Server subsystems time to complete application processing currently in progress.
•
Force Shutdown now: This command initiates a forced shutdown, in which the server instructs
subsystems to immediately drop current requests.
5. Click Yes to confirm and shut down the server.
Note: If you shut down the Administration Server, the Administration Console is no longer active.
Stopping WebLogic Using the Command Line
To stop WebLogic using the command line, enter the appropriate command.
Configuration
Windows
UNIX
Single server
stopPIA.cmd
stopPIA.sh
Multi server (WebLogic Admin server)
stopWebLogic.cmd
stopWebLogic.sh
Multi server (Managed WebLogic
server)
stopWebLogic.cmd
<ManagedServerName>
StopWebLogic.sh
<ManagedServer Name>
If WebLogic is running as a Windows service you can also stop the service in Windows Control Panel or
using the NET STOP command.
Using WebLogic Server Administration Console to Monitor
PeopleSoft Sessions
The Administration Console can display a list of established HTTP sessions for an instance of the
WebLogic Server. Session Monitoring is automatically enabled for WebLogic. These instructions describe
how to monitor the single server configuration of PIA in a test environment.
When in a production environment, note that a multi server configuration would be used to perform these
steps to the server instance that you intend to monitor, such as PIA1 or PIA2, or both.
1. Start the PIA server.
2. Log on to PeopleSoft.
If possible, log on from different workstations using different PeopleSoft IDs. For the purpose of this
test, do not log off.
3. Log on to the WebLogic Server Administrative Console.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
179
Working with Oracle WebLogic
Chapter 7
4. Monitor established HTTP sessions for the PORTAL web application.
On the left, use the following navigation to view the list of established HTTP sessions for the
PORTAL web application:
a. Click Deployments, and view the deployment list in the right hand window.
b. Click PeopleSoft.
c. Select the Control tab.
d. Select the PORTAL application module, where the context root of the module is '/'.
e. Select the Monitoring tab.
f. Select the Sessions tab.
Note: You can customize the list of fields that you want to monitor using the Customize this table link.
Image: WebLogic Server Administration Console – Monitoring Sessions
This example illustrates the fields and controls on the WebLogic Server Administration Console –
Monitoring Sessions. You can find definitions for the fields and controls later on this page.
Note: An established HTTP session remains on the web server until the client logs out of PeopleSoft or
until the user's HTTP session times out. Closing the browser does not log out a PeopleSoft user. As a
result, when a user closes the browser without logging out of the PeopleSoft session, the corresponding
HTTP session remains on the web server until it times out. HTTP session timeouts are controlled by the
site's PeopleSoft web profile.
Related Links
Tuning Performance and Monitoring Resources
Setting Up Reverse Proxy Servers
180
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
This section provides an overview and discusses how to:
•
Configure Microsoft Internet Information Server (IIS) as an RPS.
•
Configure WebLogic as an RPS.
•
Configure Oracle Sun Java System Web Server as an RPS.
•
Configure Apache HTTP as an RPS.
Understanding Reverse Proxy Servers For PeopleSoft Implementations
PeopleSoft applications support the use of reverse proxy servers (RPS) with WebLogic. When using
an RPS, the RPS provides the URL to which the browsers connect, but another web server handles the
actual transaction processing. Implementing the use of RPS servers provides an additional protective layer
between the content server and the internet.
A reverse proxy is a server that appears to outside clients to be the content server. It relays requests from
outside the firewall to servers behind the firewall, and delivers retrieved content back to the client. A
firewall rule allows access only to the proxy server, so that the content servers are protected. The proxy
server changes URLs listed in the headers of any messages generated by the content servers, so that
external clients are given no information about the servers behind the firewall. No configuration of clients
is necessary with a reverse proxy (the client makes requests for content in the name-space of the reverse
proxy). The reverse proxy decides where to send the requests, and returns the content as if it was the
origin server.
Configuring Microsoft IIS as an RPS
This section describes how to proxy content to a single server configuration of PIA. When in production,
a multi server configuration would be used to perform these steps to proxy content to your managed
server instance of PIA, PIA1, PIA2, and so on.
Microsoft Internet Information Server (IIS) can be configured as a reverse proxy server (RPS) to one
or more WebLogic Server instances. Multiple instances can be independent instances or grouped into a
cluster. When you use a reverse proxy, any URL that would be used to access your PeopleSoft application
(even URLs that are stored in the database) would point to the reverse proxy, and not to the WebLogic
Server.
These instructions are based on a logical separation of WebLogic Server and Microsoft IIS, where both
web servers are installed on the same machine. If your configuration has WebLogic Server and Microsoft
IIS on separate machines, you must perform these additional tasks:
•
From the WebLogic server, copy WL_HOME\server\plugin\win\32\iisproxy.dll or WL_HOME\server
\plugin\win\64\iisproxy.dll to c:\inetpub on your Microsoft IIS server.
•
From the WebLogic server, copy WL_HOME\server\plugin\win\32\iisforward.dll or WL_HOME
\server\plugin\win\64\iisforward.dll to c:\inetpub on your Microsoft IIS server.
•
In the following procedure, change any reference of WL_HOME\server\plugin\win\32\ or
WL_HOME\server\plugin\win\64\ to c:\inetpub.
Note: In these instructions, make the appropriate adjustments for your server's architecture (32–bit or 64–
bit).
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
181
Working with Oracle WebLogic
Chapter 7
To set up a Microsoft IIS RPS:
1. Access your installed Microsoft IIS configuration.
On a Microsoft Windows server, select Start, Programs, Administrative Tools, Internet Services
Manager.
2. Open the Default Web Site properties
Expand your list of available servers, right click the Default Web Site and select Properties.
3. Add an ISAPI filter.
•
Select the ISAPI Filters tab, and click Add to define a new filter.
•
Enter IISFORWARD for the filter name.
•
Enter WL_HOME\server\plugin\win\32\iisforward.dll or WL_HOME\server\plugin\win
\64\iisproxy.dll for the executable.
4. Define a new application extension mapping.
•
Select the Home Directory tab then click Configuration.
•
Click Add on the App Mapping tab to define a new application mapping.
•
Enter WL_HOME\server\plugin\win\32\iisproxy.dll or WL_HOME\server\plugin\win
\64\iisproxy.dll for the executable.
•
Enter .wlforward for the extension.
•
For Verbs, enter All Verbs (or at a minimum, GET and POST).
5. Create the IIS-Plugin configuration file.
Create WL_HOME\server\plugin\win\32\iisproxy.ini or WL_HOME\server\plugin\win
\64\iisproxy.ini, containing the following lines and setting the values appropriately.
#
WebLogicHost=<hostname or IP of weblogic server to forward requests to>
WebLogicPort=<HTTP port of weblogic server to forward requests to>
DebugConfigInfo=OFF
Debug=OFF
#
#To proxy all IIS directed requests to WebLogic set "WlForwardPath=/"
#To selectively proxy only PeopleSoft requests to WebLogic set "WlForwardPath=⇒
"to
#the list of PeopleSoft sites to proxy.
#e.g. To proxy requests for only 'ps' and 'crm' set WlForwardPath to the follo⇒
wing;
#WlForwardPath=*/ps/*,*/crm/*
WlForwardPath=/
#
#If you have specified an AuthTokenDomain during your PIA installation,
#you must set the cookieName for your reverse proxy.
#WLCookieName=<CookieName as specified on weblogic in PORTAL webapps's weblogi⇒
c.xml>
6. Restart Microsoft IIS.
182
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
Restart the two Windows services, IIS Admin Service and World Wide Web Publishing Service
by using the Services utility in the Control Panel or by issuing the following three commands at a
command prompt:
NET STOP IISADMIN /Y
NET START IISADMIN
NET START W3SVC
7. Start the WebLogic server.
See Starting WebLogic.
See Stopping WebLogic.
8. Test your configuration by accessing the Microsoft IIS server by using the URL for your site.
For example, http://IIS_server:port/ps/signon.html.
Note: To connect to Microsoft IIS by using HTTPS, you must install digital certificates on the
Microsoft IIS server.
Configuring Microsoft IIS 7.0 as an RPS
This section describes how to proxy content to a single server configuration of PIA. In a production
environment, a multi server configuration would be used to perform these steps to proxy content to your
managed server instance of PIA, PIA1, PIA2, and so on.
Microsoft Internet Information Server (IIS) can be configured as a reverse proxy server (RPS) for one or
more WebLogic Server instances. Multiple instances can either be independent instances, or grouped into
a cluster. When using a reverse proxy, all URLs that are used to access your PeopleSoft application (even
URLs that are stored in the database), need to point to the reverse proxy, and not to the WebLogic server.
Oracle only supports IIS 7.0 as an RPS on Windows Server 2008 x64 Standard Edition, or Enterprise
Edition environments. These instructions are based on a logical separation of WebLogic Server and
Microsoft IIS 7.0, where both web servers are installed on the same machine. If your configuration has
WebLogic Server and Microsoft IIS on separate machines, you must perform these additional tasks:
•
From the WebLogic server, copy WL_HOME\server\plugin\win\x64\iisproxy.dll to c:\inetpub, or to
any other directory where an administrator has appropriate access to it on your Microsoft IIS server.
•
From the WebLogic server, copy WL_HOME\server\plugin\win\x64\iisforward.dll to c:\inetpub, or to
any other directory where an administrator has appropriate access to it on your Microsoft IIS server.
•
In the procedures described below, change any reference to: WL_HOME\server\plugin\win\x64\, to c:
\inetpub\, or to the other directory where you copied the two files mentioned above.
Note: In these instructions, make the appropriate adjustments for your server's architecture (32–bit or 64–
bit).
Configuring the Microsoft IIS 7.0 RPS
To set up a Microsoft IIS 7.0 RPS:
1. Access your installed Microsoft IIS 7.0 configuration.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
183
Working with Oracle WebLogic
Chapter 7
On a Microsoft Windows server, select Start, Programs, Administrative Tools, Internet Information
Service (IIS) Manager.
2. Add a JSP Script Mapping.
a. After selecting the Default Web Site in the lefthand pane, locate the Handler Mappings icon in the
panel to the right. Right click on Handler Mappings and select “Open Feature”.
b. Right click in the new window and select Add Script Map…
c. Enter *.jsp as the Request path.
d. Browse to the iisproxy.dll file mentioned earlier, and add it as the executable. Name it: JSP.
e. Click on the Request Restrictions… button, and uncheck the box titled Invoke handler only if the
request is mapped to.
f. When finished, click OK.
g. A warning message will appear, asking you if you want to allow the ISAPI extension. Select Yes
to continue.
3. Add a WLFORWARD Script Mapping.
a. In the same Handler Mappings panel, right click and again select Add Script Map…
b. Enter *.wlforward as the Request path
c. Browse to the same iisproxy.dll file mentioned earlier, and add it as the executable. Name it:
WLFORWARD.
d. Click on the Request Restrictions… button, and uncheck the box titled Invoke handler only if the
request is mapped to.
e. When finished, click OK.
f. A warning message will appear, asking you if you want to allow the ISAPI extension. Select Yes
to continue.
4. Add an ISAPI filter.
a. On the Default Web Site, locate the ISAPI Filters icon.
b. Right click on this icon, and select Open Feature.
c. Right click in the new window and select Add…
d. Enter WLFORWARD as the Filter name.
e. Browse to the iiforward.dll file and add it as the executable.
f. When finished, click OK.
5. Provide necessary restrictions to the entire IIS:
184
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
a. Select the root node with your hostname in the lefthand pane.
b. Locate the ISAPI and CGI Restrictions icon on the right.
c. Right click on the ISAPI and CGI Restrictions icon and select Open Feature.
d. Right click and select Edit Feature Settings…
e. Ensure that both Allow unspecified CGI modules, and Allow unspecified ISAPI modules are
checked.
f. When finished, click OK.
6. Create an IIS Plugin configuration file:
Create a WL_HOME\server\plugin\win\x64\iisproxy.ini file which contains the following lines. (The
file should be placed in the same directory as the two plug-in DLL files that were mentioned at the top
of this document.) Set the values appropriately for your environment.
#For a list of all available parameters see:
#http://download.oracle.com/docs/cd/E12840_01/wls/docs103/plugins
#/plugin_params.html#wp1143049
#
WebLogicHost=<hostname or IP of the WebLogic server to forward requests to>
WebLogicPort=<HTTP port of WebLogic server to forward requests to>
DebugConfigInfo=OFF
Debug=OFF
#
#To proxy all IIS directed requests to WebLogic, set "WlForwardPath=/"
#
#To selectively proxy only PeopleSoft requests to WebLogic,
#set "WlForwardPath=" to the list of PeopleSoft sites to proxy.
#e.g. To proxy requests for only the ‘ps’ and ‘crm’ sites, set WlForwardPath
#to the following:
#WlForwardPath=*/ps/*,*/crm/*
WlForwardPath=/
#
#If you have specified an AuthTokenDomain during your PIA installation,
#you must set the cookieName for your reverse proxy.
WLCookieName=<CookieName as specified on WebLogic in PORTAL webapps’s weblogic⇒
.xml>
7. Restart Microsoft IIS:
Restart the two Windows services: IIS Admin Service, and World Wide Web Publishing Service,
by using the Services utility in the Control Panel, or by issuing the following three commands at a
command prompt:
NET STOP IISADMIN /Y
NET START IISADMIN
NET START W3SVC
Or, restart only the default website by right clicking on Default Web Site, and selecting: Manage Web
Site, Restart.
8. Start the WebLogic server.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
185
Working with Oracle WebLogic
Chapter 7
9. Test your configuration by accessing the Microsoft IIS server by using the URL for your site.
For example, http://IIS_server:port/ps/signon.html.
Note: To connect to Microsoft IIS by using HTTPS, you must install digital certificates on the
Microsoft IIS server.
See http://download.oracle.com/docs/cd/E15523_01/web.1111/e14395/isapi.htm#BGBFJAEJ
http://download.oracle.com/docs/cd/E12840_01/wls/docs103/plugins/plugin_params.html#wp1143049
Configuring WebLogic as an RPS
This section discusses how to configure a WebLogic server as an RPS.
Note: Using WebLogic as a reverse proxy server is not recommended in a production environment.
Creating the RPS
To create an RPS, select Multi Server Domain as the configuration during the PeopleSoft Internet
Architecture installation. The multi server domain installation automatically defines a server named
"RPS" in addition to the main PIA server. The RPS is configured to be a reverse proxy server to other
managed servers.
By default, the following settings are applied to the RPS:
Setting
Value
Name
RPS
HTTP Listen Port
8080
HTTPS Listen Port
8443
Default web application
HttpProxyServlet
Address of back-end WebLogic content server
The hostname of the machine from which the PIA setup was
run, with the HTTP listen port specified during the PIA setup.
The default address specified for the back-end WebLogic content server assumes that it's the same
machine as the one on which you're configuring the RPS, using the HttpProxyServlet application.
There's no need to change this setting unless the content server is a different machine, or you enable load
balancing with multiple content servers. If it's a different machine, you must change this setting to specify
the correct content server. If you enable load balancing, you'll need to specify additional content servers.
Enabling Load Balancing
In addition to the HttpProxyServlet application, the PIA setup also defines anHttpClusterServlet
application in your WebLogic configuration, which by default isn't active. The primary difference
between the two applications is that for a given HTTP request, HttpProxyServlet can proxy content only
from a single back-end content server, whereas HttpClusterServlet can proxy content from multiple
186
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
back-end content servers, all of which serve the same content. This enables the RPS to load-balance the
requests across a cluster of WebLogic servers.
You can configure the RPS for load balancing by changing the default web application from
HttpProxyServlet to HttpClusterServlet, which becomes active as a result.
To change the default web application:
1. Start the WebLogic server.
2. Sign in to the Administration Console.
3. In the Domain Structure tree, click Deployments.
4. Click HttpProxyServlet, and select the Targets tab.
5. Clear the RPS Server check box, clickApply, and clickActivate Changes.
6. In the Domain Structure tree, click Deployments.
7. Click HttpClusterServlet, and select the Targets tab.
8. Select the RPS Server check box, and clickApply.
9. Log out of the Administrative Console.
Specifying Back-End WebLogic Content Servers
You need to specify back-end WebLogic content servers only for the currently designated default web
application (HttpProxyServlet or HttpClusterServlet).
To do this, you edit the appropriate web.xml configuration file directly.
Web Application
web.xml file modification
HttpProxyServlet
You need to change the following settings only if the back-end
WebLogic content server is on a different machine than the
one where you're configuring the RPS.
Edit the web.xml configuration file in PIA_HOME\webserv
\weblogic_domain\applications\HttpProxyServlet\WEB-INF
Modify the param-value elements for the WebLogicHost
parameter and theWebLogicPort parameter to specify the
hostname and HTTP listen port, respectively, of the back-end
content server.
HttpClusterServlet
Edit the web.xml configuration file in PIA_HOME\webserv
\weblogic_domain\applications\HttpClusterServlet\WEB-INF.
Modify the param-value element for the WebLogicCluster
parameter to specify multiple back-end content servers
separated by “|” symbols, using the following format:
host1:http_port:https_port|
host2:http_port:https_port
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
187
Working with Oracle WebLogic
Chapter 7
Starting the RPS
To start the RPS, open a command prompt, change to PIA_HOME\webserv\weblogic_domain, and launch
the following commands:
1. Open a command prompt, and change to PIA_HOME\webserv\weblogic_domain.
2. Start the WebLogic Admin Server.
startWebLogicAdmin
3. Start the RPS server.
startManagedWebLogic RPS
Note: You can also run the RPS as a service on Windows.
Related Links
Starting WebLogic
Stopping WebLogic
Configuring Oracle Sun Java System Web Server as an RPS
This section describes how to proxy content to a single server configuration of PIA. When in production,
a multi server configuration would be used to perform these steps to proxy content to your managed
server instance of PIA, PIA1, PIA2, and so on.
These instructions assume you have downloaded the Sun Java System Web Server from Oracle.
Installing the WebLogic Plug-In
Configuring the Oracle Sun Java System Web Server as an RPS involves installing a WebLogic plugin on the Oracle Sun Java System Web Server. The plug-in comes in the form of a set of .DLL files for
Windows systems and library files for UNIX systems.
To configure Oracle Sun Java System Web Server as an RPS:
1. Locate the appropriate WebLogic plug-in files within your WebLogic installation, which are
"proxy*.dll" or "proxy*.so" or "proxy*.sl".
Note: If you are going to run your Sun web server on the same machine as WebLogic, it is
recommended that you don't copy the plug-in files to your Sun web server.
The plug-in files are located in the following location:
WL_HOME/server/plugin/operating system/architecture
Where:
188
•
WL_HOME represents the top level installation directory for your WebLogic server.
•
operating system corresponds to the operating system, such as AIX, Linux, or Windows.
•
architecture corresponds to the bit architecture of your operating system (32-bit, 64-bit).
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
2. Copy the appropriate WebLogic plug-in files to your Sun web server installation.
Copy the plug-in files to:
Sun_Home\operating system\plugins
Where:
•
Sun_Home refers to the high-level installation location of your Oracle Sun Java System Web
Server.
•
operating system refers to the operating system the Oracle Sun Java System Web Server is
installed on.
3. Define the NSAPI Module.
This step covers modifying the magnus.conf configuration file to reference the provided NSAPI
module. Make sure to make a backup of it prior to modifying it.
Open the magnus.conf file located in:
C:\Sun_Home\server\https-machine_name.com\config
Add the following lines to the bottom of the magnus.conf file. This instructs the Sun web server to
load the native library as an NSAPI module. For Sun_Home anddrive, substitute the actual location,
including the drive letter of the NSAPI module you copied in at previous steps:
Init fn="load-modules" funcs="wl-proxy,wl-init"\ shlib=<drive>:/<Sun_Home>
/plugins/proxy36.dll Init fn="wl-init"
If you skipped Step 1 because Sun web server and WebLogic are running on the same machine,
update your configuration file similar to the following:
Init fn="load-modules" funcs="wl_proxy,wl_init"\ shlib="<drive>:/WebLogic_home
/wlserver_10.3/server/bin/proxy36.dll" Init fn="wl_init"
4. Define which requests to be handled by the plug-in.
The type of requests to be handled by the plug-in, and subsequently handed off to WebLogic, must be
declared as part of an object definition in the magnus.conf file. A specific string in the URL, referred
to as a ppath, can identify these requests.
To proxy all requests of a single PeopleSoft Internet Architecture site, such as ps (which would
be accessed as http://machine_name.com/ps/signon.html), define the following object tag in the
magnus.conf file. Define this and any other object tags directly following the default object tag.
<Object name="ps" ppath="*/ps/*">
Service fn=wl-proxy WebLogicHost=server1\
WebLogicPort=7001
</Object>
The default object tag is generally several lines long and can be identified by <Object
name=default>...</Object>.
To proxy additional sites, add subsequent object tags referencing the other site names:
<Object name="hr" ppath="*/hr/*">
Service fn=wl_proxy WebLogicHost=server1\
WebLogicPort=7001
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
189
Working with Oracle WebLogic
Chapter 7
</Object>
To proxy all requests that are made to the Sun web server, create a single object tag named
"peoplesoft" and set the ppath parameter to *.
5. Apply changes to the Sun web server.
With these settings saved, access the Server Manager, as in http://localhost:8888. When prompted,
click the Apply button to update the Sun web server with your changes and restart it.
6. Make sure the PIA WebLogic Server is running.
7. Confirm the configuration.
To confirm the configuration between the WebLogic Server and the Sun web server, access
PeopleSoft using the typical URL. For example,
http://urserver.com/ps/signon.html
If you are able to logon to PeopleSoft, your proxy plug-in installation and configuration was
successful.
Working With the Oracle Sun Java System Web Server RPS Configuration
If you plan to proxy all requests for the PeopleSoft Internet Architecture through the Sun web server, you
must also update any URLs that are defined in the PeopleSoft database to reference the proxy server (Sun
web server), not the WebLogic server.
URL
Description
Portal
For the PeopleSoft portal, any content URLs that you have
defined that directly reference PeopleSoft content (psc, psp)
on the WebLogic server (meaning that the WebLogic server is
referenced in the URL) must be updated to reference the Sun
server in the URL
Integration Gateway
For the PeopleSoft integration gateway, any node definitions
that directly reference an integration gateway on the WebLogic
server must be updated to reference the Sun server in the
URLs.
Report Repository
For the PeopleSoft report repository, any report node
definitions that directly reference a report server on the
WebLogic server must be updated to reference the Sun server
in the URLs.
Miscellaneous
Any of your own definitions or objects that reference the URL
of the WebLogic server must be updated to reference the Sun
server in the URLs.
The magnus.conf file strictly enforces where text can be added. To avoid problems, follow these
guidelines:
190
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
•
Eliminate extraneous leading and trailing white space. If you must enter more characters than can be
fit on one line, place a backslash (\) at the end of that line and continue typing on the following line.
The backslash directly appends the end of the first line to the beginning of the following line.
•
If a space is necessary between the words that end the preceding line and begin the next line, use one
space, either at the end of the first line (before the backslash), or at the beginning of the second line.
•
Do not split attributes across multiple lines.
The WebLogic online documentation contains a complete listing of WebLogic plug-in attributes and
parameters.
Configuring for Deleting Attachments
If you intend to allow end users to delete attachments, and you are using the Oracle Sun Java System
RPS, you need to make sure the access control lists for Oracle Sun Java System RPS are configured
correctly.
To configure Oracle Sun Java System RPS for deleting attachments:
1. Start the Sun Java admin server and login to the administrative console.
2. Navigate to Configurations, and click the appropriate configuration.
3. Select Access Control, Access Control Lists, where you'll see the default and es-internal access
control lists.
4. Modify the default access control list.
•
Click default.
•
For Allow anyone and Allow all, click delete rights.
•
Save.
5. Modify the es-internal access control list.
•
Click es-internal.
•
Click on allow anyone and enable delete rights.
•
Click on deny anyone and disable delete right.
•
Save.
6. Save and deploy the change so it is reflected in the instances.
Configuring Apache HTTP as an RPS
This section describes how to configure Apache to be a proxy for a single server configuration of PIA
running on WebLogic. When in production, a multi server configuration would be used to perform these
steps to proxy content to your managed server instance of PIA, PIA1, PIA2, and so on.
To configure Apache HTTP:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
191
Working with Oracle WebLogic
Chapter 7
1. Download and install the Apache HTTP server.
See Apache website.
2. Install the Apache HTTP server plug-in.
The installation of the Apache plug-in depends on whether you are installing the plug-in as a dynamic
shared object (DSO) or a statically linked module. If you have downloaded the binary distribution
of Apache, you will probably install the Apache plug-in from as a shared object. If you are in doubt
as to which type, install the plug-in as a DSO. Exact instructions are available in the WebLogic
documentation.
3. Specify the parameters that will be used by the Apache plug-in by defining them in an IfModule tag
for WebLogic in the Apache httpd.conf file.
Add this tag in the ### Section 2: 'Main' server configuration section of httpd.conf. For example, to
configure the Apache to proxy all requests that it receives to a WebLogic server that is running on a
machine named crm.peoplesoft.com and listening on port 7001, you would define the following tag:
<IfModule mod_weblogic.c>
WebLogicHost crm.peoplesoft.com
WebLogicPort 7001
MatchExpression /</IfModule>
To proxy requests to a cluster of WebLogic servers, replace the two attributes, WebLogicHost and
WebLogicPort, with WebLogicCluster.
The syntax of the WebLogicCluster is wlserver1:port,wlserver2:port.
See The Red Paper posted on My Oracle Support:Clustering and High Availability for PeopleTools
If you specified an AuthTokenDomain during the PeopleSoft Internet Architecture installation,
you must set the WLCookieName for the reverse proxy to that same value. To do so, add the
WLCookieName attribute and set its value to CookieName, as specified on the WebLogic server in
the PORTAL web application's weblogic.xml file in PIA_HOME\webserv\peoplesoft\applications
\peoplesoft\PORTAL.war\WEB-INF\weblogic.xml.
4. Start the Apache HTTP server following the Apache usage instructions.
5. Start the WebLogic server.
6. Confirm the configuration between both the WebLogic server and Apache servers by signing onto the
PeopleSoft system by using the typical URL. For example,
http://Apachehost/ps/signon.html.
If you can sign in to the PeopleSoft system, your installation and configuration was successful.
Setting The HTTP Session Timeout
PeopleSoft Internet Architecture does not use session timeout controls set on the web server.
192
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
The HTTP session timeout controls are accessible on the Security page of the web profile interface. At
runtime, the session timeouts set in the current web profile override any HTTP session timeouts set on the
web server.
See "Configuring Portal Security" (PeopleTools 8.54: Portal Technology).
Setting Authentication Failure Timeout
To limit the effectiveness of DOS attacks on failed authentications, you can use the
psft_failtimeout Java option. Add this option in the setEnv script and assign a value in seconds.
By setting the value to 60 seconds, for example, you override the default session timeout of 120 seconds
(two minutes) when a user authentication fails or when a user is not yet authenticated.
For example,
SET JAVA_OPTIONS_WIN32=-server -Xms256m -Xmx256m -Dpsft_failtimeout=60
-XX:MaxPermSize=128m -Xcomp
To determine the proper value for this property, you need to check the time in seconds that it takes to send
an http(s) request from the browser to the web server and multiply the result by 2.
Enabling or Disabling HTTP Keep Alive
This section describes how to change HTTP Keep-Alive settings for a single server configuration of PIA.
When in production, a multi server configuration would be used to perform these steps to your managed
server instance of PIA, PIA1, PIA 2, and so on.
Keep-Alive, or more accurately termed "Persistent Connections" is a default feature of HTTP. Keep-Alive
allows for the client (generally a web browser) and the web server to maintain open connections between
requests for specified period of time. That time period is generally less then 60 seconds. The benefit of
a persistent connection is that the client and the server do not need to perform the overhead of opening a
new connection with every single request.
Enabling Keep-Alive is generally recommended, but in some situations it may introduce problems.
Sporadic "The Page cannot be displayed" errors, for example, can be the result of a problem with KeepAlive. In situations where Keep-Alive issues are suspected, disabling the web server Keep-Alive and
performing tests will help to determine if the problem is indeed related to connection persistence.
To enable or disable Keep-Alive:
1. Start the PIA server.
See Starting WebLogic.
See Stopping WebLogic.
2. Log on to the Administrative Console.
3. Navigate to the server's HTTP settings page.
a. In the Domain Structure tree, click Environments.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
193
Working with Oracle WebLogic
Chapter 7
b. Click the PIA server (or your custom named PeopleSoft server) from the window on the right.
c. Click the Protocols tab.
d. Click the HTTP tab.
4. Change the Keep-Alive settings.
•
To disable Keep-Alive: Deselect Enable Keepalives and clickSave. With Keep-Alive
disabled,Duration andHTTPS Duration are not used.
•
To enable Keep-Alive: Select Enable Keepalives and update Duration and HTTPS Duration
values as needed for your system.
Click Save andActivate Changes.
5. Restart WebLogic Server.
Changing WebLogic User Passwords
The WebLogic domain built by the PIA install includes the following WebLogic IDs:
•
system
•
operator
•
monitor
It ishighly recommended to change the passwords for all of these user IDs on any production servers. You
set the system password during the installation of the PeopleSoft Internet Architecture domain.
To change the passwords:
1. Start the PIA server.
See Starting WebLogic.
See Stopping WebLogic.
2. Log in to the Administrative Console.
3. Change a WebLogic Server user's password.
a. In the Domain Structure tree, click Security Realms.
b. In the Realms table, click myrealm.
c. Select the Users and Groups tab.
d. In the table of available users, click system.
e. Select the Passwords tab.
f. Enter and re-enter a new password for this user.
194
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
g. Click Save.
4. With the system user ID, modify the boot.properties file with the new values:
a. Open PIA_HOME\webserv\<domainname>\servers\PIA\security\boot.properties.
b. Remove the previous, encrypted system value, and enter the new value in clear text.
For example,
#Tue Mar 31 12:09:14 PDT 2009
password=newpassword
username={3DES}S43Sj+0Gar0\=
c. Save the file.
d. Reboot the server, and test the login.
Note: Rebooting the server should encrypt the clear text value you entered.
Note: When you run WebLogic as a Windows service, WebLogic uses the default ID of operator and
password of password. Changing the password for the WebLogic ID that runs the Windows service
requires an additional manual step of updating the setEnv.cmd, located inPIA_HOME\webserv\peoplesoft
\bin. Set the WLS_PW environment variable to reflect the new password. Then, reinstall the Windows
service by running the installNTservice command file located inPIA_HOME\webserv\peoplesoft\bin.
Note: If you use PSADMIN to manage a PIA domain, make sure to update the setEnv.cmd to reflect any
password updates.
Implementing WebLogic SSL Keys and Certificates
This section provides an overview of Secure Sockets Layer (SSL) encryption with WebLogic and
discusses how to:
•
Obtain encryption keys.
•
Prepare keys and certificates for the keystore.
•
Import keys and certificates into the keystore.
•
Configure WebLogic SSL encryption keys.
Understanding SSL Encryption with WebLogic
To use SSL encryption with WebLogic and the current PeopleTools release, the WebLogic keystore must
contain the following appropriately configured encryption keys:
•
The web server's private key.
•
The web server's public key, digitally signed by a trusted certificate authority (CA).
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
195
Working with Oracle WebLogic
•
Chapter 7
The digitally signed public key of the same CA that signed the web server's key.
A public key is transferred and stored as a data element in a digital certificate or a certificate signing
request (CSR). You can obtain public keys from a variety of sources in several different formats.
When setting up SSL, you need to:
•
ensure that the encryption keys are correctly formatted.
•
install them in the keystore.
•
configure them using the Administration Console.
Note: If you've already installed and configured a set of encryption keys for use with WebLogic in a
previous PeopleTools release, you must migrate them as external files to the keystore within the current
WebLogic version.
Obtaining Encryption Keys
If you already have a set of existing encryption keys configured as external files, you don't need to
obtain new ones. To find the existing keys, refer to the documentation for the PeopleTools and WebLogic
releases for which those keys were installed.
The following procedure describes how to obtain new encryption keys, using as an example the trial
certificate available from Verisign.
To obtain new encryption keys:
1. At a command prompt, change to the following directory:
PIA_HOME\webserv\domain_name\piabin
Where domain_name is the name of the installed PeopleSoft Pure Internet Architecture domain for
which you want to obtain encryption keys.
2. Enter the following command:
pskeymanager -create
Note: Pskeymanager is a script wrapper to Java's keytool, provided by PeopleSoft to manage the
WebLogic keystore. For usage information, enter pskeymanager -help.
3. Follow the prompts and enter the requested information to create a new private key and a CSR for
your web server.
196
•
Pskeymanager uses the keystore in PIA_HOME\webserv\domain_name\piaconfig\keystore\pskey,.
•
Pskeymanager prompts you for an alias for the new keys, for example, ServerABC. This is the
name you'll use to refer to the keys in the future.
•
Pskeymanager prompts you for distinguished name fields. Enter the appropriate values for your
organization.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
•
Pskeymanager prompts you for information about the CSR expiration date, key size, key
algorithms, and the private key password. All of these fields have default values.
Pskeymanager creates the private key inside the keystore, and creates the CSR as a file called
ServerABC_certreq.txt in the current directory. You use the CSR to obtain your signed public key
certificate and a root certificate from a CA.
4. Decide which trusted CA you want to sign your web server's public key.
You can use any CA that's compatible with Sun's Java JKS standard, such as Verisign.
5. Open your CSR file in a text editor and copy its entire contents, including the first and last lines:
-----BEGIN NEW CERTIFICATE REQUEST----...
...
-----END NEW CERTIFICATE REQUEST-----
6. Access Verisign's test certificate enrollment site at https://www.verisign.com/ssl/buy-ssl-certificates/
free-ssl-certificate-trial/index.html.
Verisign guides you through the CSR submission process, including:
•
Accepting the Verisign license agreement.
•
Entering your technical contact information, which includes the email address where Verisign can
send your signed public key.
•
Pasting your CSR contents in the provided text field.
•
Verifying your CSR.
•
Confirming and submitting your order.
Verisign also provides its own digitally signed public key in a certificate, which is known as a trusted
CA certificate, aroot certificate, or achain certificate.
7. Download the VeriSign test CA root certificate from http://digitalid.verisign.com/cgi-bin/getcacert.
When prompted, save getcacert.cer to PIA_HOME\webserv\domain_name.
Note: If you need to FTP your certificate to UNIX, you must FTP it in ASCII mode to PS_HOME/
webserv/domain_name.
8. Check your email.
Verisign digitally signs your web server's public key, then returns it to you in a certificate, called the
server certificate. Following is an example of the contents of a server certificate:
-----BEGIN CERTIFICATE----DMICHDCCAcYCEAHSeRkM2guFL+6OvHr4AS0wDQYJKoZIhvcNAQEEBQAwgakxFjAP
AANVBAoTDVZlcmlTaWduLCBLbAMxRzBFBgNVBAsTPnd3dy52ZXJpc2lnbi5jb20S
VcVwb3NpdG9yeS9UZXN0Q1ETIEluY29ycC4gQnkgUmVmLiBMaWFiLiBMVEQuMUYF
LIGEc3VyYW5jZXMgKEMpVRMxOSDFertdsfh67TIwNDAwMDAwMFoXDTAwMTIxODIA
ONT1LVoweTELMAkGA1UERhMCVVMxEzARBgNVBAgTCkNhbGlmb3JuaWExEzARBgNK
VBAUCOBsZWFzYW50b24BEzARBgNVBAoUClBlb3BsZVNvZnQxFDASBgNVBAsUC1BT
Eb3sZVVvb2xzMRUwEwADVQQDFAxEQlJPV04xMTE0MDAwXDANBgkqhkiG9w0BAQET
SAALADBEAkEAucfM/GOQhdkk4Q0ZD5i1l4gp6WTYMc4IaReoCYkEAmDKAVcYzY3R
Mdbp4RC8SABd3bjjDOHcoCak9U6oSwL+HQIDAQABMA0GCSqGSIb3DQEBBAUAA0EO
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
197
Working with Oracle WebLogic
Chapter 7
Arm3uf634Md0fqgNxhAL+e9rbY0ia/X48Axloi17+kLtVI1YPOp+Jy6Slp5iNIFC
DhskdDFH45AjSDAFhjruGHJK56SDFGqwq23SFRfgtjkjyu673424yGWE5Gw4576K
DosdDFG256EDHY45yTRH67i345314GQE356mjsdhhjuwbtrh43Gq3QEVe45341tS
YDY6d47lDmQxDs9wGt1bkQ==
-----END CERTIFICATE-----
9. Copy the entire certificate contents, and save it as a text file called ServerABC-cert.pem in
PIA_HOME\webserv\domain_name.
Be sure to include the first and last lines.
Note: If you need to FTP your certificate to UNIX, you must FTP it in ASCII mode.
Note: Make backup copies of the server certificate and the root certificate before proceeding.
Preparing Keys and Certificates for the Keystore
Your encryption keys must be in privacy enhanced mail (PEM) format, which is Base64-encoded data.
Base64 encoding uses only ASCII characters. A PEM-formatted key or certificate file has an extension
of either .pem or .cer. If the file is in the binarydistinguished encoding rules (DER) format, it has a .der
extension. Use theder2pem Java utility to convert DER-formatted keys and certificates to PEM format.
For SSL to work, your WebLogic server must present its own public key to each client browser, along
with the self-signed public key of a root CA that's also in the browser's keystore, as well as any keys
necessary to establish a chain of trust between the two. All of these keys must be part of the same
certificate file before you can import them into the WebLogic keystore.
If you generated the private key using pskeymanager on a WebLogic platform, it's automatically correctly
formatted, password protected, and installed in the keystore with no additional steps required. However,
if the private key was configured as an external file on an earlier WebLogic platform/version, you must
properly format it and incorporate a password, before importing it into the current WebLogic keystore
along with the public key certificates.
Converting DER Files to PEM Format
It's important to convert all DER-formatted key and certificate files to PEM format before you work with
them further.
To convert DER-formatted key and certificate files to PEM format:
1. At a command prompt, change to the following directory:
PIA_HOME\webserv\domain_name
Where domain_name is the name of an installed PeopleSoft Pure Internet Architecture domain.
2. Enter the following command:
setenv.cmd
This sets the appropriate environment for Java commands.
3. For each DER-formatted key or certificate file, enter the following command:
java utils.der2pem filename.der
198
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
Make sure that you include the DER file's directory path. A new PEM file by the same name is
created in the same location.
If you converted a private key file to PEM format, you must modify the header and footer to be
compatible with WebLogic.
To modify the private key file header and footer:
1. Open the PEM-formatted private key file in a text editor.
2. Change the following line:
-----BEGIN CERTIFICATE-----
To this:
-----BEGIN RSA PRIVATE KEY-----
3. Change the following line:
-----END CERTIFICATE-----
To this:
-----END RSA PRIVATE KEY-----
4. Save and close the private key file.
Establishing the Server Certificate Chain of Trust
Your server certificate must contain, in addition to the web server's public key, any keys necessary to
establish a chain of trust that culminates in the self-signed root certificate of a trusted root CA. That
CA's root certificate must be in the keystore of any browser that's used to access your web server. Most
browsers have an extensive set of trusted root certificates in their keystores.
First append the root certificate of the CA who issued your server certificate to the server certificate file.
If you determine that the root certificate is not likely to be in your users' browsers, you must also append
to the certificate file a chain certificate that was issued to your CA by another CA, then a chain certificate
issued to that CA, and so on, until you append a root certificate that was issued by a trusted CA to itself.
For example, if your server certificate file is demo_cert.pem and the CA's root certificate is ca_cert.pem,
you can open demo_cert.pem in a text editor, then insert the contents of ca_cert.pem after adding a new
line at the end of the file. Make sure that each certificate follows the previous one on the next line, as
follows:
...
...
DosdDFG256EDHY45yTRH67i345314GQE356mjsdhhjuwbtrh43Gq3QEVe45341tS
YDY6d47lDmQxDs9wGt1bkQ==
-----END CERTIFICATE---------BEGIN CERTIFICATE----DMICHDCCAcYCEAHSeRkM2guFL+6OvHr4AS0wDQYJKoZIhvcNAQEEBQAwgakxFjAP
...
...
The result is that demo_cert.pem, for example, now contains the data from both certificates.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
199
Working with Oracle WebLogic
Chapter 7
Note: You can also use the type command in Windows or thecat command in UNIX to combine the
certificate files.
Password Protecting the Private Key
Private keys inside the WebLogic keystore are password protected. You can't import an external private
key file into the keystore without a password. If it isn't currently password protected, use the WebLogic
wlkeytool utility to incorporate a password into the private key file.
To password-protect an external PEM-formatted private key file:
1. At a command prompt, change to the following directory:
WL–HOME\server\native\win\32
Where WL_HOME is the root directory where you installed WebLogic.
2. Enter the following command:
wlkeytool insecure_privatekey.pemsecure_privatekey.pem
Where insecure_privatekey.pem is the name of the original private key file,
andsecure_privatekey.pem is the name of the resulting password-protected private key file.
Note: Make sure that you include directory paths for the private key files.
The following message appears:
Enter password to unprotect private key:
3. Press Enter.
The following message appears:
Private key not PKCS8 encoded, trying RSA key
Private key file opened successfully
Enter password to protect private key :
4. Enter the password that you want to use for this key.
The following message appears:
Verify password to protect private key :
5. Enter the password again to confirm it.
The utility creates the password protected private key file that you specified. You import this key into
the WebLogic keystore.
Importing Keys and Certificates Into the Keystore
Each WebLogic domain maintains its own keystore in PIA_HOME\webserv\domain_name\keystore
\pskey, and all servers within a domain can share the same keystore.
These utilities are available for importing keys and certificates into the keystore:
200
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
Utility
When to Use
pskeymanager
If you created the private key using the pskeymanager utility
on a WebLogic platform, it's already installed in the keystore.
You need only use pskeymanager to import your server
certificate, which should contain your web server's signed
public key, your trusted CA's root certificate, and any public
keys necessary to establish a chain of trust between them.
ImportPrivateKey
If the private key was previously configured as an external file
on an earlier WebLogic platform, you must import it into the
WebLogic keystore along with the server certificate, using the
ImportPrivateKey utility. The private key should be passwordprotected.
Using pskeymanager to Import the Server Certificate
To import the server certificate into the WebLogic keystore:
1. At a command prompt, change to the following directory:
PIA_HOME\webserv\domain_name\piabin
Where domain_name is the name of the installed PeopleSoft Pure Internet Architecture domain.
2. Enter the following command:
pskeymanager -import
Note: PeopleTools provides pskeymanager (a script wrapper to Java's keytool) to help manage the
WebLogic keystore. For usage information, enter pskeymanager -help.
3. Follow the prompts and enter the requested information to create a new private key and a CSR for
your web server.
Keep the following in mind:
•
pskeymanager uses the keystore in PIA_HOME\webserv\domain_name\piaconfig\keystore\pskey,.
•
pskeymanager prompts you for an alias for the server certificate, for example, ServerABC. This
should be the same alias that you specified for the corresponding private key when you created it.
•
pskeymanager prompts you for the name of the server certificate file, for example, ServerABCcert.pem. Include the file path if necessary.
Using ImportPrivateKey to Import an External Private Key File with the Server
Certificate
To import a password-protected private key and the server certificate into the WebLogic keystore:
1. At a command prompt, change to the following directory:
PIA_HOME\webserv\domain_name\bin
Where domain_name is the name of an installed PeopleSoft Pure Internet Architecture domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
201
Working with Oracle WebLogic
Chapter 7
2. Enter the following command:
setEnv.cmd
This sets the appropriate environment for Java commands.
3. Enter the following command:
java utils.ImportPrivateKey keystore\pskey store_passprivatekey_aliasprivateke⇒
y_passservercert_fileprivatekey_file
The parameters for this command are as follows:
store_pass
Specify the password for the WebLogic pskey keystore. The
default password is password.
privatekey_alias
Specify an alias for the private key. This is the name by
which the key will be accessible inside the keystore.
privatekey_pass
Specify the password for the private key.
servercert_file
Specify the path and name of the server certificate file that
includes the issuing CA's root certificate.
privatekey_file
Specify the path and name of the private key file.
Configuring WebLogic SSL Encryption Keys
This section describes how to configure the SSL encryption keys that you previously imported into the
WebLogic keystore in PIA_HOME\webserv\domain_name\keystore\pskey, wheredomain_name is the
name of an installed PeopleSoft Pure Internet Architecture domain.
The following procedure applies to a single server configuration of PIA. In a production environment, you
would perform these steps for managed server instances of PIA, PIA1, RPS, and so on, in a multi-server
domain configuration.
To configure WebLogic SSL encryption keys for the PIA server:
1. With the PIA server running, sign in to the Administration Console.
2. Access the keystore configuration pages.
a. In the Domain Structure tree, expand Environment, click Servers, and click PIA from the Servers
list.
b. Select the Keystores tab.
c. To change the configuration section, click Lock & Edit.
d. Select Custom Identity and Custom Trust from the Keystores list.
3. Update the fields on the Configure Keystore Properties page as follows:
202
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
Field
Value
Custom Identity Key Store File Name
keystore/pskey
This should be the relative path and name of the keystore
into which you imported your SSL keys.
Custom Identity Key Store Type
JKS
Don't change this value.
Custom Identity Key Store Passphrase
password
Confirm Custom Identity Key Store Passphrase
Same as the value of Custom Identity Key Store Pass
Phrase.
Custom Trust Key Store File Name
keystore/pskey
This should be the relative path and name of the keystore
into which you imported your SSL keys.
Custom Trust Key Store Type
JKS
Don't change this value.
Custom Trust Key Store Passphrase
password
Confirm Custom Trust Key Store Passphrase
Same as the value of Custom Trust Key Store Pass Phrase.
4. Click Save.
5. Access the SSL tab, and update the values on the SSL Private Key Settings as follows:
Field
Value
Private Key Alias
Specify a unique identifier, such as the web server's machine
name.
This should be the alias that you specified for this server's
private key.
Passphrase
password
Confirm Passphrase
Same as the value of Passphrase.
6. Click Save and Activate Changes.
You must click theActivate Changes button to apply your changes. If you close your browser without
clickingActivate Changes, your changes will be lost.
7. Restart the WebLogic PIA server.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
203
Working with Oracle WebLogic
Chapter 7
Enabling TLS-Only on WebLogic
This section discusses:
•
Configuring TLS-only on WebLogic Server.
•
Configuring browsers for TLS.
•
Configuring reverse proxy servers for TLS.
Configuring TLS-Only on WebLogic Server
The weblogic.security.SSL.protocolVersion command-line argument lets you specify which protocol is
used for SSL connections.
To enable TLS-only on WebLogic Server:
1. Open PIA_HOME/webserv/<Domain>/bin/setEnv.cmd (Windows) or setEnv.sh (UNIX) in edit mode.
2. Append the following option to the JAVA_OPTIONS variable:
-Dweblogic.security.SSL.protocolVersion=TLS1
For example, on Windows in the setEnv.cmd, the updated JAVA_OPTIONS_WIN would appear as:
SET JAVA_OPTIONS_WIN=-jrockit -XnoOpt -XXnoJITInline -Xms512m -Xmx512m
-Dtoplink.xml.platform=oracle.toplink.platform.xml.jaxp.JAXPPlatform
-Dweblogic.security.SSL.protocolVersion=TLS1
3. Save the change.
4. Restart PeopleSoft Internet Architecture.
For more information about Supporting TLS1 protocol, refer to Oracle WebLogic documentation for
specifying the version of SSL to be used.
See Specifying the Version of the SSL Protocol.
Configuring Browsers for TLS
This section covers steps for configuring TLS on browsers.
Setting Up TLS on Microsoft Internet Explorer
To set up TLS on Internet Explorer:
1. Launch Internet Explorer.
2. Select Tools, Internet Options, and select the Advanced tab.
3. In the Settings box in the Security section, disable Use SSL 3.0 and enableUse TLS 1.0.
4. Click OK and restart the browser.
204
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
Setting Up TLS on Mozilla Firefox
To set up TLS on Firefox:
1. Launch Firefox.
2. Select Tools, Options, click the Advanced icon, and select the Encryption tab.
3. In the Protocols group box, disable Use SSL 3.0 and enableUse TLS 1.0.
4. Click OK and restart the browser.
Configuring Reverse Proxy Servers for TLS
It is strongly recommended to that you access the vendor's documentation of the web server you are using
for a reverse proxy server and use their instructions for setting up TLS.
Working With WebLogic Session Cookies
When a user signs in to a PeopleSoft application, the portal servlet generates a cookie containing the
user’s HTTP session ID, and sends it to the user’s browser to maintain the state of the session. The name
of the cookie is fixed for all users accessing that portal.
On a WebLogic portal, the session cookie’s name is generated at install time based on the portal hostname
and port number, which uniquely identify the portal within your PeopleSoft system. This name is stored in
the portal’s weblogic.xml file.
However, the cookie name must not start with a number, and it must not contain any periods. If your users
are experiencing problems signing in to PeopleSoft applications at different URLs from the same browser
session, make sure that the session cookie names at those sites are valid.
To ensure valid WebLogic session cookie names:
1. Shut down your WebLogic server.
2. Open the weblogic.xml file for your web server in a text editor.
You can find it in PIA_HOME\webserv\domain_name\applications\peoplesoft\PORTAL\WEB-INF.
3. Check the value of the session parameter called CookieName.
Ensure that the content of the param-value element doesn’t start with a number or contain any periods.
For example, the following session cookie name is invalid:
<session-param>
<param-name>CookieName</param-name>
<param-value>57.28.208.21-80-WebLogicSession</param-value>
</session-param>
You can replace the periods with dashes (-). Following is a valid version of the session cookie name:
<session-param>
<param-name>CookieName</param-name>
<param-value>c57-28-208-21-80-WebLogicSession</param-value>
</session-param>
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
205
Working with Oracle WebLogic
Chapter 7
4. Save and close the file.
5. Restart your WebLogic server.
Securing Servlets on WebLogic
This section describes how to restrict access to a web resource for a single server configuration of PIA.
When in production, a multi server configuration would be used to perform these steps to your managed
server instances of PIA, PIA1, PIA2, and so on. WebLogic Server provides an optional level of security to
restrict access to resources on the web server.
The following steps describe how to restrict access to the PeopleSoft Portal servlet using a WebLogic ID
and password. This, for example, could be applied to the report repository servlet.
To restrict access to a servlet:
1. Start the PIA server.
2. Open the Administration Console.
3. Change the security model to "Custom Roles And Policies":
a. In the Domain Structure section select Security Realms, myrealm.
b. Click Lock and Edit.
c. For the Security Model Default field, select Custom Roles And Policies option from the drop
down list.
d. Click Save.
e. Click Activate Changes.
f. Select the default security model for the application to Custom Roles and Policies.
4. Enable security policy checks for web applications.
a. Edit config.xml under PIA_HOME\webserv\<domain>\config.
Note: Backup the file before you make any changes.
b. Find the <app-deployment> section and add the following line in all of the <app-deployment> (or
application deployment) sections:
<security-dd-model>CustomRolesAndPolicies</security-dd-model>
For example, one of the sections will look similar to the following:
<app-deployment>
<name>peoplesoft</name>
<target>PIA</target>
<module-type>ear</module-type>
<source-path>applications/peoplesoft</source-path>
<deployment-order>1</deployment-order>
<security-dd-model>CustomRolesAndPolicies</security-dd-model>
206
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
<staging-mode>nostage</staging-mode>
</app-deployment>
c. Save the file and restart the server so that the changes will take effect.
5. (Optional) Define the WebLogic users that you want to use.
If you want to use one of the provided WebLogic user accounts (system, operator, or monitor) you can
skip this step. Otherwise, create a new WebLogic user account:
a. Under Domain Structure, select Security Realms, myrealm.
b. Click Users and Groups tab.
c. Under the Users tab, click New to create a new user.
d. Enter user name and password and click OK.
6. (Optional) Create a user group, and add user(s).
If you want to create a user group, add your users to that group and in the following steps select Caller
is Member of group instead of User name of caller. To create a group:
a. Under Domain Structure, select Security Realms, myrealm.
b. Click the Users and Groups tab.
c. Under the Groups tab, click New to create a new group.
d. Enter the name of the group and description. Click OK.
e. Select the Users tab, select your new user, and then click the Groups tab.
f. Move the appropriate group from the Available box to the Chosen box.
7. Define a security policy for the PeopleSoft Portal web application.
To restrict access to the Portal web application, perform the following in the navigation window on
the left:
a. Under Domain Structure, select Deployments, and select peoplesoft from the list of applications.
b. Under Overview tab, select the portal module which appears as “/” in the Modules and
Components table.
c. Click the Security tab.
d. Define a new URL pattern for this web module. Select New and enter the URL pattern as “/*” or
specify the URL requiring authentication, and click OK.
e. Select the URL pattern that you just created from the table and enter a security policy for this
URL pattern.
f. Add the condition to give access to the particular user you want to have access to this URL or any
other conditions by clicking Add Conditions.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
207
Working with Oracle WebLogic
Chapter 7
g. To restrict access to a specific user, select the policy condition of User name of caller, click Add,
and when prompted specify the user name. Repeat this step for additional users, groups, or access
times. For access times, the server's local time is used.
h. Click Finish and go back to the policy page and click Save.
This action does not require a server reboot.
8. Test the configuration.
Test your new security policy by accessing the URL you defined. If the security policy is active, you'll
be prompted to sign in using a user ID that you added.
Adjusting the JVM Heap Size
Java options, such as JVM heap size and VM mode, used by the WebLogic server are stored in your
WebLogic domain's setEnv script, stored in:
PIA_HOME\webserv\peoplesoft\bin
These options are specified in the script using the JAVA_OPTIONS_OSplatform environment variable. If
you need to adjust any of the Java options, including changing the JVM heap size, you must manually edit
the script.
The Microsoft Windows setEnv.cmd script contains the following default setting:
SET JAVA_OPTIONS_WIN=-jrockit -XnoOpt -Xms512m -Xmx512m
-Dtoplink.xml.platform=oracle.toplink.platform.xml.jaxp.JAXPPlatform
The UNIX standard setEnv.sh script contains the following default settings for supported Linux and
UNIX platforms:
JAVA_OPTIONS_AIX="-Xms128m -Xmx256m -Dtoplink.xml.platform
=oracle.toplink.platform.xml.jaxp.JAXPPlatform
-Dcom.sun.xml.namespace.QName.useCompatibleSerialVersionUID=1.0"
JAVA_OPTIONS_HPUX="-Xms256m -Xmx256m -XX:MaxPermSize=256m
-Dtoplink.xml.platform=oracle.toplink.platform.xml.jaxp.JAXPPlatform
-Dcom.sun.xml.namespace.QName.useCompatibleSerialVersionUID=1.0"
JAVA_OPTIONS_LINUX="-jrockit -XnoOpt -Xms512m -Xmx512m
-Dtoplink.xml.platform=oracle.toplink.platform.xml.jaxp.JAXPPlatform
-Dcom.sun.xml.namespace.QName.useCompatibleSerialVersionUID=1.0"
JAVA_OPTIONS_SOLARIS="-Xms256m -Xmx256m -XX:MaxPermSize=256m
-Dtoplink.xml.platform=oracle.toplink.platform.xml.jaxp.JAXPPlatform
-Dcom.sun.xml.namespace.QName.useCompatibleSerialVersionUID=1.0"
You modify the Xms parameter to adjust minimum heap size, and modify the Xmx parameter to adjust
maximum heap size. For most operating systems, the minimum and maximum values of the heap size are
equal, which is recommended for better performance.
In a multi-server domain, the platform-specific versions of the JAVA_OPTIONS environment variable
that appear in the setEnv script apply only to managed servers. The administration server doesn't use any
of these variables, but it assumes default JVM heap size values of "-Xms256m -Xmx256m".
208
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 7
Working with Oracle WebLogic
To adjust the JVM heap size for the administration server, add the environment variable
JAVA_OPTIONS_ADMINSERVER following the last entry for JAVA_OPTIONS_OSplatform, and set it
to your required minimum and maximum values, for example:
JAVA_OPTIONS_ADMINSERVER="-Xms128m -Xmx256m"
Note: If you're running WebLogic as a Microsoft Windows service and you modify setEnv.cmd, you must
reinstall the service.
Related Links
Managing JVM Heap Size
Determining the Service Pack Level
A summary of installed products and their versions and service pack levels is maintained in the
BEA_HOME\registry.xml file. However, to confirm version information, it's more accurate to check the
WebLogic log. A failed service pack install may be indicated in the log, but not found at runtime.
This section discusses how to:
•
Check the WebLogic log
•
Query WebLogic
Checking Version Information in the WebLogic Log
The WebLogic log is located in:
PIA_HOME\webserv\peoplesoft\servers\<server name>\logs\weblogic_server_weblogic.log
For version information, look for an entry similar to:
####<Apr 13, 2011 3:29:46 PM PDT> <Info> <WebLogicServer> <RTDC79601VMC> <>
<[ACTIVE] ExecuteThread: '0' for queue: 'weblogic.kernel.Default (self-tuning)'>
<> <> <> <1302733786761> <BEA-000000> <WebLogic Server "PIA" version:
WebLogic Server 10.3.4.0 Fri Dec 17 20:47:33 PST 2010 1384255
Copyright (c) 1995, 2009, Oracle and/or its affiliates. All rights reserved.>
####<Apr 13, 2011 3:29:47 PM PDT> <Notice> <Log Management> <RTDC79601VMC> <>
<[ACTIVE] ExecuteThread: '0' for queue: 'weblogic.kernel.Default (self-tuning)'>
<> <> <> <1302733787089> <BEA-170019> <The server log file
D:\853-801\webserv\AftrOn1034\servers\PIA\logs\PIA_weblogic.log is opened.
All server side log events will be written to this file.>
Checking Version Information at the Command Line
To query a running WebLogic for version information from the command line, submit the following
arguments to setEnv.
Windows:
While the WebLogic sever is up and running, from the command line, run setEnv and the following
command in sequence.
C:\PIA853\webserv\peoplesoft\bin>setenv.cmd
C:\PIA853\webserv\peoplesoft\bin>java weblogic.Admin
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
209
Working with Oracle WebLogic
Chapter 7
-url t3://localhost:<portnumber> -username <username> -password <password> VERSION
WebLogic Server 10.3.4.0
Fri Dec 17 20:47:33 PST 2010 1384255
UNIX:
While the WebLogic sever is up and running, from the shell command window, source the setEnv.sh file
and issue the following command in sequence. For example,
rtdc60007stdb:$ . ./setEnv.sh
rtdc60007stdb:$ java weblogic.Admin
-url t3://localhost:80 -username <username> -password <password> VERSION
Enabling HTTP Access Log
This section describes how to change HTTP logging for a single server configuration of PIA. When in
production, a multi server configuration would be used to perform these steps to your managed server
instance of PIA or PIA1, PIA 2, and so on.
To enable or disable HTTP access log:
1. Make sure the PIA server is running.
See Starting WebLogic.
See Stopping WebLogic.
2. Log on to the Administrative Console.
3. Open Server's Logging configuration page.
a. In the Domain Structure tree, expand Environment, and clickServers.
b. Click PIA (or your custom server name) in the Servers list.
c. Select the Logging tab, and select the HTTP tab.
4. Enable HTTP access logging.
a. Click the Lock&Edit button.
b. Select the HTTP access log file enabled check box to turn on the access.log.
c. Modify the Log file name field if desired.
d. Click Save andActivate Changes.
5. Restart the WebLogic Server.
210
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
Understanding WebSphere Application Server within Your
PeopleSoft Implementation
This section discusses:
•
Deploying PeopleSoft Applications with WebSphere.
•
Using the Integrated Solution Console.
•
WebSphere Application Server profiles.
•
IBM HTTP Server.
Oracle only documents IBM WebSphere where it relates specifically to the Oracle product which supports
it. For all general IBM WebSphere information see WebSphere Application Server Information Center.
Deploying PeopleSoft Applications With WebSphere
The IBM WebSphere Application Server (WAS) is a J2EE application server that PeopleTools uses as a
web server to deploy PeopleSoft applications, as an alternative to Oracle WebLogic Server. To install and
use WebSphere, install it using the detailed instructions in the PeopleTools installation documentation.
Note: WebSphere Base edition and Network Deployment edition (ND) are packaged and installed
together. PeopleSoft applications use the Network Deployment edition for application deployment.
Note: Oracle does not provide IBM WebSphere Application Server. PeopleTools sites a certified version
on My Oracle Support, Certifications, and you need to contact IBM to acquire the supported software.
Using The Integrated Solutions Console
To view and configure WebSphere settings, you use the web-based administrative console named
Integrated Solutions Console, which is based on the Integrated Solutions Console (ISC) framework,
providing a consistent and integrated capability for administering IBM software. The ISC enables you to
access settings related to key areas of server administration, including:
•
servers
•
applications
•
security
•
services
•
environment
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
211
Working with IBM WebSphere
•
users and groups
•
system administration
•
monitoring and tuning
Chapter 8
To access ISC:
1. Enter the following URL:
http://WAS_Hostname:9061/ibm/console
You can find the port number for the ISC associated with your Pure Internet Architecture domain
by checking the Administrative console port value in the AboutThisProfile file in D:\PIA_HOME
\webserv\<PIA_Domain>\logs. For example:
Administrative console port: 9061
2. On the ISC login page, enter the appropriate credentials in the User ID field and clickLogin.
Use the user ID and password you specified as the administrative ID when you installed the
PeopleSoft domain. If you have enabled Global Security, add the appropriate user ID and password. If
Global Security is not enabled, add any user name in the User ID field (or leave it blank).
Image: Integration Solutions Console
This example illustrates the fields and controls on the Integration Solutions Console.
If you have more than one WebSphere server profile installed on a machine, the ISC port number for each
installation is different. For each PeopleSoft domain you install, IBM creates the required profile(s).
212
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
A key benefit of the ISC is that it allows administrators to create a custom navigation list of tasks
performed more frequently, using the View, My Tasks feature in the upper, left-hand corner. It also
provides an additional set of system management, monitoring and tuning features.
Note: You can perform numerous administrative tasks using ISC. This guide discusses those that pertain
most specifically to deploying PeopleSoft applications. It is assumed that you are familiar with the topics
contained in the IBM WebSphere documentation.
Note: In this document, we refer to the ISC as the "administrative console."
WebSphere Application Server Profiles
Different WebSphere Application Server environments are defined using profiles. A profile defines the
runtime environment (JVM) for web applications. A profile includes:
•
files and settings that the server processes require during runtime.
•
a common set of shared WebSphere product binaries.
•
a unique directory name containing required files and subdirectories.
PeopleSoft Internet Architecture makes use of the application server environment type to deploy the
PeopleSoft applications. When you run the PeopleSoft Internet Architecture installation, one of the
elements that the system creates are the necessary application server profiles. The number of application
server profiles created varies depending on whether you elected to implement a single server or multi
server installation.
Note: The Application Server profile location differs from the default location where the PIA installation
process creates server profiles.
Single Server Installation
If you specified the default application name of "peoplesoft" at install time, an application server profile
with the same name gets created in PIA_HOME\webserv\<peoplesoft>. When the PIA install creates an
application server profile, it creates a default server names “server1” (single JVM process) and all of the
PeopleSoft web modules are deployed to this single server.
You can view the PeopleSoft modules, such as PORTAL, PSEMHUB, PSIGW, and so on, in the single
server profile directory structure.
PIA_HOME\webserv\<peoplesoft>\installedApps\peoplesoftCell\peoplesoft.ear
Multi Server Installation
If you specified the default application name of "peoplesoft" at install time, the application server profile
is created under PIA_HOME\webserv. In the case of a multi server installation, the profile contains the
following separate servers.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
213
Working with IBM WebSphere
Chapter 8
Profile
Description
server1_peoplesoft
Hosts the PORTAL, PSIGW, and other web modules used for
PeopleSoft online transactions.
PSEMHUB_peoplesoft
Hosts the PSEMHUB web module used by the PeopleSoft
Environment Management Hub.
IBM HTTP Server
The IBM HTTP Server is the IBM version of the Apache HTTP Server. It is a separate installation
required for IHS and IHS plug-ins. You may use the IBM HTTP Server as a reverse proxy server within
your PeopleSoft implementation.
For more information see your PeopleTools installation guide, “Installing Web Server Products”.
Starting and Stopping WebSphere Application Servers
By default, all of the servers of a WebSphere instance are stopped when you install PIA. You need to start
the server in order to access the PeopleSoft components.
To start and stop WebSphere servers, use the delivered .BAT and .SH files located in:
PIA_HOME\webserv\<profilename>\bin
Note: During the server startup, the Dynamic runtime provisioning option is enabled by default. This
option is used to enable only the necessary containers (servlet container, EJB container, and so on) when a
server starts.
Starting the WebSphere Server
To start the WebSphere server, enter the following command:
Operating System
Command
Windows
startServer.bat server_name -profileNameprofilename
UNIX
startServer.sh server_name -profileNameprofilename
Stopping the WebSphere Server
To start the WebSphere server, enter the following command:
214
Operating System
Command
Windows
stopServer.bat server_name -profileNameprofilename
UNIX
stopServer.sh server_name -profileNameprofilename
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
Managing WebSphere Server with PSADMIN
You can also start and stop PIA domains running on IBM WebSphere using the PIA menus in PSADMIN.
See Using the Web (PIA) Server Menu.
Configuring Reverse Proxy Servers For WebSphere
This section contains and overview and discusses how to:
•
Configure an IBM HTTP server as a reverse proxy server.
•
Configure Microsoft IIS as a reverse proxy server.
•
Configure Oracle Sun Java System Web Server as a reverse proxy server.
Understanding Reverse Proxy Servers With IBM WebSphere
Using reverse proxy servers adds an additional, protective layer between your application and the internet
or your end users. A reverse proxy server receives user requests, and sends them to a back end content
server, usually behind a firewall. The back end server, in this case your PeopleSoft web server, remains
unknown to the user.
For your PeopleSoft implementation, you can configure reverse proxy servers for WebSphere on the
following web servers:
•
IBM HTTP Server.
•
Microsoft Internet Information Server (IIS).
•
Oracle Sun Java System Web Server.
The communication between your web server and your reverse proxy server is configured using delivered
plug-ins. You must install the web server software before you can install a plug-in for the web server. You
can install the web server plug-in by itself on a machine where WebSphere Application Server ND has
been installed but the plug-in has not. You can also install a plug-in on a remote machine where the HTTP
proxy server is already installed.
Web Server Plug-In
Web server plug-ins enable the web server to communicate requests for dynamic content, such as
servlets, to the application server. A web server plug-in is associated with each web server definition. The
configuration file (plugin-cfg.xml) that is generated for each plug-in is based on the applications that are
routed through the associated web server.
WebSphere RPS Plug-in
The RPS plug-in is used to forward HTTP requests from the proxy server to the PeopleSoft web server.
The RPS plug-in provides:
•
XML-based configuration file.
•
Standard protocol recognized by firewall products.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
215
Working with IBM WebSphere
•
Chapter 8
Security using HTTPS, replacing proprietary Open Servlet Engine (OSE) over Secure Sockets Layer
(SSL).
Configuring IBM HTTP Server as a Reverse Proxy Server
To configure the IBM HTTP Server for use as a reverse proxy server, you use the IHS plug-in.
Before you perform the following steps, you need to install the following items:
•
IBM HTTP Server.
•
Web server plug-ins.
See PeopleTools Installation for your database platform, Installing Web Server Products, "Installing IBM
HTTP Server and Web Server Plug-ins"
To configure IHS for reverse proxy:
1. Start WebSphere server and open the ISC window.
2. Navigate to Environment, Virtual Hosts, pia_host, Host Aliases.
The PeopleSoft application is deployed on a virtual host called "pia_host".
3. Create new entries for the required ports.
For example:
Hostname = *, Port =10001 (for web server port )
Hostname = *, Port =10002 (for HTTP Administration Server port)
Hostname = *, Port =10043 (for SSL port assigned to IHS)
4. In a multi server environment, repeat the steps 2. and 3. for the other virtual hosts and
"psemhub_host".
5. Click Apply and save the settings to "master".
This updates <PIA_HOME>/webserv/profile_name/config/cells/node_name/virtualhosts.xml
6. From the WebSphere Plug-ins installation, copy the configureWebserverDefinition script from the
<Plugin_Install_Root>/bin to the directory <PS_HOME>/webserv/profile_name/bin and run it.
This creates the web server definition in WebSphere server.
7. Generate the plugin-cfg.xml by selecting the web server definition in Servers, Web servers.
8. Copy the plugin-cfg.xml from <PS_HOME>/profile_name/config/cells/cell_name/nodes/node_name/
servers/WebserverDefinition to <Plugin_Install_Root>/config/WebserverDefinition so that IHS can
communicate with WebSphere directly and access the PeopleSoft application.
9. Restart the WebSphere server, IBM HTTP Server, and IBM HTTP Administration Server.
10. Verify accessing the PeopleSoft application using the IHS HTTP port.
216
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
Note: In scenarios where the system needs to process large amounts of data, a page may become stuck
in the processing status. While the change is reflected on the database, it cannot be viewed on a page
until another session is started. This problem can be resolved by increasing the ServerIOTimeout from 60
seconds to 600 seconds, for example, in the Plugin-cfg.xml file located in <PLUGIN_HOME>/config/
webserver1.
Configuring Microsoft IIS as a Reverse Proxy Server
This section discusses how to configure Microsoft IIS as a reverse proxy server for WebSphere. Before
you perform these steps, the following items need to be installed:
•
Microsoft IIS.
•
Web server plug-ins.
Microsoft IIS Installation should have the following components already installed in order for the RPS
setup to be successful:
•
IIS Management Compatibility
•
IIS Management Console
•
IIS Scripting Tools
•
IIS WMI Compatibility
•
IIS Metabase compatibility
•
ISAPI Extensions
•
ISAPI Filters
See http://publib.boulder.ibm.com/infocenter/wasinfo/v7r0/topic/com.ibm.websphere.nd.doc/info/ae/ae/
tins_webplugins.html.
See PeopleTools Installation, Installing Web Server Products, "Installing IBM HTTP Server 7.0 and Web
Server Plug-ins"
See your Microsoft IIS documentation.
Installing WebSphere Web Server Plugin for Microsoft IIS
Before installing the plugin, create a new IIS website according to the instructions given in the IBM
WebSphere "Installing Web Server Plug-ins" documentation. Alternately, you can use the Default website
if it is available. The Plugins install wizard prompts for the location where the WebSphere plugins for IIS
need to be installed and also for the location where WebSphere is installed. The wizard also prompts for
the name of the web server definition to be created.
Note: The WebSphere version may come with 32-bit and 64–bit web server plugins. The 32-bit plugin
installer is in CD1 and 64-bit plugin installer is in CD2. Install the appropriate plugin based on your
machine architecture and the mode (32-bit or 64-bit) in which your IIS is running.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
217
Working with IBM WebSphere
Chapter 8
Configuring the Plugin on Microsoft IIS
To configure the plugin:
1. From the WebSphere plugin installation, copy the configureWebserverDefinition script from the
<Plugin_Install_Root>/bin to the directory <PS_HOME>/webserv/profile_name/bin.
2. Start the WebSphere server and run the configureWebserverDefinition script from the PIA profile
location.
This creates the web server definition in the WebSphere server.
3. In the Administrative Console select Environment, Virtual hosts, and add new Host Alias entries for
the IIS web server HTTP port into following virtual hosts:
•
pia_host
•
psemhub_host
4. Select Servers, Web servers, and select the server definition and generate the plugin-cfg.xml.
5. Copy the plugin-cfg.xml from <PS_HOME>/profile_name/config/cells/cell_name/nodes/node_name/
servers/WebserverDefinition to <Plugin_Install_Root>/config/WebserverDefinition.
This enables the IIS web server to communicate with WebSphere directly and access the PeopleSoft
application.
6. Restart the Microsoft IIS web server, and start the IIS website that you have created.
7. Restart the WebSphere server and login to the Administrative Console.
8. (Optional) Enable Administrative Console to manage the IIS web server.
This will show the IIS web server as running. This step is needed only if you want to manage your IIS
web server from the WebSphere Administrative Console.
a. In the Administrative Console select Servers, Server Type, Web servers.
b. Click the web server definition to create one for the IIS web server.
c. Enter the port number for the IIS web server.
9. Access the PeopleSoft application through the IIS web server HTTP port:
http://<hostname>:<IIS_HTTPPort>/ps/signon.html
Note: If you have a Windows 64-bit machine, IIS runs in 64-bit mode by default and requires 64-bit
WebSphere plugins to be installed. However, if you have installed 32-bit WebSphere plugins then you can
set IIS to run in 32-bit mode by executing the following script at the command prompt:
CSCRIPT %SYSTEMDRIVE%\Inetpub\AdminScripts\adsutil.vbs SET W3SVC/
AppPools/Enable32bitAppOnWin64 1 Restart the IIS web server following the execution of
this script.
218
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
Configuring Oracle Sun Java System Web Server as a Reverse Proxy
Server
The following steps discuss how to configure the Oracle Sun Java System Web Server as a Reverse Proxy
Server. Before you perform these steps, the following items need to be installed:
•
Oracle Sun Java System Web Server.
•
Web server plug-ins.
Installing WebSphere Plugin for Oracle Sun Java System Web Server
The Plugins install wizard prompts for the location where WebSphere and Oracle Sun Java System Web
Server are installed. The wizard also prompts for the name of the web server definition to be created, the
location of the obj.conf file, and the location magnus.conf file. These two configuration files can be found
under the Oracle Sun Java System Web Server installation in the following directory:
$SunJava_Home/https-<hostname>/config
Configuring the Plugin
To configure the plugin:
1. From the WebSphere Plugins installation, copy the configureWebserverDefinition script from the
<Plugin_Install_Root>/bin to the directory <PS_HOME>/webserv/profile_name/bin.
2. Start the WebSphere server and run the configureWebserverDefinition script from PIA profile
location.
This creates the web server definition in WebSphere server.
3. In the Administrative Console, select Environment, Virtual Host, and add the new Host Alias entries
for Oracle Sun Java System Web Server HTTP port into following virtual hosts:
•
pia_host
•
psemhub_host
4. Select Servers, Web servers and generate the plugin-cfg.xml by selecting the web server definition.
5. Copy the plugin-cfg.xml from <PS_HOME>/profile_name/config/cells/cell_name/nodes/node_name/
servers/WebserverDefinition to <Plugin_Install_Root>/config/WebserverDefinition,
This enables the Oracle Sun Java System Web Server to communicate with WebSphere directly and
access the PeopleSoft application.
6. Note the following entries in the Obj.conf file.
After the <Object name=default> tag
Service fn="as_handler"
AddLog fn="as_term"
7. Note the following entries in the Magnus.conf file.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
219
Working with IBM WebSphere
Chapter 8
UNIX:
Init fn="load-modules"
funcs="as_init,as_handler,as_term"
shlib="/opt/IBM/WebSphere/Plugins/bin/libns61_http.so"
Init fn="as_init"
bootstrap.properties="/opt/IBM/WebSphere/Plugins/config/webserver1
/plugin-cfg.xml"
Windows:
Init fn="load-modules"
funcs="as_init,as_handler,as_term"
shlib="C:\IBM\WebSphere\Plugins\bin\ns41_http.dll"
Init fn="as_init"
bootstrap.properties="C:\IBM\WebSphere\Plugins\config\webserver1
\plugin-cfg.xml"
8. Restart the Oracle Sun Java System Web Server.
9. Restart the WebSphere web server.
10. Access the PeoplesSoft application through the Oracle Sun Java System Web Server HTTP port.
http://<hostname>:<SunJava_HTTPPort>/ps/signon.html
11. (Optional) Enable Administrative Console to manage the Oracle Sun Java System Web Server.
This will show the Oracle Sun Java System Web Server as running. This step is needed only if you
want to manage your Oracle Sun Java System Web Server from the WebSphere Administrative
Console.
a. In the Administrative Console select Servers, Server Type, Web servers.
b. Click the web server definition to create one for Oracle Sun Java System Web Server.
c. Enter the port number for the Oracle Sun Java System Web Server’s.
Configuring for Deleting Attachments
If you intend to allow end users to delete attachments, and you are using the Oracle Sun Java System
RPS, you need to make sure the access control lists for Oracle Sun Java System RPS are configured
correctly.
To configure Oracle Sun Java System RPS for deleting attachments:
1. Start the Sun Java admin server and login to the administrative console.
2. Navigate to Configurations, and click the appropriate configuration.
3. Select Access Control, Access Control Lists, where you'll see the default and es-internal access
control lists.
4. Modify the default access control list.
•
220
Click default.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
•
For Allow anyone and Allow all, click delete rights.
•
Save.
5. Modify the es-internal access control list.
•
Click es-internal.
•
Click on allow anyone and enable delete rights.
•
Click on deny anyone and disable delete right.
•
Save.
6. Save and deploy the change so it is reflected in the instances.
Setting Up SSL For WebSphere
This section provides an overview and discusses how to:
•
Generate a certificate using pskeymanager.
•
Configure the WebSphere container to support SSL.
Understanding WebSphere Key Stores
WebSphere manages keys in key store files. There are two types of files:
•
key stores
•
trust stores
These store types are very similar, however the trust store contains only trusted signers. The Certificate
Authority (CA) certificates and other signing certificates are kept in a trust store. Personal certificates
with private keys are stored in a key store.
The pskeymanager utility is a PeopleTools wrapper to Java's keytool, used to manage the predefined
WebSphere keystore located in the following directory:
PIA_HOME\webserv\profilename\piabin\pskeymanager
Generating a Certificate Using pskeymanager
Use the following steps to generate a self-signed certificate for the web container.
To generate a certificate using pskeymanager:
1. At a command prompt, change to the WebSphere domain directory, for example:
PIA_HOME \webserv\profilename\piabin
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
221
Working with IBM WebSphere
Chapter 8
2. Create a new private key and certificate request for your server.
a. Run the following command:
pskeymanager.cmd -create
b. Follow the prompts and specify the required information for creating a certificate, such as alias,
common name, organizational unit, location, and so on.
c. Make sure a Certificate Signing Request (CSR) file named alias_certreq.txt was created.
You submit this data to a CA for obtaining a public key that you can load into your key store.
3. Decide which CA you wish to use.
You may use an CA that is compatible with Sun's Java JKS standard.
As an example, the following steps indicate how to submit the CSR that you generated to Verisign to
obtain a trial certificate.
4. Submit your CSR to a CA.
For example, access Symantec’s site at:
https://www.verisign.com/products-services/index.html
When prompted, copy and paste the contents of your CSR, provide all necessary contact information,
and submit the request.
5. Check your email for the certificate sent from the CA.
The certificate from the CA should look similar to the following:
-----BEGIN CERTIFICATE----DMICHDCCAcYCEAHSeRkM2guFL+6OvHr4AS0wDQYJKoZIhvcNAQEEBQAwgakxFjAP
AANVBAoTDVZlcmlTaWduLCBLbAMxRzBFBgNVBAsTPnd3dy52ZXJpc2lnbi5jb20S
VcVwb3NpdG9yeS9UZXN0Q1ETIEluY29ycC4gQnkgUmVmLiBMaWFiLiBMVEQuMUYF
LIGEc3VyYW5jZXMgKEMpVRMxOSDFertdsfh67TIwNDAwMDAwMFoXDTAwMTIxODIA
ONT1LVoweTELMAkGA1UERhMCVVMxEzARBgNVBAgTCkNhbGlmb3JuaWExEzARBgNK
VBAUCOBsZWFzYW50b24BEzARBgNVBAoUClBlb3BsZVNvZnQxFDASBgNVBAsUC1BT
Eb3sZVVvb2xzMRUwEwADVQQDFAxEQlJPV04xMTE0MDAwXDANBgkqhkiG9w0BAQET
SAALADBEAkEAucfM/GOQhdkk4Q0ZD5i1l4gp6WTYMc4IaReoCYkEAmDKAVcYzY3R
Mdbp4RC8SABd3bjjDOHcoCak9U6oSwL+HQIDAQABMA0GCSqGSIb3DQEBBAUAA0EO
Arm3uf634Md0fqgNxhAL+e9rbY0ia/X48Axloi17+kLtVI1YPOp+Jy6Slp5iNIFC
DhskdDFH45AjSDAFhjruGHJK56SDFGqwq23SFRfgtjkjyu673424yGWE5Gw4576K
DosdDFG256EDHY45yTRH67i345314GQE356mjsdhhjuwbtrh43Gq3QEVe45341tS
YDY6d47lDmQxDs9wGt1bkQ==
-----END CERTIFICATE-----
6. Copy the entire certificate, including --BEGIN CERTIFICATE-- and --END CERTIFICATE--, and
save it as a file named webservername-cert.pem.
Note: To save the file, don't use a word processor that inserts formatting or control characters.
Note: If you need to FTP your certificate to UNIX, you must FTP it in ASCII mode.
7. Download the CA root certificate:
For example, if downloading the Verisign\Symantec trial root CA certificate.
222
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
a. Download the Trial Root CA certificate from:
https://www.verisign.com/support/verisign-intermediate-ca/Trial_Secure_Server_Root/index.html
b. From the specified link, click Select All, and copy the contents of the certificate into the
verisignRootCA.cer file and save it to your WebSphere domain directory.
c. Download VeriSign's Trial Intermediate CA certificate from:
https://www.verisign.com/support/verisign-intermediate-ca/trial-secure-server-intermediate/
index.html
d. Click Select All and copy the contents of the certificate into the verisignInterCA.cer file, and
save it into your WebSphere domain directory. You can also append the contents of this Trail
Intermediate CA certificate to the Root CA certificate file verisignRootCA.cer.
Note: If you need to FTP your certificate to UNIX, you must FTP it in ASCII mode to your
WebSphere domain directory.
8. Import the CA's certificates into your key store.
To import the CA's public certificate into your key store, run:
pskeymanager.cmd -import -trustcacerts
For example, when prompted for an alias, specify the appropriate name to store the CA as, for
example VerisignTrialCA. This name is only an alias for this certificate.
When prompted for the certificate file to import, specify the root certificate, such as
verisignRootCA.cer file.
If any other certificates (such as the Verisign Intermediate certificate) are saved into a different file,
run the command to import that certificate also.
9. Import your certificate into your keystore.
To import your public certificate into your keystore, run the following command from the command
prompt
pskeymanager.cmd −import
When prompted for an alias, specify the same alias you did when you created your private key and
certificate request.
When prompted for the certificate file to import, specify your certificate file, webservernamecert.pem.
Configuring the WebSphere Container to Support SSL
To complete the SSL configuration, the web container must be modified to use the self-signed certificates
you created.
To set up WebSphere Container SSL:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
223
Working with IBM WebSphere
Chapter 8
1. Start ISC, and select Security, SSL certificate and key management, Manage endpoint security
configurations.
2. On the Local Topology tab, expand the Inbound tree, and click on the appropriate node, as in
peoplesoftNode.
3. In the Related Items list on the right, click Key stores and certificates.
4. In the resource table, click NodeDefaultKeyStore in the Name column.
5. In the Additional Properties list on the right, click Personal certificates.
6. Click Import.
7. On the General Properties page, select the Key store file radio button, and complete the following:
a. In the Key file name field, enter the fully qualified path to the keystore file containing the
certificate to import.
For example,
C:\PSHCM\webserv\peoplesoft\piabin\\pskeymanager
b. From the Type dropdown list, selectJKS.
c. In the Key file password, enter the password you specified when creating pskey.
d. Click Get Key File Aliases.
The system searches the key store and should populate the Certificate alias to import list.
e. If you want to use a new alias, enter a new value in the Imported certificate alias field, otherwise
leave it empty.
8. Click Apply and OK.
9. Save the configuration in the Administrative Console.
Note: To configure Outbound SSL, repeat the same steps within the Outbound tree.
Enabling TLS-Only on WebSphere
Transport Layer Security (TLS) protocol is an improvement on the SSL v3 protocol. This section
discusses:
224
•
Configuring WebSphere for TLS.
•
Configuring browsers for TLS.
•
Testing TLS.
•
Configuring Reverse Proxy Servers for TLS.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
Configuring WebSphere for TLS
To enable TLS-only on WebSphere:
1. Login to ISC (http://host:adminport/ibm/console).
2. Under the Security menu, select SSL certificate and key management, SSL configurations,
NodeDefaultSSLSettings, Quality of protection (QoP) settings.
3. Change the Protocol value to TLS orTLSv1.
This ensures that WebSphere server will accept only TLS connections. That is, when the web server
acts as a server (inbound) or as client (outbound) the SSL connections will be established through the
TLS protocol. When testing from a browser make sure to check the browser settings to initiate TLS
handshakes only.
Configuring Browsers for TLS
This section covers steps for configuring TLS on browsers.
Setting Up TLS on Microsoft Internet Explorer
To set up TLS on Internet Explorer:
1. Launch Internet Explorer.
2. Select Tools, Internet Options, and select the Advanced tab.
3. In the Settings box in the Security section, disable Use SSL 3.0 and enableUse TLS 1.0.
4. Click OK and restart the browser.
Setting Up TLS on Mozilla Firefox
To set up TLS on Firefox:
1. Launch Firefox.
2. Select Tools, Options, click the Advanced icon, and select the Encryption tab.
3. In the Protocols group box, disable Use SSL 3.0 and enableUse TLS 1.0.
4. Click OK and restart the browser.
Testing TLS
After setting TLS for WebSphere and browsers, the TLS communication can be verified by logging in to
the PeopleSoft application through WebSphere’s default SSL port (HTTPS).
For example:
https://<host_name>:<https_port>/<PIA site>/signon.html
You can find the HTTPS port in the WebSphere Administrative Console, by selecting Servers,
Application Server, server1, ports. Find the port corresponding to the entry WC_defaulthost_secure.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
225
Working with IBM WebSphere
Chapter 8
Configuring Reverse Proxy Servers for TLS
It is strongly recommended to that you access the vendor's documentation of the web server you are using
for a reverse proxy server and use their instructions for setting up TLS.
Securing The Administrative Console and Applications For
WebSphere
This section provides an overview, and discusses how to:
•
Secure the Administrative Console.
•
Secure applications (servlets).
Understanding WebSphere Security
This section discusses:
•
Registries and repositories.
•
Security Domains.
Registries and Repositories
With the IBM WebSphere Application Server, a user registry, or repository, authenticates a user
and retrieves information about users and groups to perform security-related functions, including
authentication and authorization. WebSphere makes access control decisions based on the information
stored in the user registry or repository.
WebSphere supports multiple types of registries and repositories, including:
•
Local operating system registry.
•
Standalone lightweight directory access protocol (LDAP) registry.
•
A standalone custom registry.
•
Federated repositories.
Security Domains
WebSphere allows "fine-grained security configuration" enabling security to be configured at the cell,
node, server, or cluster level. Also, with WebSphere, you can configure application security separately for
administrative security within a cell environment. Administrative security can be enabled through Global
Security, while application security can be enabled by creating a new Security Domain and customizing
the security configurations specific to the domain.
You configure separate applications to use different security configurations by assigning the servers,
cluster, or Service Integration Buses hosting the applications or servlets to appropriate security domains.
Note: For a user to configure multiple security domains, they must be assigned to the administrator role.
226
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
For example, administration can be configured to use a federated repository while the applications can
be configured to use an LDAP registry. In previous versions of Websphere, administrative and user
applications use global security attributes by default, where a user registry defined in global security
authenticates users for every application in the cell. Using multiple security domains provides more
flexibility and simpler configurations.
This section illustrates how you can configure application security separately by creating a new security
domain and assign it to the server level scope. The Administrative Console is secured with global security
settings. The primary admin user belongs to the Local Operating System registry realm. The Report
Repository Servlet of the PeopleTools application is secured by providing access to a user from another
realm.
Note: For simplicity, in this example, both realms are Local Operating System realms. Realms may also
be implemented as a Federated Repository or LDAP Registry.
Securing the Administrative Console
This section discusses how to secure the Administrative Console for the profile associated with your
PeopleSoft application. It is assumed that you have already set up user names and passwords on the host
machine.
Note: The Administrative Console is secure by default in the current release. This section applies if
someone at your site has disabled the Administrative Console security, and you want to reapply it.
For Windows, the user should be in the Administrators group. On UNIX, use the root user.
This user information (user ID and password) will be used during configuration and authentication.
Configuring Administrative Security
To configure Administrative Security:
1. Open the Administrative Console of the profile hosting the PeopleSoft application.
2. Select Security, Global Security.
3. In the User account repository group box, set Available realm definitions to Local operating system,
and click Configure.
4. In the Primary administrative user name field, enter a valid user name.
In this example "ansrivat11" will be the admin user ID. This value is the name of a user with
administrative privileges that is defined in the registry. This user name is used to access the
Administrative Console or used by wsadmin. On UNIX this should be “root” user.
5. Select the Server User Identity that is stored in the repository radio button, and enter the same user
name as mentioned above for Server user ID or administrative user on version WAS 6.x node field,
and enter the user’s password that corresponds to server identity.
6. In the Custom properties table, click New, and enter these values:
Name: com.ibm.websphere.registry.UseRegistry
Value: local
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
227
Working with IBM WebSphere
Chapter 8
7. Click Apply and Save.
8. Select Security, Global Security and click the Administrative user roles link, ensure that the user
ID you just specified as the Primary administrative user name appears assigned to the Primary
administrative user name role.
9. Return to Security, Global security and set these options:
a. Select the Enable administrative security check box.
b. Select the Enable application security checkbox only if you want the application security to
have the same global security configuration as the admin user. In this example, we illustrate the
application security enabled separately within a separate domain.
c. Deselect the Java 2 security options. PeopleSoft does not adhere completely to Java 2 security.
d. Click Apply.
Configuring SSL
If you are using the default SSL configuration, extract the signer certificate from the WebSphere default
Trust Store. If you have set up a customized SSL configuration extract the signer certificate corresponding
to that configuration.
To configure SSL:
1. In the Administrative Console select Security, SSL certificates and key management.
2. Under Related Items, click Key stores and certificates.
3. Click NodeDefaultTrustStore.
4. Click Signer certificates.
5. Select Root signer and click Extract.
6. Enter a unique path and filename for the signer, such as c:\temp\rootsigner.arm.
7. Click OK.
8. Add the exported signer certificate to trust.p12 in the <PS_HOME>/webserv/<profile name>/etc
directory to enable SSL connectivity.
a. Open the key management utility, iKeyman, for that product version.
b. Start ikeyman.bat or ikeyman.sh from <PS_HOME>/webserv/<profile name>/bin.
c. Select Key Database File, Open.
d. Open <PS_HOME>/webserv/<profilename>/etc/trust.p12.
e. Enter WebAS for the password. (Do not change this password.)
f. Select Add and enter the path to the signer certificate you extracted.
228
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
9. Log out from the Administrative Console and stop the web server.
Modifying soap.client.props File
In any text editor, open the soap.client.props file located in PIA_HOME\webserv\<profile name>
\properties. Set securityEnabled to true, and specify the appropriate user ID and password for loginUserID
and loginPassword. For example,
com.ibm.SOAP.securityEnabled=true
com.ibm.SOAP.loginUserid=<user ID>
com.ibm.SOAP.loginPassword=<password>
Use the user ID and password used to access the Administrative Console. If you want to encode the
password in this file then run the PropFilePasswordEncoder script located in the folder PS_HOME/
webserv/<profileName>/bin. For example,
PropFilePasswordEncoder.sh PS_HOME/webserv/<profileName>
/properties/soap.client.props com.ibm.SOAP.loginPassword
Testing Administrative Console Security
Successfully starting the WebSphere Application Server and successfully logging into the Administrative
Console verifies that Admin Security is enabled.
To test Administrative Console security:
1. Start the server.
2. Launch the Administrative Console.
3. When prompted to log in, submit the user ID and password you configured previously.
4. To ensure no PeopleSoft elements have been changed, sign on to PIA as well.
Configuring Application Security
This section describes how to configure Application Security for WebSphere. In the context of
PeopleSoft, the PeopleSoft servlets (PORTAL, Report Repository, and so on) run in the PeopleSoft
application. In this discussion, we secure the access to the Report Repository servlet in the PeopleSoft
application as the example.
Modifying and Deploying the Delivered EAR file
In this procedure, you modify the delivered peoplesoft.ear file and deploy it using the PeopleSoft install
program.
To modify and deploy peoplesoft,ear:
1. Locate the PeopleSoft ear file and move it to a temporary directory.
Copy the PeopleSoft application ear file (peoplesoft.ear) from PS_HOME\setup\PsMpPIAInstall
\archives folder into a temporary directory and extract it. In this discussion, C:\temp is used.
2. Modify the application.xml file and add the <security_role> element as shown below.
a. Open C:\temp\META-INF\application.xml.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
229
Working with IBM WebSphere
Chapter 8
b. Add the security section shown below:
<application>
...
...
...
<module>
<web>
<web-uri> helloportletapp.war</web-uri>
<context-root /helloportletapp</context-root>
</web>
</module>
<security-role>
<description>Role for SchedulerTransfer Servlet</description>
<role-name>SchedulerTransferRole</role-name>
</security-role>
</application>
c. Save and close the file.
3. Modify the PORTAL web.xml file.
a. Extract C:\temp\PORTAL.war to C:\temp\PORTAL directory.
b. Open C:\temp\PORTAL\WEB-INF\web.xml.
c. Add the <security-constraint> and <security-role> element after the <welcome-file-list> element,
and before the </web-app> element. In this case, the SchedulerTransferRole is mapped to the
resource Report Repository servlet.
...
</welcome-file-list>
<security-constraint>
<web-resource-collection>
<web-resource-name>SchedulerTransferWebResource</web-resource-name>
<description>SchedulerTransferWebResourceDescription</description>
<url-pattern>/SchedulerTransfer/*</url-pattern>
<http-method>GET</http-method>
<http-method>POST</http-method>
</web-resource-collection>
<auth-constraint>
<description></description>
<role-name>SchedulerTransferRole</role-name>
</auth-constraint>
</security-constraint>
<security-role>
<description></description>
<role-name>SchedulerTransferRole</role-name>
</security-role>
</web-app>
d. Save and close the file.
4. Recreate PORTAL.WAR.
a. Repackage PORTAL.war by running the following command
cd C:\temp\PORTAL
jar -cvf ..\PORTAL.war *
b. Delete the C:\temp\PORTAL directory.
230
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
5. Repackage the peoplesoft.ear file by running the following command in the temporary directory.
jar -cvf ..\peoplesoft.ear *
6. Copy the recreated ear file into PS_HOME\setup\PsMpPIAInstall\archives.
7. Deploy the recreated ear file onto WebSphere using the PeopleSoft Internet Architecture installation
program.
Create a New Security Domain For Application Security
Creating a separate security domain for applications enables you to assign tailored security attributes to
the application.
To create a security domain:
1. Select Security, Security domains, and click New.
2. Provide a name and description for the security domain, and click OK.
3. Define the scope.
For this example, the scope is server1, but other implementations can set the scope at Cell, Clusters,
Nodes, and so on.
4. Under Security Attributes, expand Application Security and select the Customize for this domain
radio button, and select the Enable application security check box.
5. Expand User Realm, and select Customize for this domain, select a Realm type, and click Configure.
In this example, Local operating system is used, but any of the realm types can be used. The realm
selected will need to contain the users who are authorized to access the resource, which in this case is
the Report Repository servlet.
For this example, when configuring the realm, we use appRealm for the Provide a realm name field.
In the Custom properties table we use com.ibm.websphere.registry.UserRegistry (Name) and local
(Value).
Mapping Security Roles to User Groups
To map security roles to user groups:
1. Select Applications, Application Types, WebSphere enterprise applications, and click peoplesoft.
2. Click Security role to user/group mapping.
3. Select SchedulerTransferRole and click on Map Users.
4. Select the User realm as the one created for the application, in this case it is the "appRealm".
5. Click the Search button to display all the available user IDs for this realm.
For this example, we select the user ID ansrivat12 for the SchedulerTransferRole. This ensures that
only the user ansrivat12 is authorized to access the Report Repository servlet.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
231
Working with IBM WebSphere
Chapter 8
Testing Application Security
Restart the web server. Test the security of Report Repository servlet (as we configured it in this example)
by using the following URL:
http(s)://<hostname>:<PIA http(s) port>/SchedulerTransfer/ps
You should be prompted for user ID and Password dialog. If authentication is successful, you should be
shown the servlet output.
Setting HTTP Session Timeout
HTTP session timeout controls are accessible on the Security page of the web profile interface.
PeopleSoft Internet Architecture ignores any session timeout control set on the web server. At run time,
the session timeouts set in the web profile override any HTTP session timeouts set at the web server level.
Setting Authentication Failure Timeout
To limit the effectiveness of DOS attacks on failed authentications, you can use the
psft_failtimeout Java option. Add this option in the setEnv script and assign a value in seconds.
By setting the value to 60 seconds, for example, you override the default session timeout of 120 seconds
(two minutes) when a user authentication fails or when a user is not yet authenticated.
For example,
SET JAVA_OPTIONS_WIN32=-server -Xms<nnn>m -Xmx<nnn>m -Dpsft_failtimeout=60
-XX:MaxPermSize=<nnn>m -Xcomp
To determine the proper value for this property, you need to check the time in seconds that it takes to send
an http(s) request from the browser to the web server and multiply the result by 2.
Working With JVM Heap Size
Adjusting the JVM heap size settings can improve performance in some situations, however, the default
settings are typically adequate for most situations.
To access the JVM heap size properties:
1. In the Administrative Console, select Servers, Server Types, WebSphere application servers, and click
on your server in the resource list.
2. Select the Configuration tab, and in the Server Infrastructure section expand Java and Process
Management, and click Process definition.
3. In the Additional Properties, click Java Virtual Machine.
The JVM heap size properties are:
232
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 8
Working with IBM WebSphere
Property
Description
Initial heap size
The initial heap available to the JVM.
If blank, the system assumes the default value of 50 MB.
Maximum heap size
The maximum heap available to the JVM.
If blank, the system assumes the default value of 256 MB.
IBM recommends that if you determine that garbage collection
occurs more than desired, increase the Maximum heap size
value.
Working with Logging and Tracing Options
In addition to the logging and tracing options PeopleTools provides, WebSphere also offers a variety of
tracing options.
See your IBM WebSphere Application Server and Administrative Console documentation.
Enabling HTTP Access and HTTP Error Logging
To enable HTTP access and error logging:
1. In the Administrative Console, select Servers, Server Types, WebSphere application servers, server1,
and click the NCSA access and HTTP error logging link.
2. Enable HTTP access logging by selecting the options Enable logging service at server start-up and
Enable access logging.
The HTTP access logs will be written to PIA_HOME/webserv/profileName/logs/server1/
http_access.log.
3. Enable HTTP error logging by selecting Enable error logging.
The HTTP error logs will be written to PIA_HOME/webserv/profileName/logs/server1/http_error.log.
Enabling General Logging and Tracing
To access WebSphere logging and tracing options:
1. In the Administrative Console, select Servers, Server Types, WebSphere application servers, and
clicking on your server in the resource list.
2. In the Troubleshooting section, click Logging and tracing.
The diagnostic trace, JVM log, and process log output files are directed to a variable,
${SERVER_LOG_ROOT}, which refers to the following location on a typical PeopleSoft installation:
PIA_HOME\webserv\profilename\logs\server
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
233
Working with IBM WebSphere
Chapter 8
The IBM Service log output file is directed to a variable, ${LOG_ROOT}, which refers to the following
location on a typical PeopleSoft installation:
PIA_HOME\webserv\profilename\logs\
234
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building
Verity Search Indexes
Understanding Verity Search Indexes
This section provides an overview of search indexes and discusses:
•
Types of indexes.
•
Components of the search architecture.
•
Index building.
•
Search index limitations.
•
User search strategies.
Important! The Verity search engine is not supported for use with the PeopleSoft Search Framework.
If you intend to configure the PeopleSoft Search Framework and any of the search features based on the
PeopleSoft Search Framework, such as Application Search or Keyword Search, you must install Oracle
Secure Enterprise Search.
Overview of Verity Search Indexes
A search index is a collection of files that is used during a search to quickly find documents of interest.
The process of creating the search index is also called building the search index. The set of files that make
up the index is a collection. This collection contains a list of words in the indexed documents, an internal
documents table containing document field information, and logical pointers to the actual document files.
Fields contain metadata about a document. For example, Author and Title might be fields in an index.
VdkVgwKey is a special field that identifies each document and is unique to all of the documents in the
collection.
The document table is a relational table with one row for each document and columns of fields. Every
index can be modified by defining a set of fields for it.
In PeopleSoft search implementations, every search index has a home location where all of the files
pertaining to that index are located. This directory is the home directory of the index and is typically
located at PS_CFG_HOME/data/search/INDEXNAME. Under this directory is another directory named
for the database to which the application server or the Process Scheduler is connected. The actual
collection files reside in this database directory.
Every search index can be modified by changing the configuration files that are associated with the index.
These configuration files are known as style files and reside in the style directory. A typical configuration
of style files define fields for a particular index.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
235
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
Types of Verity Indexes
PeopleSoft software supports three types of search indexes:
•
Record-based indexes.
•
HTTP spider indexes.
•
File system indexes.
Record-Based Indexes
Record-based indexes are used to create indexes of data in PeopleSoft tables. For example, if the
PeopleSoft application has a catalog record that has two fields (Description and PartID), you can create a
record-based index to index the contents of the Description and PartID fields. Once the index is created,
you can use the PeopleCode search application programming interface (API) to search this index.
HTTP Spider Indexes
HTTP spider indexes index a web repository by accessing the documents from a web server. You
typically specify the starting uniform resource locator (URL). Then the indexer walks through all
documents by following the document links and indexes the documents in that repository. You can control
to what depth the indexer should traverse.
File System Indexes
File system indexes are similar to HTTP spider indexes, except that the repository that is indexed is a file
system. You typically specify the path to the folder or directory. Then the indexer indexes all documents
within that folder. HTTP spider indexes and file system indexes are sometimes collectively referred to
as spider indexes. The indexer recognizes a wide variety of document formats, such as Word or Excel
documents. Any document that is an unknown format will be skipped by the indexer.
Components of the Verity and PeopleSoft Search Architecture
PeopleSoft search architecture uses two main technologies: that provided by the PeopleSoft Portal and
that provided by Verity. They are connected by the PeopleSoft search API.
PeopleSoft Portal Technologies
The PeopleSoft Portal search technology contains the following components:
•
Search input field.
Captures a query string that is entered by users in the portal header.
•
Search API.
Passes the query string that is captured in the search input field to the Verity search engine.
•
Portal Registry API.
Applies security to filter the search results.
•
236
Portal registry.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Contains a repository of content references that can be searched.
•
Search results page.
Formats and displays search results for the user.
•
Search options.
Enables users to personalize search behavior and results.
Note: By default, the PeopleSoft search performs case-insensitive searches.
Verity Technologies
The basic items of the Verity architecture that are incorporated in the PeopleSoft Portal search architecture
are:
•
Verity collection.
This is the set of files forming a search index. When a user performs a search, the search is conducted
against the Verity collection. You can create and maintain your own collections with the Search
Design and Search Administration PeopleTools.
•
BIF file.
This is an intermediate file that is created in the process of building a Verity collection. The BIF
file is a text file that is used to specify the documents to be submitted to a collection. It contains a
unique key, the document size (in bytes), field names and values, and the document location in the file
system.
•
XML file.
This is another intermediate file that is created in the process of building a Verity collection. The
XML file is a text file named indexname.xml that contains all of the information from the documents
that are searchable but not returned in the results list. This information is stored in zones. Zones are
specific regions of a document to which searches can be limited.
•
Style files.
These files describe a set of configuration options that are used to create the indexes that are
associated with a collection.
•
mkvdk.
This Verity command-line tool is used to:
•
Index a collection.
•
Insert new documents into a collection.
•
Perform simple maintenance tasks, like purging and deleting a collection.
•
Control indexing behavior and performance.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
237
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
PeopleSoft Verity Search Utilities
To create and administer search indexes for use with PeopleSoft software, use the PeopleTools utilities
under PeopleTools, Search Engine. The utilities enable you to administer indexes and to create file
system, spider, and record-based indexes.
Building Verity Indexes
For both HTTP spider and file system indexes, options are available to include or exclude certain
documents based on file types and Multipurpose Internet Mail Extensions (MIME) types. The index
building procedure is different for record-based indexes and the spider indexes. Typically, the index
building procedure is carried out from an Application Engine job that is scheduled by using the process
scheduler.
The steps for building record-based indexes are:
1. The data from the application tables is read and two files called indexname.xml andindexname.bif are
created.
indexname.xml contains one XML record for each document that needs to be indexed. The XML
record contains all of the data that needs to be indexed.indexname.bif contains field information, the
VdkVgwKey document, and offsets to denote the start and end of each document in the XML file.
2. The XML and the bulk insert file (BIF) files are typically generated through PeopleCode and reside
in the home location of the index. The Verity utility, mkvdk, is called, passing in the BIF file as the
argument to build the index.
The steps for building spider indexes are:
1. The Verity utility, vspider, is called.
The vspider utility takes a number of arguments, but the most important ones are the starting URL or
directory to spider and the number of links to follow.
2. The vspider utility walks through all of the documents in the repository and builds the index.
Verity Search Index Limitations
PeopleSoft Verity search index limitations include:
•
Verity does not run on IBM z/OS.
For the most current support information for Verity (and any product), always check theCertifications
tab on My Oracle Support. Review the operating system certifications for Verity, as well as the
deployment options (Type-1, Type-2, Type-3).
•
Verity collections must reside on the PeopleSoft application server or be accessible from it through a
shared drive.
Satisfying this requirement can take several forms, depending on the application server's operating
system. On Microsoft Windows, this could be a network drive. On UNIX, this could be an NFSmounted drive.
238
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
•
Verity collections are most efficient if you index large groups of data, rather than indexing one or two
documents at a time.
Small updates degrade the index and require that you run the Verity cleanup utility.
•
Style files are located in the style subdirectory of the index.
To make style changes, apply them to the files in this directory.
•
You can have only one language per collection.
Additionally, a number of Verity search index features are limited to certain maximum values, as follows:
Feature
Limitation
Wildcards
Wildcard auto-expansion is limited to 16,000 matches.
Number of collections
The maximum number of physical collections that can be
searched at one time is 128.
Documents per collection
The maximum number of documents allowed per collection is
16 million, subject to disk space availability.
Fields per collection
The maximum number of fields allowed per collection is 250.
Field length
The maximum length of any field is 32 kilobytes.
Note: The actual number of characters that translates to
depends on the character set being used.
Field value length in bulk files
The maximum length of a field value in a bulk file is 32
kilobytes.
Note: The actual number of characters that translates to
depends on the character set being used.
Zones per document
The number of zones allowed per document is unlimited.
Characters in path
The maximum path size allowed is 256 characters.
Maximum documents with sort specification
The maximum number of documents that are returned when a
sort specification is applied is 16,000.
Sort fields per search
The maximum number of fields that can be included in a sort
specification is 16.
Refer to the Verity documentation for details about these features.
User Search Strategies for Verity
A user submits a search request by entering a search string into the search input form field in the
portal header. The “<form action=...>” element in the portal header is generated at runtime to link to a
PeopleSoft Internet Architecture page, and a Java script submits the form. The query string is passed
to the Search API as a parameter named PortalSearchQuery to find matching results. Those results are
filtered for security through PeopleCode by the Portal Registry API. The search results page echoes the
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
239
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
original query string and displays a list of content references that match the request. If the user clicks the
Go button but does not enter a search query, the search results page displays without any results.
The search results page performs the following steps:
•
Changes the case of the entered text to all uppercase characters.
By default, the Verity search engine searches for all mixed-case variations when a query string is
entered in all lowercase or in all uppercase. However, search queries that are entered in mixed-case
automatically become case sensitive. (For example, a query on Apple behaves as if the user had
specified Apple, which would find only the precise stringApple, while a query on apple finds APPLE,
Apple, and apple.) But the portal makes one important change: It changes the case of the query sting
to all uppercase, prohibiting users from truly executing case-sensitive searches. This avoids situations
where mixed-case searches would otherwise return no results. On the search results page, however,
the original case is echoed back to the user.
•
Formats the query string to pass to the Search API.
This includes filtering out expired and hidden content reference, and content references that are not
valid yet.
•
Calls the Search API.
This returns the query results.
•
Calls the Portal Registry API.
This is done to apply security filtering to the results. Security is applied in PeopleCode by checking
the Authorized property.
•
Formats and displays search results.
This completes the user's search request.
Note: End users must enter a double backslash (\\) when they need to submit a search request containing a
backslash in the text. Using a single backslash (\), will cause undesired results.
Configuring Verity Search Options
This section contains an overview and discusses how to:
•
Configure search to run natively within the application server (Type-1).
•
Configure search to run as a separate process managed by the application server (Type-2).
•
Configure a separate Search Server (Type-3).
Understanding PeopleSoft Search Configurations
PeopleSoft offers these configuration options for enabling PeopleSoft search:
•
240
Type-1: Verity running within the application server domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
•
Type-2: Verity running within a separate process managed by the application server.
•
Type-3: Verity running within a separate search server.
Note: In some cases, the operating system determines which search configuration options can be used.
Always refer to thePeopleSoft Hardware and Software Requirements guide, the Certifications area on
Metalink, or customer support for the most recent support information.
Type-1: Verity Running within the Application Server Domain
Image: Type 1 search configuration: VDK bound to PSAPPSRV processes the request with the
PSVERITY library
In this configuration, Verity runs within the application server. Its libraries are linked to the application
server. For example, as shown in the following diagram, the Verity VDK is bound to the PSAPPSRV
server process. When a search request is submitted, the VDK bound to PSAPPSRV processes the request
with the PSVERITY library.
Note: This configuration has been used in PeopleSoft applications in all previous releases of the
PeopleSoft Internet Architecture.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
241
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
Type-2: Verity Running as a Separate Process Managed by the Application Server
Domain
Having Verity run as a separately managed process enables application server domains running within the
64-bit framework to interoperate with Verity running within the 32-bit framework.
Image: Type 2 search configuration: The spawned process hosts the VDK processing on behalf of
the application server domain
The following diagram illustrates that in this configuration, when the first search request is submitted, the
PSAPPSRV server process spawns an auxiliary process to run within the application server domain. The
spawned process hosts the VDK processing on behalf of the application server domain. A proxy search
library within the application server routes search requests from the PeopleSoft Internet Architecture to
the auxiliary search process.
The proxy search library and the auxiliary search process transmit data using efficient system resources
(anonymous pipes). Having both processes running on the same computer can reduce performance
degradation introduced from the extra communication layer of the network in a Type-3 configuration.
Type-3: Verity Running within a Separate Search Server
Image: Type 3 search configuration: application server domain sends search requests to the search
server on a separate physical machine
The following diagram illustrates an example that you can implement the Type-3 search configuration
to centralize the configuration of the search features as well as the maintenance and storage of search
indexes.
In this configuration, the application server domain routes search requests to the search domain running
on a remote search server. Multiple application server domains may use the same search server to execute
242
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
search requests. In this scenario, the application server domain is the "client," submitting search requests
and the search domain is the "server," processing requests and returning results.
Note: Tuxedo must be installed on both the application server machine and search server machine.
Configuring Verity Search to run within the Application Server (Type-1)
This configuration requires the application server to be installed as outlined in the PeopleTools
Installation guide for your platform. This installation process installs the required application server and
Verity software.
In the Search section of PSADMIN, enter 1 for the Deployment Type parameter.
Values for config section - Search
Deployment Type=1
Application Server Port=
Remote Search Server Credentials=
Note: If you do not assign a value to the Deployment Type parameter, the system assumes the default
configuration for your operating system.
Configuring Verity Search to Run as a Separate Process (Type-2)
This configuration requires the application server to be installed as outlined in the PeopleTools
Installation guide for your platform. This installation process installs the required application server and
Verity software.
In the Search section of PSADMIN, enter 2 for the Deployment Type parameter.
Values for config section - Search
Deployment Type=2
Application Server Port=
Remote Search Server Credentials=
Note: If you do not assign a value to the Deployment Option parameter, the system assumes the default
configuration for your operating system.
Configuring a Separate Verity Search Server (Type-3)
Setting up a remote search server to process requests for application server domains requires you to
complete configuration steps on the:
•
search server.
•
application server(s).
Configuring the Search Server Domain
To configure a separate search server:
1. Ensure the environment is set up correctly.
Configuring a search domain is comparable to creating an application server domain on an application
server. You need to make sure:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
243
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
•
Tuxedo is installed locally.
•
PS_HOME is available (locally or remotely)
•
PS_CFG_HOME is set correctly on the search server machine.
2. Launch PSADMIN, and select Search Server from the PeopleSoft Server Administration menu.
3. On the PeopleSoft Search Server Administration menu select 2) Create a domain, and enter a name
for the search domain.
-------------------------------------------PeopleSoft Search Server Administration
-------------------------------------------1)
2)
3)
q)
Administer a domain
Create a domain
Delete a domain
Quit
Command to execute (1-3, q) : 2
Please enter name of domain to create :SAMPLE
4. Select 1) search, for a configuration template.
Configuration templates:
1) search
Select config template number: 1
5. When prompted to configure the search domain and change any configuration values, enter y to
indicate "yes."
6. In the [Startup] section, add the information required for the search domain to connect to the
application database.
The values entered should be identical to the connect information in any application server domain
connecting to the same database.
Note: The search domain must connect to the same database as the application servers sending
requests to the search domain.
7. In the [Database Options] section, select the same options you use for other application server
domains in your environment.
8. In the [Domain Settings] section, select the same options you use for other application server domains
in your environment, including, for example, Add To Path for specifying database driver locations.
Note: Make note of the unique Domain ID value. It is required when configuring the application
server domains using the search server.
9. Modify the options in the [PSSRCHSRV] section.
244
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Min Instances, Max Instances,
Service Timeout
These parameters operate the same as PSAPPSRV.
Search Server Port
Enter the port address the search domain will monitor for
search requests.
See PSAPPSRV Options.
The default is 7778.
Application Server Credentials
Enter a list of application server domains that will be
using the search domain. The application servers need to
be identified by Domain ID, Server ID, and port in the
following format.
<Domain ID>|<Server ID>:<port>
Note: Server ID can be an IP Address or a hostname.
When multiple domains use the same search server, separate
the entries by a comma (,). For example, the following
illustrates how to enter two different domains running on
two different servers.
APPDOM1|appsrv_computer1:7777,APPDOM2|appsrv_
computer2:7777
Note: The Domain ID value can be found in the [Domain
Settings] section of PSADMIN.
Configuring an Application Server Domain to use a remote Search Server
Once you have a remote search domain configured, you then need to modify each application server
domain that will use that search server to process search requests.
To configure an application server domain to use a remote search server:
1. Launch PSADMIN, and initiate the configuration interface for the desired application server domain.
2. Modify the [Search] section.
Deployment Type
Enter 3 to indicate Type-3 configuration.
Application Server Port
Enter the port number on which the application server
domain will "listen" for responses from the search domain.
Make sure this value is the same port number you specified
in the search domain in the Application Server Credentials
parameter.
Remote Search Server Credentials
Specify the search server domain that will be used by the
application server domain. The search server needs to
be identified by Domain ID, Server ID, and port in the
following format.
<Domain ID>|<Server ID>:<port>
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
245
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
3. When prompted to configure Domains Gateway (External Search Server) indicate y for "yes."
Note: The Domains Gateway can also be enabled in the Quick Configure menu.
Setting Up Failover Search Domains
To provide high availability and to compensate for the possibility of issues with the network, a server
machine, a search domain, or simply having to shut down a search domain for maintenance, you can
configure failover search domains. In these situations, the unavailability of a primary search domain does
not affect end users.
Failover search domains only process search requests when the primary search domain is unavailable. If
the primary search domain is unavailable, the system seamlessly routes search requests to the next search
domain specified in the failover string sequence.
For example, assume an application server domain has the following search domains specified in the
search domain failover string in this order:
•
SRCH_PRIMARY
•
SRCH_FAILOVER1
•
SRCH_FAILOVER2
If SRCH_PRIMARY is unavailable, the system checks to see if SRCH_FAILOVER1 is available, and if
so, begins routing search requests to SRCH_FAILOVER1. If SRCH_FAILOVER1 is not available, then
the system checks the availability of SRCH_FAILOVER2, and so on. When the primary search domain
becomes available again, the system begins routing search requests to that search domain.
To set up failover search domains:
1. Install and configure the number of failover search domains you require.
It is recommended that each failover search domain reside on a separate server machine for optimal
failover coverage.
2. For each failover search server domain, specify the complete list of application server domains that
could potentially use the search domain for failover coverage.
Use PSADMIN, or edit the PSSRCHSRV.CFG manually. Specify the application server domains
using the Application Server Credentials parameter in the PSSRCHSRV section.
3. For each application server domain using a particular set of search server domains, modify
the Remote Search Server Credentials parameter in the [Search] section to include the connect
information for each search domain, with the primary search domain appearing first and a comma (,)
separating multiple values.
<Domain ID>|<Server ID>:<port>,<Domain ID>|<Server ID>:<port>
For example,
Remote Search Server Credentials=SRCH_PRIMARY|ts-sun04:7778,
SRCH_FAILOVER1|ts-sun05:7778,SRCH_FAILOVER2|ts-sun06:7778
246
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Verity Search Server Administration
While the administrative tasks associated with search servers are similar to your application server or
Process Scheduler administration, keep the following items in mind when managing search servers.
Working with Search Domains in PSADMIN
When administering search server domains, you use a subset of PSADMIN menu options.
-------------------------------PeopleSoft Search Domain Administration
-------------------------------Domain Name: search01
1)
2)
3)
4)
5)
6)
7)
8)
q)
Boot this domain
Domain shutdown menu
Domain status menu
Configure this domain
TUXEDO command line (tmadmin)
Edit configuration/log files menu
Clean IPC resources of this domain
Domain Gateway TUXEDO command line (dmadmin)
Quit
Command to execute (1-8, q) :
Using these menus is similar to the menus for an application server domain, except that items that are not
applicable do not appear. For example, there are no menu options for purging cache, preloading cache, or
setting up messaging servers because they do not apply in the context of search servers.
For search servers, the following options differ slightly from application server domain options:
Boot this domain
For application server domains, you have options to boot a
domain in serial or parallel mode. Because the number of server
processes within a search domain are typically fewer than
a large domain, the option of a parallel boot to save time is
unnecessary. With search domains, you are not presented with
boot options, and the domain boots in serial mode.
Domain Gateway TUXEDO
command line (dmadmin)
The dmadmin is similar to the tmadmin interface. dmadmin is
an interactive command interpreter used for the administration
of domain gateway groups defined for a particular Tuxedo
application.
Locating Logging Information in Type-3 Search Configurations
The system writes logging information to these files:
•
TUXLOG for both the application server and search server domain.
•
APPSRV_MMDD.LOG for the application server domain.
•
SRCHSRV_MMDD.LOG for the search server domain.
Monitoring Domain Gateway Connections
The domain gateway is a subcomponent of a Tuxedo domain that allows it to communicate with another
domain through the network. The domain gateway ensures that the application server and search server
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
247
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
domains are successfully connected and able to transmit data. An application server domain and search
domain can start independent of one another and do not report any obvious signs of being successfully
connected when they start.
When working with search domains and troubleshooting Domain Gateway issues:
248
•
Ensure that the domain gateway is enabled. Check the Tuxedo logs of both the application server and
the search server. Both logs should indicate the gateway connection.
•
Check machine and port configuration. Failure to connect, or connections with numerous
disconnections can be caused by incorrect port and machine address information or another machine
using the same port. Use canonical names if you are using a non-numerical IP address.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Use the dmadmin command line interface to monitor a Domain Gateway connection between a local and
remote domain. Access this interface through the PeopleSoft Search Domain Administration menu in
PSADMIN. The following commands can be helpful when working with search domains.
Command
Description
pd -d <LOCAL DOMAIN ACCESSPOINT_ID>
Use the pd (print domain) command to confirm whether
or not the application server and search server domains
are connecting and transmitting data. Confirm successful
connection by viewing the 'Connected domains' list.
The <LOCAL DOMAIN ACCESSPOINT_ID> is formed
by prepending "SS" to the domain ID. For example, if the
domain ID is SRCHSERV the value of <LOCAL DOMAIN
ACCESSPOINT_ID> is SS_SRCHSERV.
The following is sample output:
pd -d SS_SRCHSERV
Local domain :SS_SRCHSERV
Connected domains:
Domainid: APPDOM1
If the search domain is not connected to the application server
domain you will see output similar to this:
pd -d SS_SRCHSERV
Local domain :SS_SRCHSERV
Connected domains:
Disconnected domains being
retried:
Domainid: APPDOM1
This examples show only one application server domain and
one search domain. In reality, multiple application server
domains would connect to one search domain. The pd
command lists the status of each of the application server
domains connected to a search domain.
pstats -d
<LOCAL DOMAIN ACCESSPOINT_ID>
h
Use the pstats command to extract monitoring statistics
from the Tuxedo MIB regarding the domain gateway
connection. This can help to identify the amount of requests
being processed for application server domain clients.
Displays and describes all dmadmin commands.
See Oracle Tuxedo documentation for complete dmadmin documentation.
Building Search Indices
For a search server (Type-3 configuration), a Process Scheduler deployed on the search machine should
be used for indexing. Because Verity libraries may be available only on the search machine, and because
any index would be used by the search server on the search machine, it is recommended to build the
indices on the search machine to avoid having to relocate indexes from other machines. A recommended
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
249
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
approach is to deploy a Process Scheduler server along side the search server and specify that Process
Scheduler server for generating indexes (PeopleTools, Search Engine, Administration, Schedule).
Note: For building search indexes on a Type-3 configuration, it is strongly recommended to use the PSNT
Process Scheduler Server running on the same server machine as the Type-3 configuration.
If Verity is not supported on the operating system where your production application server domains run,
another option is deploying an application server domain along side the search server. This application
server would be accessible through its own web server instance possibly on a different port than the
production application server. This provides access to an application server with Verity support, allowing
the creation of indices interactively. Also, the indices would be created where the search server can locate
them.
Working with Verity Indexes
This section provides overviews of common controls and supported MIME types, and discusses how to:
•
Open existing collections.
•
Create new collections.
Understanding Common Verity Controls
The following controls appear on the pages that are used for designing record-based, file system, or HTTP
spider indexes.
Index
Shows the name of the index that you opened or the name that
you gave the index on the Add New Value page.
Build Index
Invokes the collection build program. Before clicking this
button, select all of the appropriate options for the collection.
Test Index
After building an index, click to test that the build program
assembled the index properly. The Test Index page contains a
single text field with a query button. Enter text to search for in
the collection and click the [?] button to submit the query. The
results return a list of the keys that are stored by Verity in the
collection.
Show Logs
View the log files that are produced by the collection
build program during execution. This is used mainly for
troubleshooting.
Append to Verity Command Line
This control is for PeopleSoft internal use only.
Understanding Supported MIME Types
The following list contains the supported document MIME types. Any document that is not one of these
types is ignored during the indexing process.
250
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
•
application/msword
•
application/wordperfect5.1
•
application/x-ms-excel
•
application/x-ms-powerpoint
•
application/x-ms-works
•
application/postscript
•
application/rtf
•
application/x-lotus-amipro
•
application/x-lotus-123
•
application/x-ms-wordpc
•
application/x-corel-wordperfect
•
application/x-wordprocessor
•
application/x-spreadsheet
•
application/x-presentation
•
application/x-graphics
•
application/x-keyview
•
application/x-ms-write
•
application/pdf
•
application/x-executable
•
message/rfc822
•
message/news
•
text/html
•
text/sgml
•
text/xml
•
text/ascii
•
text/enriched
•
text/richtext
•
text/tab-separated-values
•
text/plain
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
251
Configuring Verity Search and Building Verity Search Indexes
•
text/x-empty
•
image/gif
•
application/x-verity
Chapter 9
Opening Existing Verity Collections
To open an existing collection:
1. Select PeopleTools, Search Engine.
2. From the available menus, select the type of collection that you want to open, as in record-based
indexes, file system indexes, or HTTP spider indexes.
3. On the Find an Existing Value tab, use the Search for drop-down list box to select the appropriate
criteria (begins with or contains).
4. In the edit box to the right, enter the character string that reflects the appropriate begins with or
contains criteria.
5. Click Search.
Creating New Verity Collections
To create a new collection:
1. Select PeopleTools, Search Engine.
2. From the available menus, select the type of collection that you want to create, as in record-based
indexes, file system indexes, or HTTP spider indexes.
3. Select the Add a New Value page.
4. Enter a name for the collection.
5. Click Add.
6. Specify the appropriate attributes for the collection as described in the following sections.
7. Save your work.
Note: You cannot create indexes of the same name even if they are of different types; for example,
record, HTTP, or file.
8. Build the index.
Building Record-Based Verity Indexes
The record-based index extracts data from database tables and inserts the data into BIF and XML files,
which are then indexed by Verity. The individual creating the index chooses the records (tables) to be
indexed.
252
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Note: The record-based index supports only data that is stored in PeopleSoft databases.
This section discusses how to:
•
Modify record-based index properties.
•
Add subrecords to search indexes.
Modifying Record-Based Verity Index Properties
Select PeopleTools, Search Engine, Record-Based Indexes to access the Design a Search Index page.
Image: Design a Search Index page (Record-Based)
This example illustrates the fields and controls on the Design a Search Index page (Record-Based). You
can find definitions for the fields and controls later on this page.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
253
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
Parent Data Record
Record (Table Name)
Enter tables, views, or a PeopleSoft view that contains data. To
combine the data from multiple PeopleSoft tables, to create a
view on those tables and specify the name of that view here.
WHERE clause to append
Fine-tune the data that you receive by entering a Structured
Query Language (SQL) WHERE clause.
Key returned in search results
Use to synthesize the VdkVgwKey, which supports an XMLlike syntax enabling you to modify the tag that is returned by
Verity.
You have the following options:
Edit Key
•
<pairs/>: Inserts a string of NAME=VALUE;. One such
pair is returned for each key of the record.
•
<row/>: Inserts the record keys in a SQL-like syntax.
•
<field fieldname='MYFIELD'/>: Inserts the value of
MYFIELD if it exists in the record.
•
<sql stmt='SQL STATEMENT'/>: Inserts the value that is
returned by the SQL statement. The system accepts only the
first row that is returned, and PeopleSoft software does not
support SQL statements returning more than one column.
Click to access the page where you can change the results that
are returned by the Key returned in search results functionality.
Fields
How to Zone the Index
One Zone: Select to put all of the data into one zone. With this
option, the collection builds more quickly but the application
can't restrict searches to the portions of the index that come from
a particular field.
Field Zones: Select to create one zone for each PeopleSoft field
on the record. Applications can specify that they want to access
that particular zone in their searches.
254
Field Name
After you specify a record name, the fields in that record appear
in this grid. Select the following options for each field in the
record: Verity Field, Word Index, or Has Attachment (each
option is explained in the following sections).
Verity Field
Select if the PeopleSoft field should be indexed as a Verity field.
In general, PeopleSoft fields that contain a lot of descriptive
text, such as description fields, should be indexed as word
indexes (See the following definition) and PeopleSoft fields
that contain metadata about what is being indexed (such as
ProductID) should be indexed as Verity fields.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Word Index
Select if this PeopleSoft field should be indexed as a word
index. See the preceding Verity Field definition for guidelines
on defining a PeopleSoft field as a Verity field versus defining it
as a word index.
Has attachment
Enables you to index attachments that are referenced in the field
as uniform resource identifiers (URIs). Refer to the PeopleCode
Developer's Guide for a description of file attachments. If this
field contains the URL to an attachment, select this check box.
The indexer downloads the attachment and indexes it as part
of the document. This item is enabled only if the corresponding
PeopleSoft field contains character data, because numeric fields
cannot contain URLs.
To use this field, you need a record that is designed with this
feature in mind. In the record, each row has a text field that
contains a URI or an empty string.
The text must be a valid File Transfer Protocol (FTP) URI (
including the login and password string) of the following form:
•
ftp://user:[email protected]/path/to/filename.doc.
•
A valid record URI of the form record://RECORDNAME/
path/to/file.doc.
•
A string of the form <urlid name="A_URLID"/>/path/to/
file.doc.
The third form references an entry in the URL table (Utilities,
Administration, URLs). If the URL ID that is named in the
name attribute is valid, the entire URI is rewritten with the part
in brackets replaced by the actual URI.
For example, if A_URLID is equal to ftp://
anonymous:[email protected], the entire string in
the previous example becomes ftp://anonymous:[email protected]
peoplesoft.com/path/to/file.doc and is treated like any other FTP
URI.
Rows of data with empty strings in the URI field are ignored
with no error.
If the string is one of these three valid URI forms and a
document can be retrieved at that URI, the document is
indexed with the same key as the rest of the row of data and is
searchable.
To add subrecords to the index, select the Subrecords tab, and insert the child records that you want to
include in the index.
Adding Subrecords to Verity Search Indexes
Select PeopleTools, Search Engine, Record-Based Indexes, Subrecords.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
255
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
To index more than one record as a single document, the records must be hierarchically related. For
example, the record that is specified on the previous page must be a parent of all the others. Formally,
this means that the keys of each subrecord named must be a superset of the keys of the parent record. The
parent record is the one that you specify in the Record (Table Name) field on the Primary Record page.
To add subrecords to an index:
1. Create and save the index definition.
2. Select PeopleTools, Search Engine, Record-Based Indexes, Subrecords.
3. Click the Add a new row button to insert the names of the records that are children of the parent
record that is defined on the Primary Record page.
On the Primary Record page, the fields of the child record are added to the Fields grid. When you
build the index, data from the child records whose keys match the row in the parent record is included
as part of the parent record. When an end user searches for data that is found in the child record, the
system returns a reference (VdkVgwKey) for the parent record.
Building File System (Spider) Verity Indexes
You can index file systems that are local to the application server. This refers to any file system on
the physical server on which your application server domain runs, and it also refers to any drives that
are accessible from the application server machine. File systems might include file servers, report
repositories, and so on.
The index is compiled by using vspider. The program descends into the directory structure recursively
and indexes the file types that you've selected to be indexed. It indexes only files that Verity supports for
collections.
This section discusses how to:
256
•
Set file system options
•
Define what to index
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Setting File System Options
Select PeopleTools, Search Engine, Filesystem Indexes to access the Design a Search Index page.
Image: Design a Search Index page (File system)
This example illustrates the fields and controls on the Design a Search Index page (File system). You can
find definitions for the fields and controls later on this page.
List local filesystem paths to spider
Specify the network file system path that contains the
documents to index. Ensure that the local application server has
the proper access to the file systems that you include in the list.
For Microsoft Windows, this means the drive mappings must be
set up from the applications server. For UNIX, this means the
correct network file system (NFS) mappings must be set on the
application server.
To add a system path to the list, click the plus button. To remove
a file system, click the minus button.
Remap Path to This URL
Do not use.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
257
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
Defining What to Index
Select PeopleTools, Search Engine, Filesystem Indexes, What to Index to access the What to Index
page.
Image: What to Index page
This example illustrates the fields and controls on the What to Index page. You can find definitions for the
fields and controls later on this page.
MIME Types
Index all Mime-types
Select to index all MIME types on a website.
Index only these Mime-types
Select to index only a certain MIME type, and specify the file
type in the MIME/Types Allowed list box. Separate multiple
MIME types with a space.
Exclude these Mime-types
Select to exclude a set of MIME types, and specify the MIME
types to exclude. Separate multiple MIME types with a space.
MIME/Types Allowed
Add a list of MIME types, separated by spaces, if you selected
Index only these Mime-types orExclude these Mime-types.
Filenames
Index all filenames
258
Select to index all file types.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Index only these filenames
Select to index only a certain file type, and specify the file type
in the Pathname Globs List list box.
Exclude these filenames
Select to exclude a set of file types, such as temporary files, but
to index all others. Also specify the file types to exclude.
Pathname Globs List
Add the files that you want to incorporate into your index.
Separate the entries with spaces. You can use wildcard
characters (*) to denote a string and “?” to denote a single
character. For example, the string '*.doc 19??.excel' means
select all files that end with the “.doc” suffix and Microsoft
Excel files that start with 19, followed by 2 characters.
Building HTTP Spider Verity Indexes
HTTP spider indexes are similar to the indexes that the spider functionality compiles for the file system
index. When using the spider index on a website, vspider starts at the home page of the site and then
follows each link on that page to the next level of the site. For each page at the next level, vspider follows
each link on each page. After following a link, vspider indexes all of the data on the target page.
You can specify as many websites as you want, and you can configure the depth, or number of layers of
links, that vspider follows into a website and index.
This section discusses how to:
•
Define HTTP gateway settings.
•
Define what to index.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
259
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
Defining HTTP Gateway Settings
Select PeopleTools, Search Engine, HTTP Spider Indexes to access the HTTP Gateway page.
Image: HTTP Gateway page
This example illustrates the fields and controls on the HTTP Gateway page. You can find definitions for
the fields and controls later on this page.
Depth of Links to Follow
Set the level of detail that you want to index within a certain
site. If you enter 1, vspider starts at the homepage and follows
each link on that page and indexes all of the data on the target
pages. Then it stops. If you enter2, vspider follows the links on
the previous pages and indexes one more level into the website.
As you increase the number, the number of links that vspider
follows increases geometrically. Do not set this value too high,
because it can impact performance negatively. You should not
need to set this value higher than 10.
List http://URLs to spider
Click the plus button to add multiple URLs to spider. Click the
minus button to remove a URL from the list. If you forget to
include the http:// (scheme) portion of the URL, the system
automatically includes it.
URLs should contain only the alphanumeric characters as
specified in RFC 1738. Any special character must be encoded.
For example, encode a space character as %20, and encode a <
as%3c. Additional examples are available.
See Uniform Resource Locators (URL)..
Stay in Domain
260
Select to limit spidering to a single domain. For example,
suppose that you are spidering www.peoplesoft.com and you
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
select this option. If a link points to a site outside the PeopleSoft
domain (as in yahoo.com), the collection ignores the link.
Stay in Host
Select to further limit spidering within a single server. If you
select this option, the collection contains references to content
only on the current web server or host. Links to content on other
web servers within the domain are ignored. For example, if you
are spidering www.peoplesoft.com and you select this option,
you can index documents on www.peoplesoft.com, but not on
www1.peoplesoft.com.
Proxy Hostname andProxy Port
Enter a host and port for vspider to use. Enter the same settings
that you would use in your web browser if you need a proxy to
access the internet.
Defining What to Index
Select PeopleTools, Search Engine, HTTP Spider Indexes, What to Index. The fields on this page are
documented in a previous section.
See Defining What to Index.
Administering Verity Search Indexes
After you design and build your search indexes, the Search Administration interface enables you to
schedule when and how frequently the indexes must be rebuilt. An important aspect of maintaining
the collections involves scheduling PeopleSoft Process Scheduler jobs that, on a regular basis, rebuild
the collection completely or incrementally update the index. Search index administration also includes
deleting old indexes and building indexes to support additional languages.
This section discusses how to:
•
Specify the index location.
•
Administer the search index.
•
Edit properties.
•
Schedule administration.
•
Share indexes between application servers and PeopleSoft Process Scheduler.
Specifying the Verity Index Location
By default, search index files are located in:
PS_CFG_HOME/data/search/indexname/db_name/language_code
You can store indexes in different locations, but you need to specify the custom location in the CFG file
for an application server, Process Scheduler, or search server. Use the [Search Indexes] section in the
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
261
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
PSAPPSRV.CFG, PSPRCS.CFG, or PSSRCHSRV.CFG files to specify alternate search index locations
and multiple locations, if necessary.
Note: This procedure assumes that you've already used the Search Index Designer to define, build, and
store the search indexes that you will specify in the CFG file.
Note: You must edit the CFG file manually to include the locations. You do not add search index
locations through PSADMIN.
To add a search index location:
1. Open the CFG file.
2. Locate the Search Indexes configuration section.
For example:
[Search Indexes]
;=========================================================================
; Search index settings
;=========================================================================
: Search indexes can be given alternate locations if there is an entry here.
; Entries look like: IndexName=fs location (ie EMPLOYEE=c:\temp)
3. Add an entry for each search index location that you want to specify by using the following syntax:
index_name=location
For example, to specify the location for search INDEX_A and INDEX_B, your entries would look
similar to the following:
[Search Indexes]
;=========================================================================
; Search index settings
;=========================================================================
: Search indexes can be given alternate locations if there is an entry here.
; Entries look like: IndexName=fs location (ie EMPLOYEE=c:\temp)
INDEX_A=c:\temp
INDEX_B=n:\search
Note: Make sure that your entries are not commented out with a semicolon (;) appearing before them.
Note: For the Process Scheduler configuration file, PSPRCS.CFG, include the same location as
specified in the application server configuration file.
Note: When specifying the index to be generated in a custom location, the directory structure the
system builds within the custom location will be slightly different from that built in the default
location. The directory structure within custom index locations will not have a directory for the
database name.
4. Save the CFG file.
262
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
Administering the Verity Search Index
Select PeopleTools, Search Engine, Administration to access the Search Index Admin page.
Image: Search Index Admin page
This example illustrates the fields and controls on the Search Index Admin page. You can find definitions
for the fields and controls later on this page.
Index
Displays the name of the index so that you can identify specific
indexes. To select an index, select the check box to the left of
the index name.
Index Location
Displays the current location of the index.
Edit Properties
Click to access the interface for changing the index location and
to build indexes to support additional languages.
Schedule
Click to access the interface for scheduling the program that
maintains your collection.
Delete checked Indexes
If you have selected indexes to be deleted, click this button to
remove them from the system. The deletion process deletes the
index definition and the collections that are stored in the file
system.
Note: If you attempt to delete a scheduled index, you may see SQL errors on IBM DB2 UDB or Sybase
database platforms.
Editing Properties
Select PeopleTools, Search Engine, Administration, Edit Properties.
Index Location
Displays the current location of the index.
Language Code
Select the language for which you want to build an index.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
263
Configuring Verity Search and Building Verity Search Indexes
Chapter 9
Language to Map
Currently disabled.
Build
After you add the additional indexes, click to create the indexes.
Note: Style files are located in the style subdirectory of the index. To make style changes, apply them to
the files in this directory.
Scheduling Administration
Select PeopleTools, Search Engine, Administration, Schedule.
Image: Scheduling search builds
This example illustrates the fields and controls on the Scheduling search builds. You can find definitions
for the fields and controls later on this page.
Add a new Recurrence Definition
In PeopleSoft Process Scheduler, you define run recurrence
definitions that enable you to schedule jobs to run at regular
intervals, such as monthly, weekly, daily, and so on. The more
current you keep the collections, the more accurate your search
results will be.
Type of Build
Rebuild: Select to drop the existing collection and rebuild a new
collection. This applies to all types of collections.
Increment: Use only for the spider indexes. For record-based
indexes, only theRebuild option is available.
Run Recurrence Name
Select the appropriate run recurrence definition for the
collection maintenance requirements.
Server Name
Specify the PeopleSoft Process Scheduler server on which
you want the build program to run. The PeopleSoft Process
Scheduler system must be installed and configured before you
can schedule the collection build program to run as a job.
Sharing Indexes Between Application Servers and PeopleSoft Process
Scheduler
The index files reside on a file system at the home location and must be accessible to all application
servers and process schedulers that will manipulate the index. An application server uses the index for
searching while the process scheduler invokes an Application Engine program that builds the indexes.
Therefore, if you are running a process scheduler on a different machine than the application server,
ensure that the index files are accessible to both. You can do this three ways:
264
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 9
Configuring Verity Search and Building Verity Search Indexes
•
Make a Microsoft Windows shared drive or NFS file system available for the index.
Specify the index location in both the application server and the process scheduler to point to the
shared directory.
•
Run an instance of the process scheduler on the application server host and schedule only the building
of indexes on this process scheduler.
Because the process scheduler and the application servers are running on the same host, they create
and read files from the same location.
•
Use an external program such as FTP or Secure Copy (SCP) to copy all of the files and directories
in the index home location from the process scheduler host (after the index has been built) to the
application server host so that they are available for searching.
Modifying the VdkVgwKey Key
To make the VdkVgwKey more readable and easier to parse, use the following XML-like syntax:
<field fieldname='MYFIELD'/>
<row/>
<pairs/>
<sql stmt="SELECT 'Y' FROM PS_INSTALLATION"/>
•
Fieldname and the SQL statement support single and double quotes, as well as no quotes at all (in
which case only the first word is considered part of the option).
Using double quotes for the SQL statement is recommended.
•
The SQL statement must return only one column.
Multiple rows are ignored. Trying to return more than one column results in a collection-build-time
error.
•
Currently, the only tag style that is supported is <tag/> with the slash (/) at the end.
•
The VdkVgwKey can include any amount of literal text interspersed with the tags.
This text is copied into the VdkVgwKey that goes into the BIF file, unmodified.
•
Field names are automatically set in uppercase.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
265
Chapter 10
Using PeopleSoft Configuration Manager
Understanding PeopleSoft Configuration Manager
PeopleSoft Configuration Manager simplifies Windows workstation administration by enabling you to
adjust PeopleSoft registry settings from one central location. It contains a variety of controls that let you
set up Windows workstations. You can set up one workstation to reflect the environment at your site, and
then export the configuration file, which can be shared among all the workstations at your site. You can
also define separate profiles for connecting to different PeopleSoft databases. PeopleSoft configuration
parameters are grouped on the Configuration Manager tabs according to the function, feature, or tool that
they control.
Note: The changes you make within PeopleSoft Configuration Manager do not take effect until the next
time a user signs on to PeopleSoft.
Note: When referencing install locations in your environment using Configuration Manager, keep in
mind that some files may be located in PS_APP_HOME or PS_CUST_HOME instead of PS_HOME,
depending on how you've implemented your PeopleSoft application.
Note: PeopleSoft supports a number of versions of UNIX and Linux in addition to Microsoft Windows.
Throughout this discussion, we make reference to operating system configuration requirements. Where
necessary, this topic refers to specific operating systems by name (Solaris, HP/UX, Linux, and so forth).
However, for simplicity the word UNIX refers to all UNIX-like operating systems, including Linux.
Related Links
Setting Up the PeopleTools Development Environment
Common Elements in PeopleSoft Configuration Manager
OK
Saves your settings and exits PeopleSoft Configuration
Manager.
Cancel
Closes PeopleSoft Configuration Manager without saving any
changes that you have made.
Apply
Saves your changes without exiting.
Starting PeopleSoft Configuration Manager
This section discusses:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
267
Using PeopleSoft Configuration Manager
Chapter 10
•
Launching Configuration Manager.
•
Managing PeopleTools 8.4x and PeopleTools 8.5x Configuration Manager settings.
Launching Configuration Manager
You can start PeopleSoft Configuration Manager by one of two methods:
•
Double-click the Configuration Manager shortcut in your PeopleSoft program group.
•
At a command prompt, enter:
PS_HOME\bin\client\winx86\pscfg.exe
Important! Due to changes in the registry structure beginning with PeopleTools 8.50, if you intend to run
PeopleTools 8.50 and later versions of Configuration Manager and previous versions of Configuration
Manager (PeopleTools 8.49, 8.48, and so on), on the same development workstation, pre-PeopleTools
8.50 values stored in the registry will be deleted.
Important! Certain PeopleSoft utilities require setting an environment variable, PS_SERVER_CFG,
to run properly. However, PeopleSoft Configuration Manager isn't compatible with PS_SERVER_CFG
being set. Before you start Configuration Manager, you must ensure that PS_SERVER_CFG is not
set. You can make this convenient by using a DOS batch file to unset PS_SERVER_CFG, launch
Configuration Manager, then after Configuration Manager exits, reset PS_SERVER_CFG to its previous
value.
Managing PeopleTools 8.4x and PeopleTools 8.5x Configuration Manager
Settings
PeopleTools 8.4x and PeopleTools 8.5x releases manage registry settings differently. This is due, in
part, so that PeopleTools complies with security policies introduced with Microsoft Windows Vista and
Microsoft Windows 7.
PeopleTools 8.4x Configuration Manager uses both HKEY_CURRENT_USER and
HKEY_LOCAL_MACHINE to store various settings. PeopleTools 8.5x Configuration Manager stores
all settings under HKEY_CURRENT_USER. For example, in PeopleTools 8.4x, profile settings are
stored in HKEY_LOCAL_MACHINE, whereas, in PeopleTools 8.5x profile settings are stored in
HKEY_CURENT_USER.
Due to these changes in the registry structure, the first run of the PeopleTools 8.5x Configuration
Manager will delete any PeopleTools 8.4x configuration settings stored in the registry in the
HKEY_CURRENT_USER hive. PeopleTools 8.4x and PeopleTools 8.5x registry settings can coexist,
but the PeopleTools 8.4x settings must be preserved prior to the first run of the PeopleTools 8.5x
Configuration Manager so that they can be restored afterwards.
To preserve PeopleTools 8.4x registry settings:
1. Use the Registry Editor to export and save the contents of HKEY_CURRENT_USER\Software
\PeopleSoft\PeopleTools\Release8.40.
2. Run PeopleTools 8.5x Configuration Manager, and modify settings as needed.
268
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
3. Import the .reg file containing the PeopleTools 8.4x exported registry contents.
After completing these steps, PeopleTools 8.4x and PeopleTools 8.5x will then use the same registry
values with the exception of the Profiles registry settings. PeopleTools 8.4x versions will use the
Profiles settings under HKEY_LOCAL_MACHINE. PeopleTools 8.5x versions will use the Profiles
settings under HKEY_CURRENT_USER.
Note: If the PeopleTools 8.4x settings are not saved or they are deleted when the PeopleTools 8.5x
Configuration Manager runs, you can recreate the PeopleTools 8.4x settings by running the PeopleTools
8.4x Configuration Manager and reentering the required settings.
Specifying Startup Settings
Select the Startup tab.
Use the Startup tab to customize the default values that appear on the signon screen.
Signon Defaults
Database Type
Select the database type to appear as a default on the PeopleSoft
Signon dialog box. Select Application Server to sign in to
an application server instead of a database. To enable users
to change their database type selection in the signon dialog
box, you must select theDatabase Type option in theUser Can
Override group.
Note: When you select Application Server from theDatabase
Type drop-down list, theServer Name andDatabase Namefields
are disabled. The system obtains these values from the
application server.
Application Server Name
If you selected Application Server from theDatabase Type dropdown list, specify the application server's name in this field.
You must have already configured your application server and
registered it on the Profile tab.
Server Name
Enter the name of the default database server. This parameter is
only enabled for Informix, Sybase, and Microsoft SQL Server,
and refers to the instance to which the user connects.
For Informix, enter the server name in lowercase.
Database Name
Enter a default database name. You can choose any valid
PeopleSoft database name. As with the database type, you must
select the appropriate option in the User Can Override group
to enable users to override the default database name selection
when they sign in.
User ID
Specify the default user ID to sign in to PeopleSoft.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
269
Using PeopleSoft Configuration Manager
Chapter 10
You can use the user ID in conjunction with a PSUSER module
containing a user-defined sign-in process. The PSUSER code, if
present, can evaluate and modify the user ID value before you
attempt to sign in to the selected database.
Connect ID andConnect Password
PeopleSoft uses the connect ID for the initial connection to the
database. Use the Connect Password field to define a default
connect ID password.
Note: The connect ID edit box must contain a value, or the user
can't sign in to the system in a two-tier environment.
See "PeopleSoft Authorization IDs" (PeopleTools 8.54: Security Administration).
See PeopleTools Installation Guide for Your Database Platform.
Numeric Keypad - Enter Key Tabs to Next Field
In Microsoft Windows applications, pressing the Enter key in a dialog box selects the default action
button. For example, in the PeopleSoft Signon dialog box, pressing Enter is the same as clicking theOK
button. Selecting theNumeric keypad check box overrides this default behavior for the Enter key on the
numeric keypad; instead of selecting the action button, pressing the Enter key moves the cursor to the
next field in the dialog box.
Note: This check box affects the Enter key on the numeric keypad, but not the Enter key on the main
keyboard.
User Can Override
Some PeopleSoft sites use multiple database types and names. Using the check boxes in the User Can
Override group box, you can enable users to enter a database type, database name, or user ID other than
the default provided at sign-in. In most cases, you use these controls to prevent users from attempting to
sign in onto any database other than the default.
270
Database Type
When selected, users can choose a database other than the
default. Selecting this check box selects the Database Name
andUser ID options automatically. You cannot clearDatabase
Name orUser ID without first clearingDatabase Type. When
configuring a workstation to connect in both two-tier and threetier, you must select this box. The user needs to specify a twotier or three-tier connection from the PeopleSoft Signon dialog
box.
Database Name
When selected, the User ID check box is automatically selected,
although you can clear it. To clearDatabase Name, you must
clear theDatabase Type check box.
User ID
Select to enable users to users override only the user ID
submitted at when they sign in. You cannot clear User ID
ifDatabase Type is selected.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
Cache Files Directory
Enter a parent directory to hold your client cache file directories. The directory you specify must be
writable for a user with Standard User privileges. For example, %USERPROFILE%\psft\pt\client\cache.
Cache files store database object information locally and are automatically downloaded the first time
you open a PeopleSoft database object. They are also downloaded automatically if the master copy of
the object on the database server has changed. For each PeopleSoft database to which you connect, the
system creates a single child cache files directory to store the cache files for that database.
Clicking Purge Cache Directories brings up a dialog box with your existing cache file directories.
You can select a single directory and click Delete, or you can clickDelete All to remove all directories. If
a cache file directory is missing (after you delete it), the system automatically rebuilds it the next time that
cache files are downloaded. After you delete the appropriate cache directory, clickClose to return to the
Startup tab.
Specifying Display Settings
Select the Display tab.
Use the Display tab to configure the appearance of the PeopleSoft graphical user interface. For instance,
you can adjust page width and height to fit in with the other elements on your desktop.
Language
In the Language drop-down list box, specify which language you want to display on your PeopleSoft
pages. The default setting is US English.
Note: You select from the languages that PeopleSoft delivers. Although you can implement applications
to appear in other languages, you cannot switch to custom languages using PeopleSoft Configuration
Manager. Switch to these languages by manually changing the registry setting.
Page Display
You can adjust page display size or the page height and width.
Display Size, Width, andHeight
Specify display size in pixels. This setting affects the default
size of the PeopleSoft window as displayed in the corresponding
Width andHeight fields. Select from:
•
640 X 480: The default window size is 640 pixels by 448
pixels.
•
800 X 600: The default window size is 800 pixels by 576
pixels.
•
1024 X 768: The default window size is 1024 pixels by 744
pixels.
•
Custom: You can manually set the default window size by
specifying width and height values.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
271
Using PeopleSoft Configuration Manager
Chapter 10
Note: Changing these parameters does not affect open windows.
If either value is either blank or zero, the values are reset to 640
by 480 pixel resolution.
Page Sizing
Use this field to specify how pages that were designed for a
different-size window should be displayed. Select from:
•
CLIP:Page controls are always displayed in their normal
size. If a page is too large for the window, the page
information is clipped along the right and bottom edges of
the window. Use scroll bars to view the remainder of the
page.
•
SCALE: Pages are scaled to fit the window as necessary.
For example, if your display size is set to 640 by 480 pixels,
and you open a page designed to display in an 800 by 600
pixel window, the page controls are scaled down so that all
page information appears. Conversely, if you open a page
designed for 640 by 480 pixel resolution in a larger window,
the page controls are scaled to fill the window completely.
Show Page in Navigator
Select to see the navigator tree view and the page view at the
same time.
Highlight Popup Menu Fields
Select to highlight fields with associated pop-up menus. The
box is clear by default. In most cases, it's a good idea to indicate
which fields contain pop-up menus. Pop-up menus are indicated
by a black rectangle surrounding the perimeter of a page control.
Show Database Name
Select to display the name of current database in the status bar
at the bottom of a PeopleSoft page, in addition to the current
page name and the activity. For example, the status bar might
read PTDMO, Job Data 1, Add. This feature is useful if you are
running multiple instances of PeopleTools.
Note: The database name may be abbreviated to fit on the
screen.
Font
Use the Font options to configure the way that text appears on the screen in PeopleSoft applications.
Click the Font button to bring up a standard font selection pop-up menu, as shown in the following
example:
Business Process Display
Select from:
272
•
On: The navigator appears with each menu group that you open.
•
Off: You must open the navigator manually.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
•
Using PeopleSoft Configuration Manager
First: The navigator appears on the first instance of PeopleSoft only. Subsequent instances do not
display the navigator.
Specifying Crystal Report, Business Interlink, and JDeveloper
Settings
Select the Crystal/Bus.Interlink/JDeveloper tab.
Crystal Options
If you have Crystal Reports installed on a workstation, the Crystal executables path is populated
automatically. If Crystal Reports is installed on a network drive, use this field to reflect the location of the
Crystal Reports executables. For example, you might enter n:\hr920\bin\client\winx86\crystal.
Use the Default Crystal Reports field to specify the default location of reports. If this setting does not
apply to your site's Crystal Reports implementation, leave this field blank. Depending on your application
installation, keep in mind that you may need to specify your PS_APP_HOME location.
When you select Use Trace during execution, Crystal Reports writes the trace statements to a log file that
you specify in theTrace File field.
Business Interlink Driver Options
In the Business Interlink Directory box, enter the complete path to the directory that contains the drivers
that PeopleSoft Business Interlinks uses to communicate with external systems.
Note: PeopleSoft Business Interlink is a deprecated product. These options currently exist for upgrade
compatibility and transition.
JDeveloper Home Directory
Oracle JDeveloper is used when developing transformations using Oracle XSL Mapper. You need to
specify the high-level installation directory as well as the appropriate Classpath string. These settings are
discussed in detail in the Integration Broker documentation.
Related Links
"Configuring Crystal Reports" (PeopleTools 8.54: Crystal Reports for PeopleSoft)
"Developing Transforms Using Oracle XSL Mapper" (PeopleTools 8.54: Integration Broker)
Specifying Trace Settings
Select the Trace tab.
Use the Trace tab to select tracing options for various parts of the PeopleTools system, such as SQL
statements, PeopleCode, and Application Engine. If you work on tuning your PeopleSoft system and
improving online performance, familiarize yourself with this tab. When you update the Trace tab, the new
settings take effect the next time you launch PeopleTools.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
273
Using PeopleSoft Configuration Manager
Chapter 10
Note: The Trace tab in PeopleSoft Configuration Manager traces only Microsoft Windows client (twotier) interactions. Use these settings only when you require tracing on the client.
You can override some of the trace options on this tab from the Trace SQL and Trace PeopleCode pages
in PIA.
See Configuring SQL Trace, Configuring PeopleCode Trace.
SQL Informational Trace
Select this check box to trace information messages from the Runstats command in DB2 UDB for z/OS
executed as a result of an %UpdateStats meta-SQL command.
PeopleTools Trace File
The default filename for the PeopleTools trace file is DBG1.TMP. The system writes the file to the
following directories:
•
In Microsoft Windows: %TEMP% directory
•
In UNIX: $PS_HOME/log/dbname
Important! The PeopleTools trace file stores elapsed times for PeopleCode and SQL events to a precision
of one microsecond (six decimal places). However, due to limitations of the operating system, Windows
precision is actually in milliseconds (three decimal places), so the last three digits in a Windows trace will
always be zero. Elapsed times in UNIX are accurate to one microsecond.
To specify a different PeopleTools trace file:
1. Click the button on the right side of the PeopleTools Trace File edit box.
A standard Open dialog box appears.
2. Navigate to and select the new trace file.
3. Click Open.
The PeopleTools Trace File field displays the path and filename.
Related Links
"Setting Options in PeopleSoft Configuration Manager" (PeopleTools 8.54: Application Engine)
Specifying Workflow Settings
Select the Workflow tab.
Use the Workflow tab to specify the options and locations related to the PeopleSoft Workflow
implementation at your site.
Maximum Worklist Instances
274
Enter a number to limit the number of worklist instances or
entries that appear when viewing worklists. The default value
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
is 250. If you do not want any rows returned, leave the field
blank.
SMTP Server
Specify the SMTP settings for email routings.
Related Links
Workflow Technology
Specifying Remote Call/AE Settings
Select the Remote Call/AE tab.
Some PeopleSoft applications use the Tuxedo Remote Call feature, which invokes data-intensive
transactions, such as COBOL processes, on a remote server.
Timeout
Enter the amount of time after which Remote Call terminates the
child COBOL process. The default is 50 seconds.
Redirect Output
Select to specify whether the standard out or standard error of
the child COBOL process is directed to a file. This check box is
clear by default.
Support COBOL Animation
Select to save the COBOL input file so that you can reuse it
with COBOL animator. This check box is clear by default.
Normal, Minimized, andHidden
Specify how the window state of the child COBOL process
appears on the desktop.
Disable DB Stats (disable database
statistics)
•
Select Normal to have the window state appear like a DOS
window on the desktop.
•
Select Minimized to have the window state appear as an
icon on the task bar.
•
Select Hidden to have the window state run unseen in the
background.
Select to turn off the %UpdateStats meta SQL construct. This
setting applies to Application Engine programs.
See "Meta-SQL" (PeopleTools 8.54: Application Engine).
Configuring Developer Workstations
Select the Client Setup tab.
As part of the PeopleSoft installation process, you need to configure developer workstations (also called
the PeopleTools development environment) to run successfully with your PeopleSoft system. You use
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
275
Using PeopleSoft Configuration Manager
Chapter 10
developer workstations for development and administrative tasks that require the use of a Windows
workstation. Such tasks include, updating record definitions with Application Designer and running
scripts using Data Mover. Development workstations can access the PeopleSoft system using both twotier and three-tier connections.
Use the Client Setup tab to configure developer workstations and invoke the Client Setup process.
Although this tab is specifically for developer settings, all of the PeopleSoft Configuration Manager
settings may affect developers, especially the Startup tab and the Process Scheduler tab for the default
profile.
See PeopleTools Hardware and Software Requirements
Shortcut Links
Here are the various shortcut links:
Application Designer
Adds a shortcut for the main PeopleTools development
environment.
Configuration Manager
Adds a shortcut for PeopleSoft Configuration Manager, which
enables you to edit registry settings relevant to PeopleSoft.
Data Mover
Adds a shortcut to launch PeopleSoft Data Mover.
Uninstall Workstation
Adds a shortcut for Uninstall Workstation, which uninstalls the
most recent client setup.
PeopleTools RPT Converter
Adds a shortcut to a standalone program that converts RPT
files from the format PeopleSoft used in previous releases to
the currently supported Crystal format. You only need to run
this program if you are upgrading from previous versions of
PeopleTools.
nVISION
Adds a menu item for PS/nVision to the PeopleSoft 8 menu
group in the Microsoft Windows Start menu.
Note: Back up RPT files before you run the converter program,
which significantly alters them.
Install Workstation
Select the Install Workstation check box to run the Client Setup process. Only select the check box after
specifying all the appropriate selections on all PeopleSoft Configuration Manager tabs. If you do not
select this box, the Client Setup process will not run.
After you select this check box, click either OK orApply.
Enable Dirty-Read for 2Tier Query
(Applies only to DB2 systems.) Select this option if you need to run "dirty read" queries, through
PeopleSoft Query during a two-tier connection.
See Query.
276
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
Related Links
Setting Up the PeopleTools Development Environment
Importing and Exporting Environment Settings
Select the Import/Export tab.
Use this tab to export, or save to file, the specified environment settings, and to import previously
exported settings. This feature is useful when you plan to configure multiple workstations with similar
settings.
Export to a File
Click to write current configuration settings to a file. A Save
dialog box appears. Note the file name that you give the
configuration file.
Note: Click Apply before you export a file. This ensures that the
exported configuration file reflects the current settings.
Import from a File
Click to import previously saved configurations on another
workstation. Importing a configuration file overrides all the
current environment settings on the machine that you import to.
When you click this button, an Open dialog box appears.
Navigate to the directory containing the appropriate
configuration file, select the file, and clickOpen.
Warning! In addition to overwriting environment settings,
this function also overwrites all existing settings made in
Application Designer.
Configuring User Profiles
This section discusses how to:
•
Define a profile.
•
Specify databases and application servers.
•
Configure process scheduler.
•
Configure nVision.
•
Specify common settings.
Note: The term "user profiles" is used here to refer to user configurations for a workstation. These
profiles are not to be confused with PeopleSoft security user profiles.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
277
Using PeopleSoft Configuration Manager
Chapter 10
Defining a Profile
Select the Profile tab.
Use this tab to define one or more user profiles, each of which specifies connection parameters and file
location information for a PeopleSoft installation.
Many PeopleSoft installations include multiple databases. For example, there may be one database
for tracking financial information, such as expense reports, and another database for human resources
processes, such as benefits enrollment. Each of these databases has its own set of supporting files, SQR
reports, COBOL processes, and so on. PeopleTools locates these files by referring to the Microsoft
Windows registry. By defining multiple profiles, you can tell PeopleTools to use different directory paths
depending on the database.
When you first open PeopleSoft Configuration Manager, the Profile tab displays a single profile named
Default. To set the parameters for this profile, make sure that it's selected, and click the Edit button. The
Edit Profile dialog box appears.
Each workstation must have a default profile, which is used when the user signs in to a database or
application server that isn't listed in any profile. If the workstation requires only one set of profile settings,
you can use the default profile. You can also set up multiple PeopleSoft Configuration Manager profiles.
The profiles are set for Microsoft Windows workstations and are specific to each user and not shared by
all workstation users.
Note: You can use profiles to easily switch between applications.
Specifying Databases and Application Servers
From the Edit Profile dialog box, select the Database/Application Servers tab.
Use this tab to specify the configured databases and application servers associated with this profile.
When a user enters one of these databases or application servers in the PeopleSoft Signon dialog box,
PeopleTools uses the registry settings associated with this profile.
Note: You can assign multiple databases and application servers to a single profile. However, each
database and application server must be assigned to only one profile. If you try to add a database to a
second profile, PeopleSoft Configuration Manager asks you if you want to remove it from the previous
profile and add it to the current one.
Note: Before you enter a database or application server on this tab, you should have already installed and
configured it as documented in the PeopleSoft installation documentation for your database platform.
Application Server Name
Enter a name for an application server that you have configured. This name will appear in the drop-down
list box on the PeopleSoft Signon dialog box. Choose a name that's intuitive for your site.
Note: Application server names cannot exceed 24 characters.
278
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
Machine Name or IP Address
Enter the IP address or the resolvable server name of the application server you specified in the
Application Server Name field. You specified the IP address in the [Workstation Listener] section of your
PSAPPSRV.CFG file when you installed your PeopleSoft application server. For example, you could
enter207.135.65.20 orsp-hp32.
Port Number
Enter the port number for the application server that you specified in the Application Server Name field.
You specified the port number when you installed and configured the application server using PSADMIN.
A port number is an arbitrary number between 0 and 9999 that is determined by site specifications.
TUXEDO Connect String
Use this field to support dynamic load balancing. You can specify a free-form connect string that allows a
client to connect to another application server in case another is either down or being used to full capacity.
Note: The Tuxedo connect string cannot exceed 1000 characters.
When configuring load balancing, you might choose from the following approaches:
•
Round robin load balancing.
With this approach, you specify multiple application servers, and each client picks a server randomly.
This approach assumes that application server will receive an equal number of connections. To
specify round robin load balancing, use the following syntax for the connect string:
(//IP address 1:port 1|//IP address 2:port 2|//Ip address n:port n)
You can specify the IP address using either dotted notation or by using the server's DNS name. Either
way, the slashes (//) preceding the IP address are required.
If the selected application server is unavailable, your connection attempt fails, and the system does not
try to connect you to the other application servers defined within the parentheses.
Spaces are not allowed in any part of the connection string. The system automatically removes
embedded spaces before storing the value in the registry.
•
Round robin with failover.
With this approach, you define a failover connection string. Use the following syntax:
(//IP address 1:port 1|//IP address 2:port 2),(//IP address 3:port 3)
If the application server selected from the first group of parentheses (IP addresses 1 and 2) is
unavailable, the system automatically attempts to connect to an application server defined in the
second group (IP address 3). If that application server fails, the system attempts to connect to the next
group to the right, sequentially.
If multiple application servers are defined within any group, the system round-robins between them.
If the selected application server fails, the system attempts to connect to the next application server to
the right, if any. The following list shows three examples of connect strings that use this approach:
•
(//sp-ibm01:8000|//sp-ibm02:8000),(//sp-nt01:8000)
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
279
Using PeopleSoft Configuration Manager
Chapter 10
•
(//208.136.78.88:8000|//208.136.78.88:8050|//208.136.78.88:8080)
•
(//sp-sun01:8000),(//sp-sun02:8000),(//sp-sun03:8000)
Domain Connection Password
Specify for the password for establishing a connection to the domain. The domain configuration contains
the DomainConnectionPwd parameter, which provides an additional layer of security for the domain by
preventing connections from any unauthorized clients. Three-tier workstation connections must submit
the same password as the specified DomainConnectionPwd value.
For a three-tier Windows workstation connection, you enter the password in the Domain Connection
Password field.
Set and Delete Buttons
When you click Set, your application server information is displayed in the grid at the top of the dialog
box. You can enter a new application server name and set up a different server if you like.
Note: The settings in the grid are not saved until you click Apply orOK. If you clickCancel without first
clickingApply orOK, you lose all the information in the grid.
To remove an application server configuration, select its application server name in the grid and click
Delete.
Configuring Process Scheduler
Access the Process Scheduler tab.
Use this tab to specify the directories that are associated with PeopleSoft Process Scheduler jobs, such as
SQR and COBOL directories.
General
PeopleSoft Home Directory
Enter your high-level PeopleSoft directory, such as N:\HR920,
orN:\PT853. This value is referred to as your PS_HOME.
PeopleSoft Apps Home Directory
If you have installed your PeopleSoft application into a
directory other than PS_HOME, specify that location here, such
as N:\HR920. This value is referred to as your PS_APP_HOME.
Note: If the PS_APP_HOME value is not set and the PS_
HOME value is set, then the system assumes that PS_HOME
is the location of your PS_APP_HOME. That is, the system
assumes you have installed your PeopleSoft application into the
same directory as PeopleTools in PS_HOME. Changes need to
be added and saved to the Process Scheduler tab for the system
to implement this.
280
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
PeopleSoft Customizations Home
Directory
Using PeopleSoft Configuration Manager
If you have created custom files or modified delivered files,
you can store them in PS_CUST_HOME to simplify system
resource sharing as well as upgrades and updates.
See Working with PS_CUST_HOME for more information.
Crystal Reports
Enter the file path to \CRWRTPATH, where Crystal Reports
sends your reports.
Output Directory
(Optional) Enter the directory used with the Output Destination
field when scheduling a PeopleSoft Process Scheduler request.
Log Directory
Enter the directory for SQR, COBOL, and PeopleSoft Process
Scheduler log files.
Temp Directory
Enter the path to your temporary directory, for example, C:
\TEMP. This directory stores log files and other output files.
Database Drivers
Enter the path to the directory where your database drivers
reside.
Note: The PeopleTools Development Environment running
on the Windows workstation (Application Designer, Data
Mover, and so on) is a 64–bit application, requiring 64–bit
connectivity software. See PeopleTools Installation for your
database platform, for more information.
Word Executables Directory
Enter the directory containing Microsoft Word executable.
Redirect Output
Select to redirect on-screen COBOL Display statements to
a log file. (If this check box is clear, you see the onscreen
messages only.) Sending the messages to a log file is useful
for debugging purposes. The log file is created in the %TEMP
%\PS_HOME\DBNAME directory. In addition to the output
generated by COBOL Display statements, the log file contains
errors generated by the COBOL runtime system.
Note: To use the Application Engine debug feature, clear
Redirect Output.
Application Engine
Debug
Select to enable the Application Engine command-line
debugger.
Warning! Select the Debug check box only when you are
testing and troubleshooting client-side processes. If you
selectDebug and submit a process request to the server, the
process hangs, waiting for a user command.
Disable Restart
Select to disable the Application Engine restart feature, which
lets you restart an abnormally terminated Application Engine
program. When selected, Application Engine programs start
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
281
Using PeopleSoft Configuration Manager
Chapter 10
from the beginning. This option is useful during debugging. Do
not select it in a production environment.
SQR
SQR Executables
Enter the path to the directory where SQR executables reside.
SQR Flags
Enter the SQR parameters that PeopleSoft Process Scheduler
should pass on the command line to the SQR executables. The
following SQR flags are required for launching SQR reports:
SQR Report Search 1 ,SQR Report
Search 2 ,SQR Report Search 3 ,
andSQR Report Search 4
•
-i: Specifies the path to SQC files.
•
-m: Specifies the path to the ALLMAXES.MAX file.
•
-f: Specifies the output path.
•
-o: Directs log messages to the specified file.
•
-ZIF: Sets full path to the and name of the SQR initialization
file, SQR.INI.
Enter the directory paths that the SQR executable should use
to locate SQR reports. SQR Report Search 1 is searched first,
followed bySQR Report Search 2, and so on.
Note: When specifying SQR report locations, consider the
location of your PS_APP_HOME.
COBOL
COBOL Executables
Enter the path to \CBLBIN, where COBOL executables reside.
Note: When specifying COBOL locations, consider the location
of your PS_APP_HOME.
Configuring nVision
Access the nVision tab.
Use this tab to specify where PS/nVision should look for files and how it should operate. PeopleSoft
Query Link, the feature that enables you to send PeopleSoft Query output to a spreadsheet, also uses these
settings.
Space between Query Columns
This parameter sets the number of blank Microsoft Excel characters that PeopleSoft Query Link places
between query output columns. To eliminate column spacing, set Space between Query Columns to zero.
282
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
Directory Paths
Specify the locations of directories associated with PS/nVision jobs.
Note: When specifying nVision directory locations, consider the location of your PS_APP_HOME.
Customization Macros
Enter the directory containing macros for PS/nVision and
PeopleSoft Query Link. It is usually PS_HOME\excel.
Report Layouts
Enter the location of PS/nVision layout fields.
Drilldown Layouts
Enter the location of PS/nVision drilldown files, for example, c:
\user\nvision\layout\drilldn.
Report Instance
Enter the directory in which PS/nVision places report instances;
for example, c:\user\nvision\instance.
Query Templates
Enter the directory to look for the QUERY.XLT file, which
defines the Microsoft Excel styles used to format output. The
default is PS_HOME\excel.
Style Sheets
Enter the directory where the NVSUSER style wizard locates
nPlosion style sheets.
Trace Level
Indicate whether you want PS/nVision to generate independent
trace log files of two-tier activity, and at what level, for each
nVision process. Select one of the following values:
•
0: Disable tracing. This is the default value.
•
1: Generate basic high level information.
This setting can be used to check whether nVision has
successfully launched and is able to connect to Excel and
process the request. Some of the key entries in a level 1
trace log are:
•
•
Command Line Arguments.
•
Trace Level.
•
Excel Pid.
•
Run Control Name.
•
Report Id.
•
Business Unit.
•
Drill Layout.
•
Report Id.
•
Instance Name.
2: Generate level 1 tracing plus high level code flow.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
283
Using PeopleSoft Configuration Manager
Chapter 10
•
3: Generate level 2 tracing plus runtime SQL statements.
•
4: Generate level 3 tracing plus most function calls and
output values.
Use this setting to identify problems that are intermittent and
hard to predict.
The trace log files are generated in the c:\temp directory, named
with the format psnvs_process_id.nvt, for example, psnvs_1024.
nvt. You can view these log files in a text editor.
See "Viewing Process Detail Actions" (PeopleTools 8.54:
Process Scheduler).
Note: Extensive tracing will affect PS/nVision performance.
Two-tier log files aren't automatically purged by PS/nVision.
Users must manually delete them from the temp directory to
save disk space.
Related Links
PS/nVision
Specifying Common Settings
Select the Common tab.
Sybase Packet Size
Specify a TCP packet size. The minimum value is 512 and the maximum value is65538. The default
packet size is512. If you change the packet size, make sure to make the corresponding changes to
the Sybase server. See the material on Sybase administration and tuning on the PeopleSoft Customer
Connection website, as well as your Sybase documentation.
See Your Sybase reference manuals.
Application Designer Image Conversion
When you upgrade to newer version of PeopleTools, you'll need to convert images to a new format, which
may require more storage space. If the images exceed the record size limit of your platform, you can
shrink the images to conform to this limit.
Convert and Shrink Images to
Platform Limit
Select to convert and shrink images to fit your selected database
platform limit, as shown in the Image Size Limit field.
Convert and Shrink Images to Image If you are upgrading to a different database platform, select this
Size Limit
option and specify the correct value in the Image Size Limit
field.
Don't Convert, but Shrink Images to Select for images that have already been converted, but need to
Image Size Limit
be converted so they meet the platform size limits.
284
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
Data Mover Directories
You can control several PeopleSoft Data Mover environment variables through PeopleSoft Configuration
Manager.
Note: When specifying Data Mover directory locations, consider the location of your PS_APP_HOME.
Input Directory
Enter the directory where PeopleSoft Data Mover should search
for its input data files. If no path is specified for SET INPUT in
the Data Mover script, Data Mover searches directories for the
database file in the following order.
1. Specified output directory.
2. C:\TEMP.
Output Directory
Enter the directory where PeopleSoft Data Mover scripts and .
DAT files will be created. Data Mover must have write access to
the location.
The default is PS_CFG_HOME\data.
Log Directory
Enter the location of PeopleSoft Data Mover log files. This
location must allow Data Mover write access in the case of a
read-only PS_HOME configuration.
The default is C:\Documents and Settings\admin\Local Settings
\Temp.
Related Links
"Understanding PeopleSoft Data Mover" (PeopleTools 8.54: Data Management)
Specifying Command Line Options
In addition to its GUI interface, PeopleSoft Configuration Manager offers command line options. Syntax
for PeopleSoft Configuration Manager command line options is as follows:
pscfg -command
For example:
pscfg -import:n:\config\hr900.cfg
Import File
To import configuration settings from a named file, enter -import: filename.
Export File
To export the current configuration settings, enter -export: filename.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
285
Using PeopleSoft Configuration Manager
Chapter 10
Run Client Setup
To run the Client Setup process, enter -setup.
Note: You must use the -setup command in conjunction with the -import command if you are setting up a
new workstation.
Run Client Setup Without Displaying Messages
To run the Client Setup process without displaying messages or dialog boxes, enter -quiet.
Note: Output messages are written to a log file called %temp%\PSINSTAL.LOG.
Install MSS DSN
To install MSS DSN, enter -dsn.
Note: For Microsoft SQL Server, the server name value is used to automatically create your ODBC data
source name.
Uninstall Workstation
To clear the PeopleSoft settings from the registry or uninstall the PeopleSoft workstation, enter -clean.
The -clean command removes the following items from the workstation:
•
PeopleSoft registry settings.
•
All cache files from the current \CACHE directory.
•
Shortcut links.
•
PeopleSoft program group.
Make sure that removing all of these items is acceptable before issuing the -clean command.
Help
To view PeopleSoft Configuration Manager command-line options online, enter -help or a question mark
(?).
Setting Up the PeopleTools Development Environment
This section provides overviews of the PeopleTools development environment and the client setup
process and discusses how to:
286
•
Verify PS_HOME access.
•
Verify connectivity.
•
Verify supporting applications.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
•
Use the Configuration Manager pages.
•
Run the Client Setup process.
Understanding the PeopleTools Development Environment
Most user workstations are equipped with supported web browsers, but with no special PeopleSoft
software installed. The traditional Microsoft Windows client is supported for application developer and
administrator use. The PeopleTools development environment runs on a supported version of Windows.
This topic describes how to configure these Windows-based clients using PeopleSoft Configuration
Manager. As before, such clients can connect to the PeopleSoft database directly using client connectivity
software (a two-tier connection), or through a PeopleSoft application server (a three-tier connection).
Understanding the Client Setup Process
Before running the Client Setup process, create all the profiles you need.
The Client Setup process installs a PeopleSoft program group on the workstation.
If the Install Workstation check box on the Client Setup tab is selected, these Client Setup functions are
performed when you clickOK orApply from PeopleSoft Configuration Manager.
See Configuring Developer Workstations.
Note: Any files installed by the Client Setup process on the workstation from the file server use the paths
specified in the default profile.
Verifying PS_HOME Access
To use the PeopleTools development environment, each workstation must have access to the file server
PS_HOME directory (the high-level directory where PeopleSoft executables were installed) and have a
drive mapped to the directory. Workstation users must have read access to thePS_HOME directory.
Verifying Connectivity
Database connectivity is required on all Microsoft Windows-based clients that make two-tier connections
to the database. A two-tier connection is required if any of the following is true:
•
You sign in to the Application Designer in two-tier.
•
You run PeopleSoft Data Mover scripts.
•
You run COBOL and SQR batch processes on the client.
Note: PeopleSoft Windows-based development tools, such as Application Designer, are 64–bit
applications in the current release and require 64–bit connectivity software.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
287
Using PeopleSoft Configuration Manager
Chapter 10
Verify Supporting Applications
Supporting applications must be installed on any Microsoft Windows-based client on which batch
processes are run locally.
SQR
On Microsoft Windows-based clients, you can install SQR locally, or you can map to a copy installed
on the file server. Because SQR does not require local registry settings, you can execute SQR from any
Windows-based client once SQR has been installed to a shared directory. Installing SQR locally results in
improved performance; over a slow network connection, the improvement is significant.
Crystal Reports
Optionally install Crystal Reports on Microsoft Windows-based two-tier clients. As with SQR, you can
install Crystal Reports locally, or you can map to a copy installed on the file server. Because Crystal
Reports does not require local registry settings, you can run Crystal Reports from any two-tier client
once it has been installed to a shared directory. Installing Crystal Reports locally results in improved
performance; over a slow network connection, the improvement is significant.
Crystal Reports requires that you install the PeopleSoft ODBC driver on the workstation where Crystal
Reports processes run.
Microsoft Office
Install Microsoft Office on any two-tier client that runs PS/nVision or Microsoft Word batch processes.
Microsoft Office must be installed locally, because it requires registry settings.
Using the Configuration Manager
PeopleSoft Configuration Manager enables you to manage registry settings on a Windows workstation
that control a variety of interface options, such as signon defaults, display settings, and environment
profiles.
Related Links
Understanding PeopleSoft Configuration Manager
Running the Client Setup Process
To run the Client Setup process:
1. In Configuration Manager, select the Client Setup tab.
2. In the Group Title text box, enter the name of the program group for the icons you want on the client
workstation.
3. Select check boxes to create shortcut links for PeopleSoft applications that you want to access from
the workstation.
When you run the Client Setup process, it removes existing shortcuts in the PeopleSoft 8 program
group and installs shortcuts for the applications that you have selected. If you later want to install or
uninstall shortcuts, you can always run Client Setup again.
288
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 10
Using PeopleSoft Configuration Manager
4. Select the Install Workstation check box.
Client Setup runs when you click Apply orOK in PeopleSoft Configuration Manager. If this check
box is not selected, the Client Setup process creates or updates settings in the registry, but it doesn't
set up the PeopleSoft 8 program group or install local DLLs.
5. Click Apply to run the Client Setup process and apply other PeopleSoft Configuration Manager
settings.
6. To view a list of the files installed and actions taken by the Client Setup process, open the psinstal.log
file in your Temp directory.
Related Links
Configuring Developer Workstations
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
289
Chapter 11
Using PeopleTools Utilities
Understanding the PeopleTools Utilities
As you work with the PeopleSoft system, you find that there are some administrative tasks that you only
need to perform occasionally. These tasks include such things as maintaining error messages and setting
DDL model defaults. The PeopleTools Utilities menu is where you find tools for accomplishing some of
these more infrequent tasks.
The documentation of the utilities matches the menu structure of the Utilities interface. For example,
the PeopleTools Options utility is under the Administration menu in the Utilities interface; therefore, the
documentation for PeopleTools Options is in the Using Administration Utilities section in this topic. Also,
in many cases this book refers to other PeopleBooks for the detailed documentation of a utility.
Using the System Information Page
This section provides an overview of the system information page and discusses how to view the system
information page.
With the combination of accessing PeopleSoft applications with a browser, single signon between
databases, and the PeopleSoft Portal, users and system administrators need a quick tool to provide
orientation information and information regarding the current environment. For this reason, PeopleSoft
provides the system information page.
Understanding the System Information Page
With single-signon and the portal, it may not be apparent to all end users just exactly what databases or
applications they are currently accessing. Viewing environment information can help end users orient
themselves.
In most cases, the administrators use the system help page to aid in troubleshooting. If a user has trouble
accessing a particular application, the system administrator can instruct the user to provide the system
information that appears in this page so that the administrator can immediately identify the current
application server, database, software version, operating system, and so on.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
291
Using PeopleTools Utilities
Chapter 11
Viewing the System Information Page
To view the System Information help page, you press the CTRL+J hotkey while a PeopleSoft page is
active. The following example illustrates the type of information that appears.
Image: System Information page
This example illustrates the fields and controls on the System Information page. You can find definitions
for the fields and controls later on this page.
To return to the previous page, click continue.
The following table briefly describes each item:
292
Item
Description
Browser
The browser version and type, such as Internet Explorer.
Operating System
The operating system that runs on the computer on which the
browser is running. For example, this refers to the operating
system of the end user's workstation or the operating system
running on a kiosk machine. It does not refer to the operating
system that runs on the application server, web server, or
database server.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Item
Description
Browser Compression
Indicates if browser compression is enabled in the Compress
Responses field on the General page of the current web profile.
Values are:
•
ON: The flag is on in the web server configuration and
the page is compressed.
The compression type is either gzip or zip.
•
OFF: The page is not compressed because the flag is
cleared in the web profile.
•
OFF (not supported): The page is not compressed because
the browser doesn't support compression, however the
flag is turned on in the web profile.
Tools Release
The version of PeopleTools that is currently installed at the
site. For example, PeopleTools 8.5, 8.51.01, and so on.
Application Release
The version of PeopleSoft applications that are currently
installed at the site.
Service Pack
Typically, updates to PeopleSoft applications arrive in the form
of a service pack. This item shows the current service pack
that is applied to the applications.
Page
The current page that the user is accessing.
Component
The component to which the current page belongs.
Menu
The name of the menu under which the component appears.
User ID
The user ID of the user that is currently accessing PeopleSoft.
Database Name
The name of the database that the user is currently performing
a transaction in.
Database Type
The type of the current database, as in Microsoft, Oracle, DB2
UDB, and so on.
Application Server
The domain name server name or Internet Protocol (IP)
address and the JSL port number.
Component Buffer Size (KB)
The component buffer size, which reflects the data buffer
size, not including metadata,, such as the record definition
or component definition. This metric is the same metric also
displayed by the Performance Monitor.
Note: The Performance Monitor does not need to be
configured for this value to be populated.
You enable and disable the System Information page using the Show Connection Information check box
on the Debugging page of the current web profile.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
293
Using PeopleTools Utilities
Chapter 11
Related Links
"Configuring Trace and Debug Options" (PeopleTools 8.54: Portal Technology)
Using Administration Utilities
This section discusses:
294
•
PeopleTools Options.
•
Message Catalog.
•
Spell Check System Dictionary.
•
Translate Values.
•
Load Application Server Cache.
•
Tablespace Utilities.
•
Tablespace Management.
•
DDL Model Defaults.
•
Strings Table.
•
XML Link Function Registry.
•
Merchant Integration Utilities.
•
TableSet IDs.
•
Record Group.
•
TableSet Control.
•
Convert Panels to Pages.
•
Update Utilities.
•
Remote Database Connection.
•
URL Maintenance.
•
Manage Attachment Repositories.
•
Query Monitor.
•
Sync ID Utilities.
•
Gather Utility.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Signon Event Message
Select PeopleTools, Utilities, Administration, SignOn Event Message to access the Event Messages
page.
Use this page to define messages to display to end users when they sign on to the PeopleSoft system.
As long as the signon message is active, each time a user signs on to PeopleSoft, the event message will
appear after the user clicks Sign In on the signon page.
Image: Event Messages page
This example illustrates the fields and controls on the Event Messages page. You can find definitions for
the fields and controls later on this page.
View/Edit
Click to view or modify a signon message.
Delete Expired Messages
Click to delete messages that have an End Time and End Date
value earlier than current time.
Note: To delete individual messages at any time, use the Delete
row (-) button.
Note: Only users with the role of PeopleSoft System Administrator will have access to the pages used to
view and define signon event messages.
Adding Signon Event Messages
To add a new signon event message:
1. Select PeopleTools, Utilities, Administration, SignOn Event Message.
2. Add a new row to the Event Messages grid.
Defining Signon Event Messages
Use the Message Definition dialog box to define signon event messages.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
295
Using PeopleTools Utilities
Chapter 11
Click View/Edit in the Event Messages grid to display the Message Definition page.
Image: Message Definition page
This example illustrates the fields and controls on the Message Definition page. You can find definitions
for the fields and controls later on this page.
Event Message
Compose the signon message in this edit box. The system will
display to the user all text entered into this edit box. When
creating messages, consider:
•
Message size limit is 32 KB.
•
Only plain text is supported (not HTML, XML, Rich Text,
or text including links, bold, underline, and so on).
•
Translation of the message is the responsibility of the system
administrator creating the message. The system does not
translate the message depending on the language of the
user. For example, in Quebec, Canada, you might consider
displaying an English and French version of the message.
•
The message will be seen by all users signing on to the
database through a browser, regardless of role, department,
time zone, and so on. As such, care should be taken to
ensure the message has broad relevance.
Note: The message will not be displayed to Windows
Development Environment users.
296
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Message Active
Using PeopleTools Utilities
Specify the duration for which the message will be active by
setting a start time and date and an end time and date. The
system only displays messages where the current time is after
the start time and date and before the end time and date.
Note: The Time Zone is read-only, and displays the time zone
in which the database runs. It does not necessarily reflect the
time zone that would be applicable to the text in the message. If
there are any specifics related to the time zone that users need to
be aware of, that should be communicated in the event message
text.
Working With Signon Event Messages
The Event Messages grid can contain multiple signon event message definitions. However, only those
messages that are currently active will be displayed to the user.
Image: Event Message display page
This example illustrates the fields and controls on the Event Message display page. You can find
definitions for the fields and controls later on this page.
Multiple signon event messages are displayed to the user by start time and date, with the earliest
appearing first.
After reading the message, the user clicks Continue, and accesses the application as usual.
Important! The event message display uses the component PT_EVENTDISPLAY. If you intend to use
signon event messages, all users of your system need to be able to access the PT_EVENTDISPLAY
component. By default, the Permission List PTPT1000 ships providing access to PT_EVENTDISPLAY.
If you use custom permission lists, make sure that all users have access to the PT_EVENTDISPLAY
component through their permission lists.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
297
Using PeopleTools Utilities
Chapter 11
PeopleTools Options
Select PeopleTools, Utilities, Administration, PeopleTools Options to access the PeopleTools Options
page. Use this page to set a number of options that affect multiple PeopleTools and applications, such as
language options and change control settings.
Image: PeopleTools Options (1 of 2)
This example illustrates the fields and controls on the PeopleTools Options (1 of 2). You can find
definitions for the fields and controls later on this page.
298
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Image: PeopleTools Options (2 of 2)
This example illustrates the fields and controls on the PeopleTools Options (2 of 2). You can find
definitions for the fields and controls later on this page.
Environment Long Name
andEnvironment Short Name
Enter a long name and a short name for the current PeopleSoft
environment. PeopleSoft software update tools use this
information to identify the database when searching for updates.
For example, enter HR Demo Environment for the long name,
andHR Demo DB for the short name.
System Type
Select an appropriate system type from the dropdown list, for
example, Demo Database. This information helps to further
identify the current environment for the purpose of searching for
and applying software updates.
Right Align Field Labels
By default, the system uses left label alignment when adding
new fields to pages in Application Designer. To make all new
page field labels use right label alignment (at design time), set
the Right Align Field Labels check box on the PeopleTools
Options page.
See "Setting Page Field Properties for Controls" (PeopleTools
8.54: Application Designer Developer's Guide).
Language Settings
Language Code
The base language of an application is the application's primary
language, normally the language that is used most commonly
throughout the enterprise. A database can have only one base
language. All other language translations that are stored in the
database are referred to as nonbase languages (or sometimes as
foreign languages).
You can't change the Language Code setting on this page. This
field is for display purposes only. To change the base language,
use the SWAP_BASE_LANGUAGE Data Mover command.
The Language Code field box identifies the database's base
language.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
299
Using PeopleTools Utilities
Translations Change Last Update
Chapter 11
If you select the Translations Change Last Update check box,
and you use the PeopleTools translate utilities to translate
objects, the system updates the Last Updated information of
the translated object to the date/time/userid of the translation. If
it's turned off, then the date/time/userid of the object does not
change when it's translated.
Note: This only applies when you're using the page-based
PeopleTools translation utilities; the Translation Workbench
always updates the last updated information.
Sort Order Option
Select the sort order that is appropriate for the site.
See the Global Technology PeopleBook for descriptions of the
options.
General Options
Background Disconnect Interval
The value in seconds that you enter here acts as the default for
Security Administrator profiles.
Multi-Company Organization
Turn on Multi-Company Organization if more than one
company makes up the organization.
This option affects how Application Processor displays
company-related fields in search dialogs and pages. See the
HRMS documentation for more details.
Multi-Currency
The Multi-Currency setting is a systemwide switch that enables
automatic formatting of currency amount fields that have
associated currency control fields. Another function of this
setting is to globally display currency control fields. If you turn
off this option, automatic formatting based on currency control
fields is no longer active and all currency control fields are thus
hidden.
When the Multi-Currency setting is on, it also validates userentered currency data against the currency's defined decimal
precision. This validation causes the system to issue an error if
a user attempts to enter a decimal precision that is greater than
that which is allowed by the currency code definition.
Under most circumstances, leave Multi-Currency selected.
300
Use Business Unit in nVision
Deselect the Use Business Unit in nVision option if you're using
an HRMS database. Otherwise, select it.
Use Secure Rep Rqst in nVision
Select this check box if you want the report request in nVision
to be secure. The default setting is selected.
Multiple Jobs Allowed
Selecting Multiple Jobs Allowed enables HRMS systems to
support employees holding concurrent jobs with more than one
set of enrollments.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
This option affects how Application Processor displays
employee-record-number-related fields in search dialogs and
pages. See the HRMS documentation for more details.
Allow DB Optimizer Trace
Typically, you turn on this trace only during periods in which
you are collecting detailed performance metrics. When you are
not tuning your performance, the DB Optimizer trace should be
turned off.
Grant Access
When adding a new user by using PeopleTools Security, the
system automatically grants the new user select-level access to a
set of PeopleTools SQL tables used for security. If you are using
a SQL security package and do not want PeopleTools Security
to perform any SQL grants, turn off Grant Access.
Platform Compatibility Mode
Enables you to add the capability to set a database compatibility
mode as an overall database setting, forcing developers to
create applications by using all platforms as the least common
denominator. This option enables developers, who create
applications for multi-platform deployment, to catch platformspecific issues at design time rather than during testing.
Note: This option is used mainly by PeopleSoft development
teams that need to develop applications to run on all supported
database platforms. To support numerous database platforms,
PeopleSoft needs to have a tablespace for each physical table
record definition.
If platform compatibility is enabled for a database, the system
forces developers to enter a tablespace name when saving a
record definition regardless of the current platform. If this
option is disabled, you are only prompted for a tablespace name
if you are developing on a platform that utilizes tablespaces.
This prevents table record definitions being added to the
database without a tablespace name.
Allow NT batch when CCSID <>37
Enables you to override non-z/OS COBOL batch restrictions.
If the DB2 z/OS database's CCSID is NOT 37, PeopleSoft
blocks batch COBOL from running against z/OS Databases on
Windows unless you choose this override.
Note: Even if you choose this override, if you use
%BINARYSORT() in the COBOL, the system issues an error
on Windows. RemoteCall COBOL can run on Windows and
UNIX regardless of this option setting, even if CCSID is NOT
37, but the system issues an error.
Save Error is Fatal
Select this option when you have non-repeatable PeopleCode
logic in your application's SavePreChange or Workflow. In
previous releases, PeopleSoft applications were coded to
assume that errors during save are always fatal, but the current
PeopleTools release no longer behaves this way. Use this option
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
301
Using PeopleTools Utilities
Chapter 11
to ensure predictable behavior with your application without
having to modify your older application code.
This check box is cleared by default. If you get an error during
save processing, the transaction continues and you're allowed to
attempt to save again. When this option is selected, if you get
an error during save processing the transaction is aborted and
all changes are lost. This applies to errors that occur between
and including the SavePreChange event to the SavePostChange
event. It also includes the component processor save processing.
It doesn't include errors from the SaveEdit event.
For example, suppose you have some calculations that occur
in SavePreChange which are based on the buffers and also
modify the buffers. If there's an error during the save and you
attempt to save again, the calculations are repeated, but this
time based on the buffers that were already modified by the first
time the calculations where done. Therefore the second time the
calculations are done they will be incorrect, which could lead
to incorrect data being saved to the database. In this case you
would want to turn on the Save Error is Fatal option, because
a fatal error on save is more desirable than incorrect data being
put into the database.
Set Focus on Save
If selected, focus is set on the Save button when a user saves a
component. If not selected, focus is set on the first control on
the page that can assume focus when a user saves a component.
By default, the option is not selected.
Note: This setting has a system-wide effect.
Temp Table Instances (Total):
The value that you specify in the Temp Table Instances (Total)
edit box controls the total number of physical temporary table
instances that Application Designer creates for a temporary table
record definition when you perform the Build process.
This value indicates the total number of undedicated temporary
table instances. The maximum number of temporary table
instances that you can specify is 99.
Temp Table Instances (Online)
Enter the available online instance values. When you invoke
a process online, PeopleTools randomly allocates a single
temporary table instance number to programX for all of its
dedicated temp table needs. The higher the number of online
instances that is defined, the less likely it is for two online
processes to get the same value.
Maximum Message Size
Use this parameter to set the maximum message size being
handled by Integration Broker.
There is a practical limit to how large a message can be. This
limit can be determined by a variety of factors, including
network speed, available memory, processing load, and so on.
302
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Base Time Zone
Using PeopleTools Utilities
Although you can display time data a number of different ways,
PeopleSoft databases store all times relative to a system-wide
base time zone. You can adjust the display of the time that an
end user sees using the Use Local Time Zone (LTZONE) setting
in PeopleTools, Personalizations.
This base time zone is the one that the database server uses. In
order for PeopleSoft to properly manage time data, the system
needs to know which time zone that is. Set the Base Time Zone
to the time zone that the database server's clock uses.
Note: After changing this setting, reboot any application servers
that are connected to the database. It is critical for the correct
operation of the system that this time zone match the time zone
in which the database is operating. Any discrepancy in the base
time zone as defined in this page and the time zone in which the
database system is operating leads to inaccurate time processing.
Last Help Context # Used
This field is no longer used.
Data Field Length Checking
Normally, field length validation is based on the number of
characters that are allowed in a field. For example, a field
defined as CHAR(10) in Application Designer holds ten
characters, regardless of which characters you enter. In a
Unicode database, double-byte characters, such as those found
in Japanese, are counted the same as single-byte characters, such
as those found in the Latin alphabet.
If you create a non-Unicode database, the field length in
Application Designer represents the number of bytes that are
permitted in the field, not the number of characters. When the
non-Unicode database uses a single-byte character set (SBCS),
you can only enter single-byte characters, so the number of
characters and the number of bytes are the same. However,
because double-byte character sets (DBCS) typically allow
a mix of single- and double-byte characters, the number of
characters that are allowed in a field in a non-Unicode DBCS
database varies. This is true for both shifting and non-shifting
double-byte character sets.
For example, a if a user enters ten Japanese characters into a
field that is defined as CHAR(10) in Application Designer, this
string needs 20 bytes of storage in a nonshifting double-byte
character set and 22 bytes of storage in a shifting double-byte
character set. This ten-character input fails insertion into both
these databases.
Use the Data Field Length Checking option to ensure field
length validation appropriate to the database's character set.
Values are DB2 MBCS, MBCS, and Others.
Choose Others if you are using a Unicode-encoded database or
a non-Unicode single-byte character set database. This prevents
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
303
Using PeopleTools Utilities
Chapter 11
special field length checking. As discussed above, these types of
databases do not require such checking.
Choose DB2 MBCS if you are running a Japanese database
on the DB2 UDB for z/OS platform. This enables field length
checking based on a shifting DBCS character set.
Choose MBCS if you are running a non-Unicode Japanese
database on any other platform. This enables field length
checking based on a nonshifting DBCS character set.
The non-Unicode DBCS settings are specifically oriented
towards Japanese language installations, as Japanese is the only
language that PeopleSoft supports in a non-Unicode DBCS
encoding. All other languages requiring double-byte character
sets are only supported by PeopleSoft by using Unicode
encoded databases.
Maximum Attachment Chunk Size
Controls the size of the file attachment chunks that are stored in
the database. This allows you to upload a file attachment that is
larger than could be stored in a single row of the database. The
system divides the data into chunks to store in different rows of
the database table.
The default is 28,000 bytes, and maximum attachment chunk
size allowed by PeopleTools is 50 MB. Application Designer
data types control how the system manages "long data."
Note: The Maximum Attachment Chunk Size determines the
size of the chunks stored in the database. This setting does not
affect the maximum size of the file chunks that can beread from
that table. The maximum size of the file chunks that the system
reads from the database table is determined by the Maximum
Length property defined for that field in Application Designer.
Note: When working with file attachments it is imperative that
you understand how the file processing PeopleCode constructs
behave, such as the AllowLargeChunks parameter, used with the
AddAttachment built-in function.
See "Specifying Long Character Field Attributes" (PeopleTools
8.54: Application Designer Developer's Guide).
See "Functions by Category" (PeopleTools 8.54: PeopleCode
Language Reference).
See "Understanding the File Attachment Functions"
(PeopleTools 8.54: PeopleCode Developer’s Guide).
304
Upgrade Project Commit Limit
Sets the limit on how many rows can be modified by an upgrade
project before the system issues a COMMIT statement.
Enable Switch User
The Enable Switch User option enables you to limit the users
who can change identities in a PeopleSoft system. The feature
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
applies only when accessing PeopleSoft using a browser; it has
no effect on two-tier or three-tier connections.
Most sites have no reason for individual users to change their
PeopleSoft system identity during a session. For those sites
that do require this capability, the number of users who need
to switch to another user profile typically is fairly small.
For example, the users who can switch identities are usually
limited to the system's GUEST user (if the system has one) and,
perhaps, a few system administrators or power users.
Options for Enable Switch User are:
•
All: Use this value to indicate that all users are permitted to
change their identities during their browser session. This is
the default value.
•
None: Use this value to indicate that no user is permitted to
change identities during a browser session
•
Some: Use this value to indicate that some, selected users
are permitted to change their identities during a browser
session. When you select this value, the Allow Switch User
checkbox appears on the General page of the user profile
definition in the PeopleTools Security interface. Select
Allow Switch User to indicate that the individual user is
permitted to change identities within a PeopleSoft session.
User profiles that have the Allow Switch User option
unselected will be immediately logged out when the system
detects a change in the user's identity.
Once you specify which users can switch identities, if an
identity change is attempted (switch user) by an unauthorized
user, the system:
•
Logs that user off the system, immediately.
•
Displays the following message on the signout page: "Illegal
Identity switch has been detected by the System. Please relogin."
•
Writes an entry in the web server logs indicating that an
illegal switch user was attempted.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
305
Using PeopleTools Utilities
Chapter 11
Note: Assume that the user profile to which a user switches is
the “destination” user profile, and the user profile from which
a user switches is the “source” user profile. If a user is allowed
to switch identities during a session, it is allowed by the source
user profile, not the destination user profile. For example if you
allow UserA to switch to UserB, it is UserA's user profile that
must have the Allow Switch User option selected. The setting
for UserB's profile is not relevant in determining whether a
switch user from UserA to UserB is allowed. This feature does
not control the user profile to which a user can switch; it only
addresses which users are permitted to switch identities during a
browser session.
See "Specifying User Profile Attributes" (PeopleTools 8.54:
Security Administration).
Case Insensitive Searching
Enables you to provide case-insensitive searching for the
PeopleSoft search records when searching for PeopleSoft
definitions. The options are:
•
Off : Enables case sensitive searching and sets it to
"on"without displaying the Case Sensitive check box on the
search page.
•
On - Case Sensitive Default Off: (Default) Displays the
Case Sensitive check box on the search page unselected,
providing the user the option of enabling case-sensitive
searching for a particular search by selecting the Case
Sensitive check box.
•
On - Case Sensitive Default On : Displays the Case
Sensitive check box on the search page selected, providing
the user the option of switching tocase-insensitive searching
for a particular search bydeselecting the Case Sensitive
check box.
Note: This option is not associated with the Verity search
technology.
306
Style Sheet Name
Set the style sheet, which controls the look and feel. You
can set the individual style sheets in Application Designer,
and these override the general style sheet for the application,
which is set here. The default style sheet for PeopleSoft
applications is PSSTYLEDEF_SWAN and for PeopleTools it is
PSSTYLEDEF.
Branding Application Package
Specifies the application package that contains the branding
application classes to generate the portal headers, footers and
menu pagelet icons. The default is the standard PeopleTools
branding, PT_Branding. For PeopleSoft Interaction Hub, a
different branding application package is specified.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Max rows in search results
Using PeopleTools Utilities
Sets the absolute maximum number of rows, system-wide, an
end user can specify to be returned on a standard search page.
The default value is 0, which makes the Default rows in search
results value the absolute maximum.
If this value is greater than 0 (enabled), then the following will
appear at the top of the search page:
"Maximum number of rows to return (up to <Max rows in
search results>):"
End users specify a custom number of rows on the search results
page in the edit box appearing after this line.
When the user clicks Search, if the key values supplied retrieve
more than the <Max rows in search results> value, then a
message will appear above the search results similar to:
"Only the first 300 results of a possible 386 can be displayed."
In this case, 300 is the value of the Default rows in search
results edit box, unless the user has changed it. The 386 is the
actual number of results the search key values would have
returned. The system runs a separate query to report this value.
This has performance implications, so system administrators
should consider whether to enable this feature. To prevent end
users from specifying any custom number of rows returned
by the search, set Max rows in search results to 0. If disabled,
the number of rows returned by a search is the value from the
Default rows in search results setting, and cannot be modified
by the end user.
Note: When setting this value to add flexibility to your end
users search experience, consider the performance implications
of setting this number too high for your system. Perform
adequate testing and adjust this value to suit the requirements of
your system.
Default rows in search results
Sets the default number of rows, system-wide, to be returned on
a standard search page. The default value is 300.
If an end user needs to increase the number of rows returned on
a search page, they can specify a number up to the maximum,
specified by the Max rows in search results value.
Default grids to scrollable
Sets all grids displayed to the end user as scrollable grids, by
default.
Branding Application Class
The main branding application class that generates header,
footer, and menu pagelet icons. The default is the standard
PeopleTools branding, BrandingBase. For PeopleSoft
Interaction Hub, a different branding application class from
a different branding application package is used. It generates
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
307
Using PeopleTools Utilities
Chapter 11
different header, footers , and menu pagelet icons dynamically,
based on the user role or security.
Help Options
FI Help URL
This setting applies only to the Windows environment (such as
Application Designer) when the user presses F1 or selects Help,
PeopleBooks Help while in PeopleTools.
The F1 Help URL can direct users to any location on the web,
such as a custom help system or the website for the company's
help desk. It can be a fully qualified uniform resource locator (
URL), which is passed literally to the browser, or it can contain
one or both of these system variables.
%CONTEXT_ID% is the object name or context ID of the
currently displaying page or dialog box.
%LANG_CD% is the three-letter language code for the user's
preferred language.
The PeopleBooks context sensitive help system requires that
you enter a URL with a specific format, as follows:
http://helpwebserver:port/productline
/f1search.htm?ContextID=%CONTEXT_ID%&LangCD=%LANG_CD
%
For example:
http://myhelpwebserver:8080/htmldoc/f1search.htm?
ContextID=%CONTEXT_ID%&LangCD=%LANG_CD%
Specify the URL that is needed to link to the correct location in
your HTML PeopleBooks. When users click the Help button,
the appropriate context-sensitive PeopleSoft documentation
should appear. To remove the help link, leave this value
blank, and users won't see a Help link on the application
page. Construct the URL like this: http://helpwebserver:port/
productline/f1search.htm? ContextID=%CONTEXT_
ID%&LangCD=%LANG_CD% For example: http://
myhelpwebserver:8080/htmldoc/f1search.htm?ContextID=
%CONTEXT_ID%&LangCD=%LANG_CD%
If using the hosted PeopleBooks site on www.oracle.com, the
URL you use is different. For example:
http://www.oracle.com/pls/topic/lookup?id=%CONTEXT_
ID%&ctx=pt853
The hosted PeopleBooks are available at:
http://www.oracle.com/pls/psft/hompage
See the product documentation for PeopleTools Installation for
your database platform.
308
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Ctrl-F1 Help URL
Using PeopleTools Utilities
This setting only applies to the Windows environment (such as
Application Designer).
The Ctrl+F1 URL allows you to provide an alternate location
for help. For example, you may set the main F1 Help URL to
the PeopleBook and the Ctrl+F1 for the company's help site.
WSRP Display Mode
This option determines how WSRP-enabled content appears for users of remote WSRP portals that
consume PeopleSoft WSRP content.
See "Setting WSRP Display Mode" (PeopleTools 8.54: Portal Technology).
Database Encryption Algorithm
(Applies to Oracle databases only.) Enables you to select the encryption algorithm the system uses to
encrypt database fields to additional security.
See "Implementing Oracle Transparent Data Encryption" (PeopleTools 8.54: Data Management).
Message Catalog
Select PeopleTools, Utilities, Administration, Message Catalog to access the Message Catalog page.
Image: Message Catalog page
This example illustrates the fields and controls on the Message Catalog page. You can find definitions for
the fields and controls later on this page.
You add and maintain system messages by using the Message Catalog page. PeopleSoft error messages
are stored in the Message Catalog, and organized by message set number. Each message set consists of a
category of messages, ranging from PeopleTools Message Bar Items and PeopleCode Runtime Messages
to PeopleSoft Payroll and PeopleSoft General Ledger application messages.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
309
Using PeopleTools Utilities
Chapter 11
Message Set Number
Identifies the message set.
Description
The Message Set Description is a reference that is used on
reports and pages for easy identification.
Short Description
The Message Set Short Description is a reference that is used on
reports and pages for easy identification.
Message Number
Each message set consists of one or more rows of messages that
are identified by a message number.
Severity
You assign each message a severity, which determines how the
message appears and how the component processor responds
after the user acknowledges message. The severity levels are:
Cancel: This severity should be reserved for the most severe of
messages, as when a critical error occurs and the process must
be aborted or a machine needs to be shut down. To indicate
how rarely this severity level is appropriate, of all PeopleTools
messages only five or so have a severity level of Cancel. In
almost all cases, you use one of the other severity levels.
Error: Processing stopped, and data cannot be saved until the
error is corrected.
Message: This is an informational message and processing
continues normally.
Warning: User can decide to either stop or continue processing
despite the error.
Message Text
In the Message Text edit box, you see the message text. Any
reference to the characters %n, as in %1 or %2, is replaced by
parameter values that the system provides.
Explanation
The Explanation text provides a more in-depth explanation of
why the message is generated and how to fix the problem. This
text appears below the Message Text when the message appears.
PeopleTools uses some messages, but the applications use the other messages, which get called by the
Error, Warning, Message Box, MsgGet, and MsgGetText built-in PeopleCode functions.
Note: You can create messages and message sets to support new or customized functionality in the
system. You can also edit the messages that PeopleSoft delivers if required. In both of these cases,
remember that Oracle reserves all message sets up to 20,000 (that is, 1 to 19,999). If you add a message
set or edit a message set with a number that is less than 20,000, it may be overwritten in future upgrades.
To add a message set:
1. Select Utilities, Administration, Message Catalog, and on the search page click Add New Value.
2. Enter the value of the new Message Set Number and click OK.
3. Enter a description and short description of the type of messages that this message set contains.
310
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Try to group the messages logically. For instance, create one message set for the new budgeting
application and a different one for the customized billing pages.
4. Add messages.
5. Save your work.
To add a message:
1. Open the desired message set.
2. In the Message Catalog page, click the plus sign button to add a new row.
The Message Number value is automatically set to the next unassigned number in the message set.
3. Select a Severity level, enter message text and a detailed explanation.
4. Save your work.
Spell Check System Dictionary
PeopleSoft PeopleTools provides personal and system-level dictionaries. End users and system
administrators can add words to the dictionary for use with the spell check feature. Typically, system
administrators add words to the system-level dictionary that are used company-wide; end users add
additional role-specific terminology to their personal dictionaries.
Select PeopleTools, Utilities, Administration, System Dictionary to access the system-level dictionary.
Select the All Languages page to enter words that are valid across all languages. Select the Language
Specific page for those words that are valid to a specific language:
To add words to the system dictionary by language:
1. Select Spell Check System Dictionary, Language Specific.
2. Select the desired language from the Spell Check Language drop-down list box.
3. Select Session to add a word to the current session's spell check dictionary. After saving this word, the
language field refreshes to the current spell check language.
4. Enter the word (maximum 40 characters) that is to be added in the Spell Check Word field.
5. Save your changes.
Case Sensitivity for Spell Check
The words that you add to your personal dictionary are case-sensitive and are validated by the following
rules:
1. If the added word is all lower case, such as worklist, then the following are considered valid:
•
Exact match, all lower case (worklist).
•
All uppercase (WORKLIST).
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
311
Using PeopleTools Utilities
•
Chapter 11
Initial capitals (Worklist), regardless of its position in the sentence. Mixed case (WorkList) is
considered incorrect.
2. If the added word is all uppercase, such as CRM (customer relationship management), then only an
exact match is valid.
3. If the added word is in initial capitals, such as California, then only an exact match and all upper case
(CALIFORNIA) are considered valid.
4. If the added word contains an embedded capital letter, such as PeopleSoft, then only an exact match is
valid. Therefore, if case is not relevant to the validity of the word, use all lower case.
Table Structure for Word Storage
System and personal words are stored in the database in the PSSCWORDDEFN table with the following
fields:
•
SCOPRID indicates whether a word is a system word or a user's personal word.
•
SCLANG stores the dictionary language for which the word is considered valid. If the system
administrator chooses to store the word for all languages, this field is left blank.
•
SCWORD stores the actual word, with a maximum length of 40 characters.
•
SCNEGWORDFLG is a flag used to determine if a word is negative (incorrect) or not. Values can be
'N' or 'Y'. PeopleSoft does not currently use this feature, so the value should always be set to 'N'.
To load values in bulk into PSSCWORDDEFN:
1. Using the method of your choice (as in a SQL script), issue SQL similar to the following:
insert into PSSCWORDDEFN (SCOPRID, SCLANG, SCWORD, SCNEGWORDFLG)
values ('SYSTEM', 'SC00', 'nnn', 'N')
Note: For each word you want to add to the library, you need a separate insert command, and the
value 'nnn' will be changed in each of those insert statements to be the next value in the list of words
you want to add.
2. Add a value (any value) to the Language Specific tab and click Save.
This alerts the runtime system to update the cached version of the PSSCWORDDEFN table.
Note: In the current release, the maximum number of rows in the PSSCWORDDEFN table should not
exceed 2,850.
Translate Values
You use the Translate Values interface to maintain the values in the translate table. If it's allowed by site
security administrators, power users can now learn to add their own pick lists (translate values) to an
application:
312
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Select PeopleTools, Utilities, Administration, Translate Values to access the Maintain Translate Values
page.
Image: Maintain Translate Values page
This example illustrates the fields and controls on the Maintain Translate Values page. You can find
definitions for the fields and controls later on this page.
Value
Enter the value for the translate selection.
Effective Date
Specify a date for the value to become active.
Note: If you are adding a second row for the same translate
value, you must enter a unique effective date.
Status
Specify whether the value is active or not.
Long Name
Enter a long description for identification. There is a 30character limit.
Short Name
Enter a shorter description for identification. There is a 10character limit.
Related Links
"Using the Translate Table" (PeopleTools 8.54: Application Designer Developer's Guide)
Load Application Server Cache
The Load Application Server Cache page enables you to run Application Engine programs that loads the
shared file cache or the database cache for application server domains.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
313
Using PeopleTools Utilities
Chapter 11
Select PeopleTools, Utilities, Administration, Load Application Server Cache to access the Load
Application Server Cache page.
Image: Load Application Server Cache page
This example illustrates the fields and controls on the Load Application Server Cache page. You can find
definitions for the fields and controls later on this page.
You need to run a cache loading program described in this section only if you intend to implement shared
file caching on the application server or database caching.
To load non-shared file cache or database cache with specific cache projects, you use a separate process,
which is documented elsewhere in this guide.
See Configuring an Application Server Domain to Preload Cache.
See ServerCacheMode.
Understanding Application Server Caching
Each server process running within a domain has these caching features:
314
Cache Type
Description
Memory cache
Stores PeopleTools definition metadata to improve system
performance. Memory cache is always enabled for each server
process in a domain.
File cache
Stores PeopleTools definition metadata, such as the metadata
for pages, locally on the application server. File caching
is controlled by the EnableServerCaching parameter in
PSAPPSRV.CFG.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Cache Type
Description
Database cache
Stores PeopleTools definition metadata, such as the metadata
for pages, in database tables. Database caching is controlled
by the EnableDBCache parameter in PSAPPSRV.CFG. Any
domain that has EnableDBCache enabled and connects to the
database uses the cache information stored in the database.
With file caching, you have the option of implementing shared or non-shared file caching.
File Cache Option
Description
Shared
With shared file caching, all of the server processes within a
single domain share the same file cache location.
Non-shared
With non-shared file caching, each server processes within
a single domain maintains its own file cache. For example,
with non-shared caching configured, each PSAPPSRV server
process uses its own file cache.
Oracle provides cache loading programs designed specifically to load cache prior to users accessing
the system, which you run from the Load Application Server Cache page. The cache loading programs
retrieve all of the PeopleTools definition metadata from the database and builds either file cache that you
can deploy locally on an application server or it populates the database cache tables, depending on what
type of cache you are implementing.
Running a cache loading program is the equivalent of having a user access every page in the system
once so that all the metadata associated with each page is retrieved from the database and stored in the
local cache. With all the metadata already stored in cache, the end users experience more predictable
performance.
With cache already loaded, end users don't have to wait for the system to retrieve a definition from the
database and cache it, each time a definition is accessed for the first time. The system retrieves all of
the required objects from the cache as opposed to querying the database for each request. This provides
significant performance benefits for first-time and large transactions.
If you elect to run a cache loading program, consider the following items:
•
You need to run one of the cache loading programs at least once. Once the cache is loaded, the cache
loading programs download only new or changed metadata to the cache.
Note: Items that are outdated in the cache are marked invalid but are not deleted. This includes design
time changes, upgrades, patches, and so on. However, the system uses only the most current cache
definitions.
•
The first time that you run a cache loading program, it can take a significant amount of time to
complete, for example 2 to 30 hours. The duration of the program run depends on a number of factors,
including the number of active languages selected, the size of the database, and the power of the
server machine. Subsequent program runs complete in less time if there is already valid cache data in
the target cache directory or the database cache tables. The programs are designed to update only the
changed objects.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
315
Using PeopleTools Utilities
•
Chapter 11
You can copy the output of a cache loading program to other machines (for shared file caching).
Note: Shared file cache output is not portable to different operating systems. For instance, if you generate
the cached metadata on a Windows server, you can't copy the cache files to a UNIX server.
Warning! If for any reason you update PSSTATUS.LASTREFRESHDTTM, the system marks all items
in the shared cache as invalid, and you will need to rerun one of the cache loading programs again.
Oracle provides these options for loading your cache:
Preloading Cache Option
Process Scheduler Process Type
Description
Serial cache loading
Process
Serial cache loading refers to running
an Application Engine program named
LOADCACHE. The LOADCACHE
program, adds each applicable cache
object to the cache, sequentially.
Parallel cache loading
PSJob
Parallel cache loading is intended to
reduce the time required to build the
cache. Parallel cache loading splits the
work of the LOADCACHE program
into two separate Application Engine
programs that run simultaneously within
the PSJob PLCACHE.
The PLCACHE job runs a basic setup
program, and then runs these programs:
•
LCACHE_INDEP: Loads all
the cacheable objects that are
independent of other cached objects.
•
LCACHE_DEP: Loads all the
cacheable objects that are dependent
on other cached objects. Objects
that are dependent on other cached
objects are those objects that, when
loaded into cache, cause instances of
other object to be loaded as well.
Loading Shared File Cache or Database Cache
To load shared file cache or database cache:
1. Make sure that the database that the application server runs against produces a clean SYSAUDIT
report.
If SYSAUDIT is not clean, the cache loading programs can fail.
2. Access the Load Application Server Cache page, entering an appropriate Run Control ID.
316
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Select PeopleTools, Utilities, Administration, Load Application Server Cache to access the Load
Application Server Cache page.
3. (For shared file cache) In the Output Directory field, enter a valid location.
Note: In almost all situations, the system ignores any custom value entered in the Output Directory
and generates output into the default cache-loading output directory: PS_CFG_HOME\appserv\prcs
\ProcessScheduler_domain\CACHE\CACHE\stage\stage. However, if a cache loading program runs
through a PSNT Process Scheduler server running on a remote drive, and the application server cache
directory and Process Scheduler cache directory are located on the local drive, then the value entered
in the Output Directory field supersedes the default output directory.
4. (For database caching) Select the Database Cache check box.
This disables the output directory field. With database caching enabled, the cache loading program
inserts the cache directly into the database cache table, PSOBJCACHE.
5. Select the languages to load.
If not all possible languages are required to be loaded for a domain, you can improve performance of
the program run by selecting only those languages that are required.
6. Click Run.
The Process Scheduler Request page appears.
7. From the Server Name dropdown list, select the name of the server to run the cache-loading process.
8. From the Process List, select Serial LoadCache to run the single LOADCACHE Application Engine
program, or select Parallel LoadCache to run the PLCACHE PSJob to run multiple Application
Engine jobs in parallel.
9. (For Parallel LoadCache) Ensure that the Process Scheduler server definition is set to run the
LOADCACHE process category and that the Max Concurrent value is set appropriately.
Parallel LoadCache is assigned to the LOADCACHE process category. It will run only on servers that
are configured to run the LOADCACHE process category.
For the LOADCACHE process category, set the Max Concurrent value greater than 0. The
recommended value is 2.
If you modify the server definition, restart the server for your changes to take effect.
Note: When running the cache loading programs, only one server at a time should have the
MaxConcurrent value set greater than 0. This guarantees that the processes running within the Parallel
LoadCache job will run on the same server. If processes within the job run on different servers, this
could result in each server having an incomplete set of generated cache files.
See "Creating Server Definitions" (PeopleTools 8.54: Process Scheduler).
10. Click OK to launch the cache loading program.
After you invoke the process, you can use the Report Manager andProcess Monitor links to monitor
the progress.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
317
Using PeopleTools Utilities
Chapter 11
The first time that you run the program, the process may take numerous hours to complete (less time
for the Parallel LoadCache option).
11. When the cache loading program completes, verify the existence of the cache contents.
For shared caching, the cache loading program creates the shared file cache in the following directory:
•
Windows: PS_CFG_HOME\appserv\prcs\ProcessScheduler_domain\CACHE\CACHE\stage
\stage
•
For UNIX\Linux: PS_CFG_HOME/appserv/prcs/ProcessScheduler_domain/CACHE/STAGE/
stage
Where ProcessScheduler_domain is the Process Scheduler domain in which you ran the process.
If database caching is enabled, the program loads the cache directly into the database. To verify the
existence of the database cache, run the following SQL statement using your SQL editor:
SELECT * FROM PSOBJCACHE;
12. Once you've determined that the cache has been successfully loaded, shut down the application server
domain(s), and modify the domain configuration to recognize the generated cache.
For shared file caching, edit the PSAPPSRV.CFG file, and enable shared caching, by uncommenting
and setting ServerCacheMode=1 for all appropriate domains.
For database caching, edit the PSAPPSRV.CFG file, and enable database caching, by uncommenting
and settting EnableDBCache=Y for all appropriate domains.
13. (For shared file cache) Create a \SHARE directory within the CACHE directory for the appropriate
application server domains, and copy the output of the load caching program into the \SHARE
directory.
For example, copy the output of the load caching program to PS_CFG_HOME\appserv
\domain\CACHE\SHARE directory for the appropriate application server domain(s).
Note: UNIX and Linux systems expect an uppercase \SHARE directory. For Windows, the \SHARE
directory can be mixed case.
14. Boot (or reboot) the application server domain(s).
Working with Database Cache
Database caching provides another implementation option. Determining which caching option works best
for your site requires analysis and testing. For many cases, file caching will continue to be the preferred
method.
The benefits of database caching include:
318
•
Cache loading only needs to be run once for all domains connecting to a database as they will all
share the same database cache.
•
New domains can immediately take advantage of the database cache once EnableDBCache is set in
the domain configuration. That is, no additional cache loading programs need to be run or additional
output that needs to be copied.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
•
Using PeopleTools Utilities
Eliminates administrative overhead of managing disk space and cache files on the file system.
Note: The database cache stores the cached metadata as a BLOB in a single table for the most efficient
retrieval.
Note: The database cache is generated specific to the system's byte-order (little-endian or big-endian).
The database cache is shared by all systems that have the same byte-order.
Maintaining the Versions of Cached Definitions
PeopleTools uses version numbers to keep cached objects synchronized with the data in the database.
When a system undergoes change (such as during custom configurations, updates, or upgrades) versions
can get out of sync, and they need to be reset.
Use the VERSION Application Engine program to maintain the definition version synchronization in
your system. VERSION can run in these modes.
Mode
Invoked From
Run Control ID
Description
Reset All Versions
Command line only
Must start with
RESETVERSIONS. For
example, the run control ID
could be RESETVERSIONS,
RESETVERSIONS2,
RESETVERSIONS3, and so
on.
Resets all versions to 1.
Before running in this mode,
shutdown all servers and
client connections.
After running, regenerate
cache.
Note: The run control ID is
not case sensitive.
Reset Differences Only
Command line or Process
Scheduler
Any run control ID,
not beginning with
RESETVERSIONS or
REPORTONLY.
Synchronizes only the
definition versions where
discrepancies exist.
Severs can remain running
and clients can remain
connected.
Cache does not need to be
regenerated.
Report Only
Command line or Process
Scheduler
Must begin with
REPORTONLY. For
example, the run control ID
could be REPORTONLY,
REPORTONLY2,
REPORTONLY3, and so on
Note: The run control ID is
not case sensitive.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Generates a report indicating
where version discrepancies
exist, but does not update any
versions.
Severs can remain running
and clients can remain
connected.
Cache does not need to be
regenerated.
319
Using PeopleTools Utilities
Chapter 11
When running VERSION in any mode, the system generates a report and writes it to %PS_SERVDIR%
\log_output.
When running VERSION through Process Scheduler, keep these items in mind:
•
Invoke VERSION from PeopleTools > Application Engine > Request AE.
•
Create the appropriate run control ID (or use an existing run control ID), such as REPORTONLY.
•
Set Process Frequency to Always so that the run control ID can be used more than once.
Working with the Dynamic Cache Repair Utility
PeopleTools provides a dynamic cache repair utility that enables you to configure the system to
monitor and adjust automatically a domain’s cache while it runs, requiring no intervention from system
administrators, and without requiring the domain or a server process to be restarted.
For more information on enabling and using the cache repair utility, see EnableCacheRepair.
Related Links
Configuring an Application Server Domain to Preload Cache
"Using the Command Line to Invoke Application Engine Programs" (PeopleTools 8.54: Application
Engine)
Cache Settings
Tablespace Utilities
Select PeopleTools, Utilities, Administration, Tablespace Utilities to access the Tablespace Utilities
page.
To comply with requirements for DB2 UDB for z/OS, the Tablespace Utility now includes both
tablespace name and database names when you define a tablespace using the Tablespace Management
page. Use the Add/Delete/Rename Tablespaces page to change the list of tablespace and database names.
Image: Add/Delete/Rename Tablespaces
This example illustrates the fields and controls on the Add/Delete/Rename Tablespaces. You can find
definitions for the fields and controls later on this page.
320
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Tablespace Name
Enter the name of the Tablespace that you want to add.
Database Name
Enter the database name into which you want to add the space.
Type
Select the type of Tablespace.
Use the plus/minus buttons to add and delete tablespaces.
Tablespace Management
Select PeopleTools, Utilities, Administration, Tablespace Management to access the Tablespace
Management component
These pages enable you to modify the tablespace definition.
Tablespace Defn Page
This page shows the identification values for the tablespace.
Tablespace List Page
This page is where you add records to a particular tablespace. Use the plus and minus buttons to add and
delete rows from the list.
Tablespace DDL Page
This page enables you to view and override DDL parameters if needed. View the default DDL in the
Default Tablespace DDL list. You override specific parameters, if needed, in the Override Tablespace
DDL list. Enter the parameter that you want to override in the Parameter Name column, and enter the
override value in the Override column.
DDL Model Defaults
Select PeopleTools, Utilities, Administration, DDL Model Defaults to access the DDL Model Defaults
page.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
321
Using PeopleTools Utilities
Chapter 11
This page is used to view and edit the DDL for creating tablespaces, indexes and tables. Any changes that
you make here are global.
Image: DDL Model Defaults
This example illustrates the fields and controls on the DDL Model Defaults. You can find definitions for
the fields and controls later on this page.
Platform ID
Identify the type of platform of the current database type.
Sizing Set
Specify multiple Sizing Sets if needed. Sizing Sets are a way to
maintain multiple versions of the DDL Model statements for a
particular database platform. For example, you could have one
sizing set to be used during a development phase, when tables
only have test data, and you could have separate sizing set to be
used during production, when tables have much more data.
Copy
Copies information from one sizing set to another.
Statement Type
Indicates the type of statement that's entered in the Model SQL
edit box. Values for this field can beTable,Index, andTablespace.
Model SQL
This field displays the model SQL statements, which you can
edit. Valid statements are CREATE TABLE, CREATE INDEX,
CREATE TABLESPACE, and a platform-specific statement for
updating statistics.
Some platforms have all the statements, some do not.
322
Parameter Count
The Parameter Count is calculated based on how many
nonblank DDL Parm rows that you define.
DDL Parm
Enter the DDL Parm (parameter) to which you want to assign a
default.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
DDL Parameter Value
The DDL Parameter Value field is where you override a DDL
parameter's default value with your own for the selected
statement type.
Using the DDL Model Defaults page, you can maintain DDL model statements and default parameters for
Data Mover and Application Designer when DDL (PSBUILD.SQL, for example) is generated during the
build process.
Using this utility, you can:
•
Scroll through all the statement types and platforms that are defined in the PSDDLMODEL table.
•
Change DDL model statements.
•
Add, delete, or change DDL parameters and values.
The Platform IDs are as follows:
Number
Platform
0
SQLBase (no longer supported).
1
DB2.
2
Oracle.
3
Informix.
4
DB2/Unix.
5
Allbase (no longer supported).
6
Sybase.
7
Microsoft.
8
DB2/400 (no longer supported).
Note: There is no validation performed on the Model SQL statement, the DDL Parm syntax, or the
relationship between the statement and the parameters.
BOE Integration Administration
This page enables you to manage your BusinessObjects Enterprise installation.
See "Crystal Reports for PeopleSoft Overview" (PeopleTools 8.54: Crystal Reports for PeopleSoft).
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
323
Using PeopleTools Utilities
Chapter 11
Strings Table
Select PeopleTools, Utilities, Administration, Strings Table to access the Strings Table page.
Image: Strings Table page
This example illustrates the fields and controls on the Strings Table page. You can find definitions for the
fields and controls later on this page.
String Source
Options are:
RFT Long: Select if you want the long description of the field
to be displayed in the column heading as set in Application
Designer.
RFT Short: Select if you want the short description of the field
as set in the Application Designer to be displayed in the column
heading.
Text: Select to enter a custom column heading for the report.
String ID
Use the browse button to select the string ID that is to be used
for the column heading in the SQR report.
Default Label
The default label is enabled if you select the RFT Long or RFT
Short string source, otherwise, the check box is disabled.
Remember that fields can have multiple labels. Select the
Default Label option to ensure that the default label is used. If
you do not use the field's default label, you must select which of
the field's labels to use using the label properties button.
String Text
324
Enter the text for the custom column heading, This is the text
that is displayed if you set the string source to Text.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Width
The default value is the current width of the string that you
enter or select. Be sure to update the width based on the actual
space that is available on the report layout to avoid limiting
a translator to an artificially short length, which is likely to
degrade the quality of the translation.
Lookup Exclusion
Enter the record name for the tables you want to exclude from the auto lookup feature. A prompt or
lookup button opens a lookup page in the user's browser populated with up to 300 available values for that
field. The user can then either select the desired value or refine their search further. For extremely large
tables, the system administrator has the option of excluding that table from auto prompting by adding the
table to this list.
Related Links
"Prompt Fields" (PeopleTools 8.54: Application Designer Developer's Guide)
XML Link Function Registry
The XML Link Function Registry is used exclusively in conjunction with the XML Link technology,
which is associated with PeopleSoft Business Interlinks.
Note: PeopleSoft Business Interlinks is a deprecated product. This option currently exists for upgrade
compatibility and transition.
Merchant Integration Utilities
There are two utilities that are related to the Merchant Integration technology that are provided for
upgrade support only: Merchant Categories and Merchant Profile.
Refer to PeopleSoft documentation from previous releases for information regarding these utilities. These
utilities are not intended for any new development purposes.
TableSet IDs
Select PeopleTools, Utilities, Administration, TableSet IDs to access the Tableset ID page.
Use this utility to create Set IDs. Before doing this:
•
Add the SETID field (as a key field) to the record definition for that table.
•
Define a Set Control Field as the field controlling the assignment of table sets.
SetID
Enter the set ID as defined in the record definition.
Descriptions/Comments
Add any descriptions and comments that are necessary for
identification and internal documentation.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
325
Using PeopleTools Utilities
Chapter 11
Record Group
Used to group record definitions for the tables that you want to share, as well as any dependent record
definitions.
Select PeopleTools, Utilities, Administration, Record Group to access the Record Group page.
Image: Record Group page
This example illustrates the fields and controls on the Record Group page. You can find definitions for the
fields and controls later on this page.
Description
The Record Group ID description should provide enough
information to encompass a category of related tables, not just
the table that you are specifically sharing.
Short Description
Enter a short description.
Force Use of Default SetID
This overrides alternate setIDs that are entered so that the
default is used.
Record (Table) Name
This prompt list comes from a SQL view of record definitions
that are defined with that Set Control Field that aren't already
associated with a record group.
Record Description
Automatically populated when the Record (Table) Name is
selected.
TableSet Control
The following pages are used to control table sets.
Record Group Page
Select PeopleTools, Utilities, Administration, TableSet Control to access the Record Group page.
Used to define which record groups use which table set.
326
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Default SetID
This is the setID that the system uses as you add additional
record definition groups to be shared within this tableset.
SetID
Although this database is set up to share only one accountingrelated record group, you may have multiple record groups to
which you assign default unique Set IDs.
Tree Page
Select PeopleTools, Utilities, Administration, TableSet Control, Tree to access the Tree page.
Used to share Trees as well as tables and views.
Default SetID
The Default setID that you assign to this field value
automatically appears. If you create another tableset for sharing
trees, you can change this value.
Tree Name
Use the browse button to select from a list of only the tree
definitions that are defined with the same Set Control Field.
SetID
Use the browse button to select the appropriate SetID.
Convert Panels to Pages
The following pages are used to convert panels that are used in previous PeopleSoft Windows
applications to pages that are used for browser access.
Scope Page
Select PeopleTools, Utilities, Administration, Convert Panels to Pages to access the Scope page.
This utility helps you update panels from PeopleTools 7.5x versions to reflect the pages that are used for
the PeopleSoft Internet Architecture.
Project List
Insert projects, containing panels that you want to convert,
into this scroll. In addition, if you use the Apply Panel Group
Defaults option, any panel group that is contained in projects in
this scroll are processed. Note that exceptions may be defined
see the task titled, Project Exceptions.
Page List
Insert panels that you want to convert to pages into this scroll.
Project Exceptions
If you want to ensure that a group of panels or panel groups
is never processed for conversion, you can insert them into an
application upgrade project and insert the project name in this
scroll.
Page Exceptions
Panels that are inserted into this scroll are not be processed.
See PeopleSoft ugrade documentation.
documentation for more information.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
327
Using PeopleTools Utilities
Chapter 11
Options Page
Select PeopleTools, Utilities, Administration, Convert Panels to Pages, Options to access the Options
page.
Specify the options for the conversion process:
Convert Scrolls to Scroll Areas
If you select this option, scroll-to-scroll area conversions take
place for panels with scroll bars. If this is unchecked, no scrollto-scroll area conversion takes place.
Convert Scroll Action Buttons to
Scroll Areas
Some scroll bars may exist with scroll action buttons that are
already defined. This option determines whether these scrolls
should be converted or ignored. If they are converted, the scroll
action buttons are removed before the scroll bar is converted to
a scroll area.
If you select this option, scrolls with scroll action buttons are
converted. If this options is not checked, scrolls with scroll
action buttons are ignored.
Panels with Level 1 Scrolls
If you select this option, panels with level 1 scrolls are
processed for scroll conversion.
Panels with Level 2 Scrolls
If you select this option, panels with level 2 scrolls are
processed for scroll conversion.
Panels with Level 3 Scrolls
If you select this option, panels with level 3 scrolls are
processed for scroll conversion.
Convert Level 1 Scrolls
If you select this option, level 1 scrolls are converted to scroll
areas.
Convert Level 2 Scrolls
If you select this option, level 2 scrolls are converted to scroll
areas.
Convert Level 3 Scrolls
If you select this option, level 3 scrolls are converted to scroll
areas.
Max # Scrolls
This parameter is a general scroll count limit for scroll
conversion processing. For example, if this is set to 5, any panel
with more than five scrolls that are not invisible is ignored. This
is a simple way of eliminating complex panels from automatic
scroll conversion.
Apply Specific Page Size
This option is used to define whether a specific size should be
assigned to a panel. If you select this option, the panel size that
is defined in the drop-down list box is applied to the panel. If
this is unchecked, no changes are made to the panel size.
Note: Note. When you select a specific panel size, the panel
size is applied to standard panels only (secondary panels and
subpanels are not sized automatically).
328
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Apply Default Style Sheet
If you select this option, the style sheet that is associated
with a panel is updated with a blank value, so that the
panel's style sheet appears by default from PSOPTIONS.
STYLESHEETNAME ('PSSTYLEDEF').
Apply Frame/Horz/GrpBox Styles
If you select this option, the conversion process looks for
frames, group boxes, and horizontal rules that have no styles
associated with them, and that appear to be associated with a
specific scroll area by virtue of their position within a scroll
area. It then assigns level-specific styles, based on the occurs
level of the scroll area.
Convert Frames to Horizontal
Horizontal lines were a new page object for PeopleSoft 8.
This option applies only for applications upgraded from
releases previous to PeopleSoft 8. If you select this option, the
conversion process looks for frames on the panel with upper and
lower coordinates less than nine grid units apart. These frames
are then converted to horizonal lines.
Delete All Frames
If you select this option, the process removes all frames on the
converted panel.
Note: If Convert Frames to Horizontal and Delete All Frames
are both checked, the conversion from frame to horizontal takes
place first, then any remaining frames are deleted.
Turn On Grid 'Odd/Even Style'
This applies to grids that are on a panel being converted. If you
select this option, the conversion process determines if grids
on the panel have their 'Odd/Even Style' turned on. If it is not
turned on, the conversion process turns on this option.
Turn On 'Show Prompt Button'
This option applies to edit box fields that are not invisible and
are not display-only. If you select this option, the conversion
process turns on the Show Prompt Button option for edit box
fields that have it turned off.
Apply Component Defaults
Used to apply standard defaults to component definitions. The
defaults that are set are dependent on the Use characteristics
of the component. See Application Designer, Component
Properties/Use and Component Properties/Internet tabs.
Turn Off 'Show Grid Lines'
Turns off the Show Grid Lines option for grids that have it
checked on.
Language Code
Enables you to convert panels whose language code differs from
that in PSOPTIONS. Select a language code from the dropdown list box.
Update Utilities
The Update utilities enable you to keep track of the PeopleSoft updates that you apply to the database.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
329
Using PeopleTools Utilities
Chapter 11
Updates By Release Label
The release label refers to the official release name, such as PeopleTools 8.53.00
Updates By Update ID
The update ID refers to the patch or project name that you apply to the system. The update ID is typically
the report ID for a TPRD incident.
Remote Database Connection
Use the Remote Database Connection page to set up remote databases for use with the Remote Data
Access (RDA) feature. Select PeopleTools, Utilities, Administration, Remote Database Connection to
access the Remote Database Access Management page.
Name
Enter the name of the remote database connection.
Database Type
Available types are Microsoft, DB2 (z/OS), DB2/UNIX, Sybase,
Informix, Oracle, and Sybase.
Description
Enter a description of the remote database.
Server
Enter the server name where the remote database resides.
Database
Enter the remote database name.
Local Connect
One connection must defined as the Local Connect for the
current PeopleSoft instance (the local database). Check this to
specify which database is the local.
DB Server Port
This value is automatically populated with a default value that is
based on the database type. You may need to change this value
depending upon the database server configuration.
User ID
Enter the user ID that is needed to connect to the remote
database.
Password
Enter the password that is associated with the user ID.
Test Connection
Select this to test the remote database connection.
Connection Type
For Oracle database type only. TNS Names or Specific. TNS
Names represent a preconfigured file (tnsnames.ora) that
consists of previously defined database connection information.
Enter Specific if you want to set up a database that does not
already have a TNS entry defined.
TNS Entry
For Oracle database type only.
Inf Svr Name
For Informix database type only.
Security in Remote Databases
To ensure security and limit the risk of unauthorized access to databases, follow these recommendations:
330
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
•
Using PeopleTools Utilities
The remote system's database administrator should create a user with read-only access to the tables
that may be accessed by other systems using PeopleSoft's RDA.
Use this restricted user ID and password in configuring a source RDA node.
•
The local system's database administrator should create a user with insert/update access to the RDA
destination tables only.
Use this restricted user ID and password in configuring the target RDA node.
URL Maintenance
Select PeopleTools, Utilities, Administration, URLs to access the URL Maintenance page.
Use the URL Table to store URL addresses and to simplify specifying and updating URLs. URLs that are
saved here can be referenced from page controls such as a push button or link. The associated URL can be
either an internet or intranet link.
Image: URL Maintenance page
This example illustrates the fields and controls on the URL Maintenance page. You can find definitions
for the fields and controls later on this page.
Description
Users can search for URLs by description.
URL
Enter the entire URL.
Note: For the file attachment functionality, in specifying the
URL for the FTP server, the FTP server's machine name can
be more than 30 characters, but the length of the full URL is
limited to 120 characters. The URL format for file attachments
stored in the database is record://recordname, as inrecord://
ABSENCE_HIST_DB.
Comments
This field can be used to make notations and comments and is
not displayed elsewhere.
Adding New URLs
To add a new URL entry in the URL table:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
331
Using PeopleTools Utilities
Chapter 11
1. Click the Add a New Value link.
A new page appears, prompting you to enter the URL Identifier. Enter the name that you want to use
to identify the new URL address.
2. Select Add.
3. Enter the Description, URL, and Comment, if any.
4. Select Save.
You must save the page before you can add another URL, or update or display existing URL
addresses.
5. Select Add to add another URL.
Viewing and Updating the URL Table
To update or display the URL table:
1. From the URL Maintenance search page, click Search.
2. Select the URL Identifier link that you want to update from the Search Results.
3. Make changes to the page and save.
332
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Specifying URL Properties
You access the URL Properties page by clicking the URL Properties link on the URL maintenance page.
Image: URL Properties page
This example illustrates the fields and controls on the URL Properties page. You can find definitions for
the fields and controls later on this page.
You create the URLID using the URL Maintenance page, but you assign various properties to the URLID
for the following protocol types using the URL Properties page.
•
FTP
•
FTPS
•
SFTP
•
HTTP
•
HTTPS
The properties you assign depend on the protocol and the type of security you are implementing.
The Password Encryption box enables you to enter and confirm any password value you intend to assign
to a PASSWORD property. Click Encrypt to encrypt the password, then copy the results into the edit box
for PASSWORD.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
333
Using PeopleTools Utilities
Chapter 11
Note: If you intend to implement secure FTP, SFTP, HTTP, or HTTPS, Oracle recommends you
understand the details and behavior of the attachment PeopleCode constructs, such as AddAttachment.
See "Understanding the File Attachment Functions" (PeopleTools 8.54: PeopleCode Developer’s Guide).
To assign properties to a URL:
1. On the URL Maintenance page, add a URL value containing ftp://, ftps://, sftp://, http://, orhttps:// in
the URL field.
2. Click Save.
3. Click the URL Properties link.
4. Set the URL properties for the protocol and your security preference.
5. Click Save.
The available URL properties for each protocol appear in the following table:
Protocol
Properties
Description
FTP/S
ACTIVEMODE
To enable active mode, add the
ACTIVEMODE property to the URL
and set it to Y.
The default FTP connection mode is
extended passive mode.
ACTIVEPORTOPTION
This property can be used along
with ACTIVEMODE. When active
mode is enabled, you can use
ACTIVEPORTOPTION to specify the
IP address and port on which the FTP
server can be accessed. This is useful
when the server is behind a firewall. By
default, ACTIVEPORTOPTION uses
the default IP address of your system. If
you want to use a particular IP address,
set the ACTIVEPORTOPTION value
to either the full IP address, a host name
to resolve to an IP address, or a local
network interface name.
You can also specify a port range. For
example:
10.176.147.111:10000-13000
334
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Protocol
Using PeopleTools Utilities
Properties
Description
CERTALIAS
(Certificate Alias) The Certificate Alias
must be an alias name of a certificate
stored in the database (using the
PeopleTools Digital Certificates page).
Note: Currently, only PEM certificates
are supported for FTPS.
ENABLEEPRT
This option can be used only with
Active Mode. If Active Mode is enabled
and ENABLEEPRT is set to N, then
the system will use a PORT (IPv4)
Active Mode connection. By default,
ENABLEEPRT is Y, if Active Mode is
set to Y.
FILE_EXT_LIST
Select the name of a file extension list
created using the File Extension List
page.
A file extension list enables you to
restrict file attachment features to work
only with appropriate file types, and
reject those file types that you believe
may be suspicious, potentially harmful,
or not appropriate for a particular call
to a file-processing built-in PeopleCode
function.
See File Extension List.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
335
Using PeopleTools Utilities
Protocol
Chapter 11
Properties
Description
KEYSTOREPASSWORD
Required for FTPS and HTTPS
repositories.
For attachments transferred from the
PeopleSoft system to the FTPS or
HTTPS repository, the system retrieves
the key pair for the client certificate from
the digital certificate store and writes
them to a file in PKCS12 format with
password protection. The value of this
property will be used as the password for
the PKCS12 file.
The PKCS12 file enables connection
and file transfer, and it exists only
temporarily in <PS_SERVDIR>\files
\<CERT ALIAS NAME> for the
duration of the file transfer.
The system deletes the file after the file
transfer transaction.
Note: If the system fails to delete the
certificate alias file, a message will be
written to the application sever log. The
maximum number of files that can exist
at any time is equal to the total number
of FTPS and HTTPS URL identifiers
defined in the system.
EXTENDEDPASSIVEMODE
Enables you to control whether extended
passive mode (EPSV) will be used by
FTP.
To enable select 1, to disable select0.
EPSV is used by default. That is, by
default, this value is considered to be 1.
If the client fails to connect to the server
with EPSV, then the system will try
passive mode (PASV). To use PASV
only, add EXTENDEDPASSIVEMODE
to the URL Properties and set it to 0.
PASSWORD
336
The password associated with the USER
property, which identifies the FTP user
ID.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Protocol
Using PeopleTools Utilities
Properties
Description
SSLUSAGELEVEL
0 - No SSL: No SSL will be used.
1 - Try SSL: Try using SSL, but proceed
as normal otherwise.
2 - Control: Require SSL for the control
connection.
3 - SSL Only: (Default) Require SSL for
all communication.
USER
The FTP user ID used for authentication
when accessing the FTP site.
VERIFYHOST
0: Do not verify the server for host name.
1: Checks if there exists any value in
the common name field in the server
certificate. Does not verify if it matches
with what the client specifies.
2: (Default) Checks for a match with the
host name in the URL with the common
name or Subject Alternate field in the
server certificate.
VERIFYPEER
False: Do not verify the peer.
True: (Default) Verify the peer by
authenticating the certificate sent by the
server.
SFTP
AUTHTYPE
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Select the authentication type:
•
Public Key
•
Password
•
Any
337
Using PeopleTools Utilities
Protocol
Chapter 11
Properties
Description
FILE_EXT_LIST
Select the name of a file extension list
created using the File Extension List
page.
A file extension list enables you to
restrict file attachment features to work
only with appropriate file types, and
reject those file types that you believe
may be suspicious, potentially harmful,
or not appropriate for a particular call
to a file-processing built-in PeopleCode
function.
See File Extension List.
338
PASSWORD
Specify the user password. You can
enter the password in the Password
Encryption box, click Encrypt, then copy
the encrypted value to the Password
property.
PASSWORDKEY
Enter the password for the private key.
PRIVATEKEY
Select the private key.
PUBLICKEY
Select the public key.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Protocol
Using PeopleTools Utilities
Properties
Description
SSHKEYALIAS
Select the SSH certificate saved to the
database using the PeopleTools Security,
Digital Certificates page (PeopleTools,
Security, Security Objects, Digital
Certificates). The SSH certificate added
through the Digital Certificates page
contains both the public and private key
data, identified by the Alias column
value on the Digital Certificates page.
If using the SSHKEYALIAS URL
property, the Property Value prompt
displays only the list of SSH certificates
that have been added to the Digital
Certificates page.
If you have added the SSH certificate
using the Digital Certificates page, and
you have assigned an SSH certificate to
the SSHKEYALIAS URL property, the
system ignores the PUBLICKEY and
PRIVATEKEY properties, regardless if
they refer to valid key files in the file
system.
If you provided a password (or
passphrase) when generating your SSH
certificate, specify that value using the
PASSWORDKEY URL property.
See "Configuring Digital Certificates"
(PeopleTools 8.54: Security
Administration)
HTTP
USER
Specify the user ID to be authenticated.
FILE_EXT_LIST
Select the name of a file extension list
created using the File Extension List
page.
A file extension list enables you to
restrict file attachment features to work
only with appropriate file types, and
reject those file types that you believe
may be suspicious, potentially harmful,
or not appropriate for a particular call
to a file-processing built-in PeopleCode
function.
See File Extension List.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
339
Using PeopleTools Utilities
Protocol
Chapter 11
Properties
Description
PASSWORD
Specify the user password. You can
enter the password in the Password
Encryption box, click Encrypt, then copy
the encrypted value to the Password
property.
PROXY
Specify the proxy server (if used).
PROXYPORT
Specify the proxy server port (if used)
USEAUTHTOKEN
Uses the PS_TOKEN authentication
cookie, if single signon is configured
between source and target destination.
Note: This must be set to Y if a
PeopleSoft web server is used for the
HTTP repository.
USER
Specify the user ID to be authenticated.
Note: USER must be set if a PeopleSoft
web server is used for the HTTP
repository.
HTTPS
CERTALIAS
(Certificate Alias) The Certificate Alias
must be an alias name of a certificate
stored in the database (using the
PeopleTools Digital Certificates page).
Note: Currently, only PEM certificates
are supported for FTPS.
340
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Protocol
Using PeopleTools Utilities
Properties
Description
KEYSTOREPASSWORD
Required for FTPS and HTTPS
repositories.
For attachments transferred from the
PeopleSoft system to the FTPS or
HTTPS repository, the system retrieves
the key pair for the client certificate from
the digital certificate store and writes
them to a file in PKCS12 format with
password protection. The value of this
property will be used as the password for
the PKCS12 file.
The PKCS12 file enables connection
and file transfer, and it exists only
temporarily in <PS_SERVDIR>\files
\<CERT ALIAS NAME> for the
duration of the file transfer.
The system deletes the file after the file
transfer transaction.
Note: If the system fails to delete the
certificate alias file, a message will be
written to the application sever log. The
maximum number of files that can exist
at any time is equal to the total number
of FTPS and HTTPS URL identifiers
defined in the system.
FILE_EXT_LIST
Select the name of a file extension list
created using the File Extension List
page.
A file extension list enables you to
restrict file attachment features to work
only with appropriate file types, and
reject those file types that you believe
may be suspicious, potentially harmful,
or not appropriate for a particular call
to a file-processing built-in PeopleCode
function.
See File Extension List.
PASSWORD
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Specify the user password. You can
enter the password in the Password
Encryption box, click Encrypt, then copy
the encrypted value to the Password
property.
341
Using PeopleTools Utilities
Protocol
Chapter 11
Properties
Description
PROXY
Specify the proxy server (if used).
PROXYPORT
Specify the proxy server port (if used).
SSLUSAGELEVEL
0 - No SSL: No SSL will be used.
1 - Try SSL: Try using SSL, but proceed
as normal otherwise.
2 - Control: Require SSL for the control
connection.
3 - SSL Only: (Default) Require SSL for
all communication.
USEAUTHTOKEN
Uses the PS_TOKEN authentication
cookie, if single signon is configured
between source and target destination.
Note: This must be set to Y if a
PeopleSoft web server is used for the
HTTP repository.
USER
Specify the user ID to be authenticated.
Note: USER must be set if a PeopleSoft
web server is used for the HTTP
repository.
VERIFYHOST
0: Do not verify the server for host name.
1: Checks if there exists any value in
the common name field in the server
certificate. Does not verify if it matches
with what the client specifies.
2: (Default) Checks for a match with the
host name in the URL with the common
name or Subject Alternate field in the
server certificate.
VERIFYPEER
False: Do not verify the peer.
True: (Default) Verify the peer by
authenticating the certificate sent by the
server.
342
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Working with FTP/FTPS
FTP over SSL (FTPS) can be achieved in two ways: implicit and explicit. Implicit SSL uses ftps:// and
explicit uses ftp://.
To use PASV only, set URL property EXTENDEDPASSIVEMODE to 0.
Working with SFTP
With SFTP, these authentication methods are supported:
•
password.
•
key authentication.
Note: With key authentication, you have two choices: storing the public and private keys as files within
the file system, or storing the public and private keys within an SSH certificate added using the Digital
Certificates page.
To set up password authentication create a URL identifier with an SFTP URL value, such as
sftp://10.145.641.122/, then set these URL properties:
•
AUTHTYPE: 2 - PASSWORD
•
USER: user ID
•
PASSWORD: encrypted user password
For public key authentication with key files stored in the file system, you can copy the public key
file to <PS_SERVDIR>\sshkeys\public and the private key file to <PS_SERVDIR>\sshkeys\private.
Alternatively, you can copy the key files to a different location and define an environment variable
PS_SSHKEYPATH.
Note: PS_SSHKEYPATH can replace only PS_SERVDIR. The following directory structure must exist in
your custom location, .\sshkeys\public and .\sshkeys\private. For example, <PS_SSHKEYPATH>\sshkeys
\public.
If storing the SSH key data in the file system, set these URL properties appropriately:
•
AUTHTYPE: (1 - PUBLIC KEY)
•
USER
•
PRIVATEKEY
•
PUBLICKEY
•
PASSWORDKEY
For public key authentication with an SSH certificate stored in the PeopleTools keystore, save the private
key and public key data to the database using the Digital Certificates page (PeopleTools, Security,
Security Objects, Digital Certificates page). If your SSH certificate is stored in the database by way of the
Digital Certificates page, set these URL properties appropriately:
•
AUTHTYPE: (1 - PUBLIC KEY)
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
343
Using PeopleTools Utilities
•
USER
•
SSHKEYALIAS
•
PASSWORDKEY
Chapter 11
Note: Oracle recommends storing the SSH public and private key data in the database by creating an SSH
certificate stored in the PeopleTools keystore for increased security and ease of maintenance. If the private
key and public key files are stored in the file system, Oracle recommends implementing a passwordprotected private key.
For more information on the Digital Certificates page, see "Configuring Digital Certificates" (PeopleTools
8.54: Security Administration).
Working with HTTP/HTTPS
HTTP/S file transfer requires the http/https repository available (file storage location). The repository
can either be on a PeopleSoft web server or non-PeopleSoft server. The PeopleSoft Internet Architecture
provides a handler servlet (psfiletranfer) to handle the requests. If you use a non-PeopleSoft web server
you need to create a handler for non-PeopelSoft servers/repositories.
Once the repository is created, the configuration.properties file for the appropriate PeopleSoft site needs
to be modified to include the HttpRepository property. For example:
HttpRepositoryPath=D:/HttpRepository
Note: Use a forward slash (/).
To set up HTTP:
After creating a URL identifier with an http:// URL (as in, http://<PIA URL>/psfiletransfer/<sitename>/),
select these URL properties:
•
USEAUTHTOKEN: Y
•
USER: user_ID
Set the Authentication Option field on the default local node to Password.
To set up HTTPS:
Setup the target web server for HTTPS, and add the Root CA and Client Certificate to Digital Certificate
store.
Create an URL Identifier using https://, and add these URL properties:
344
•
CERTALIAS: your certificate alias
•
SSLUSAGELEVEL: 3-SSL Only
•
VERIFYHOST: 2
•
VERIFYPEER: Y
•
USER: user ID
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
•
Using PeopleTools Utilities
USEAUTHTOKEN: Y
You can have the HTTP repository on a separate PeopleSoft web server too. For example, PIAsystem1
can have the URL identifier pointing to a URL on PIAsystem2. This requires following to be in place:
•
The user specified in the URL properties must exist in both the systems with the proper permissions.
•
The default local nodes on both systems should have Authentication Option set to Password and
should be pinged successfully.
•
The default local nodes of each system are added to single-signon list for each database.
Note: To upload non-ASCII file names to an HTTP Repository, the application server needs to be booted
in the native language (such as Japanese or Chinese). If the application server is booted in English, file
names with non-ASCII characters will not be uploaded to the HTTP Repository.
See "Selecting Character Sets" (PeopleTools 8.54: Global Technology) for more information on how
character sets on various tiers of the PeopleSoft system can affect file attachment processing.
Specifying URLs When Attaching Files
When attaching files, whether you can pass a string URL or only use the URL identifier depends on the
protocol and repository type being used. When attaching files, keep these guidelines in mind:
•
Using the URL Identifier is mandatory for FTPS, SFTP, HTTP, and HTTPS.
•
For FTP, Record, and File, you can use the URL Identifier or use a URL string (and not reference the
stored URL Identifier).
For example, with plain FTP you could use a URL string, such as:
ftp://user:[email protected]/
Or, if a URL Identifier has been created, you can reference that in one of these formats:
•
ftp://userid:[email protected]/: where the FTP user and FTP password are provided in clear text, but
the URL information comes from the URL Identifier.
•
ftp://[email protected]/: where the FTP user is provided in clear text, but the FTP password and the URL
information comes from the URL Identifier.
•
ftp://ftpurl/: where all the required information comes from the URL Identifier.
File Extension List
Select PeopleTools, Utilities, Administration, Administer File Processing, File Extension List to access
the File Extension List page.
A file extension list contains a list of file types, identified by file extension, that the system either accepts
or rejects during specific file attachment operations. Once you have created a file extension list you
specify it as the value for the FILE_EXT_LIST property of a URL object using the URL Maintenance
page. This enables you to only upload the appropriate file types at runtime, and reject those file types you
think may be suspicious, potentially harmful, or not appropriate for a particular call to a file-processing
built-in PeopleCode function.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
345
Using PeopleTools Utilities
Chapter 11
A file extension list applies only when performing these file attachment operations:
•
Uploading files (AddAttachment, MAddAtachment PeopleCode)
•
Viewing files (ViewAttachment PeopleCode)
•
Detaching files (DetachAttachment PeopleCode)
Note: File extension lists can be assigned only to a URL object by way of the FILE_EXT_LIST property,
and they apply only to these file attachment operations.
See URL Maintenance.
See "Understanding the File Attachment Functions" (PeopleTools 8.54: PeopleCode Developer’s Guide).
You can create different file extension lists to restrict certain file types, depending on the needs of the
application. For example, for an application that users access from outside your firewall, such as a
job applicant interface, you might want to impose strict restrictions on the accepted file types to avoid
allowing potentially harmful file types into your system. For an internal-facing application, you may not
require such strict requirements for file attachments.
Image: File Extension List page
This example illustrates the fields and controls on the File Extension List page. You can find definitions
for the fields and controls later on this page.
List Name
Displays the name you entered for the file extension list in the
Add New Value tab. File extension list names cannot exceed 30
characters.
Description
Enter any descriptive information to help indicate how this list
is to be used.
Extension List Type
Inactive
346
When set to Inactive, the system ignores the file extension list.
Any file extension entries in the Contained Extensions grid are
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
ignored at runtime for an Inactive list type. From a development
perspective, it may be useful to keep a working list of file
extensions, but keep the list itself inactive until it is fully tested.
Note: When troubleshooting or testing, setting a file extension
list to Inactive, immediately disables any restrictions imposed
by that file extension list.
Absolute
With an Absolute file extension list, you can create a list in
which all the acceptable filename extensions are explicitly
enumerated and have a status ofAccept. That is,only the file
extensions that appear in the Contained Extensions gridand have
the Status set toAccept will be accepted for that file attachment
operation at runtime. An Absolute file extension list is most
appropriate for situations where you wish to accept a relatively
small number of file types.
Any file extension set to Reject will not be accepted at runtime.
However, not including such a file extension in your absolute
list will have precisely the same effect.
Relative
The Relative file extension list type is based on the Standard
Extensions list, and provides a flexible means to specify a finite
number of files that are acceptable, as well as enabling you to
extend the Standard Extensions list, if needed. A Relative file
extension list is most appropriate for situations where you wish
to reject a relatively small number of file types.
After reviewing the Standard Extensions list, add specific file
extensions that you do not want to authorize for file attachment
operations to the Contained Extensions grid, and set the Status
value toReject. By doing so, you indicate to the system that you
authorize all of the extensions on the Standard Extensions list,
except for those you've added to the Contained Extensions grid
and set toReject.
For a Relative file extension list type, you can use the Accept
status value to effectively extend the current list of Standard
Extensions for this specific relative file extension list. For
example, assume that at your site you use a product that uses a
file extension that does not appear in the Standard Extensions
list. By adding that file extension to the Contained Extensions
grid and setting its Status value toAccept, the PeopleSoft system
will accept that file type for file attachment operations involving
this specific relative file extension list.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
347
Using PeopleTools Utilities
Chapter 11
Note: PeopleTools does not permanently add the extension
to the Standard Extensions list when it is set to Accept for a
relative file extension list type. That is, when you view the
Standard Extensions list after setting the Status toAccept for
a particular file extension, it will not appear in the list and
will not affect the contents of the Standard Extensions list
when it is accessed at runtime by other file extension lists you
use. However, at runtime, the system will recognize that file
extension as acceptable for this specific relative file extension
list.
Unlimited
Do not use the Unlimited extension list type in the current
release. This type of list is intended for possible use with future
functionality.
Standard Extensions
Click to display a read-only list of standard file extensions that are known and potentially acceptable to
the PeopleSoft system. This list comprises the standard list of file types that a PeopleSoft web server
will handle. The displayed Standard Extensions list is provided for informational purposes to help you
complete your file extension lists by indicating the set of file extensions that the PeopleSoft system
recognizes.
Note: The Standard Extensions list is a reflection of the PeopleTools mime type list saved in the web.xml
file. However, the web.xml file and the Standard Extensions list are independent. That is, modifying the
web.xml mime type list has no effect on the Standard Extensions list. To include additional file extensions
to the Standard Extensions list, refer to the Relative file extension list type description.
Contained Extensions
File Extension
Enter the file extensions you want to accept or reject. Add
one extension per row, with each extension not exceeding ten
characters.
The system saves the value of an individual file extension as
all upper case, regardless of the case you enter, and prepends
a period ('.') to the file extension unless its first character is
already a period.
Note: Files having no file extension may be indicated
collectively by specifying a file extension of a period (".").
Status
348
For a specified file extension of type Absolute or Relative, you
have these Status options:
•
Accept: Indicates that the system will accept files having the
specified extension.
•
Reject: Indicates that the system will reject files having the
specified extension.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Bypassing Restrict-by-File-Type Functionality for System Administrators
System administrators managing the file attachment features of your PeopleSoft system can bypass
restrictions otherwise imposed by filename extension lists by using a delivered security role, PTFX Ignore
Download Ext Lists.
During a call to ViewAttachment or DetachAttachment, if the user profile initiating the transaction
is associated with the PTFX Ignore Download Ext Lists role, then the system ignores file download
restrictions specified by any filename extension list.
Note: The PTFX Ignore Download Ext Lists role should be associated only with the appropriate user
profile(s).
Note: The PTFX Ignore Download Ext Lists role contains no permission lists, however, its association
with a user profile triggers internal PeopleTools security rules.
Copy File Attachments
Select PeopleTools, Utilities, Administration, Administer File Processing, Manage Attachment
Repositories to access the Manage Attachment Repositories page.
This page enables you to manage your attachment archives. You can transfer file attachment archives
from one location (source) to a new location (destination), and you can perform general housecleaning by
deleting orphaned attachments.
Image: Copy File Attachments page
Copy file attachments from one location to another as well as purge system of orphaned file attachments
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
349
Using PeopleTools Utilities
Chapter 11
Copy File Attachments
Source
Enter the URL that corresponds to the current (source) location
of the file attachment archive to be copied.
Destination
Enter the URL that corresponds to the destination location of the
file attachment archive to be copied.
Copy Files
Invokes the PeopleCode function (CopyAttachment) that
copies the file attachment archive from the specified source
storage location to the specified destination storage location.
For example, you can copy from the FTP server to a database, a
database to the FTP Server, and so on.
Note: For the file attachment functionality, in specifying the
URL for the FTP server, the FTP server's machine name can be
more than 30 characters. The length of the full URL is limited to
120 characters.
Prior to copying files to a database storage location, you must
first prepare the target record to store the attachments, which is
discussed in the PeopleCode Developer's Guide.
See "Understanding the File Attachment Functions"
(PeopleTools 8.54: PeopleCode Developer’s Guide).
Example
Displays the sample formats used for FTP, URL, or Record
attachment transfers. These sample formats apply to both the
Source and Destination edit boxes.
Deleting Orphan Attachments
The accumulation of file attachments can consume a significant amount of space in your database.
Therefore, on a regular basis, it is recommended that you make sure that orphaned file attachments
are deleted from the storage location, reclaiming disk space being used unnecessarily. Orphan file
attachments are stored file attachments for which there is no longer a corresponding file reference in a
valid file reference table.
Click the Delete Orphan Attachments button to complete this task. This button invokes the
CleanAttachments PeopleCode function.
Warning! There is no way to roll back changes made by the CleanAttachments function. Review the
CleanAttachments documentation in the PeopleCode Language Reference PeopleBook describing the
behavior of CleanAttachments in order to appropriately anticipate how it will behave. Oracle suggests that
you perform a database backup before deleting orphan attachments.
Note: When large numbers of orphaned file attachments may exist, Oracle recommends using the
delivered Application Engine program, CLEANATT84, rather than the Delete Orphan Attachments button
to remove the orphaned files. This avoids potential time-out issues.
See "CleanAttachments" (PeopleTools 8.54: PeopleCode Language Reference)
350
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Copy File Attachments (Batch)
Select PeopleTools, Utilities, Administration, Administer File Processing, Copy File Attachments
(Batch) to access the Copy File Attachments (Batch) page.
This page enables you to run a CopyAttachments process via the COPYATTS Application Engine
program on the Process Scheduler. .This ensures that a large CopyAttachments job does not terminate
prematurely due to PIA time-out.
Image: Copy File Attachments (Batch) page
This example illustrates the fields and controls on the Copy File Attachments (Batch) page.
Report Manager
Click this to view reports.
For more information about viewing reports, see "Viewing
Reports" (PeopleTools 8.54: Process Scheduler).
Process Monitor
Click this to review the status of scheduled or running
processes.
For more information about viewing the status of processes, see
"Viewing the Status of Processes" (PeopleTools 8.54: Process
Scheduler)
Run
Click this to execute the processes. When you click Run, the
Process Scheduler Request page appears, showing all of the jobs
and processes that you have the security to run.
Source
Enter the URL that corresponds to the current (source) location
of the file attachment archive to be copied.
Destination
Enter the URL that corresponds to the destination location of the
file attachment archive to be copied.
Related Links
"Understanding Report Manager" (PeopleTools 8.54: Process Scheduler)
"Understanding Process Monitor" (PeopleTools 8.54: Process Scheduler)
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
351
Using PeopleTools Utilities
Chapter 11
Delete Orphan Files (Batch)
Select PeopleTools, Utilities, Administration, Administer File Processing, Delete Orphan Files (Batch)
to access the Delete Orphan Files (Batch) page.
This page enables you to run a CleanAttachments process via the CLEANATT84 Application Engine
program on the Process Scheduler. This ensures that a large CleanAttachments job does not terminate
prematurely due to PIA time-out.
Image: Delete Orphan Files (Batch) page
This example illustrates the fields and controls on the Copy File Attachments (Batch) page.
Report Manager
Click this to view all of the reports that are in the PeopleSoft
system (across multiple databases) that the user is authorized to
access.
Process Monitor
Click this to review the status of scheduled or running
processes.
Run
Click this to access the Process Scheduler Request page.
Select the process and click OK to delete.
Query Administration
System administrators can use Query Administration to monitor query performance and usage. Some of
the conditions that you can monitor include average runtime, number of times run, and the dates last run.
Using a predefined search, you can also select queries to review and report on.
Related Links
"Understanding Query Administration" (PeopleTools 8.54: Query)
352
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Sync ID Utilities
The Sync ID Utilities are used exclusively with PeopleSoft Mobile Applications technology.
Important! PeopleSoft Mobile Agent is a deprecated product. These pages currently exist for backward
compatibility only.
nVision Report Request Admin
See "Securing and Sharing Report Requests in PIA" (PeopleTools 8.54: PS/nVision).
Analytic Server Administration
See "Administering Analytic Servers" (PeopleTools 8.54: Analytic Calculation Engine).
Upgrade Conversion
Defines upgrade drivers, providing details regarding Application Engine program, section, group, and
calling sequence. If you need to specify any of these values, your upgrade documentation will provide the
details.
See your upgrade documentation for more information.
Analytic Model Viewer
See "Viewing Analytic Model Properties" (PeopleTools 8.54: Analytic Calculation Engine).
Analytic Instance Load/Unload
See "Loading and Unloading Analytic Instances" (PeopleTools 8.54: Analytic Calculation Engine).
Analytic Instance Create/Del/Copy/
See "Creating, Deleting, and Copying Analytic Instances" (PeopleTools 8.54: Analytic Calculation
Engine).
Pre-Load Cache Utilities
See Configuring an Application Server Domain to Preload Cache.
Gather Utility
The Gather utility facilitates communications between PeopleSoft and the customer on technical
questions or issues. The Global Support Center (GSC) directs the customer to the Gather Utility when
problems arise. Customers can also use a self-service website to run this utility and send in relevant
information about their problems or issues.
Using a simple command line interface, the Gather utility is a small Java application that can run on any
platform to collect various files from the following environments:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
353
Using PeopleTools Utilities
Chapter 11
•
Application Server.
•
Web Server.
•
Any additional files that the user chooses (SQL Trace files, PeopleCode Trace Files, and so on).
The collected files are placed in a single jar file with psft.jar as the default name, in the temp
directory. Subsequently, these files are sent to PeopleSoft.
Note: For this utility to work, the supported version of Java (JRE) must be installed on the target
machine.
Getting Started
The following files reside in the starting directory:
•
Gather.class: The main Java class file
•
Helper.class: This class file is called by Gather.class
•
Runnit.bat: A MS-DOS batch file that is used by Windows users.
UNIX users have to run the Gather utility manually.
•
Vars.sh: a UNIX shell script.
Gather calls this automatically if the UNIX operating system is detected.
Windows Users
The following steps are used for Windows:
1. Make sure that you have the PS_HOME environment variable set.
This saves the user from having to type it in.
2. Go to PS_HOME\utility.
3. Type runnit.
4. Follow the directions that are on the screen.
UNIX Users
Use the following steps for UNIX:
1. At a command prompt, run the following command where PeopleSoft is installed:
../psconfig.sh
2. Go to the PS_HOME/utility directory.
3. Change permissions for all files:
chmod 777 *.*
354
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
4. Enter the following to start the utility:
java -cp .:$CLASSPATH Gather
Note: UNIX is case-sensitive – Gather is spelled with a capital G.
5. Follow the instructions that are on the screen.
Environmental Data
On Windows, both the set and netstat commands are invoked with the results copied to a file that is
collected. On UNIX, the same thing is done with the env command.
Application Server Data
The following files are collected from the Application Server:
•
PSAPPSRV.CFG
•
PSAPPSRV.UBB
•
LOGS/*.*—this usually includes all application serv/tuxedo logs, dump, and replay files.
This includes all subdirectories under LOGS .
Web Server Data
The gather utility collects numerous files (log files, configuration files, and so on) from each of the
supported web servers. If an analyst only asks for a specific file, send that, but make sure to keep the other
collected files in case they are needed.
Additional Files
There is always a need to include files that are not on the above list. These can include PeopleCode Trace
files, SQL Trace files, SQL output, and so forth. The command line interface allows you to specify any
file that you want to be included in the jar file.
QAS Administration
See "Using QAS Administration" (PeopleTools 8.54: Reporting Web Services).
Oracle Resource Management
See "Working With Oracle Consumer Groups" (PeopleTools 8.54: Data Management).
Using Audit Utilities
This section covers the utilities that are used for auditing the system's integrity.
This section discusses how to:
•
Use the Record Cross Reference component.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
355
Using PeopleTools Utilities
•
Perform a system audit.
•
Perform database level auditing.
Chapter 11
Using the Record Cross Reference Component
Select PeopleTools, Utilities, Audit, Record Cross Reference.
You use the Record Cross Reference component (XREF_PANEL_01) to view where a record is used
throughout the application. There are two pages in this page group:
•
Pages, Views, Search Records.
•
Prompts, Defaults, PeopleCode.
Pages, Views, Search Records
This is a read-only page that shows which Projects, Menus, Pages, and Objects reference a particular
record:
Image: Pages, Views, Search Records page
This example illustrates the fields and controls on the Pages, Views, Search Records page. You can find
definitions for the fields and controls later on this page.
356
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Prompts, Defaults, PeopleCode
On the Prompts, Defaults, PeopleCode page, the group boxes list the components that refer to the record.
Image: Prompts, Defaults, PeopleCode page
This example illustrates the fields and controls on the Prompts, Defaults, PeopleCode page. You can find
definitions for the fields and controls later on this page.
Used as an Edit Table on
Lists pages that use the record as edit table.
Used as a Default Table in
Lists pages that use the record as a default table.
PeopleCode with Fields from this
Record
Shows where fields from this record are used in PeopleCode.
PeopleCode referring to this
Shows all PeopleCode that references this record.
Performing a System Audit
The System Audit (SYSAUDIT) utility is documented in the Data Management PeopleBook.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
357
Using PeopleTools Utilities
Chapter 11
Related Links
"Running SYSAUDIT" (PeopleTools 8.54: Data Management)
Performing Database Level Auditing
This utility is used to support database level auditing features, and is documented in the Data
Management PeopleBook.
Related Links
"Understanding Database Level Auditing" (PeopleTools 8.54: Data Management)
Using Debug Utilities
This section discusses how to:
•
Use the PeopleTools Test Utilities page.
•
Use the Trace PeopleCode utility.
•
Use the Trace SQL utility.
Note: The Trace Page / Trace Panel page is no longer actively used or maintained.
358
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Using the PeopleTools Test Utilities Page
Select PeopleTools, Utilities, Debug, PeopleTools Test Utilities to access the PeopleTools Test Utilities
page:
Image: PeopleTools Test Utilities
This example illustrates the fields and controls on the PeopleTools Test Utilities. You can find definitions
for the fields and controls later on this page.
Remote Call Test
You use the Remote Call Test button to test the Remote Call
configuration.
Interlink Test
Used to test Business Interlinks. (Business Interlinks is a
deprecated product).
PeopleCode/Java Test
The Derived Class File button tests Java-PeopleCode
integration. It tests to see that Java is being executed correctly
through PeopleCode.
The External Class File button tests Java PeopleCode
integration.
File Attachment Test
This enables you to test the file attachment PeopleCode
functions with your file storage location. Enter the full path and
password for the test file or a URL identifier (URL.URL_ID).
For example:
ftp://user01:[email protected]/myfiles
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
359
Using PeopleTools Utilities
Chapter 11
or
URL.FILEDB
Click Attach to attach the file. Once the file is attached, you can
View, Detach, and Delete the file.
The file attachment PeopleCode functions and their usage
within PeopleSoft applications are documented in detail in the
PeopleCode Developer's Guide.
When testing file attachment features, keep these usage
stipulations in mind:
•
Using a URL Identifier is mandatory only for FTPS, SFTP,
HTTP, and HTTPS attachment protocols.
•
FTP, Record, and File attachment protocols, can use the
URL Identifier, or they can be specified as a plain string.
Note: The File Attachment Test does not allow .JSP files to be
uploaded or downloaded.
Note: PeopleTools supports uploading, downloading, and
deleting empty file attachments. An empty file refers to a file
that exists, but has a size of zero bytes.
Note: The File Attachment Test utility enables only a single file
to be uploaded at a time, because the underlying PeopleCode
function is AddAttachment. PeopleTools supports uploading
multiple files at a time by using the MAddAttachment
PeopleCode function.
Note: For the file attachment functionality, in specifying the
URL for the FTP server, the FTP server's machine name can be
more than 30 characters. The length of the full URL is limited to
120 characters.
See "Understanding the File Attachment Functions"
(PeopleTools 8.54: PeopleCode Developer’s Guide)URL
Maintenance.
Example: File Attachment Test
The following shows the process of the file attachment test:
360
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
1. Enter a string URL or a URLID defined in the URL Maintenance utility, and click Attach.
Image: File Attachment Test example: Entering URL ID
This example illustrates the fields and controls on the File Attachment Test example: Entering URL
ID. You can find definitions for the fields and controls later on this page.
2. Browse to the location of the file to attach, and click Upload
Image: File Attachment dialog box
This example illustrates the fields and controls on the File Attachment dialog box. You can find
definitions for the fields and controls later on this page.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
361
Using PeopleTools Utilities
Chapter 11
3. Confirm that the file has been stored in the appropriate repository (attached).
Image: File Attachment Test: Confirming file attachment
This example illustrates the fields and controls on the File Attachment Test: Confirming file
attachment. You can find definitions for the fields and controls later on this page.
Note: Once the file has been uploaded, you can View, Delete, or Detach the file.
Related Links
"Understanding the File Attachment Functions" (PeopleTools 8.54: PeopleCode Developer’s Guide)
URL Maintenance
Replay Appserver Crash
See Configuring the Application Server to Handle Cache Files and Replay Files.
Using the Trace PeopleCode Utility
The Trace PeopleCode utility is discussed elsewhere in this PeopleBook.
Related Links
Setting Up the PeopleCode Debugger
Configuring PeopleCode Trace
Using the Trace SQL Utility
The Trace SQL utility is discussed elsewhere in this PeopleBook.
Related Links
Configuring SQL Trace
Using International Utilities
The following sections cover the utilities that you use in globalization efforts.
This section discusses how to:
362
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
•
Set international preferences.
•
Set process field size.
•
Administer time zones.
•
Manage languages.
Setting International Preferences
Select PeopleTools, Utilities, International, Preferences.
Used to override the language that you select when you sign in to the database.
Language Preference
Use the International Preferences page to temporarily change the
session's language preference that was specified during signon.
This change lasts until you exit the PeopleSoft session or change
the language preference again. Only languages that are enabled
on the Languages page are available for selection.
Related Links
"Changing the Session Language While Signed In" (PeopleTools 8.54: Global Technology)
Setting Process Field Size
Select PeopleTools, Utilities, International, Process Field Size.
If you process currency values that require large numbers, such as Italian lira, that require fields longer
than those that are included in the standard application, you can use the International Field Size page to
expand amount fields throughout the application.
After you create or select a run control ID, set the appropriate lengths for a list of fields, then click the
Run button to launch the batch program that performs the field size changes.
Field Name
Use the Browse button to select the field name.
Current Field Size
This is a read-only field indicating the current field size as
stored in PSDBFIELDS.
Field Size - International
Enter the field size to expand (or contract) the field size for
foreign fields.
Related Links
"Resizing Currency Fields by Using the International Field Size Utility" (PeopleTools 8.54: Global
Technology)
Administering Time Zones
This utility is extensively documented in the PeopleTools Global Technology PeopleBook.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
363
Using PeopleTools Utilities
Chapter 11
Related Links
"Understanding Time Zones" (PeopleTools 8.54: Global Technology)
Managing Languages
Select PeopleTools, Utilities, International, Languages to access the Manage Installed Languages page.
Image: Manage Installed Languages page
This example illustrates the fields and controls on the Manage Installed Languages page. You can find
definitions for the fields and controls later on this page.
Use this page as a central utility to manage language information for the currently enabled languages.
364
Language Code
Use the search prompt to select the PeopleSoft language code
from the PSXLATITEM table. The language description appears
to the right of the code field.
Enabled
When you select this check box, PeopleSoft Internet
Architecture enables you to log in with the language.
ISO Locale
Use the search prompt to select the ISO locale code from the
PSLOCALEDEFN table. Consists of an ISO 639 language code,
optionally followed by an ISO 3166 country code.
Default Character Set
Use the search prompt to select the character set from the
PSCHARSETS table. Determines the default encoding for input
and output files.
Verity Locale Mapping
Select the Verity locale code from the PSVERITYLOCALE
table. Determines the locale to use for building search
collections and searching data.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
Spell Check Language
Select the spell check language from the PSXLATITEM table.
This enables you to select the language of the spell check
dictionary that is associated with a given language code.
Windows Character Set
Select the Microsoft codepage that is associated with the
given language. This defines the codepage to use with certain
Microsoft applications.
Verity Character Set
Select the character set that the Verity engine uses for its internal
encoding in the given language. You should not modify the
value in this field under normal circumstances.
Related Links
"Managing Languages in the PSLANGUAGES Table" (PeopleTools 8.54: Global Technology)
Using Optimization Utilities
The Optimization utilities are documented extensively in the Optimization Framework PeopleBook.
Related Links
Optimization Framework
Using PeopleSoft Ping
The PeopleSoft Ping utility collects timestamps by sending a specific page to different tiers of the
PeopleSoft system, starting at the browser, then going to the web server, the application server, the
database and back. The timestamps that are collected are total time elapsed for the round trip, and arrival
and departure time at each of the tiers.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
365
Using PeopleTools Utilities
Chapter 11
To use the PeopleSoft Ping feature, select PeopleTools, Utilities, PeopleSoft Ping.
Image: PeopleSoft Ping page
This example illustrates the fields and controls on the PeopleSoft Ping page. You can find definitions for
the fields and controls later on this page.
Enter a Test Case Identifier to uniquely group each set of metrics. For Repeat Time Interval , enter an
increment for the ping to run. To avoid creating unnecessary traffic and overhead to the PeopleSoft
system, set the Repeat Time Interval to a relatively high value, such as 600 to 1800 seconds, during
normal operations. You may need to increase the Session Timeout value accordingly.
PeopleSoft Ping Chart
Select PeopleTools, Utilities, PeopleSoft Ping, PeopleSoft Ping Chart.
PeopleSoft Ping includes a charting utility to zoom in to a specific time interval from the ping test.
You can change the displayed time interval to a subset of the full ping test period. Edit the start time and
end time values, and click Redraw to refresh the chart display with the new time interval.
Click Query Viewer to query the database for the ping data. A new browser window opens, displaying the
ping data for the full test period in a table.
366
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 11
Using PeopleTools Utilities
PeopleSoft Ping Delete
To delete a ping page test case:
1. Select PeopleTools, Utilities, PeopleSoft Ping, PeopleSoft Ping Delete.
The Delete page lists the current test case identifiers.
2. Select the check box next to the identifier(s) you want to delete.
3. Click Delete.
PeopleSoft Ping Options
Select PeopleTools, Utilities, PeopleSoft Ping, PeopleSoft Ping Options.
The PeopleSoft Ping Options page enables you to set targets for each tier as well as overall completion
time. If the ping process exceeds your targets, this affects the color-coding on the PeopleSoft Ping
interface, using green, yellow, and red. Green is any time under the yellow and red targets, yellow is any
time over the yellow target yet under red, and red is anything exceeding the red target. The metrics you
enter depend on the typical conditions and expectations at your site.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
367
Chapter 12
Tracing, Logging, and Debugging
Working with PeopleSoft Server Process Logs
For each PeopleSoft server process, such as PSAPPSRV, the system writes an individual log file to your
specified logs directory. Depending on the logging level, these log files can contain varying amounts of
information. Reviewing these log files regularly can help you to identify potential issues or system trends,
and they are a valuable source of information when troubleshooting. To understand the log information, it
is helpful to be able to identify the various log fields that the system writes to an individual line in the log
file.
A typical log file contains these log fields:
[Server Process]:[Operating System Process ID] [Service Request Number] [Timestamp] [Log Level]
[Message]
The following table provides examples of content for each trace field.
Server
Process:PID
Service
Request
Timestamp
Log Level
Message
PSAPPSRV.5648
(993)
[2012-12-12T11:54:23.778]
(3)
Authenticate User not needed.
New User Id/Password same as
current.
PSAPPSRV.5648
(1000)
[2012-12-12T11:54:26.198]
(0)
Recycling server after 1000
services
PSAPPSRV.28708
(0)
[2012-12-12T11:54:35.514]
(0)
Cache Directory being used:
D:\PT_SERVER\appserv
\T1B85301\CACHE\PSAPPSRV
_1\
PSAPPSRV.28708
(0)
[2012-12-12T11:54:38.339]
(0)
Server started
*(YYYY-MM-DDTHH-MM-SSsss)
* Where YYYY = year, MM = month, DD = day, HH = hour, MM = minute, SS = seconds, and sss =
milliseconds.
You can select how you prefer to separate the trace fields using the [Domain Settings] LogFieldSeparator
setting.
Related Links
Domain Settings
Trace Options
Specifying Trace Settings
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
369
Tracing, Logging, and Debugging
Chapter 12
Setting Up the PeopleCode Debugger
This section discusses how to:
•
Debug for a two-tier connection.
•
Debug for a three-tier connection.
•
Use the PeopleCode Debugger.
Note: PeopleCode debugging is not supported on z/OS.
You can debug the PeopleCode program configurations of a two-tier connection to the database or a threetier connection to the database.
Note: When you debug PeopleCode with an application server, Application Designer should be run
in three-tier mode. PeopleCode debugging by using a two-tier PSIDE and an application server is not
supported on multi-homed (multiple Internet Protocol address) workstations.
Debugging for a Two-Tier Connection
Debugging in two-tier connections involves connecting directly to the database, not through the
application server. Use this method to debug two-tier Windows applications.
Note: By default, the port number that the PeopleCode debugger uses is 9500. Unless this port number is
being used by another application, you do not need to alter any environment settings, and after you sign
on to the database, you are able to debug PeopleCode.
If you need to change the PeopleCode Debugger port settings, complete the following procedure.
To change the default PSDBGSRV listener port number:
1. Open PeopleSoft Configuration Manager.
2. Select the Trace tab.
3. Locate the PeopleCode Debugger section, and make sure that the default value for the Local
PSDBGSRV Listener Port is suitable for the system.
For example, make sure that no other applications are configured to listen on the default port number
(9500). If so, you must assign a port number that is not being used.
Note: If you're using a personal firewall, you must configure it to enable data packets to flow through the
PSDBGSRV listener port. If you can't configure your firewall appropriately, you must shut it down while
performing PeopleCode debugging.
Debugging for a Three-Tier Connection
Use three-tier debugging to debug three-tier Windows applications and PeopleSoft Internet Architecture
(PIA) applications. For three-tier debugging, use PSADMIN to ensure that the following items are set:
370
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 12
Tracing, Logging, and Debugging
•
The appropriate PSDBGSRV listener port is specified in the PeopleCode Debugger section of
PSADMIN.
•
At least two PSAPPSRV processes are configured to boot in the domain with the service timeout
parameter set to zero.
•
Enter y for yes at the Enable PSDBGSRV Server Process prompt at the end of the PSADMIN
interface.
Debugging on a Multi-Homed System
If you're debugging on a multi-homed (multiple IP address) system, you must explicitly specify an IP
address in the Workstation Listener section of the PSADMIN configuration, rather than %PS_MACH
%. The address you specify must be one by which the application server identifies the machine on which
you're doing the debugging. This ensures that the workstation listener monitors requests from the correct
location.
See Workstation Listener Options.
Setting the PSDBGSRV Listener Port
In the PeopleCode Debugger section of PSADMIN make sure that the value that is assigned to the
PSDBGSRV listener port is not already in use by another application or listener on the application server.
The default value is 9500. If the default is not acceptable, assign a suitable value to the parameter. If it is
acceptable, no changes are required.
For example,
Values for config section - PeopleCode Debugger
PSDBGSRV Listener Port=9500
Do you want to change any values (y/n)? [n]:
Consider the following when debugging PeopleCode:
•
If multiple application server domains are running on a single, physical machine, each domain needs
to use different debugging port numbers.
Otherwise, there is contention for the PSDBGSRV listener port value. This is the same principle that
requires each application server domain on a server to have unique workstation listener port numbers.
•
When you are not debugging, turn off (set to 0) the Enable Debugging parameter.
The debugging mode results in an unavoidable amount of overhead, which can degrade performance.
•
Regarding performance, do not perform debugging on a production domain.
Debugging should be performed on a designated testing domain only.
Enabling Multiple PSAPPSRV Server Processes
The minimum requirements for PeopleCode debugging are:
•
Two PSAPPSRV server processes are configured to boot in the domain.
•
The Service Timeout value in the PSAPPSRV configuration section must be set to 0.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
371
Tracing, Logging, and Debugging
Chapter 12
For the debugger to work, it has to run in parallel with the application that it's debugging. Suppose that
the domain has only one PSAPPSRV server process running. In this case, the PSAPPSRV can process the
requests of only one component at a time, and therefore debugging is not possible. Debugging involves
two items, the debugger (PSDBGSRV) and the PSAPPSRV server process that is running the application
PeopleCode.
Provided that you have two PSAPPSRV server processes configured; one PSAPPSRV handles the
debugger program, while the other handles the application that you're stepping through with the debugger.
In this case, the two programs run in parallel, which enables interactive debugging.
The configuration templates that PeopleSoft delivers all have at least two PSAPPSRV processes.
However, if you are using a custom template, make sure that you configure the domain to start two
PSAPPSRV processes prior to debugging. To do this, in PSADMIN set the Min Instances parameter in the
PSAPPSRV section to 2.
The following example shows a sample PSAPPSRV section properly configured for debugging
PeopleCode:
Values for config section - PSAPPSRV
Min Instances=2
Max Instances=2
Service Timeout=0
Recycle Count=0
Allowed Consec Service Failures=0
Max Fetch Size=5000
Do you want to change any values (y/n)? [n]:
When configuring the PeopleCode debugger:
•
PeopleSoft recommends using the Developer configuration template because this template, by default,
provides two PSAPPSRV server processes and has service timeout set to zero.
•
PeopleSoft recommends using a simple configuration where you are assured that the server that
Application Designer connects to is the same server that the application you are debugging is running
on.
Note: If you do not set the settings for PSAPPSRV correctly (at least two PSAPPSRV processes),
PSADMIN automatically sets these values to comply with the minimum requirements when you enable
PeopleCode Debugging (as discussed in the next section).
Note: When you enable the PeopleCode Debugger (PSDBGSRV), service timeout settings for server
processes are set to zero (0) by the system, overriding any previous settings you may have made in
PSADMIN. For example, if the service timeout settings for the PSAPPSRV service process are set to 300
prior to enabling the debugger, after you enable the debugger, the service timeout value will be zero (0).
After using the debugger, you need to reset your service timeout settings to the desired values. Before
enabling the debugger, it is recommended that you make a backup of your configuration file or make note
of your service timeout settings.
Requesting a PSDBGSRV Server Process
After you specify the settings by using PSADMIN, the system prompts you with a series of options, such
as setting up messaging server processes, enabling Jolt, and so on.
When you're prompted to enable the PSDBGSRV, enter y. Y appears in the Developer template by
default.
372
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 12
Tracing, Logging, and Debugging
Using the PeopleCode Debugger
After the system is configured properly, using the PeopleCode debugger is just a matter of signing on to
the PeopleSoft system and entering the PeopleCode Debugger mode in Application Designer.
Note: You must use a unique user ID when you're performing PeopleCode debugging, as opposed
to using a shared user ID, such as those that PeopleSoft delivers, for example QEDMO, PS, or VP1.
Shared IDs are likely to be used by others that are connecting to the same test database, which can affect
debugging.
Configuring PeopleCode Trace
Select PeopleTools, Utilities, Debug, Trace PeopleCode to access the Trace PeopleCode page.
You use this page to change the PeopleCode tracing options while online. This page does not affect
trace options that are set in PeopleSoft Configuration Manager. Use Trace PeopleCode to create a file
displaying information about PeopleCode programs processed from the time that you start the trace.
Trace Evaluator Instructions
Select to show a line-by-line trace of the program
List Evaluator Program
Select to show the code of the PeopleCode program.
Show Assignments to Variables
Select to show variable assignments.
Show Fetched Values
Select to show values that are from PeopleCode Fetch call.
Show Stack
Select to display the PeopleCode evaluator's stack after each
PeopleCode (internal) instruction.
Trace Start of Programs
Select to show the starting and ending points of the program.
Trace External Function Calls
Select to show calls to application written functions.
Trace Internal Function Calls
Select to show the calls to PeopleTools built-in function calls.
Show Parameter Values
Select to show function parameter values.
Show Return Parameter Values
Select to show function return parameter values.
Show Each
Select to trace each statement in the program.
Note: The Trace PeopleCode Utility decreases system performance because of the overhead that occurs
during the monitoring and recording of all PeopleCode actions.
The check boxes on this page correspond to the options on the Trace tab in Configuration Manager.
However, the selections that appear on this page do not necessarily reflect those that are made in
Configuration Manager. While the Configuration Manager settings are stored in the Windows registry and
used at each signon, the settings in the Utilities page only apply to the current online session, and, once
set, they override the Configuration Manager's settings.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
373
Tracing, Logging, and Debugging
Chapter 12
The benefit of using this page to control PeopleCode tracing is that you can turn it on and off without
having to restart PeopleTools, and without resetting the Configuration Manager settings. Keep in mind,
though, your selections are not enabled until you save the page.
To enable/disable PeopleCode tracing while on line
1. Select PeopleTools, Utilities, Debug, Trace PeopleCode.
The Trace PeopleCode page appears.
2. Select/deselect the desired Options.
3. Save the page.
If you selected any of the check boxes, the system starts writing to the trace file.
Related Links
Specifying Trace Settings
"SetTracePC" (PeopleTools 8.54: PeopleCode Language Reference)
Configuring SQL Trace
Select PeopleTools, Utilities, Debug, Trace SQL to access the Trace SQL page.
You use this page to change the SQL tracing options while you're online. Your Configuration Manager
settings are not affected:
Trace SQL Statement
Select to show the SQL statement.
Trace SQL Bind
Select to show bind values for SQL statements that have
parameter markers.
Trace SQL Cursor
Select to show connect, disconnect, commit and rollback calls.
Trace SQL Fetch
Select to show fetch call for Select Statement.
Trace SQL API
Select to show other API calls (Execute, Describe, and so on.)
Trace SQL Set Select Buffer
Select to show Binds for Select columns.
Trace SQL -- Database Level
Select to specify low-level tracing at the database API (ODBC,
ct-lib, and so on.)
Trace SQL -- Manager Level
Select to show calls for Cache calls.
The check boxes on the Trace SQL page correspond to options on the Trace tab in the Configuration
Manager. However, the selections that appear on this page do not necessarily reflect those that are made in
the Configuration Manager. The displayed page selections are not enabled until you save the page.
To enable or disable SQL tracing while online:
1. Select or deselect the desired trace options.
374
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 12
Tracing, Logging, and Debugging
2. Save the page.
If you select any of the check boxes, the system starts writing to the trace file.
Related Links
Specifying Trace Settings
"SetTraceSQL" (PeopleTools 8.54: PeopleCode Language Reference)
Enabling IDDA Logging
This section contains an overview and discusses how to:
•
Enable IDDA logging.
•
Work with IDDA functional categories.
•
Configure logging options.
•
Viewing log results.
Understanding IDDA Logging
System administrators typically use numerous monitoring and logging utilities to diagnose system issues
and internet applications. Such logging utilities include:
•
TCPMON
•
ieHttpHeaders
•
Access log
•
Heap dump
•
Thread dump
All of these utilities provide different information, but each helps an administrator gain insight and
detailed information related to specific system behavior. PeopleSoft provides a variety of logging and
tracing mechanisms as well, enabling you to gather vital information at various levels of the architecture,
including database server, application server, web server, and so on.
The PeopleSoft Instrumented Development Diagnostic Aid (IDDA) logger, enables you to gather specific
information about various areas within the PeopleSoft Internet Architecture and PeopleSoft Interaction
Hub, including:
•
PeopleSoft Internet Architecture processing.
•
Integration Broker.
•
Reporting, Report Repository.
•
Portal.
•
Caching.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
375
Tracing, Logging, and Debugging
•
File processing.
•
Security, authentication.
•
Performance Monitor.
•
WSRP.
•
Jolt.
Chapter 12
Typically, administrators only run IDDA traces when instructed to do so by Oracle support contacts,
looking for specific information. However, it can also be a useful troubleshooting tool.
Note: When ever tracing or logging is enabled, you should always expect a certain degree of performance
degradation as the system incorporates the overhead involved with logging. Disable logging when you
finish troubleshooting.
Enabling IDDA Logging
To enable IDDA logging:
1. Select PeopleTools, Web Profile, Web Profile Configuration, and open the current web profile.
2. Select the Custom Properties page.
3. Add a new row, and enter these values:
Column
Value
Property Name
IDDA
Validation Type
Number
Property Value
The sum of the bit values of the functional area(s) you want
to log.
For example, if you wanted to log PIA (1) and Portal (8),
you enter 9.
4. Click Save.
5. Restart the PeopleSoft site.
Working with IDDA Functional Categories
The IDDA logger, gathers information for a wide range of technology within the PeopleSoft Internet
Architecture. Depending on the needs of your troubleshooting, you can select different areas to log.
The different areas of technology are referred to as functional categories in the context of the IDDA
logger. Each functional category is assigned a bit value (in a 32-bit space). When you enable IDDA
logging, you enter specific bit values or the sum of the bit values of different areas.
The IDDA functional categories are:
376
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 12
Tracing, Logging, and Debugging
Bit Value
Functional Category
1
PeopleSoft Internet Architecture
2
Integration Broker
4
Report repository
8
Portal
16
Web server caching
32
File processing (attachments)
64
Authentication
128
Performance Monitor
256
Web Services for Remote Portlets (WSRP)
512
Jolt
The type of information included in the log message differs per category. The log message is free format
and can display any information that helps troubleshooting for that particular area, such as error codes,
exception messages, and so on.
Configuring Logging Options
Once you’ve enabled IDDA logging, you can modify configuration options in the logging.properties file,
which you can find in these locations:
Web Server
Location
Oracle WebLogic
PS_HOME/webserv/domain name/applications/peoplesoft
IBM WebSphere
PS_HOME/webserv/profile name/installedApps/node&cell
name/peoplesoft.ear/
The relevant configuration properties are:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
377
Tracing, Logging, and Debugging
Chapter 12
Property
Description
.level
Sets the global logging level.
•
OFF: Disables all IDDA logging.
•
SEVERE: Displays server issues, such as premature
termination and failure.
•
WARNING: Displays less severe issues, such as
configuration issues.
•
INFO: Displays basic operational information, such as
starting and stopping.
•
FINE, FINER, FINEST: Displays internal non-critical
informational messages.
•
ALL: Enables all logging levels.
Default value is INFO.
WARNING and SEVERE messages are always logged, unless
IDDA logging is set to OFF.
INFO or FINE, FINER, FINEST messages are only logged if
the IDDA value is greater than zero.
java.util.logging.FileHandler.pattern
Sets the naming style for the log file and the output directory
location.
Default value is: ./servers/PIA/logs/PIA_servlets%u.log
If you are running a multi-server, distributed environment (for
clustering and failover purposes), the default value for java.
util.logging.FileHandler.pattern is not applicable. You must
set this property to point to a valid location in order to collect
logging messages for a particular server.
Logging output is tab-delimited.
java.util.logging.FileHandler.limit
Limits the size of the output file in bytes. When set to 0, there
is no size limit.
Default value is 0.
java.util.logging.FileHandler.count
Sets the total number of log files. Default value is 5.
If the value is greater than 1, the system writes to a rotating set
of log files. When the file reaches a given size limit or the web
server restarts, the system ends writing to the current file and
begins writing to a new file. The system names each file in the
sequence it is saved by adding "0", "1", "2", (and so on) into
the base filename.
Viewing IDDA Logging Output
The output log files contain:
•
378
Machine header information
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 12
•
Tracing, Logging, and Debugging
Log message information
Working with Machine Header Information
Each log file displays the following machine environment information at the top of each log file.
Header Entry
Description
Timestamp
Date, time, time zone.
PeopleTools Release
PeopleTools version number.
os.name
Operating system.
os.version
Operating system version.
os.arch
Operating system architecture (such as x86 for Windows
servers).
java.version
Java version number.
java.vendor
Java vendor.
java.vm.info
Mode of the Java virtual machine (JVM), such as "compiled
mode."
java.home
Java installation directory.
user.dir
The value of the user.dir property.
java.class.path
CLASSPATH setting on the server.
.level
Logging level, such as INFO, SEVERE, WARNING, and so
on.
java.util.logging.FileHandler.pattern
Logging output directory and file naming convention.
Trace
Current IDDA functional group(s) being logged (integer
reflecting the sum of the bit values assigned to each group).
Working with Log Message Information
Each entry in the log file contains this information.
Log Message Data
Description
Timestamp
Date, Time and Time zone. For example, 2/7/09 4:00:39 PM
PST
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
379
Tracing, Logging, and Debugging
Chapter 12
Log Message Data
Description
Sequence
Tracks the sequential order of the messages. Starting at 1, the
system increments by 1 per each log message.
Thread ID
Java thread ID.
Logging group
Bit value representing the functional grouping, as in 1 for
PeopleSoft Internet Architecture.
Source class
Class name of where the message is logged. For example,
psft.pt8.auth.PSAuthenticator
Source method
Method name of where the message is logged. For example,
SetCookie
Log message
The actual log message.
Viewing Log Contents
The log file is a tab-delimited text file and can be opened in any standard text editor, such as Notepad
or Textpad. Because the output is tab-delimited, you can also use a spreadsheet application, such as
Microsoft Excel, for more efficient analysis. For example, viewing the output within a spreadsheet
enables you to apply filters to columns and only view specific log messages, which can be helpful with
large files.
380
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 13
Working with Jolt Configuration Options
Configuring Jolt Failover and Load Balancing
This section discusses how to:
•
Configure weighted load balancing.
•
Configure Jolt failover.
Configuring Weighted Load Balancing
With weighted load balancing, you can set the “weight” of the load, or amount of requests, being directed
to a particular server. Weight values are integers 1–10, with 1 being low and 10 being a heavy load.
Servers that can handle extra work can take heavy loads, while servers that are either less powerful or are
being used in other capacities can take lower loads. You specify weighted load balancing by modifying
the server values in the psserver property in the PeopleSoft Internet Architecture configuration.properties
file, using the following format.
psserver=Host1:Port1#Wt,Host2:Port2#Wt
For example,
psserver=appserver1:9000#3,appserver2:9010#1
In this case, appserver1 would receive 3x more requests than appserver2.
Configuring Jolt Failover
You an also specify strict failover assignments with weighted load balancing, with the following options:
•
Strict failover with weighted backup.
•
Strict failover with sequential backup.
You add the failover string within curly brackets at the end of the server entry.
psserver=<host>:<port>#wt{failover servers}
With the failover string, you can set weighted backup by separating failover server with a comma (,).
psserver=Host1:Port1#Wt{Host3:Port3#Wt,Host4:Port4#Wt},Host2:Port2#Wt
In this case, Host 3 and Host 4 are failover servers when Host 1 is down. You can assign weighted load
balancing to the backup servers just as you would a primary server.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
381
Working with Jolt Configuration Options
Chapter 13
You can also set a sequential backup with your failover string. To set sequential backup, you separate
multiple backup servers using a semicolon (;).
psserver=Host1:Port1#Wt{Host3:Port3;Host4:Port4},Host2:Port2#Wt
In this case, the system assigns Host 4 the requests when both Hosts 1 and 3 are down.
Configuring Dynamic Reloading of the Application Server
Connection String
The DynamicConfigReload property enables the PIA domain to reload the psserver string (application
server connect string) dynamically. That is, after modifying the psserver string to include new servers,
replace existing servers, or remove existing servers from the string, you do not need to restart the PIA
domain. With DynamicConfigReload enabled, the system automatically detects when the psserver string
has been updated and ensures the PeopleSoft site maintains seamless connections with the application
server domains listed in the psserver string.
To enable dynamic psserver reloading, set DynamicConfigReload to 1. For example:
DynamicConfigReload=1
To disable dynamic psserver reloading, set the property to 0.
If dynamic psserver reloading is disabled, then you need to restart the PIA domain manually for it to
recognize any changes made to the psserver string.
Configuring Jolt Session Pooling
Jolt session pooling is enabled by default. Jolt session pooling enables web server connections to be
shared between user sessions, which reduces the usage of system resources, such as threads and file
descriptors.
You control session pooling by modifying the joltPooling property in the configuration.properties file per
site.
joltPooling=true
To enable Jolt session pooling, set the property value to true, and to disable Jolt session pooling set the
property value tofalse.
Configuring Parallel Pagelet Loading
You can use the parallelLoading property in the configuration.properties file to control how your portal
loads pagelets. Pagelets can be loaded sequentially or in parallel.
Loading pagelets sequentially refers to a single-threaded process, downloading multiple pagelets one at a
time. Loading pagelets in parallel refers a multi-threaded process where multiple pagelets can be loaded at
the same time. To enable parallel pagelet loading, set the parallelLoading property to true.
382
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 13
Working with Jolt Configuration Options
For example:
parallelLoading=true
Note: To load pagelets in parallel, Jolt pooling must be enabled.
To disable parallel loading of pagelets, set the parallelLoading property to false.
Configuring Domain Connection Password
The DomainConnectionPwd setting in the [Security] section of the application server domain, sets
the domain connection password for all PeopleSoft Internet Architecture Jolt connections to that
application server domain. It is not a required password setting, but if set, for the Jolt session to connect
successfully to the application server domain, the DomainConnectionPwd property value in the
configuration.properties file needs to match the DomainConnectionPwd parameter set for the application
server domain.
You can encrypt the password value using the pscipher utility. For example:
DomainConnectionPwd={V1.1}6O5vpwGxd5o=
Related Links
DomainConnectionPwd
Using Jolt Internet Relay
This section discusses:
•
Jolt Internet Relay architecture.
•
A Jolt Internet Relay example.
•
Implementation considerations.
Note: Jolt Internet Relay was used in previous releases at some sites for specific security requirements.
Currently, it is not a widely used feature and should only be implemented in specific circumstances or by
suggestion of Oracle support staff.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
383
Working with Jolt Configuration Options
Chapter 13
Jolt Internet Relay Architecture
Image: Jolt Internet Relay Architecture showing the Jolt Relay sending messages through a firewall
to the Jolt Relay Adapter
Jolt Internet Relay provides an environment in which the PeopleSoft web server and application server
can be further decoupled. This provides greater security at sites where security is of utmost importance.
Jolt Internet Relay routes messages from a Jolt client to a Jolt Server Listener (JSL) or Jolt Server Handler
(JSH), and eliminates the need for the JSL, JSH, and Tuxedo application to run on the same machine as
the web server. Communication takes place between the JRLY and JRAD elements rather than between
the Jolt client and JSL/JSH processes. Traditionally an application server domain opens between 2
and 6 ports for such communications. The use of Jolt relay restricts this to one port per domain on the
application server machine. This enables an administrator to open just one port on the application server
machine. The following diagram illustrates this feature:
Jolt Internet Relay consists of two elements: Jolt Relay (JRLY) and Jolt Relay Adapter (JRAD). It's
important to understand the difference between these two elements.
JRLY consists of a standalone program and configuration file; the program runs on the same machine
as the web server. JRLY receives Jolt messages from a PeopleSoft web application and routes those
messages to JRAD on the application server. It receives the Jolt message through one port, the LISTEN
port, and connects to the JRAD by using another port, the CONNECT port. JRLY is sometimes referred to
as a front-end relay.
JRAD runs on the same machine as the application server. It's configured on the application server
domain as part of the PeopleSoft PSADMIN domain configuration procedure. JRAD listens for JRLY
messages on its LISTEN port and transfers the message to the JSL or JSH. JRAD is sometimes referred to
as a back-end relay.
Note: Implementing Jolt Relay can impede performance. Always perform testing with typical production
system load to ensure it will meet your service level requirements.
384
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 13
Working with Jolt Configuration Options
Implementation Considerations
Keep the following points in mind as you configure the Jolt Internet Relay components:
•
The jrly binary and its corresponding jrly.config file must exist in the same directory. To start multiple
Jolt Relays on a machine, copy the jrly binary and jrly.config into each subdirectory, modify the
parameters in the jrly.config file, and start Jolt Relay. On Windows, you can define multiple Jolt Relay
services on a machine.
•
You can start the JRLY process before or after you start JRAD. The JRLY attempts to connect to
JRAD on the client request. If the JRLY is unable to connect to the JRAD, the client is denied access
and disconnected. The connection will be retried upon the first use of PeopleTools..
•
If you're installing Jolt Internet Relay on UNIX and anticipate a large number of concurrent connected
clients, increase the file descriptors limit before running the JRLY executable.
•
At runtime, if you get the following message:
[FRi JUNl 6 20:25:11 1997] JRLY:accept():accept failed, err no: 23, strerror: ⇒
File table overflow
PeopleSoft recommends that you increase the MaxUSERS kernel parameter and regenerate the kernel.
•
If you're unable to connect, make sure that you check the following items:
•
Port numbers do not match.
Print out the jrly.cfg file and the psappsrv.cfg file and compare the port numbers that you
specified.
•
Make sure that the application server is running.
•
Make sure that JRLY is running.
•
Jolt Internet Relay can be installed on an intermediate machine rather than the web server machine if
necessary. This extra level of indirection can cause peformance degradation.
•
Make sure that JRAD is running on the application server and that you configure JRAD using
PSADMIN.
Configuring JRLY
Configuring JRLY is identical on UNIX and Windows.
To configure JRLY, navigate toTUXDIR\udataobj\jolt\relay and open jrly.config in a text editor.
Important! On UNIX, you can edit this configuration file by using VI or an equivalent editor. However,
on Windows, you must edit the file using an editor that preserves the file's UNIX line feeds. WordPad is
valid for this purpose, but Notepad is not.
Modify the parameters in the configuration file to reflect the site specifications, as follows:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
385
Working with Jolt Configuration Options
Chapter 13
Parameter
Description
LOGDIR
LOGDIR specifies the directory where JRLY creates access
and error log files. This directory must exist; the JRLY
program does not start if it can't find this directory. The path
that you specify for LOGDIR should be an absolute path (
starting from / on UNIX systems, starting from a drive letter
on Windows systems). The JRLY accepts relative path names,
but LOGDIR is relative to the directory from which the JRLY
program is started, unless you specify it as an absolute.
ACCESS_LOG
ACCESS_LOG specifies the name of the file where JRLY
records access information. This log file is created inLOGDIR.
If the log file already exists, the most recent information is
appended to it.
This parameter can be any valid file name. Everything after the
equals sign (=) to the end of the line is considered as part of
the file name, but leading and trailing blanks are ignored.
Note: If the JRLY program can't create this file or open it for
appending, the program exits.
ERROR_LOG
ERROR_LOG specifies the name of the file where JRLY
records error information. This file follows all the rules that
apply to theACCESS_LOG parameter. JRLY_error_log is
created in /tmp.
LISTEN
LISTEN specifies the host and port on the current machine (
that is, the machine where you're installing Jolt Relay). JRLY
listens for client connections. The following formats are
acceptable:
LISTEN=192.9.100.100:9000
LISTEN=//192.9.100.100:9000
LISTEN=sp-ibm02:9000
LISTEN=//sp-ibm02:9000
Specify the port number in decimal; it must match the port
number that is specified by the psserver parameter in the
configuration.properties file for the PIA web application.
Note: If a machine has multiple network interfaces, you
should use the IP address notation, because specifying the
hostname could be ambiguous (the result is OS dependent). If
the JRLY program can't establish a network listening end-point
at the host and port specified, it prints an error and exits.
The hostname that's specified for this parameter must be the
name of the host on which the program is running.
Note: You can create multiple configuration files to run
multiple instances of JRLY. Each configuration file must
specify a different port number for this parameter.
386
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 13
Working with Jolt Configuration Options
Parameter
Description
CONNECT
CONNECT specifies the location of the JRAD machine and
process port on the application server machine to which the
JRLY program connects. A JRLY program communicates
only with a single JRAD. The address you specify for this
parameter must match the JRAD listener address that's on
the application server machine (check the PSAPPSRV.CFG
file inPS_CFG_HOME/appserv/domain). The JRAD doesn't
have to be running when you start the JRLY program. JRLY
attempts to connect to the JRAD when it first starts, and if the
JRAD is not available, JRLY tries again whenever a new client
connects to it. You can use any of the following formats for
this parameter:
CONNECT=192.9.100.100:9100
CONNECT=//207.135.44.91:9105
CONNECT=sp-hp06:9105
CONNECT=//sp-hp06:9105
Note: PeopleSoft has found that machine address formats are
operating system and environment dependent. If one fails to
connect to the application server, try another format.
SOCKETTIMEOUT
SOCKETTIMEOUT specifies the duration (in seconds) for
which the Jolt Internet Relay Windows service blocks the
establishment of new socket connections to allow network
activity (new connections, data to be read, closed connections)
to complete. It's valid only on Windows machines.
SOCKETTIMEOUT also affects the Service Control Manager (
SCM). When the SCM requests that the service stop, the SCM
needs to wait at least the number of seconds specified by this
parameter.
Configuring JRAD
The JRLY connect port connects to the JRAD listener port that is specified on the application server
machine. JRAD then routes the message to Jolt, either using the JSL for initial connection from a web
client, or using the JSH for all subsequent connections from a web client. The return message follows the
same path in reverse.
To configure JRAD:
1. Launch the PSADMIN utility.
2. Navigate to the PeopleSoft Domain Administration menu and select Configure this domain.
3. In the Quick Configure menu, select the number for the Jolt Relay option, to enable Jolt Internet
Relay.
4. Select the JRAD Port option, and enter the appropriate port number for the JRAD Port.
Note: The JRAD (listener) port number must match the JRLY connect port that you previously
configured.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
387
Working with Jolt Configuration Options
Chapter 13
Running Jolt Internet Relay
This section discusses how to:
•
Use the JRLY administration program.
•
Run Jolt Relay on Windows.
•
Run Jolt Relay on UNIX.
Using the JRLY Administration Program
You use the jrly command located in TUXDIR\udataobj\jolt\relay to administer Jolt Relay on all
platforms. You can use the following jrly command options at any time:
•
jrly -version
Display the current version of the JRLY binary.
•
jrly -help
Display a summary of command-line options with brief descriptions.
Running Jolt Relay on Windows
On Windows, you set up Jolt Relay to run as a service. On other platforms you must run Jolt Relay
directly.
If you want to install multiple Jolt Relay services, you must specify a string to be used as a display suffix
that uniquely identifies each additional service you install. You subsequently use the suffix to identify
each service it commands. An additional service with the suffix MyJoltRelay, for example, is called
Oracle Jolt Relay_MyJoltRelay, but you refer to it using only the suffix. You can omit the suffix when
installing only one of these services, which becomes the default Jolt Relay service, calledOracle Jolt
Relay.
Note: All administrative commands in the following table except -start and -stop require that you have
write access to the Windows registry. The -start and -stop commands require that you have Windows
service control access. These requirements are based on Windows user restrictions.
388
Command
Description
jrly -install [display_suffix]
Install JRLY as a Windows service.
jrly -remove [display_suffix | -all]
Remove one instance, all instances, or the default JRLY
Windows service.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 13
Working with Jolt Configuration Options
Command
Description
jrly -set [-d display_suffix] -fconfig_file
Update the registry with the full path of a new configuration
file for the specified JRLY service.
Note: You can run multiple Jolt Relay services by
specifying a different display suffix along with the name of
a different configuration file for each installed service. Each
configuration file must contain a unique value for the LISTEN
parameter that specifies a different port. This is essential to
avoid port clashes when running the services concurrently.
You must run this command before the service starts.
jrly -manual [display_suffix]
Set the start/stop to manual. This command sets the specified
JRLY service to be manually controlled, using either the
command-line options or the Service Control Manager (SCM).
jrly -auto [display_suffix]
Set the start/stop to automatic. This command sets all the
operations for a specified JRLY service to be automatically
started when the OS boots and stopped when the OS shuts
down.
jrly -start [display_suffix]
Start the specified JRLY service.
jrly -stop [display_suffix]
Stop the specified JRLY service.
Running Jolt Relay on UNIX
This section discusses how to start and stop Jolt Relay directly from a command line on UNIX.
To start Jolt Relay on UNIX:
1. Change directories to the Jolt Relay directory within your Tuxedo installation:
cd $TUXDIR/udataobj/jolt/relay
2. Run the following command:
jrly -f jrly_config &
Where jrly_config is the name of a Jolt Relay configuration file.
You can run multiple instances of Jolt Relay by using a different port for each instance. You run JRLY
once for each instance, and specify a different configuration file each time. Each configuration file
must contain a value for the LISTEN parameter that specifies a different port.
The & causes JRLY to run in the background.
To shut down Jolt Relay on UNIX, use the UNIX kill -9 command.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
389
Chapter 14
Working with Push Notification Framework
Understanding the Push Notification Framework
The Push Notification is a framework in PeopleTools that can render the user interface with real time
changes in server runtime. The framework enables PeopleSoft server to push data directly to the
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
391
Working with Push Notification Framework
Chapter 14
PeopleSoft web browser clients. This feature uses WebSocket push technology in WebServer with Tuxedo
Eventing in Application Server
Image: Push Notification Framework
Push Notification Framework architecture is described in three layers.
•
Browser layer.
•
Web Server layer.
•
Server Runtime layer.
In the architecture shown above, events framework use Tuxedo Event Broker in the Application Server
with WebSockets in WebServer for dispatching events from the server to the web browser clients.
392
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 14
Working with Push Notification Framework
The key entities in framework are:
•
Event: State change in system
•
Collection: Grouping of events.
•
Publisher: Publisher raise event during state change in Application Server runtime
•
Subscriber: Interested in events in Server or Client (browser)
•
WebSockets: During subscription the web interface browser page establishes a WebSocket channel
with the web server. WebSocket is a web technology that provides full duplex communications
channels between browser clients and web server. For the Push Notification feature to work, your
browser should support the WebSocket technology. New browser versions support this technology.
•
Tuxedo Event Broker: The Oracle Tuxedo Event Broker is a tool that provides asynchronous routing
of application events among the processes running in a Oracle Tuxedo application. It also distributes
system events to whichever application processes want to receive them.
Setting up Push Notification Configurations
You need to enable Push Notifications from those domains from where the events are going to be
published. Events are published from Application Server domain, Process Scheduler domain or the web
server. Events raised in process Scheduler domain are routed through Application Server. For these InterDomain Events you have to set configurations for both the Application Server and the Process Scheduler.
Configuring Application Server for Push Notifications
To enable Push notifications in the application server domain:
1. Launch the PSADMIN executable. PSADMIN is in PS_HOME\appserv.
2. Select appropriate prompts to go to Configure this domain option.
3. Enter 13 from the Quick-Configure menu to configure Push Notifications. Push Notifications option
is set to No by default.
4. Enter 14 to load the modified configurations.
5. Quit the menu and select appropriate options to boot the domain to use the Push Notification feature.
The TMUSREVT.exe process is started along with other domain processes. This is the Tuxedo Event
Broker process.
Note: By default Push Notifications are turned off on the web server. Push notifications is enabled by
setting the custom property EnablePNSubscription to true on the Custom Properties tab of the active web
profile. You need to restart web server domain to effect the change.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
393
Working with Push Notification Framework
Chapter 14
Configuring the Application Server for Inter-Domain Events
If the events are raised in Process Scheduler then the events are routed to an Application Server for clients
such as, PeopleSoft web interface, and server runtime, to receive them. Then you must configure the
settings for the Inter-Domain Events between the Application Server and Process Scheduler domain:
1. Launch the PSADMIN executable. PSADMIN is in PS_HOME\appserv.
2. Select the Application Server Quick-Configure menu.
3. Enter 6 for Custom Configuration.
4. Press the Enter key for Do you want to change any values (y/n/q)? [n]:. Continue to press Enter key
until the Values for config section – Inter-Domain Events appear.
5. Press y to change the values in Inter-Domain Events.
6. Modify the Process Scheduler Credentials and Application Server Port.
Process Scheduler Credentials=PRCS1|<host name>:<port number>
Application Server Port=<port number>
PRCS1 is just a logical name of the Process Scheduler domain and can be modified or left as it is.
Host name and port number represents the host name of the machine where Process Scheduler domain
is running and port number is through which Process Scheduler domain communicates with other
domains (in this case the Application Server domain). Application Server Port is the port number of
the Application Server domain host machine to which Process Scheduler communicates.
7. Return to Quick-Configure menu.
8. Enter 13 to enable Push Notifications in Application Server.
9. Enter 12 to enable Domain Gateways in Application Server.
10. Save the configuration and re-boot the Application Server domain.
Configuring the Process Scheduler for Inter-Domain Events
Configure the Process Scheduler domain to set it up for inter-domain events with the Application Server.
1. Launch the PSADMIN executable. PSADMIN is in PS_HOME\appserv.
2. Select the Process Scheduler Quick-Configure menu.
3. Enter 6 for Custom Configuration.
4. Press the Enter key for Do you want to change any values (y/n/q)? [n]:. Continue to press Enter key
until the Values for config section – Inter-Domain Events appear.
5. Press y to update the values in Inter-Domain Events.
6. Modify the Process Scheduler Credentials and Application Server Port. See, step 6 of Configuring the
Application Server for Inter-Domain Events
7. Return to the Quick Configure menu.
8. Enter 4 to enable Push Notifications in Process Scheduler.
394
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 14
Working with Push Notification Framework
9. Enter 3 to enable Domain Gateways in Process Scheduler.
10. Save the configuration and re-boot the Process Scheduler domain.
Note: Verify that the values for the host name and port number provided for Inter-Domain Events settings
in the Application Server and the Process Scheduler domains are same.
Note: If there are multiple Applications Server domains, add the routing to one of the Application Servers
so that events are routed to browsers via the Application Server.
Defining Events
Before subscribing or publishing an event, you must define an event. Events are state changes that happen
on the server runtime. For example, Process Scheduler job status change, approval notification for a
workflow. You can define events on Define Server Side Events page.
Access PeopleTools, Push Notifications, Define Server Events to open Define Server Side Events page.
Image: Define Server Side Events Page
Use this page to define events. Enter an unique name, description, data type, and data structure to define
the event. You also have a provision to assign recipients to an event who will receive the event.
This table lists the names and definitions of fields in the Define Server Side Events page.
Name
Enter unique name for the event.
Description
Enter description of the event.
Data Type
Select between KeyValue Pair or PeopleCode Rowset. Data
Type defines how to structure the event data while publishing
the event.
Data Structure
Enter Key names separated with comma if the Data Type is
KeyValue Pair.
Click the Prompt button to select PeopleSoft record name if
the Data Type is PeopleCode Rowset. APIs are provided by the
framework to set event data (in the form of KeyValue pairs or
PeopleCode Rowset) while publishing the event.
Recipients
(Optional) Add recipient users or roles who will receive the
event.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
395
Working with Push Notification Framework
Chapter 14
Click the Recipients link on the last column of a Server Side Event name to open the Add Recipients
page. You can either add users or roles who receive that event. If no recipients are provided then the event
is send to all the users who have subscribed for the event.
Subscribing to an Event
Subscribe to server events from:
•
InterWindow Communication (IWC) page in the PeopleSoft web interface.
•
Programmatic subscription through PeopleSoft web interface.
•
Application server runtime.
Subscribing to an Event through the IWC Page
Use IWC page to subscribe an event on the PeopleSoft web interface. Subscription happens when the
event model is mapped to the page elements such as fields and grids. This does not require any changes
to the page. When the event is published from the server, the page is updated automatically with the event
data.
See event data structure in, Defining Events.
To subscribe an event:
1. Identify the component which needs to subscribe for the event.
2. Navigate to the component from PeopleTools, Portal, Structure and Content.
3. Click on the IWC Message Events link on the Content Ref Administration page of the component.
This opens the Content Reference Message Events page.
4. Add a new row on the Content Reference Message Events page.
5. Enter the event name in the Event Name field.
6. Select Server Sub from the Message Event Type drop down.
396
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 14
Working with Push Notification Framework
7. Click on the Map button. Map Events Data to Page Elements page appears.
Image: Map Events Data To Page Elements Page
In this page you can map the data model of a published Event to a page element defined as <Record
Name>_<FieldName>.
The table describes the different fields on the Map Event Data To Page Elements page.
Event Name
Displays the Event Name that is defined in Content Reference
Message Events page.
Page Name
Select the page where the event subscription is added.
Page widget Type
Select from field or grid widget type inside the page which is
auto-updated with the published event data.
Event Data
Select the meta-data of the event. The drop down will display
key values if the event data type is KeyValue Pair and record
fields if the event data type is PeopleCode Rowset.
Page Record Field Name
Select the record field name for the page element, which will
update.
Related Links
"Publishing and Subscribing to IWC Messages" (PeopleTools 8.54: Portal Technology)
Subscribing to an Event through Programmatic Subscription
On using programmatic subscription you are able to render the published event data on the page in any
form because the event data is represented in JavaScript Object Notation (JSON) data-interchange format.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
397
Working with Push Notification Framework
Chapter 14
Use the following JavaScript API on an HTML embedded section on a page on the web interface to
receive Push Notifications.
Subscribe(event name, callback function name)
Event Name is the event to be subscribed and callback function name is the JavaScript function that is
invoked when the event is published on the server. An example code snippet is given below:
<script>
function OnEvent(EventName,EventData)
{ //EventName is the name of the published event
//EventData is the payload (or data) of the published event in
//JSON(JavaScript Object Notation) form.}
Subscribe("PROCESSSTATUSCHANGE",OnEvent)
</script>
Subscribing through Application Server runtime
You can also subscribe events from server runtime itself. This is beneficial for cases when you want to put
the published event data to a database table or write to a log file.
Write a PeopleCode handler for subscription of an event, which also acts as the callback method for the
event.
The following code snippet, subscribes to an event on the Application Server using PeopleCode.
Subscription Code
Local object &EventObject;
&EventObject = CreateObject("PSEvent");
SubscriptionHandle = &EventObject.Subscribe("PROCESSSTATUSCHANGE", "PT_PRCS:Process⇒
Monitor:OnEvent
The second parameter for the Subscribe method is the fully qualified name of a callback function in
the form Application Package:Application Class:Function Name. This function is
invoked when the event is published.
Syntax of a callback function
method OnEvent(&EventObject As object);
end-class;
The &EventObject parameter represents the published event data.
Publishing an Event
You can publish an event from server runtime using PeopleCode APIs provided by the framework. If you
are publishing an event whose data-type is KeyValue pair then:
1. Set values for the keys defined for the event.
2. Add a recipient user who has subscribed to the event.
Note: Adding Recipients to the Event is optional. If you add users or roles using the APIs as
recipients then the recipients added through web interface while defining the event is ignored.
398
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 14
Working with Push Notification Framework
3. Publish the event.
Refer to the following code snippet that shows the publishing of the event 'PROCESSSTATUSCHANGE'
with the keys PROCESSID and RUNSTATUS and recipient user, VP1.
1. Create the event object.
Local object &EventObject;
&EventObject = CreateObject("PSEvent");
2. Set values for the Keys defined in the event
&EventObject.SetKeyValuePair("PROCESSID", PSPRCSSTATUS.PROCESSID);
&EventObject.SetKeyValuePair("STATUS", PSPRCSSTATUS.RUNSTATUS);
3. Optional : Add a recipient user for the event. The event will be then send only to "VP1" user, if he has
subscribed for the event.
&EventObject.AddRecipient("VP1", 1)
The first parameter in the AddRecipient API is the user name and the second parameter indicates the
recipient is a user. A value of 2 as the second parameter indicates that the recipient is a role. There are
APIs to add multiple users or roles as recipients.
4. Publish the event.
&EventObject.Publish("PROCESSSTATUSCHANGE");
If the data type is PeopleCode Rowset then set the values for the fields in the record and add a recipient.
In the following code snippet, WORKFLOWAPPROVAL is the server event for which name and status
fields are defined. All users assigned the role of Workflow Administrator are added as recipients.
1. Create the event object.
Local object &EventObject;
&EventObject = CreateObject("PSEvent");
2. Set the PeopleCode Rowset for the event.
Local object &EventObject;
&rs = CreateRowset(Record.PSPTWKLAPPVL);
&rs.InsertRow(&i);
&rs(&i).PSPTWKLAPPVL.NAME.Value = "Test Workflow";
&rs(&i).PSPTWKLAPPVL.STATUS.Value = 1;
&EventObject.SetRowsetData(&rs);
3. Optional : Add a recipient role for the event. The event will be then send only to users who has
subscribed for the event and having the role "Workflow Administrator".
&EventObject.AddRecipient("Workflow Administrator", 2);
4. Publish the event.
&ret = &EventObject.publish("WORKFLOWAPPROVAL");
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
399
Working with Push Notification Framework
Chapter 14
Working with Event Collections
You can group a set of events that exhibit a common behavior as a collection. When you subscribe to a
collection, you receive notifications for all the events which are part of the collection whenever they are
published from the server runtime.
Defining an Event Collection
Access PeopleTools, Push Notifications, Define Event Collections. The Define Server Event Collections
page appears.
Image: Define Server Event Collections Page
In this page you can define an Event Collection.
The table lists the fields and controls in the Define Server Event Collection page.
Collection Name
Enter an unique name for the event collection.
Description
Enter the description of the event collection.
Handler - Application Package
(Optional) Select the PeopleCode application package that
contains the 'Handler - Application Class'
Handler - Application Class
(Optional) Select the PeopleCode application class that can
receive the events which are part of the event collection, when
they are published. A valid handler class implements the
interface PT_PNCOLL_HANDLER:Handler.
Events
Click the link to add events to the event collection.
When you click Events for a Collection Name, the Add Events page appears from where you can add
events to the collection. If you subscribe to the Collection then you will receive the push notifications for
all the events added in this page.
Subscribing to an Event Collection
You can subscribe to an Event Collection using the following JavaScript API.
SubscribeCollection(collection name, callback function name)
Collection-name is the name of the event collection to be subscribed. Callback function name is the
function that will be invoked if any of the events which is part of the collection is published on the server.
See Subscribing to an Event through Programmatic Subscription for an example code snippet of how to
add the callback function.
400
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 14
Working with Push Notification Framework
Application Data Set Definitions for Events
Following Application Data Set (ADS) definitions are for events and collections. You can use them to
copy event and collection definitions across the databases.
•
PTSVR_EVENTS
ADS definition for events, which can be used to copy event definitions and their corresponding IWC
subscription configurations.
•
PTPN_EVENT_COLLECTION
ADS definition for event collections which can be used to copy both collection definitions as well as
all the associated event definitions for that collection.
Related Links
"Understanding the PeopleSoft API Repository" (PeopleTools 8.54: PeopleCode API Reference)
System Requirements for Push Notification
Before making use of the Push Notification feature, verify that your infrastructure support WebSockets.
System Component
Requirement
Web Server
Weblogic 12.1.2 onwards. Not supported currently on
Websphere.
Reverse Proxy Support
OTD from 11.1.1.7, WLS Plug-In 12.1.2+ for Apache 2.2, 2.4
Using the Push Notification Window
The Push Notification framework helps in consolidating and updating new events in the PeopleSoft
system in real time. When you login to the portal, you can see the number of new events or messages on
the notification icon. When you click on the notification icon, the Push Notification window opens.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
401
Working with Push Notification Framework
Chapter 14
The notifications get updated real time even if you have navigated away from the window or are on the
window.
Image: Push Notification Window
The Push Notification window has list of new events and messages from the PeopleSoft system.
The table describes the features in the Push Notification window.
402
Actions
Select this tab to see the Actionable items. All actionable
notifications are grouped under this tab.
Alerts
Select this tab to see all the informational messages like Alerts.
View All
Click the link to go to View All Notifications page.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 14
Working with Push Notification Framework
Displays besides a new notification item.
Click this button to refresh the notification window and list all
new notifications. The Refresh icon enables when you are on the
Push Notification window and any new notification arrives.
Click to open the Actions Panel with Dynamic Label links. This
icon is only visible when there are Dynamic Labels defined for
that item.
Dynamic Labels
Click to take an action on the notification.
Click to dismiss an alert. This icon is visible only for Alerts on
the Alert tab.
In both the Actions tab and Alerts tab, numbers of new items are displayed within parenthesis. Any
notification item linked to a content reference is displayed as a hyperlink. Click on the link to open the
corresponding PeopleSoft page.
Viewing All Notifications
Click on the View All link on the Push Notification window header to open the View All Notifications
page. Click on the Show Filters button to expand the left pane. Use the left pane for faceted filtering of
notifications.
The table describes the filter categories.
Category Name
Allows filtering based on categories like Expense Approval,
Promotion Code, Journal Approval.
Category Type
Allows filtering based on Actions or Alerts.
Message State
Allows filtering based on the message state, Read, Unread,
Dismissed.
You can select the Select All check box to enable the Actions button that allows you to take action on
bulk notifications. Click the Actions button to display the bulk actions popup menu where you can select
an option to make the notifications read, unread or dismissed. Click the Row Level Action button to
display the Dynamic Labels popup menu. Then click a dynamic label to take a action on a notification
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
403
Working with Push Notification Framework
Chapter 14
item. The Row Level Action button is only visible at the end of the row of a notification item if the item
has Dynamic Labels defined.
Image: View All Notification Page
The View All Notifications page lists all Actions and Alerts together.
Setting up the Notification Window Configuration
This topic discusses how to set the:
404
•
System level configurations.
•
User level configurations.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 14
Working with Push Notification Framework
System Configuration page
Access the System Configurations page to configure the Notification Window. Select PeopleTools, Push
Notifications, Notifications, System Configurations.
Image: System Configuration Page
The System Configuration page is used to configure Notification Window.
The table describes the names and definitions of fields in the System Configuration page.
Max Notification Items
Enter the number of notification to be displayed to the user.
Default value for this option is 10.
Notification Items to Load
Enter the number of records that gets loaded to the system
when the notification window is loaded. The default value for
this option is 100. This configuration can be used to tune the
performance of the notification window.
From Date, To date
Set the period to select the notification items for further actions.
Category Name
Select the category to archive or purge data.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
405
Working with Push Notification Framework
Chapter 14
Click to add or delete a category.
Archive
Click to archive the data based on the date and the category
name. When notification items are archived, the data is copied
into the archive table. Archiving the data at regular intervals
improves the system performance because the number of
notification items in the table gets reduced on archival.
Purge Data
Click to purge the data based on the date and the category name.
You cannot retrieve purged data. Purging the data at regular
intervals improves the system performance because the number
of notification items in the table gets reduced on purging.
Manage Notification Page
Select Manage Notifications tab. The Manage Notifications page appears. From this page you can enable
or disable the notifications of an event to users. The table describes the controls found on this page.
Category Name
Select an Event whose notification you want to enable.
Enable
Slide the slider to enable or disable the notification feature for
an event.
Click to add an Event.
Click to delete an Event.
406
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Chapter 14
Working with Push Notification Framework
User Configuration Page
Access the User Configurations page to configure the Notification Window as an user. Select
PeopleTools, Push Notifications, Notifications, User Configurations.
Image: User Configuration page
The User Configuration page is used to configure Notification Window if you are an user.
The table describes the fields in User Configuration page.
Notification Items to Display
Enter the number of notification items to display on the
notification window.
Categories to Hide
Click the Add icon to add categories. Any notification item from
these categories is not displayed on the notification window.
Related Links
Understanding the Push Notification Framework
"Fluid User Interface Overview" (PeopleTools 8.54: Fluid User Interface Developer’s Guide)
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
407
Appendix A
Securing PS_HOME and PS_CFG_HOME
Understanding PS_HOME and PS_CFG_HOME Security
With the separation of the PS_HOME and PS_CFG_HOME directories, system administrators can
implement more secure PeopleSoft deployments by restricting access within each of these directory
structures.
This section describes the procedures and considerations involved in configuring these additional security
options.
Note: Each site can elect to implement these security measures as needed according to individual security
policies.
Note: Each PeopleSoft application you have licensed may have specific instructions regarding the
implementation of these security measures. Always check your application-specific documentation for
any information you need to consider to ensure both a secure environment and a properly functioning
application.
Understanding PS_HOME Security
Because the configuration files, by default, do not reside in PS_HOME, the PS_HOME installation can
be locked down to prevent unauthorized access, by user or system process. By making the PS_HOME
directory ‘Read-Only’, processes running in the domain cannot write to PS_HOME or any of the
subdirectories therein. Likewise, any users with malicious intent are unable to delete or modify executable
files in PS_HOME.
Securing PS_HOME involves making the directory read-only, yet making sure that the following system
elements have sufficient access.
System Element
Description
Application server
Application server domains need read access to the executable
and binary files of PS_HOME to process requests and run
application logic.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
409
Securing PS_HOME and PS_CFG_HOME
Appendix A
System Element
Description
Process Scheduler
Process Scheduler domains need read access to the executable
and binary files of PS_HOME to run batch processes. Plus,
keep in mind these points:
File server/Windows workstations
•
The user creating a Process Scheduler domain on
Windows needs read and write access to the Windows
Registry.
•
The restricted OS user needs to have full privilege
access to the psreports folder (and its children). Process
Scheduler and the Report Distribution agent inherit the
restricted user's security settings they will need to create
folders in psreports.
•
Oracle ProcMGR (Tuxedo) should be started with the
restricted OS user ID.
•
Configure Process Scheduler with an Admin OS user
for Windows. While logged into Windows with the full
privilege OS user ID, create and configure the Process
Scheduler domain, so that ODBC and NVision DLLs
register properly.
The file server and/or Windows workstations running
Application Designer need read-only access to PS_HOME to
facilitate three-tier connections.
Note: These instructions do not apply to the PS_HOME residing on the web server for PIA or the
PS_HOME on the database server.
Note: When implementing a read-only PS_HOME, consider that environment locations to which
processes write files can't be in a read-only location. Settings for "temporary" directories and "output"
directories should not be located within the PS_HOME directory structure. For example, the default
temporary directory locations are C:\Documents and Settings\<user>.PEOPLESOFT\Local Settings\Temp
(Windows) and %root%\TMP (UNIX).
Note: All elements of your PeopleSoft implementation, such as Process Scheduler and SQR can operate
within a secure PS_HOME configuration.
Understanding Minimum Access Required by the User Starting Domains
The bare minimum that needs write access at the time a domain boots includes:
410
•
The domain directory: it must be possible to write content to the domain directory although most of
the configuration files in this directory can be read-only.
•
The domain LOGS directory: by default this is the LOGS directory beneath the domain directory. If
this location is overridden in the configuration file, the relevant location must also be read-write.
•
The .adm directory: this subdirectory within the domain (if present) must also be read-write. This is
required by Oracle Tuxedo.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix A
Securing PS_HOME and PS_CFG_HOME
•
The Archive directory: located within the domain directory, a copy of the .cfg is archived to this
directory each time it is updated. This directory is also used by the Purge Cache PSADMIN option for
application servers.
All other files in the PS_CFG_HOME directory tree can be made read-only to the user starting the
domain.
Understanding PS_CFG_HOME Security
Some administrators may want to implement additional security and restrict access to PS_CFG_HOME.
For example, in some cases you may want take further steps to limit privileges of the user starting a
domain, or lock down configuration files to prevent unintended configuration changes during runtime.
Securing PS_HOME on UNIX
The UNIX operating system lends itself to a read-only configuration for PS_HOME because of the way
that Inter-process Communication (IPC) resources are allocated and managed. UNIX was designed to
allow multiple users concurrent access to the same physical hardware and file system while enforcing a
strong privileges model.
Note: It is necessary to have access to at least two user accounts in order to setup a true and complete
read-only environment on UNIX.
To illustrate the procedure, two user accounts are used.
User Account
Description
InstallAdmin
User responsible for installing PeopleTools.
DomainAdmin
User responsible for creating, configuring, and booting
domains.
Note: It is under this account that domain processes will run
and therefore should have the most stringent permissions.
To setup read-only PS_HOME on UNIX:
1. Install PeopleTools using the InstallAdmin account.
2. Verify that PS_HOME is read-only.
After installing PeopleTools, attempt to delete both a directory and file from PS_HOME using the
DomainAdmin account.
If it is not read-only to the DomainAdmin account, login as the InstallAdmin account and use the
chmod command to make PS_HOME read-execute to the world.
If the DomainAdmin account is a member of the same group as the InstallAdmin account you will
need to apply the read-execute restriction to the group also. For example,
chmod -R 755 $PS_HOME
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
411
Securing PS_HOME and PS_CFG_HOME
Appendix A
3. Sign in as the DomainAdmin account, open a shell, and change directory to PS_HOME.
4. Invoke psconfig.sh to set the environment.
5. Create and configure a new domain.
This can be an application server, search server, or Process Scheduler domain.
6. Start the new domain and verify that all of the domain processes have started.
For application server domains, ensure that you can sign in through PIA and make successful page
requests.
Managing a Secure PS_HOME on UNIX
When deploying a secured PS_HOME environment on UNIX, keep the items in this section in mind.
Working with User Accounts
The user account that boots the domain must be the same user who configures the domain. This is a
Tuxedo requirement, not a PeopleTools requirement. This means that the user account under which the
domain processes will run must have read-write access to the domain directory.
The owner of the domain processes is the user account who starts the domain. This is different from
Microsoft Windows, where the domain processes are booted by the account that starts the Oracle
ProcMGR service. If you use both Windows and UNIX servers to deploy PeopleSoft, keep this subtle
distinction in mind between the two operating systems.
Configuring Partial PS_HOME Access
In some cases, user accounts may need to access specific parts of the PS_HOME directory tree. This is
recommended through the addition of a “hybrid” user to the same group to which the “InstallAdmin”
account (the user who installed PeopleTools) belongs. The InstallAdmin can then choose to allow group
access to the specific parts of the PS_HOME directory tree to which the hybrid user is permitted readwrite access.
For example, consider a scenario where you have installed PeopleTools at your site, but have hired
a consultant to help with various implementation tasks. The InstallAdmin only wants to allow the
consultant access to specific parts of the PS_HOME directory tree. The account that the consultant
uses is therefore a hybrid account. It is has read-write access to PS_HOME, but only to the specific
subdirectories deemed necessary.
To achieve this hybrid privilege model, allow group access to those specific directories under PS_HOME
to which the consultant requires write access.
Securing PS_HOME on Windows
When securing PS_HOME on Windows, you have these options:
412
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix A
Securing PS_HOME and PS_CFG_HOME
•
Multiple administrator user accounts.
•
Local user accounts.
Multiple Administrator User Accounts
This method of securing PS_HOME on Windows offers the ability for many administrator user accounts
to share the same PS_HOME while managing separate PS_CFG_HOMEs. This method is most
appropriate for a production environment.
In this configuration, you install PeopleTools on a server machine, and share the PS_HOME installation
location as read-only. Domain administrators may then map to this network drive, and invoke PSADMIN
to create and start domains.
Once you have set up a secure PS_HOME, domain creation and the various prerequisites for setup are
the same as before. For example, database connectivity must be available on the machine on which the
domain will boot. The server where PS_HOME is located acts as a read-only file server for the domains.
To illustrate this procedure, two user accounts are used.
User Account
Description
User1
An administrator on Machine, having read-write access to PS_
HOME.
User2
An administrator on Machine2, having read-only access to PS
_HOME. A restricted user.
In this scenario, one administrator installs PeopleTools, and a second user, with a more limited set of
privileges, creates and administers domains.
The steps for User2 on Machine2 can be applied to multiple users. Any number of users can map to a
single read-only PS_HOME.
Note: This information applies to PeopleTools installations on drives assumed to be formatted as NTFS.
To install PS_HOME and restrict privileges:
1. While logged in as User1 on Machine1, run the PeopleTools installation program.
2. Choose Application Server and Batch Server installation options.
File Server is optional, depending upon whether or not it is required.
3. Ensure that you install PeopleTools such that PS_HOME is not the top most directory on the drive.
For example,
D:\PTInstalls\PT8.53
Note: This is essential if you plan on accessing PS_HOME as a mapped drive.
4. After the installation has completed, set privileges on the PS_HOME directory tree, using Windows
File Sharing.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
413
Securing PS_HOME and PS_CFG_HOME
Appendix A
•
Using Windows Explorer, select the high-level directory (as in D:\PTInstalls), right-click, and
select Sharing and Security.
•
On the Properties, Sharing tab, click Share this folder.
•
Click Permissions, and for the Group of Everyone, check the Allow checkbox for Read, make
sure the Allow checkbox for Change is not selected, and click Apply and/or OK.
5. Verify that the folder has been shared by making sure the ‘hand’ icon appears on the folder in
Windows Explorer.
To set up access to a secure PS_HOME:
1. Sign in as User2 on Machine2.
2. Map a network drive to the shared PS_HOME.
3. Verify that you cannot add, modify, or delete any content below the mapped location.
This ensures that PS_HOME is read-only. If you can delete or change content in the mapped location,
it is possible that User2 is an administrator on Machine1. User2 must not be an administrator on
Machine1 for these security measures to be effective.
If User2 cannot see the shared location there may be a problem with the share or the local network.
Make sure the machine can be pinged.
4. Configure Oracle ProcMGR service to allow the User2 account to access PS_HOME.
This is necessary because by default the Oracle ProcMGR service uses the Local System account.
a. Select Start, Programs, Administrative Tools, Services, and double-click on the Oracle ProcMGR
service.
b. On the General tab, stop the service, and set the Startup type to Manual.
c. On the Log On tab, select the This account radio button, and enter the logon information for
User2.
d. Click OK.
Note: Do not start the service yet.
5. Set the TM_TUXIPC_MAPDRIVER user variable for User2.
This environment variable must be set to contain any mapped drives required by the domain
processes, such as the drive where PS_HOME is located. Use the following format:
drive1:=\\machine_name1\dirpath1[;drive2:=\\machine_name2\dirpath2[...]]
For example,
N:\\10.100.200.300\PTInstalls
414
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix A
Securing PS_HOME and PS_CFG_HOME
If multiple mapped drives are required, use a semicolon to separate the values, similar to the way
directories are expressed in the PATH environment variable.
Note: Depending on your network, use either the DNS name or the IP address to specify the machine
name.
Note: If the Oracle ProcMGR needs to run unattended, where no user is signed in, set the
TM_TUXIPC_MAPDRIVER environment variable as a system environment variable instead of a
user environment variable.
6. Start the Oracle ProcMGR service.
Once started, you can start PSADMIN as you normally would.
Local User Accounts
Using local user account to secure PS_HOME is a machine-bound solution that you may consider during
an initial demo, development, or testing environment, where PS_HOME and PS_CFG_HOME reside on
the same machine. In this method, only one machine and one domain account is required.
In this scenario, PeopleTools is installed by a user with administrative privileges. In the context of this
scenario, this refers to the network domain user, a user that is a member of an existing network domain of
users.
Application server domains are administered by a second user with a more limited set of privileges. This
second user is created on the local system and only has access to resources on that machine.
In the following procedure, these user types are represented as:
User
Description
COMPANY\User1
User1 is an administrator on Machine1 and belongs to the
network domain named COMPANY.
LOCAL_MACH\Guest2
Guest2 does not have administrative privileges on Machine1
but can sign on to Machine1. Guest2 is a Restricted User.
Setting up a secure PS_HOME and restricting privileges:
1. While logged in as User1 on Machine1, install PeopleTools to the server using the install program.
Choose Application Server and Batch Server installation options. File Server is optional depending
upon whether or not it is required.
Ensure that you install PeopleTools such that PS_HOME is not in the top directory level on the drive.
For example, an ideal location would be C:\PTInstalls\PT8.53.
2. While logged in as User1 on Machine1, create the Guest2 user account.
Create a new user with at least the following attributes:
•
User name
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
415
Securing PS_HOME and PS_CFG_HOME
Appendix A
•
Password
•
Select Restricted user on the Group Membership tab.
•
De-select the User must change password at next logon checkbox.
See Microsoft Windows documentation for more information related to creating users on
Microsoft Windows.
3. Verify that the user is a Restricted User by highlighting the user ID and clicking on the Properties tab.
You may need to exit and re-enter the User Accounts dialog to see the new user added.
4. Make the PS_HOME directory tree read-only.
a. Open Windows Explorer and navigate to and select the PS_HOME directory location.
b. Open the Properties dialog and click on the Security tab.
c. Deny Write access to all Local Users.
To configure access PS_HOME:
1. Setup the Oracle Proc MGR Service to allow the IPC resources to be created using the restricted user
ID (Guest2).
This is necessary because by default the Oracle PRocMGR service uses 'Local System' account which
provides greater access to the PS_HOME than desired.
a. Select Control Panel, Administrative Tools, Services.
b. Double click on the Oracle ProcMGR and change the Startup Type to Manual.
2. Change the user and password with which the service is started to match the new local user that you
created earlier (Guest2).
Note: Do not start the service, just click OK.
3. Log off and sign on to Machine1 as Guest2.
In most cases, any error messages that you see when re-signing on can be ignored as they are
associated with signing on with restricted permissions.
4. Verify that you cannot delete, update, or add any content to PS_HOME.
5. Before creating a domain your database connectivity must be setup within the restrictions of the
guest2 local user account that you have created.
6. Start PSADMIN, and create a new domain, and confirm that the domain boots.
7. Install PIA on a separate machine, and verify that you can signon through PIA.
416
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix A
Securing PS_HOME and PS_CFG_HOME
Because PIA is not within the scope of the secure PS_HOME, PIA should be installed on an
additional machine. This is necessary because PIA needs write access to various locations within
PS_HOME.
Managing a Secure PS_HOME on Windows
When deploying a secured PS_HOME environment on UNIX, keep the items in this section in mind.
Depending upon your domain configuration and usage pattern, you may need to unlock specific
subdirectories of PS_HOME.
Working With Mapped Drives, UNC Paths, and TM_TUXIPC_MAPDRIVER
This page explains mapped drives (Windows share drives) and the use of UNC paths for PeopleTools
application server, Process Scheduler server, and search servers. When a PeopleTools domain is started
on a Windows machine, it runs under the user for whom the ProcMGR Windows service has been
configured. As such, the domain processes inherit the privileges of that user and not the user logged on to
the system.
By default, the ProcMGR runs as the Local System account. While the Local System account has most
privileges on the local host, it can't usually access UNC paths or mapped drives.
Note: ProcMGR is the Windows service that is responsible for allocating resources to Tuxedo domains.
Accessing UNC Paths and Mapped Drives
To allow PeopleTools domain processes to access UNC paths or mapped drives, it is necessary to start
the ProcMGR service using an account that has access to these resources. This is typically a Windows
domain account. A domain account refers to an account that logs a user ID on to both a machine and the
corporate network. This account has been created by the network administrator. An example of such an
account would be BIGCOMPANY\TSawyer.
The ProcMGR should be configured to start as the domain account. On the Log On tab of the service
configuration dialog, click This account:, and enter the credentials of the domain account.
UNC Paths
If you plan to use UNC paths to access PS_HOME you must start PSADMIN using a UNC Path. For
example:
\\ptinstalls\pt853\APPSERV\psadmin.exe
With the ProcMGR service set to a domain account, you can use PSADMIN to create and configure
domains as if PS_HOME were on the local file system.
Mapped Drives
Additional steps are required if you plan on using a mapped drive for your PS_HOME or
PS_CFG_HOME. These additional steps are required because Windows services do not recognize
mapped drives. However, Oracle Tuxedo provides a mechanism by which the ProcMGR service is
permitted to access network drives, which involves defining any mapped drives using an additional
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
417
Securing PS_HOME and PS_CFG_HOME
Appendix A
environment variable, TM_TUXIPC_MAPDRIVER. If this environment variable has not been set, the
domain processes will be unable to recognize the network drives.
To make sure that the TM_TUXIPC_MAPDRIVER variable is visible to the ProcMGR
service, it is necessary to set it globally, as a System environment variable. For example, set
TM_TUXIPC_MAPDRIVER to:
N:=\\10.233.238.123\PTInstalls
Important! The mapped drive cannot point directly to PS_HOME. The mapping must point to the
parent directory above PS_HOME. For example, if PS_HOME is N:\\10.233.238.123\PTInstalls\pt850,
TM_TUXIPC_MAPDRIVER should point to N:\\10.233.238.123\PTInstalls. PTInstalls is the parent
directory of \pt850, which would resolve to N:\pt850.
Note: When mapping network drives to the PS_HOME is located, make sure to select Reconnect at
logon.
Note: The working directory for psadmin.exe, must always be mapped to a letter drive, such as C:, D:, N:,
and so on. When starting psadmin.exe, you must do so from the command line (or script) by referencing
the full mapped working directory, such as \\ptinstalls\pt851\APPSERV\psadmin.exe. Launching
psadmin.exe outside the current working directory (as in, using Start, Run) will cause psadmin.exe to
function incorrectly. This restriction is imposed by Tuxedo.
Working With Oracle ProcMGR Windows Service
When logging on with user accounts Oracle ProcMGR service should be set to Manual instead
ofAutomatic. Failure to do so may result in your domain account becoming locked. If set to 'Automatic'
the service may continually attempt to start with an expired password causing the network to lock out the
domain user account due to successive failed retries.
Note: On Windows servers, it is recommended to have the Windows user logged in running PSADMIN
be the same user that runs the ProcMGR service.
See PeopleTools Installation guide for Oracle.
Managing TM_TUXIPC_MAPDRIVER
The TM_TUXIPC_MAPDRIVER environment variable needs to be maintained consistent with the
mapped drives upon which you access PS_HOME. If the drive mappings change, then you need to make
sure the new values are specified in TM_TUXIPC_MAPDRIVER. If the drive mapping represented by
the TM_TUXIPC_MAPDRIVER does not exist, the ProcMGR service will fail to start.
Resolving Initialization Timeout Issues
If the PS_HOME used by your domains is on a network drive, you may notice a delay with starting a
domain. This is a result of the binaries being loaded from across the network versus from the local disk.
This can cause an initialization timeout.
If you notice domain start failures, check for the following message in the Tuxedo log for the domain:
tmboot.16020.15792.-2: CMDTUX_CAT:1859: ERROR: Server process ID 12668
418
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix A
Securing PS_HOME and PS_CFG_HOME
failed to initialize within 60 seconds
In such cases, increase the timeout values in the domain’s environment variables to accommodate for the
slower start time. Use the Edit environment settings option on the Quick Configure menu to
modify environment variables.
For example,
TM_BOOTTIMEOUT
TM_RESTARTSRVTIMEOUT
:[300]
:[300]
For more information on editing domain environment variables, see Setting Domain-Level Environment
Variables.
Working With the Tuxedo TM_CPAU Setting
For PeopleSoft systems, the Oracle ProcMGR service (tuxipc.exe) is responsible for starting Tuxedo
domain processes on Windows. By default, domain processes run as the same user ID that the service is
running as. In a default installation, the service is configured to log on to Windows as the Local System
user. Microsoft does not support assigning network privileges to the Local System user for security
reasons, but the Local System user otherwise has full administrative access to the local system.
In this configuration, PeopleTools domain processes also run as the Local System user, which presents
several potential issues, including:
•
PeopleTools domain processes are unable to access network resources.
•
PeopleTools domain processes run with more privileges than are necessary. A compromised
PeopleTools process will have full access to the local system and could potentially be used to gain
unauthorized access to the local system.
•
All PeopleTools domain processes on the system run as the same user ID
These problems are not present on UNIX systems where domain processes are always started as the user
that runs tmadmin (by way of PSADMIN for PeopleSoft installations) to boot the domain. UNIX systems
therefore support multiple domains, each running under different user IDs, with only the desired local
privileges, and with no undesirable restrictions to network resources.
For Windows platforms, you can use the Oracle Tuxedo TM_CPAU (Create Process As User)
environment variable to achieve behavior similar to UNIX systems. If TM_CPAU is set to YES before
tuxipc is started, tuxipc creates an Oracle Tuxedo process that belongs to the user who initiated tmboot.
If tuxipc boots as a service, go to Start, Control Panel, System, Advanced, Environment Variables and
set system variable TM_CPAU =YES on the dialog box and reboot the Oracle ProcMGR service. If the
Oracle ProcMGR service (tuxipc.exe) is started with the TM_CPAU=YES environment variable set, then
domain processes will run as the user ID used to run tmadmin (PSADMIN) to boot the domain.
Using the TM_CPAU environment variable enables a variety of configuration options, including:
•
The ProcMGR service can be run as the Local System user, but domain processes can be run using a
minimally privileged user. This reduces the chance of a compromised PeopleTools process being used
to gain unauthorized access to the system.
•
The ProcMGR service can be configured to log on to Windows using a minimally privileged user
ID and PeopleTools processes can run as a user with more privileges than the Tuxedo user ID. For
example, the Tuxedo user ID could have read-only access to PS_CFG_HOME, but the PeopleTools
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
419
Securing PS_HOME and PS_CFG_HOME
Appendix A
user could have read-write access. The Tuxedo user ID does not actually require read-access to
PS_HOME. When CreateProcessAsUser runs, access to the executable to start is evaluated using the
user ID that the process will run as.
•
A single Windows system can be used to host multiple PeopleTools installations that are each
administered by a different user. A non-administrative user ID used to boot one domain will have no
privileges to processes started with a different user ID.
•
Domain processes can be identified and managed in Windows Task Manager by a non-administrative
user.
For more information, see Oracle Tuxedo documentation: "File Formats, Data Descriptions, MIBs, and
System Processes Reference."
Implementing PS_CFG_HOME Security
The steps in this section describe techniques for applying more stringent access to a PeopleTools
environment by restricting access to PS_CFG_HOME. If you intend to secure PS_CFG_HOME, it is
assumed that you have also secured PS_HOME. Securing PS_CFG_HOME enables you to prevent
malicious access to content and configuration files located in PS_CFG_HOME and in domain directories.
These steps describe a security implementation where you configure a user account(s) that can create and
configure domains, and user account(s) for domain administrators, who can start and stop domains.
It is possible to limit the permissions to PS_CFG_HOME, such that the domain administrator account
can:
•
Create files and sub-directories in PS_SERVDIR.
This is necessary for creating log files and temporary files. Tuxedo also requires read-write access to
the domain directory.
•
Read (but not change or delete) any existing configuration or template files in PS_SERVDIR.
These files include .cfg, .ubb, .ubx, .val files, and so on.
Note: To apply these permissions, you must do so after the domain has been configured but before it has
been started.
Note: Once these permissions have been implemented, only a user account with the appropriate privileges
can reconfigure the domain.
Securing PS_CFG_HOME on UNIX
You have these approaches when implementing a secure PS_CFG_HOME on UNIX:
420
Security Approach
Description
Use a root account, or use super user do (sudo), instead, to
perform root-level operations with a non-root account:
This technique involves locking a user account’s access to a
file from the root account.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix A
Securing PS_HOME and PS_CFG_HOME
Security Approach
Description
Use two administrator user accounts:
The two administrator accounts approach involves using two
user accounts that are members of the same group.
This approach permits all users in the account in the group
read access to the domain configuration.
This approach works best if the number of users in the group is
kept to a minimum.
Because there are multiple users involved, it is necessary to
override the default PS_CFG_HOME environment variable
such that both users will see the same domains.
To set up a secure PS_CFG_HOME using sudo:
1. Create and configure the domain.
For this procedure, assume the user who does this is DomainAdmin.
2. Use sudo to restrict write access to the sensitive configuration files.
For example, with the sudo command include:
chmod 555 <filename>
In this case, only sudo can change the configuration files or restore write access to DomainAdmin.
3. Log in as DomainAdmin, and verify that none of the restricted files can be changed or deleted by the
DomainAdmin session.
4. Start the domain as DomainAdmin.
To set up a secure PS_CFG_HOME using two administrator accounts:
1. Create and configure a domain.
For this procedure, assume the user who does this is DomainAdmin.
2. As the DomainAdmin user, change the permissions on the domain configuration to allow write access
to only those files and directories needing to be written to by the user starting the domain.
3. Signon as the DomainBootAdmin user, start PSADMIN, navigate to the Domain Administration
menu, and re-configure the domain without making any changes.
This results in only the TUXCONFIG file being updated.
4. Star the domain as the DomainBootAdmin user.
Securing PS_CFG_HOME on Windows
To secure PS_CFG_HOME on Windows:
1. Ensure that your PS_CFG_HOME is created in a location that is accessible to the user account that
needs to start the domain.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
421
Securing PS_HOME and PS_CFG_HOME
Appendix A
By default, the PS_CFG_HOME location will not be visible to the user account starting the domain
because it is created in the user home of the user account creating the domain. Use one of these
options to make the PS_CFG_HOME visible to the user account that needs to start the domain:
•
Override the default location for PS_CFG_HOME, by manually setting the PS_CFG_HOME
environment variable to a custom value.
•
Enable the restricted user to view the PS_CFG_HOME in the domain creator’s user home. Set the
PS_CFG_HOME as a system-level environment variable so that the restricted user will be able to
see it when logged on.
2. While signed in as the domain administrator, create and configure your new application server,
Process Scheduler, or search server domain.
3. While signed on as the domain administrator, apply the necessary read-write restrictions.
It is recommended to apply read-only privileges to the entire directory path to the domain.
a. Using Windows Explorer select the domain directory and open the Properties dialog.
b. Select the Security tab. If the restricted user is not displayed, click Add to append the user to the
list.
c. Once added, highlight the restricted user ID and ensure that the following actions are checked in
the Allow column: Read & Execute, List Folder Contents, Read, and Write.
4. Apply read-only privileges to the sensitive domain files that should be protected from read-write at
runtime.
This typically includes the Tuxedo binary configuration (PSTUXCFG and PSBDMCFG), ASCII
configuration files and templates (*.cfg, *.ubb, *.env, *.ubx, *.lst).
Using Windows Explorer, select each of these files in the domain directory and open the Properties
dialog.
Note: At a minimum, it must be possible for the user starting the domain to write to the .adm and
LOGS directory within PS_SERVDIR. Additionally, this user must be permitted to create new files in
the domain directory.
5. Sign in as the restricted user, boot the domain, and verify that it is not possible to delete or modify any
of the restricted domain files.
Note: Sign in using the same user account as the one entered in the Oracle ProcMGR service.
Note: If subsequent configuration changes are required it is necessary to configure the domain while
signed in as the administrator account that created and configured the domain.
422
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
PeopleSoft Internet Architecture Servlets and Applications
PIA is packaged as a JEE Enterprise Archive and is comprised of a collection of JEE web applications,
commonly referred to as webapps or servlets. For the most part, in the context of PeopleSoft, the term
servlets is used. The PeopleSoft servlets are:
PORTAL
PeopleSoft Interaction Hub
PSIGW
Integration gateway
PSEMHUB
PeopleSoft Environment Management Framework
PSINTERLINKS
PeopleSoft Business Interlinks
Note: PeopleSoft Business Interlinks is a deprecated product.
These options exist for upgrade compatibility and transition.
In addition, these servlets are added when you install PIA on a WebLogic server machine. These elements
are not part of the PeopleSoft Enterprise Archive, but instead are defined individually.
HttpProxyServlet
Reverse Proxy Server – Proxy to a single content server per
URL. Each URL can provide unique content.
HttpClusterServlet
Reverse Proxy Server – Proxy to multiple WebLogic servers.
All content servers provide access to the same content for load
balancing.
Console
Administrative console for WebLogic Server.
WebLogic Domain Types
This section provides an overview of Weblogic domain types and discusses:
•
Single-server domain.
•
Multi-server domain.
•
Distributed managed server.
•
Common default settings.
•
Single-server and multi-server/distributed server analogy.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
423
WebLogic Managed Server Architecture
•
Appendix B
Domain topology.
Understanding WebLogic Domain Types
During PIA setup, you can choose between two different WebLogic domain configurations: a singleserver domain and a multi-server domain. A multi-server domain can be expanded across multiple
machines using the distributed managed server option. So, a distributed managed server implementation
is a variation of the multi-server domain. Each of these domain configurations has a specific purpose but
is fully customizable beyond that purpose.
This section discusses:
•
single-server domains.
•
multi-server domains.
•
distributed managed servers.
Single-Server Domains
In a single-server configuration, the WebLogic domain’s administration console and the J2EE components
of PIA are all provided on a single instance of WebLogic Server. This configuration is intended for singleuser or very small scale, non-critical production environments. It can be used as a starting point for you to
familiarize yourself with WebLogic Server.
In a single-server domain, the resources used to administer WebLogic Server and your PeopleSoft
application are not isolated from one another, therefore you don't administer each element individually.
While each element must complete for the same resources, the low resource requirements of this
configuration make it ideal for small scale and non-production usage.
The single-server domain in a PeopleSoft implementation consists of only one server: PIA.
Single-Server Deployment
Some of the servlets deployed in a single-server domain configuration must be accessed using a modified
URL:
http://server:port/servlet_name/...
The single-server domain configuration deploys servlets as follows:
424
Application
Deployed to Server
Servlet Name in URL
PORTAL
PIA
(not needed)
PSIGW
PIA
PSIGW
PSEMHUB
PIA
PSEMHUB
PSINTERLINKS
PIA
PSINTERLINKS
Console
PIA
console
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
Application
Deployed to Server
Servlet Name in URL
HttpProxyServlet
Defined but not deployed.
(not needed)
HttpClusterServlet
Defined but not deployed.
(not needed)
Single-Server Domain Specific Settings
To configure the single-server domain specific settings, launch the Administration Console.
In the console, expand the Environment tree and select Servers. Click on the PIA server. Select the
Configuration tab, and the General sub-tab. The default web application for the PIA server is PORTAL.
The single-server domain specific default settings for the PIA server are as follows:
Setting
Default Value
Listen address
* (all local IPs).
Listen Port
80 (set during PIA setup).
SSL Listen Port Enabled
Enabled with demonstration self-signed digital certificates.
SSL Listen Port
443 (set during PIA setup).
Note: To configure SSL, you must also define SSL certificates.
See Implementing WebLogic SSL Keys and Certificates.
Example: Single-Server Domain
The following illustrates sample contents of a typical single-server domain:
Server
Process Type
WebLogic and PIA Elements
Single server machine
WebLogic administration
Weblogic Administration Server
Server instance
PIA
Servlet or application
Administration Console
PORTAL
PSEMHUB
PSIGW
Multi-Server Domains
The multi-server domain configuration is intended for production environments. This configuration
takes advantage of WebLogic’s administration server and managed server architecture. In a multi-server
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
425
WebLogic Managed Server Architecture
Appendix B
configuration, multiple instances of WebLogic server are used, each contributing a specific function. The
WebLogic console is provided on the domain’s administration server, WebLogicAdmin, and the J2EE
components of PIA are provided on individual or shared WebLogic managed servers.
A production application warrants process and resource pool isolation for greater stability and optionally
tighter security controls, which this configuration provides. In a multi-server configuration, the resources
used for WebLogic domain administration and monitoring are isolated from similar resources used to
support the PIA application. A server process named WebLogicAdmin performs nothing but WebLogic
administration, which includes domain administration and monitoring. Continuing that separation, the
individual PIA servlets are (usually) isolated from each other. The PIA servlets are targeted and deployed
across a portion of the six remaining server definitions, all of which are classified asmanaged servers,
which are delivered in the multi-server configuration.
A multi-server domain in a PeopleSoft implementation creates the following servers:
WebLogicAdmin
Administration server for WebLogic domain administration.
PIA
Server for the PeopleSoft Interaction Hub and integration
gateway.
PIA1
Server for the PeopleSoft Interaction Hub and integration
gateway.
PIA2
Server for the PeopleSoft Interaction Hub and integration
gateway.
PSEMHUB
Server for the PeopleSoft Environment Management
Framework application.
RPS
Server for WebLogic reverse proxy server applications.
Multi-Server Servlet Deployment
Some of the servlets deployed in a multi-server domain configuration must be accessed using a modified
URL:
http://server:port/servlet_name/...
The multi-server domain configuration deploys servlets as follows:
426
Application
Deployed to Server, Cluster (
members)
Servlets Name in URL
PORTAL
PIA, PeopleSoftCluster (PIA1, PIA2)
(not needed)
PSIGW
PIA, PeopleSoftCluster (PIA1, PIA2)
PSIGW
PSEMHUB
PSEMHUB
PSEMHUB
PSINTERLINKS
PIA, PeopleSoftCluster (PIA1, PIA2)
PSINTERLINKS
Console
WebLogicAdmin
console
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
Application
Deployed to Server, Cluster (
members)
Servlets Name in URL
HttpProxyServlet
RPS
(not needed)
HttpClusterServlet
Defined but not deployed.
(not needed)
Multi-Server Domain Specific Default Settings
To configure the multi-server domain specific settings, launch the Administration Console. In the
Domain Structure tree, expand Environment, select Servers and click on the appropriate servlet, server, or
application. Then select the Configuration tab, and the General sub-tab.
The domain specific default settings for the WebLogicAdmin server are as follows:
WebLogicAdmin Setting
Default Value
Listen Address
* (all local IPs)
Listen Port
9999
SSL Listen Port Enabled
Disabled
The domain specific default settings for the PIA server are as follows:
PIA Setting
Default Value
Listen Address
* (all local IPs)
Listen Port
80 (set during PIA setup)
SSL Listen Port Enabled
Enabled with demonstration self-signed digital certificates.
HTTPS Listen port
443 (set during PIA setup)
The domain specific default settings for the PIA1 server are as follows:
PIA1 Setting
Default Value
Listen Address
Locally determined hostname.
Listen Port
80 (set during PIA setup)
SSL Listen Port Enabled
Enabled with demonstration self-signed digital certificates.
SSL Listen Port
443 (set during PIA setup)
The domain specific default settings for the PIA2 server are as follows:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
427
WebLogic Managed Server Architecture
Appendix B
PIA2 Setting
Default Value
Listen Address
127.0.0.1
Listen Port
80 (set during PIA setup)
SSL Listen Port Enabled
Enabled with demonstration self-signed digital certificates.
SSL Listen Port
443 (set during PIA setup)
The default web application for the PSEMHUB server is PSEMHUB. The domain specific default
settings for the PSEMHUB server are as follows:
PSEMHUB Setting
Default Value
Listen Address
* (all local IPs)
Listen Port
8001
SSL Listen Port Enabled
Disabled
In the console, navigate to Environments, RPS, Configuration, General to configure the RPS server. The
default web application for the RPS server is HttpProxyServlet. The domain specific default settings for
the RPS server are as follows:
RPS Setting
Default Value
Listen Address
* (all local IPs)
Listen Port
8080 (set during PIA setup)
SSL Listen Port Enabled
Enabled with demonstration self-signed digital certificates.
SSL Listen Port
8443 (set during PIA setup)
Note: To configure SSL, you must also define SSL certificates.
See Implementing WebLogic SSL Keys and Certificates.
Example: Multi-Server Domain
The following illustrates the elements running within a typical multi-server domain:
Server
Process Type
WebLogic and PIA Elements
Single server machine
WebLogic administration
WebLogic Administration Server (
WebLogicAdmin)
WebLogic Node Manager
428
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
Server
Process Type
WebLogic and PIA Elements
Managed Server
PIA 1, PIA 2 for PeopleSoft Interaction
Hub
Managed Server
PIA for PSIGW
Managed Server
RPS for httpproxyservlet to proxy
content for PIA 1 and PIA 2
Distributed Managed Servers
The distributed managed server configuration, although listed alongside the single-server and multiserver domain types, is not atrue domain type. It's an optional extension for an existing multi-server
configuration. As with the multi-server domain type, this configuration takes advantage of WebLogic’s
managed server architecture. The distributed managed server configuration is intended for production
environments encompassing multiple machines.
A distributed managed server configuration enables you to spread a logical WebLogic domain
configurationphysically across multiple machines in a heterogeneous network. One server machine might
act as the domain administration server, while the other server machines act as distributed managed
servers, running various manages servers, such as PIA1, PIA2, and so on. Typically, you would also take
advantage of the WebLogic Node Manager, which enables a system administrator to control the managed
servers remotely.
See your WebLogic Node Manager documentation.
In a distributed, multi-server configuration you can have multiple machines, multiple collections of
resources and program files, multiple web server processes, and a replicated domain configuration file.
In this model, if any of system resources or server instances becomes unavailable, work shifts to the
next instance of that resource. In the multi-server configuration, an increase in PeopleSoft Interaction
Hub usage, for example, can be accommodated by configuring an additional WebLogic server instance
or machine to also serve the PeopleSoft Interaction Hub. Using distributed manages servers provides
flexibility in shaping your hardware allocation to meet your system demands.
Benefits of the Distributed Managed Server
A distributed managed server configuration provides the same benefits as a multi-server configuration
with the added benefit of hardware isolation. This option requires a multi-server installation to be
performed to some other location, which will contain the configuration for this distributed managed
server.
The fundamental benefits of a multi-server configuration include:
•
Dedicated service providers: Web servers can be dedicated to providing PeopleSoft Interaction Hub
and are insolated from other portions of PIA such as PeopleSoft Integration Gateway or PeopleBooks.
•
Redundant service providers: Multiple web servers can be used to serve different aspects of PIA,
providing load balancing and failover support.
•
Distributed resources: Multiple web server machines can be used, each capable of serving different or
redundant aspects of PIA.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
429
WebLogic Managed Server Architecture
•
Appendix B
Centralized and replicated configuration: Master domain configuration is centralized and distributed
server information is replicated locally.
The server configuration settings for a distributed managed server are maintained by that domain’s
administration server are stored locally on that administration server. Configuration settings are replicated
to a managed server during its startup, but are only maintained as a read-only backup copy for that
individual managed server in the event that the administration server isn't available the next time this
particular managed server needs to be started.
Note: Only one managed server can be run per distributed managed server domain directory. If you
intend to run multiple distributed managed servers on a single machine, perform the PIA install and create
unique distributed managed server domain directories, one for each distributed managed server that you
intend to run on that machine.
Example: Distributed Managed Server
The following illustrates the multiple servers, their roles, and the various elements running on the multiple
server machines within a sample distributed managed server configuration:
Server
Role
WebLogic and PIA Elements
Server 1
Domain Administration Server
WebLogic Administration Server (
WebLogicAdmin)
Server 2
Distributed Managed Server
PIA1 (for PeopleSoft Interaction Hub)
PIA2 (for PeopleSoft Interaction Hub)
WebLogic Node Manager
Server 3
Distributed Managed Server
PIA3 (for PeopleSoft Interaction Hub)
PIA4 (for PeopleSoft Interaction Hub)
WebLogic Node Manager
Server 4
Distributed Managed Server
PIA (for Integration Gateway)
WebLogic Node Manager
Server 5
Distributed Managed Server
RPS (for httpproxyservlet
WebLogic Node Manager
Common Default Settings
Single-server and multi-server domain configurations have many settings in common.
Domain Defaults
Many of these common settings can be configured in the WebLogic Server Console, but some are
configured in other environments. Default values are listed when available.
430
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
Setting
Default Value
Where To Configure In the
Administration Console
SSL functionality
Enabled with demonstration self-signed
digital certificates.
Environment, Servers server name,
Configuration, Keystores tab and SSL
tab.
Command line: pskeymanager
Server logs
Weblogic domain\logs\server name_*.log Environment, Servers, server name,
Logging.
HTTP access log
Disabled
Environment, Servers, server name,
Logging, HTTP.
HTTP keep-Alive
30 seconds
Environment, Servers, server name,
Protocols, HTTP.
HTTPS keep-Alive
60 seconds
Environment, Servers, server name,
Protocols, HTTP.
Low memory settings
various
Environment, Servers, server name,
Configuration, Tuning.
Stuck Thread Max Time
600
Environment, Servers, server name,
Configuration, Tuning.
Stuck Thread Timer Interval
60
Environment, Servers, server name,
Configuration, Tuning.
Enable Administration Port
Disabled
Click the domain name (such as
peoplesoft) in the Domain Structure
section, then select Configuration,
General.
PORTAL HTTP session monitoring
On (applies only to servers running
PORTAL)
Deployments, Applications, peoplesoft,
PORTAL, Monitoring.
System administrator user ID
system (set during PIA setup)
Security Realms, myrealm, Users and
Groups, Users.
System administrator password
password (set during PIA setup)
Security Realms, myrealm, Users and
Groups, Users.
System operator user ID
operator
Security Realms, myrealm, Users and
Groups, Users.
System operator password
password
Security Realms, myrealm, Users and
Groups, Users.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
431
WebLogic Managed Server Architecture
Appendix B
Setting
Default Value
Where To Configure In the
Administration Console
System monitor user ID
monitor
Security Realms, myrealm, Users and
Groups, Users.
System monitor password
password
Security Realms, myrealm, Users and
Groups, Users.
Script and Environment Defaults
Modify these settings by editing a setEnv script or applying command line parameter overrides to
WebLogic control scripts.
The following settings specify the names and structure of various directories on the web server machine.
Setting
Default Value
Description/Override
PS_HOME
(none)
PeopleSoft home directory (set during
PIA setup).
BEA_HOME
(none)
High-level install directory (set
during PIA setup). Where Tuxedo and
WebLogic may be installed.
WL_HOME
(none)
WebLogic home directory (set during
PIA setup).
DOMAIN_NAME
peoplesoft
Name of this WebLogic domain (set
during PIA setup).
JAVA_HOME
(Depends on the operating system
platform.)
Location of Java. Set during PIA setup
or with a call to WebLogic's CommEnv
script.
Note: You configure Java VM options including JVM memory size using the
JAVA_OPTIONS_OSplatform parameter, during PIA setup.
The following are miscellaneous settings.
432
Setting
Default Value
Description/Override
HOSTNAME
Local hostname
Set during PIA setup.
PRODUCTION_MODE
TRUE
Enable WebLogic production mode (set
during PIA setup).
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
Setting
Default Value
Description/Override
DISCOVERY_MODE
FALSE
Disable auto detection of unregistered
applications.
Script: setEnv
WLS_USER
Operator
Use to stop WebLogic with stop scripts
and run it as a Windows service.
WLS_PW
Password
Use to stop WebLogic with stop scripts
and run it as a Windows service.
ADMINSERVER_PROTOCOL
HTTP
Protocol used for managed server to
connect to administration server (not
used in single-server domain).
ADMINSERVER_HOSTNAME
Single-server: local hostname.
Administration server’s hostname that
managed servers attempt to connect to
by default when started. Set during PIA
setup (except distributed server).
Multi-server: local hostname.
Distributed server: (none — set
manually).
ADMINSERVER_PORT
Single-server: HTTP port of PIA server.
Multi-server: 9999.
Distributed server: (none — set
manually).
ADMINSERVER_SERVERNAME
Single-server: PIA.
Multi-server: WebLogicAdmin.
Administration server’s Listen port that
managed servers attempt to connect to
by default when started. Set during PIA
setup (except distributed server).
WebLogic server instance name of this
domain's administration server, used for
stopping and starting the server.
Distributed server: WebLogicAdmin.
WL_VERSION
Detected major WebLogic version.
WebLogic major version, such as 10.
WL_SERVICEPACK
Detected minor WebLogic version.
WebLogic service pack level.
WL_PATCH
Detected WebLogic patch version.
WebLogic patch level.
BACKGROUND_PROCESS
TRUE
Run WebLogic server as a background
process. On UNIX you can force
foreground execution using the start
script’s -foreground option.
The following are debugging output settings.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
433
WebLogic Managed Server Architecture
Appendix B
Setting
Default Value
Description/Override
SET CAPTURE_STDOUT_STDERR
FALSE
(Windows only) Capture standard output
and standard error of a WebLogic server
running as a foreground process. You
can also set this with the start script’s –
capture option.
ENABLE_JDPA_DEBUG
FALSE
(PeopleSoft development only) Enable
JDPA debug support. You can also set
this with the start script’s –debug option.
ENABLE_VERBOSE_GC
FALSE
Enable verbose output of Java’s garbage
collector. You can also set this with the
start script’s –verbose:gc option.
ENABLE_VERBOSE_SSL
FALSE
Enable SSL debug support. Produces
verbose SSL output. You can also set this
with the start script’s –verbose:ssl option.
ENABLE_VERBOSE_WL
FALSE
Enable verbose output for the core
WebLogic server (not verbose output of
PIA). You can also set this with the start
script’s –verbose:wl option.
MAX_FILE_DESCRIPTORS
4096
The number of open file descriptors set
for any Weblogic server process.
The following are HTTP forward proxy support settings.
434
Setting
Default Value
Description/Override
ENABLE_HTTP_PROXY
FALSE
Enable the use of the forward http proxy.
HTTP_PROXY_HTTPHOST
(none)
IP address or hostname of the forward
HTTP proxy server for HTTP requests.
HTTP_PROXY_HTTPPORT
(none)
HTTP Port number of the forward HTTP
proxy server for HTTP requests.
HTTP_PROXY_HTTPSHOST
(none)
IP address or hostname of the forward
HTTP proxy server for HTTPS requests.
HTTP_PROXY_HTTPSPORT
(none)
HTTP Port number of the forward HTTP
proxy server for HTTPS requests.
HTTP_PROXY_NONPROXY_HOSTS
localhost,local hostname,
anddomainname.
Host names and domain names of
content servers that will not be proxied.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
WebLogic Domain Directory Structure and Files
This section discusses:
•
WebLogic domain directory structure.
•
WebLogic domain file listing by type.
•
J2EE application files.
WebLogic Domain Directory Structure
In a PeopleSoft implementation, the WebLogic domains are installed into your PS_HOME directory. The
major components of the directory structure layout of a PIA install on WebLogic Server are:
Directory
Description
PIA_HOME\webserv
Parent, high-level WebLogic domain directory.
PIA_HOME\webserv\peoplesoft
Default WebLogic domain directory.
PIA_HOME\webserv\peoplesoft\applications\peoplesoft
PeopleSoft application directory.
PIA_HOME\webserv\peoplesoft\bin
WebLogic domain's bin directory, containing numerous
administration scripts.
PIA_HOME\webserv\peoplesoft\config
WebLogic domain's configuration directory.
PIA_HOME\webserv\peoplesoft\servers\PIA\logs
WebLogic domain's log directory.
PIA_HOME\webserv\peoplesoft\keystore
WebLogic key store location for storing keys for configuring
SSL.
WebLogic Domain File Listing by Type
This section lists the WebLogic domain files installed by the PeopleSoft installation, organized by file
type. Where necessary, each table includes columns that indicate whether a given file is used in a singleserver, multi-server, or distributed server configuration.
This listing does not include Java classes or PIA configuration files. On UNIX an equivalent Bourne shell
script is provided where a Windows script is listed.
The following table lists WebLogic server administration scripts. All the life cycle scripts are stored in
PIA_HOME\webserv\domain\bin.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
435
WebLogic Managed Server Architecture
Appendix B
Script
Single-Server
Multi-Server
Distributed Server
Description
setEnv.cmd
X
X
X
Use this script
to set required
environment variables
for the WebLogic
server, for example:
CLASSPATH, PATH,
UNIX Library Path,
and JVM options.
startPIA.cmd
X
Use this script to start
the WebLogic domain’s
administration server
(the PIA server)
in a single-server
configuration.
On Windows this
starts WebLogic
as a foreground
process. On UNIX this
starts WebLogic as a
background process.
Run the script with –
help for usage.
startWebLogicAdmin.
cmd
X
Use this script to start
the WebLogic domain’s
administration server
(the WebLogicAdmin
server) in a multi-server
configuration.
On Windows this
starts WebLogic
as a foreground
process. On UNIX this
starts WebLogic as a
background process.
Run the script with –
help for usage.
startManagedWebLogic.
cmd
X
X
Use this script to start
a WebLogic managed
server. All WebLogic
servers in a WebLogic
domain other than the
administration server
are WebLogic managed
servers.
Run the script with –
help for usage.
436
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
Script
Single-Server
stopPIA.cmd
X
Multi-Server
Distributed Server
Description
Use this script to stop
the WebLogic PIA
server.
Run the script with –
help for usage.
stopWebLogic.cmd
X
X
Use this script to stop
WebLogic servers.
Run the script with –
help for usage.
InstallNTservicePIA.
cmd
X
(Windows only) Use
this script to install the
WebLogic PIA server
as a Windows service.
The service name is
WebLogic_domain-PIA.
Run the script with –
help for usage.
InstallNTservice.cmd
X
X
(Windows only)
Use this script to
install a WebLogic
server as a Windows
service. The service
name is WebLogic_
domain-server_name.
Run the script with –
help for usage.
uninstallNTServicePIA. X
cmd
(Windows only) Use
this script to uninstall
the WebLogic PIA
server Windows
service.
Run the script with –
help for usage.
uninstallNTService.
cmd
X
X
(Windows only)Use
this script to uninstall
a WebLogic server
Windows service.
Run the script with –
help for usage.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
437
WebLogic Managed Server Architecture
Appendix B
Script
Single-Server
Multi-Server
Distributed Server
Description
pskeymanager.cmd
X
X
X
Use this script to
manage the JKS
keystore used by
WebLogic Server,
which is in WebLogic_
domain\keystore\pskey.
SSL certificates for
WebLogic Server are
stored in this keystore.
PeopleSoft Integration
Gateway can also share
this keystore.
Run the script with –
help for usage.
startWebLogicBuilder.
cmd
X
X
X
Use this script to start
WebLogic Builder,
which is used to change
local application
deployment descriptors.
createThreadDump.
cmd
X
X
X
Use this script to create
a JVM Thread dump.
Run the script with –
help for usage.
The following table lists WebLogic server configuration files stored in PS_HOME/webserv/domain/
config.
File
Single-Server
Multi-Server
config.xml
X
X
msi-config.xml
438
X
Distributed Server
Description
This file stores the
WebLogic domain
configuration,
including information
about server names,
ports, IP addresses,
webapps, and SSL.
Edit these settings
using the WebLogic
administration console:
http://webserver:port/
console.
X
This is a version of
config.xml that's
copied for use with a
distributed managed
server configuration.
It's automatically
replicated from the
original config.xml
after a managed server
successfully starts.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
File
Single-Server
Multi-Server
Distributed Server
Description
boot.properties
X
X
X
THis file contains the
WebLogic system ID
and password used
for administering the
WebLogic domain.
fileRealm.properties
X
X
X
This file is used by
WebLogic's internal
LDAP server for
system administration.
DefaultAuthenticatorInit. X
ldift
X
X
This file is used by
WebLogic's internal
LDAP server for
system administration.
DefaultRoleMapperInit. X
ldift
X
X
This file is used by
WebLogic's internal
LDAP server for
system administration.
SerializedSystemIni.dat X
X
X
This file is used by
WebLogic's internal
LDAP server for
system administration.
The following table lists PeopleSoft J2EE application scripts, which are all used with Integration Broker,
and can be used with every WebLogic server configuration.
Script
Description
BatchProjectExecutor.bat
Use this script for Integration Broker batch EIP testing.
HashKeyGenerator.bat
Use this script to generate a hash key used for Integration
Gateway playback.
MessageExport.bat
Use this Integration Broker script for extracting transaction
data from request and response data.
StartSendMaster.bat
This is a Integration Broker test utility.
The following table lists miscellaneous files, which can be used with every WebLogic server
configuration.
File
Description
Businterlink.txt
This file is used by PeopleSoft’s Business Interlinks servlet for
loading PeopleSoft libraries when needed.
piaInstallLog.xml
This is the PIA install log.
PSCipher.bat
Use this script for encrypting Integration Broker passwords.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
439
WebLogic Managed Server Architecture
Appendix B
Related Links
Integration Broker Administration
J2EE Application Files
In addition to WebLogic domain configuration files, application descriptors are installed with the
PeopleSoft J2EE enterprise application. The following table lists these descriptor files. The path shown
for each file is relative to PIA_HOME\webserv\WebLogic_domain\applications\.
440
File
Description
peoplesoft\META-INF\MANIFEST.MF
Use this script to set required environment variables for the
WebLogic server, for example: CLASSPATH, PATH, UNIX
Library Path, and JVM options.
peoplesoft\META-INF\application.xml
This file contains a list of the webapps that comprise the
PeopleSoft J2EE enterprise application.
peoplesoft\PORTAL\WEB-INF\web.xml
This file is the web application descriptor for the PORTAL
webapp. It lists all of the servlets deployed as part of that
application.
peoplesoft\PORTAL\WEB-INF\weblogic.xml
This file is the PORTAL web application extension descriptor.
It specifies, among other things, the HTTP session cookie
name, optional cookie domain, and context path of this
application.
peoplesoft\PSIGW\WEB-INF\web.xml
This file is the web application descriptor for the PeopleSoft
Integration Gateway (PSIGW) webapp. It lists all of the
servlets deployed as part of that application.
peoplesoft\PSIGW\WEB-INF\weblogic.xml
This file is the PSIGW web application extension descriptor. It
specifies the context path of this application.
peoplesoft\PSEMHUB\WEB-INF\web.xml
This file is the web application descriptor for the PeopleSoft
Environment Framework (PSEMHUB) webapp. It lists all of
the servlets deployed as part of that application.
peoplesoft\PSEMHUB\WEB-INF\weblogic.xml
This file is the PSEMHUB web application extension
descriptor. It specifies the context path of this application.
peoplesoft\PSINTERLINKS\WEB-INF\web.xml
This file is the web application descriptor for the PeopleSoft
Business Interlinks (PSINTERLINKS) webapp. It lists all of
the servlets deployed as part of that application.
peoplesoft\PSINTERLINKS\WEB-INF\weblogic.xml
This file is the PSINTERLINKS web application extension
descriptor. It specifies the context path of this application.
HttpProxtServlet\WEB-INF\web.xml
This file is the web application descriptor for the WebLogic
Server Reverse Proxy Server (RPS) webapp that's used to
proxy content from a single WebLogic server. It lists all of the
servlets deployed as part of that application.
HttpProxyServlet\WEB-INF\weblogic.xml
This file is the single-server RPS web application extension
descriptor. It specifies the context path of this application.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
File
Description
HttpClusterServlet\WEB-INF\web.xml
This file is the web application descriptor for the WebLogic
Server Reverse Proxy Server (RPS) webapp that's used to
proxy content from a cluster of WebLogic servers. It lists all of
the servlets deployed as part of that application.
HttpClusterServlet\WEB-INF\weblogic.xml
This file is the multi-server RPS web application extension
descriptor. It specifies the context path of this application.
PIA Install and Reinstall Options
The PeopleSoft Internet Architecture (PIA) installer enables you to create a new WebLogic server domain
or update a valid existing WebLogic domain. A valid domain is a domain built by the PIA installer in the
PS_HOME directory that you specify.
Depending on which option you select, you're prompted for additional information relevant to that
selection. When creating a new domain, you're prompted to select from three configuration types: Singleserver, multi-server and distributed managed server. If you select to update an existing domain, you're
prompted to indicate which domain you would like to update and what type of update you would like to
perform. These options are described in detail in your PeopleTools installation documentation.
For more information, see PeopleTools Installation for your database platform: "Setting Up the
PeopleSoft Pure Internet Architecture in GUI Mode."
Administering a WebLogic Server Life Cycle
This section provides an overview of the WebLogic server life cycle and discusses how to:
•
Start and stop single-server processes.
•
Start and stop multi-server processes.
•
Start and stop a distributed managed server.
Related Links
Starting WebLogic
Stopping WebLogic
Understanding the WebLogic Server Life Cycle
You control a WebLogic server’s life cycle primarily using a collection of scripts provided in that
server’s WebLogic domain directory. Each instance of a WebLogic server runs in an isolated Java
Runtime Environment (JRE), regardless of whether you're testing with a single-server configuration
or implementing a multi-server configuration for production. All scripts must be launched from the
WebLogic domain directory; and provide usage syntax if run with –help.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
441
WebLogic Managed Server Architecture
Appendix B
Starting and Stopping Single-Server Processes
In a single-server configuration, there's only one server to administer: PIA. You can control the life cycle
of the PIA server using scripts or in the WebLogic console.
Scripts
For all platforms:
startPIA
Use this script to start the WebLogic server locally.
stopPIA
Use this script to connect to a locally running WebLogic server
and issue a shutdown command through WebLogic APIs.
Note: When you shut down the server, a warning is displayed since the shutdown command uses a nonSSL http connection to connect to the WebLogic Server. This shutdown command can be changed to use
the SSL connection by editing the stopPIA.sh script. To use the SSL connection the shutdown command
will be the following.
For Windows only:
installNTservicePIA
Use this script to register the PIA WebLogic server as a
Windows service that runs as a background process. the
service is named as WebLogicDomainName-PIA, for example:
peoplesoft-PIA.
uninstallNTservicePIA
Use this script to deregister the PIA Windows service.
WebLogic Console
A WebLogic server can also be shut down from the Administration Console. Sign in to the console at
http://webserver:port/console and perform either of the following.
Note: Before you perform any action in the WebLogic console, you have to click the Lock and Edit
button and then the Activate Changes button after the changes are done.
Image: Shutting down from the console
This example illustrates the fields and controls on the Shutting down from the console. You can find
definitions for the fields and controls later on this page.
In the navigation tree on the left, expand your domain, click Environment, Servers. Click PIA and select
the Control tab. Select the check box for the server that you would like to shutdown, and click Shutdown.
You have these options:
442
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
When work completes
This option enables transactions in progress to complete before
shutting down the server. To terminate all HTTP sessions
immediately, you can first select Ignore Sessions During
Shutdown.
Force Shutdown Now
Immediately terminate all HTTP sessions and transactions in
progress, and shut down the server.
Starting and Stopping Multi-Server Processes
In a Multi-server configuration, as the title implies there are multiple servers to administer. Controlling
the life cycle of these servers can be done via scripts, the WebLogic console and the WebLogic Node
Manager.
Scripts
For all platforms:
startWebLogicAdmin
Use this script to start the WebLogicAdmin server.
startManagedWebLogic
Use this script to start a WebLogic managed server. All
of the servers defined in a multi-server domain, except
the WebLogicAdmin server, are controlled as managed
servers. For example, to start PIA1 as a managed server run
startManagedWebLogic PIA1.
stopWebLogic
Use this script to connect to a locally running WebLogic server
and issue a shutdown command using WebLogic APIs. A
remote distributed managed server can be shut down using a
local administration server.
For Windows only:
installNTservice.cmd
Use this script to register a WebLogic server as a Windows
service that runs as a background process. The service is named
as WebLogicDomainName-ServerName. For example, to
define the PIA1 managed server as a Windows service, run
installNTservice PIA1. To define the WebLogicAdmin server as
a Windows service, simply run installNTservice.
UninstallNTservice.cmd
Use this script to deregister a WebLogic server that's defined as
a Windows service.
Consider the following when using scripts with managed servers:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
443
WebLogic Managed Server Architecture
Appendix B
Operating System
Consideration
All
When starting a WebLogic managed server it will attempt
to connect to its administration server. A managed server’s
administration server is specified either as a command
line parameter when starting the managed server, or using
the three administration server environment variables
in setEnv, specifically ADMINSERVER_PROTOCOL,
ADMINSERVER_PORT, and ADMINSERVER_
HOSTNAME. The first time a managed server starts, it must
connect to its administration server. If on subsequent startups
the administration server is not available, the managed server
starts up in Managed Server Independence (MSI) mode
by using its locally replicated msi-config.xml. A managed
server running in MSI mode can't be administered from a
console, so this situation should only be encountered when it is
imperative that the managed server be started even though the
administration server is not running. Once the administration
server is back online, running managed servers that were
not previously known by the administration server to be
running may be rediscovered using WebLogic’s command line
utilityjava weblogic.Admin DISCOVERMANAGEDSERVER,
or you can just restart the managed server.
To use WebLogic’s java command line utility classes run
setEnv to set up your environment, then run java weblogic.
Admin for usage.
Windows
When running a WebLogic managed server as a Windows
service, the managed server’s administration server must be
running. When installing a managed server as a Windows
service, the managed server service can be configured to be
dependent on its local administration server. To configure a
managed server service to be dependent on its local admin
server service use the–depends option of installNTservice.cmd
when defining the Windows service for the managed server.
In addition, when the administration server is also a Windows
service, you must define it using the following command:
installNTservice.cmd –delay interval
Where intervalis a period in milliseconds, for example6000.
This allows the administration server sufficient time to start
before the managed server starts.
WebLogic Server Console
A WebLogic server can also be shut down from its administration console in the same way as single
server environments.
444
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
WebLogic Node Manager
The WebLogic Node Manager provides the ability to start a WebLogic managed server from the
WebLogic Server Console. In addition, the console provides a way to automatically restart a failed
server. As with all WebLogic servers, the WebLogic Node Manager runs isolated in its own JRE, and
on Windows it can also run as a Windows service. The WebLogic Node Manager binds to a unique IP
address and port at startup and accepts lifecycle commands from a WebLogic administration server.
Multiple WebLogic domains running on a singe machine can have its managed servers administered by a
shared WebLogic Node Manager, as long as each WebLogic domain uses the same version of WebLogic.
The following table lists the WebLogic Node Manager files that are provided with WebLogic server, not
the PIA install. These files are located in WLS_HOME\wlserver 10.3\server\bin\, not your WebLogic
domain directory created within the PeopleSoft directory structure.
File
Description
startNodeManager.cmd
Use this script to start the WebLogic Node Manager as a
foreground process.
installNodeMgrSvc.cmd
Use this script to define the WebLogic Node Manager as
a Windows service that runs as a background process. The
service is called WebLogic Platform NodeManager.
uninstallNodeMgrSvc.cmd
Use this script to uninstall the WebLogic Node Manager as a
Windows service.
nodemanager.properties
This is the WebLogic Node Manager configuration file.
WLS_HOME\wlserver 10.3\common\nodemanager\NodeManagerLogs\ is the default logs directory for
WebLogic Node Manager.
Additional configuration files are located in ...\common\nodemanager.
To configure Node Manager:
1. Start the Admin Server.
2. Signon to the Administration Console.
3. Select Environment, Machine.
Create one local machine (as in MachineLocal) for all of the managed servers running in the local
server and one remote machine (as in MachineRemoteX) for each of the managed servers running in
remote servers.
4. Configure machines.
Click each of the machines created. Under the Configuration tab, select the Node Manger tab.
Choose Plain from the Type drop down list.
For Listen Address, enter the IP address of the server on which Node Manager is running.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
445
WebLogic Managed Server Architecture
Appendix B
Enter the Node Manger port number into the Listen Port text box. The default port number is 5556.
This can be changed by updating the NodeManager.properties file.
5. Add managed servers.
Under the Servers tab, add the managed servers into the machine. For example, you may have two
managed servers running locally, with PIA1 andRPS assigned toMachineLocal.
6. Start the Node Manager.
Start the Node Manger from your local WebLogic install directory (BEA Home for the WebLogic
Sever on which your PeopleSoft domain is referring to). Node Manager can be started by
startNodeManager.cmd/.sh script under BEA_Home\wlserver_10.3\server\bin directory.
After the Node Manger has been started for the first time, a file called nodemanager.properties
appears under the BEA_Home\wlserver_10.3\common\nodemanager directory.
7. Modify the nodemanager.properties file.
Stop the Node Manger and open the nodemanager.properties file in a text editor, and make the
following changes and save the file.
SecureListener=false
ListenAddress= the IP of the box where the Node Manager is running
Note: In the same file you can see the default port number is set as ListenPort=5556. Changing the
port setting here and restarting the Node Manager will set the Node Manager to be listening on the
newly configured port number. The port setting here must match with the one set in the machine
configuration.
8. Restart the Node Manager.
9. Once the Node Manger is up and running, it should be reachable from the machine configured to
listen to the local Node Manager (as in, MachineLcoal). This can be confirmed by the Node Manager
Status tab under the Monitoring tab.
10. In the remote box hosting the managed server, follow the previous steps to configure the Node
Manager.
11. From the bin directory under your PS_Domain, run setEnv.cmd/sh to set up the environment.
12. Start WLST using the command java weblogic.WLST.
13. Connect the remote server to the Admin Server running on the local box.
Following is the syntax of the connect command:
connect('username','password','t3://Local Machine's IP:port on which the admin
server is running on Local machine')
14. Enroll the remote domain and Node Manger into the Admin Server running on the local box.
The command is nmEnroll with the following syntax:
446
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
nmEnroll('full path to the distributed PeopleSoft Domain ','BEA_Home\wlserver_10.3\common
\nodemanager')
For example:
nmEnroll('D:\PT850-809R2\webserv\Dis4103Installed603','D:\Wls103Installed603
\wlserver_10.3\common\nodemanager')
15. Once the domain and Node Manager have been enrolled, check the Admin Console to confirm that
the Node Manger can be reached from the server that was configured to listen to the remote Node
Manager.
Once a Node Manager is reached from a "machine," the Admin Console will be able to start and stop
the managed server assigned to that "machine."
The Servers tab shows the list of servers. The Control tab grants the control of those servers to the
Admin Console.
Starting and Stopping a Distributed Managed Server
In a multi-server configuration, a distributed managed server is simply a managed server that isn't started
from the same physical location as its domain’s administration server. You can control the life cycle of
these servers using scripts, the WebLogic Server Console and the WebLogic Node Manager.
See Starting and Stopping Multi-Server Processes.
Tuning Performance and Monitoring Resources
Monitoring the performance of a WebLogic instance is primarily performed in the Administration
Console. This section discusses how to:
•
Manage JVM heap size and execute thread usage.
•
Monitor HTTP session count for PeopleSoft Interaction Hub.
Related Links
Using WebLogic Server Administration Console to Monitor PeopleSoft Sessions
Managing JVM Heap Size
This section discusses how to:
•
Monitor JVM heap.
•
Change JVM heap size.
Monitoring JVM Heap
The JVM heap size is the amount of memory that a particular JRE (Java Runtime Environment) gives
to the JVM (Java Virtual Machine) that it creates. The java.exe command on Windows, java on UNIX
and beasvc.exe when running WebLogic as a Windows service is the JRE, and the JVM exists within the
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
447
WebLogic Managed Server Architecture
Appendix B
JRE’s memory space. The primary sources for monitoring the amount of memory that is in use within a
JVM are the Administration Console and the WebLogic logs.
To monitor the amount of the JVM heap size available and in use:
1. Sign on to the Administration Console by entering the following URL in a browser:
http://webserver:9999/console
Where webserver is the hostname of the WebLogic server.
2. Traverse the following in the navigation tree on the left:
a. Expand your WebLogic domain (for example, peoplesoft).
b. Expand Servers.
3. Click the server you intend to monitor (for example, PIA).
4. Select the Monitoring tab, and the Performance sub-tab.
Changing the JVM Heap Size
If you need to adjust any of the Java options, most commonly the JVM heap size, you must manually edit
that WebLogic domain’s local setEnv script. The parameters, -Xms and -Xmx, control the JVM memory
minimum and maximum heap size respectively.
Following are examples of the JVM heap size as specified in setEnv using the
JAVA_OPTIONS_OSplatform environment variable. You only need to set the variables that correspond to
the operating system where the WebLogic server is running.
See Adjusting the JVM Heap Size.
Note: If you do adjust any of the Java options, most commonly the JVM heap size, you must restart
WebLogic for these changes to take effect.
If you're running WebLogic Server as a Windows service you must rerun the installNTservice script to
propagate this change into the Windows registry.
The WebLogic Node Manager does not use the Java options set in setEnv, but instead uses Java options
set from the WebLogic console.
To modify the Java options for a WebLogic instance started via the WebLogic Node Manager:
1. Sign on to the WebLogic Server Console by entering the following URL in a browser:
http://webserver:9999/console
Where webserver is the hostname of the WebLogic server.
2. Expand your WebLogic domain (for example, peoplesoft) and click Environment, then Servers.
3. Select the managed server you intend to modify.
4. Select the Configuration tab, and the Server Start sub-tab.
5. Update the Arguments field.
448
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
6. Click Save.
Related Links
Adjusting the JVM Heap Size
Monitoring HTTP Session Count for PeopleSoft Interaction Hub
In addition to memory and thread usage, it's also possible to monitor the number of established HTTP
sessions used in conjunction with the PeopleSoft PORTAL application. This number, although not
necessarily directly related to current performance, is an indicator of the following performance factors:
•
JVM memory used to store HTTP session data.
•
Current number of logged on clients.
•
Peak number of logged on clients.
•
Idle time of logged on clients.
To monitor the total number of HTTP sessions:
1. Sign on to the Administration Console.
2. In the Domain Structure section, click Deployments and select the check box next to peoplesoft.
3. Select the Monitoring tab.
See the following My Oracle Support document for more information: Clustering and High Availability
for PeopleTools [ID 747378.1].
Changing Configuration Settings
This section provides an overview of the WebLogic server configuration files, and discusses how to:
•
Change the WebLogicAdmin server’s listen ports.
•
Change application and server deployment targets.
Understanding the WebLogic Server Configuration Files
WebLogic server configuration settings are stored in a collection of files, primarily these include: script,
config.xml, and the web.xml and weblogic.xml for each webapp.
Configuration File
Description
setEnv script
SetEnv contains statically and dynamically defined
environment variables. It's called from all of the WebLogic
administration scripts to assist in building the Java command
line. You modify this file using a text editor.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
449
WebLogic Managed Server Architecture
Appendix B
Configuration File
Description
config.xml
Config.xml contains server runtime settings, such as the HTTP
port. You modify this file using the Administration Console.
web.xml
Located in the WEB-INF directory of each servlet, providing
web application descriptors and settings relevant to their
application.
weblogic.xml
Changing the WebLogicAdmin Server’s Listen Ports
In the multi-server configuration, several parameters are set based on the environment detected and
delivered defaults. One such parameter is the HTTP port of the WebLogicAdmin server. By default the
WebLogicAdmin server’s HTTP listen port is 9999.
To change this value:
1. Start the WebLogicAdmin server using the startWebLogicAdmin script.
2. Sign on to the WebLogic Server Console by entering the following URL in a browser:
http://webserver:9999/console
Where webserver is the hostname of the WebLogic server.
3. Navigate to Servers, WebLogicAdmin, Configuration, General.
4. Modify the value of the Listen Port field.
5. Click Apply.
6. Restart the WebLogic server.
If you can't initially start the server due to a port conflict, you can manually edit the value of the
ListenPort parameter in that domain’s config.xml file. Creating a backup of config.xml is recommended
before manually changing this file.
After changing the ListenPort value in your domain’s config.xml, either directly or using the console, you
must also update your setEnv script. Update the ADMINSERVER_PORT environment variable to reflect
the new HTTP port. This setting is used by the stopWebLogic and startManagedWebLogic scripts as the
default administration server HTTP port.
Changing Application and Server Deployment Targets
With WebLogic, J2EE applications are targeted to any combination of WebLogic servers and WebLogic
clusters. A WebLogic cluster is a logical grouping of servers, generally all providing the same application,
though that's not a requirement. To change the servers or clusters that to which an application is targeted
and deployed, sign on to the Administration Console and update the application's target assignments. You
can view and modify application and server target assignments on the Deployments, Applications tabs,
and on the Targets tab for each server.
Following is an example of how to change the target assignments of the PeopleSoft Integration Gateway
(PSIGW) web application so it’s the only application targeted to the PIA server, and is the sole application
on that instance.
450
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix B
WebLogic Managed Server Architecture
To change the target assignments of the PeopleSoft Integration Gateway web application:
1. Sign on to the WebLogic Server Console.
2. In the Domain Structure section:
a. Expand peoplesoft.
b. Expand Deployments.
c. Expand Applications.
d. Expand peoplesoft.
3. Select PSIGW.
4. Select the Targets tab.
5. In the Clusters section, clear the peoplesoftCluster check box.
6. Click Apply.
7. In the navigation tree, select PORTAL.
8. Select the Targets tab.
9. In the Independent Servers grid, clear the check box for targeting the PORTAL to this server.
10. Click Apply.
11. Repeat steps 7 to 10 for the PSEMHUB and remaining servlets.
To deploy an application to a cluster, target the server to the cluster and target the application to the
cluster.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
451
Appendix C
PeopleSoft Timeout Settings
Web Server Timeouts
You specify web server timeouts using the Web Profile Configuration component (WEB_PROFILE). To
access these settings in PIA, select PeopleTools, Web Profile, Web Profile Configuration, then select the
appropriate page.
The following table provides basic information about the web server timeout settings, which are more
completely documented in the PeopleTools Portal Technology PeopleBook.
Page Element
Page Name
Description
Default
Inactivity Warning
Security
Specify how long the portal
1080 seconds (18 minutes)
should wait before warning
users that their browser
session is about to expire.
They can continue with their
current session by clicking the
OK button in the message.
If a user doesn't respond, the
session ends and the expired
connection page appears.
Suppress this warning by
setting this value to be greater
than the sessionTimeout
value.
Inactivity Logout
Security
Specify the inactivity timeout 1200 seconds (20 minutes)
interval of the PeopleSoft
application for which the user
is currently authenticated.
When the interval passes with
no user activity, the user's
browser displays the page
specified by the Expire Page Page field on the Web Profile
Configuration - Look and Feel
page.
Note: Depending on the
application implementation,
authenticated users might also
experience an HTTP session
inactivity timeout.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
453
PeopleSoft Timeout Settings
Appendix C
Page Element
Page Name
Description
Default
Authenticated Users - HTTP
Session Inactivity
Security
Specify the HTTP session
0 seconds for all profile types.
inactivity timeout interval that
applies to authenticated users.
When the interval passes
with no user activity, the web
server discards all session
information, including cached
page states. The next time
the user submits a request,
the web server creates a new
HTTP session.
If not set, the HTTP interval
for an authenticated user is the
same value as the inactivity
logout.
Public Users - HTTP Session
Inactivity
Security
Specify in seconds the
DEV, KIOSK profile: 1200
inactivity timeout interval
seconds (20 minutes).
that applies to public users.
TEST, PROD profile: not set.
When the interval passes
with no user activity, the web
server discards all session
information, including cached
page states. The next time
the user submits a request,
the web server creates a new
HTTP session.
Unlike authenticated users,
public users are not signed out
of their PeopleSoft application
when this interval expires.
However, PIA releases
their application states from
memory. If users click a
link, they regain access to
the application at the search
dialog. This setting prevents
an overload of web server
resources for inactive public
users.
454
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix C
PeopleSoft Timeout Settings
Page Element
Page Name
Description
Default
Disconnect Timeout
Security
Specify the amount of time to
wait before disconnecting the
Jolt connection.
0 seconds
A value of 0 seconds (the
default) means no limit.
This means that the client
connection must be retained
throughout the session. If the
connection becomes invalid
(due to one one of the other
timeouts) the session will be
expired.
Note: If you specify 0
seconds, the Jolt client
attempts to connect the Jolt
Server Handler (JSH) in
RETAINED mode. If any
positive value is specified, the
Jolt client attempts to connect
the JSH in RECONNECT
mode.
Send Timeout
Security
Specify the maximum time
50 seconds
permitted between the sending
of the Jolt Request by the
client servlet and its full
receipt on the application
server.
Note: You might need to
increase this value where a
large amount of data is being
sent to the application server,
or the network is slow.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
455
PeopleSoft Timeout Settings
Appendix C
Page Element
Page Name
Description
Default
Receive Timeout
Security
Specify how long the client
servlet should wait after
issuing a Jolt Request for a
response from the application
server.
1300 seconds
This value should be
considerably larger than the
Send Timeout. Make sure
that this value is also greater
than your application server
online service timeouts,
such as the Service Timeout
setting for PSAPPSRV that
appear in the PSAPPSRV.
CFG configuration file on the
application server.
Note: Ideally, this timeout
should also be greater than
the Tuxedo SANITY_SCAN
setting (BLOCKTIME *
SCANUNIT).
Related Links
"Configuring Portal Security" (PeopleTools 8.54: Portal Technology)
Session-Timeout
You specify the web server session-timeout using the Inactivity Logout property and HTTP Session
Inactivity property in the web profile.
Web Server Default System Timeout
PeopleSoft Interaction Hub normally depends on a content reference timeout setting to determine how
long to wait for a pagelet to load before it considers the pagelet to be unavailable. However, if the remote
server is unavailable, the content reference timeout setting is ignored. If the portal can’t establish a
connection to the remote host, it uses the default system timeout.
The default system timeout defaults to 20 seconds. If you expect the remote server to be slow or down
for longer than 20 seconds, you should specify a longer default system timeout, by configuring your web
server to set the defaultConnectTimeout JVM environment variable to an appropriate value using one of
the following procedures.
For example,
SET JAVA_OPTIONS_WIN32=-server -Xmsnnnm -Xmxnnnm -XX:MaxPermSize=nnnm
-Dsun.net.client.defaultConnectTimeout=default_timeout
Where default_timeout is the number of milliseconds that the portal should wait to establish the
connection to the host.
See Your web server documentation for instructions on modifying this JVM environment variable.
456
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix C
PeopleSoft Timeout Settings
Application Server Timeouts
All configurable settings for the application server require modification in PSADMIN:
Name
In This File
Description
Default
JOLT Listener/Client
CleanupTimeout
psappsrv.cfg
Specify the inactivity interval
permitted for the server-side
JoltSession.
10 minutes
Specifying too low a value
can cause unnecessary
reinstantiation of resources
for clients who surpass this
inactivity interval. However,
specifying too high a value
can keep unnecessary serverside resources allocated.
Note: This setting doesn't
affect the user experience, but
it has an impact on server-side
performance.
JOLT Listener/Init Timeout
psappsrv.cfg
Specify the amount of time
that's allowed for the JSL
process to start.
5 minutes
Note: It's not necessary to
adjust this setting.
Workstation Listener/Client
Cleanup Timeout
psappsrv.cfg
Specify the inactivity interval
permitted for the server-side
Workstation Listener Session.
60 minutes
Specifying too low a value
can cause unnecessary
reinstantiation of resources
for clients who surpass this
inactivity interval. However,
specifying too high a value
can keep unnecessary serverside resources allocated.
Note: This value is
required only for three-tier
connections.
Workstation Listener/init
Timeout
psappsrv.cfg
Specify the amount of time
that's allowed for the WSL
process to start.
5 minutes
Note: It's not necessary to
adjust this setting.
This value is required only for
three-tier connections.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
457
PeopleSoft Timeout Settings
Appendix C
Name
In This File
Description
Default
Spawn Threshold
psappsrv.cfg
Applies only if spawning is
enabled.
1,600:1,1
Specify the rates at which
PSAPPSRV processes spawn
and decay.
The spawn rate is determined
by the last two numbers, and
the decay rate is determined
by the first two numbers.
Using the default value as an
example, for the spawn rate
of 1,1 an extra PSAPPSRV
process is spawned if there is
at least 1 oustanding service
request on the application
server request queue for
1 second or more. This
spawning will continue
until the PSAPPSRV Max
Instances value is reached.
For the decay rate of 1,600
a server process is decayed
if less than 1 service request
is in the application server
request queue for 600 seconds
(ten minutes) or more.
Note: This parameter applies
only if, for PSAPPSRV,
the value of Max Instances
is greater than that ofMin
Instances.
458
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix C
PeopleSoft Timeout Settings
Name
In This File
Description
Default
Service Timeout
psappsrv.cfg
Each server process has its
own instance of this setting in
its section of the psappsrv.cfg
file.
PSAPPSRV: 300 seconds (5
minutes)
Specify the maximum
interval for services to run
in a given process. If a
service has not completed
within the specified interval,
Tuxedo terminates the server
processing and restarts the
server process.
PSQCKSRV: 300 seconds
For each server process,
specify the longest time that
any service is expected to
take.
PSSAMSRV: 300 seconds
PSQRYSRV: 1200 seconds (
20 minutes)
PSBRKHND_dflt: 1200
seconds
PSSUBHND_dflt: 1200
seconds
PSPUBHND_dflt: 1200
seconds
Note: A value of 0 produces
an indefinite timeout for any
service.
Restart Period
psappsrv.cfg
Specify how long each
dispatcher should wait before
redispatching a message if
the associated handler has not
started processing it.
psappsrv.ubx (which is the
template for psappsrv.env)
Specify the time period that
60 seconds (one minute)
a domain server process (
for example, PSAPPSRV,
PSWATCHSRV, PSSAMSRV)
is permitted to remain in
REStarting mode before it is
killed by Tuxedo. This setting
resolves processes hanging
during restart.
(PSBRKDSP_dflt,
PSSUBDSP_dflt, PSPUBDSP
_dflt)
TM_RESTARTSRV
TIMEOUT
120 seconds
Note: To modify this setting,
you must change the value in
the .UBX template file, then
recreate your domain.
Process Scheduler Timeouts
All configurable settings for PeopleSoft Process Scheduler require modification through domain
configuration within PSADMIN:
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
459
PeopleSoft Timeout Settings
Appendix C
Name
In This File
Description
Default
Process Scheduler/
Reconnection Interval
psprcs.cfg
Specify the interval between
attempts to reconnect to the
database when the connection
is lost.
300 seconds (5 minutes)
Process Scheduler/
Authentication Timeout
psprcs.cfg
Specify how long PeopleSoft 5 minutes
Security has to authenticate
a process that's released by
PeopleSoft Process Scheduler
The timer starts when Process
Scheduler initiates the request.
RemoteCall/RCCBL Timeout
psprcs.cfg
Specify the maximum interval 300 seconds (5 minutes)
for a remote call from an
Application Engine program
to run before it's terminated.
This is similar to a general
Tuxedo service timeout.
For Spawn Threshold, see the application server timeout settings.
Search Server Timeouts
The following are the configurable timeout settings for the search server.
460
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix C
PeopleSoft Timeout Settings
Name
File
Description
Default
Domain Settings / Spawn
Threshold
pssrchsrv.cfg
Applies only if spawning is
enabled.
1,600:1,1
This is the rate at which
PSSRCHSRV processes will
spawn and decay. The spawn
ratio is determined by the
last two digits. The decay
ratio is determined by the first
two digits. Using the default
value as an example, we see
that an extra PSSRCHSRV
process will be spawned if
there is at least 1 outstanding
service request on the request
queue for one second or
more. This spawning will
continue until Max Instances
is reached. For the decay
rate of 1, 600, if less than
1 service request is on the
request queue for ten minutes
(600 seconds), a server
process is decayed.Note:
This value is only relevant
if PSSRCHSRV / Max
instances > PSSRCHSRV /
Min Instances.
PSSRCHSRV / Service
Timeout
pssrchsrv.cfg
This parameter indicates the
300 secs
duration in seconds to run a
Search service within a Search
domain.
TM_
RESTARTSRVTIMEOUT
pssrchsrv.ubx (and then
UBBGENned into pssrchsrv.
env)
The time period that a domain 60 secs
server process PSSRCHSRV,
is allowed to remain in
Restarting mode before it
is killed by the BBL. This
resolves processes hanging
during restart. This setting is
defaulted in the $PS_CFG
_HOME/appserv/Search/*.
UBX files. If this value needs
to changed, you must change
the value in the UBX template
file and then recreate your
domain.
PIA Timeouts
A number of additional timeouts may be set through PIA. These settings reflect changes at the database
level that may pertain to different groups of users.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
461
PeopleSoft Timeout Settings
Appendix C
Note: The timeout settings in PIA are optional and are not required to run PIA. However, an
understanding of how these settings can contribute to a user's session duration is important in the context
of other timeout values that appear in this topic.
Name
Navigation Path
Description
Default
Authentication Token
expiration time
PeopleTools, Security,
Security Objects, Single
Signon
Specify the interval during
which the system can trust
a single signon token (PS_
TOKEN) from the same or
another content provider.
720 minutes (12 hours)
Note: As long as users remain
signed in, the expiration of
PS_TOKEN does not affect
them. This setting is relevant
only for the GetCertificate
request during single signon.
Permission List - Time-out
Minutes
PeopleTools, Security,
Permissions & Roles,
Permission Lists
Specify an interval during
0 minutes
which a given permission list
applies. The interval starts for
a user to which the permission
list is assigned when that user
signs in. When the timeout
period elapses, the user's
online session is terminated.
If a user belongs to multiple
permission lists, the largest
timeout value from among
those permission lists is
applied to the user's session
during signon. The permission
list timeout is effective only
if its value is less than the
web server session-timeout.
This means that all of the
permission list timeouts for
a given user must be less
than the web server sessiontimeout to be effective.
However, the Inactivity
Warning timeout still applies.
Note: A value of 0 produces
an indefinite timeout.
Related Links
Web Server Timeouts
462
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix D
Ensuring Session Stickiness
Working With Session Cookie Names
Session stickiness, generally, refers to ensuring that the requests for a particular session get routed to the
same physical machine that serviced the first request for that session. This helps to reduce the situation
where sessions are lost as a result of requests for a session being routed to different servers.
For any of the following scenarios, all PeopleSoft web servers need to have the same session-cookie
name:
•
The Load-Balancer uses the PeopleSoft web server's session-cookie as the stickiness criterion.
•
Any of the any the supported proxy servers is used to forward requests to the PeopleSoft web servers.
Ensure that the session-cookie name is the same for all web server instances to which the Load Balancer
or proxy dispatches requests. The cookie name needs to be configured in the appropriate configuration
section of the Load-Balancer or proxy server.
Using PeopleSoft Interaction Hub and Content Providers
Typically, PeopleTools recommends that the portal and content sites run in separate PeopleSoft Internet
Architecture domains. If these sites are running in the same PeopleSoft Internet Architecture domain
(as in having multiple sites within the same domain, with one site for the portal and the other sites
for content), then there is no need to load-balance requests separately to the content sites, because the
requests will be routed to the same JVM's.
When the portal and content sites run in the same PeopleSoft domain as multiple sites, they share the
same session because the web application is the same for all sites. PeopleTools does not recommend
configuring portal and content sites in the same PeopleSoft domain for performance and reliability
reasons.
So assuming that portal and content sites are running in separate PeopleSoft domains, they will have
separate ports and, usually, separate hosts. In this case, if portal and content sites are using the same
physical load balancer, the routing rules will have to be set up for these sites separately.
When using PeopleSoft Interaction Hub and Content Providers:
•
The session-cookie name of PeopleSoft Interaction Hub and the Remote Content Provider must be
absolutely distinct. For example,
PeopleSoft Interaction Hub's session-cookie name: PTENPRTL-8080-PORTAL-PSJESSIONID
Content Provider's session-cookie name: PTFIN-9090-PORTAL-PSJESSIONID
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
463
Ensuring Session Stickiness
•
Appendix D
Neither of the systems' session-cookie name must be part of the other's session-cookie name. The
following example illustrates a bad choice of a session-cookie name:
PeopleSoft Interaction Hub's session-cookie name: PORTAL-PSJESSIONID
Content Provider's session-cookie name: PTFIN-9090-PORTAL-PSJESSIONID
•
If there are multiple PeopleSoft Interaction Hub or Content Provider web servers with Load-Balancer
or Proxy, see carefully choose a session-cookie name.
For example, consider an environment having a Load Balancer in front of two PeopleSoft Interaction
Hub web servers, with the session-cookie's name used as Load Balancer's stickiness criterion.
Suppose the name of the session-cookie is PTENPRTL-8080-PORTAL-PSJESSIONID. In this
case, both PeopleSoft Interaction Hub web servers must have the same session-cookie name:
PTENPRTL-8080-PORTAL-PSJESSIONID.
If this environment has an HCM Load balancer with four HCM web servers, with the sessioncookie name as stickiness criterion, each of the HCM web servers must have the same cookie, like
HTR-9090-PORTAL-PSJESSIONID and this name must be distinct from the name of the sessioncookie used for PeopleSoft Interaction Hub.
Working With Absolute URLs
PeopleSoft Internet Architecture constructs absolute URLs in certain scenarios (such as the Homepage
URL to which the user is re-directed after successful login). Certain Load Balancers and proxy servers
change the HOST header of the request to the target web server's name before forwarding the request.
This causes PeopleSoft to construct the URL with the host-name of the web-server, rather than the name
of the Load Balancer or proxy, which means that subsequent requests would be sent directly to the web
server, instead of routing requests by way of the Load Balancer or proxy. In order to ensure that URLs
can be constructed with the Load Balancer or proxy's host name, the Virtual Addressing page of the Web
Profile needs to be set with the Load Balancer or proxy information.
To modify virtual addressing information:
1. Select PeopleTools, Web Profile, Web Profile Configuration, and open the web profile configured for
the site.
2. Click on the Virtual Addressing tab and populate the Default Addressing section with the LoadBalancer or Proxy's host name, scheme and port.
Example: Suppose the system has been set up to be accessed through a Load Balancer which has a
host-name of mycompany.com and accepts http requests at port 8080. Suppose the PeopleSoft site's
name is ps. The URL for accessing the site would be as follows:
http://mycompany.com:8080/ps/signon.html
In this case, the Default Addressing section will need to be set with Protocol: http, Port: 8080, and
Host: mycompany.com.
3. Save the Web Profile.
4. Re-start the web server.
464
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix D
Ensuring Session Stickiness
Setting The Cookie Domain
Browsers enforce the rules stated by RFC 2965 for sending cookies to servers. If the cookie's domain is
not set when the browser receives the cookie, that cookie is associated with the server that sent the cookie.
If the cookie's domain has been set but does not match the name or the domain suffix of the server, then
the browser does not send the cookie. Therefore, not having the correct cookie domain can lead to failure
in maintaining a PeopleSoft session.
The cookie domain value is configured in web server-specific configuration by the PeopleSoft Internet
Architecture setup if the Authentication Token Domain value has been entered. If this field was left
blank during PeopleSoft Internet Architecture setup, either re-install PeopleSoft Internet Architecture or
configure the cookie domain manually in the web server-specific configuration.
Working with Load Balancer Timeouts
If session-stickiness is configured with a timeout on the Load Balancer, that timeout value must be higher
than the PeopleSoft Inactivity Logout timeout configured in the current Web Profile.
Keep in mind the session cookie name format. The session-cookie name must not start with a digit (0-9)
and must not contain dots.
Example of bad name for session-cookie: 11.12.13.14-80-PORTAL-JSESSIONID
Example of good name for session-cookie: FINTSTWEB-80-PORTAL-JSESSIONID
Configuring The Session Cookie Name for WebSphere
To configure session cookie name:
1. Open a browser and access the WebSphere Administrative Console.
2. Go to Enterprise Applications, and select the PeopleSoft application and select the Manage Modules
link.
3. Click on Portal.war.
4. Click on Session Management under Additional properties.
5. Make sure that the check box Override Session Management is enabled.
6. Click the Enable cookies link.
7. Set the cookie name.
The recommended format is:
<hostname>-<port>-PORTAL-PSJSESSIONID
Example: PSTST-8080-PORTAL-PSJSESSIONID
The default name of session-cookie is JSESSIONID.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
465
Ensuring Session Stickiness
Appendix D
8. Re-start the WebSphere Server to make this change effective.
Configuring The Cookie Domain for WebSphere
To configure the cookie domain:
1. Open a browser and access the WebSphere Administrative Console.
2. Go to Enterprise Applications, and select the PeopleSoft application and select Manage Modules link.
3. Click on Portal.war.
4. Click on Session Management under Additional properties.
5. Make sure that the check box Override Session Management is enabled.
6. Click Enable cookies link
7. Enter the value in the Cookie domain field.
8. Re-start the WebSphere Server to make this change effective.
Configuring the Session Cookie Name for WebLogic
The session cookie name is configured in weblogic.xml of the portal servlet (web application). This file
can be found in the following directory: <PIA_HOME>/webserv/<DOMAIN-NAME>/applications/
peoplesoft/PORTAL/WEB-INF
Locate the tag CookieName in weblogic.xml, as in the following example:
<session-param>
<param-name>CookieName</param-name>
<param-value>PSTST-8080-PORTAL-PSJSESSIONID</param-value>
</session-param>
The name of session cookie is assigned in the tag <param value>. In this example, the session-cookie
name is PSTST-8080-PORTAL-PSJSESSIONID.
Re-start the WebLogic Server to make this change effective.
Configuring Session Cookie Domain for WebLogic
Update the CookieDomain manually in weblogic.xml file, as in the following example:
<session-param>
<param-name>
CookieDomain
</param-name>
<param-value>
.company.com
</param-value>
In this example, the value .company.com is the domain that will be assigned to the session-cookie.
Re-start the WebLogic Server to make this change effective.
466
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix E
Troubleshooting Server Issues
Uploading Files Using Non-Latin Characters
When uploading an attachment file with a filename that uses non-Latin characters, such as Hebrew or
Japanese, the system uses the exact filename or UTF-8 % sequenced numbers. In previous releases, the
system renamed the file and converted to strings of numbers.
When uploading non-Latin characters, the following error can occur: "Attachment Filename is too long
(maximum is 64 characters)."
Solution For UNIX
To resolve this issue on UNIX servers:
1. Make sure that the corresponding language locale, such as the UTF-8 character set, is installed at the
operating system level.
Use "locale -a" to get the list of installed locales.
2. Use the LANG environment variable to set for the session that runs the application server to a valid
locale for the character set.
For example, en_US.utf8, iw_IL.utf8, ja_JP.utf8, and so on. See your "locale -a" output.
3. Use PSADMIN to set the Character Set parameter to the appropriate value, as in Character Set=utf8.
The character set values specified in the shell locale (LANG) and PSAPPSRV.CFG (Character Set)
must agree, and, in this case, PSAPPSRV.CFG requires utf8.
Note: If the shell locale is set to something other than the default of C, Tuxedo will issue warnings
when the application server boots. In such a case, add a symlink from $TUXDIR/prod/locales/
<your_shell_locale> to $TUXDIR/prod/locales/C to resolve that issue.
Solution For Windows
On a Windows-based application server, make sure the server operating system has the corresponding
language installed.
To resolve this issue on Windows servers:
1. Make sure that the corresponding language locale, such as CP932 (for Japanese) character set, is
installed at the operating system level.
Use the Regional and Language Options utility in the Control Panel to get the list of installed locales,
and use “chcp” in the command prompt window to see the current default code page.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
467
Troubleshooting Server Issues
Appendix E
2. Use Control Panel/Regional and Language Options to set the system locale for the session that runs
the application server with a valid language.
For example, on the Advanced tab for the Language for non-Unicode programs option, select
Japanese for the Japanese system locale of CP932.
3. Use PSADMIN to set the Character Set parameter so that it reflects the appropriate code set.
Using the Japanese example: the default code page CP932 (equivalent to SJIS) and the character set
value in PSAPPSRV.CFG must agree. So in this case, PSAPPSRV.CFG requires “sjis” to be set as the
character set, as in Character Set=sjis.
WebSphere: Port Set In the Host Header of a Request Returned
Incorrectly
This issue applies only to configurations involving the IBM WebSphere web server and either of the
following reverse proxy servers:
•
Microsoft IIS
•
Oracle Sun Java System Web Server
Scenario
This issue appears in the following situation (or similar). Assume there is PeopleSoft Interaction Hub
deployed on WebSphere 1, say Site A, which accesses a pagelet in a PeopleSoft Interaction Hub deployed
on WebSphere 2, say Site B. In front of Site A, there is reverse proxy server (Oracle Sun Java System
Web Server or IIS) configured.
In such a scenario, when a HTTP request is made to the PeopleSoft Interaction Hub on Site A through an
RPS port, Site A returns the HTTP request to fetch the remote pagelet from Site B. The HTTP response
from Site B contains the RPS port number instead of the HTTP port of Site A. This is due to the default
behavior of WebSphere, which reads the port number from the Request URL instead of from the HTTP
Header (HOST field).
See http://www-01.ibm.com/support/docview.wss?uid=swg1PK55330.
Solution
This default behavior can be altered by modifying the web container custom properties in WebSphere on
Site B.
To modify the custom properties:
1. Open the Administrative Console and select Servers, Server Types, WebSphere application servers,
server1, Web Container Settings, web container.
2. Set these custom properties:
•
468
trusted = false
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix E
Troubleshooting Server Issues
•
trusthostheaderport = true
•
com.ibm.ws.webcontainer.extractHostHeaderPort = true
3. Restart the web server.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
469
Appendix F
Replicating an Installed Environment
Understanding Environment Replication
Environment Replication involves taking a working, well-tested server elements, and copying the
PeopleTools binary and configuration files to a new location to create a new environment that required
only making minor modifications to the new configurations.
The server elements that can be replicated appear in the following:
Server Element
Description
PeopleSoft Internet Architecture
A web server environment consists of one or more site
directories under the PIA_HOME\webserv directory within
a singlePIA_HOME location. Each directory contains
configurations that point to a single application server domain
through a JSL port designation. Although a site may point to
more than one redundant application server machine name
for failover or load balancing purposes, each machine name
is given a unique JSL port number. AdditionalPIA_HOME
directory locations on the same web server machine are
considered separate environments.
application server domains
A single application server environment consists of one or
more domain directories under the \appserv directory within
a single PS_CFG_HOME location. Each domain contains
configuration settings that point to a single database. Multiple
domains can be configured to point to the same database for
failover or load balancing. Each domain has its own server
processes and must be configured to have unique WSL and
JSL port numbers.
Process Scheduler domains
A single Process Scheduler Environment consists of one or
more domain directories under the \appserv\prcs directory
within a single PS_CFG_HOME location. Each database
that needs to schedule processes must have its own Process
Scheduler server configured separately. The configuration
files are kept in their own directory location under the \prcs
directory.
Important! When you configure and run an Environment Management agent, hub, or viewer, files
associated with that Environment Management Framework are created and updated with information that
refers to the absolute directory structure of your PeopleSoft system. When you replicate your installed
environment, the information in those files is no longer valid for the new location. You must reconfigure
the Environment Management Framework to recognize the environment changes.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
471
Replicating an Installed Environment
Appendix F
Replicating a Web Server Environment
Use the following steps to replicate the web server environment:
1. Copy the web server PIA_HOME\webserv directory structure to a new location, whether it is a new
machine, or same machine with a new high levelPIA_HOME directory name.
2. Review the following configuration files to make sure they reflect the new location:
•
piainstall.xml: PS_HOME and host name
•
psconfig.sh: PS_HOME and path information
•
peopletools.properties: install location
3. Run PS_HOME\setup\PsMpPIAInstall\setup.exe or equivalent from the copied/cloned location.
4. Select Redeploy PeopleSoft Application.
5. Choose a site name.
6. Enter the application server name and port information.
Note: Be sure to enter a different JSL port value when replicating on the same machine.
Replicating PS_CFG_HOME
The application server and Process Scheduler domains exist within PS_CFG_HOME directory structure.
You replicate both of these server elements by using the Replicate Config Home option in PSADMIN.
The Replicate Config Home option enables you to clone a PS_CFG_HOME to a second location using
PSADMIN internal functions to ensure that the environment is correct and cloned domains are readily
bootable. The destination PS_CFG_HOME can reside on the same or a separate host. PSADMIN
accounts for and modifies any host-specific settings and omits files that do not require cloning, such as
log files.
This feature enables you to create a PS_CFG_HOME containing all the required domains that is reliable,
tuned, and configured correctly for your site and deploy it to multiple locations across the enterprise.
Replicating PS_CFG_HOME can be useful in a variety of scenarios, such as creating:
•
backup environments.
•
testing environments.
•
scaling environments.
•
failover environments.
Note: When replicating a source PS_CFG_HOME, PSADMIN overwrites the destination
PS_CFG_HOME and any domains currently existing within it. If the destination PS_CFG_HOME
contains domains, PSADMIN alerts you before proceeding.
472
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix F
Replicating an Installed Environment
Note: PS_CFG_HOME/data is also copied from the source PS_CFG_HOME to the destination
PS_CFG_HOME.
Note: File cache is also replicated in the destination PS_CFG_HOME. Consider that replicating a
PS_CFG_HOME with 30 domains with file cache will take longer to copy over a network to a remote
host than replicating a PS_CFG_HOME with two domains and no cache.
Important! Using the PSADMIN replication feature is not designed to support replication from one
operating system to another. For example, you cannot configure a domain on UNIX and then replicate
that domain on a Windows server. You can replicate between environments on the same operating system
platform only.
To replicate a PS_CFG_HOME:
1. Set PS_CFG_HOME to reflect the destination PS_CFG_HOME location.
2. Launch PSADMIN.
3. Select 5) Replicate Config Home from the PeopleSoft Server Administration menu.
-------------------------------PeopleSoft Server Administration
-------------------------------1)
2)
3)
4)
5)
q)
Application Server
Process Scheduler
Search Server
Service Setup
Replicate Config Home
Quit
Command to execute (1-5, q): 5
4. When prompted, enter the location of the destination PS_CFG_HOME and press ENTER.
5. When the process completes, verify the contents of the destination PS_CFG_HOME.
6. Use PSADMIN to make any adjustments to the replicated domain environment information as
needed.
For example, consider the following items for the new host:
•
database connectivity software location.
•
port availability
•
cache location
•
file system settings
•
(if replicating to the same machine) JSL and WSL port conflicts
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
473
Replicating an Installed Environment
Appendix F
Reconfiguring Replicated Environment Management Components
This section discusses how to:
•
Reconfigure an environment management agent.
•
Reconfigure the environment management hub.
•
Reconfigure the environment management viewer.
•
Update the GUID value of cloned databases.
Reconfiguring an Environment Management Agent
Configuring PSEMAgent in a replicated PS_HOME involves deleting the agent local cache and
modifying the PS_HOME location specified within the PSEMAgent configuration files.
Note: New_PS_HOME refers to the directory where PeopleTools is located in yourreplicated
environment. If the same PS_HOME location is used by your source and destination environment, you do
not need to make any changes.
To reconfigure the agent:
1. Delete all subdirectories below New_PS_HOME\PSEMAgent\envmetadata\data\
Note: Don’t delete the matchers.xml file in this location.
2. Delete the following directories:
•
New_PS_HOME\PSEMAgent\envmetadata\PersistentStorage
•
New_PS_HOME\PSEMAgent\envmetadata\scratchpad
•
New_PS_HOME\PSEMAgent\envmetadata\transactions
3. Modify StartAgent.bat (Windows), or StartAgent.sh (UNIX).
Ensure that references to the drive and path of the PSEMAgent directory are correct for the New
PS_HOME location.
4. Modify StopAgent.bat (Windows) or StopAgent.sh (UNIX).
Ensure that references to the drive and path of the PSEMAgent directory are correct for the New
PS_HOME location.
5. Verify the settings in the agent configuration file: New_PS_HOME\PSEMAgent\envmetadata\config
\configuration.properties.
Properties that specify path locations must be valid for the replicated agent in its new location, but the
same hub is still addressed by all agents.
•
474
hubURL
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix F
Replicating an Installed Environment
•
windowsdrivestocrawl
•
unixdrivestocrawl
Reconfiguring the Environment Management Hub
The Environment Management hub is replicated as part of replicating the web server environment. After
redeploying PeopleSoft Internet Architecture, clear the cache by performing the instructions below:
Note: New_PIA_HOME is the directory where PeopleSoft Internet Architecture is located in your
replicated environment.
To reconfigure the hub:
1. Delete all subdirectories below New_PIA_HOME\webserv\peoplesoft\applications\peoplesoft
\PSEMHUB\envmetadata\data\
Note: Don't delete the data.txt file in this location.
2. Delete the following directories:
•
New_PIA_HOME\webserv\peoplesoft\applications\peoplesoft\PSEMHUB\envmetadata
\PersistentStorage
•
New_PIA_HOME\webserv\peoplesoft\applications\peoplesoft\PSEMHUB\envmetadata
\scratchpad
•
New_PIA_HOME\webserv\peoplesoft\applications\peoplesoft\PSEMHUB\envmetadata
\transactions
Reconfiguring the Environment Management Viewer
In the replicated environment, local cache files need to be cleared for the New_PS_HOME\PSEMViewer
directory.
Note: New_PS_HOME is the directory where PeopleTools is located in your replicated environment.
To reconfigure the PSEMViewer:
1. Delete all subdirectories below New_PS_HOME\PSEMViewer\envmetadata\data\
Note: Don't delete the files in this location, just the subdirectories.
2. Delete the following directories:
•
New_PS_HOME\PSEMViewer\envmetadata\PersistentStorage
•
New_PS_HOME\PSEMViewer\envmetadata\scratchpad
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
475
Replicating an Installed Environment
Appendix F
Updating the GUID Value of Cloned Databases
When copying databases, it is extremely important to delete the GUID value in the new (copied) database.
If not deleted, the hub will assume that the old and new environments are the same, leading to confusing
environment records. To resolve this, set the value of the GUID field in the PSOPTIONS table to <space>
in the cloned database using the SQL tool at your site. The next time an application server connects to the
database, the system generates a new, unique GUID for the cloned database.
476
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix G
Working with PSADMUTIL
Understanding PSADMUTIL
The PSADMUTIL utility runs outside of PSADMIN for the purposes of:
•
preloading file or database cache.
•
purging database cache.
Preload cache projects as well as stored file and database cache repositories can be very large. Because of
this, it is not advantageous to have caching operations subject to Tuxedo timeout limits. PeopleTools uses
PSADMUTIL so that the operations it handles run independently of PSADMIN and Tuxedo.
When running the preload cache or purge cache options from PSADMIN, the PSADMIN utility calls
PSADMUTIL to perform these operations.
The PSADMUTIL utility can also be invoked outside of PSADMIN from the command line.
Using PSADMUTIL from the Command Line
The psadmutil.exe is located in the PS_HOME\bin\server directory for the application server installation.
The command line interface for psadmutil.exe uses the following syntax:
psadmutil -CT dbtype [-CS server name] -CD database_name -CO user_ID -CP user_⇒
password
-CI connect_ID -CW connect_password [-Preload [ProjectName]] [-Purge]
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
477
Working with PSADMUTIL
Appendix G
The following table describes the accepted command line parameters.
Parameter
Argument
Example
–CT
Specify the database type.
-CT ORACLE
Valid values are DB2ODBC, DB2UNIX,
INFORMIX, MICROSFT, ORACLE,
and SYBASE.
Note: Notice the spelling of
MICROSFT. DB2ODBC is the database
type for DB2 z/OS.
–CS
-CS pt-sun05
(Optional) Specify the name of the
database server for the database to
which you're connecting. Note. This
parameter is required only if you specify
INFORMIX or SYBASE as the database
type.
–CD
CD- FSDMO
Specify the name of the database to
connect to, as you would when signing in
to PeopleSoft.
–CO
Specify the PeopleSoft user ID you're
using to sign in.
-CO VP1
–CP
Specify the user password for the
PeopleSoft user ID you specified.
-CP VP1
-CI
Specify the connect ID used to connect
to the database server.
-CI people
-CW
Specify the password for the Connect ID
you specified.
-CW peop1e
-Preload [preload cache project]
Invokes the preload cache operation. If
this parameter is used, you must also
specify the name of the preload project.
-Preload PLC_HR_PAYROLL
Note: If you do not specify a cache
project name, the system reads the value
from the server configuration file (
PSAPPSRV.CFG or PSPRCS.CFG file),
based on the PS_SERVER_CFG file.
-Purge
Purges the cache for the specified
database.
-Purge
Note: This option only applies if
database caching is implemented.
478
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
Appendix G
Working with PSADMUTIL
Note: If any of these parameters are not specified, the system reads them from the PSAPPSRV.CFG
or PSPRCS.CFG file. For example, for security reasons, the database connection related parameters
do not need to be specified on the command line, and the system can get these values from the server
configuration files.
Note: Before running psadmutil.exe from the command line, make sure PS_SERVER_CFG and
PS_SERVDIR are set correctly. When PSADMIN calls psadmutil.exe, these environment variables are
already set by PSADMIN to the valid values.
Copyright © 1988, 2014, Oracle and/or its affiliates. All rights reserved.
479
